Seamaster Cosmic with loose movement

Urban
Posts
24
Likes
4
Hello all!

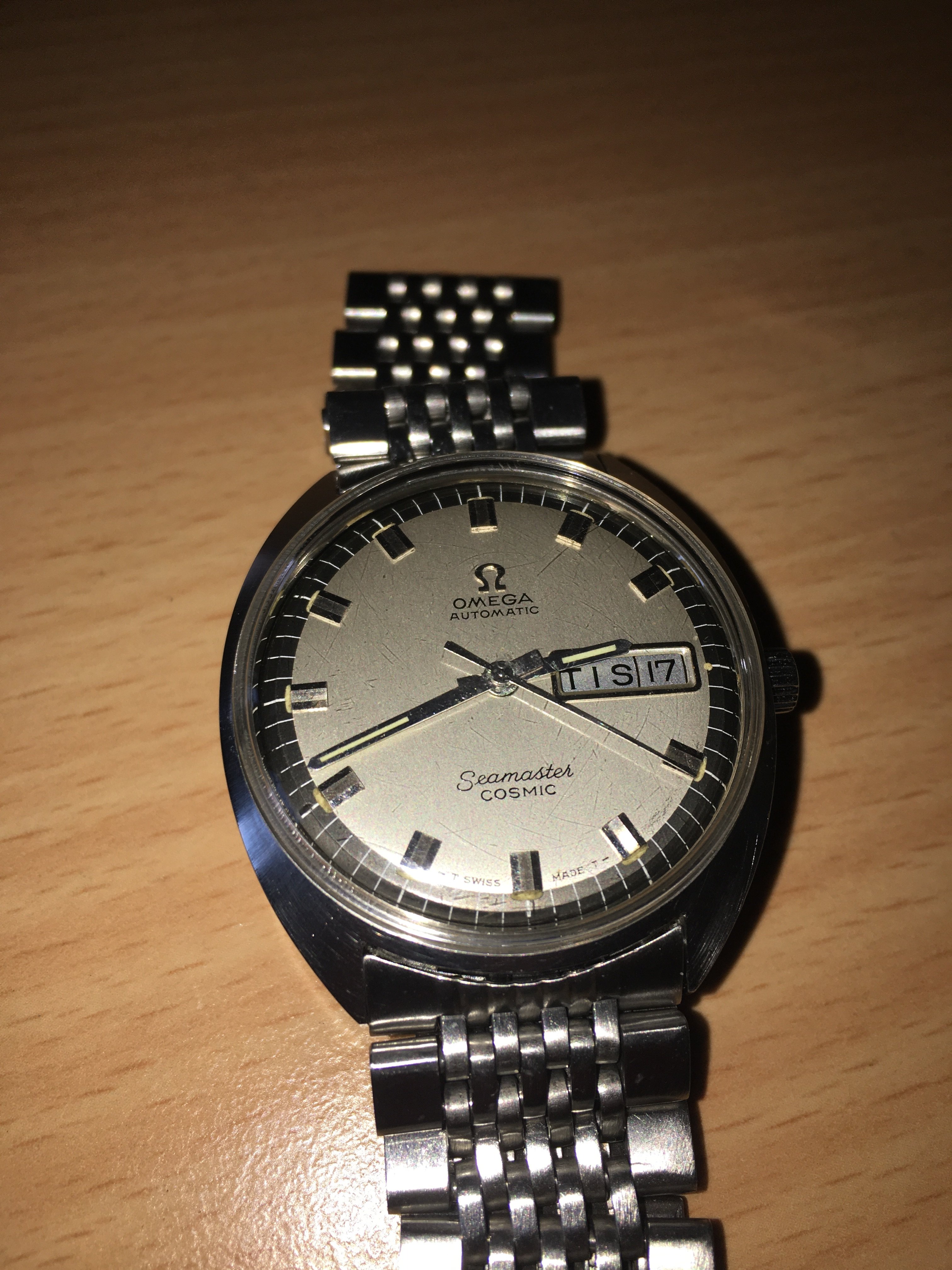

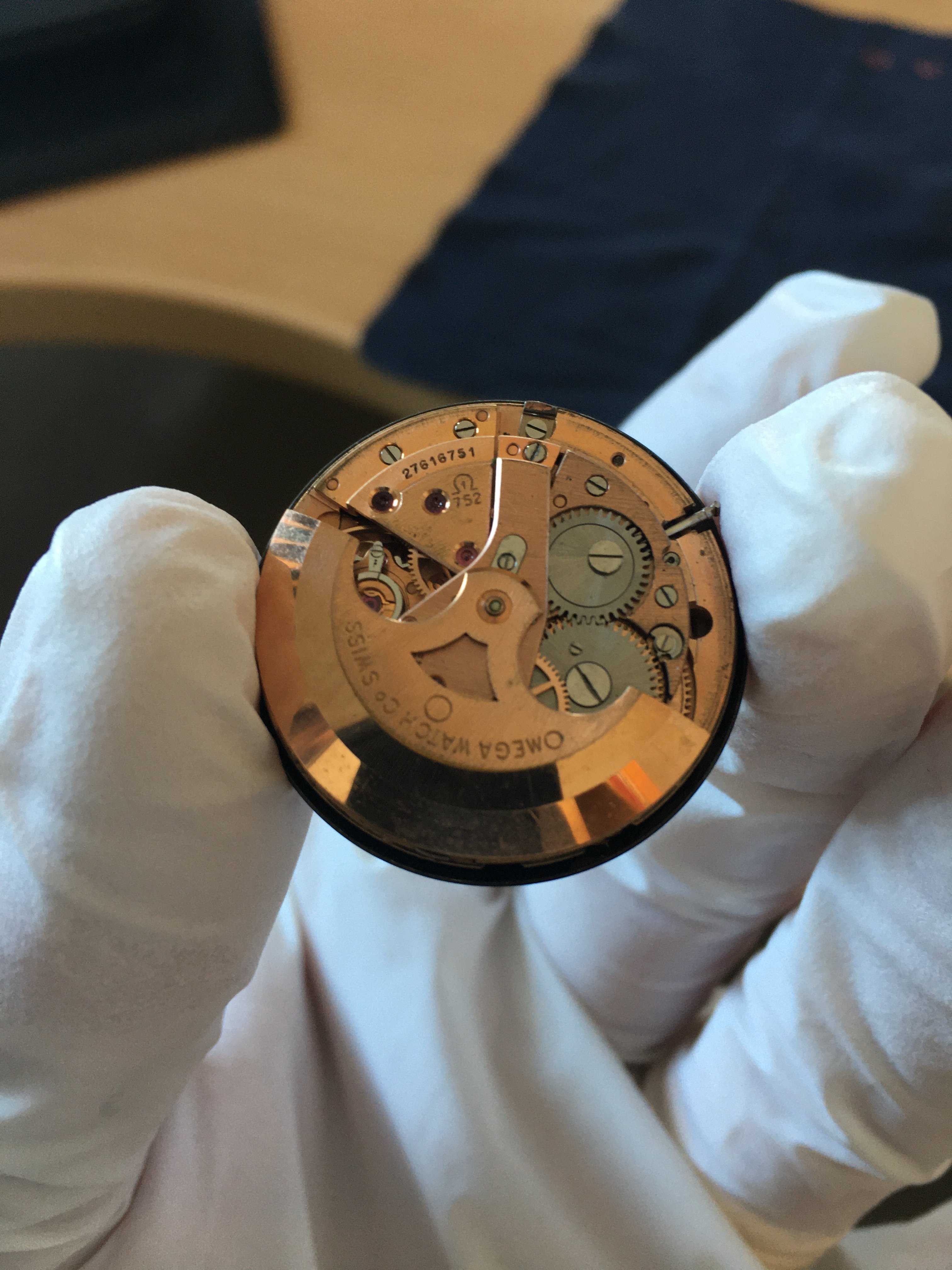

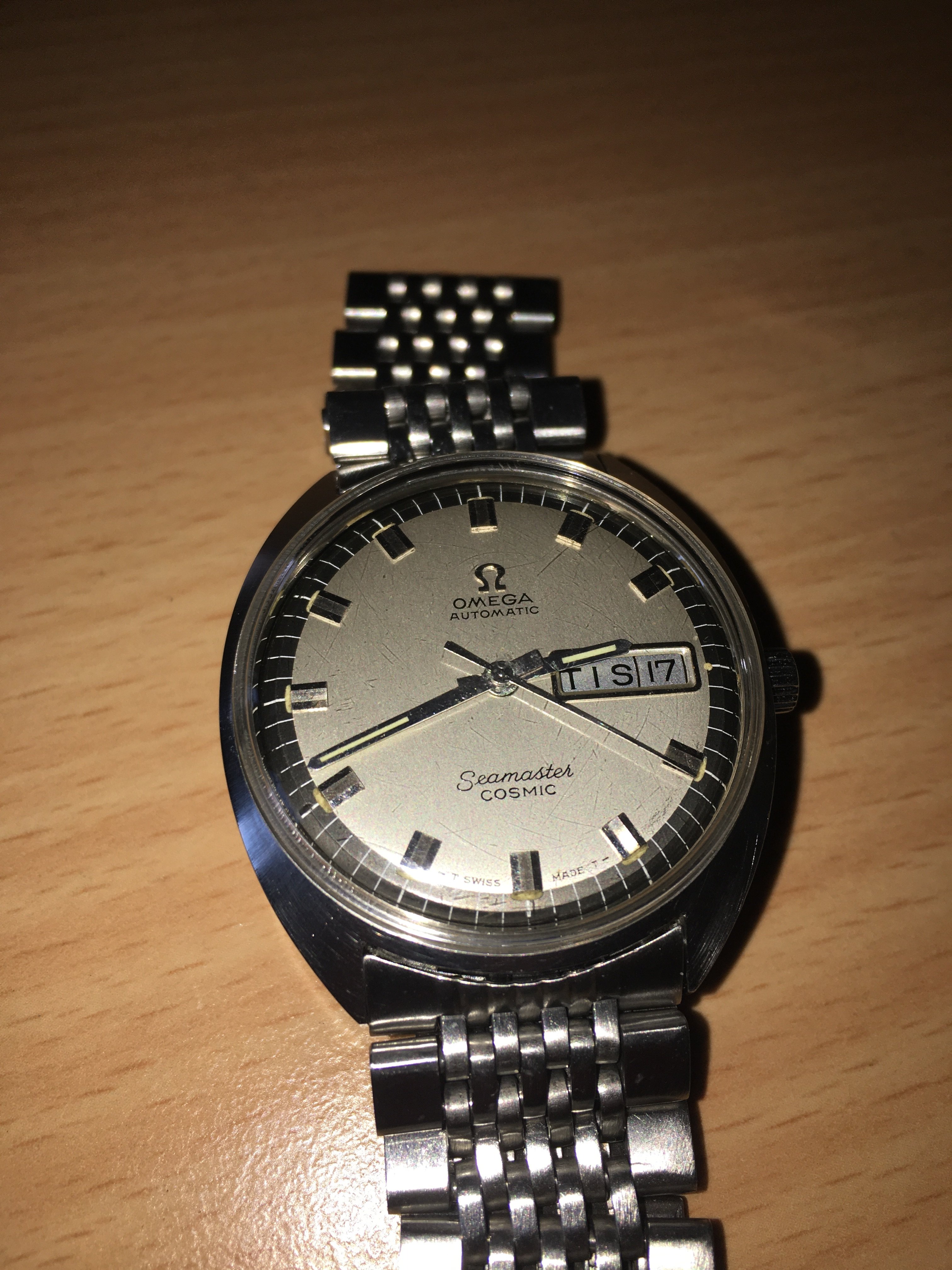

I’m brand new in The forum and also new at collecting Omega watches. I recently purchased a Seamaster Cosmic ref. 166.136 with a 752 movement. I immediately noticed that the movement was a little loose inside the case. When I shake the watch I can hear the movement bumping in the case.

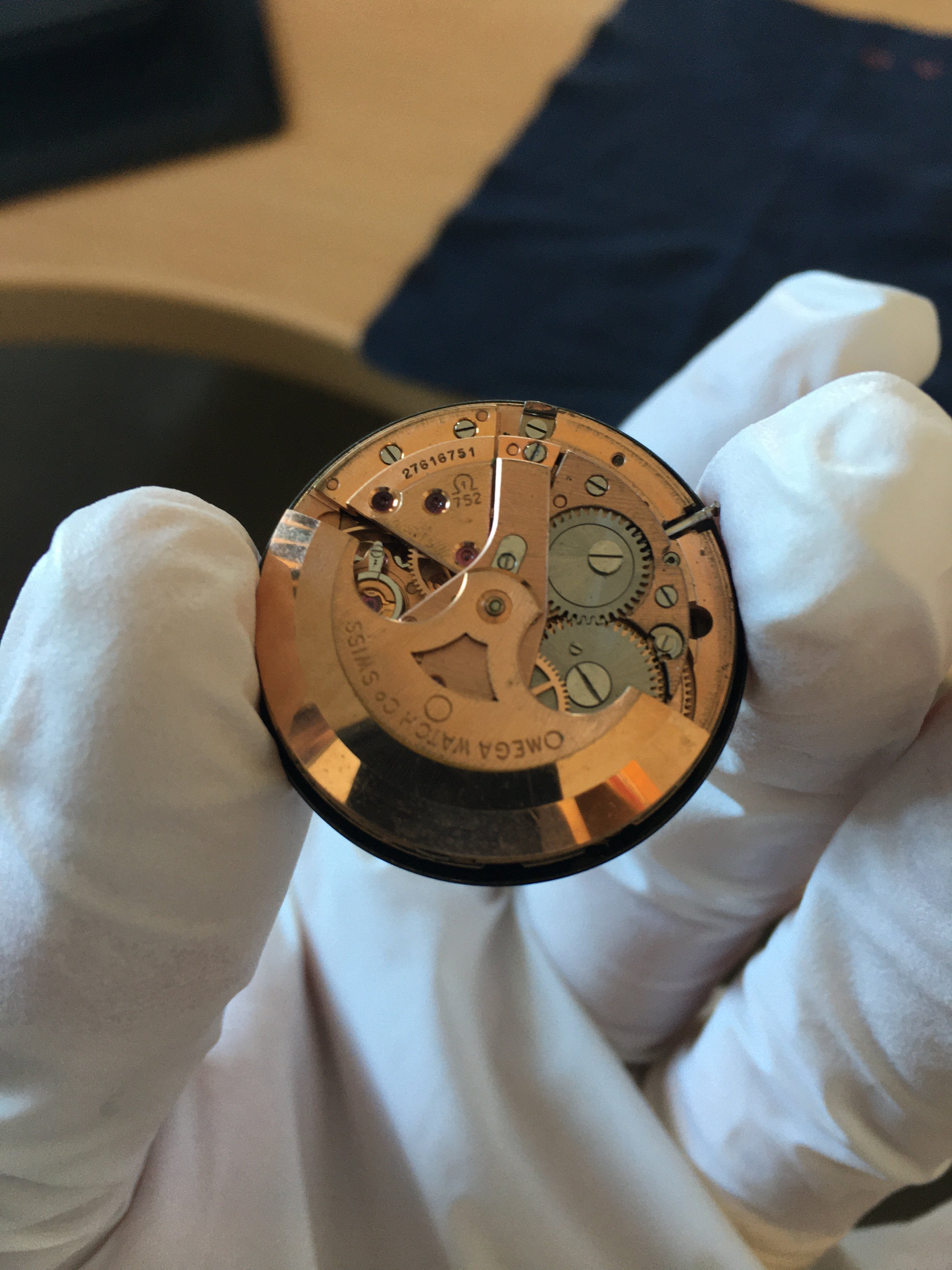

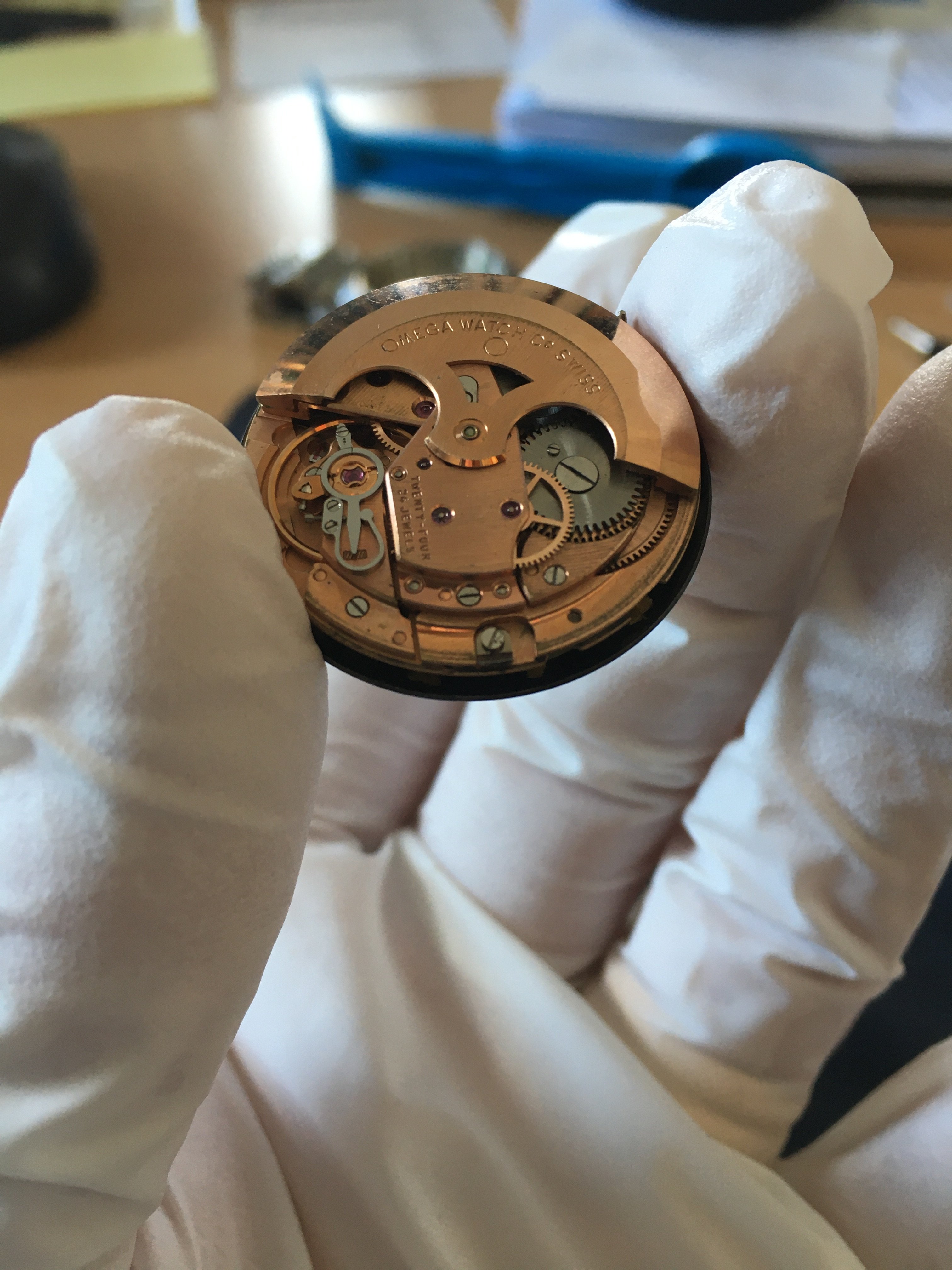

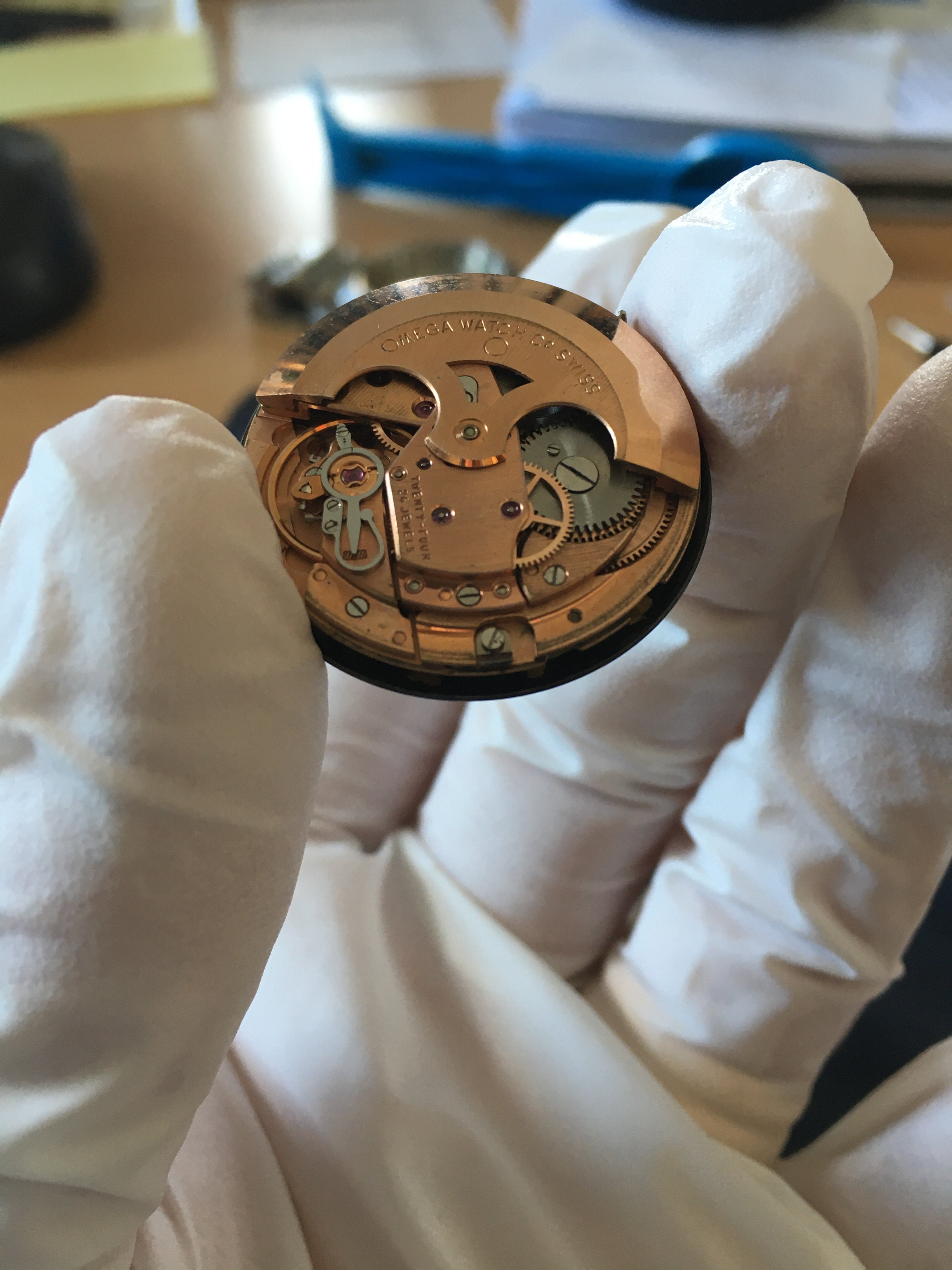

As you all know it’s a solid case back so you open it from the dial side. I opened it and could not see anything strange. A video on YouTube tells me that the movement with dial just slides in to the case, turning it a few degrees clockwise, and then the crystal goes back on. Still the same problem...

Anyone here who might know where the problem might be?

All help deeply appreciated!

14405859-A417-4DD5-80D9-327B8130A300.jpeg 76D52F38-D7EE-4BCF-98CF-27385277D118.jpeg 38BCD151-9BE5-454C-83B7-D455FF8AA3F0.jpeg
Archer
Posts
27,344
Likes
69,732
Based on photos hard to tell, but it appears that the crystal may be lacking the tension ring. Can you show just the crystal itself?

Urban
Posts
24
Likes
4
Archer Archer
Based on photos hard to tell, but it appears that the crystal may be lacking the tension ring. Can you show just the crystal itself?
You’re absolutely right, there was no tension ring... But should there be one on this model? I couldn’t see one when looking on a restoration video on YouTube. The crystal seem to fit tight to the case.

Archer
Posts
27,344
Likes
69,732
Urban Urban
You’re absolutely right, there was no tension ring... But should there be one on this model? I couldn’t see one when looking on a restoration video on YouTube. The crystal seem to fit tight to the case.

Yes, 100%

You have your answer. Case number should be 166.036, so crystal is - 063PZ5123

Description from Omega for that crystal is - MATERIAL: GLASS PLEXI STEEL RING

Cheers, Al

Gui13250
Posts
455
Likes
714
Urban Urban
You’re absolutely right, there was no tension ring... But should there be one on this model? I couldn’t see one when looking on a restoration video on YouTube. The crystal seem to fit tight to the case.
But isn’t the movement attached to the case? Only the tension ring put it in position in the case?

Archer
Posts
27,344
Likes
69,732
Gui13250 Gui13250
But isn’t the movement attached to the case? Only the tension ring put it in position in the case?

The movement isn't "attached" to the case. There are case "clamps" but they do not clamp in this style of case, they merely act as retainers that don't let the movement fall out. The movement is not held firmly by anything other than the crystal.

Gui13250
Posts
455
Likes
714
@Archer thanks.

is it specific to this case, or does it is the same for a 168.005 for exemple?

Urban
Posts
24
Likes
4
Archer Archer
Yes, 100%

You have your answer. Case number should be 166.036, so crystal is - 063PZ5123

Description from Omega for that crystal is - MATERIAL: GLASS PLEXI STEEL RING

Cheers, Al
Thank’s Al! The crystal only had a thin chrome edge around it. It didn’t look as a tension ring, and it seemed solid on the crystal edge... Do you know where I can find such a tension ring?

Really appreciate your help!

Archer
Posts
27,344
Likes
69,732
Gui13250 Gui13250
@Archer thanks.

is it specific to this case, or does it is the same for a 168.005 for exemple?

This is the case only for front loading cases generally...

Archer
Posts
27,344
Likes
69,732
Urban Urban
Thank’s Al! The crystal only had a thin chrome edge around it. It didn’t look as a tension ring, and it seemed solid on the crystal edge... Do you know where I can find such a tension ring?

Really appreciate your help!

Not really...

Archer
Posts
27,344
Likes
69,732
Urban Urban
Ok, I guess I have to contact an Omega dealer...

Well, you as a private individual won't be able to buy the crystal. It would have to be purchased by a watchmaker with an Omega parts account, and they could install it for you as well.

You could try to find a crystal somewhere using the part number I've given you - even a scratched up one with a good tension ring would work...

J
Posts
54
Likes
40
Gui13250 Gui13250
But isn’t the movement attached to the case? Only the tension ring put it in position in the case?

For all that I know (correct me where I'm wrong) the movement is "pressed down" into place by means of the crystal/tension ring, but then it should have kindof a bayonete guide since the other thing that retains the movement in place is the crown stem, which is made of two pieces. If it's not in proper shape, it will "jump out" when you try to set time/date and the whole face/movement will move counter-clockwise.

Urban
Posts
24
Likes
4
Archer Archer
Well, you as a private individual won't be able to buy the crystal. It would have to be purchased by a watchmaker with an Omega parts account, and they could install it for you as well.

You could try to find a crystal somewhere using the part number I've given you - even a scratched up one with a good tension ring would work...

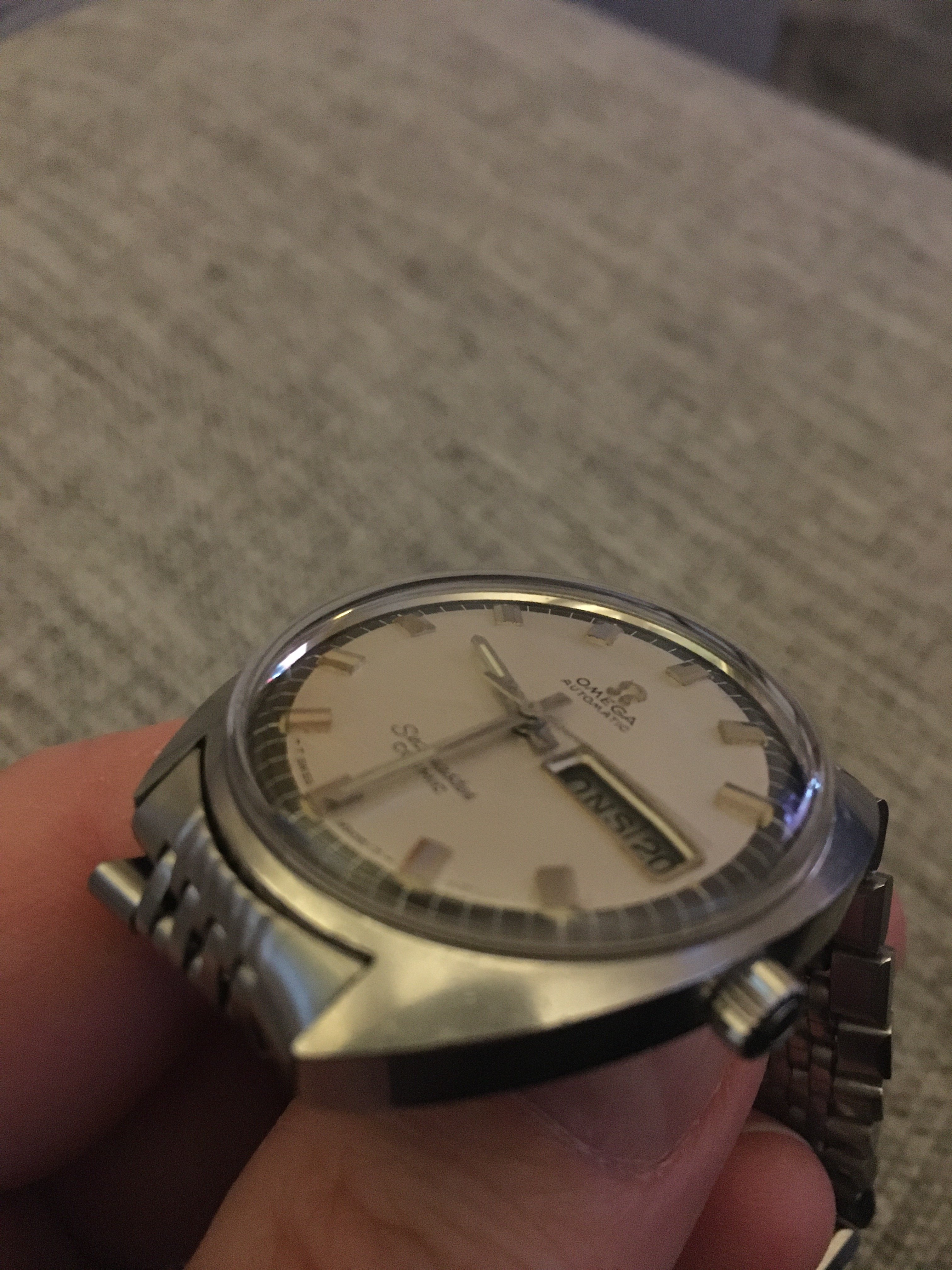

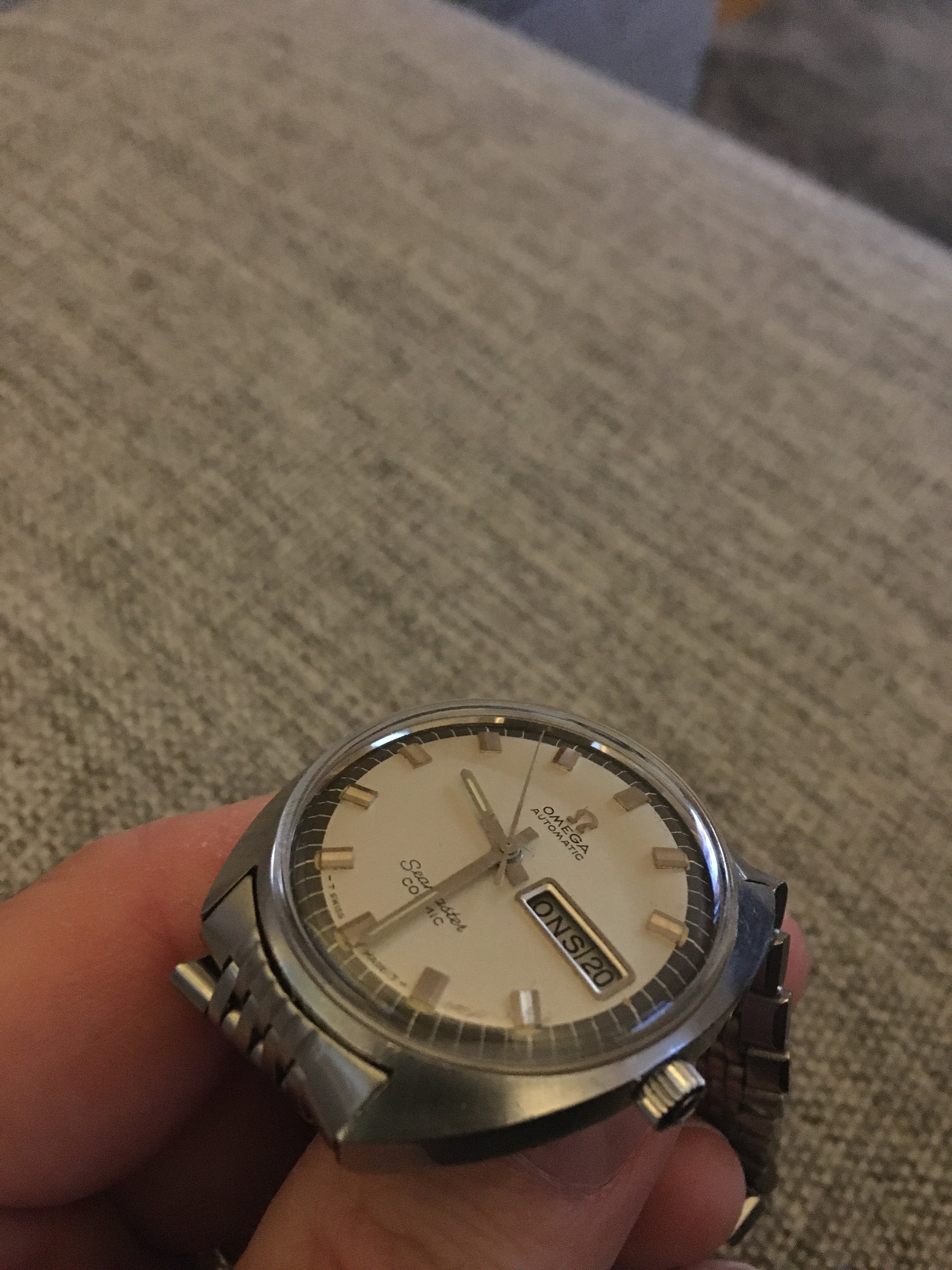

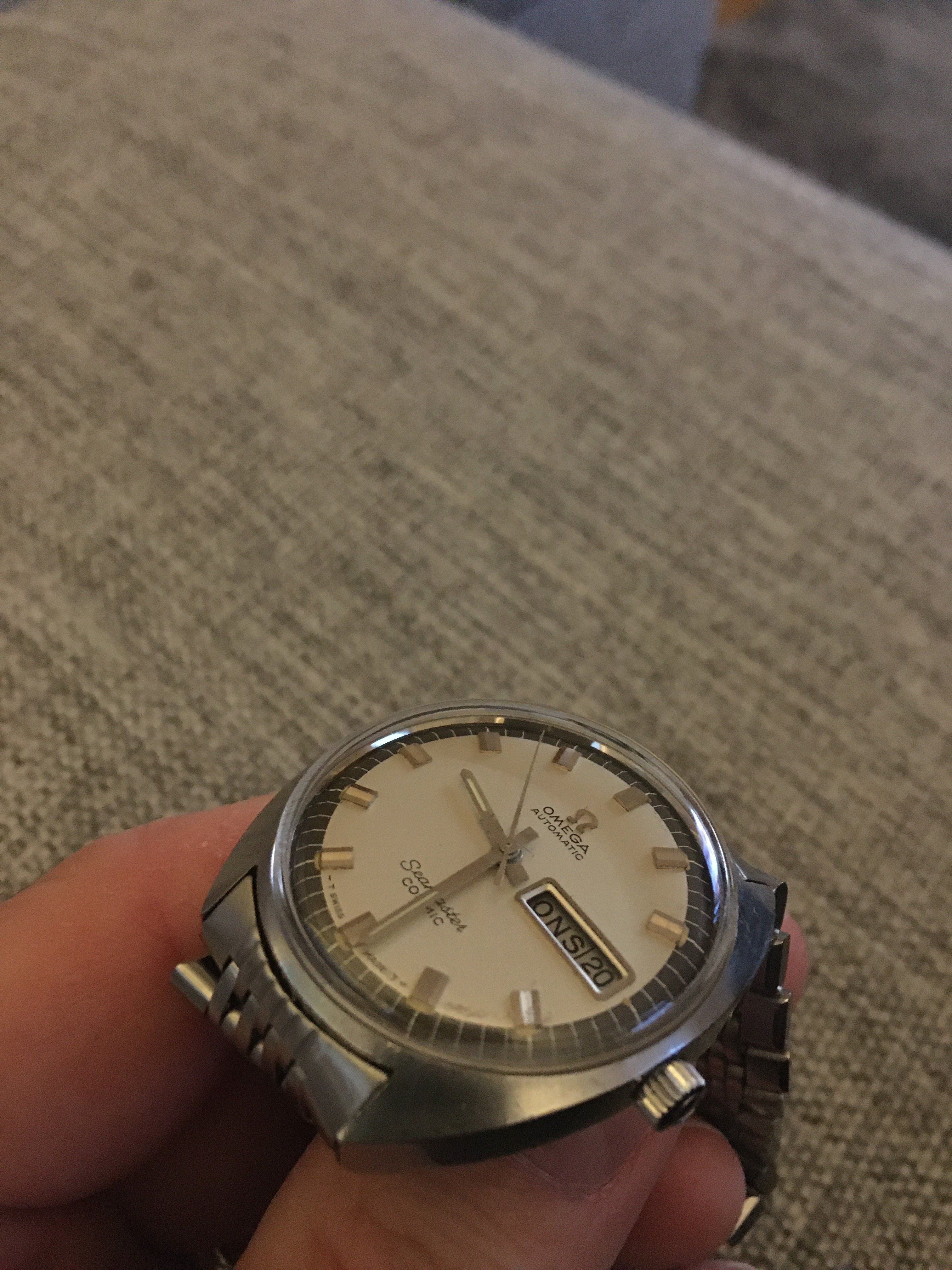

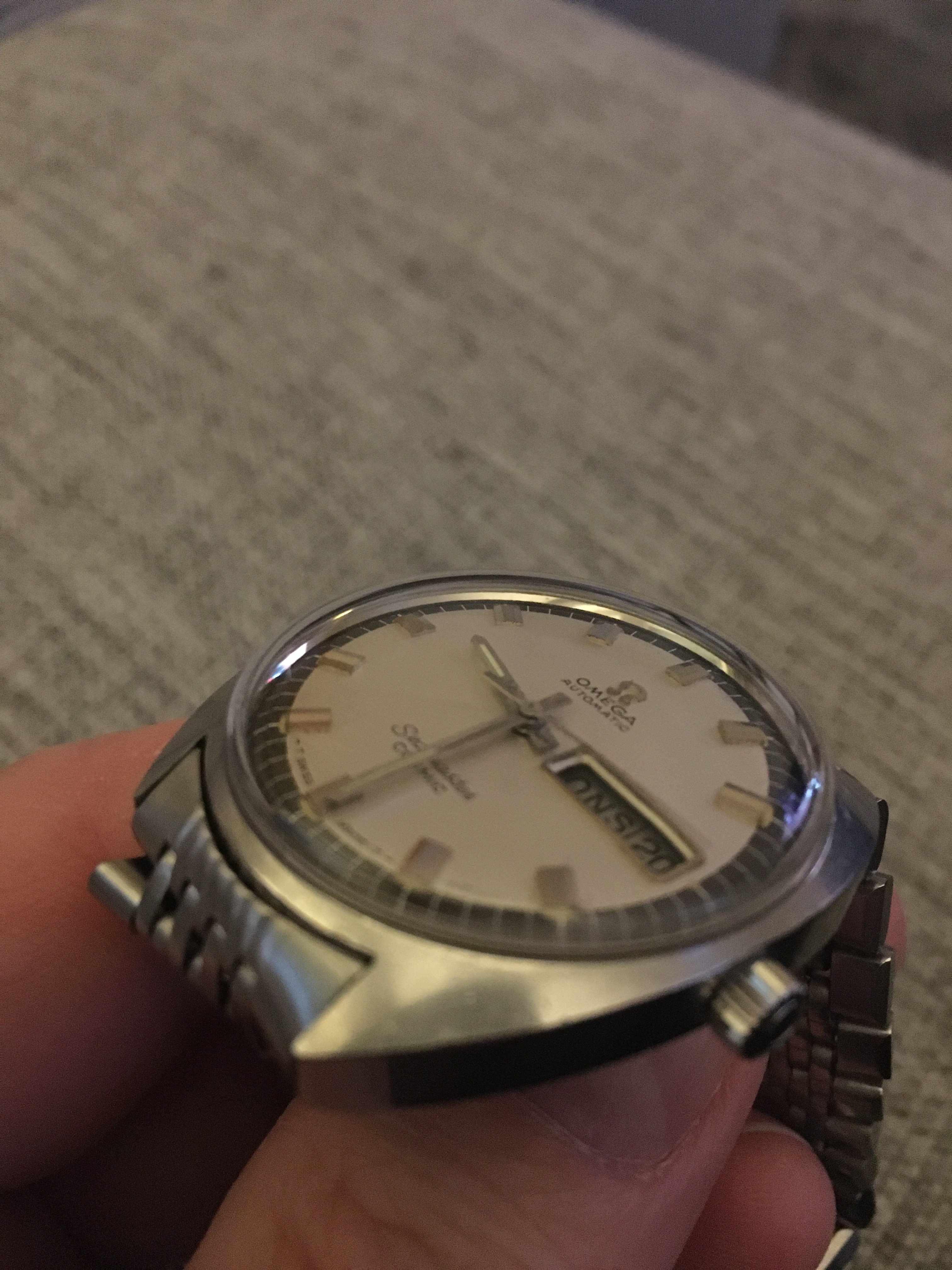

Ok, but If the ring is mounted on the crystal I might have missed it. I know I saw something chrome-metal at the edge of the crystal. Could it be the glossy ring in these pictures that is the tension ring?

2D387AF3-555F-4265-A48A-29D72C815E33.jpeg D7440C04-399D-4AA7-B2EF-DD5BDBF34067.jpeg
X350 XJR
Posts
13,361
Likes
31,503
Yes there is a tension ring you your watch, however I believe the correct Omega tension ring for this reference has a step where as a generic one usually doesn't.

Urban
Posts
24
Likes
4
X350 XJR X350 XJR
Yes there is a tension ring you your watch, however I believe the correct Omega tension ring for this reference has a step where as a generic one usually doesn't.
I see, but the crystal has the omega logo in the middle... I noticed now that when I pull the crown one step (time setting) and move it a little in and out, the dial moves a little from side to side. Then when I put a finger on the crown, still in time setting mode, and shake the watch from side to side, the movement is not bumping from side to side like it does when the crown is fully in...

Archer
Posts
27,344
Likes
69,732
Urban Urban
I see, but the crystal has the omega logo in the middle... I noticed now that when I pull the crown one step (time setting) and move it a little in and out, the dial moves a little from side to side. Then when I put a finger on the crown, still in time setting mode, and shake the watch from side to side, the movement is not bumping from side to side like it does when the crown is fully in...

In your newer photos, the ring can be seen, but it appears to me that it's not touching the dial - I see a gap. If that is the case, then it may be the wrong tension ring, or wrong crystal for this model.

Urban
Posts
24
Likes
4
Archer Archer
In your newer photos, the ring can be seen, but it appears to me that it's not touching the dial - I see a gap. If that is the case, then it may be the wrong tension ring, or wrong crystal for this model.
Ok! The ring comes with the crystal, or can I order just a ring?
