SEAMASTER 1978 ST 166.0209 - back not closable by watchmaker

Posts
12
Likes
1
Hi everyone, thanks in advance for your help. I own a
ST 166.0209
and the back popped off. I brought it to a watchmaker and they popped it back on, but not all the way. I brought it to another watchmaker, they said the crystal was wrong, which caused the back to pop off. they replaced the crystal, but again, the caseback is not all the way on. when I pointed it out, they said that was normal.

thoughts? I know it is wrong.

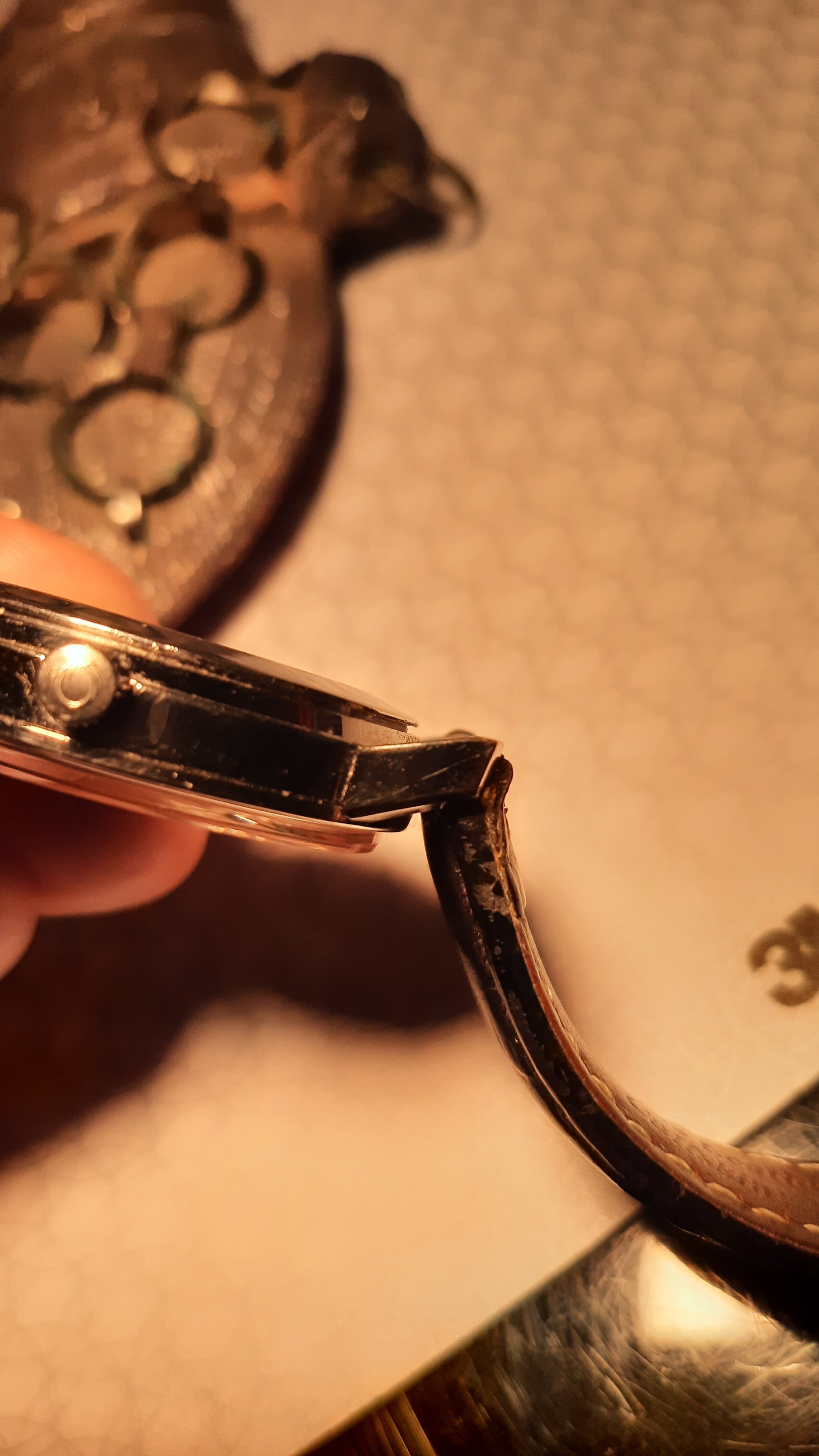

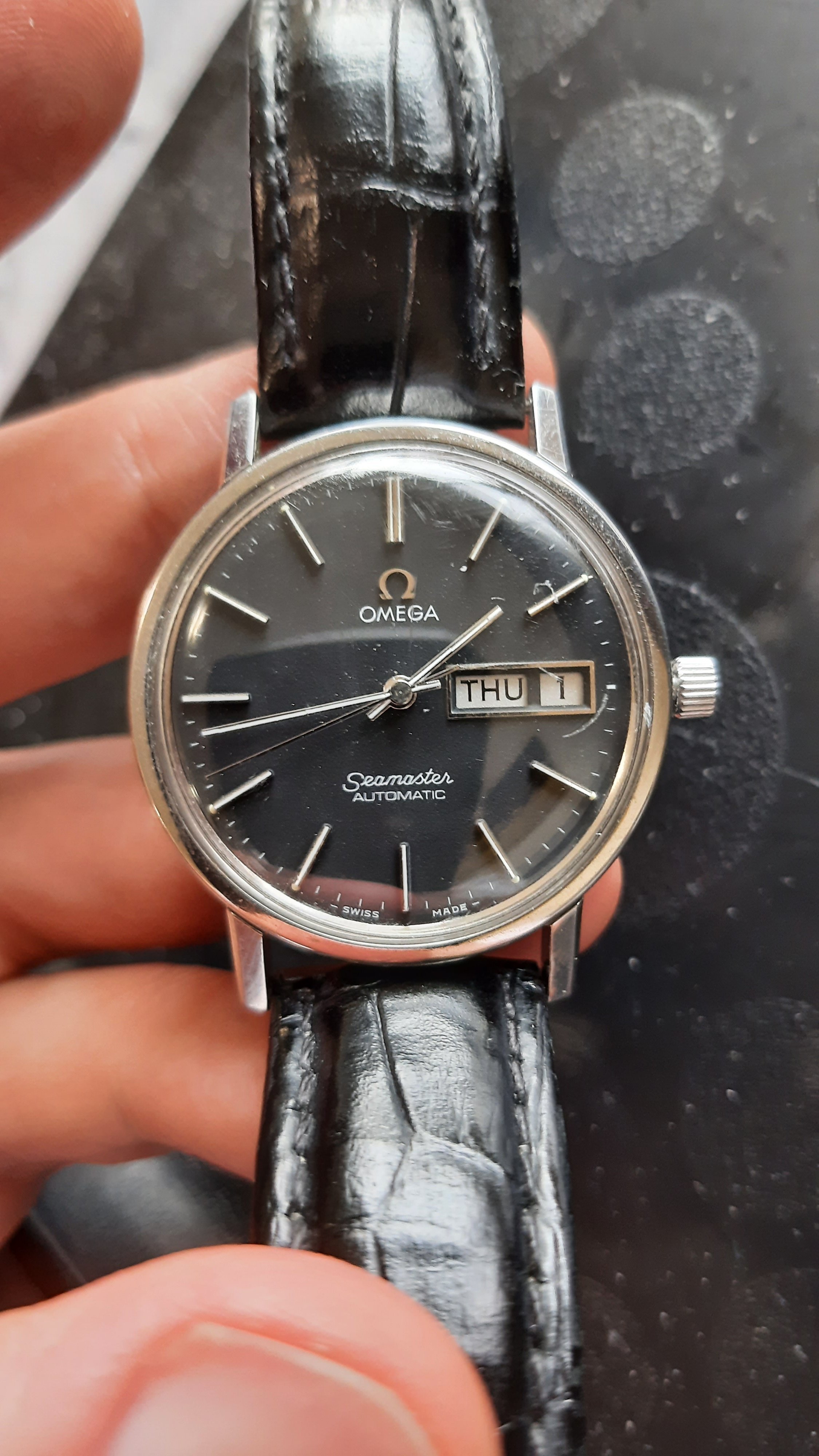

photos of watch, etc attached

Posts
12
Likes
1

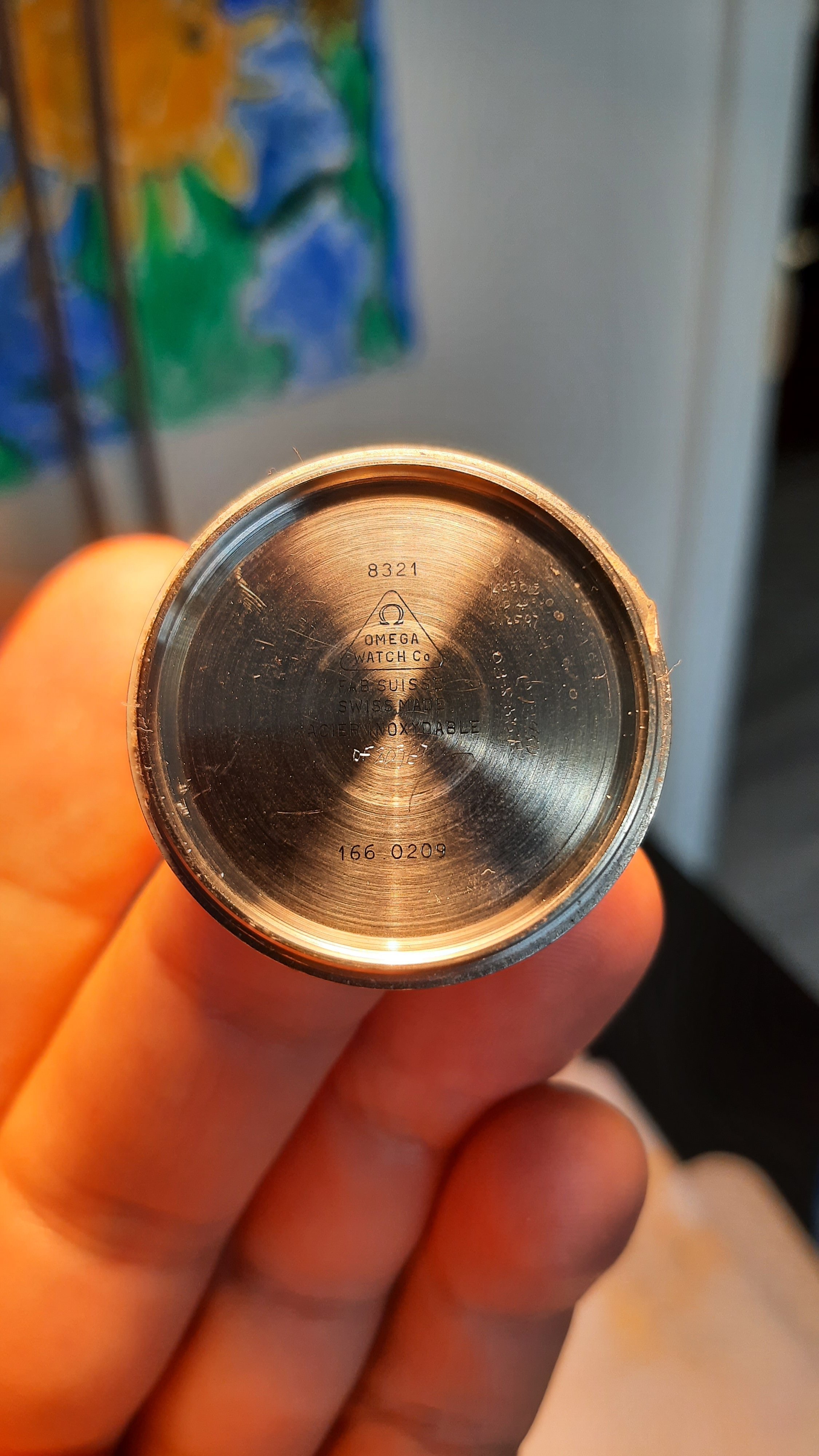

oh, also, in the first pic, you can see a.. gasket? tape? running around the edge of the caseback on the top half. that is now missing (I took the first three photos when the caseback first popped off). Is that tape important?

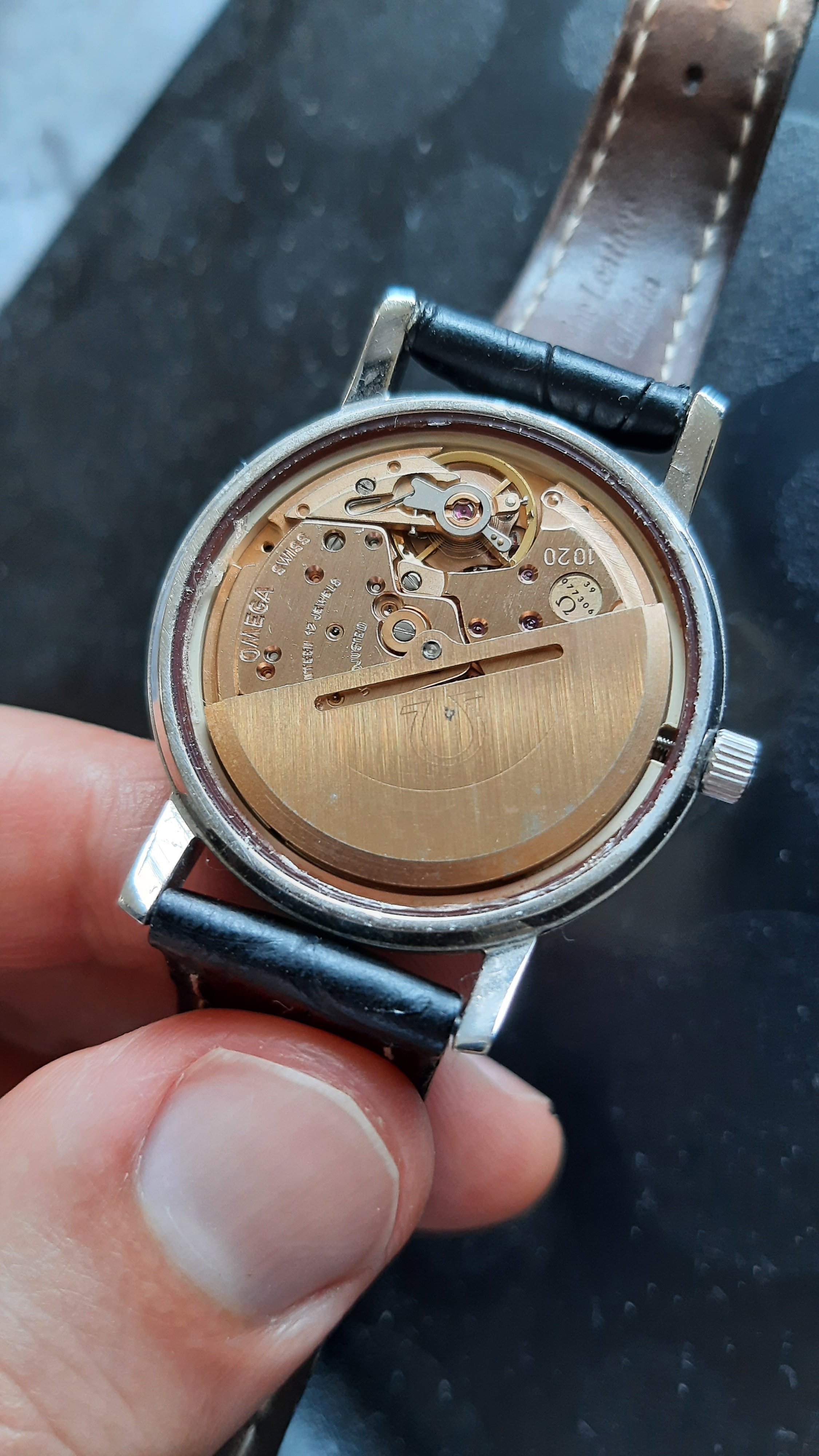

the fourth photo was taken after getting it back from the second watchmaker.

also, the back popped off in my watch box. apropos of nothing. I am afraid to wear this watch now.

thanks again!

Posts
17,969
Likes
37,559
You need a new sealing gasket, the red thing. It holds the caseback in properly.
I'd find a competent watchmaker.

Posts
17,969
Likes
37,559
The gasket should be replaced every time the watch is opened, it deforms when the case is closed and continued use of the old gasket causes problems.

The gasket part number is 198-0050.

Posts
13,483
Likes
31,778
Were these "watchmakers" in a kiosk at the mall where they change batteries? 🙄

Posts
12
Likes
1
Were these "watchmakers" in a kiosk at the mall where they change batteries? 🙄
They were Otto Freidl and The German Watchmaker in Vancouver! Supposed to be reputable....

Posts
29,705
Likes
76,893
Curious, I am finding a red and a black. Only finding it on ebay.
I assume red?
red: https://www.ebay.co.uk/itm/256215057357
black: https://www.ebay.ca/itm/264413329146

Red - the other is an O-ring. It goes on the case back before you press the case back in place - pay attention as there will be a chamfer that should be facing the case when you install the back.

This website may earn commission from Ebay sales.
Posts
12
Likes
1
Thanks everyone. ordered it. I'm running out of watchmakers in Vancouver to bring it to though...

Posts
12
Likes
1
ok, UPDATE: Gasket received. I went to another watchmaker, and explained the history. they examined it, and said the old gasket was 1.4mm, and this new one was 1mm, but that the movement ring was too thick, and causing the caseback to float like that. So, now I am looking for a new movement ring I guess. Wish me luck!

Posts
12
Likes
1
I am not having any luck finding this part. I have brought it to four watchmakers in Vancouver (Otto Freidl, The German Watchmaker, Roldorf and Co., and Time and Gold), and they were all unable to close the caseback. I have contacted swatch Canada to see if they would take a look - no reply.

Any ideas on where to send this watch?

Posts
12
Likes
1
another update, someone suggested checking to make sure the lip on the movement was inserted into the movement ring, so I did that, and it is. it closes slightly better now with the new gasket though. Swatch got back to me and said they'd need to send my watch to Switzerland, which seems like it would take a year. I think I will hold off on that, and jsut wear it as is. Thanks everyone for your help!

Posts
267
Likes
726
Apologies for reviving this but curious if you ever fixed the issues with the caseback OP.

Posts
12
Likes
1
Apologies for reviving this but curious if you ever fixed the issues with the caseback OP.
no, I never did. I brought it to three separate watchmakers, who could not change it, and I saw that there were many online like it, so I thought perhaps it was fine.

Posts
6
Likes
13
Were these "watchmakers" in a kiosk at the mall where they change batteries? 🙄

I recognize the humor BUT keep in mind there ARE competent battery change individuals who work at a Mall. I humbly consider myself one of the better ones, as I follow the one rule that has never failed me over about 60 years: Do every repair as IF I were doing it for myself! If I see an issue, do what needs to be done to make it acceptable if it were one of my own pieces. Simple, but rarely followed or even thought of today!

I don't know why others don't work the way I do, because they would surely get MANY more $$$ in tips if they did! It shows you care about the customer's watch IF you change them the way I've always done it. It amazes me when I've seen some mall workers go right into a watch before prepping it,... ie CLEANING all the crap you can get off the back and case parts first!

First step is to open the band at the most convenient place to gain access to what is important to follow. I take a piece of paper towel in my hand, about 3 x 4 inches wide, and add 2 small spritz of 91% denatured alcohol, rub the paper towel together to make sure it is "just" slightly damp, and then wipe as much of the worst of the sludge buildup off as you can. (some require a few pieces of paper towel!)

Next I use a medium stiff toothbrush to get material in the nooks and cranies loose over a trash bag (which just happens to be in view of the customer, as are most every step. 😀 ) Then blow onto the back with a few shots of canned air. On some watches it may look clean enough, but often I can use the smallest watchmaker's screwdriver to "lightly" rub into the caseback/case seat to pull a fair amount of more gunk out. Another small burst of canned air over a trash bag, and then I start to unscrew a screwoff back, OR use a case back knife (some of my own making), to just lift the back up but it's NOT ready to come off yet!

The screw down back is just loosened enough to be able to do the last turns by hand,(the pry off back just held in place for now), and again I get off whatever new material has now become visable. I use the toothbrush and or a thin screwdriver again, and then a light bit of caned air, and sometimes just a hand air squeeze ball, to blow that off into the trash bag. When I have cleaned all I can see, I flip the watch over onto a "Bounty" or similar towel, hand finish unscrewing the screw down back and sliding it (or the pry off back) over as I lightly tap the case on the towel a few times to dislodge any debree within the case. Only then does the watch case get flipped over and exposed to my eyes.

At this point there IS usually some material build up on the case, just outside or on the gasket. I take another small paper towel piece and "lightly" spritz it with 91 % denatured alcohol, and begin to clean off that materal at the LOWEST position of the watch case at all times. Gravity is your friend, and keeping the area you want to clean at the lowest point means any fallout goes on the paper towel or to the trash bag and not into the watch. Everytime I begin to clean a new area, I fold the slightly damp towel to a expose another clean area at the low point of the case, until I have cleaned off all I can see. A few light squeezes with my hand held air ball gets any remaining debree from within the case out...

...and only then do I change the battery, using a screwdriver to loosen the hold down screw 1/4 turn, and then press against the battery and spring arm to carefully pry it up and out. A bit wider but thin tweezer then removes the old battery, and the "*right" battery replaced using the tweezers and screwdriver in the reverse of the removal process. (*often someone has previously used a 364 battery where the 377 was intended, etc) Then another hand ball air spritz, the back is cleaned and canned air blown off, and then the back is placed back on. Most every press on backs are replaced on a watch press, and I use a custom piece of 2mm thick leather to cushion the flat crystals a bit, IF I can't find a good hollow centered die to clear the crystal and touch only the case areas. Some days the Mall where I work on parts of Saturdays (4-5 hours), or all day when the owner goes to New York City on business (an 8-9 hour day), can have 35 to 50 batteries installed by me, on a really good day. The store does jewelry repair and sells jewelry also, but battery changes are an important part of the business.

...and although it takes much longer to describe what I do, it is on auto when I do all this, and an average battery takes just about 10 minutes to do the steps described. It's the way I would do it for ME, and my customers appreciate a business that takes the time and care to do it right.

Tips aren't solicited, necessary or required, but we don't refuse them either and MANY have mentioned they've never seen this sort of care in the battery changing proceedure. Sometimes just a few dollars, but $5, $10 and even a $20 tip occasionally for the worker. By the way, we charge only $11 w/tax per battery replacement, which is less than half of what most jewelry stores charge. Be it a Timex, Tag Heuer, Movado, or even the huge and popular Invicta watches (with the tiny movements), They ALL get the same Spa Day!

ALL get the same treatment and care,... because I care enough to do it the way I would do it for myself! Yep, I'm old school, and I'll be 68 on July 17th. 😀


A little backround if you're wondering..I started as a repair professional in an apprentise role when I was about 16 in 1973. In a few months I was a better jeweler than the owner, but he was a mighty fine watchmaker, (Navy trained). and his son followed him gaining Rolex Certification and others Certifications I believe. I had over 35 years doing strictly diamond setting, ring sizing, chain repairs , etc. But over about another 11 years I've changed out maybe 20 THOUSAND Batteries! 😀

Cheers,
Joe T
Edited:

Posts
17,969
Likes
37,559
I recognize the humor BUT keep in mind there ARE competent battery change individuals who work at a Mall. I humbly consider myself one of the better ones..............................................

Thanks for an interesting post Joe.
As you say, there ARE competent watch technicians working in malls, but those of your kind seem the be few and far between.
One of the kiosks local to me does battery changes. And bracelet/strap changes. And Key cutting. And shoe repairs.
I can't imagine what amount of debris gets scattered around his workplace and don't know if his tools and equipment are deidicated to specific tasks but I've never asked.

All the best for another 20,000 changes and Happy Birthday for next week.

Cheers
Jim
