Random back opener request

Posts

191

Likes

84

UNLucky

·May 29, 2025

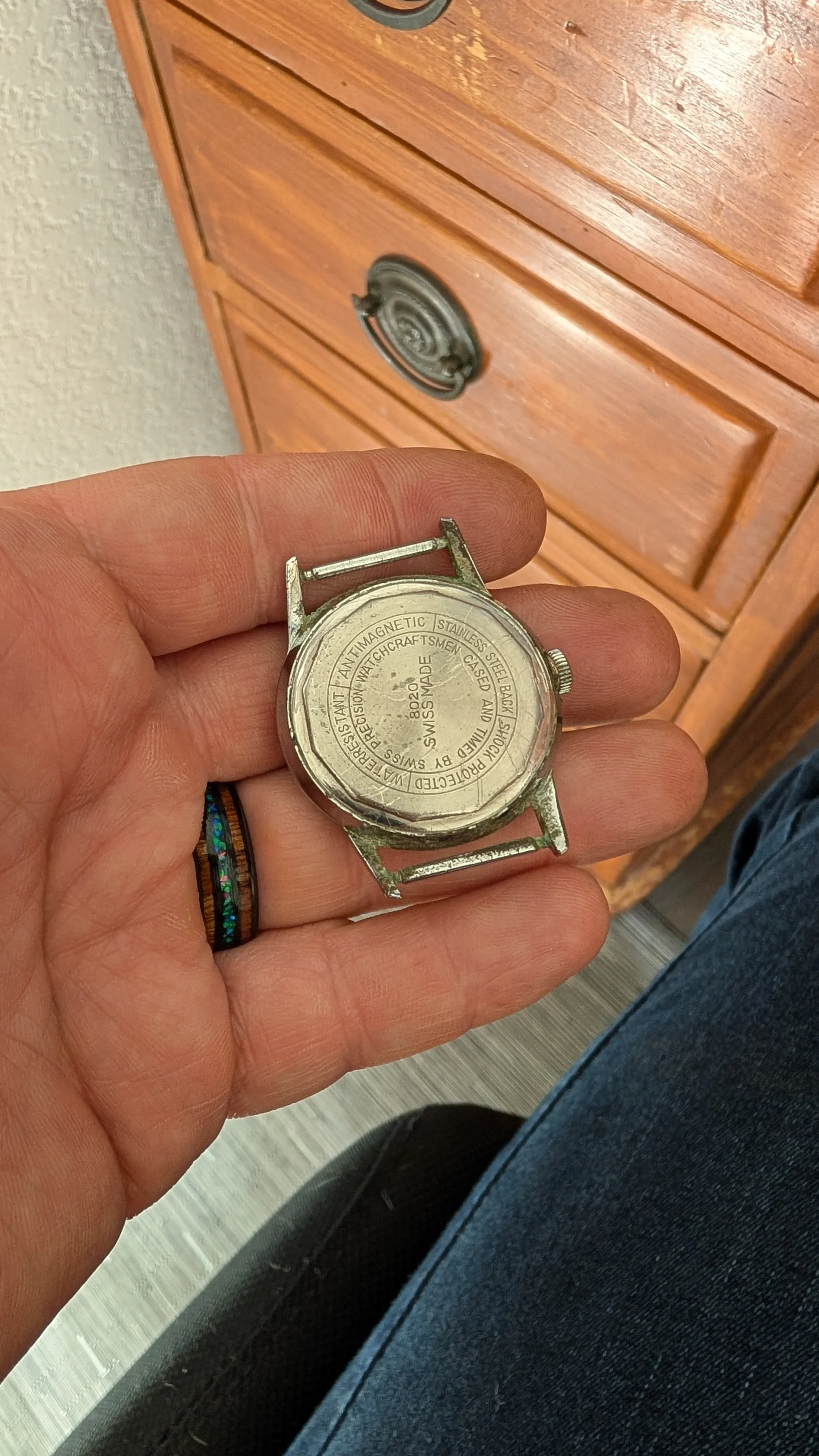

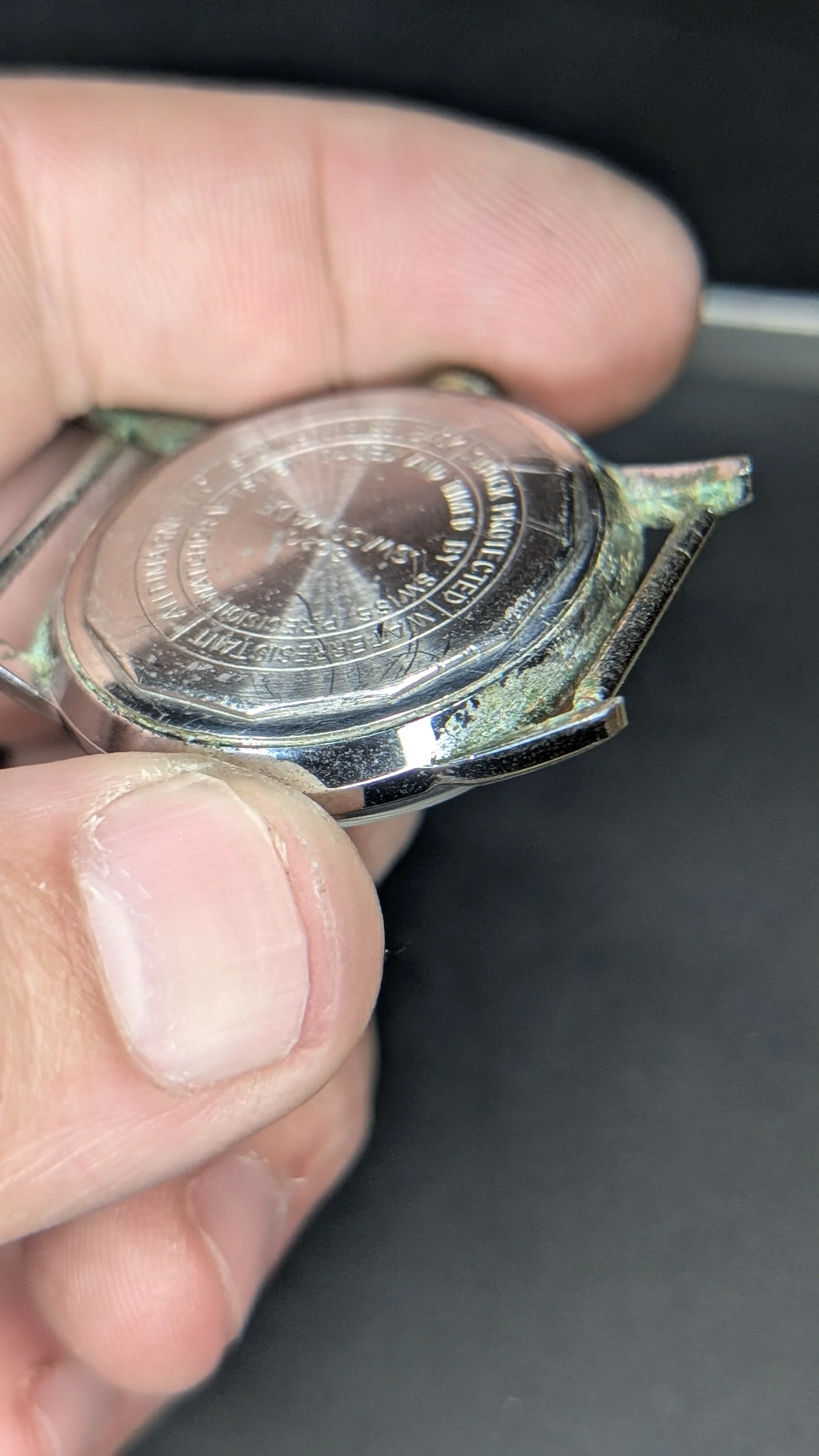

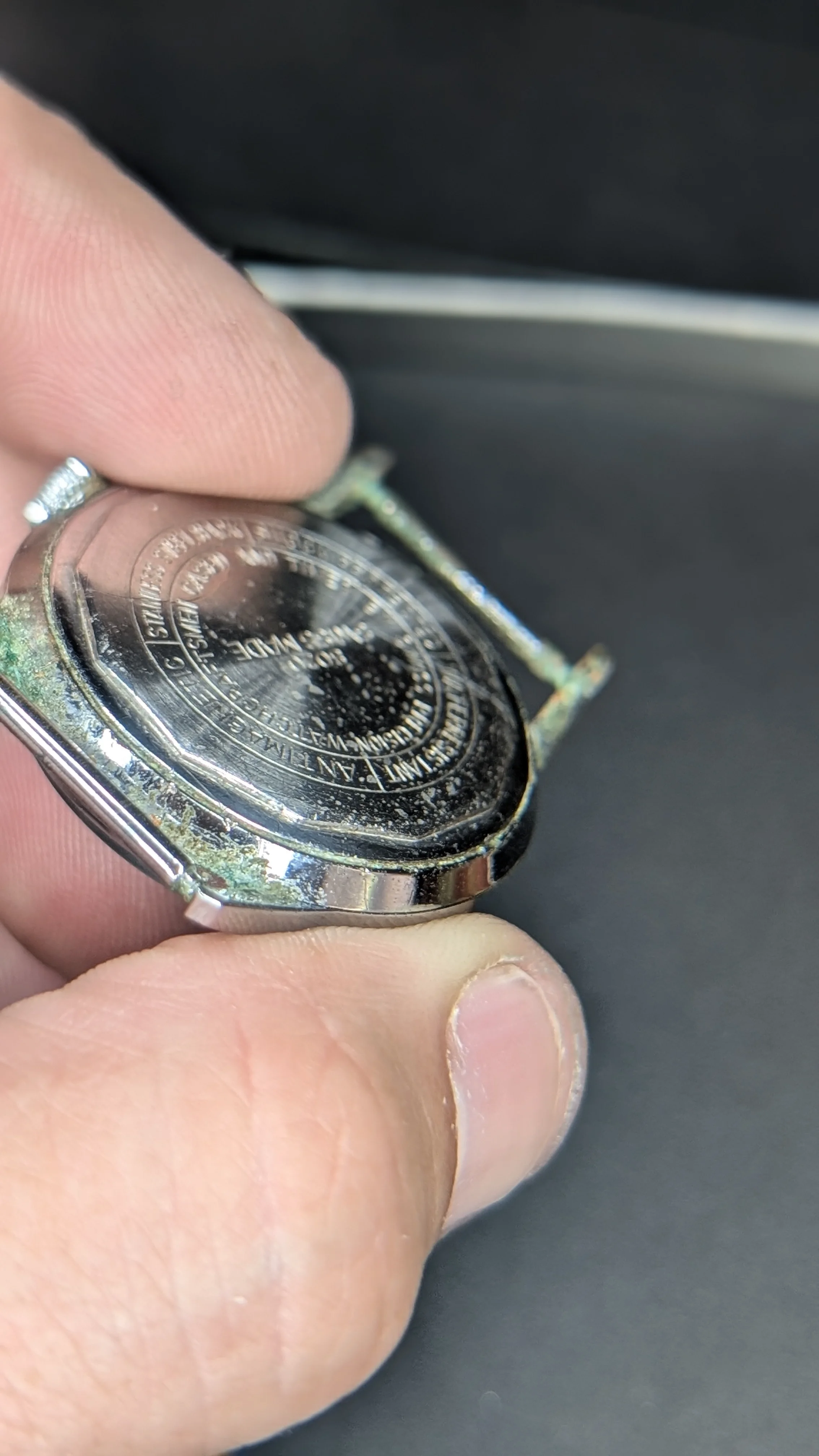

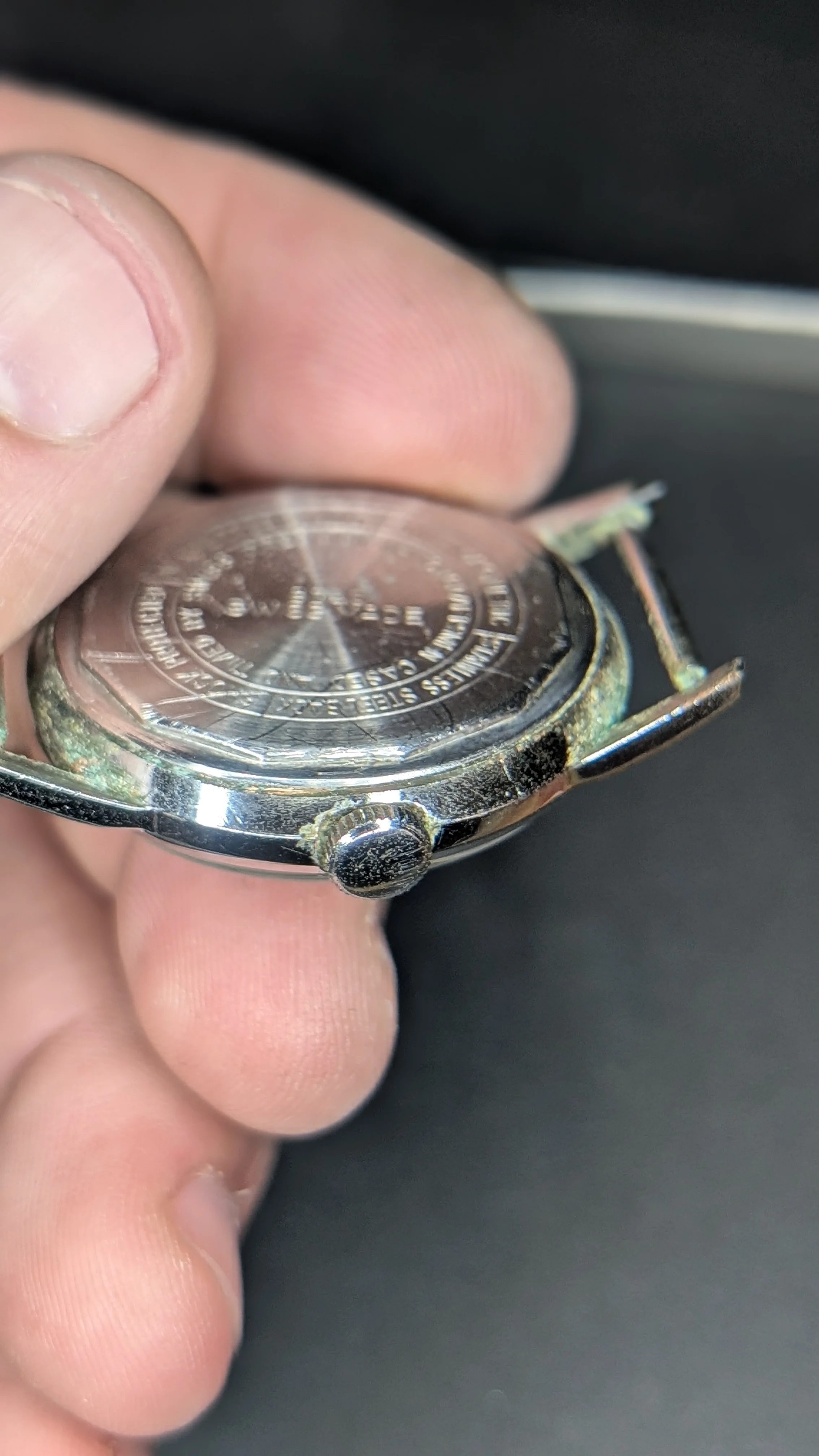

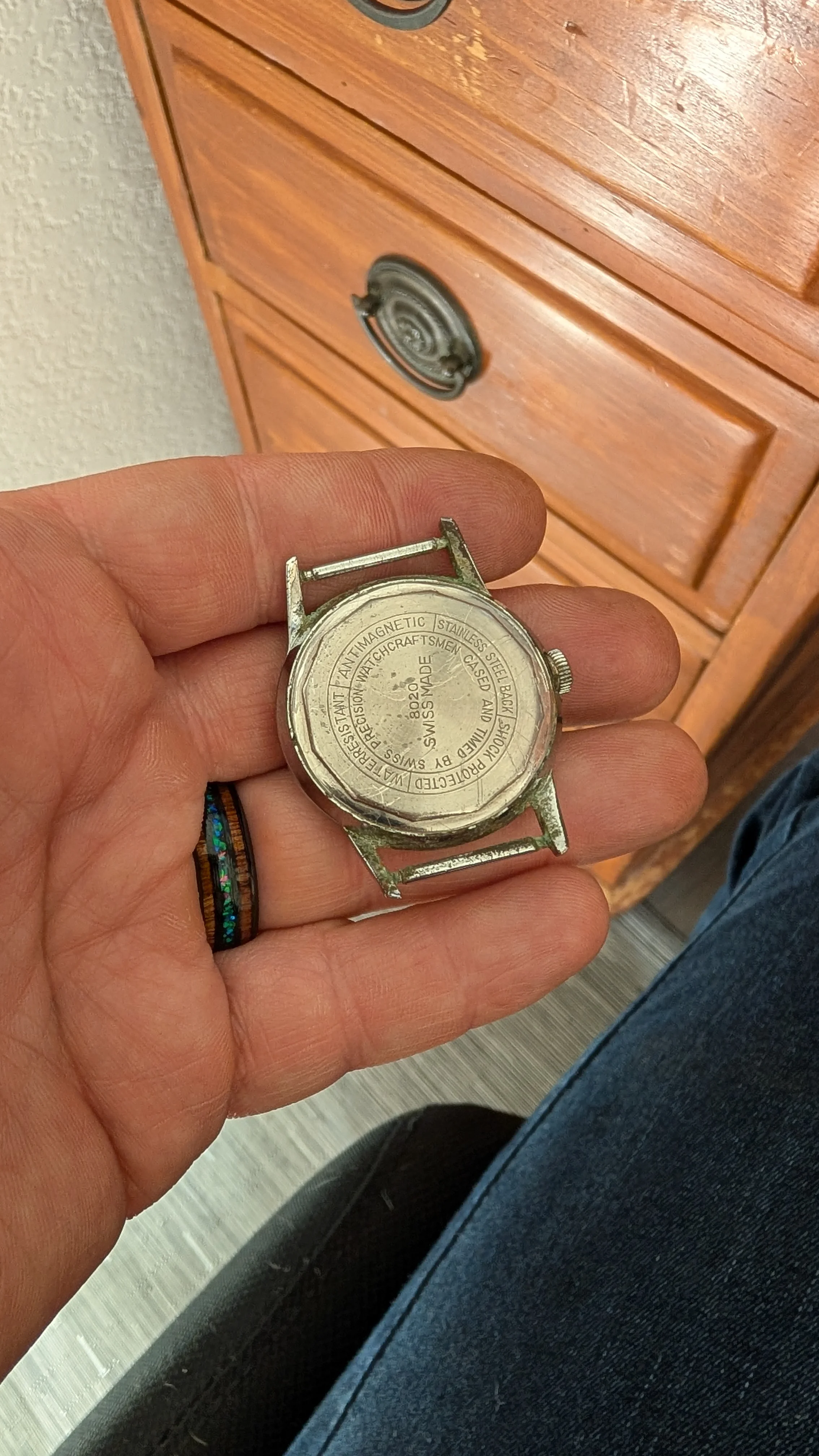

Does anyone have a 3d print model I can print to open this bloody watch!? I have tried most everything I have on hand, I don't even know what to Google to look up the correct tool. I think it's corroded shit as well so that's even better. 🤦🏼‍♂️



Posts

24,810

Likes

55,147

Dan S

·May 29, 2025

A three prong opener will work, but if it's really stuck, obviously it's more difficult. You can always try the super-glue and hex nut approach.



Posts

35,679

Likes

39,910

dsio

·May 29, 2025·Ash @ ΩF

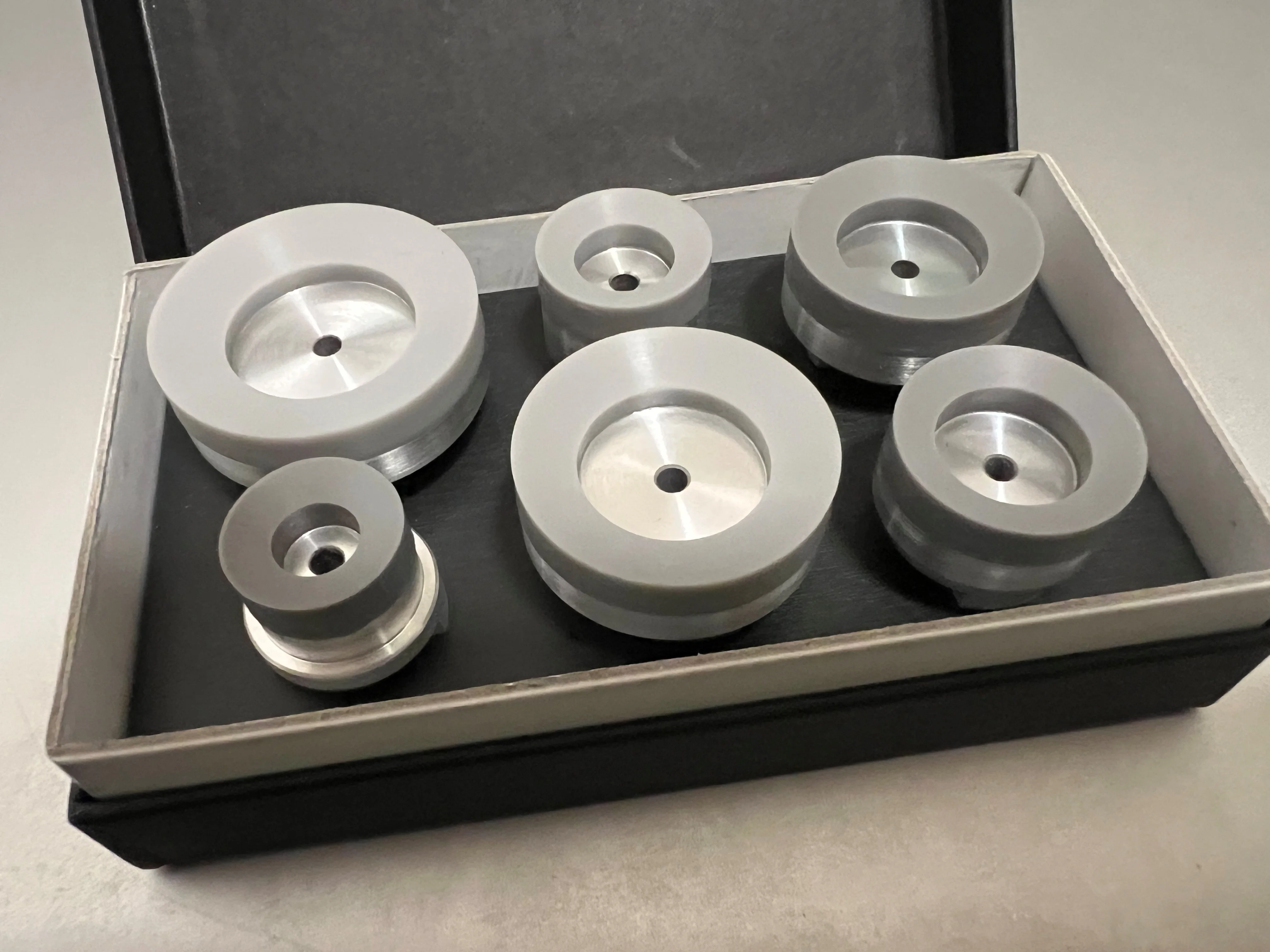

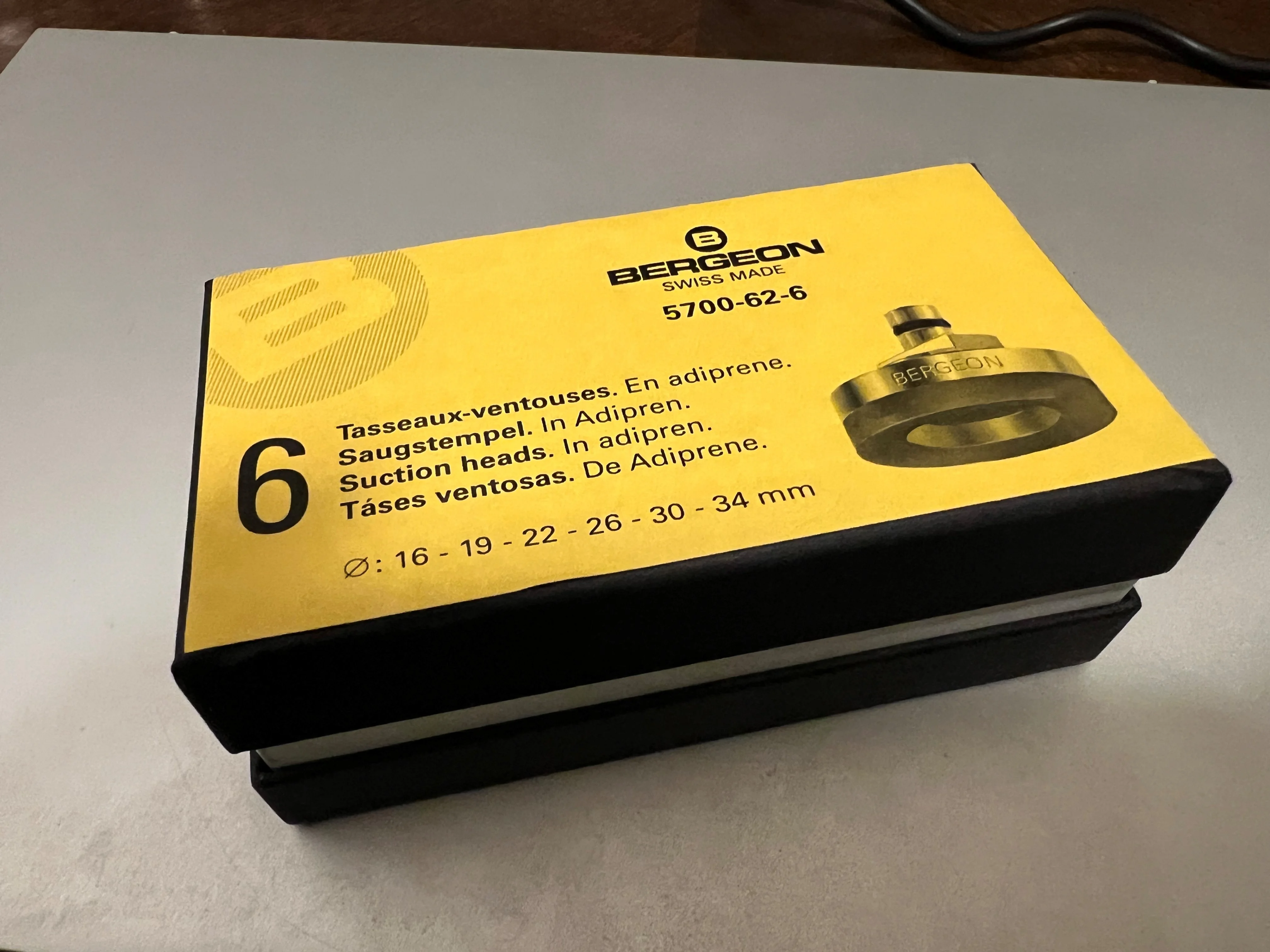

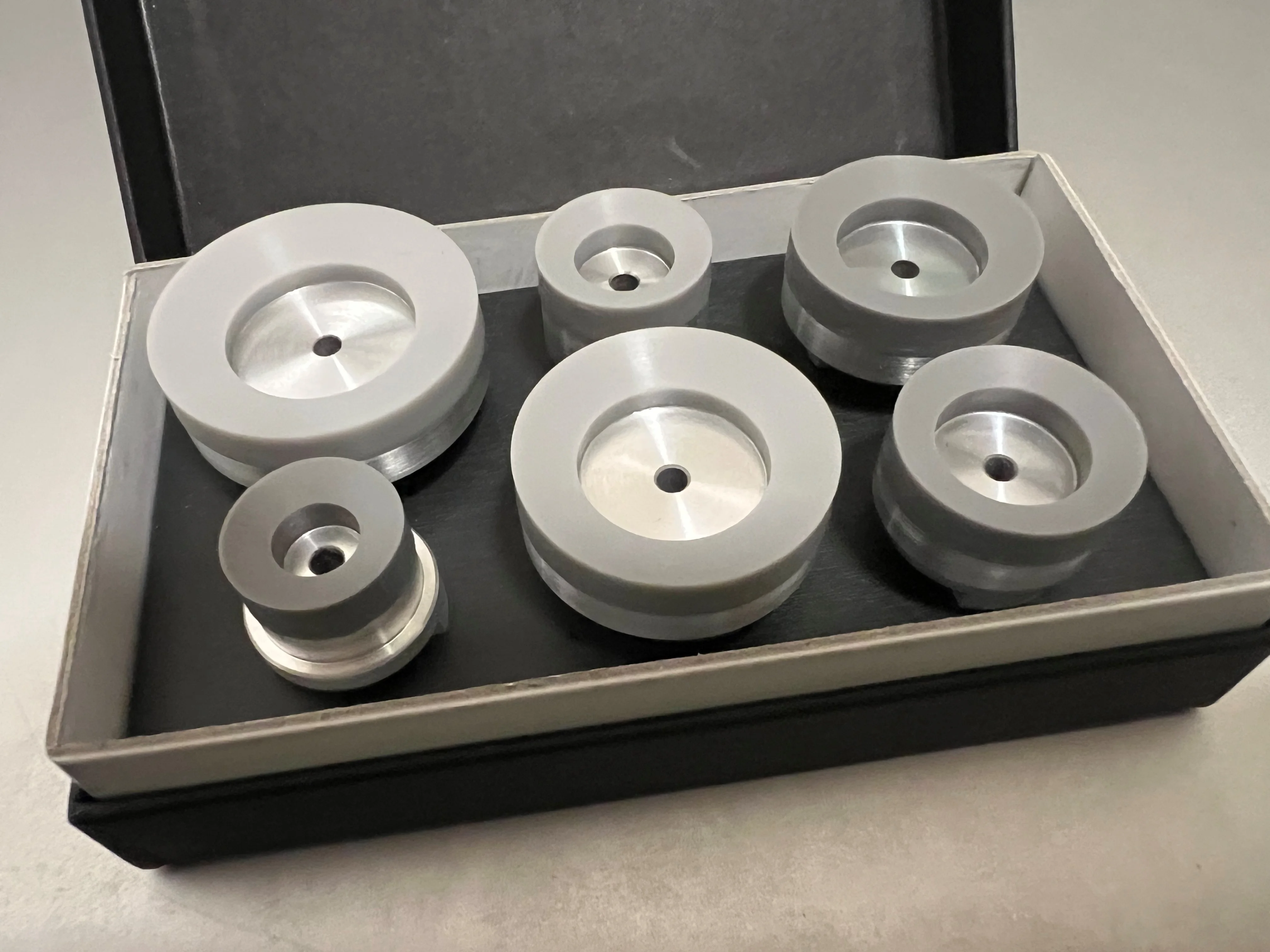

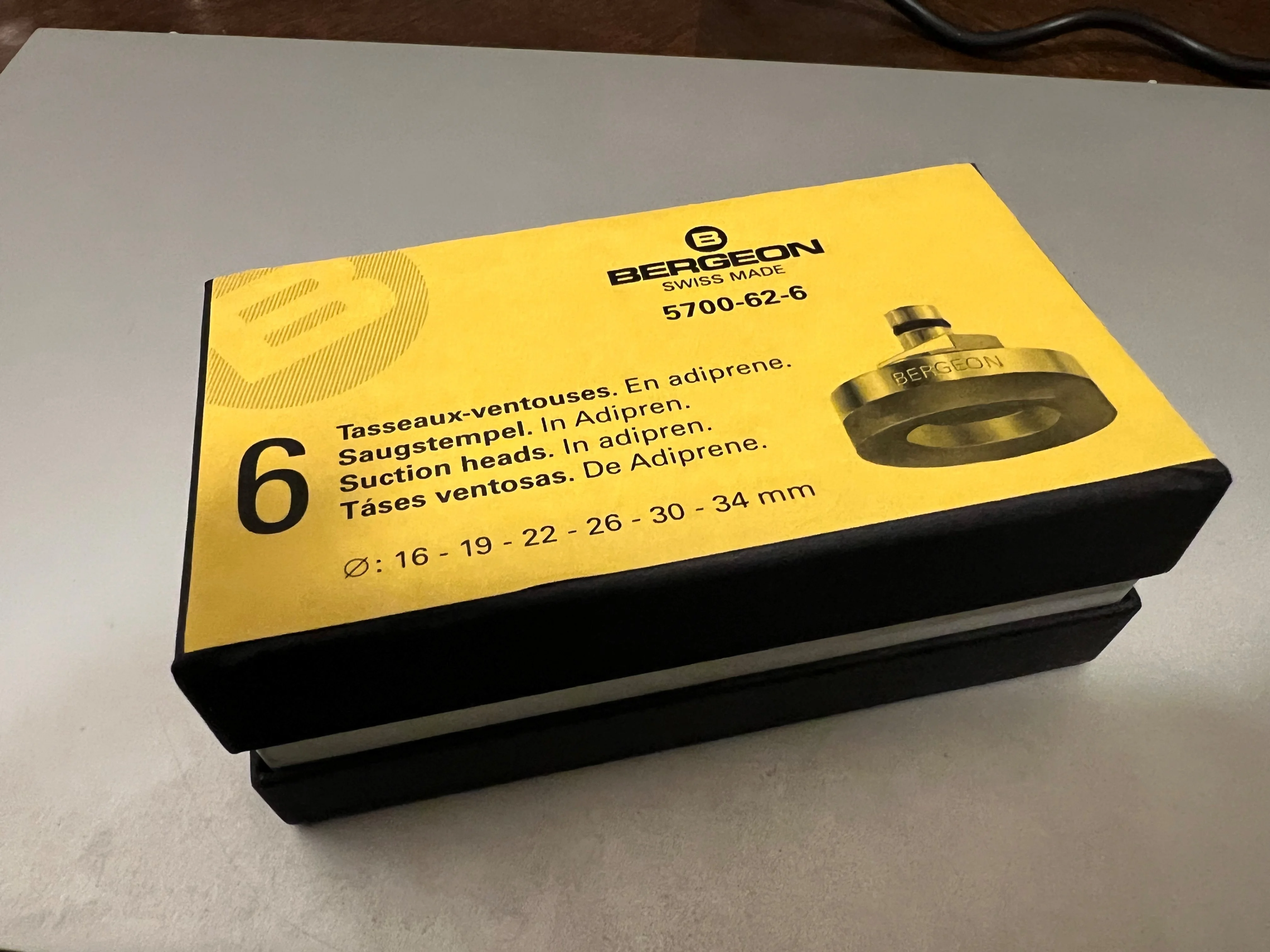

That type of back is a really good candidate for the rubber ball method, it does the least amount of damage when they're really stuck too

https://www.ebay.com/itm/123622036748



This website may earn commission from Ebay sales.

Posts

4,081

Likes

7,025

Vercingetorix

·May 29, 2025·Spam Risk

Crescent wrench perpendicular to the case back.



Posts

18,776

Likes

39,021

JimInOz

·May 29, 2025·Melbourne Australia

Dan S

super-glue and hex nut approach.

I agree.

No 3D printed tool will work due to the angles and edges.

If you don't have a set of Breitling openers, the superglue/nut works very well. The caseback and nut just get soaked in acetone to remove the nut. I've used it a few times with no problems.



Posts

2,477

Likes

3,866

Meme-Dweller

·May 29, 2025

Don't know anything about this watch, but I hope you made sure it's actually a screwdown caseback and not just a snap-on caseback that's in the shape of something that looks like it would screw down.



Posts

792

Likes

919

ExpiredWatchdog

·May 29, 2025



Posts

191

Likes

84

UNLucky

·May 30, 2025

dsio

That type of back is a really good candidate for the rubber ball method, it does the least amount of damage when they're really stuck too

https://www.ebay.com/itm/123622036748

It's too tight for the rubber ball, that's my default. I really think it's cranked down or corroded closed.



This website may earn commission from Ebay sales.

Posts

191

Likes

84

UNLucky

·May 30, 2025

Vercingetorix

Crescent wrench perpendicular to the case back.

Not a horrible idea, but the lip is really thin and I'm not sure I can get a grip. I'll carefully give it a shot.



Posts

191

Likes

84

UNLucky

·May 30, 2025

Meme-Dweller

Don't know anything about this watch, but I hope you made sure it's actually a screwdown caseback and not just a snap-on caseback that's in the shape of something that looks like it would screw down.

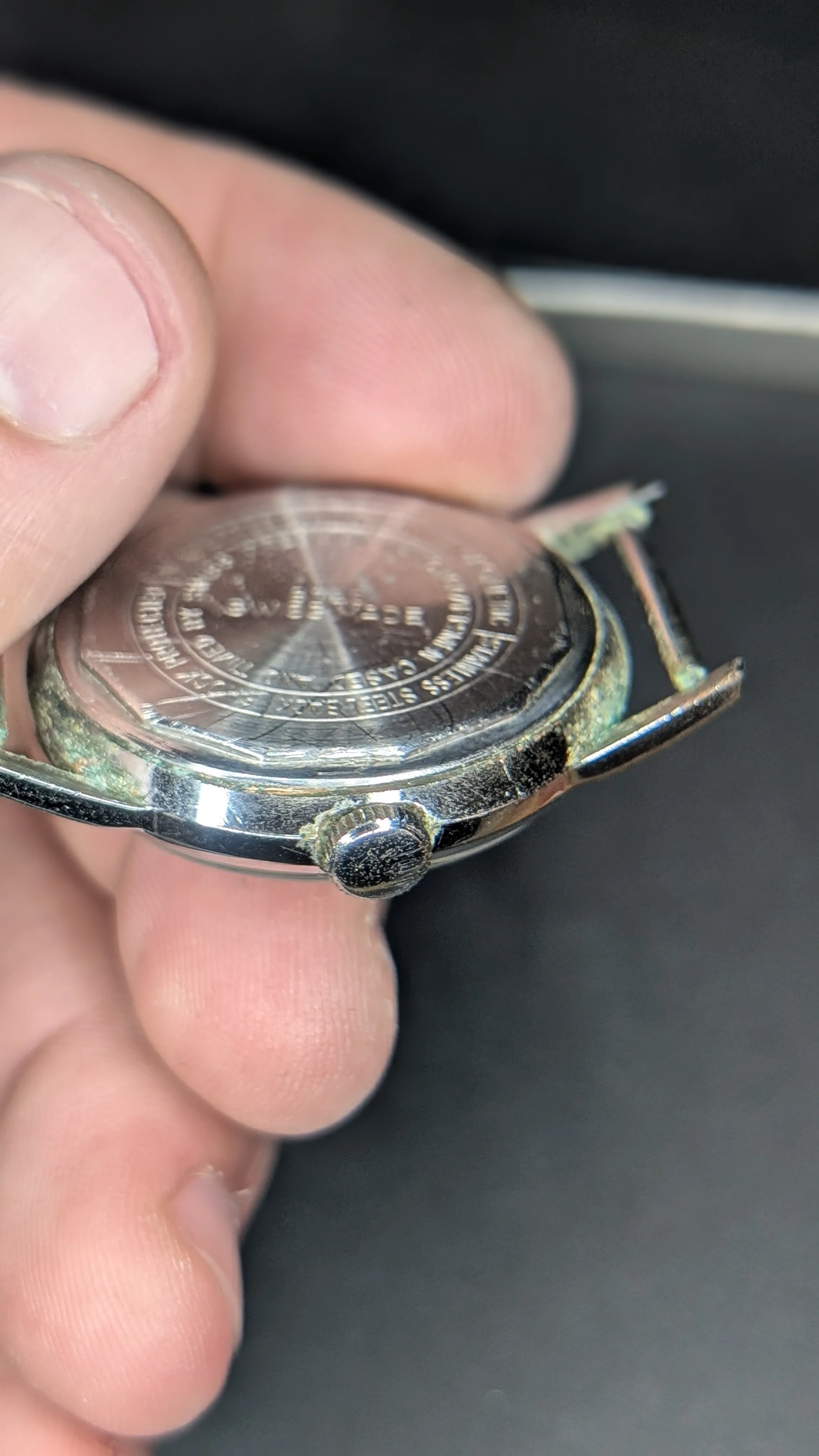

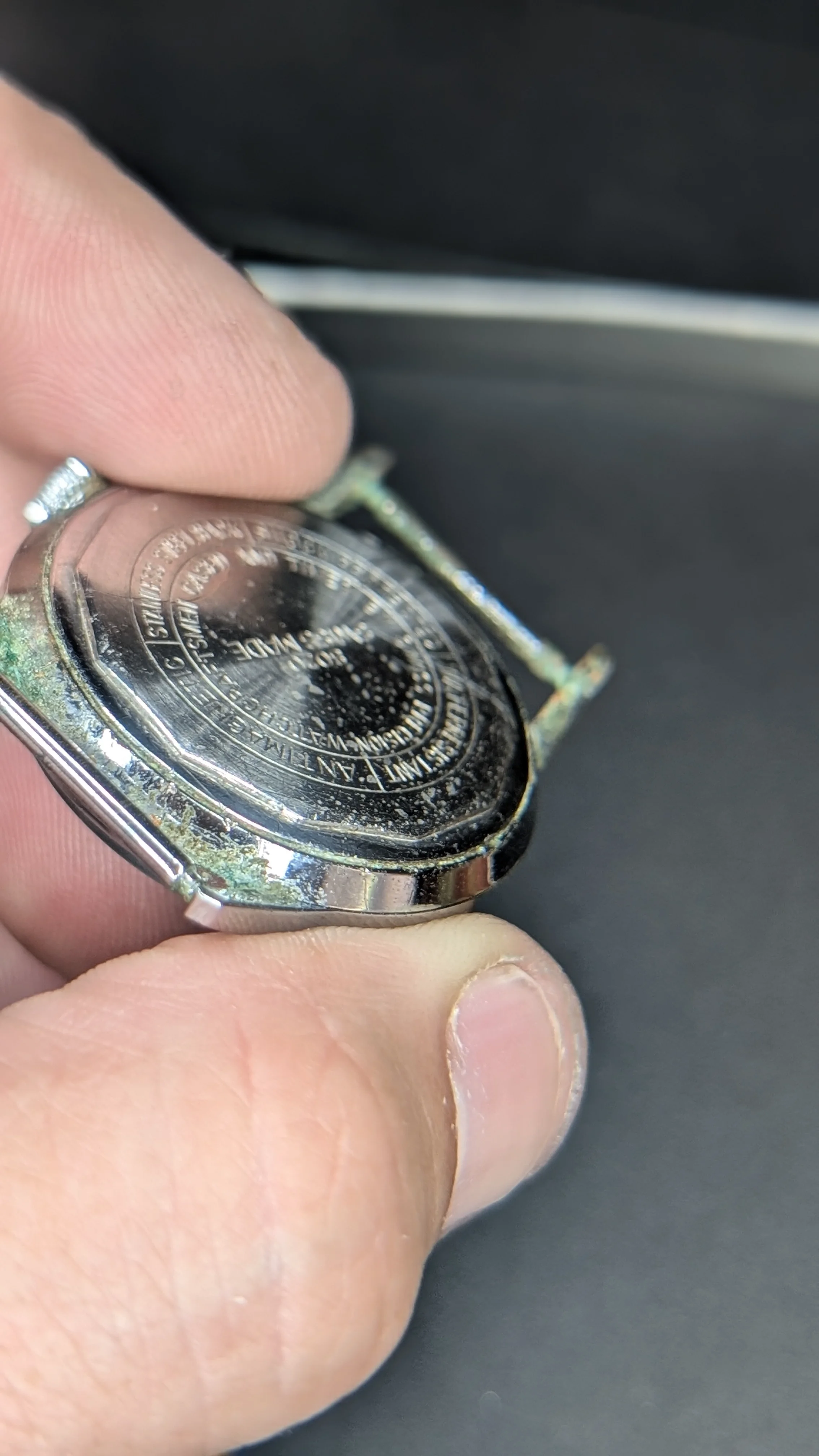

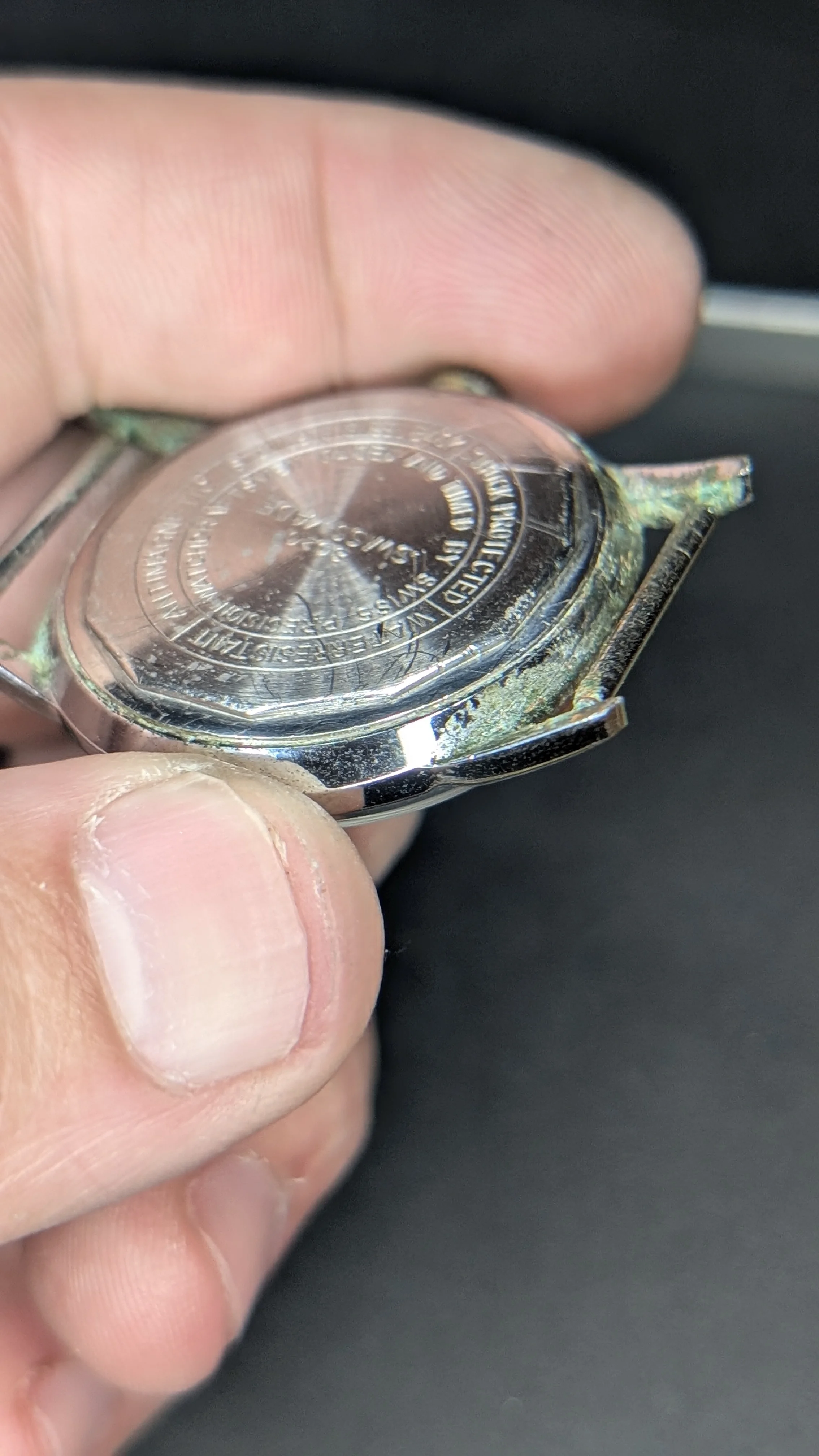

I'm scared to pry, but it very much looks like a screw down. I'll give it a probe with the case back opener and see if it fooled us all.



Posts

191

Likes

84

UNLucky

·May 30, 2025

ExpiredWatchdog

I'll look this up.



Posts

191

Likes

84

UNLucky

·May 30, 2025

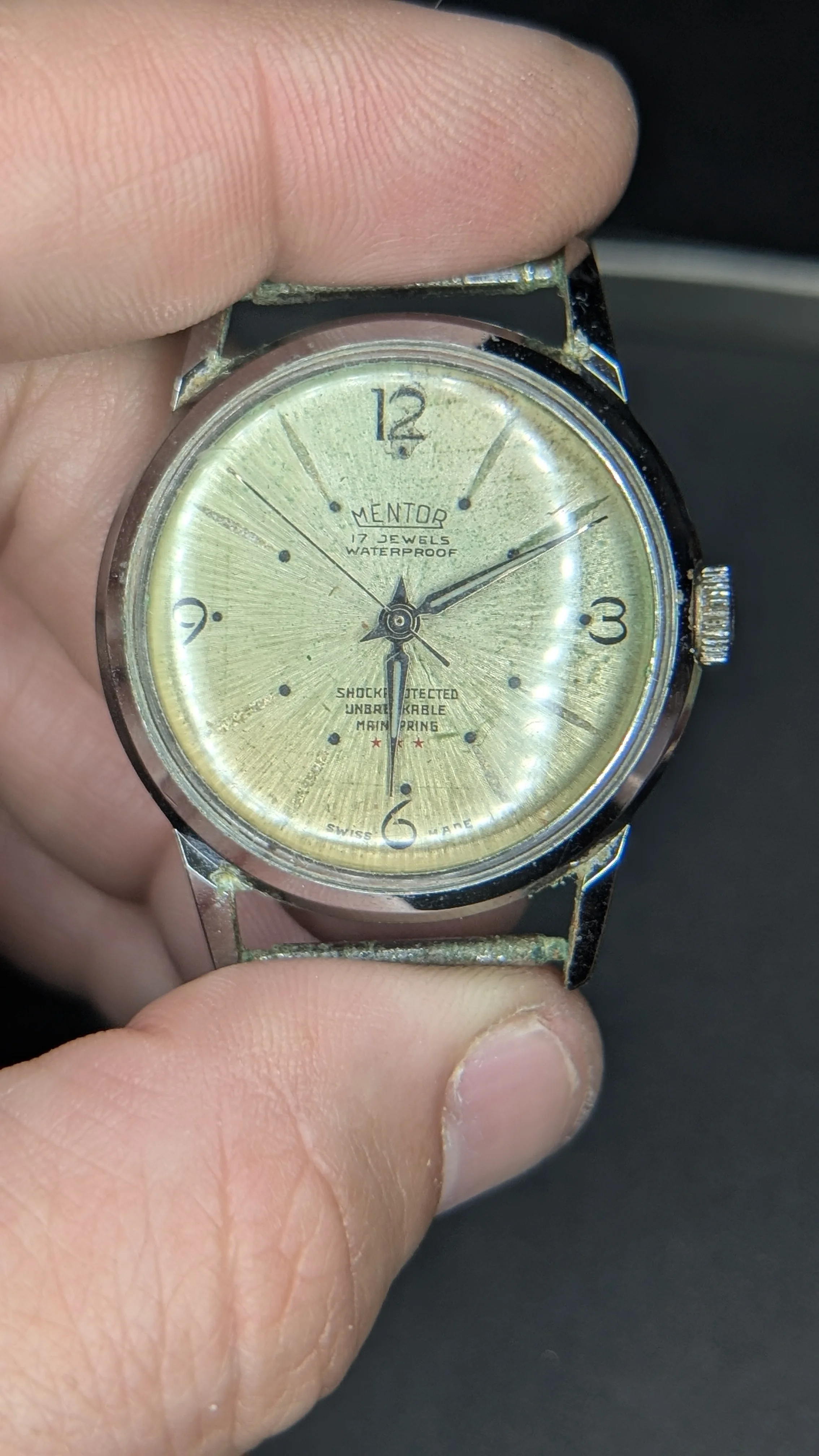

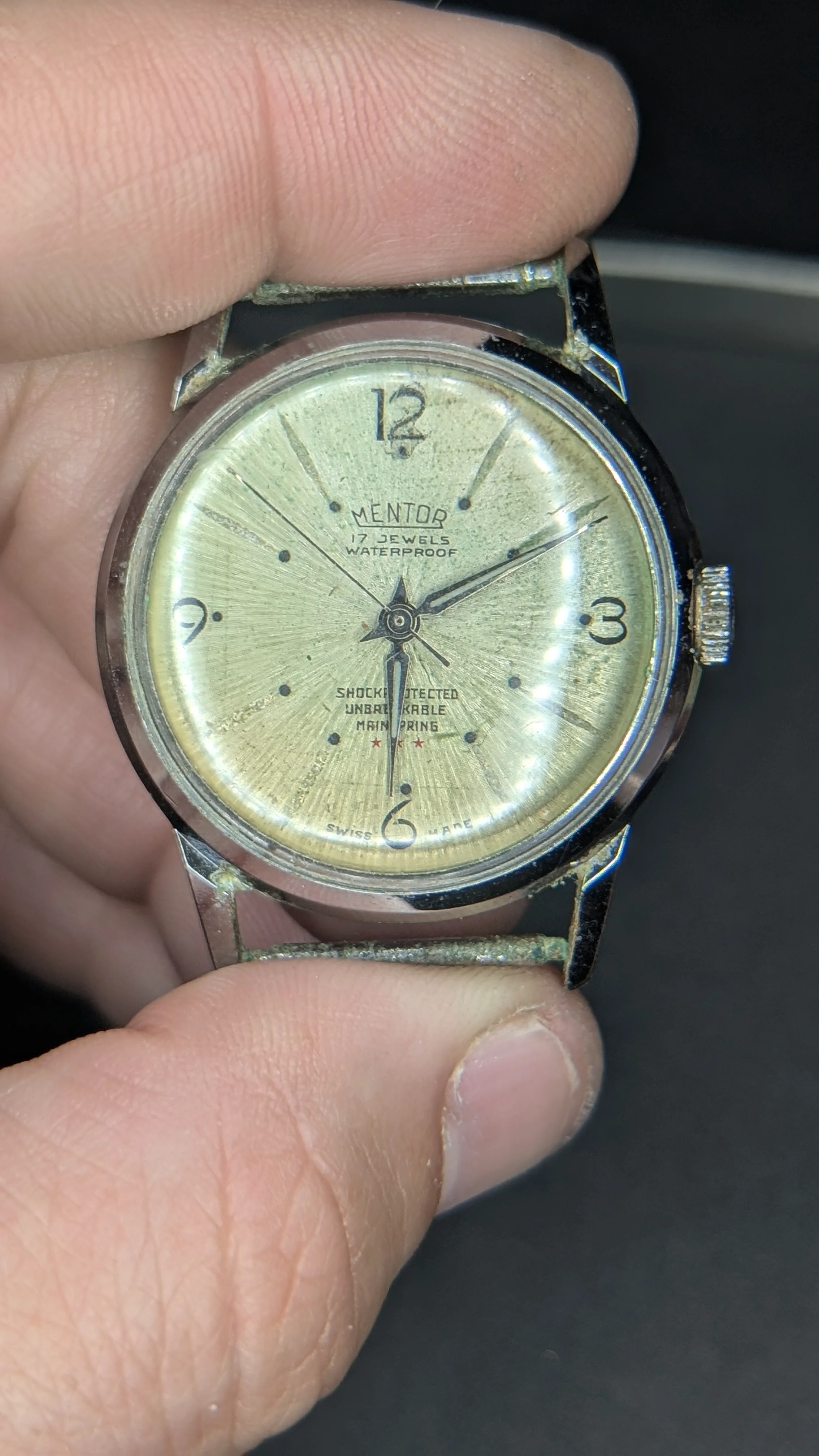

I've never heard the brand before, I just like the old look and was going to attempt to clean up and electroplate this case AFTER I got it opened. I don't think it's a pop back but I'll explore with the opener. I think I'll ultimately try the socket and super glue. Any size socket or should I try to find a large one? Thanks everyone!



Posts

214

Likes

1,151

Gentle Ben

·May 30, 2025

Awesome watch. Hope you get this resolved. I also initially thought rubber ball, but it sounds like you have tried that.



Posts

4,504

Likes

11,043

redpcar

·May 30, 2025

UNLucky

Not a horrible idea, but the lip is really thin and I'm not sure I can get a grip. I'll carefully give it a shot.

The biggest crescent wrench you have will increase the surface area. Worked for me in the past



Posts

4,504

Likes

11,043

redpcar

·May 30, 2025

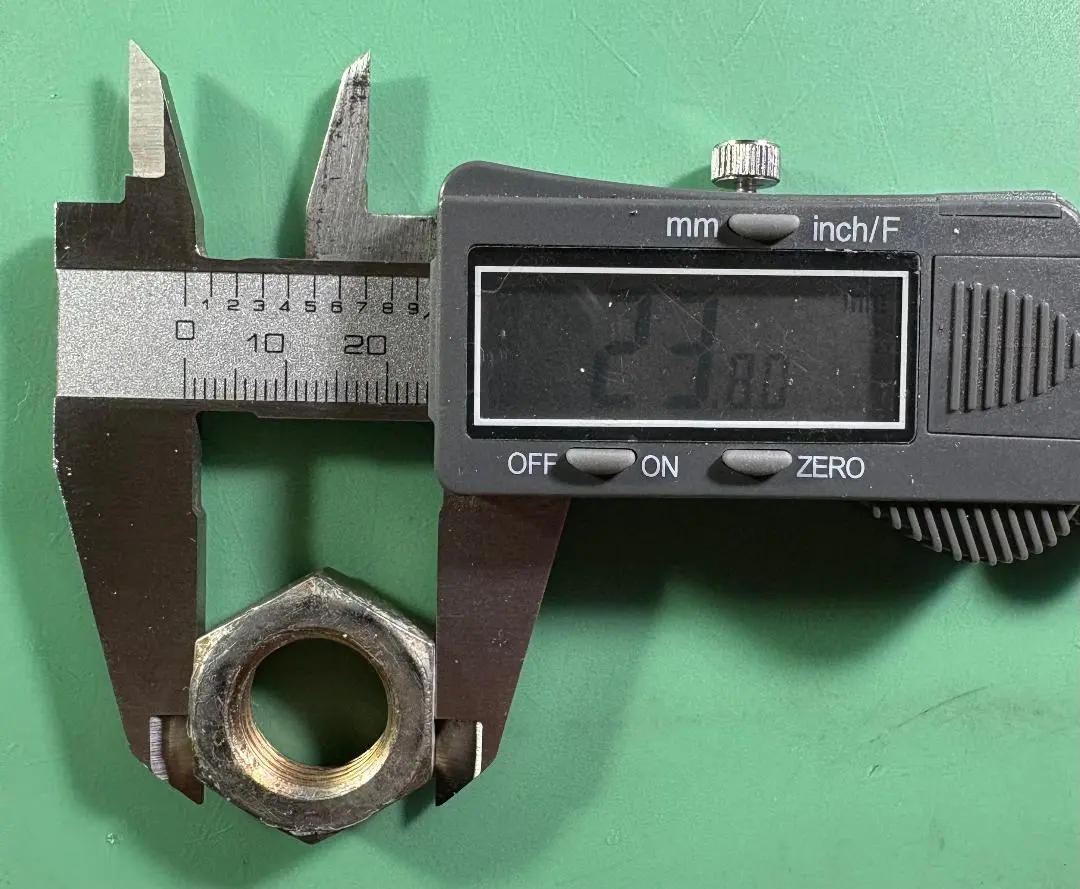

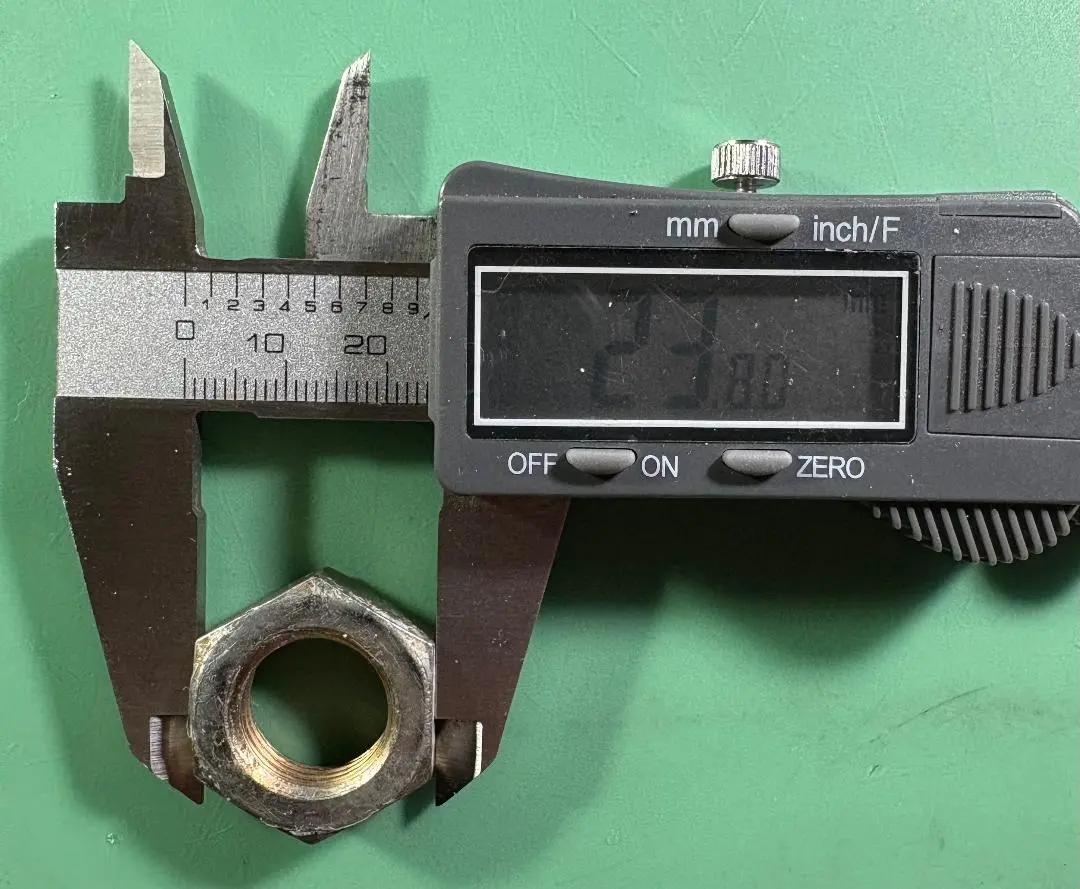

This is my "go to" nut that I use to super glue to the back. Clean the surfaces with acetone first. I soak the back/nut portion in acetone to dissolve the glue after the back is removed.



Posts

18,776

Likes

39,021

JimInOz

·May 30, 2025·Melbourne Australia

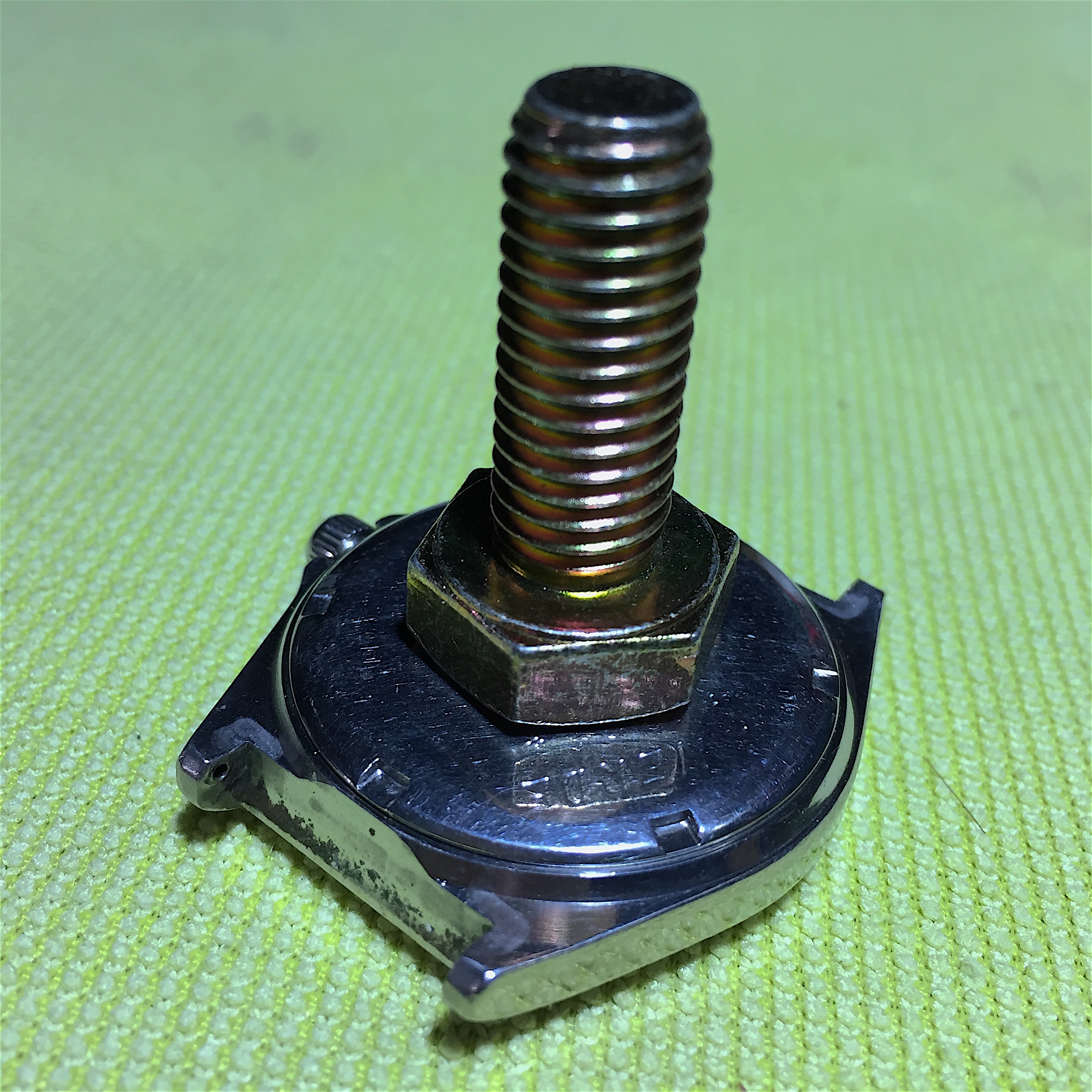

I just remembered.
I didn't use a hex nut, I used a bolt with the head flatenned out on a course wet&dry sheet.

https://omegaforums.net/posts/1504892/

JimInOz · May 10, 2020

Get a short bolt. Clean the head flat with wet and dry on a flat surface.
Clean the bolt and the watch case with isopropyl alcohol.
Bond the bolt to the case with a drop of superglue.
Allow to cure.
Use a spanner to remove the case.
Soak the caseback in acetone to remove the bolt.

Another time I used a flat square nut from something, had good surface area and also worked well.



S

Posts

781

Likes

1,340

size11s

·May 30, 2025

The nut and superglue has worked for me too, with the addition of some low level heat, circa 100 degrees C, to soften a degraded gasket.



Posts

2,639

Likes

2,818

ErichKeane

·May 30, 2025

If it is a consistent distance between sides, it should be easy enough to turn a socket for it out of aluminum. What is the distance between flats?



Posts

18,776

Likes

39,021

JimInOz

·May 31, 2025·Melbourne Australia

ErichKeane

If it is a consistent distance between sides, it should be easy enough to turn a socket for it out of aluminum. What is the distance between flats?

Interested in the process to do that.
(not knocking it, just like to see how it's done).



Posts

2,298

Likes

3,155

Passover

·May 31, 2025

dsio

That type of back is a really good candidate for the rubber ball method, it does the least amount of damage when they're really stuck too

https://www.ebay.com/itm/123622036748

Just ordered one, let's see! 😉
