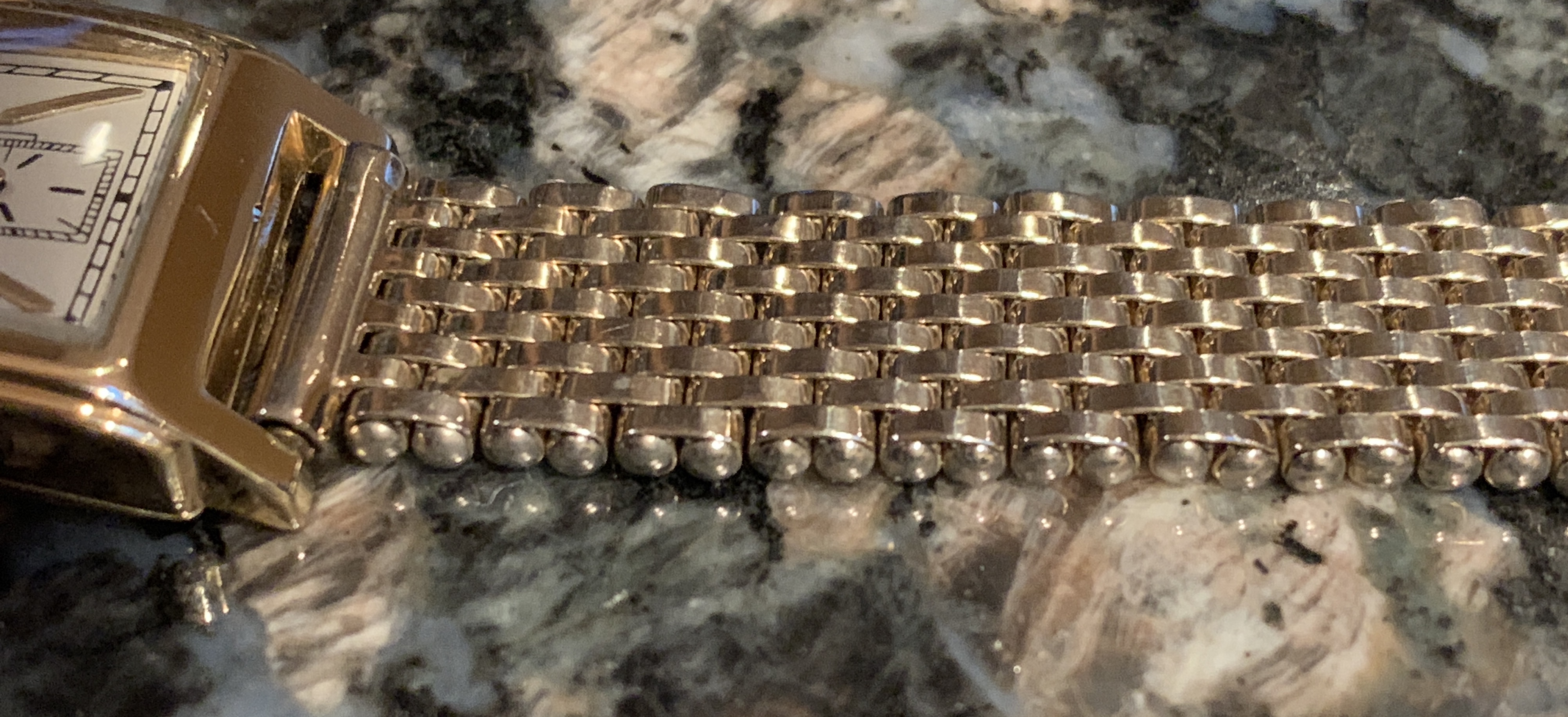

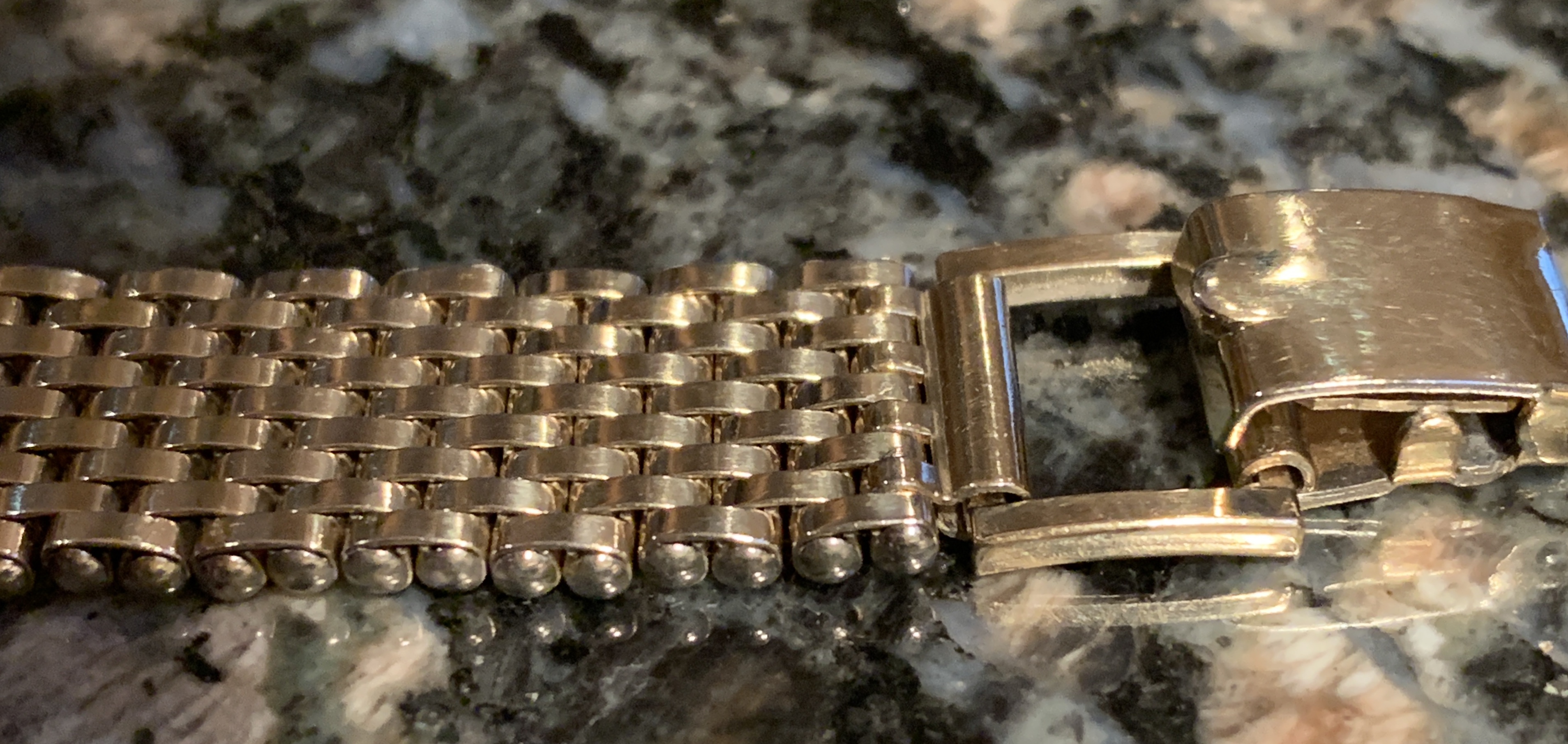

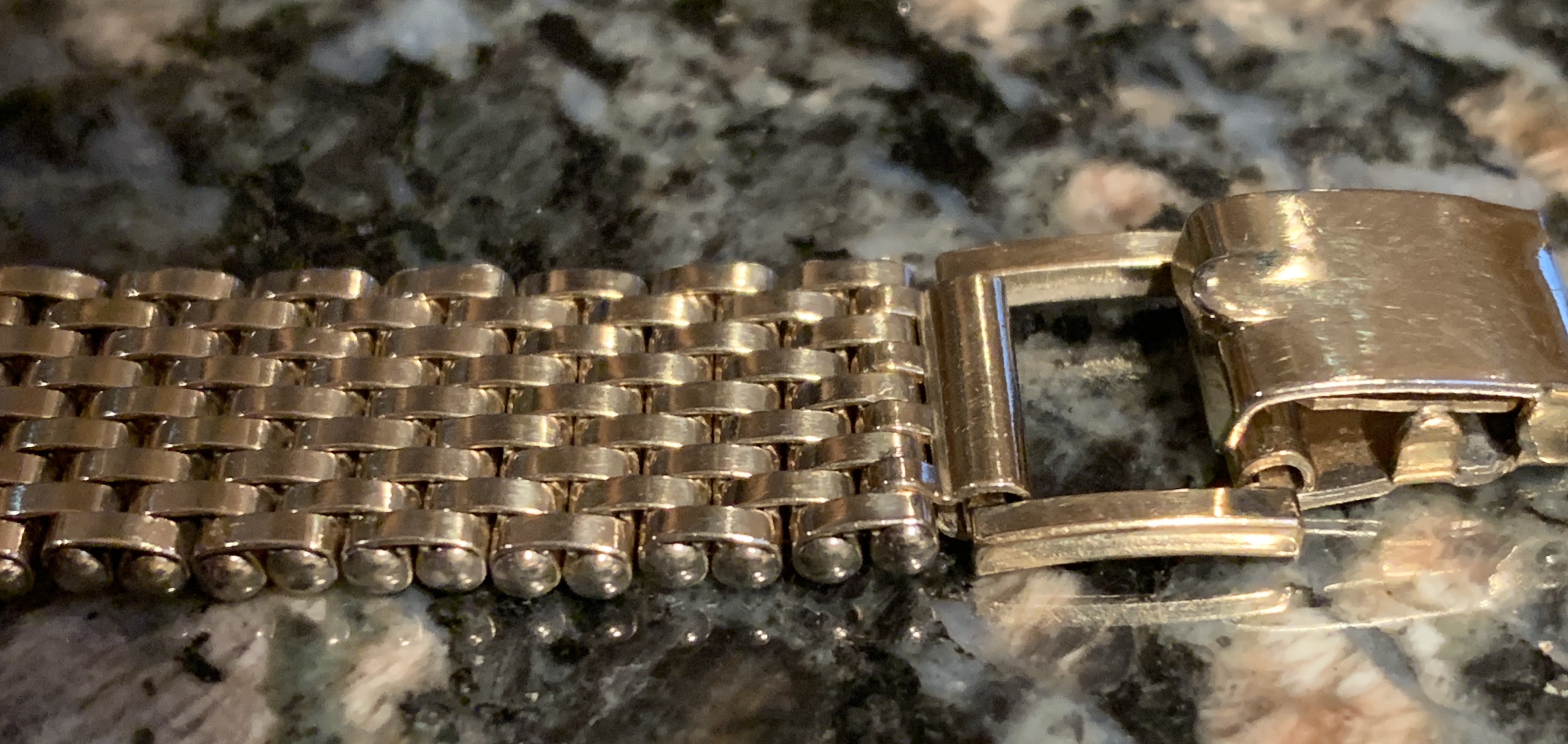

I have a vintage Hamilton watch that came with a Duchess bracelet (1940's - '50's ?) with a basketweave mesh. It's a bit too long but I'm not sure how to shorten it as all the links seem to be "riveted".

Any tips?



Posts
795
Likes
1,157
Normally you would need a pin extractor tool to be able to pull out those domed pins.
https://www.uhrmacherwerkzeuge.com/augusta-pliers-for-watch-strap-shorten-pin-extractor-125mm
Managing to pull out one, you end up with a long pin and its shorter part.
You then can calculate by how much you need to shorten the band and preferably mark it.
Pull out the second domed pin. Check if the length you ended up with is okay on your wrist and if so, you then need to insert the longer part of the pin through the links and hammer in the shorter part.
If you do not have this pin extractor tool, an end cutter should do the trick. Just don't press hard as you'll cut through it.

It's a five minute job at the watchmakers if this ^ ^ ^ sounds complicated. ... 馃榾
Edited:

Posts
2,446
Likes
7,040
It's a five minute job at the watchmakers if this ^ ^ ^ sounds complicated. ...
Thank you for the advice. I didn't realize the domed pins are press-fitted to each other. I'll try it and report back.

Posts
92
Likes
214
Thank you for the advice. I didn't realize the domed pins are press-fitted to each other. I'll try it and report back.

I just ordered one of these bracelets and had posted the same question recently 馃檮 Did you manage to shorten it yourself? Any updates?

Posts
2,446
Likes
7,040
I just ordered one of these bracelets and had posted the same question recently 馃檮 Did you manage to shorten it yourself? Any updates?

Some news.

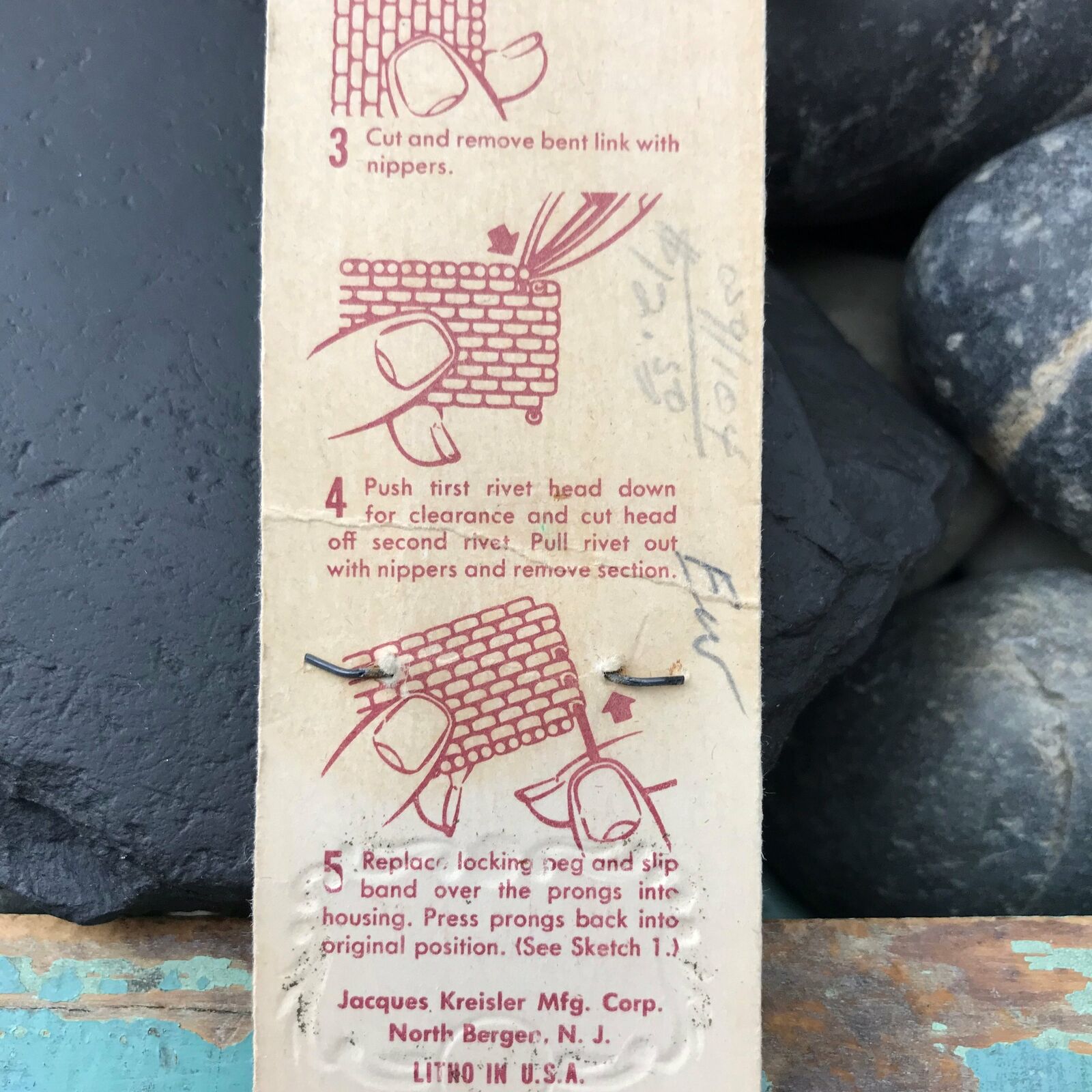

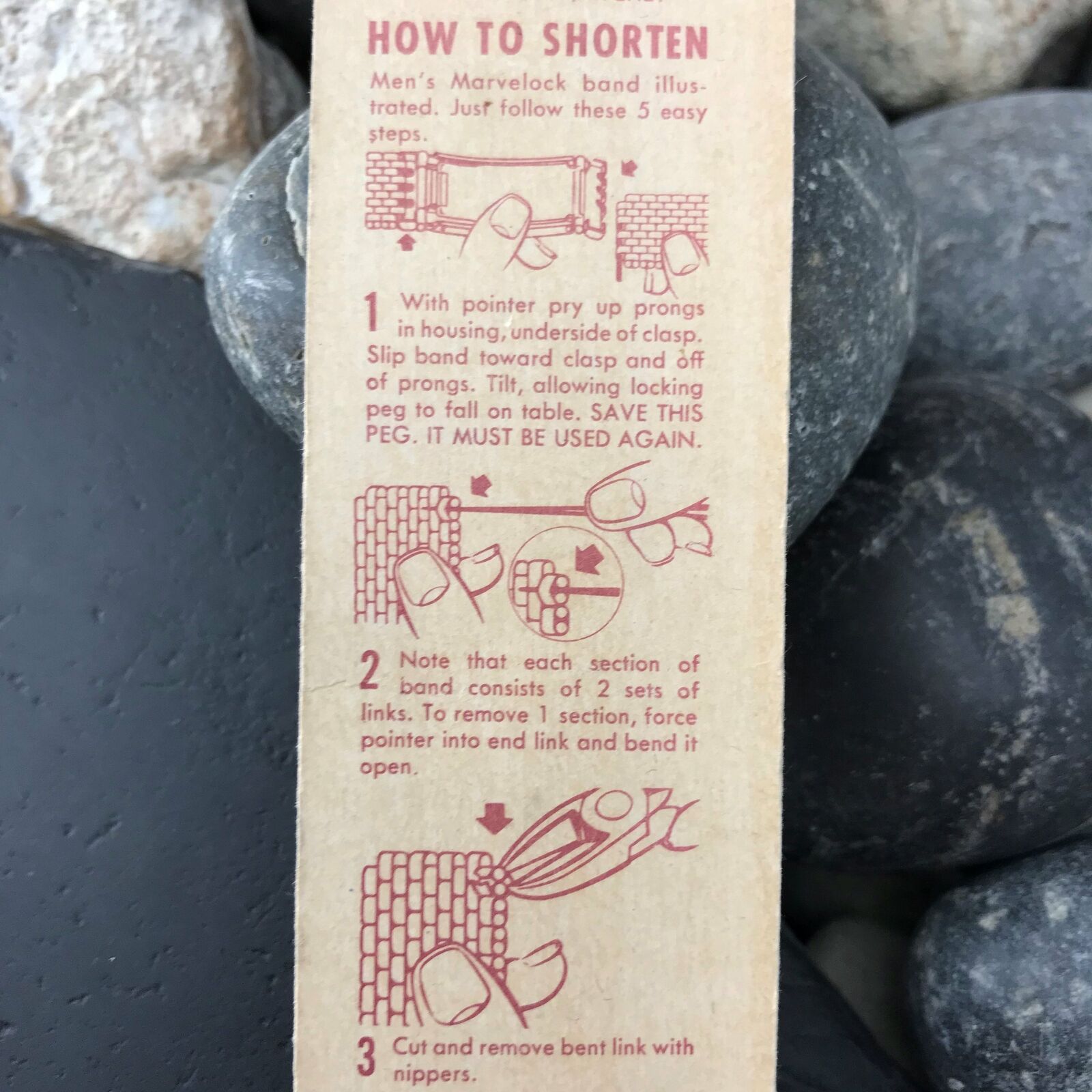

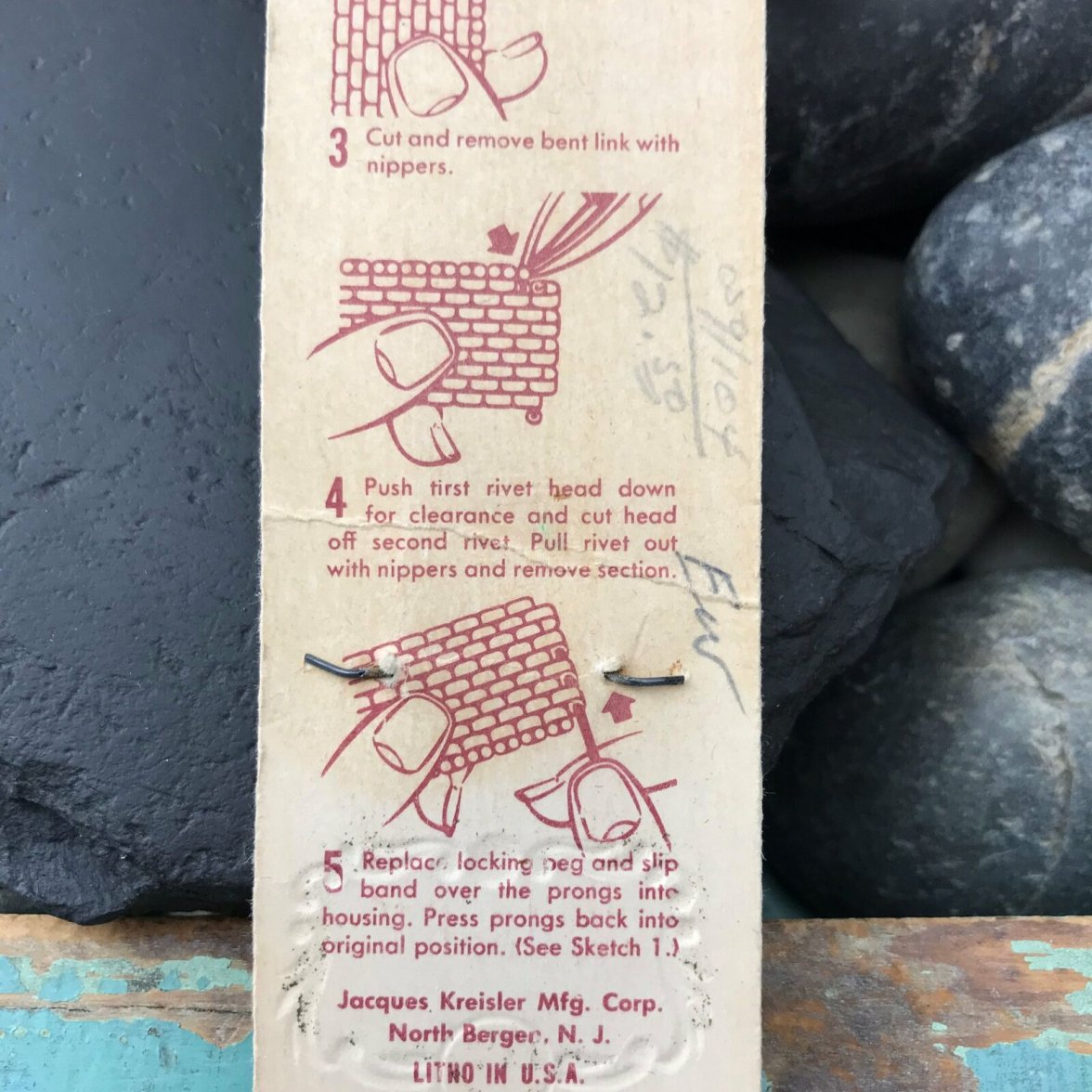

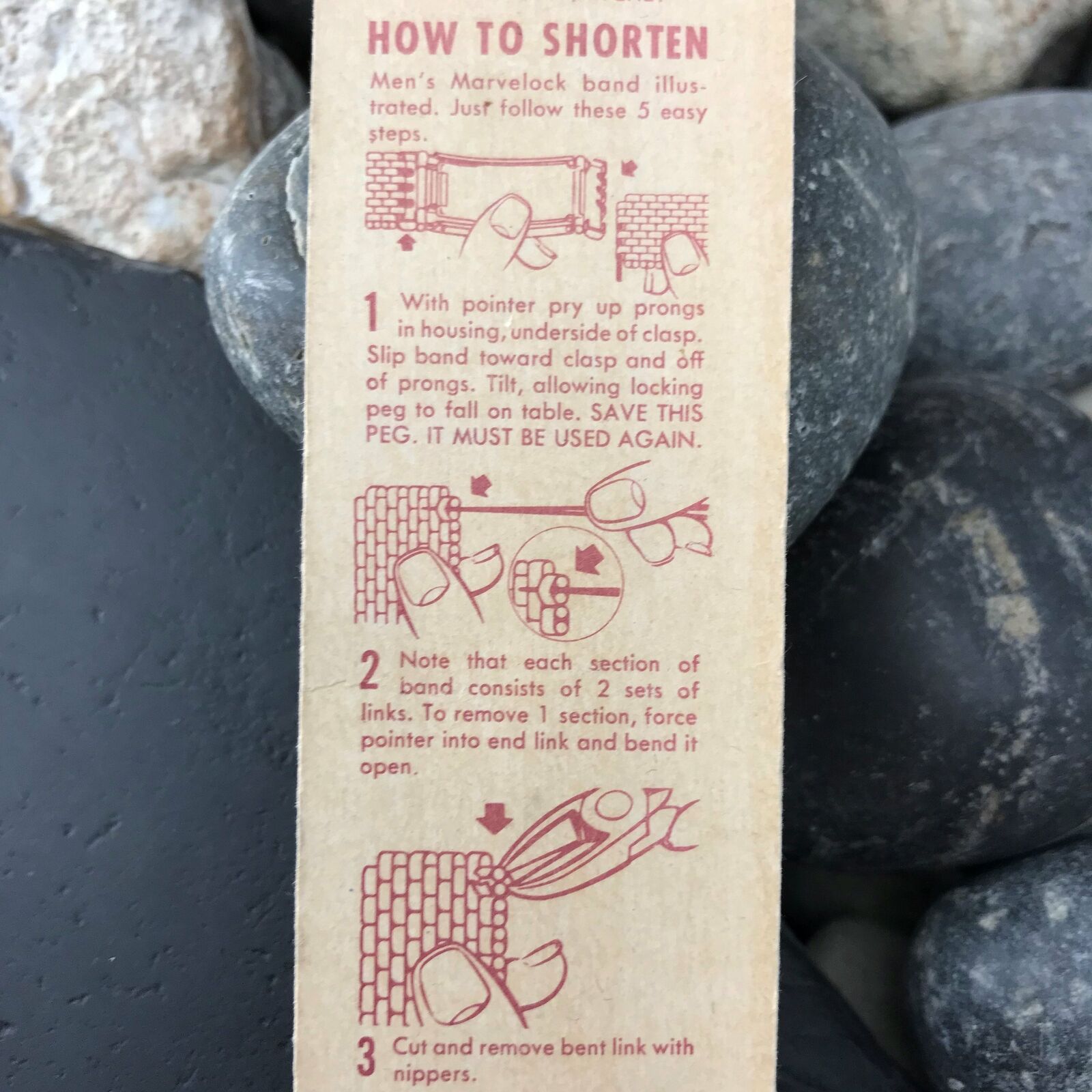

An ebay seller of similar bracelets was kind to send me information on adjusting the length. Have a look at the instructions:

Except that it did not work with my bracelet because the end link is different. Also, the "press fit" ends actually appear to be quite permanent so I couldn't take a pin apart as @Pazzo suggested. In the end I had to destroy a pins to shorten the bracelet. One still need a pin to reattach the bracelet together. I had some on hand like the ones shown below to try it out. It works but not right aesthetically so I need to order a better looking pin so I need to order from a supplier (e.g. Esslinger).


Posts
92
Likes
214
...

Except that it did not work with my bracelet because the end link is different. Also, the "press fit" ends actually appear to be quite permanent so I couldn't take a pin apart as @Pazzo suggested. In the end I had to destroy a pins to shorten the bracelet. One still need a pin to reattach the bracelet together. I had some on hand like the ones shown below to try it out. It works but not right aesthetically so I need to order a better looking pin so I need to order from a supplier (e.g. Esslinger).

Thanks for sharing! Seems I might end up with the same fate. I wonder if the original pin cap can be soldered back on by a jeweler? I'd appreciate if you could update us again if you end up finding a supplier for the correct pins 馃榾 *Esslinger's don't seem to match aesthetically

Posts
795
Likes
1,157
There's a link for a "special" type of pliers in my post above.
These pliers make the job done quite easily.

Posts
2,446
Likes
7,040
I grounded the end of the screw-shaped head of a replacement pin so it resembles the ones on the bracelet. I think it looks good. The pin has a smaller diameter (1.2 mm) than the original pin (1.5 mm) so the bracelet will look a little loose at that link. I might purchase a larger diameter pin from Esslinger and modify those.


Posts
963
Likes
1,251
I grounded the end of the screw-shaped head of a replacement pin so it resembles the ones on the bracelet. I think it looks good. The pin has a smaller diameter (1.2 mm) than the original pin (1.5 mm) so the bracelet will look a little loose at that link. I might purchase a larger diameter pin from Esslinger and modify those.

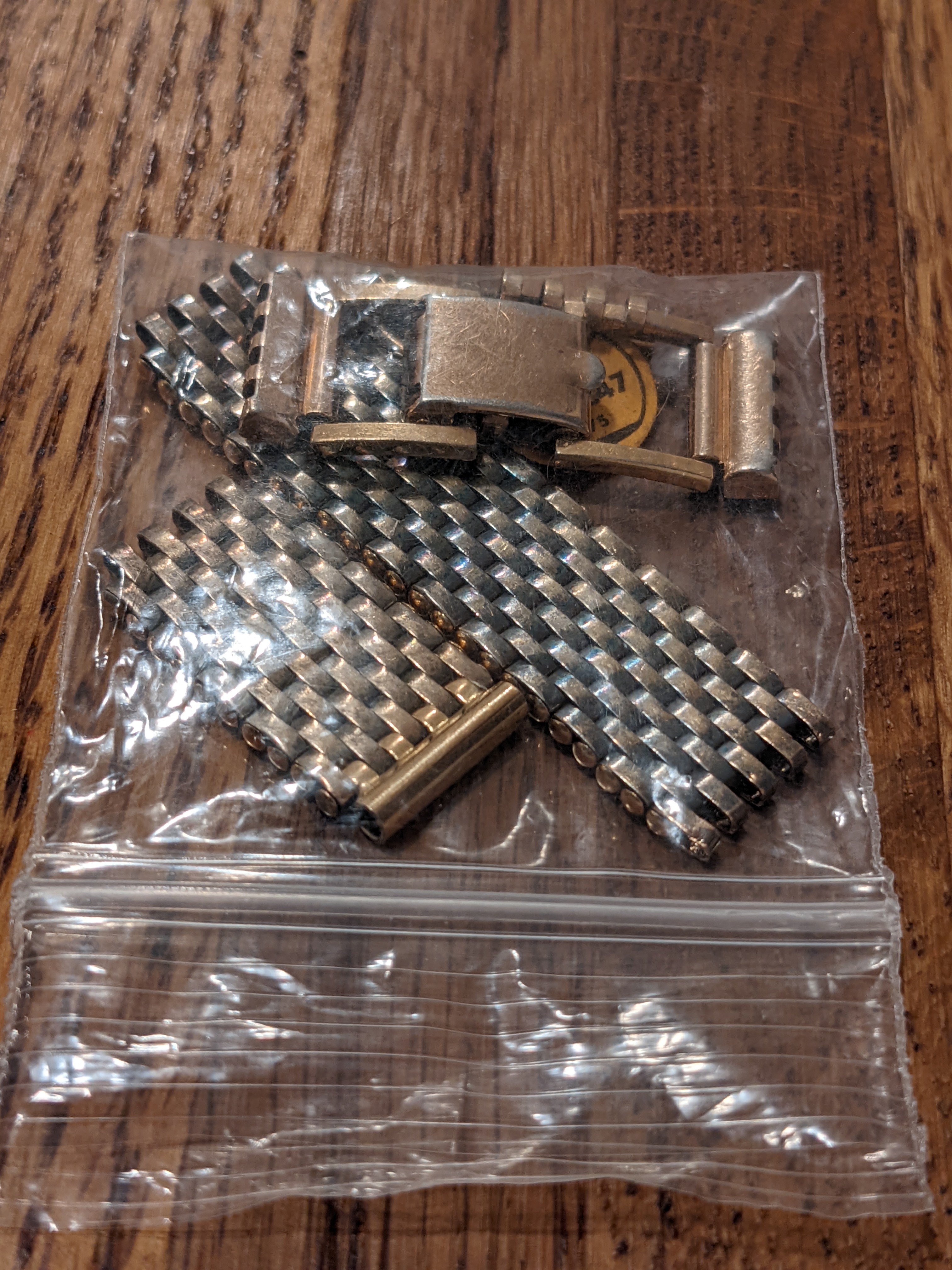

I just combined two of this style here: https://omegaforums.net/threads/sizing-1940s-gold-filled-kreisler-basketweave-bracelet.141794/

Pins in my Kreisler were closer to 1.4mm. I tried 1.5mm t-bars but they were too wide.

I used a single 999.020.18 pin, cut to length (~12.5mm):

https://www.jewelerssupplies.com/wa...fold-clasps-1-20mm-individual-999.020.18.html

I used the insert from a 906.037.01 to assist in cutting:
https://www.jewelerssupplies.com/t-bars-906.037.01.html

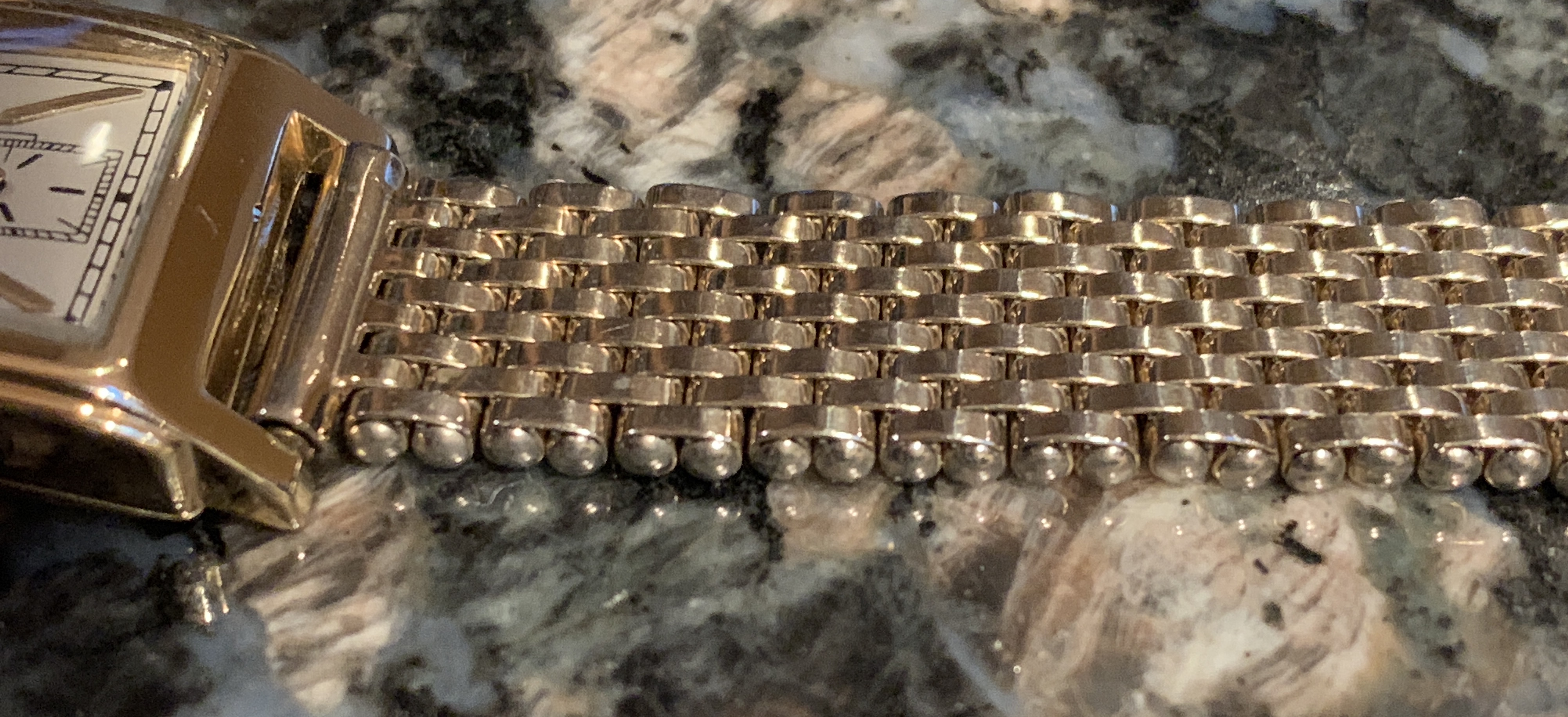

The one replacement pin is in the middle of the 12 side of the bracelet, size and shape of the head are very good IMHO:
pxl_20220228_234830471-jpg.1377591

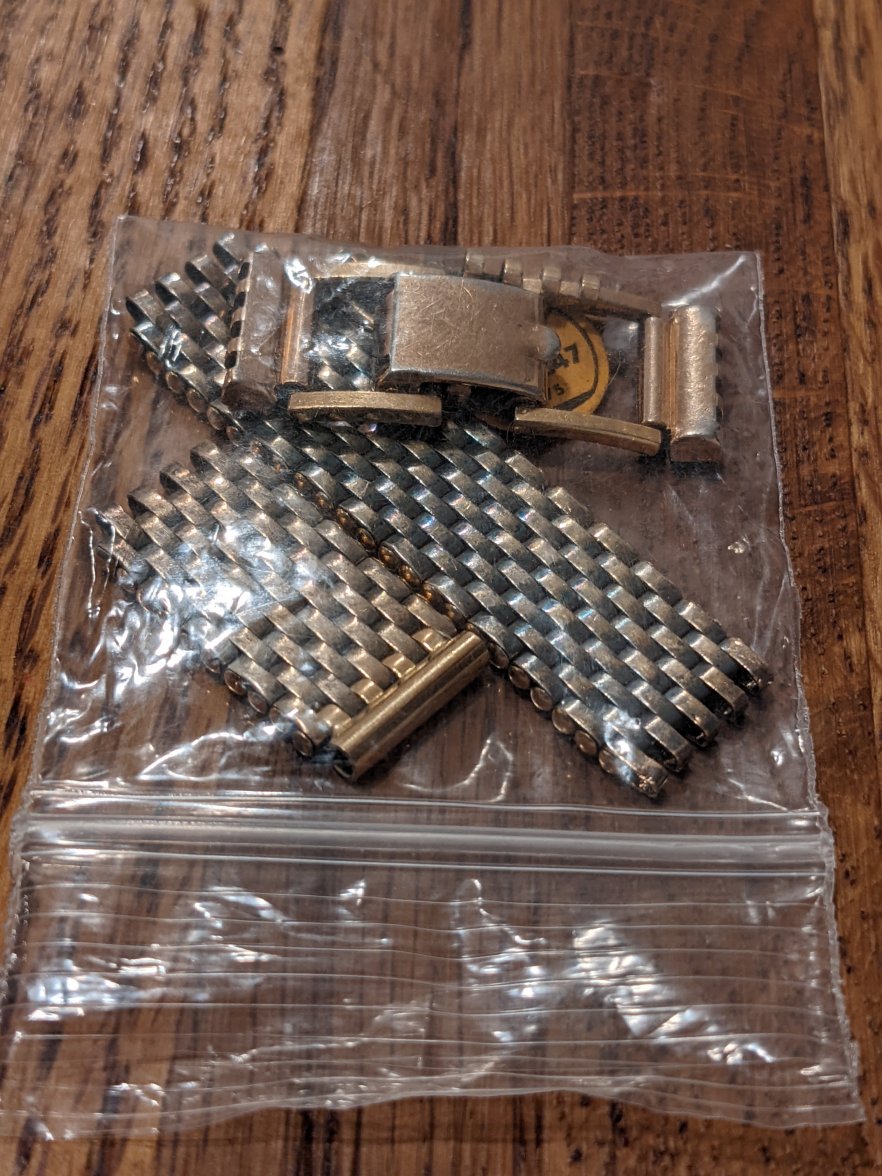

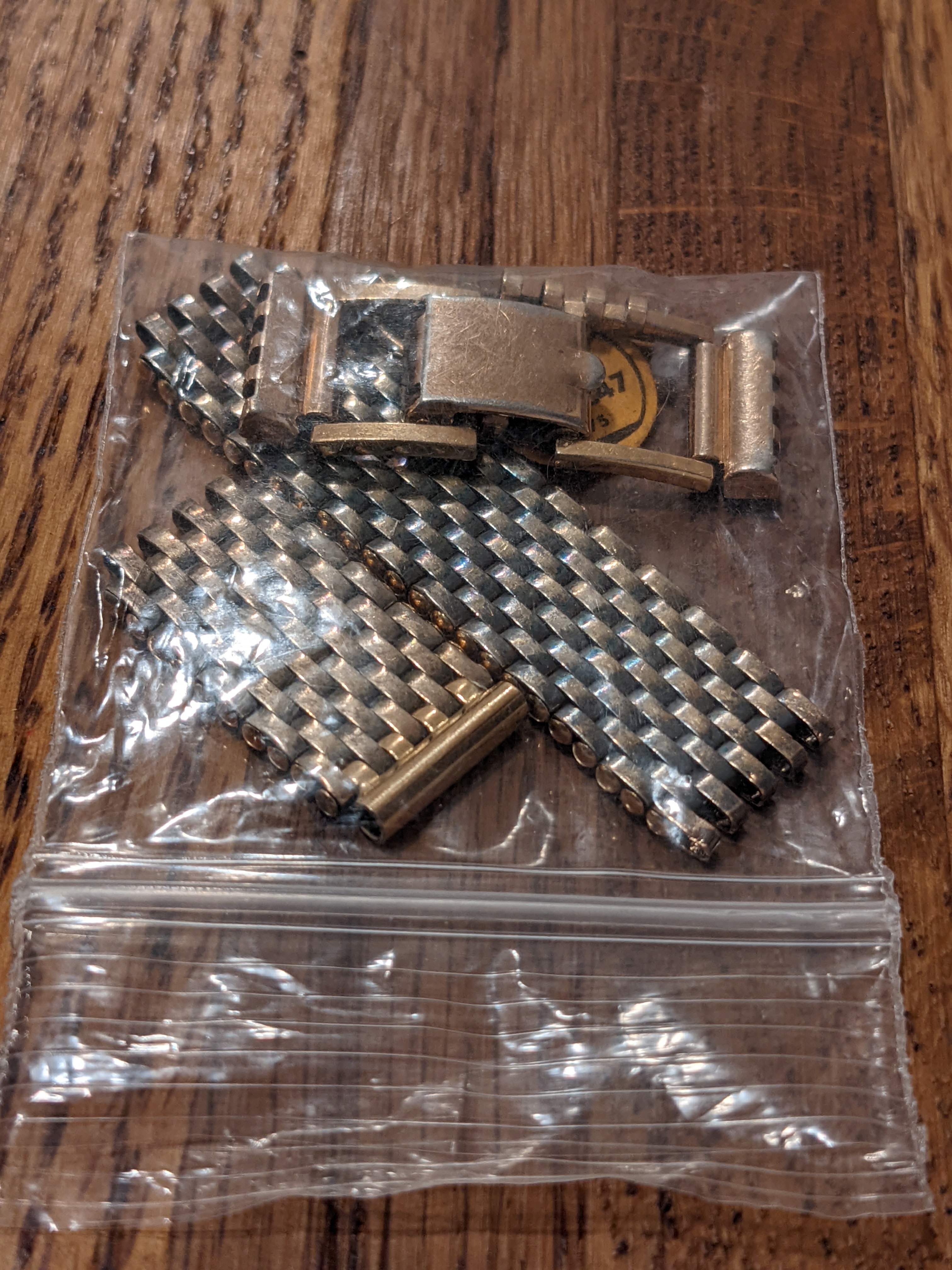

Let me know if I can provide any additional info, or if you need any parts. I have more of the pins above, a section of basketweave in rose gold plate, and a fold-over (non-deployant) clasp.
