Help matching a Seamaster to a BOR bracelet

rkman11
Posts
1,706
Likes
5,686
Hi brain trust,

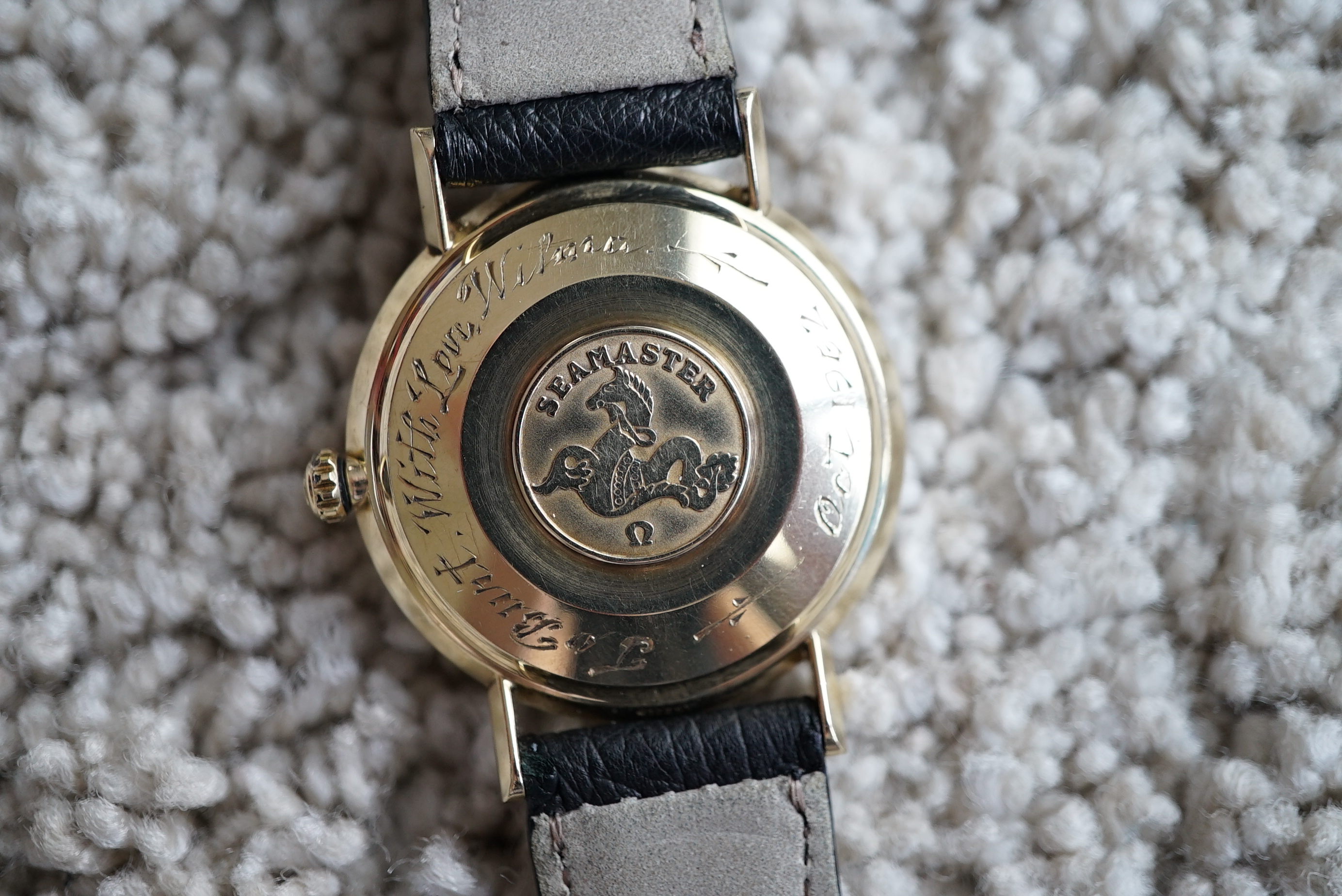

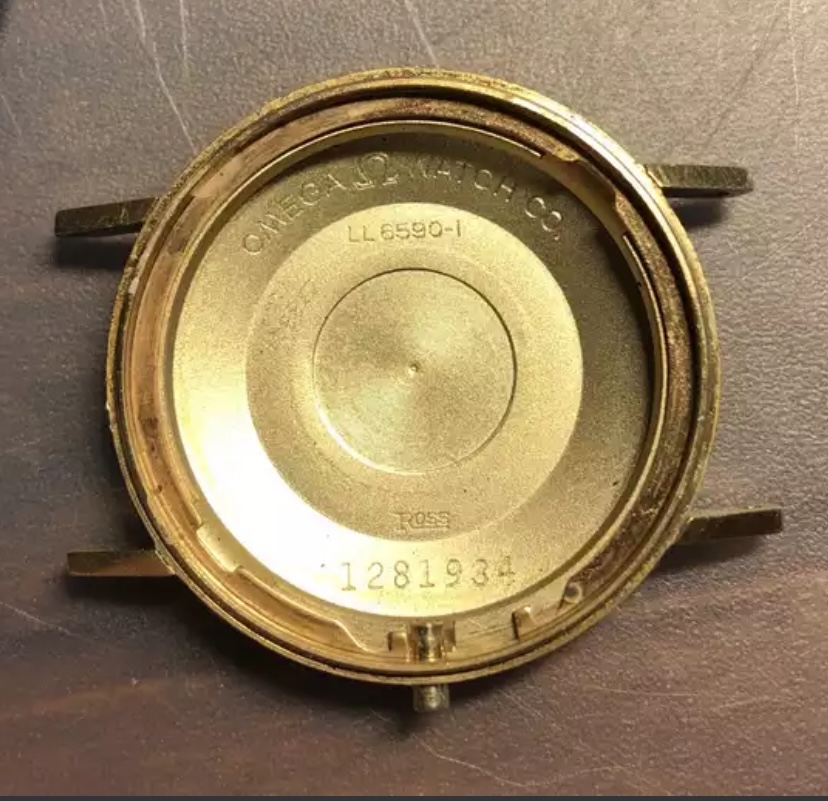

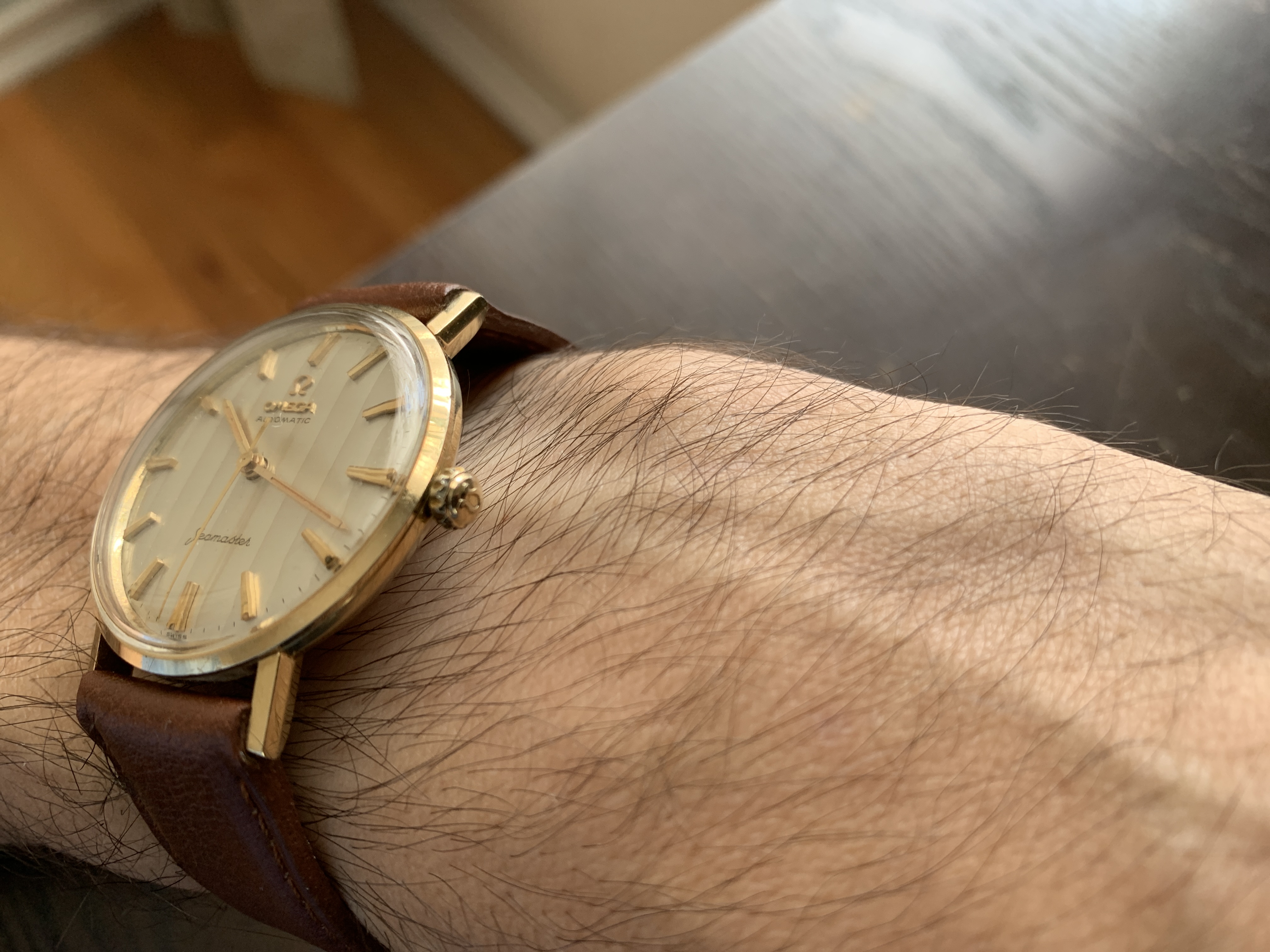

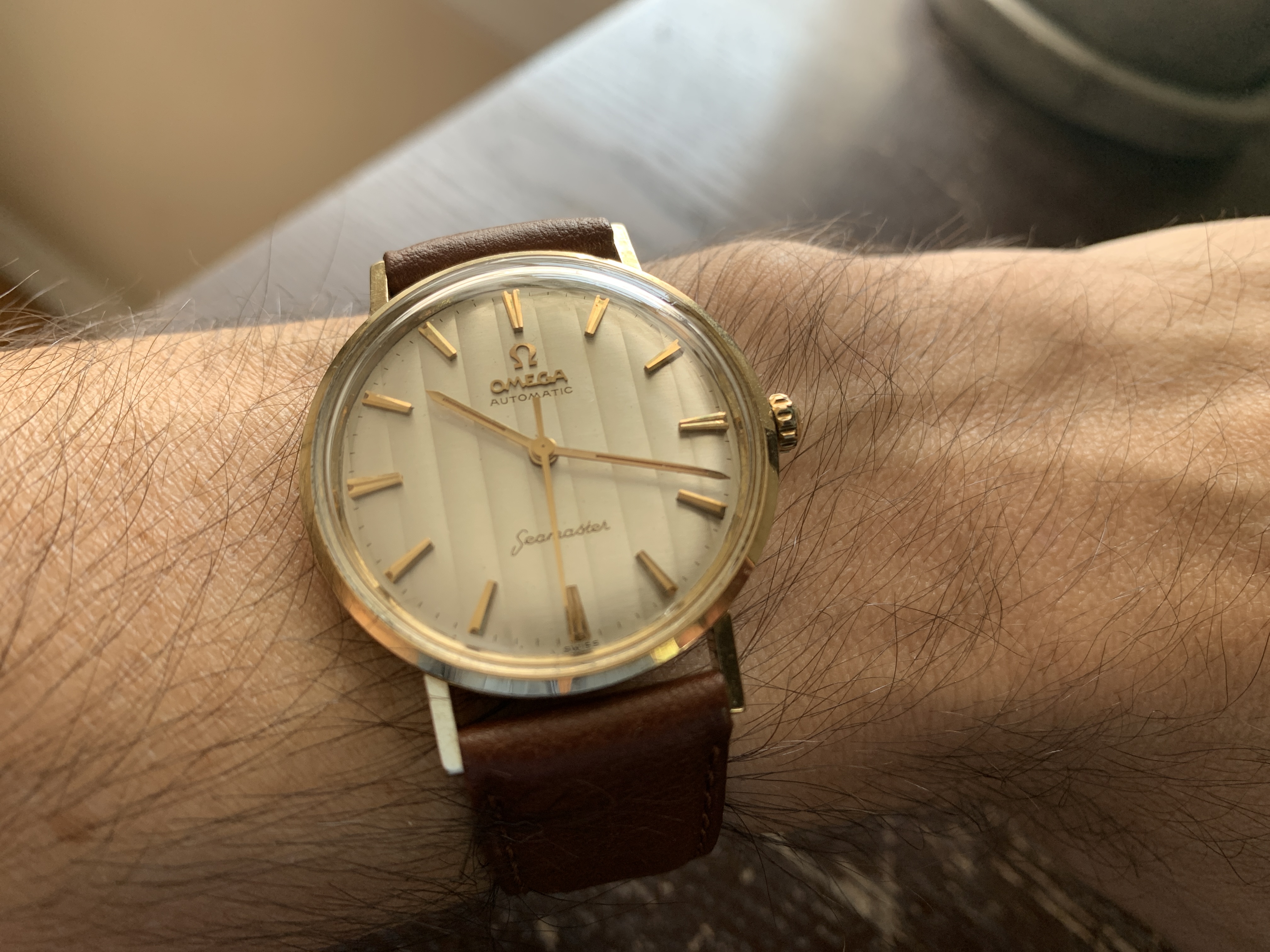

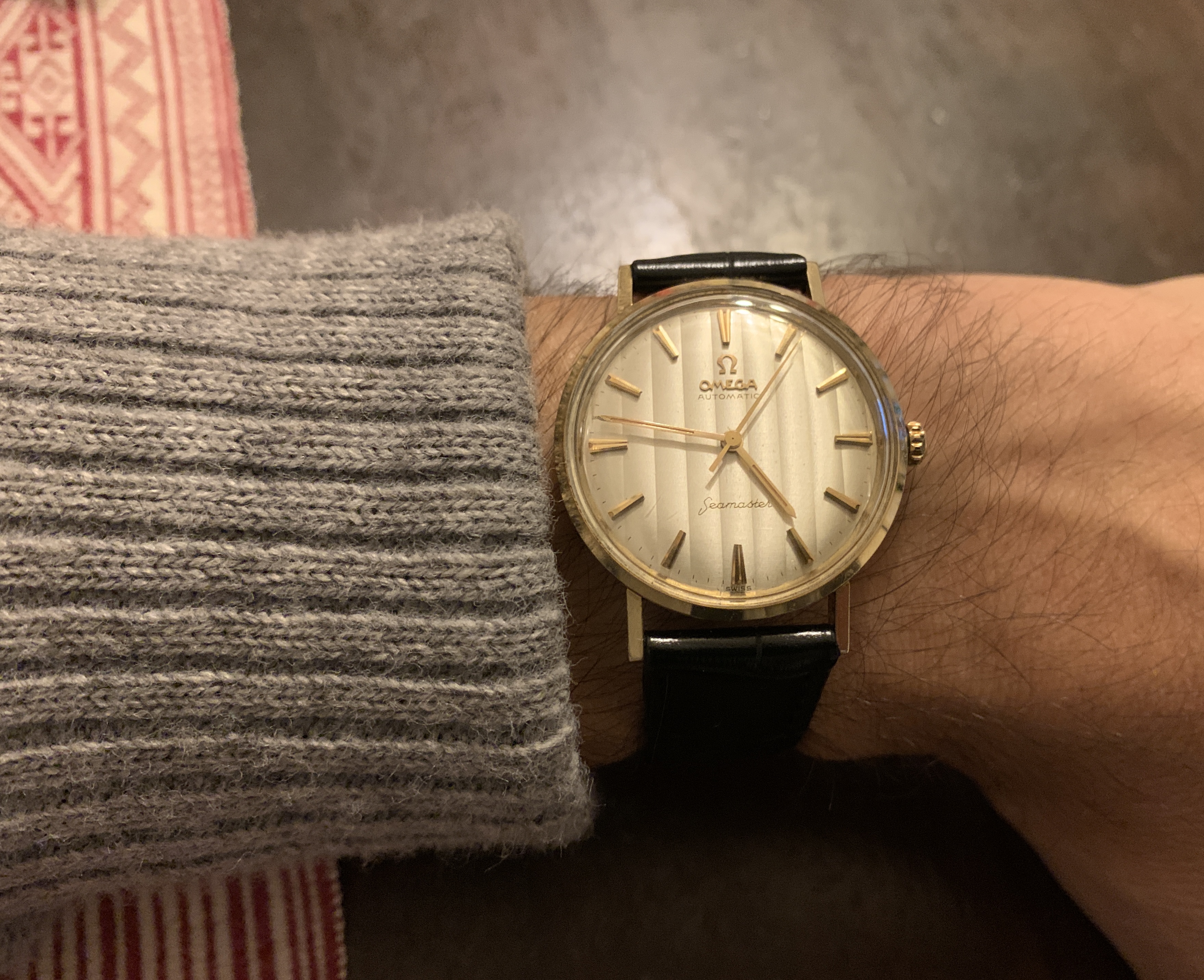

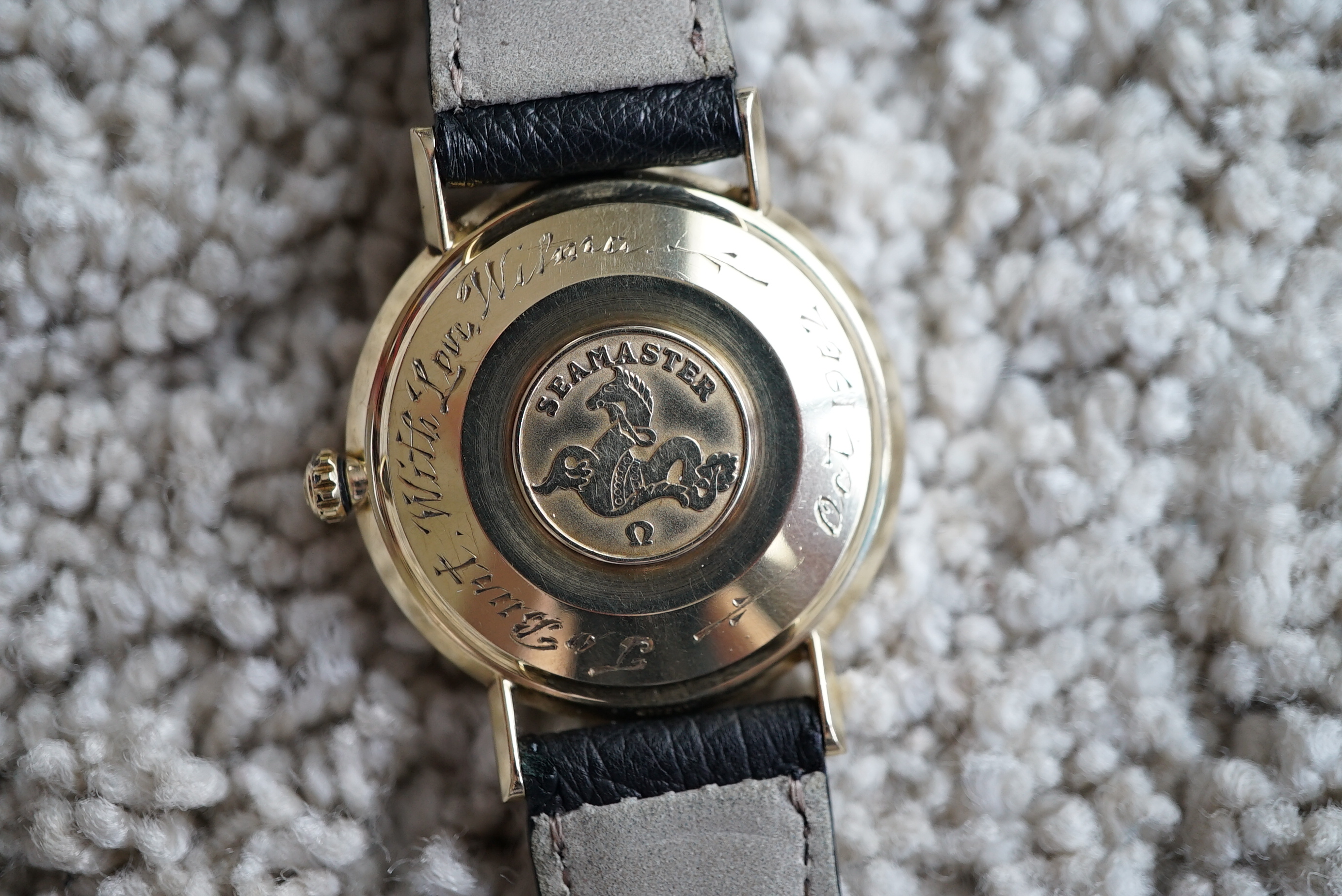

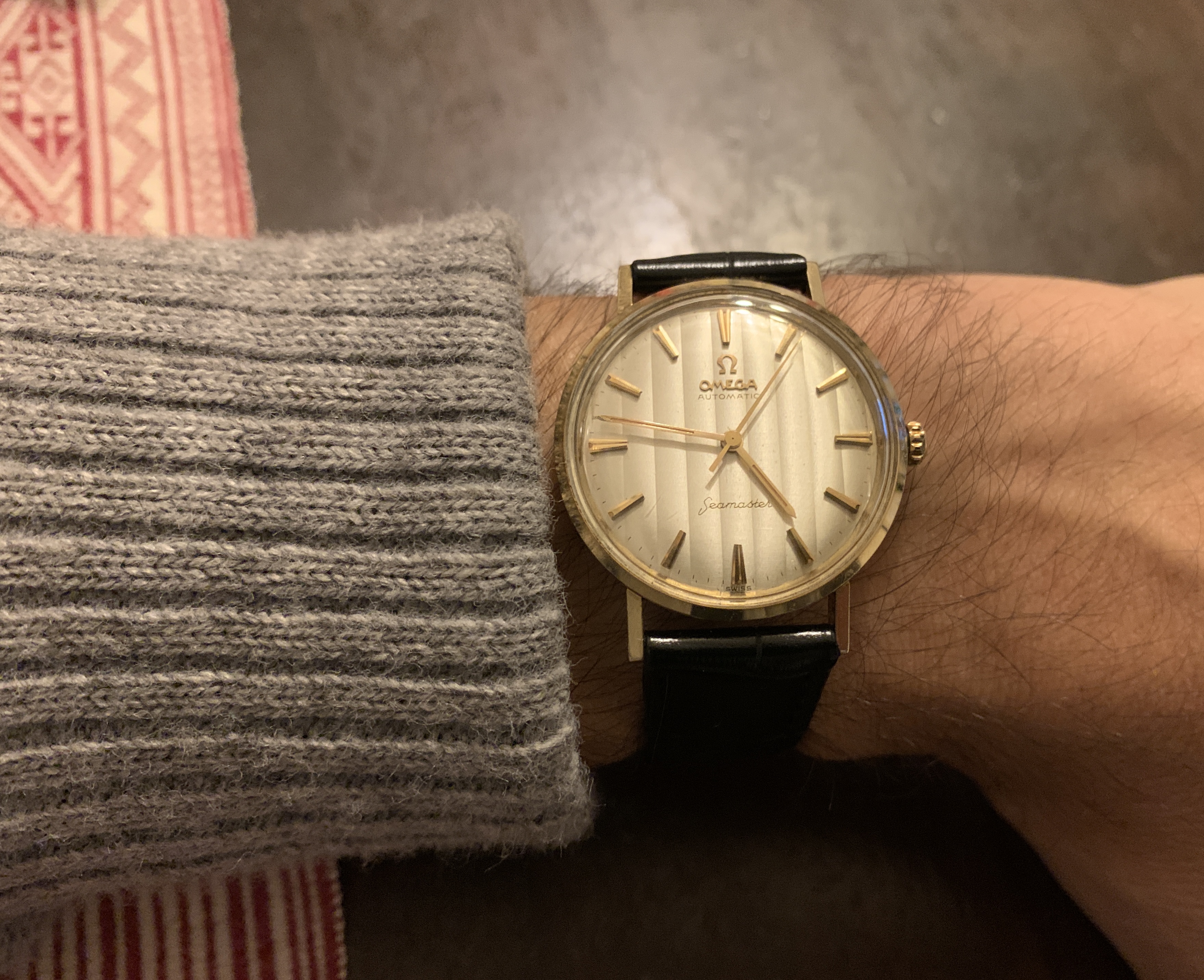

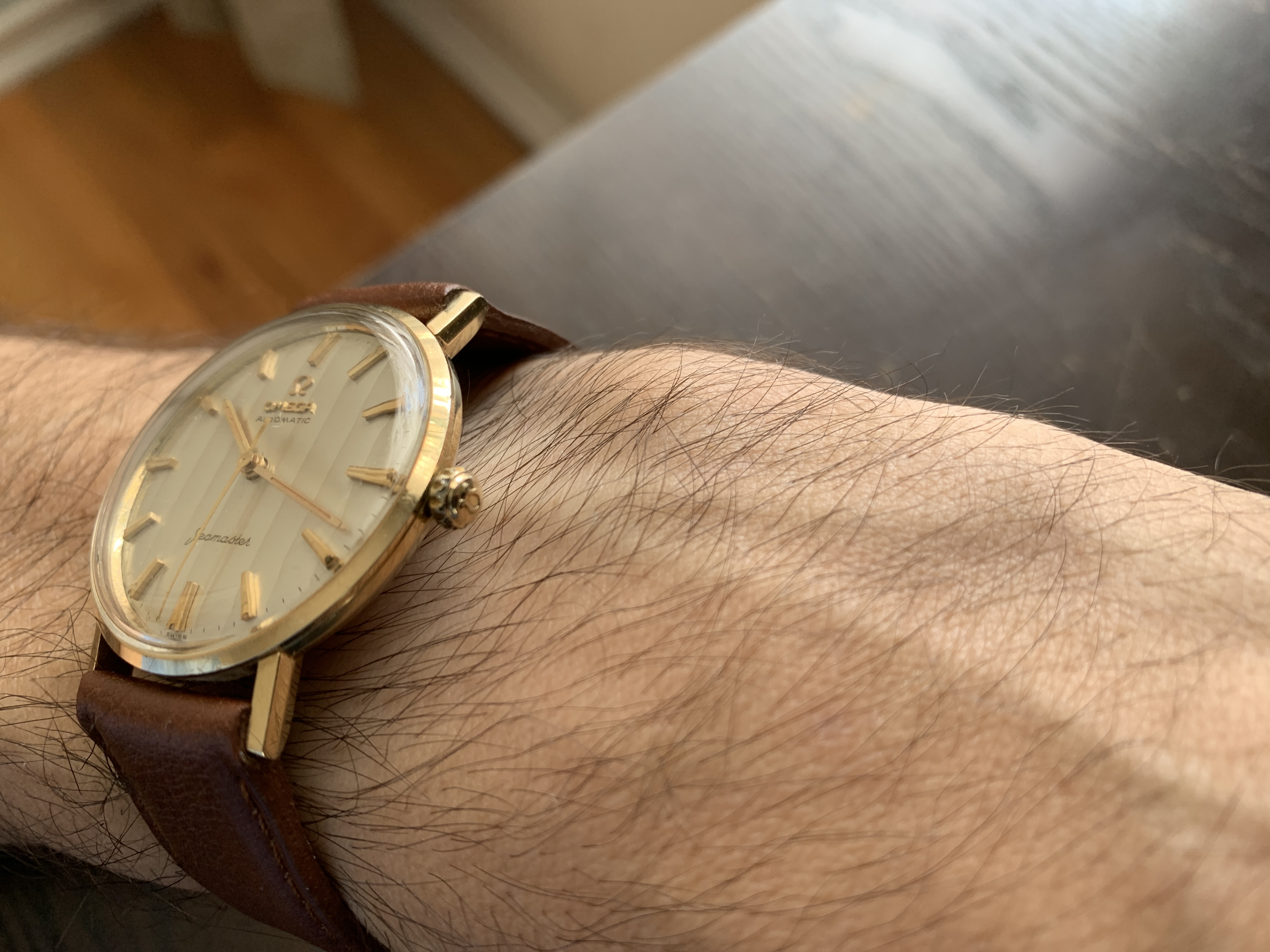

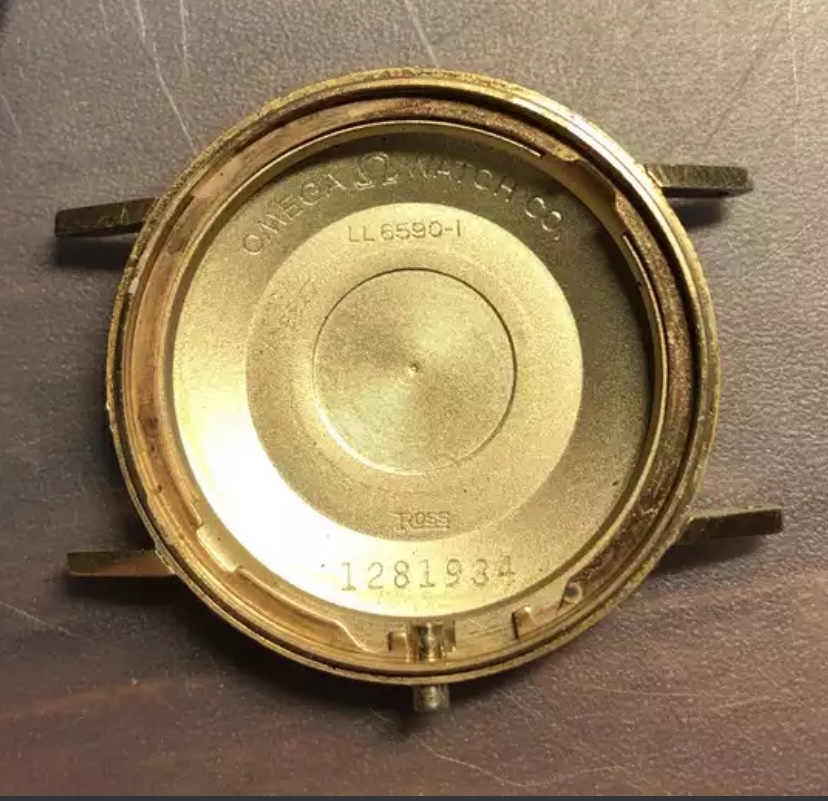

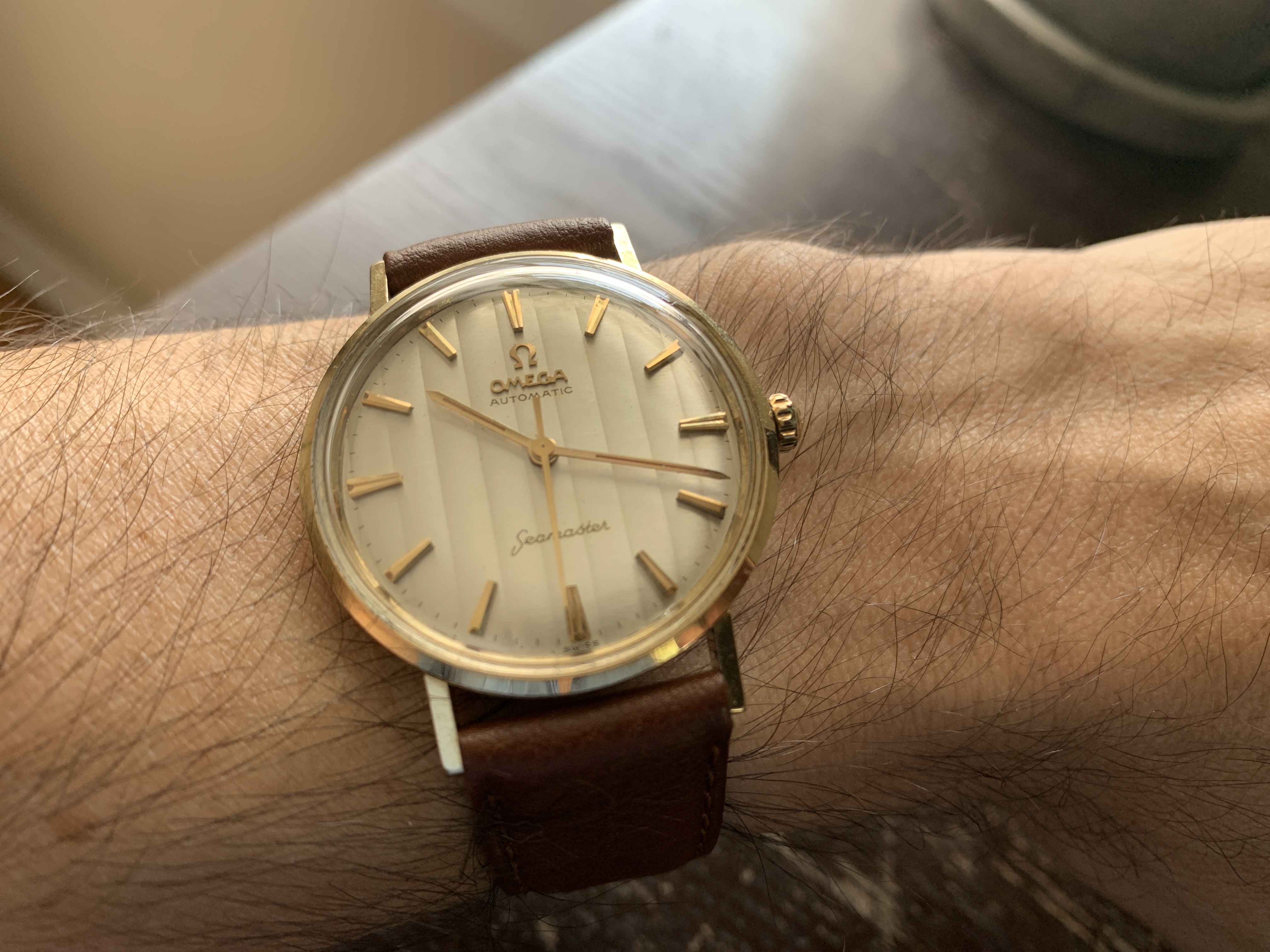

Hoping I can turn to you for some help! Have a beautiful 1961 gold Seamaster, I have always worn it on a strap but I’m interested in sourcing a BOR. Threw out a WTB thread, but with the help of some amazing members realizing I need to get more information to get more specific on what bracelet and end links will work for this particular watch. Attaching pictures below, it’s a Ross case made for the American market, reference number LL6590-1

I can confirm the lug width is 18mm. Was thinking that would be a 1037 with maybe 513 or 564 end links, but not sure.

Any and all help is greatly appreciated!


78B43F57-8829-40AE-AA0D-1B72577D5A1A.jpeg 0BAC478A-D4B2-43EE-AFB6-7502FAC09CAE.jpeg 122CA1A5-DC22-4EBA-B3CE-2A6399B0A172.jpeg 8D3EBC64-5F92-40F9-81C4-C53B106DC281.jpeg 4225E6AD-031E-4D06-BD7E-9E4E287B4244.jpeg

Davidt
Posts
13,201
Likes
22,957
If it was a steel version the end links would be 70 or 570. I don’t know if it’s the same reference numbers for gold?

rkman11
Posts
1,706
Likes
5,686
Davidt Davidt
If it was a steel version the end links would be 70 or 570. I don’t know if it’s the same reference numbers for gold?

Thanks for the info. Yeah, that’s the tricky part, I would imagine it’s the same for gold, but being a Ross made case…

TexOmega
Posts
8,485
Likes
60,617
American Market were in inches, double check width, might be a bit less than 18mm.

metal not as forgiving as leather

Davidt
Posts
13,201
Likes
22,957
The lugs tops look slightly more basic than the Swiss version but the caseback and reverse of the lugs seems comparable. Obviously the only real way to tell is to try a pair, unless you can find a picture of the same case with a well fitting bracelet or another member has one.

rkman11
Posts
1,706
Likes
5,686
TexOmega TexOmega
American Market were in inches, double check width, might be a bit less than 18mm.

metal not as forgiving as leather

Thanks, will triple check

MtV
Posts
3,402
Likes
13,196
SkunkPrince SkunkPrince
11/16" or 17.25mm.

Just found this video:

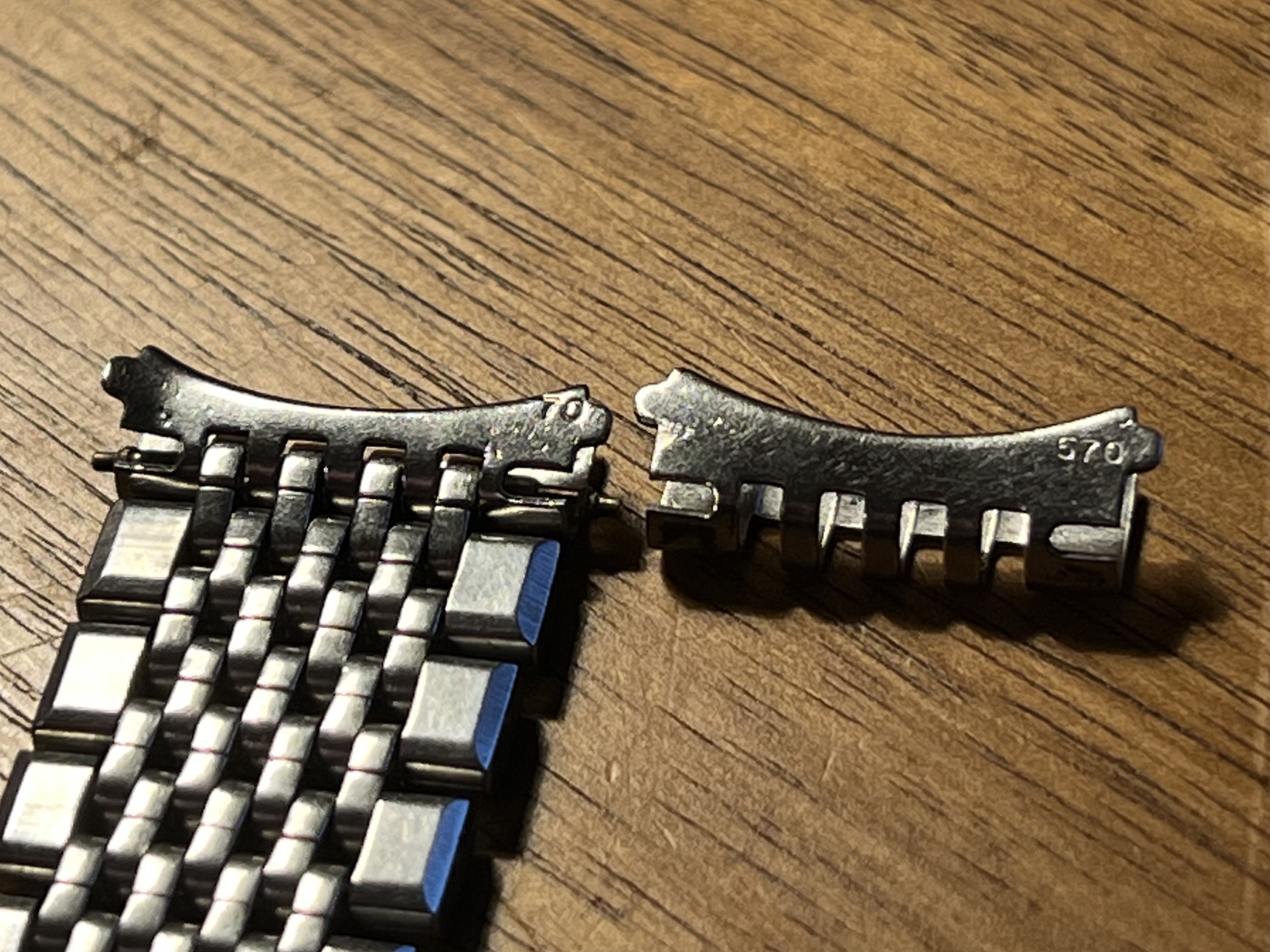

According to the OE, lug width is 18mm, in which case I'm with @Davidt that 70 or 570 should work fine. It's a little detail, but I think the 570s are a little longer than the 70s? Possibly depends on the manufacturer, but I've found the shorter 70s fit a little better


I could only try on another SMDV I have here though, no US-ref LL6590 pre-DeVille.

The good thing is: 1503/70s were produced in masses and are used on many refs, also the prices are pretty stable. Find one for ok money and give it a try - if it really doesn't fit because the case does end up being slightly different, you'll sell it without loss.

rkman11
Posts
1,706
Likes
5,686
MtV MtV
Just found this video:


According to the OE, lug width is 18mm, in which case I'm with @Davidt that 70 or 570 should work fine. It's a little detail, but I think the 570s are a little longer than the 70s? Possibly depends on the manufacturer, but I've found the shorter 70s fit a little better


I could only try on another SMDV I have here though, no US-ref LL6590 pre-DeVille.

The good thing is: 1503/70s were produced in masses and are used on many refs, also the prices are pretty stable. Find one for ok money and give it a try - if it really doesn't fit because the case does end up being slightly different, you'll sell it without loss.

You are a gentleman and a scholar, Matt, thank you!

janice&fred
Posts
4,593
Likes
10,810
rkman11 rkman11
Threw out a WTB thread,

yea i seen that thread of yours. what you fail to realize is I already posted the same WTB thread before you so if there's any gold filled/plated thingies available I deserve it much more than you because I'm special. my mom told me.

rkman11
Posts
1,706
Likes
5,686
janice&fred janice&fred
yea i seen that thread of yours. what you fail to realize is I already posted the same WTB thread before you so if there's any gold filled/plated thingies available I deserve it much more than you because I'm special. my mom told me.

I’d say may the best man win, but the fact that you’re giving away free bumps to my thread…

janice&fred
Posts
4,593
Likes
10,810
rkman11 rkman11
I’d say may the best man win, but the fact that you’re giving away free bumps to my thread…

today just ain't my day.

janice&fred
Posts
4,593
Likes
10,810

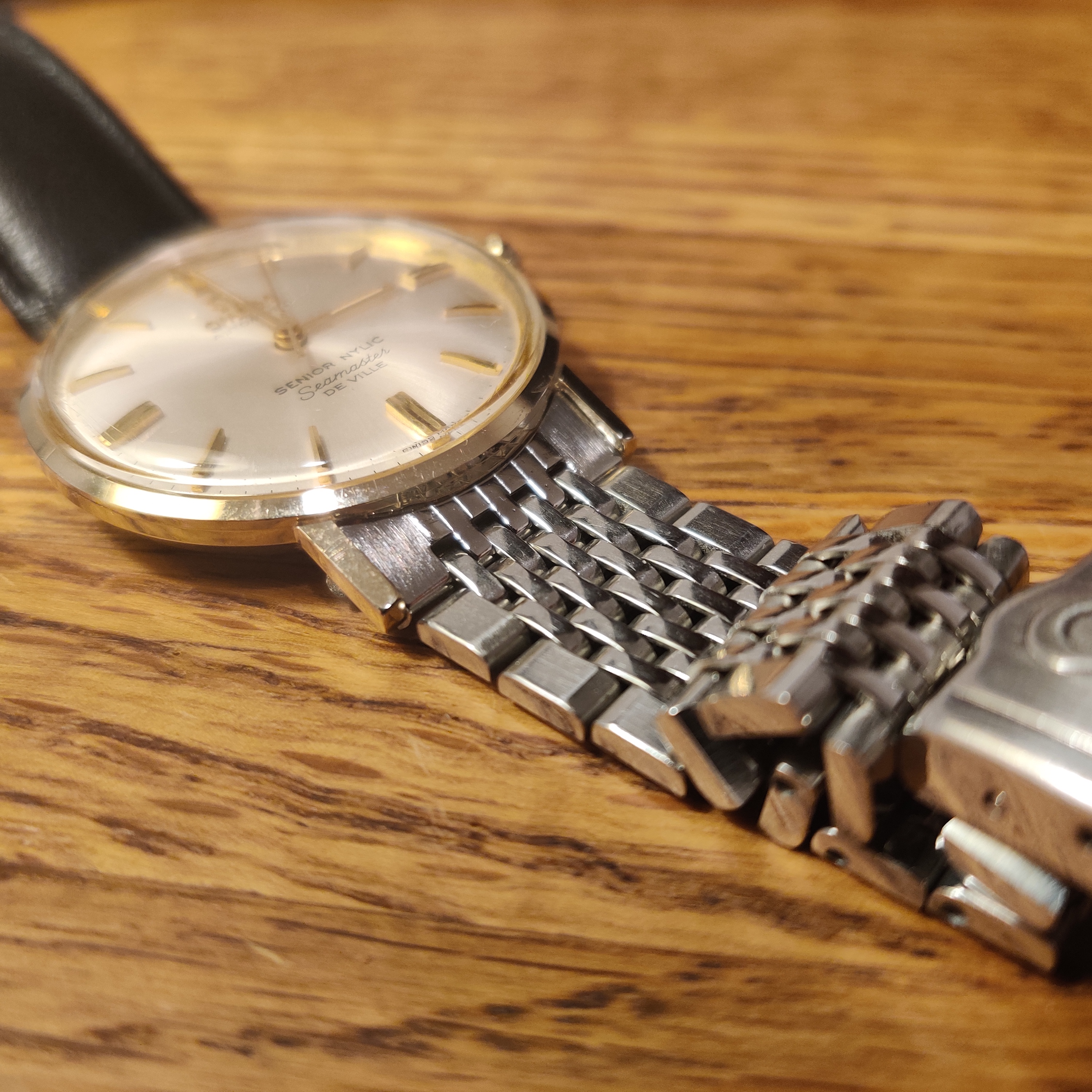

the fit looks great. now all ya need is a rattle-can of gold spray paint and yer all set. 😁

MtV
Posts
3,402
Likes
13,196
sleepyastronaut sleepyastronaut

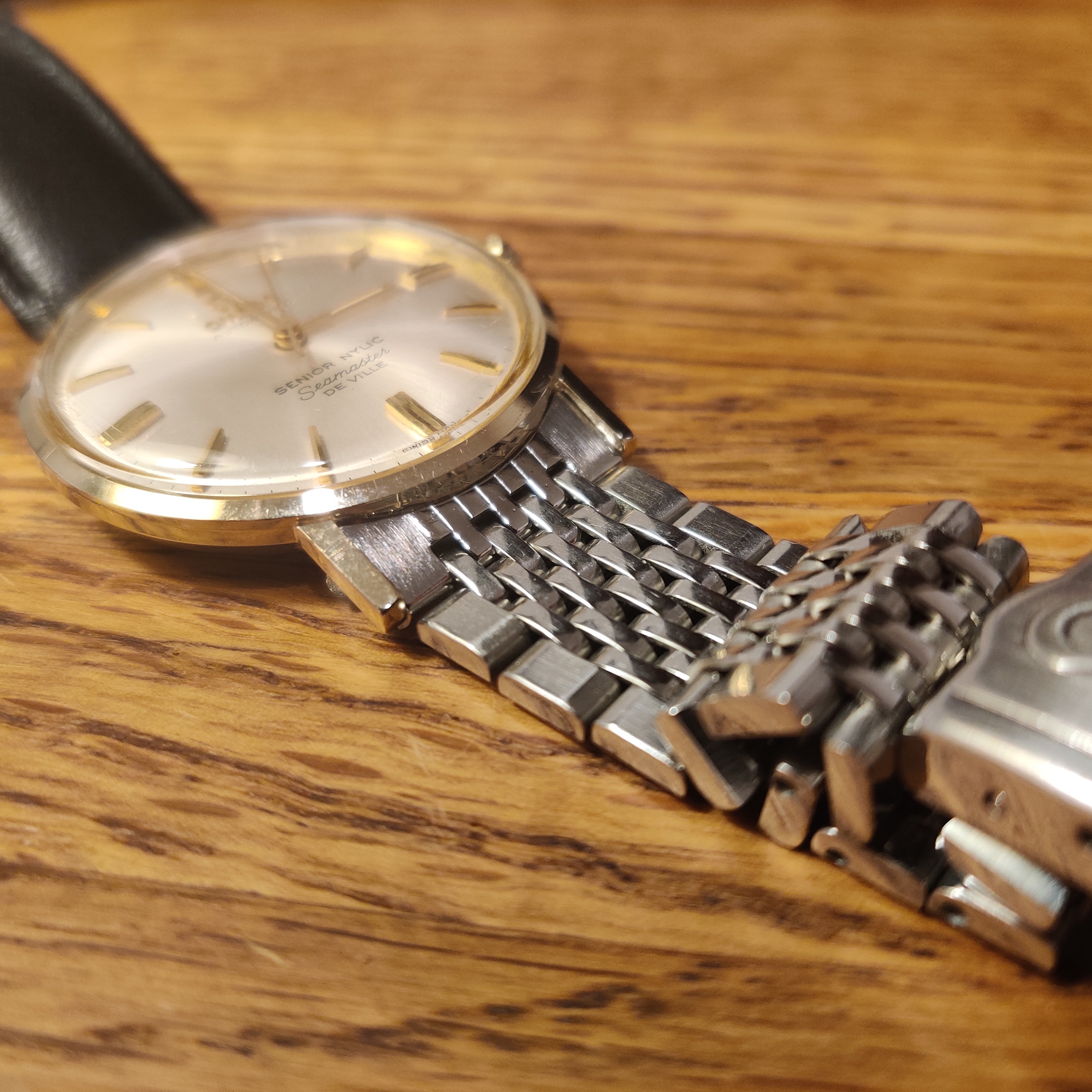

Confirming this should work.

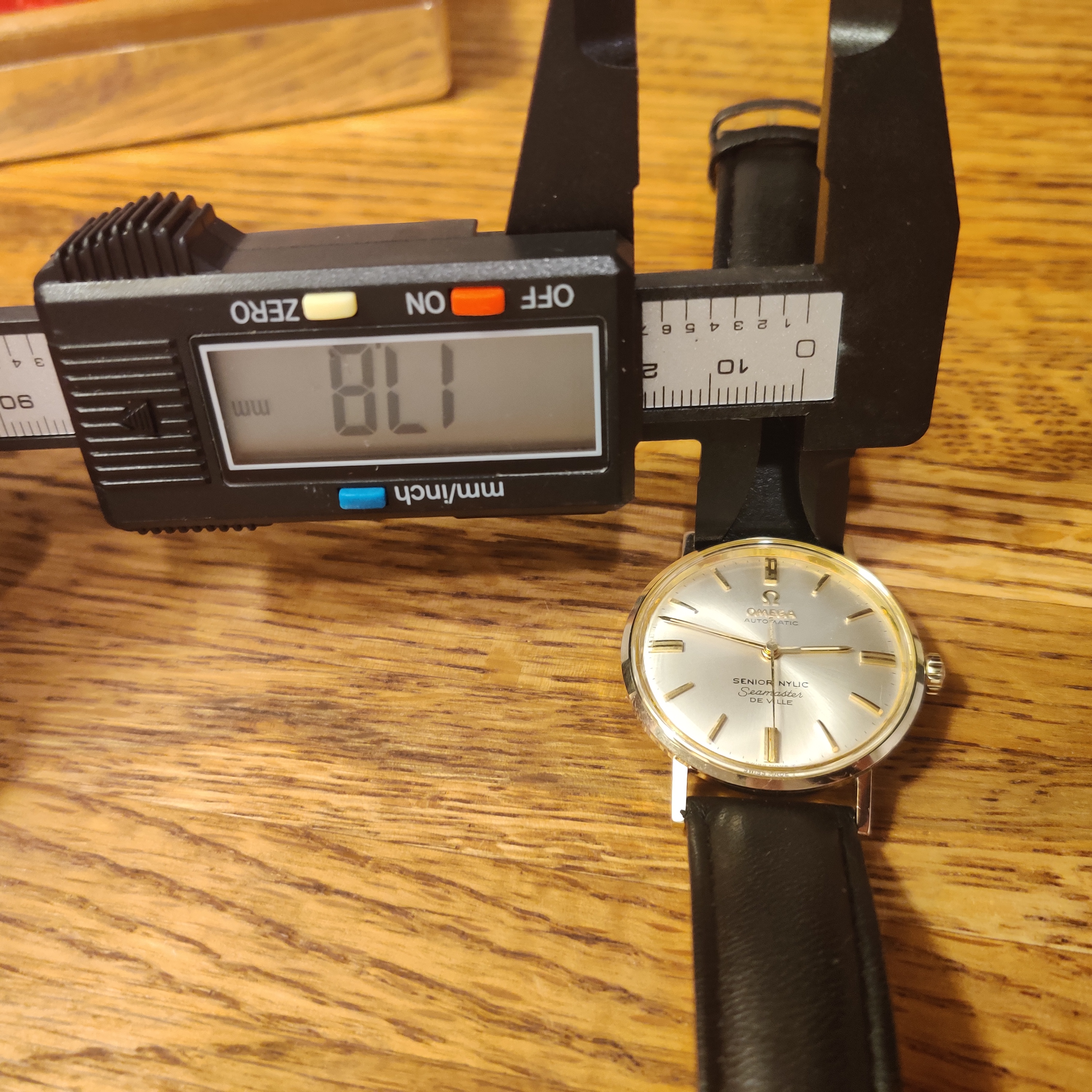

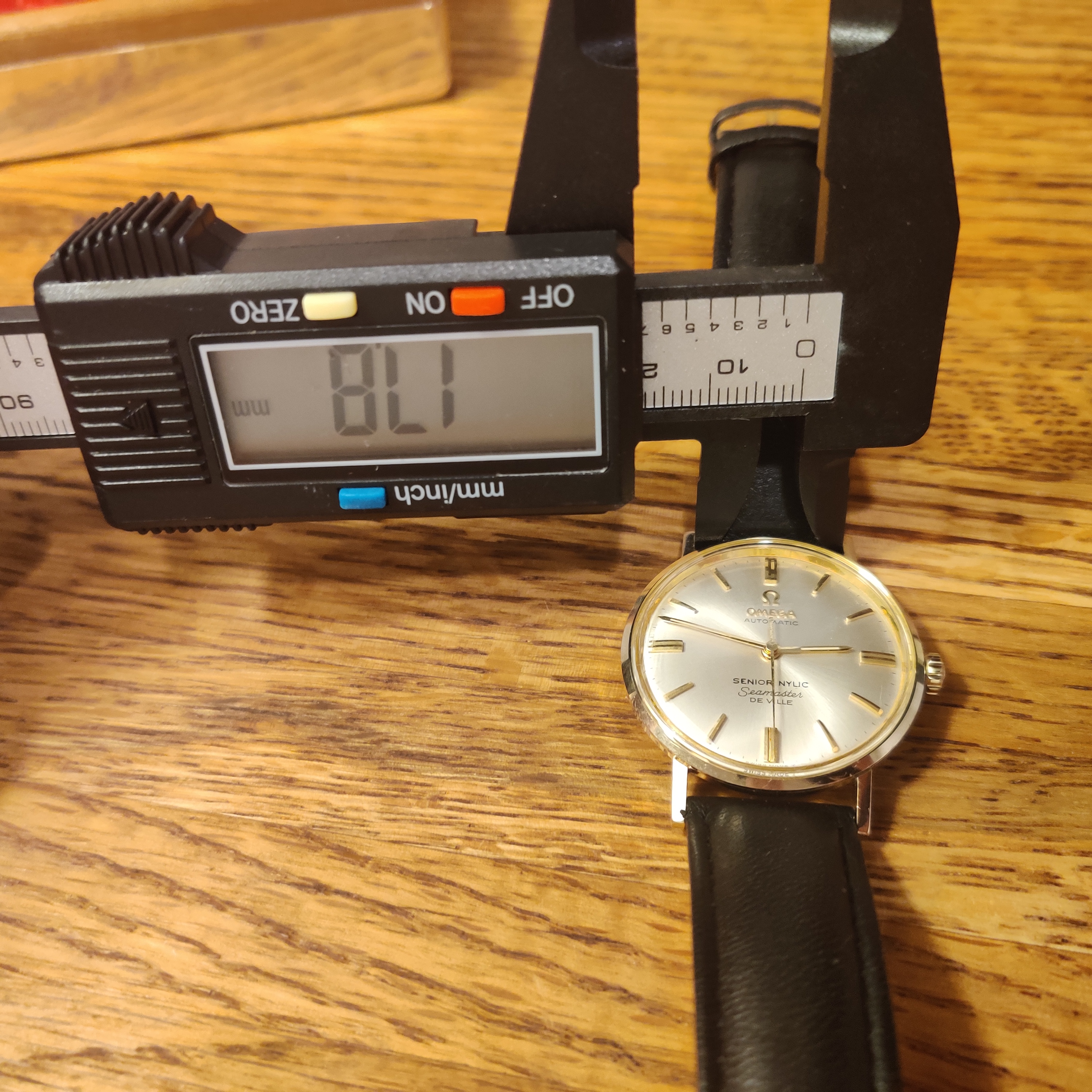

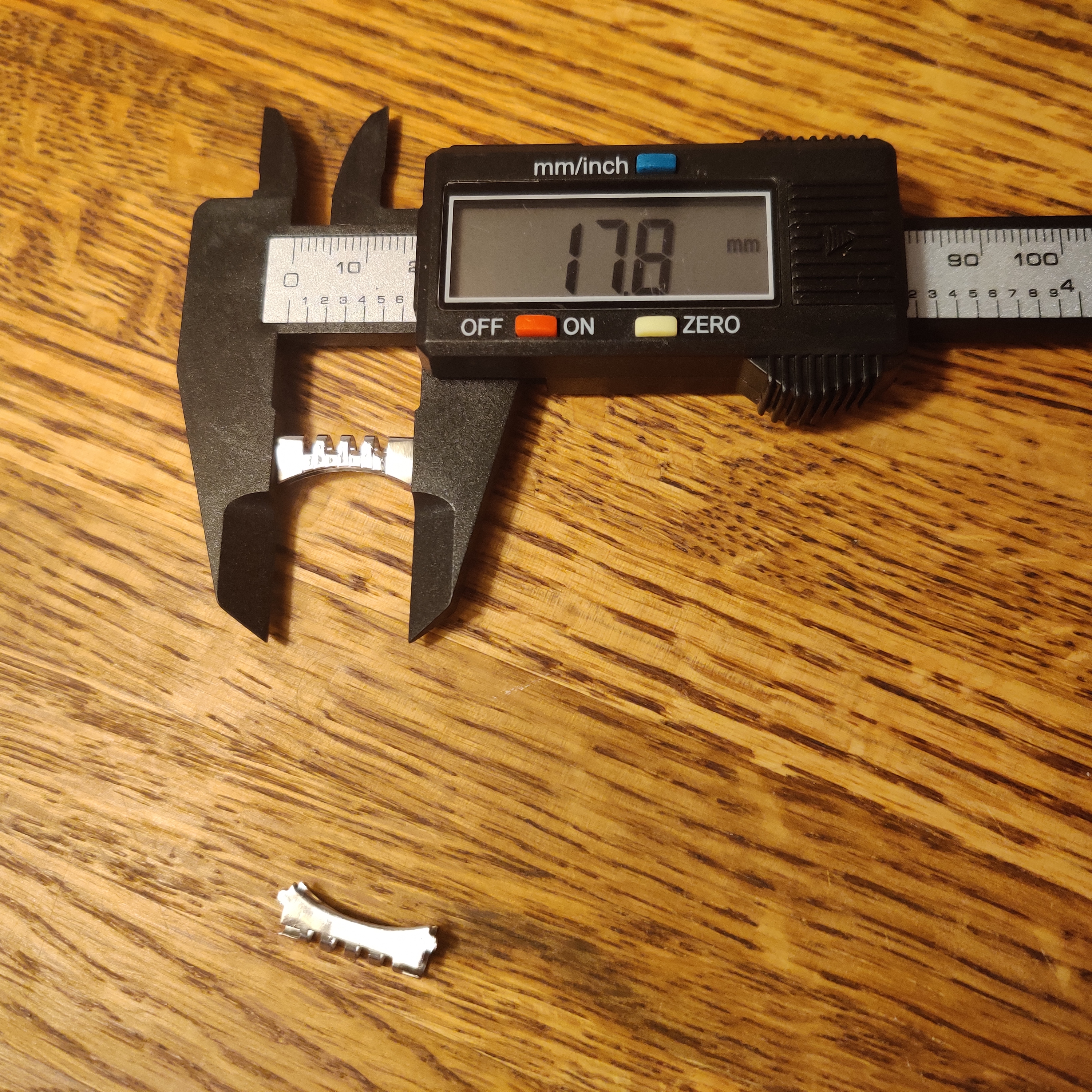

My LL6590-1 (17.8mm):

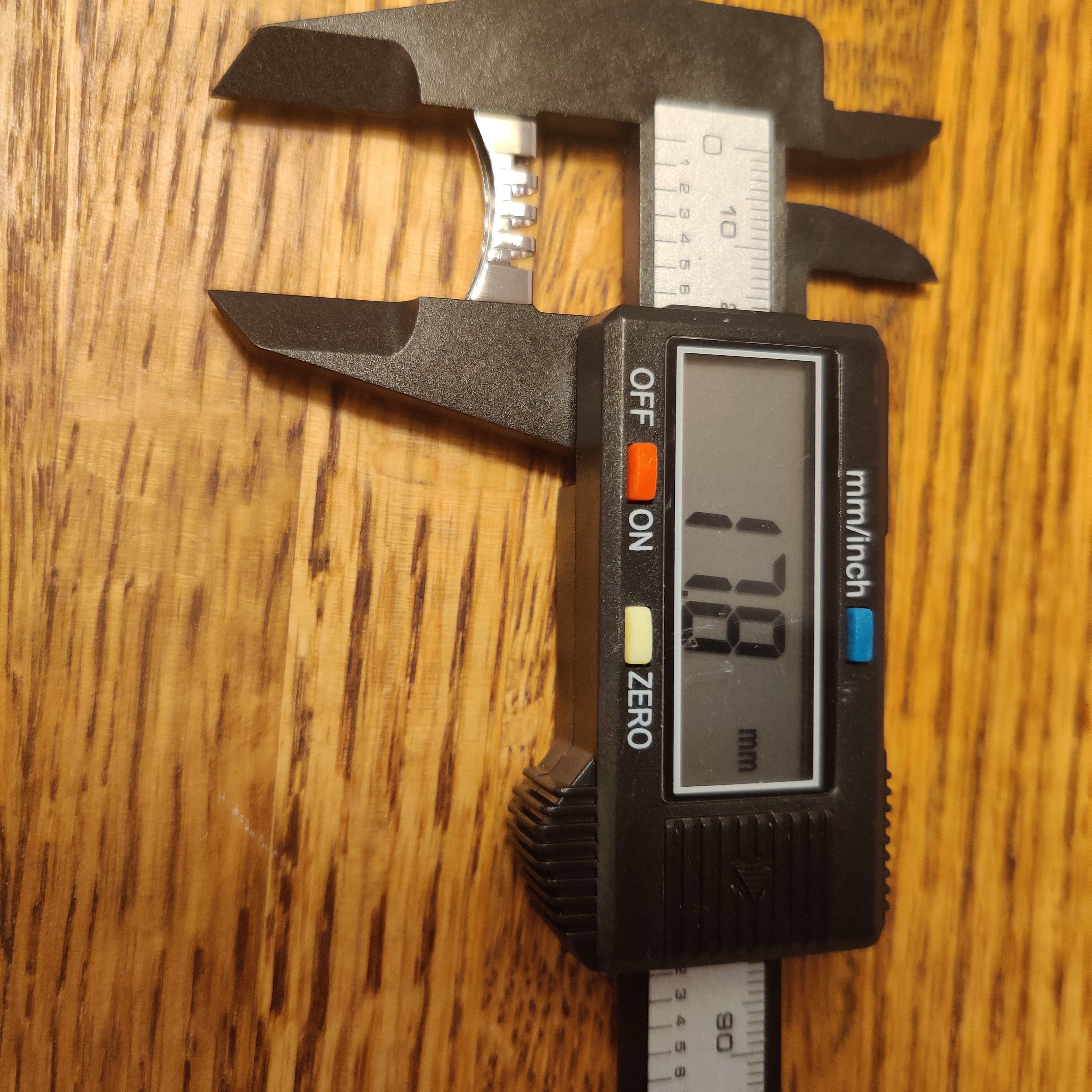

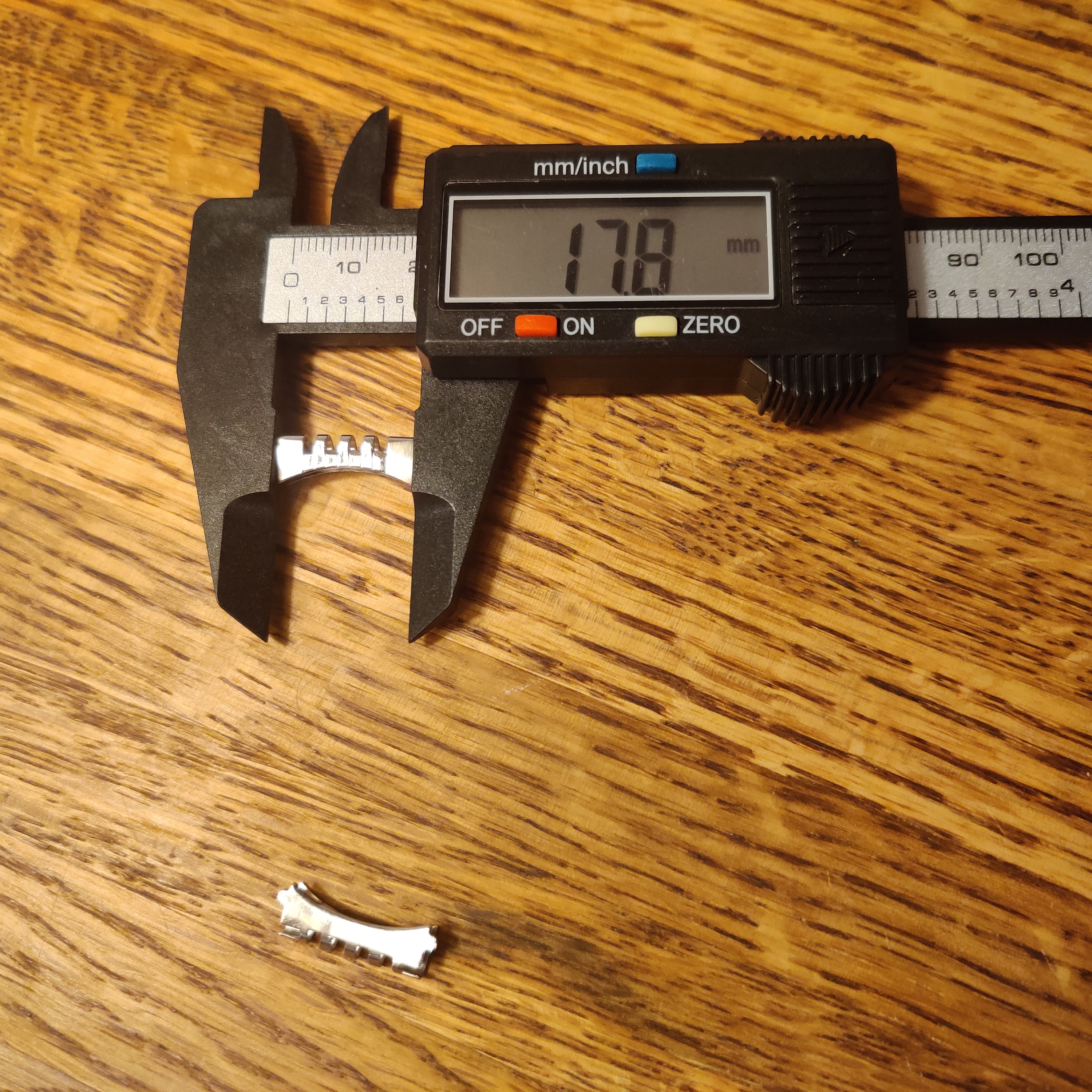

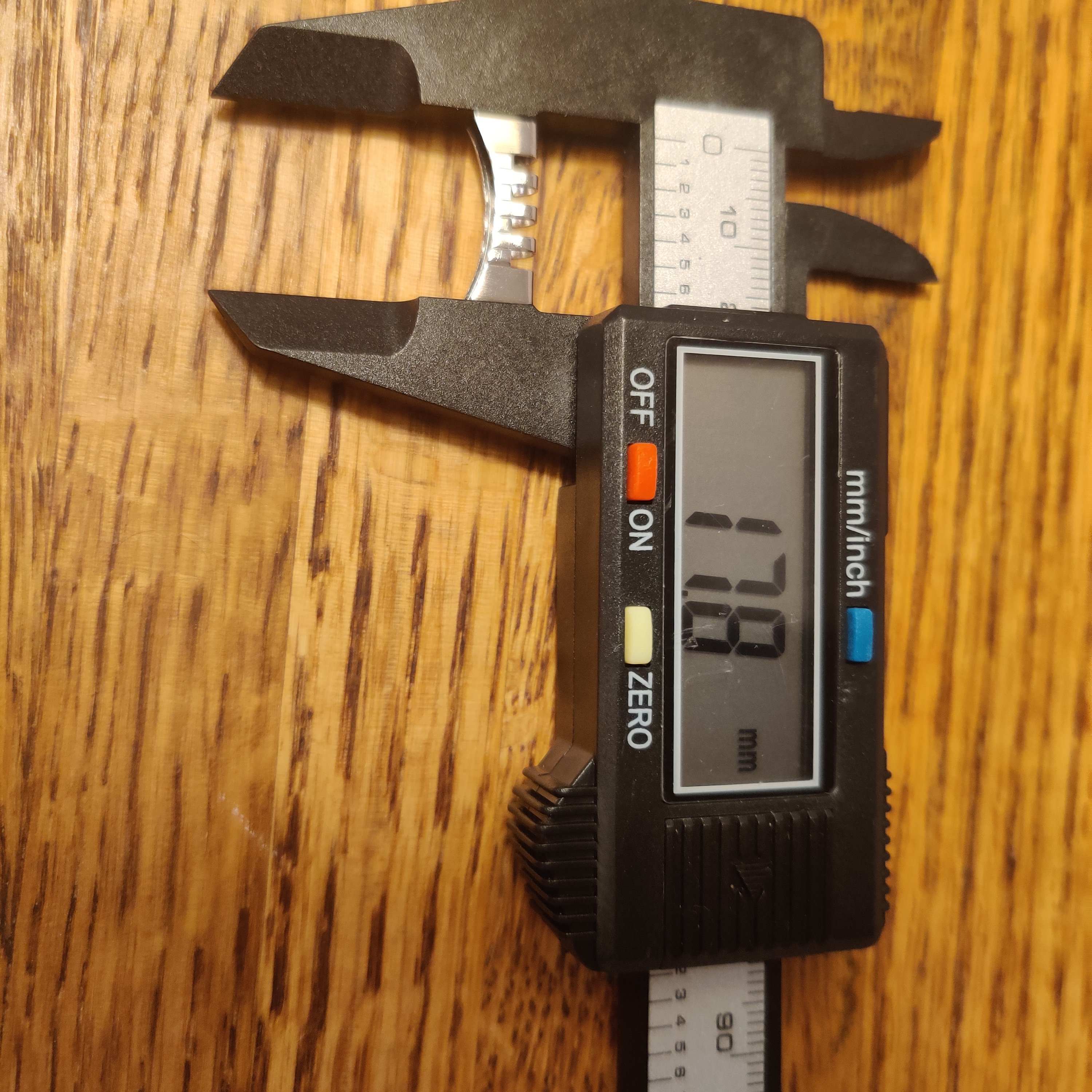

My #70s (17.8mm):
IMG_20220104_174330.jpg IMG_20220104_174408.jpg

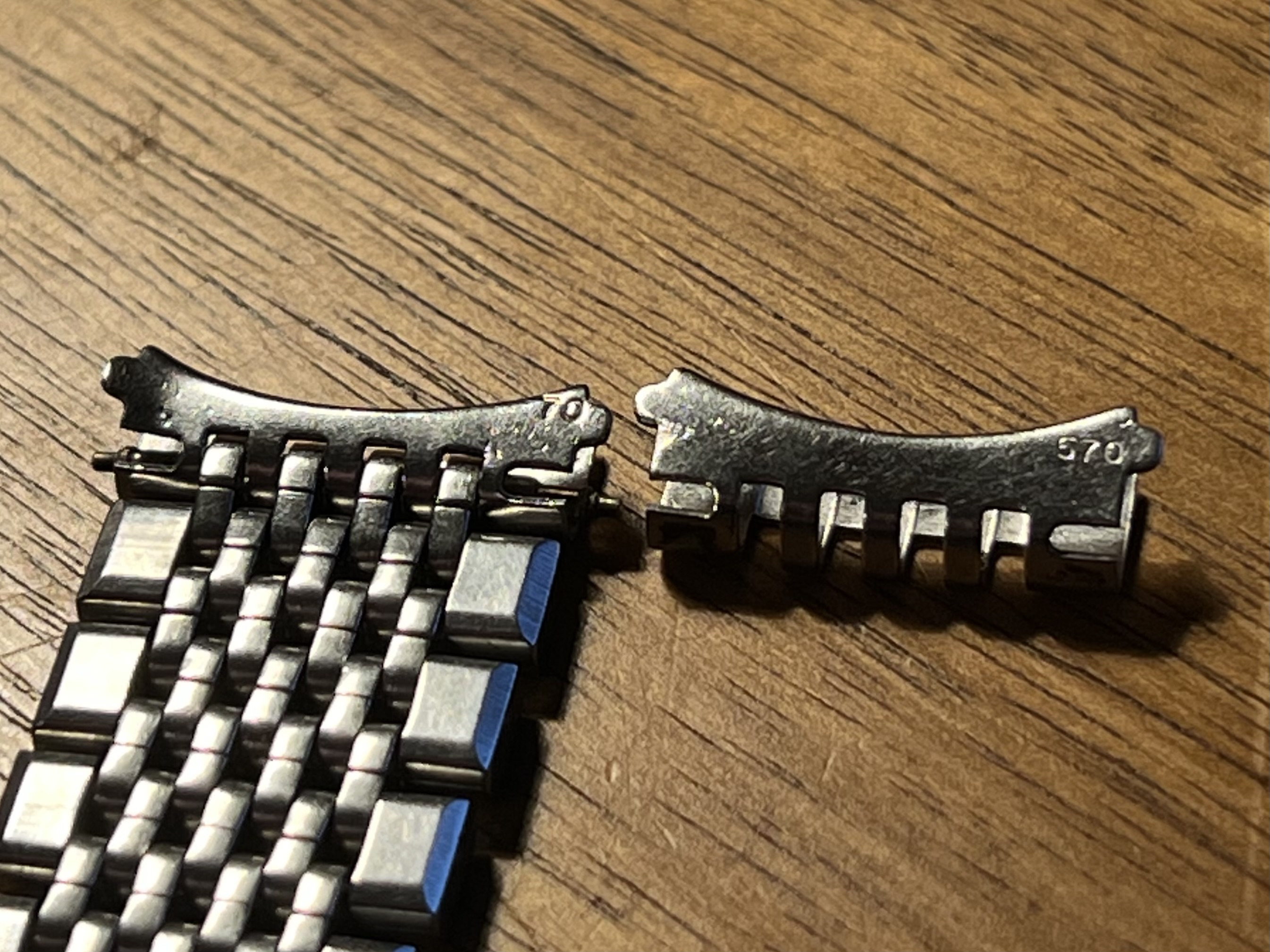

And your 70s are the wider models, just like my 570s. Consequently, the difference doesn't lie in the number, but in the manufacturer. Thank you 😀

sleepyastronaut
Posts
963
Likes
1,251
janice&fred janice&fred
the fit looks great. now all ya need is a rattle-can of gold spray paint and yer all set. 😁

If only it were that easy.

I've read Omega still sells the 5-Row BOR as part 3010/511.

My dealer couldn't locate a clasic 7-Row, but he can get the 1980s version of the 7-Row, which has a different clasp; part 1444/800.

rkman11
Posts
1,706
Likes
5,686
Swinging back around on this, anyone know how 22 endlinks compare to 70s?
