Community Stories

Crown-glass-gasket list.

Plees
Posts
553
Likes
3,959
Thanks to @michael e for this brilliant post👍
It helped me identify a couple of parts I needed to complete some watches with original parts. However, for my bumper in SS ref 2446-3H I can’t find the data. I was looking for the part number of the crown. Cousins doesn’t list any. Does anyone here know the correct part number? Thanks for helping me out!

masteroftime
Posts
530
Likes
550
tjdwhite tjdwhite

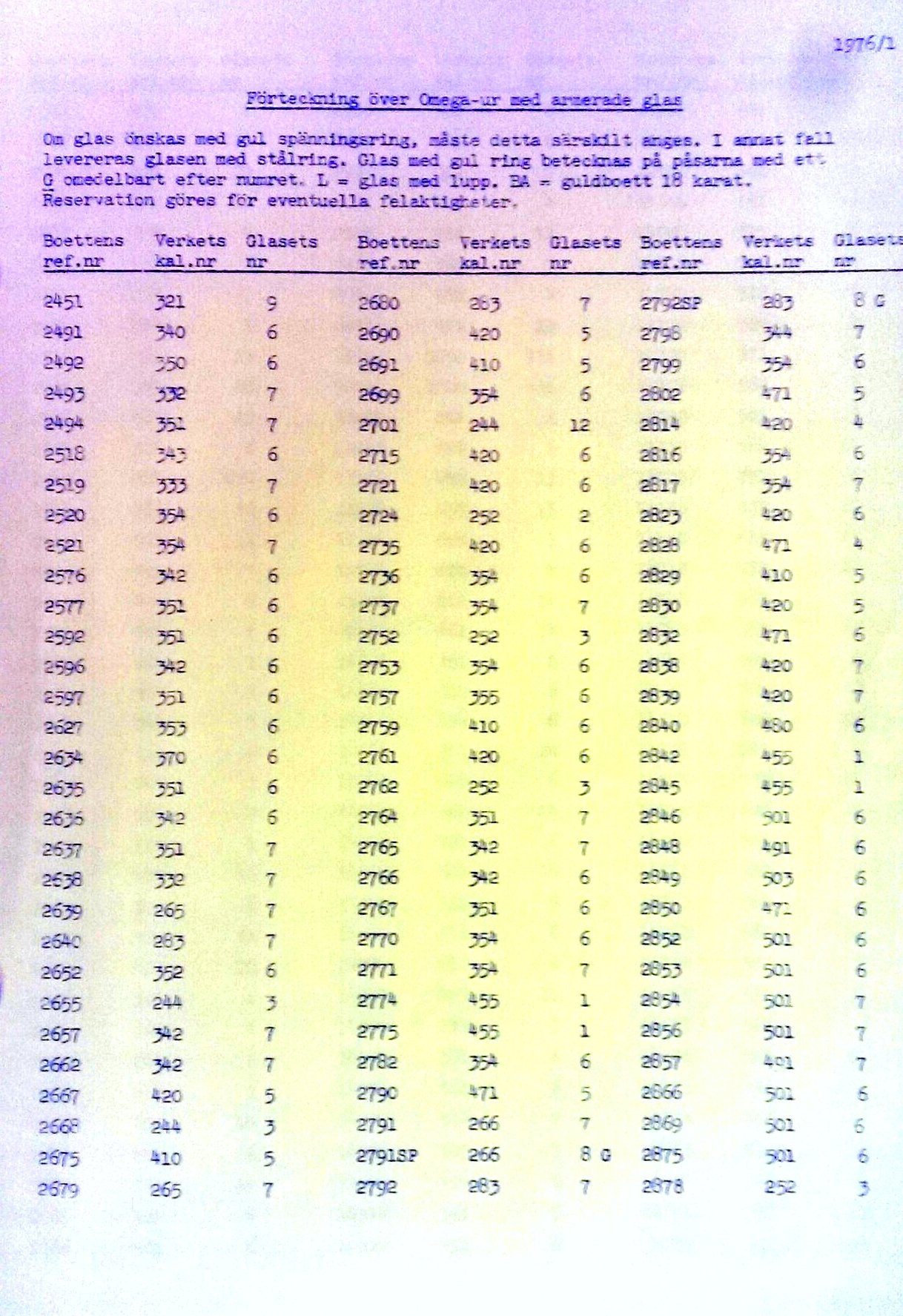

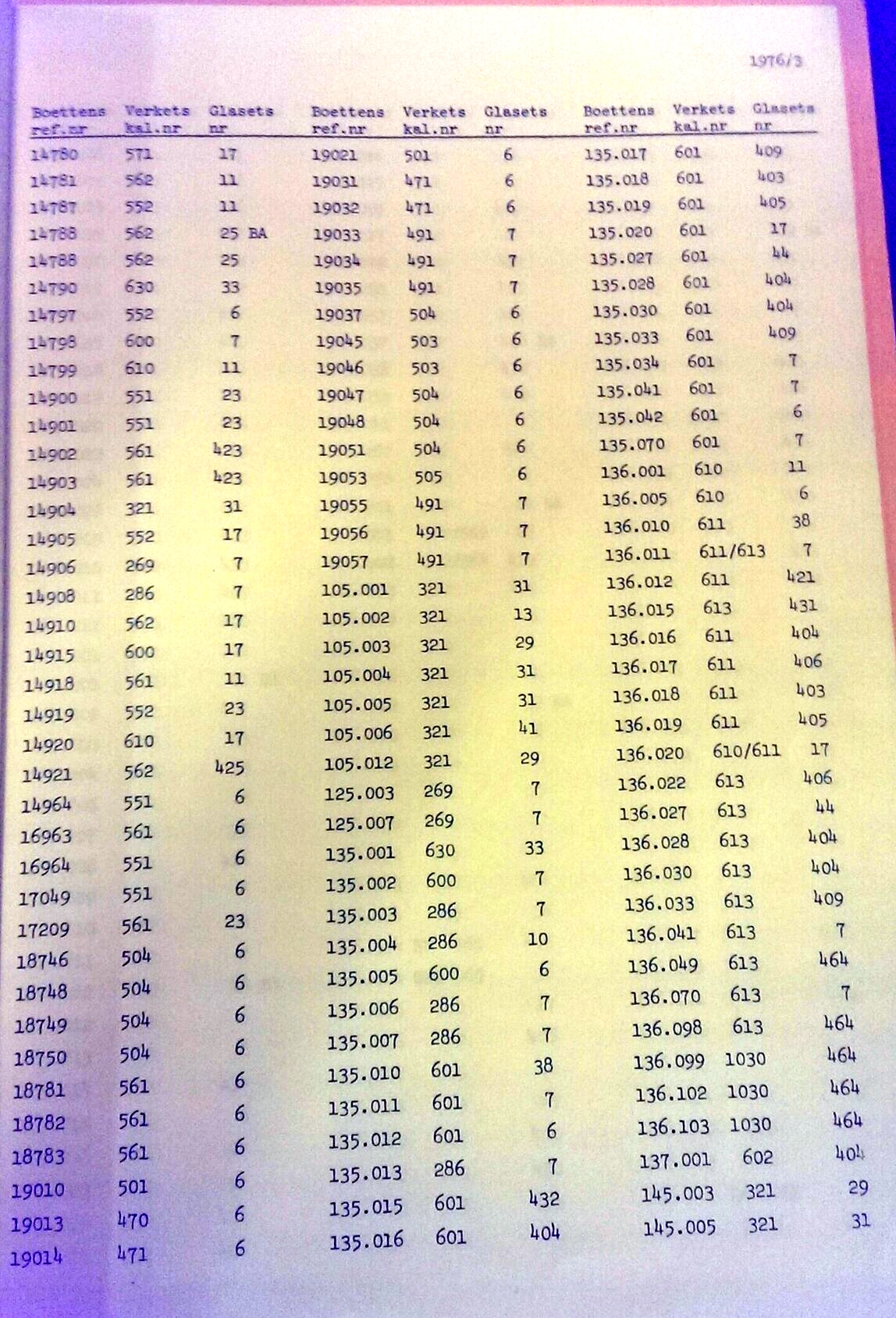

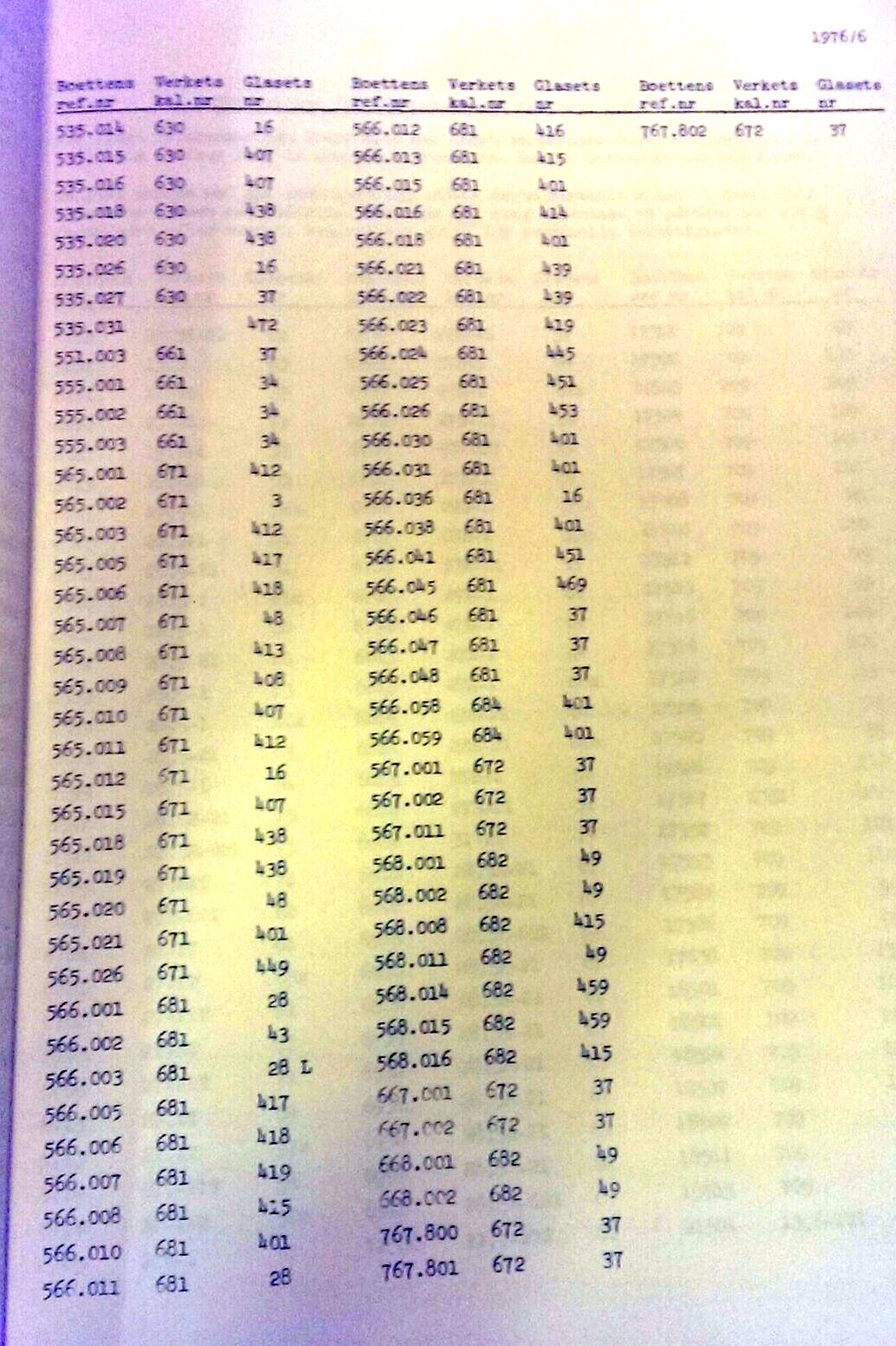

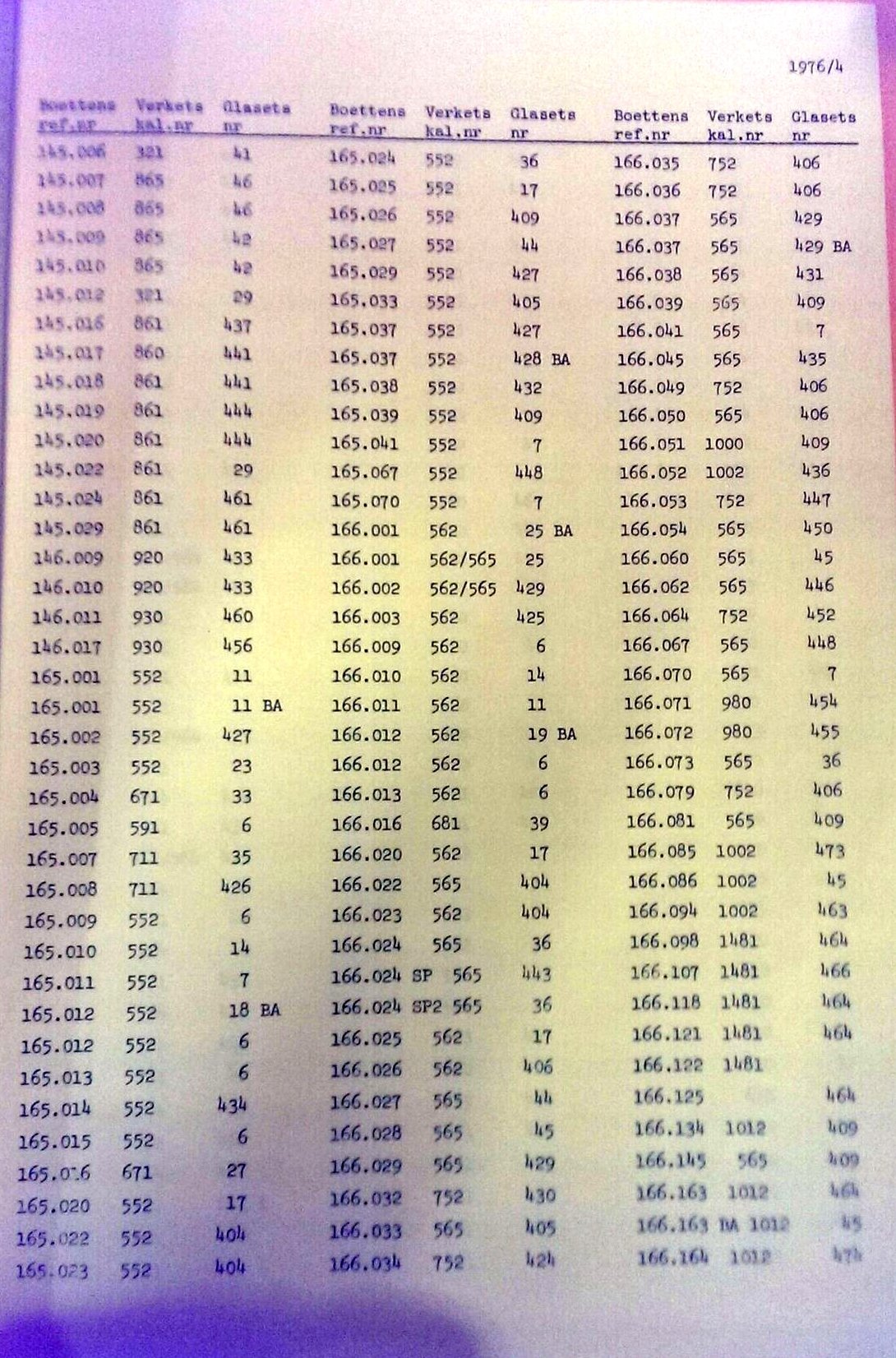

I don't suppose there's a page 5 of this anywhere? The source also has pages 1, 2, 3, 4, 6. Or can anyone please confirm the Swedish crystal ref for case 168.018 / 029 is 47?

The crystal ref for both the 168.018 and 168.029 are listed in the first post...

tjdwhite
Posts
140
Likes
114
masteroftime masteroftime
The crystal ref for both the 168.018 and 168.029 are listed in the first post...
Thanks, yep I see the Swiss (?) ref is 5118, but was wondering about the Swedish ref. I think it’s 47 but would have been on page 5 of the other catalogue posted.

Dsplash
Posts
574
Likes
793
Archer Archer
062PN1094 is the crystal for this watch, and yes OD is 31.4. Note that this is not a tension ring crystal, so it is not pressed in. The OD of the crystal is collapsed slightly in order to get it installed.
Digging this thread up, I’m looking everywhere for 2 crystals of this ref, 062PN1094, or at least a similar compatible as I understand these were not signed anyway, but can’t find any…
Any tips of where to look?
Thanks!

masteroftime
Posts
530
Likes
550
Dsplash Dsplash
Digging this thread up, I’m looking everywhere for 2 crystals of this ref, 062PN1094, or at least a similar compatible as I understand these were not signed anyway, but can’t find any…
Any tips of where to look?
Thanks!

I can't help with a 062PN1094, but what do you mean by similar compatible? If you want a generic crystal, you should be able to easily find a non-tension ring crystal with an OD of 31.4mm. You just need to figure out what profile you need. They're available from any watch parts stock house in the US and they're also available from Cousins.

Dsplash
Posts
574
Likes
793
Thanks! A generic will do the trick, especially with these non signed crystals…I looked on the cousins website (anything similar EU based btw?) and there are many references with different profiles…

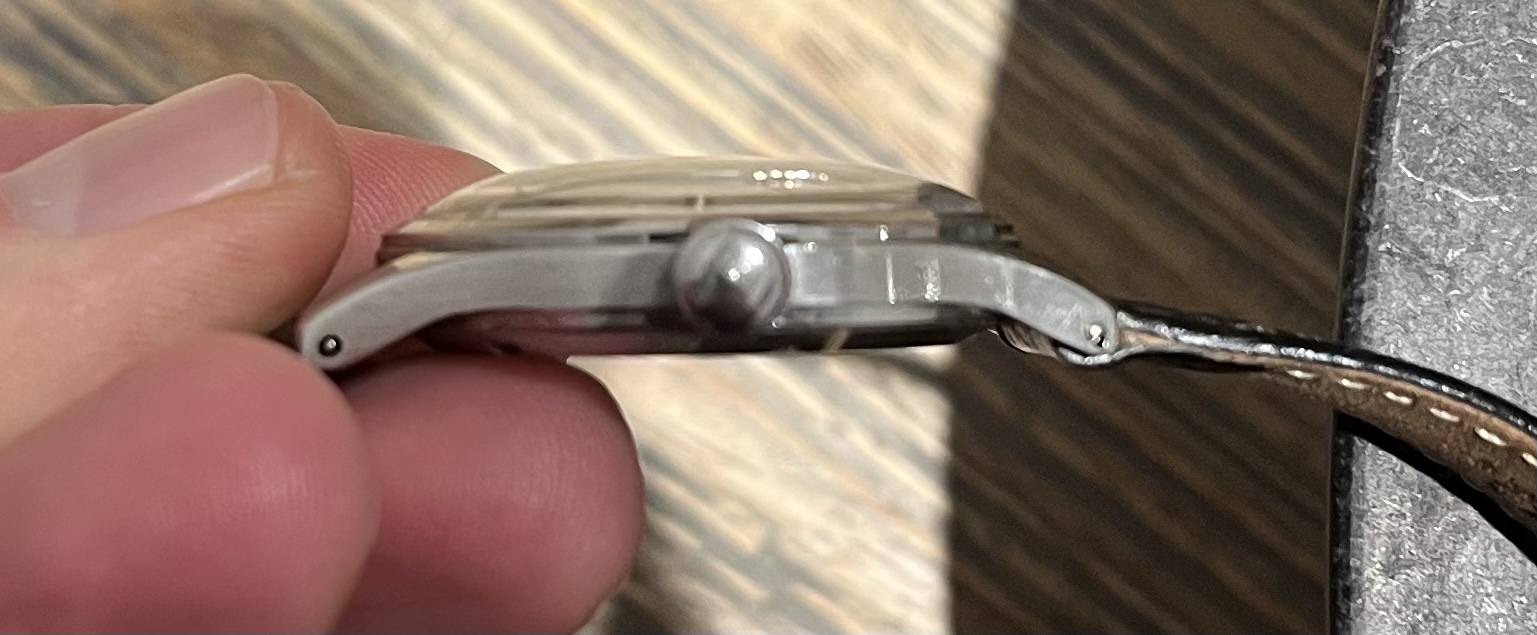

this is the profile of what I think to be the original crystal (or at least one that works well with!). Is it a regular dome? A low dome?
Are Sternkreuz crystals good quality?

thanks again! 😀

D
Posts
23
Likes
1
Does anyone have info for Ref# 2613. I cannot find this anywhere and was hoping to source a new crystal

Archer
Posts
27,318
Likes
69,685
D djcarpentier
Does anyone have info for Ref# 2613. I cannot find this anywhere and was hoping to source a new crystal

Crystal - 062PN1065

Crown - 069ST35002

sheepdoll
Posts
2,346
Likes
3,746
There is so much here, one finds new stuff even after 6 months when and old thread gets revised.

This thread should be sticky in the watchmaking section.

theycallmeSerg
Posts
50
Likes
83

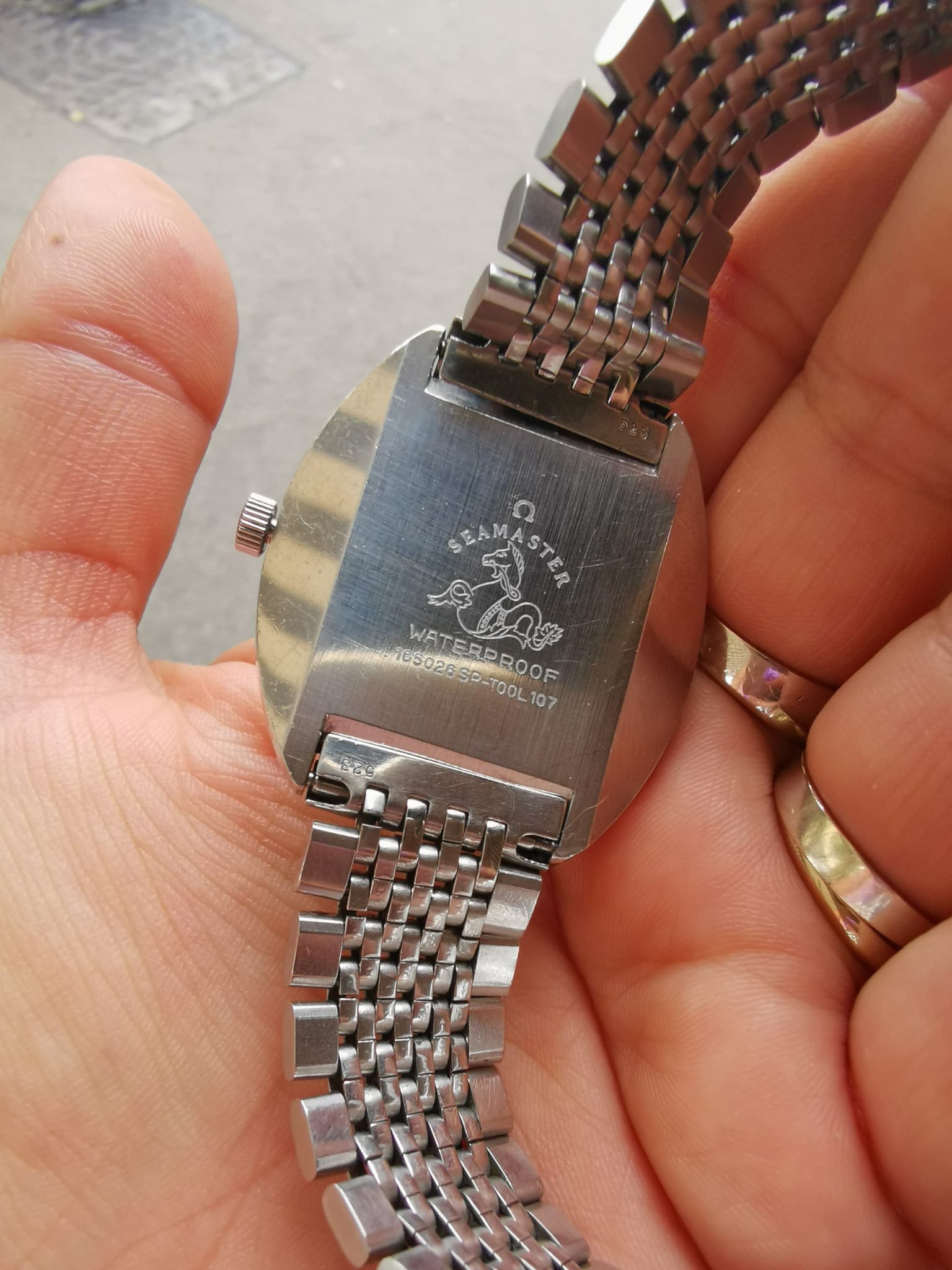

Hi everyone, I recently acquired a Seamaster Cosmic with reference 165026SP

I was looking for an original crown and I ended up on this thread thanks to some forum members. I also did my research and the funny thing is I ended up getting a variety of apparently corresponding crown references.

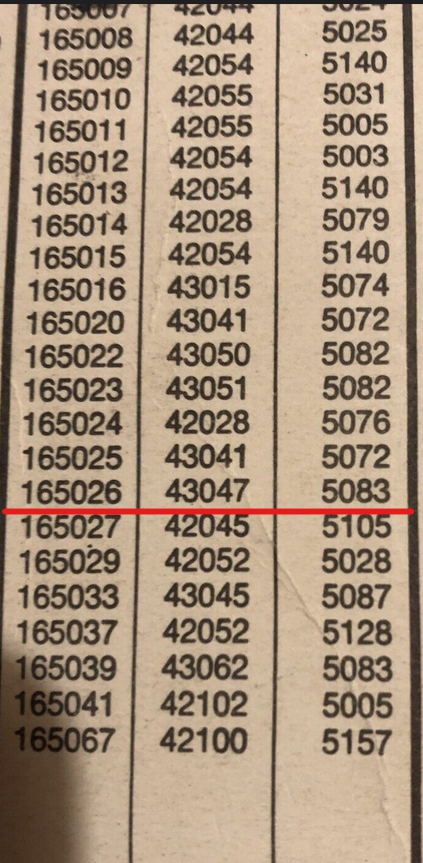

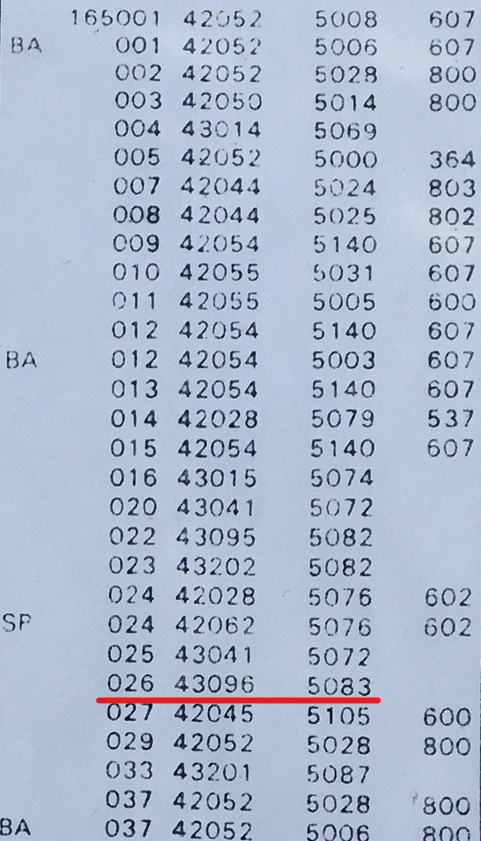

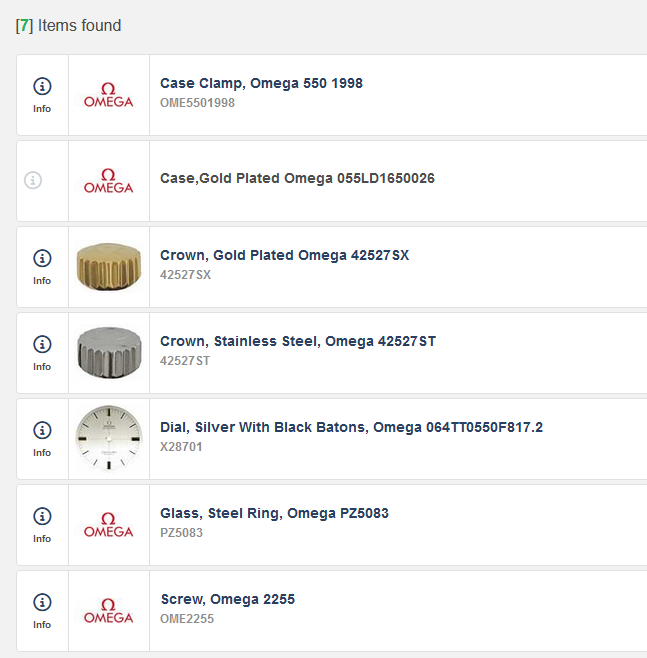

Crown1.png Crown2.png Crown3.png


Now, how does this happen? Did they change the crown reference over time or are they somehow equivalent? I think I'd be able to find 2 of these crowns over the internet but I'm kind of confused 📖

tdn-dk
Posts
1,720
Likes
14,596
theycallmeSerg theycallmeSerg
Hi everyone, I recently acquired a Seamaster Cosmic with reference 165026SP

I was looking for an original crown and I ended up on this thread thanks to some forum members. I also did my research and the funny thing is I ended up getting a variety of apparently corresponding crown references.
Crown1.png Crown2.png Crown3.png


Now, how does this happen? Did they change the crown reference over time or are they somehow equivalent? I think I'd be able to find 2 of these crowns over the internet but I'm kind of confused 📖

They discontinue over time and get replaced with other references, I think they call it Bestfit.

Archer
Posts
27,318
Likes
69,685
tdn-dk tdn-dk
They discontinue over time and get replaced with other references, I think they call it Bestfit.

Bestfit is a US company that produced and sold parts, and is not related to Omega in any way.

But yes, Omega does change the numbers/style of parts used on watches over time.

HunterJ
Posts
38
Likes
31
Very useful thread indeed!

However I'm not able to find the correct glass and crown for case ref 14391.

Can anybody help?

rendo
Posts
624
Likes
2,262
HunterJ HunterJ
Very useful thread indeed!

However I'm not able to find the correct glass and crown for case ref 14391.

Can anybody help?

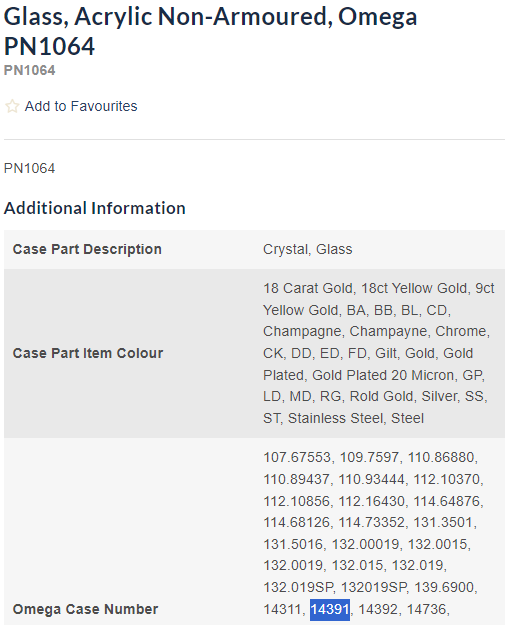

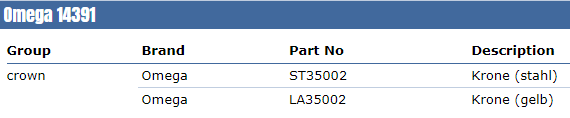

PN1064 (062PN1064) is the crystal you need based on Cousins, and 35002 is the crown based on Boley.

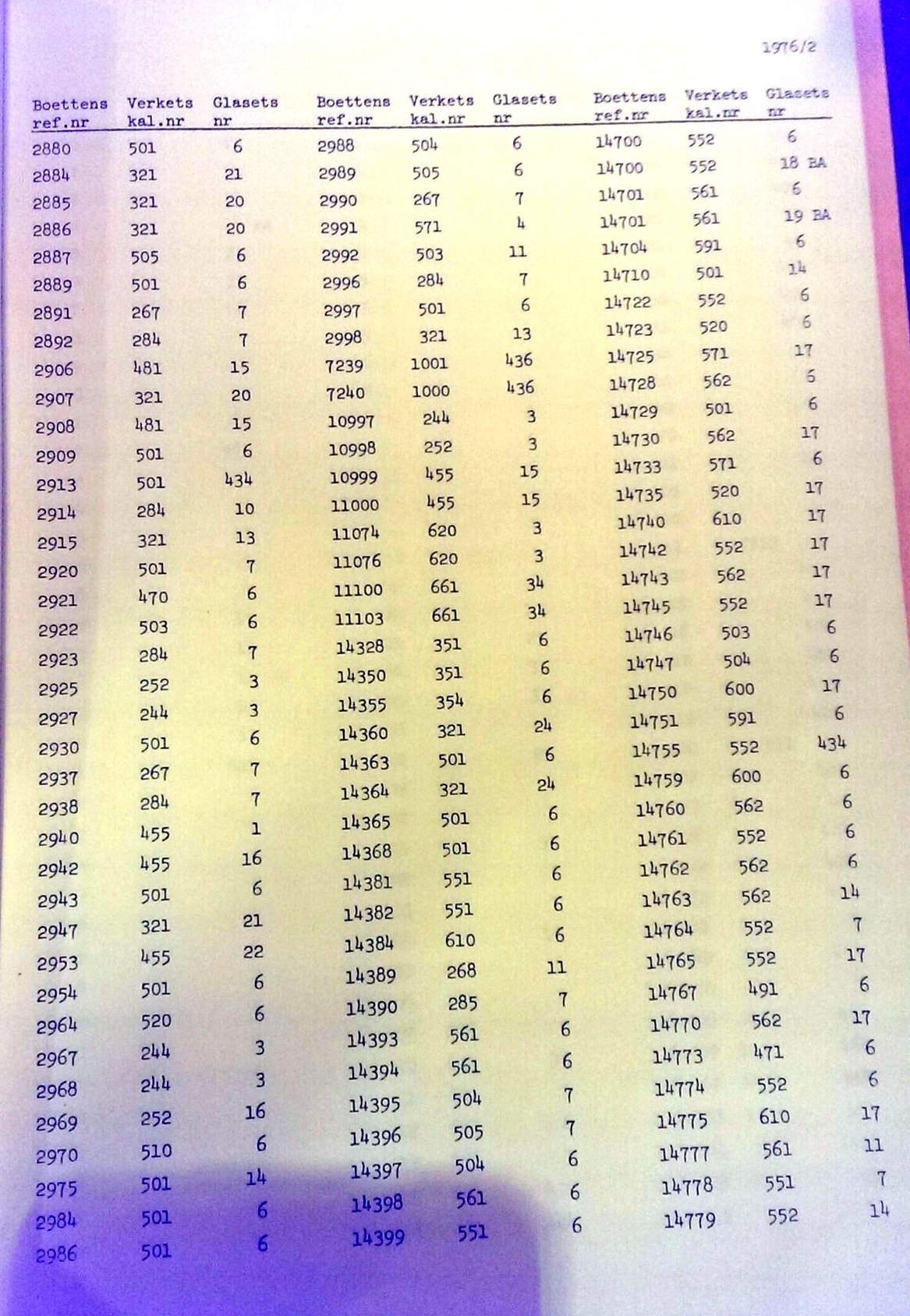

upload_2023-7-20_12-46-48.png upload_2023-7-20_12-45-35.png

Dsplash
Posts
574
Likes
793
Hey!
I’m looking for a new crystal for a 2910 and I just could not find it in the charts…Does anyone know the reference I should be looking for, or at least the size and if there is a retaining ring?
Thanks! 😀

Archer
Posts
27,318
Likes
69,685
Dsplash Dsplash
Hey!
I’m looking for a new crystal for a 2910 and I just could not find it in the charts…Does anyone know the reference I should be looking for, or at least the size and if there is a retaining ring?
Thanks! 😀

No tension ring - part number is 062PN1009.
