  1. michael e Still learning. Sep 2, 2018

    Posts
    1,484
    Likes
    4,621
    Top headers in each colum are-
    Case ref / crown ref / glass ref / gasket ref

    F8AA2C04-B15B-4A67-BC7E-27B2205569CE.jpeg 611F0B3B-E595-41E9-8132-1043CAD4B135.jpeg 5ABFFC34-FE9F-440D-862C-41AF3A9C5792.jpeg B370386D-AE4F-4418-B33B-1B98C2B8A037.jpeg
    YYTIN, VZoltan, Tomek and 24 others like this.
  2. bama2141 Oct 16, 2018

    Posts
    560
    Likes
    1,238
    This is a great resource!

    Strangely, though, the 145.0040 Speedmaster Teutonic doesn’t seem to be listed. There seems to be some confusion in the various sales listings I’ve seen on whether the crystal is mineral or sapphire. Anyone know for sure?

  3. Archer Omega Qualified Watchmaker Oct 17, 2018

    Posts
    26,215
    Likes
    64,722
    Sapphire.

  4. michael e Still learning. Jan 28, 2020

    Posts
    1,484
    Likes
    4,621
    For older watches too :thumbsup:

    00D24FAE-F5FA-4DDA-A0E4-5C602D47D852.jpeg 3C6779A1-70D2-4C04-A26C-2C994356B1A3.jpeg
    YYTIN, raminjan, Tomek and 10 others like this.
  5. Peter_from_NL May 25, 2020

    Posts
    383
    Likes
    334
    Hello, i need the glass for a 2383-2 (at least that is what the case back says). I end up with 31.4mm by this list. If I measure myself i measure 31.0mm. Is that normal? Is that 0.4mm perhaps what is "pushed in"? Thanks.

    Hope somebody can help.

  6. Archer Omega Qualified Watchmaker May 25, 2020

    Posts
    26,215
    Likes
    64,722
    062PN1094 is the crystal for this watch, and yes OD is 31.4. Note that this is not a tension ring crystal, so it is not pressed in. The OD of the crystal is collapsed slightly in order to get it installed.

  7. Peter_from_NL May 25, 2020

    Posts
    383
    Likes
    334
    Hi, unfortunately I cannot find anything on this reference. Or is this some kind of internal Omega number?

    So my observation about the small variance in diameter is correct. Out of interest, what do you exactly mean with "not pressed in" and "collapsed slightly"? Being a newbie here on the technical side. Up to now I just pressed glass in from the top. Does this need some kind of special treatment? THANKS!

  8. Archer Omega Qualified Watchmaker May 25, 2020

    Posts
    26,215
    Likes
    64,722
    That is the Omega part number for the crystal you need.

    You need some device to compress the OD of the crystal for installation - you cannot just press it straight in. One such device is called a crystal lift.

    https://blog.esslinger.com/how-to-replace-a-watch-crystal-using-a-crystal-lift/

    Als 27 likes this.
  9. Peter_from_NL May 25, 2020

    Posts
    383
    Likes
    334
    Great thanks. Now I understand what you mean. Probably the fact that I am Dutch and not English. So basically this is the “old way”. Need to find a place where I can get that crystal in NL.

  10. foal Jan 6, 2021

    Posts
    1
    Likes
    0

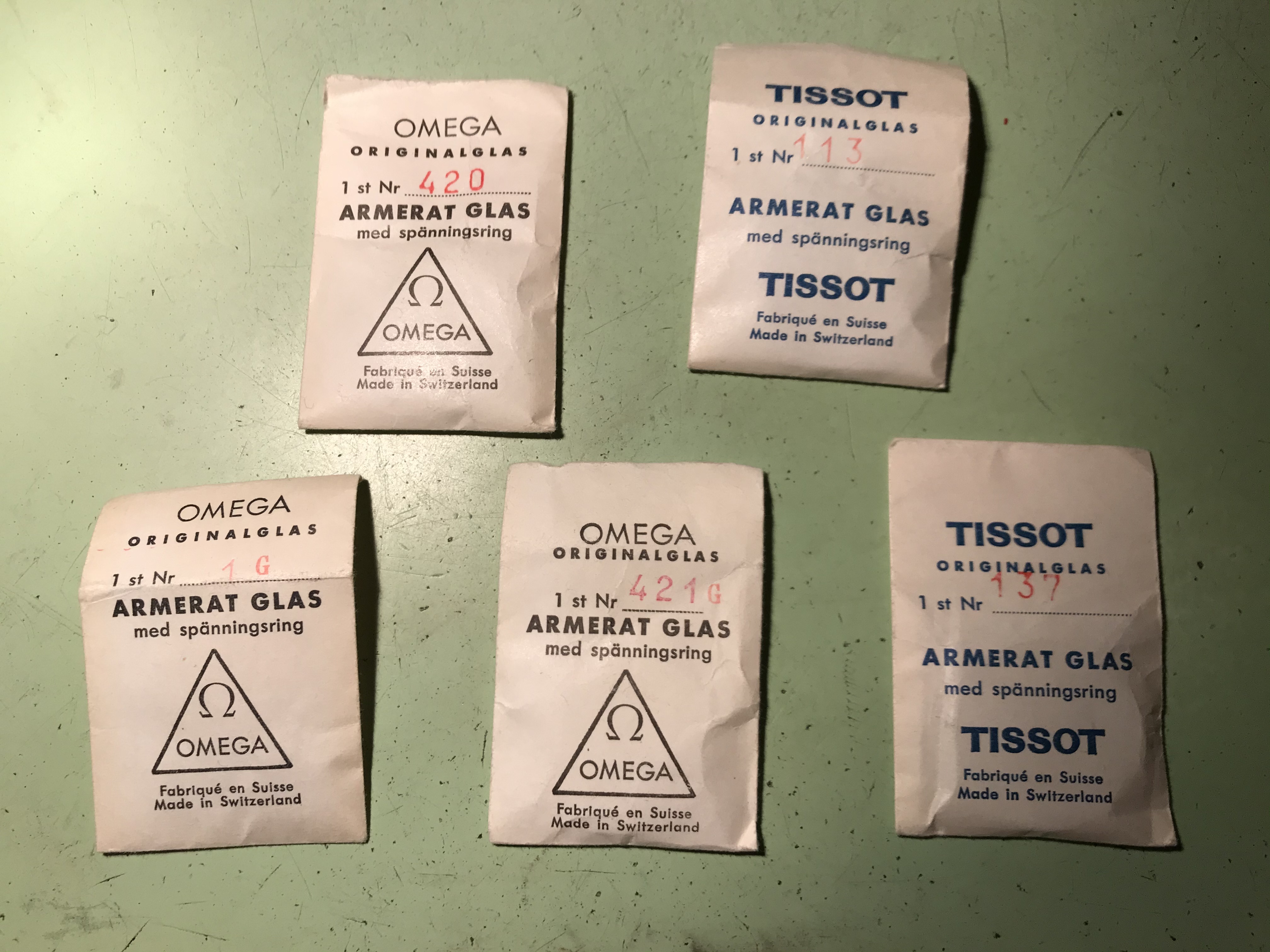

    Could anyone please tell if there is a list for Omega spare part crystals named like those that are shown on the photo? The text is in Swedish, saying:
    “Omega original crystal
    1 pcs no. 1G
    Armed Crystal
    with tension ring”

    I’ve tried to find a list where the dimensions are shown (or to what watches they are spare parts for) but with no success.

    Many thanks!


  11. tdn-dk Jan 17, 2021

    Posts
    1,716
    Likes
    14,539
  12. Pieces Mar 10, 2021

    Posts
    14
    Likes
    14
    I may be blind but I cant see the correct glass for ref. 2513.
    Anyone knows the correct parts number for the case?

  13. Archer Omega Qualified Watchmaker Mar 10, 2021

    Posts
    26,215
    Likes
    64,722
    062PN1055

    michael e likes this.
  14. Pieces Mar 10, 2021

    Posts
    14
    Likes
    14
    Awsome, time for hunting the internet for that plastic then. I guess theres no gaskets on this?

  15. COYI Mar 12, 2021

    Posts
    495
    Likes
    720
    Thanks for sharing the scans @michael e

    Case ref 2515 isn't on the list. Am I correct in thinking 062PN1043 is the correct replacement crystal and does anyone happen to know the diameter and height of the crystal?

  16. Pieces Mar 23, 2021

    Posts
    14
    Likes
    14
    Im giving up, cant seem to get hold of that crystal anywhere.
    Can someone give me some help with a generic that fits? Been looking at sternkreuz but cant really find a good match.
    D30.35 H3.8

    Edited Mar 23, 2021
  17. Panjo Aug 27, 2021

    Posts
    280
    Likes
    660
    Hi.
    Couldn't find for Omega case ref.2981 crystal /crown/gasket references.
    Does anybody know?

    Cheers

  18. tdn-dk Aug 27, 2021

    Posts
    1,716
    Likes
    14,539


  19. Panjo Aug 27, 2021

    Posts
    280
    Likes
    660

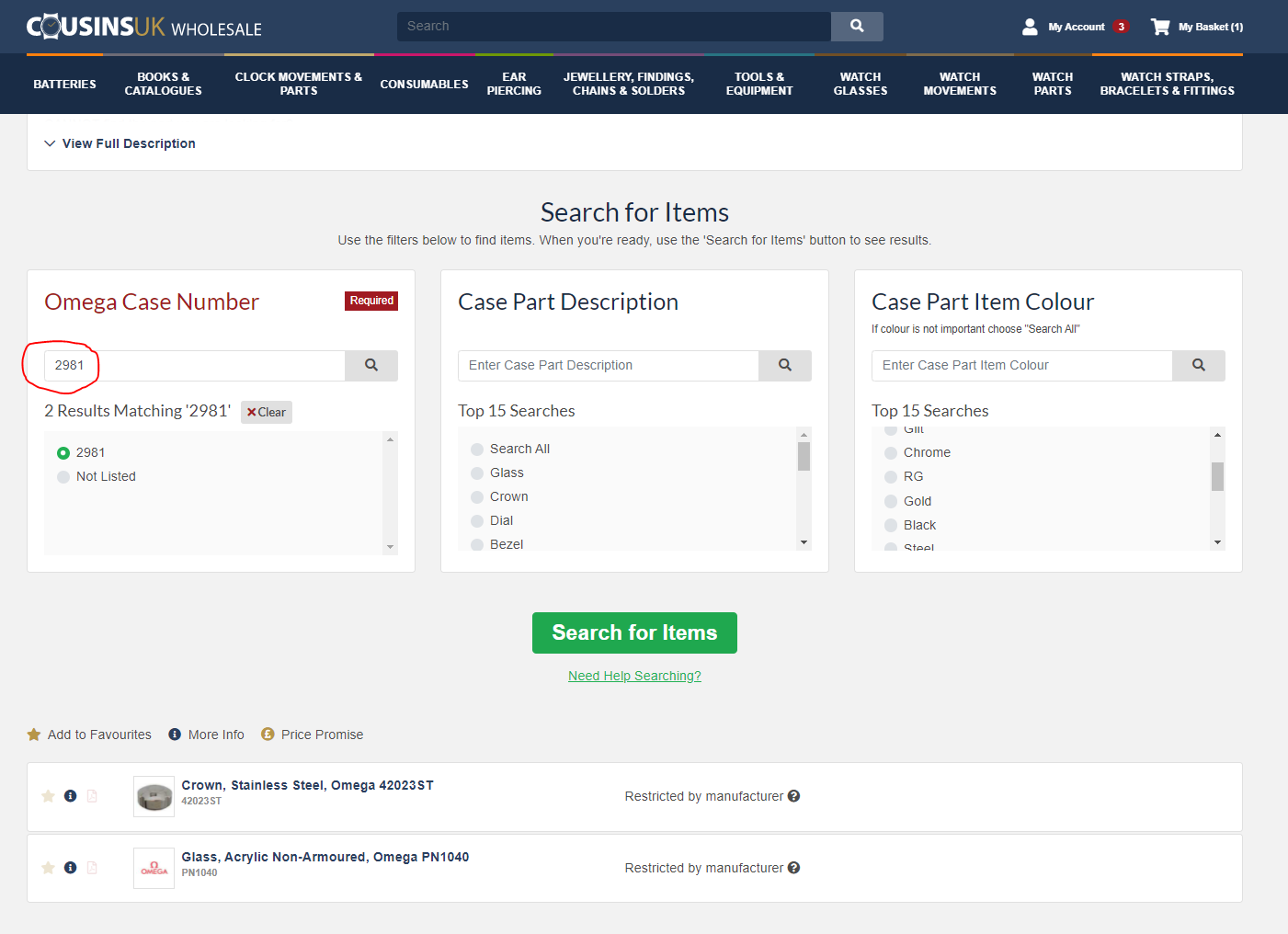

    Crown ref.42023 for case ref.2981!!!!!???

  20. tdn-dk Aug 27, 2021

    Posts
    1,716
    Likes
    14,539
    Its the ones you can get today as replacement.
