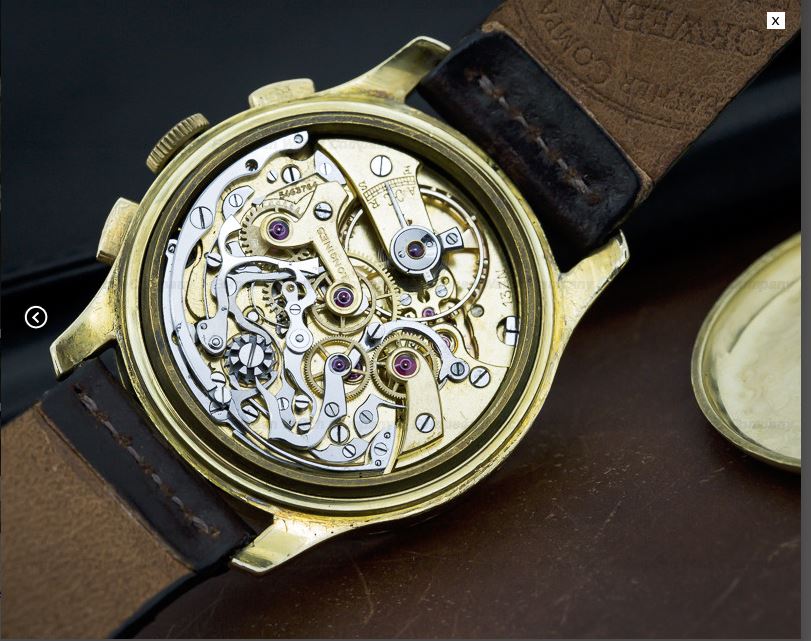

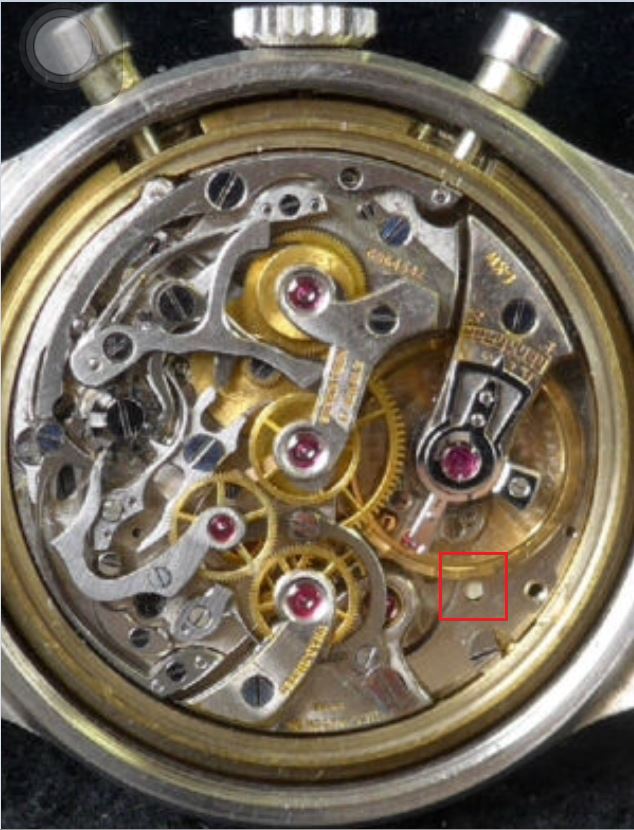

in addition to the dubious dial (in this thread) there are two more issues that do not belong to a ("mint+"-) 13ZN12:

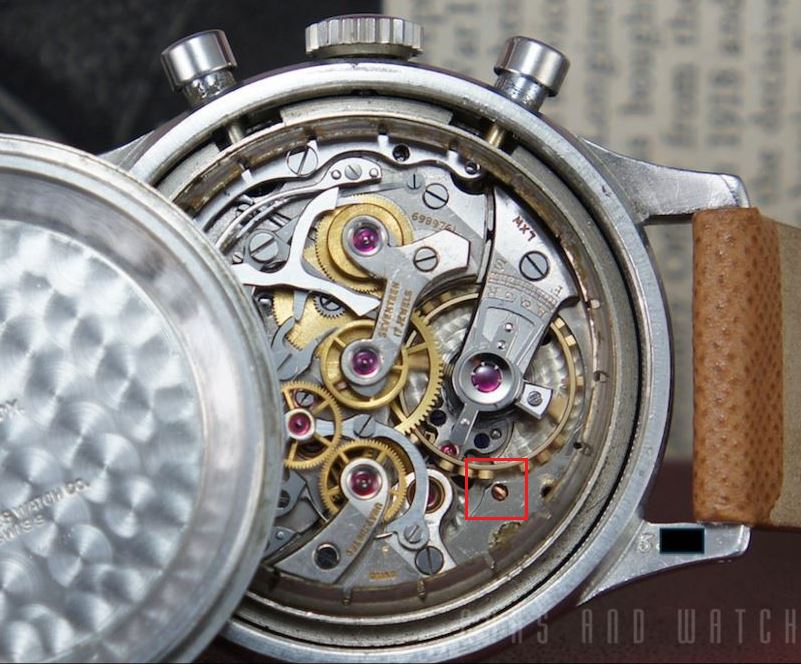

1. the little spring at the backside of the hour counter
2. the spacer between screwback and movement
both are missing.
feder_zpsyr6fzlls.jpg longines%2013%20zn%201%20werk%20distanzhalter_zpscmn4exc8.jpg
Edited:

LarryG
Posts
1,004
Likes
3,923
U ulackfocus
That deserves to be in the thread about unrealistic price expectations. $60,000 is insane. 馃槻 馃え

While I believe the Maron example has its problems, the last good one I saw fetched north of 50.

PHPHD
Posts
199
Likes
360
center seconds hand (black) also looks wrong (tip is squared instead of pointed)

minutenrohr
Posts
2,011
Likes
25,152

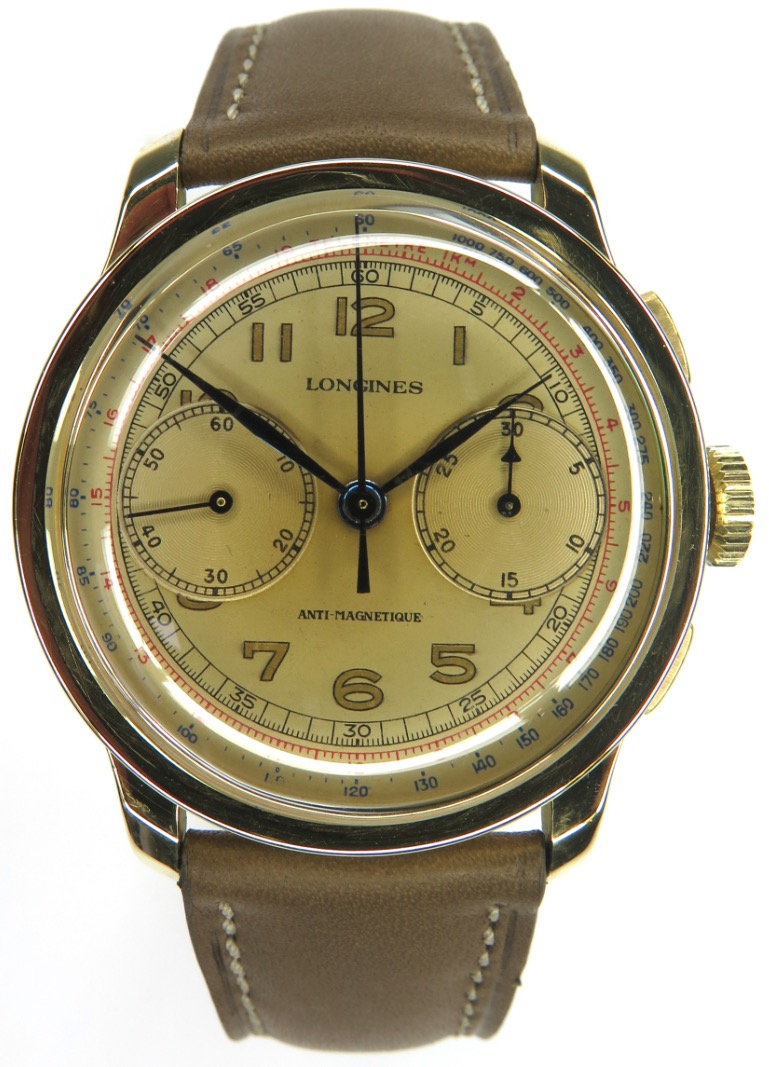

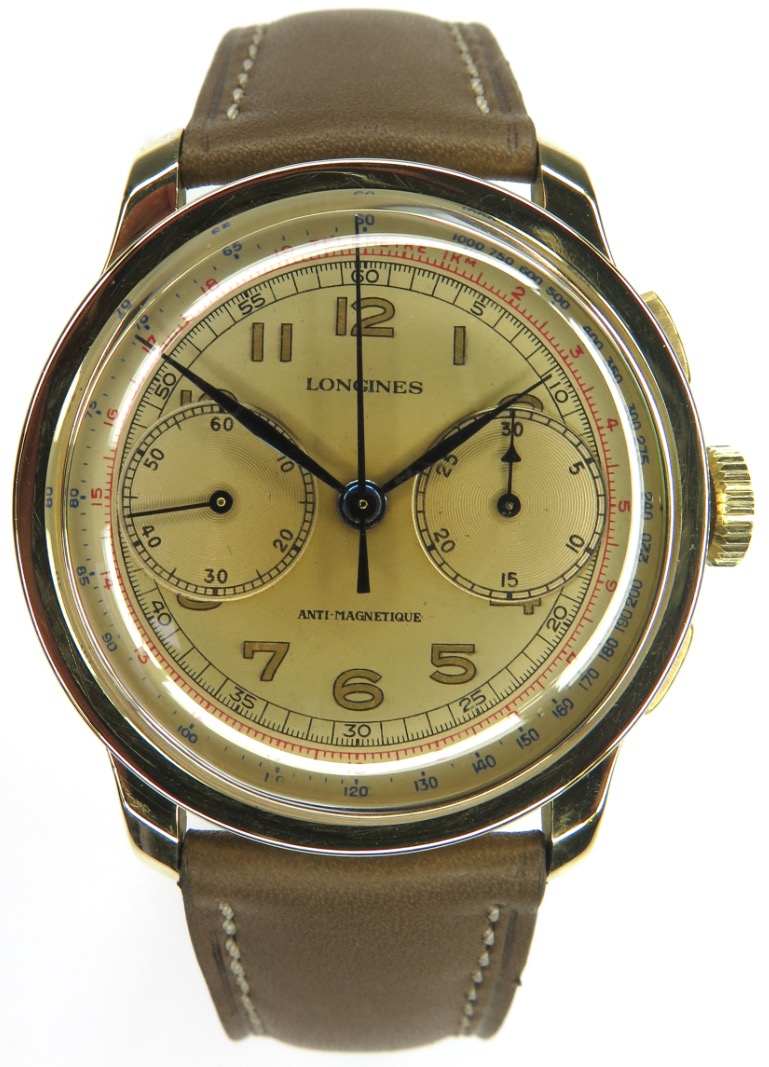

Now the auction has ended without a result. Conclusion: one of the better-known watch dealers offers a 13ZN12 with some issues as "phenomenal" - not mentioning the issues, especially that the dial is reprinted (see above, described by dirty dozen AND see the ebay pics with a remarkable dial foot)...
http://www.ebay.de/itm/151950580368?ssPageName=STRK:MEWAX:IT&_trksid=p3984.m1423.l2649

regards - h.u.
Edited:

This website may earn commission from Ebay sales.
valjoux72
Posts
511
Likes
1,914
Great writing about the history of the Longines chronographs 13.33, 13zn and 30ch today at Hodinkee from PH Zou!!
Good to see that Hodinkee sometimes find his way back to the roots...

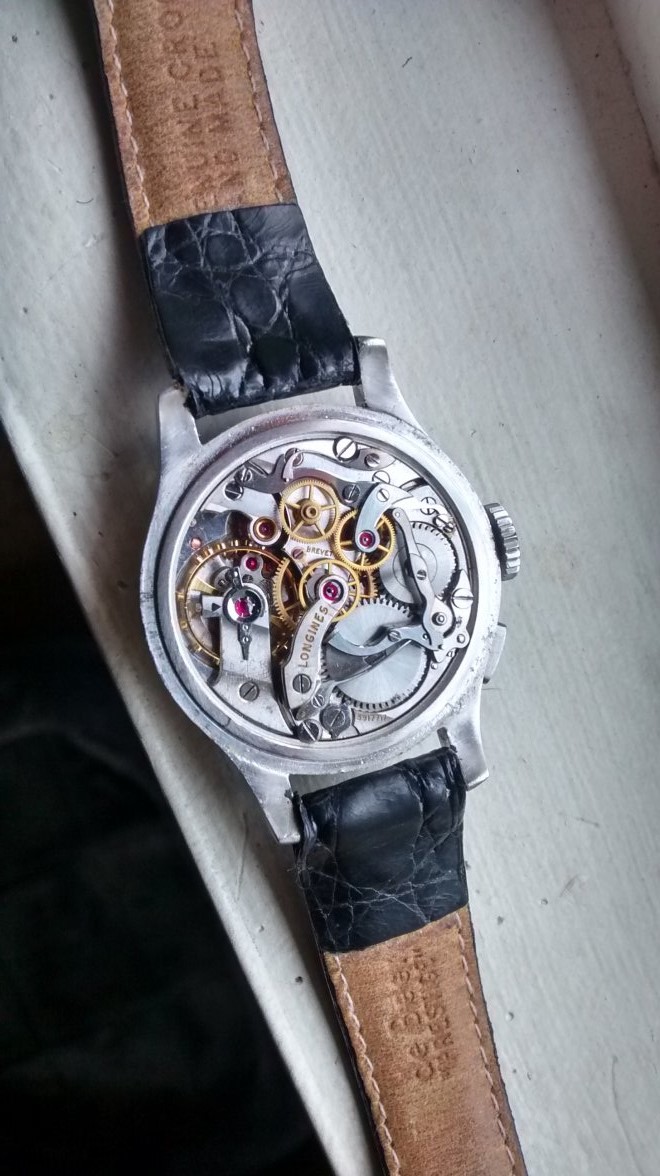

I麓m only missing the 12.68zn stop second/minute chrono in the article, even if it has no real flyback function.
Werk 12.68z.jpg

minutenrohr
Posts
2,011
Likes
25,152
...I read it (fast). I think it麓s ok as a conclusion of all the facts (correct and uncorrect) you can find out using google. F.e. it is NOT correct to describe the 13zn12 as a flyback-movement. Sometimes the (frequently mentioned in Zous article) "tooth" of the lever near the column wheel is filed away (to get the flyback), but all well preserved examples I ever saw have it.

rgds - h.u.

LouS
Posts
6,712
Likes
18,569

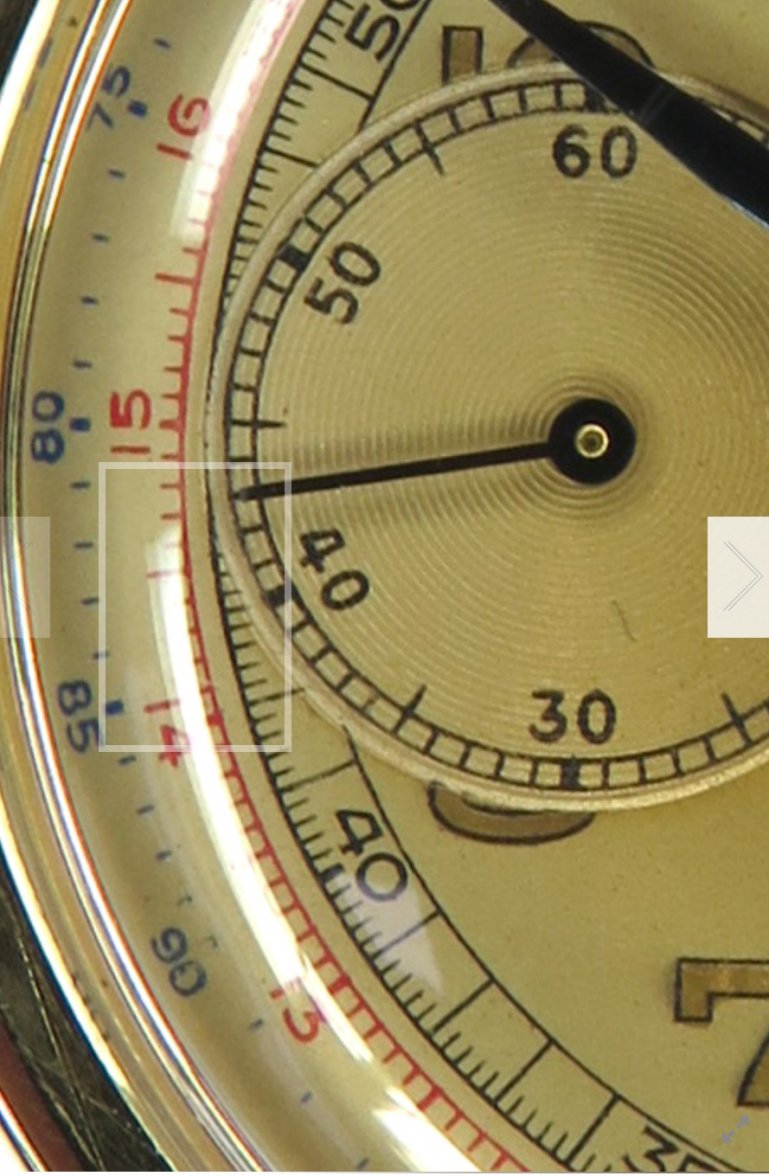

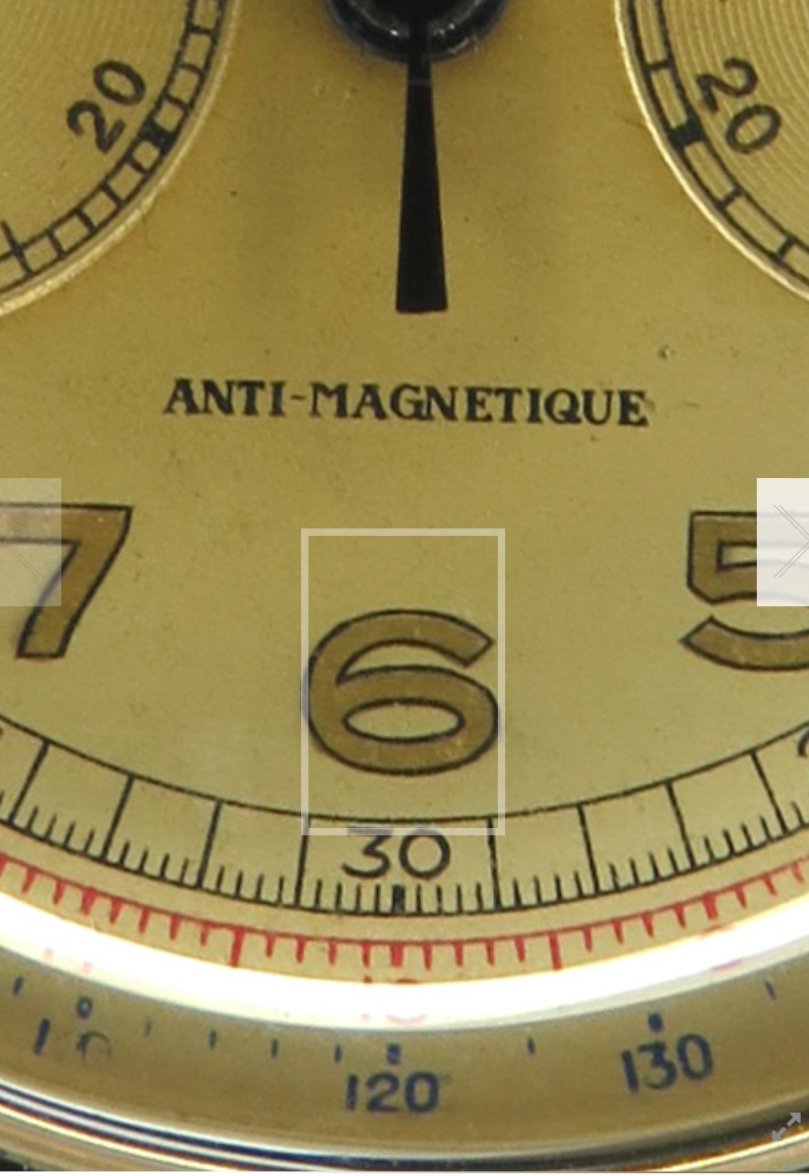

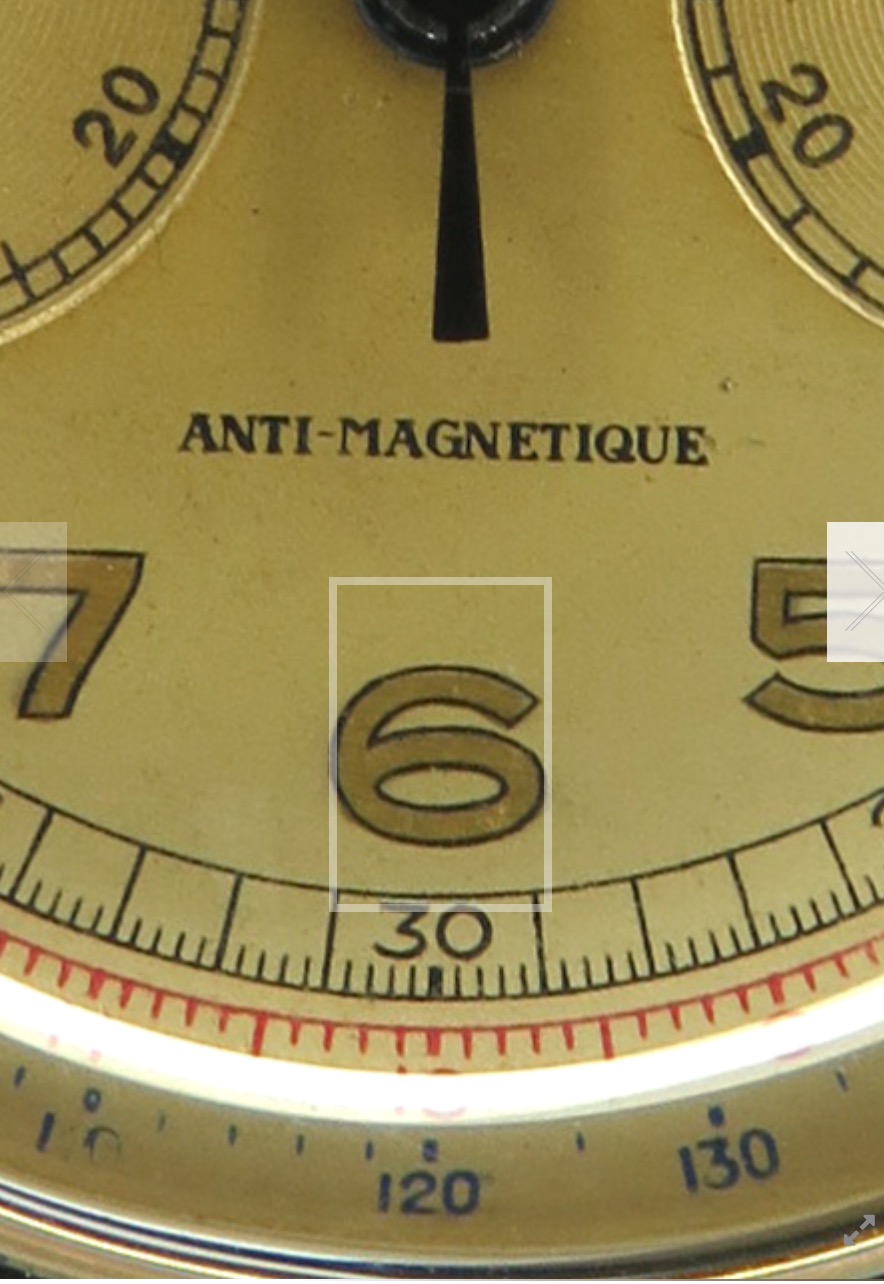

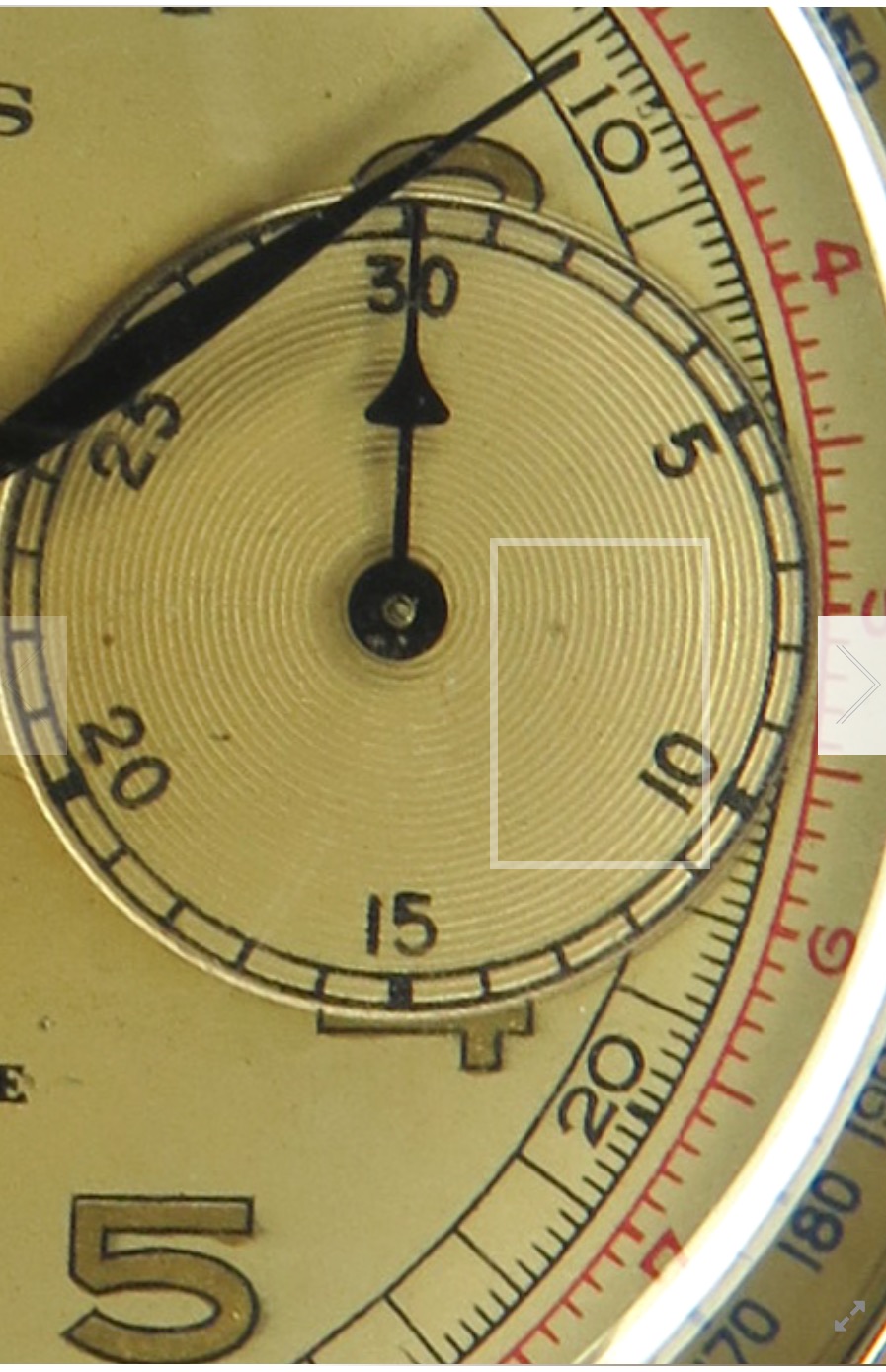

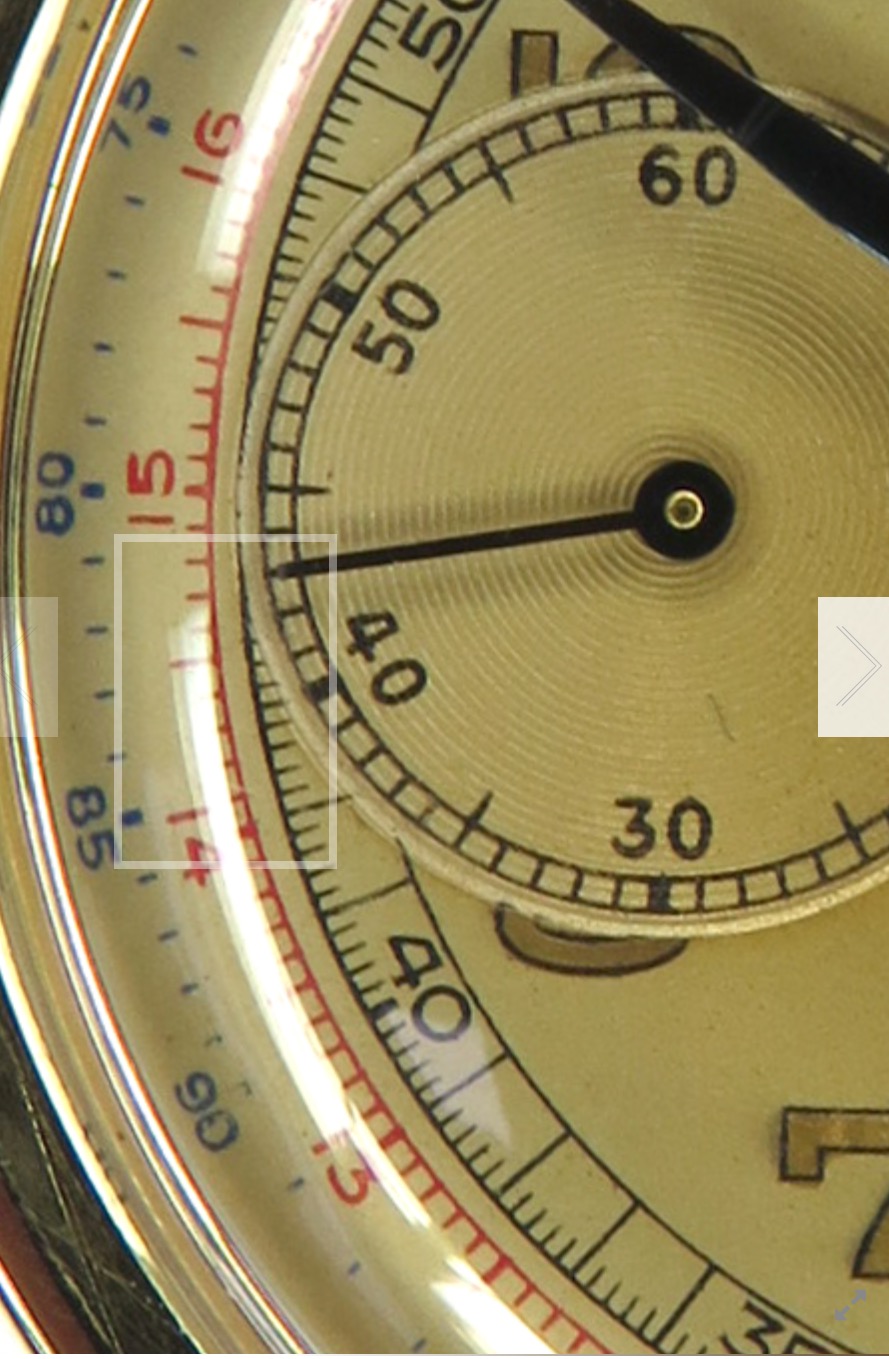

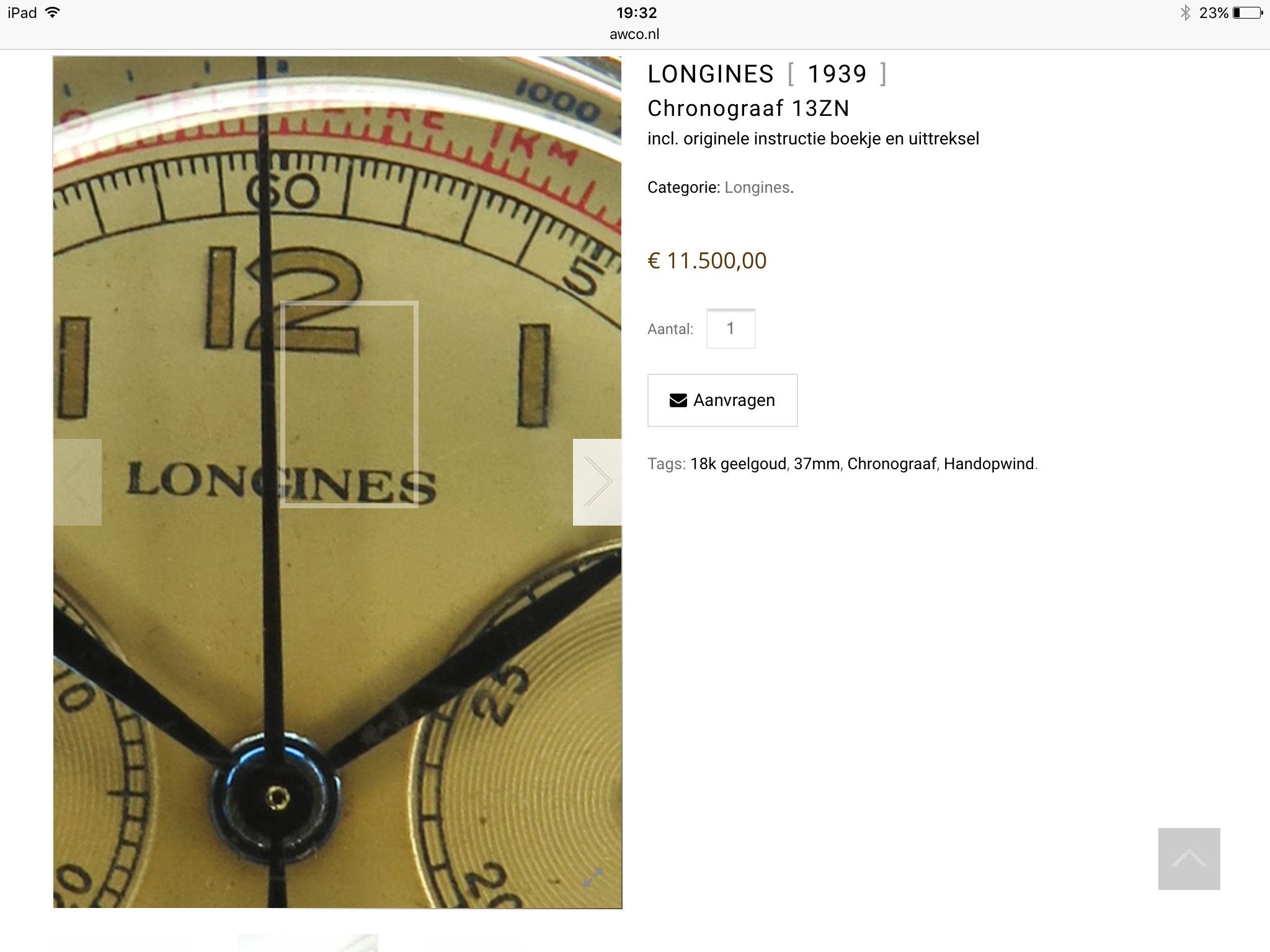

No, redial. Look at the smudgy printing in your macros, particularly in the tachy-tele scale.

DirtyDozen12
Posts
2,804
Likes
4,882

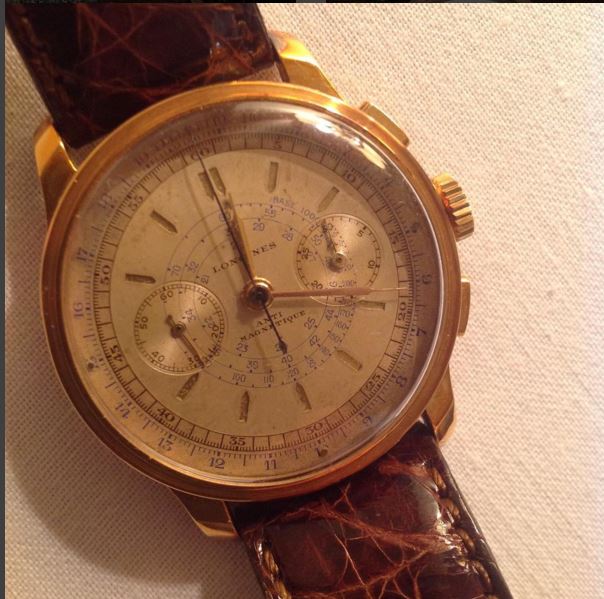

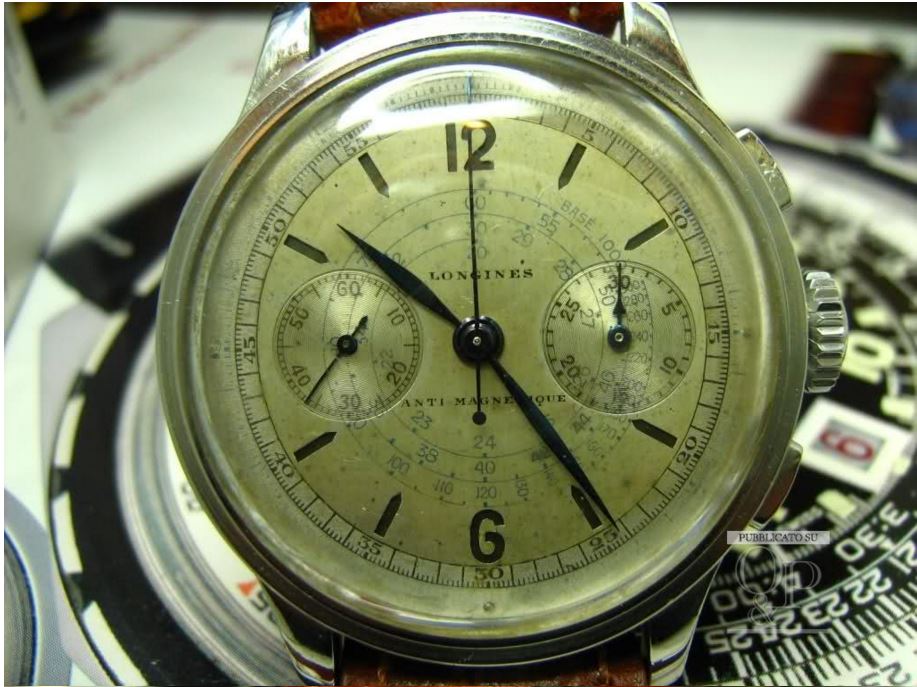

After discussing sandwich dials in another thread (https://omegaforums.net/threads/longines-13-zn-18k-chrono-with-poorly-refinished-dial.32293/), I wanted to share this example for reference. Based on the poor photograph, it appears to be original. The dial design is of note as it lacks the usual "12" and "6" hour markers. The chronograph seconds hand looks incorrect.


https://www.instagram.com/p/5m_lGAu6dN/?taken-by=my_way_1911
Edited:

minutenrohr
Posts
2,011
Likes
25,152
I also think it麓s correct. Minute and hour hand are uncommon. Nevertheless it looks a bit strange because of the distance between hour markers and minute track.

rgds - h.u.

DirtyDozen12
Posts
2,804
Likes
4,882

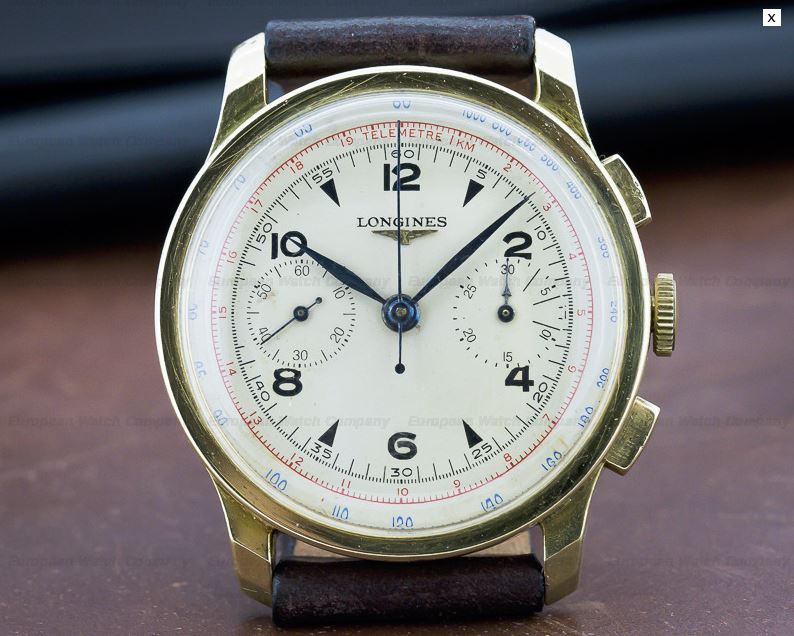

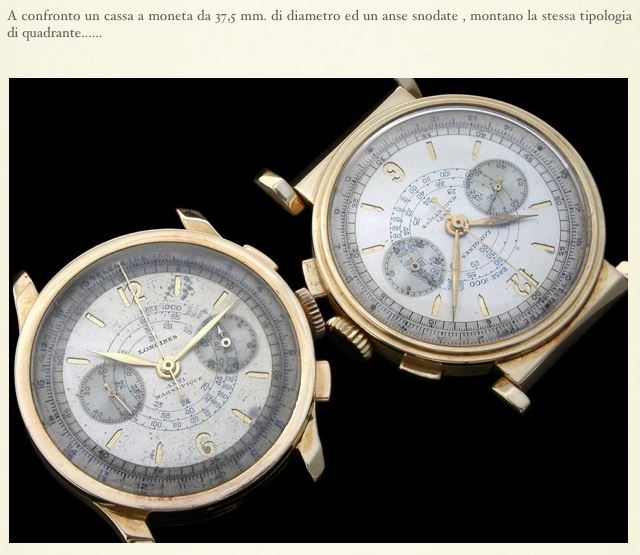

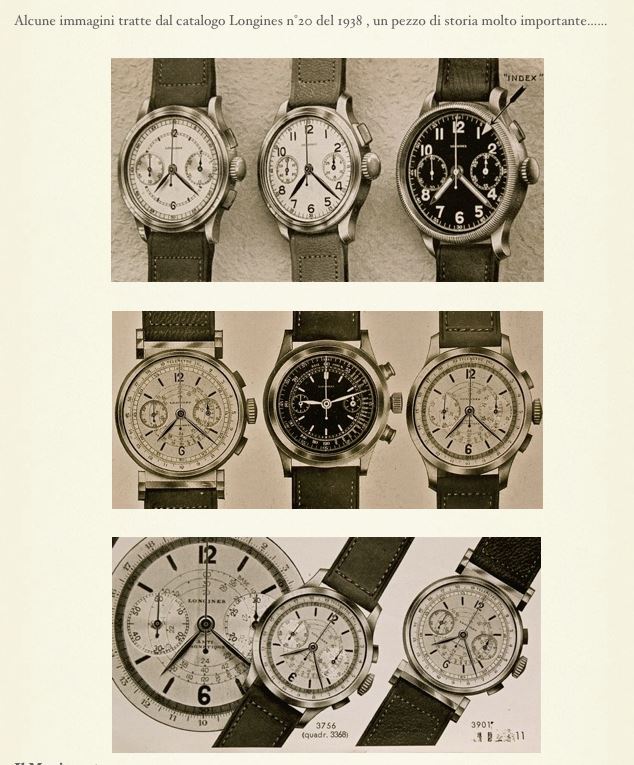

I agree that the minute and hour hands are uncommon (and possibly incorrect). I had not noticed the distance between the hour markers and the minute track. When I compare with similar dials, the distance is certainly reduced. Do you think that such an elaborate redial (even the cutouts for the sandwich dial) is likely? From a distance, the text appears correct.

6.JPG sand4.JPG

http://www.longinespassion.it/Longines_Passion/13ZN_parte_2.html

http://www.longinespassion.it/Longines_Passion/13_ZN.html
Edited:

minutenrohr
Posts
2,011
Likes
25,152
I don麓t want to call it a redial. All details are looking correct but nevertheless it looks strange to me; too much empty space on that dial.
I can麓t tell, what it is exactly, but I wouldn麓t buy it.

rgds - h.u.

DirtyDozen12
Posts
2,804
Likes
4,882
I must apologize as I read your statement incorrectly thinking that you said that the dial was incorrect. I agree, the dial does look correct but slightly unbalanced.

DirtyDozen12
Posts
2,804
Likes
4,882
I realize that I am way behind (about a month 馃槻) with this response but I felt compelled to shed some light on a crucial feature of the caliber 13.33 that was not mentioned in the Hodinkee piece.

It seems that the 13.33 is often viewed as a more primitive 13ZN. However, it is certainly more advanced in one respect. While the 13ZN makes do with a simple "jumper" for the minute counter, the 13.33 has a complex instantaneous minute recording mechanism. Rare in any chronograph, the 13.33 was quite possibly the only wristwatch of its day to possess the delicate complication.

Conveniently, a fantastic video of the mechanism exists. I hope you enjoy!

minutenrohr
Posts
2,011
Likes
25,152
...some people think that the 13ZN is the cut-down version of the 13.33, as the 30CH is the same regarding the 13ZN. My watchmaker(s) are sharing this opinion. Perhaps the Hodinkee fans are not so interested in movements or the question if a 30-minute-counter jumps instantaneously or sneaky?

rgds - h.u.
