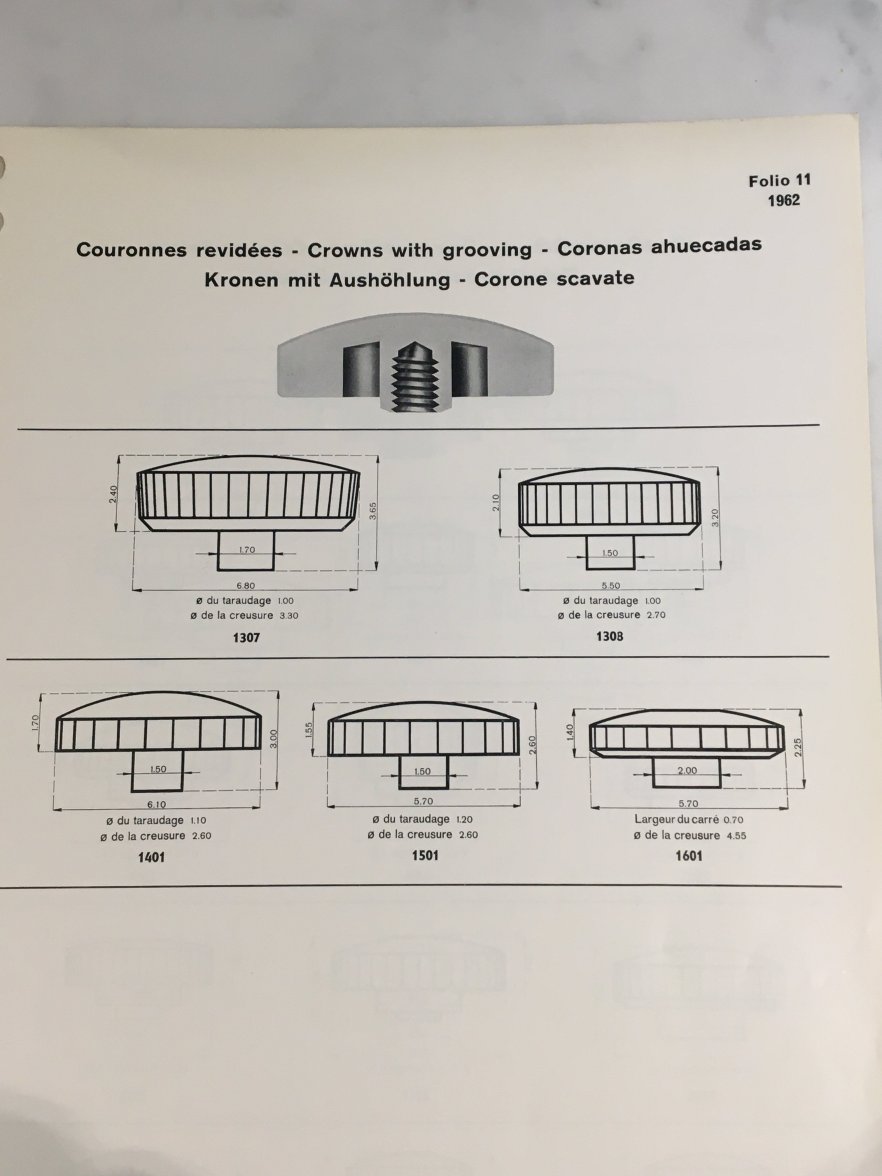

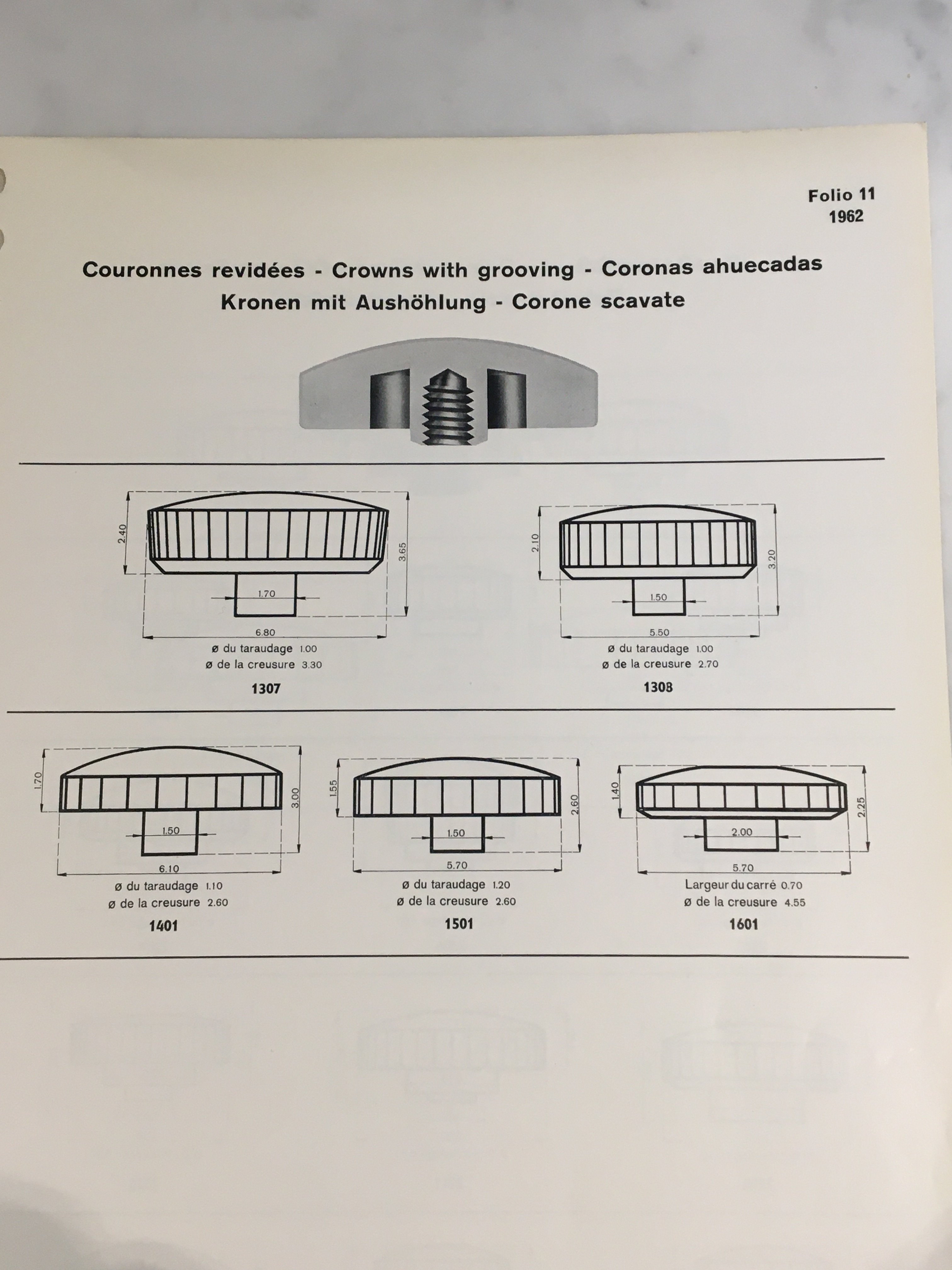

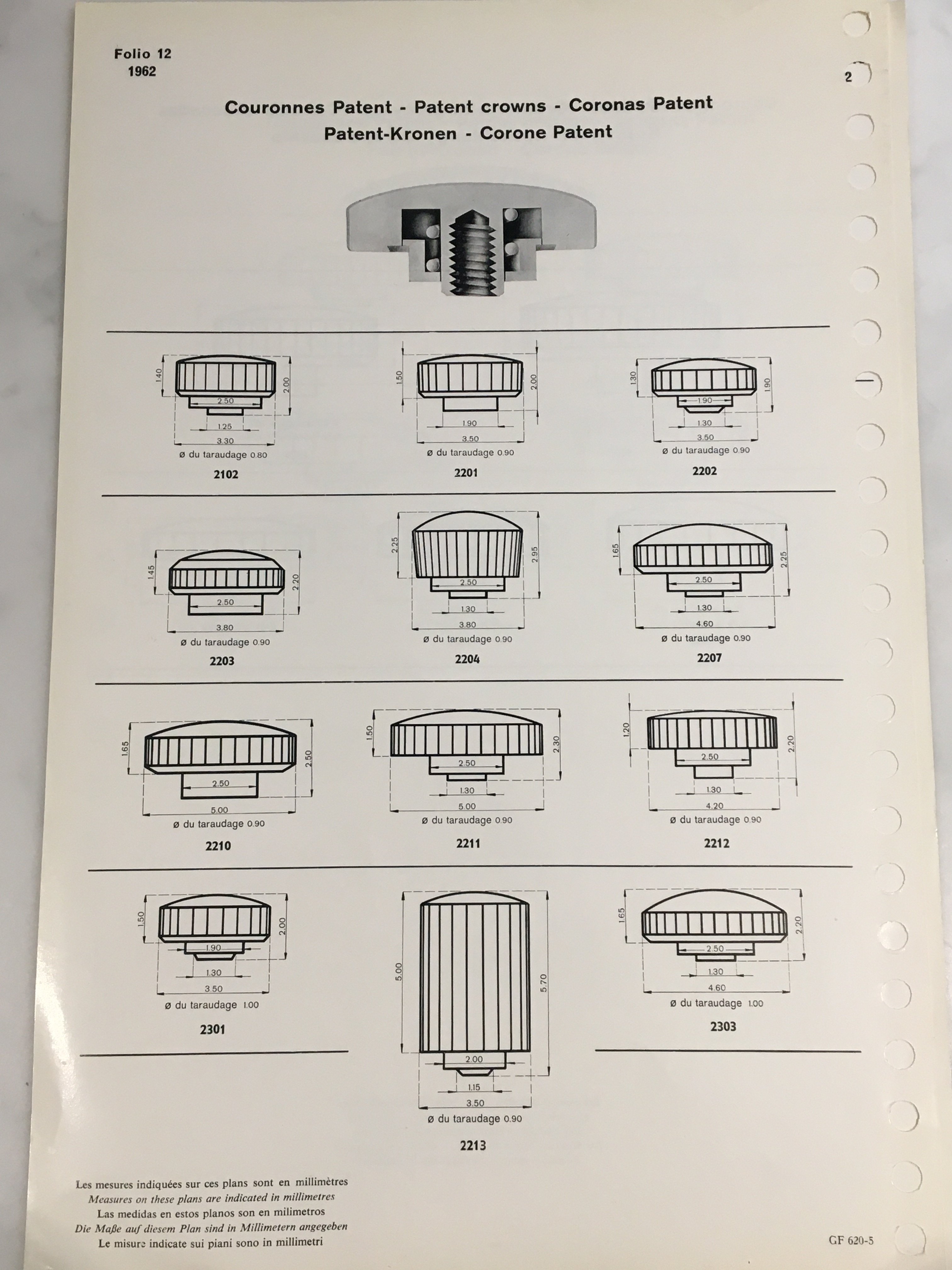

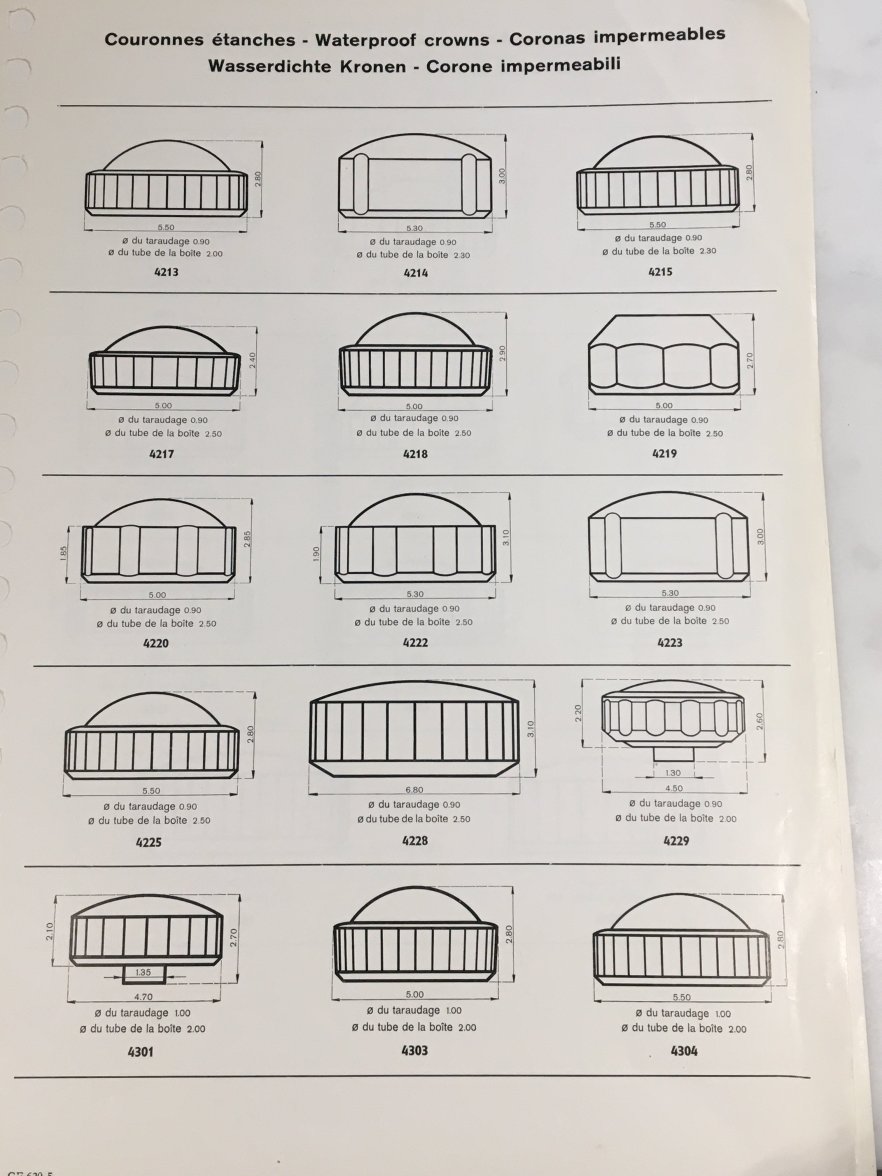

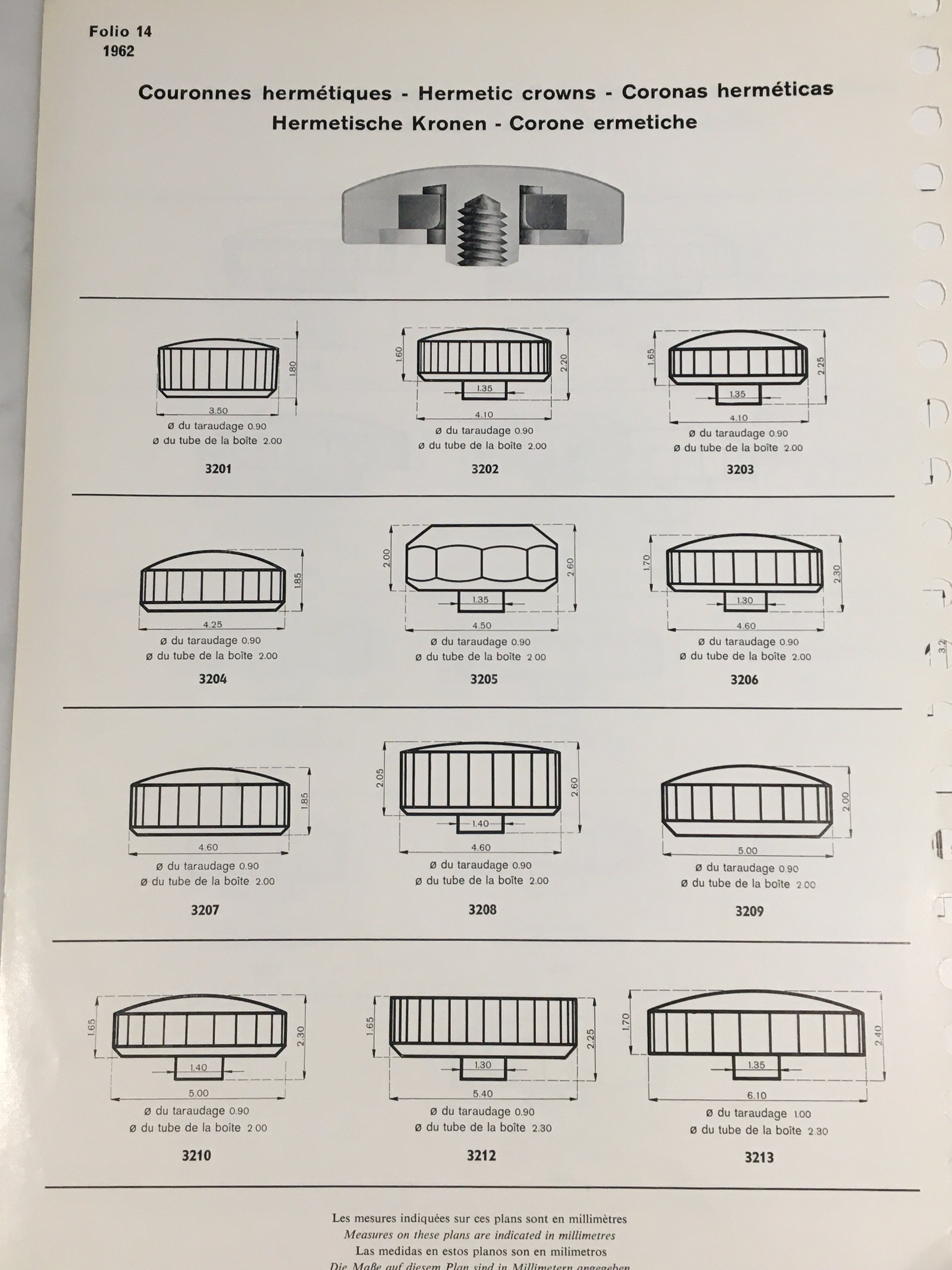

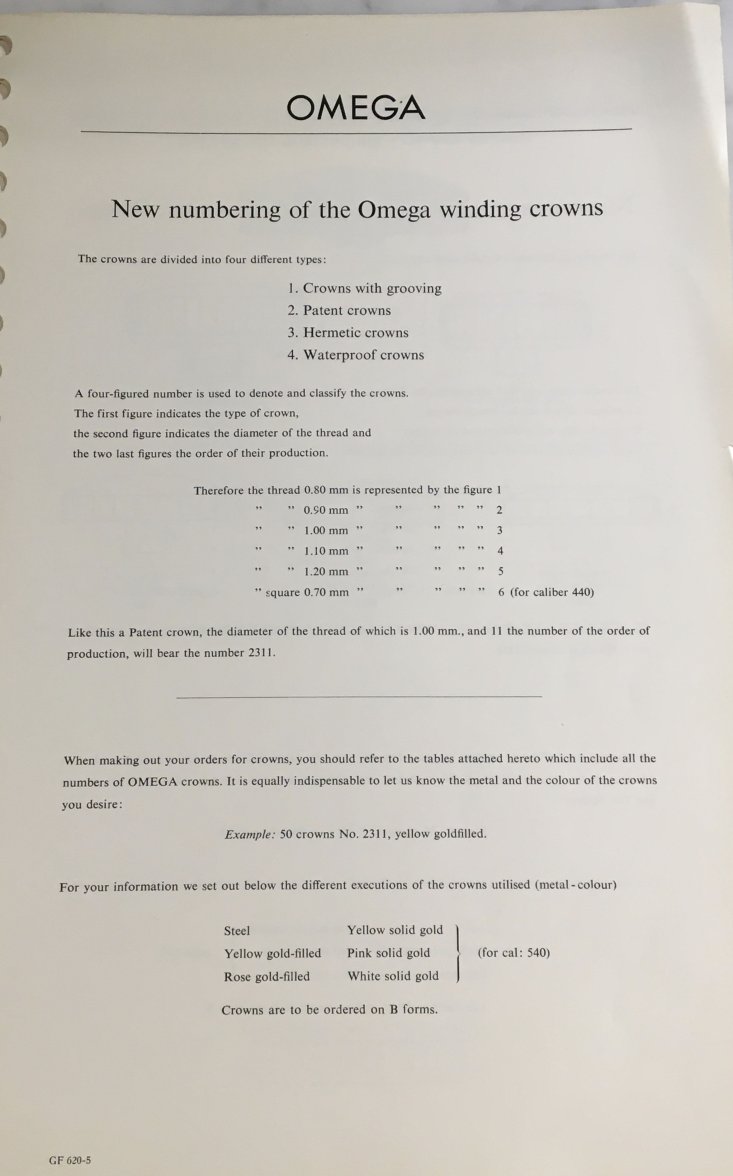

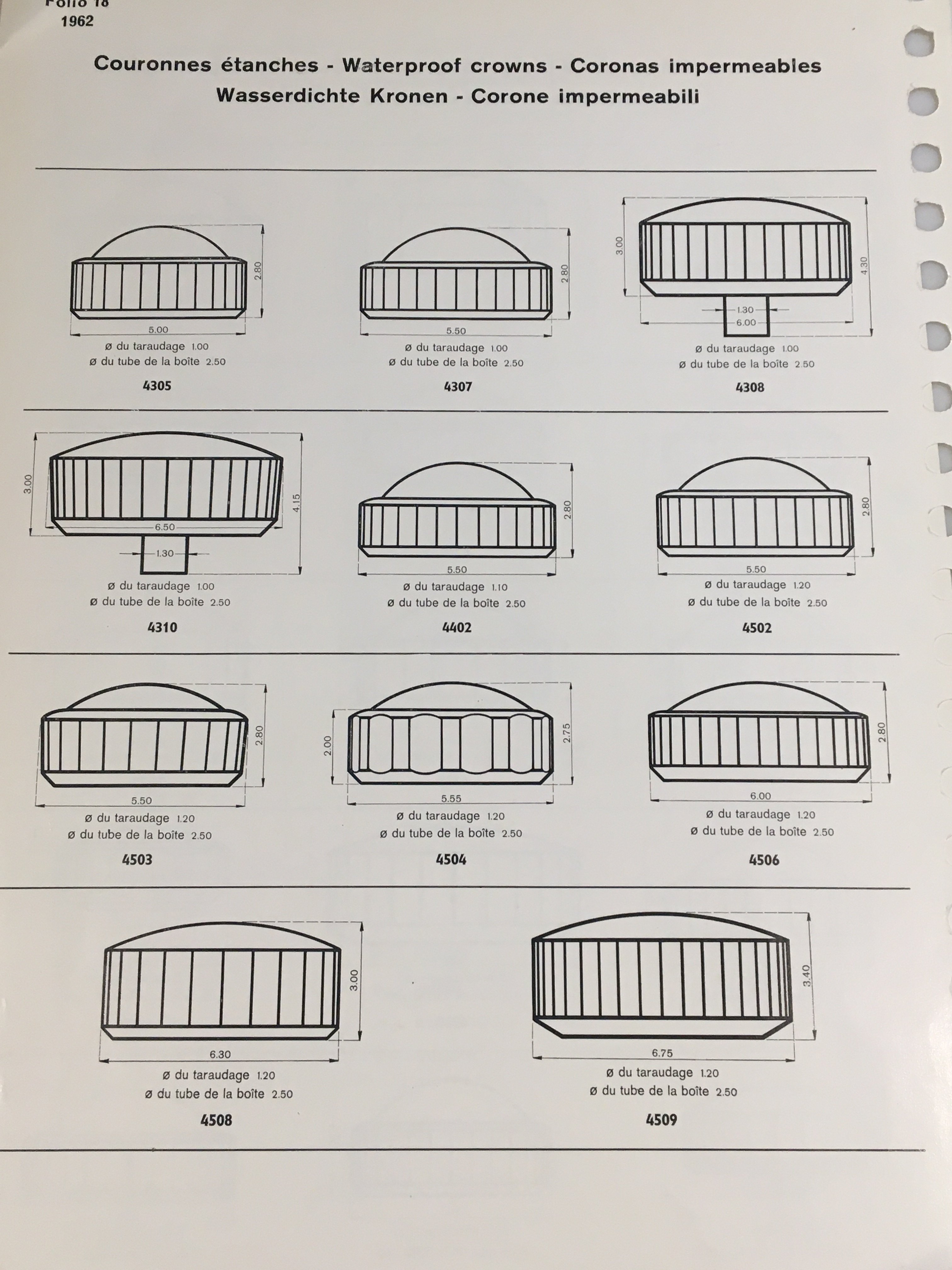

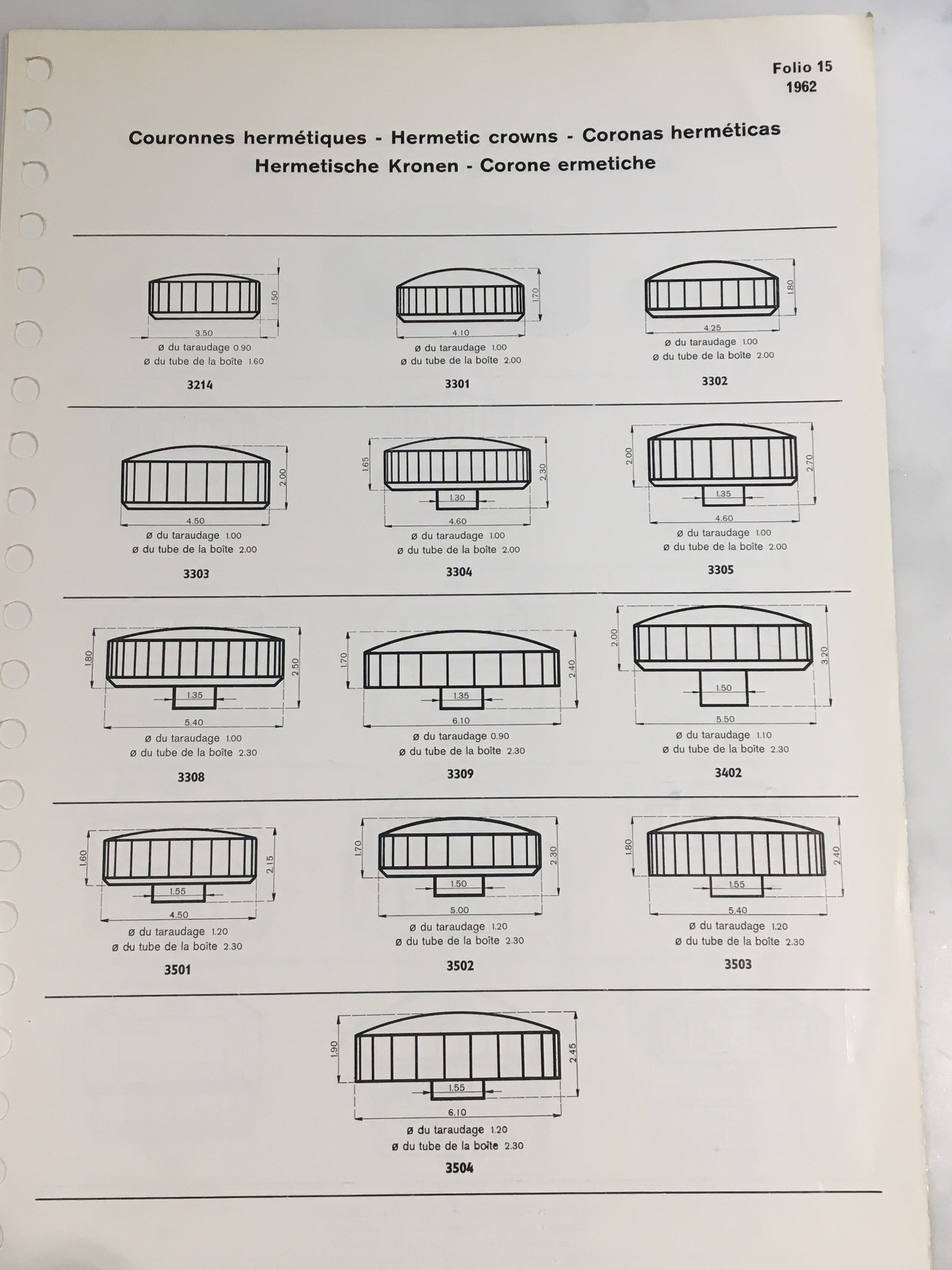

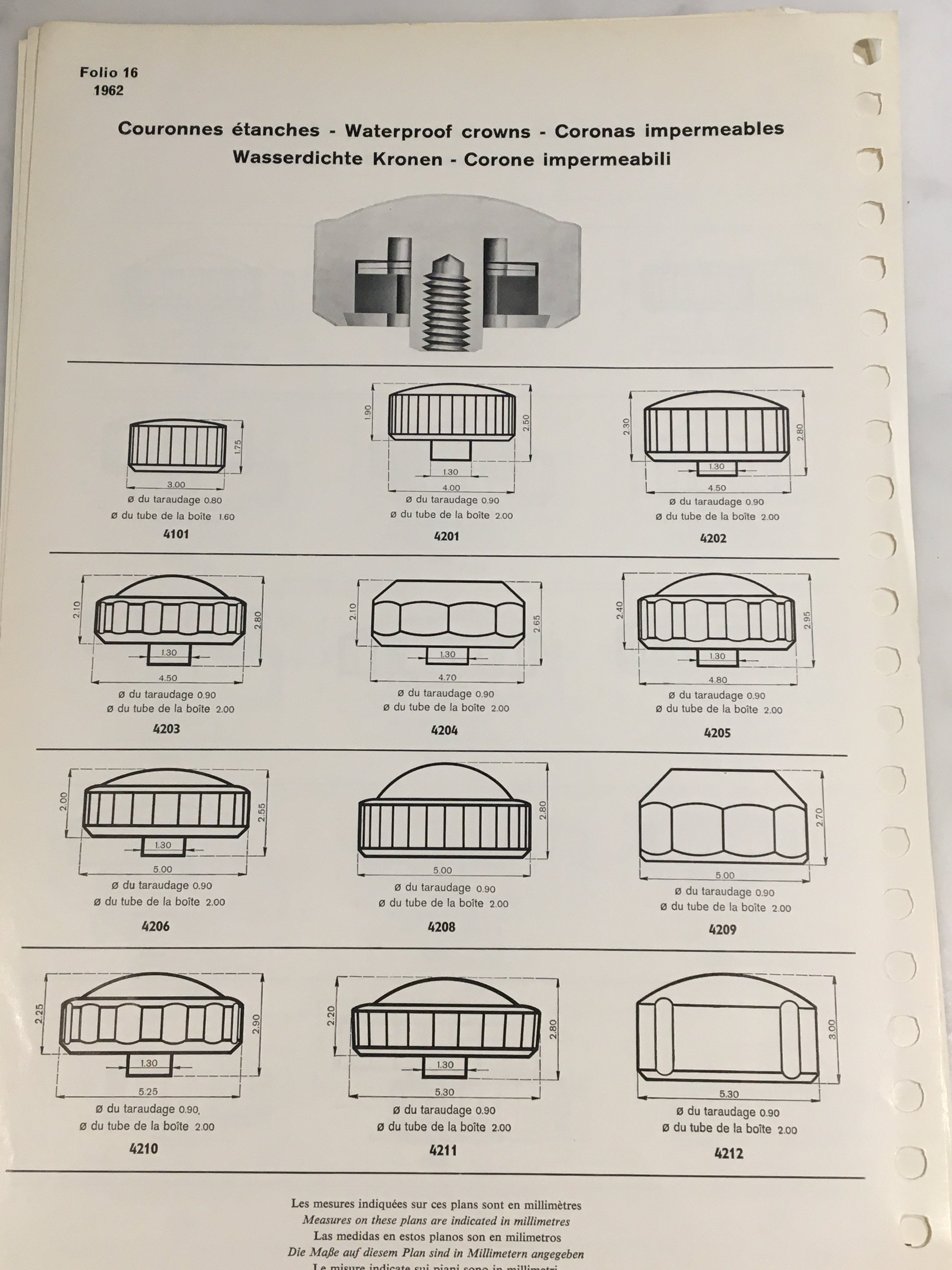

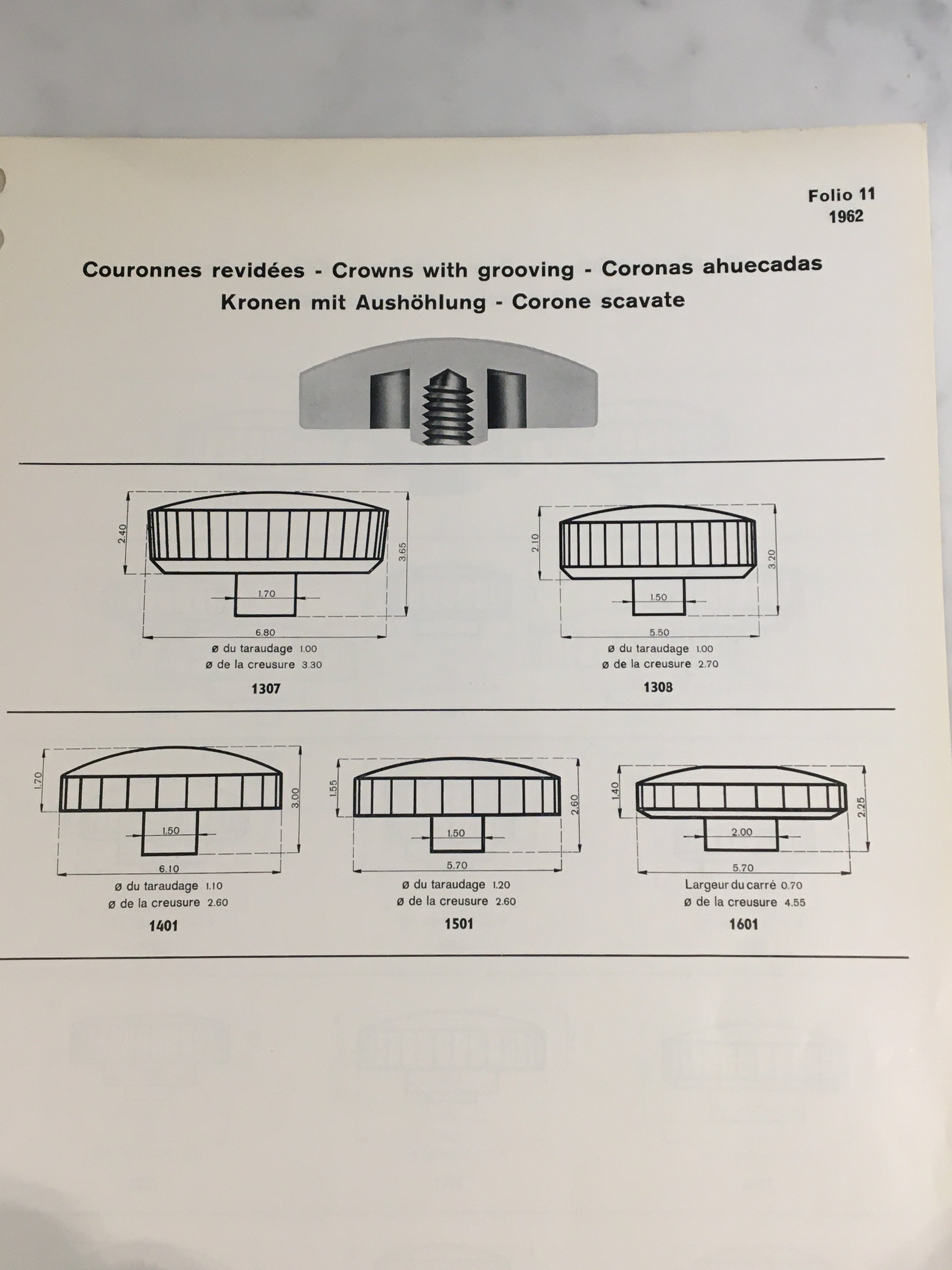

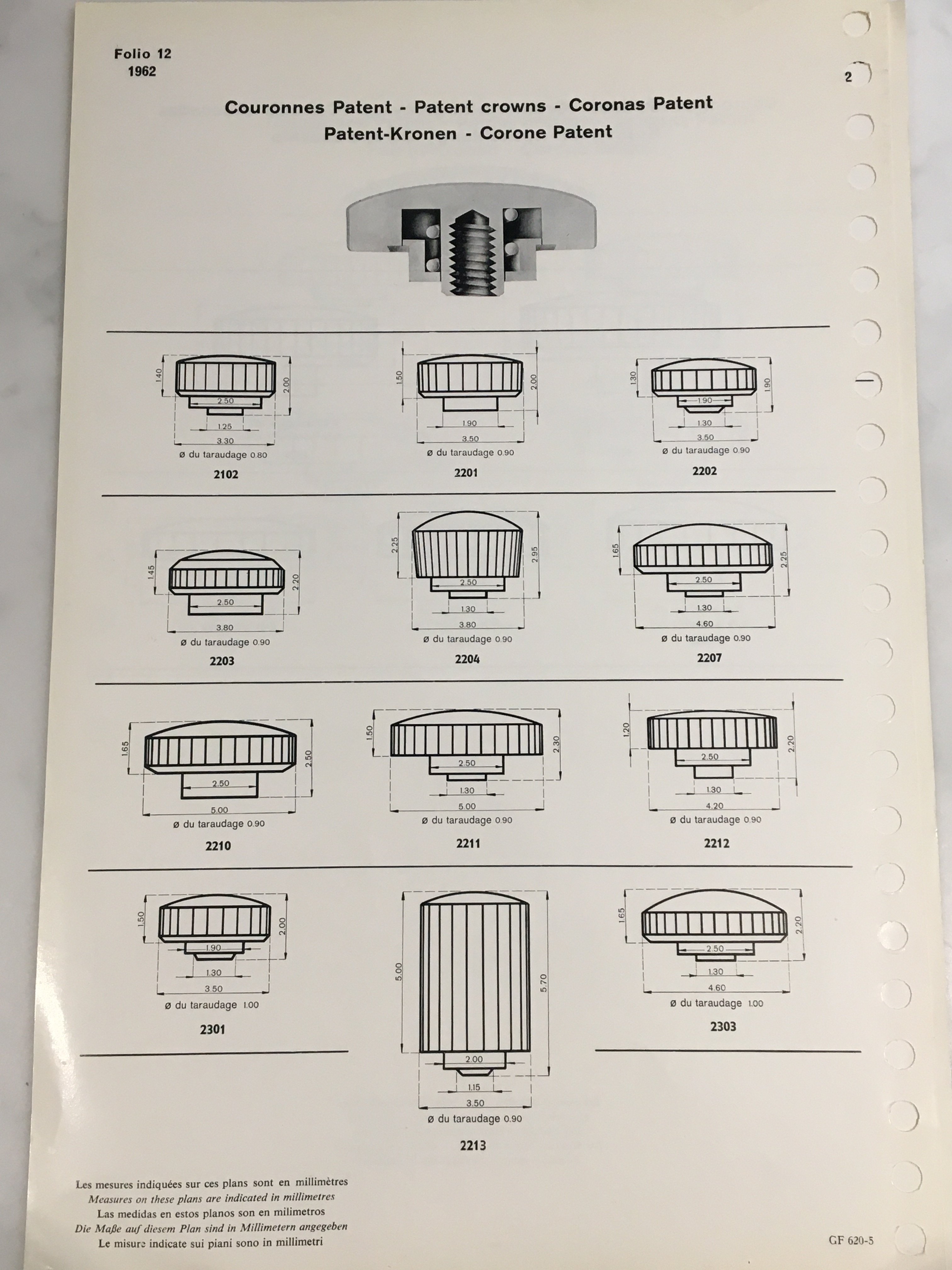

Not covering all I should think but still might be useful.

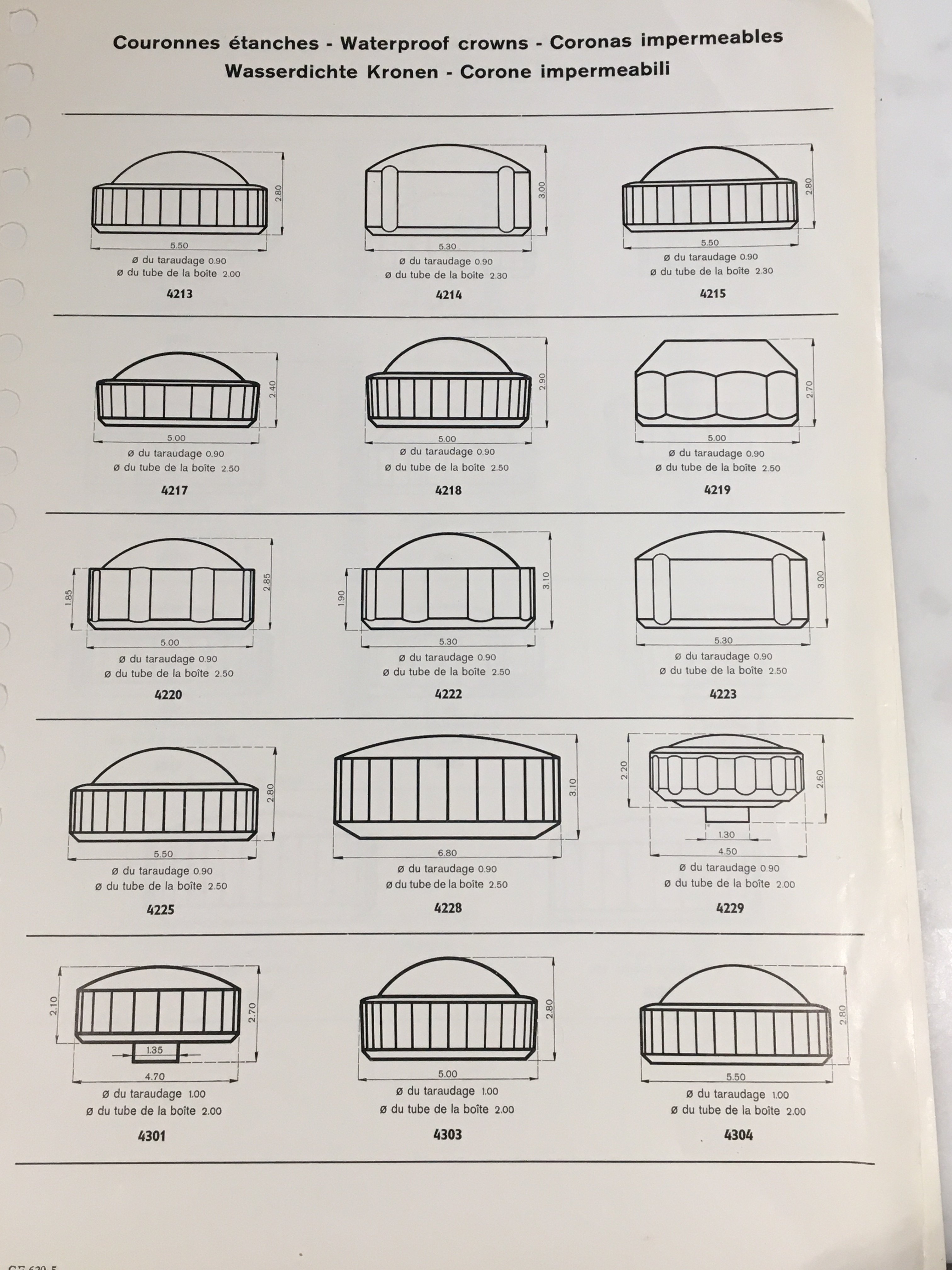

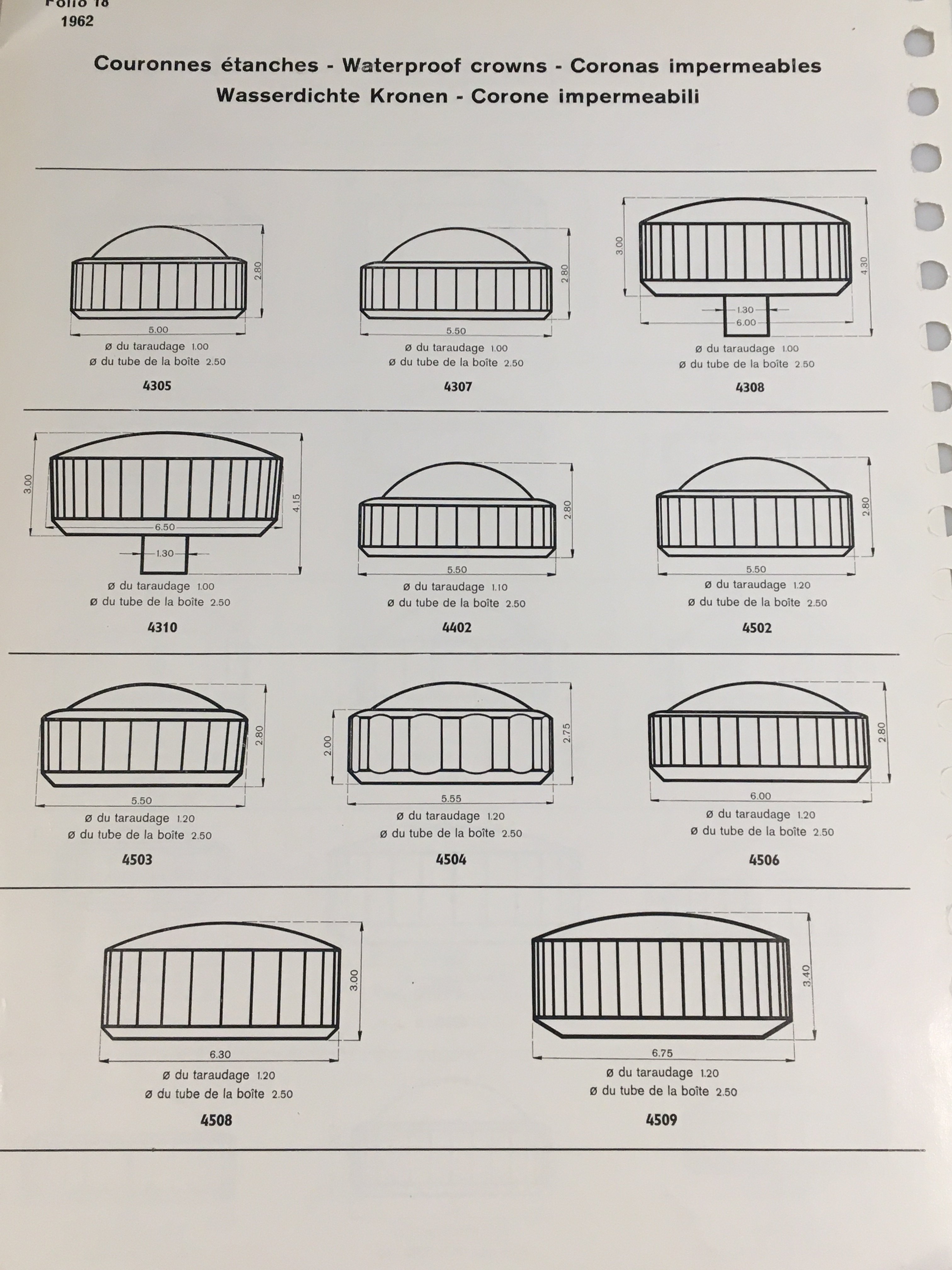

Super helpful. Now we just need a crown / case reference list. I see some Seamaster/Connie crown duplicates with slightly different size/tube dimensions..

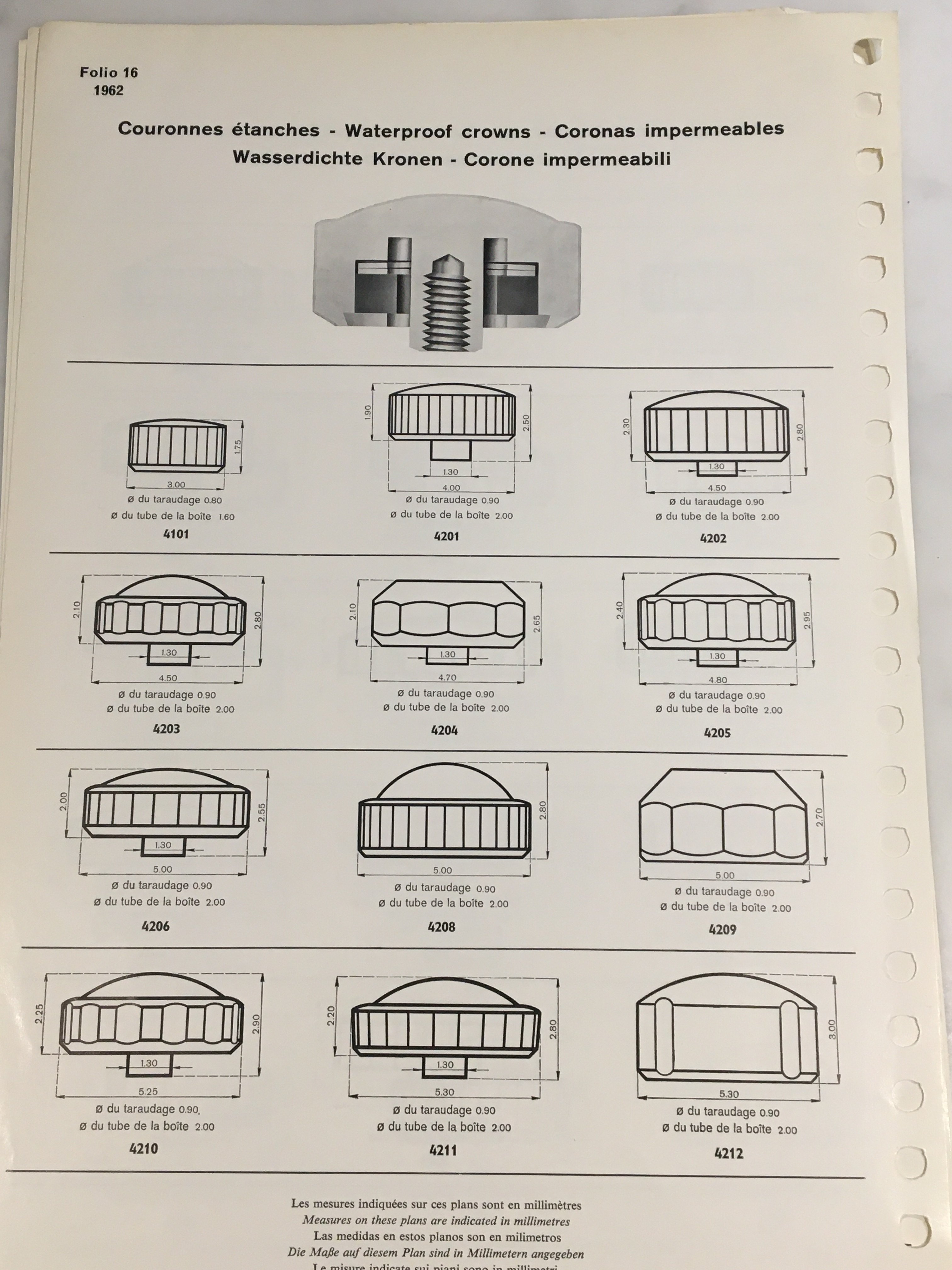

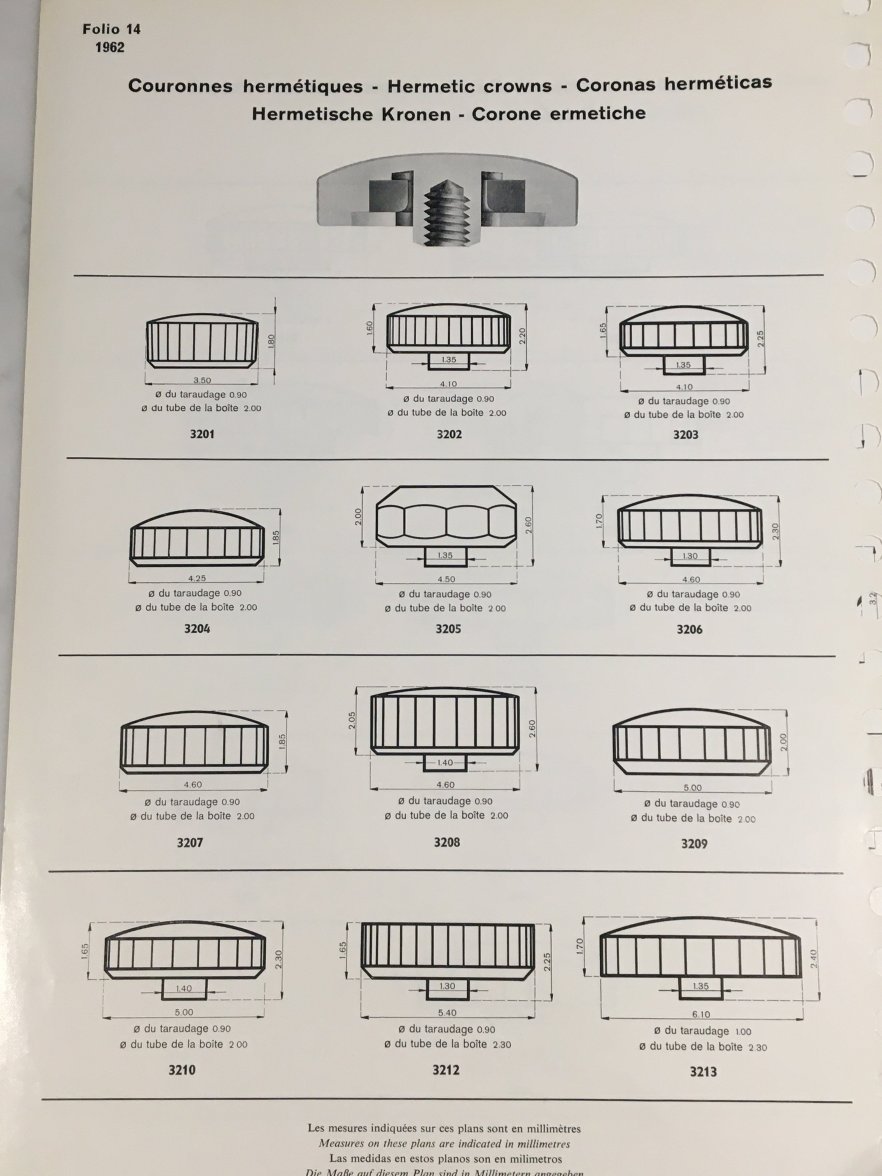

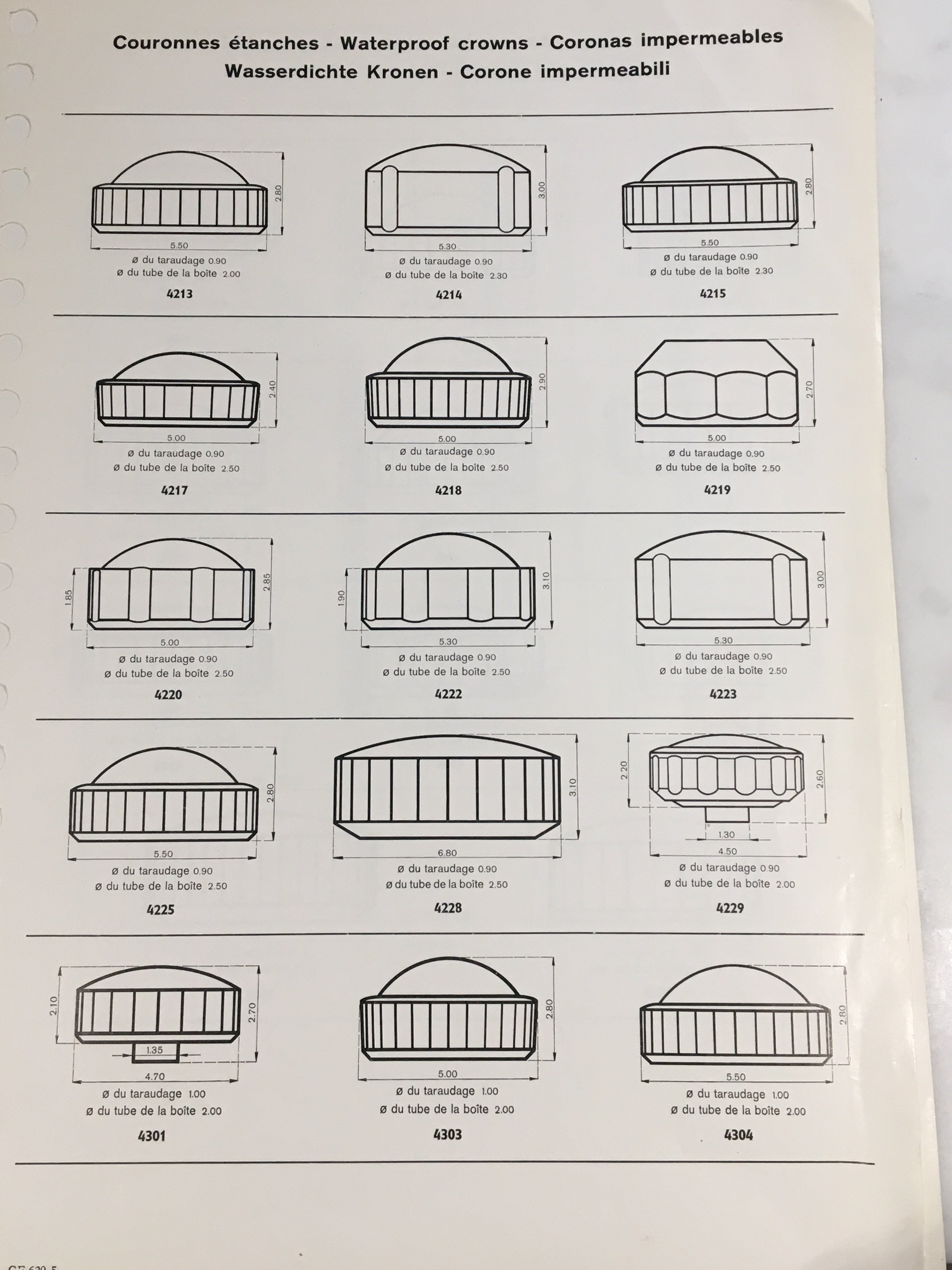

I.e. two “thin decagonal” Connie crowns (3205 vs 4204), two “thick decagonal” Connie crowns (4209 vs 4219), and two “clover” Seamaster crowns (4212 vs 4223).



Older references are at the bottom.
https://omegaforums.net/threads/crown-glass-gasket-list.81619/

Also another reference for bracelets> https://omegaforums.net/threads/case-bracelet-endpiece-list.81618/page-2

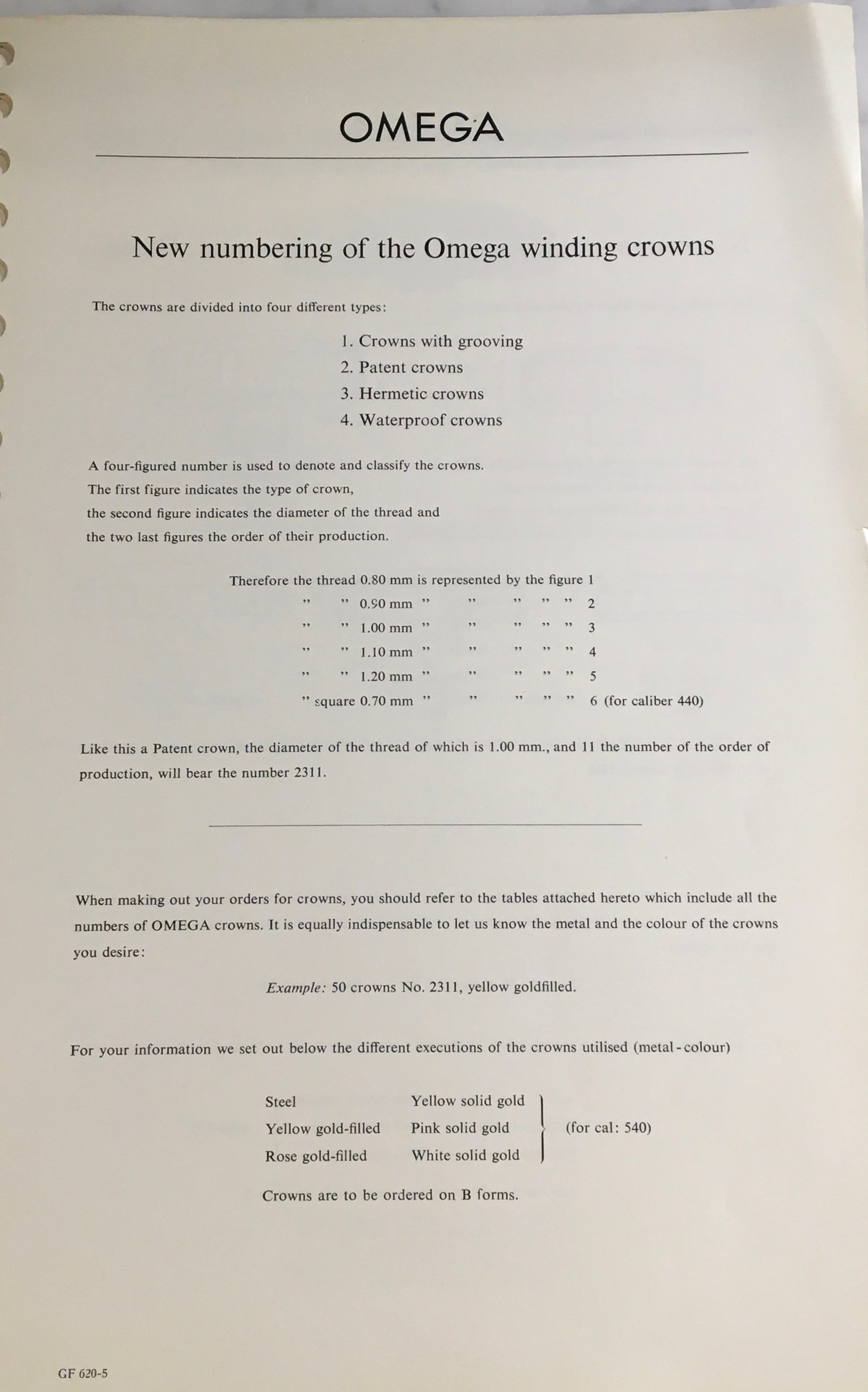

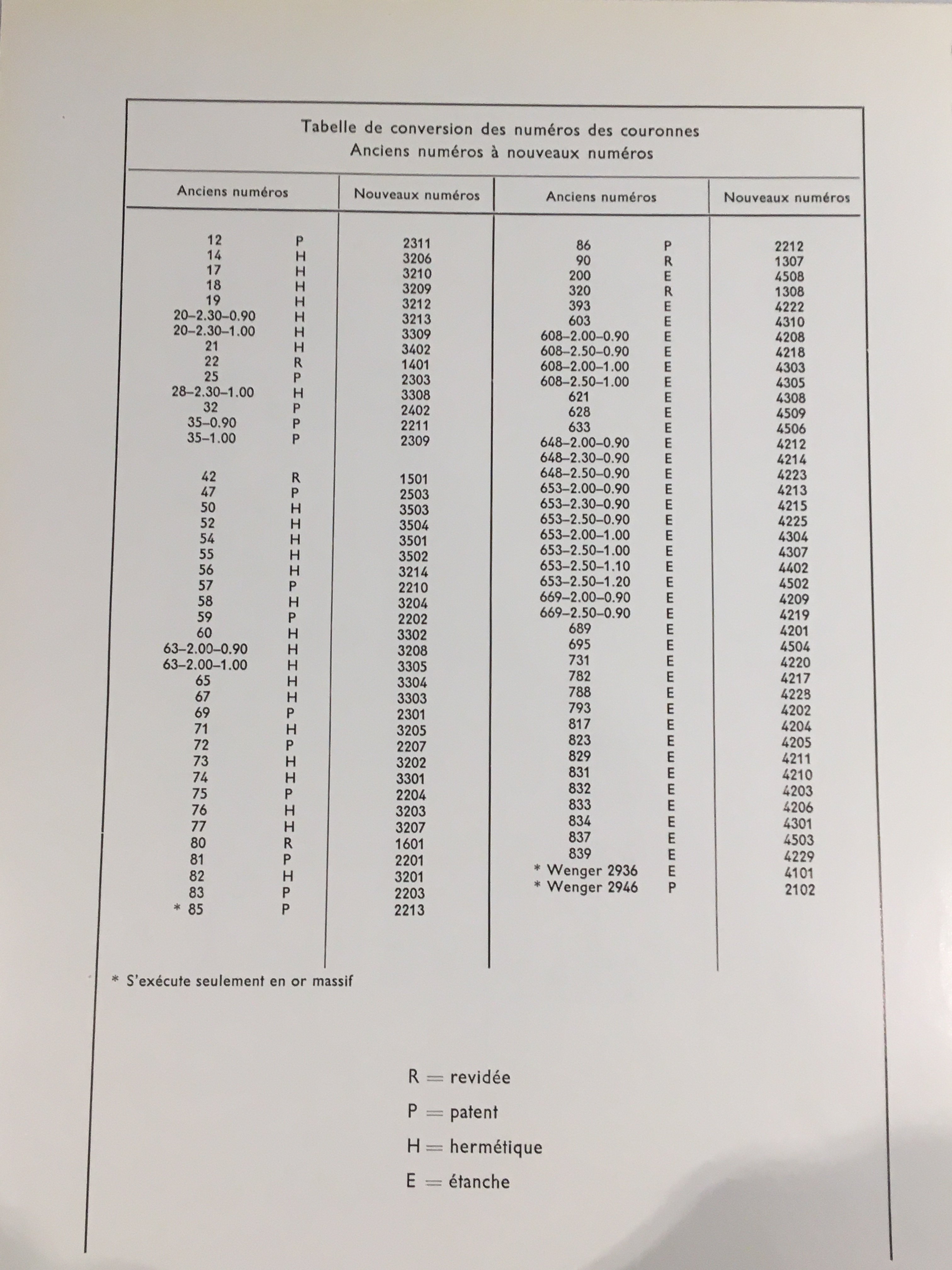

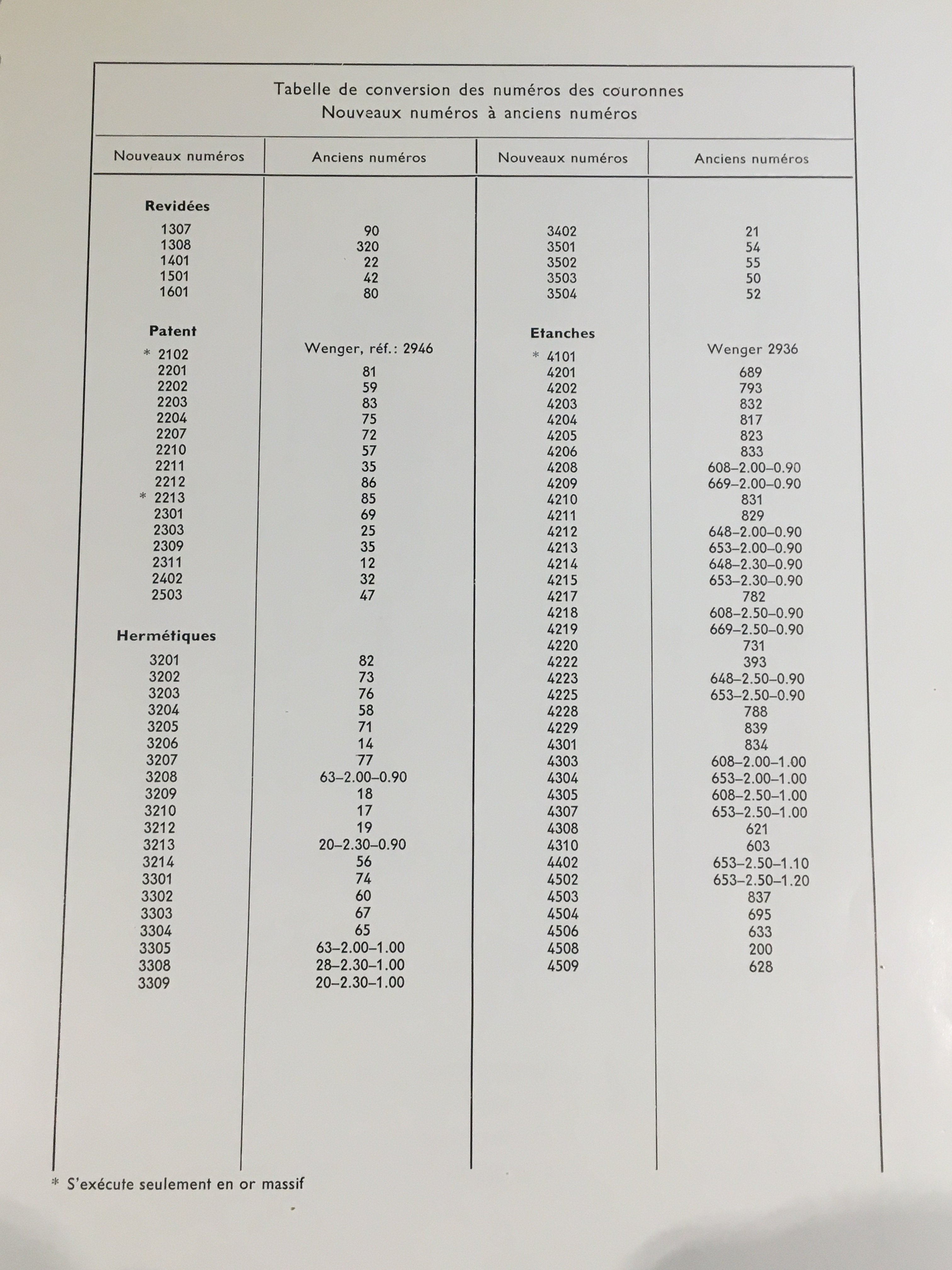

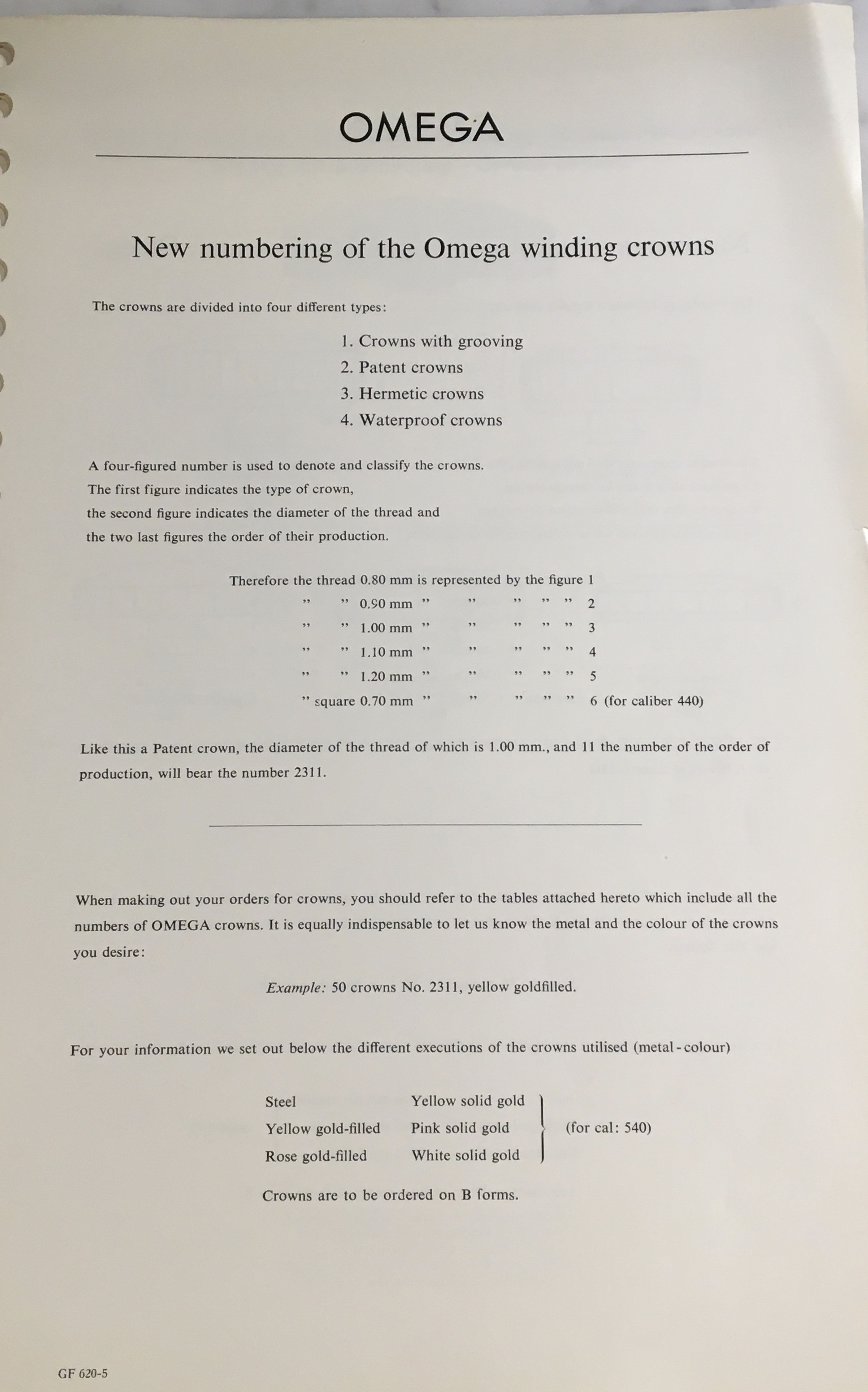

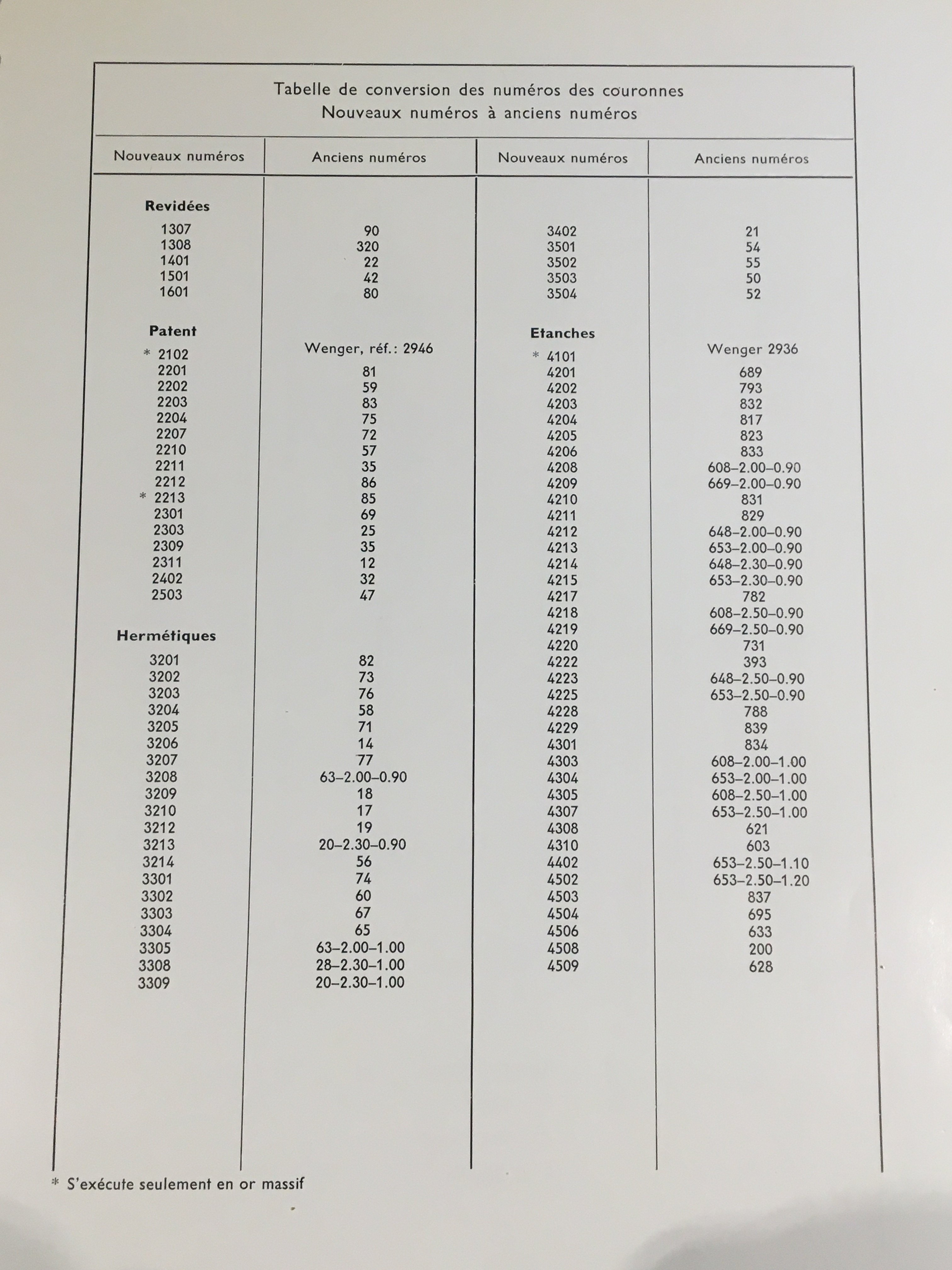

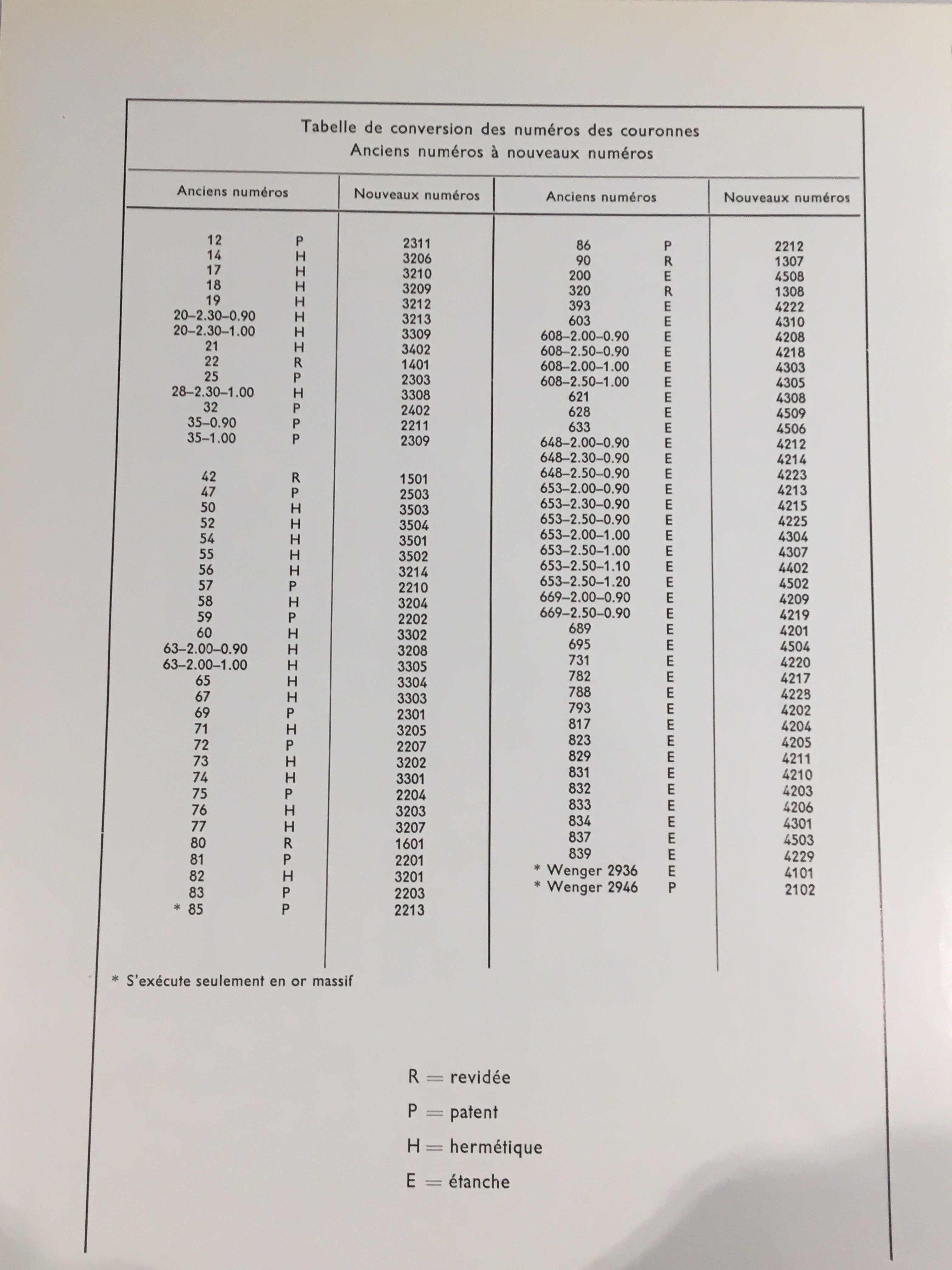

Very helpful too. However, are you aware of a mapping of the different crown model numbers? I noticed they're different between this thread and the linked thread.
