Speedmaster remains airtight when the crown is pulled out?

  1. kaplan Feb 3, 2023

    Posts
    2,278
    Likes
    2,585
    @Archer you really inspired me, going to attempt a crown restoration soon, I've measured the tube 2mm and the crowns inner section 3.2mm - and the crowns tube is 1.4mm

    There are 3.2 / 1.8 / 0.7 o-rings marketed as crown o-rings, I guess these will work - I've checked some individual o-rings at 0.8 / 1 OD's, yet couldn't get better than this crown o-ring

    Here's a photo if anyone is curious, there are sellers who sell individual packs direct from manufacturers, but really hard to find a good size going small:

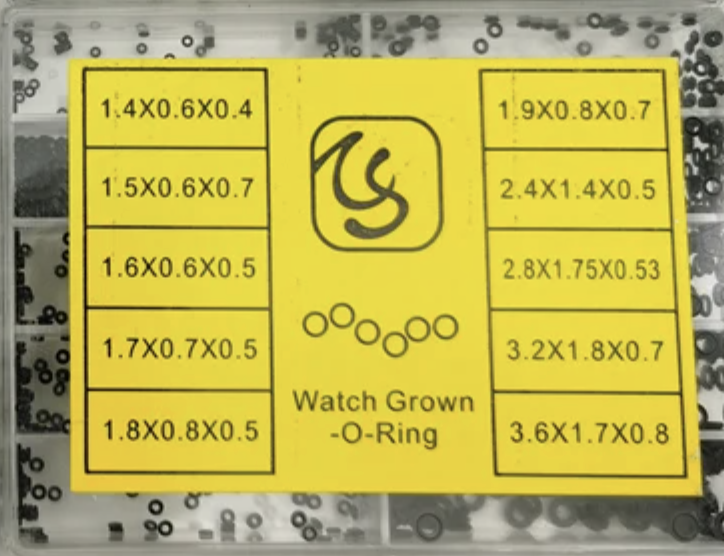

    Screen Shot 2023-02-03 at 15.50.31.png

    Edit: It seems there is 3.4 / 1.8 / 0.8 too, cheaply available

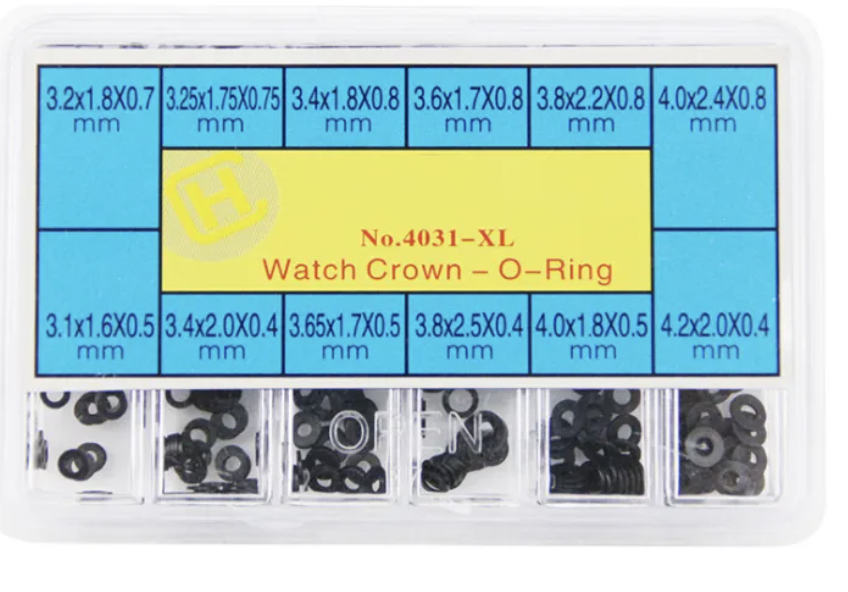

    Screen Shot 2023-02-03 at 15.53.57.png

  2. Archer Omega Qualified Watchmaker Feb 3, 2023

    Posts
    26,502
    Likes
    65,753
    If you want case back sized O-rings, the world is your oyster - there are so many sizes and cross sections available, you can fine just about any size you want. Fractions of a mm different OD's are easy, so you need 36.2 mm instead of 36? Not really a problem, there are lots of options and you can almost always find what you need.

    For these very small O-rings, it's quite different. Every material supplier sells an assortment or two of these, but they all have the same O-rings in them, so the options are exponentially more limited on these smaller crown and pusher sized O-rings.

    If you are fixing your own watch, and want to take a chance on using something "close" that's great. When you are servicing someone else's watch, and provide a warranty, things get a little more tricky.

    manwith2hats, SC1 and kaplan like this.
  3. M'Bob Feb 3, 2023

    Posts
    6,421
    Likes
    18,272
    Be careful…

    SC1 likes this.
  4. perlunk Mar 6, 2023

    Posts
    82
    Likes
    62
    I was able to get the gasket out mechanically from a "Narrow Flat Feet" Speedmaster crown. I was able to take some measurements from the old gasket. In case that you're interested:

    https://omegaforums.net/threads/rem...r-narrow-flat-feet-crown.156769/#post-2142528
