Question about adjusting time on the 165.024 to avoid water leaking in

A
Posts
39
Likes
13
Hi guys,

I have an Omega Seamster 165.024 (calibre 552) that was my grandfather's.

When my dad gave it to me, the crown was broken and would pull out completely - I got it serviced and fixed at a reputable watch maker (came recommended)

about 5 months later, the crown issue represented itself. It was under warranty so I had it checked out, and the guy said that a small amount of moisture managed to get in and rusted the clutch part which caused the crown to come out again. I did ask how it any moisture get in there - generally i am careful, i don't shower with it etc (i might wash dishes from time to time, but i asked my dad and apparently my grandfather used to swim with it with no issues) - He watchmaker sort of said, oh if some water remained it might have seeped

Anyway the part etc was restored - and I told my dad about it. According to him, after you set the time, you don't just click back but you have to 'screw it' when clicked in clockwise to make sure it's properly water tight, which in fairness I was not doing. Is this right?

Could I have been doing the wrong thing when adjusting the time and is this what caused water to seep in? Any advise welcome (ps - the watchmaker did test it and it's at the very least waterproof at 5atm - i was a bit surprised he didn't test it a higher pressure)

It is a treasured present that I want to keep in good condition as long as I can!

anyways, thanks!

Davidt
Posts
13,201
Likes
22,957
Have you got a picture? There are two types of crown for this watch - one push in, one screw in. If yours was a screw in, you’d probably know about it.

Sounds the like watchmaker fobbed you off and didn’t fix the issue during service.

Obviously over the years, cases can get varying degrees of pitting and re-using vintage crowns, crystals etc impairs water resistance, but generally, if the seals are renewed, the case condition is ok and you’re careful around moisture, I wouldn’t expect moisture ingress to cause issues.

A
Posts
39
Likes
13
Davidt Davidt
Have you got a picture? There are two types of crown for this watch - one push in, one screw in. If yours was a screw in, you’d probably know about it.

Sounds the like watchmaker fobbed you off and didn’t fix the issue during service.

Obviously over the years, cases can get varying degrees of pitting and re-using vintage crowns, crystals etc impairs water resistance, but generally, if the seals are renewed, the case condition is ok and you’re careful around moisture, I wouldn’t expect moisture ingress to cause issues.

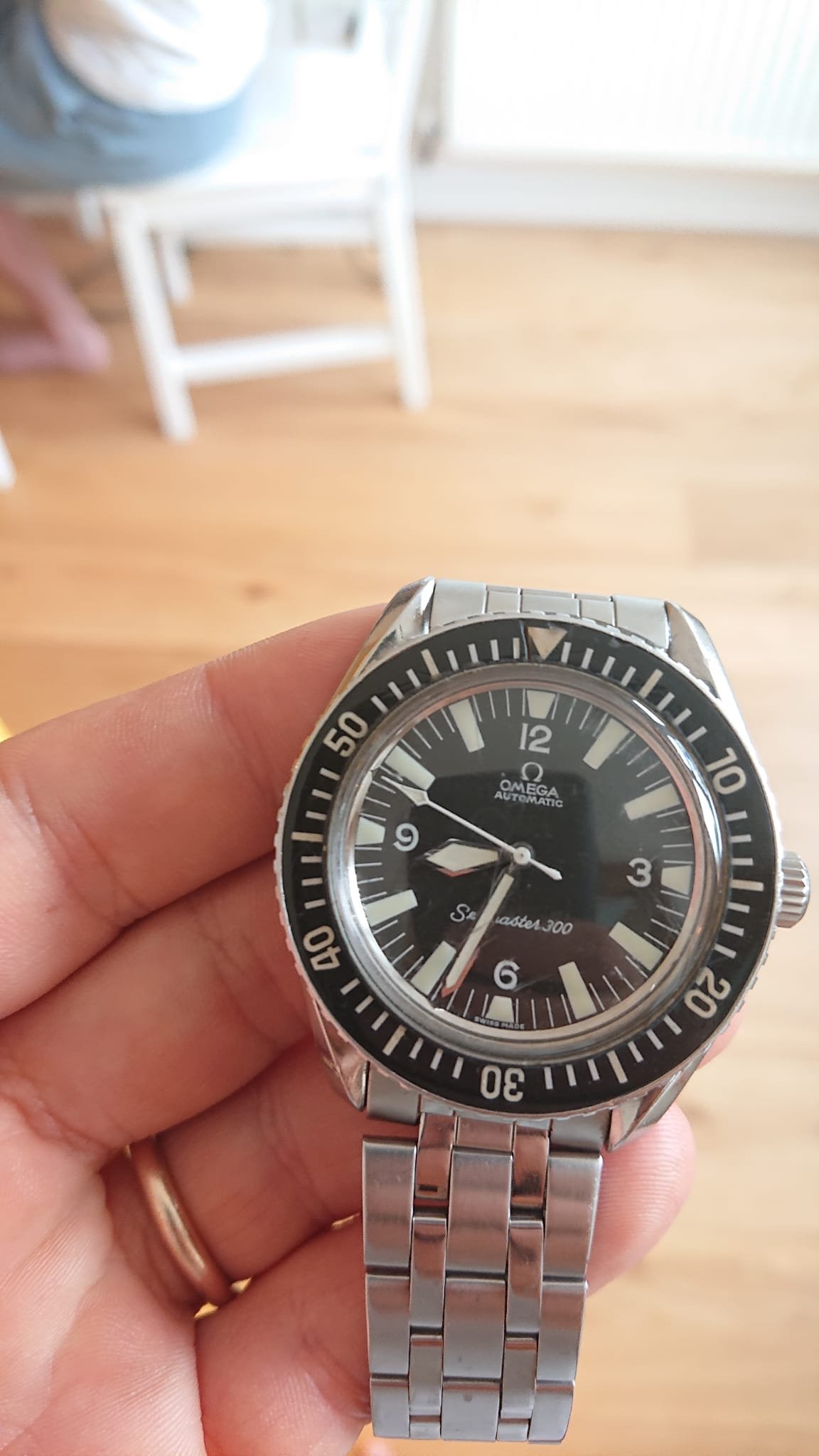

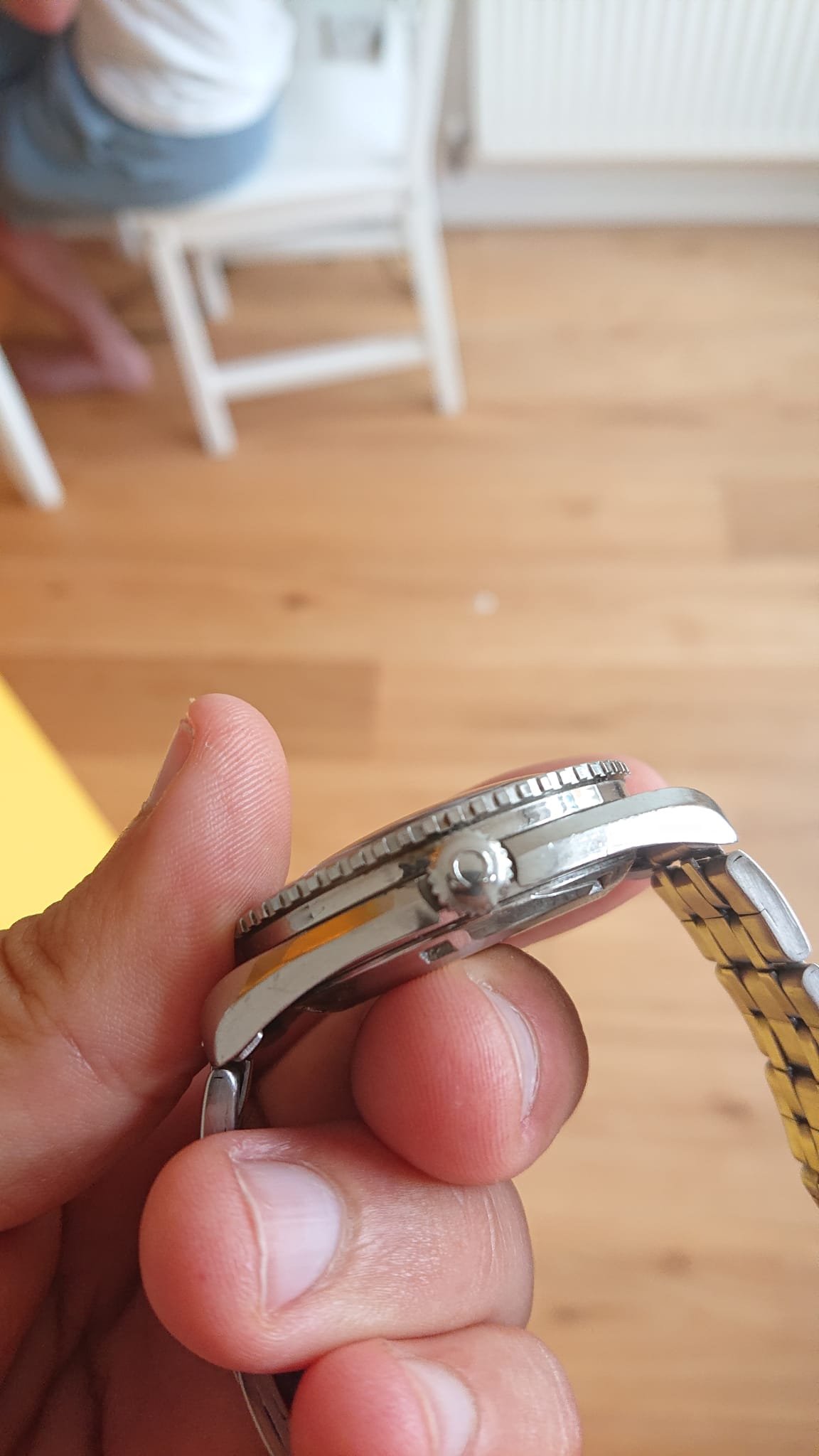

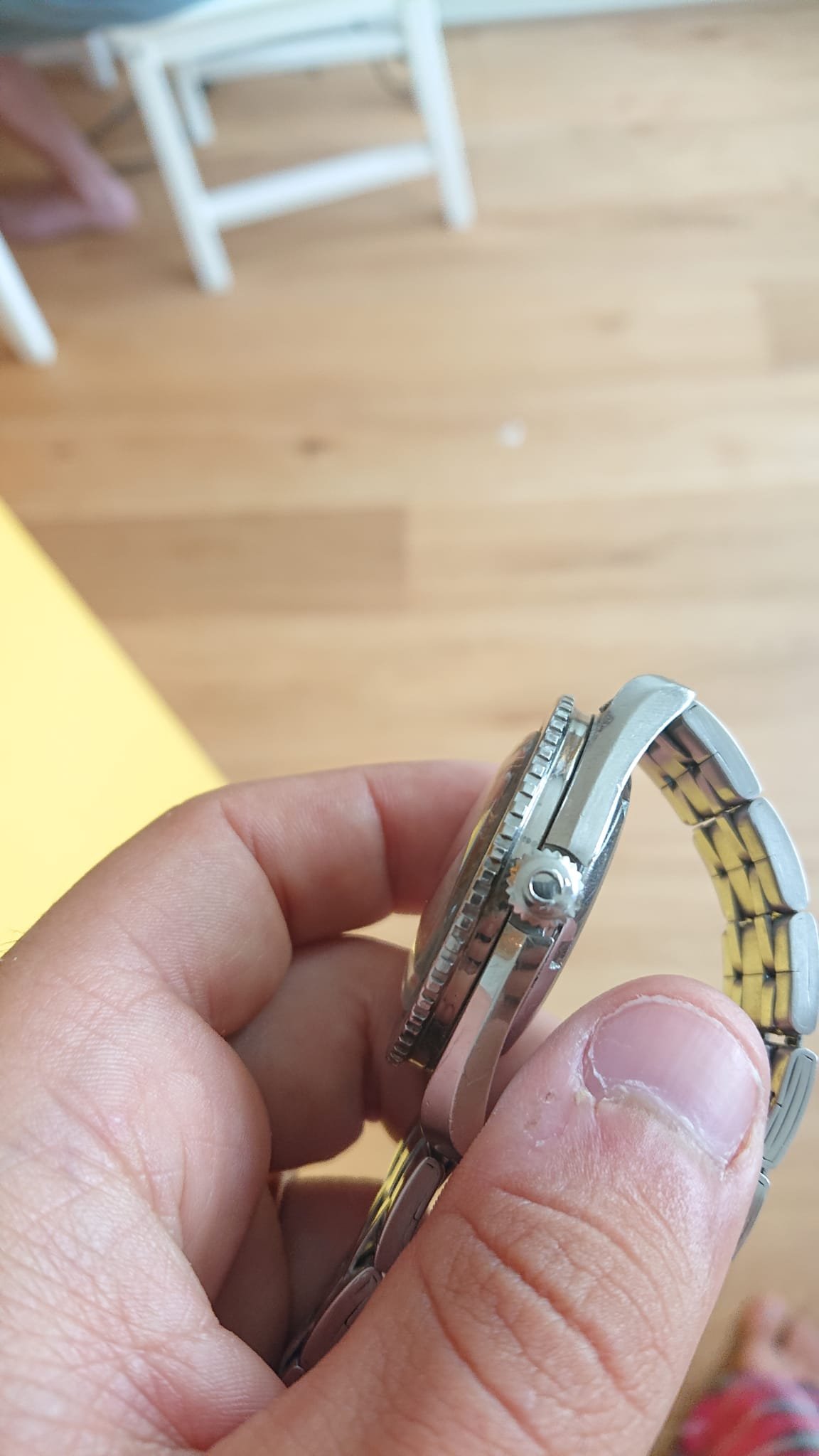

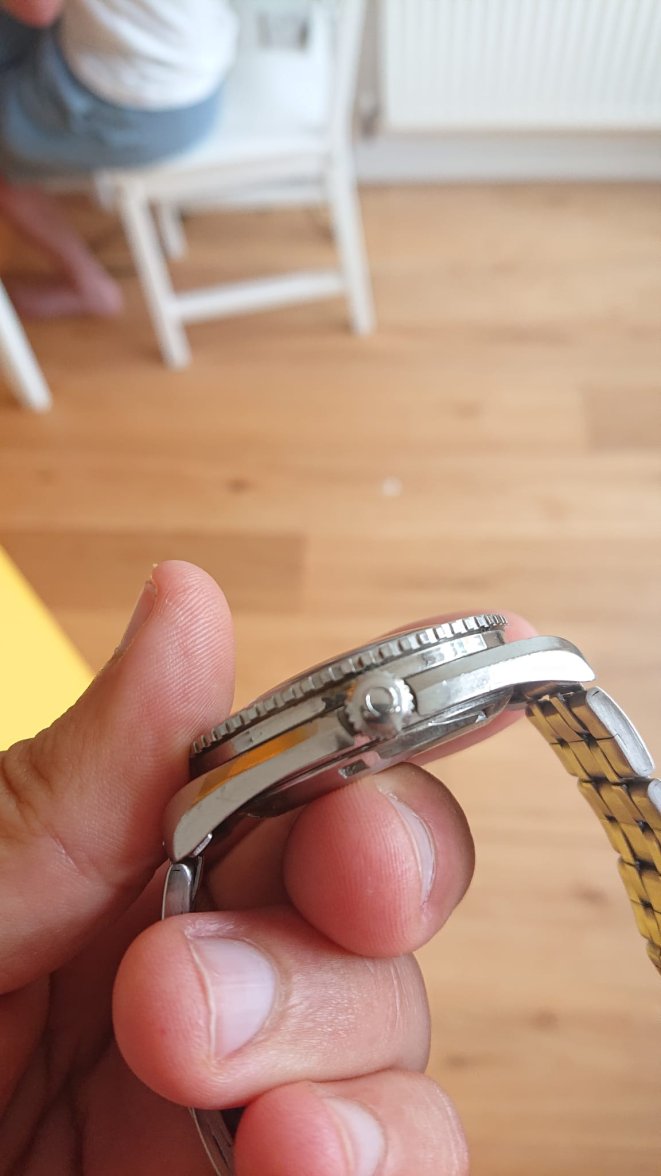

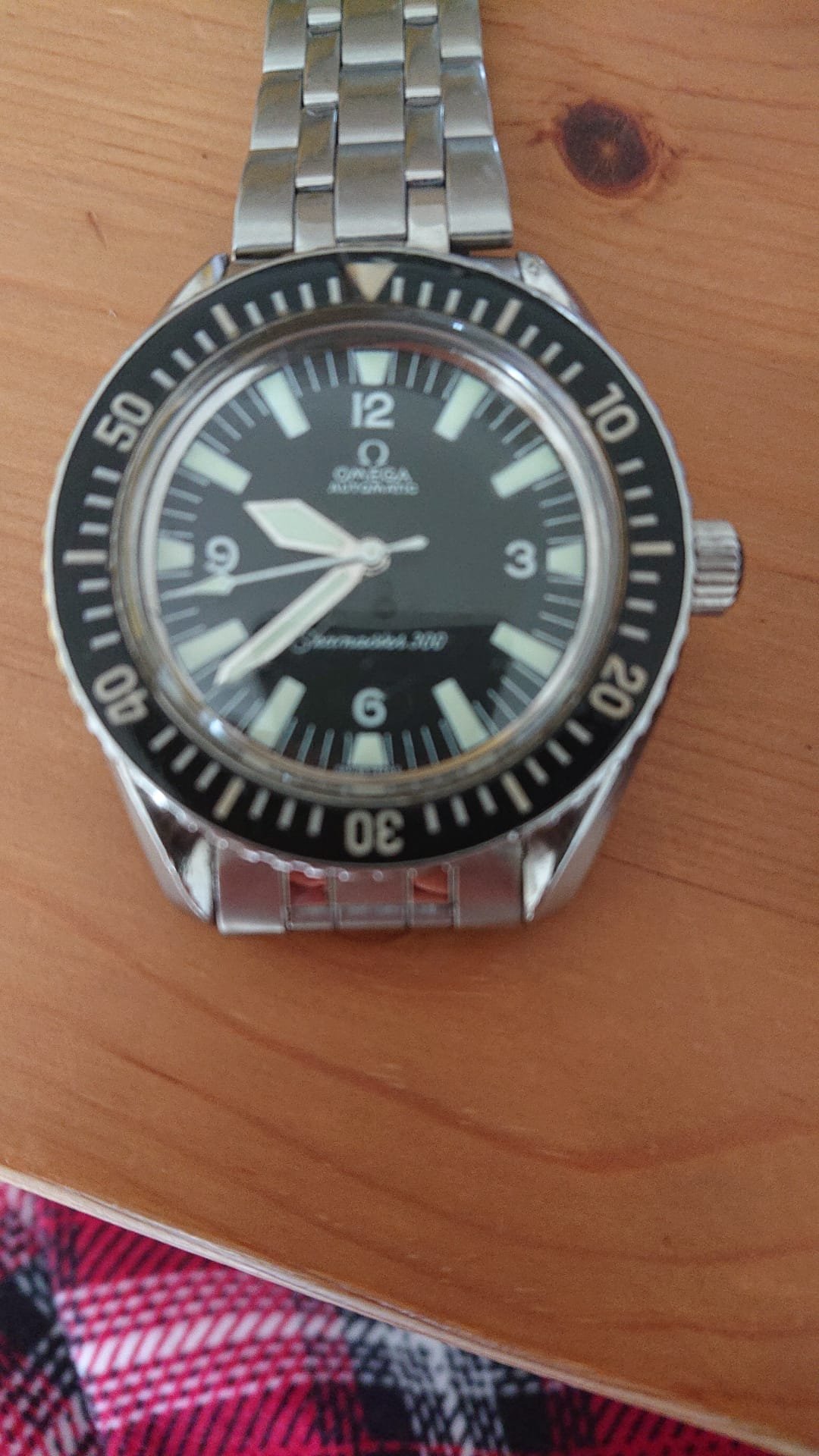

Hi David! thanks for the the reply - Photos attached - I know on this forum there was some doubts as to whether this was the correct crown - but the watchmaker says it was when i took it in? (maybe he doesn't know too much about it) - But I did ask him to confirm that it was and said it was.

WhatsApp Image 2023-10-01 at 08.34.00.jpeg WhatsApp Image 2023-10-01 at 08.34.00 (1).jpeg WhatsApp Image 2023-10-01 at 08.34.00 (2).jpeg
watchyouwant
Posts
5,598
Likes
9,422
If you have a screw in crown, screw it in..... The seals are different to the push in only crown.

A
Posts
39
Likes
13
watchyouwant watchyouwant
If you have a screw in crown, screw it in..... The seals are different to the push in only crown.

Thank you - yes - I was just hoping to get some clarify on how to tell the difference on here!

JimInOz
Posts
17,939
Likes
37,516
A asdrubalex
Thank you - yes - I was just hoping to get some clarify on how to tell the difference on here!
When the crown is fully pulled out, does the tube into the case have a thread like a machine screw, or is the tube bit just a plain surface?

Davidt
Posts
13,201
Likes
22,957
Looks like the dial and hands at least have been replaced by modern service items. Perhaps the case has too.

can you show a picture of the crown take from above. It’s hard to see from your photos.

A
Posts
39
Likes
13
Davidt Davidt
Looks like the dial and hands at least have been replaced by modern service items. Perhaps the case has too.

can you show a picture of the crown take from above. It’s hard to see from your photos.

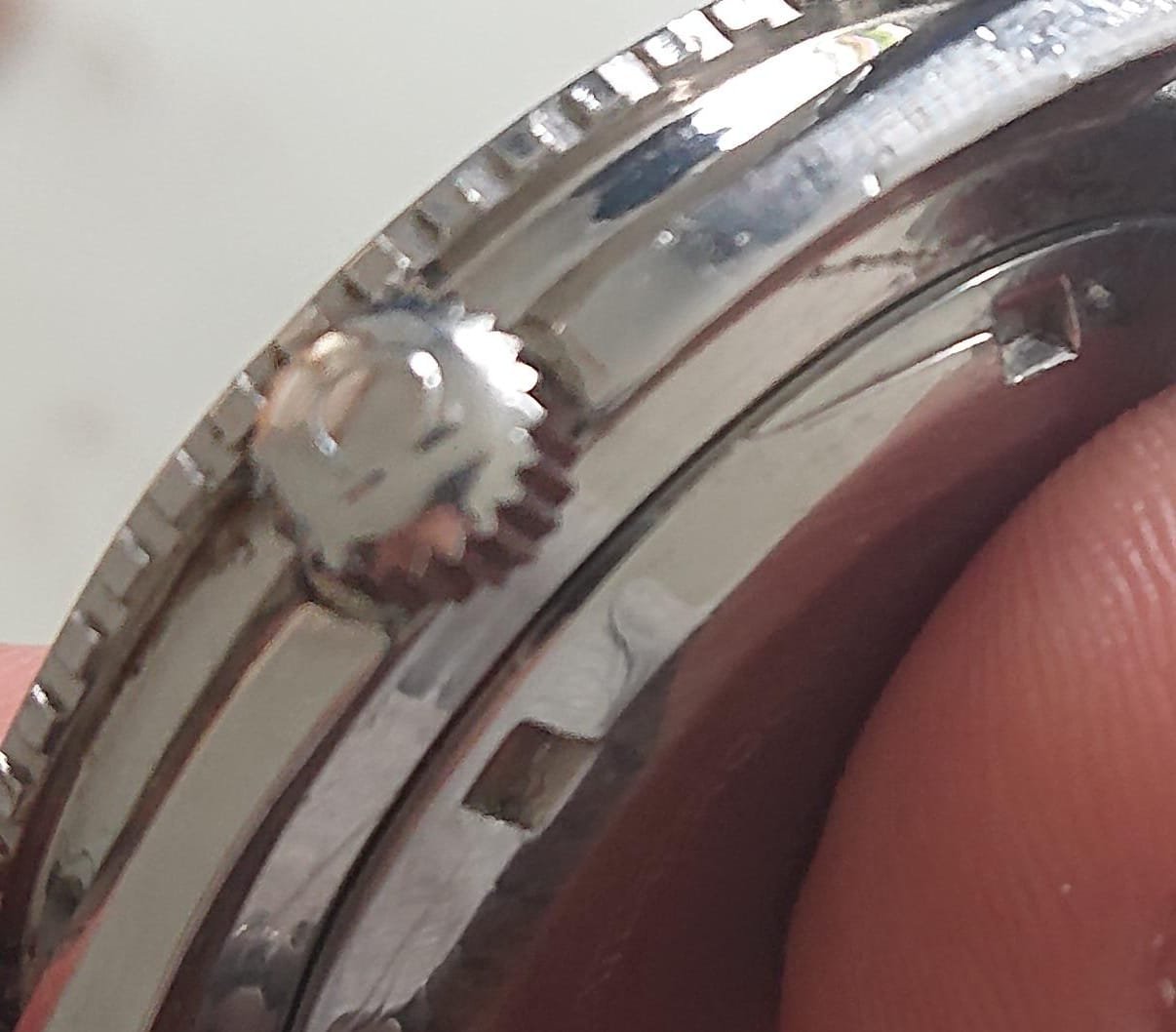

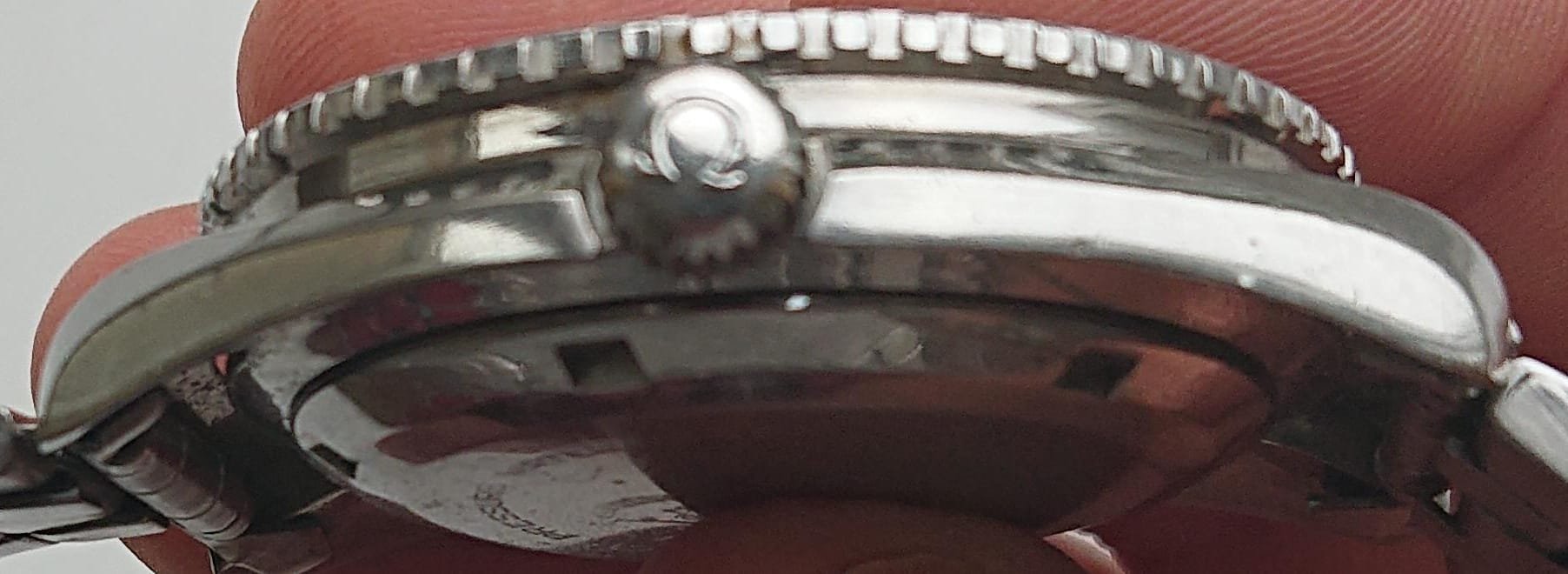

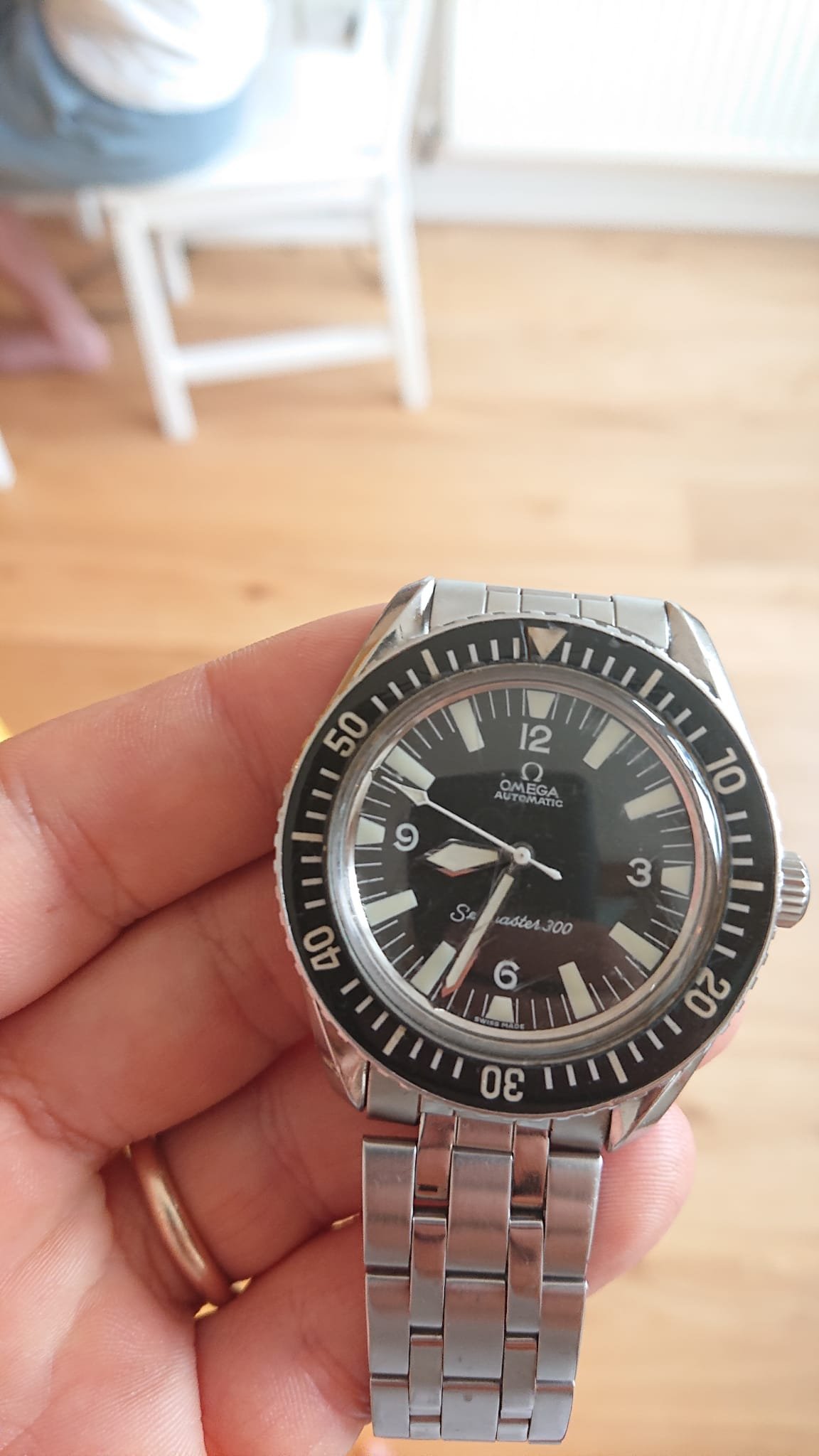

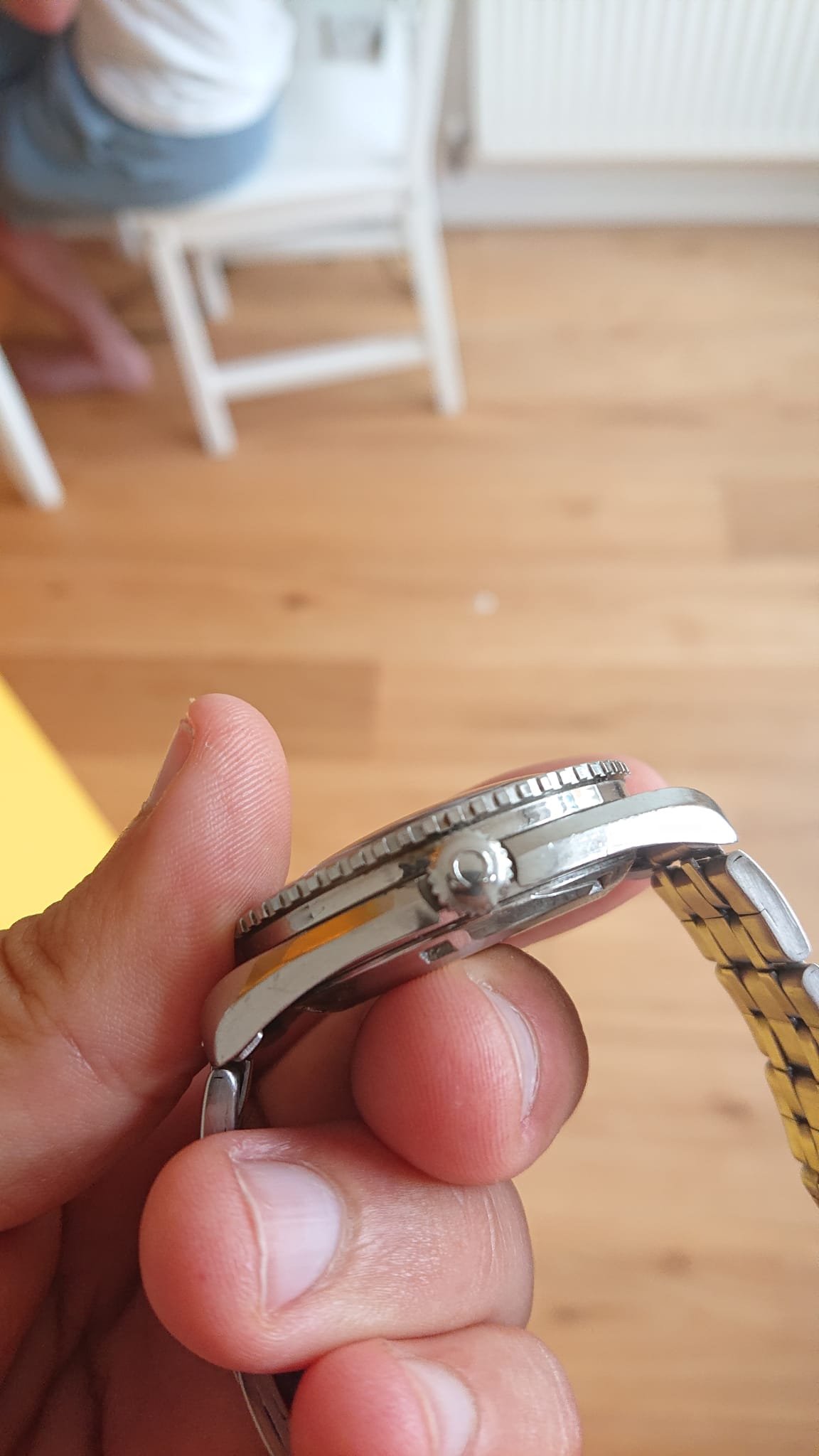

There you go! any better?

Yes, hands and dial are service parts, the bezel is original AFAIK. I think the case was the same too

WhatsApp Image 2023-10-01 at 09.17.26.jpeg WhatsApp Image 2023-10-01 at 09.17.39.jpeg
A
Posts
39
Likes
13
JimInOz JimInOz
When the crown is fully pulled out, does the tube into the case have a thread like a machine screw, or is the tube bit just a plain surface?

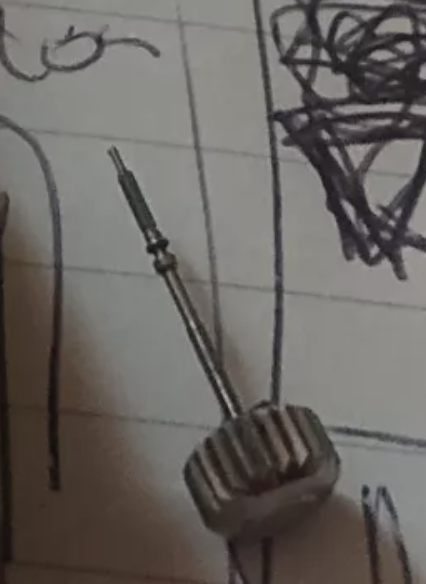

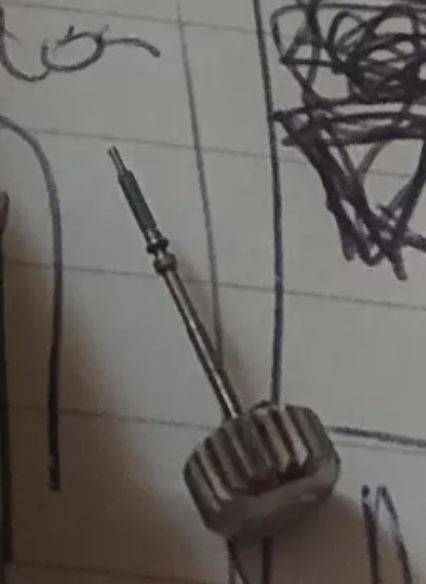

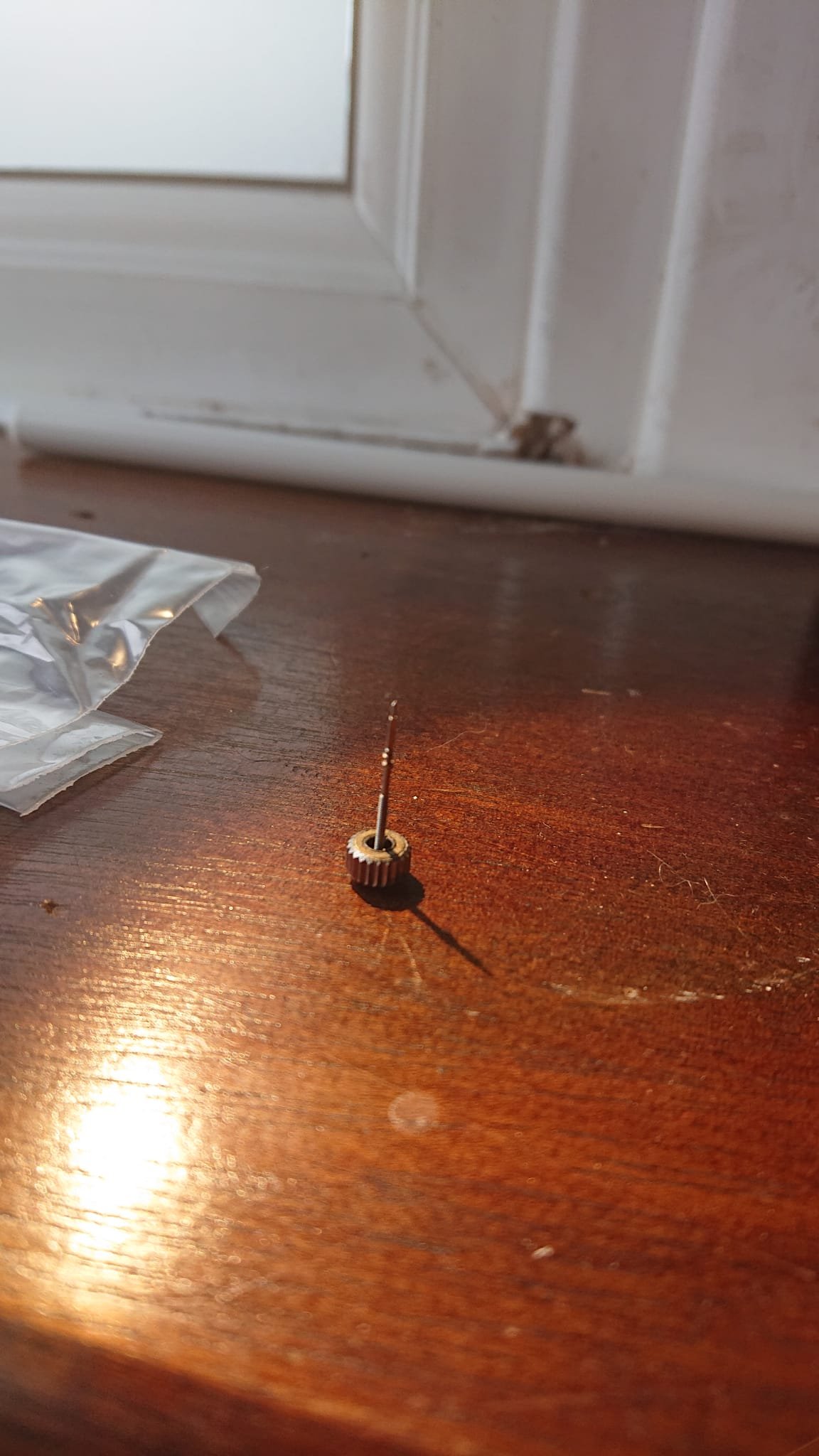

This is the crown when fully pulled out when it was all coming out!

Screenshot 2023-10-01 at 09.19.38.png
A
Posts
39
Likes
13
A asdrubalex
This is the crown when fully pulled out when it was all coming out!
In fairness, I didn't check how it looks inside the case....

Knudsen1971
Posts
288
Likes
209
Dial and hans are service replacements, bezel is original part.
It seems like the crown is not from this model.
Would give it to somebody, who is able to get the correct part.
Btw, the SD case tube has internal thread, so you wont see anything when crown is pulled.

Davidt
Posts
13,201
Likes
22,957
Sorry I meant a plan view of the crown.

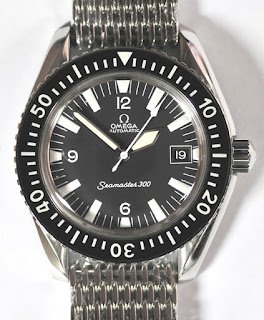

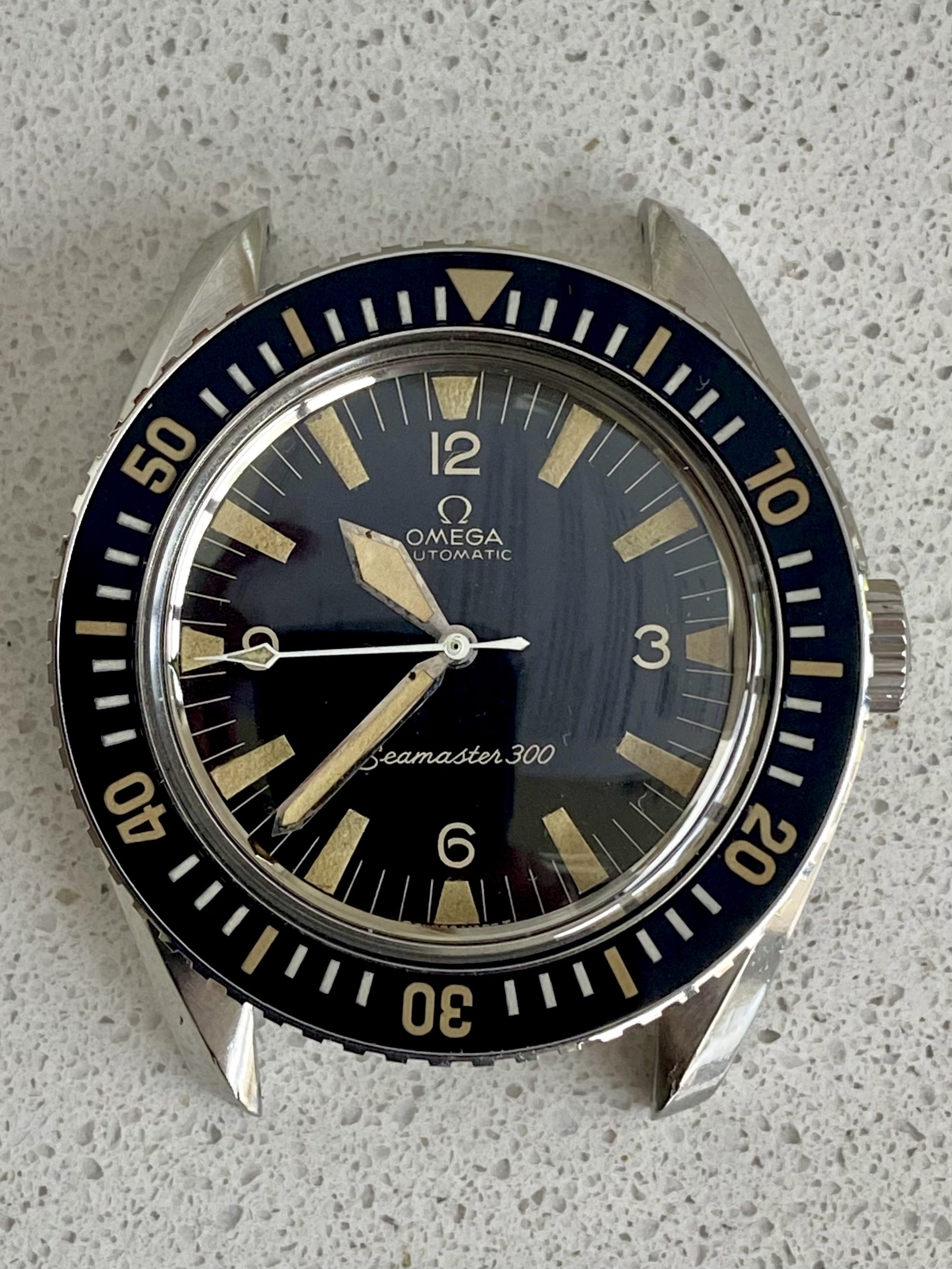

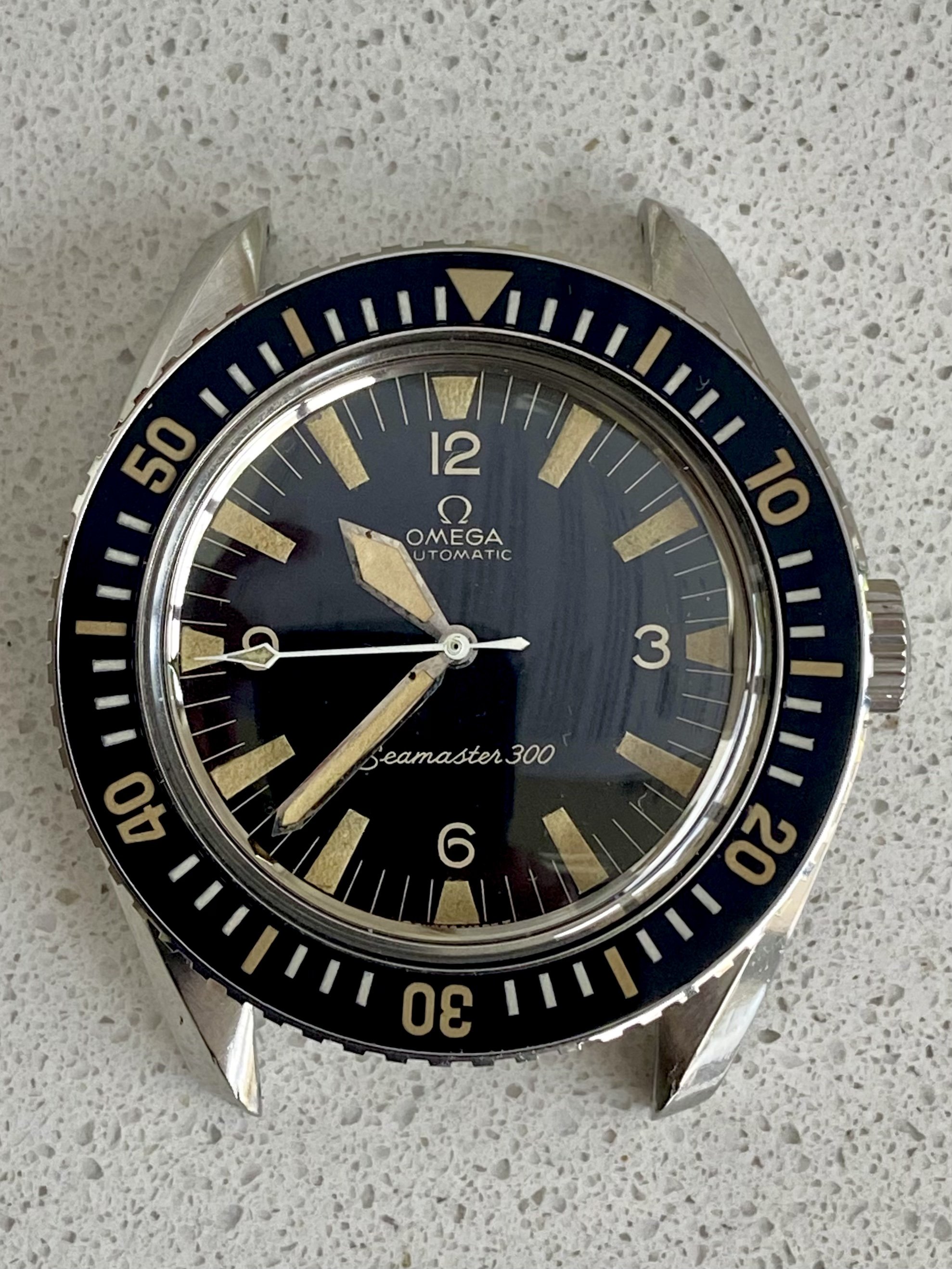

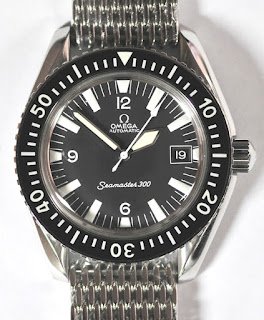

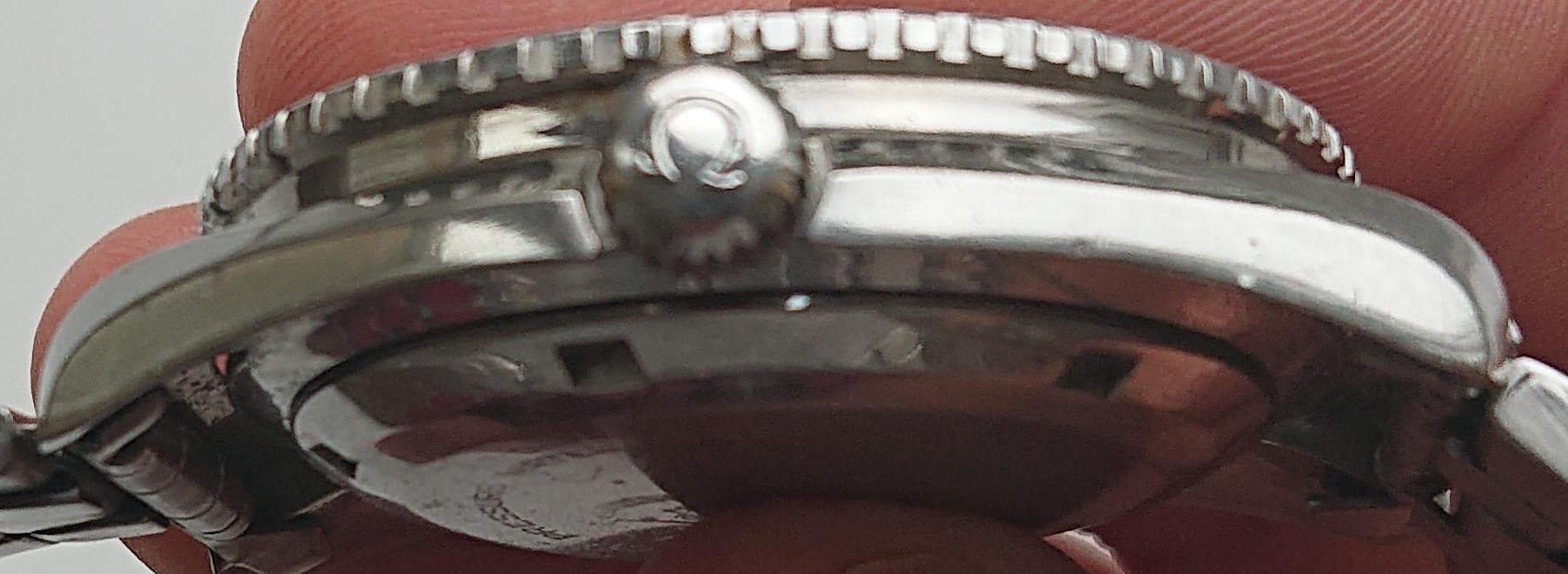

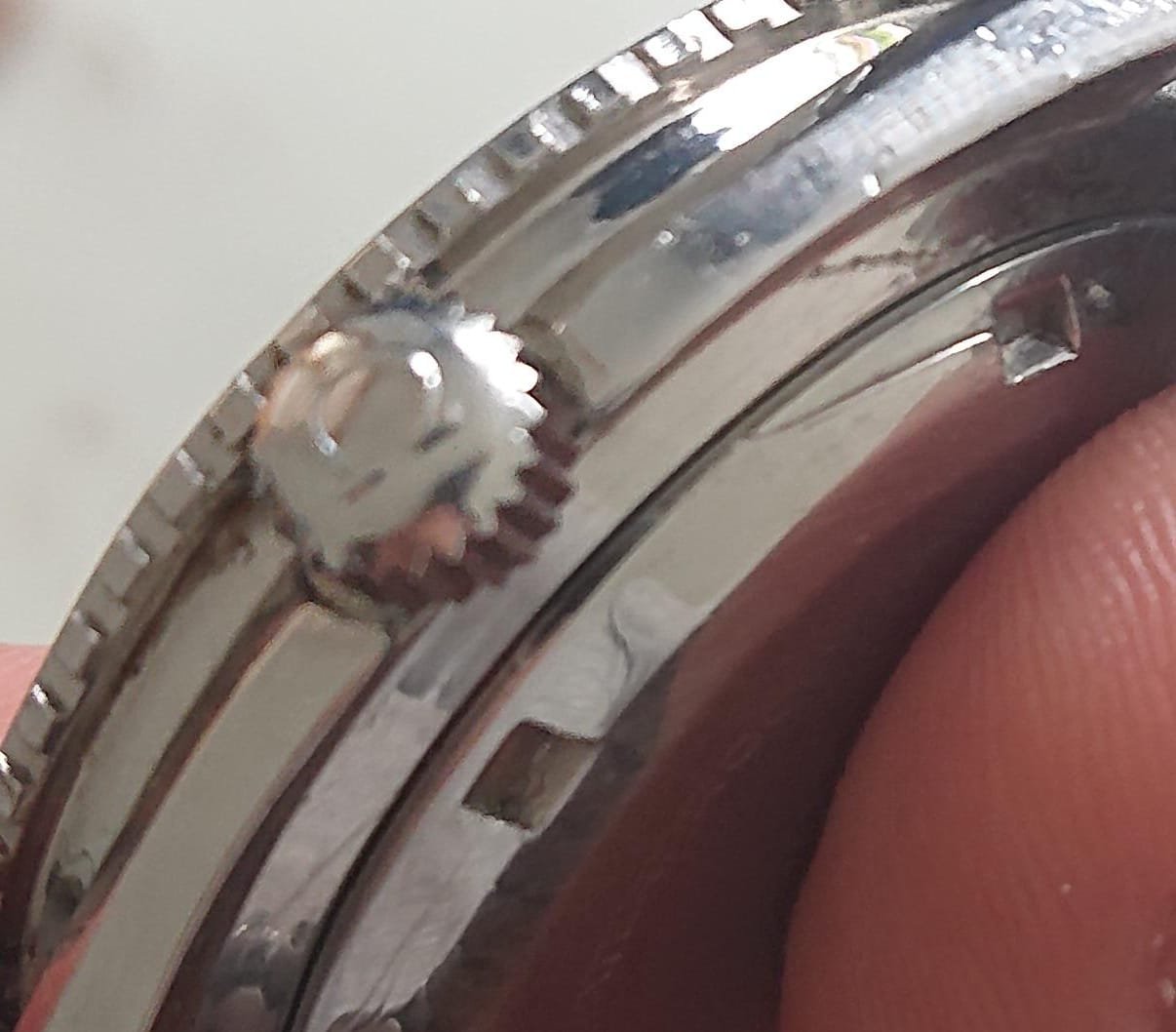

The pictures below show push in (naiad - top) and screw in (bottom). You crown initially looked like a screw in but now I’m thinking it’s just an incorrect push in version.
01CAE044-3727-4275-AB3C-56DB5BCA6570.jpeg 92BC5B2F-CD7D-4DFE-9C1C-66B92C779E79.jpeg

A
Posts
39
Likes
13
Knudsen1971 Knudsen1971
Dial and hans are service replacements, bezel is original part.
It seems like the crown is not from this model.
Would give it to somebody, who is able to get the correct part.
Btw, the SD case tube has internal thread, so you wont see anything when crown is pulled.

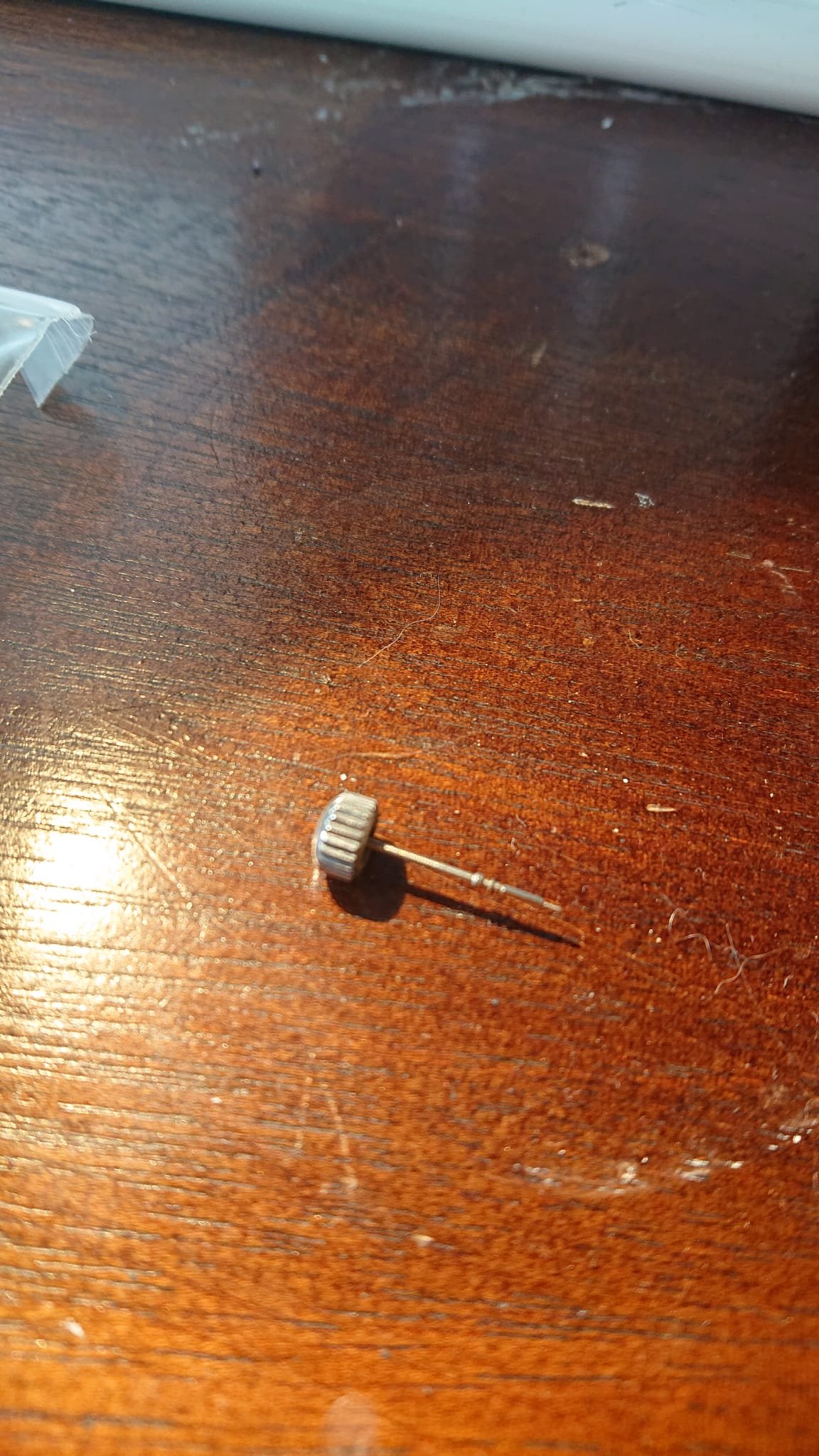

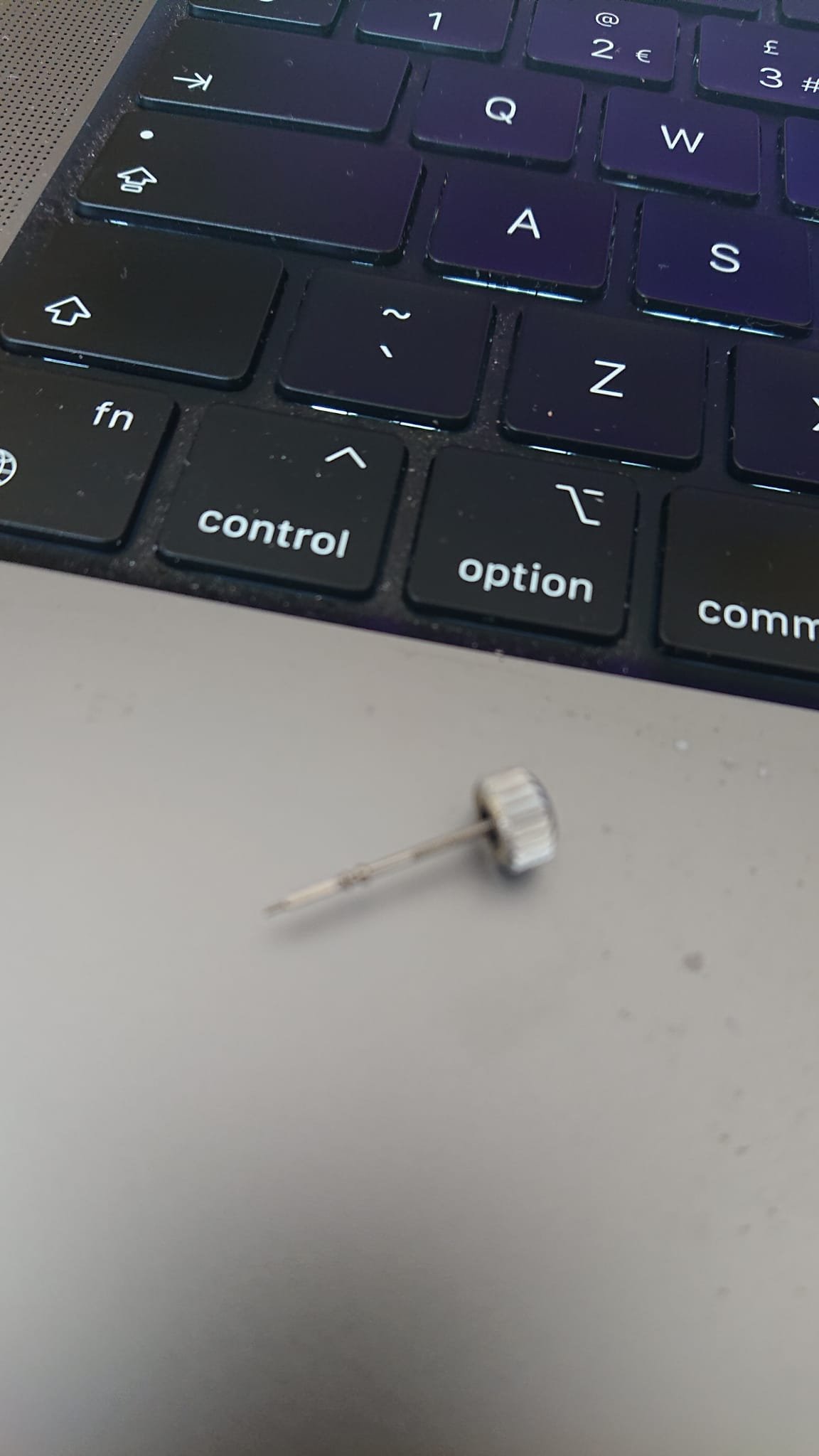

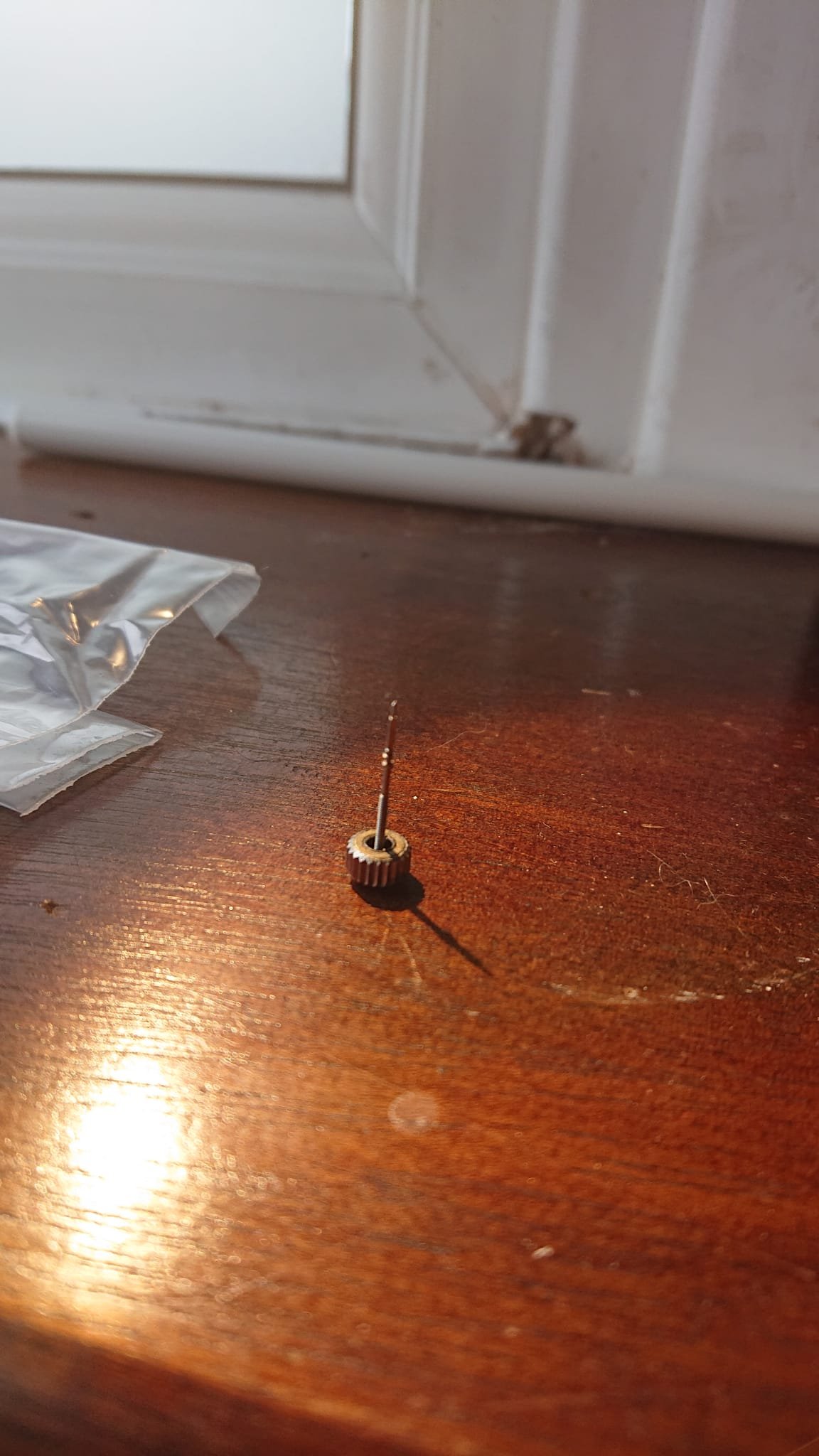

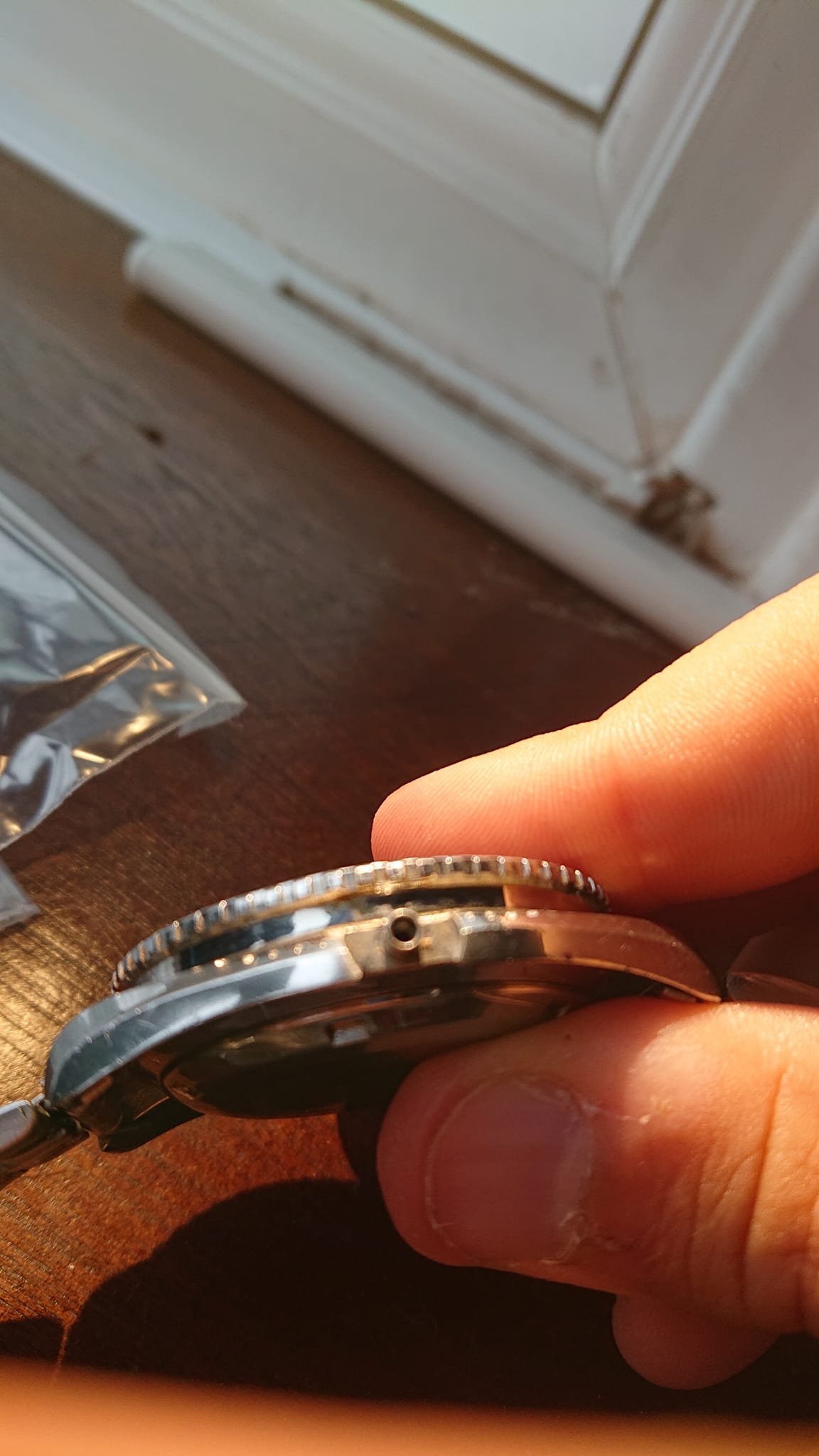

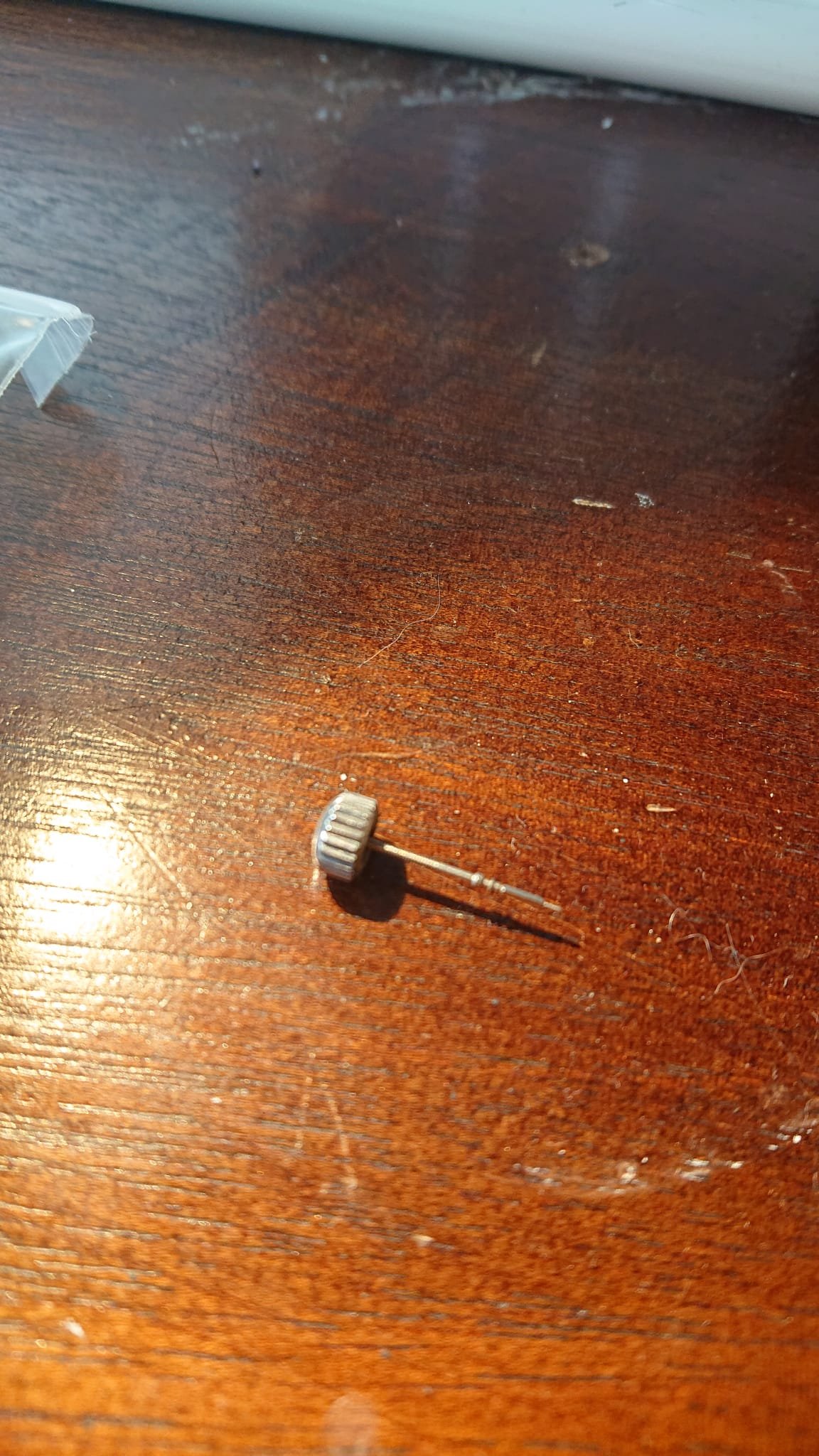

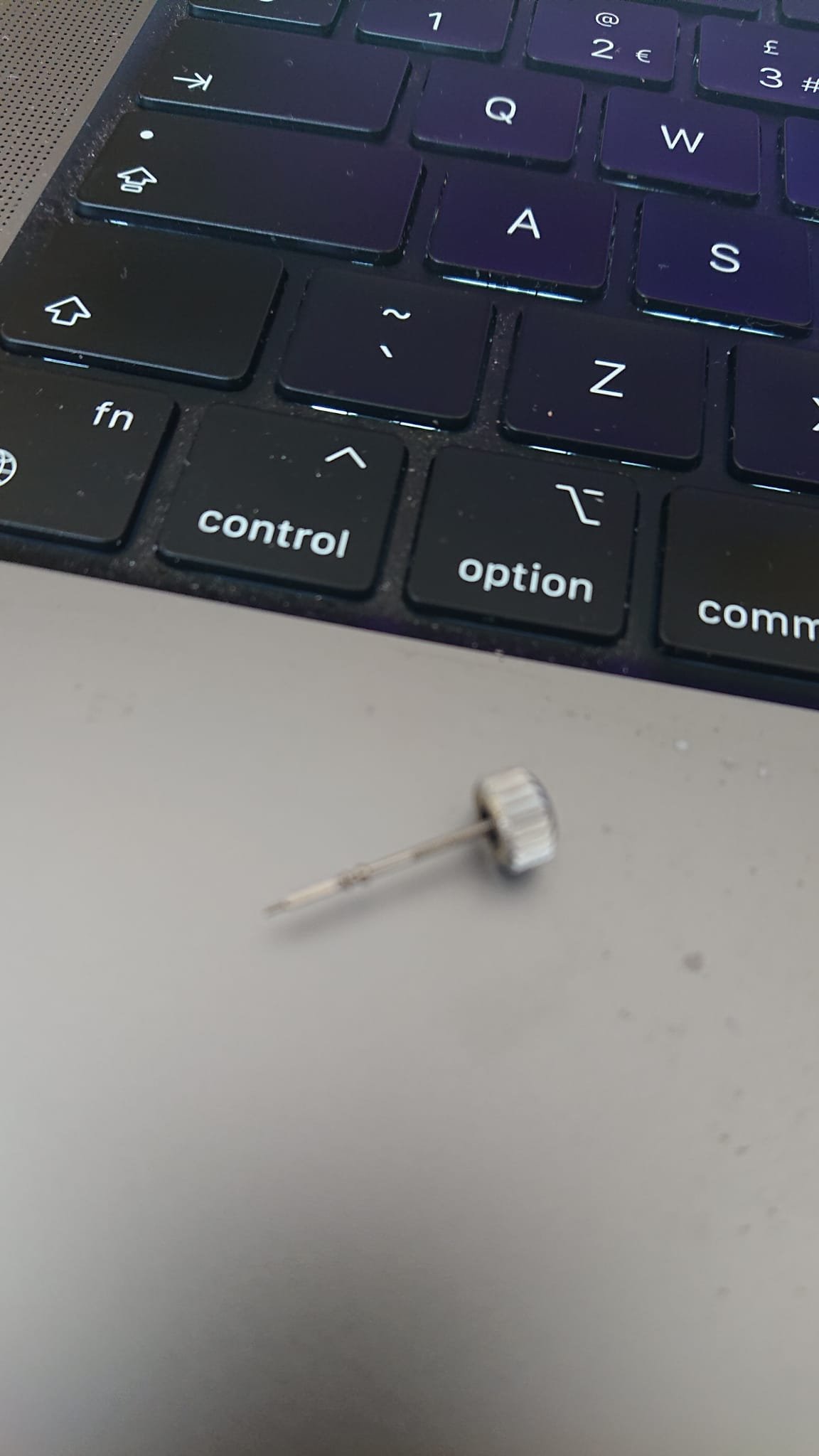

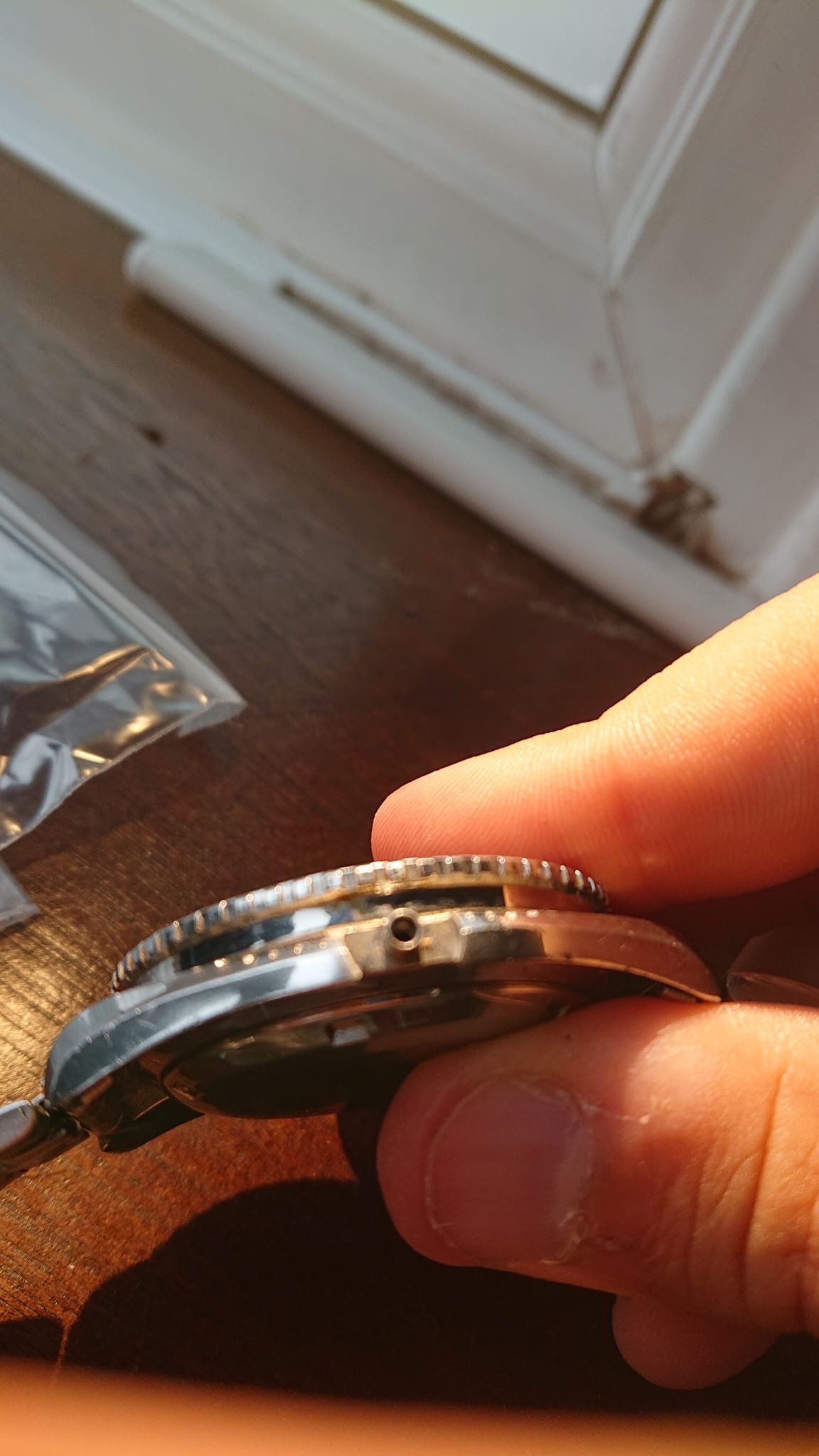

Thanks - I have been trying to take better pictures but my phone seems to not want to cooperate - although actually i just tried to pull out the crown very gently and the crown completely came out, meaning that the repair has failed in a record 2 days

WhatsApp Image 2023-10-01 at 09.40.51.jpeg WhatsApp Image 2023-10-01 at 09.40.51 (1).jpeg WhatsApp Image 2023-10-01 at 09.40.51 (2).jpeg WhatsApp Image 2023-10-01 at 09.40.51 (3).jpeg
A
Posts
39
Likes
13
Davidt Davidt
Sorry I meant a plan view of the crown.

The pictures below show push in (naiad - top) and screw in (bottom). You crown initially looked like a screw in but now I’m thinking it’s just an incorrect push in version.
01CAE044-3727-4275-AB3C-56DB5BCA6570.jpeg 92BC5B2F-CD7D-4DFE-9C1C-66B92C779E79.jpeg

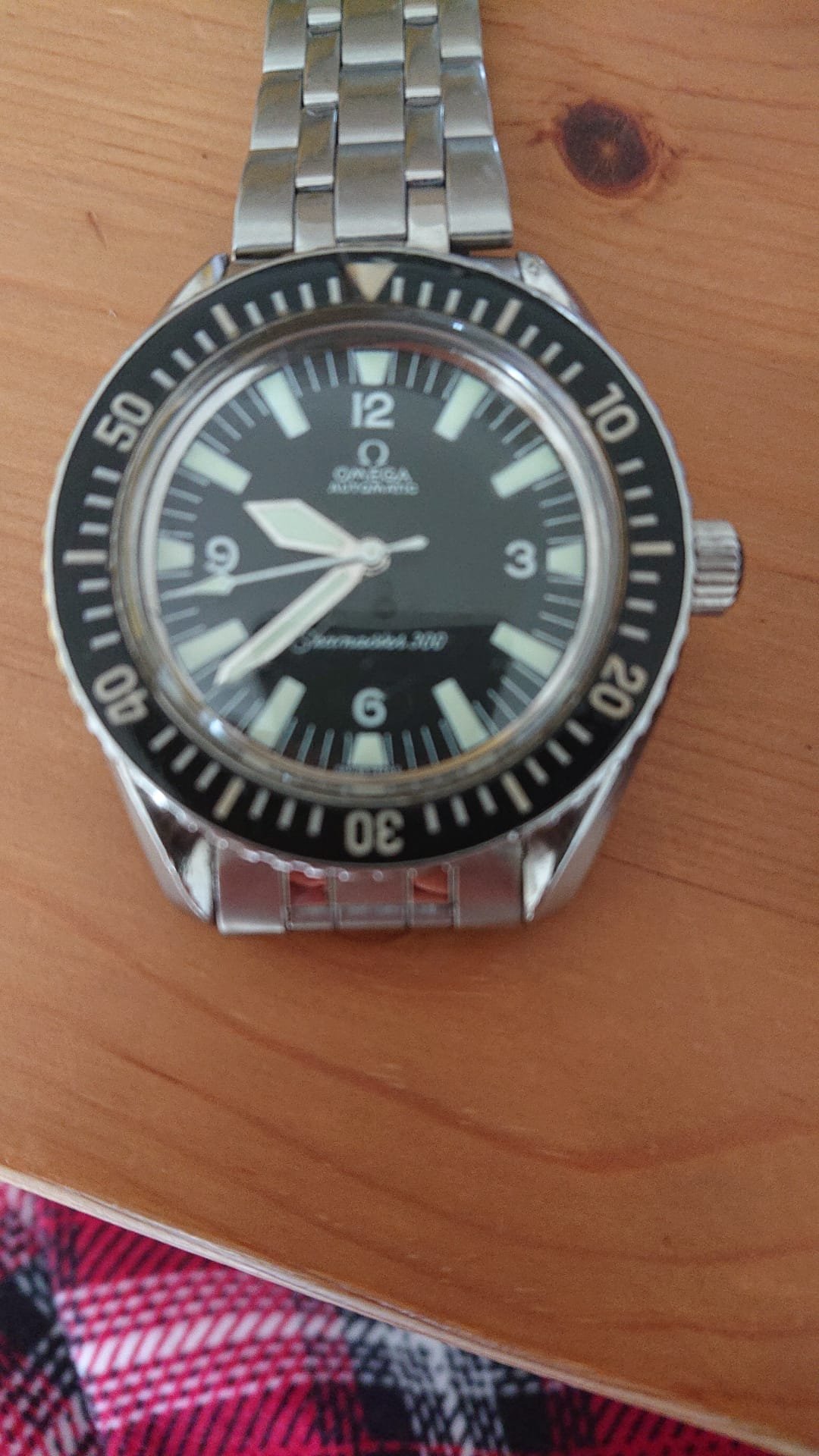

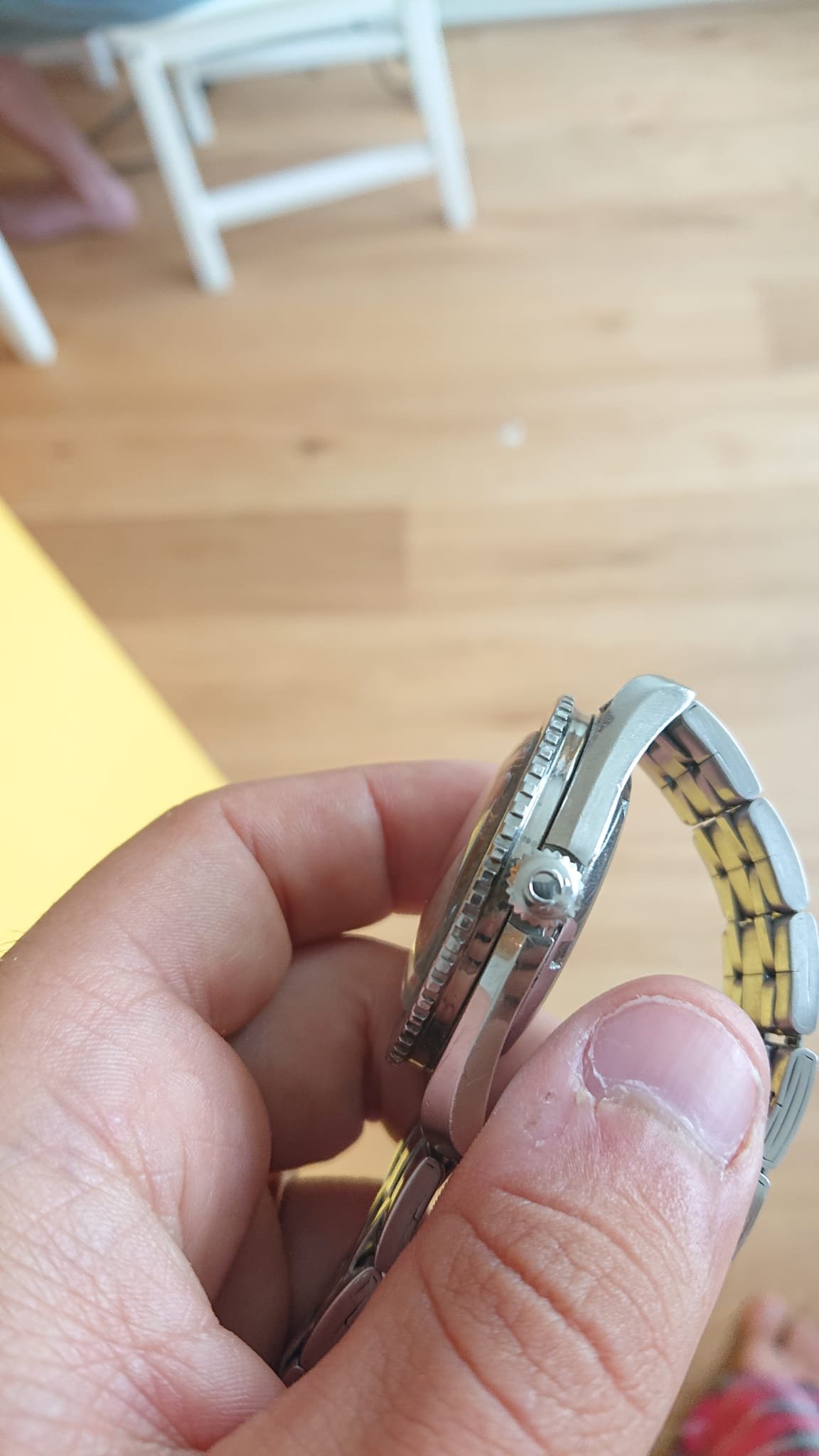

Apologies David! attaching now

WhatsApp Image 2023-10-01 at 09.49.18.jpeg
JimInOz
Posts
17,939
Likes
37,516
Knudsen1971 Knudsen1971
D...............
Btw, the SD case tube has internal thread, so you wont see anything when crown is pulled.

Doh! I've been working on about five Seiko divers for the last two weeks. Forgot all about the crowns in my 300 and Baby Ploprof.

:whipped:

A
Posts
39
Likes
13
Just one very dumb question - If it's not the correct crown for the model then I assume it is more likely to not function correctly / cause the issues that I have been experiencing?

JimInOz
Posts
17,939
Likes
37,516
A asdrubalex
Just one very dumb question - If it's not the correct crown for the model then I assume it is more likely to not function correctly / cause the issues that I have been experiencing?
Correct.

blubarb
Posts
3,861
Likes
8,804
A asdrubalex
According to him, after you set the time, you don't just click back but you have to 'screw it' when clicked in clockwise to make sure it's properly water tight, which in fairness I was not doing. Is this right?

Yep. if it's a wind in crown, then has to be pushed in and screwed tight to prevent water ingress. And don't set the time or wind it while on the wrist as that may bend the crown shaft.
Edited:

Dash1
Posts
1,887
Likes
3,829
It’s not the correct crown for the model, but it’s hard to tell from the photos if your case tube is for a screw down crown or naiad crown. You’ll need to ascertain that before you can get the correct crown.
Can you see a thread on the inside of the case tube?

sgk
Posts
147
Likes
158
It seems like you need change the watchmaker as well as the crown 😀
Search the forums for a recommended one.

btw, a question for the forum: Does the NAIAD crown always have a star inside the Omega logo?
