On My Bench - Something.......

  1. JimInOz Melbourne Australia Jul 5, 2021

    Posts
    15,492
    Likes
    32,385

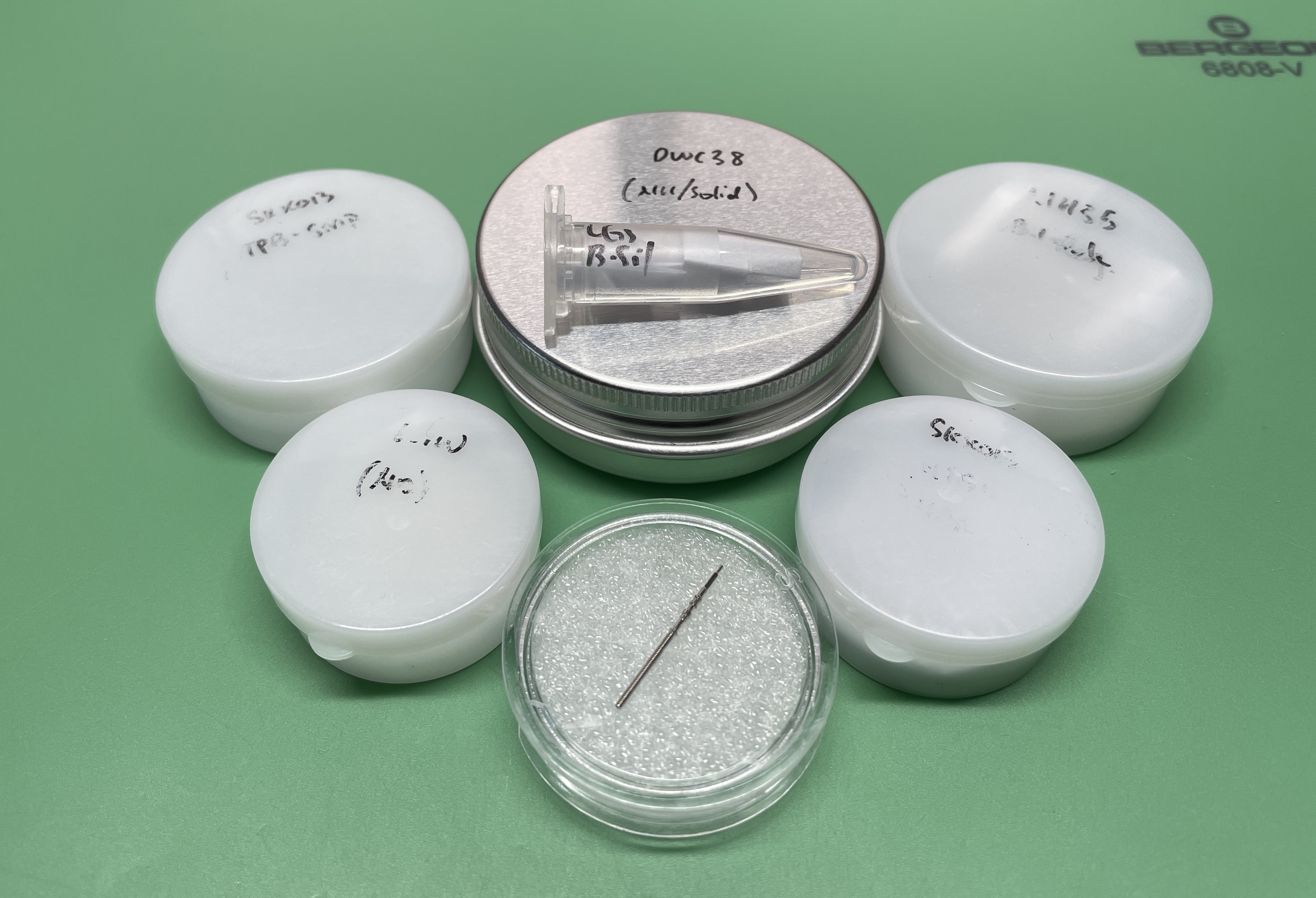

    It's always good when you have a stack of packages that you need to open.

    Wonder what's in them?

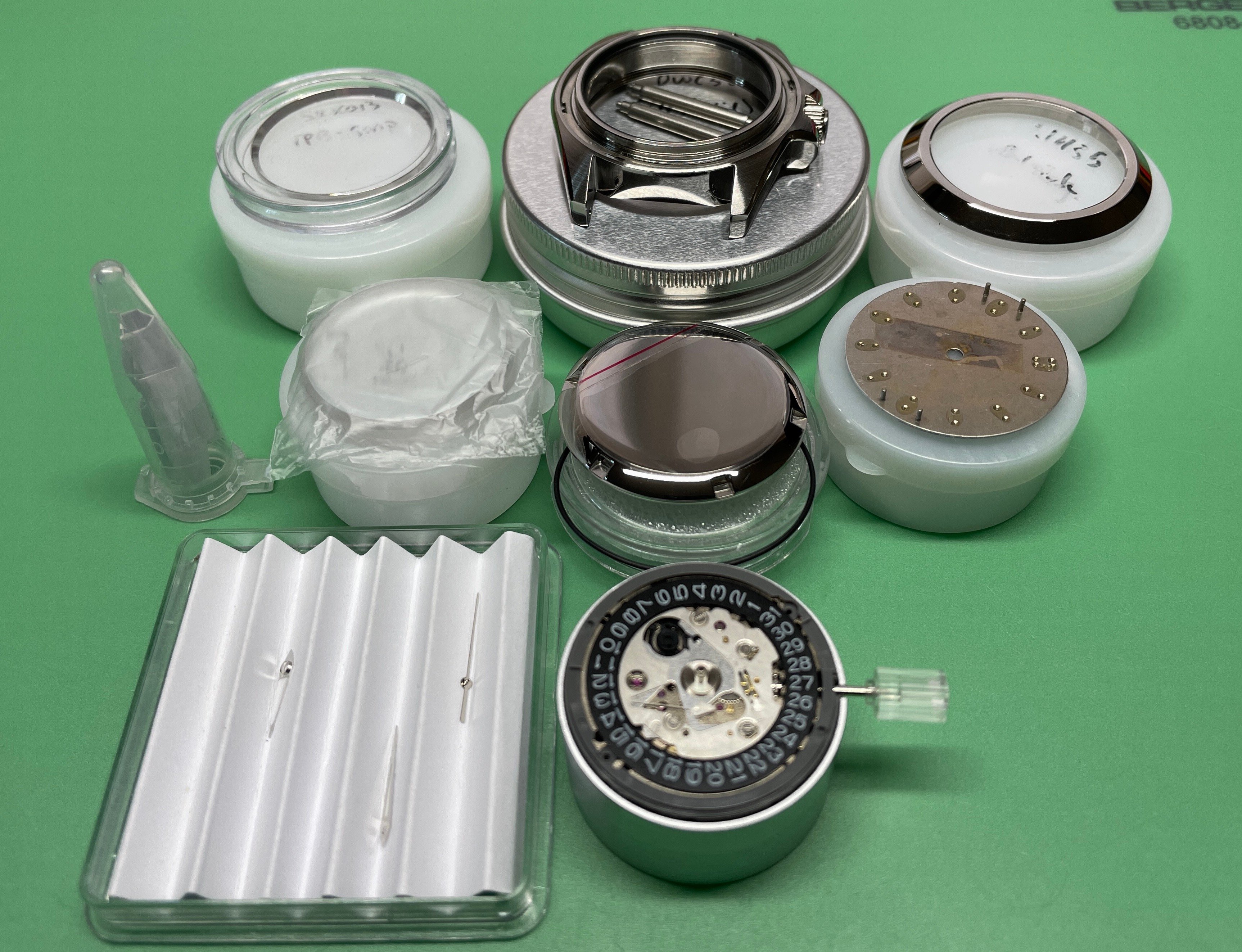

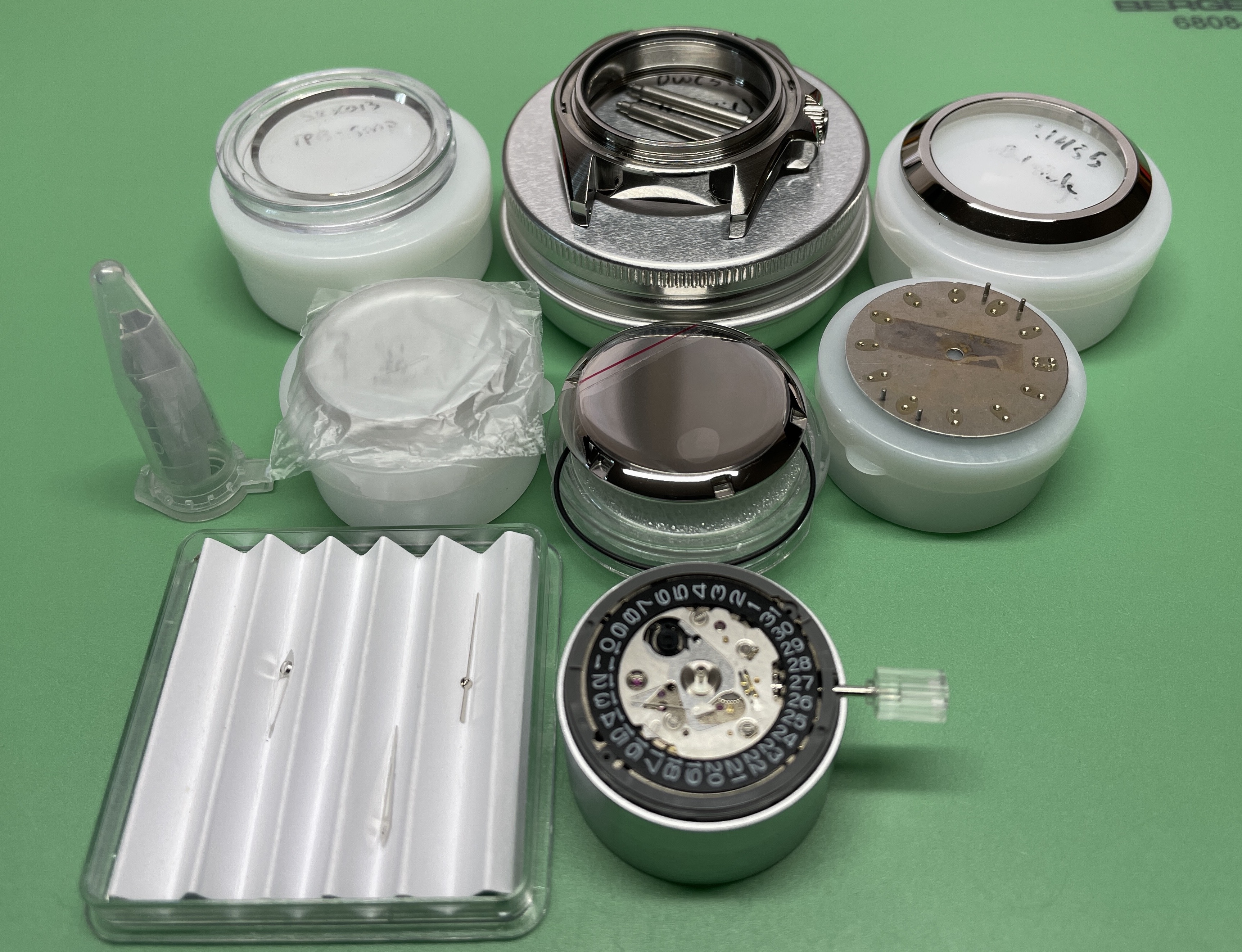

    OK, I won't be a teaser, here's the booty.
    From top to bottom, left to right, or the other way, whatever you prefer.
    1 - Polished chapter ring
    2 - case
    3 - Plain polished bezel
    4 - Set of hands
    5 - Crystal
    6 - Plain caseback
    7 - Dial (Hmmmmmmmm, no dial shot :cautious:)
    8 - A movement


    Regarding the movement.
    I have a nice new Seiko auto (+ manual wind, + hacking + date) caliber NH35.

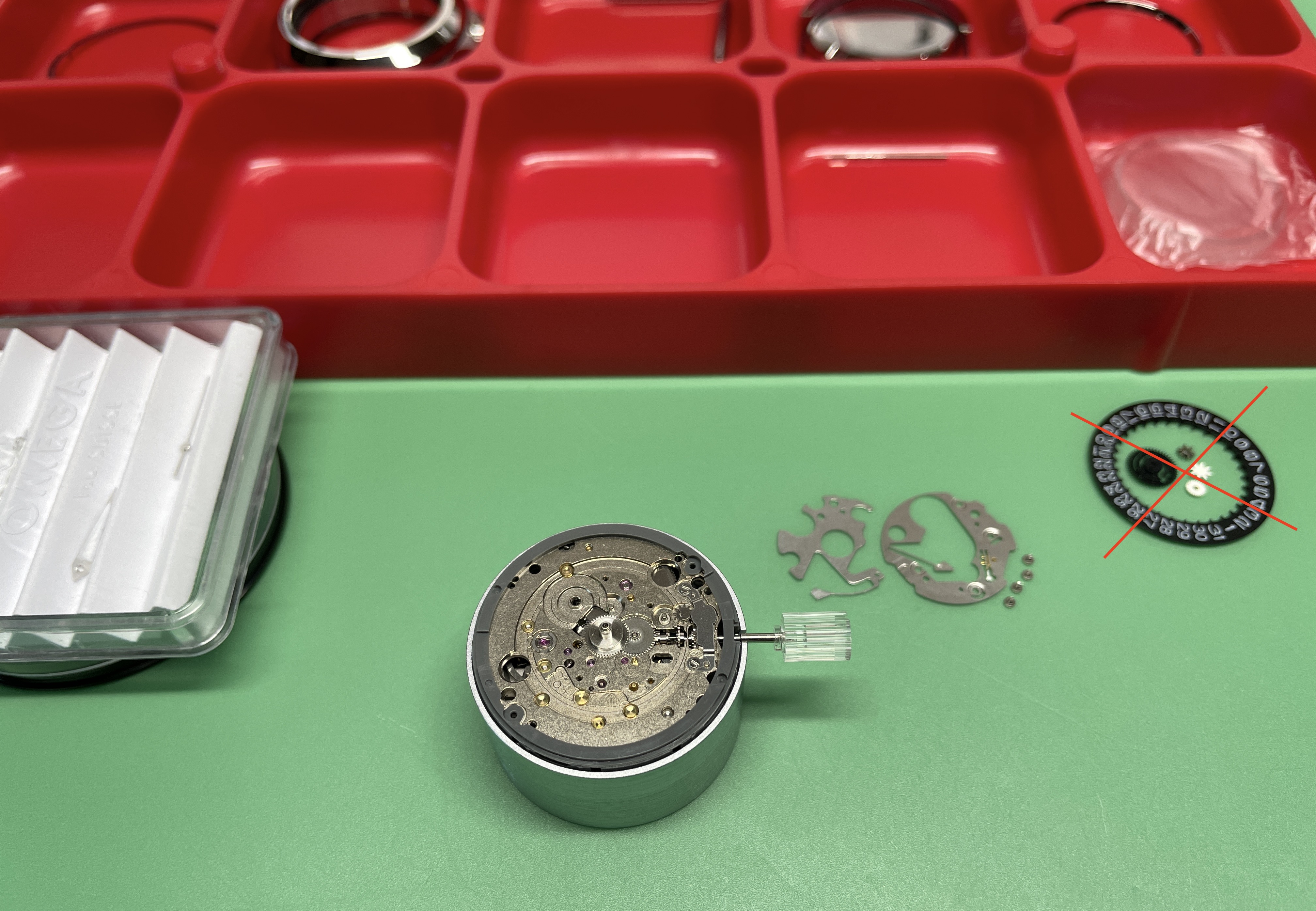

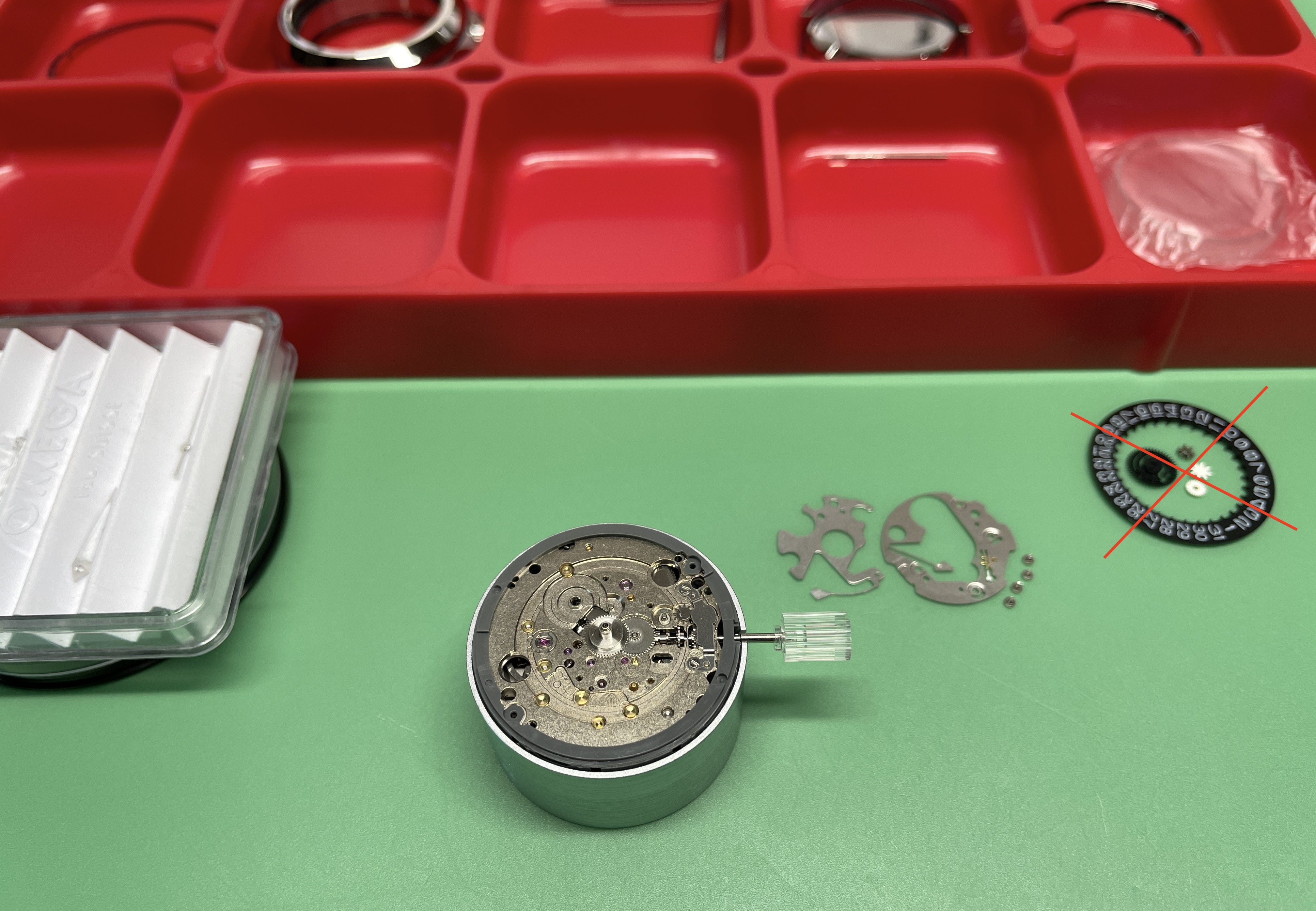

    As the observant among you may have noticed, the dial has no day/date windows, so the mechanism for date is superfluous, so it comes out.

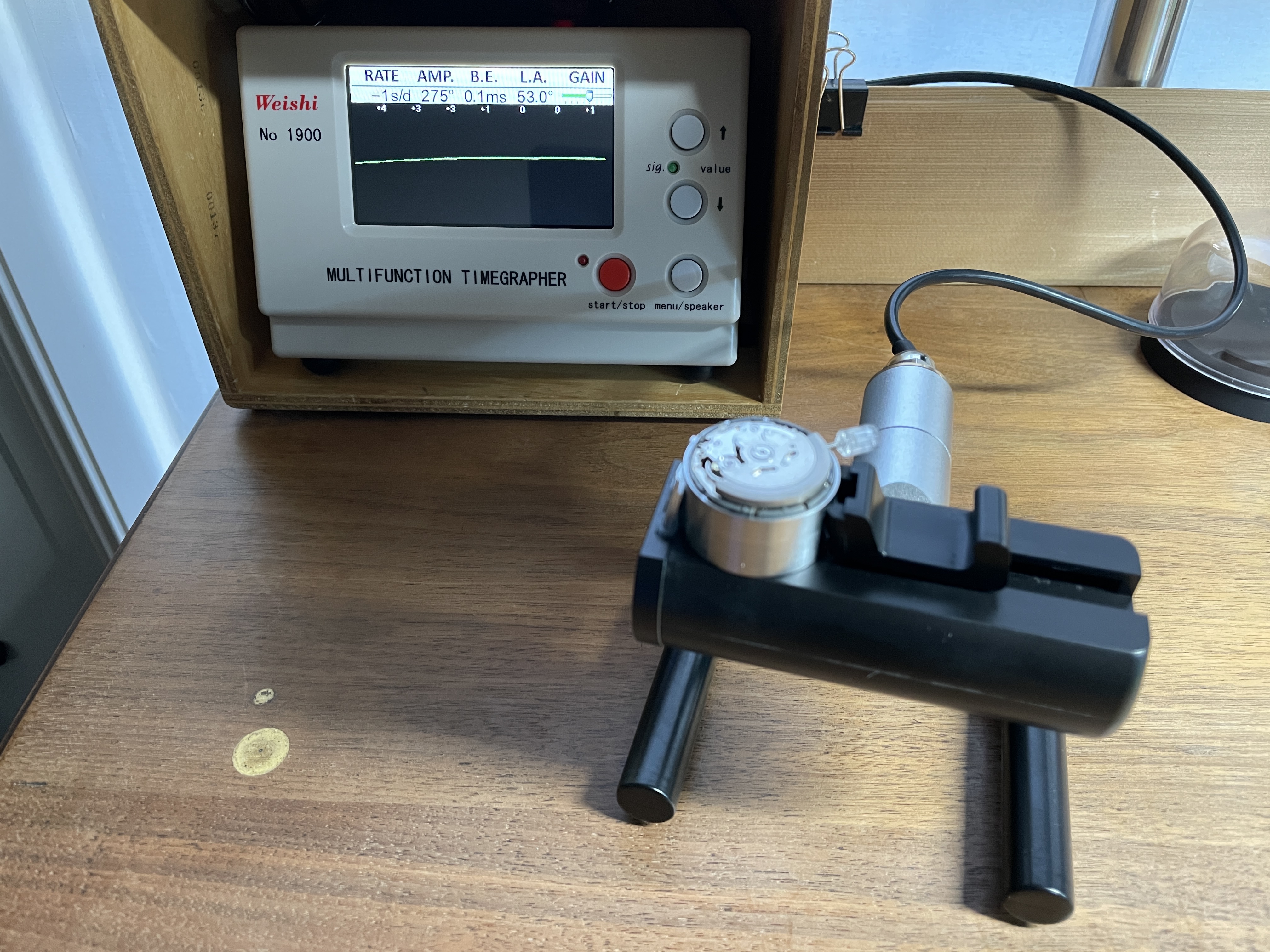

    A quick look on the Timegrapher looks promising for an unregulated out of the box movement. Maybe I'll be able to get it a bit better.


    Now that the movement has been modified, it's time to get biblical with the dial.

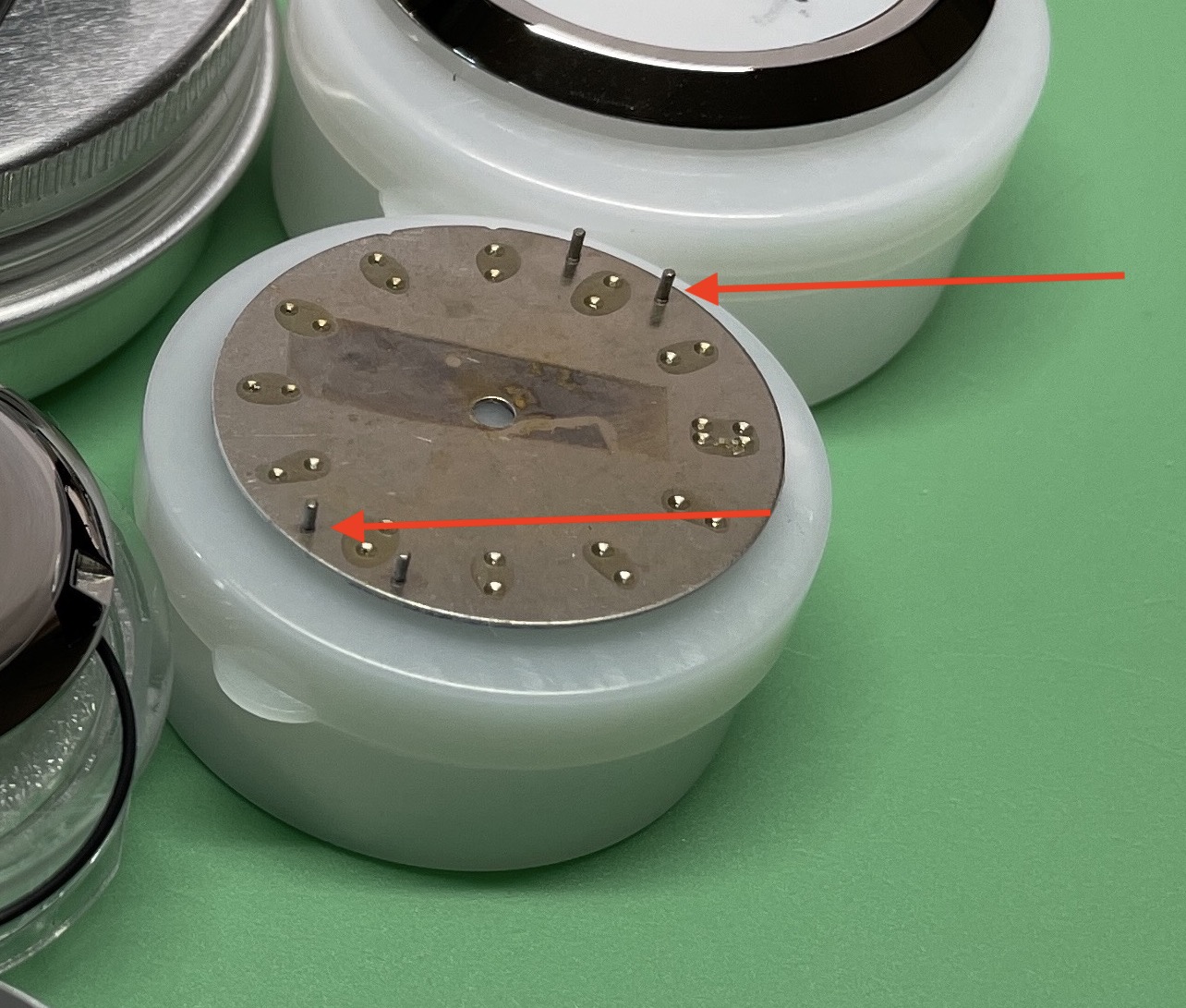

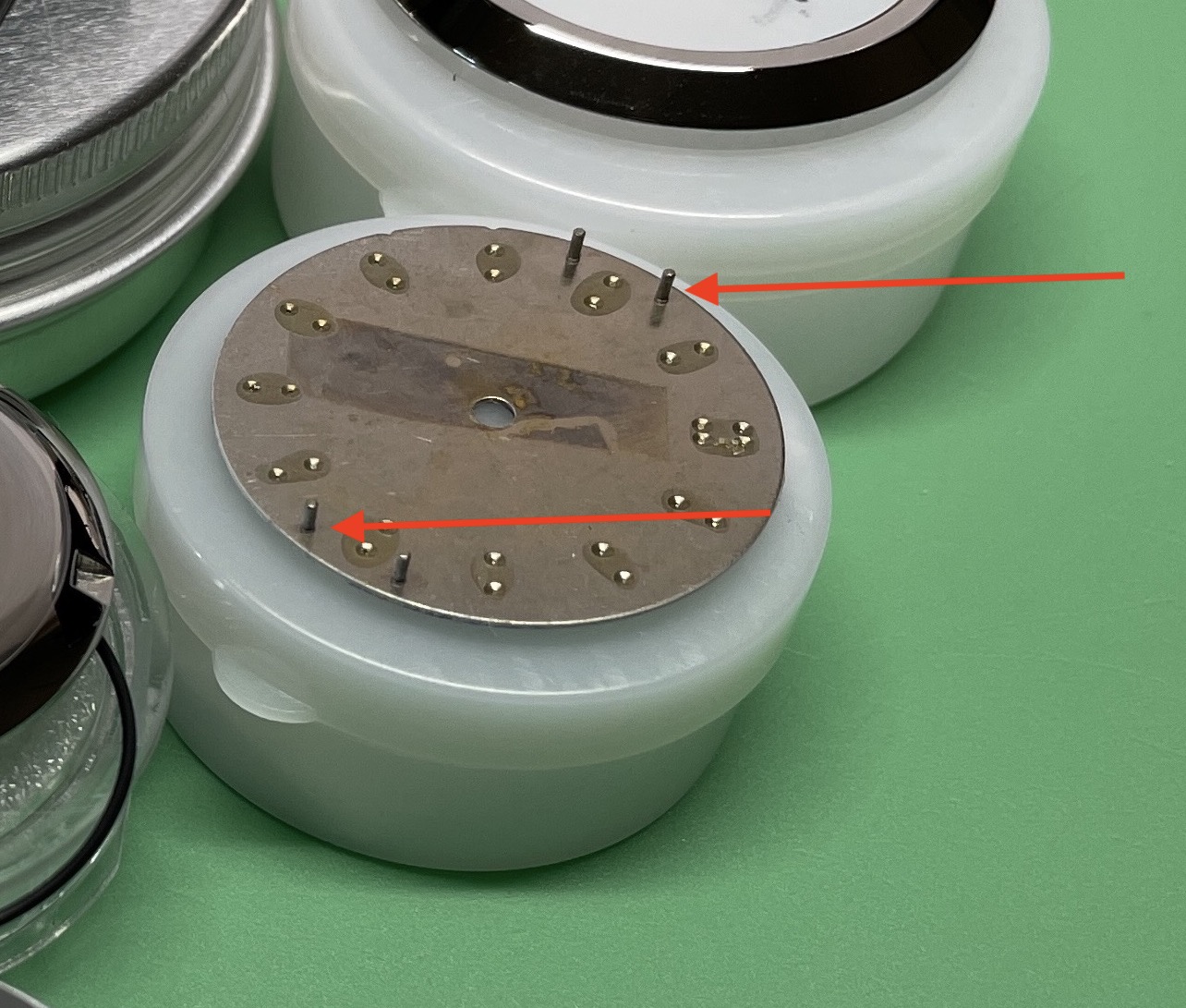

    It's designed for cases with stems at 3 o'clock and 4 o'clock, so it's provided with four dial feet.
    Two of them have to go!

    4a-TheParts copy.JPG

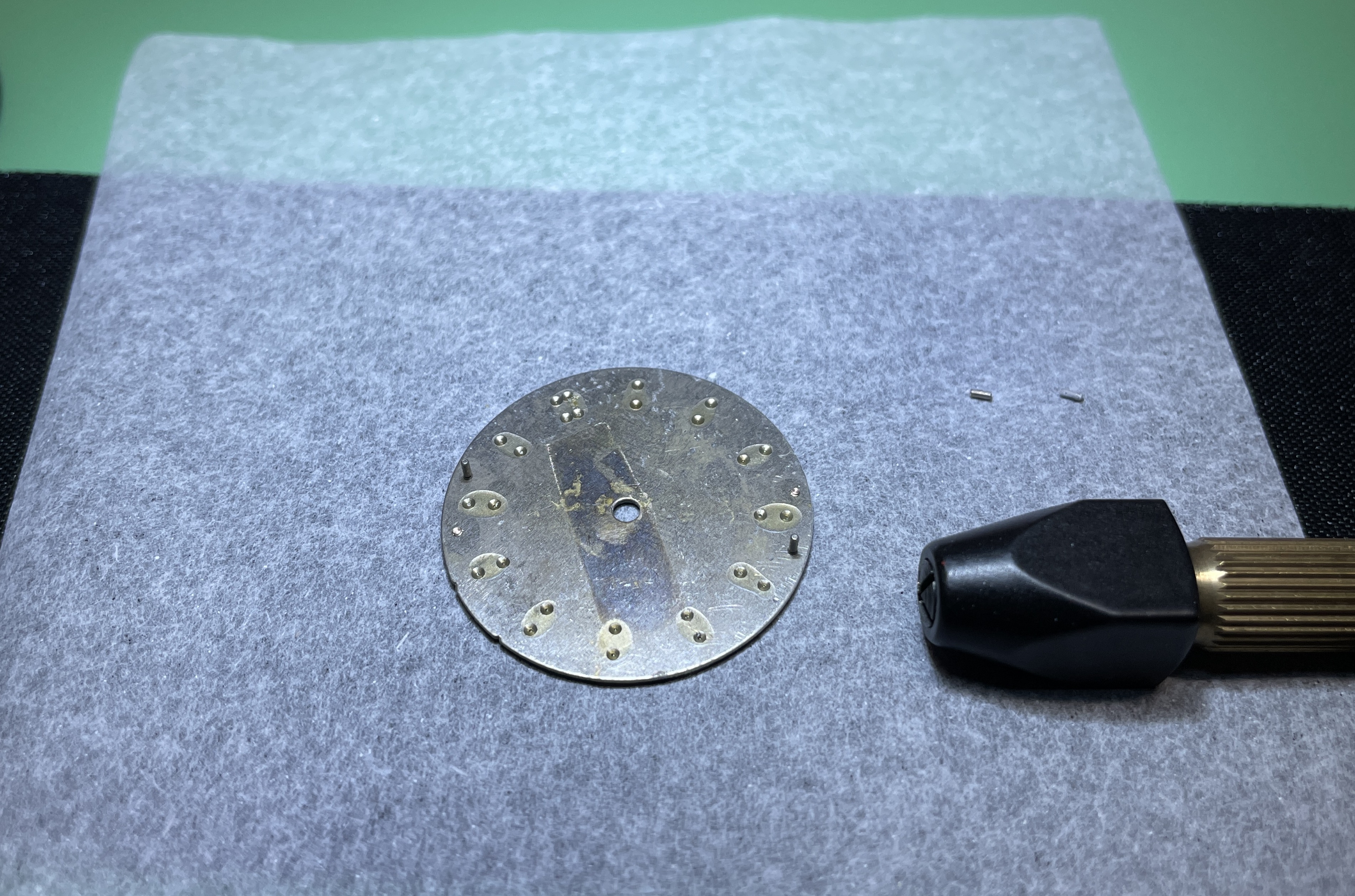

    I could use a grinder (noisy, messy), or a pen knife (danger! sharp objects), or a pair of cutters (leaves a tag). After seeing how these little feet seem to fall off dials when you don't want them to, I decided to use the "horizontal applied torsion technique".

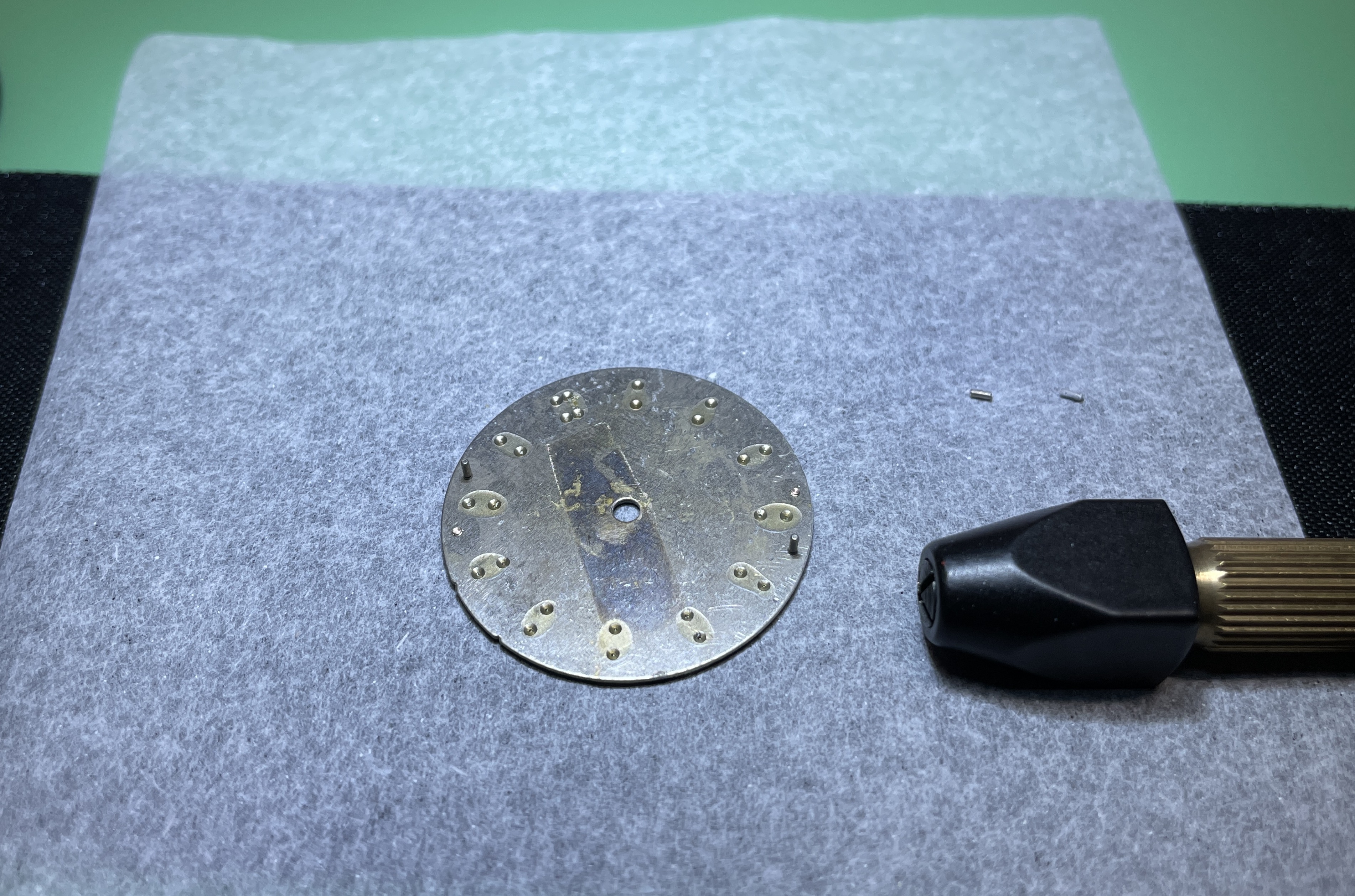

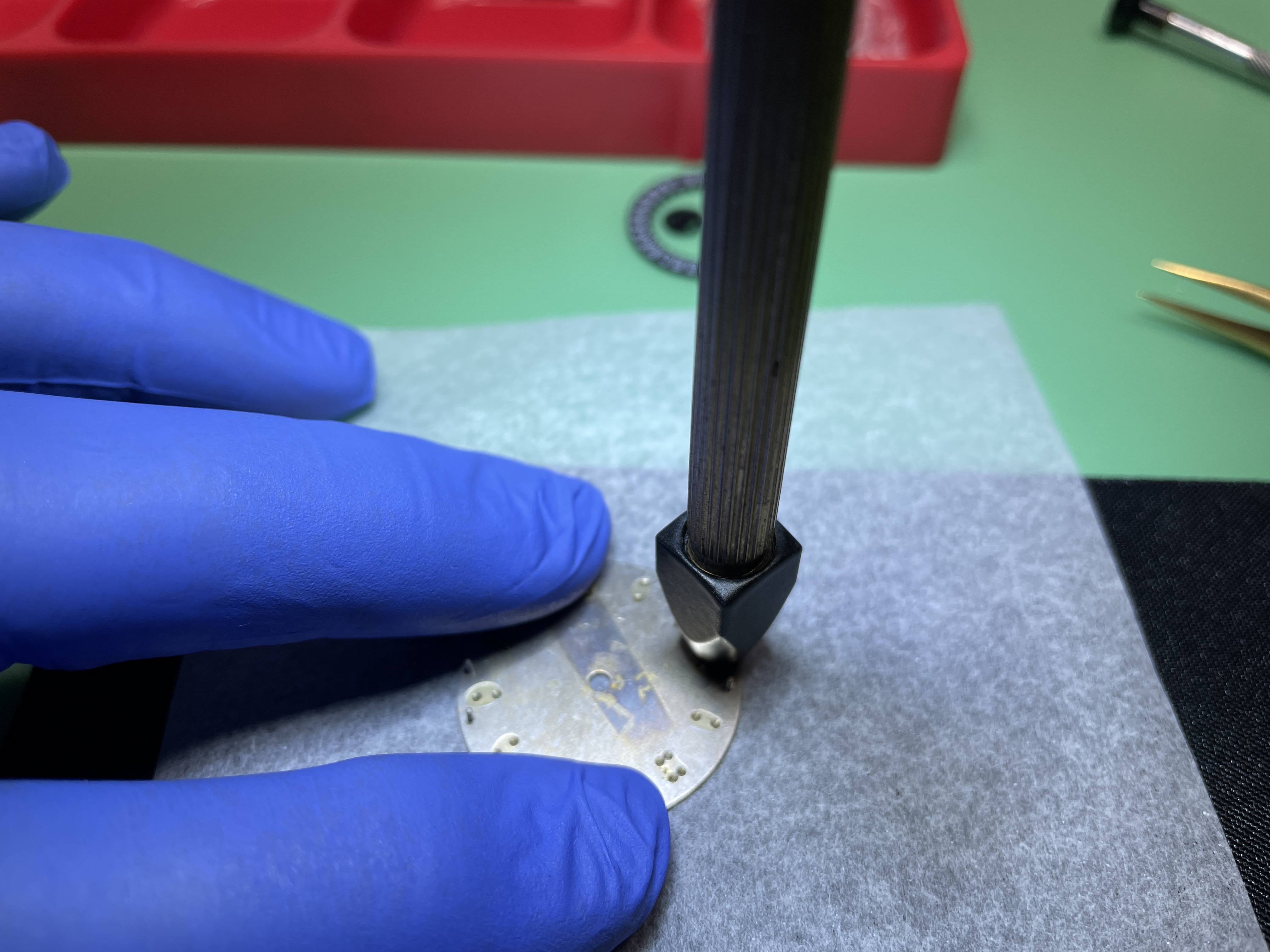

    That is, grip the dial foot in a pin vice and twist it off.


    Due to my incredible twisting skills, the operation was a success.


    Now to the big bits.

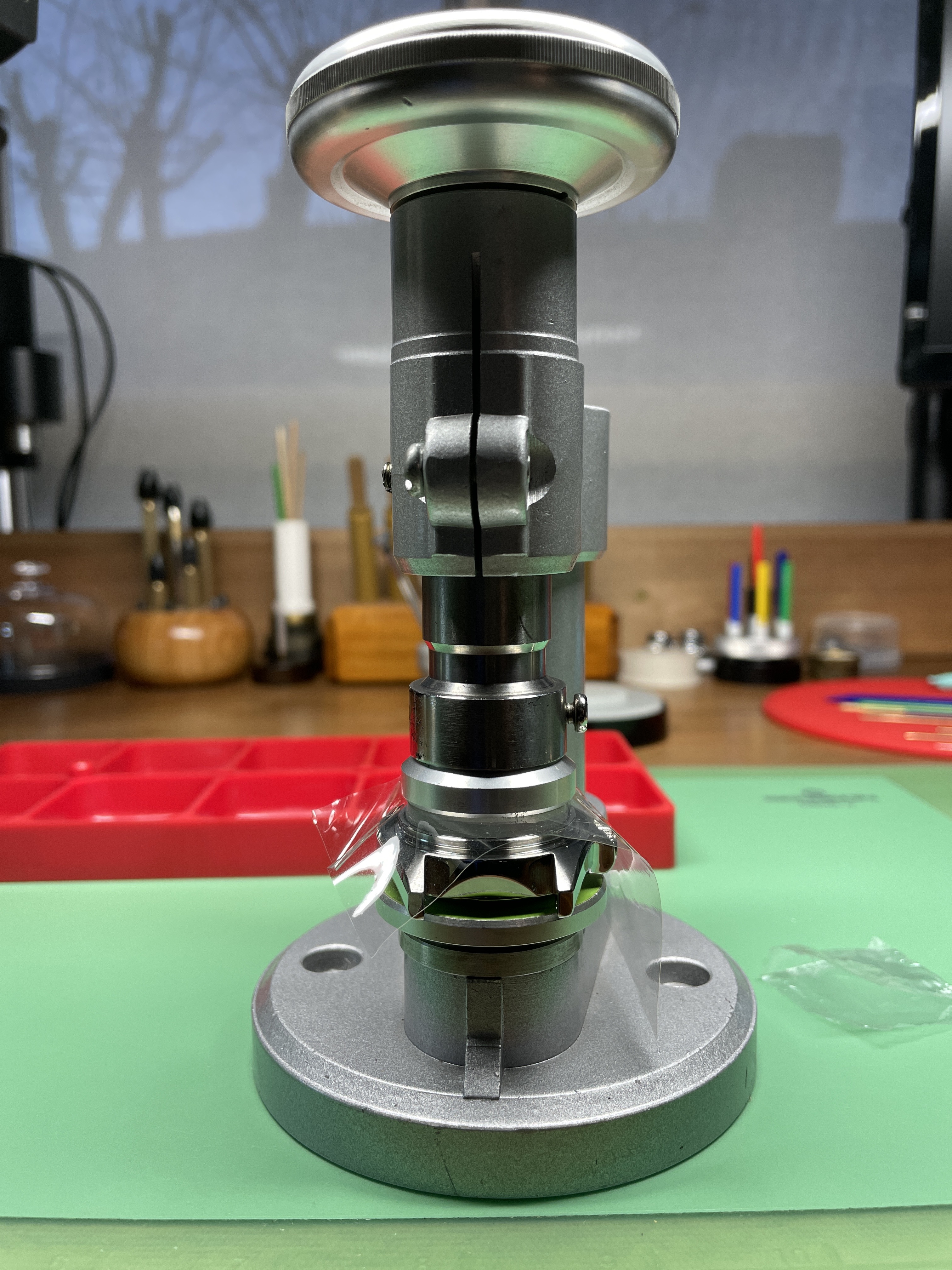

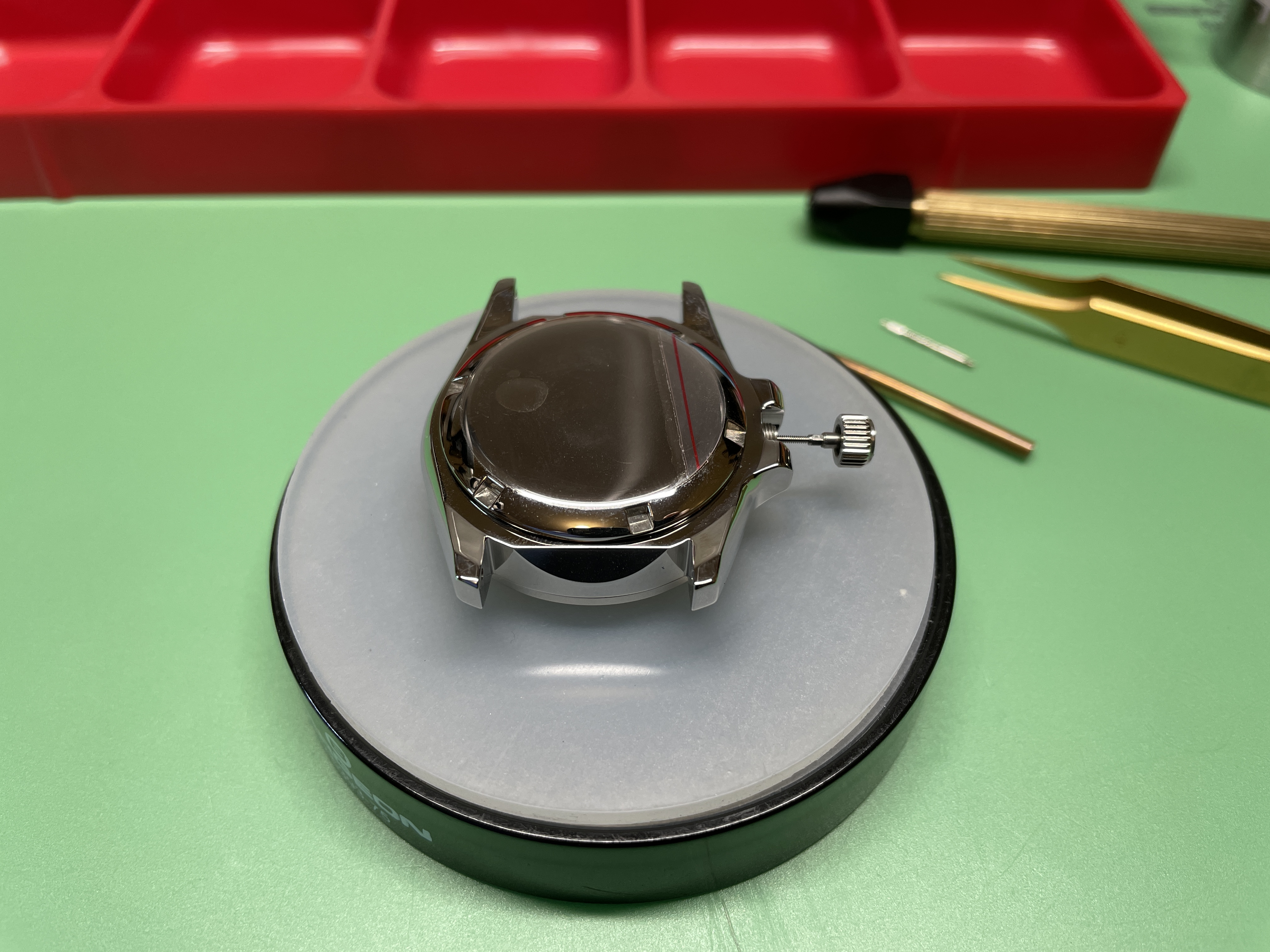

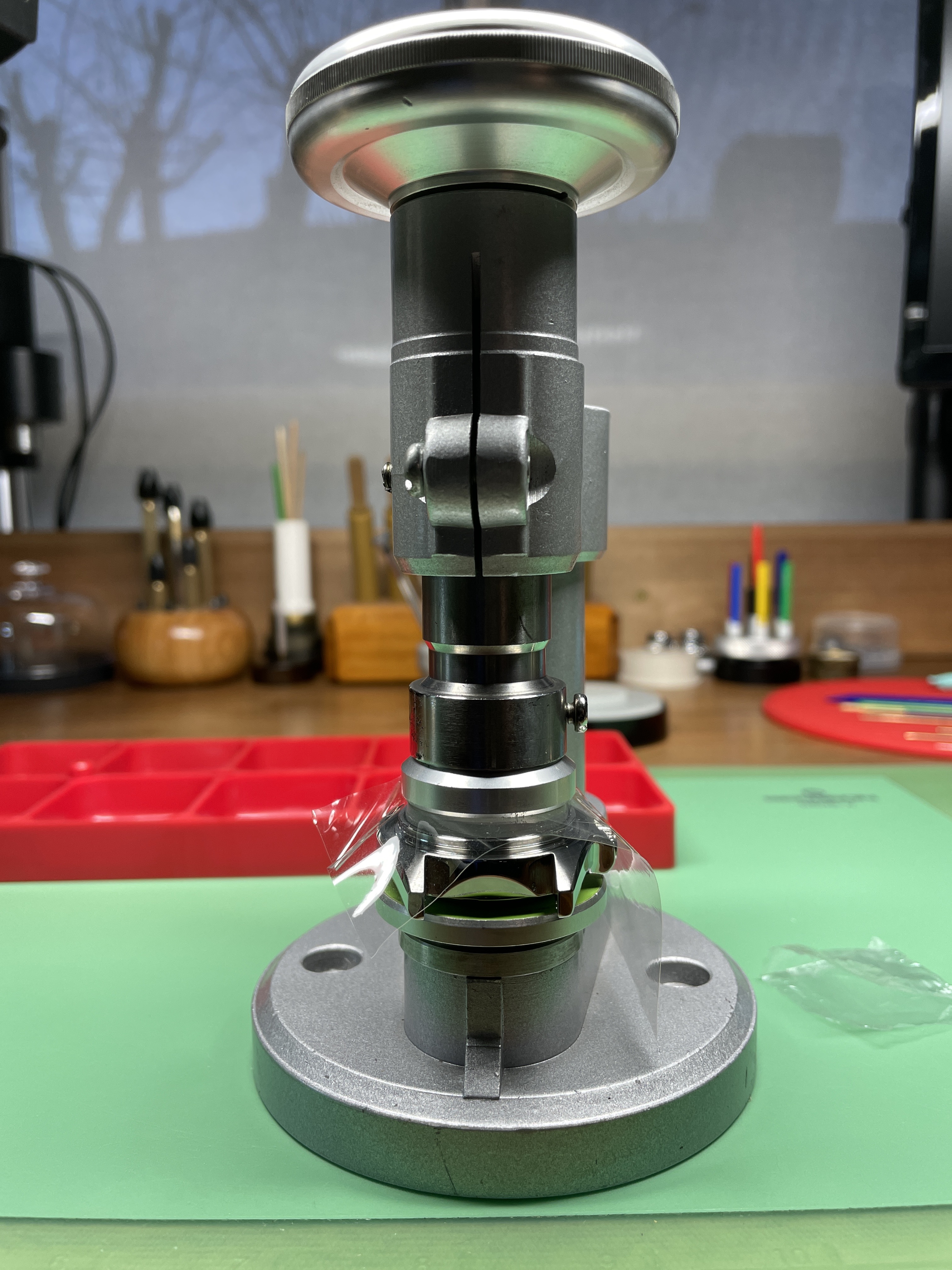

    A nice crystal is fitted to the case.

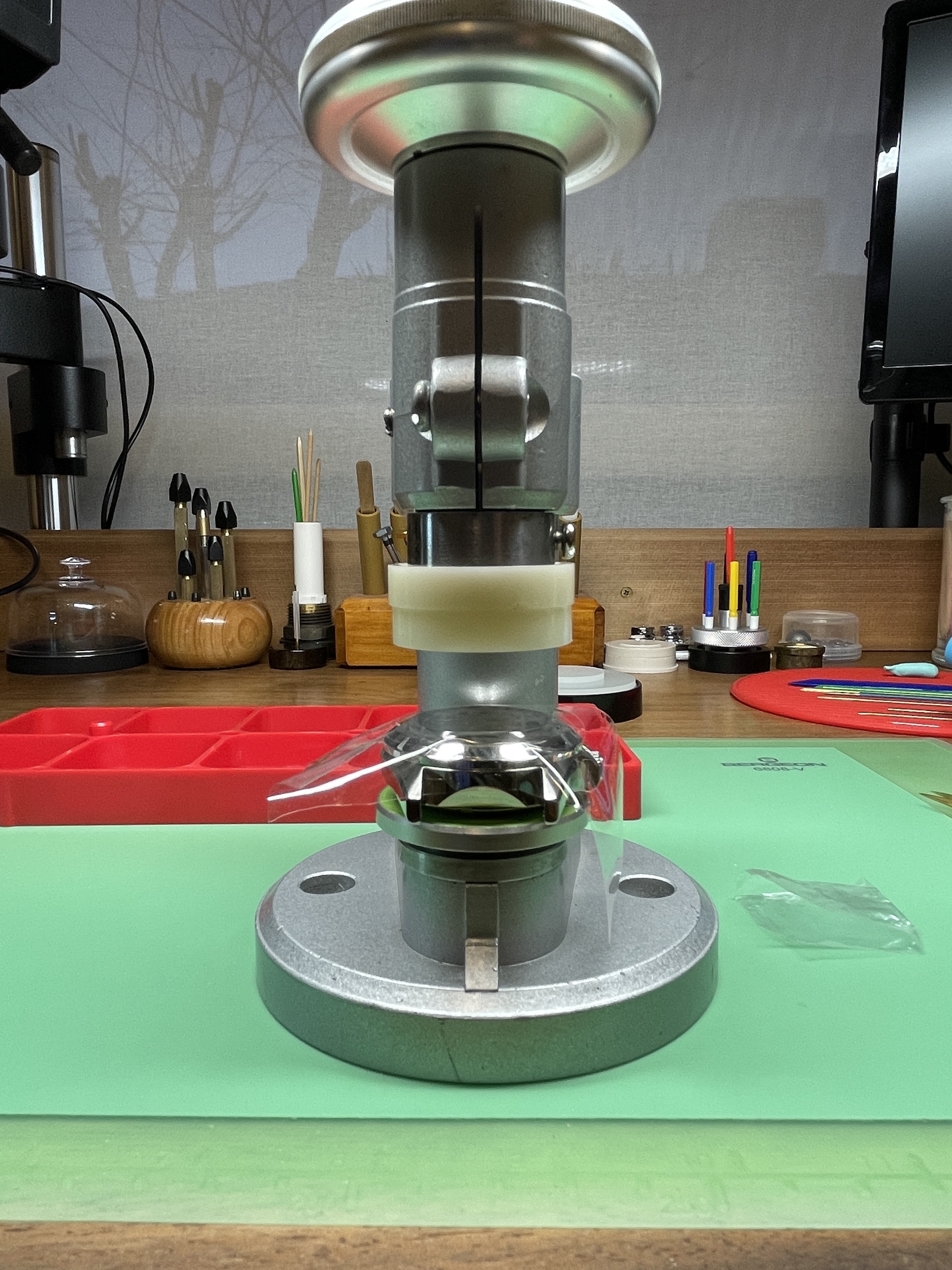

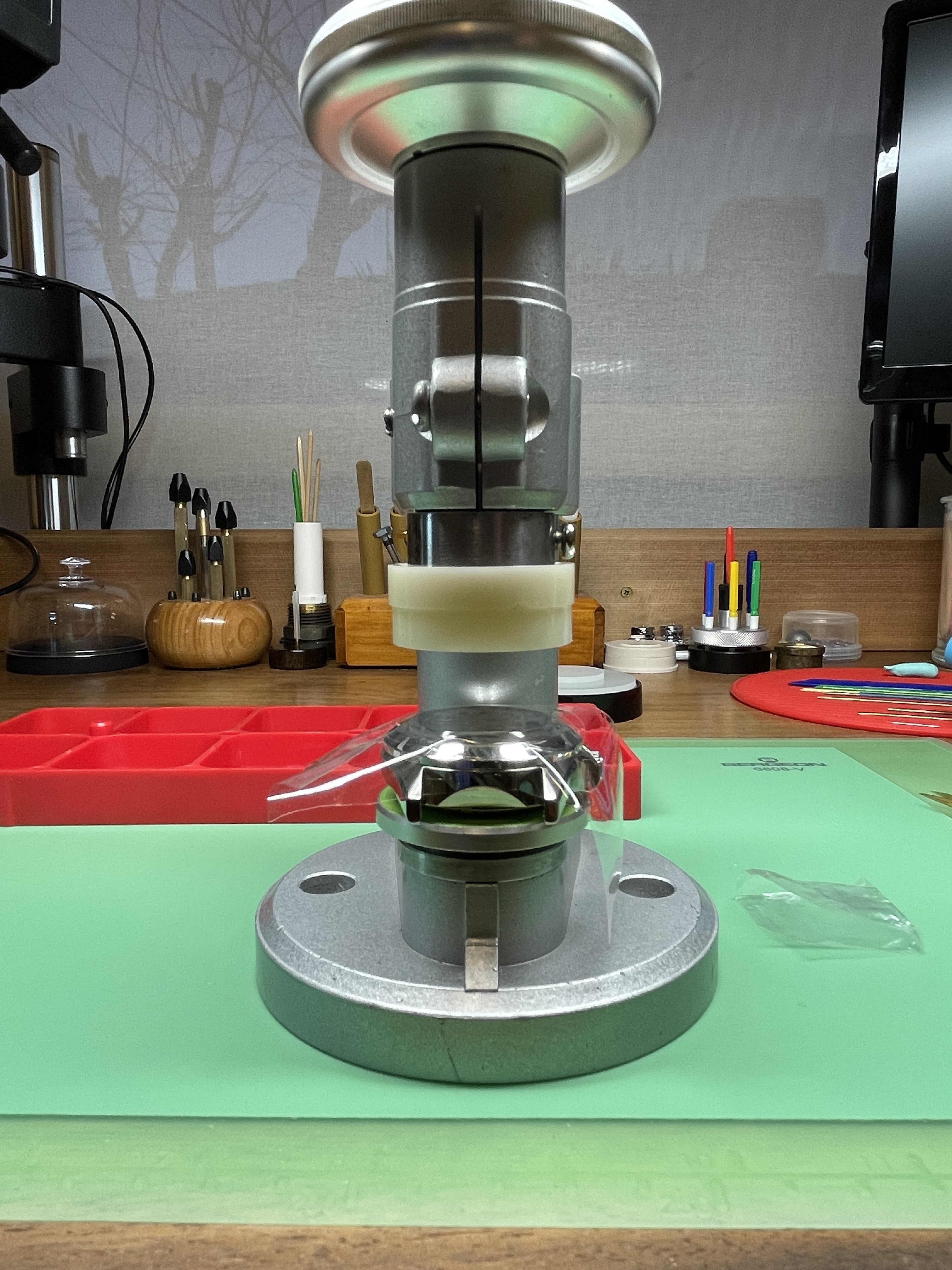

    Quickly (but carefully) followed by the polished stainless steel plain bezel.

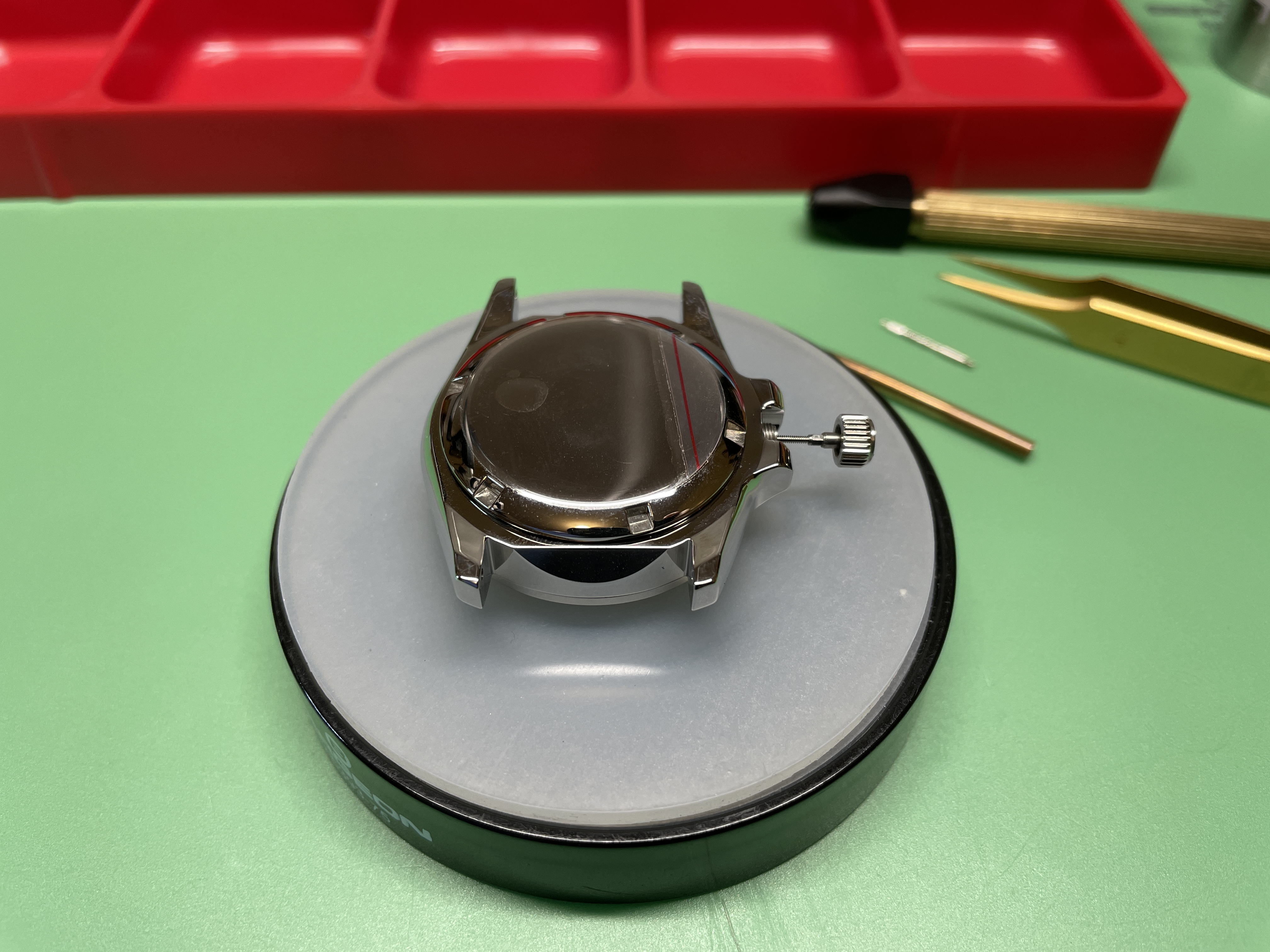

    The shipping stem is rather unattractive, so it will be replaced by a brand new stem.

    DAMN!

    That's NEVER going to be waterproof.

    Back to the drawing board.


    That's it for today.

    Comments and guesses welcome ;).

    rob#1, DaveK, omegaswisst and 4 others like this.
  2. jaguar11 Jul 5, 2021

    Posts
    2,697
    Likes
    17,115
    I await the next instalment!!!!

  3. Canuck Jul 5, 2021

    Posts
    13,478
    Likes
    38,030
    A Miyota caliber xxxx?

  4. JimInOz Melbourne Australia Jul 5, 2021

    Posts
    15,492
    Likes
    32,385


  5. SkunkPrince Jul 5, 2021

    Posts
    5,636
    Likes
    5,738
    Curious why you didn't use an NH38A instead? Already had the NH35?

  6. JimInOz Melbourne Australia Jul 5, 2021

    Posts
    15,492
    Likes
    32,385
    Just a change of plan, can always swap it out for an NH38A if I have another project.
