Community Stories

On My Bench - Seiko 7A28-7039

ExpiredWatchdog
Posts
739
Likes
852
Regarding your oil selection, I did an ETA two hander a few months ago. The spec sheet called for Moebius 9014 for the pivots (including one of the rotor pivots). Somewhere I read that it's about halfway between 9010 and 9020, which makes sense; 9020 being less viscous than 9010.

I found the quote from Ofrei's website "Thinner than 9010, comes in the 2 cc size bottle. Moebius 9014 is a mixure of 70% Moebius 9010 and 30% Moebius 9030, and used for lower temperatures. Viscosity of 0.98 stokes at +20 degrees celsius, provides good lubrication until -35 degrees celsius."

So it sounds pretty close to 9000.

After the challenge of assembling a two hander (with four bushings in the motion works plate) I can't imagine the difficulty of your job. I'll try to avoid it.

JimInOz
Posts
16,833
Likes
35,263

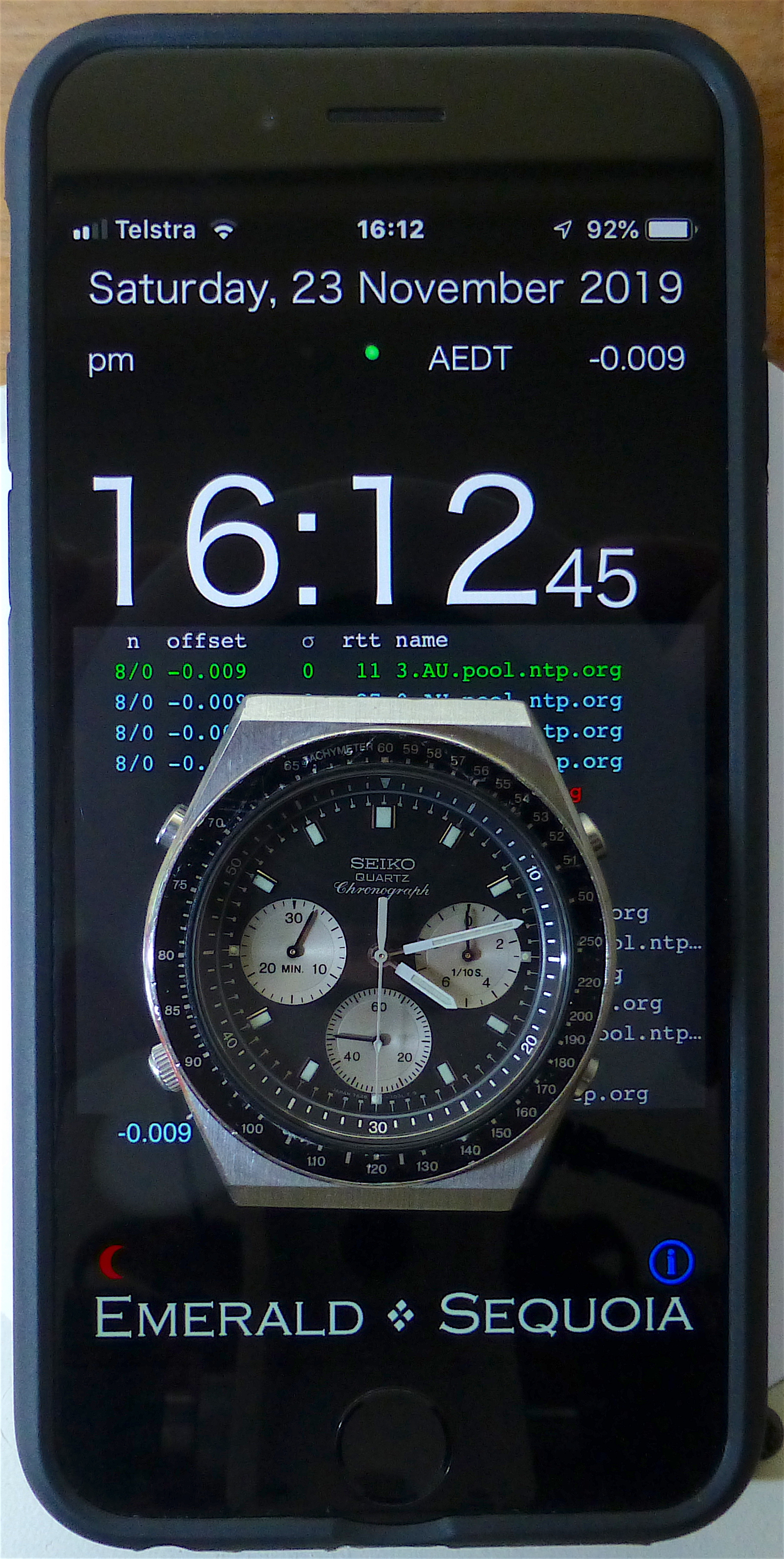

After a few days testing I'm calling it done.

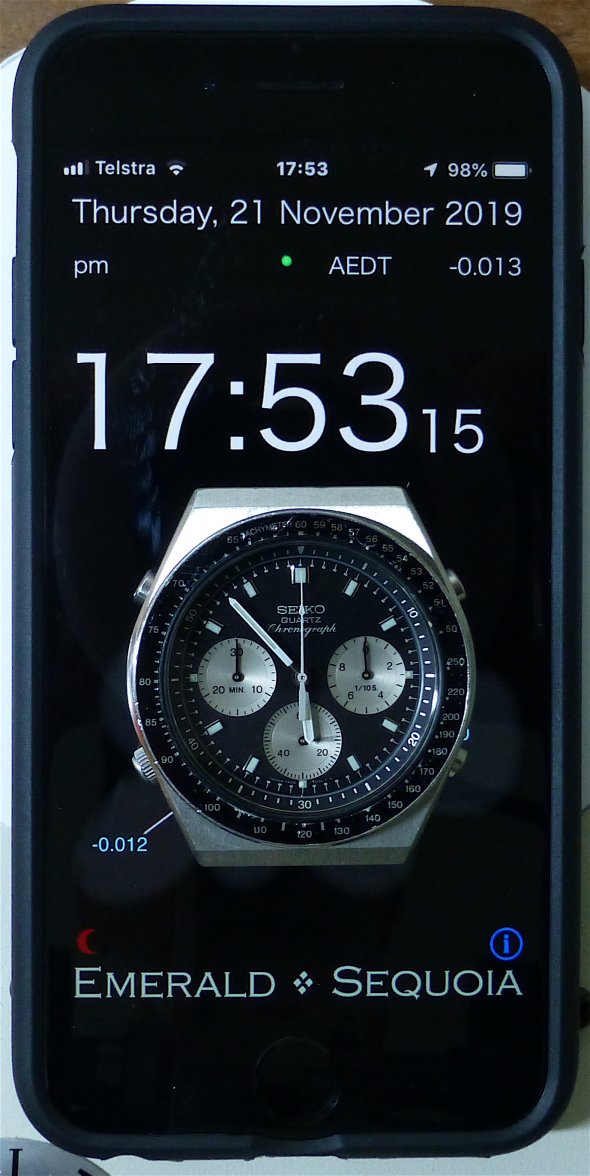

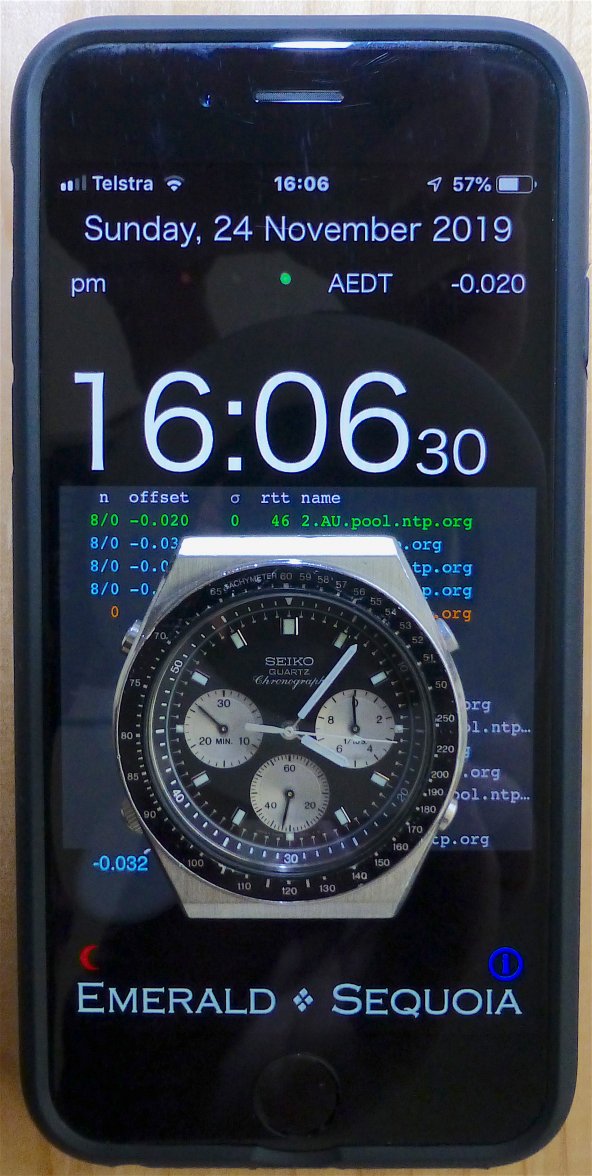

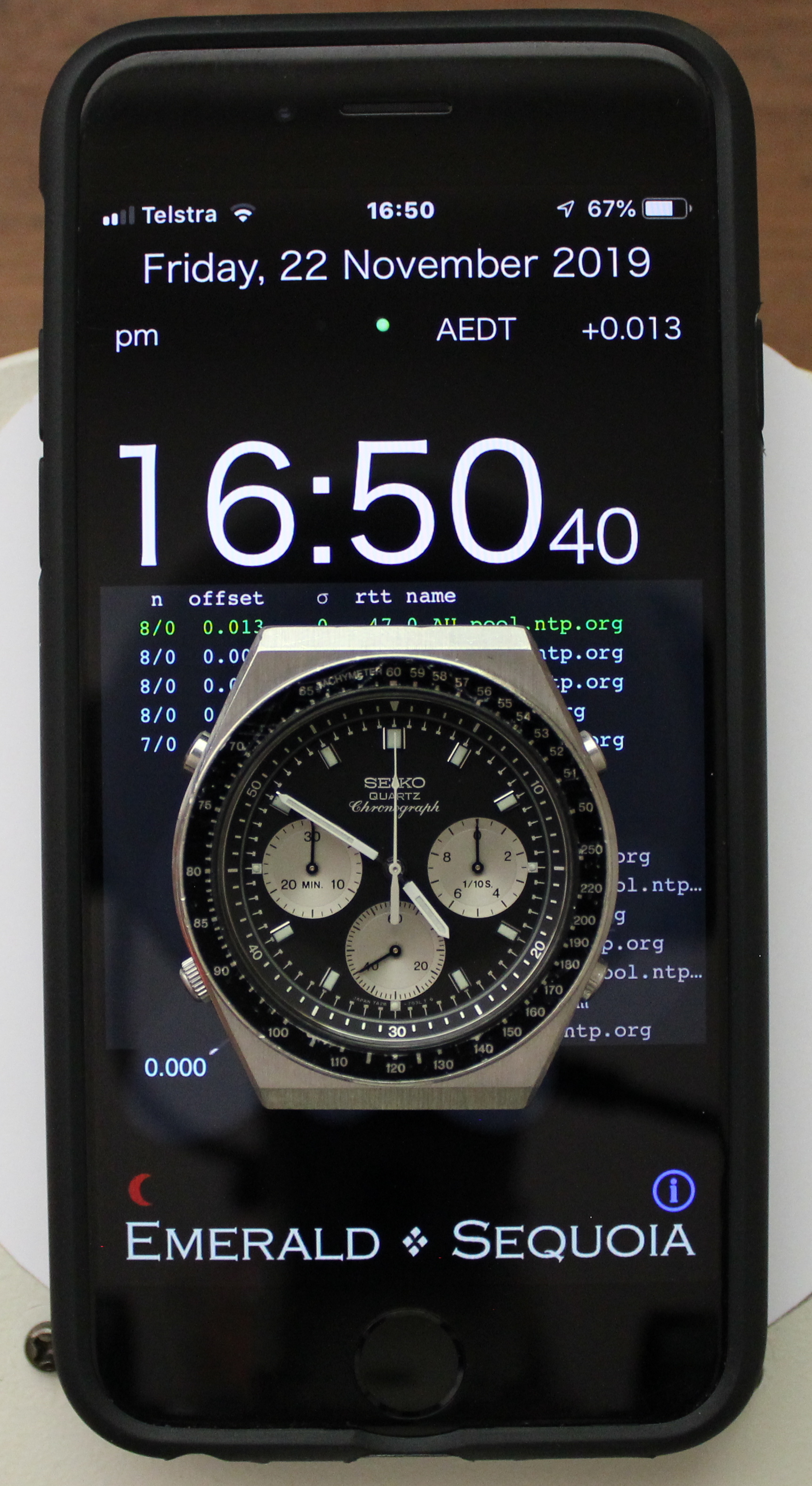

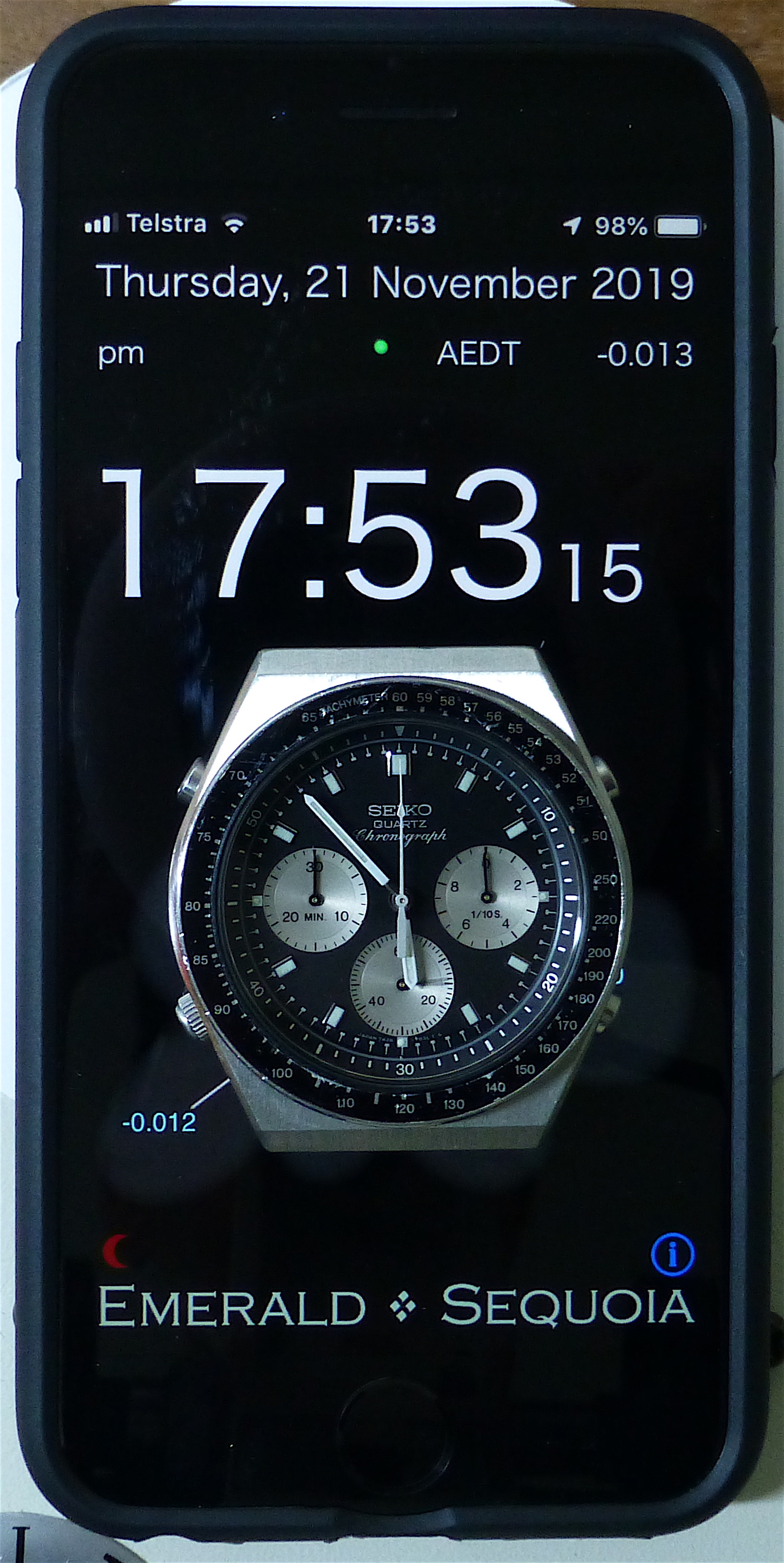

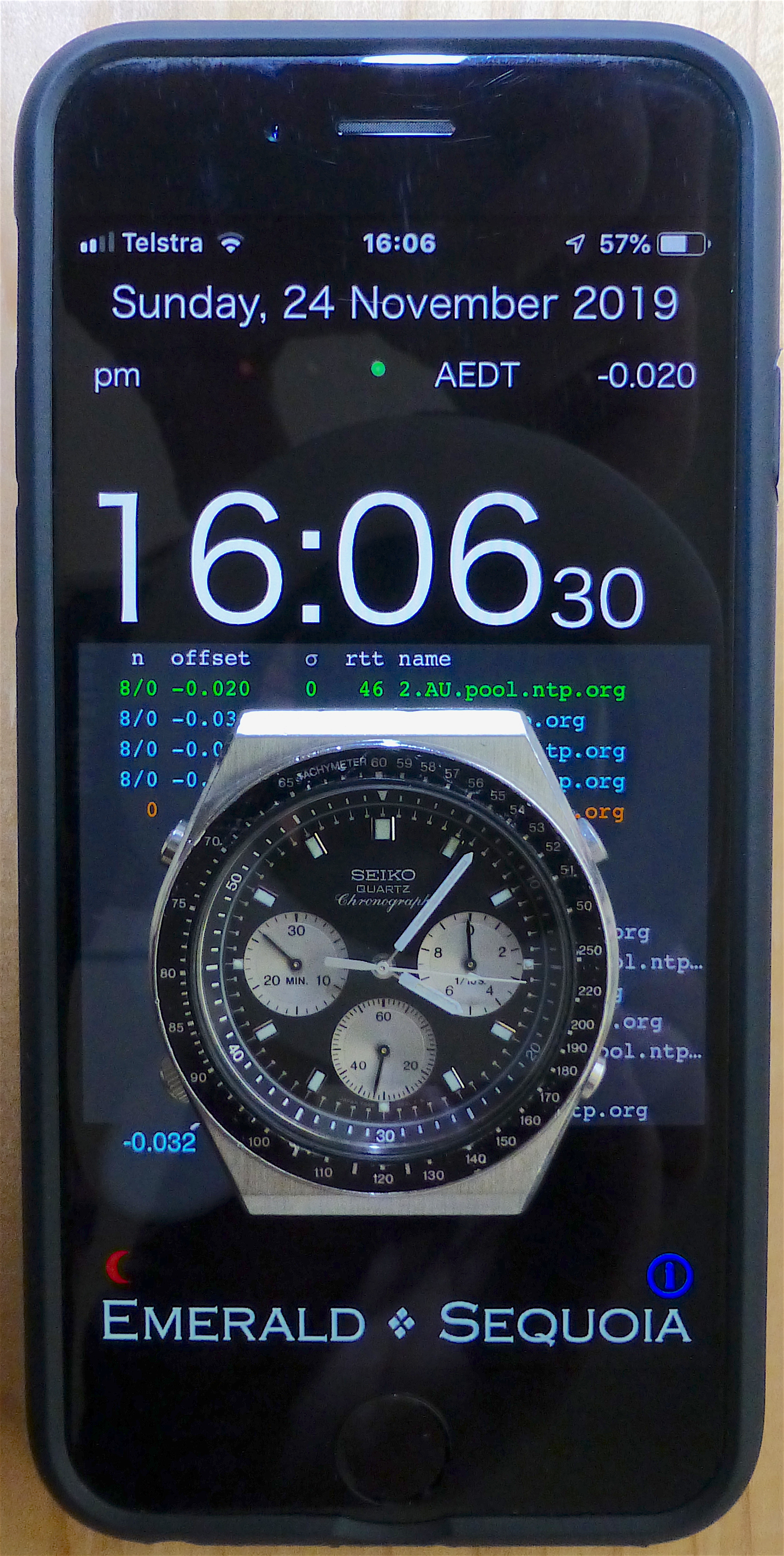

Keeping time to within one second of my phone clock.

Timing21NOV1753.JPG Timing22NOV1650.JPG Timing23NOV1612.JPG Timing24NOV1606.JPG


So tomorrow it's off back home to it's patient owner.

Now what's next?

Oh yes, the Tudor 390.

馃檨

verithingeoff
Posts
639
Likes
3,065
[QUOTE="JimInOz, post: 1376724, member: 1543"


Now what's next?

Oh yes, the Tudor 390.

馃檨[/QUOTE]
馃槑

Deafboy
Posts
2,349
Likes
6,740
JimInOz JimInOz
Keeping time to within one second of my phone clock.
What's the app?

JimInOz
Posts
16,833
Likes
35,263
Deafboy Deafboy
What's the app?

Not really a timegrapher style app, just one of the Emerald Sequoia time apps.

I set the watch to the time, take a shot, wait 24 hours and take another etc. Then see how far out the second hand is each day.

destroid
Posts
478
Likes
4,703

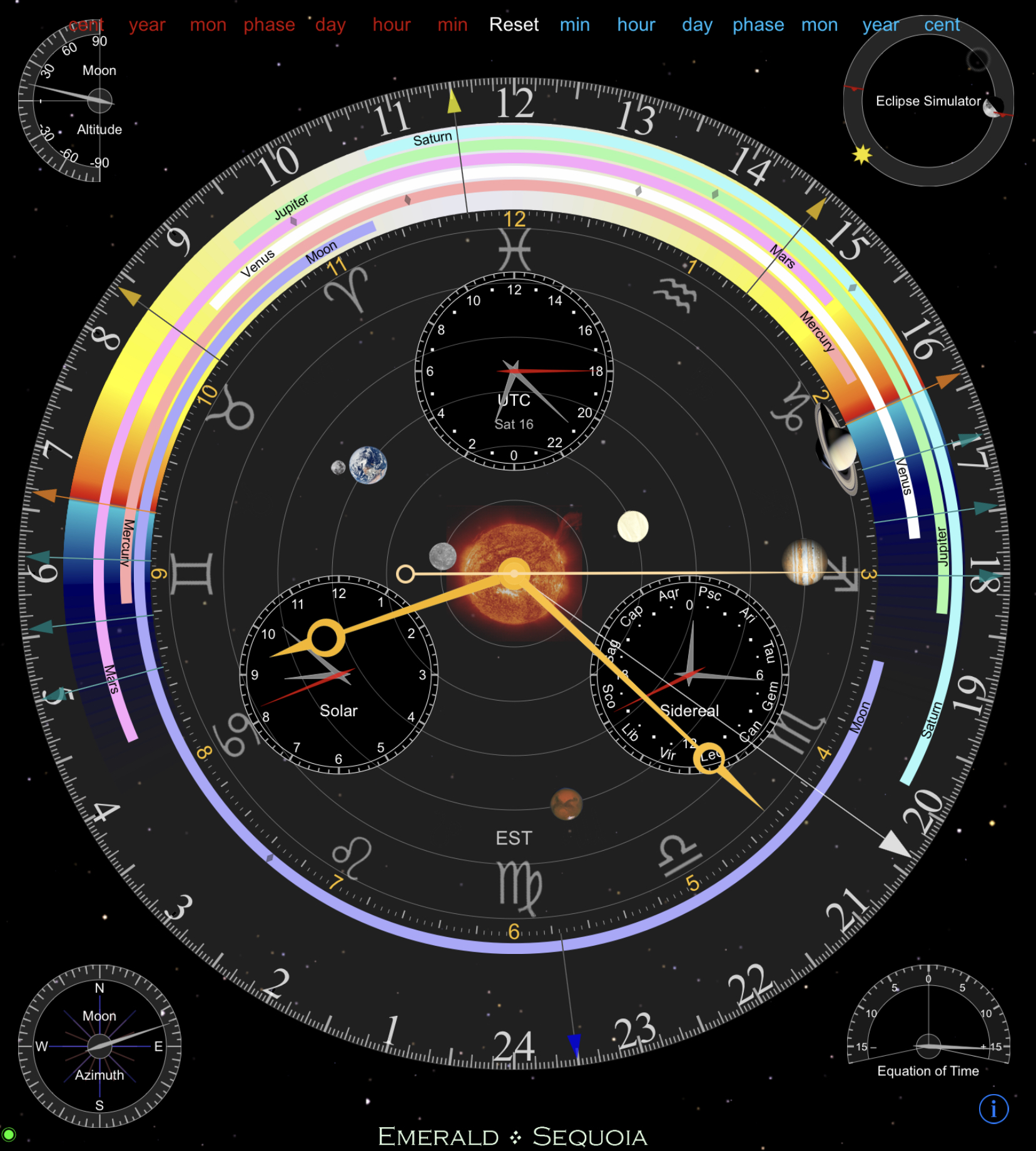

I use that Emerald Sequoia app to set my watches too as the phone time tends to be off. They have a nice orrery app too:

R
Posts
2
Likes
0
JimInOz JimInOz

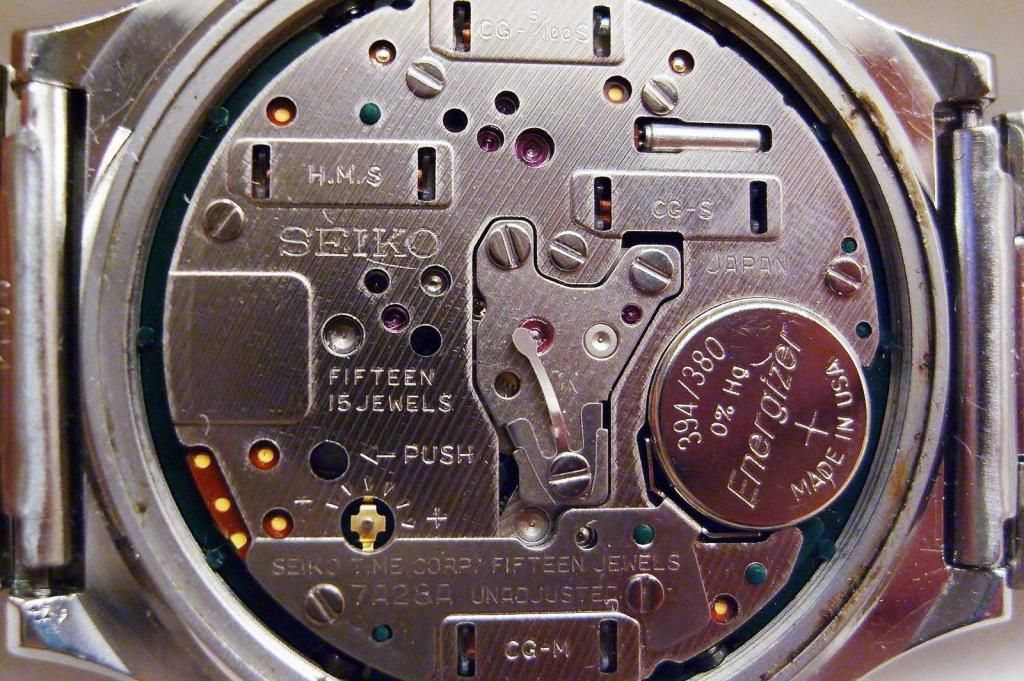

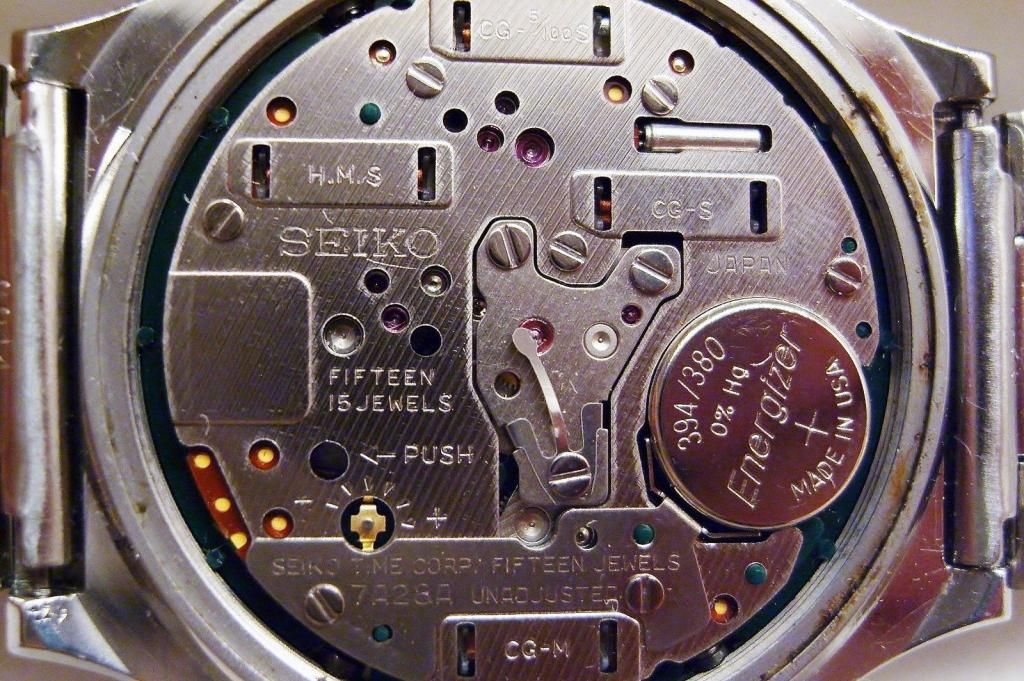

After cleaning around the caseback with a pegwood stick and a brush, it鈥檚 removed to get a look at the movement.


Thanks for documenting the process along with the photos! I got one comment - on the picture above the center leaf spring is missing which is often the case on these movements. There is no photo of the assembled movement so I am not sure if you sourced one or were not aware that one should be there.

Check this photo, it is the leaf spring in the middle (bent out of shape in this case). Hope it helps!


JimInOz
Posts
16,833
Likes
35,263
Quite correct!
It was the second component I removed (after the battery) and it was re-installed as the last thing after checking function (and checking again).

I think it can bee seen in the parts tray in some shots.

imfagent449
Posts
372
Likes
343
I guess that battery powered doesn't always mean that it is easier to service.

I have two IWC mecaquartz watches- I love them but pray that they don't break down.

inchpincher
Posts
429
Likes
2,845
@JimInOz Really enjoy your write ups, especially this as I鈥檝e been collecting a few Grand Quartz lately as I see them as such good value for money. What kind of service interval would you recommend on something like this... 10 years?

JimInOz
Posts
16,833
Likes
35,263
Hard question to answer.
If it's clean, has fresh oil and regular battery replacement it could tick forever.
If the watch has been well treated and lived in a begnin environment, I'd say 10 years would be OK.
Bear in mind, if it hasn't been serviced recently/properly or treated with kindness, a lesser period or an immediate service would be wise.

inchpincher
Posts
429
Likes
2,845
JimInOz JimInOz
Hard question to answer.
If it's clean, has fresh oil and regular battery replacement it could tick forever.
If the watch has been well treated and lived in a begnin environment, I'd say 10 years would be OK.
Bear in mind, if it hasn't been serviced recently/properly or treated with kindness, a lesser period or an immediate service would be wise.

Thanks, I wasn鈥檛 fishing for a definitive answer btw, just your opinion having knowledge of quartz in general which we don鈥檛 see much of on OF. It鈥檚 good to know they are quite serviceable and not just disposable movements. However I may stay away from the chronographs if I want to remain friends with my watchmaker. Thanks again for the glimpse behind the curtain...

Archer
Posts
28,168
Likes
72,137
inchpincher inchpincher
@JimInOz Really enjoy your write ups, especially this as I鈥檝e been collecting a few Grand Quartz lately as I see them as such good value for money. What kind of service interval would you recommend on something like this... 10 years?

Generally speaking, I only recommend servicing (meaning full disassembly, cleaning, oiling) of a quartz watch when there' a problem. Quartz watches generally are not subject to the same level or wear that mechanical watches are, so require far less frequent servicing in general.

Cheers, Al

pascs
Posts
1,642
Likes
5,760
Great to see a fantastic 7A28 coming back to life. I've rebuilt a few 7A28 and thought they were quite decent to work on.

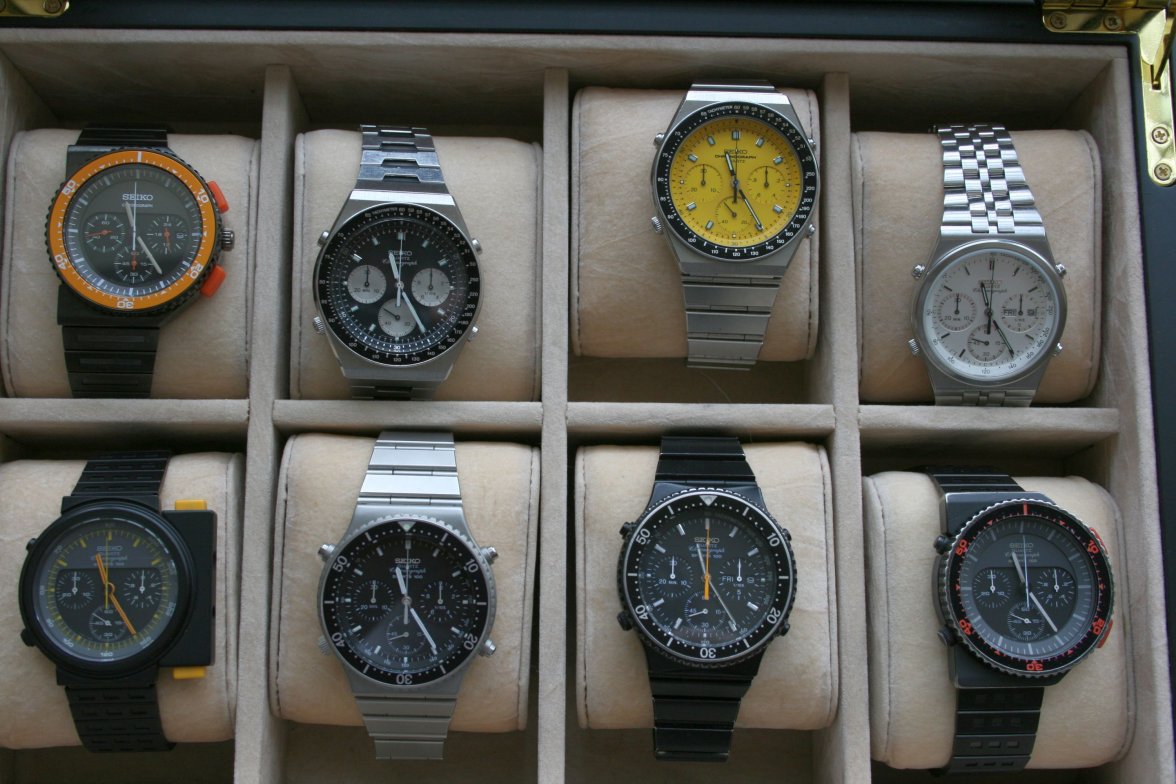

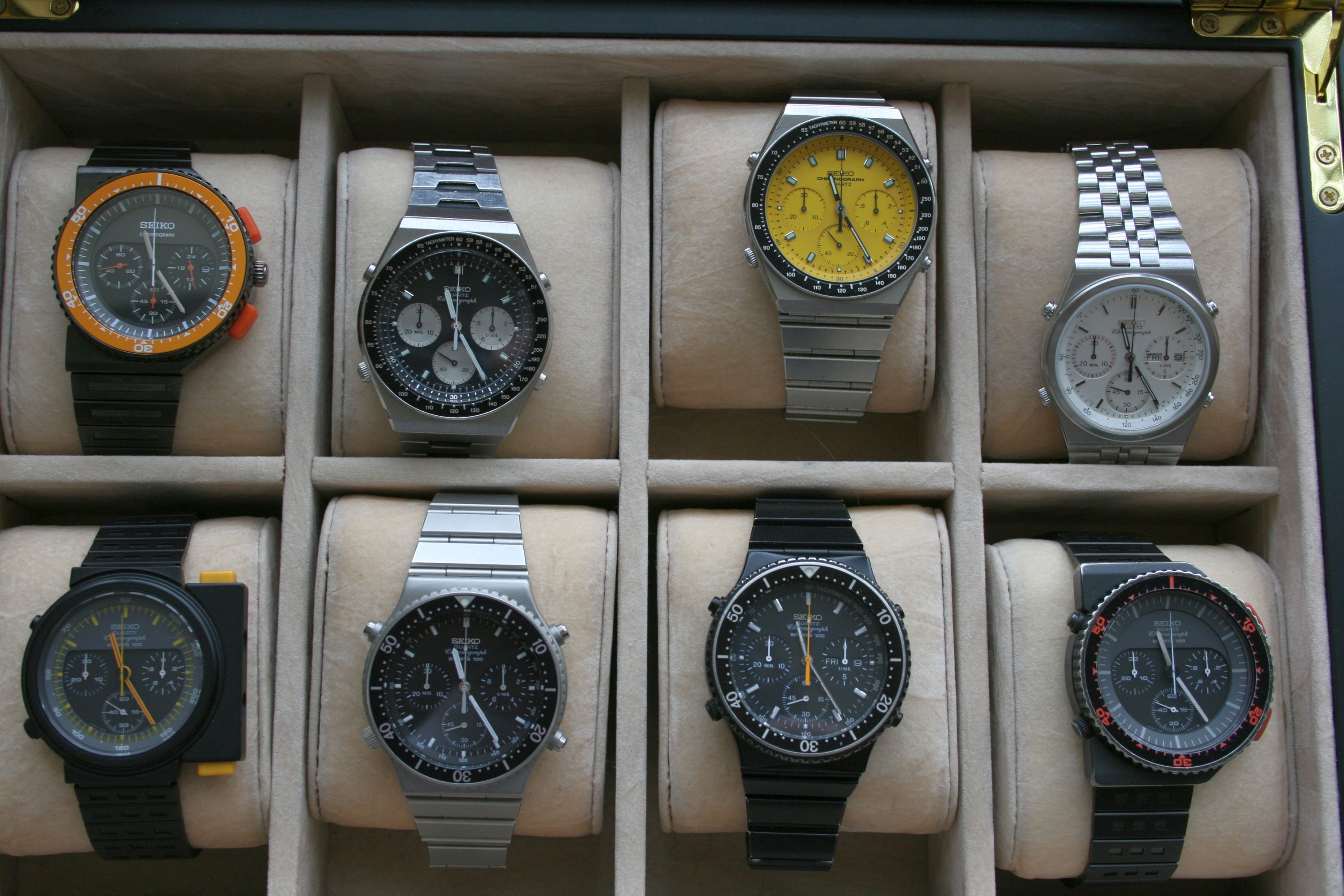

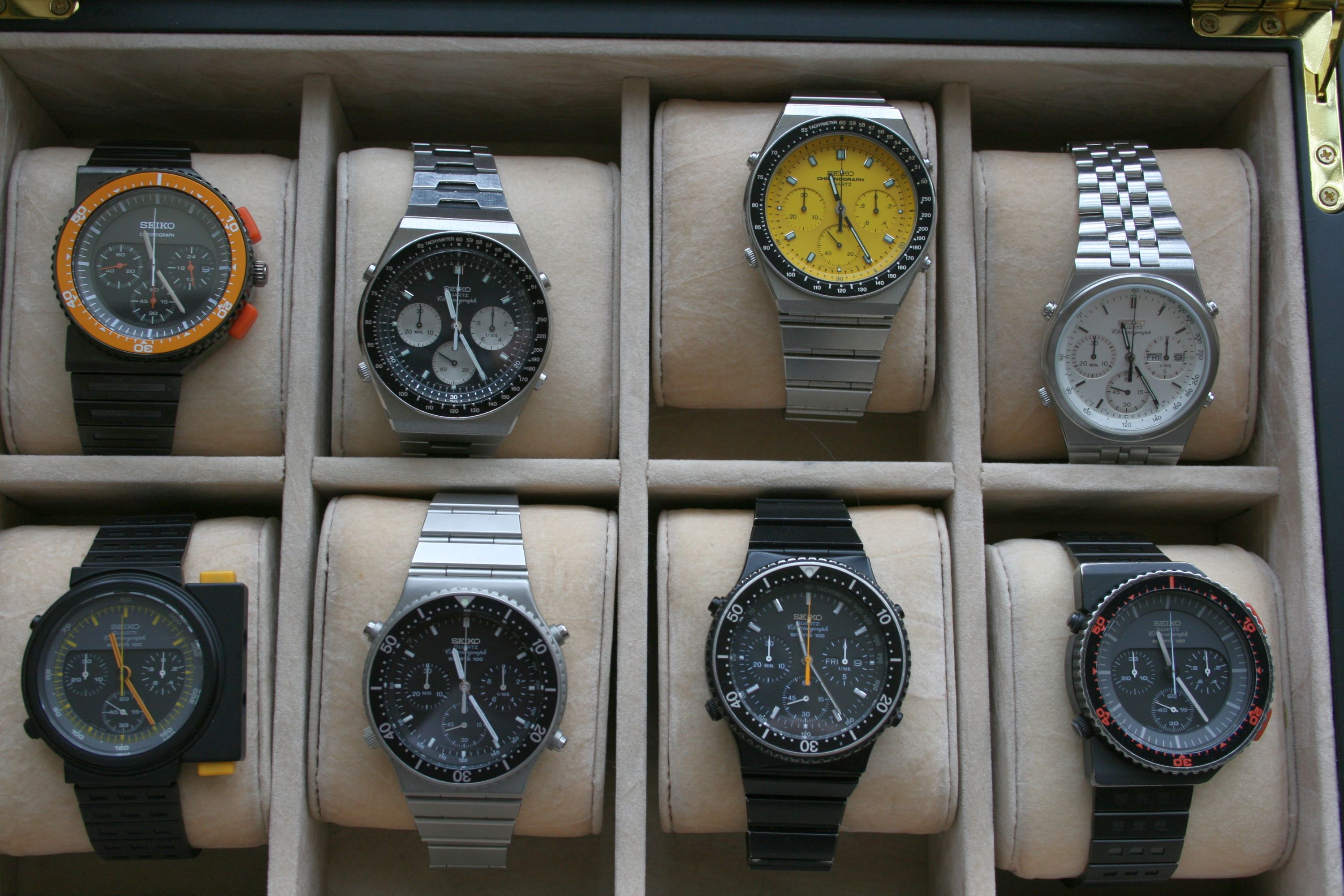

A few of mine........


W
Posts
3
Likes
0
Hi All, newbie here. Found this thread a couple years ago while researching an older Seiko Chrono, noticed, "I have one of these!", so started reading.... FASCINATING. Bought mine new, wore it a few years in the wrong profession, so I "put it up", and, frankly, forgot about it. Happened upon it while moving, and spent some "time" with it...after this thread, I gave up on any future research, but interest has resurfaced.....now wondering, which, if any, of you gents (or ladies) might like to take a crack at mine, or maybe steer me in the right direction? Thanx to all, in advance, for reading and pondering. I expect nothing, and am happy to read any help or responses. Thanx, Bill

timjohn
Posts
1,161
Likes
6,807
W Willytfats
steer me in the right direction
Depending on where you are you could try Adrian at Vintage Time Australia or Spencer Klein in the US. Not sure about who there is in Europe or elsewhere

Pip
Posts
87
Likes
106
timjohn timjohn
Depending on where you are you could try Adrian at Vintage Time Australia or Spencer Klein in the US. Not sure about who there is in Europe or elsewhere
There are a few of us dotted around who service them. I know a few in the UK (including me, I've done a dozen or more of them but don't have that much time), but let us know where you are and I can definitely recommend someone I'm sure. I'd probably not use SK these days as he has a very long waiting list.

Archer
Posts
28,168
Likes
72,137
Pip Pip
There are a few of us dotted around who service them. I know a few in the UK (including me, I've done a dozen or more of them but don't have that much time), but let us know where you are and I can definitely recommend someone I'm sure. I'd probably not use SK these days as he has a very long waiting list.

I think pretty much any watchmaker has a long waiting list these days - if they don't, then beware!

W Willytfats
Hi All, newbie here. Found this thread a couple years ago while researching an older Seiko Chrono, noticed, "I have one of these!", so started reading.... FASCINATING. Bought mine new, wore it a few years in the wrong profession, so I "put it up", and, frankly, forgot about it. Happened upon it while moving, and spent some "time" with it...after this thread, I gave up on any future research, but interest has resurfaced.....now wondering, which, if any, of you gents (or ladies) might like to take a crack at mine, or maybe steer me in the right direction? Thanx to all, in advance, for reading and pondering. I expect nothing, and am happy to read any help or responses. Thanx, Bill

You could try Ashton as well - he's done a lot of these...

Vintage Swiss Watch Servicing, Repair, & Restoration | Precision Horology | Canada

Pip
Posts
87
Likes
106
Archer Archer
I think pretty much any watchmaker has a long waiting list these days - if they don't, then beware!
Good point. Though I think SK is into 2 years plus wait last I heard. And yep, Ashton is good.
There's a forum called seiko7A38.com run by a chap called Paul who is maybe the most knowledgeable chap there is on the 7a38 (same as 7a28 but with addition of day/date). I think on there he has a regional recommendation for people to work on these, might be worth a look.

Edit: Not sure if you have to be a member to see it but here's a link (hope links to other forums are allowed, if not then apologies and mods please nuke it). https://seiko7a38.com/forum/viewtopic.php?f=17&t=67
