Omega 563 movement questions / help

R

Posts

15

Likes

3

redmanf1

·Jun 9, 2021

I have two omega 563 movements, one 1967 which is a quick date push-pull.

The other 563 is a 1970 and is not a quick date change.

I thought the earlier was a back & forward quick change than the push-pull date change. So did they do away with the quick change date sometime between 1967 and 1970?

Both are in excellent condition, which would be the better movement to keep??

Thank you in advance for any help



Posts

17,984

Likes

37,577

JimInOz

·Jun 9, 2021·Melbourne Australia

I suspect that you have a 563 with a broken date setting dongle (part 1568 - Correcting Yoke).



R

Posts

15

Likes

3

redmanf1

·Jun 9, 2021

Thank you for the reply.
If that part is broke would you still be able to change the date?

Thanks again



Posts

2,567

Likes

3,745

Pvt-Public

·Jun 9, 2021

Just keep rotating the hands until you get to the date you want, depending on how many days you need to advance it might take a while.



R

Posts

15

Likes

3

redmanf1

·Jun 9, 2021

One movement is that way but the other is a push-pull date change.



Posts

17,984

Likes

37,577

JimInOz

·Jun 9, 2021·Melbourne Australia

If a watch doesn't perform IAW manufacturer specifications, it would be risky to keep operating it.
Take the suspect movement to a reputable watchmaker to see if there is a problem or a missing part.



R

Posts

15

Likes

3

redmanf1

·Jun 9, 2021

So All 563 movements are push-pull quick date change???

Thanks



Posts

2,567

Likes

3,745

Pvt-Public

·Jun 9, 2021

I think so,



Posts

17,984

Likes

37,577

JimInOz

·Jun 9, 2021·Melbourne Australia

R redmanf1

So All 563 movements are push-pull quick date change???

Thanks

Yes.

Your watch has a problem. Just take it to a watchmaker.

It's not unusual, see this post referring to a caliber 565 (same base caliber as a 563).



Posts

9,596

Likes

27,708

ConElPueblo

·Jun 9, 2021

R redmanf1

So All 563 movements are push-pull quick date change???

Thanks

The kaliber 565 could be said to be the base caliber for the 564 (same jewel count, chronometer-rated) and the 563 (lower jewel count for the US market). The same goes with cals 552, 562, 752. Subtract 1 from the caliber number to find the chronometer version and a further 1 to find the US version.



Posts

609

Likes

787

Franco

·Jun 9, 2021

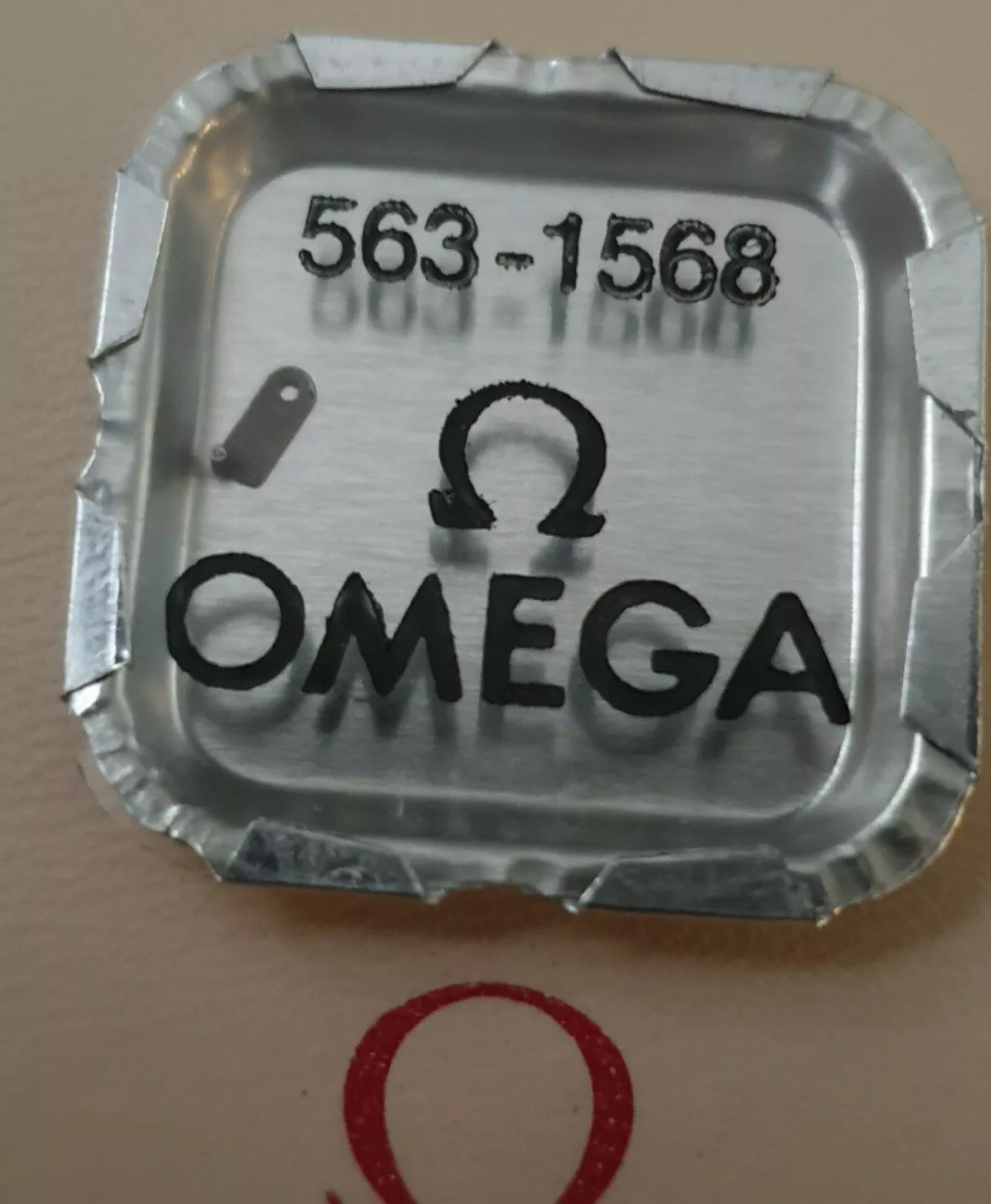

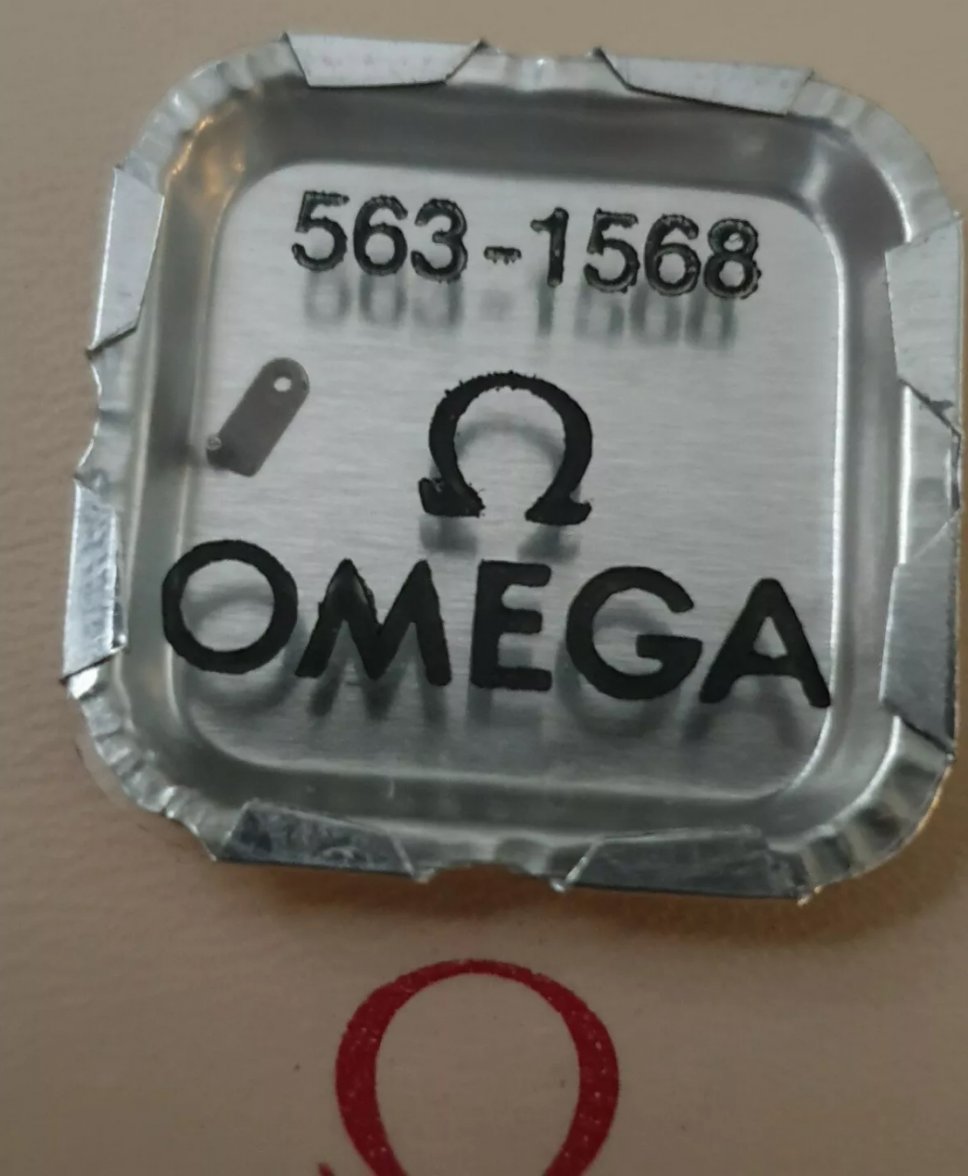

You need a watchmaker and this:



Posts

2,219

Likes

4,952

ChrisN

·Jun 9, 2021

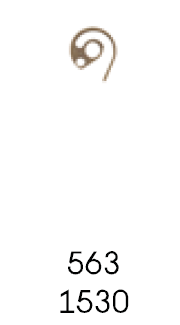

The part that is most likely to have failed (as it is designed to do when the load becomes too high) is this one:

You won't see it in that other thread because it has the steel design that we usually replace with the one above. This is the best advice:

JimInOz

Yes.

Your watch has a problem. Just take it to a watchmaker.

Good luck, Chris



R

Posts

15

Likes

3

redmanf1

·Jun 12, 2021

Ok, I checked again and pulled a little more and it works as it should. I was just cautious about pulling to much and damaging the stem.
Thanks again for the help.



Posts

6,322

Likes

9,766

Peemacgee

·Jun 12, 2021·Purrrr-veyor of luxury cat box loungers

R redmanf1

Ok, I checked again and pulled a little more and it works as it should. I was just cautious about pulling to much and damaging the stem.
Thanks again for the help.

You get a like from me and a laugh out loud.
This is not at all uncommon with anybody new to a quickset date.
