Watchmakers, what is this (broken) part called? Omega cal 565

  1. WestCoastTime May 26, 2021

    Posts
    283
    Likes
    1,038

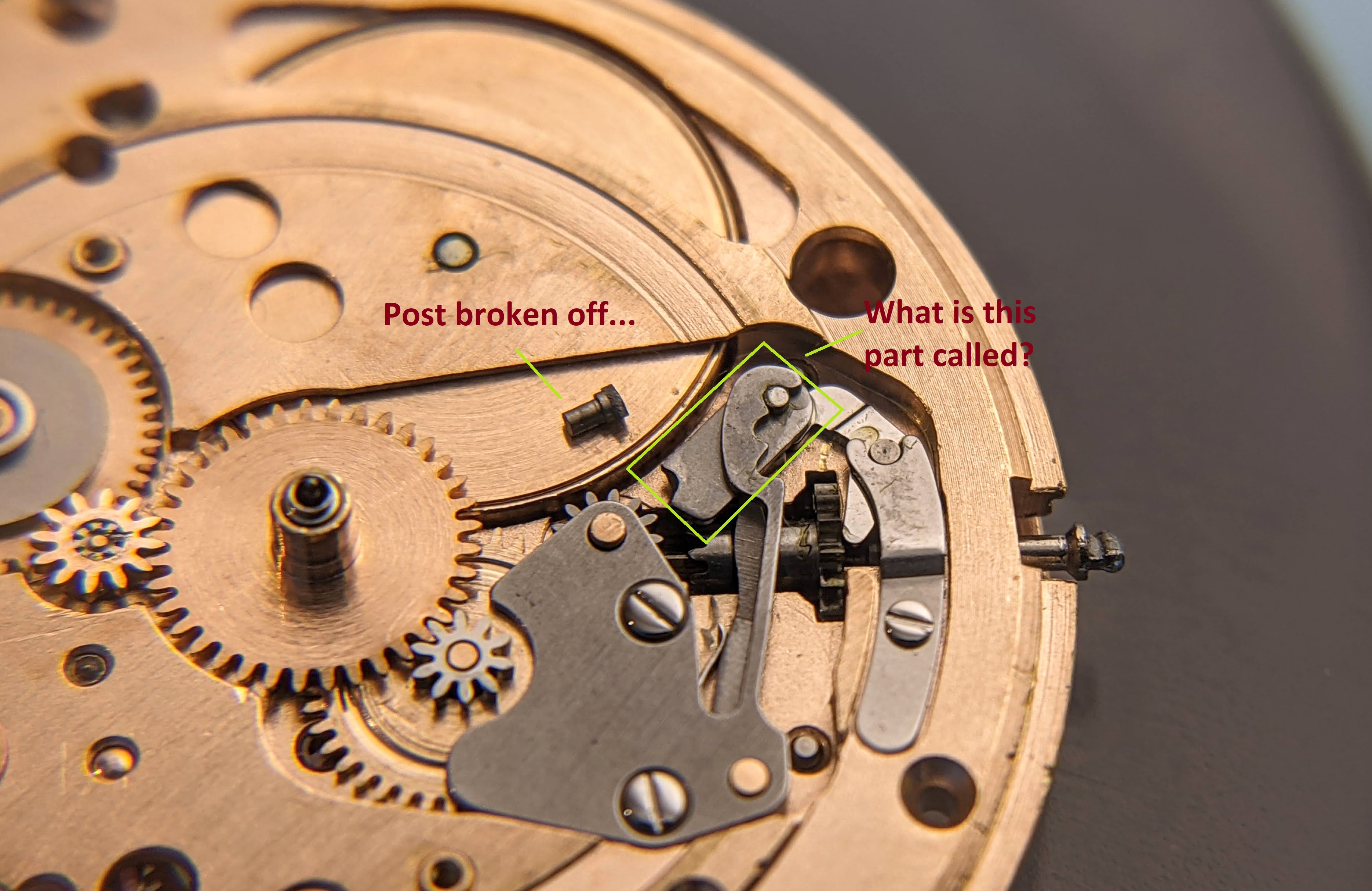

    Related (I assume) to the Date quickset.

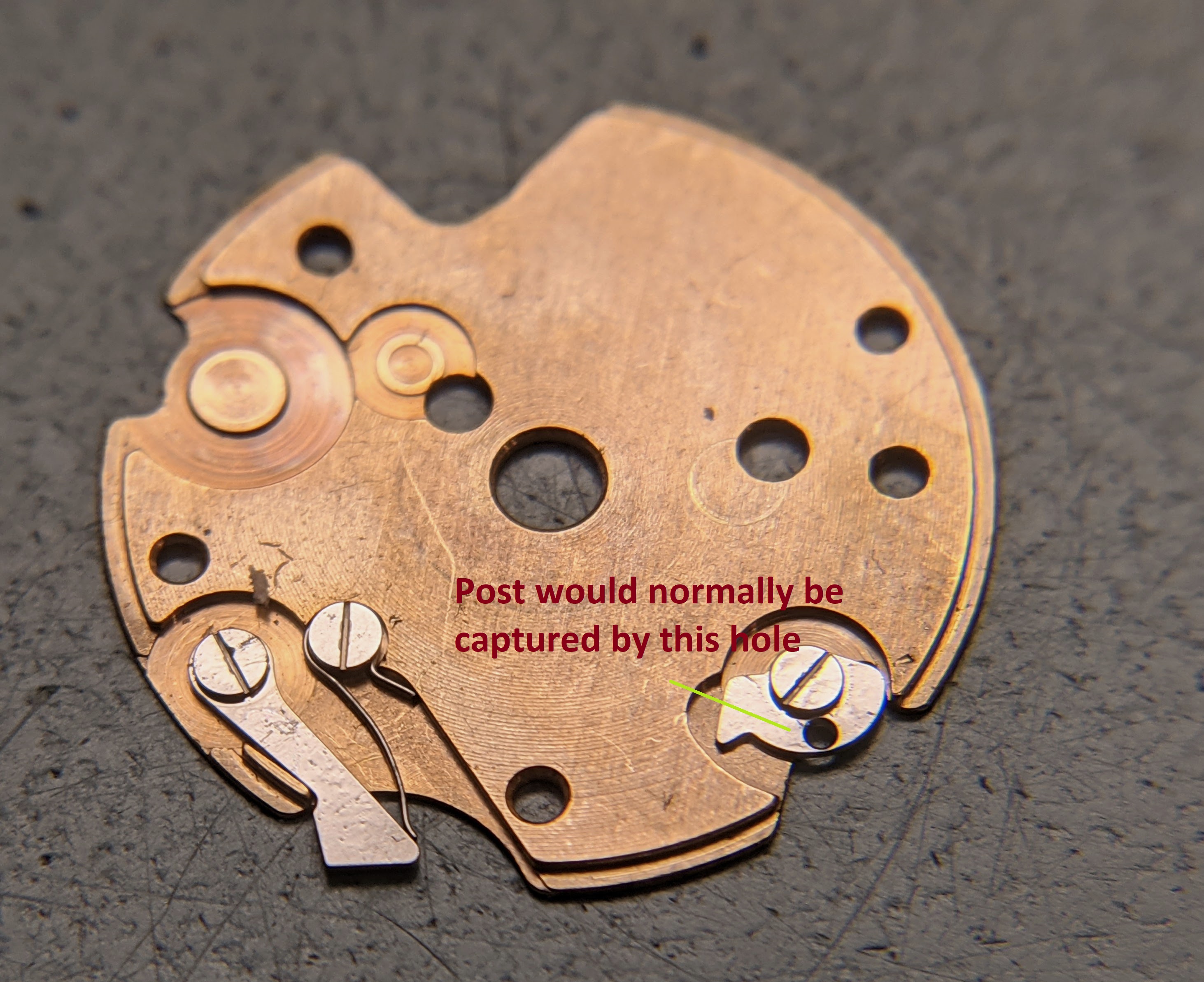

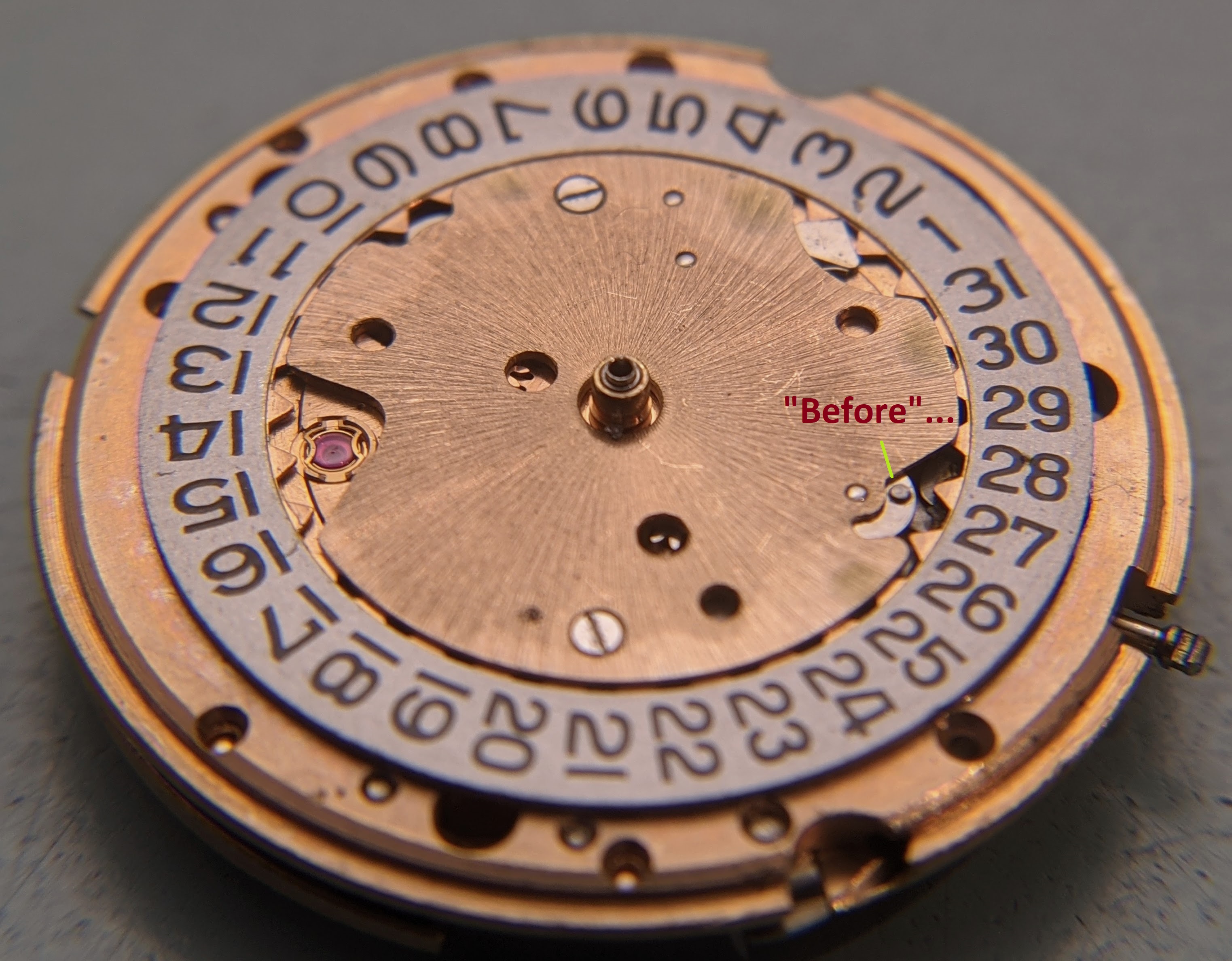

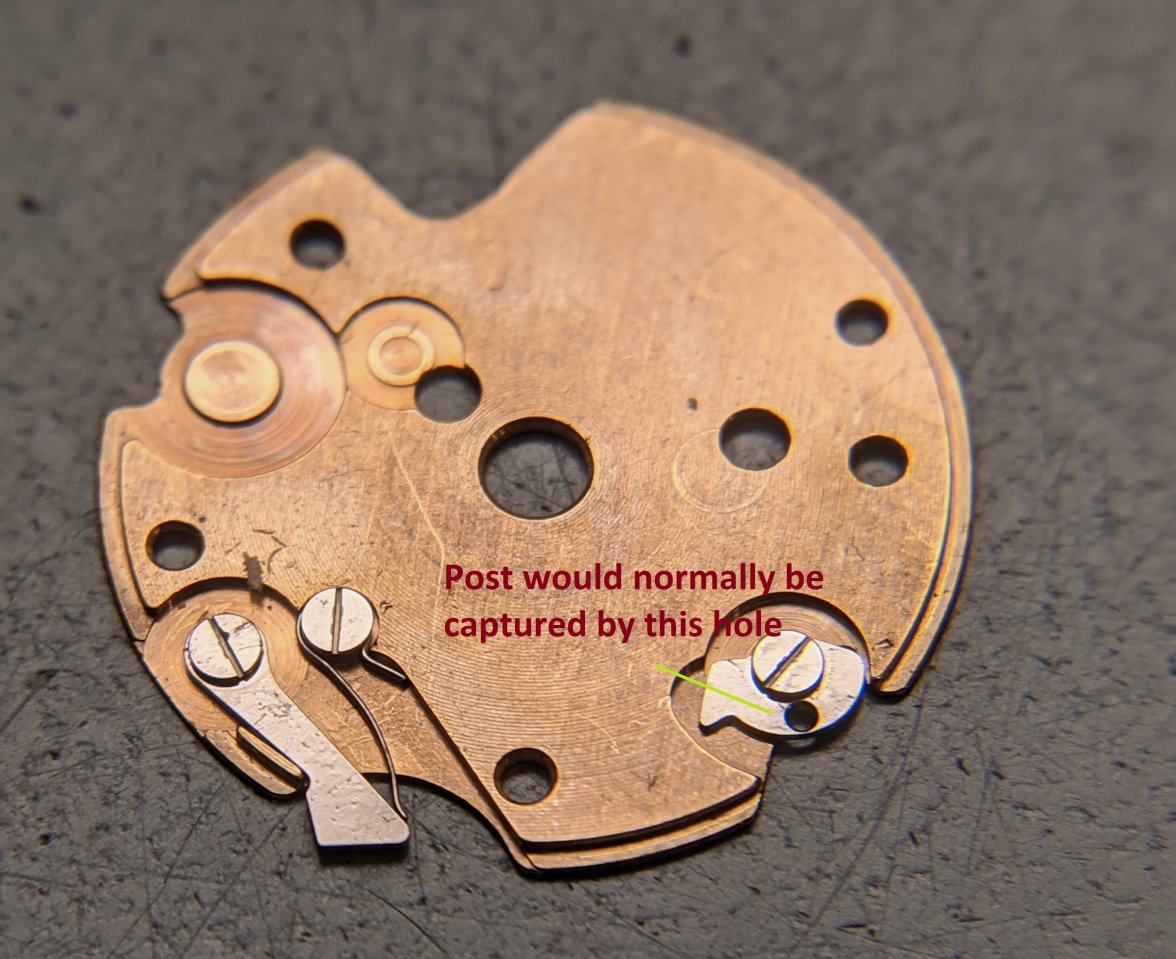

    If it were not broken the post would be captured by what I think is the quick-set date actuator on the underside of the calendar works cap

    Likely that I reassembled it incorrectly & snapped the post when pulling out the crown (maybe)

  2. JimInOz Melbourne Australia May 26, 2021

    Posts
    15,398
    Likes
    32,153

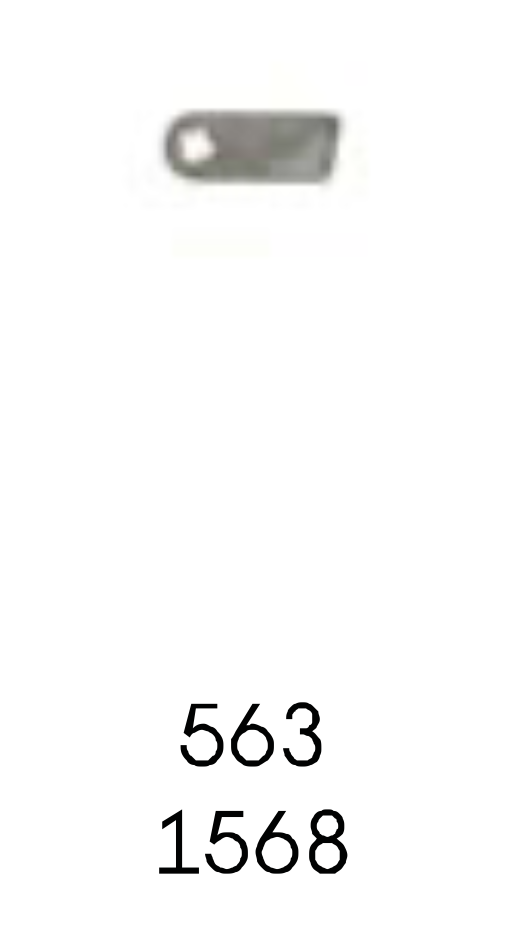

    I think this is it, but wait for confirmation.

    Screen Shot 2021-05-27 at 14.33.56.png

    Screen Shot 2021-05-27 at 14.34.21.png

    ChrisN, STANDY, Archer and 1 other person like this.
  3. WestCoastTime May 26, 2021

    Posts
    283
    Likes
    1,038

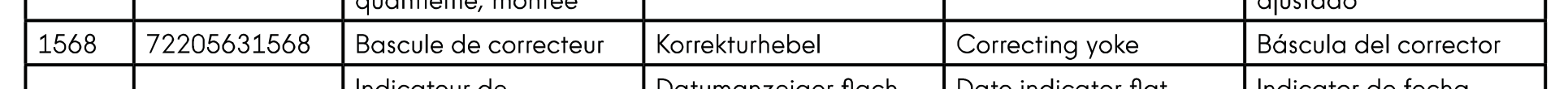

    Thanks, I think you're right, & complete with part number
    (leave it to the Australians to provide an answer in the middle of the night... ;-)

    STANDY and JimInOz like this.
  4. Archer Omega Qualified Watchmaker May 27, 2021

    Posts
    26,337
    Likes
    65,027
    WestCoastTime and JimInOz like this.
  5. JimInOz Melbourne Australia May 27, 2021

    Posts
    15,398
    Likes
    32,153
    While the rest of the world sleeps, we solve their problems.

    :D

    WestCoastTime and Larry S like this.
