Hello all members!!😀

Today I would like to share another watch in my collection with a unique case shape, also the uncommon hallmarked inside of the case back.

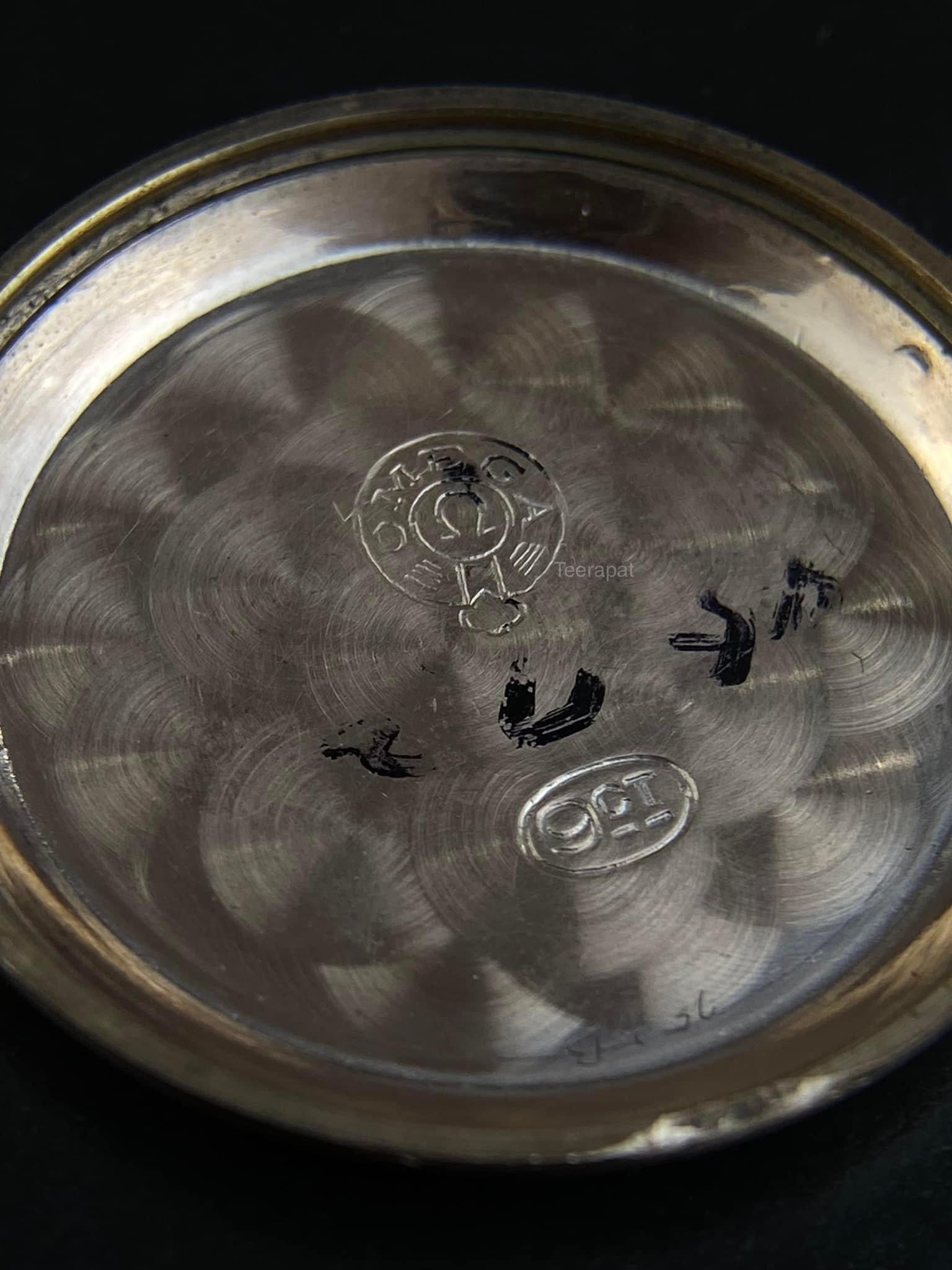

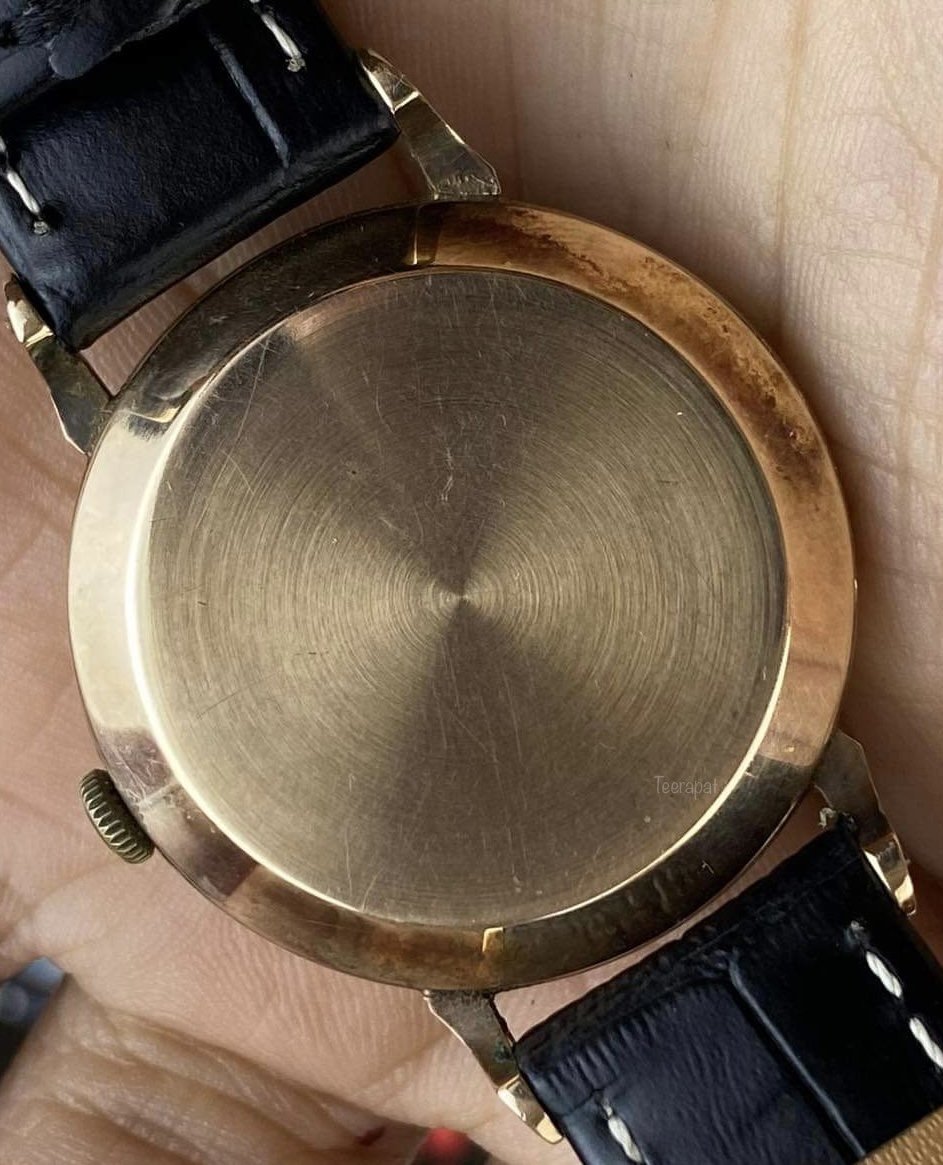

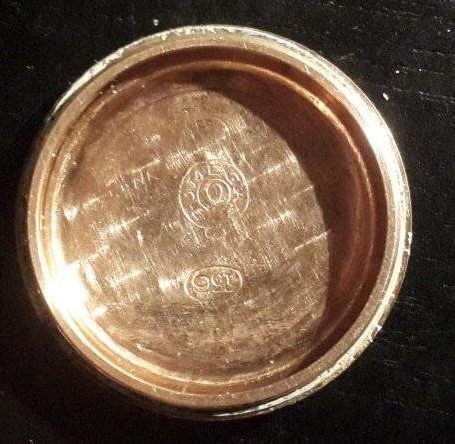

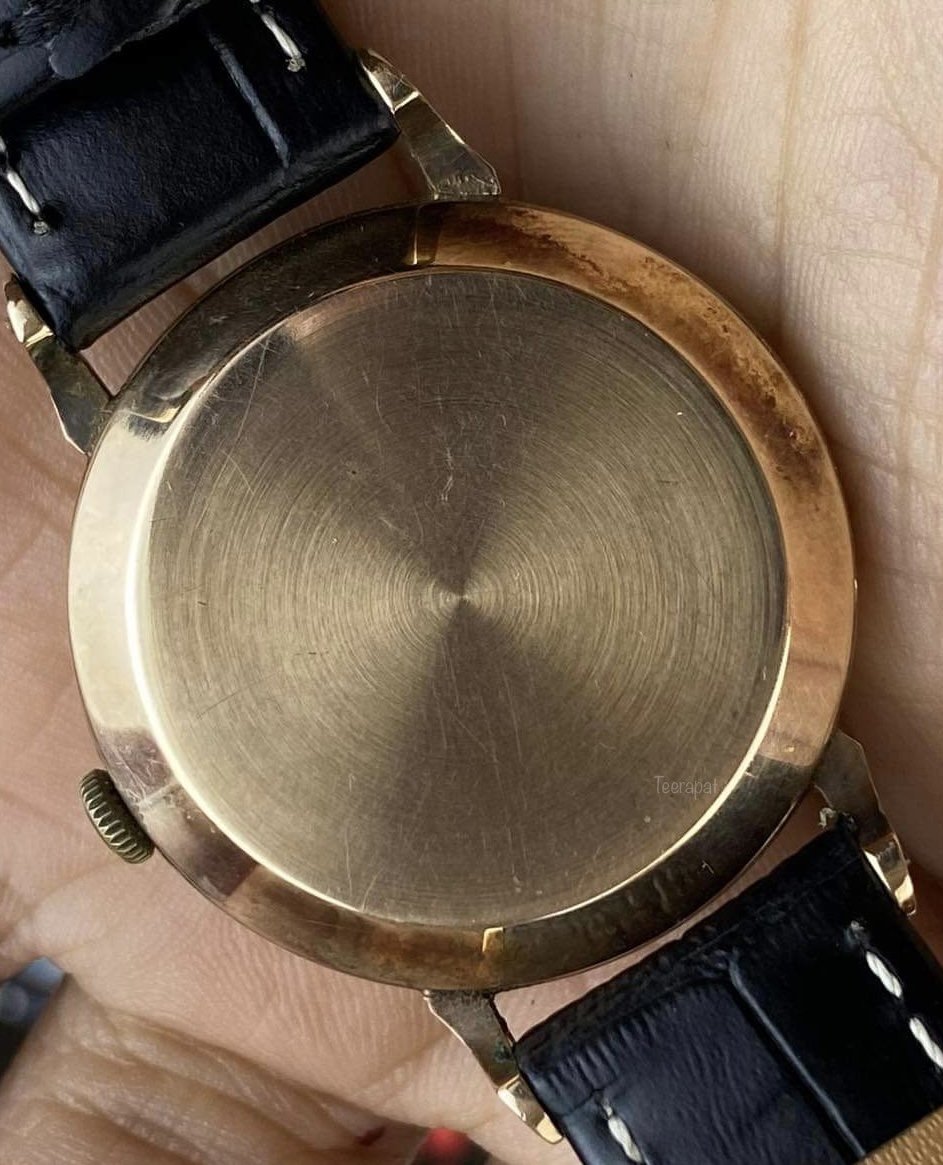

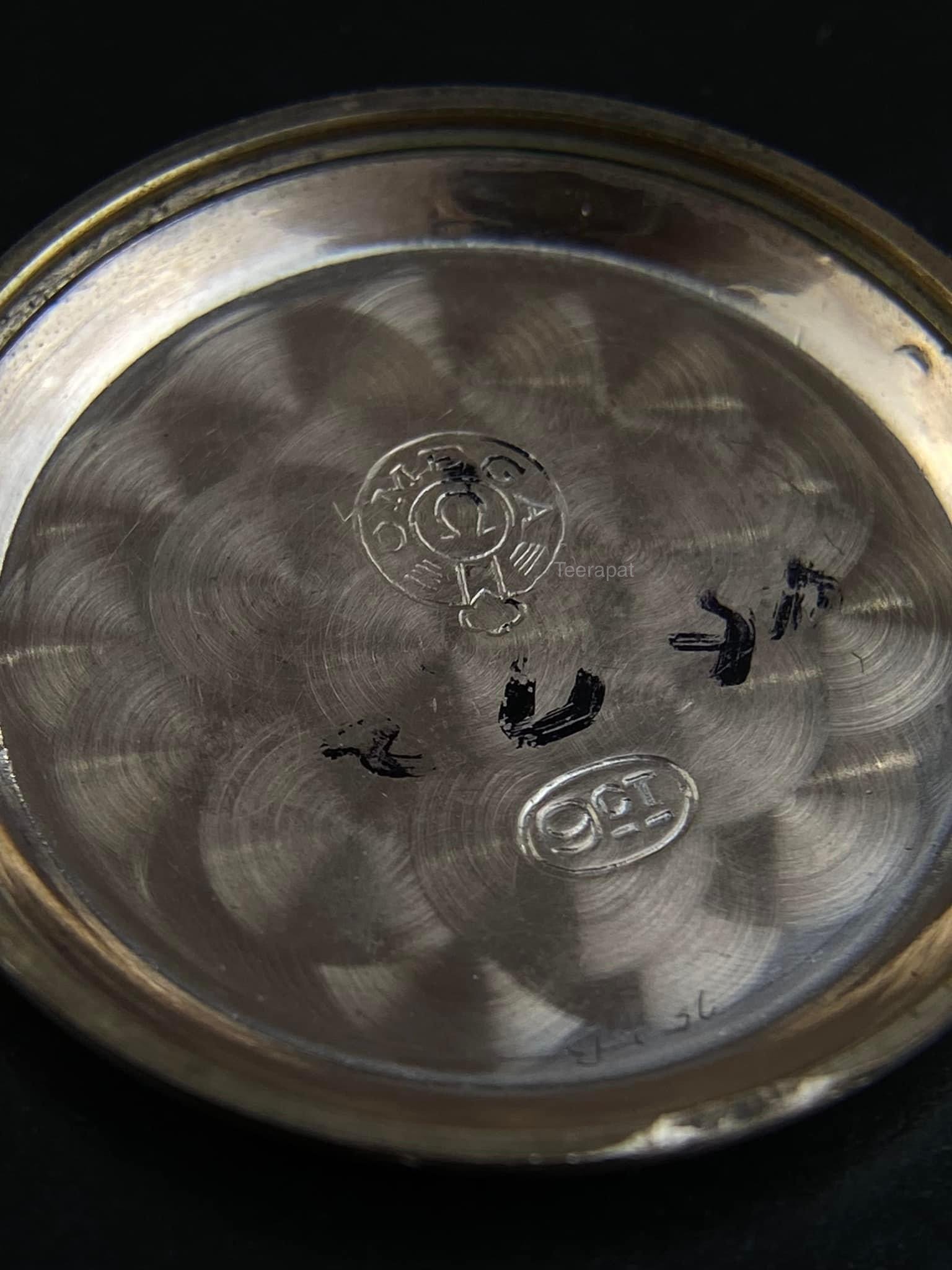

The “outer” case back come without inscription or groove. The “inner” case back was marked with the old omega symbol and 9CT. It was the first omega with that kind of the case back in my collection.

At first glance, I did not know what does this symbol mean.

1941C8F6-AB9D-4CDB-B9AA-27919665BEC0.jpeg 47BAC3A7-9C6C-4E51-B71A-8F30C2716F04.jpeg

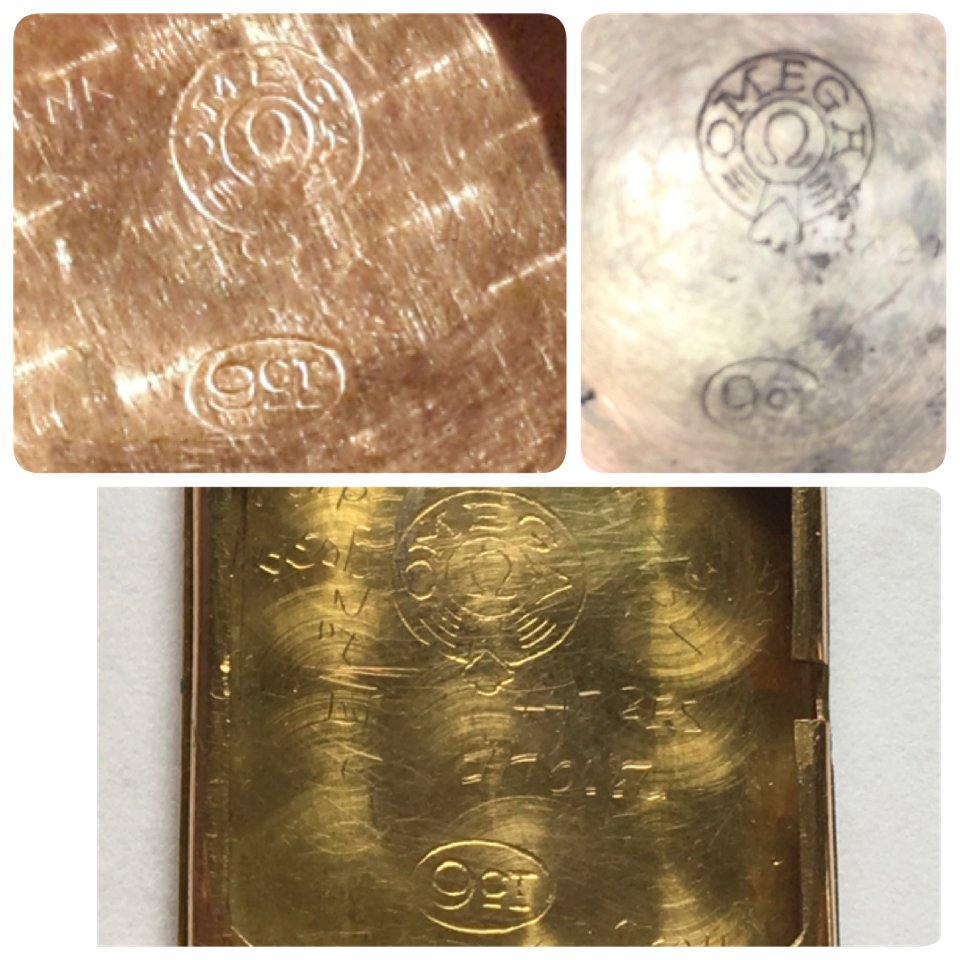

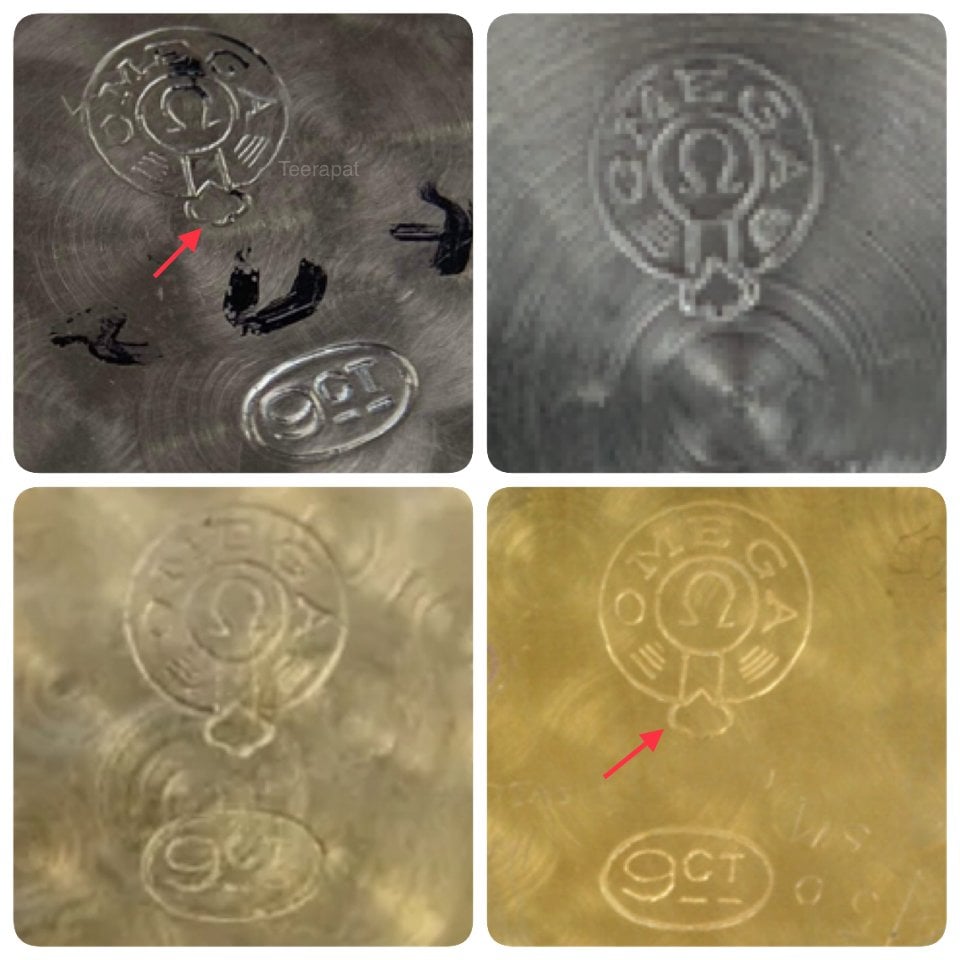

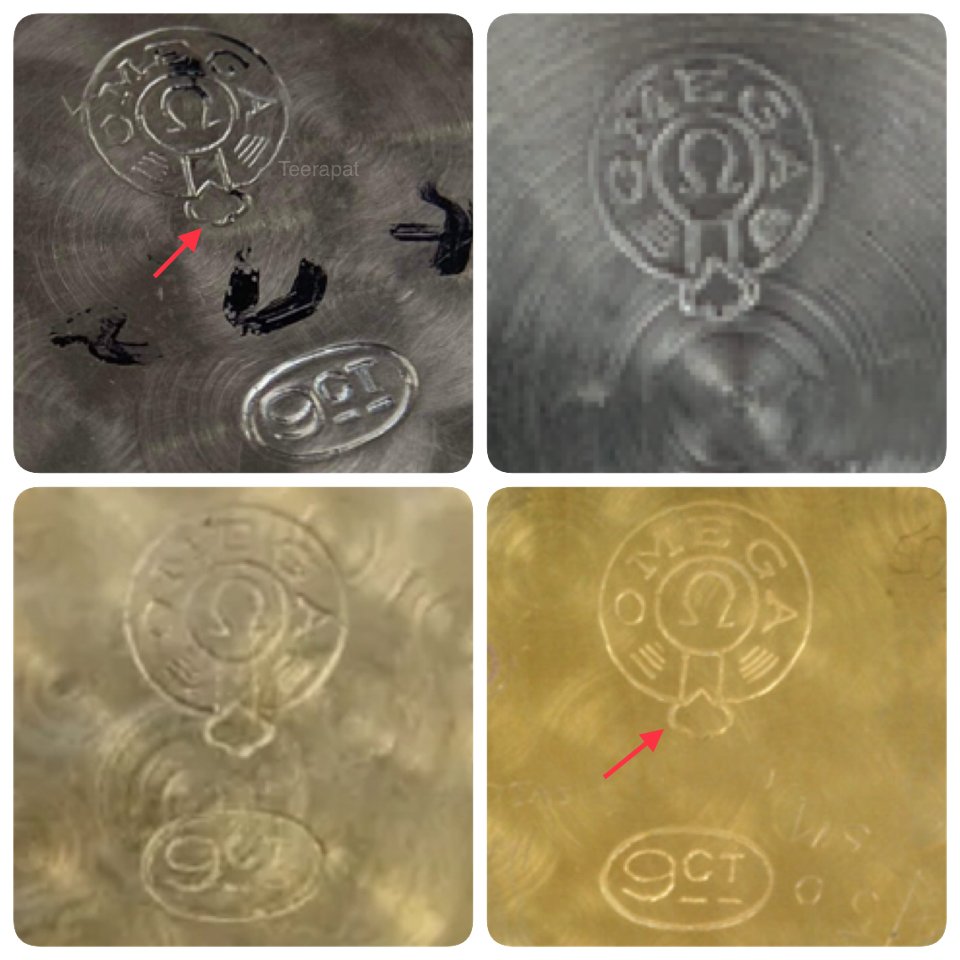

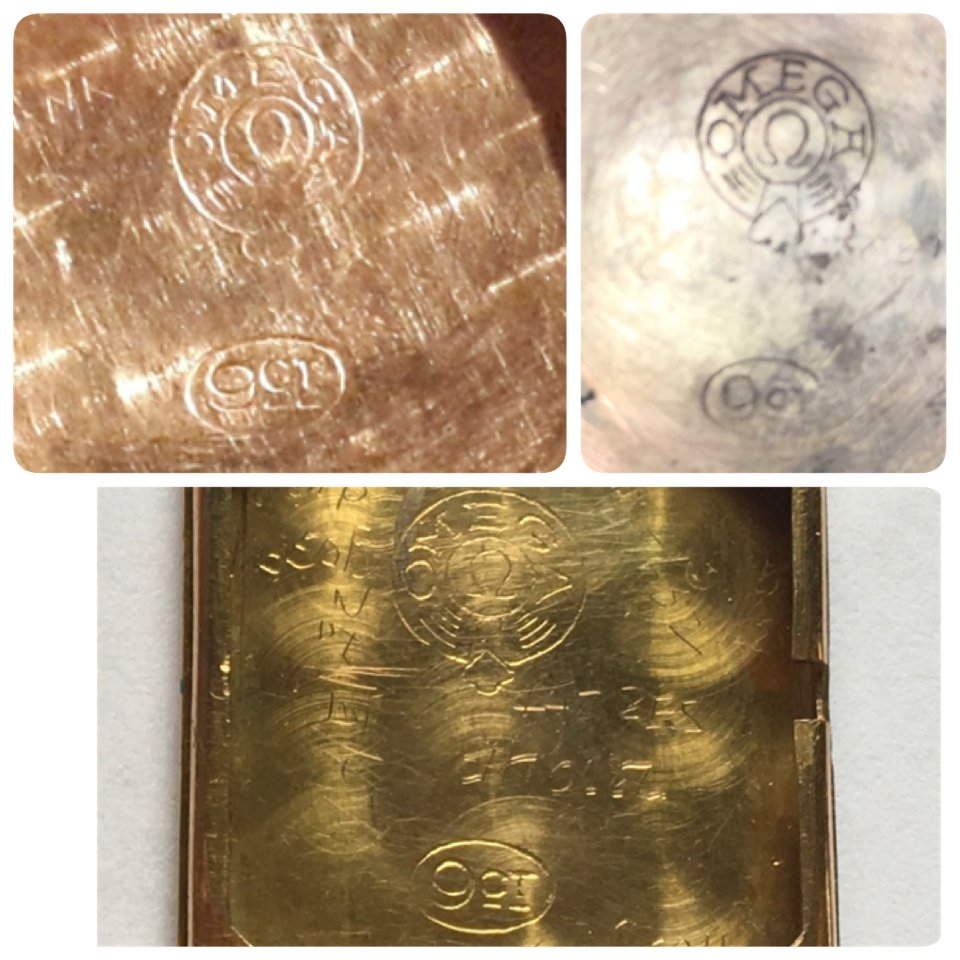

Thanks, many experts that I asked via DM about this watch. Finally, I found that it should be the ”Australian” cases. My research found 7 examples (including mine). Kindly observe that all of them used the same appearance of these symbols (looks like the Spades at the bottom which I pointed by the red arrows), plus “9CT" marked.

30C1737E-F3C6-4EFB-975D-6385FA8A1B31.jpeg 7BDEF5DF-9693-4F30-8B49-CED2F5A99D3A.jpeg

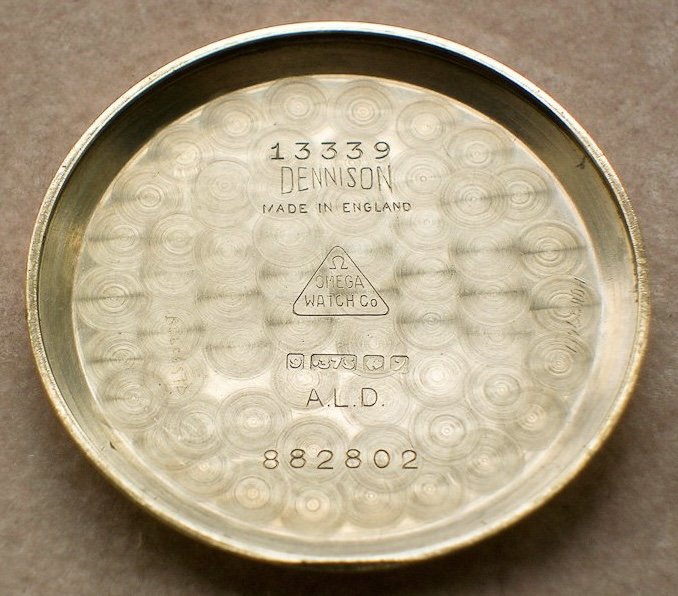

A case marked “9CT” is 37.5% gold, sometimes marked as "9.375". An example posted in this forum’s, a “Denisson” case which is one type of “English” made cases.
Thanks Jim who told me via DM that “In most of the British Commonwealth countries (Great Britain, Australia, Canada, South Africa etc) used 9 carat cases quite often rather than the 14K cases used mainly in the USA.”

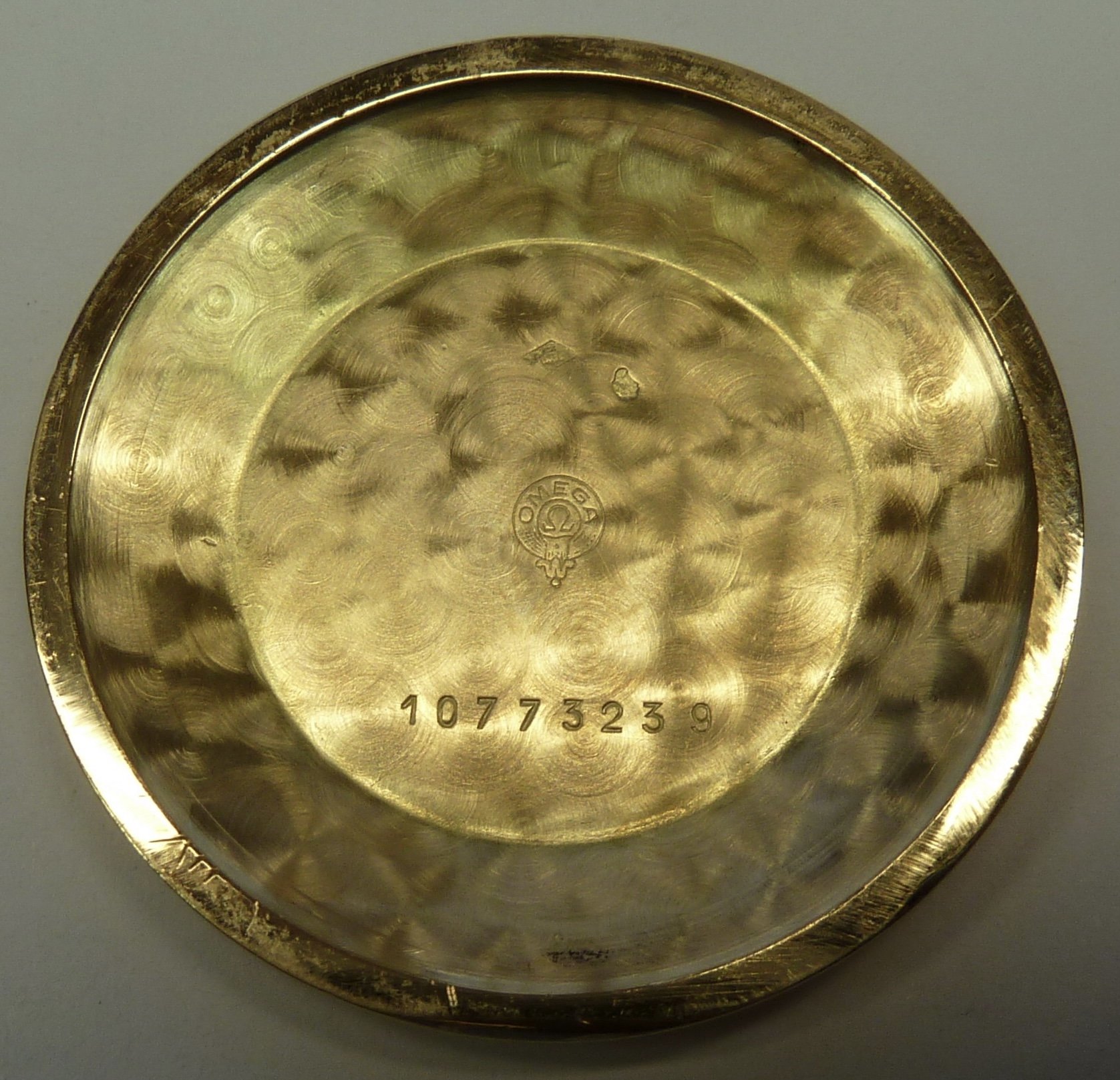

Please note that the bottom of omega symbol (of Australian case) is a little different from the “French” cases.

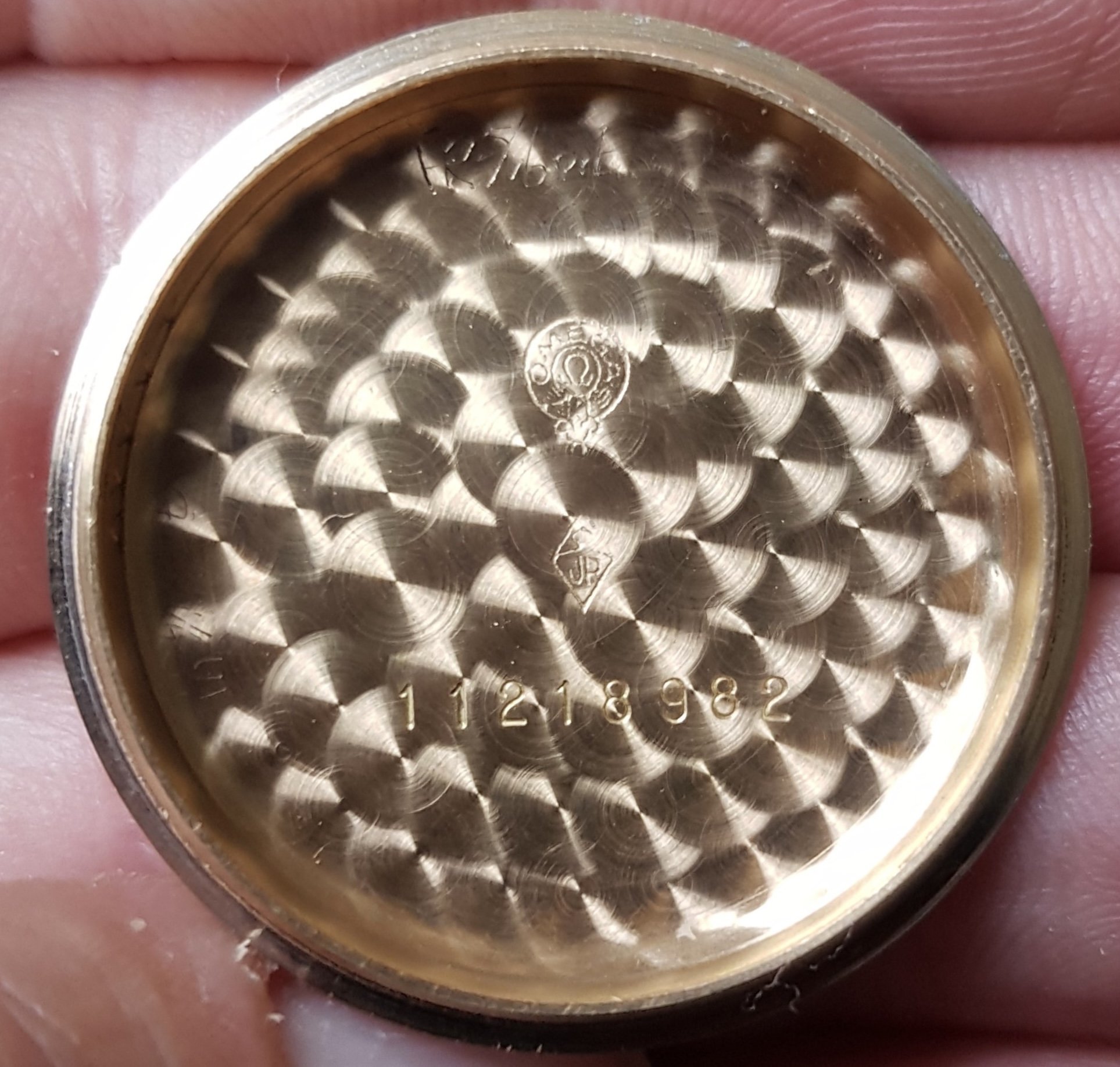

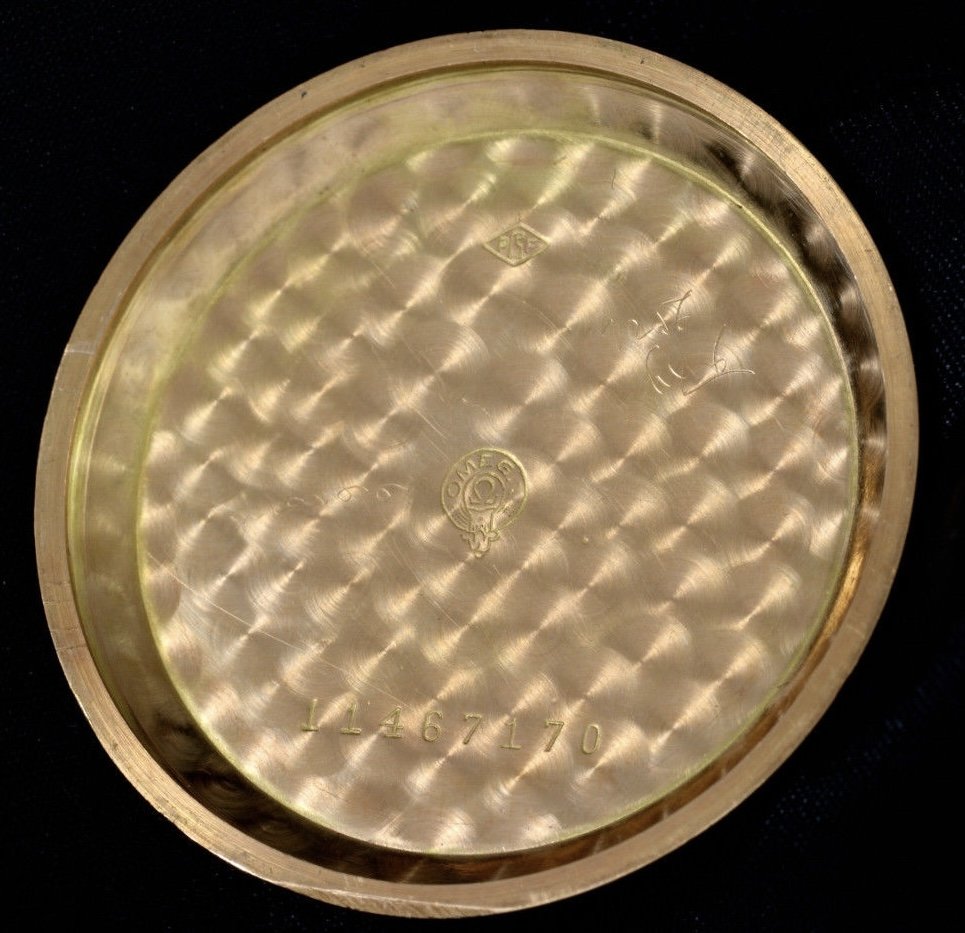

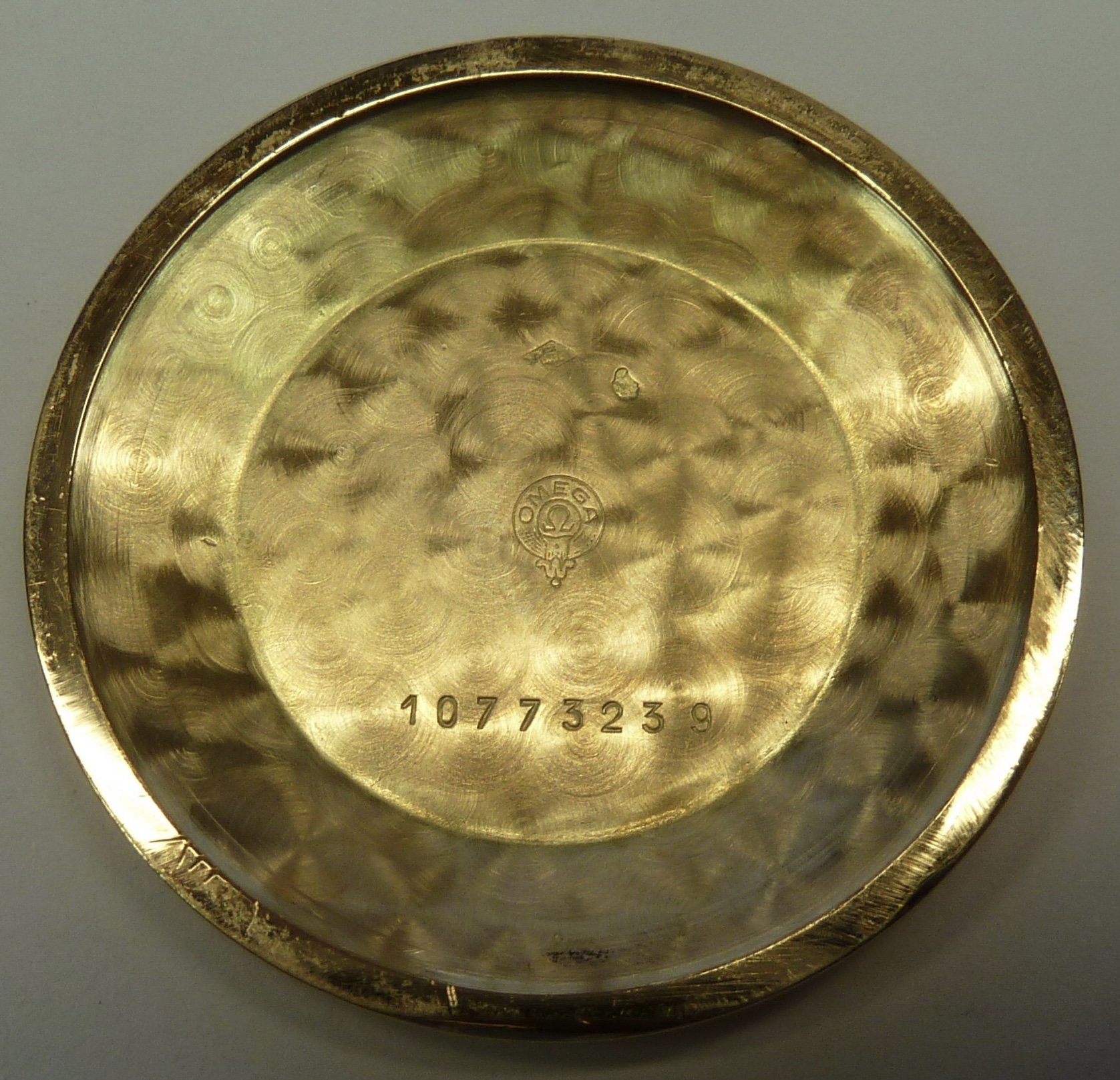

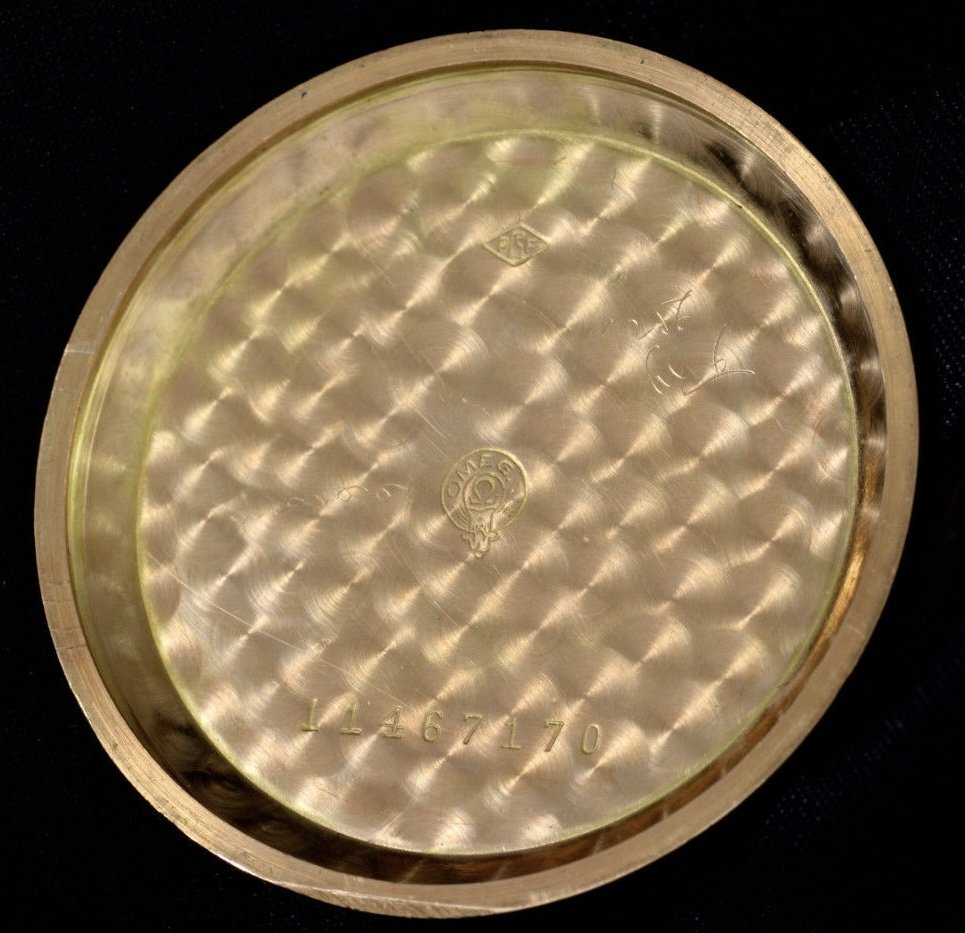

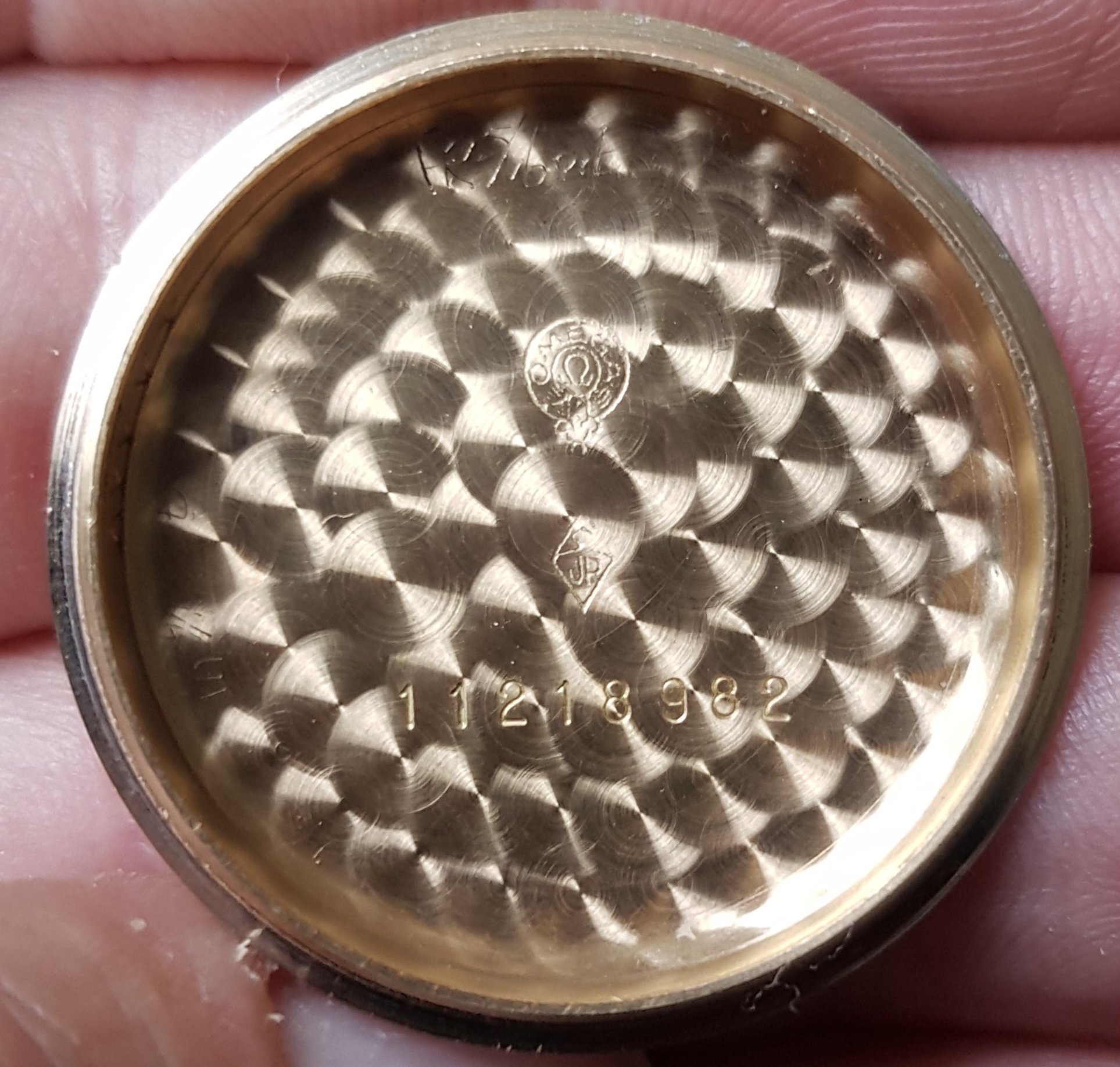

I found three versions used in the French cases (“PGF” marked, “JP” marked, and unmarked)
Thanks @aprax , @cristos71 , @Tom Dick for these pictures.
77677E76-42D4-4CC8-ADEA-CD67D9767669.jpeg ACDB8655-8065-41FD-9DAC-A1D242A6E451.jpeg ED3AF3DC-6ABB-48C5-9348-3A7C4721BA9E.jpeg

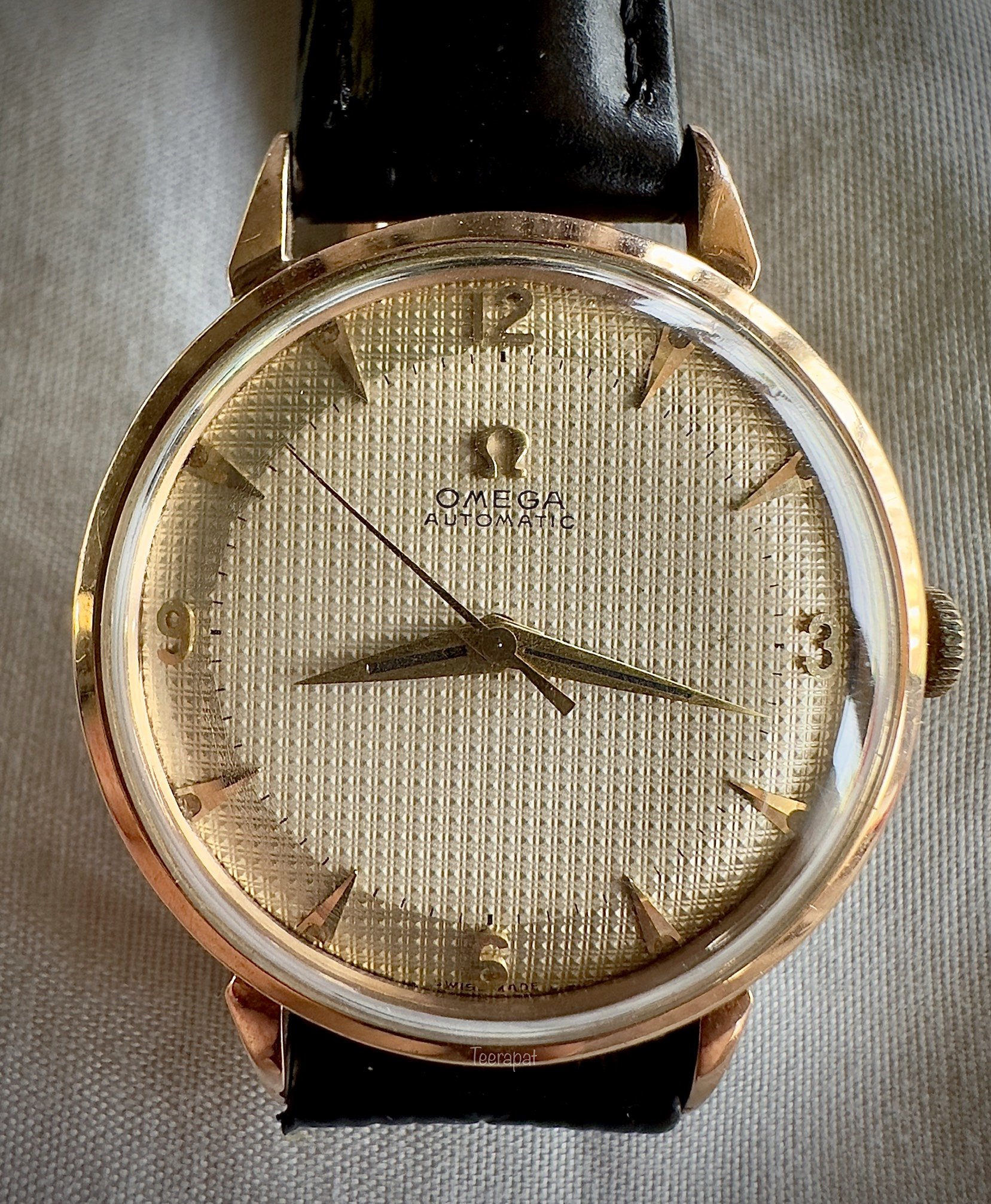

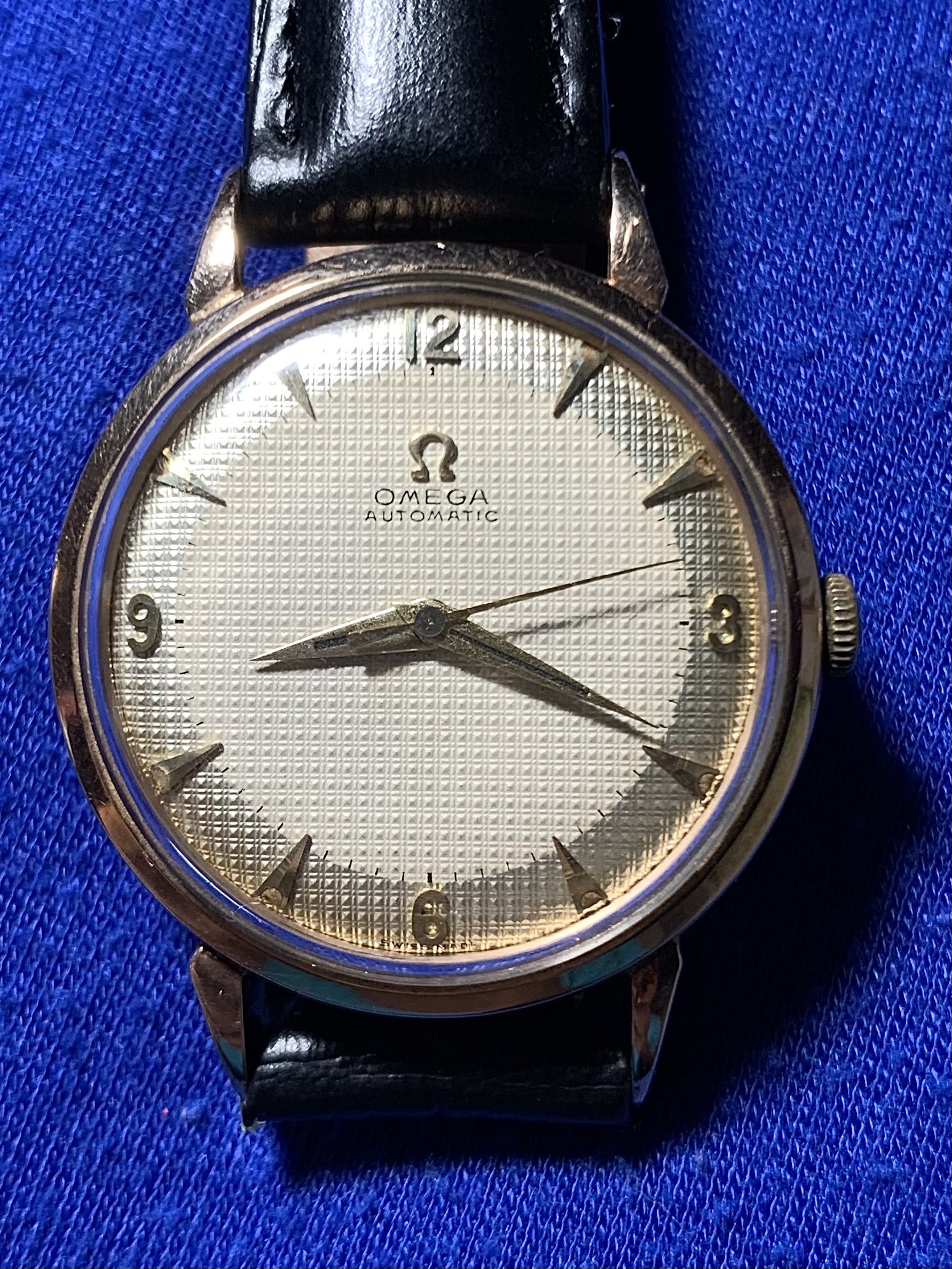

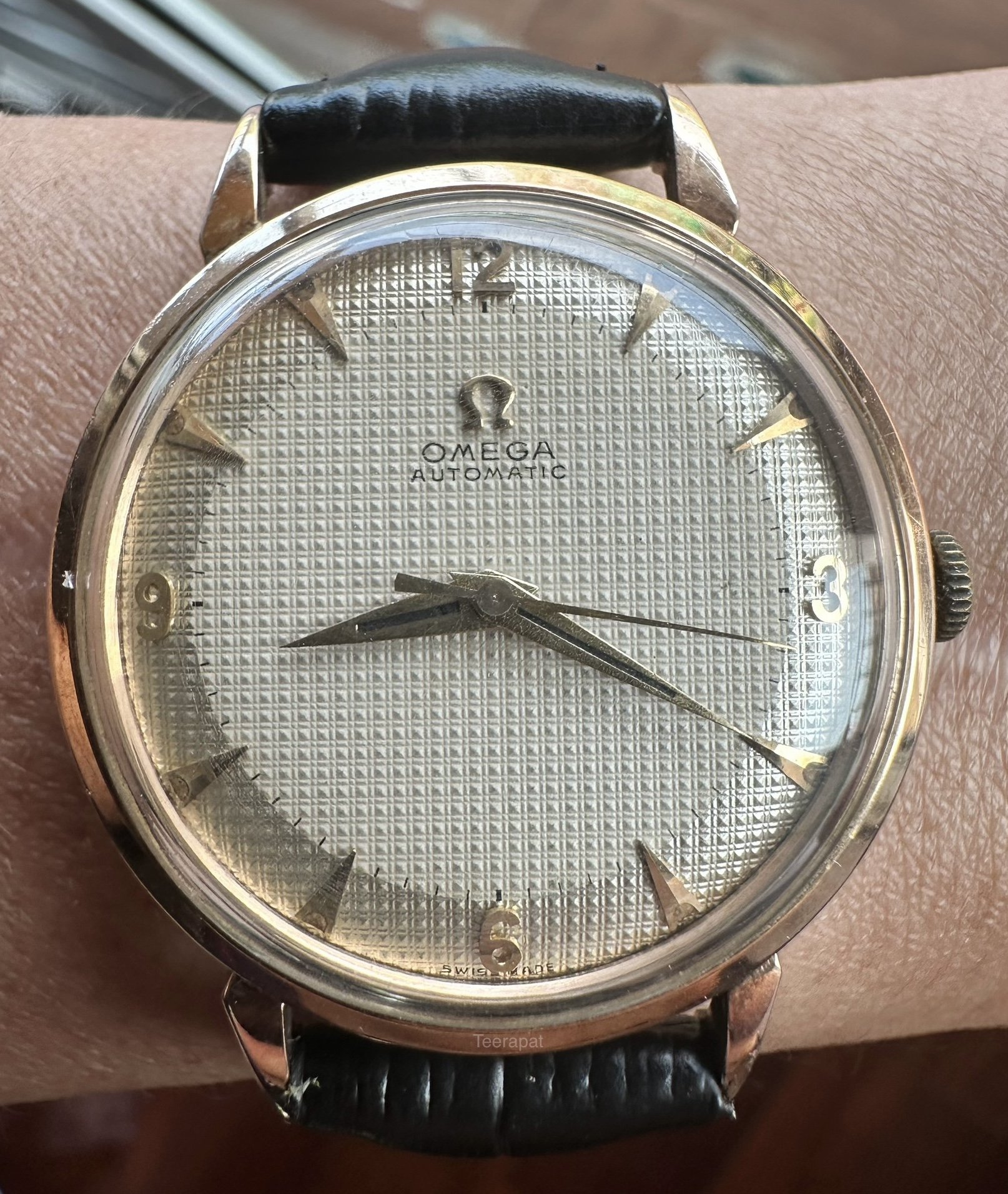

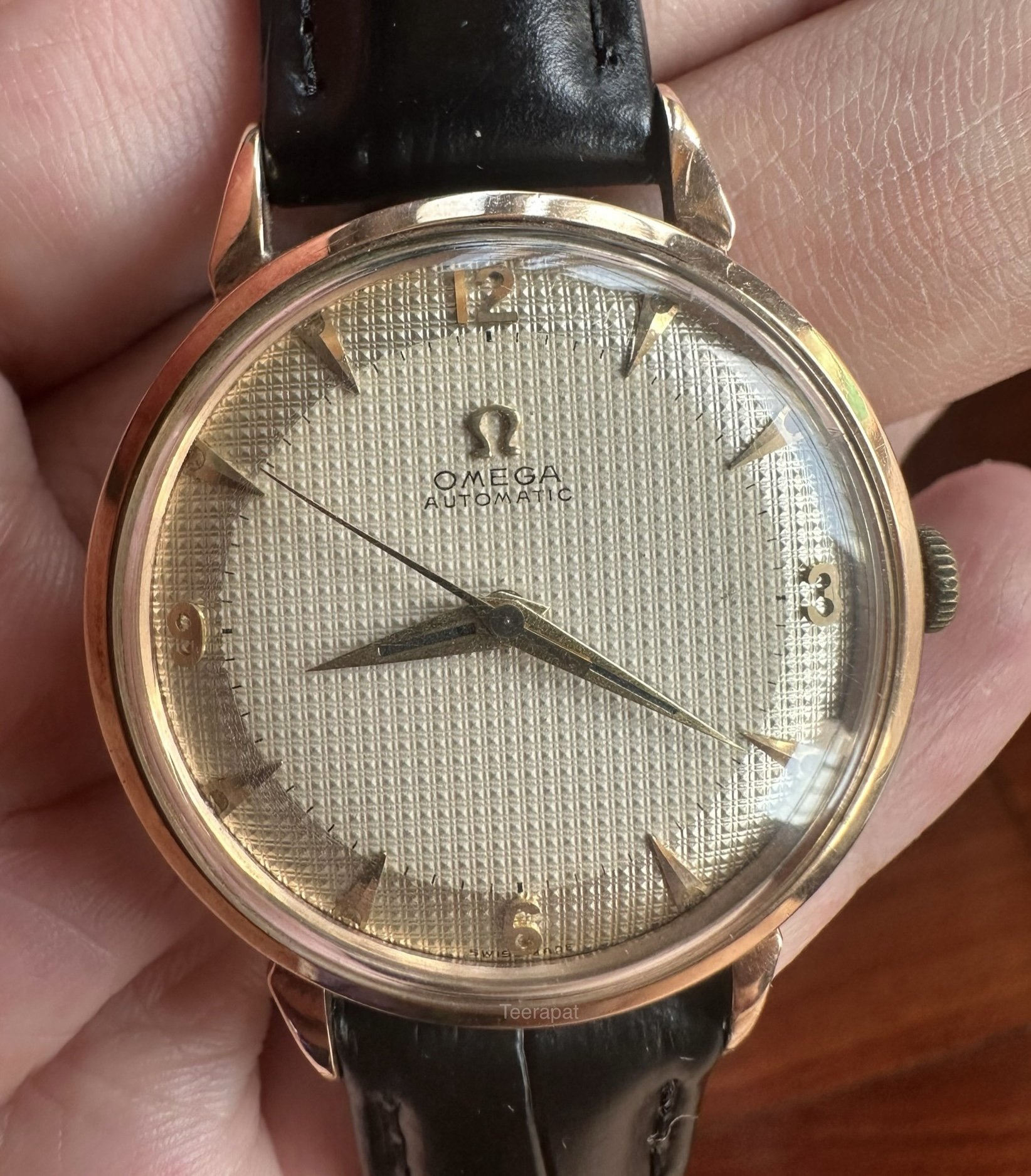

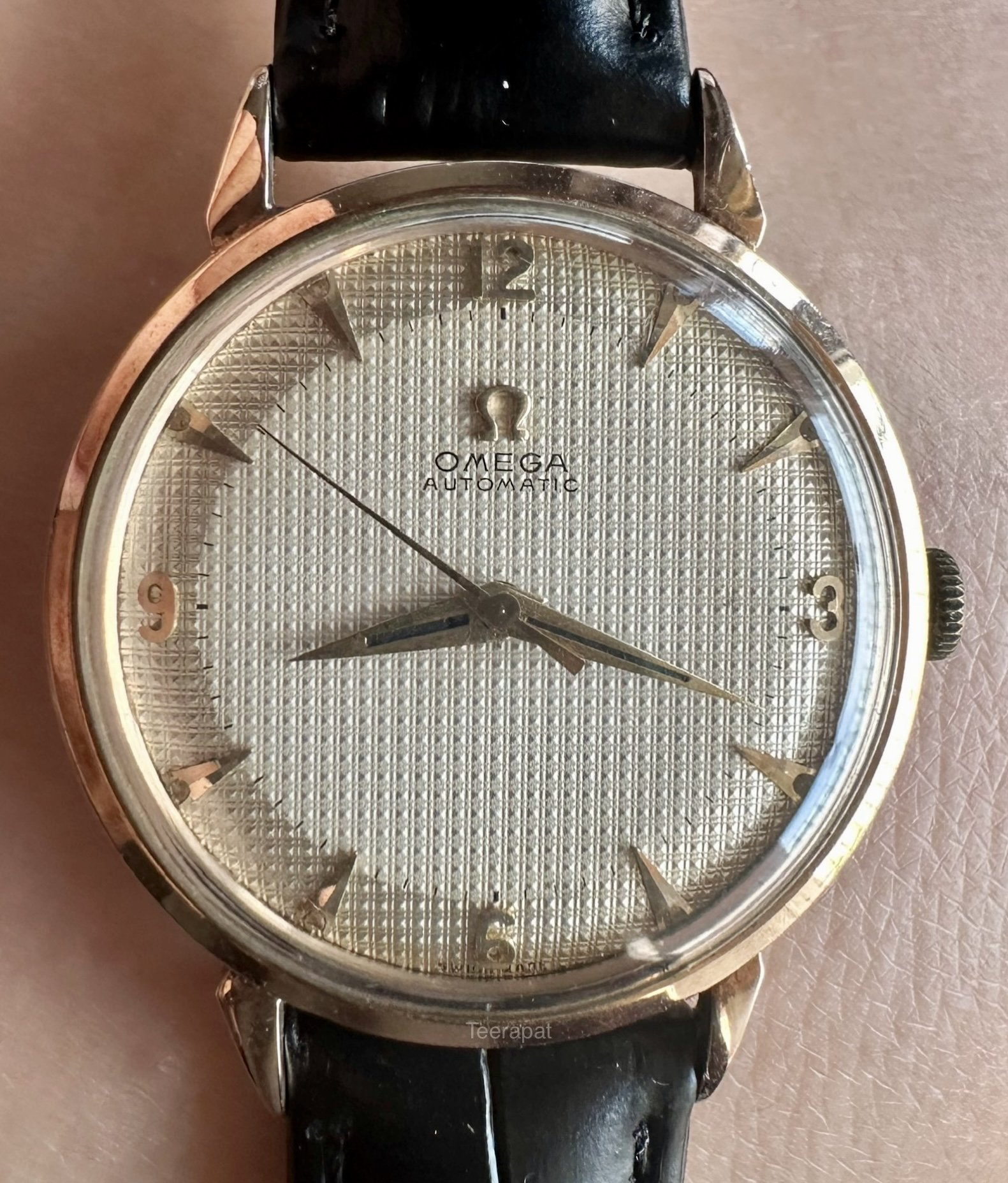

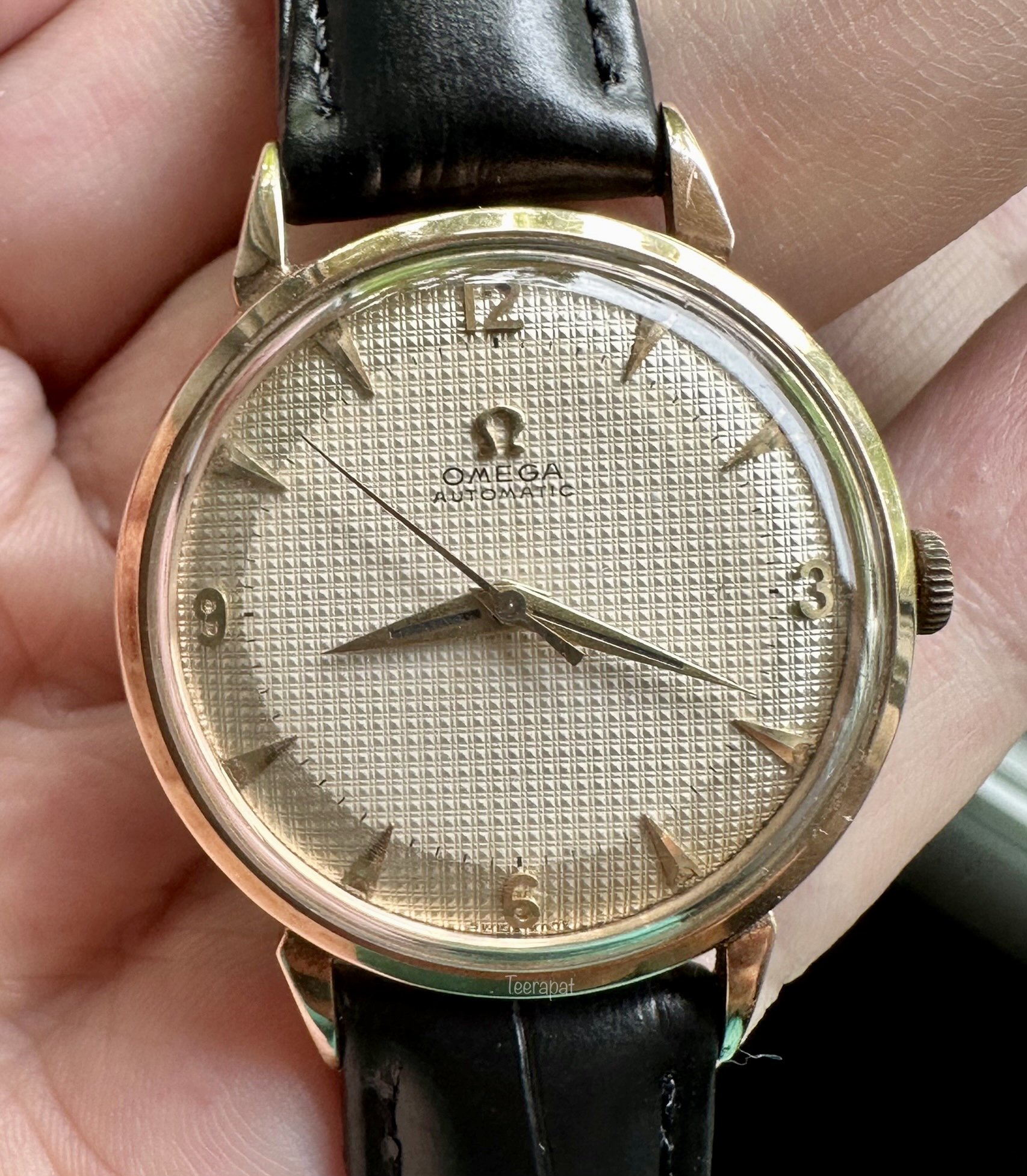

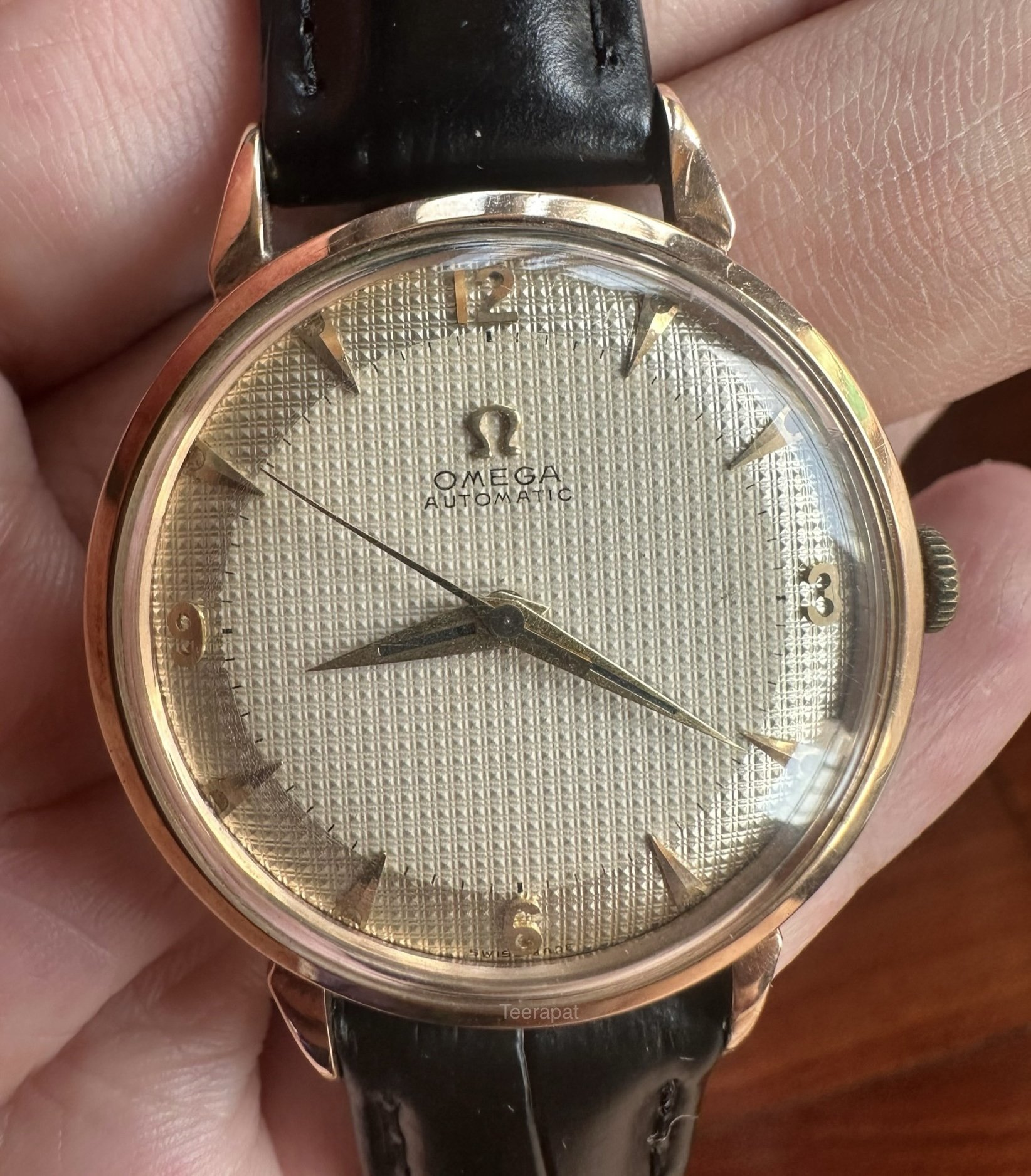

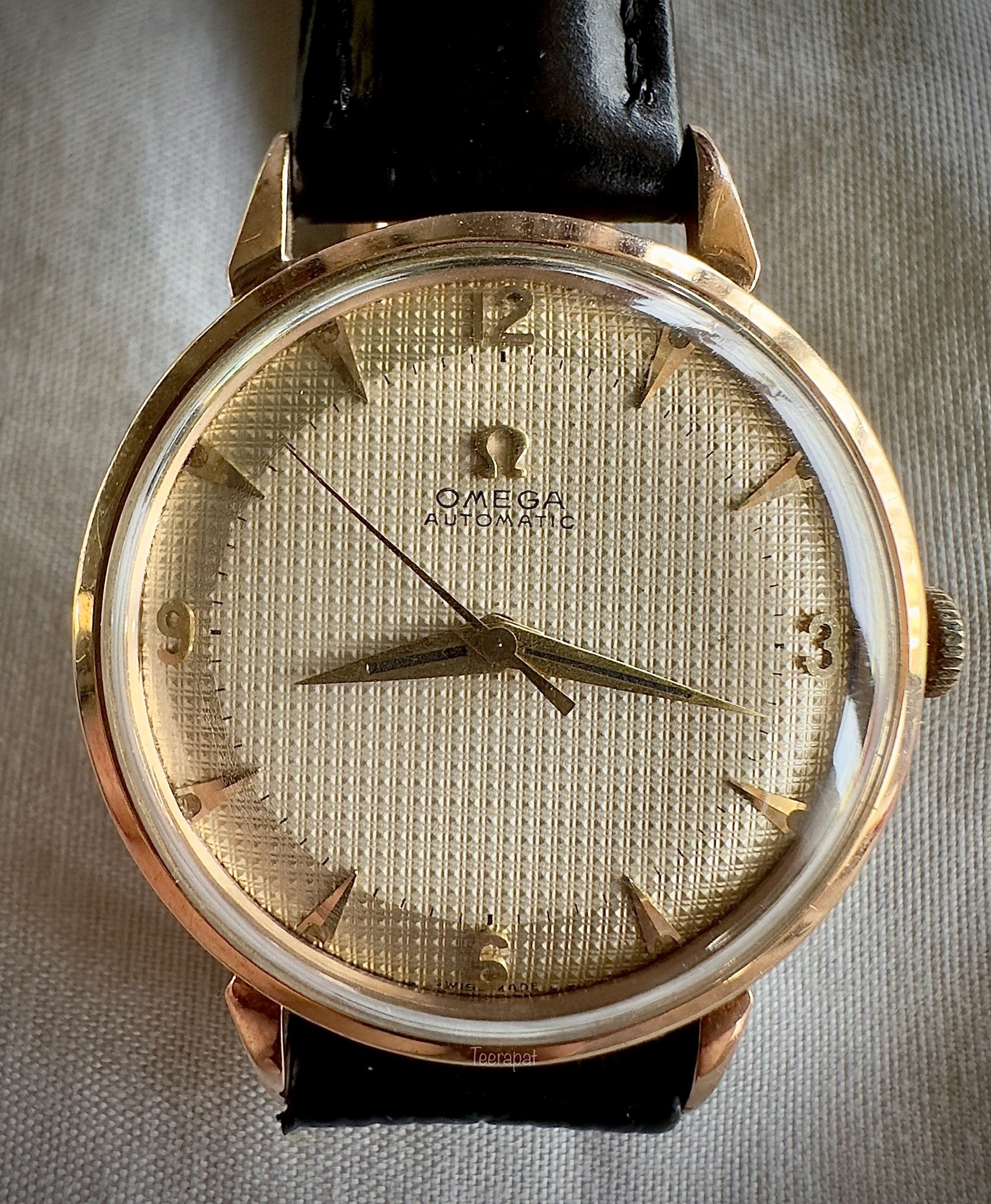

Let’s talk about my watch.

3ADB93FB-49F1-4AB7-8C7A-C7572BF611EC.jpeg 83D3E9C0-5A70-448D-B7A1-1691B7C695E0.jpeg DF8F11BD-651D-4CC3-8118-8D7A6BD457B3.jpeg 6A8CD86F-FC40-4B99-A845-25362E2F3E64.jpeg FA5E2BC1-C618-42DD-8AA6-D5367FF3302B.jpeg 3E9F7279-9868-4BB3-97C3-66598CE08BDE.jpeg C25ED2B2-132B-4A29-B2A1-202132030BB2.jpeg 6C92C2BA-F572-46A1-B094-321E59BFE075.jpeg

In my honest opinion,

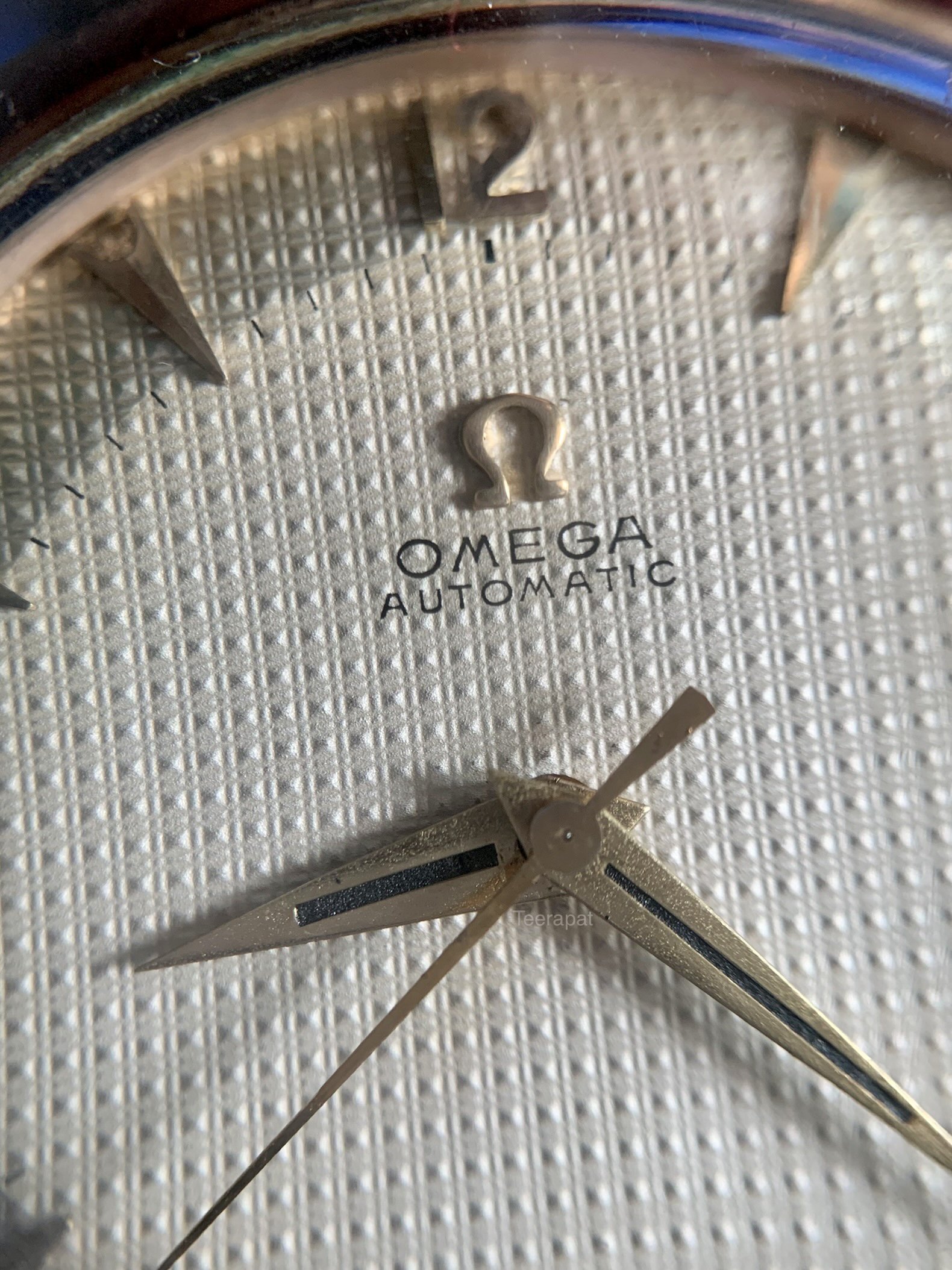

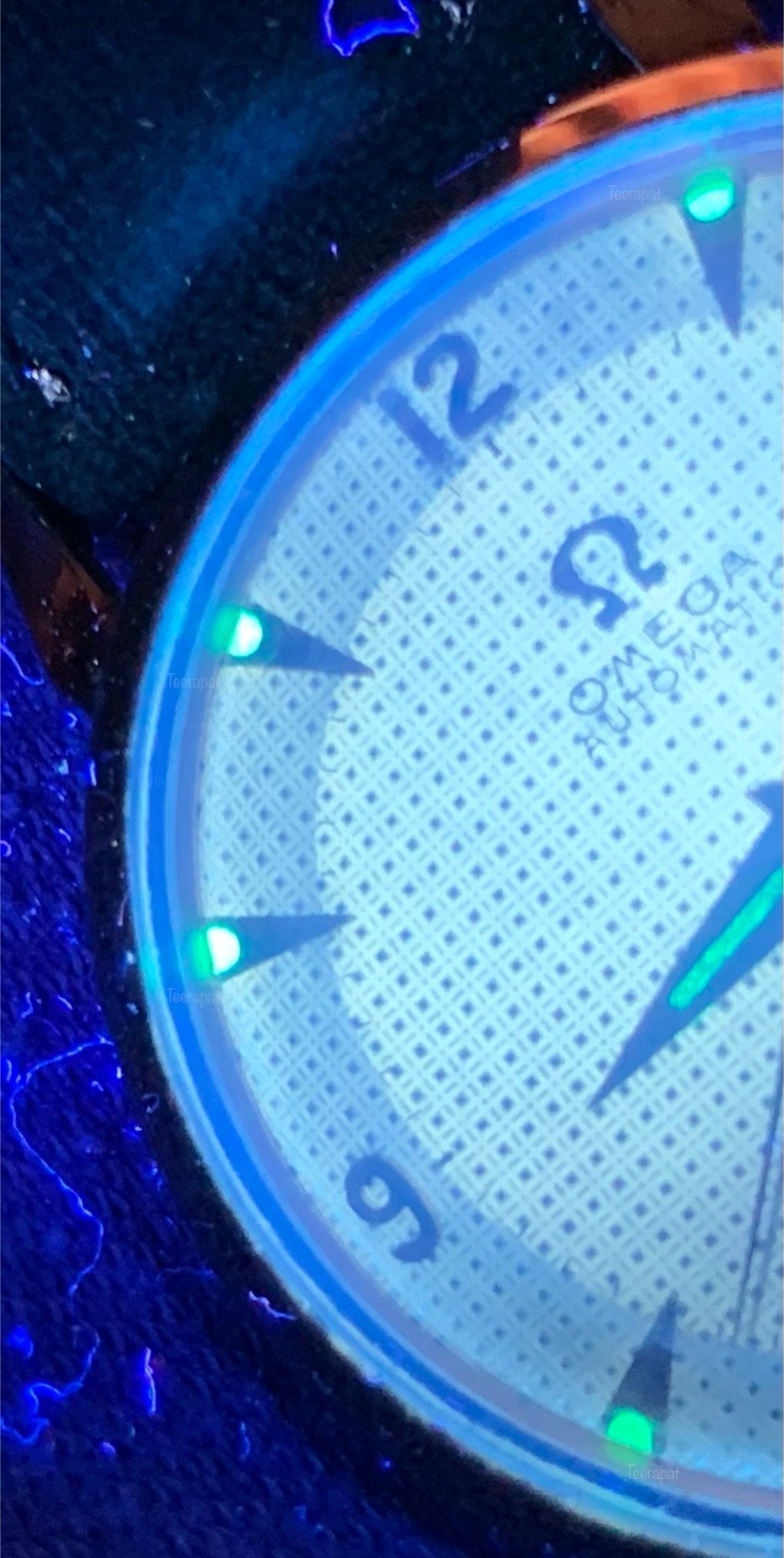

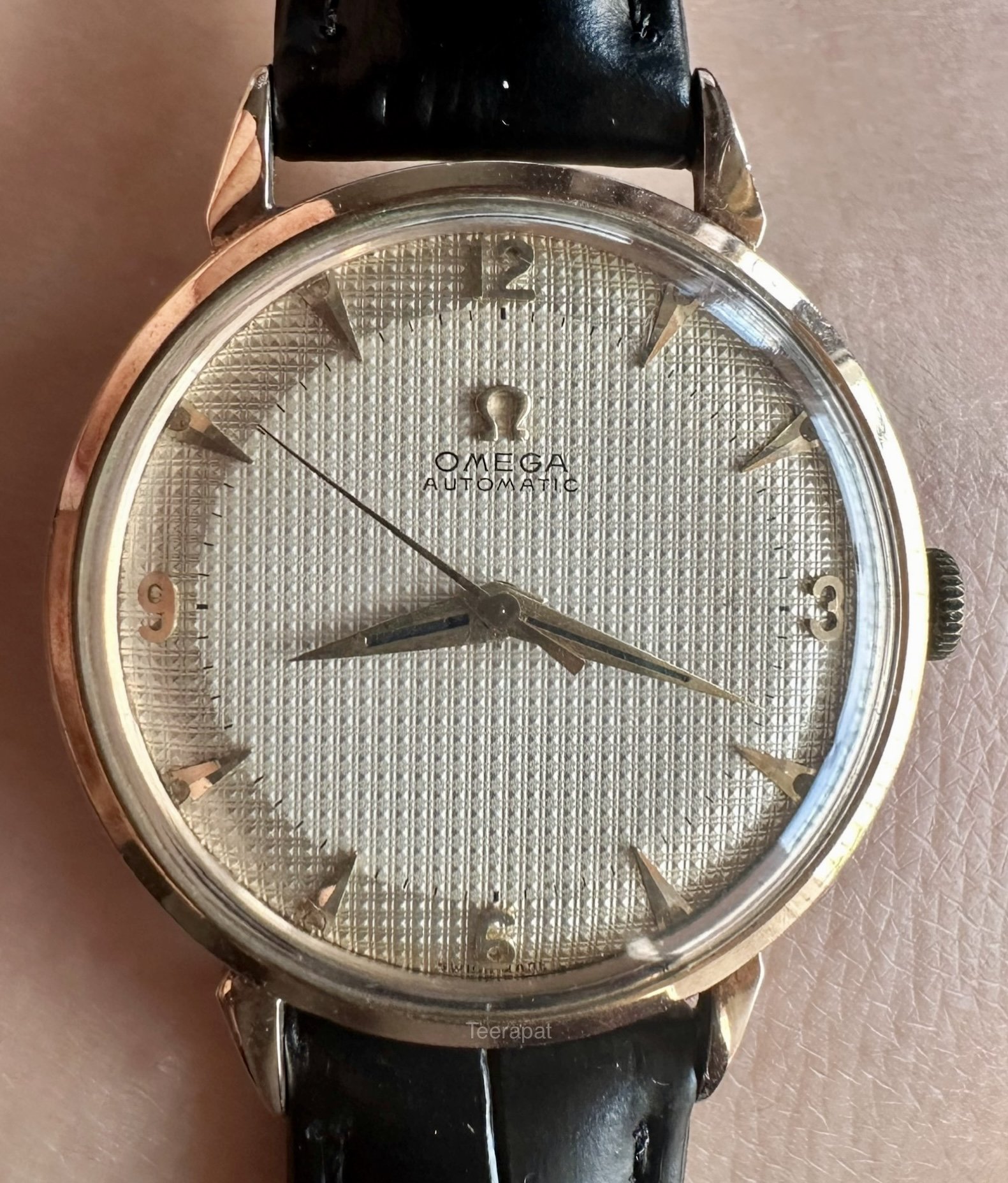

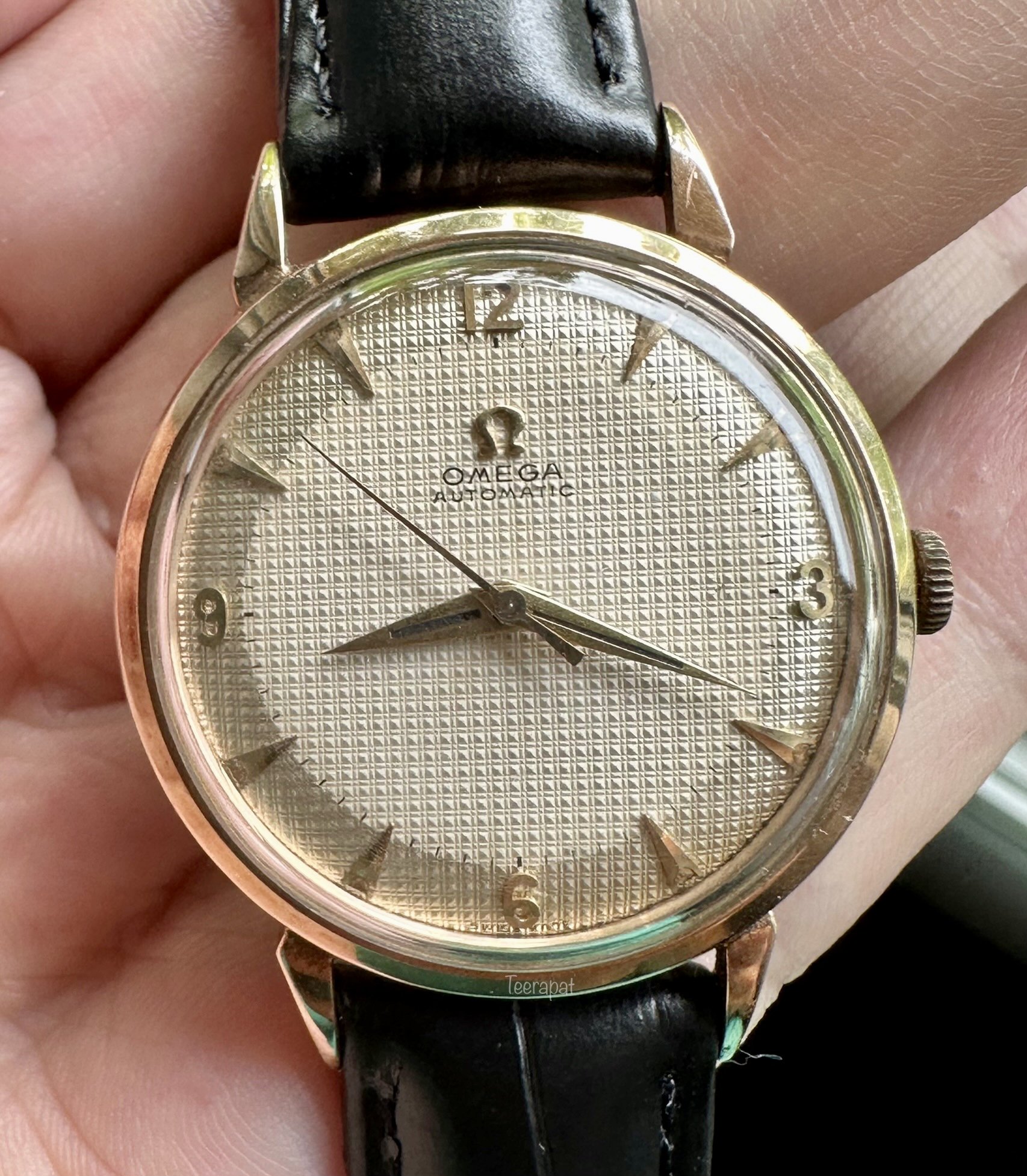

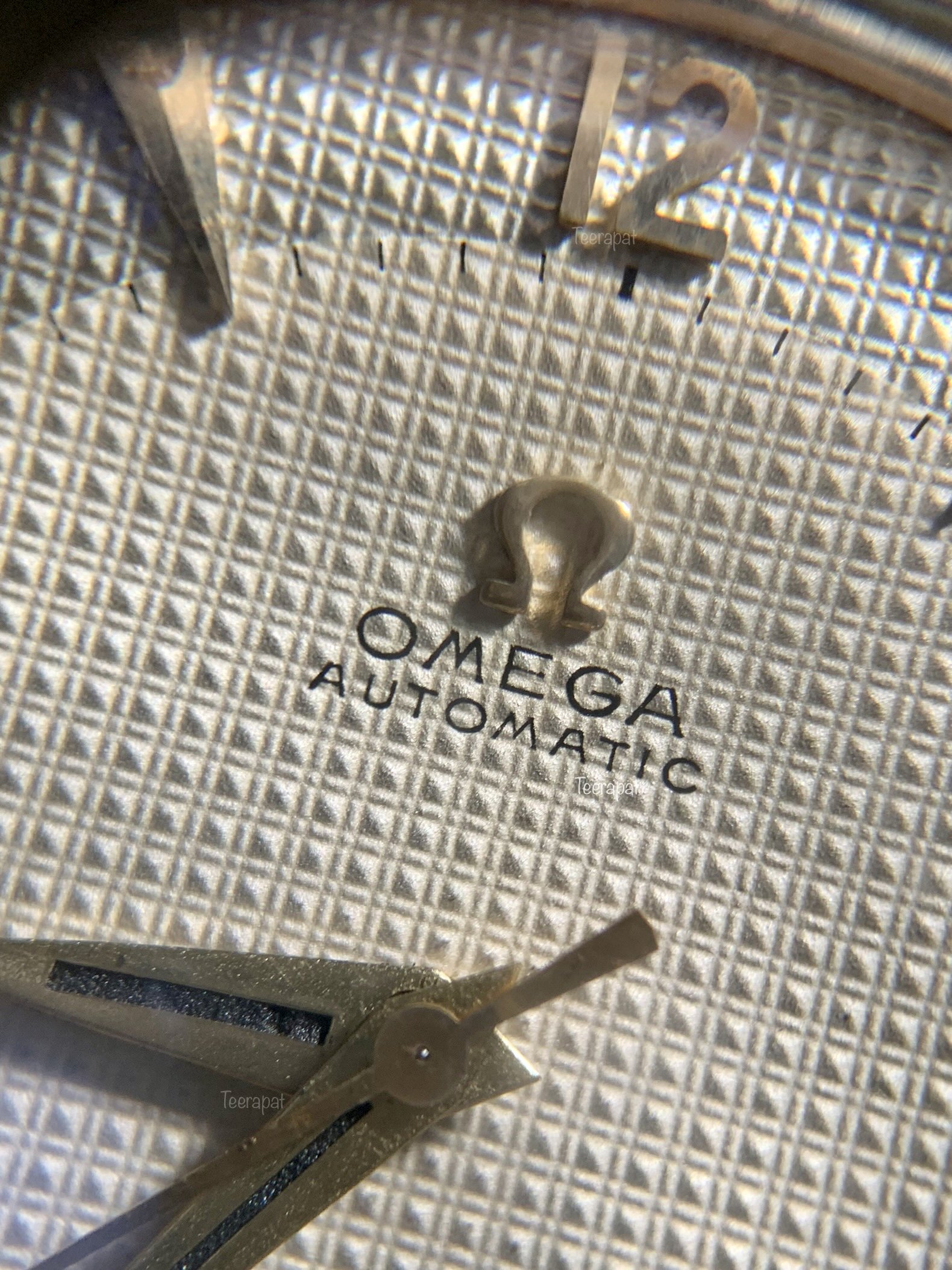

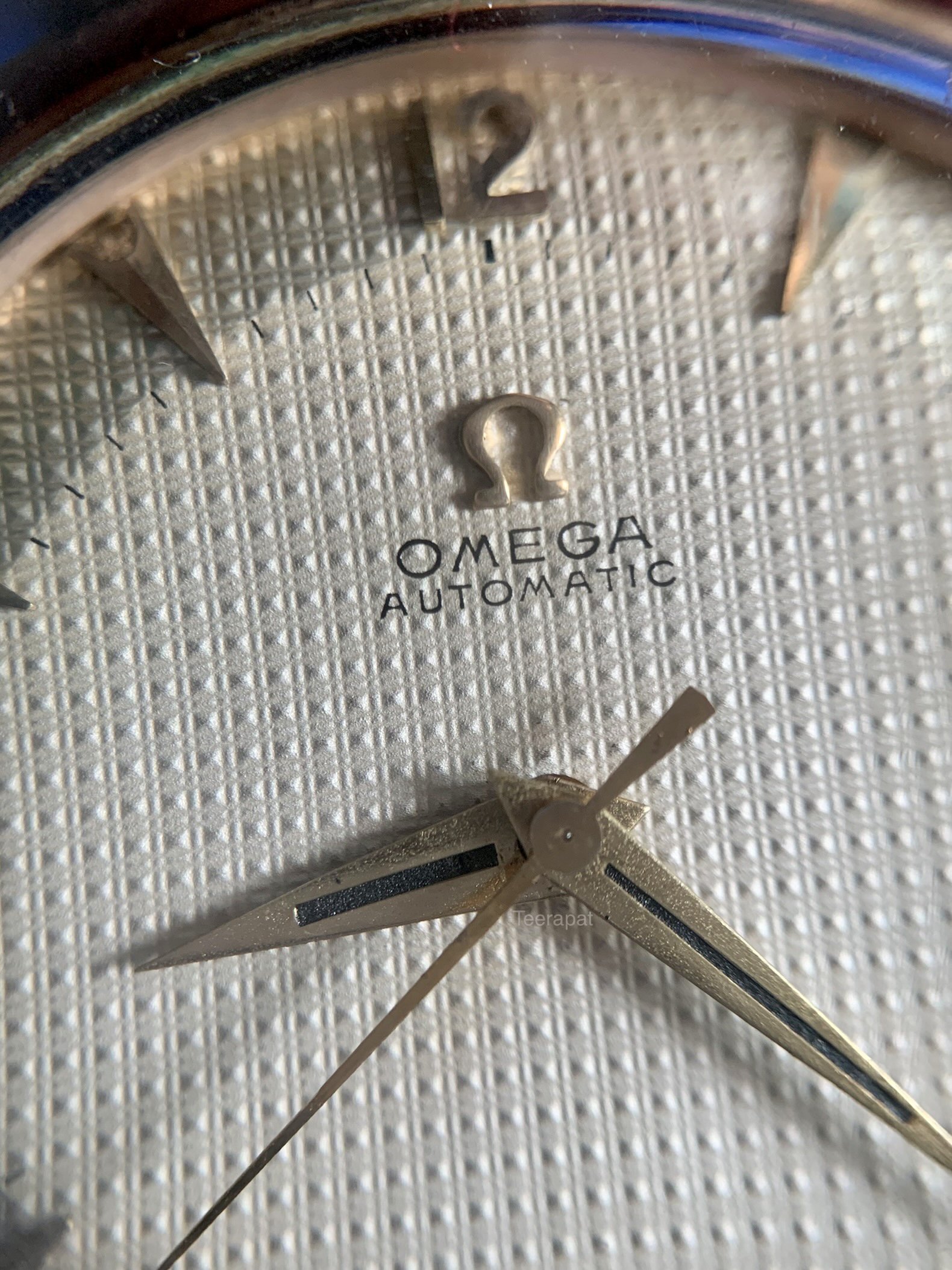

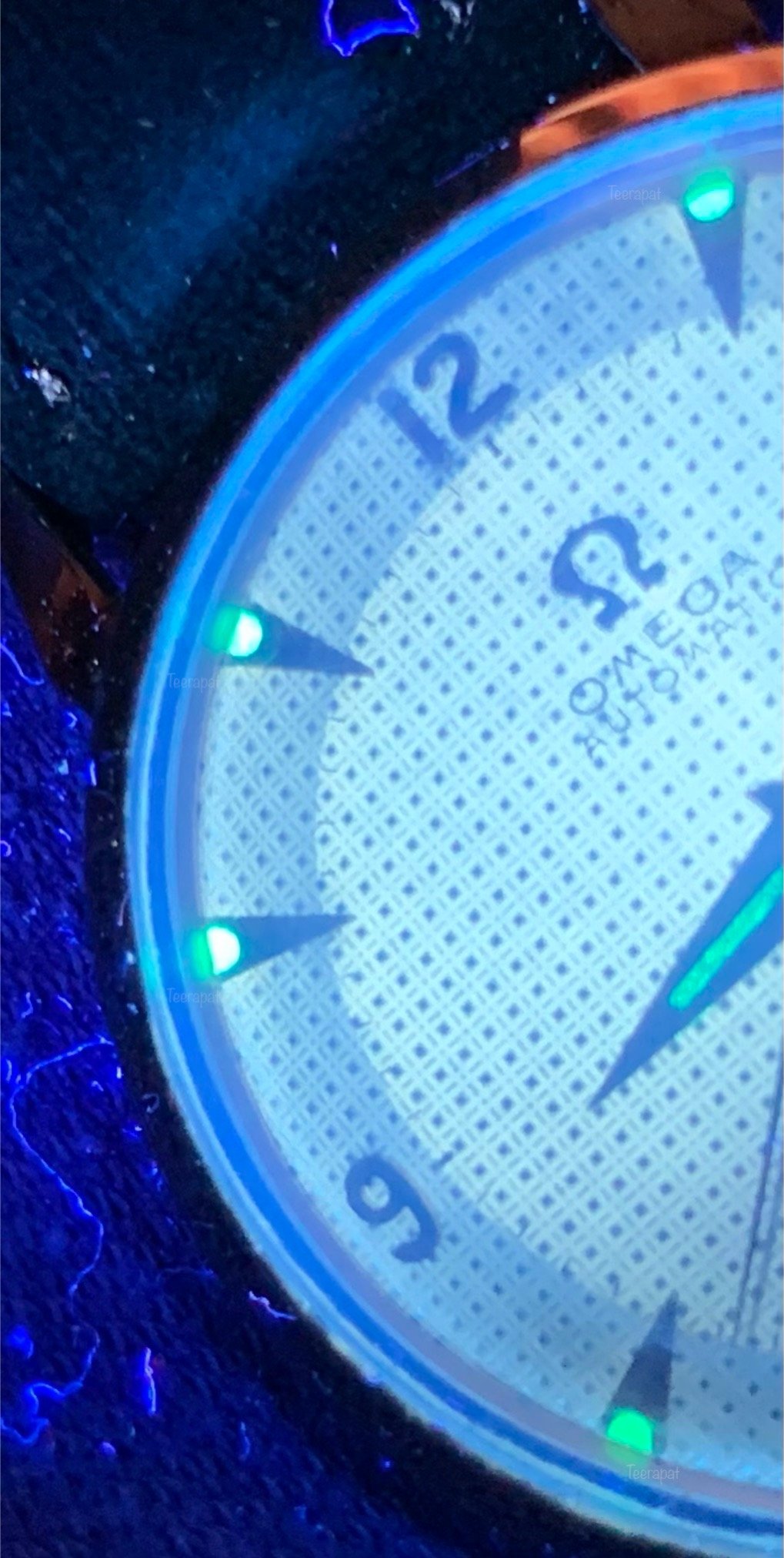

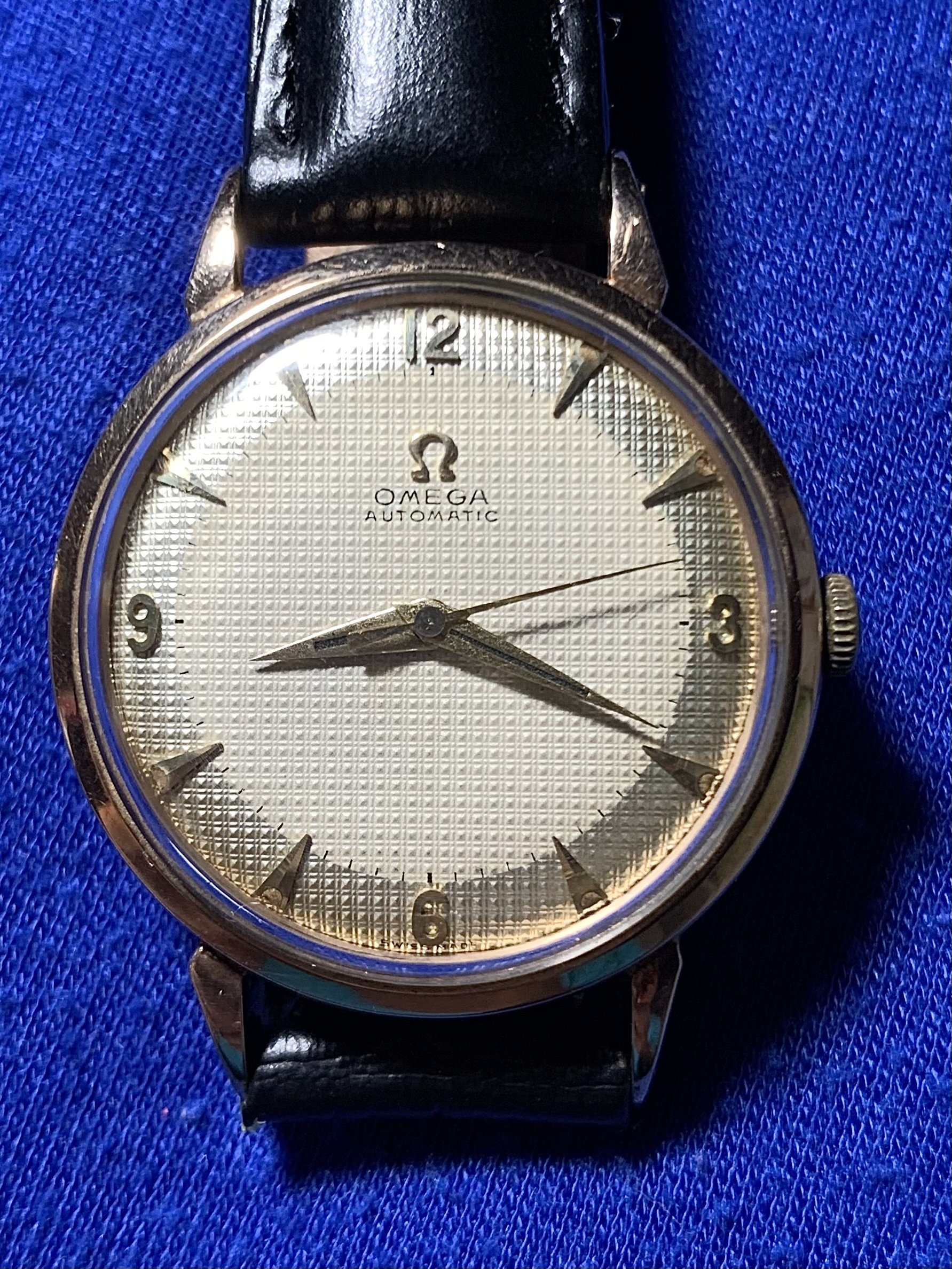

Dial: Original two-tone hobnail dial (non-refinished) with Arabic numerals 12-3-6-9, plus the original “radium lume” hour-markers in good condition.

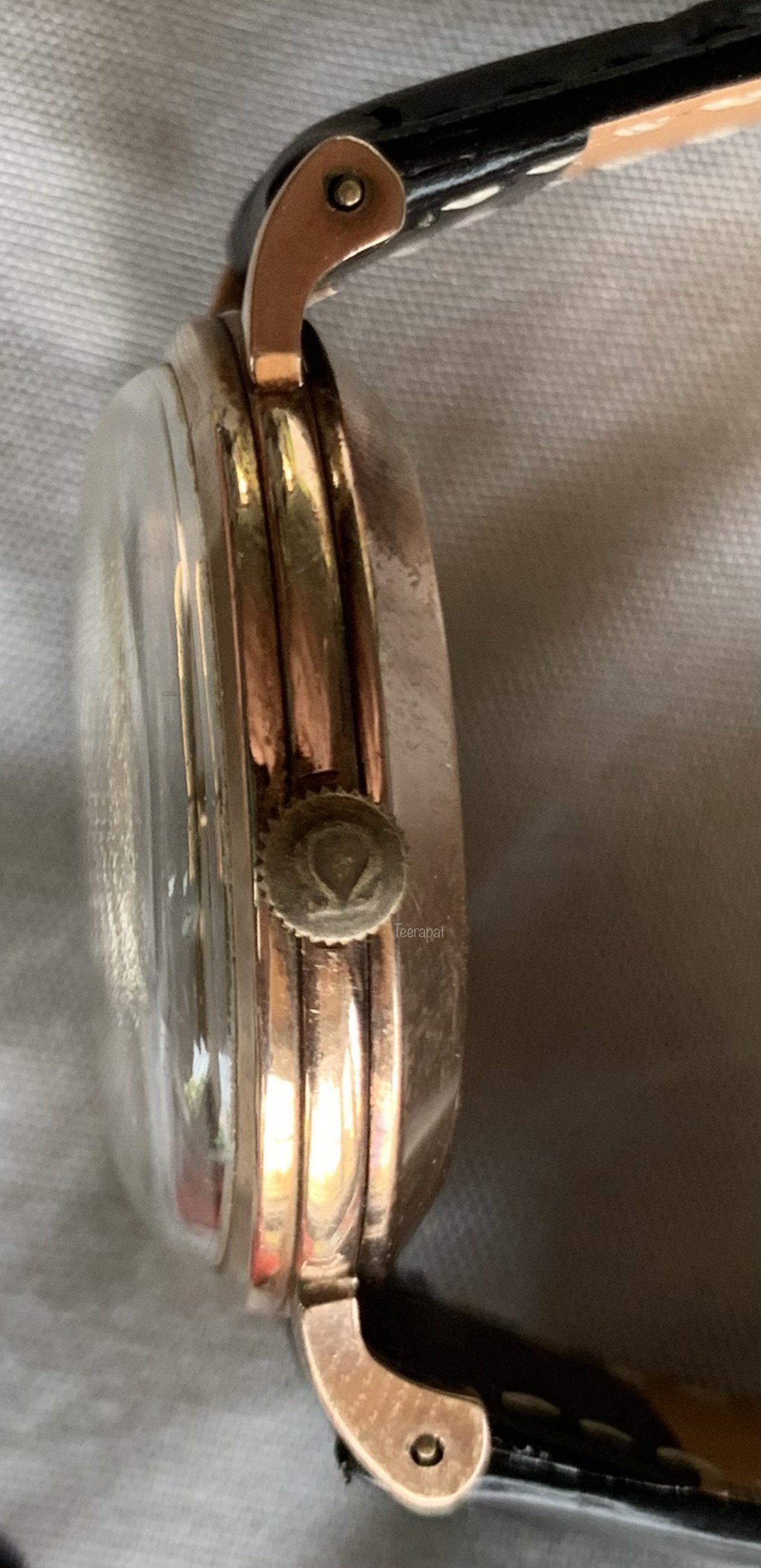

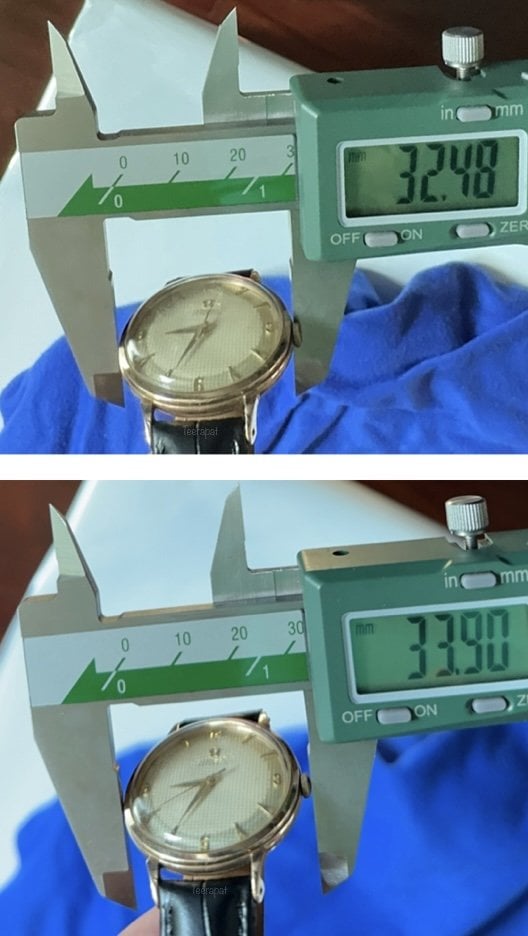

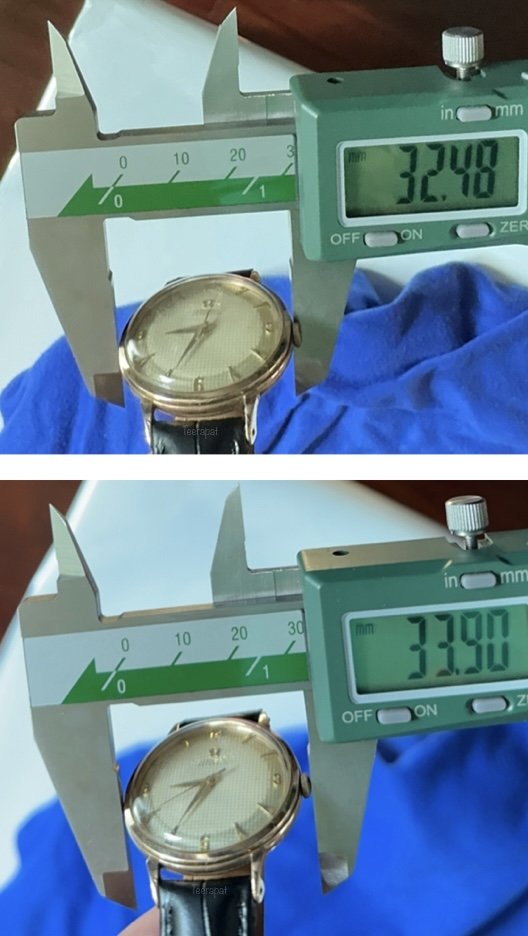

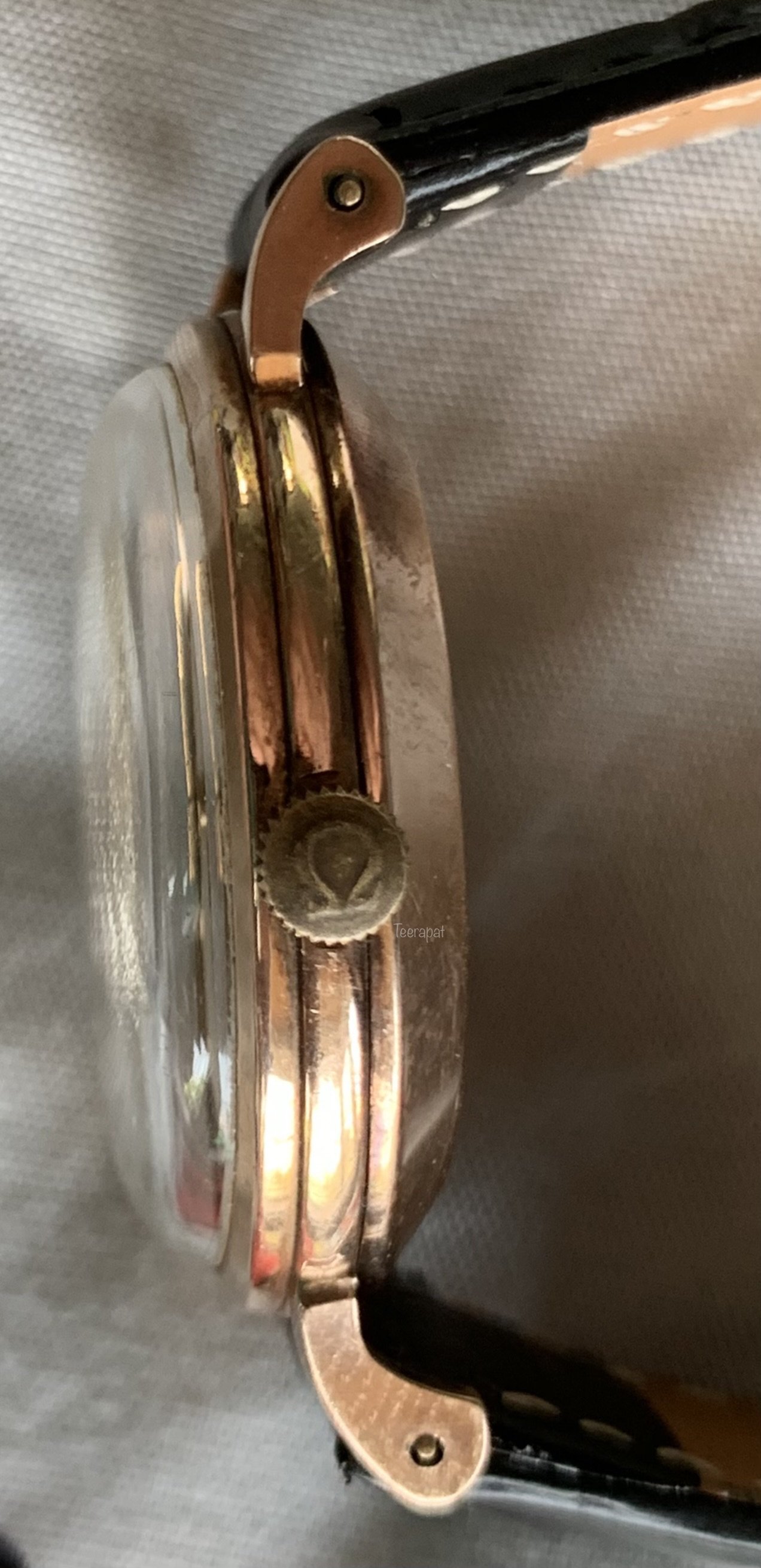

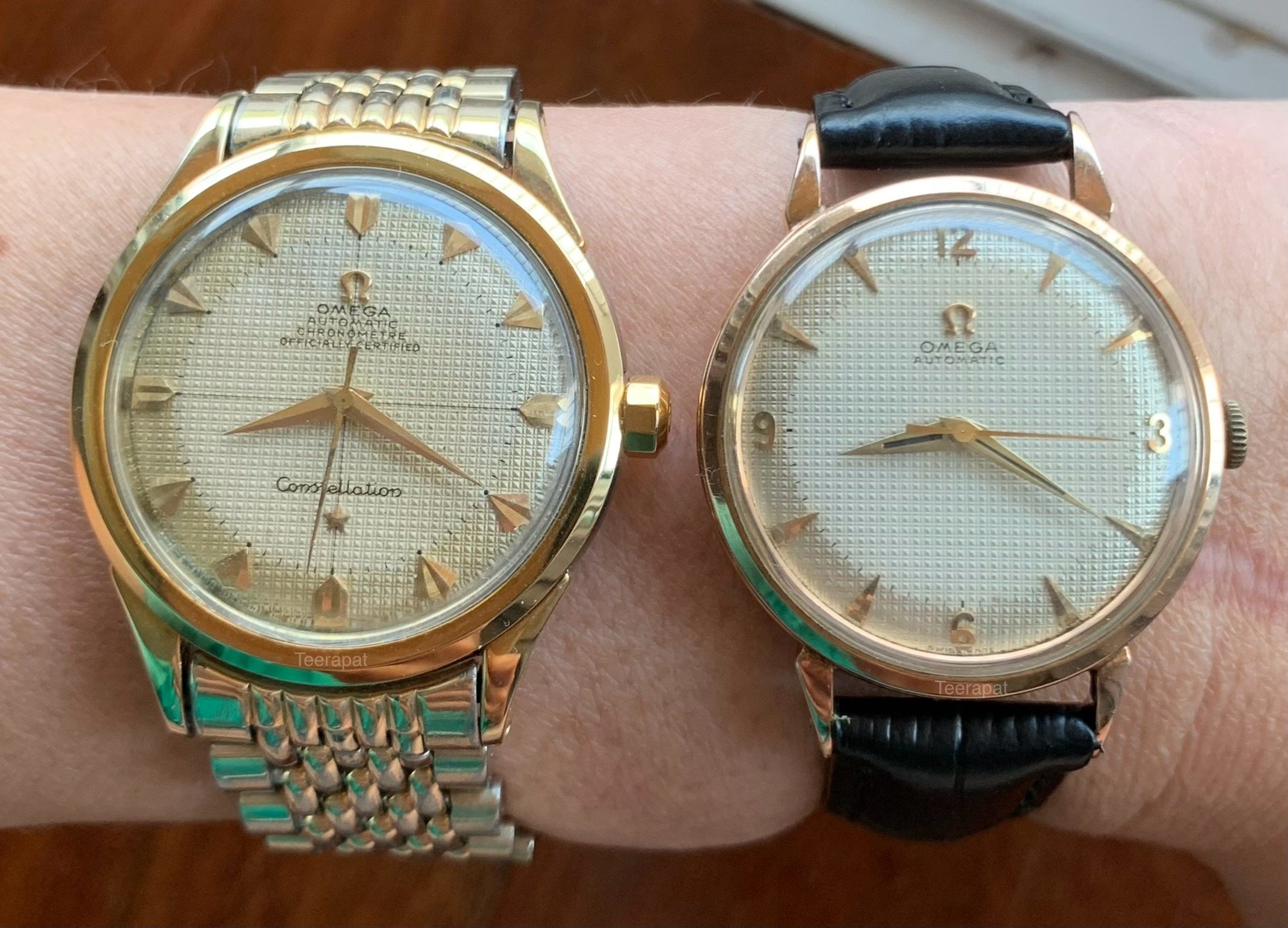

Case: “9CT Australian case” with diameter 32.5 mm (excluding the crown) and 33.9 mm (including the current crown). I believe it might be pink gold case? please see the wrist shot compared with my yellow gold constellation. I’m not familiar with this case, but I think the case has been polished at some stage in their life.
Hands: Original and correct luminous dauphine hands
Crown: Original signed vintage omega crown, which I believe it’s the original one.

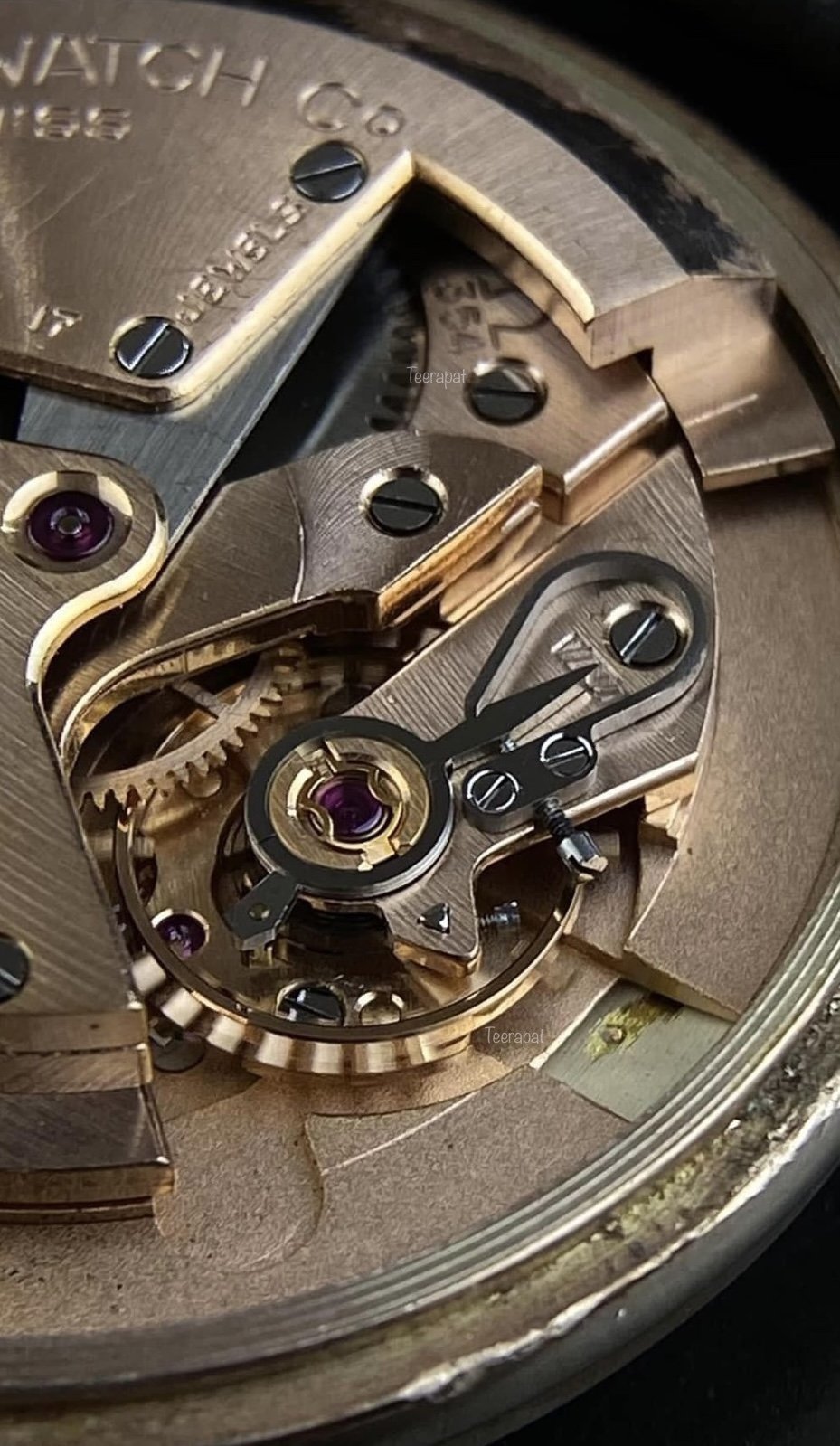

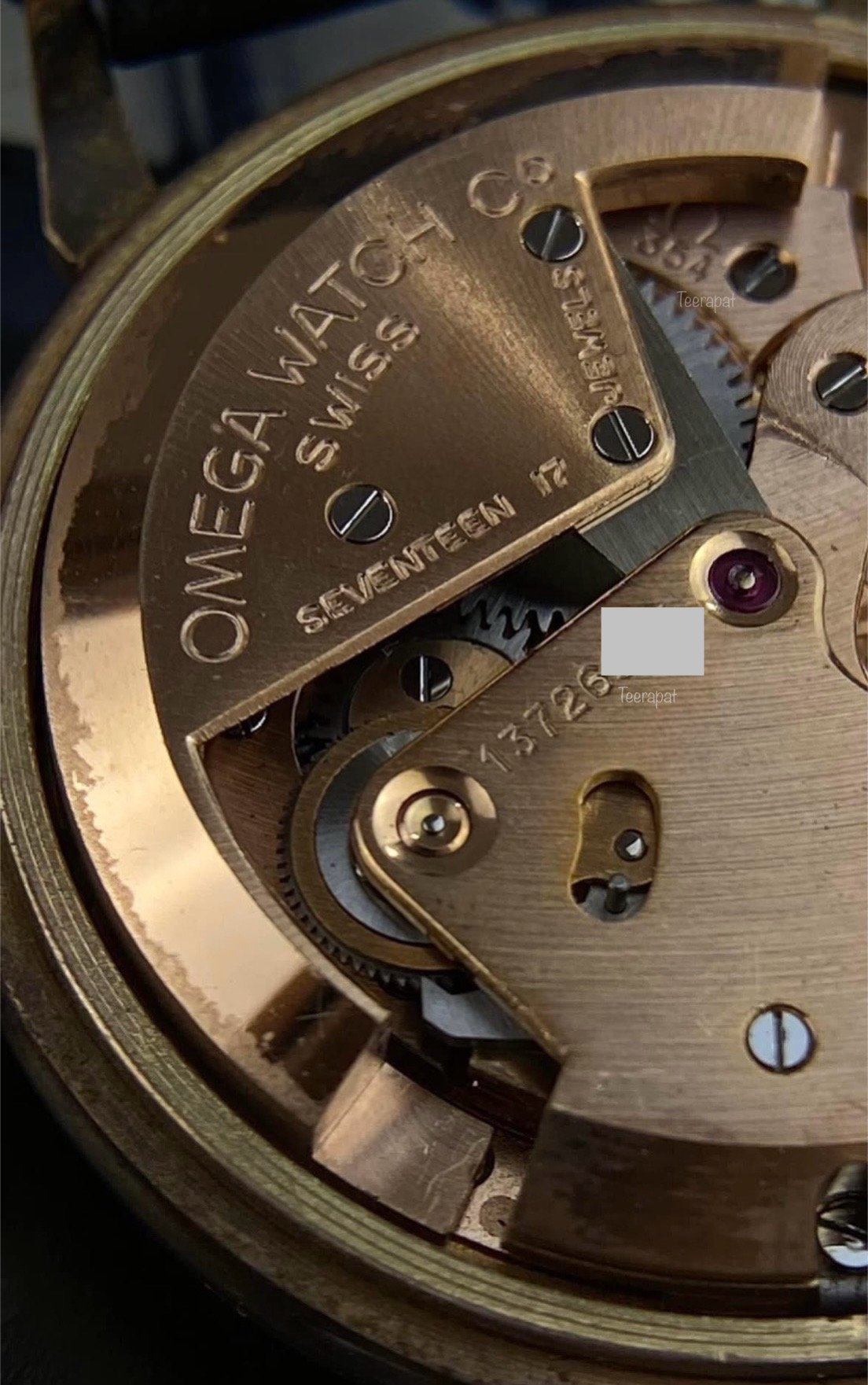

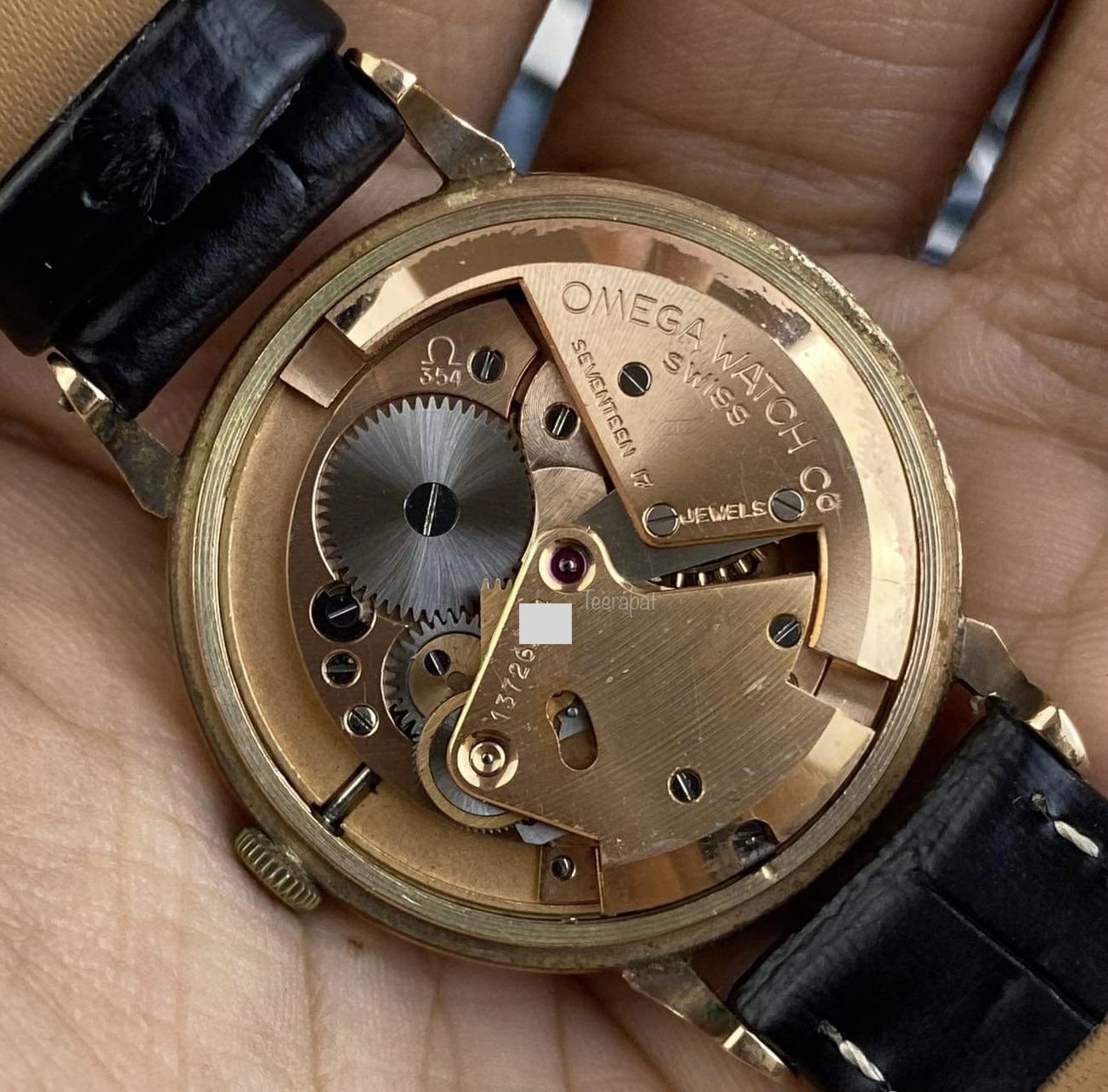

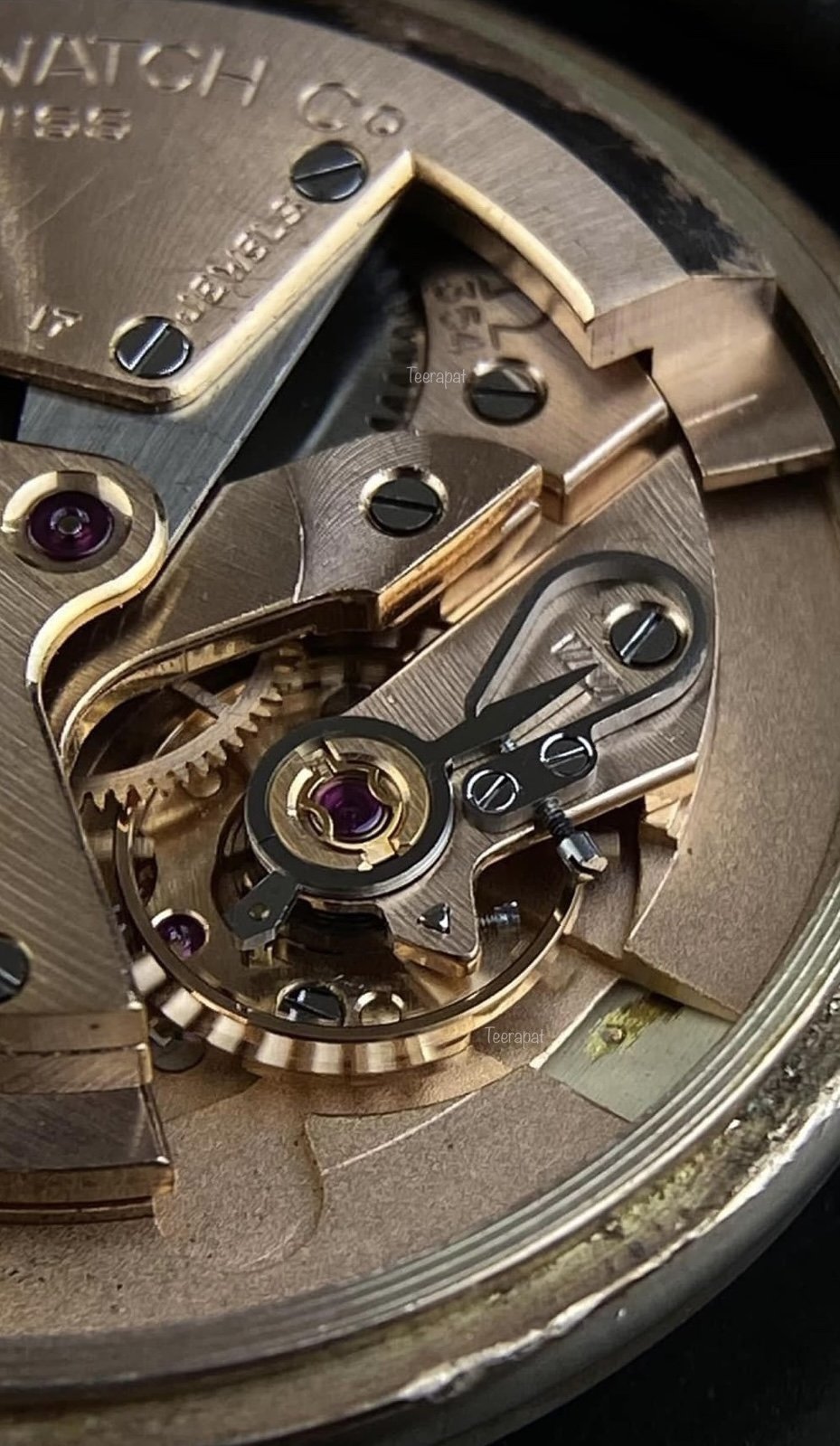

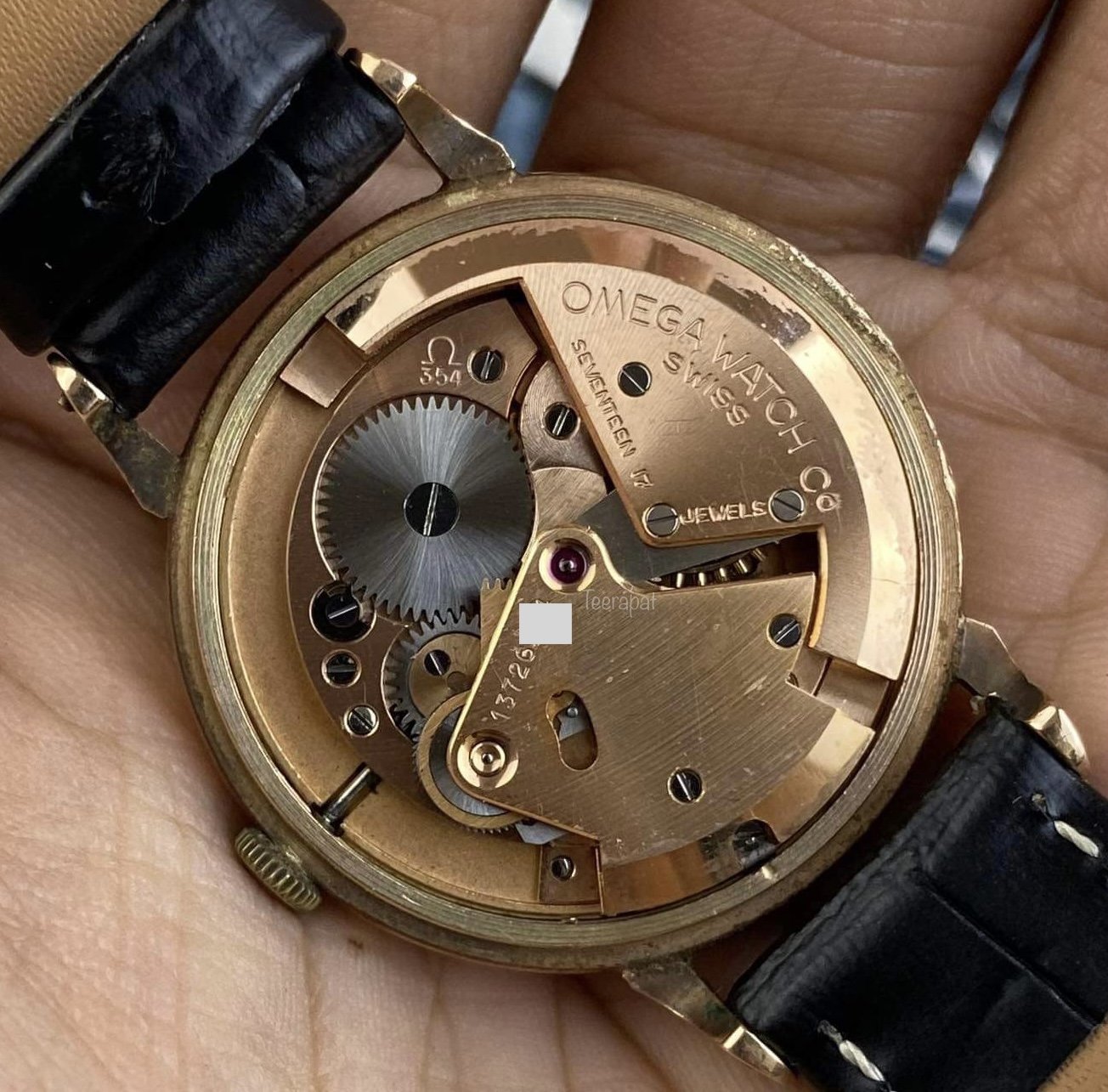

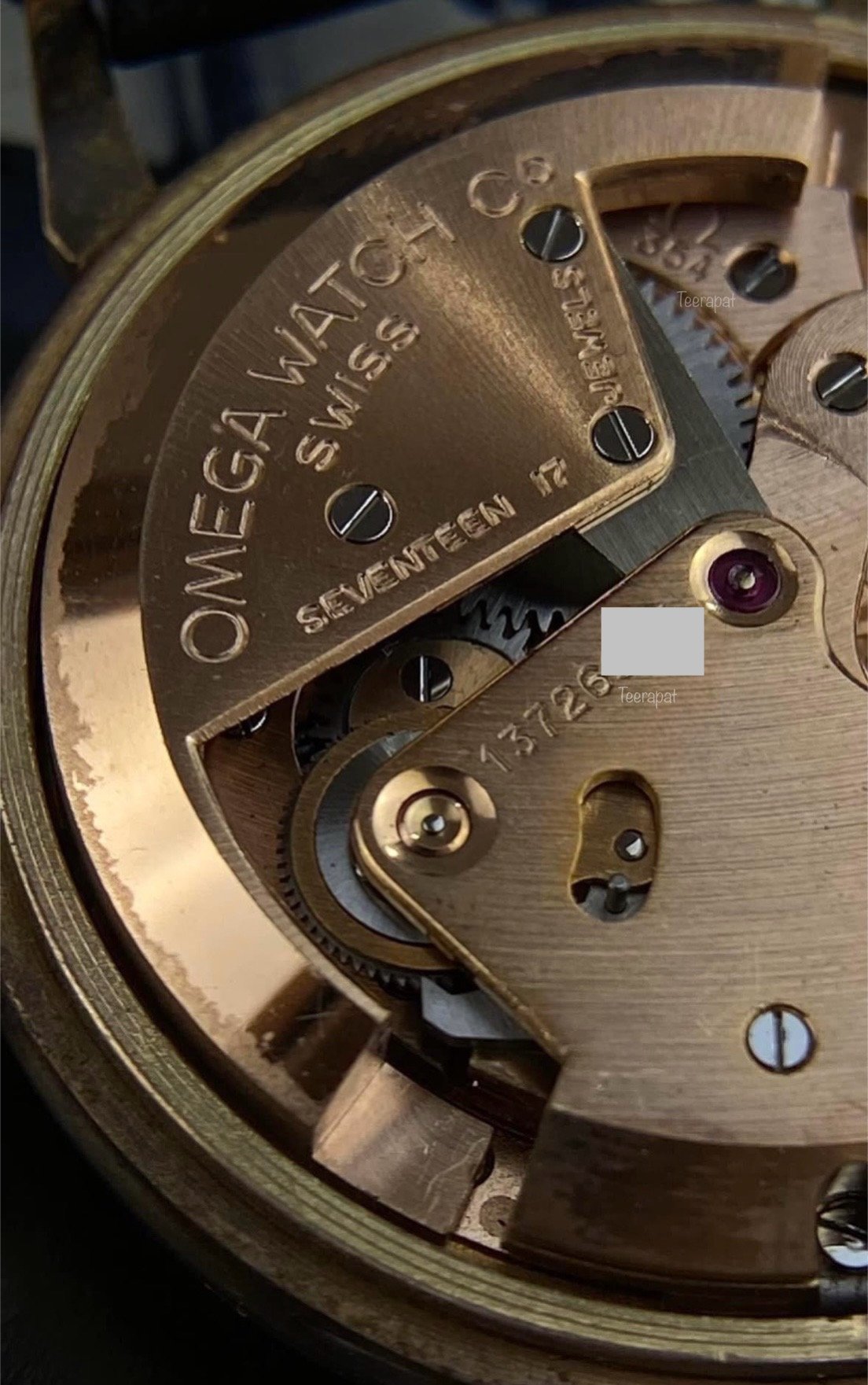

Movement: Original cleaned automatic caliber 354 movement with 17 jewels. Movement number is 13,726,xxx that should be produced in 1953-1954.

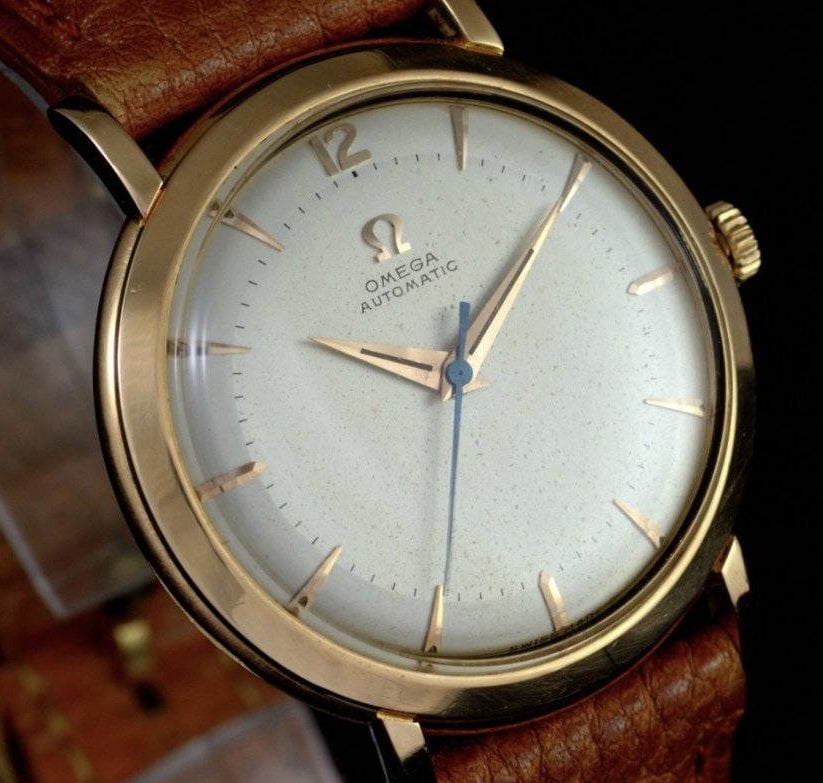

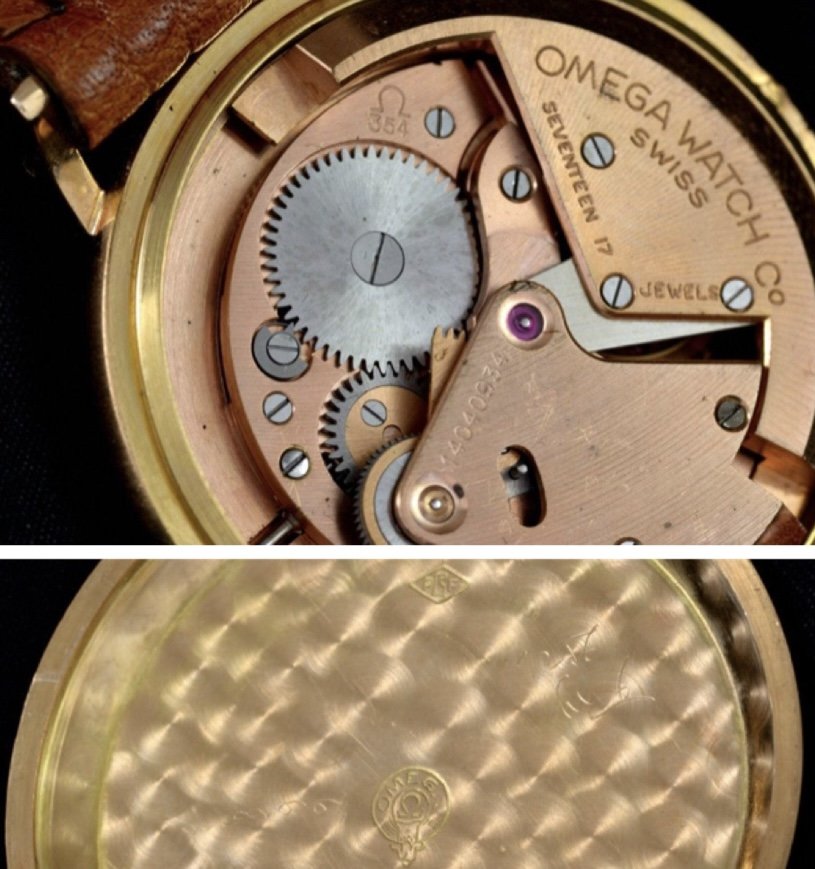

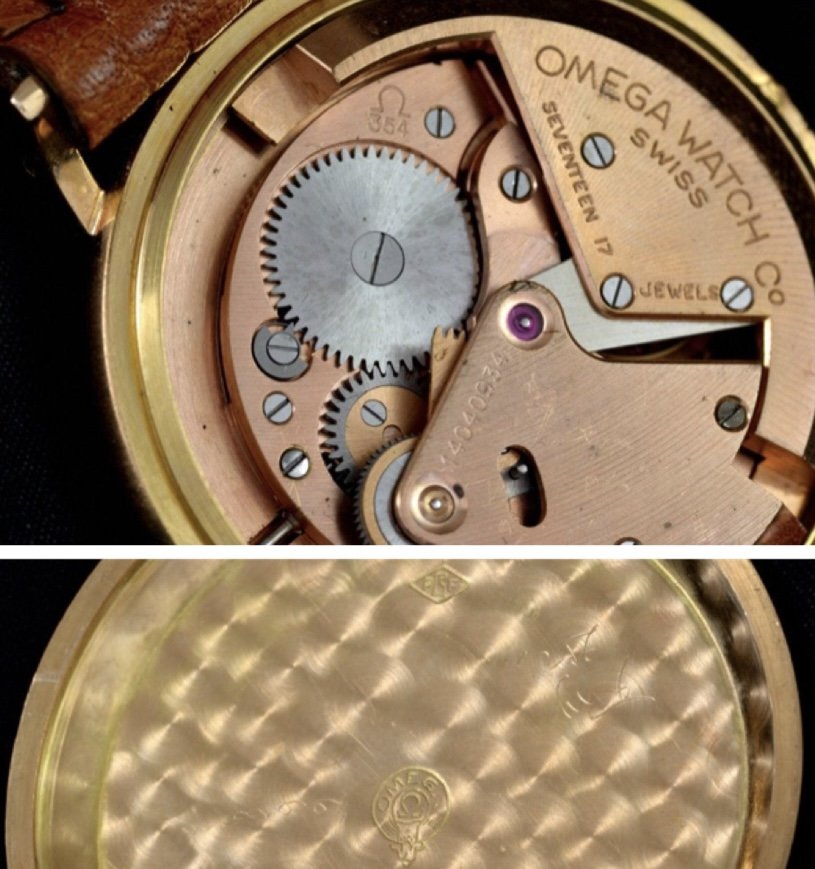

In the first place, I have a question regarding the movement number of my watch was too high for omega without “Seamaster” word on the dial? However, I found this “French case” posted by @aprax. The movement number was high as 14,040,934.
https://omegaforums.net/threads/constellation-french-case-what-about-the-crown.116442/

4C31D2AA-3D24-4E3A-B156-7C8D7AA1455A.jpeg CDE84C0B-0B86-4F3F-9486-18A8C5A6FB98.jpeg

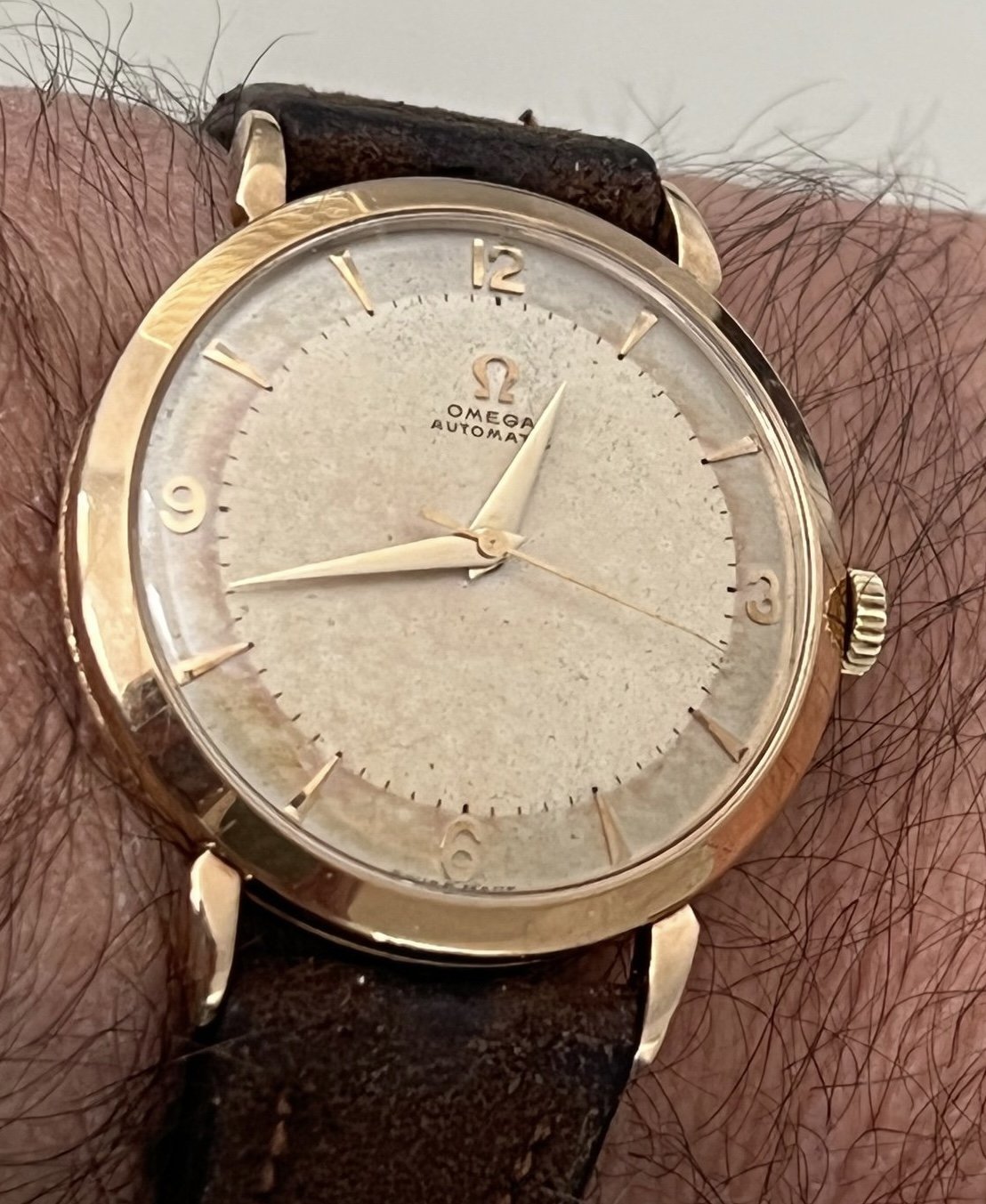

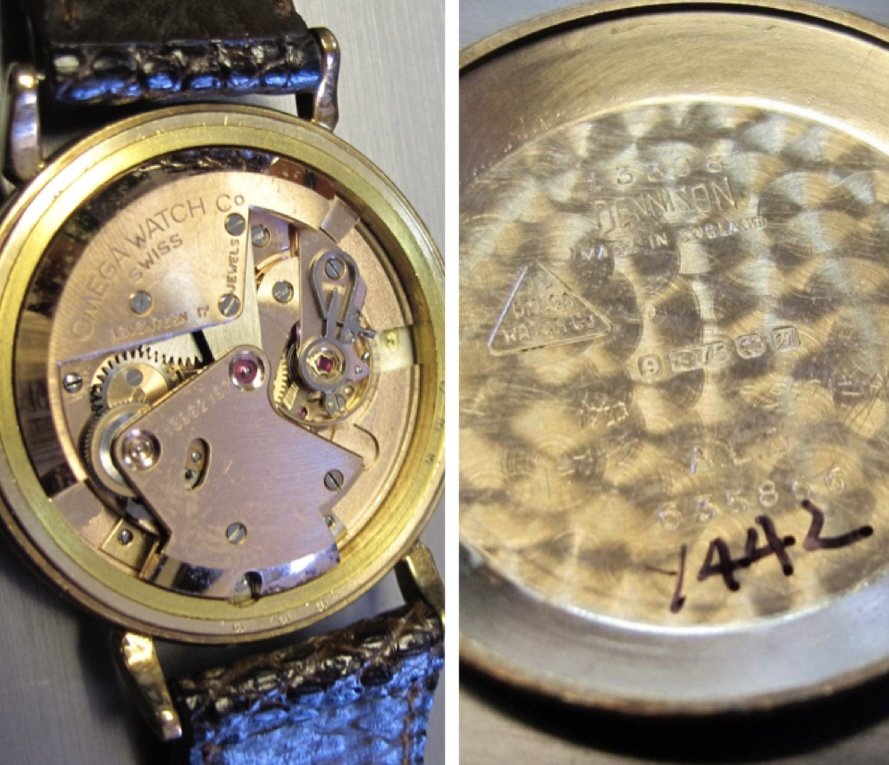

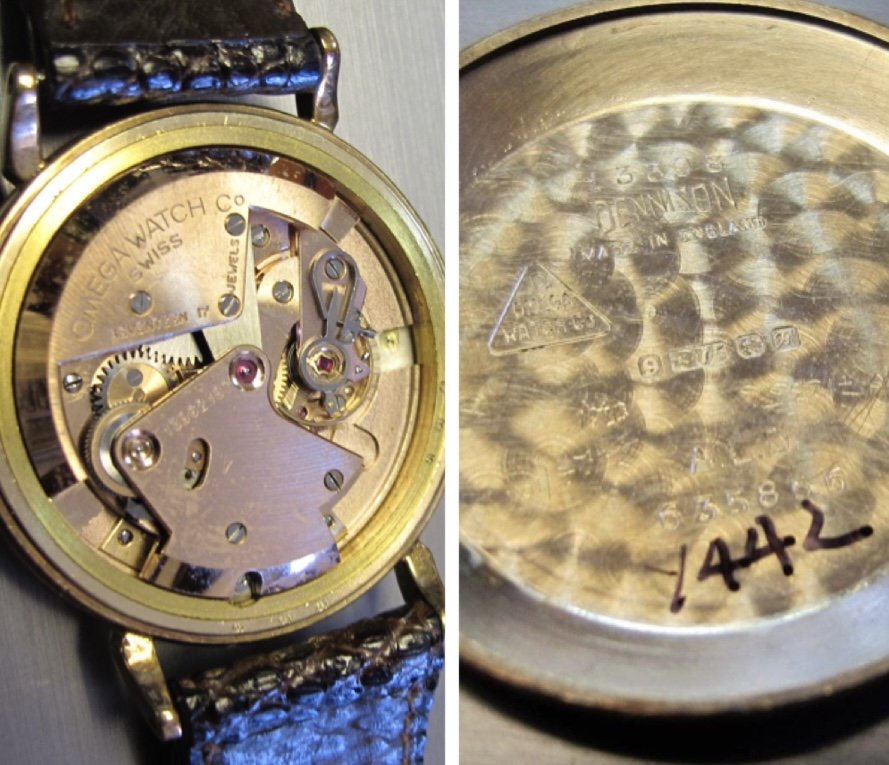

Plus, this 9 kt Dennison case (“English case”) by Art (@Dr No ) with movement number 13,862,xxx, using the same dial pattern.
https://omegaforums.net/threads/mid-50s-9-kt-dennison-omega.142130/

B6852AE1-1132-4690-ADBD-90197B44EB80.jpeg 49D210D5-4AA7-4D38-9A1E-55D5C1EEEA2E.jpeg

So, I believe that it’s acceptable for the French, English and Australian cases with the movement number in late 13 million (or early 14 million) come without the “Seamaster” word printed on the dial.

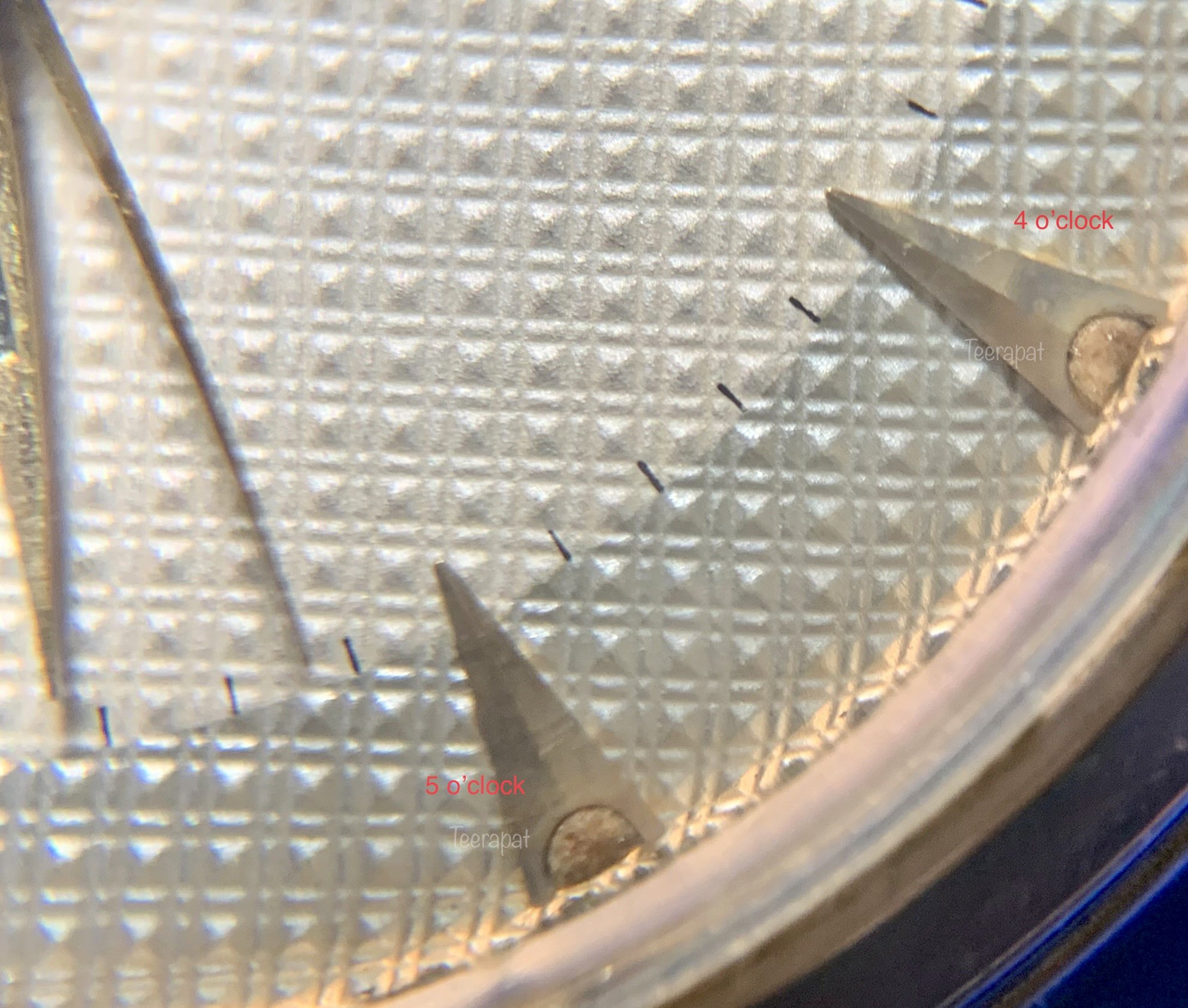

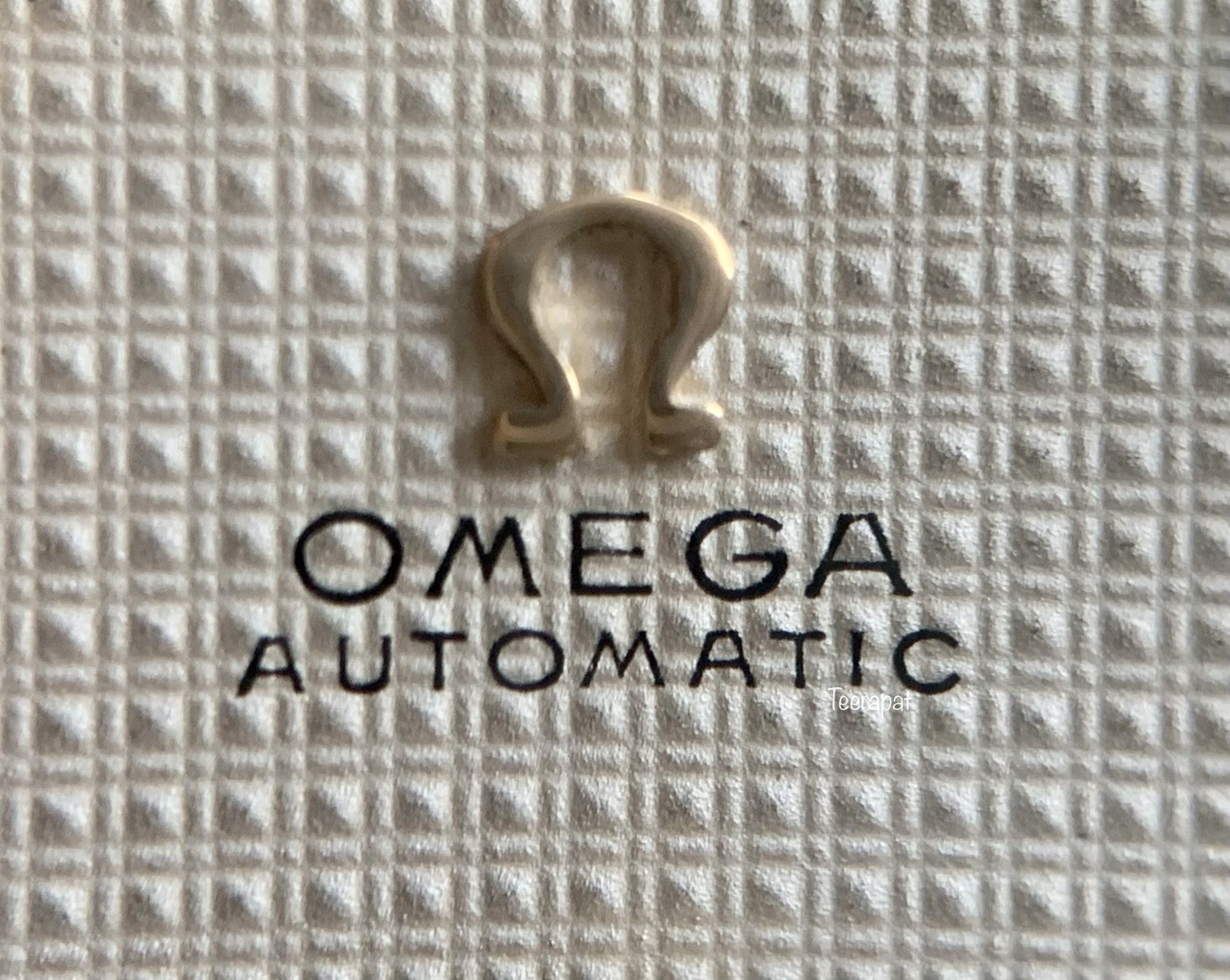

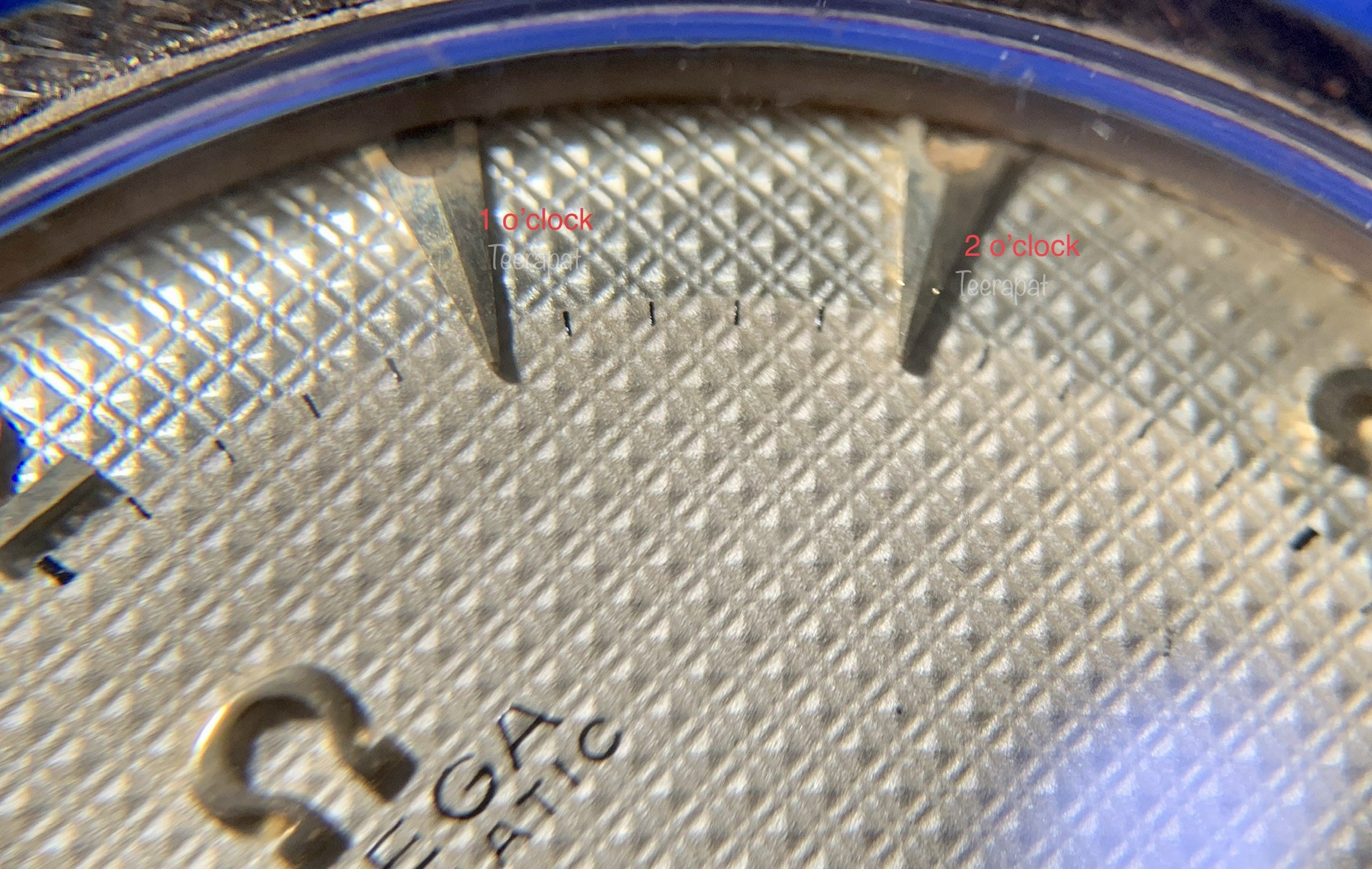

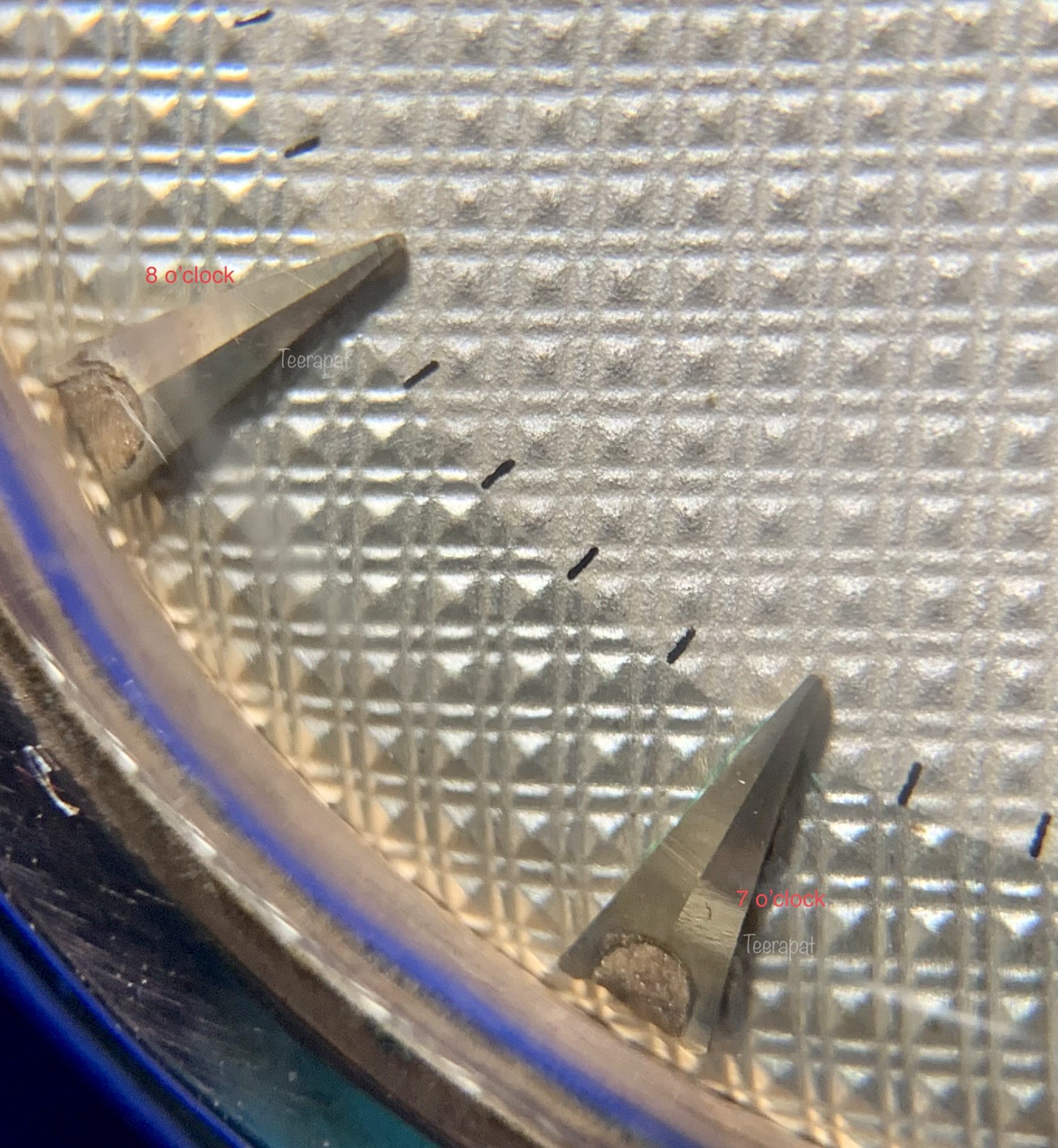

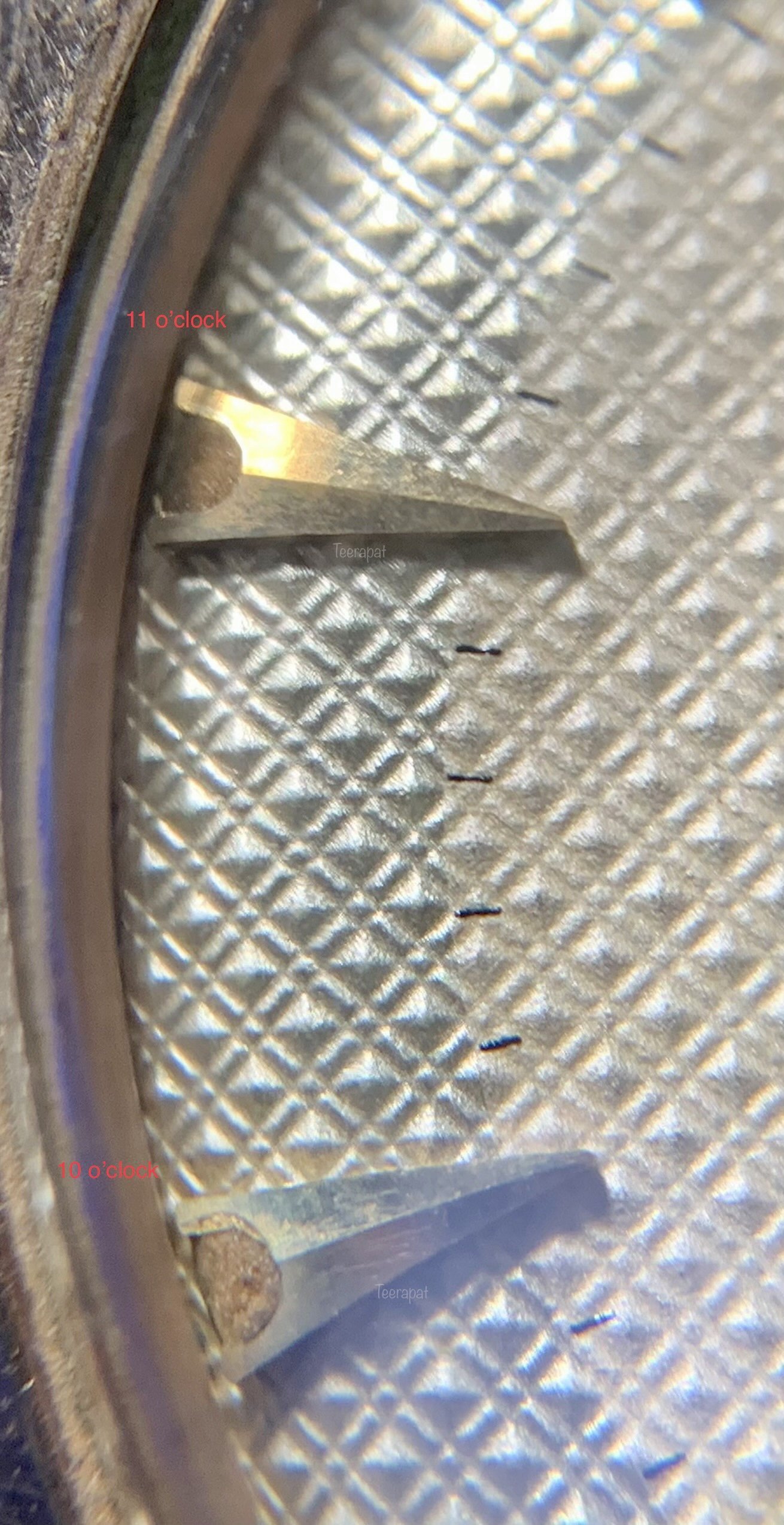

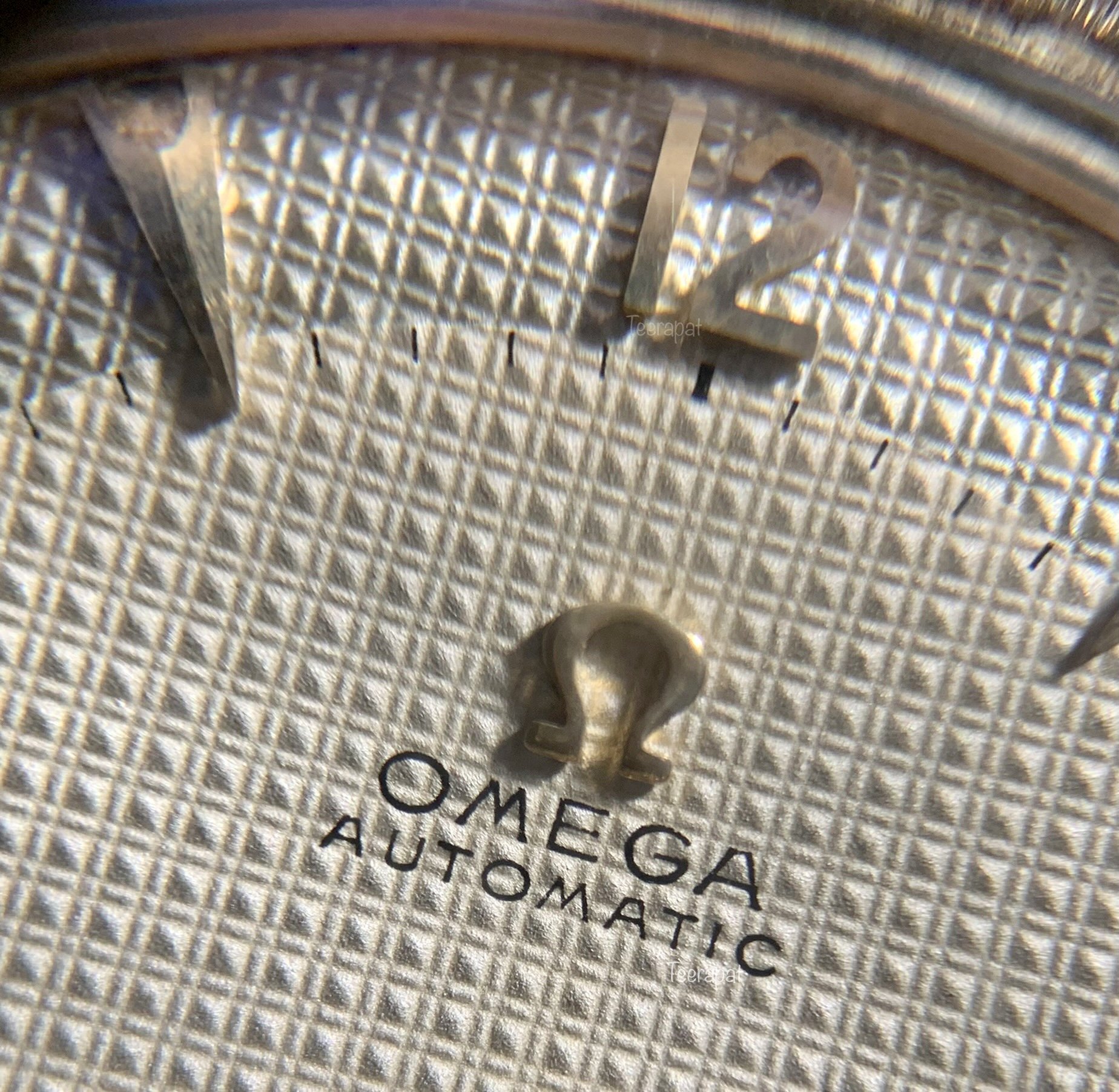

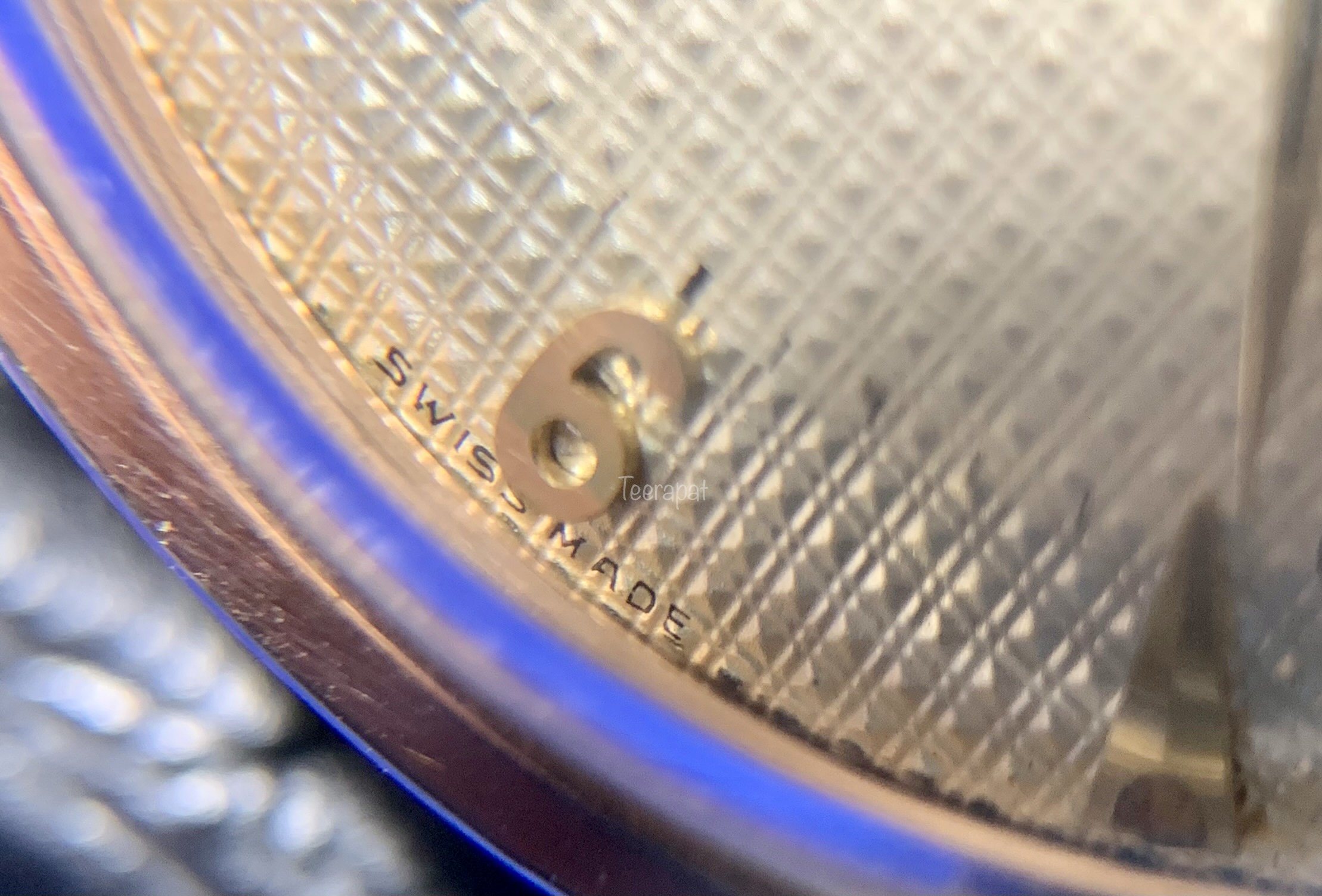

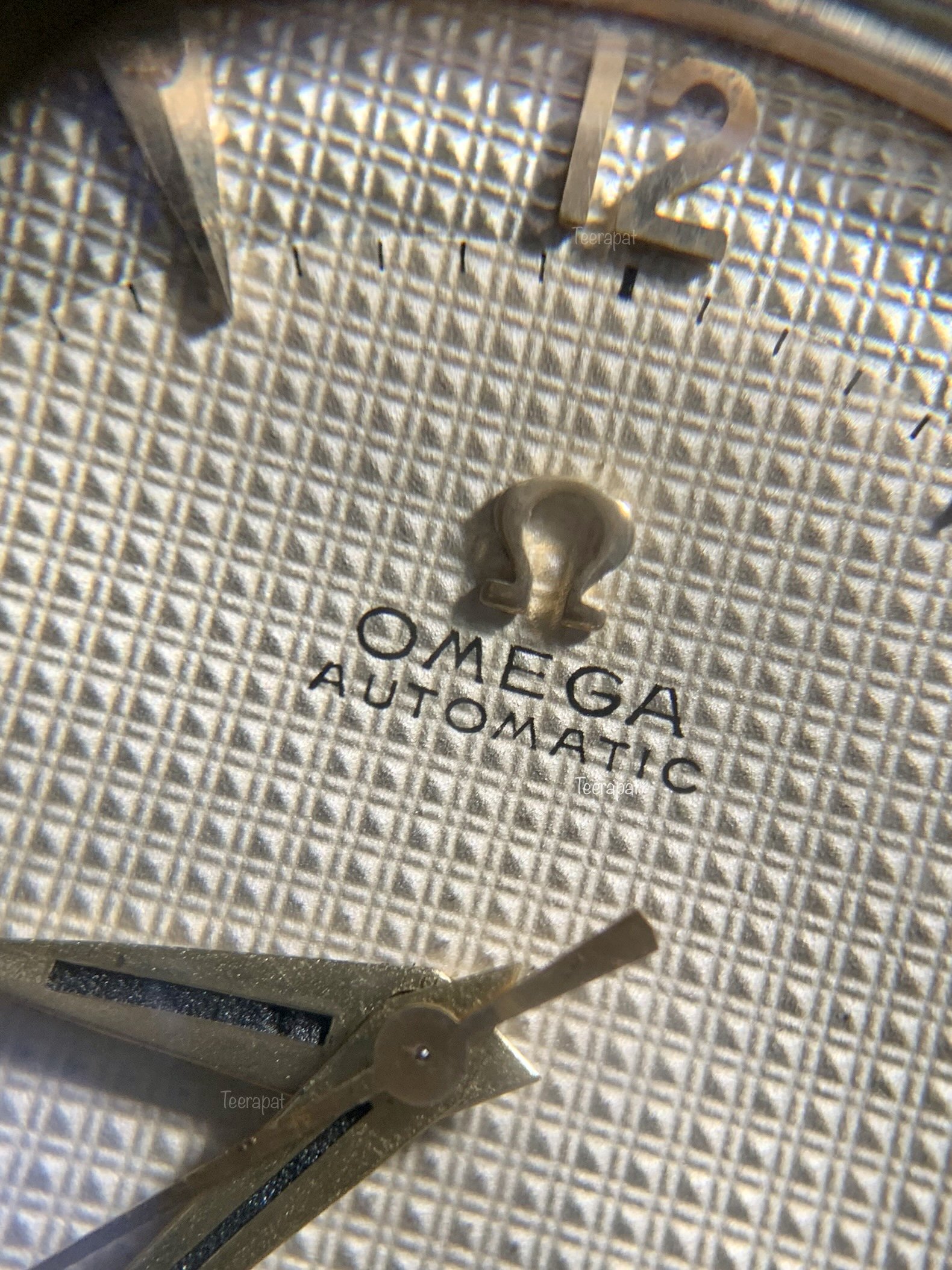

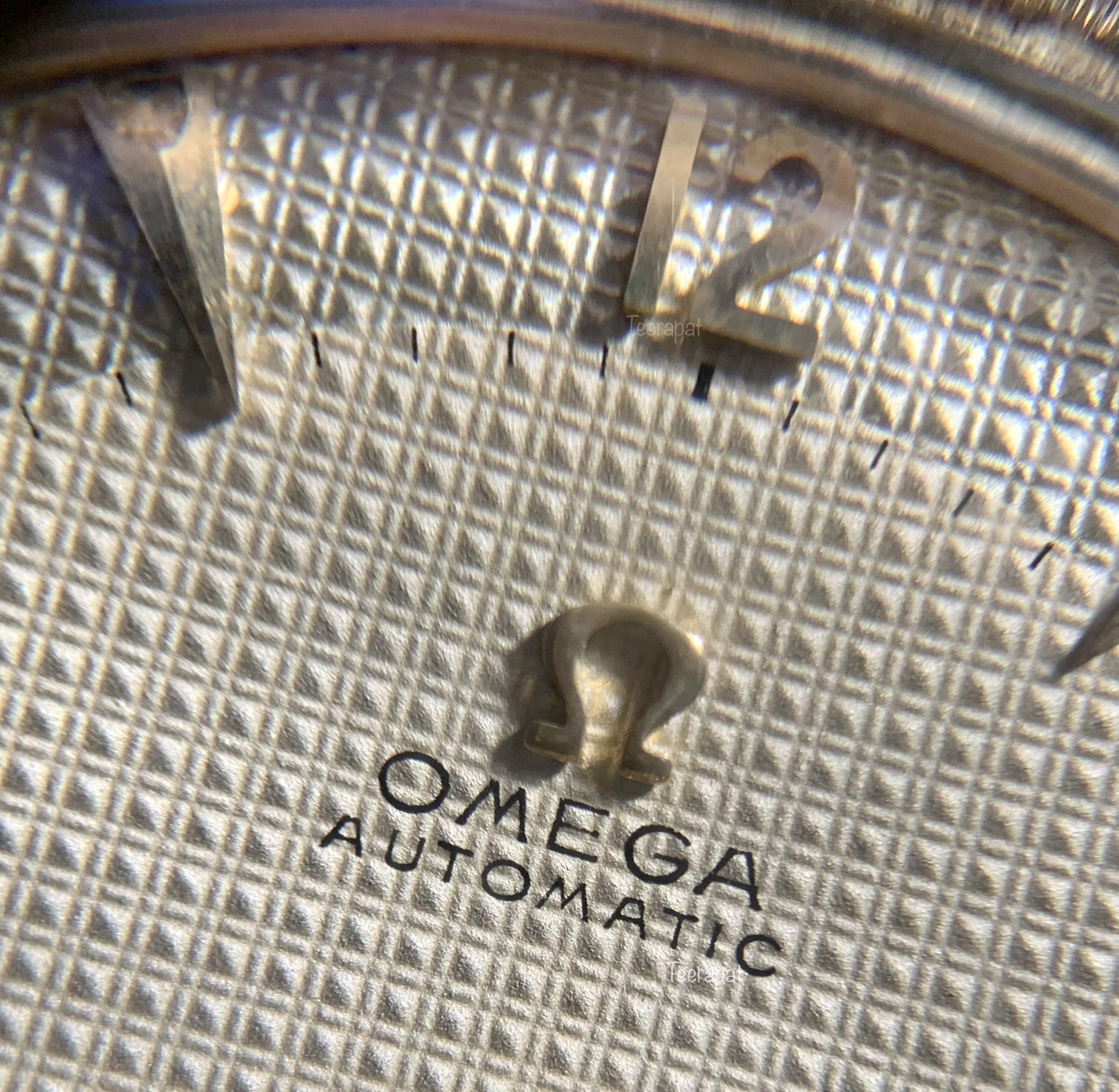

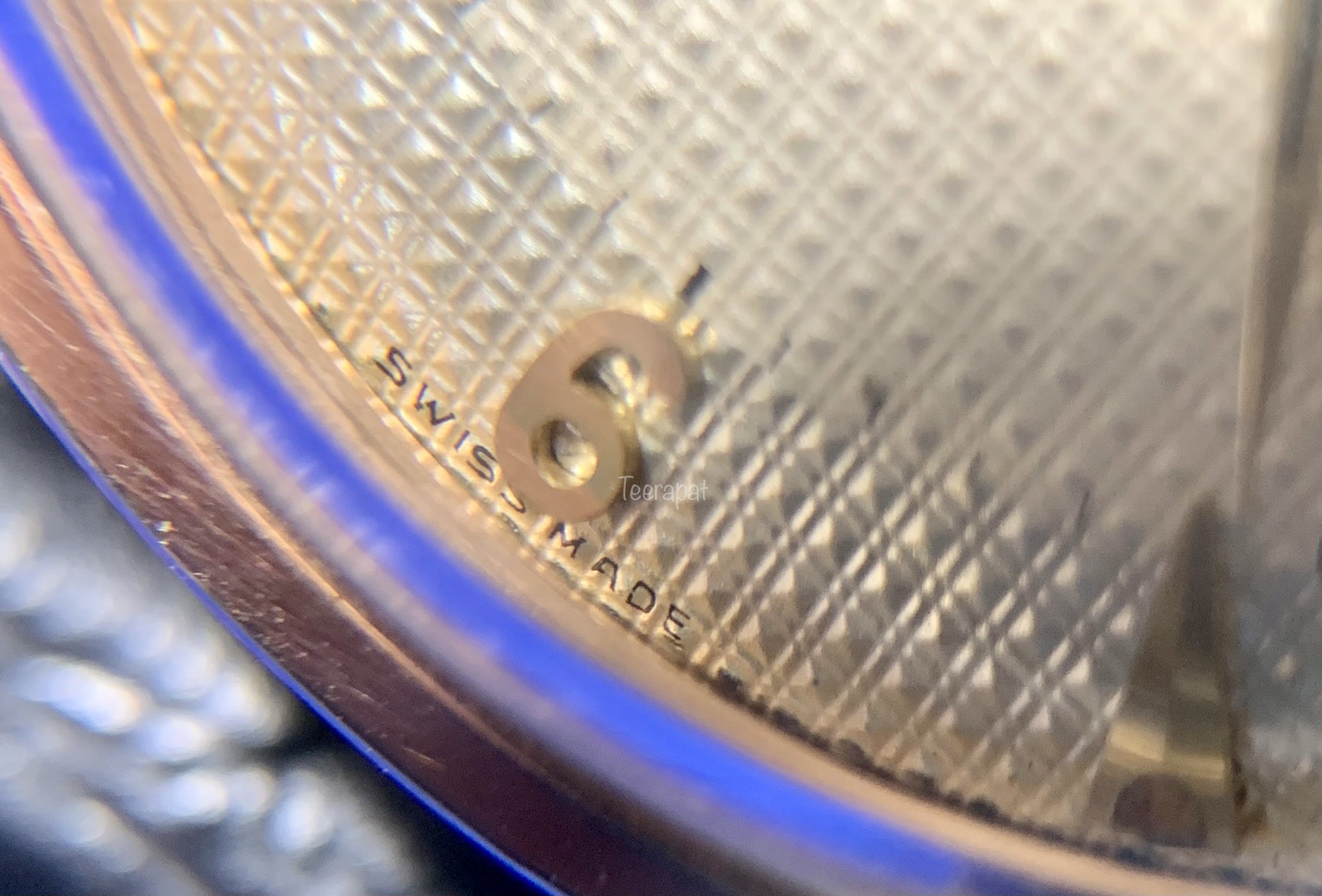

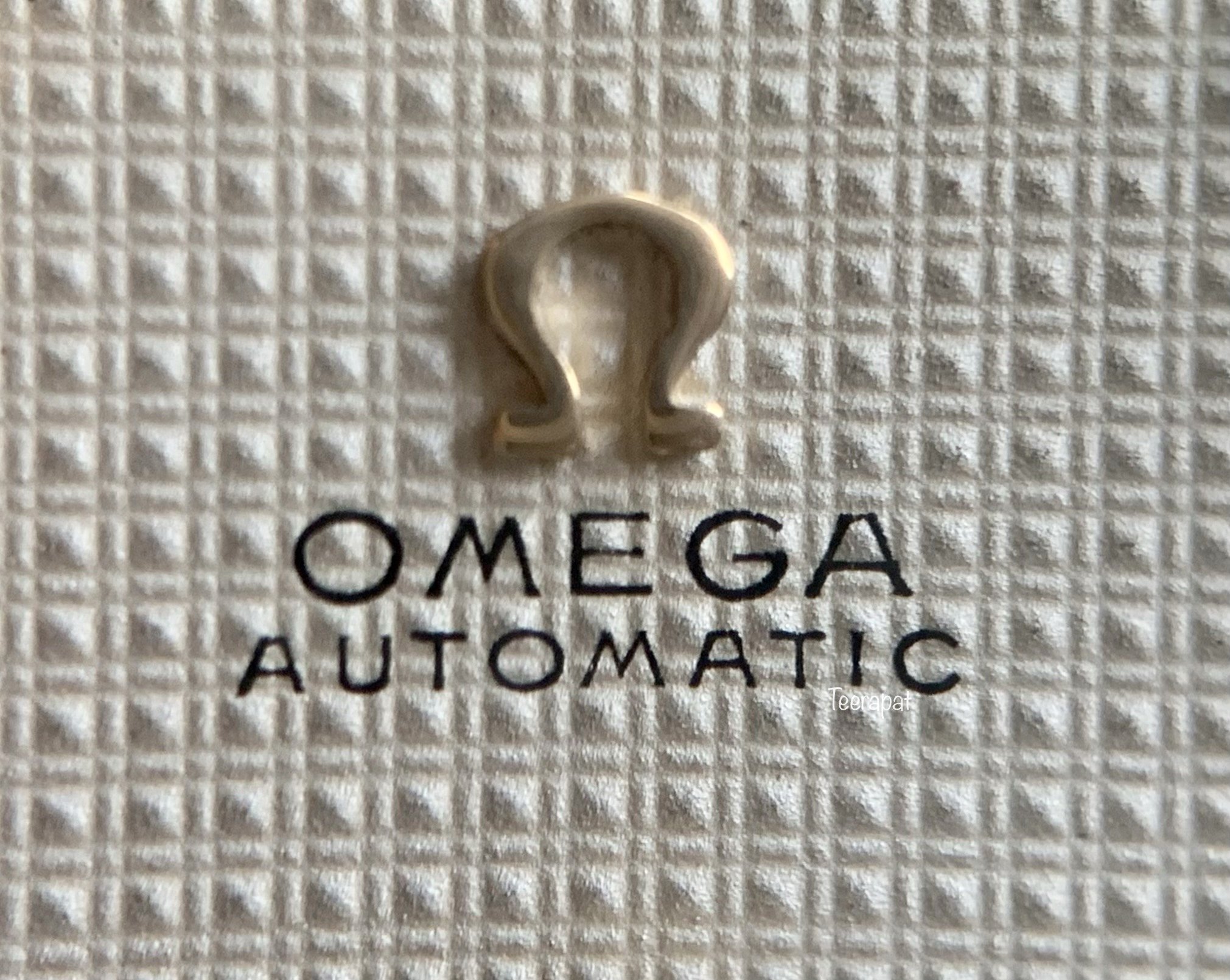

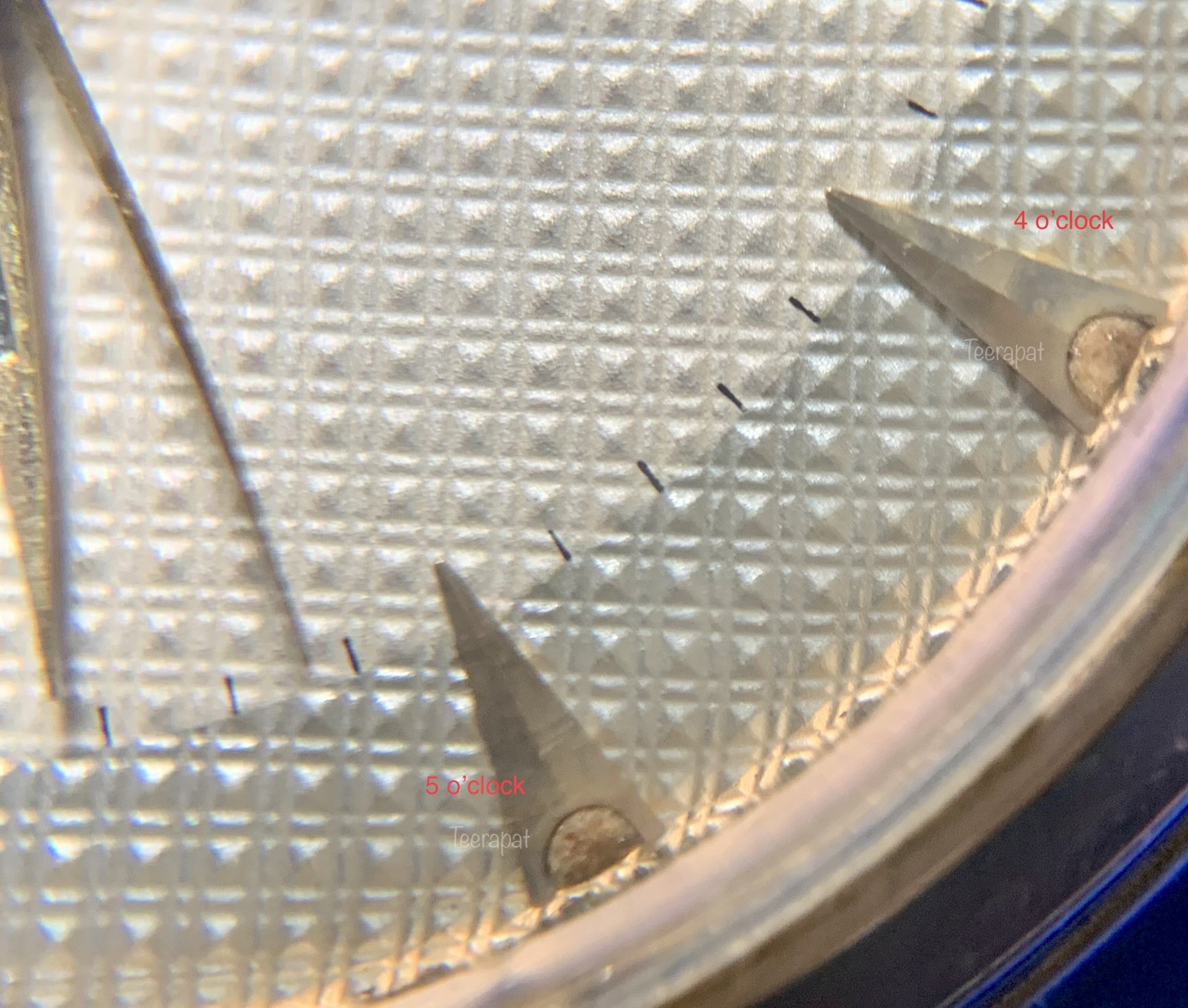

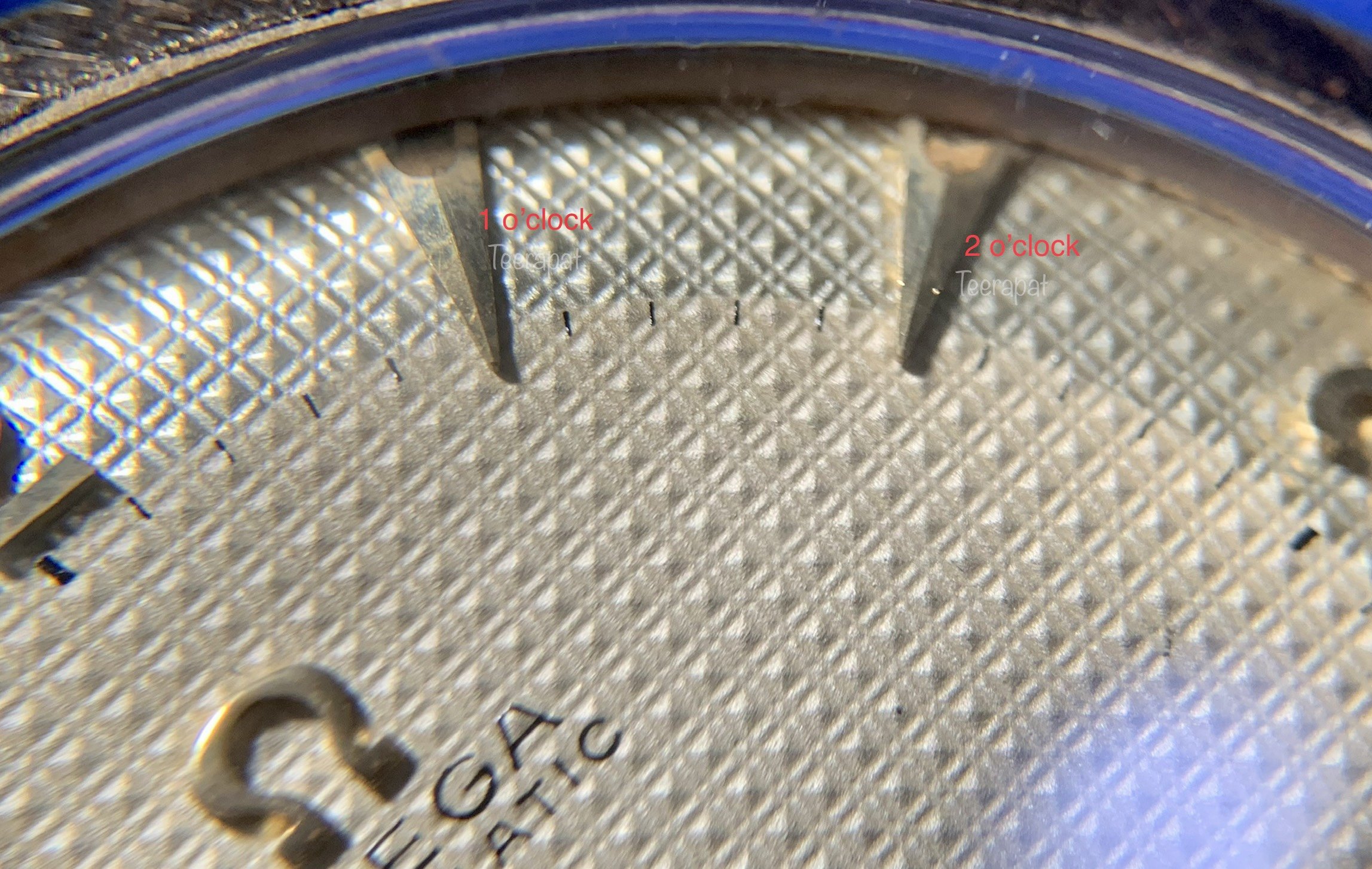

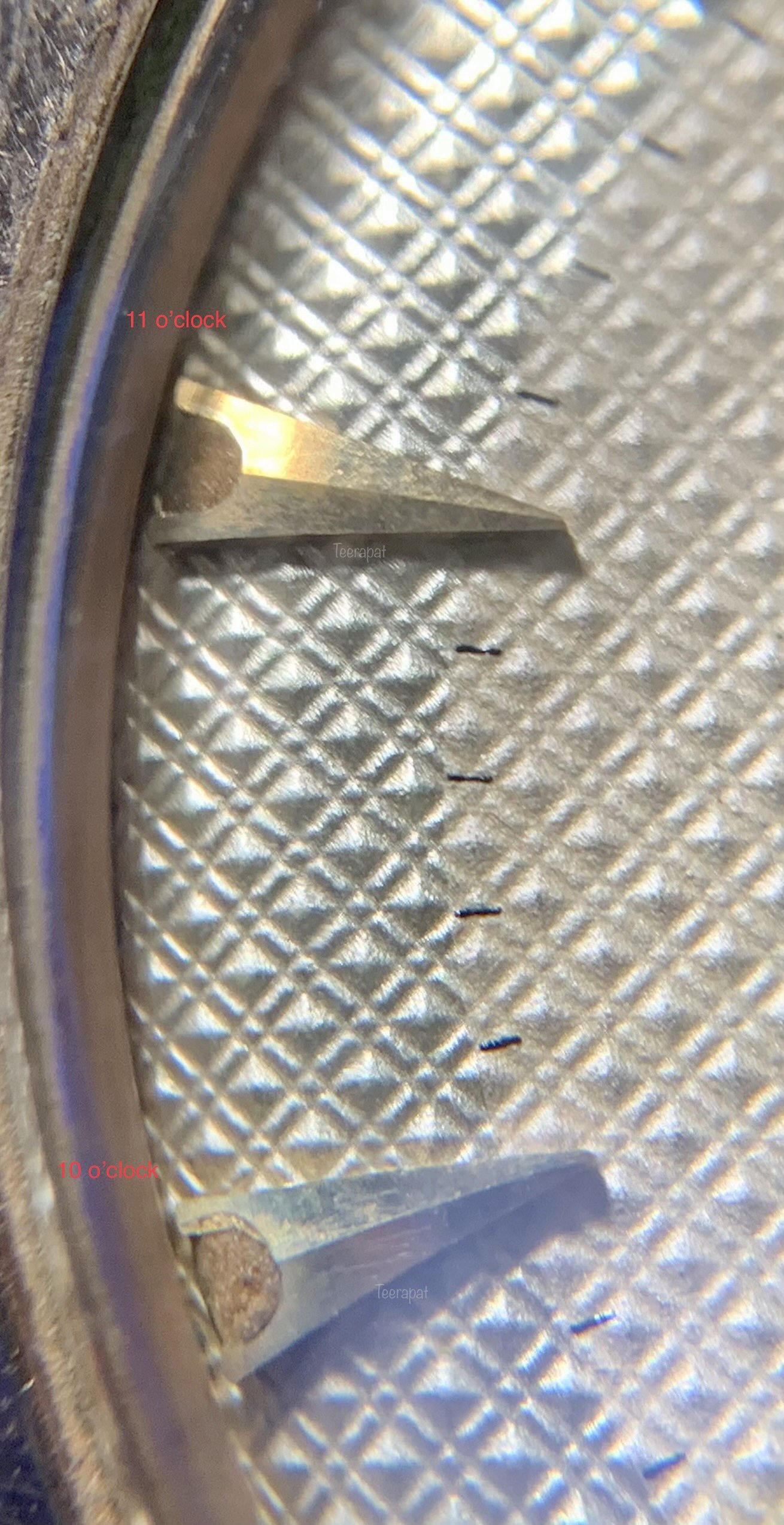

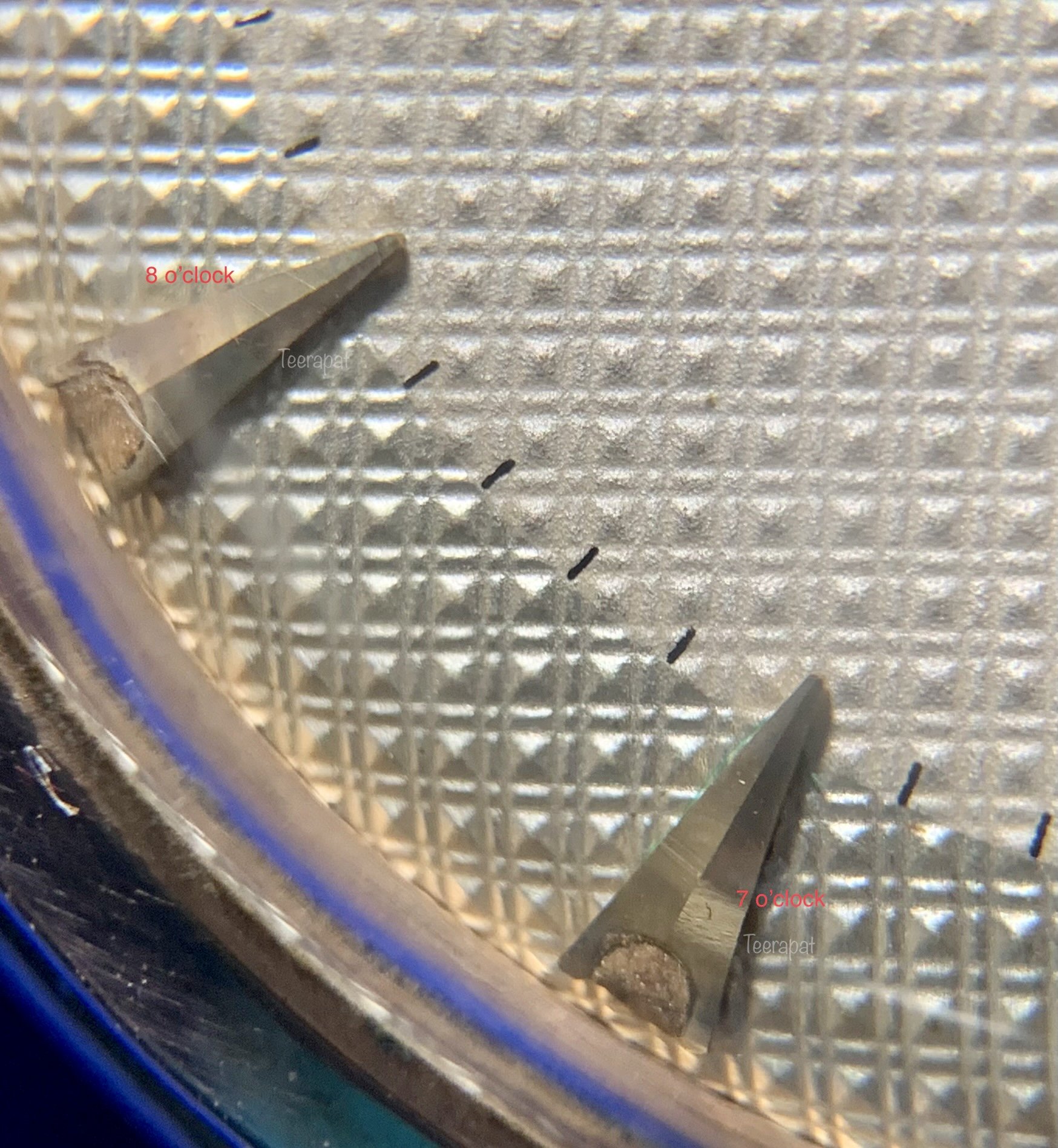

More close-up pictures.

D96A99EF-F491-451A-897E-86CDA12EA2BA.jpeg 96ECE073-A385-4F0F-996F-19B31B4BC407.jpeg 061AC37F-906E-43E6-AF03-C0976AA214AB.jpeg D498E62A-9C10-4D4E-9754-F34109E6A426.jpeg 10419518-0E91-426B-BB9E-BC9E16BBDA49.jpeg 141E0565-3E3C-468F-B891-F1228C8713CF.jpeg
4204EDCA-3551-47C8-9A6B-1839CF54944A.jpeg 60AA2782-5448-4E0E-9936-66E7FAEA7BA8.jpeg 6F7BA4C1-E7FB-478C-B1B7-3F387FFABB35.jpeg FF80A76C-1F9B-4939-A5E3-EB82778A28B8.jpeg

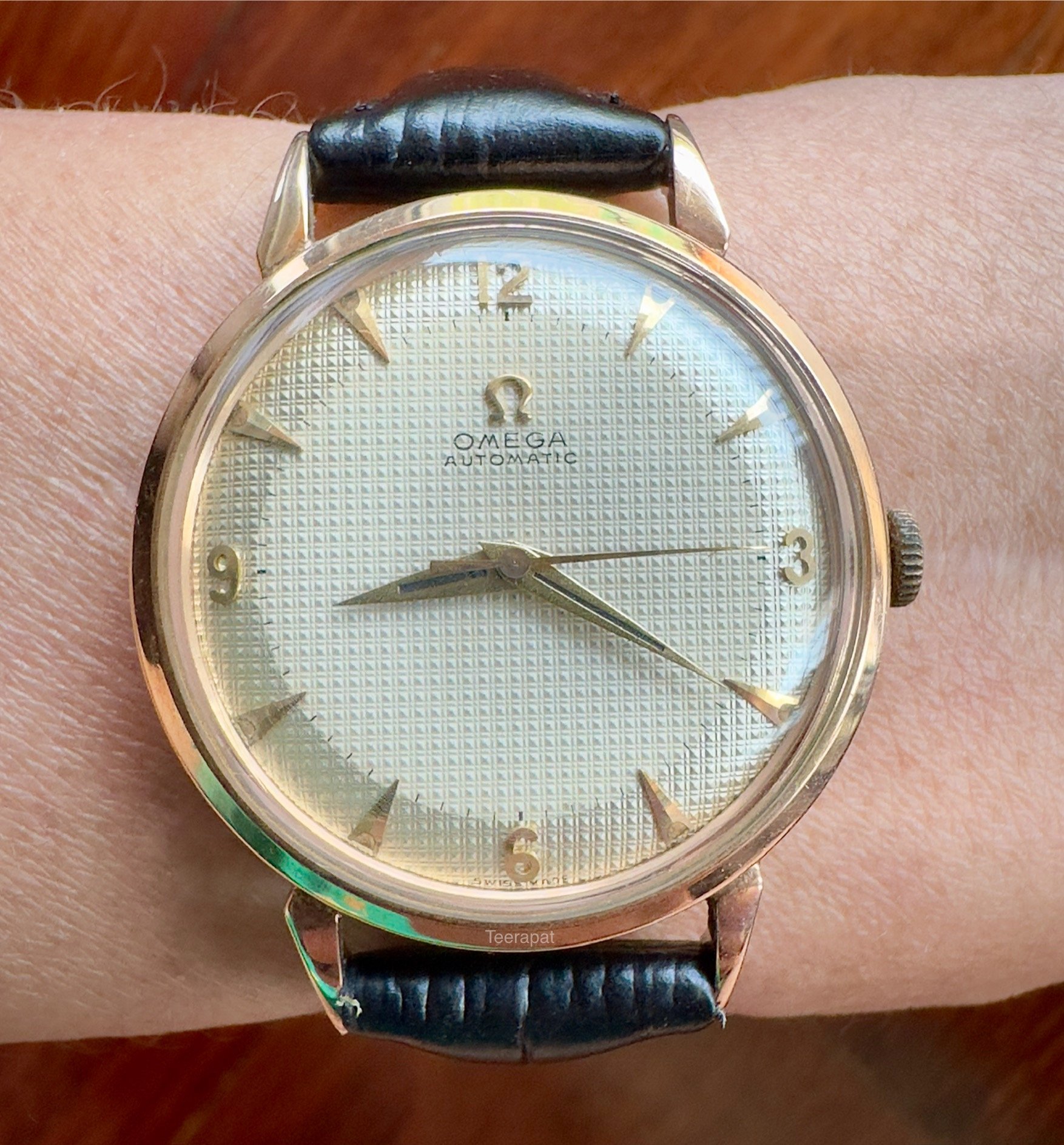

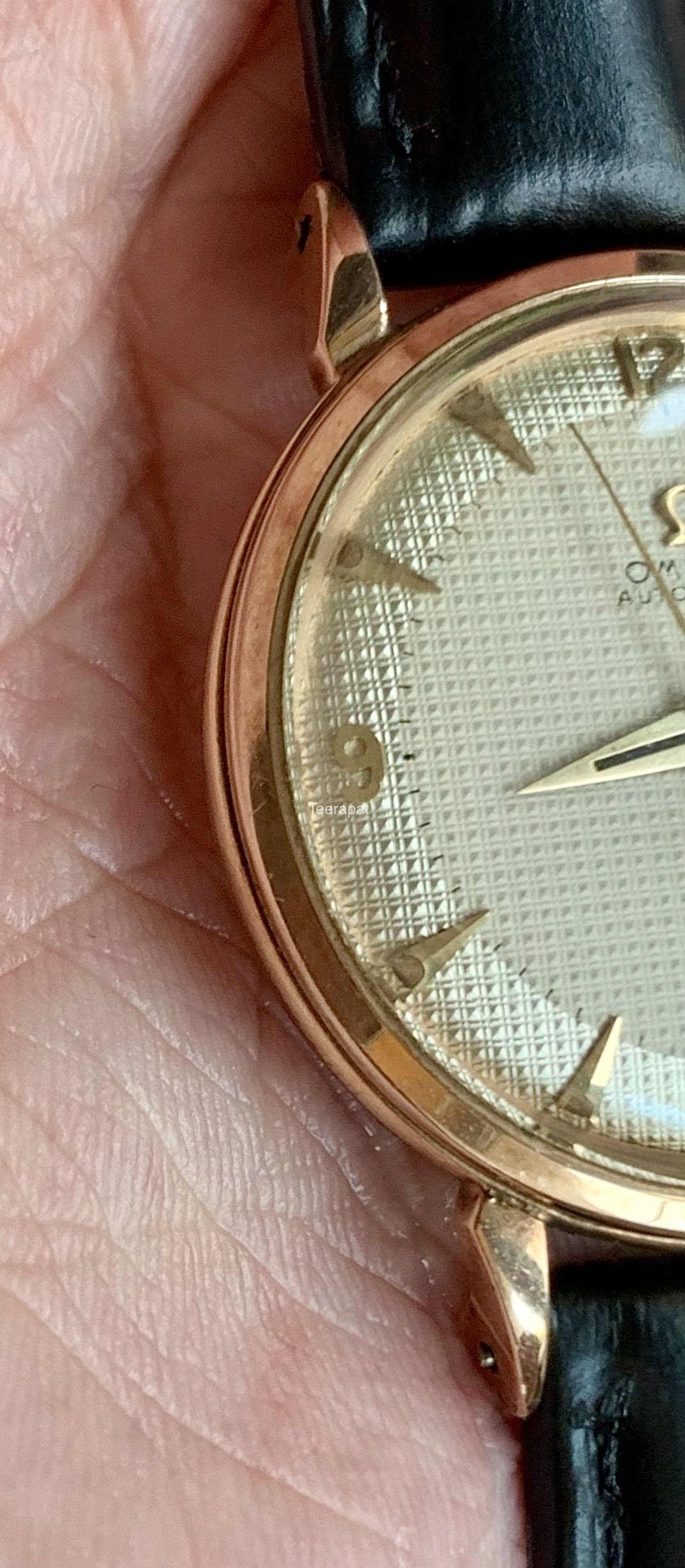

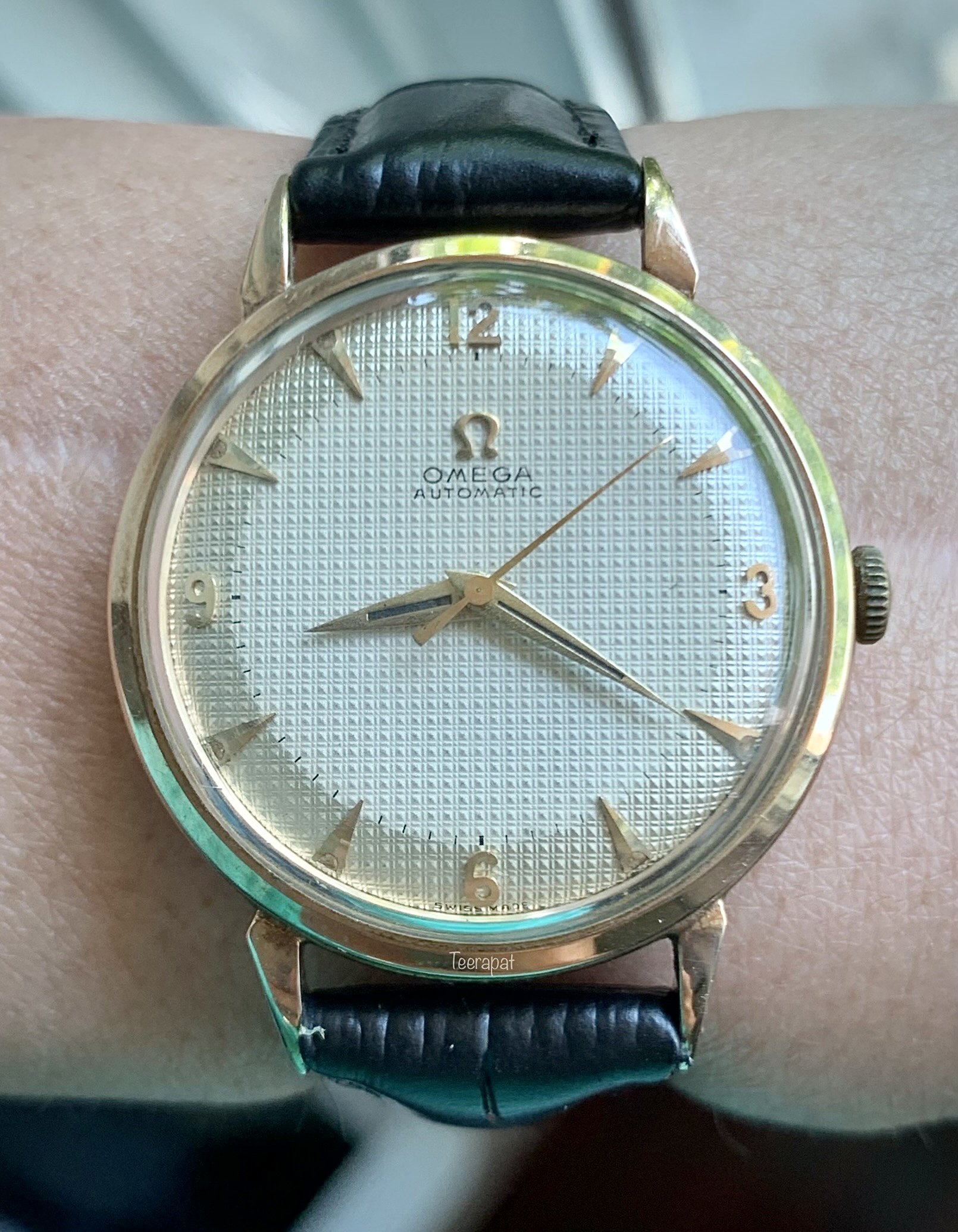

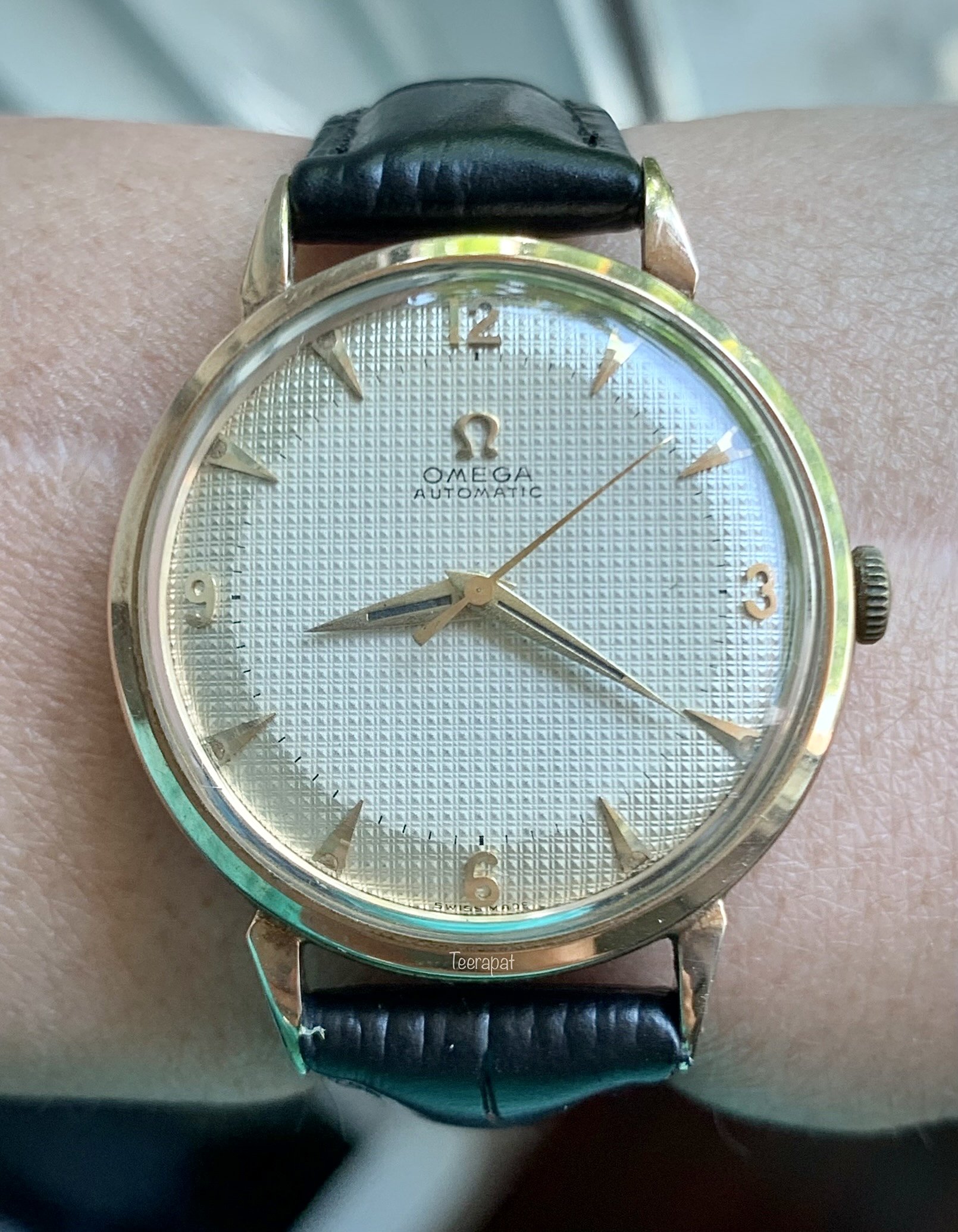

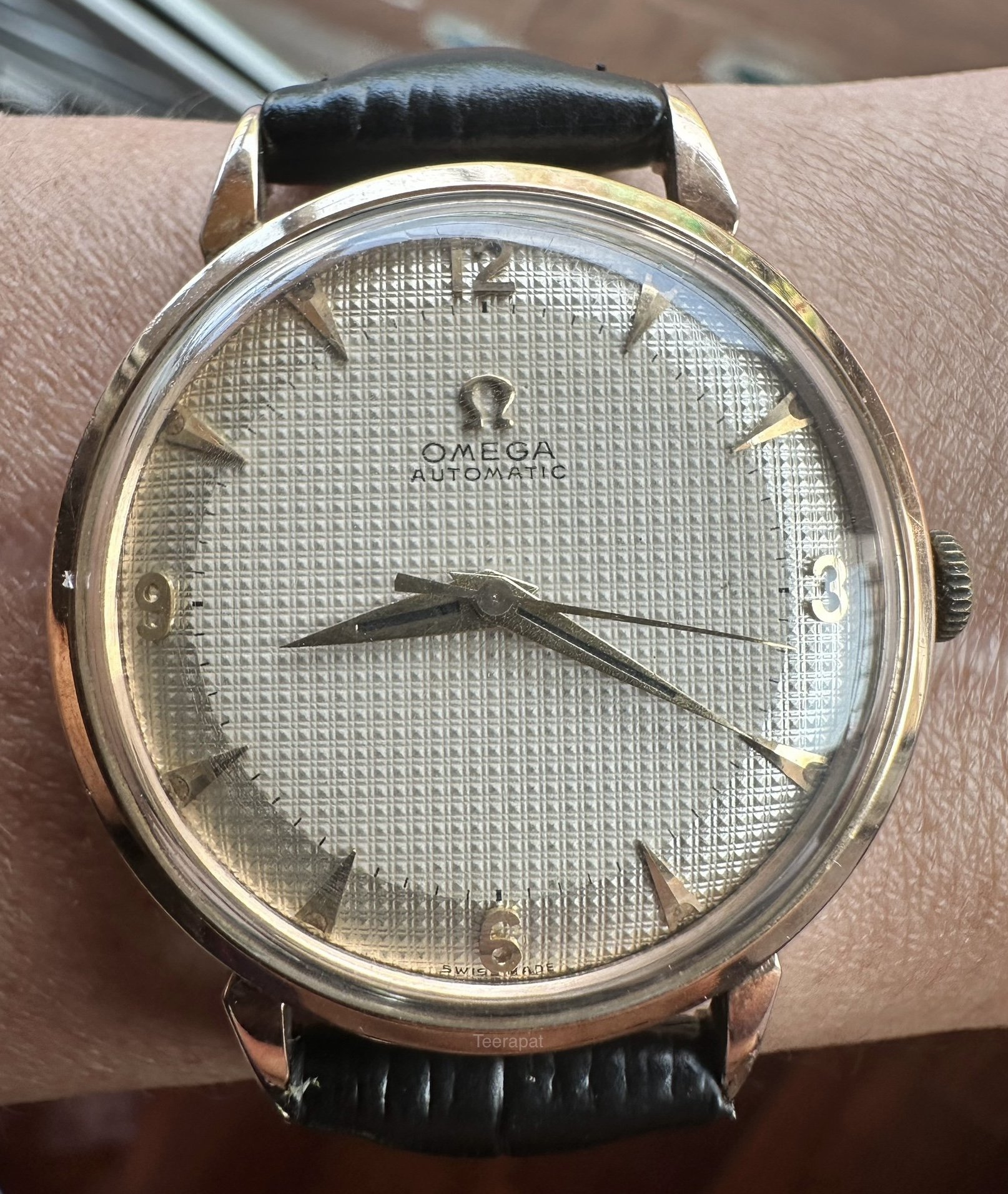

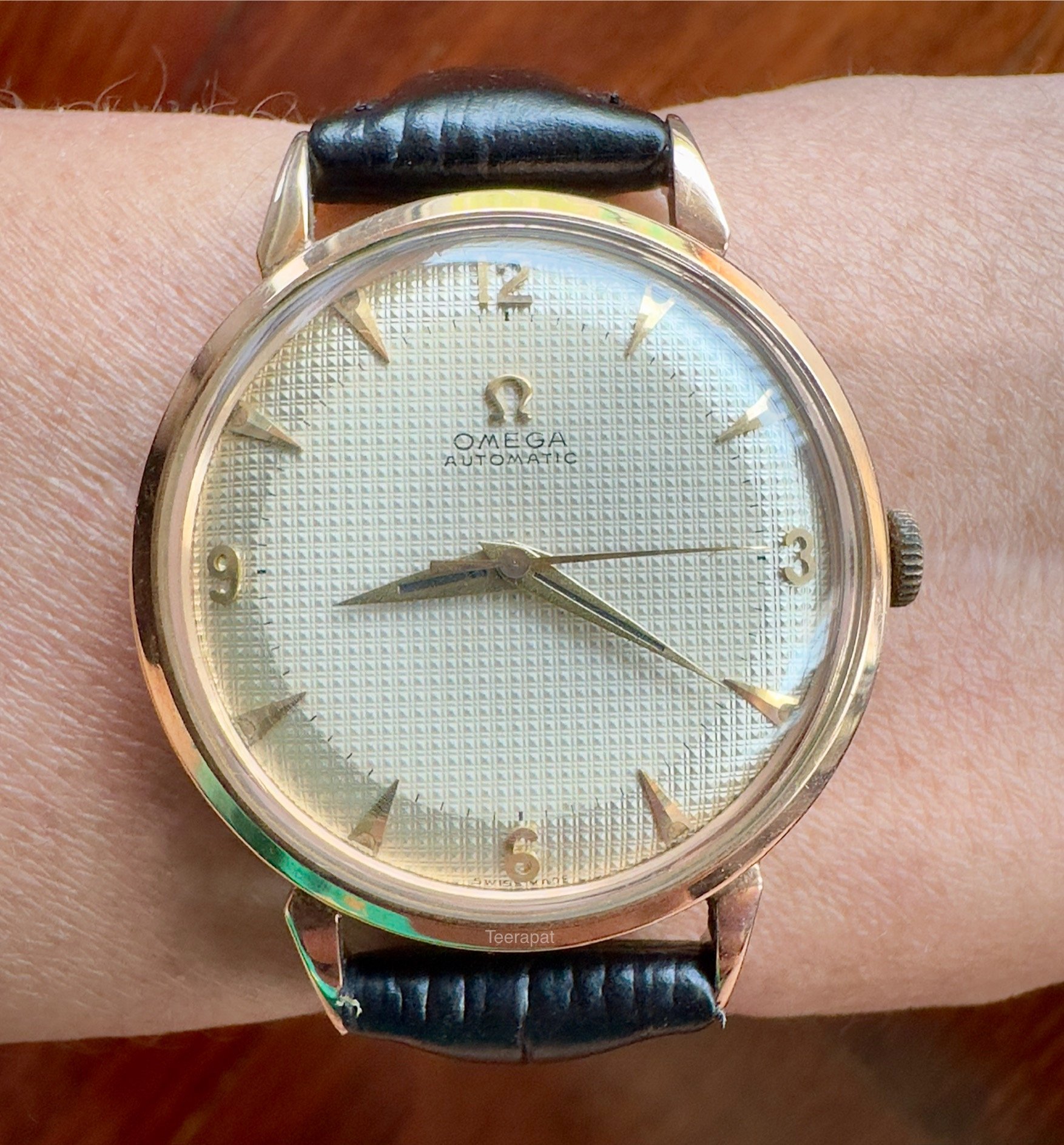

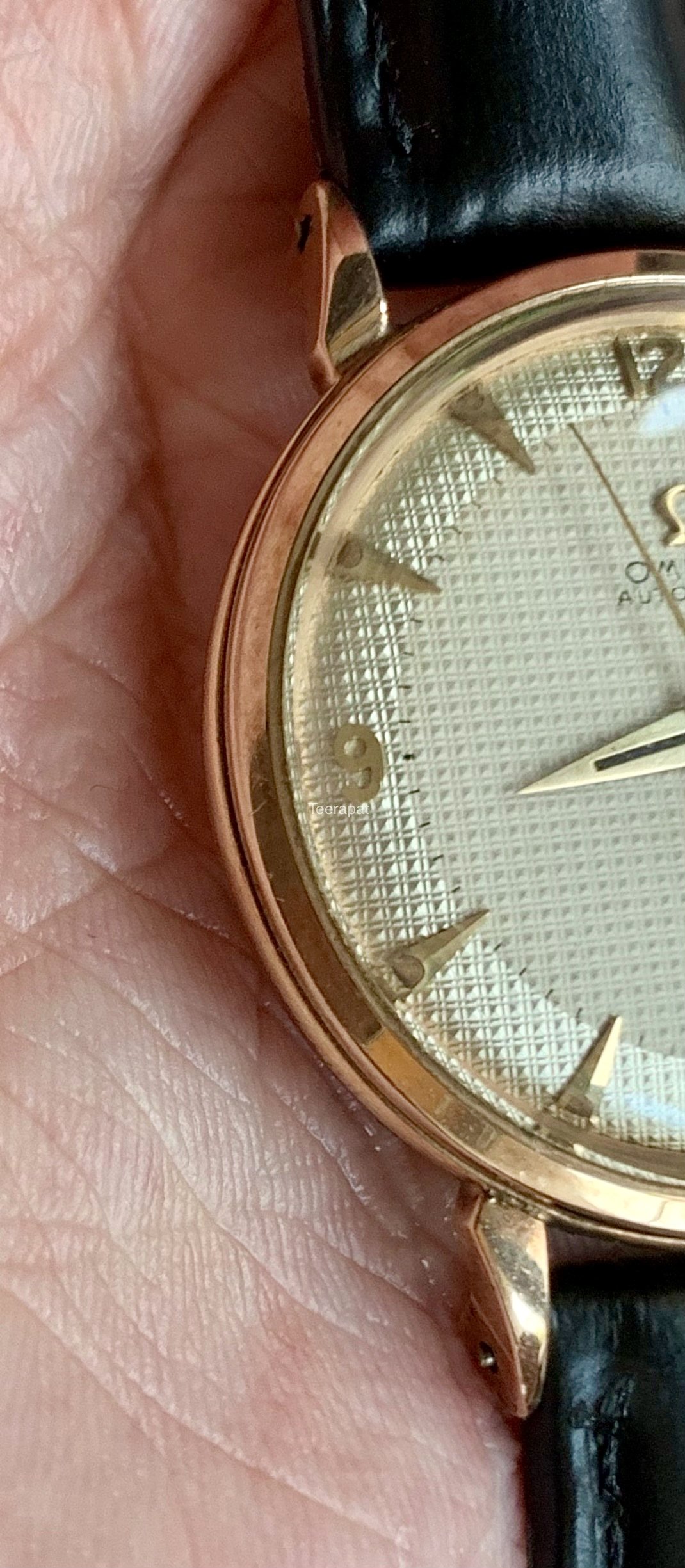

Finally, my wrist shot.

207191CF-BCC8-4E41-AAFD-BECEBCB69C03.jpeg 402A6A89-909F-47F1-8355-74FF95DFF7EA.jpeg

Taking picture with his friend.😀


I leave my questions:
Are there any concerns? Please correct me if I misstated anything.
Thanks a lot for your opinion about the “Australian” case, also the dial.
The only way to confirm will be to requesting an Extract of the Archives from Omega (when will it come back)?

Best,
Teerapat

Posts
1,879
Likes
1,147
Your case and similar are not listed as Seamasters as they’re 3 piece cases and not capable of being sealed to prevent water from seeping in.

Even some two part case are not listed as Seamasters

Posts
2,269
Likes
19,723

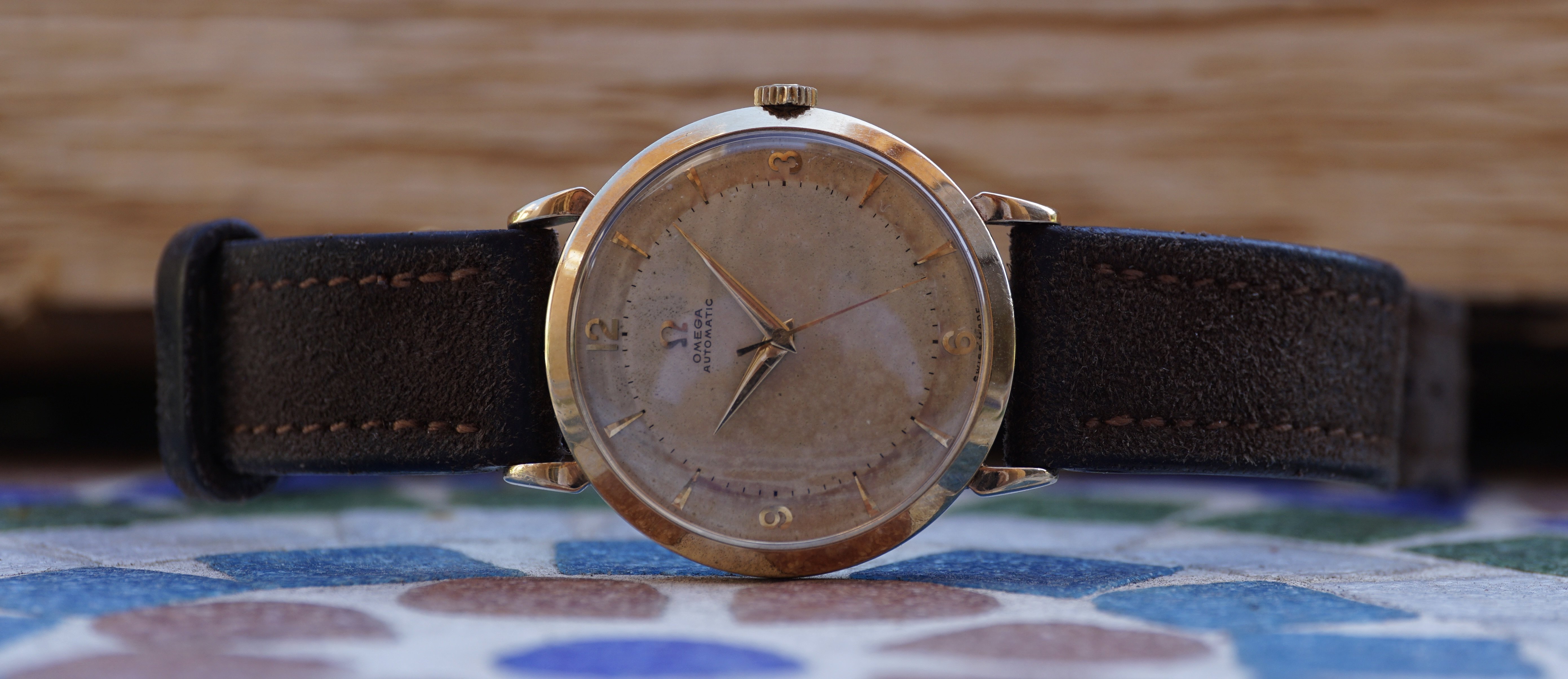

The depth of your research is amazing, Teerapat. I was under the impression yours was a French production, unaware of Australian heritage until now.

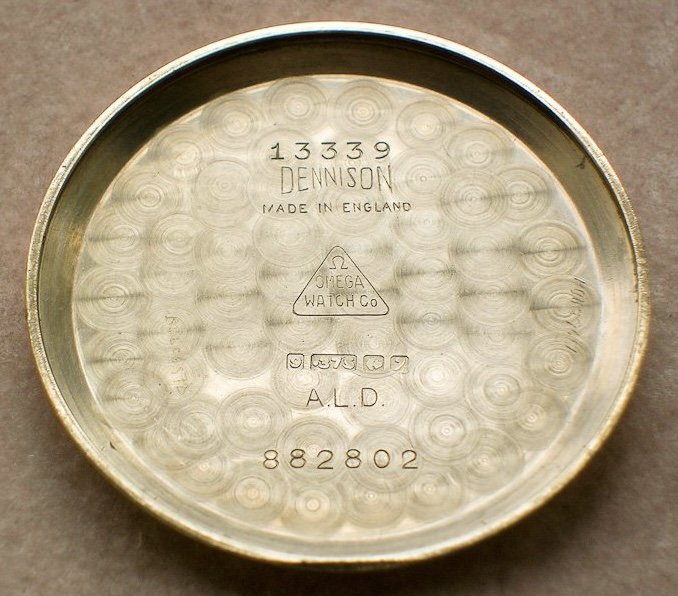

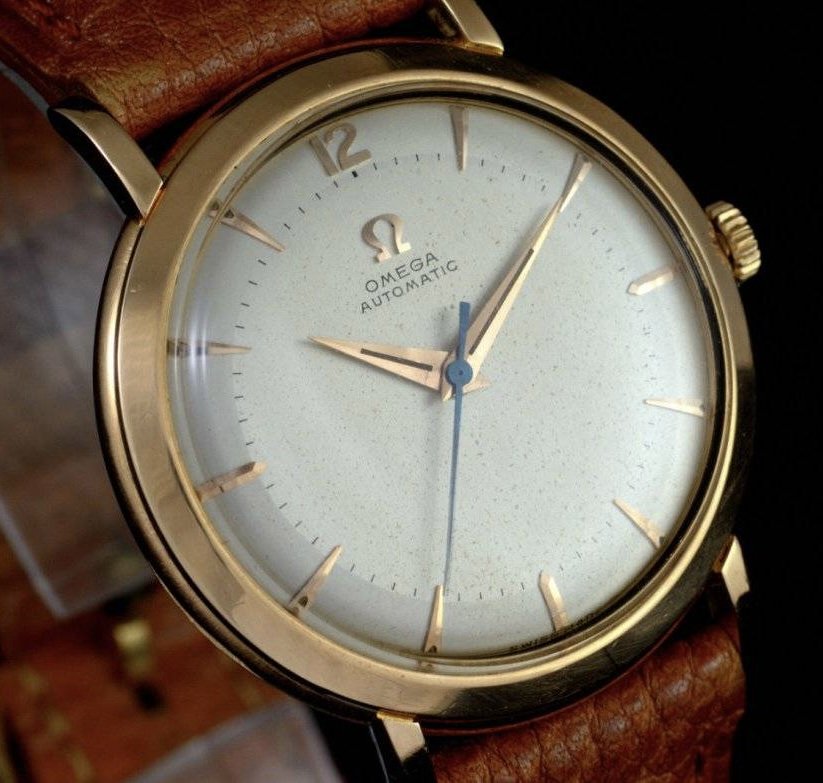

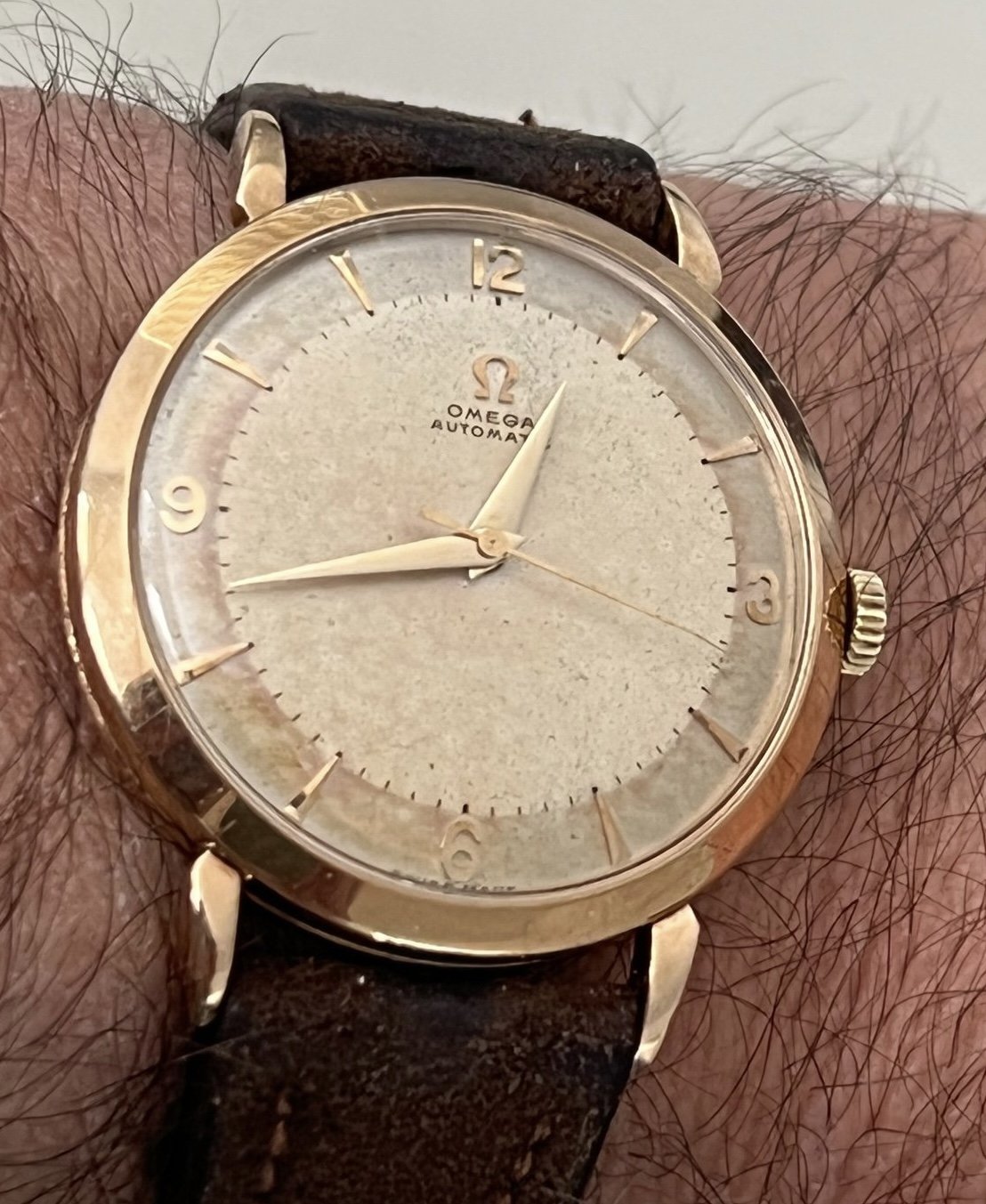

Here's an image of my comparable Dennison.



Congrats!

Art

Posts
752
Likes
3,074
Thanks a lot @DON and @Dr No .

At first, I believed that it should be the “French case” as you mentioned @Dr No .

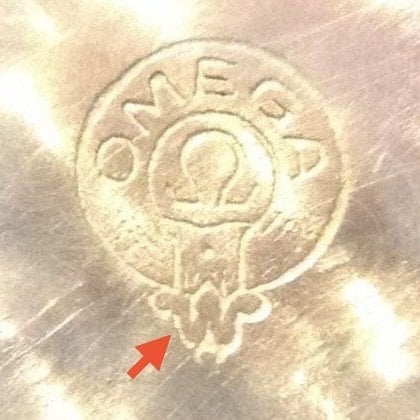

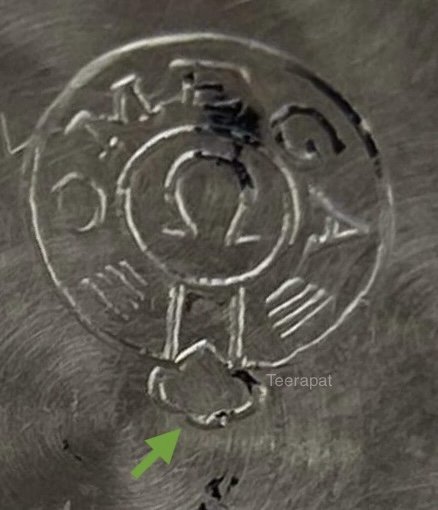

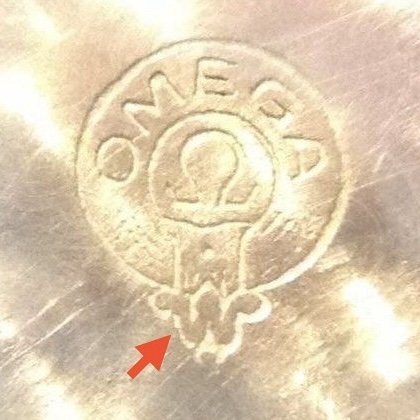

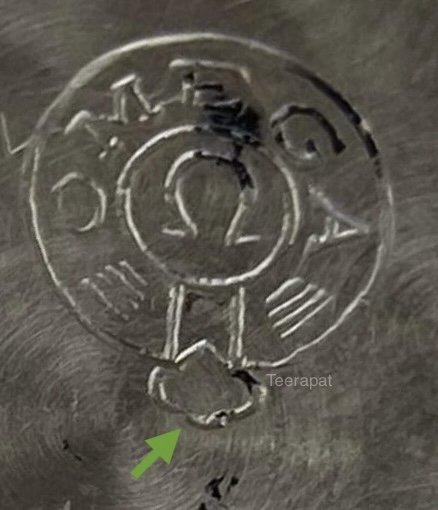

However,I found the omega symbol was not exactly the same as either three type of the “French cases” from my research. In the French case the bottom part of the symbol (the red arrow) will look like “W” , while my watch (the green arrow) looks like “the Spades”.😉

IMG_9784.jpeg IMG_9789.jpeg

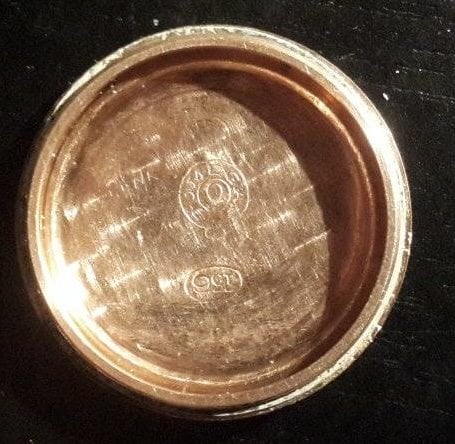

My research found this example, which was described as 1950’s omega royal “Australian” air force pilots watch.
https://www.ukwatches.com/product/015-1950s-omega-royal-australian-air-force-pilots-watch/


Also, in this thread with the same symbol as mine, @X350 XJR mentioned that it could be an “Australian” case.
https://omegaforums.net/threads/no-number-case.58782/

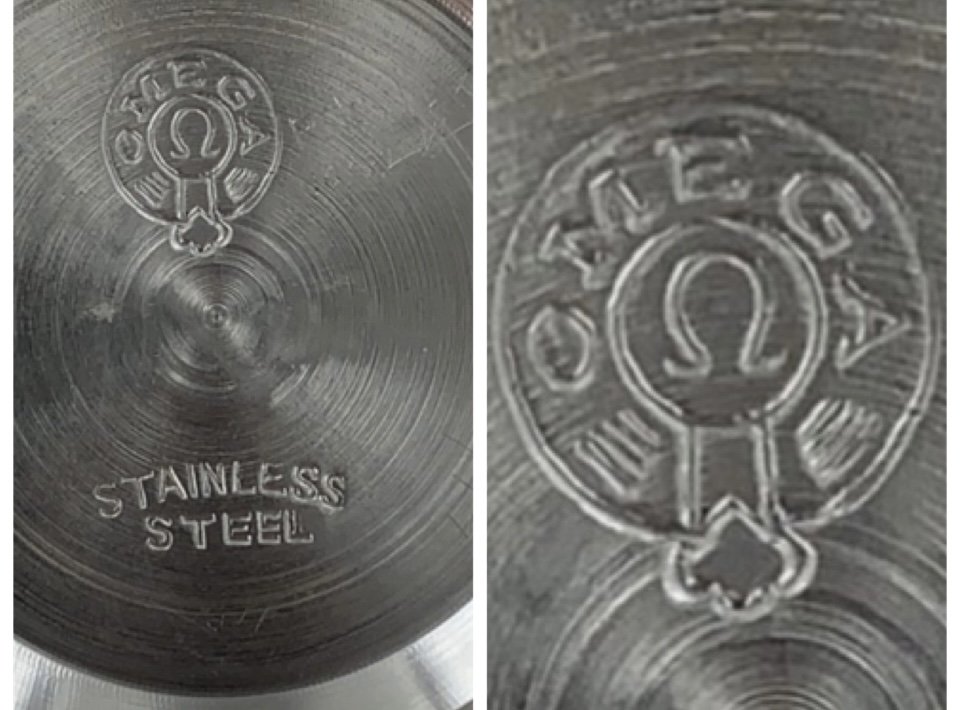

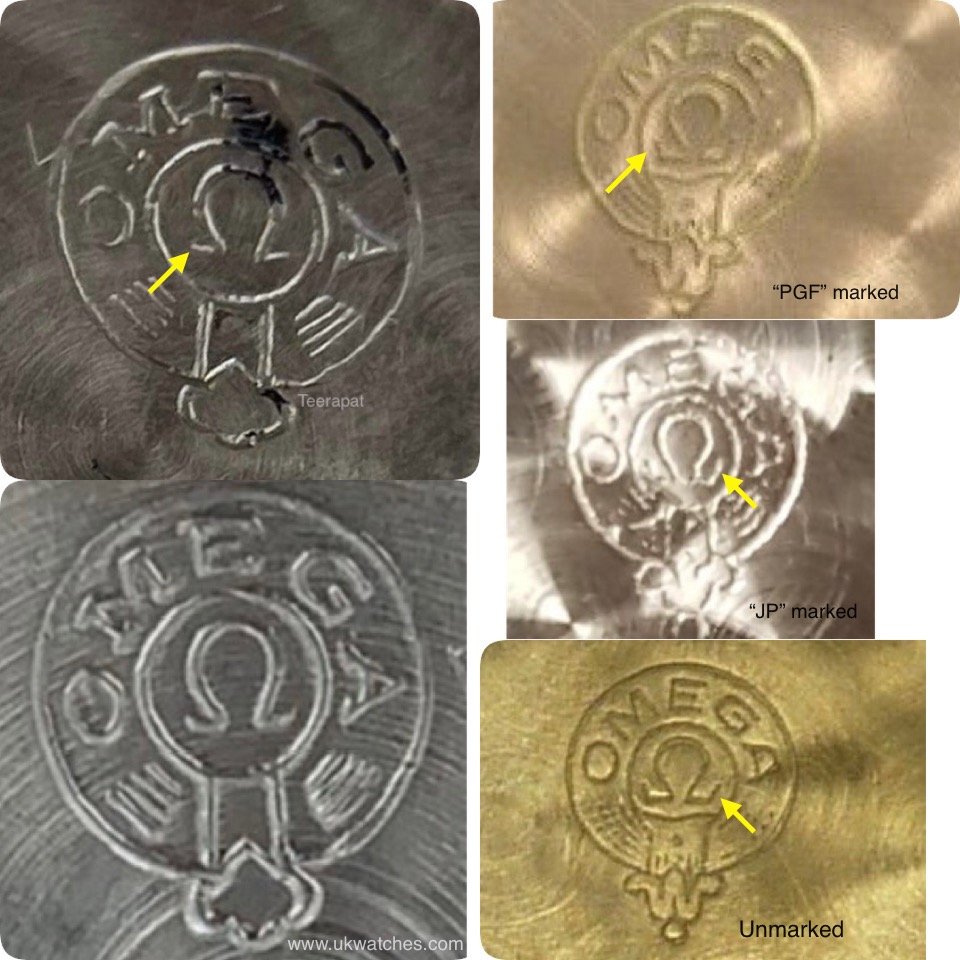

Please compare the close-up of logo from mine and other “Australian case” vs the French-cased Omega.
Furthermore, I observe the significant “upward” of both end part of the legs on omega symbol (the yellow arrows) used in all French cases.


May I call @X350 XJR and @gatorcpa to shed some light.😀

Best,
Teerapat
Edited:

Posts
12,488
Likes
16,814
I can say nothing. You’ve said it all.
gatorcpa

Posts
752
Likes
3,074

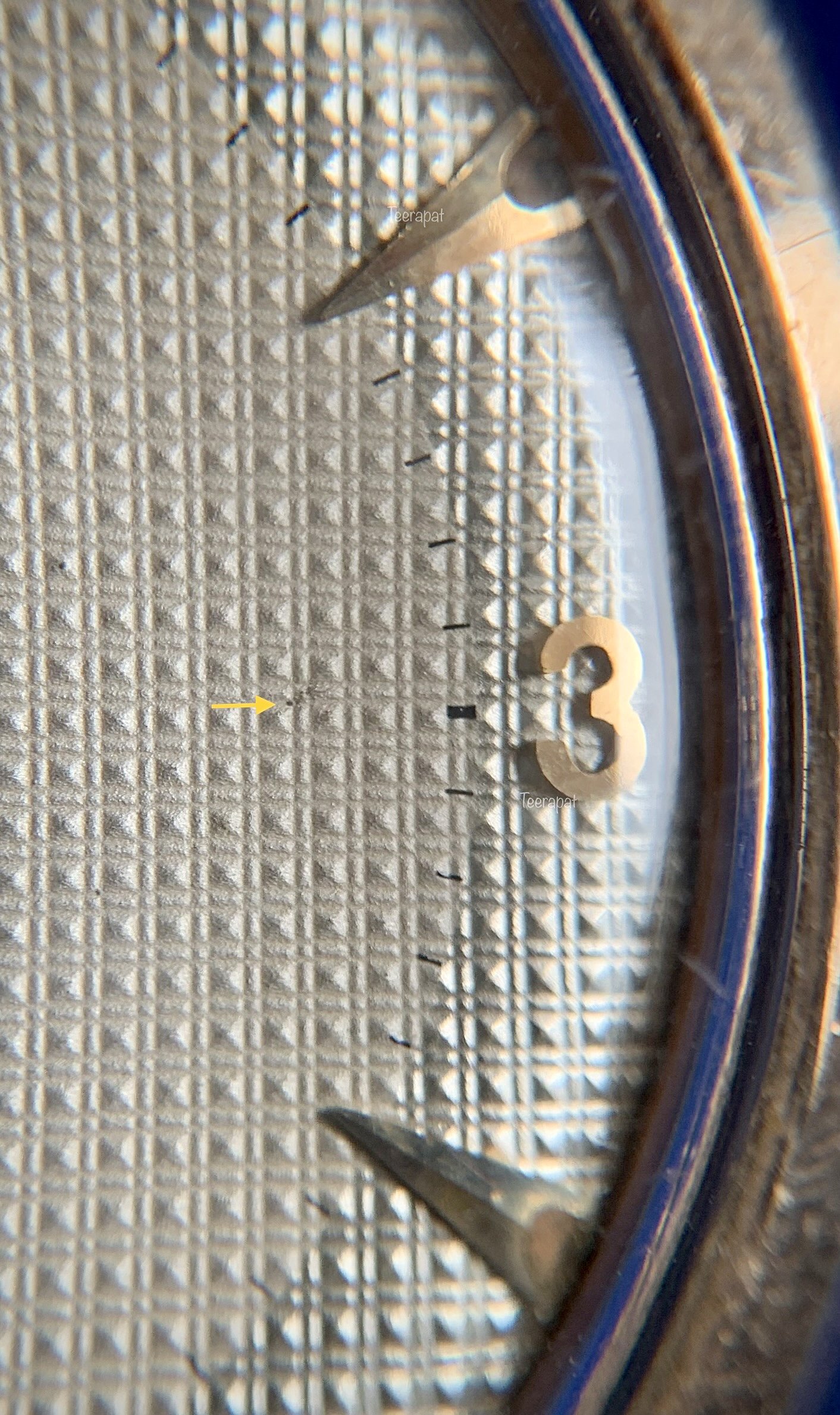

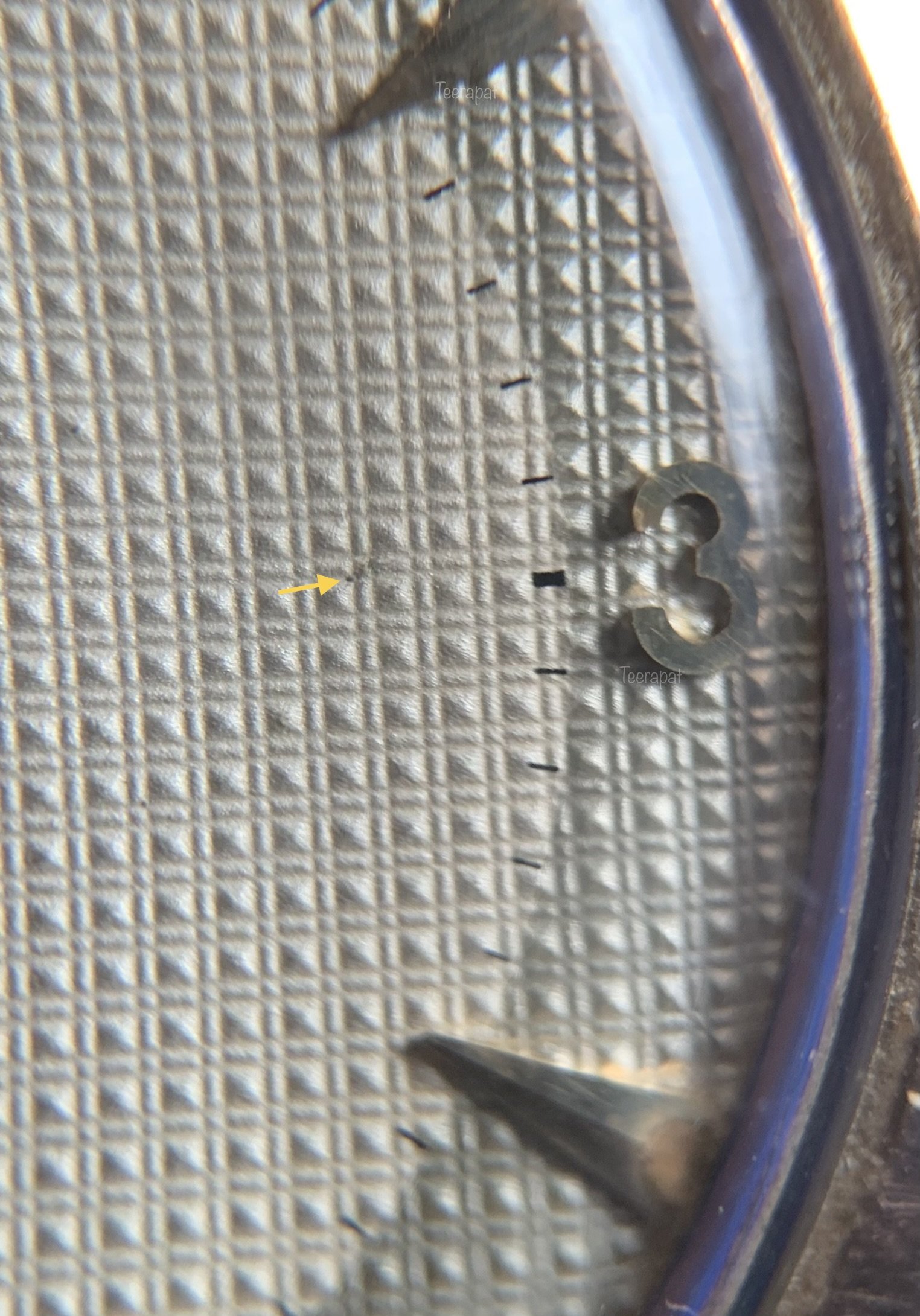

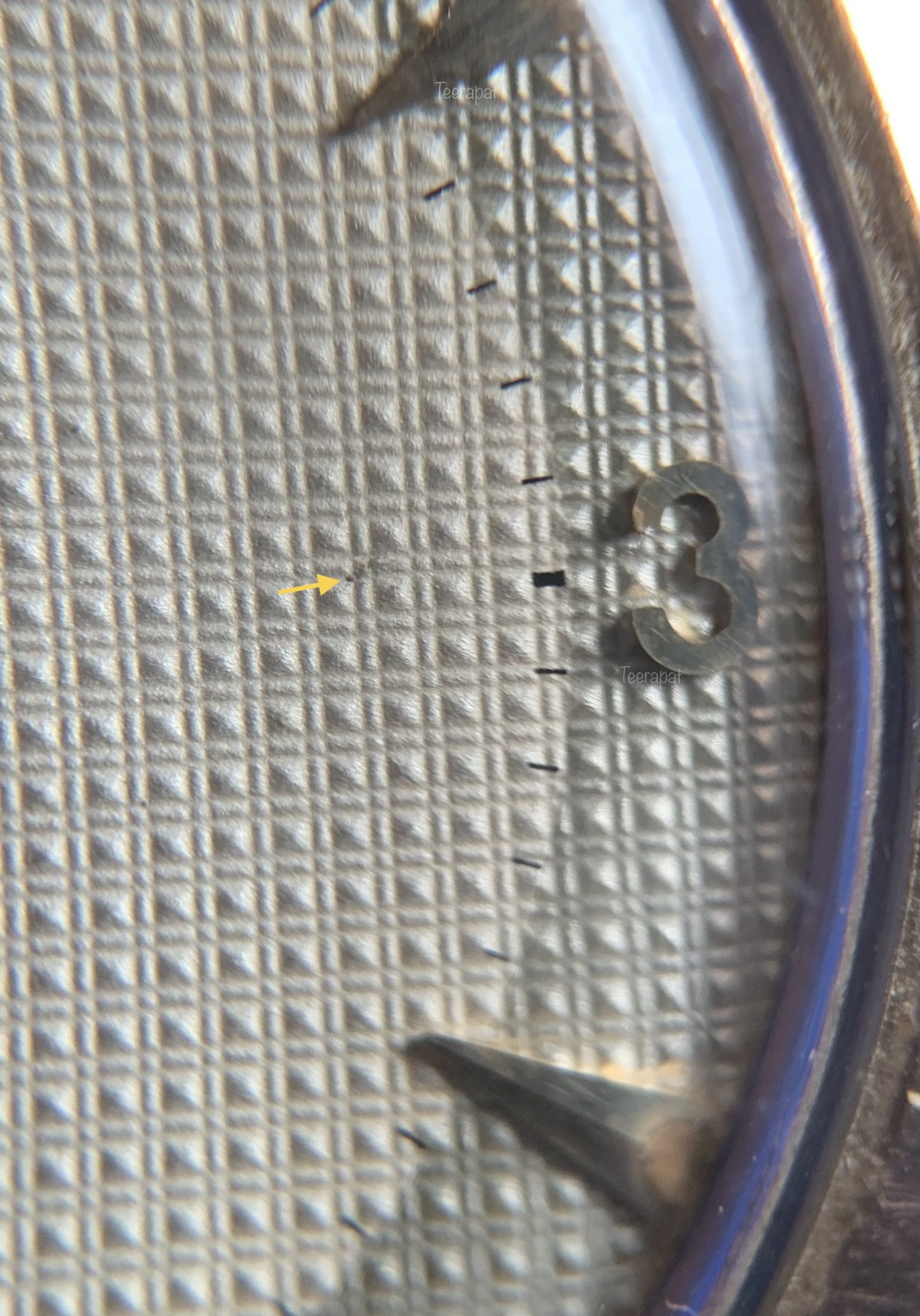

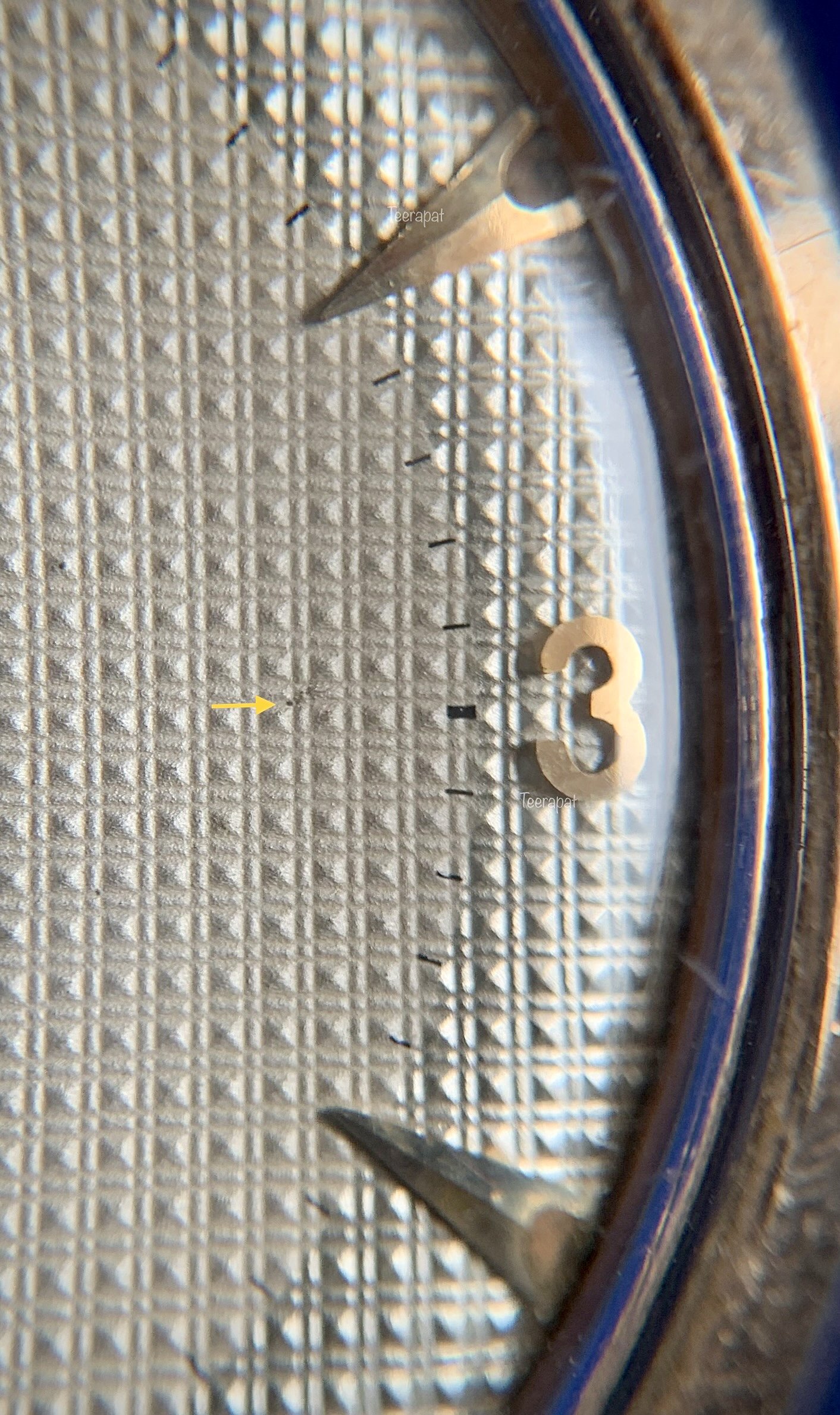

In the real life, it not easy to capture the very tiny imperfect spot near the 3 o’clock.😲
It’s the only imperfection spot on this dial, in my opinion.
8FA301C0-E872-48CA-81AE-25F4DAEF05F0.jpeg 36DAD5B6-7FDA-4E85-8E23-1077B9596326.jpeg
