ID for this 1940s Omega Movement

Posts
25
Likes
87

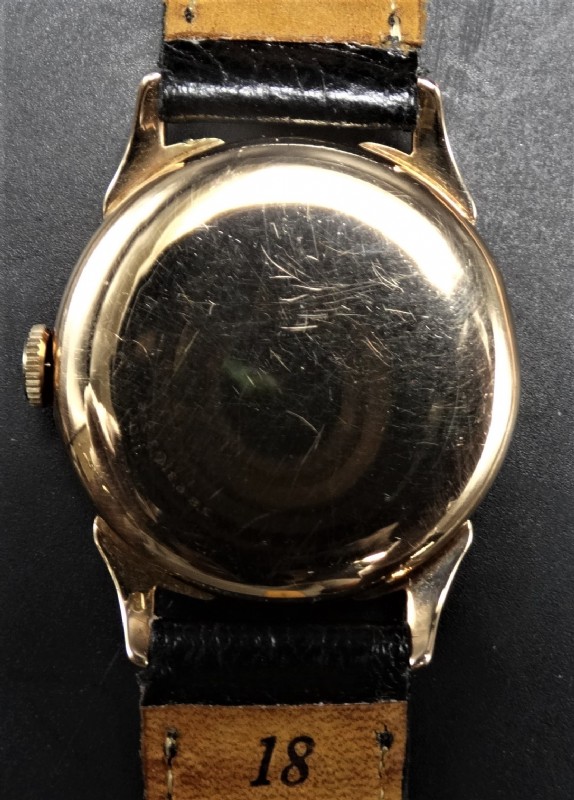

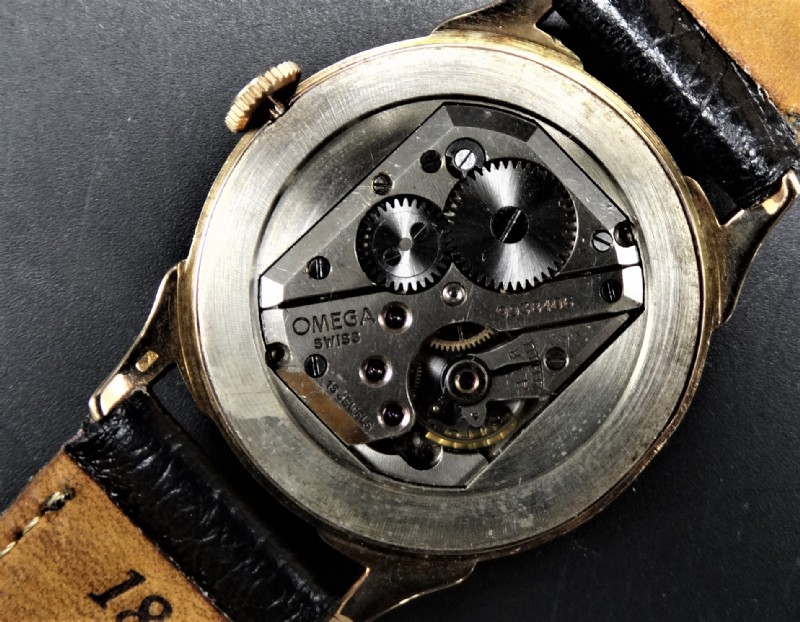

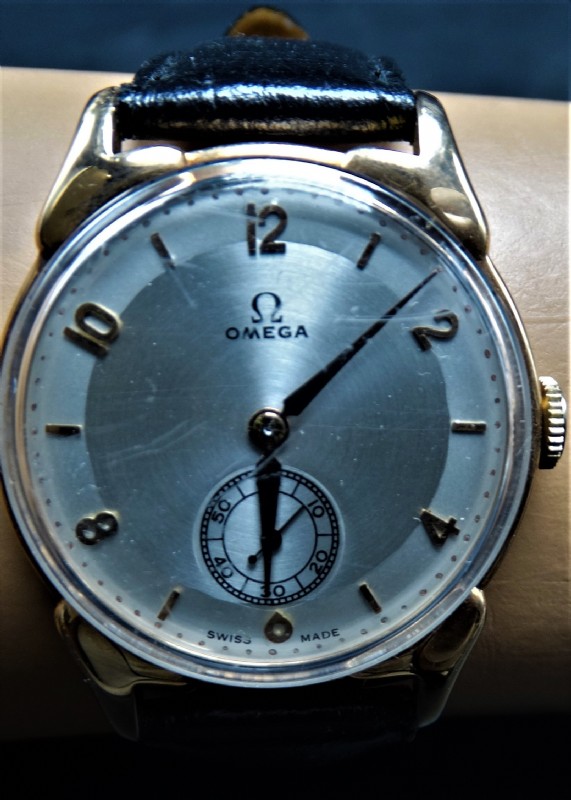

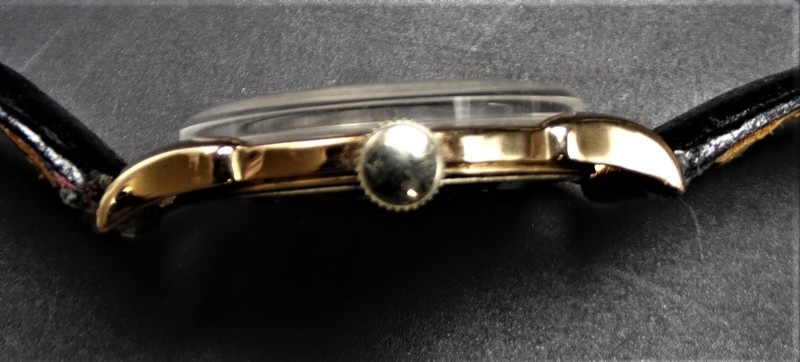

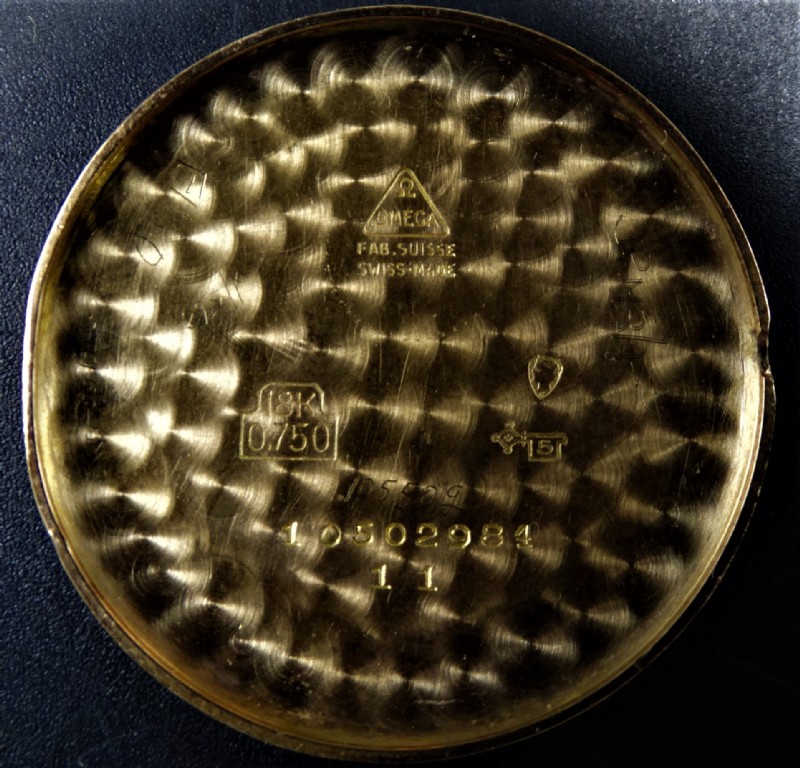

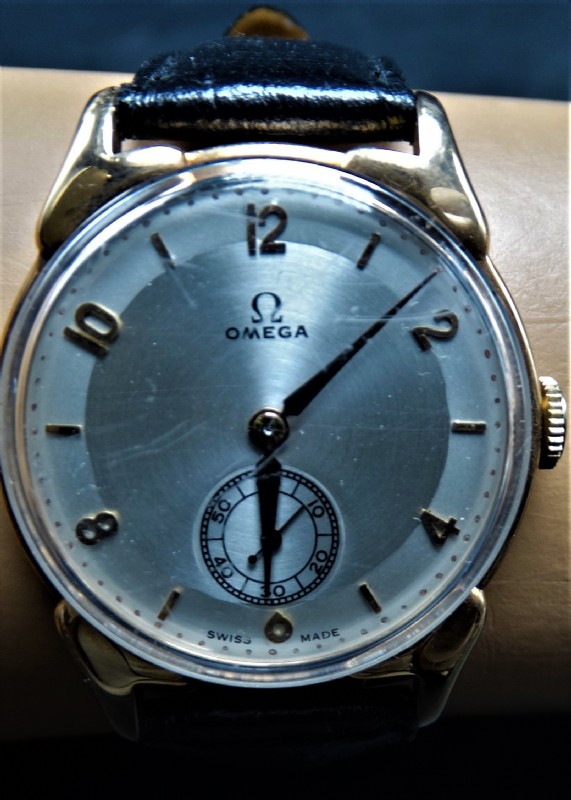

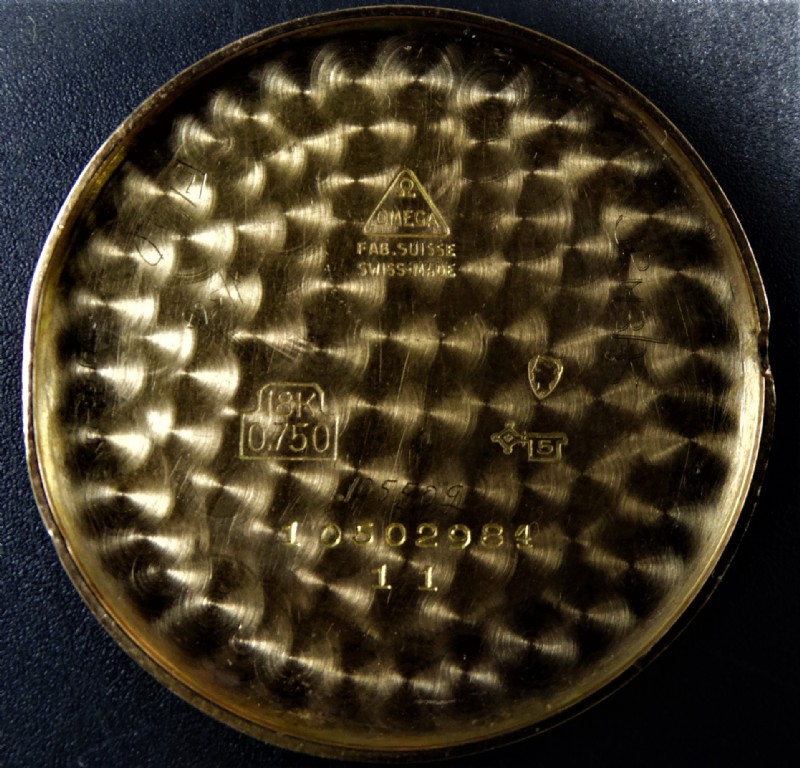

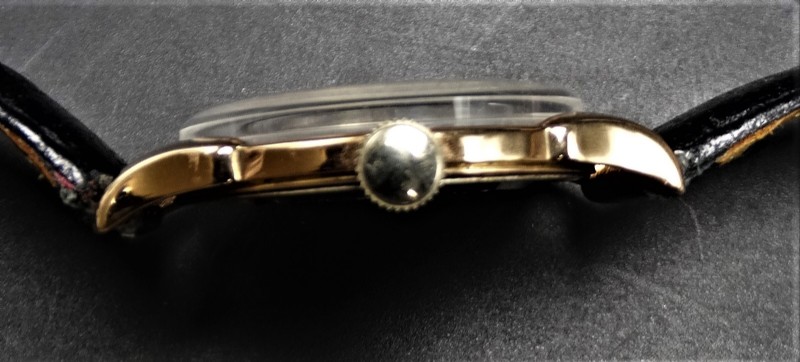

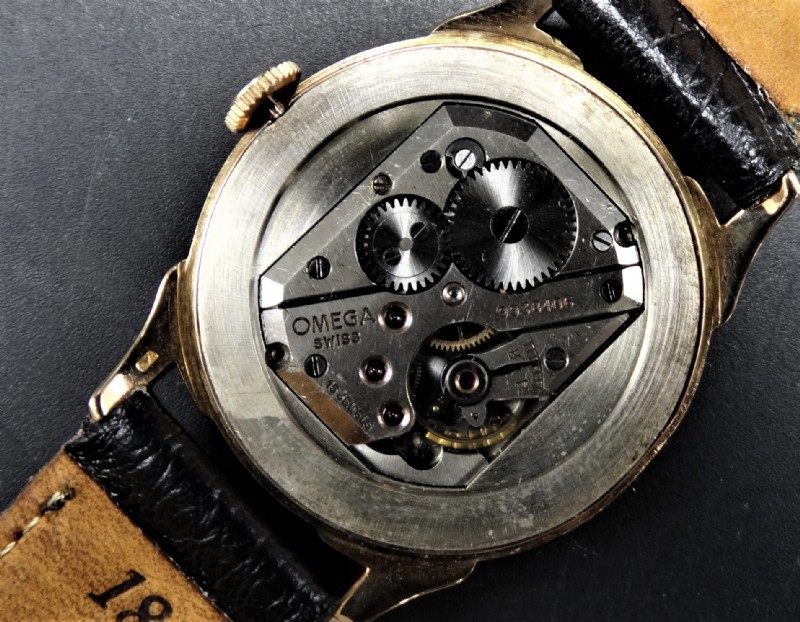

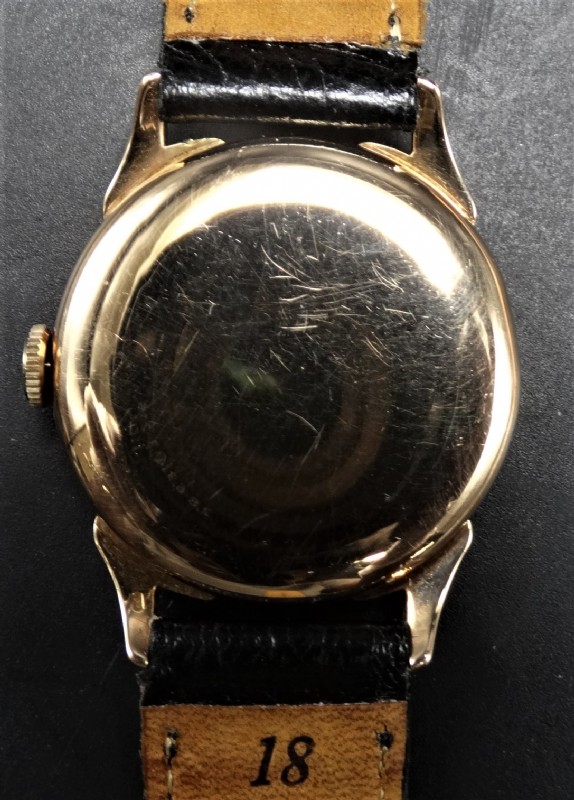

Would any of you kind knowledgable folk have any info on this movement? The Serial number dates it to 1943 I believe. Specifically, calibre, dates in production, models it was used in, etc... Thank you in advance for any information. ACD

Posts
9,596
Likes
27,692
Looks like a cal 17.8.

You should try google images for that particular cal. and start there. Omegas of this era had reference numbers, but they weren't really used by the public and model names weren't a thing at that time.

Posts
25
Likes
87
Looks like a cal 17.8.

You should try google images for that particular cal. and start there. Omegas of this era had reference numbers, but they weren't really used by the public and model names weren't a thing at that time.

Thank you. I did find it in google images. Listed as R17.8. Took some hunting. I did not realize that there were no model names in use in the 40s. Thats good info. Thanks again.

Omega R17.8 calibre movement

Features
manual wind
sub second

Data
Dm=Do= 17.8 x 22.0mm
H= 3.25mm
15 jewels
f = 21600 A/h
power reserve 45h

Balance staff U1249

Stem W1040

Main spring
Zf673, 1.2 x 8.0 x 0.10 x 230mm

Remarks
1939-1949
bimetalic screw balance

family:
R17.8: sub second
R17.8AM: sub second, antimagnetic
R17.8SC: sweep second
R17.8SC AM: sweep second, antimagnetic
