Have you see this dial variation? Crosshair C-case

NVWC
Posts
150
Likes
386
Dear OF members,

I would like to get your opinion on this dial, whether it is a rare variation, a redialed, or original dial with added cross hair later.

I have seek the opinion of 2 friendly member here on this watch, but we are unable to come to a conclusion.

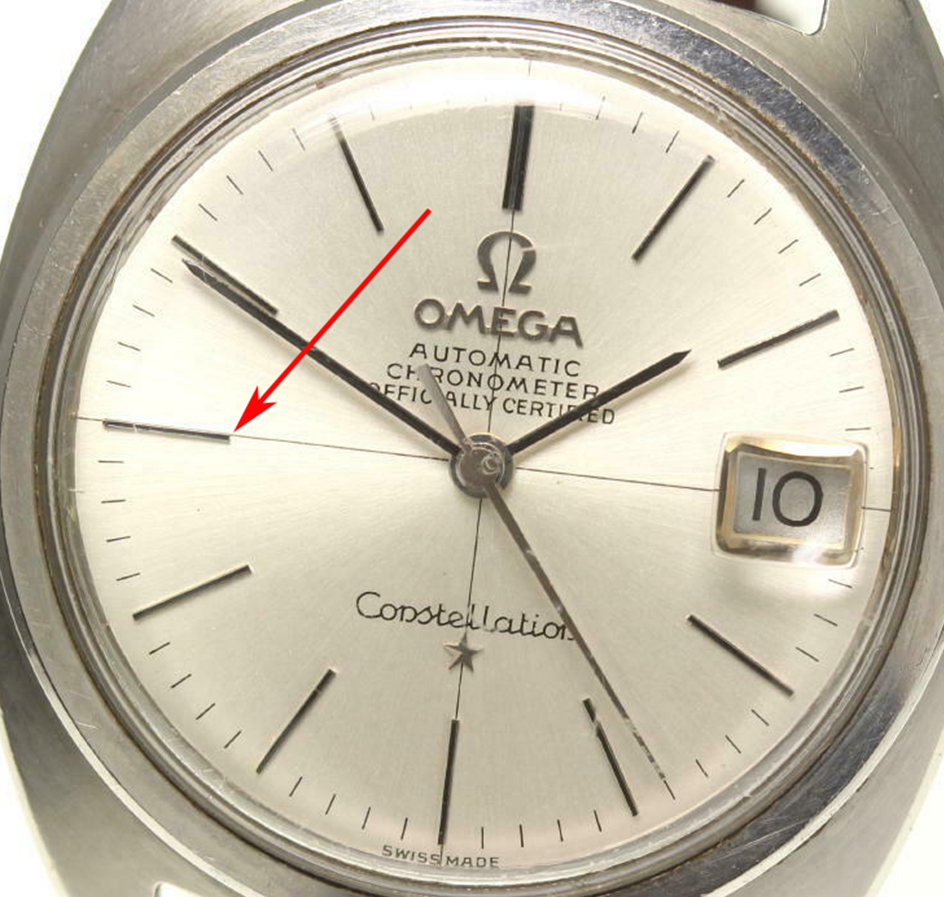

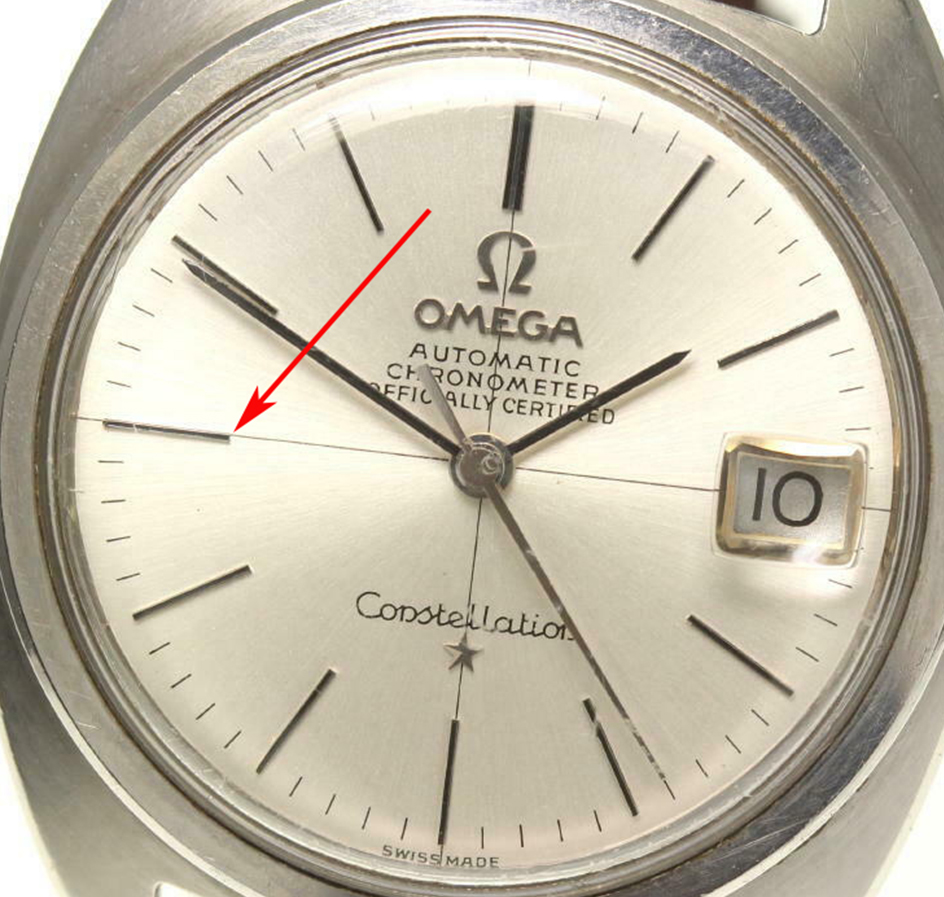

Most likely non factory original. The only thing suspicious is the crosshair not cutting through the middle of the 9 marker. Could it be due to photo angle?

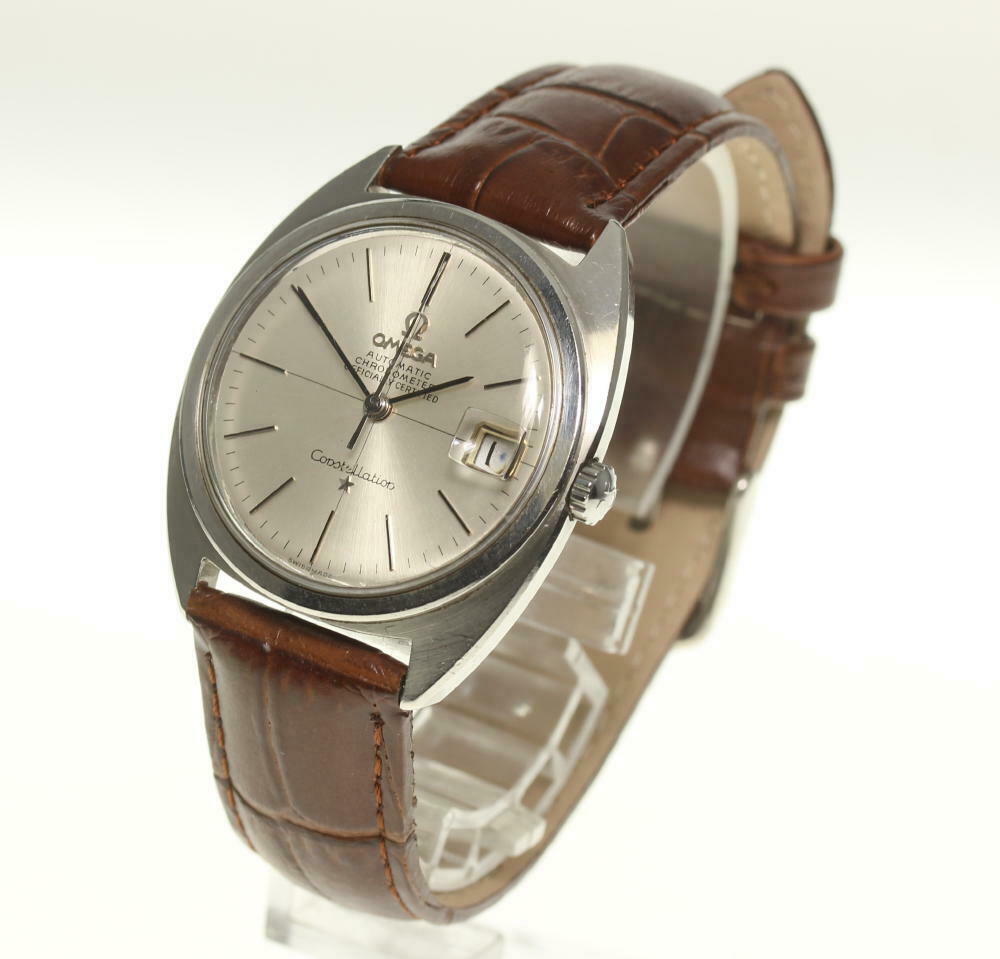

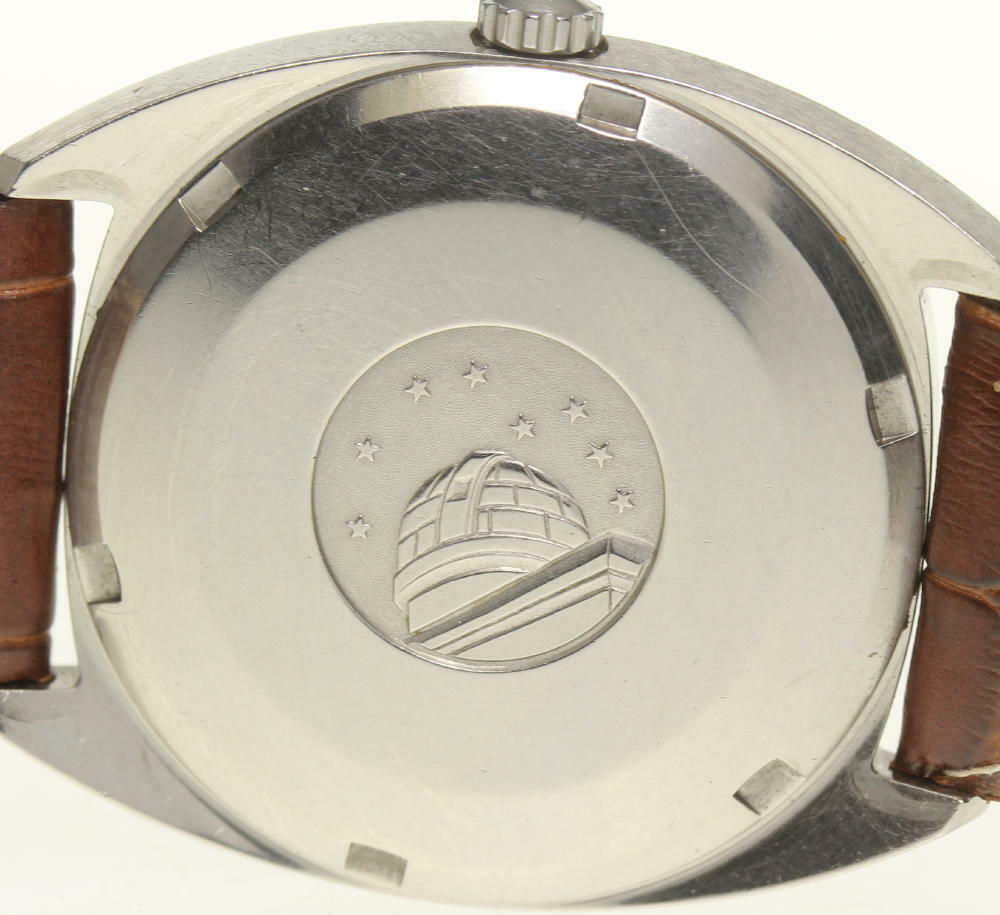

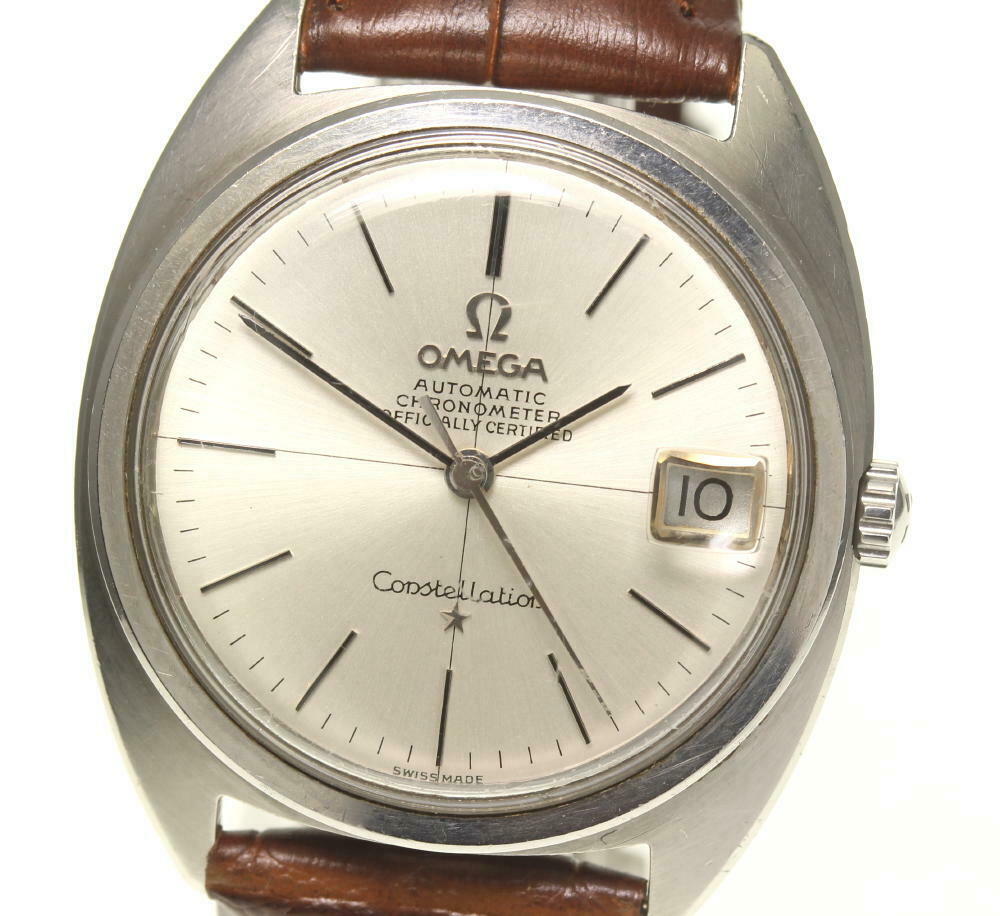

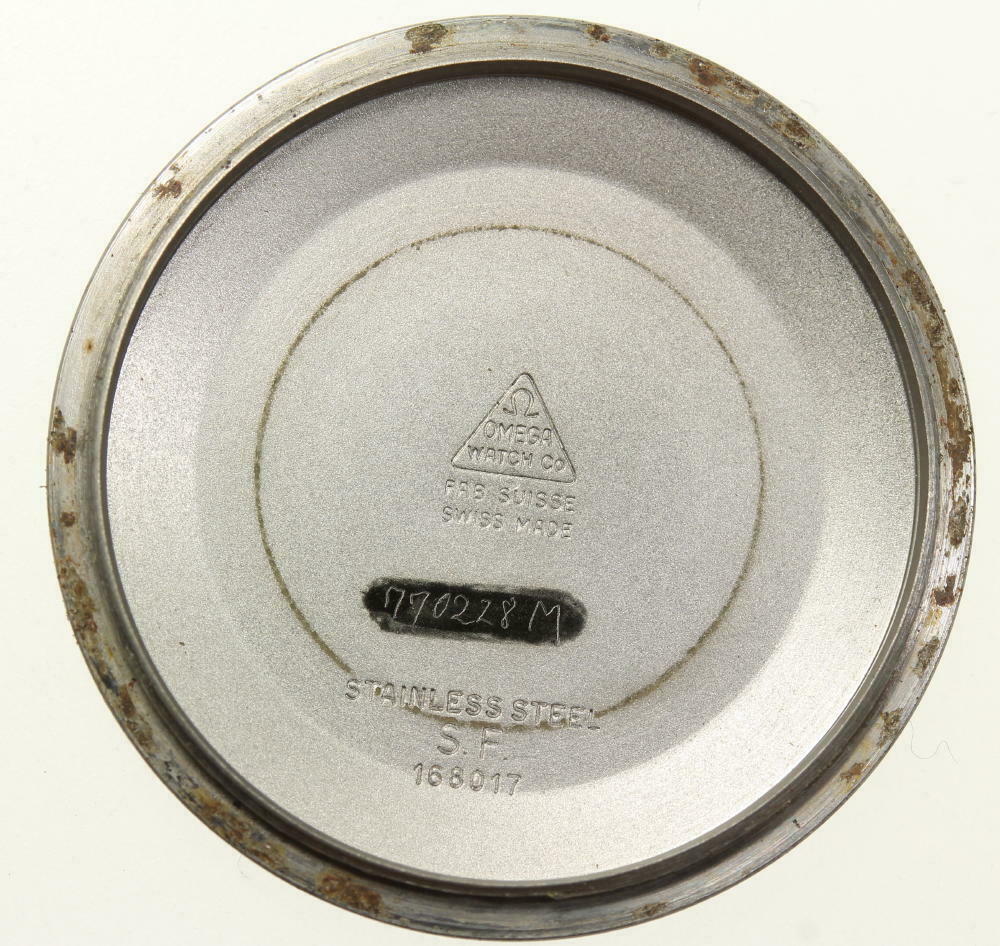

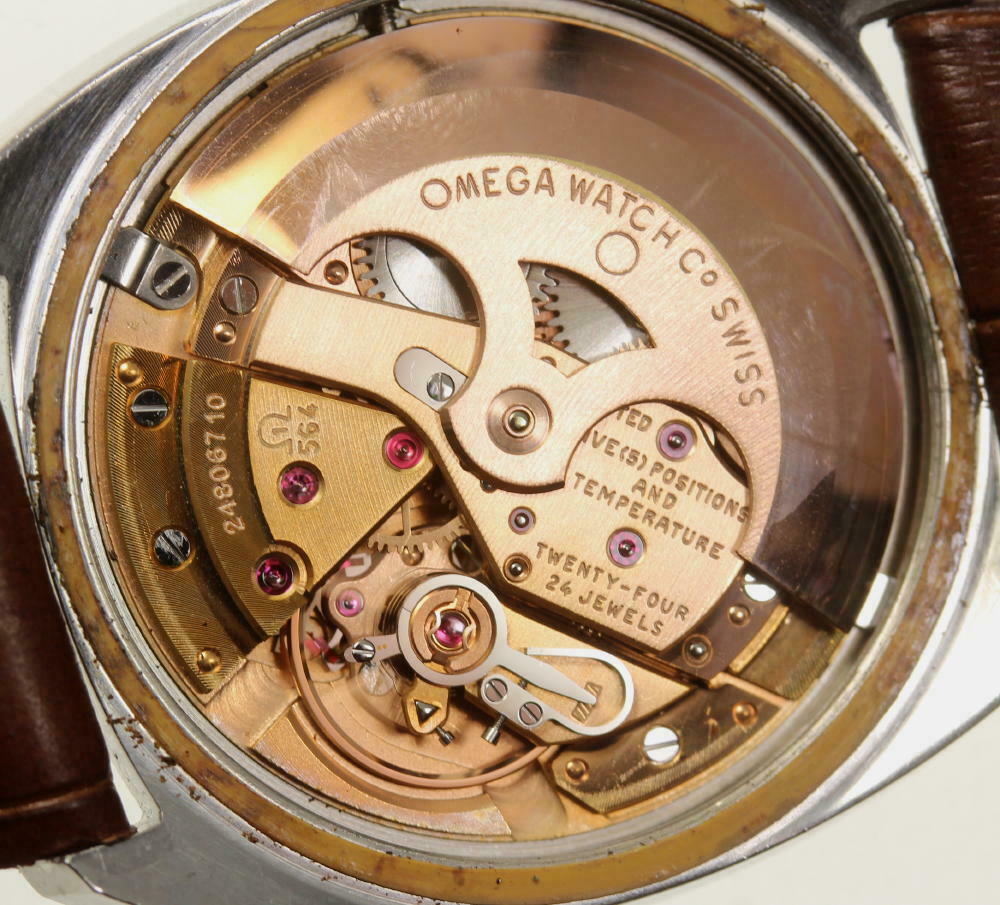

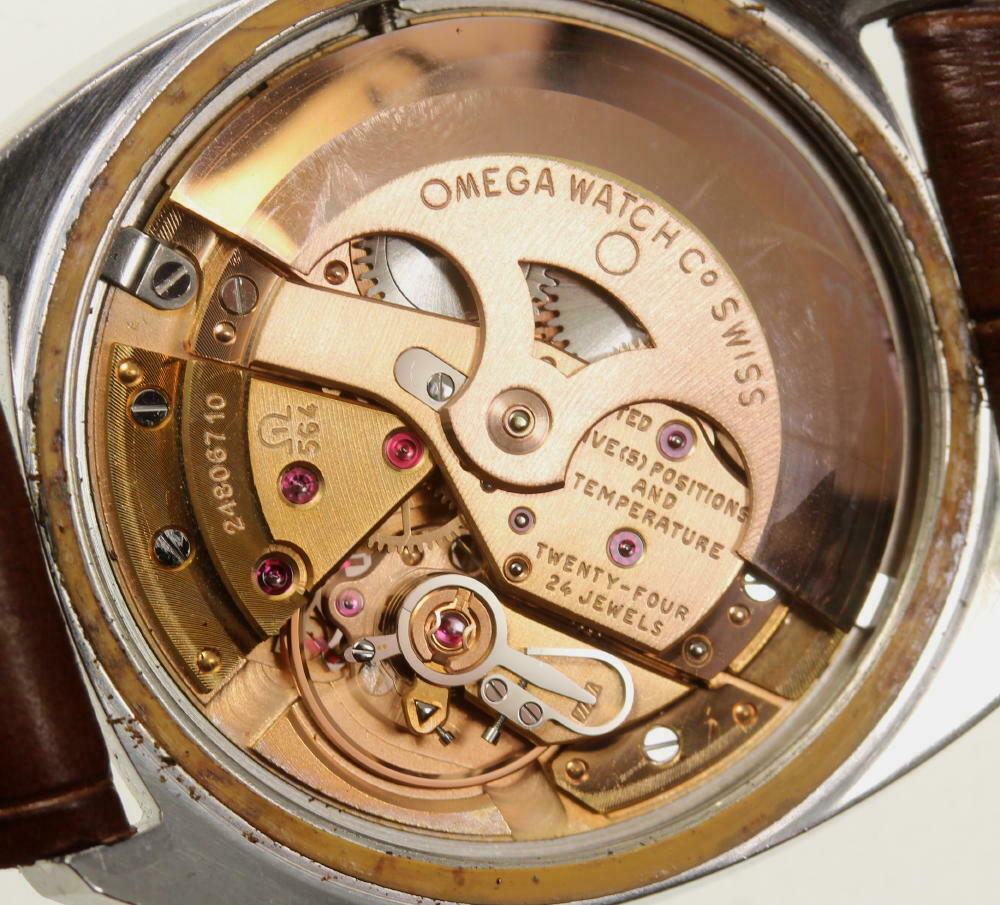

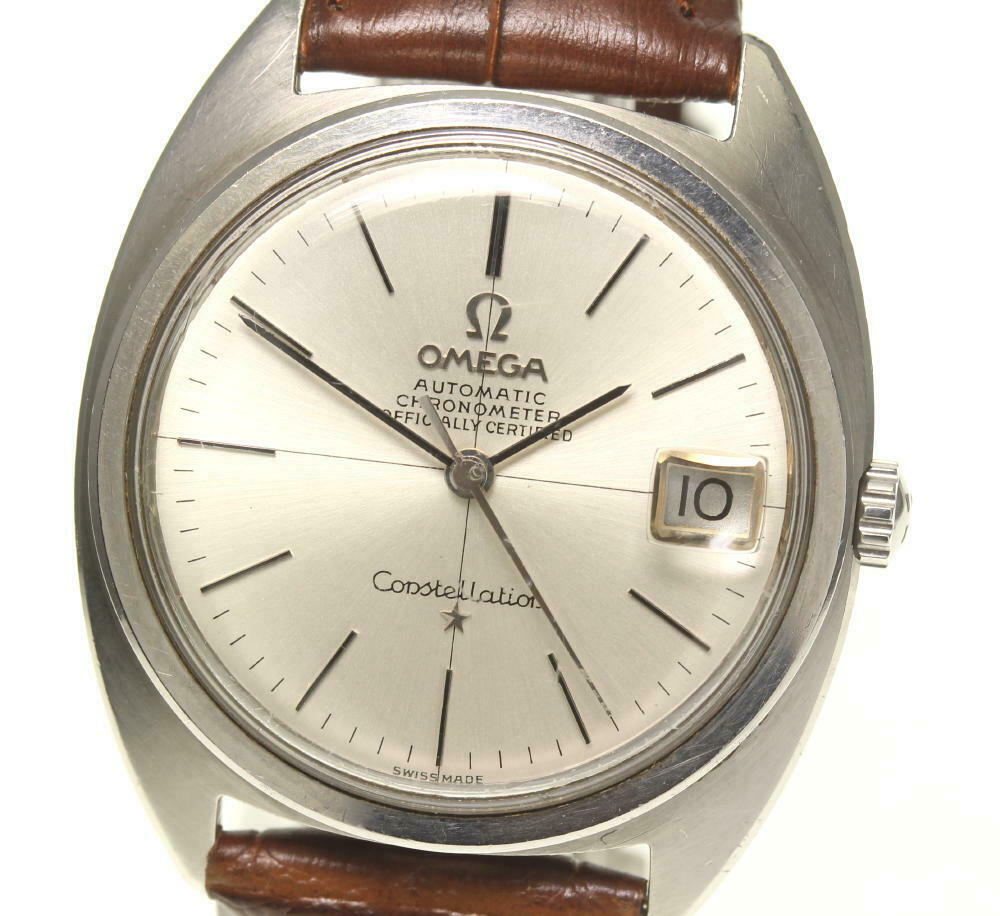

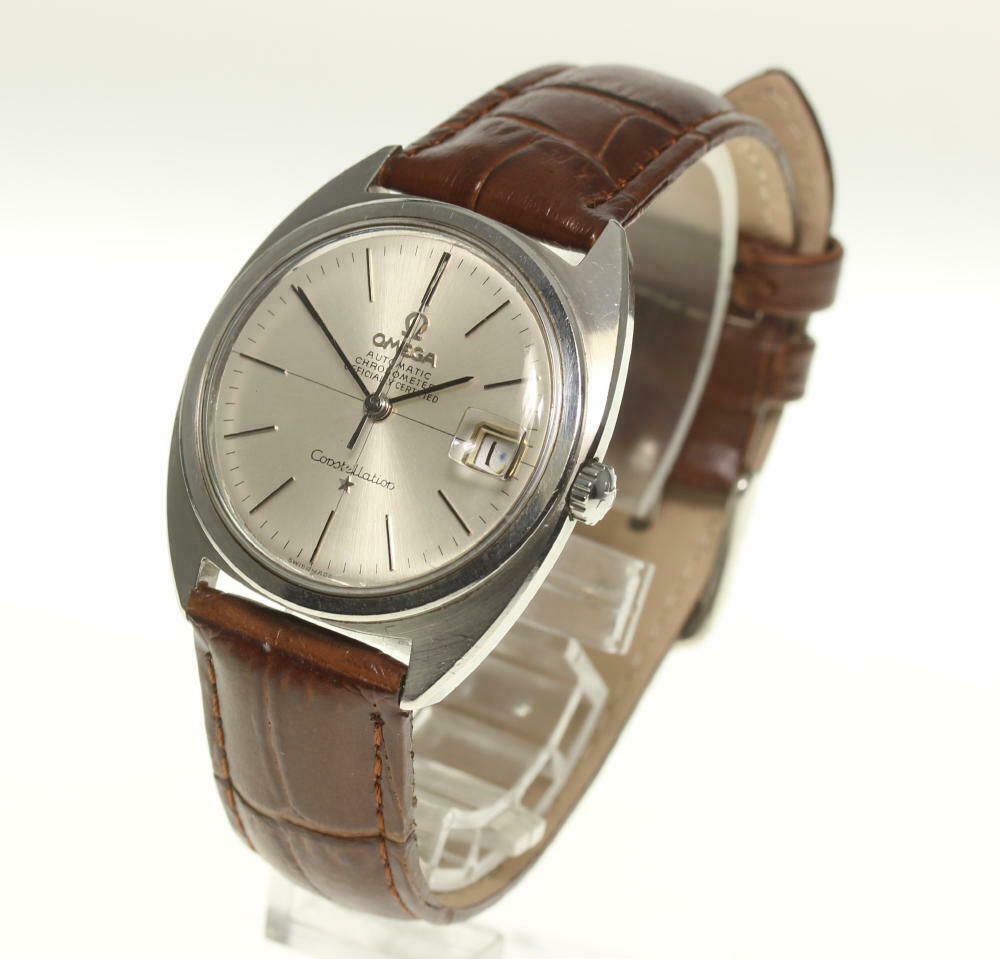

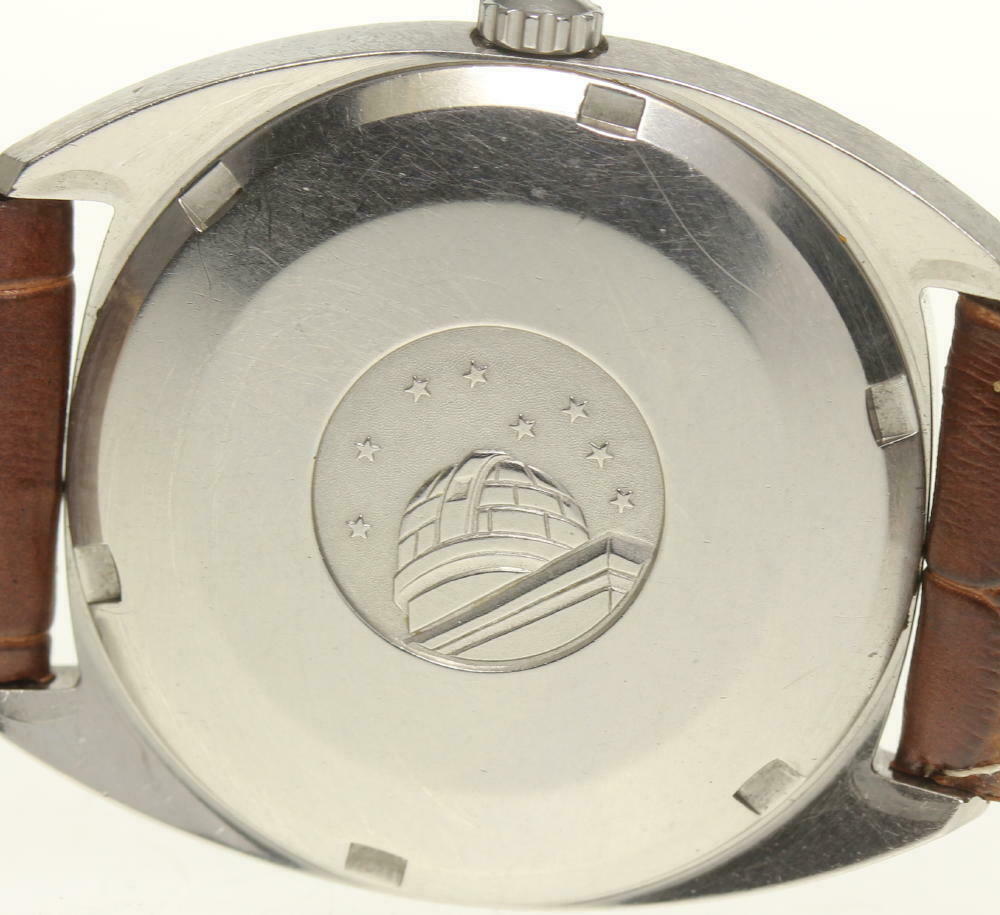

s-l1600.jpg s-l1600 (4).jpg s-l1600 (1).jpg s-l1600 (2).jpg s-l1600 (3).jpg

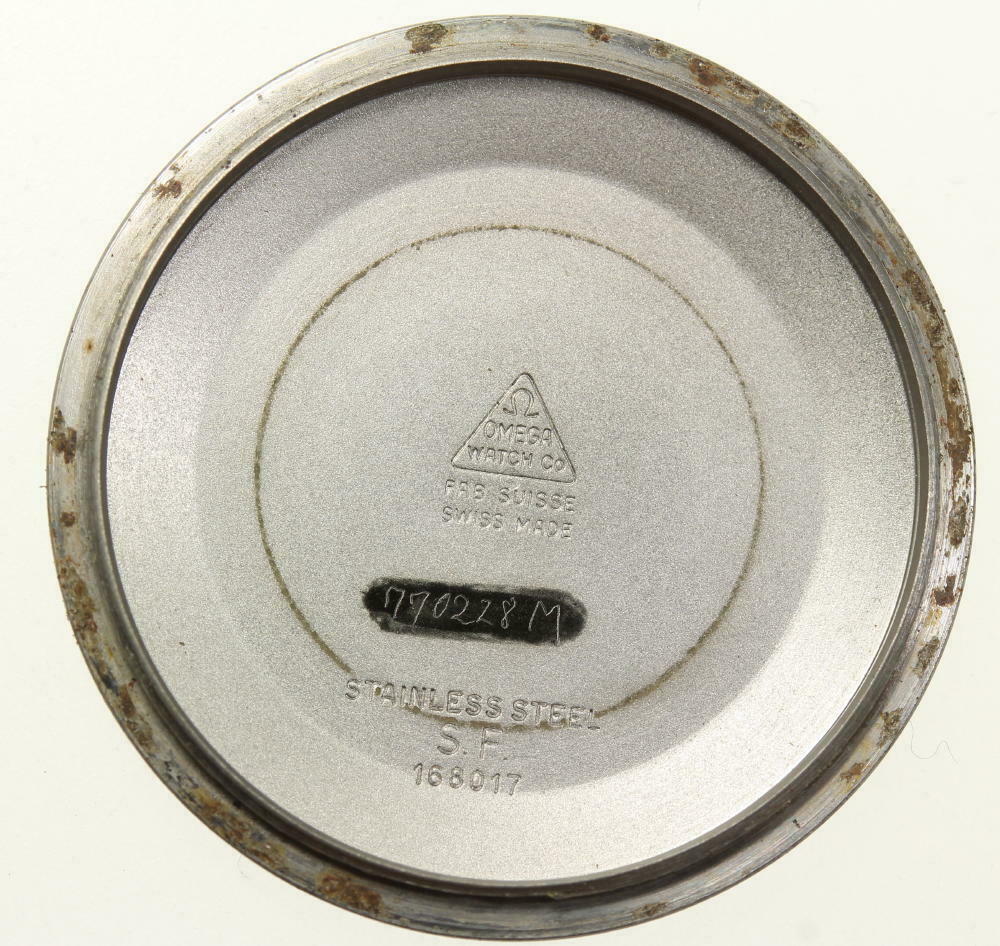

It is a C-case constellation ref 168.017.
Your input will be greatly appreciated.

OMEGuy
Posts
2,086
Likes
2,897
I'd say it's a very good redial. But looking closer, the font looks clumsy (look at "AUTOMATIC" and the spacing, the "n"s in Constellation), the "SWISS MADE" is too small and the minute markers appear too long.

For comparison, I believe this one looks original:


lindo
Posts
936
Likes
4,304
Too close to call for me. The more I looked the less sure I was that this is a redial - usually on detailed examination a redial becomes more obvious, but I am 50:50 on this one.

However the golden rule is 'if in doubt, leave it out'.

X350 XJR
Posts
13,483
Likes
31,778

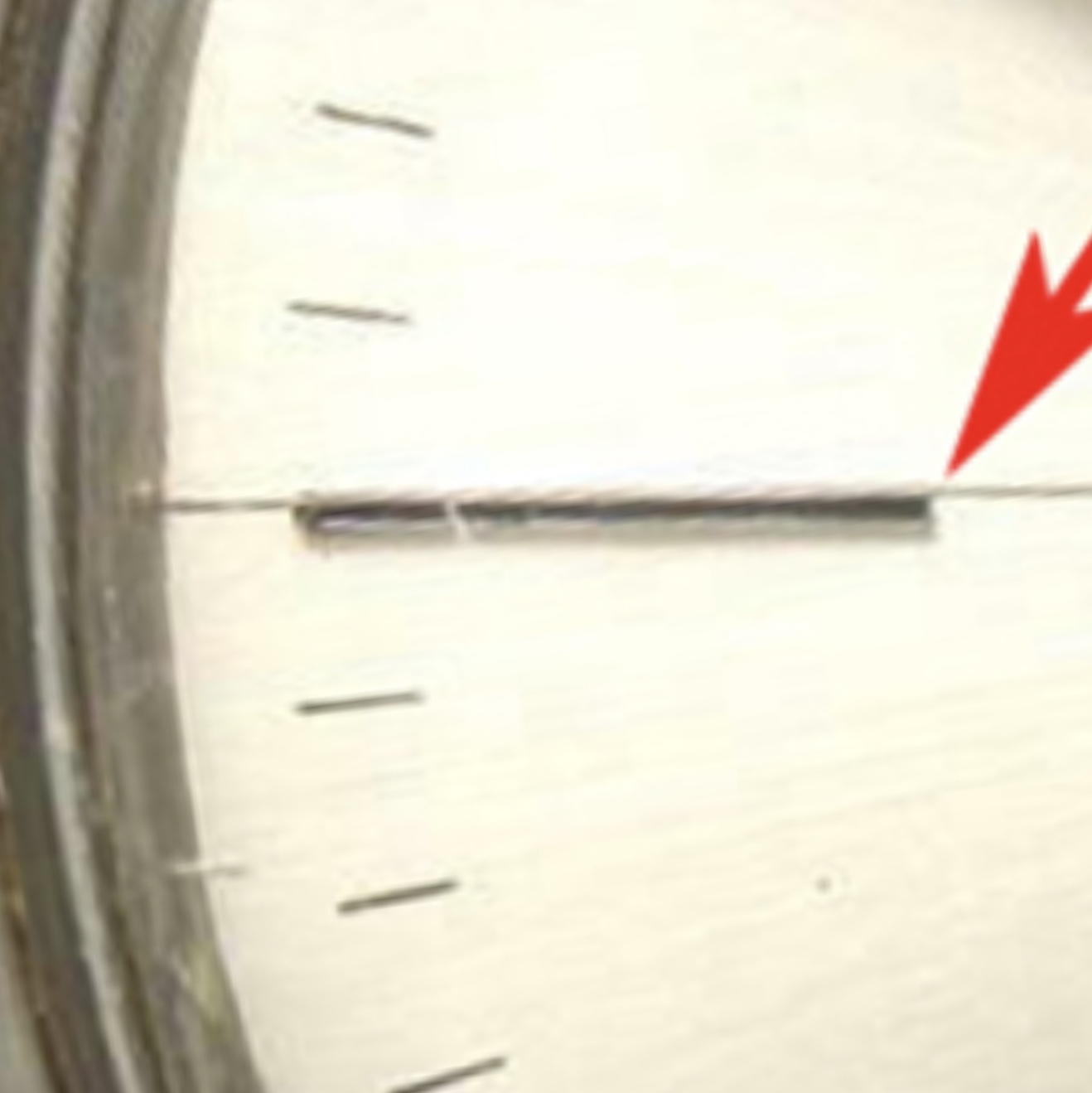

To me this says redial, regardless of the photo angle there is no way this line is going through the center of the marker.


Peemacgee
Posts
6,308
Likes
9,750
efauser efauser
https://omegaforums.net/threads/vintage-constellations-show-and-tell.19186/ Look here. There may be examples.

I haven’t looked through the show and tell thread but I did look at the 13 pages of the c-case thread and there are none there.
I’ve never seen a cross-hair c-case and it wouldn’t make sense on this particular example of Genta’s minimalist super-slim jetline indices dial.
I don’t think the dial has necessarily been repainted but I do think the cross-hair has been added for the reason @X350 XJR notes above.

efauser
Posts
8,711
Likes
14,617
Peemacgee Peemacgee
I haven’t looked through the show and tell thread but I did look at the 13 pages of the c-case thread and there are none there.
I’ve never seen a cross-hair c-case and it wouldn’t make sense on this particular example of Genta’s minimalist super-slim jetline indices dial.
I don’t think the dial has necessarily been repainted but I do think the cross-hair has been added for the reason @X350 XJR notes above.
I think it's a redial, just trying to give the OP some homework.

NVWC
Posts
150
Likes
386
Thank you everyone for your feedbacks. Appreciate that.

Efauser: I have done my homework! I did asked peemacgee prior to posting the thread and prior to asking him as well.

Was trying to learn more from the rest by posting the question.

Have a hypothetical question here: IF the dial indeed is original, why would someone add the crosshair onto it later on?
Or the person who did the repainted the whole dial, did a wonderful job?

Thanks once again for all your inputs.

efauser
Posts
8,711
Likes
14,617
NVWC NVWC
Thank you everyone for your feedbacks. Appreciate that.

Efauser: I have done my homework! I did asked peemacgee prior to posting the thread and prior to asking him as well.

Was trying to learn more from the rest by posting the question.

Have a hypothetical question here: IF the dial indeed is original, why would someone add the crosshair onto it later on?
Or the person who did the repainted the whole dial, did a wonderful job?

Thanks once again for all your inputs.
Maybe the owner wanted crosshairs, but didn't want to spend the money for another watch. Why do people want Rolexes and Omegas with Disney characters added to the dial?

Peemacgee
Posts
6,308
Likes
9,750
NVWC NVWC
Have a hypothetical question here: IF the dial indeed is original, why would someone add the crosshair onto it later on?
Or the person who did the repainted the whole dial, did a wonderful job?.

The OP did indeed reach out to me by PM to ask about this watch and my conclusion was that, at the very least, the cross hairs had been added.
However, I'm more than happy that he posted the watch on the open forum to gain additional points of view.

@NVWC
Cross hairs are often thought to enhance a dial (while some others don't like them) and so are added to otherwise original dials.
'Mad men' has a lot to answer for in advancing the cause of cross hair dials.

The pics aren't hi-res enough to give a definitive answer on the whole dial but IMHO the cross hairs don't belong on this dial.

Peemacgee
Posts
6,308
Likes
9,750
efauser efauser
Why do people want Rolexes and Omegas with Disney characters added to the dial?

because they have unresolved childhood issues? 🙄

Waltesefalcon
Posts
3,957
Likes
11,032
Those cross hairs do not belong, the 'C' in Automatic definitely looks off. I'm going with redial.

NVWC
Posts
150
Likes
386
efauser efauser
Maybe the owner wanted crosshairs, but didn't want to spend the money for another watch. Why do people want Rolexes and Omegas with Disney characters added to the dial?
Fair, sometimes we will just never understand what people have in their mind

Wetworks
Posts
996
Likes
1,864
Dunno about the crosshair, but the MOY looks pretty good, as do the fonts

Biezmez
Posts
314
Likes
309
Hi
Haven’t seen one before(but that doesn’t necessarily mean they don’t exist). I always like to check if the first L in constellation is parallel with the cross hair and how well defined it is. To me this looks really good. It’s really hard to get that level of quality on a redial imho.
Regards
Biezmez

Peemacgee
Posts
6,308
Likes
9,750
Biezmez Biezmez
Hi
Haven’t seen one before(but that doesn’t necessarily mean they don’t exist). I always like to check if the first L in constellation is parallel with the cross hair and how well defined it is. To me this looks really good. It’s really hard to get that level of quality on a redial imho.
Regards
Biezmez

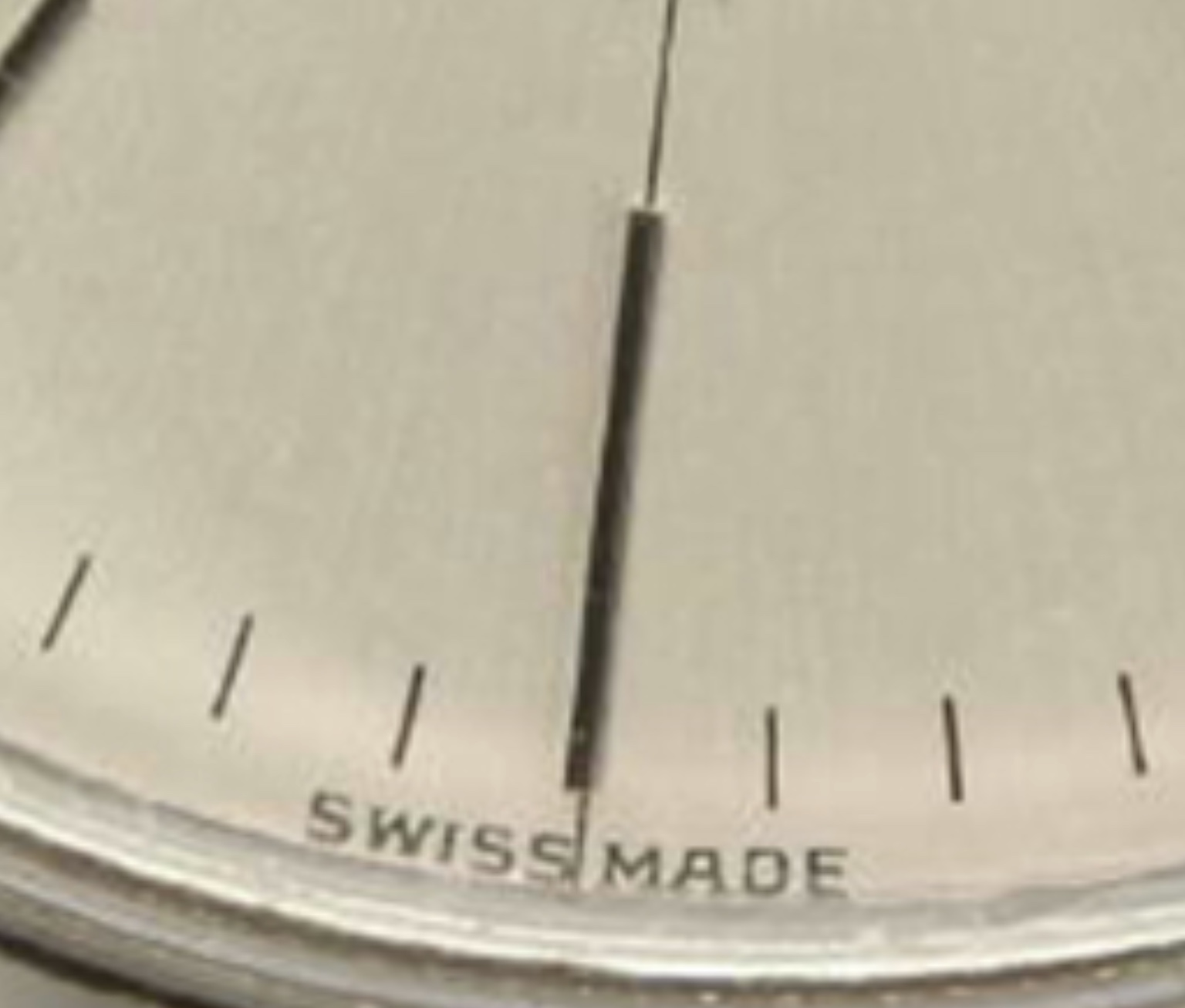

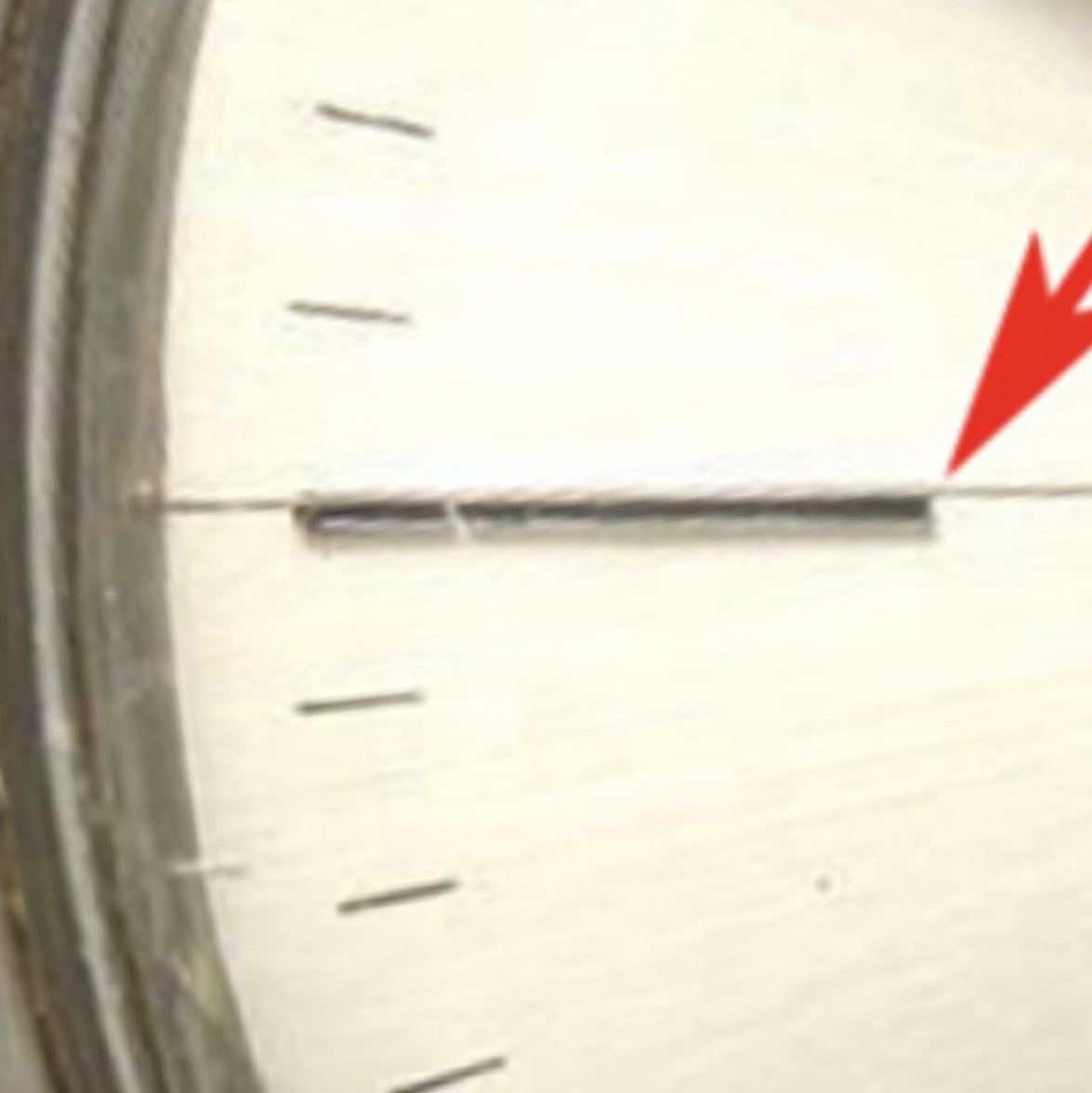

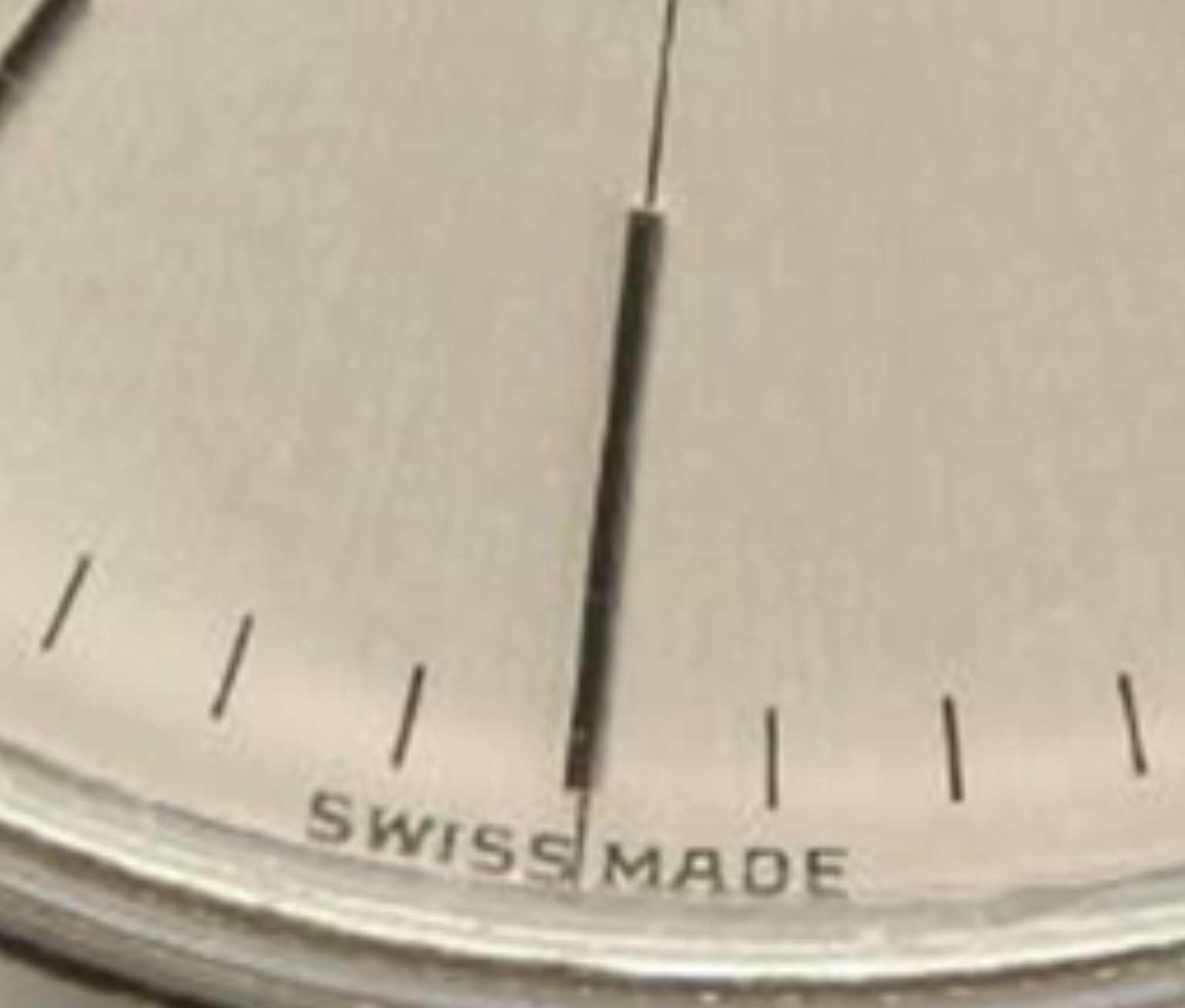

I agree that the vertical cross hair looks parallel to the L but I don’t think that missing bisecting the 9 index or being off below the 6 index is Omega level quality.
A87E855B-8505-4F5D-A2E4-B0DBD8B849D6.jpeg 244ED83E-4141-4D98-B69A-3D35F92C2285.jpeg

aprax
Posts
337
Likes
1,003
Peemacgee Peemacgee
I agree that the vertical cross hair looks parallel to the L but I don’t think that missing bisecting the 9 index or being off below the 6 index is Omega level quality.

The six index being slightly skewed (good eye Peemacgee!) would confirm that the real problem lies with the applied indexes, not with the crosshair. If you look at the crosshair in relation to the printed minute markers, the date window, MOY, AML and the L in Constellation, everything looks harmonic. So I would say either sloppy application of the applied index markers at the factory (they are rather thin and long, makes the job difficult) or re-application during refurbishment (redial). A look at the back of the dial could possibly give a clue as to which one it is, but I now favor the former.

Peemacgee
Posts
6,308
Likes
9,750
aprax aprax
The six index being slightly skewed (good eye Peemacgee!) would confirm that the real problem lies with the applied indexes, not with the crosshair. If you look at the crosshair in relation to the printed minute markers, the date window, MOY, AML and the L in Constellation, everything looks harmonic. So I would say either sloppy application of the applied index markers at the factory (they are rather thin and long, makes the job difficult) or re-application during refurbishment (redial). A look at the back of the dial could possibly give a clue as to which one it is, but I now favor the former.

purely on the basis that this appears to be the only c case cross hair ever to come to light I’m going to have to plump for the latter.

Leeroy
Posts
121
Likes
510
I'd say very good redial. I don't like the way the s meets the t in constellation. Should connect to the t's crossbar?
