Guidance on How To Remove Crown Stem Assembly from 1940 30T2

bubu16 · May 17, 2020

Dan S
Read this.

https://omegaforums.net/threads/how-to-remove-stem-from-caliber-265.66928/

"Different positions" is fun!!!!

Maskelyne · May 17, 2020

Dan S
Less than one turn. You might start with one turn, or one and a half. But if that doesn't release it, I would go half a turn from there.

Thank´s Dan for pointing that out 😀

watchyouwant · May 17, 2020

And: press the screw in. all the time during unscrewing. Wriggle a bit as well. These old mvmts. can be stubborn...... kind regards. Achim

Radiumpassion · May 17, 2020

Is this a three piece case? If so maybe you have to remove the bezel/glas assembly and take the movement out from the front side.

hoipolloi · May 17, 2020

Radiumpassion
Is this a three piece case? If so maybe you have to remove the bezel/glas assembly and take the movement out from the front side.

And those two movement screws.

bubu16 · May 17, 2020

Radiumpassion
Is this a three piece case? If so maybe you have to remove the bezel/glas assembly and take the movement out from the front side.

Ooooh oooh. Not sure if this is a three piece case. How would I know? I don't think that there is a bezel so It may be not. You see any bezel? Thanks.

bubu16 · May 17, 2020

Radiumpassion
Is this a three piece case? If so maybe you have to remove the bezel/glas assembly and take the movement out from the front side.

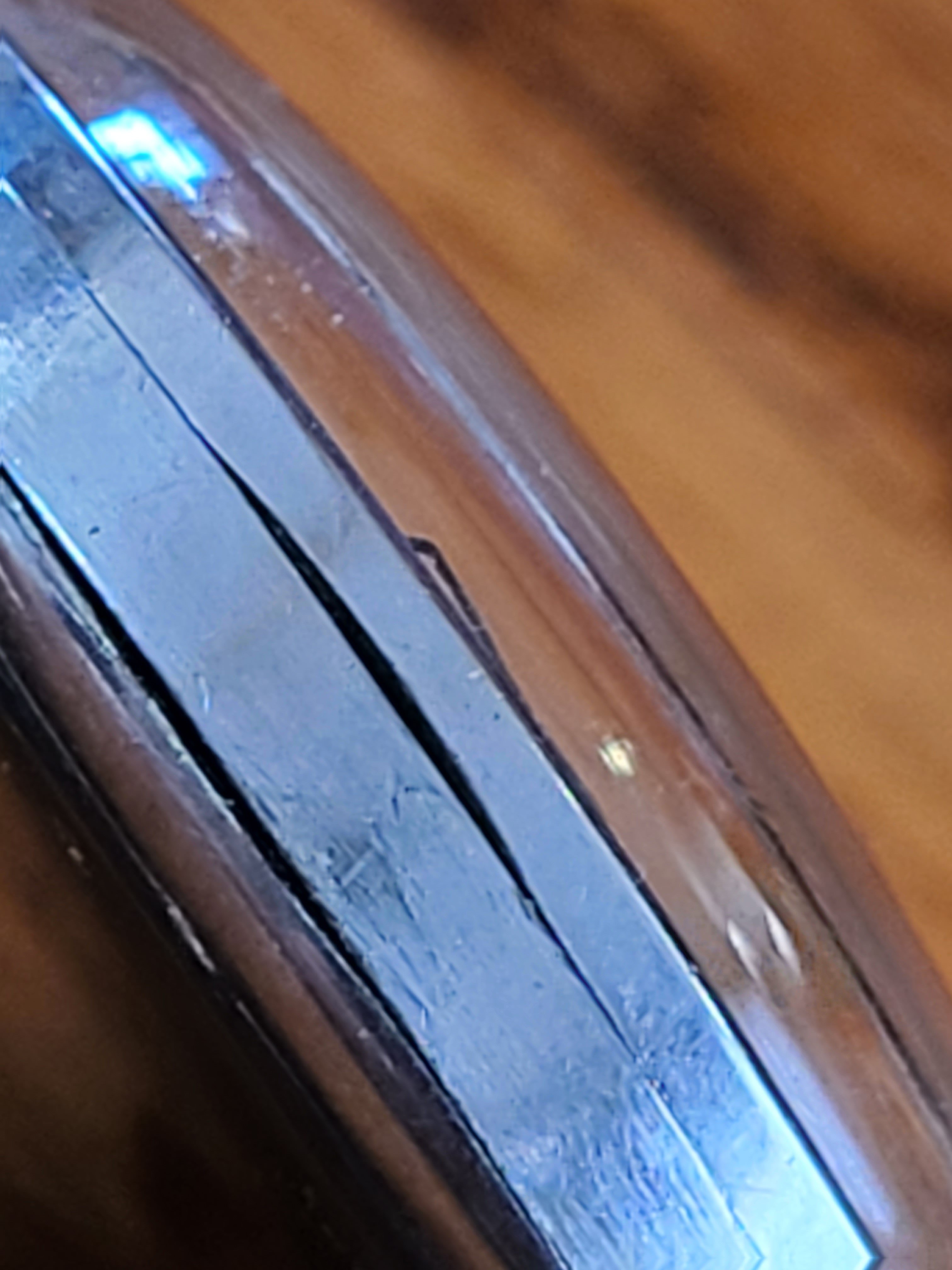

I believe I see a bezel. Took a shot but since I have a new phone , have to download something(bummer this technology). Thanks.

bubu16 · May 17, 2020

hoipolloi
And those two movement screws.

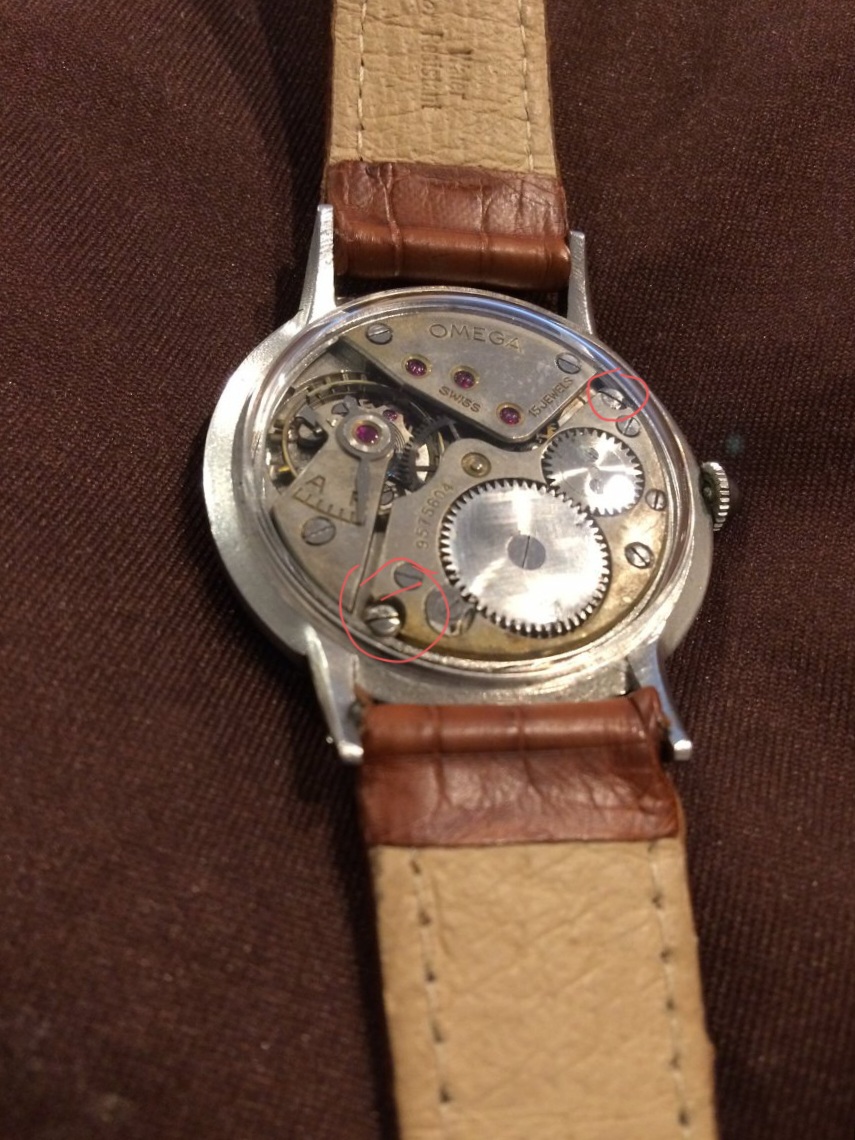

Can you show me the movement screws location? Thanks and I sent you a PM too.

hoipolloi · May 17, 2020

bubu16 · May 17, 2020

Thanks a million for this.

hoipolloi · May 17, 2020

The crystal is attached to the bezel and be removed as a whole unit. Be extremely careful with your knife or it goes too far and hit the dial.

bubu16
Thanks a million for this.

bubu16 · May 17, 2020

So:
1.Crown Stem assembly out
2.Movement screws out
3. Pry the bezel crystal assembly out very carefully
4. Entire movement with dial and hands out from the top.

Thanks again. So used to Seiko.

bubu16 · May 22, 2020

Mission Accomplished. Movement out and soon caseback ship for repair. Thanks everyone. Special mention to Hoi Polloi!!

bubu16 · May 22, 2020

watchyouwant
And: press the screw in. all the time during unscrewing. Wriggle a bit as well. These old mvmts. can be stubborn...... kind regards. Achim

Pressing worked. Special mention to you too!!

Guidance on How To Remove Crown Stem Assembly from 1940 30T2

bubu16

Maskelyne

watchyouwant

Radiumpassion

hoipolloi

bubu16

bubu16

bubu16

hoipolloi

bubu16

hoipolloi

bubu16

bubu16

bubu16
