Guidance on How To Remove Crown Stem Assembly from 1940 30T2

  1. bubu16

    bubu16 May 17, 2020

    Posts
    259
    Likes
    153
    Morning Community:

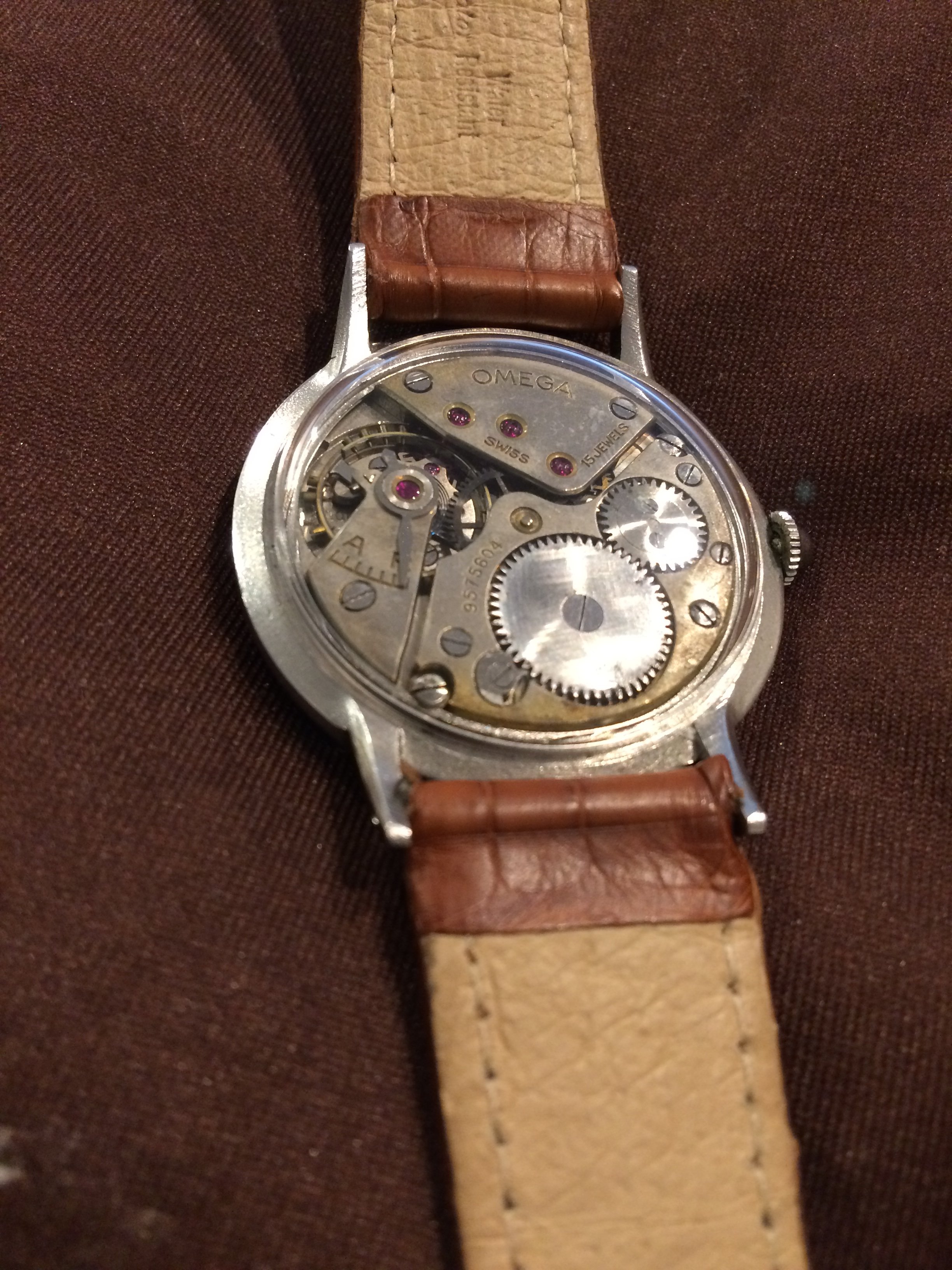

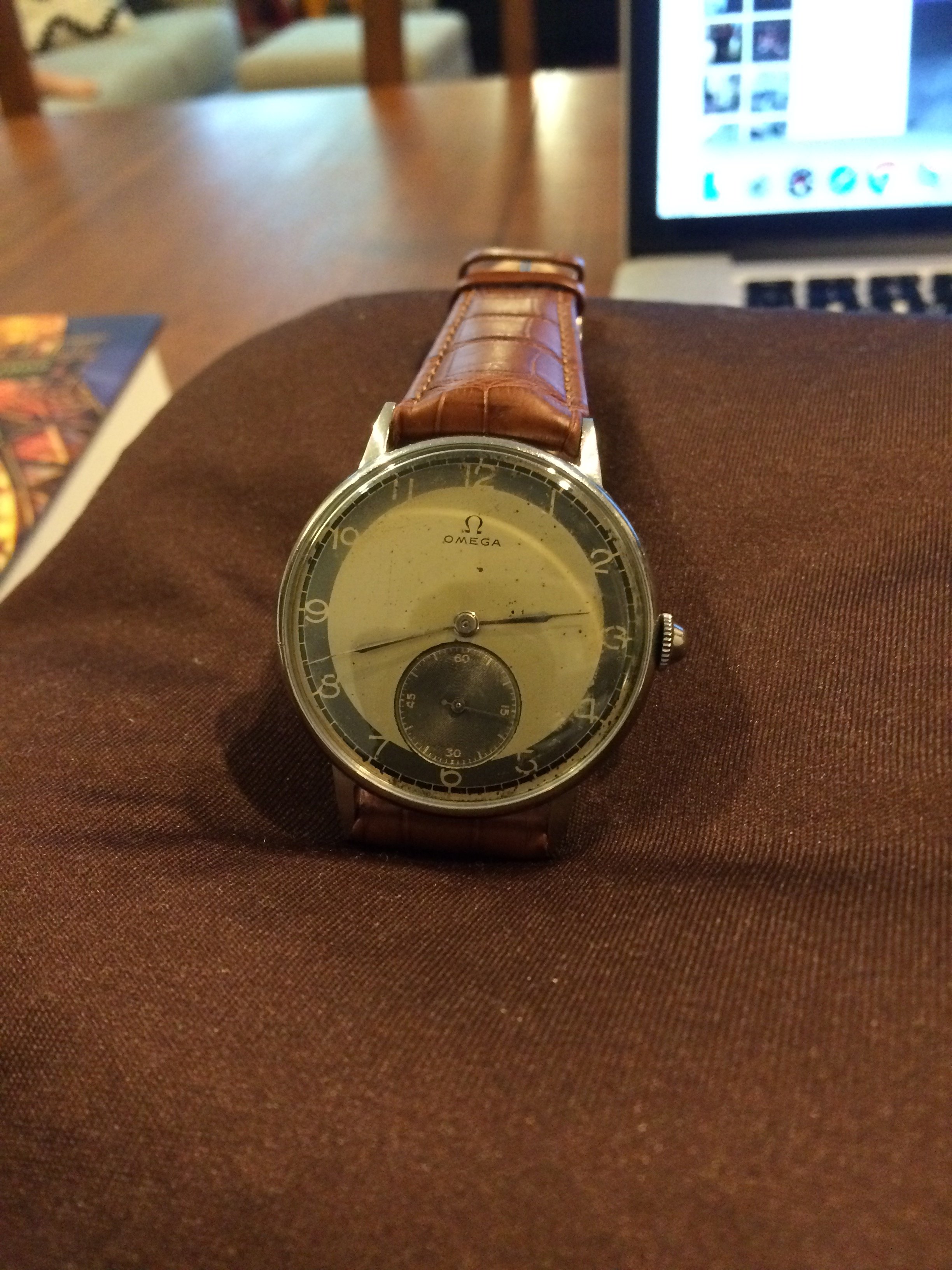

    I found a shop that can repair the case back of my watch but I need to send the entire case as well. Can't figure out how to take out the crown stem to take out the movement. I don't see any holes/pins like some watches where you need to do is push while pulling out the crown. Guidance please? Thanks.

    IMG_5011.JPG IMG_5015.JPG IMG_5016.JPG

  2. STANDY

    STANDY schizophrenic pizza orderer and watch collector May 17, 2020

    Posts
    11,604
    Likes
    27,423
    You can’t send the whole watch ?

  3. bubu16

    bubu16 May 17, 2020

    Posts
    259
    Likes
    153
    The shop is in Asia and to be on safe side the guy just want the case/case back. Thanks

  4. bubu16

    bubu16 May 17, 2020

    Posts
    259
    Likes
    153

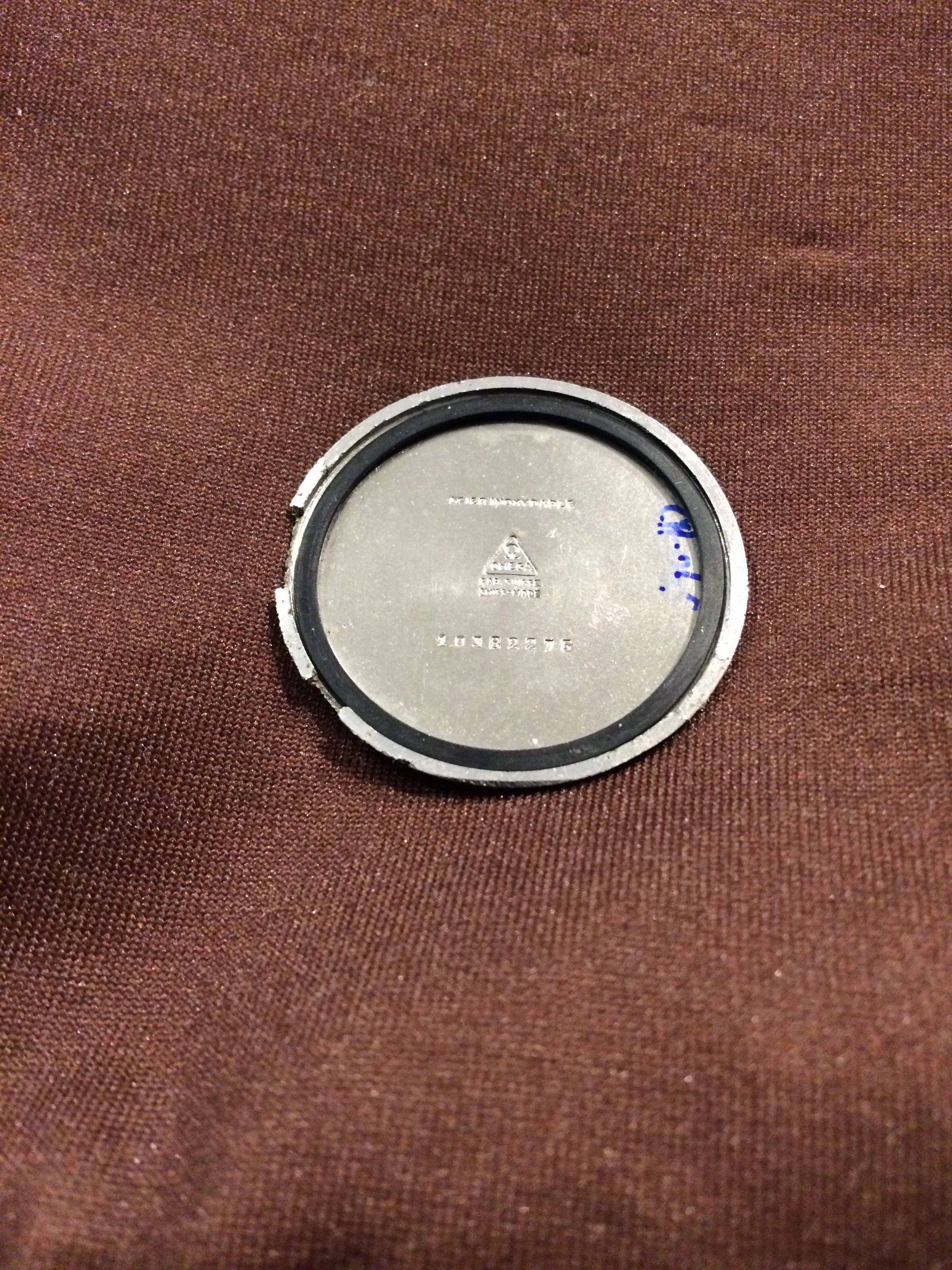

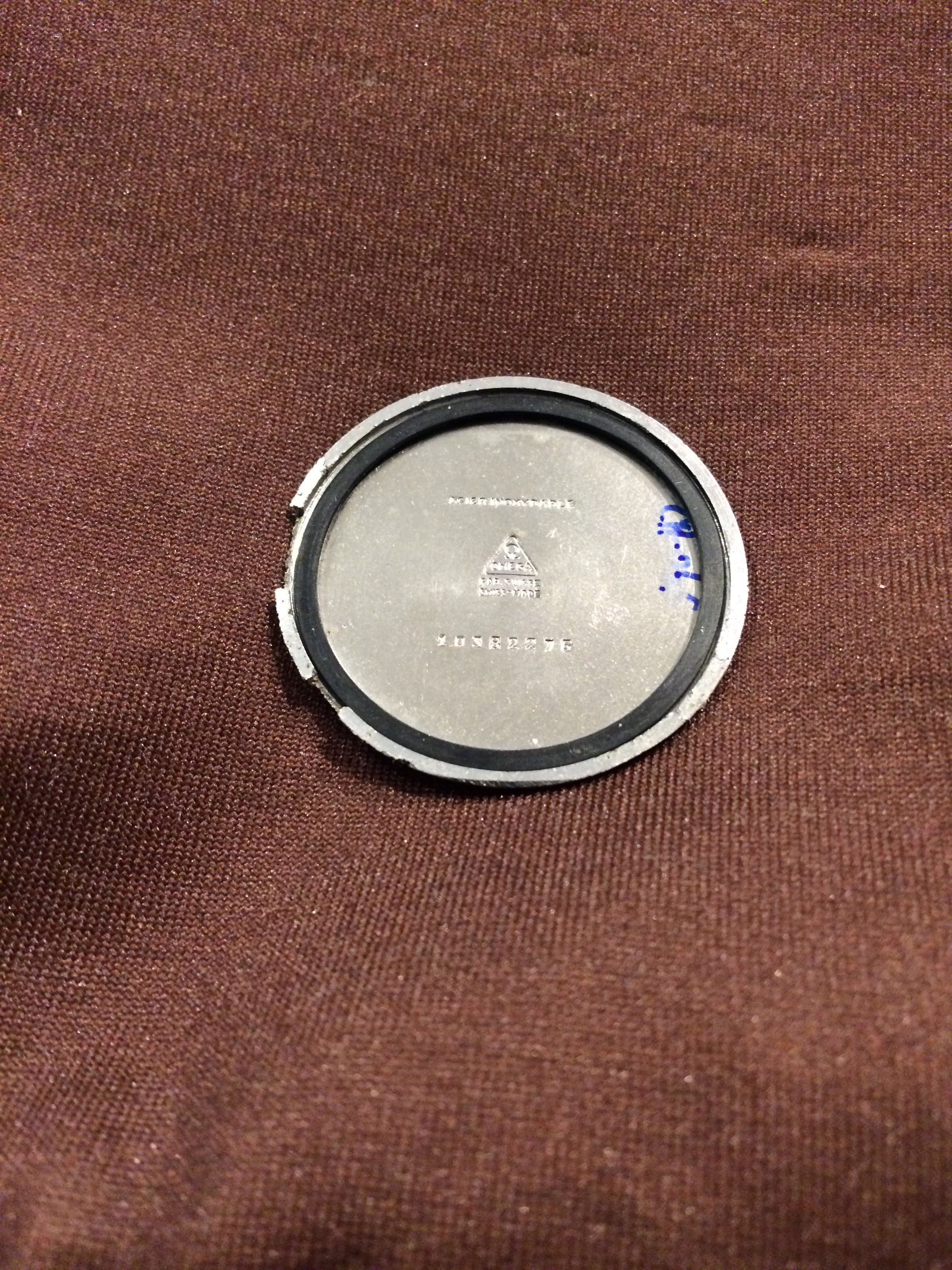

    Messed up Case Back.

  5. Dan S

    Dan S May 17, 2020

    Posts
    6,847
    Likes
    15,652

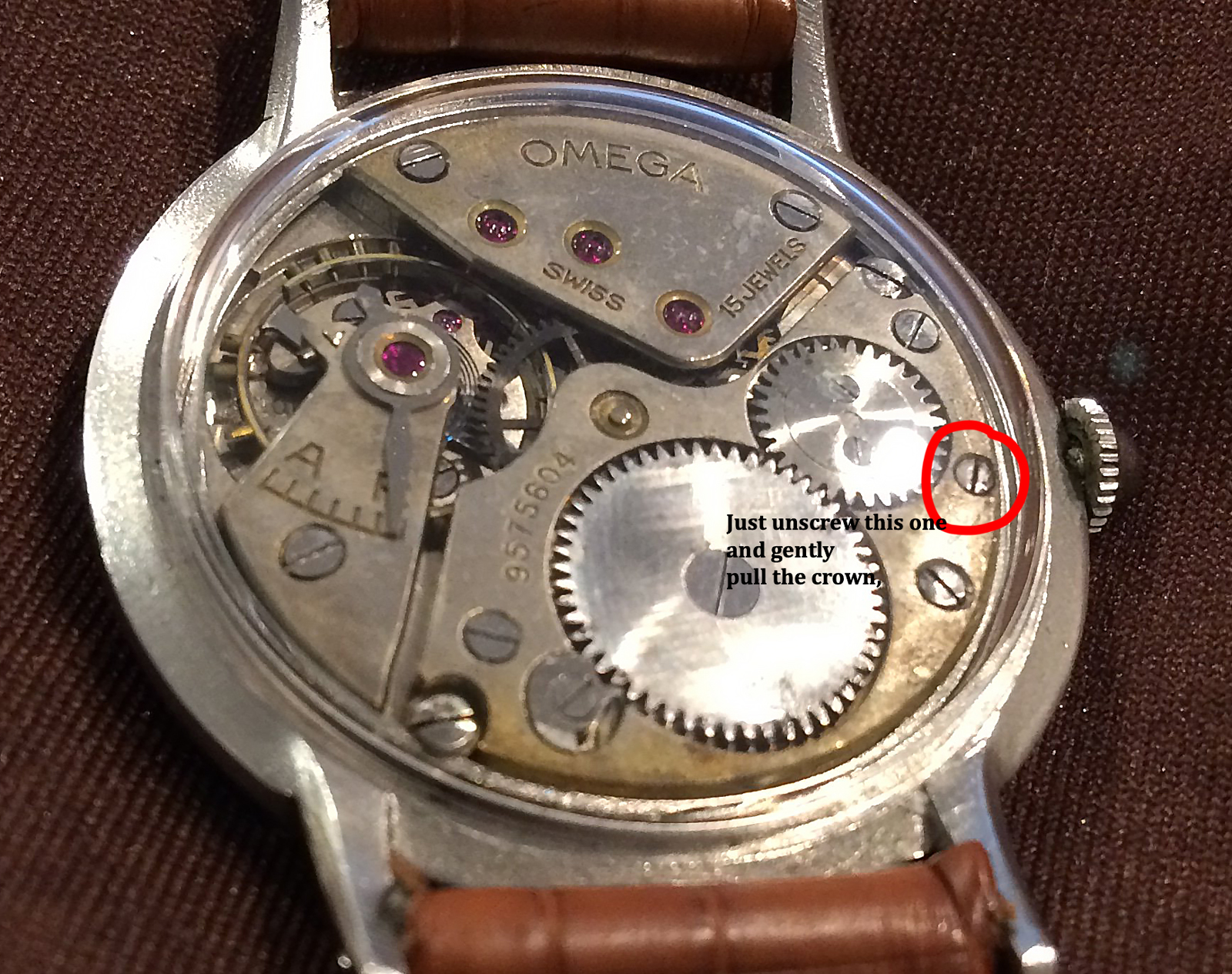

    You need to loosen the stem release screw, but just enough to remove the stem. Not too much. If you mess it up, you're going to be unhappy.

    My feeling is that if you don't have experience with this, you'd be better off letting the shop do it. What's the big risk in shipping the whole watch? If the case and case-back are lost in the mail, you're pretty much out of luck anyway.

  6. bubu16

    bubu16 May 17, 2020

    Posts
    259
    Likes
    153
    That is so true. Didn't think of that that way. The shop(Asia) uses a courier here in Oregon (don't ask me why) then from Oregon to him. Maybe he doesn't trust this courier with a complete watch(lol)? Which one is the stem screw? I can do it. It is just that I am so used with Seiko. Thanks Dan

  7. Maskelyne

    Maskelyne May 17, 2020

    Posts
    114
    Likes
    99
    Use the proper tool end be gentle.


  8. STANDY

    STANDY schizophrenic pizza orderer and watch collector May 17, 2020

    Posts
    11,604
    Likes
    27,423
    ::popcorn::

    watchyouwant likes this.
  9. bubu16

    bubu16 May 17, 2020

    Posts
    259
    Likes
    153
    Als 27 likes this.
  10. Dan S

    Dan S May 17, 2020

    Posts
    6,847
    Likes
    15,652
    It's important that you only unscrew it enough to remove the stem. Don't go crazy unscrewing it multiple turns. Be gentle and slow.

    Als 27 likes this.
  11. bubu16

    bubu16 May 17, 2020

    Posts
    259
    Likes
    153
    I have done this on a Seiko 6139-yeap a chrono-yeaaaaaasr ago!!!!(lol)

    STANDY likes this.
  12. bubu16

    bubu16 May 17, 2020

    Posts
    259
    Likes
    153
    Try to pull the crown out every screw turn?

  13. Dan S

    Dan S May 17, 2020

    Posts
    6,847
    Likes
    15,652
    Less than one turn. You might start with one turn, or one and a half. But if that doesn't release it, I would go half a turn from there.

    Als 27 likes this.
  14. bubu16

    bubu16 May 17, 2020

    Posts
    259
    Likes
    153
    ;-) So much.

    Als 27 likes this.
  15. bubu16

    bubu16 May 17, 2020

    Posts
    259
    Likes
    153
    Als 27 likes this.
  16. Dan S

    Dan S May 17, 2020

    Posts
    6,847
    Likes
    15,652
  17. STANDY

    STANDY schizophrenic pizza orderer and watch collector May 17, 2020

    Posts
    11,604
    Likes
    27,423
    You made me laugh when you asked where the crown screw was. :D

    Als 27 and Dan S like this.
  18. Dan S

    Dan S May 17, 2020

    Posts
    6,847
    Likes
    15,652
    I know. I wasn't going to be the one to take responsibility for giving that answer. But once he seemed determined to try it, I thought I'd try to help. That thread I posted has advice from watchmakers.

    BatDad likes this.
  19. bubu16

    bubu16 May 17, 2020

    Posts
    259
    Likes
    153
    Als 27 likes this.
  20. bubu16

    bubu16 May 17, 2020

    Posts
    259
    Likes
    153
    Wanted to be sure (or did I say it wrong-should be "stem"-lol). I have messed up so much quartz and mechanical trying DIY..
