Excessive amplitude, but good rate and beat error…

Posts

7,203

Likes

23,364

M'Bob

·Sep 15, 2021

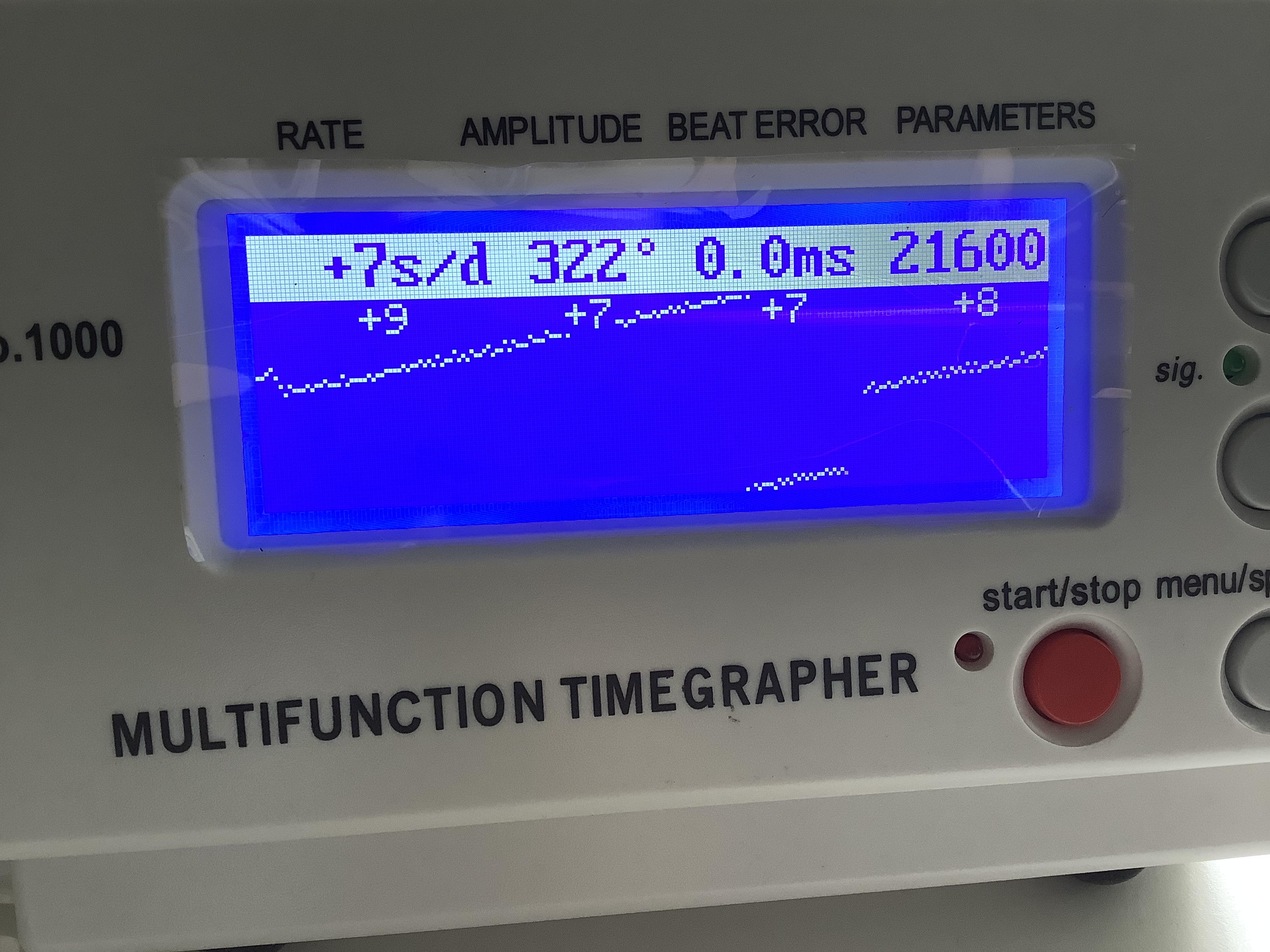

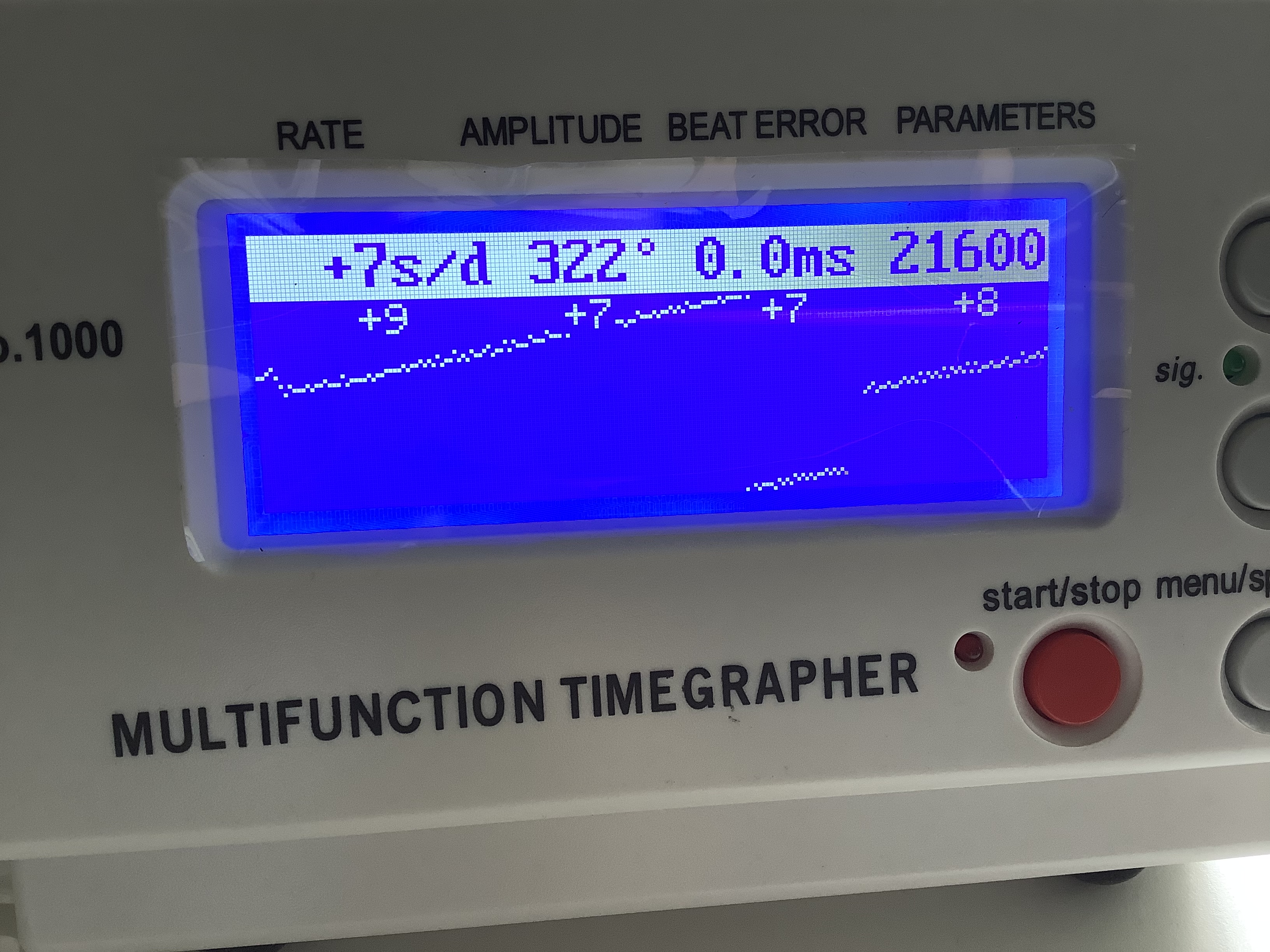

From a cal. 1863 Speedmaster. What could cause this one parameter to be off?

Edited: Sep 15, 2021



Posts

24,537

Likes

54,514

Dan S

·Sep 15, 2021

I guess it could be the mainspring, or maybe something else I'm not familiar with. But as long as it's not rebanking maybe it's not an issue in practice.



C

Posts

1,579

Likes

15,222

ChiefMark

·Sep 15, 2021

Do you have the lift angle set properly in the grapher?



Posts

7,203

Likes

23,364

M'Bob

·Sep 15, 2021

C ChiefMark

Do you have the lift angle set properly in the grapher?

50 degrees?



Posts

7,203

Likes

23,364

M'Bob

·Sep 15, 2021

Dan S

I guess it could be the mainspring, or maybe something else I'm not familiar with. But as long as it's not rebanking maybe it's not an issue in practice.

Will evidence of re-banking make itself apparent on the timegrapher?



Posts

29,832

Likes

77,209

Archer

·Sep 15, 2021·Omega Qualified Watchmaker

M'Bob

Will evidence of re-banking make itself apparent on the timegrapher?

Yes...the rate will jump up very high, and the pattern on the screen will be all over the place.



Posts

7,203

Likes

23,364

M'Bob

·Sep 15, 2021

Archer

Yes...the rate will jump up very high, and the pattern on the screen will be all over the place.

Great, thanks.

I notice the line above isn’t that smooth, if that means anything to a trained eye…



C

Posts

1,579

Likes

15,222

ChiefMark

·Sep 15, 2021

M'Bob

50 degrees?

That's the number I have.
