Basic watchmaking tips - Hand removal and installation

  1. Archer Omega Qualified Watchmaker Jul 28, 2022

    Posts
    26,337
    Likes
    65,027
    Hand removal and installation is a topic I’ve wanted to cover for a while, and it is a task that can often cause those new to watchmaking some difficulty. It’s also a task that can be fraught with danger to the hands and dial, so it’s one that seems simple but deserves some respect when doing the task.

    I'll start with hand removal, and I’ll show the tools that I use. Tweezers are the first thing - all hands are handled with specific tweezers made for hands that have highly polished surfaces that won’t damage the hands:

    [​IMG]

    Note that there are options out there, ranging from the style I use, to tweezers with wooden or plastic tips, or you can even wrap some tape around a pair of tweezers you have to prevent damage in a pinch.

    Next I use hand levers, and I’ve tried different methods to remove hands, but I find these offer the most control:

    [​IMG]

    There are two sizes, one for smaller hands and one for larger hands – these specific levers are made by VOH, and one reason I like them is the long flat section after the curve. Some other levers have steps in the diameter very close to the tips, and those can possibly contact the dial if you are not very careful, where these have more room to “lever” before anything come close to damaging the dial:

    [​IMG]

    Next, Omega refers to as “pants” as they are shaped a bit like a pair of pants. These are made of a heavy plastic that is is used for wrapping up watches for shipping, and when stacked they stick to each other, but not to anything else. I’ve stacked these and cut them into the shape you see, and the height can be customized by adding or removing layers.

    [​IMG]

    Lastly you need a plastic baggie - I get tons of these containing parts, so they are always plentiful.

    I start by removing the sub-dial hands, as I don’t want them in the way when removing the other hands. I lay the plastic bag over the hands, and use the small hand levers to remove those:

    [​IMG]

    Next the central chronograph hand. I line up the hour, and minute hands under the chronograph hand, and I then place the pants of the appropriate height onto the dial. What I want is to have the surface that the levers will work against be nearly the same height as the underside of the chronograph hand:

    [​IMG]

    I then place the plastic bag over all of this:

    [​IMG]

    The small hand levers are used to tuck the bag under the hand, and then lever it off. Since this hand is on tightly, it will sometimes come off with some force, and you will hear a snap sound. The top plastic bag makes sure that the hand doesn’t move much at all during this process, in particular the end of the hand where there is often a section that is lumed. Failing to do this can allow the whiplash that occurs at the end of the hand to cause the lume to fly out of the hand.

    Next is the removal of the hour and minute hands, and those are removed together. If you try to get between them to remove them one at a time, it is sometimes possible, but there is risk of possibly scratching the top part of the hour hand. So back to just using the plastic baggie, and using the large hand levers to get under both hands, and gently pry them off:

    [​IMG]

    This process protects both the hands and the dial, and if done properly shouldn’t result in any damage from forces require to remove the hands on most dials (there are very delicate dials that require special procedures). There is always some risk involved in doing this, so in my experience this is the best method to mitigate that risk.

    The hands are then stored away properly to prevent damage. There are several ways of doing this, but I use the same packaging that Omega uses for storing and shipping complete hand sets:

    [​IMG]

    For installation of the hands, we need to start with the dial, and hopefully the reasoning for that will become clear. One thing that drives me crazy is hand misalignments, and this is partly because preventing misalignments is usually very easily done. First we should talk about the hour wheel and dial washer. The hour wheel is the wheel that the hour hand attaches to, and unless there is some sort of calendar plate that goes on top of the hour wheel, it can really just be pulled straight off the movement as nothing holds it in place other than the dial.

    [​IMG]

    On top of the hour wheel there is often something called a dial washer, or as Omega sometimes calls it, a metal foil. It’s a curved disk with a hole in it, and it goes on top of the hour wheel:

    [​IMG]

    This is an hour wheel with the dial washer attached, so they can’t be separated. Omega does this on many modern calibers and it prevents the dial washer from being lost:

    [​IMG]

    [​IMG]

    The hour wheel can freely move up and down under the dial, and the dial washer helps put just a slight amount of tension on the hour wheel to keep it seated. This performs 2 functions:

    1 – To prevent the hour wheel from lifting up and skipping a tooth when the watch is turned dial down, causing the hour and minute hands to go out of sync.

    2 – To act as a friction spring to take up some backlash in the hour wheel, resulting in smoother movement of the hands.

    When you install the dial, you should check the end shake on the hour wheel, making sure that it cannot lift up too far too easily.

    Once this is done, we now need to look at the centering of the dial on the movement. Good hand alignment starts with a properly centered dial. Here’s an example – this dial is clearly not centered properly:

    [​IMG]

    You can see this in both the central hole, and the hole for the sub-seconds dial. So how do you center the dial? To do that we need some things, and one is a piece of wood – I’ve taken this piece of wood and traced out the approximate radius of the dial on one end, and use my scroll saw to cut it out:

    [​IMG]

    Next you need a good movement holder, and a small watchmaker’s hammer:

    [​IMG]

    You place the movement in the holder, and place it against a solid item that won’t move (I use the slot for my bench vise), then place the wood up to the dial, and tap the other end with the hammer to center the dial:

    [​IMG]

    My advise here is to go slow, light taps is all that is required. The result after centering:

    [​IMG]

    [​IMG]

    Note that I have on occasion run across a dial with m ore than one hole in it, where centering the main hole in the middle of the dial, meant that another hole was not centered - the holes in the dial weren't spaced properly. In a case like this, I will prioritize the central hole as that will be most visible regarding hand alignment.

    So now we will go back to a Speedmaster to illustrate the hand installation. First another overview of the tools I use, and I start with the movement holders – these are specifically designed for use when installing hands, but can also be very useful in some cases for assembling the dial side of the movement. These holders have adjustable supports in them to support the jewels when pressing the hands on:

    [​IMG]

    The support is typically moved using a screwdriver, and it should be brought up to the underside of whatever jewel is being pressed on.

    For hand installation, I use a hand press, and my press has a feature called a decentering plate:

    [​IMG]

    The post in the middle of this plate centers the movement holder for the various hands that are installed – you can see the holes on the underside of the movement holder:

    [​IMG]

    One thing you want to make sure of is that whatever you use to press the hands on, that the surface that will come in contact with the hands is in good condition – difficult to see here since it’s all white, but the tips of the runner for my hand press are something I check regularly, and if they are damaged in any way I clean them up, usually by taking them to the lathe and taking a skim cut off the end:

    [​IMG]

    If these tips are damaged and have burrs on them, they can create uneven pressure on the hand surfaces, and with painted hands this may cause paint to flake off. On to install some hands.

    The dial is installed:

    [​IMG]

    I now select the correct runners for my hand press:

    [​IMG]

    Note that there are many different tools that have been used for hand installation, and some are better than others. I find a hand press is valuable for helping install the hands parallel to the dial, and properly aligned. There are individual hand held tools for installing hands, but they are less effective/efficient than a proper hand press.

    When installing hands, you generally start with the hands that are closest to the dial first, and on a chronograph that will be the sub-dial hands. Here you can see that decentering plate in action, as the constant seconds hand is installed:

    [​IMG]

    All the hands are installed now:

    [​IMG]

    Now if a hand doesn’t go on perfectly lined up, I would resist the temptation to press down on the hand and “twist” the runner in the press to try to move the hand on the post. This will often just damage the paint or finish on the hand, so if you don’t get it on right the first try, remove the hand and install it again.

    Next we install the hour hand, and on a no date watch it can just be pressed on anywhere. For a watch with date, you would advance the hands until the date change, then install the hand right when the date flips over. After installing the hour hand, back it up 1 hour to 11 o’clock:

    [​IMG]

    Then move it forward again to hit the 12 exactly, and without touching the crown, press the minute hand on:

    [​IMG]

    This will assist in getting the hand aligned properly, but I always check it around the dial:

    [​IMG]

    [​IMG]

    [​IMG]

    On a watch with date, this is where you would check the accuracy of the date change, to ensure it meets the tolerances of the brand. If it’s all good, you can now install the chronograph seconds recording hand:

    [​IMG]

    [​IMG]

    One thing I haven’t mentioned yet is called division. This is the spacing of the hands from the dial and to each other. It’s difficult to photograph well, but what you are looking for generally is that the hour hand (or whatever central hand is closest to the dial) is spaced away from the dial an equal amount to what the minute hand is spaced away from the hour hand, and then the second hand away from the minute hand. The hands should be evenly spaced and parallel to the dial. Of course the hour hand should clear any sub-dial hands or raised marker on the dial.

    This was a long post, so I will talk about some problems related to hands and hand fitting in a follow-up post. As always, questions are welcome.

    Hope this helps.

    Cheers, Al

  2. RevZMan123 Jul 28, 2022

    Posts
    1,799
    Likes
    3,780
    Thank you for this for us aspiring tinkerers who want to become a real watchmaker some day. :)

    Edited Jul 28, 2022
  3. Larry S Color Commentator for the Hyperbole. Jul 28, 2022

    Posts
    12,466
    Likes
    49,475
    So the parts bag is there to prevent flying hands I assume. You are working the hand levers beneath it?

  4. RevZMan123 Jul 28, 2022

    Posts
    1,799
    Likes
    3,780
    What the advantage to using these levers vs using the typical puller I've seen that comes in most cheap tool kits?

  5. DirtyDozen12 Thanks, mystery donor! Jul 28, 2022

    Posts
    2,677
    Likes
    4,591
    Thank you very much for this highly informative lesson. I have been especially curious about this topic following a certain discussion. I had no idea about movement holders with adjustable supports, that is very neat.

  6. Archer Omega Qualified Watchmaker Jul 28, 2022

    Posts
    26,337
    Likes
    65,027
    Yes...

    The parts bag acts as the dial protection, and keeps the hands from flying off, or from lume damage from the sudden "whip" of the hand coming off. I can say on chronographs in particular, the hand can make a really loud "snap" wound when it comes off. These are pressed on very tightly to prevent the hand from moving on the post.

    Edited Jul 28, 2022
    Larry S likes this.
  7. SkunkPrince Jul 28, 2022

    Posts
    5,636
    Likes
    5,737
    Would the procedure be roughly similar for alarm clocks? That's the last piece I need to service my own clocks.

  8. Archer Omega Qualified Watchmaker Jul 28, 2022

    Posts
    26,337
    Likes
    65,027
    If you are referring to the Presto style puller, I find levers provide more control when removing hands. The presto removers I find are very sudden in the way they remove the hands, and with these I feel I can sort of ease the hands off in many cases.

    Bernhard J, Eve and RevZMan123 like this.
  9. Archer Omega Qualified Watchmaker Jul 28, 2022

    Posts
    26,337
    Likes
    65,027
    I don;t do clocks of any kind, so I can't say for sure if the hands are pressed on or not, but if they are, it would be the same.

  10. SkunkPrince Jul 28, 2022

    Posts
    5,636
    Likes
    5,737
    Yes, they are, thank you!

  11. wsfarrell Jul 28, 2022

    Posts
    2,440
    Likes
    4,129
    Could we get a brand/model name for the tweezers you show in your first photo? Thanks---

  12. Archer Omega Qualified Watchmaker Jul 28, 2022

    Posts
    26,337
    Likes
    65,027
  13. keepsonticking Jul 28, 2022

    Posts
    670
    Likes
    6,490
    So when I use the fork on my Swiss Army knife to pry the hands off, that's a bad thing? I used to use a pair of emery boards to slide under there, but they kept breaking.

    Seriously, great bit of info. I find that 90 percent of damage done by amateurs is done to the dial when removing hands. Exacto knives...razor blades...screwdrivers...yikes.

    Great tools, too. I have hand presser envy now.

  14. keepsonticking Jul 28, 2022

    Posts
    670
    Likes
    6,490

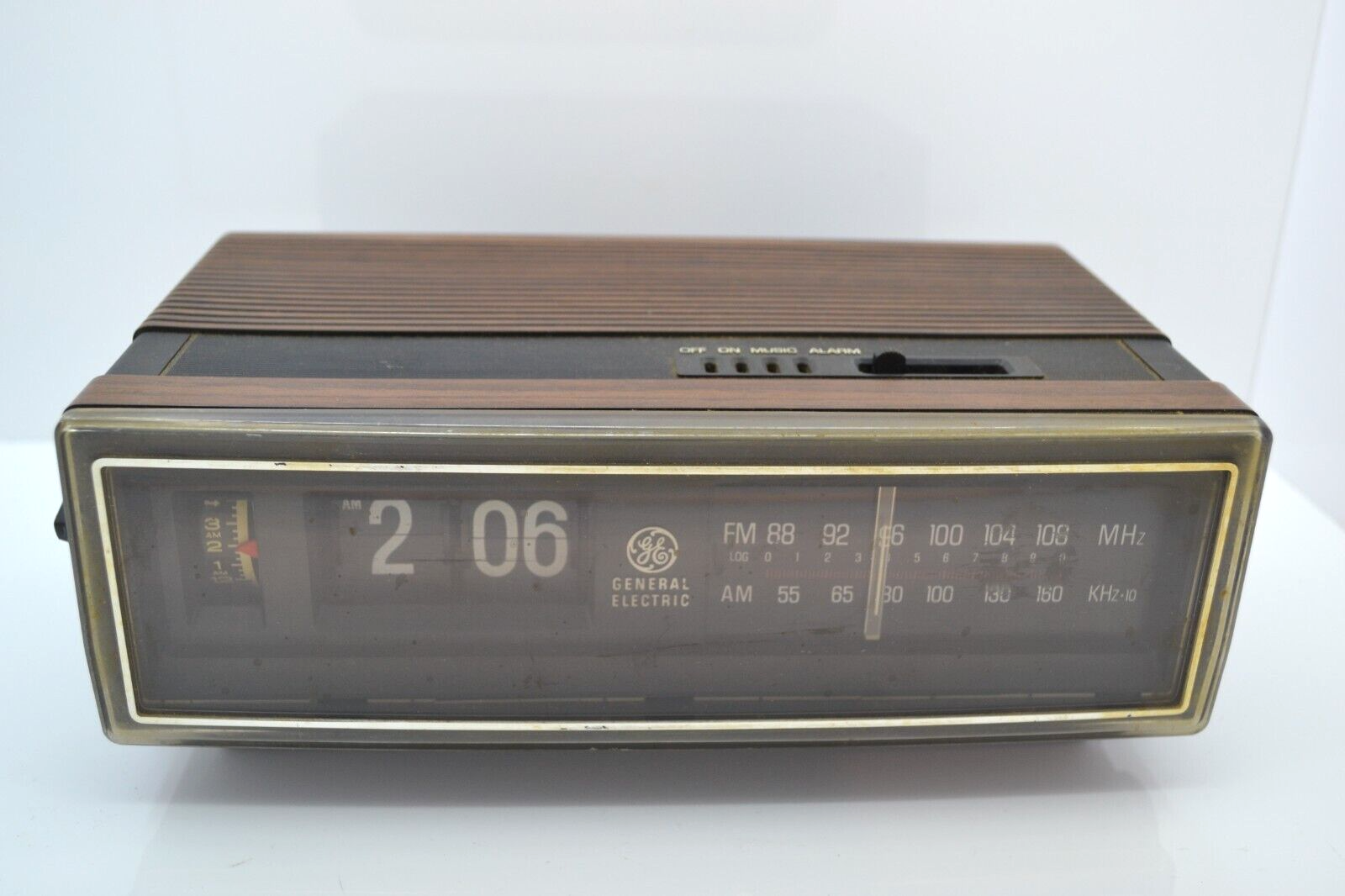

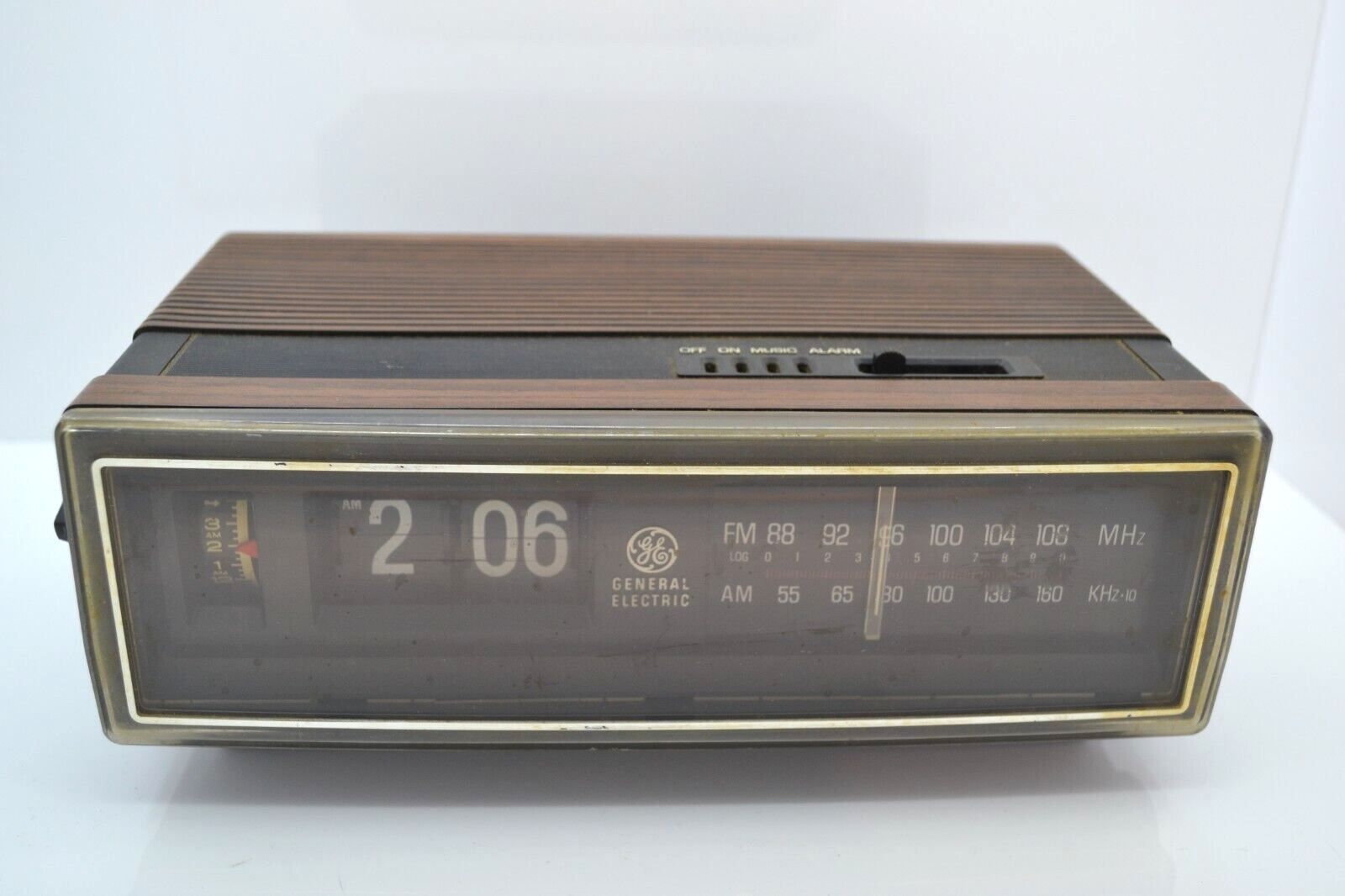

    Not if your alarm clock looks like mine.

    Turpinr and Watch Later like this.
  15. SkunkPrince Jul 28, 2022

    Posts
    5,636
    Likes
    5,737

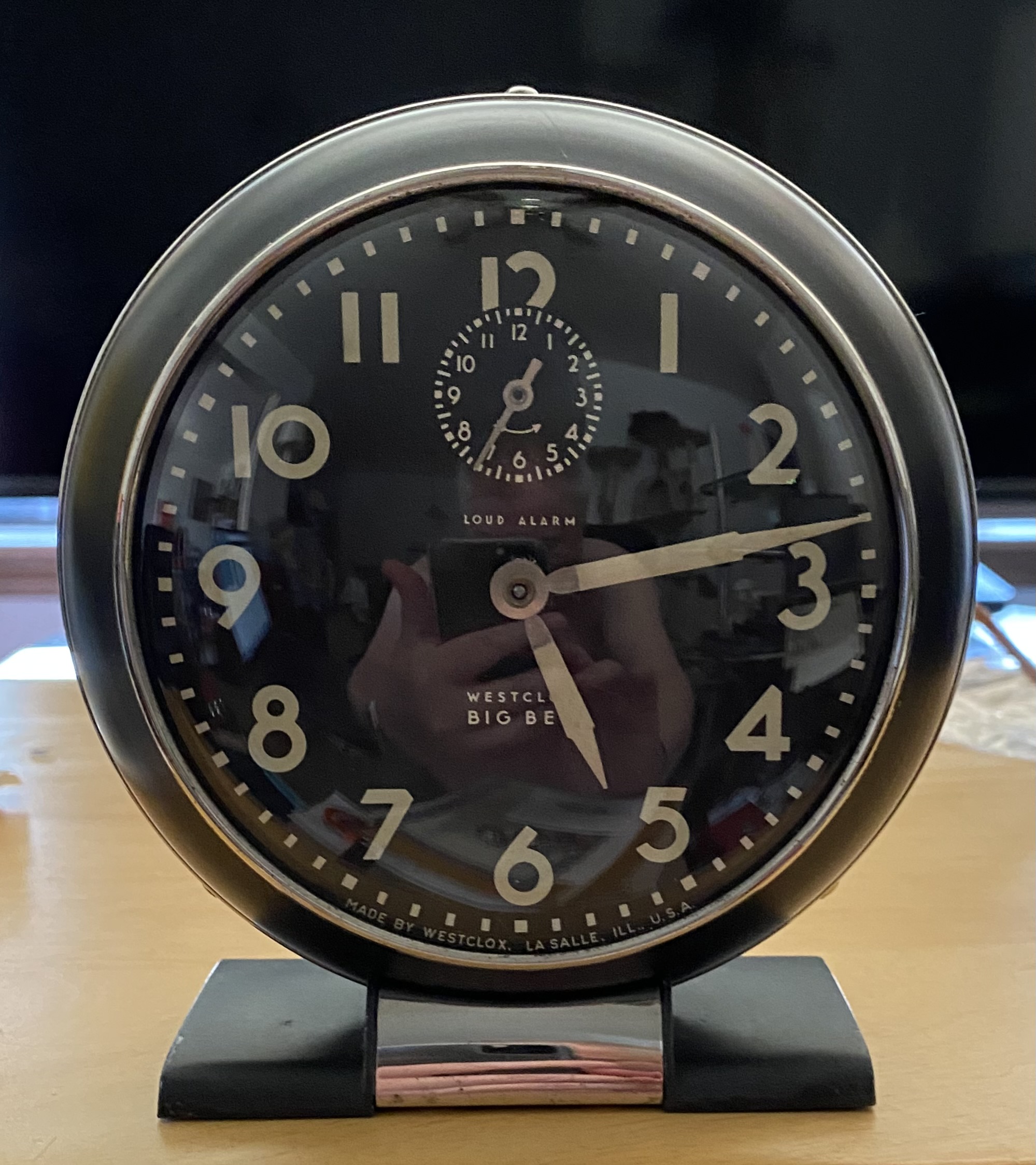

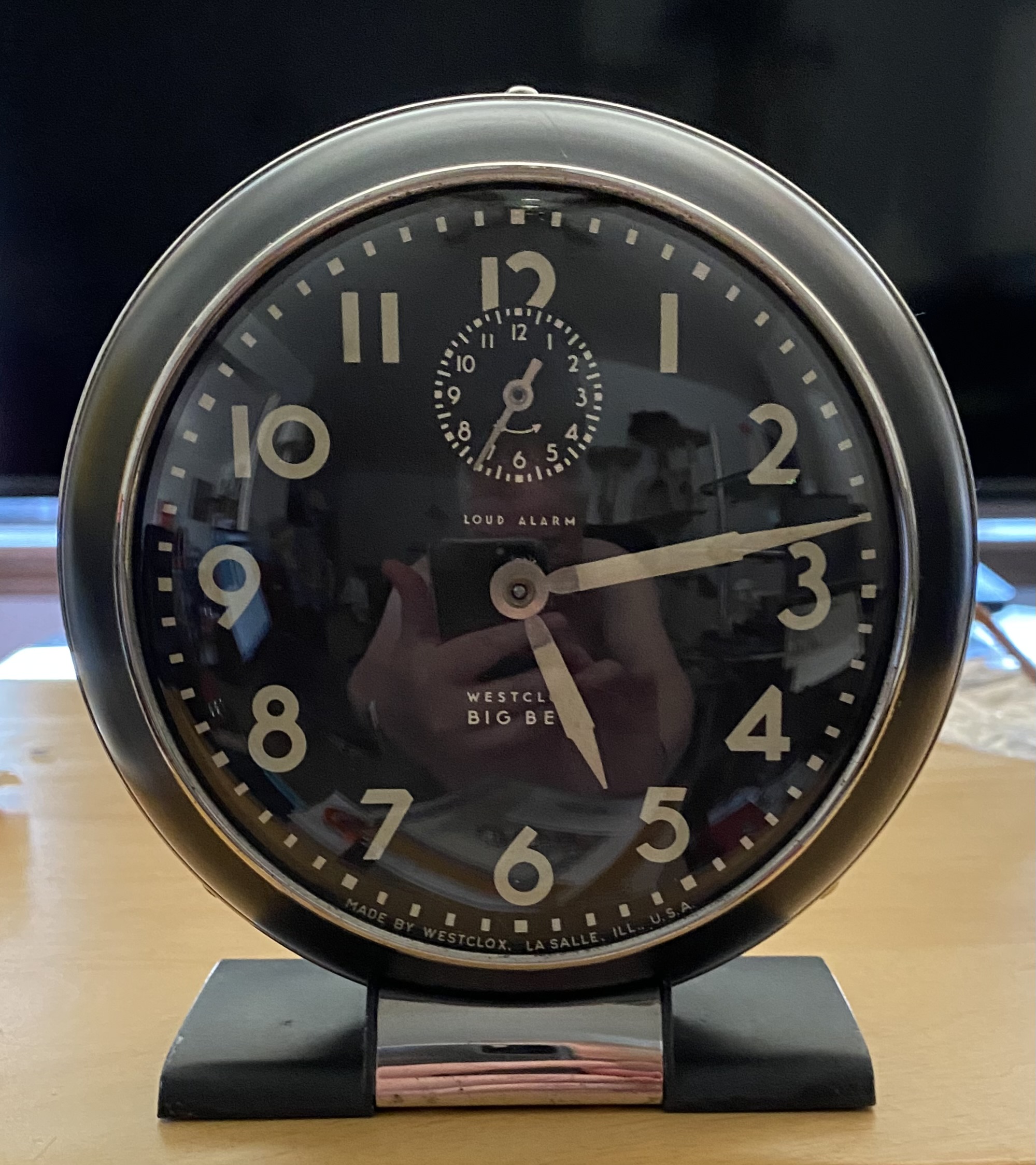

    Close!


    perks713 likes this.
  16. Archer Omega Qualified Watchmaker Jul 29, 2022

    Posts
    26,337
    Likes
    65,027
    To follow up with some additional information...

    So sometimes you run into problems when removing or setting the hands in place. I just wanted to talk a bit about some of the more common things that you come across.

    The first is a hand that is pressed on so close to the dial you can’t get a tool of any kind under it to lift it off:

    [​IMG]

    So how do you get this off? Depending on the watch, you can often loosen the dial feet screws and gently lift the dial up, and in turn lift the hand up slightly. Then you can press down on the dial and have enough room to get a tool under it:

    [​IMG]

    Note that this has to be done carefully, and you only want to use just enough pressure to lift the hand enough to get it removed using a proper tool.

    Next we have hands that are new, that don’t fit on the post. Often new hands are a bit on the tight side and either won’t start on the post, or won’t go down far enough. This is where some fine 5 sided cutting broaches can come in handy – you use the broach to just slightly open up the hole in the hand’s tube:

    [​IMG]

    Now the opposite can also happen, in particular on older watches where the hands have been removed and installed several times, they can become too loose. So to resolve that there are a few ways, but I am currently using the Bergeon 3010:

    [​IMG]

    It’s a tool specifically designed for tightening hands, and it comes with a number of collets:

    [​IMG]

    You measure the tube of the hand to select the right collet:

    [​IMG]

    The hand is installed, and the knurled handle on the right is turned to tighten the hand:

    [​IMG]

    This tool offers a lot of control over how much the hands is actually tightened, so you can really dial it in:

    [​IMG]

    Another method of doing this is to mount a collet in your watchmaking lathe of the appropriate size, and just tighten the collet down on the hand. The lathe isn’t turned on, so you are just using it to squeeze the hand. This is the method I used before getting this specific tool.

    The last one is more complex – when removing hands, sometime they are placed on so tightly that getting them off without damage is difficult. This is most likely on chronographs, and some companies do this intentionally, so that the hand is damaged on removal, and since they won’t sell parts you are forced to use them for servicing. Breitling does this, and in one of their videos on YouTube you can catch this:

    [​IMG]

    They tap the hand on using a hammer, which is not needed at all to keep the hand from moving on the post, but it does ensure that it is very difficult to remove without damage.

    So sometimes hands can fail, and when they do they often fail at the rivet. The hand is often an assembly, with a flat portion of the hands attached to a pipe, and the pipe forms the top of the rivet. Instead of the pipe pulling off the post that the hand attaches to, the flat portion of the hand separates from the pipe:

    [​IMG]

    The pipe is left on the post, but can be removed:

    [​IMG]

    If it’s in good shape, the hand can be repaired. In this case I started by getting the flat part of the hand back on the pipe, and I find that using the Horia tool works very well for this:

    [​IMG]

    I’ve stood the hand pipe so that the rivet is at the top, placed the flat part of the hand back on top, and held it there as I turned the barrel of the tool down to push the hand back on the pipe:

    [​IMG]

    But the hand could easily be removed at this stage, so now I use my staking set to tighten the rivet on the hand. Standing the hand up, and using what is actually the locating tool for the staking set, as it has a very fine point on it, I then use just the back of my tweezers to gently tap the punch to tighten the rivet (it takes very little to damage the hand, so this has to be done carefully):

    [​IMG]

    [​IMG]

    Done:

    [​IMG]

    This same last step can be used to tighten rivets on hands when they come loose, but have not completely separated.

    Cheers, Al

    Edited Jul 29, 2022
  17. mydeafcat Jul 29, 2022

    Posts
    1,304
    Likes
    6,156
    Even though I leave servicing to pros and don’t dare tinker with the few babies I own, I find this look behind the curtain absolutely fascinating.

    Your attention to detail and precision is breathtaking, Al. Thank you for your willingness - and time - to share your prodigious knowledge.

    watchyouwant likes this.
  18. Dash1 Aug 3, 2022

    Posts
    1,823
    Likes
    3,497
    Thank you for taking the time to post this.
    One problem I often have is that the hand I’m fitting doesn’t go on parallel to the dial. I guess that lovely hand press helps in that respect? I only have a hand tool. Also any advice on straightening a hand that is bent prior to fitting?

  19. Archer Omega Qualified Watchmaker Aug 3, 2022

    Posts
    26,337
    Likes
    65,027
    Yes, a press - even a cheaper one like those made by Horotec - will assist in getting the hands pressed on parallel to the dial. Here's an example of s single press they offer:

    Horotec Watch Tool Hand Press Single - Watch Back Tools | Esslinger & Co

    And a 3 position press:

    Horotec Watch Tool Hand Press 3 Position - Watch Back Tools | Esslinger Watchmakers Tools

    Even the 3 position is less than 1/20th of what my press costs, and it will really help you get things done in a more uniform manner.

    For hand straightening or bending, I just use the F pattern tweezers I've shown above. If the hand is bent in a certain way, sometimes laying it on the bench mat and pressing from the back of the hand can work, but most of it I do by using the tweezers. Again you can wrap some other tweezers with tape if you are concerned about damaging the finish on the hands.

    Cheers, Al
