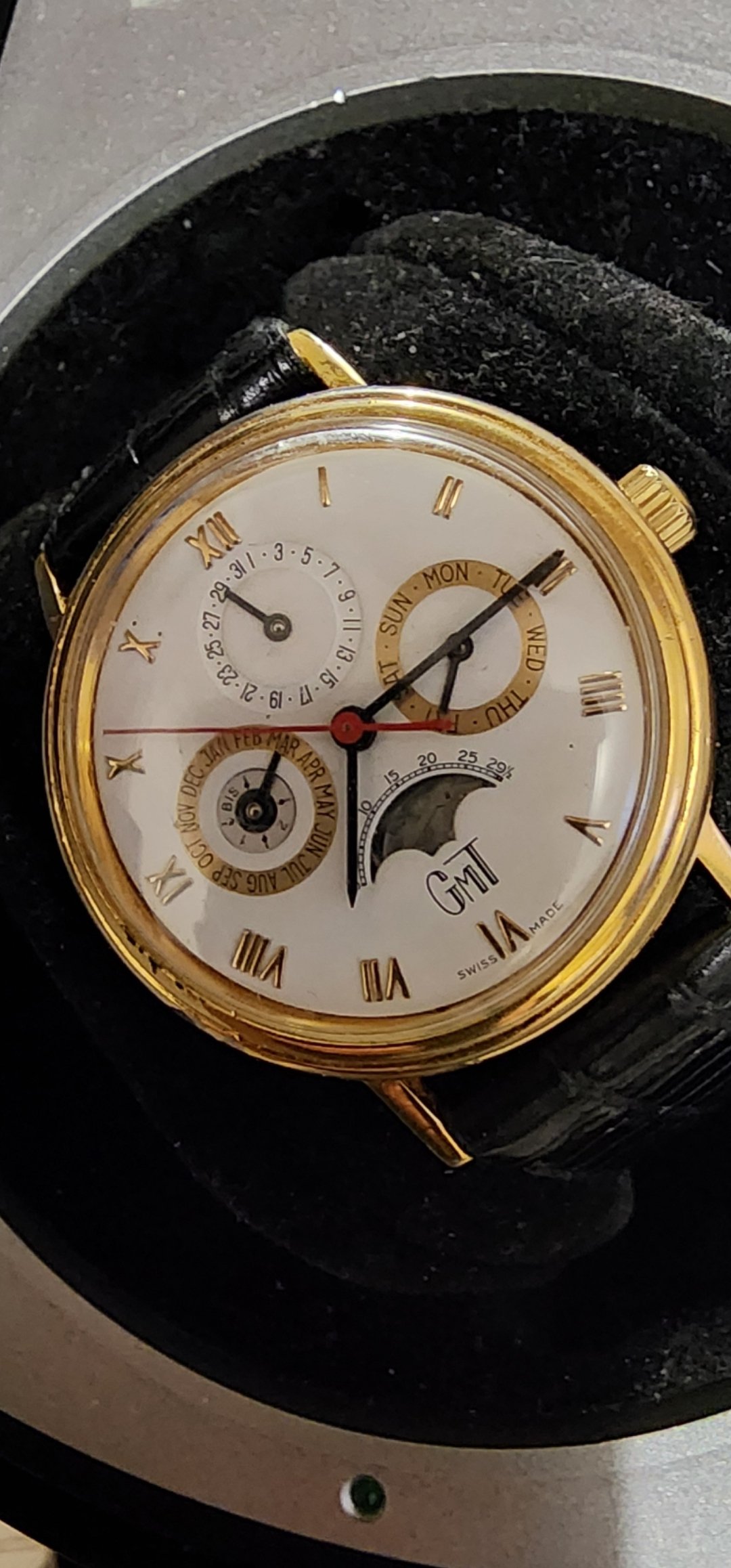

Thank you. I used this case for a eta 2891-a9 movement. Hopefully i can put it in a proper case eventually.
Being the case is unknown, do I measure the bezel groove diameter or crystal diameter?

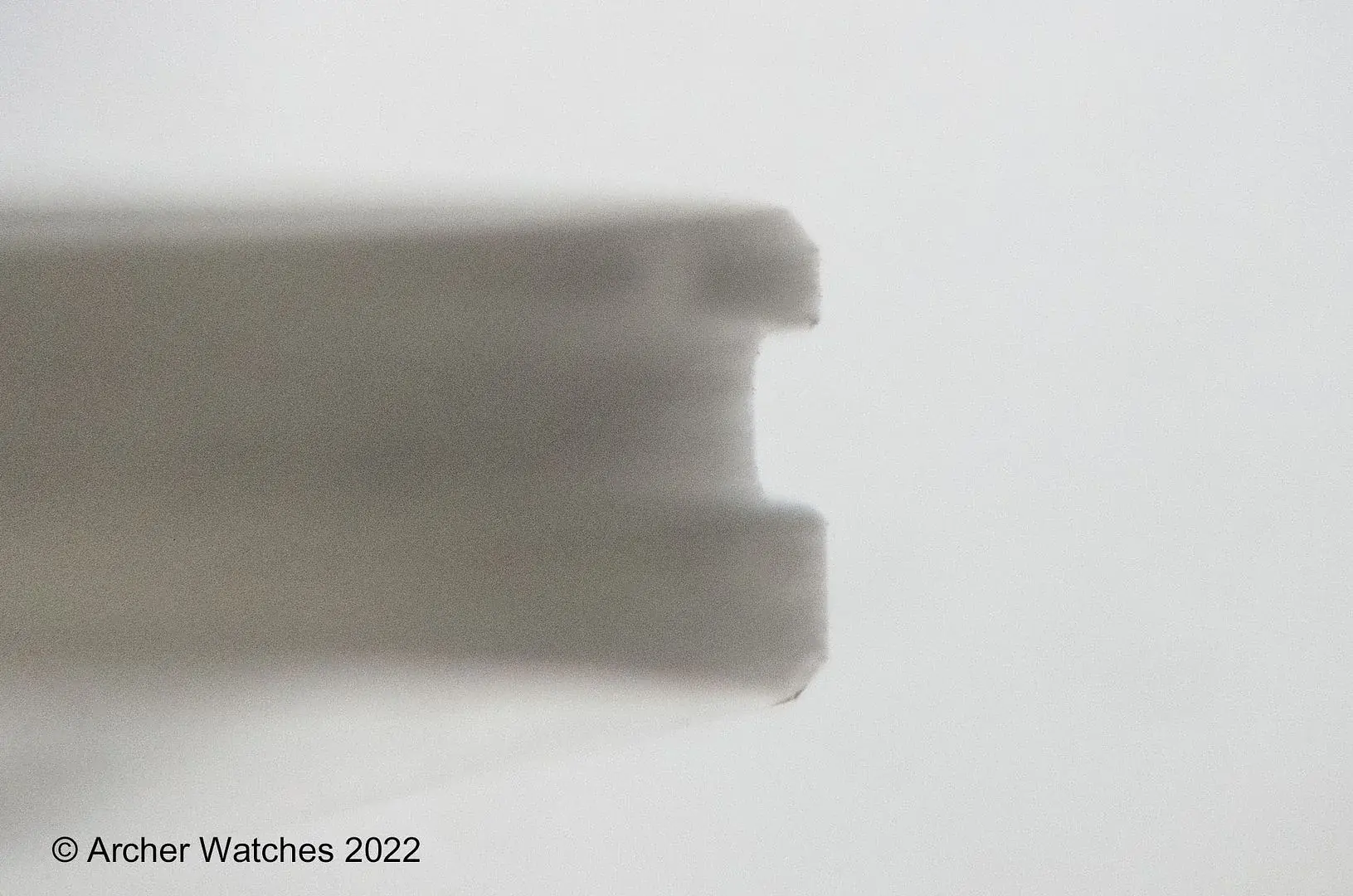

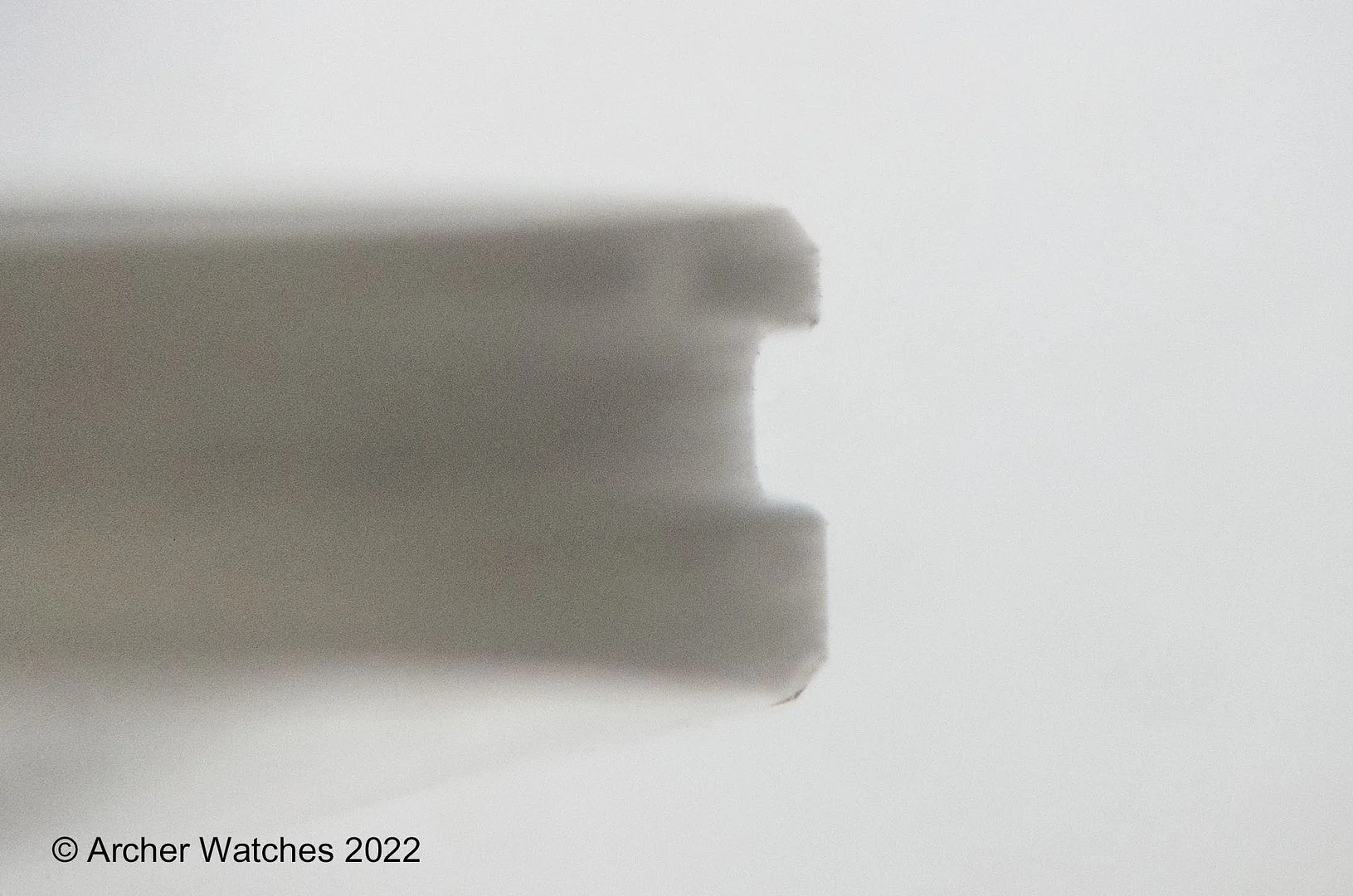

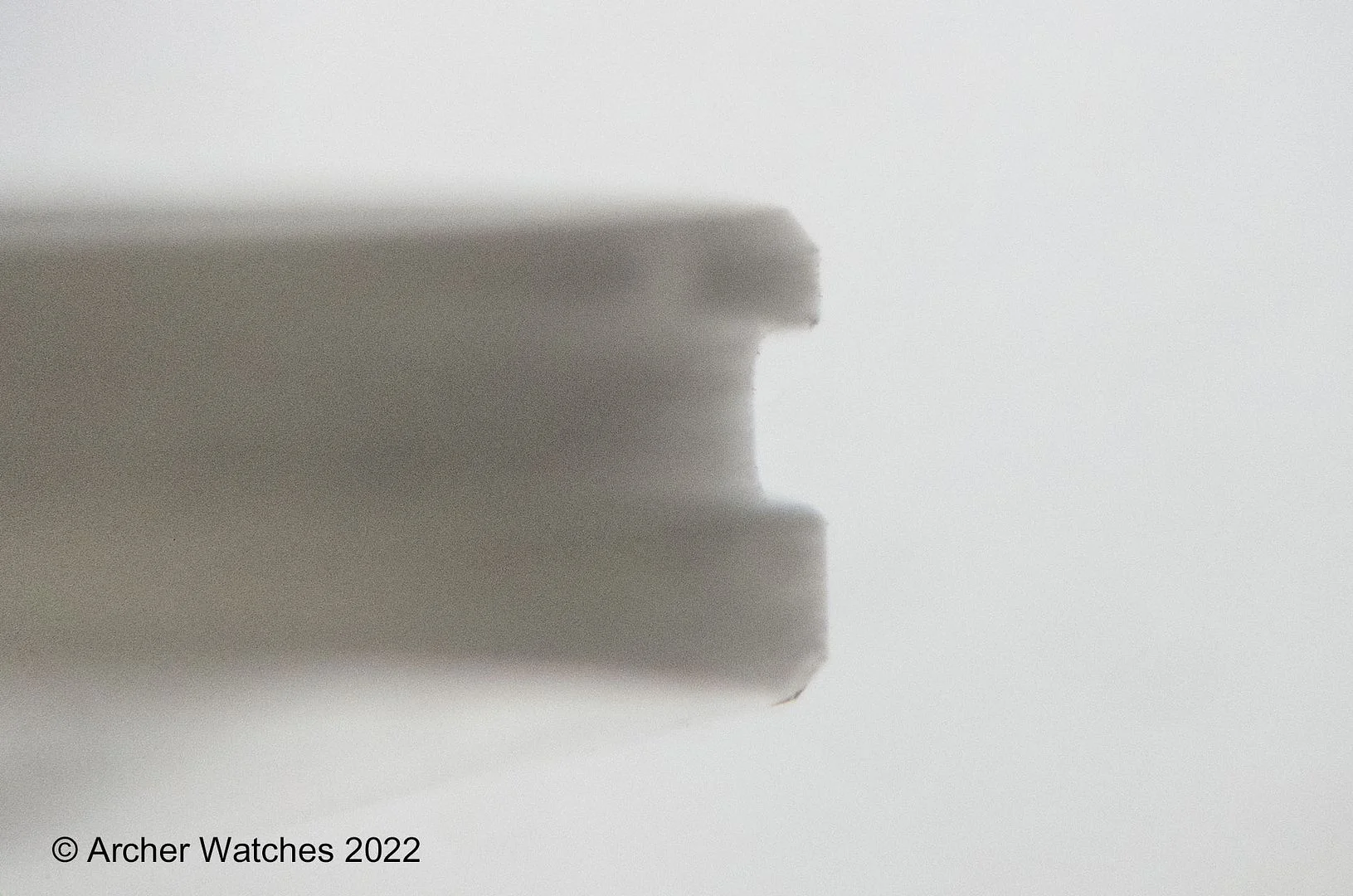

Both - you want a very slight interference fit (approx. 0.02 mm) between the inside of the seal and the outside of the crystal.

Posts
211
Likes
170

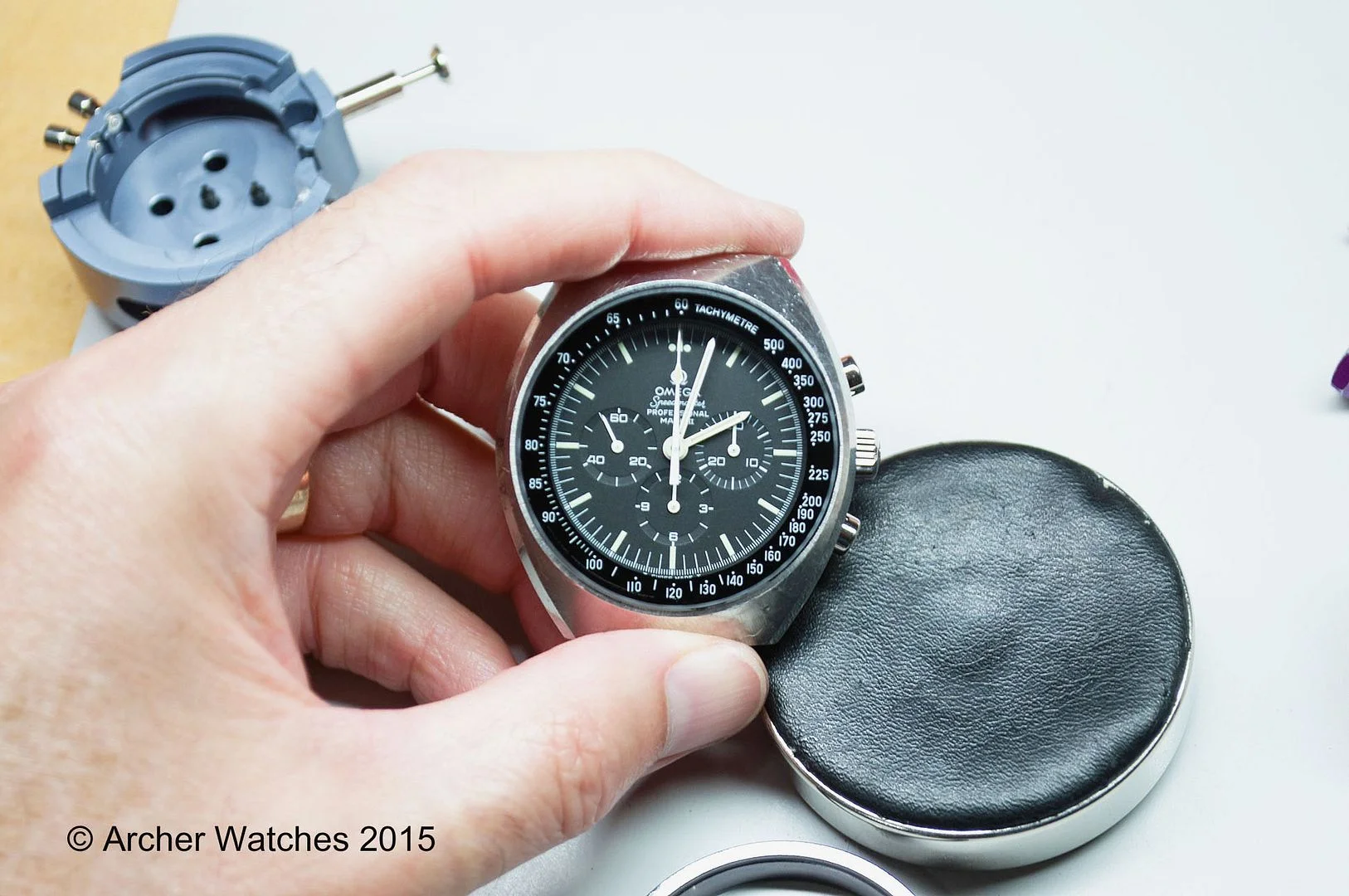

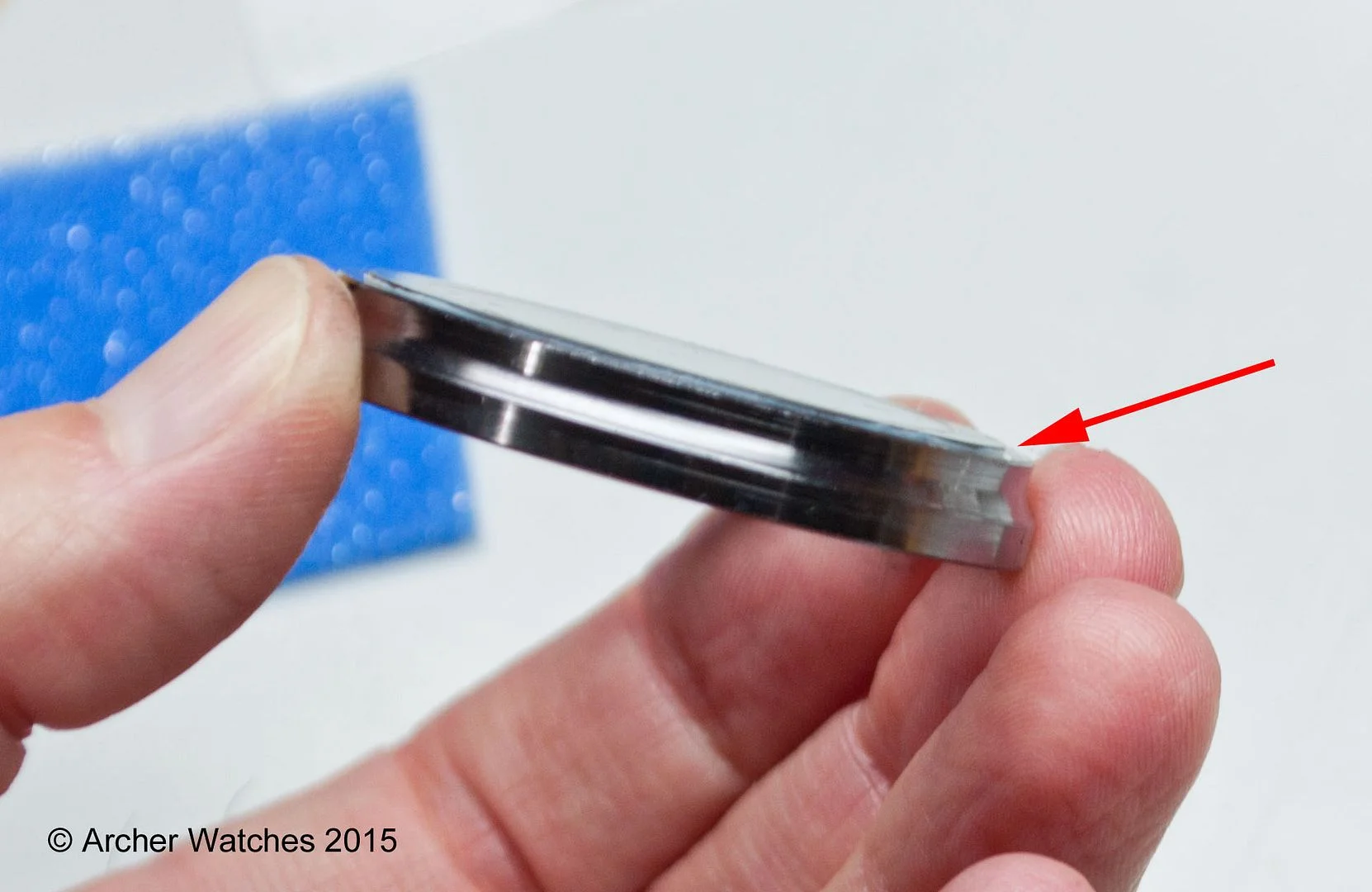

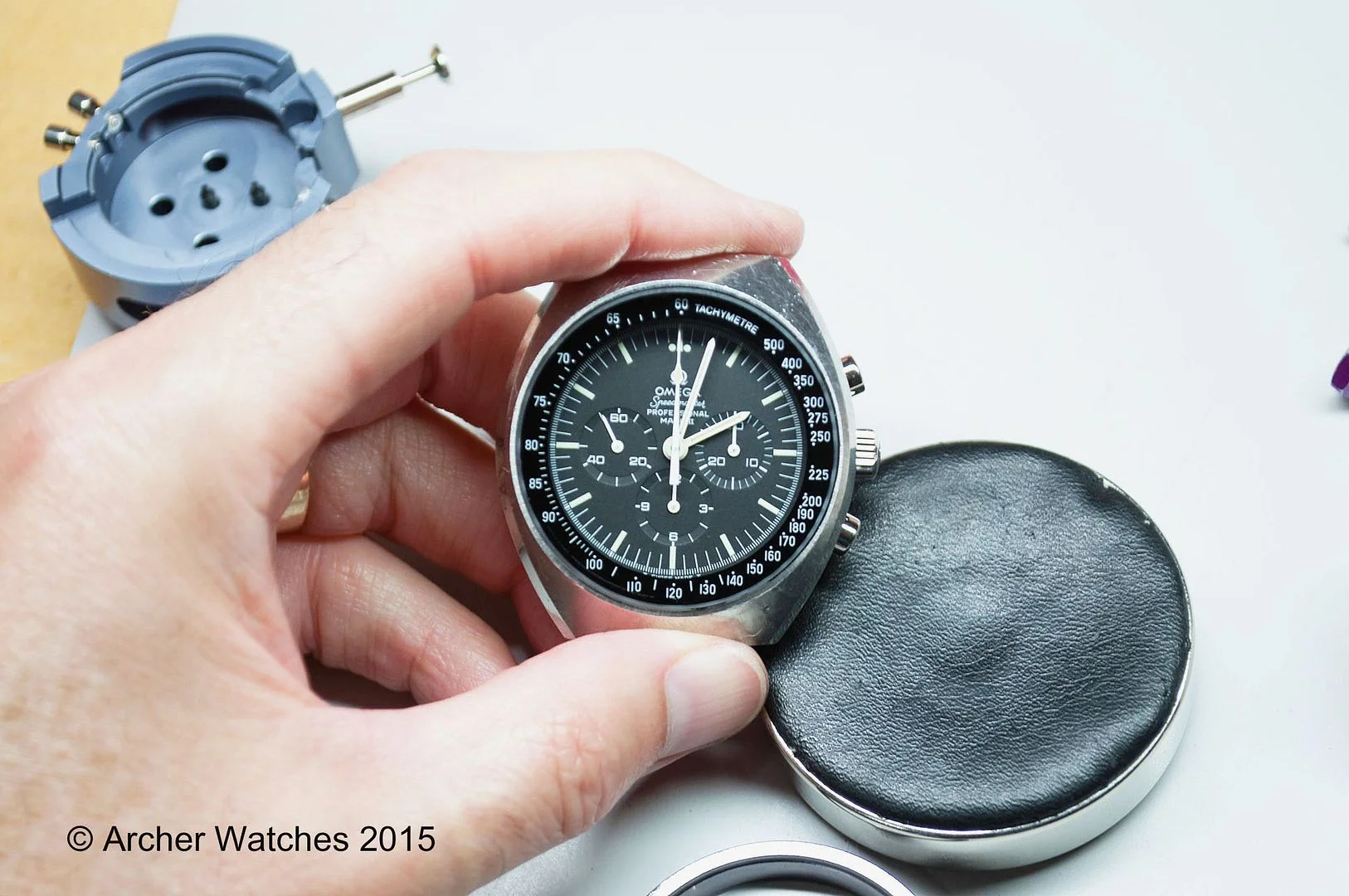

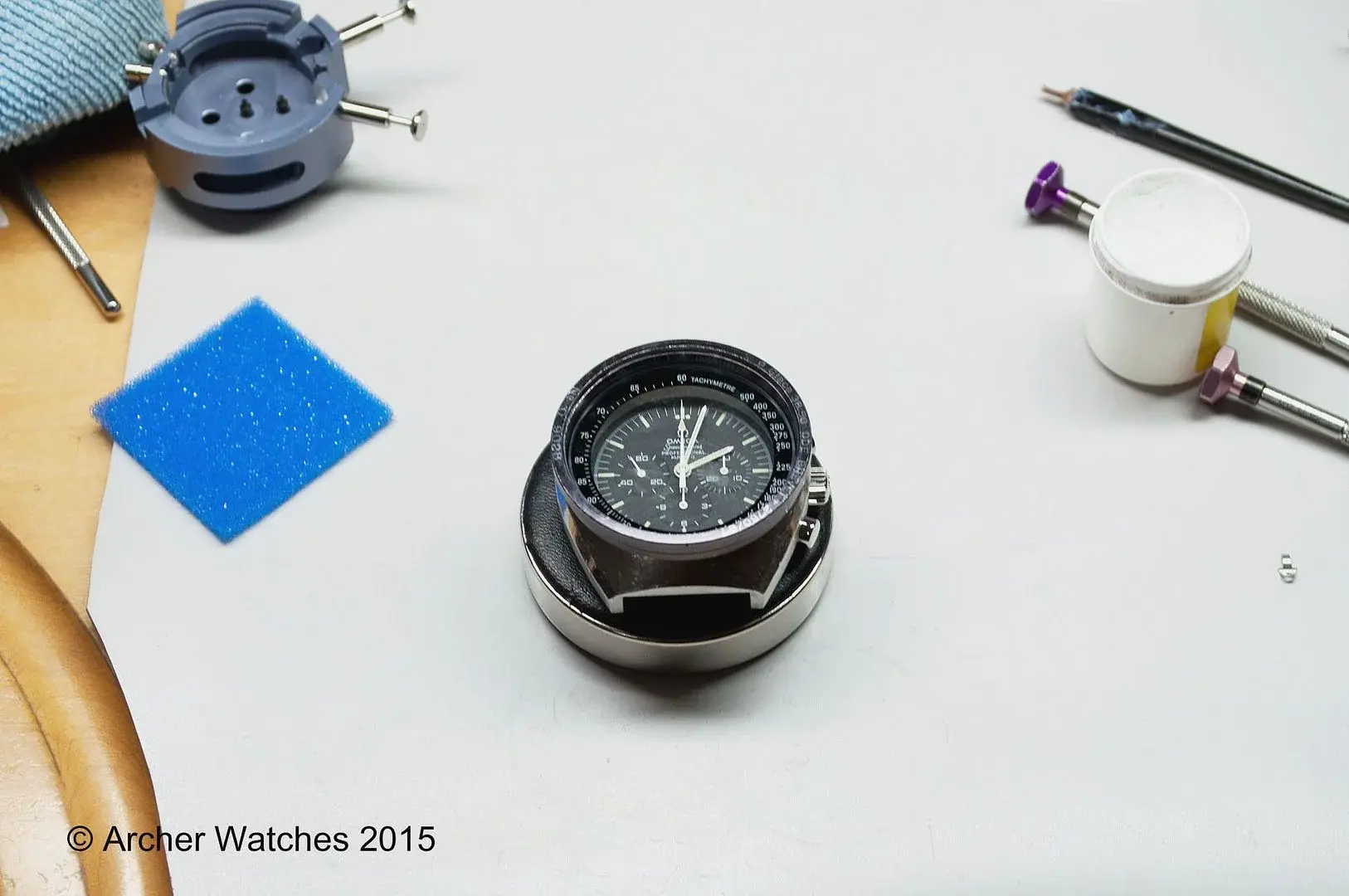

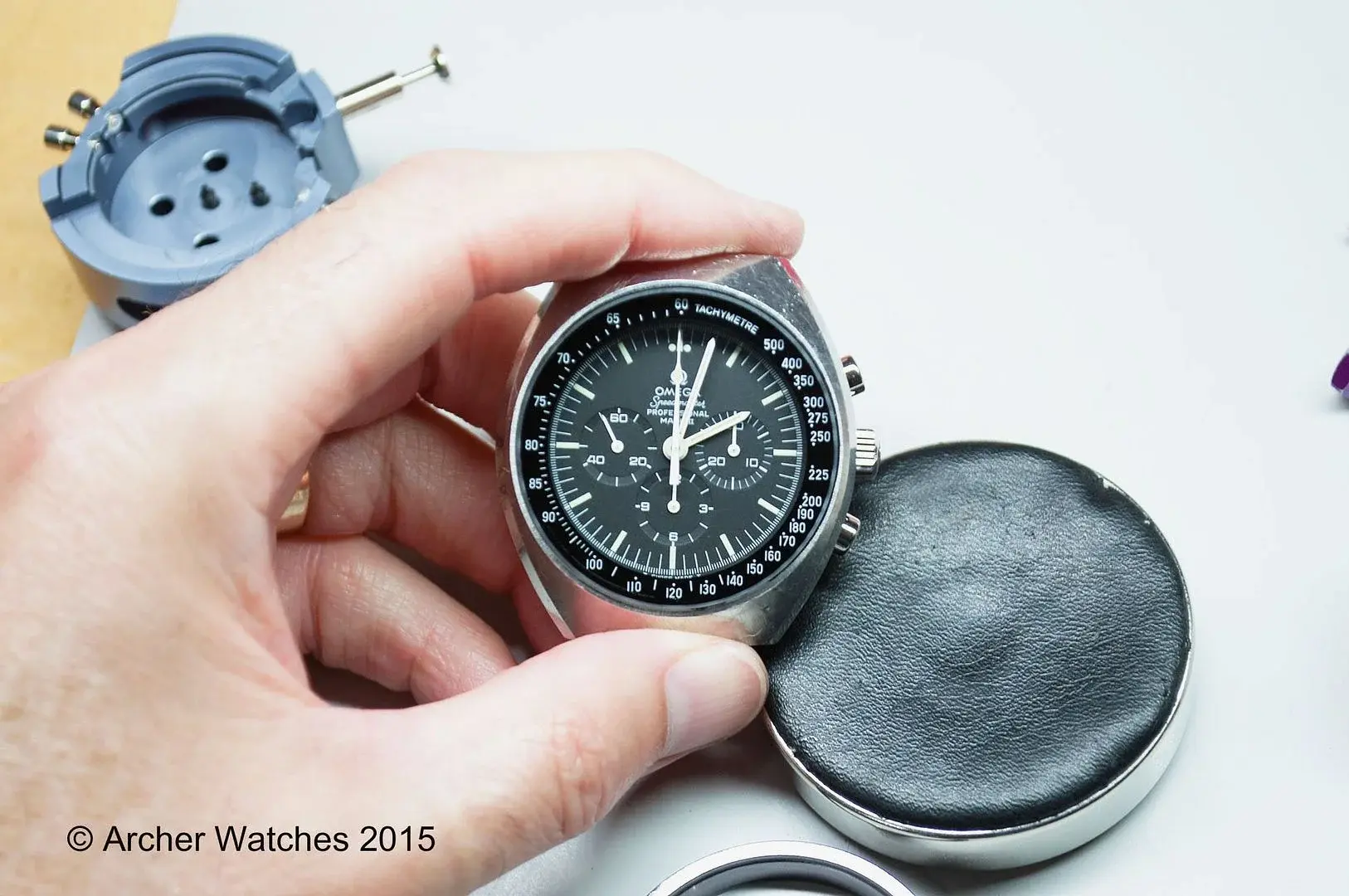

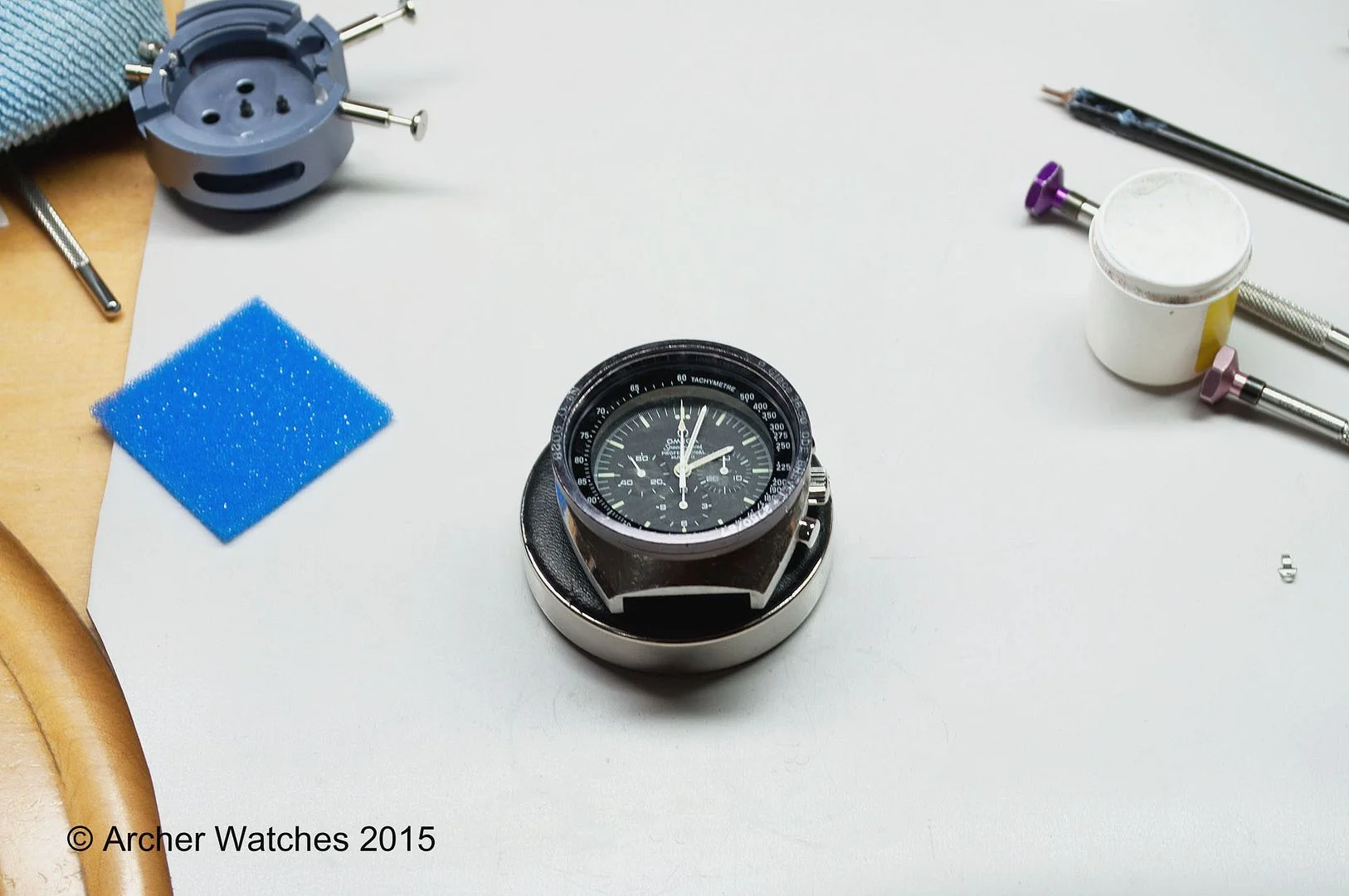

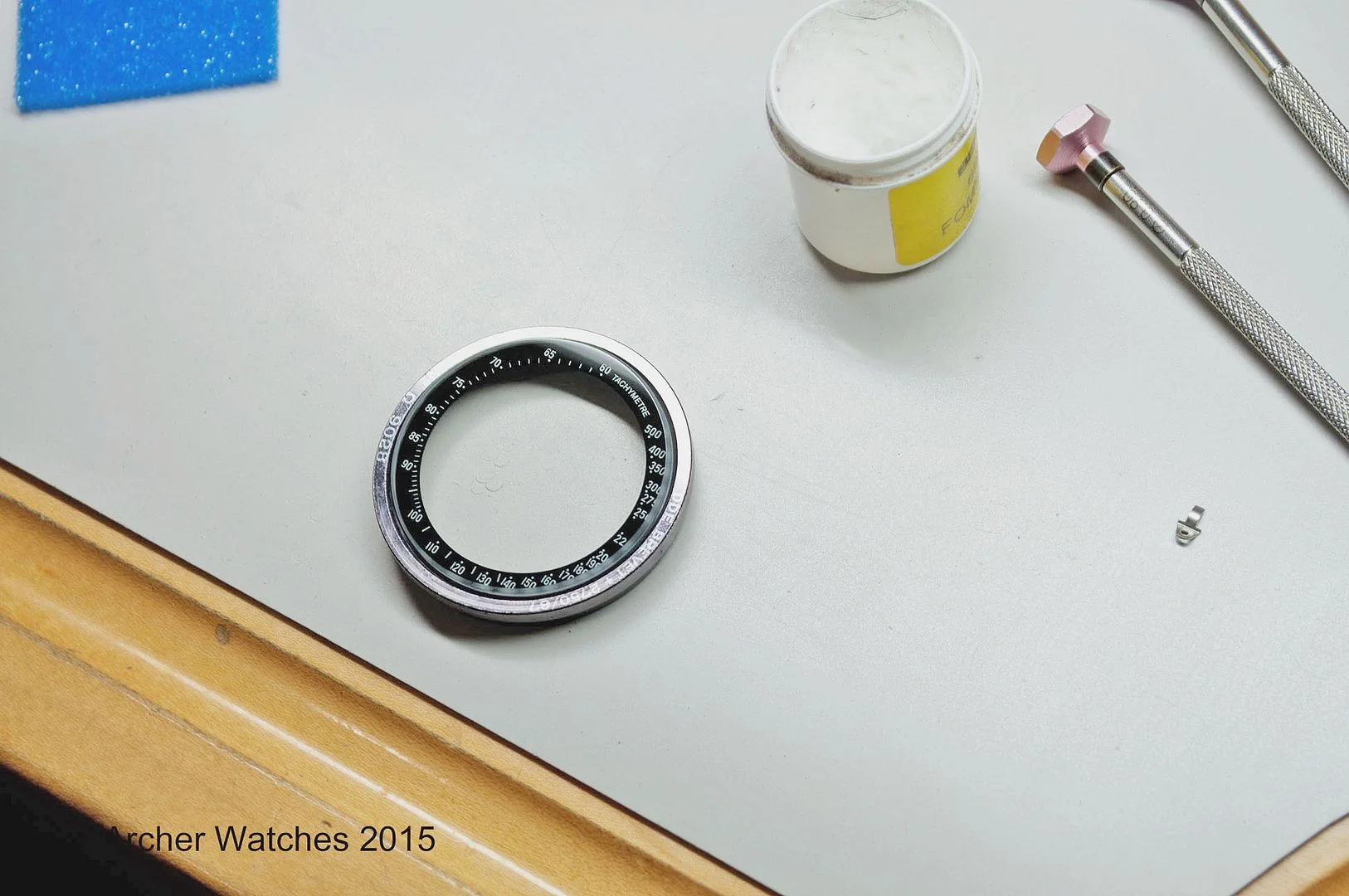

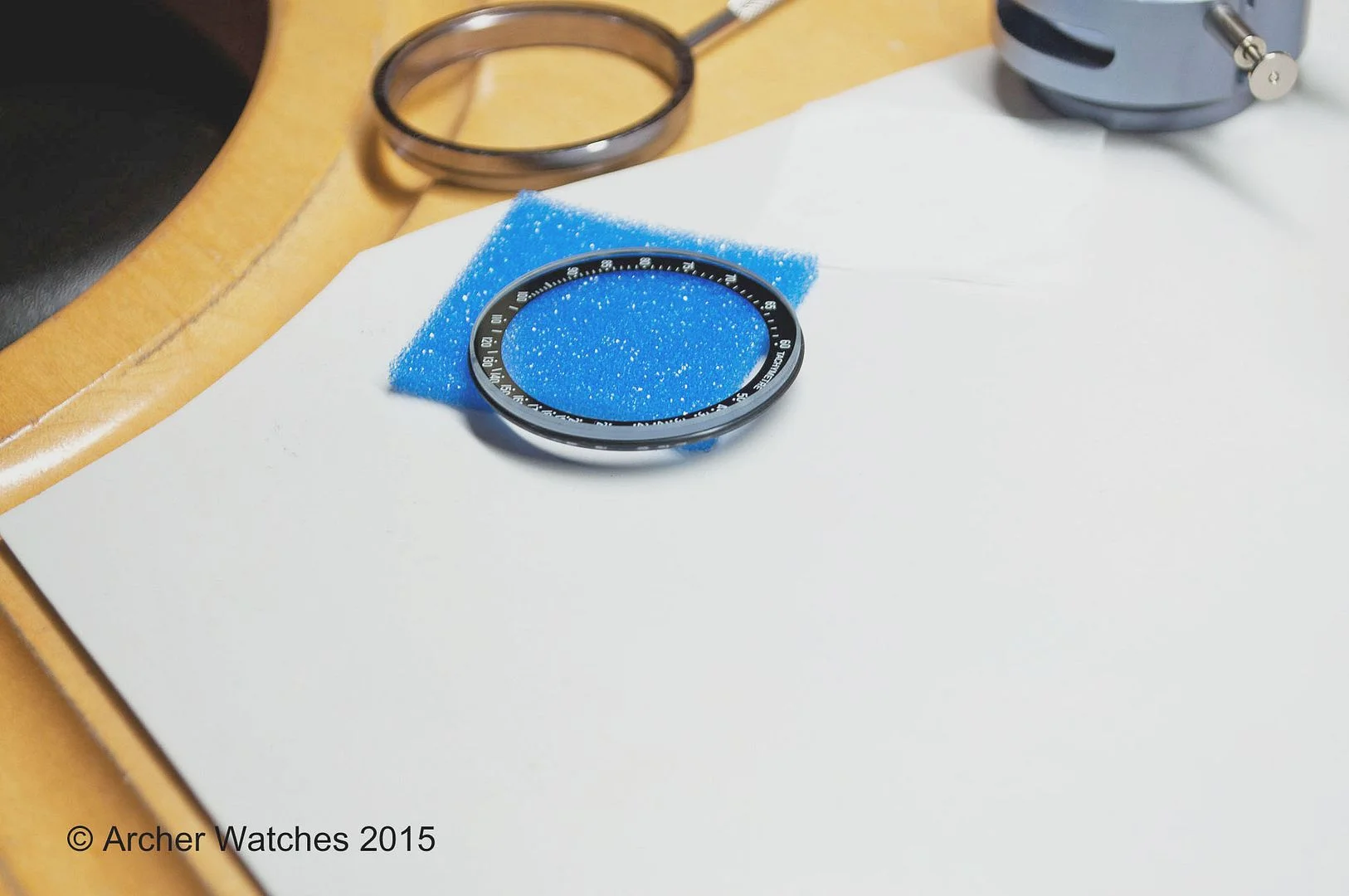

Seems odd that none of the first three repairers could intuit that if the crystal was shaped the correct gasket would be too. Instead they kept trying to use a round gasket, I suppose because they didn't have access to the genuine Omega gasket. But where did the unending supply of crystals come from?
I only know that one of them used the incorrect gasket, which I'd given him. See my post above.

Posts
1,313
Likes
1,675
Hi, this is a really great resource, thank you A for collating it!
Does anyone have any advice on fitting a NOS crystal to SM300 165.024, please?
I've not done a 165. before. I was planning on removing the old one with my Bergeon 4266, but should the new one be fitted with the same
using the pre-depth platform? Would this cause the tension ring to pop out?
Or should it be fitted by using my basic levered Crystal Press?
Or is it none of the above?

Posts
726
Likes
2,681
I don't think you are supposed to use the 4266 on a crystal with a tension ring. You will likely damage the replacement crystal, and also not be able to install it successfully. The claws won't be able to reduce the diameter of the crystal due to the tension ring pushing against it.

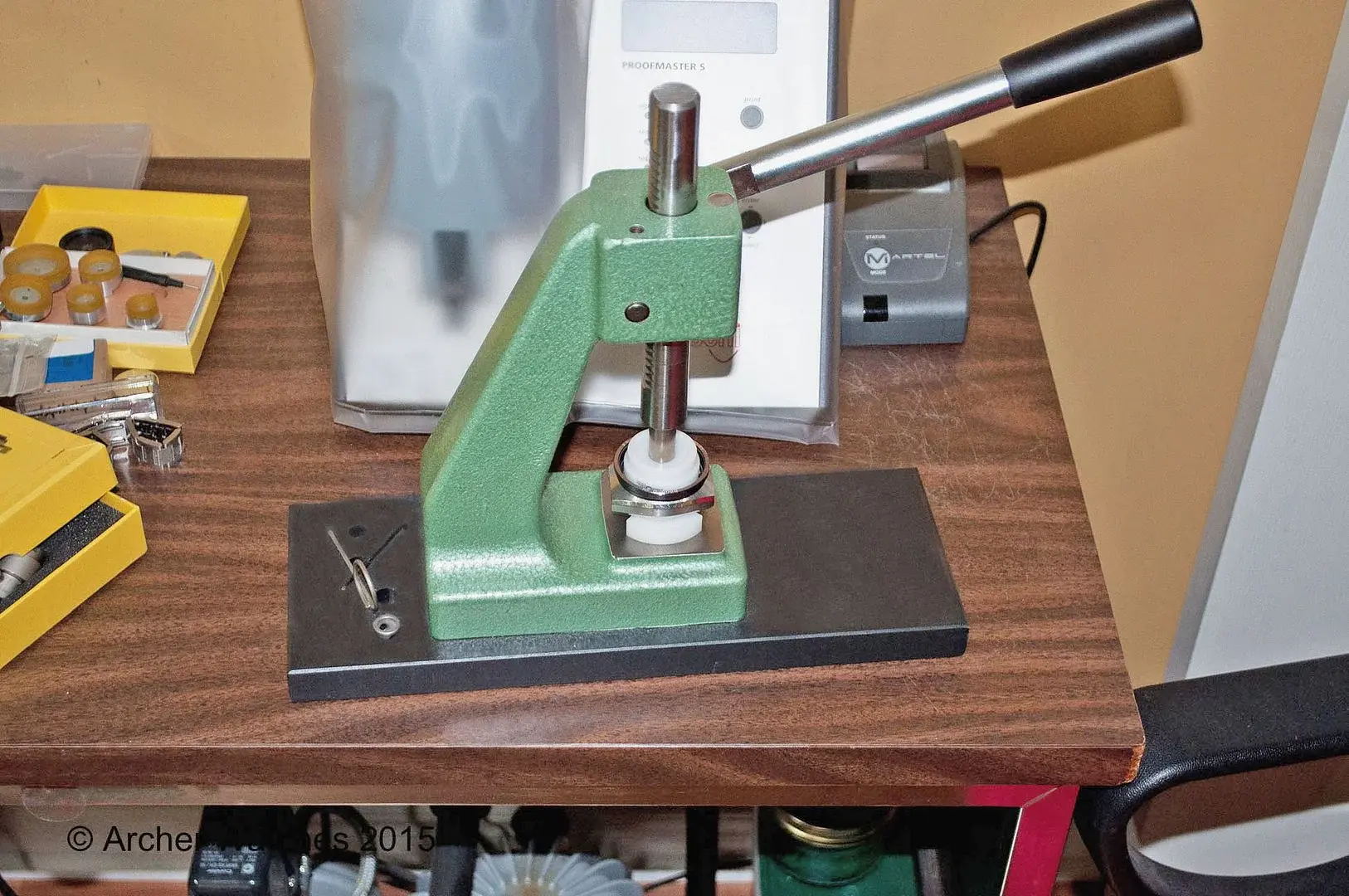

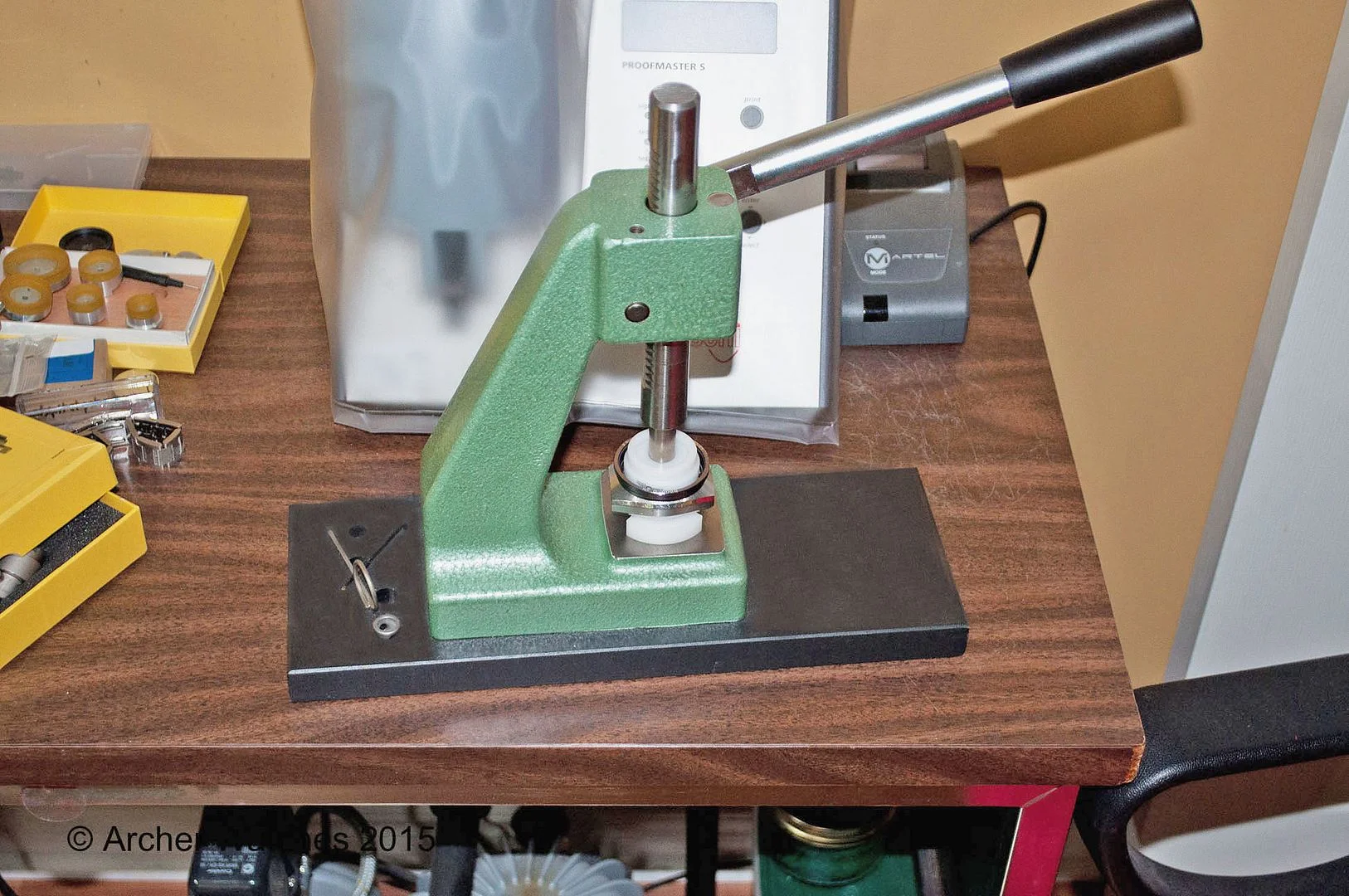

You would need to press it out and in using a regular press.

Posts
1,313
Likes
1,675
I don't think you are supposed to use the 4266 on a crystal with a tension ring. You will likely damage the replacement crystal, and also not be able to install it successfully. The claws won't be able to reduce the diameter of the crystal due to the tension ring pushing against it.

You would need to press it out and in using a regular press.

Hi, thank you
I thought that might be an issue fitting the new crystal, but you seem to be saying I should remove the old crystal by using a press,
and fit the new one by using a press?
Would a basic press do it, or should it be a specific kind of press?
Cheers!

Posts
27,864
Likes
70,874
Hi, thank you
I thought that might be an issue fitting the new crystal, but you seem to be saying I should remove the old crystal by using a press,
and fit the new one by using a press?
Would a basic press do it, or should it be a specific kind of press?
Cheers!

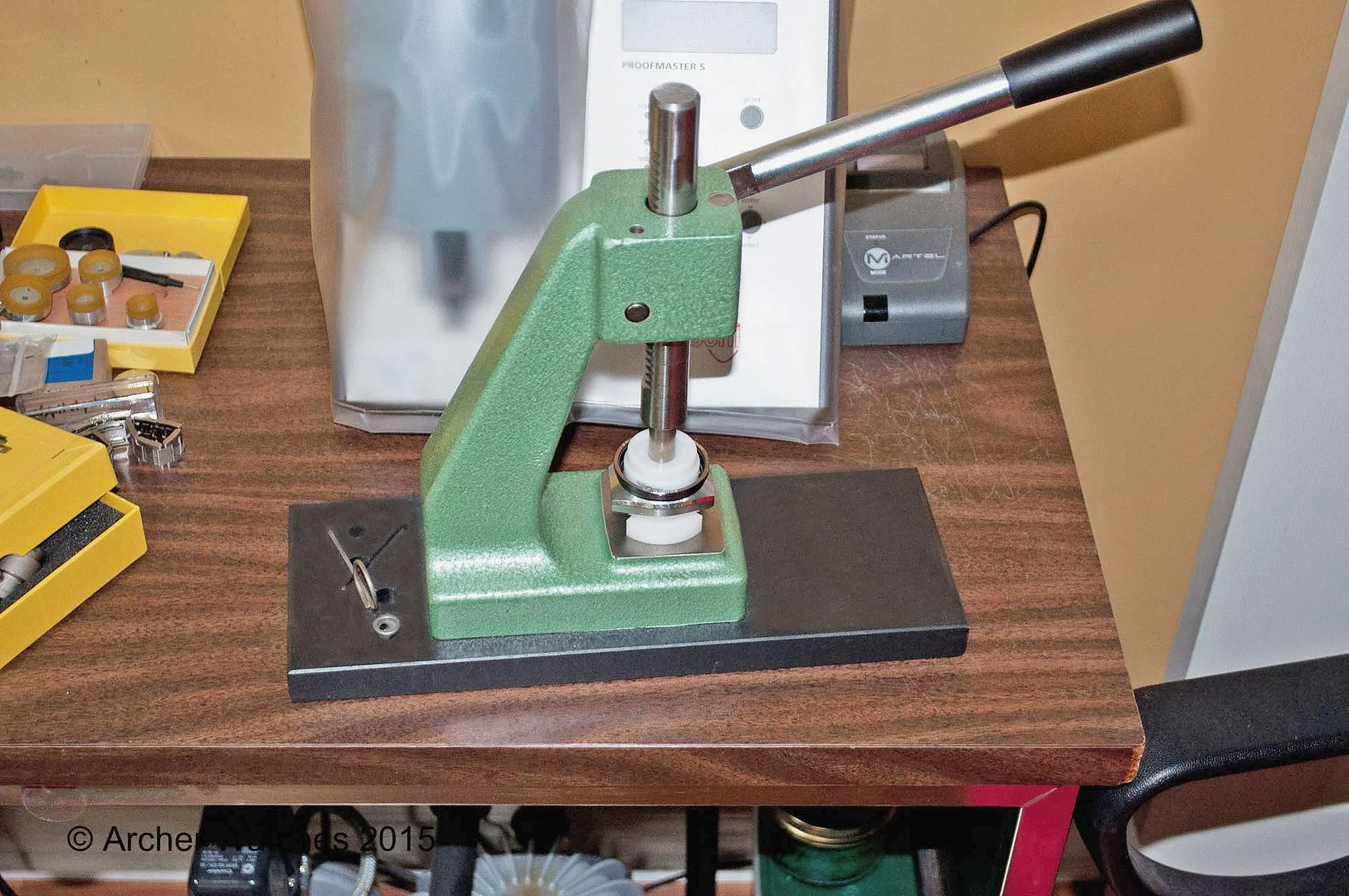

Yes, they press in, so they press out. Alternately, you can knock the crystal out, but you would need to protect it if you plan to use it again.

Posts
1,313
Likes
1,675
Yes, they press in, so they press out. Alternately, you can knock the crystal out, but you would need to protect it if you plan to use it again.
Ok, got it!
Yeah, I think it's worth keeping the old Crystal intact just in case there's an emergency or I can't get another for a while.
