- Posts
- 2,520
- Likes
- 17,832
airansun
·Wow!

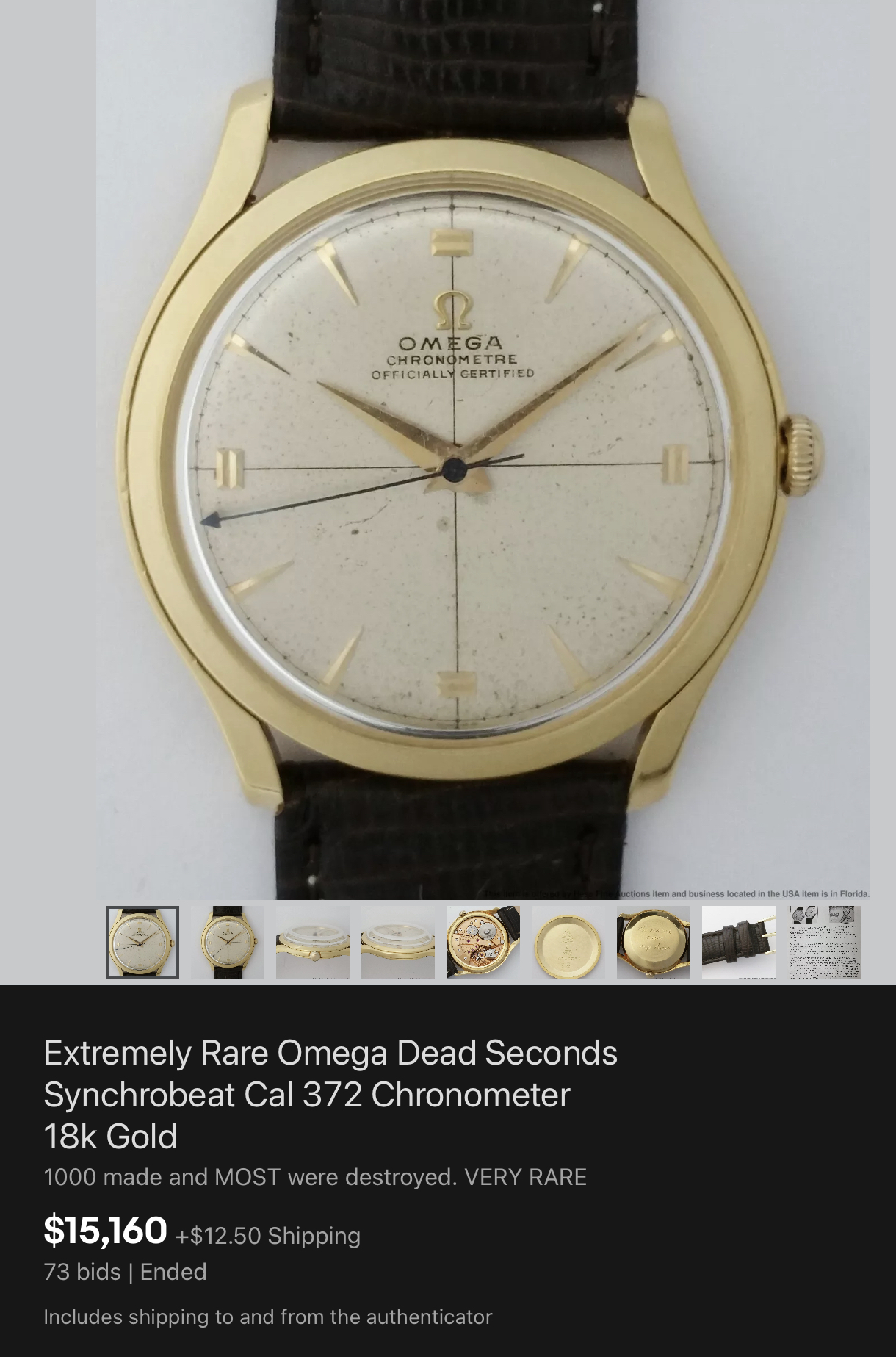

A Synchrobeat on eBay!
- Posts
- 1,487
- Likes
- 2,376
asrnj77
·Quite a show. I’ll guess we’ll see if it ships off to the buyer (for $12.50) or “never leaves the safe”
- Posts
- 6,667
- Likes
- 11,570
MSNWatch
··Vintage Omega AficionadoWell the BIN listing is still up.
- Posts
- 278
- Likes
- 356
- Posts
- 456
- Likes
- 796
smorrisonmd
·Quite a show. I’ll guess we’ll see if it ships off to the buyer (for $12.50) or “never leaves the safe”
- Posts
- 112
- Likes
- 613
Mr Vo
·How does that movement work? Second escape section on top or spring loaded like Rolex True Beat ? Kind regards. Achim
https://www.watchuseek.com/threads/...jCzWsD0lYVck3AOHxbz2mvRJXiUdIdpspGCdmZiR5n06M
Edited:
- Posts
- 5,598
- Likes
- 9,422
watchyouwant
·The hand moves like a quartz watch😀
https://www.watchuseek.com/threads/...jCzWsD0lYVck3AOHxbz2mvRJXiUdIdpspGCdmZiR5n06M
that was quite obvious. and does not answer my question. Is the mechanism, that produces the jumping second hand spring loaded like the Rolex or is there a 2. escape section ? can you answer that ? or somebody else? kind regards. achim
- Posts
- 3,554
- Likes
- 7,591
mac_omega
·that was quite obvious. and does not answer my question. Is the mechanism, that produces the jumping second hand spring loaded like the Rolex or is there a 2. escape section ? can you answer that ? or somebody else? kind regards. achim
There is a springloaded double wheel (it is the 3rd if I recall correctly) and there is an extra "whip" which blocks the seconds wheel to jump forward every 1/5th of the second by releasing only after 4 of these wheel movements - hence the 5th oscillation is allowed to go thru which means it jumps only once a second.
Well, I am not a watchmaker and as English is not my first language I am not sure if I explained it correctly. I am confident Al Archer will chime in soon and explain it better than I am able to do it.
Edited:
- Posts
- 7,901
- Likes
- 35,852
cristos71
·There is a springloaded double wheel (it is the 3rd if I recall correctly) and there is an extra "whip" which blocks the seconds wheel to jump forward every 1/5th of the second by releasing only after 4 of these wheel movements - hence the 5th oscillation is allowed to go thrue which means it jumps only once a second.
Well, I am not a watchmaker and as English is not my first language I am not sure if I explained it correctly. I am confident Al Archer will chime in soon and explain it better than I am able to do it.
Is it in principle the same technique as employed for the dead seconds chronometer clocks?
- Posts
- 3,554
- Likes
- 7,591
mac_omega
·Is it in principle the same technique as employed for the dead seconds chronometer clocks?

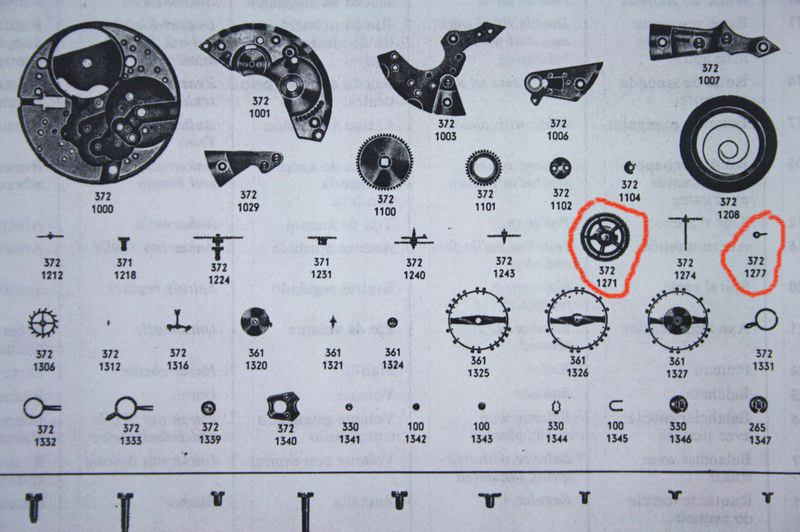

See foto below - I have marked the spring loaded wheel and the blocking whip
- Posts
- 7,901
- Likes
- 35,852
cristos71
·Yes, from the principle I guess but it looks completely different concerning the escape. The cal. 120 (of the clocks) has some sort of second escapement set upon the common escapement and is large, has the shape of an anchor while in cal. 372 it is a small whip which blocks.

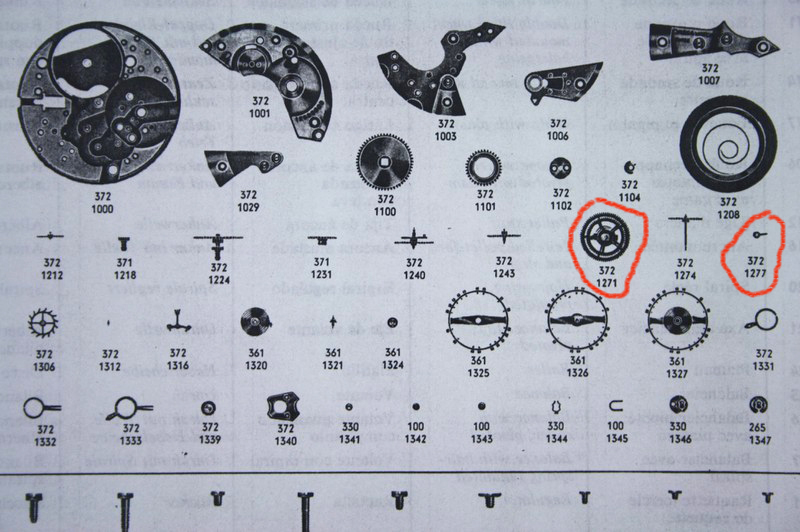

See foto below - I have marked the spring loaded wheel and the blocking whip
Interesting to read that it is a slightly different solution to the same 'problem'. I wonder if both of these movements in development at the same time and what the motivation was to go in this direction?
