Zenith 156H 19529 dial question

  1. DirtyDozen12 Thanks, mystery donor! Dec 2, 2022

    Posts
    2,650
    Likes
    4,515

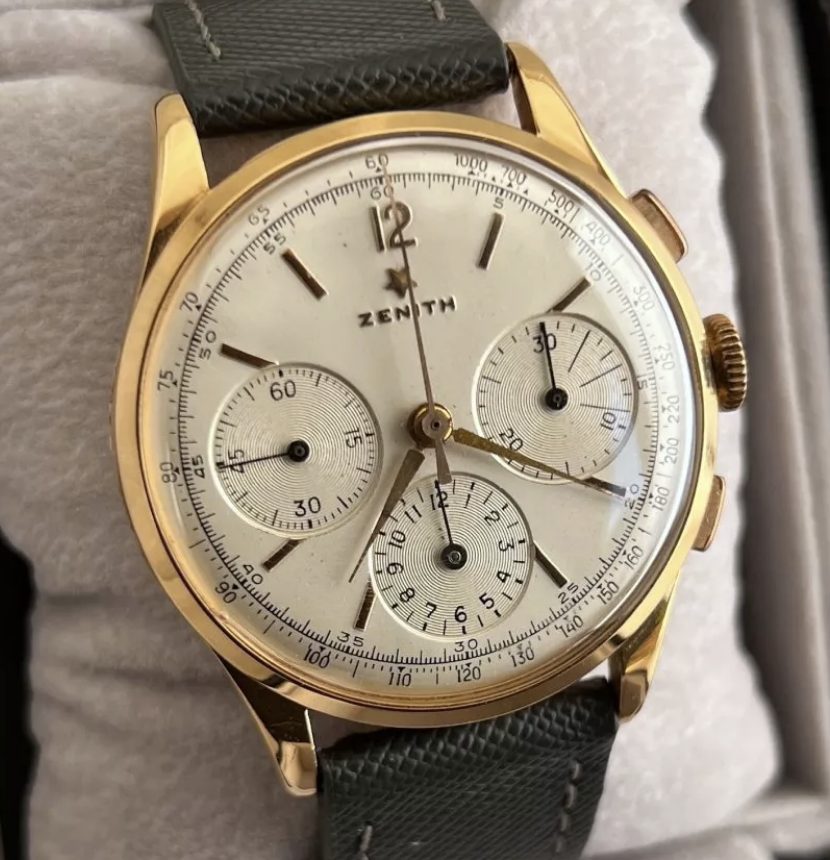

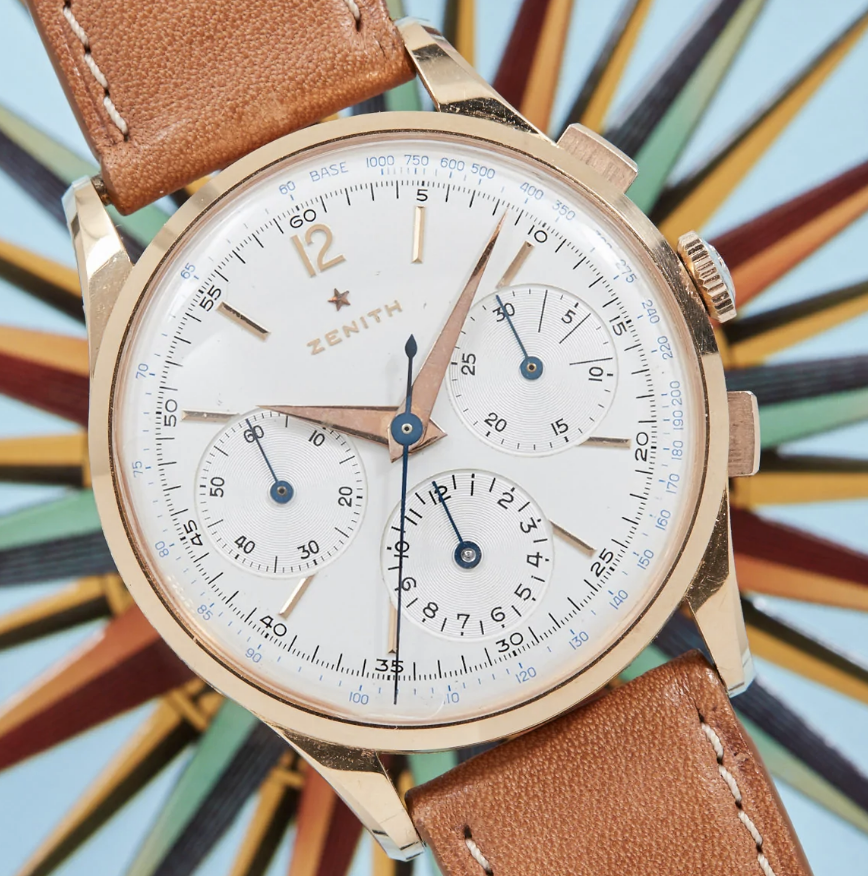

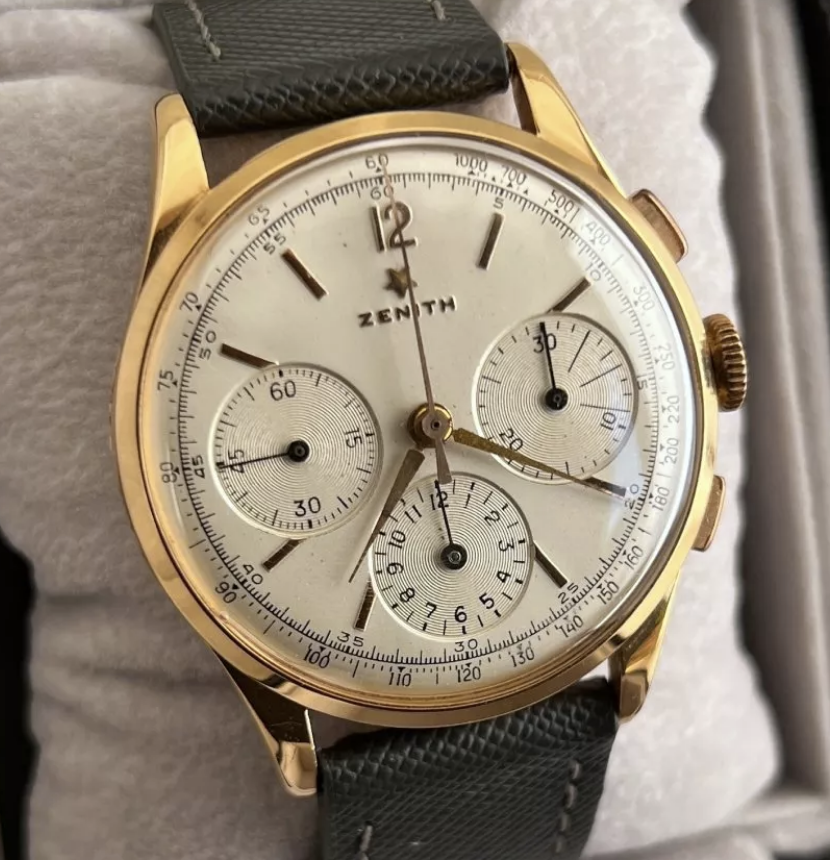

    Presently, there is a Zenith 156H for sale on the forum. The dial is described as original but there are a number of elements that suggest, to me, that it is a redial. The most obvious issues are the atpyical fonts and poor execution of the sub-dials. Further below are two original examples for comparison. Other issues include the fonts of the tachymeter scale and seconds/minutes scale. I would be curious to hear what others think of the dial.

    Here is the listing: https://omegaforums.net/threads/vintage-zenith-156h-chronograph-19529.153193/

    137601, 19529

    144421, 19529
    https://www.watchuseek.com/threads/fs-rare-zenith-rosegold-oversize-156h-movement-eu.4749455/

    141300, 19529
    https://www.analogshift.com/products/zenith-chronograph

    marco, Risto and vujen like this.
  2. Dan S Dec 2, 2022

    Posts
    18,257
    Likes
    42,112
    Upside-down star and closed 6s.

    Spruce and YY77 like this.
  3. DirtyDozen12 Thanks, mystery donor! Dec 2, 2022

    Posts
    2,650
    Likes
    4,515

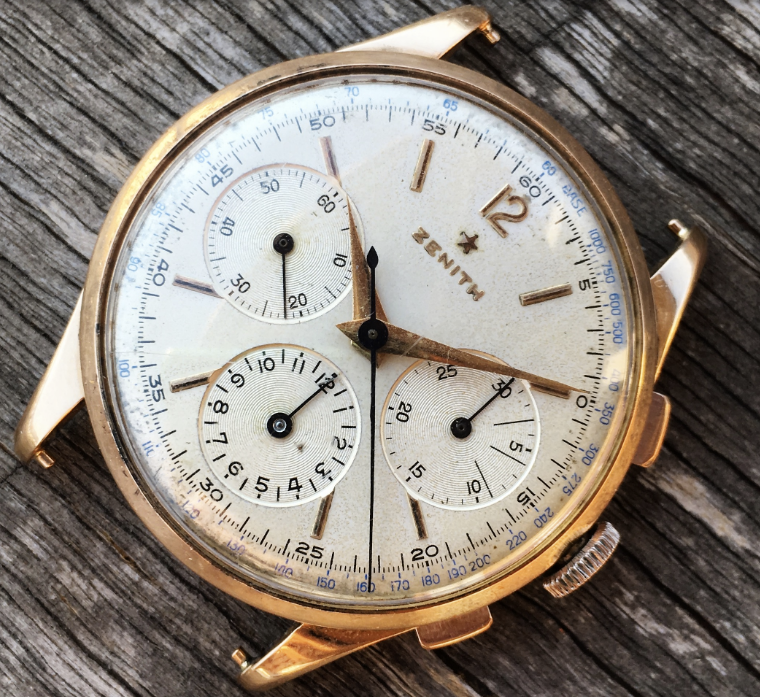

    I agree, the closed 6s in the sub-dials do not look correct. Regarding the upside-down star, this example comes to mind.

    [​IMG]
    https://omegaforums.net/threads/zenith-cal-133-8-bumper.140651/

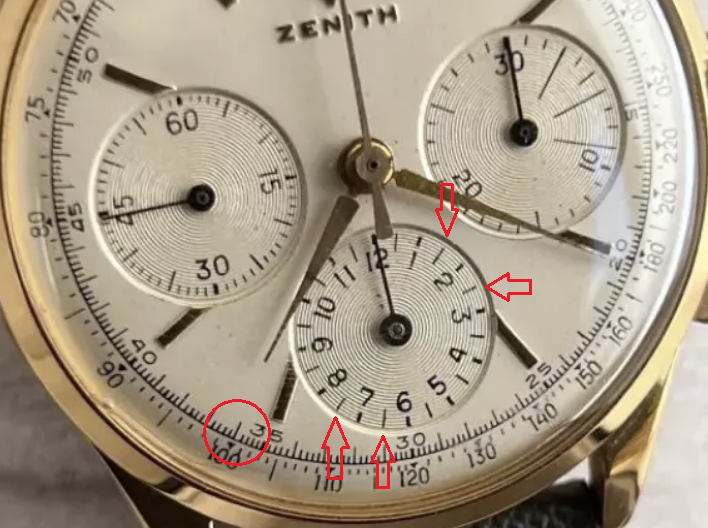

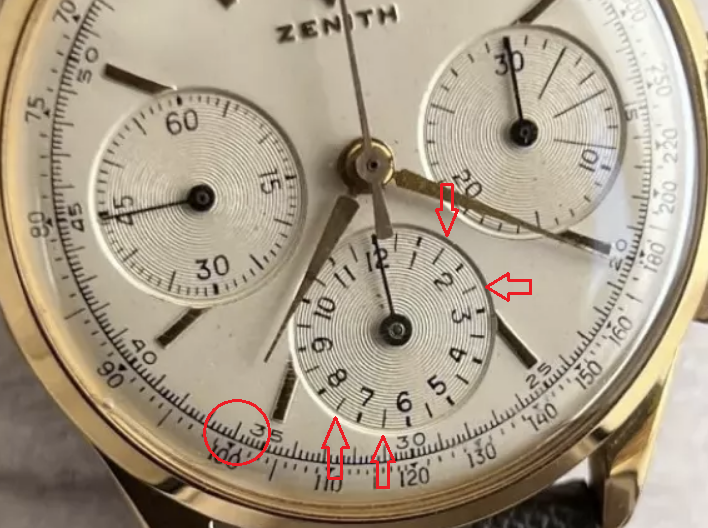

    As I mentioned above, apart from the atpyical fonts, there is the poor execution. In the image below, I have used arrows to point out the inconsistent length of markings in the hour sub-dial. I also circled an inconsistency in the spacing of markings on the seconds/minutes scale.


    bardamu, marco, Syrte and 5 others like this.
  4. Modest_Proposal Trying too hard to be one of the cool kids Dec 3, 2022

    Posts
    2,890
    Likes
    5,959
    Are the hour, minute, and chrono seconds hands correct? I don't recall that style of hands and they look a little short and thin.

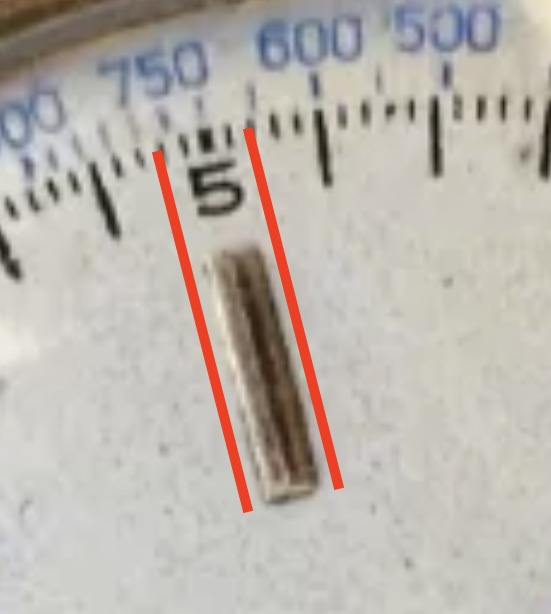

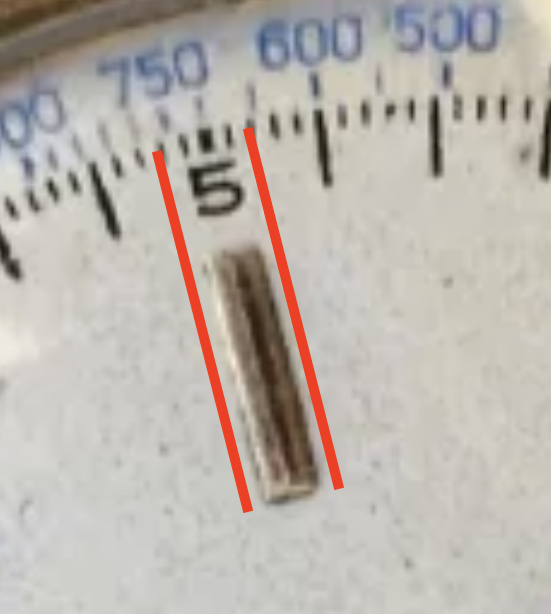

    As for the dial: There is also misalignment of the outer track. I have listed comparisons to the other two chronos. The outer track is potentially also not centered.

    Watch in question:
    Comparison 1:
    Screen Shot 2022-12-03 at 12.45.04 PM.png
    Comparison 2:
    Screen Shot 2022-12-03 at 12.45.11 PM.png

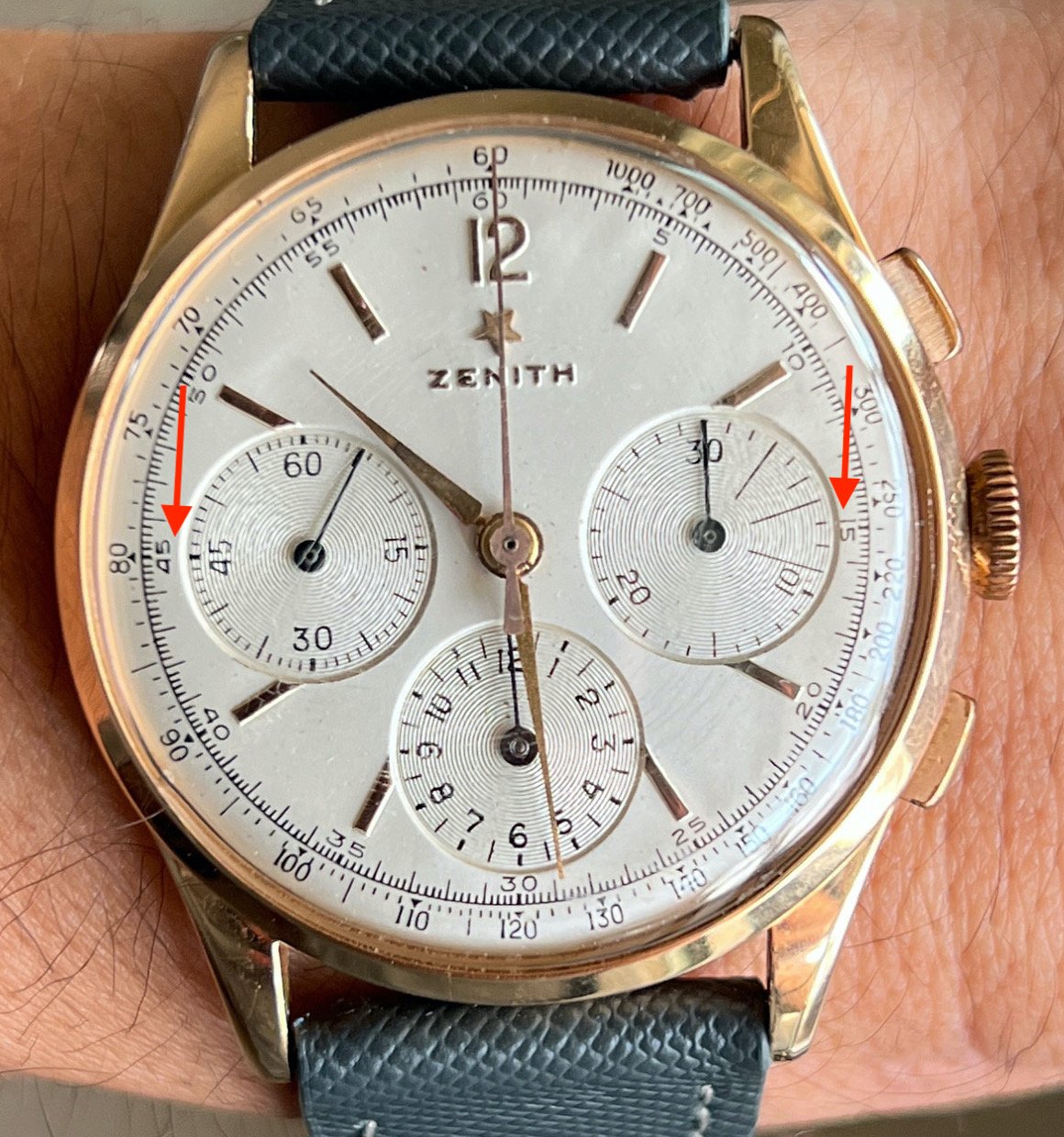

    Not centered:
    14C36E9E-BCE2-47DC-A187-DD8E0ECD01C5 (1).jpeg

    Edited Dec 3, 2022
    DirtyDozen12 likes this.
  5. DirtyDozen12 Thanks, mystery donor! Dec 3, 2022

    Posts
    2,650
    Likes
    4,515
    Thanks for these good observations! I think that the more we look, the more we'll find.

    As for the hour, minute, and chronograph second hands, I do not recall seeing them before on comparable examples. They look incorrect, to me.

  6. DirtyDozen12 Thanks, mystery donor! Dec 3, 2022

    Posts
    2,650
    Likes
    4,515
    bardamu, Syrte and Modest_Proposal like this.
  7. Modest_Proposal Trying too hard to be one of the cool kids Dec 3, 2022

    Posts
    2,890
    Likes
    5,959

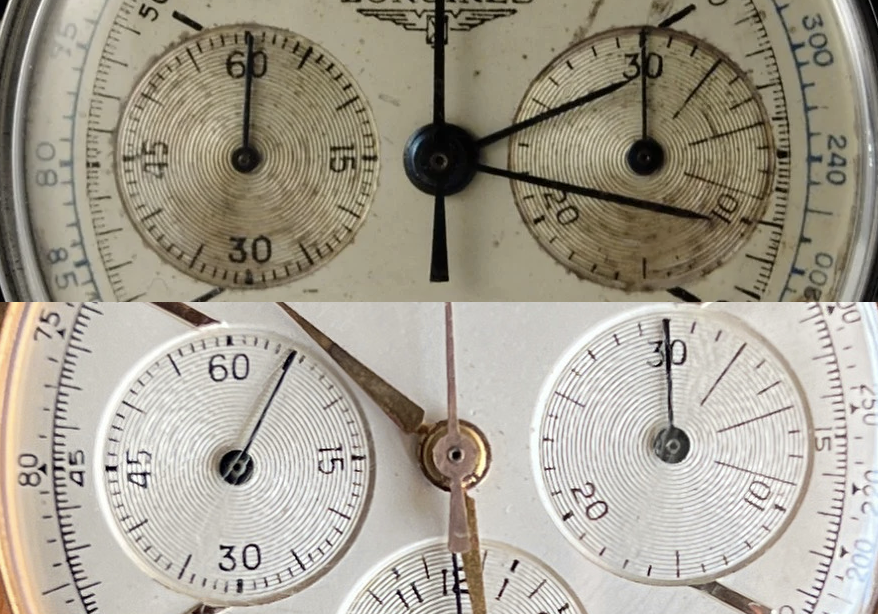

    Nice find!

    Less likely the same refinisher (as in the same servicer) than the same refinishing tools and stamps.

    bardamu and Syrte like this.
  8. DirtyDozen12 Thanks, mystery donor! Dec 3, 2022

    Posts
    2,650
    Likes
    4,515
    Agreed.

  9. bgrisso Dec 27, 2022

    Posts
    3,109
    Likes
    6,855
    Agree it looks like a redial and wrong hands. Did anyone give the seller a heads up? The last time I started one of these threads I had (a few) people dog piling on me to STFU :rolleyes:

    watchyouwant and Dan S like this.
  10. DirtyDozen12 Thanks, mystery donor! Dec 27, 2022

    Posts
    2,650
    Likes
    4,515
    Thanks for your response. I remember that thread. :D I have not contacted the seller but I think that would make sense at this point.

  11. gophishin Dec 27, 2022

    Posts
    491
    Likes
    1,056
    well, this has certainly been the most humbling (and embarrassing) thread to find. And although I probably would have preferred @DirtyDozen12 bring this to my attention privately, I will also admit I probably would have maintained I thought the dial was original. As someone that generally feels pretty confident about spotting redials, I have happily enjoyed this watch for over two years, with each wear bringing a smile to my face; I suppose ignorance is bliss. I have since removed the FS listing and apologize for the inaccurate listing.

    It also goes to show the difference in looking at macros of my poor quality iphone shots to experience on wrist; I never would have suspected since the printing is very sharp, consistent (to the eye), and seems to be even or good quality (for a redial), but damnit if you guys aren't right, this does appear to be a refinished dial, and I cannot argue with the sharp eyes and identifiers above - I certainly feel stupid for not noticing them. Luckily, I "accidentally" won this at an auction with a low bid (now I know why) so it doesn't sting too bad enjoying it because it is a great caliber and charming watch overall, but whether or not I'll be able to look at it the same in the future is the question.

    Do any of you experts ever see original dials and hands for this watch? Would it even be worth it to source with a case that's not mint?

  12. Dan S Dec 27, 2022

    Posts
    18,257
    Likes
    42,112
  13. Syrte MWR Tech Support Dept Dec 27, 2022

    Posts
    7,315
    Likes
    20,538
    Apologies to the OP, as this isn’t intended to rub the salt in the wound, more to add another data point to anyone looking at those dials in the future:

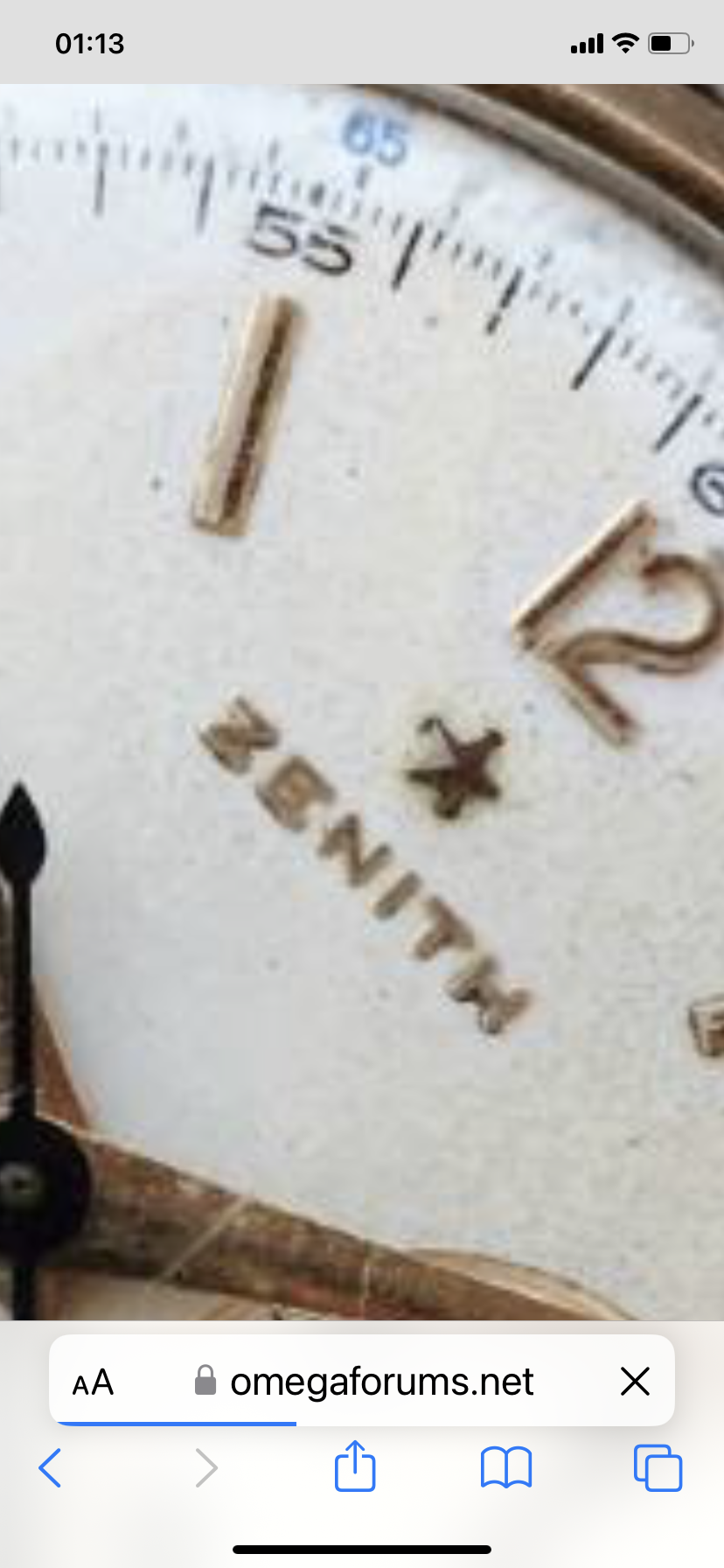

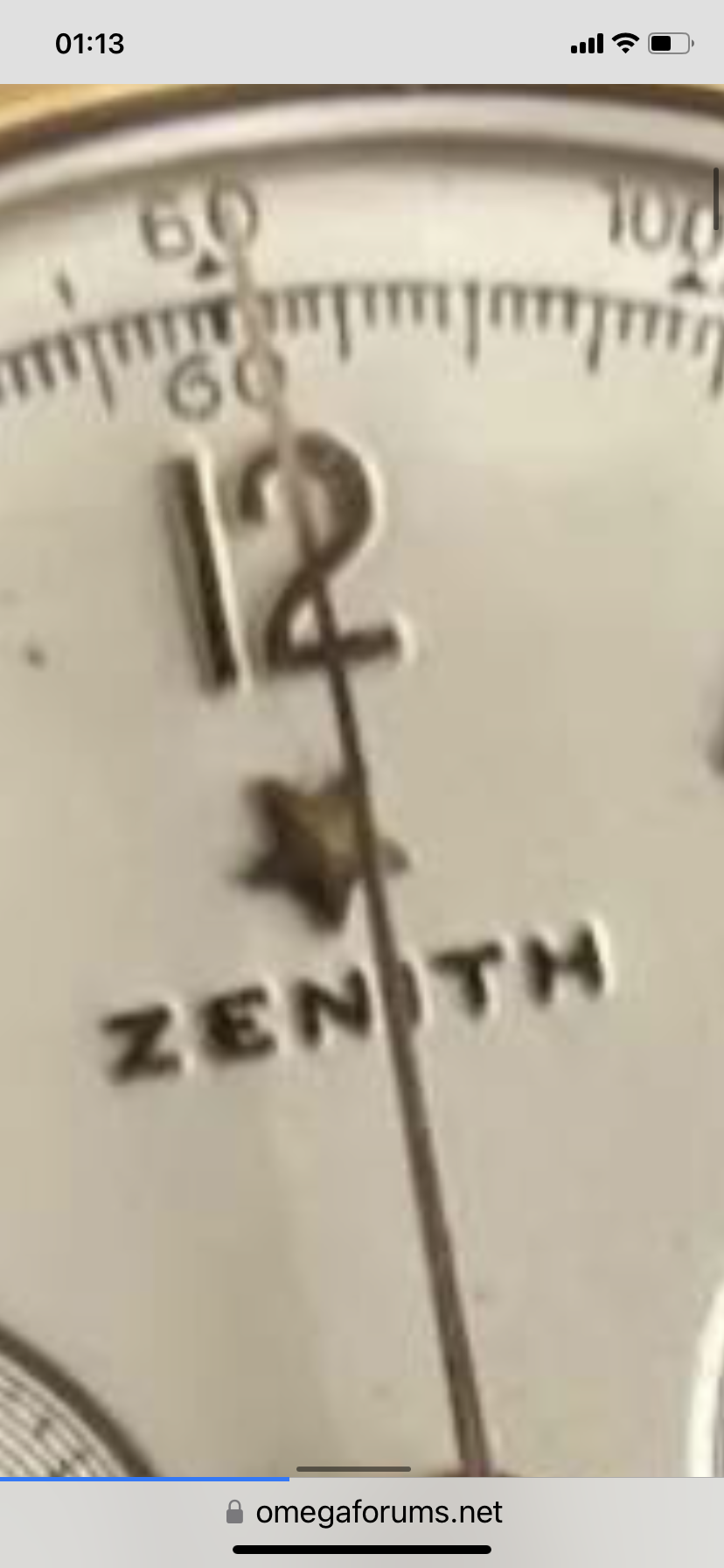

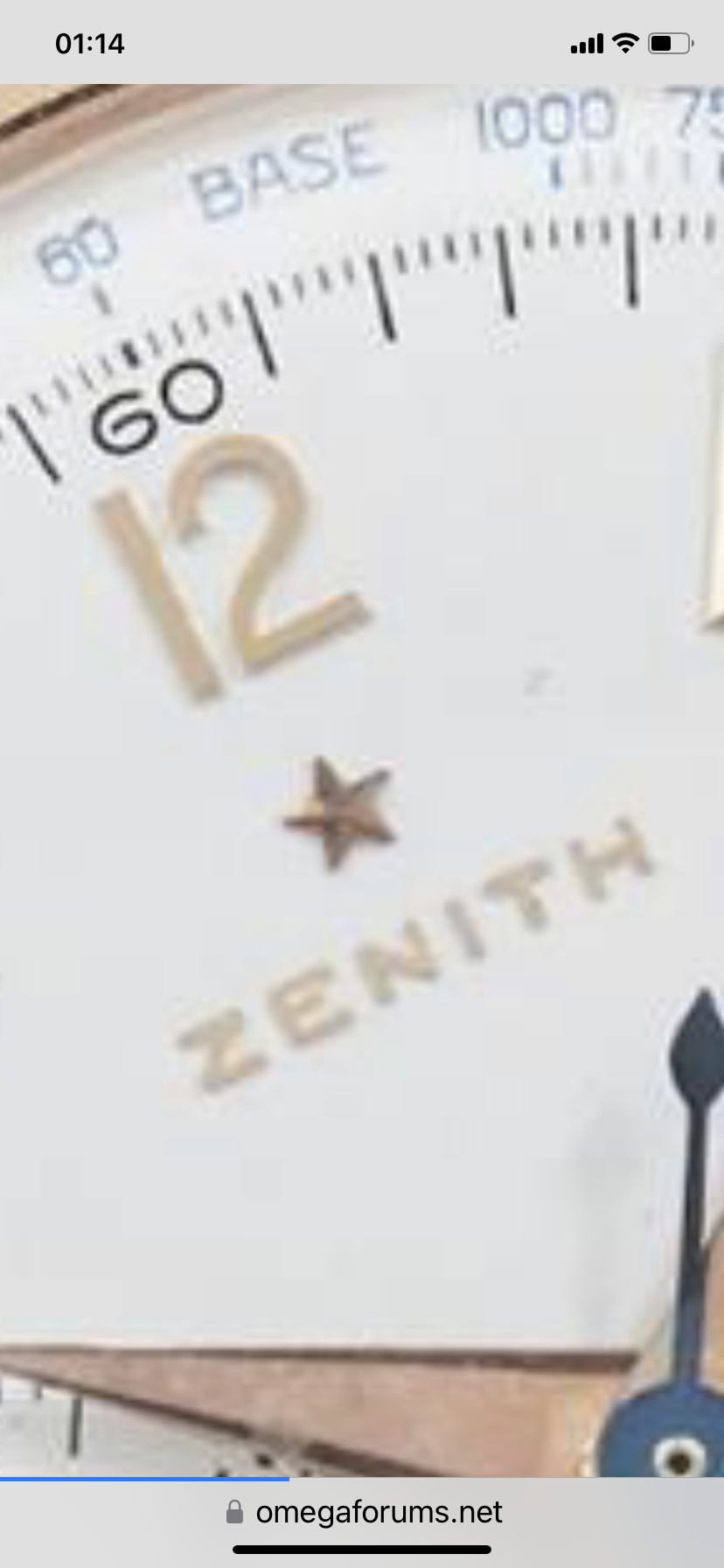

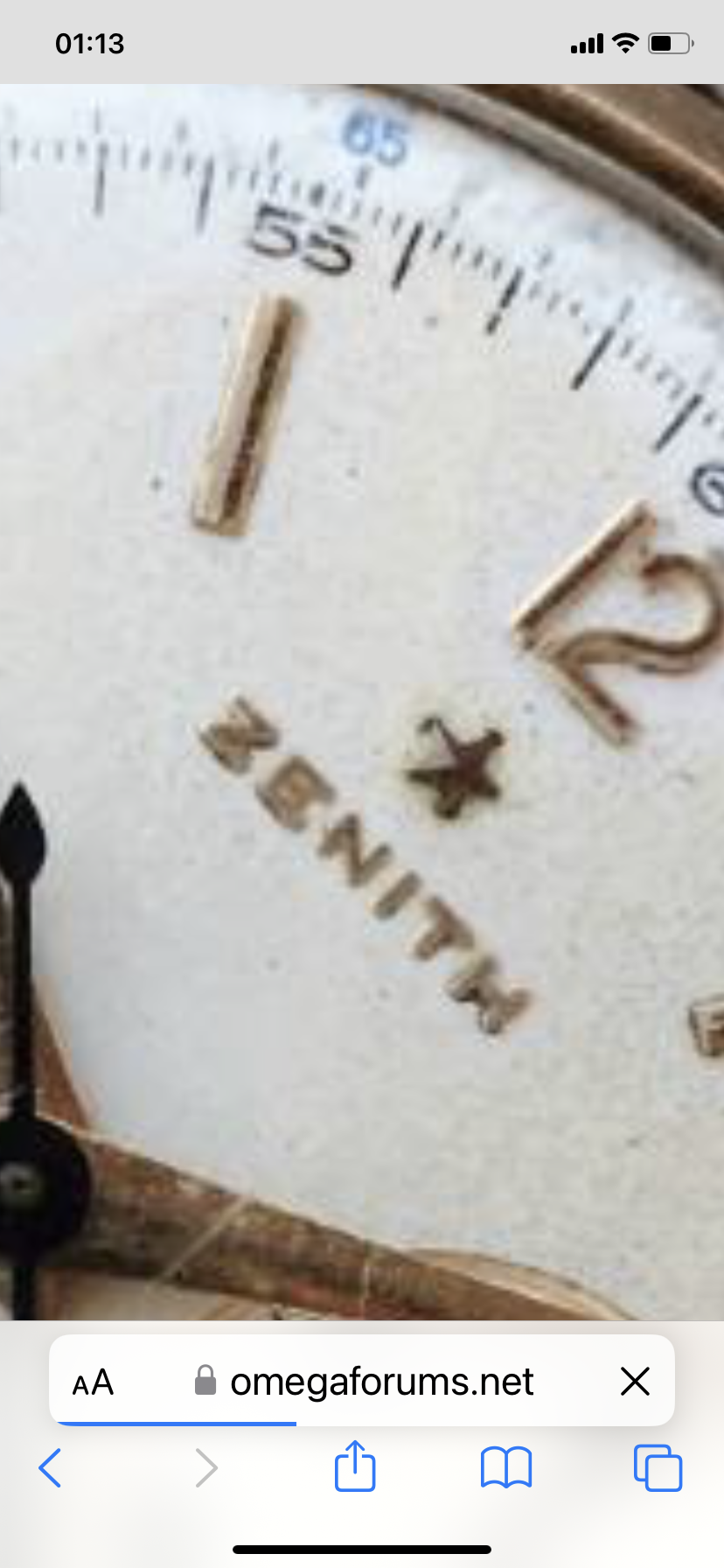

    another tell tale sign, ie the paint creeping up the sides of what apparently should be an applied «Zenith » signature, as well as an applied « 12 ». The contrast is quite visible with the second photo @DirtyDozen12 posted - the third picture is not defined enough and its angle not the best to see anything.

    On a separate note, I would agree with the OP that it is a pretty good redial, esp the sharp subdial edges, and this shows no one is immune from error in that field. One of the greatest collectors of Longines wrote how he always looked through his loupe with trembling hands, fearing the mistakes he might make.

    C475F107-6B51-430B-962D-454A478A94DA.png 2ECB18D9-A5FD-40B4-A5BE-E03B5E20E46A.png 94DB6FC8-019F-4646-B190-C82B6E030858.png
  14. bgrisso Dec 27, 2022

    Posts
    3,109
    Likes
    6,855
    There's no reason to be embarrassed, everyone is learning here. I've made exponentially worse mistakes, multiple times, quite publicly.

    I think the chance of getting an original dial is low but not impossible. I will keep an eye out and let you know if I come across anything.

    Mark020 and DirtyDozen12 like this.
  15. DirtyDozen12 Thanks, mystery donor! Dec 27, 2022

    Posts
    2,650
    Likes
    4,515
    @gophishin I appreciate your post, thank you.

    My last private message about a sales listing went sour so I decided to defer to a moderator's advice and start a thread. In retrospect, I think that it would have been more courteous to notify you of the thread upon starting it, rather than 3 weeks later.

    As @bgrisso stated, we are all learning here. So, hopefully, this thread serves as a guide to people, rather than simply highlighting a mistake.

    I have also noticed that certain dials look quite good in-hand, and then not so good in photos. I do not know why this is, apart from the obvious difference in magnification.

    I have not specifically looked for Zenith 159H dials or hands, but I imagine that they would not be easy to come by.

  16. maanu Dec 28, 2022

    Posts
    1,800
    Likes
    26,885
    thanks everyone. This is a great thread for someone who wants to learn.
