X33 problem.... Need advice...

Posts

1,582

Likes

10,339

befobe

·Dec 9, 2020

Hi OF,

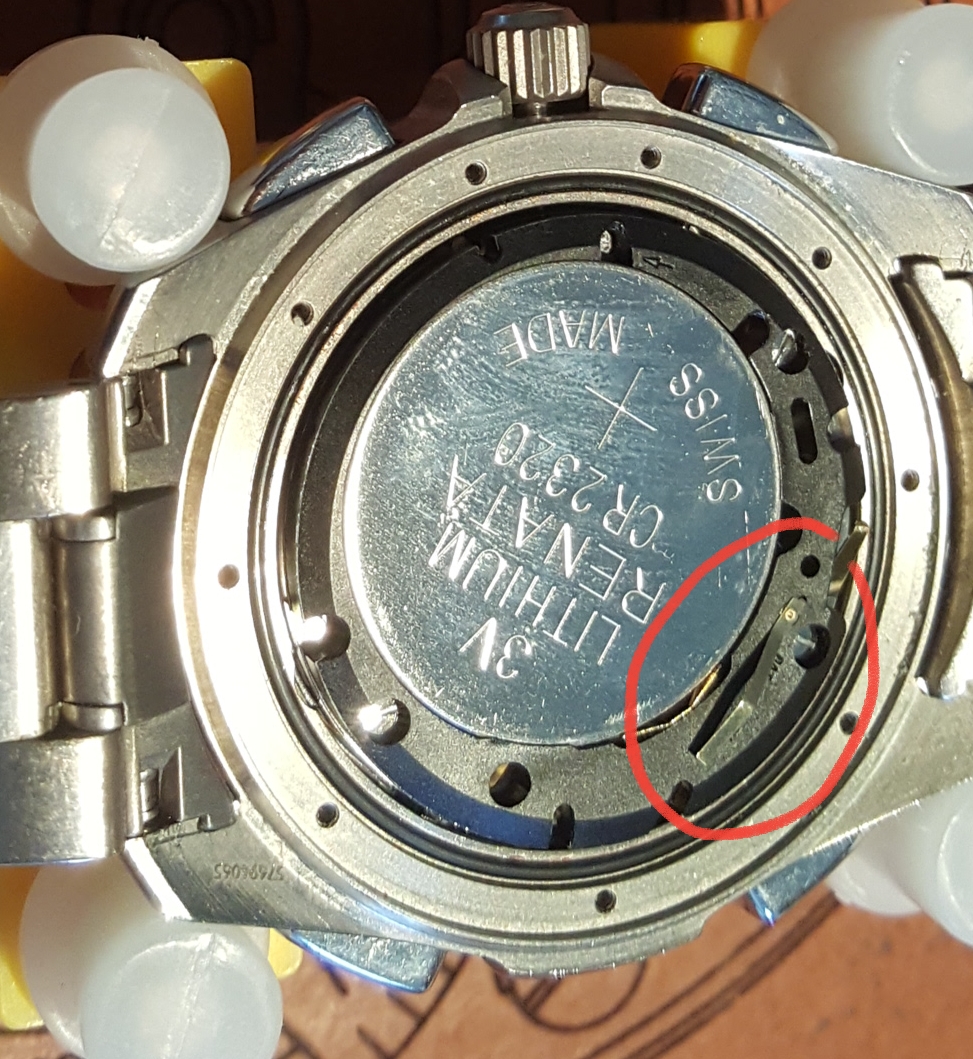

I opened my x33 gen1 to make picture of the mouvement.

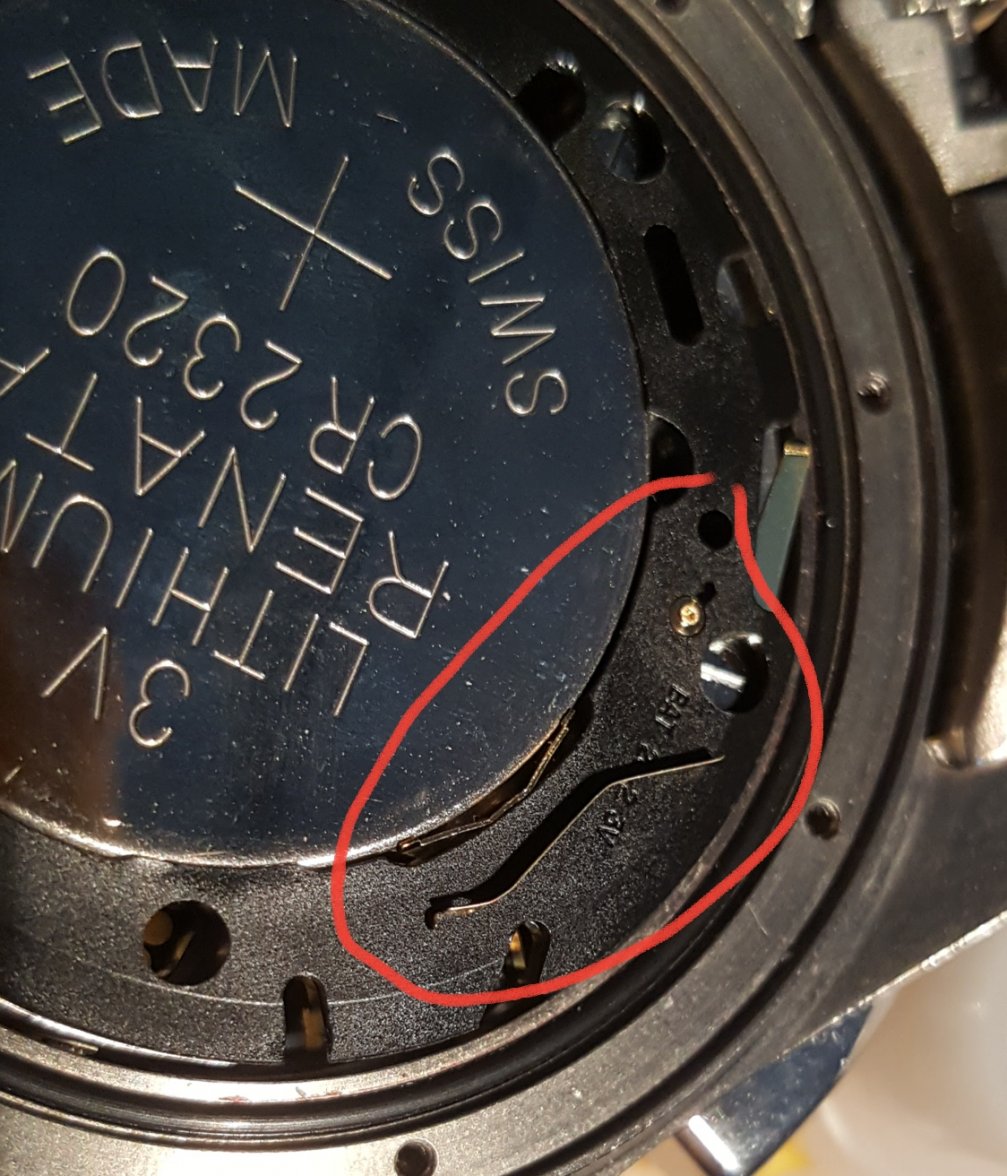

But when opened, the small spring? (I guess it isn't only a spring...?) seems broken, and fall off.

Do you know this part? Utility? Ref ? Do I need to change it?...

Thanks.
B.



Posts

30,175

Likes

77,918

Archer

·Dec 9, 2020

There are almost no parts available for this movement, so the only 2 parts that can be purchased (by someone with an Omega parts account) are the stem for the crown, and the battery insulator.

These movements aren't really services or repaired - they are replaced for any fault.

Cheers, Al



Posts

498

Likes

248

aleksejeremeev

·Dec 9, 2020

Maybe it is possible to solder



Posts

8,289

Likes

19,573

alam

·Dec 9, 2020

an expensive picture it was 🙁 good luck with the repair!



Posts

1,582

Likes

10,339

befobe

·Dec 9, 2020

In fact, the watch is working well, so hopefully, I don't see the necessity to repair for now...
I was curious about this electrical contact anyway... maybe this is the electrical connection to "0 volt" for the caseback, for magnetic interference protection...?....
You're right, repair seems in all case very difficult... maybe an electronic specialist could weld it...
@Archer : thanks for these infos; do you think watchmakers have still access to a complete caliber?...



Posts

1,582

Likes

10,339

befobe

·Dec 9, 2020

alam

an expensive picture it was

exact... but still force with me is...



Posts

30,175

Likes

77,918

Archer

·Dec 9, 2020

befobe

In fact, the watch is working well, so hopefully, I don't see the necessity to repair for now...
I was curious about this electrical contact anyway... maybe this is the electrical connection to "0 volt" for the caseback, for magnetic interference protection...?....
You're right, repair seems in all case very difficult... maybe an electronic specialist could weld it...
@Archer : thanks for these infos; do you think watchmakers have still access to a complete caliber?...

If they have a parts account, yes.



Posts

498

Likes

248

aleksejeremeev

·Dec 9, 2020

The watch has an alarm clock and its speaker is on the back cover. This part serves for electrical contact.



Posts

21

Likes

21

themarshmall0w

·Dec 10, 2020

aleksejeremeev

The watch has an alarm clock and its speaker is on the back cover. This part serves for electrical contact.

Yup! The only problem is that your watch won’t make any alarm sounds or chronograph start/stop noises.



Posts

498

Likes

248

aleksejeremeev

·Dec 10, 2020

themarshmall0w

Yup! The only problem is that your watch won’t make any alarm sounds or chronograph start/stop noises.

Quite right. I would try to fix this problem. I will assume that this is not a problem for a jeweler. And the watch will have full functions



Posts

1,582

Likes

10,339

befobe

·Dec 10, 2020

Oh sh.....! yes, you all are right... no sound !!!!!!!!!!!!! 😡😡😡😡😡😡😡😡😡



Posts

1,582

Likes

10,339

befobe

·Dec 10, 2020

A X33 without its 80db alarm noise is not a X33 any more... I NEED TO MAKE IT FIX...!
Will try to visit some good watchmakers for that. Thanks for your answers!



Posts

8,289

Likes

19,573

alam

·Dec 10, 2020

befobe

Oh sh.....! yes, you all are right... no sound !!!!!!!!!!!!! 😡😡😡😡😡😡😡😡😡

it will not be a bother in the mornings .. 😀



Posts

18,302

Likes

27,671

Foo2rama

·Dec 10, 2020·Nowhere near as grumpy as he used to be...

This does seem to call for a paper clip...



Posts

1,582

Likes

10,339

befobe

·Dec 10, 2020

Foo2rama

This does seem to call for a paper clip...

Sorry, not sure to understand... but interested... !



Posts

18,302

Likes

27,671

Foo2rama

·Dec 10, 2020·Nowhere near as grumpy as he used to be...

befobe

Sorry, not sure to understand... but interested... !

I’m sure someone has a link to the infamous Speedmaster paper clip fix.

in this case it should be all that hard to solder the connection back together with a brace. Perhaps a bit of small thin paper clip.



Posts

8,289

Likes

19,573

alam

·Dec 10, 2020

Foo2rama

I’m sure someone has a link to the infamous Speedmaster paper clip fix...

we're here to help..

https://omegaforums.net/threads/my-...ived-then-gone-again.21008/page-3#post-234946



Posts

1,582

Likes

10,339

befobe

·Dec 10, 2020

ok! got it... thanks... I understand now the "paper clip"... yes, it could be a good solution... especially because there is still a "hole" available for a small wire...
I will post here my trials...



Posts

1,453

Likes

6,532

tikkathree

·Dec 10, 2020

aleksejeremeev

The watch has an alarm clock and its speaker is on the back cover. This part serves for electrical contact.

And it's one heck of an alarm too. I use mine for those (hunting trip) get up long before sparrows fart wake-ups.



Posts

1,582

Likes

10,339

befobe

·Dec 12, 2020

I have repaired it!.... : with aluminium paper... ! Sounds again loud 😜
My watchmaker confirmed he can fix it more properly, because the replacement is quite expensive:
(prices here are only Omega spare, without hour work):
- new 1666: 860eur
- only the electronic module: 309eur
- a "repaired" 1666, from Omega: 470eur
