Vintage Omega Seamaster help
- Posts
- 29,671
- Likes
- 76,828
Archer
··Omega Qualified WatchmakerForgot to update this one...

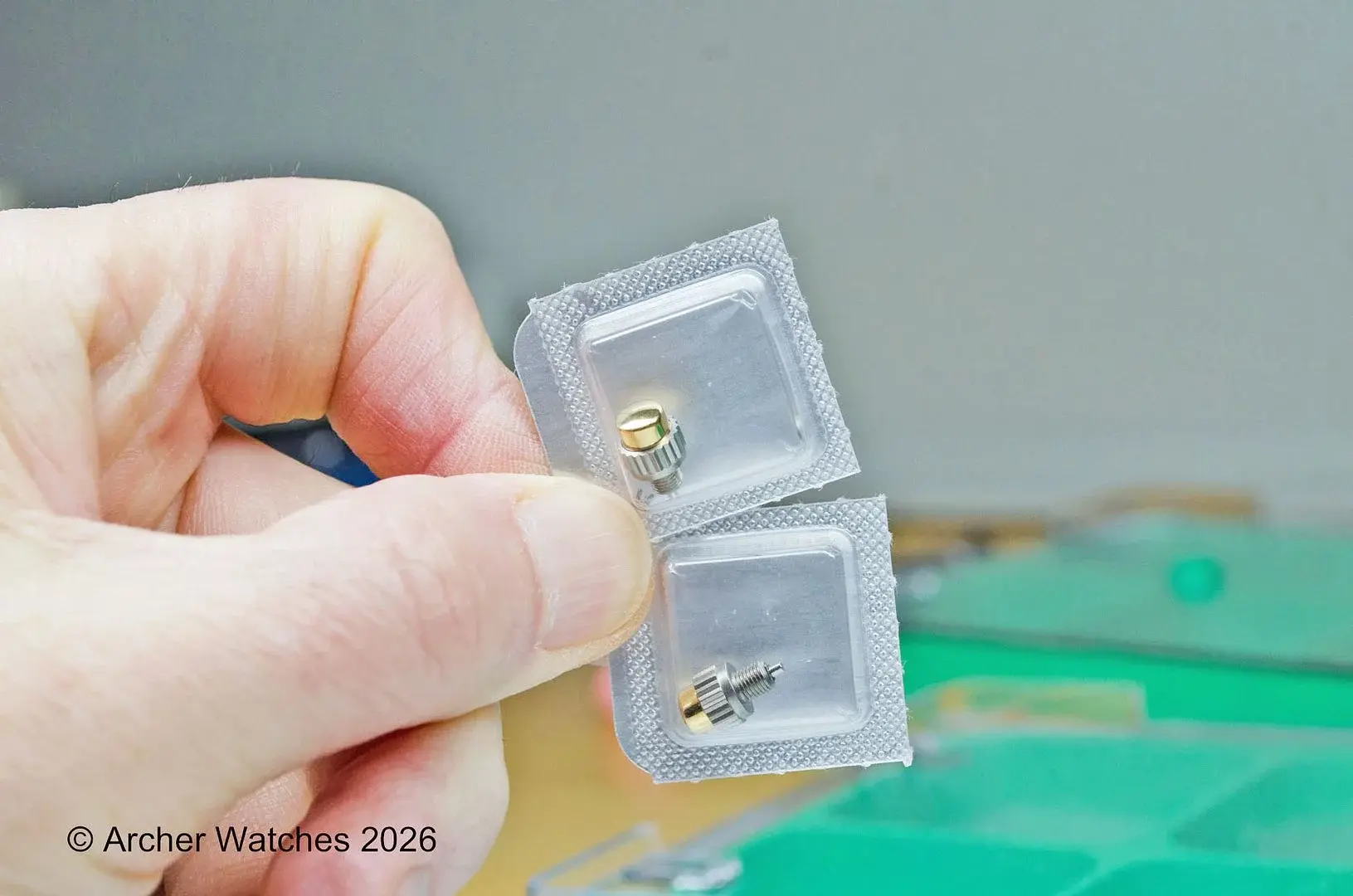

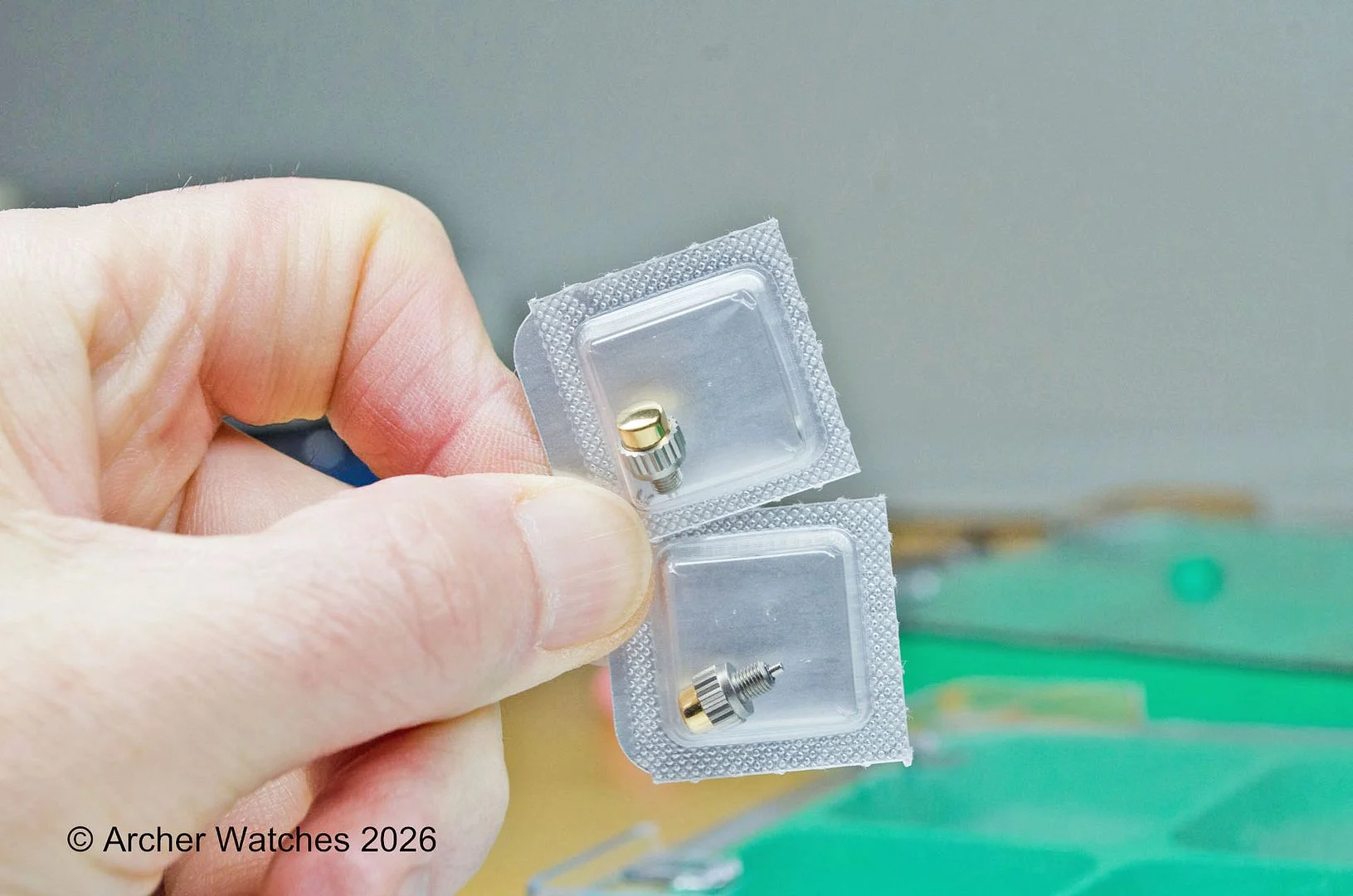

New pushers:

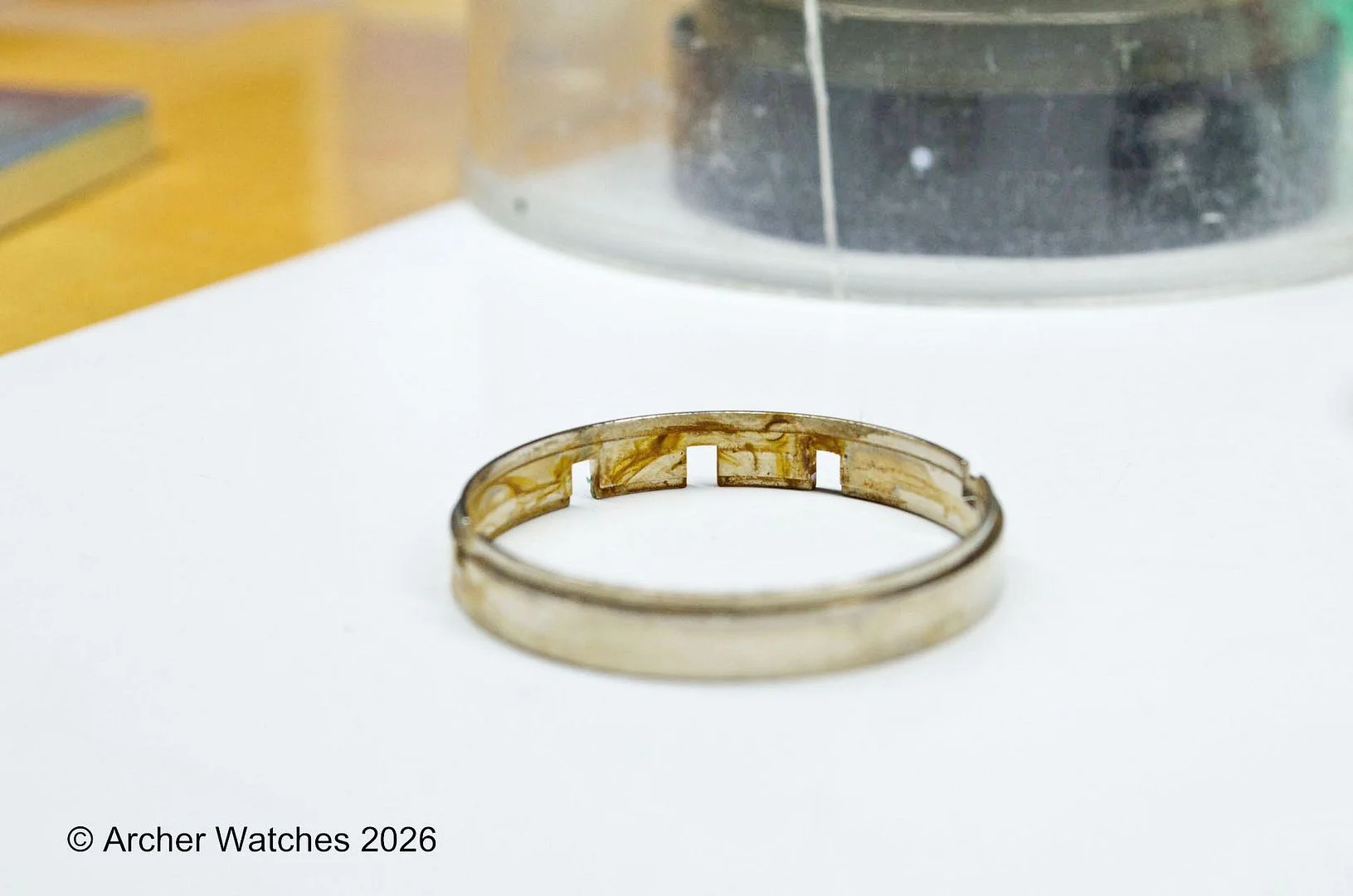

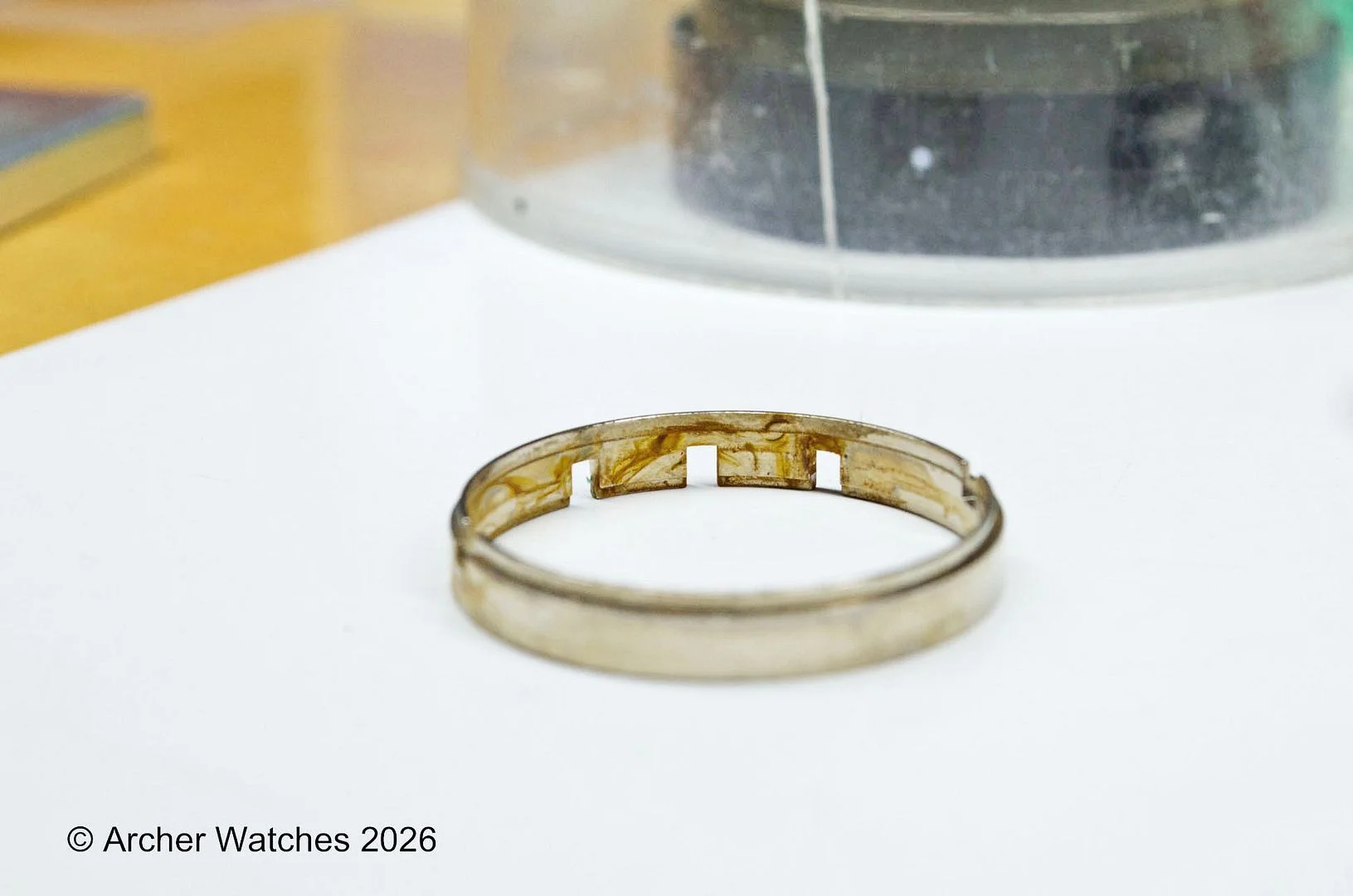

Rusty movement spacer:

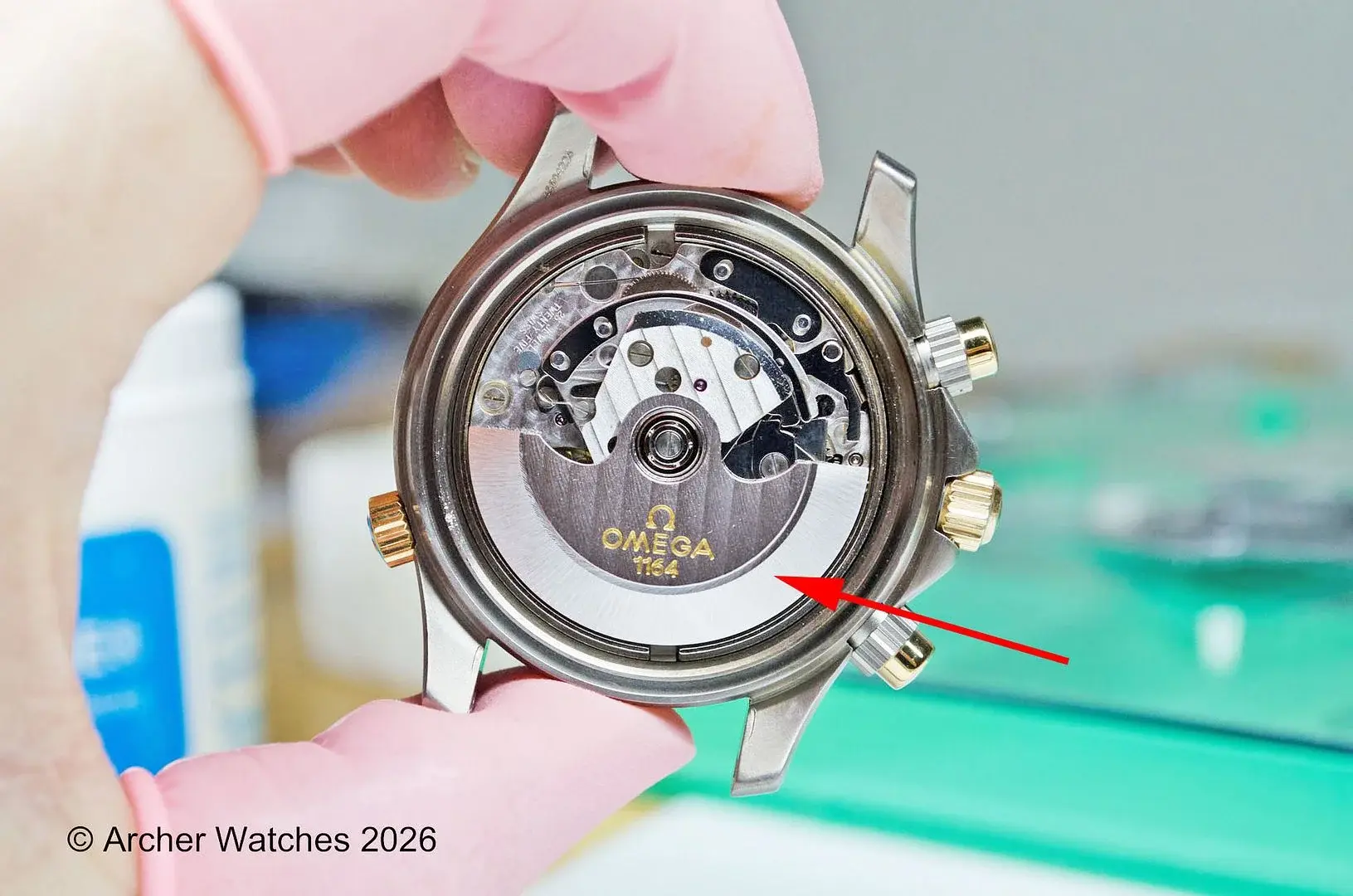

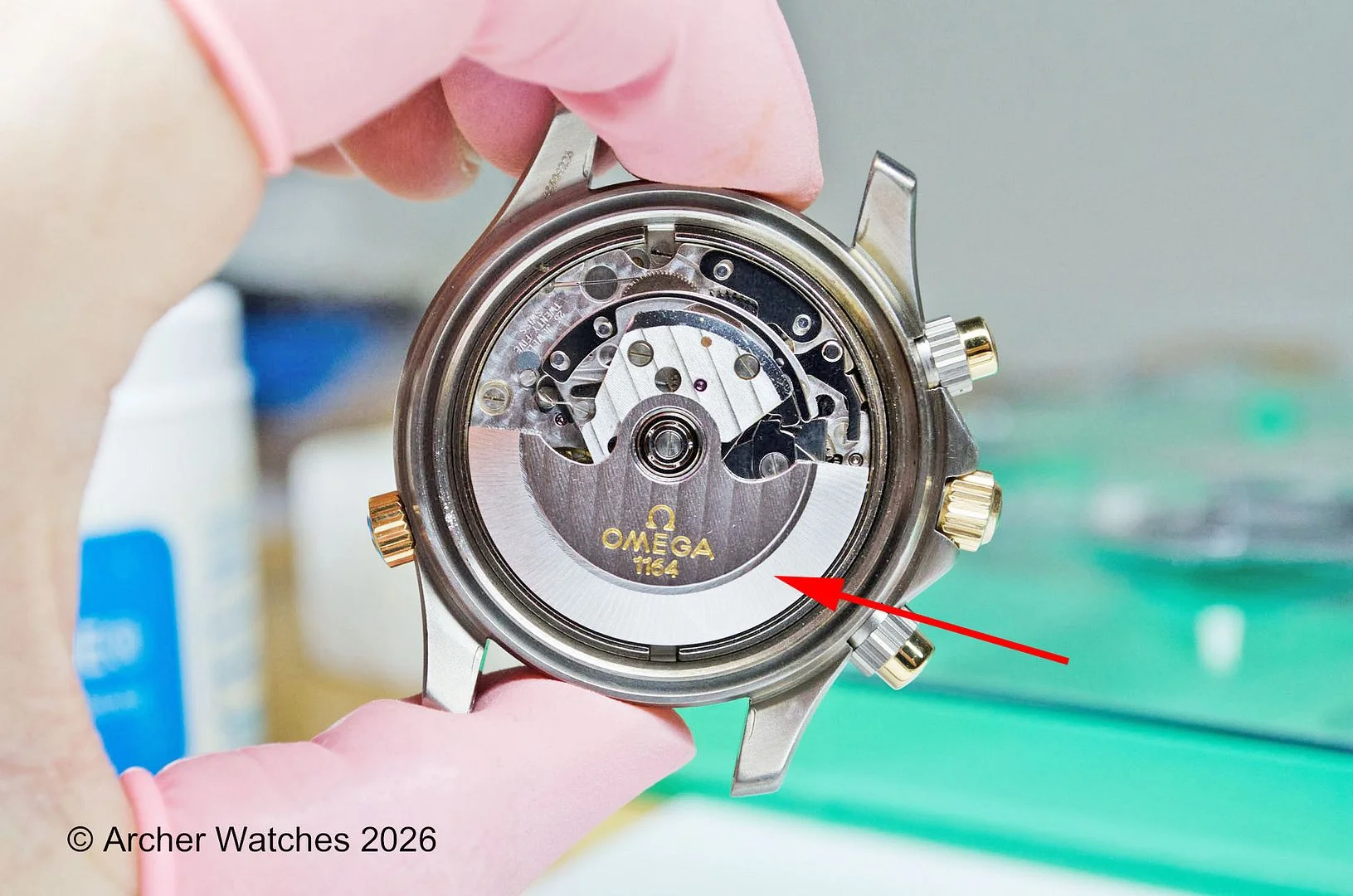

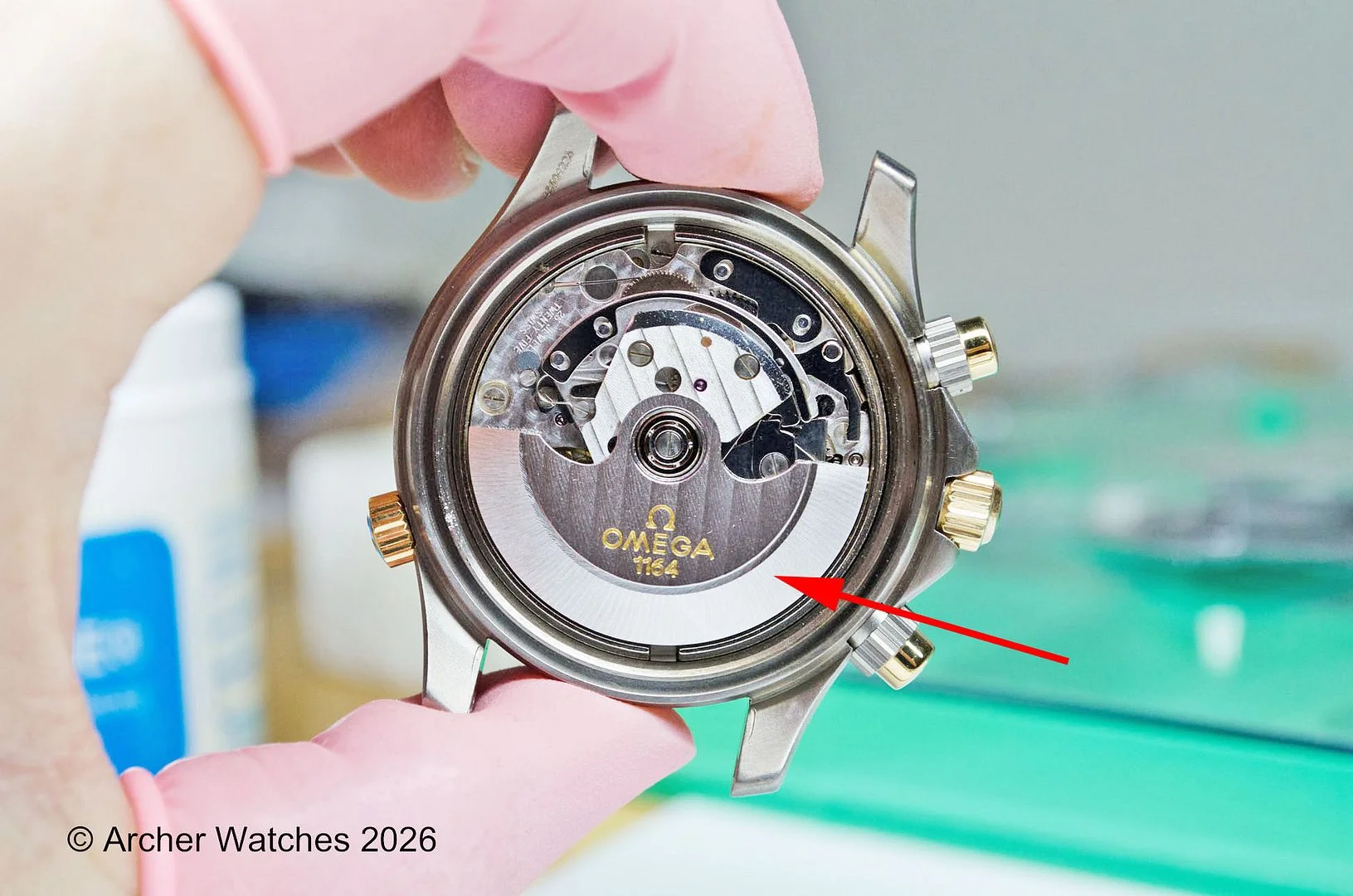

Movement installed:

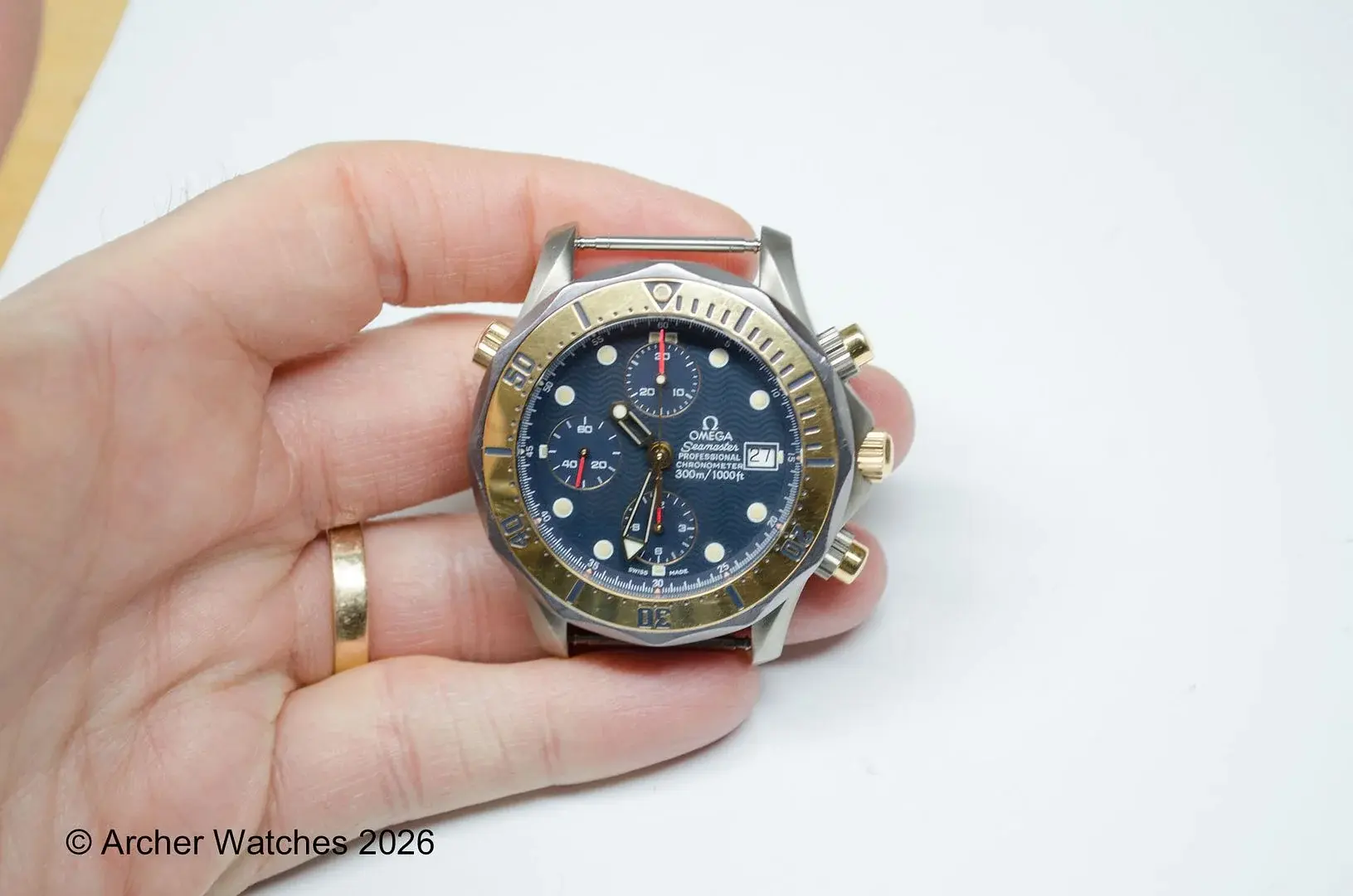

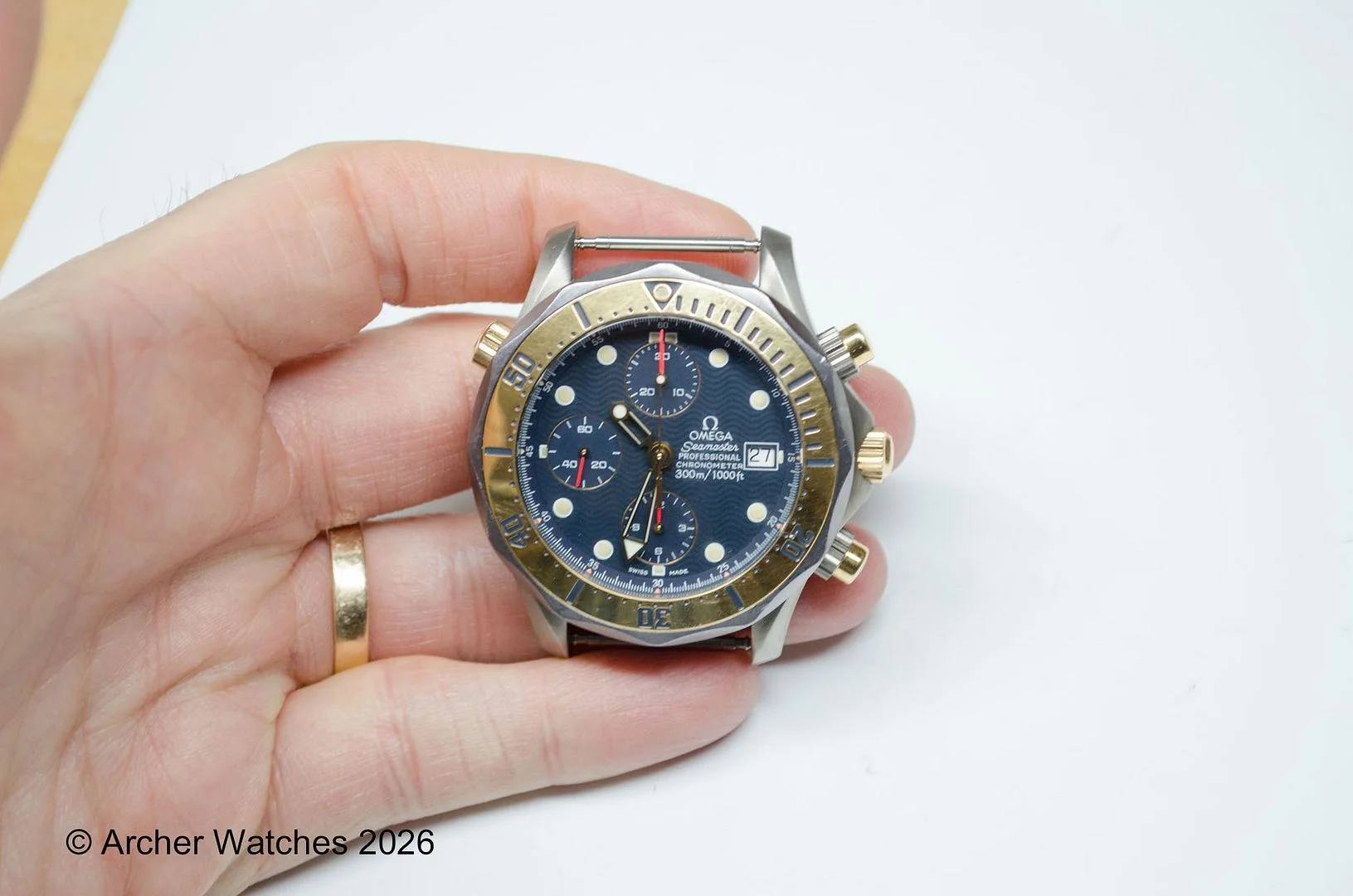

Looking good:

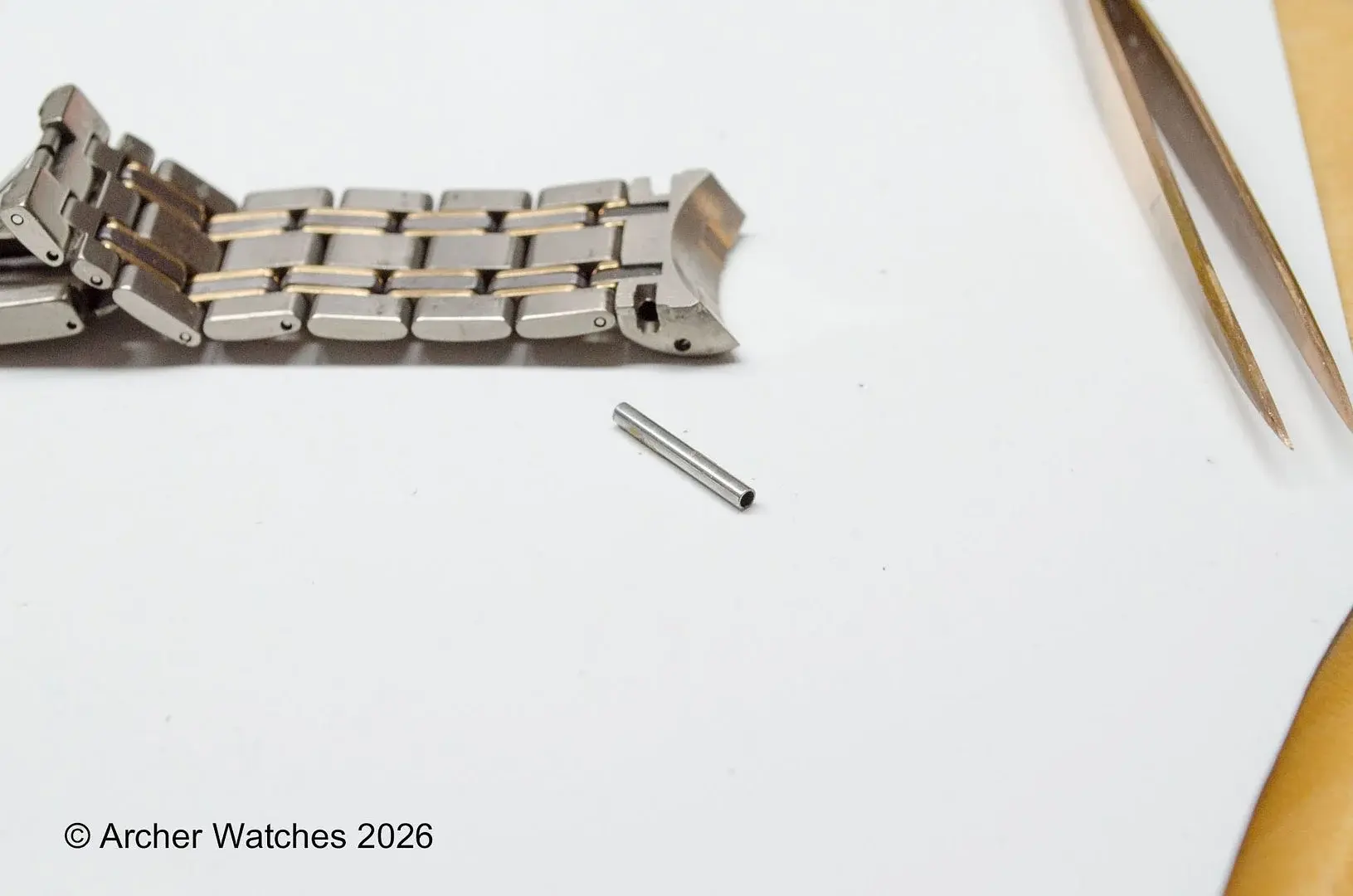

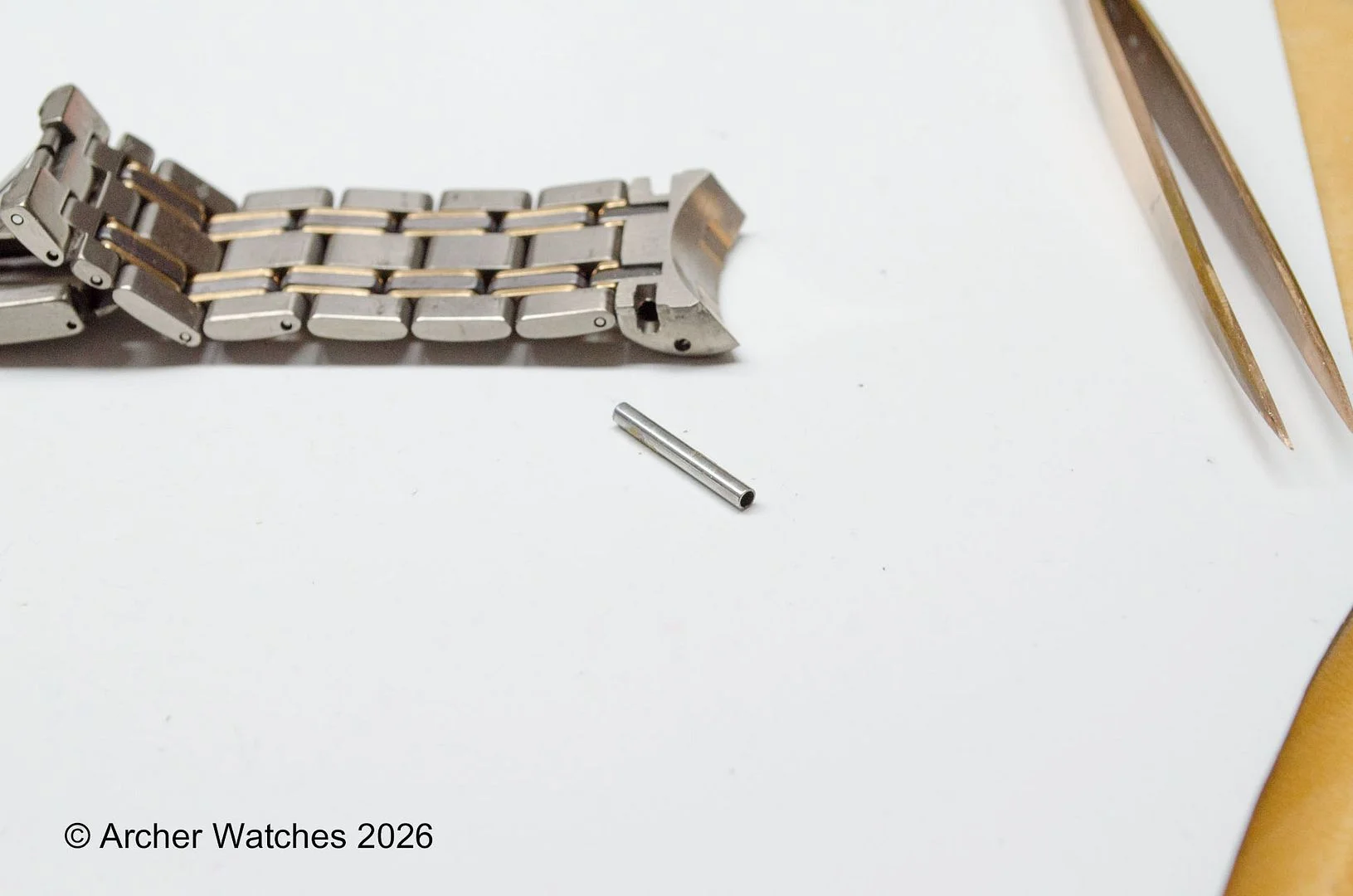

Odd ball sleeves in the end links:

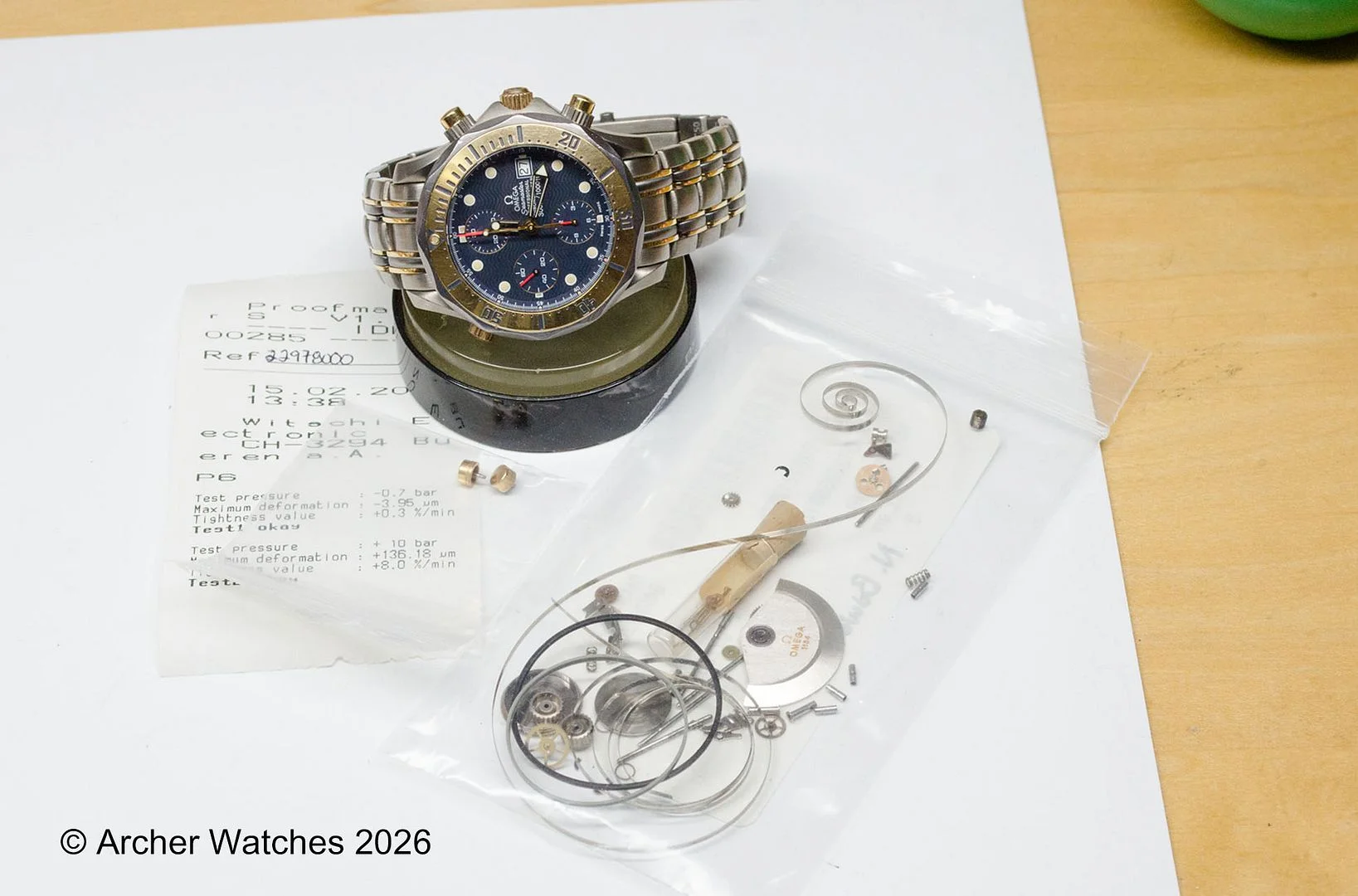

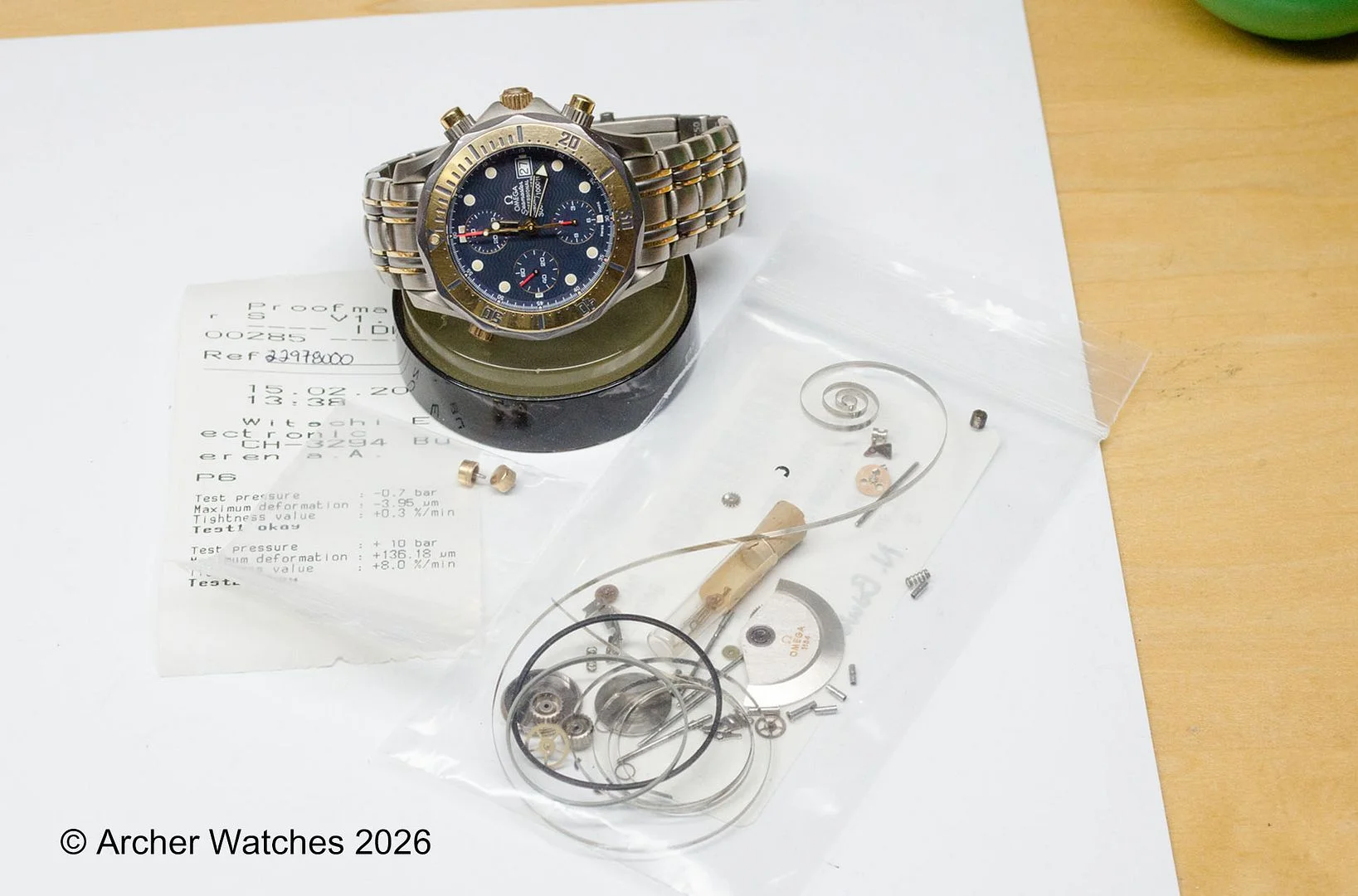

Done:
New pushers:
Rusty movement spacer:
Movement installed:
Looking good:
Odd ball sleeves in the end links:
Done:
- Posts
- 275
- Likes
- 271
bazelot
·Forgot to update this one...
New pushers:
Rusty movement spacer:
Movement installed:
Looking good:
Odd ball sleeves in the end links:
Done:
- Posts
- 4,997
- Likes
- 18,549
Shabbaz
·Great thread
- Posts
- 67
- Likes
- 41
Drof14
·Brilliant thread with a great ending. Many thanks!
- Posts
- 34,264
- Likes
- 38,883
dsio
··Ash @ ΩFVery cool, nice to see a special watch like this back in good shape!
- Posts
- 1,981
- Likes
- 2,144
ErichKeane
·This is an awesome thread, thank you very much @Archer for the pictures! I was expecting MUCH worse when i saw "movement replacement", then there was just mostly surface transfer (where rusty water dried on other things), so only a few replacements needed. This is definitely one of the cases where a good independent is worth 100x their weight in gold 😀
IF I may ask: the original quote was 4k or so, what did it end up being in the end for parts/service? Given what I see, I'd guess about 1/4 of the quote, but I presume you have better parts prices than I do, but charge more for labor than I do (which is 0).
IF I may ask: the original quote was 4k or so, what did it end up being in the end for parts/service? Given what I see, I'd guess about 1/4 of the quote, but I presume you have better parts prices than I do, but charge more for labor than I do (which is 0).
- Posts
- 17,939
- Likes
- 37,514
JimInOz
··Melbourne Australiayou have better parts prices than I do, but charge more for labor than I do
Swings and roundabouts Erich.
- Posts
- 1,981
- Likes
- 2,144
ErichKeane
·
- Posts
- 29,671
- Likes
- 76,828
Archer
··Omega Qualified WatchmakerThis is an awesome thread, thank you very much @Archer for the pictures! I was expecting MUCH worse when i saw "movement replacement", then there was just mostly surface transfer (where rusty water dried on other things), so only a few replacements needed. This is definitely one of the cases where a good independent is worth 100x their weight in gold 😀
IF I may ask: the original quote was 4k or so, what did it end up being in the end for parts/service? Given what I see, I'd guess about 1/4 of the quote, but I presume you have better parts prices than I do, but charge more for labor than I do (which is 0).
As I suspected, it did not need a new movement. It did need quite a number of new parts, but for this movement most of the parts are pretty reasonably priced. After labour, the single largest expense was the new rotor - as we discussed in a recent thread, the bearing in this rotor is not sold separately and is burnished into the rotor, so this means you have one option - a new rotor. Not so much for wear, but the bearing was rusted.
The second most expensive item was the new pushers (less than the rotor each, but combined more than the rotor cost). These are the so called "monoblock" pushers, so unlike most of the pushers in these models, they could not be disassembled to change the seals - the entire pusher had to be exchanged, and since they pusher caps are solid 18k gold, these were not cheap. So instead of 4 new seals at $9 each, these were a $400 set of pushers. Thankfully I ordered them before the last price increase, because that same pair would be $640 now.
The rest was pretty mundane stuff, and although I'm not going to give out exact costs here because it's not my place to tell you what someone else spent, let's just say it was around half of the Omega estimate of approx. $4800.
- Posts
- 1,981
- Likes
- 2,144
ErichKeane
·I've serviced/restored a good deal of rusty watches, and there's only ever been one where the movement really required replacing. It was rusted into a solid mass. Given the condition I saw in the photos in this thread, this watch didn't seem to be anywhere near that bad, so the owner took a chance and let me take a look.
As I suspected, it did not need a new movement. It did need quite a number of new parts, but for this movement most of the parts are pretty reasonably priced. After labour, the single largest expense was the new rotor - as we discussed in a recent thread, the bearing in this rotor is not sold separately and is burnished into the rotor, so this means you have one option - a new rotor. Not so much for wear, but the bearing was rusted.
The second most expensive item was the new pushers (less than the rotor each, but combined more than the rotor cost). These are the so called "monoblock" pushers, so unlike most of the pushers in these models, they could not be disassembled to change the seals - the entire pusher had to be exchanged, and since they pusher caps are solid 18k gold, these were not cheap. So instead of 4 new seals at $9 each, these were a $400 set of pushers. Thankfully I ordered them before the last price increase, because that same pair would be $640 now.
The rest was pretty mundane stuff, and although I'm not going to give out exact costs here because it's not my place to tell you what someone else spent, let's just say it was around half of the Omega estimate of approx. $4800.
FWIW, I love your posts like the ones in this thread, and I suspect others do too! I'm sure we'd all love any interesting/non mundane findings you can share! I'm a huge fan of gore/failure analysis, so your takes in other threads are super interesting to me too.
- Posts
- 214
- Likes
- 162
amuscare87
·This was a great thread! Very happy the owner got his watch back in great looking/working condition!
- Posts
- 412
- Likes
- 1,899
CalgaryJim
·This is an awesome thread, thank you very much @Archer for the pictures! I was expecting MUCH worse when i saw "movement replacement", then there was just mostly surface transfer (where rusty water dried on other things), so only a few replacements needed. This is definitely one of the cases where a good independent is worth 100x their weight in gold 😀
IF I may ask: the original quote was 4k or so, what did it end up being in the end for parts/service? Given what I see, I'd guess about 1/4 of the quote, but I presume you have better parts prices than I do, but charge more for labor than I do (which is 0).
- Posts
- 1,981
- Likes
- 2,144
ErichKeane
·You do watch repairs and don’t charge for labour? Wow.
- Posts
- 670
- Likes
- 2,004
GuiltyGear

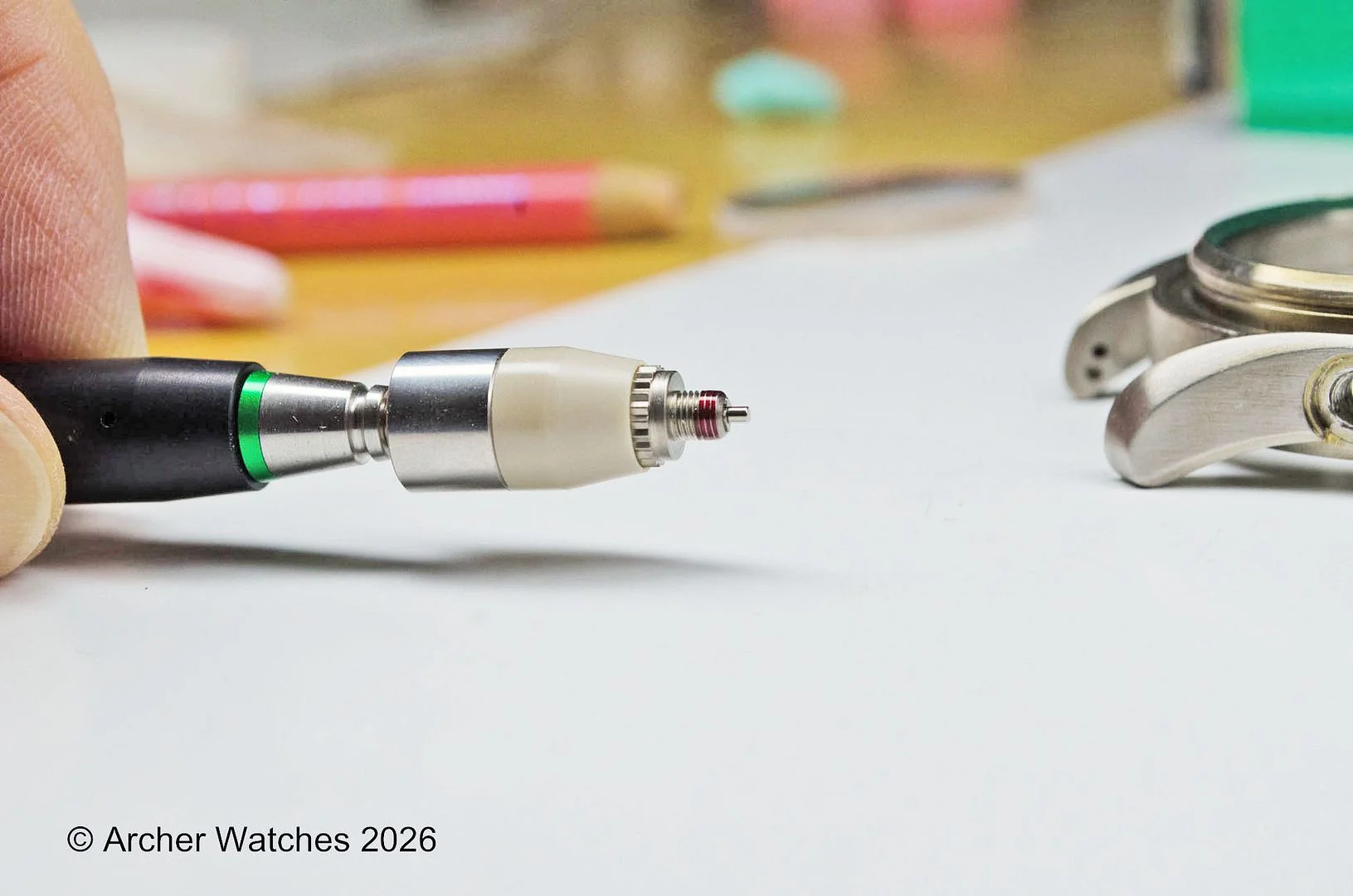

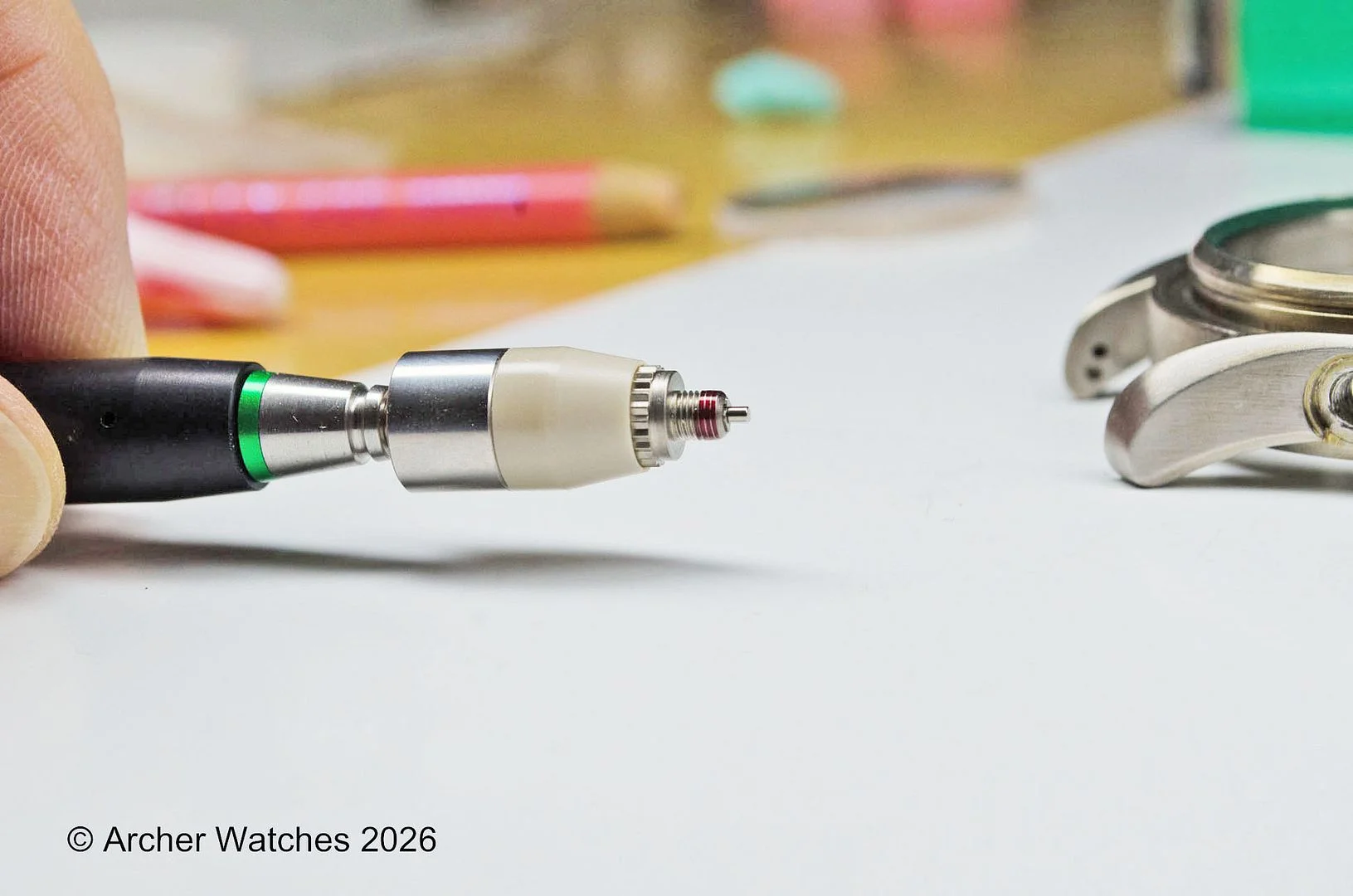

·@Archer what tool is the one you're grabbing the pusher? I don't recall having seen anything similar. Also, I imagine the red section on the pusher threads is some sort of factory applied thread locker or sealant?
- Posts
- 29,671
- Likes
- 76,828
Archer
··Omega Qualified Watchmaker@Archer what tool is the one you're grabbing the pusher? I don't recall having seen anything similar. Also, I imagine the red section on the pusher threads is some sort of factory applied thread locker or sealant?
The red is Loctitie that I applied per Omega specs.
- Posts
- 670
- Likes
- 2,004
GuiltyGear
·The red is Loctitie that I applied per Omega specs.
- Posts
- 29,671
- Likes
- 76,828
Archer
··Omega Qualified WatchmakerThat's a beautiful application I must add. Looks factory applied.
