Vintage Edox dealer clock.

Posts

947

Likes

605

peterkirk01

·Jul 3, 2023

Not Omega related. Hi, I recently picked up a large Edox dealer outdoor

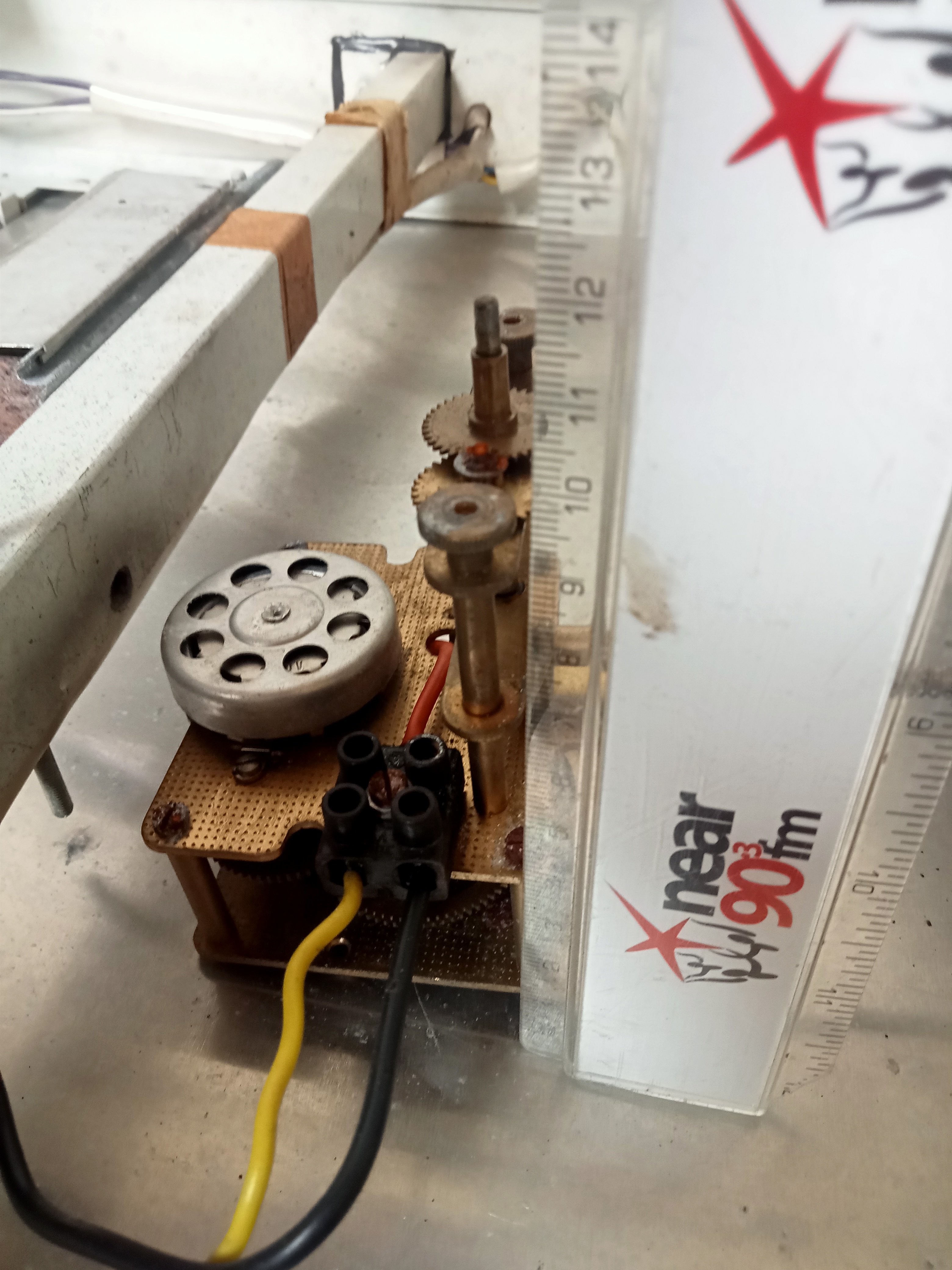

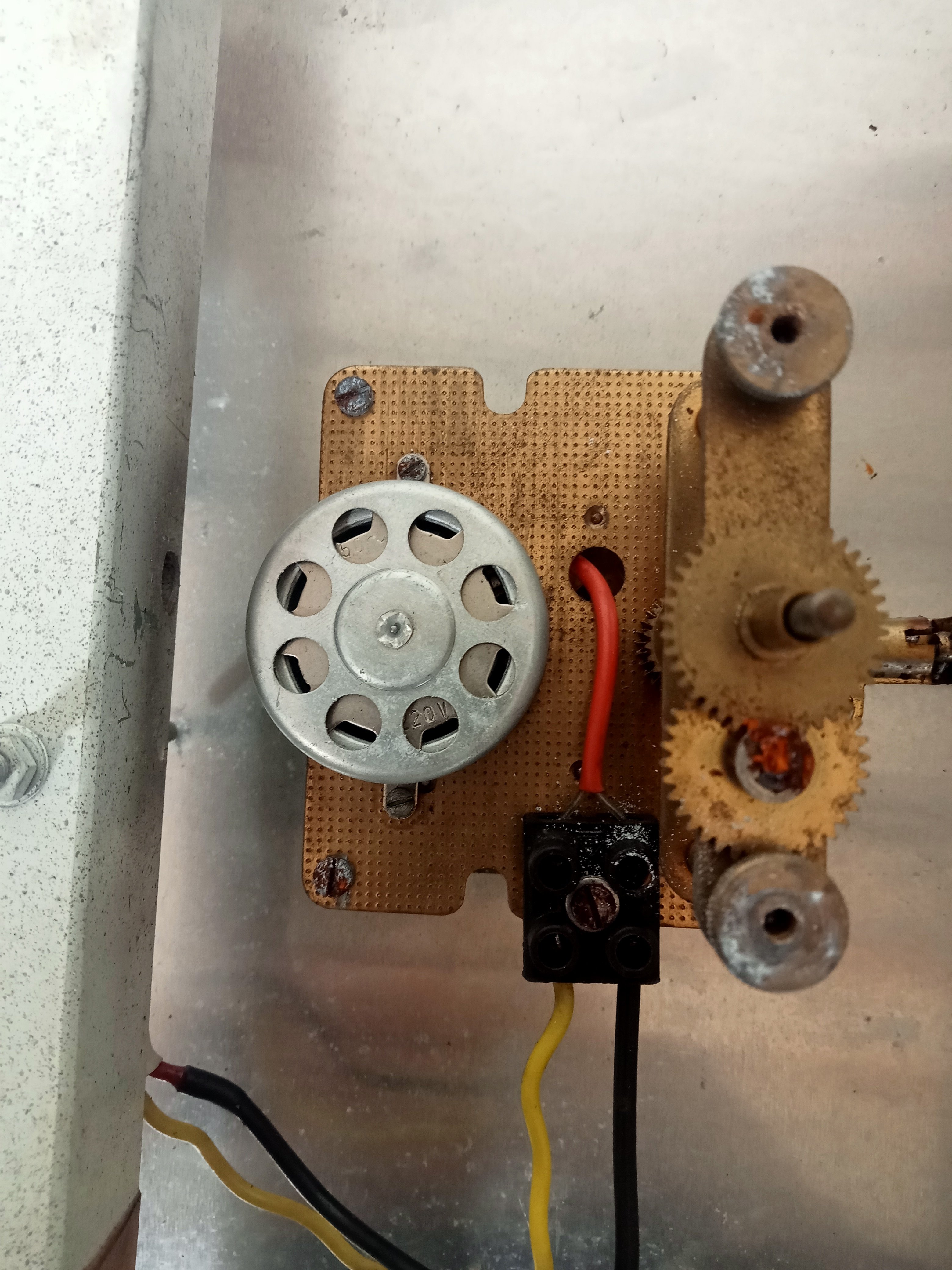

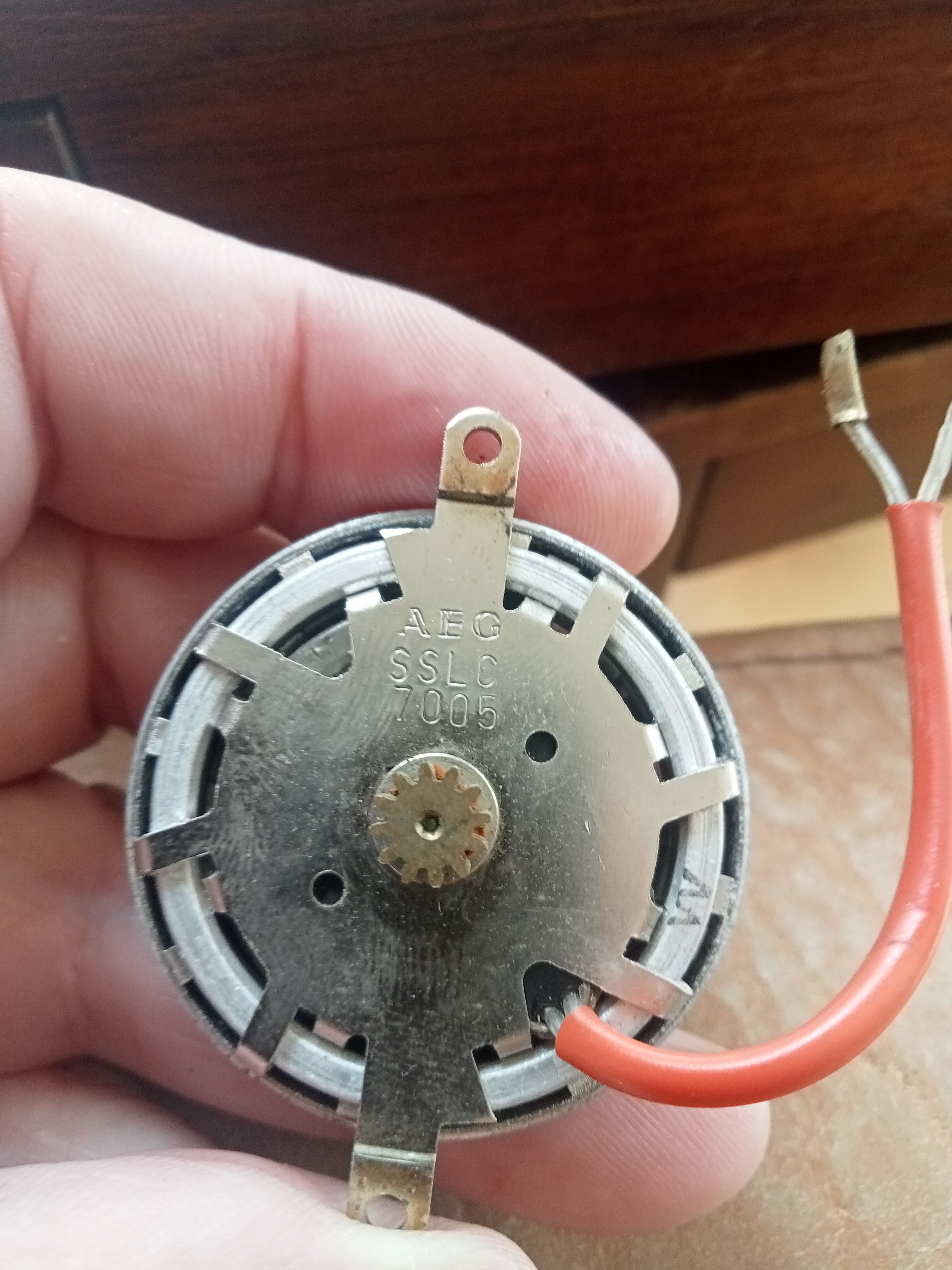

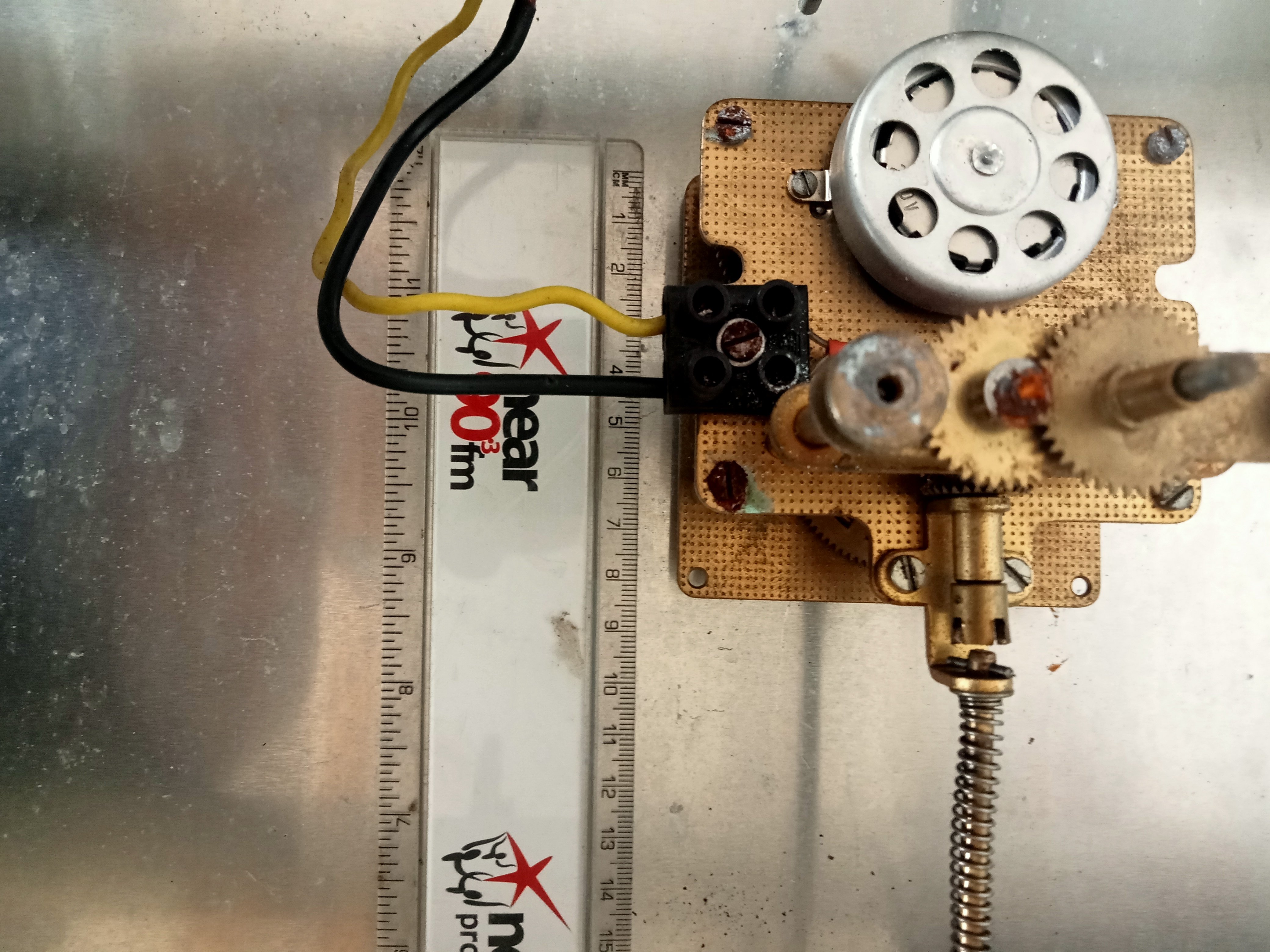

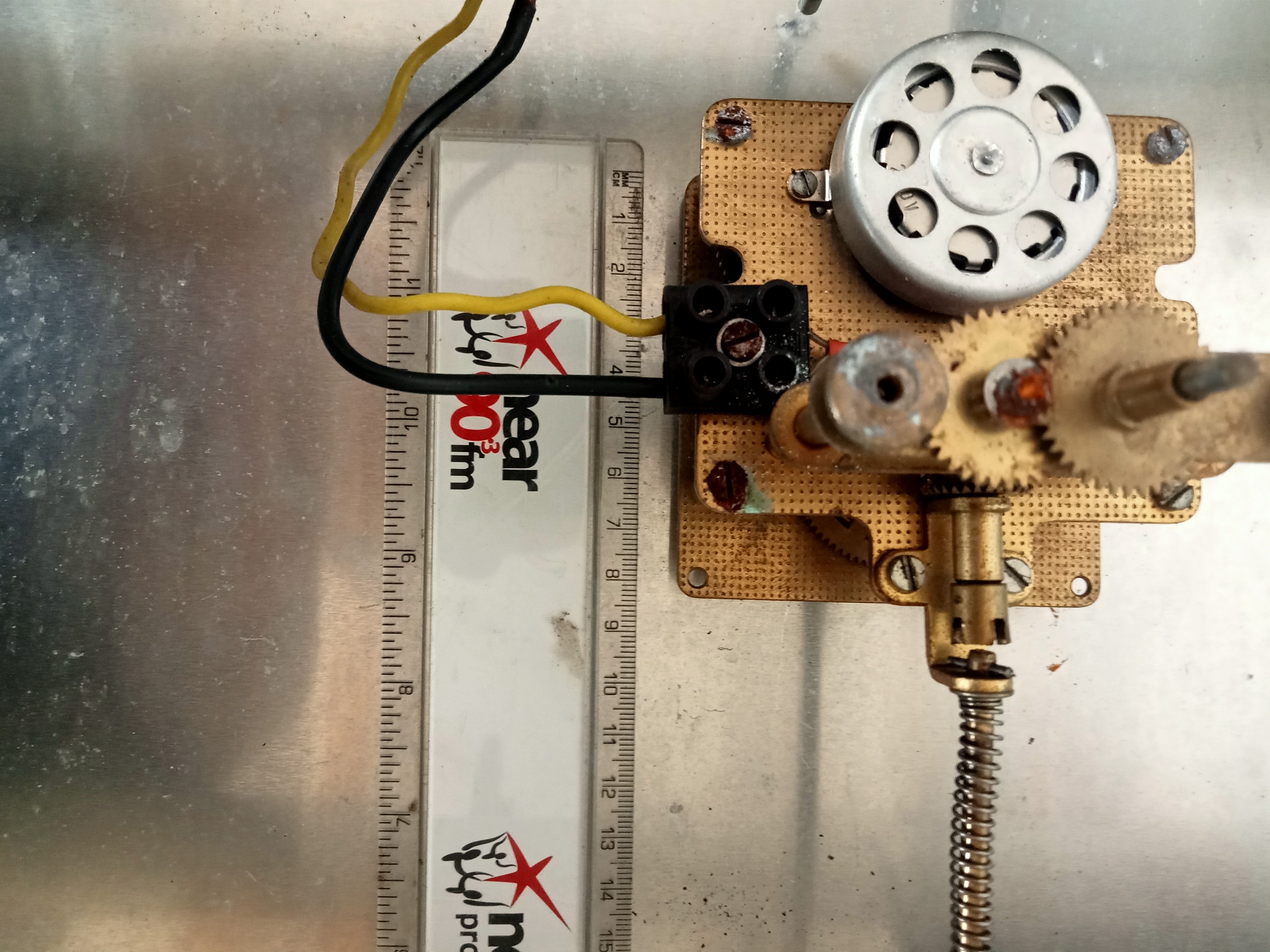

clock. I am in the process of attempting to repair the ( very small ) clock mechanism. It seems very simple but just wanted some advice on replacing a synchronous motor. I enclose photos and know that I need a 220v , 50h motor but I am not sure about the speed of rotation. I assume it should be 1 rpm . If anyone has any knowledge could you please let me know. Many thanks.



Posts

8,701

Likes

14,612

efauser

·Jul 3, 2023

If you know it's not Omega related, why did you post it on the vintage Omega board?



Posts

947

Likes

605

peterkirk01

·Jul 3, 2023

Thought it might be okay to post here, if not I can certainly remove the post. Please advise.



Posts

3,237

Likes

6,783

Fallout Boy

·Jul 3, 2023

perhaps you can calculate "backwards" : you count and calculate by the "number of teeth" of the transmission...if the motor drives the second-hand



Posts

947

Likes

605

peterkirk01

·Jul 3, 2023

Thanks for the reply. There is no second hand, only minutes and hour hand. It really is the most basic mechanism I have seen.



Posts

3,237

Likes

6,783

Fallout Boy

·Jul 3, 2023

You need to know if it drives the minutes or hour hand directly , then you can " calculate" ..... if there is another transmission below/hidden



Posts

947

Likes

605

peterkirk01

·Jul 3, 2023

Excellent information. Thanks very much for your assistance.



Posts

3,237

Likes

6,783

Fallout Boy

·Jul 3, 2023

errata: I don t think, the motor has 1/rpm. So he will not supply the one minute hand directly - IMO not suitable for a watch.

Maybe you can find an un-original (quartz) movement from an (old) wall-clock and change just the hands



Posts

947

Likes

605

peterkirk01

·Jul 3, 2023

I really like the esthetic of the clock as is so hopefully I can find the correct synchronous motor to suit. Lots for sale on eBay, just hoping to pick the correct one.



Posts

1,145

Likes

5,654

Radiumpassion

·Jul 3, 2023

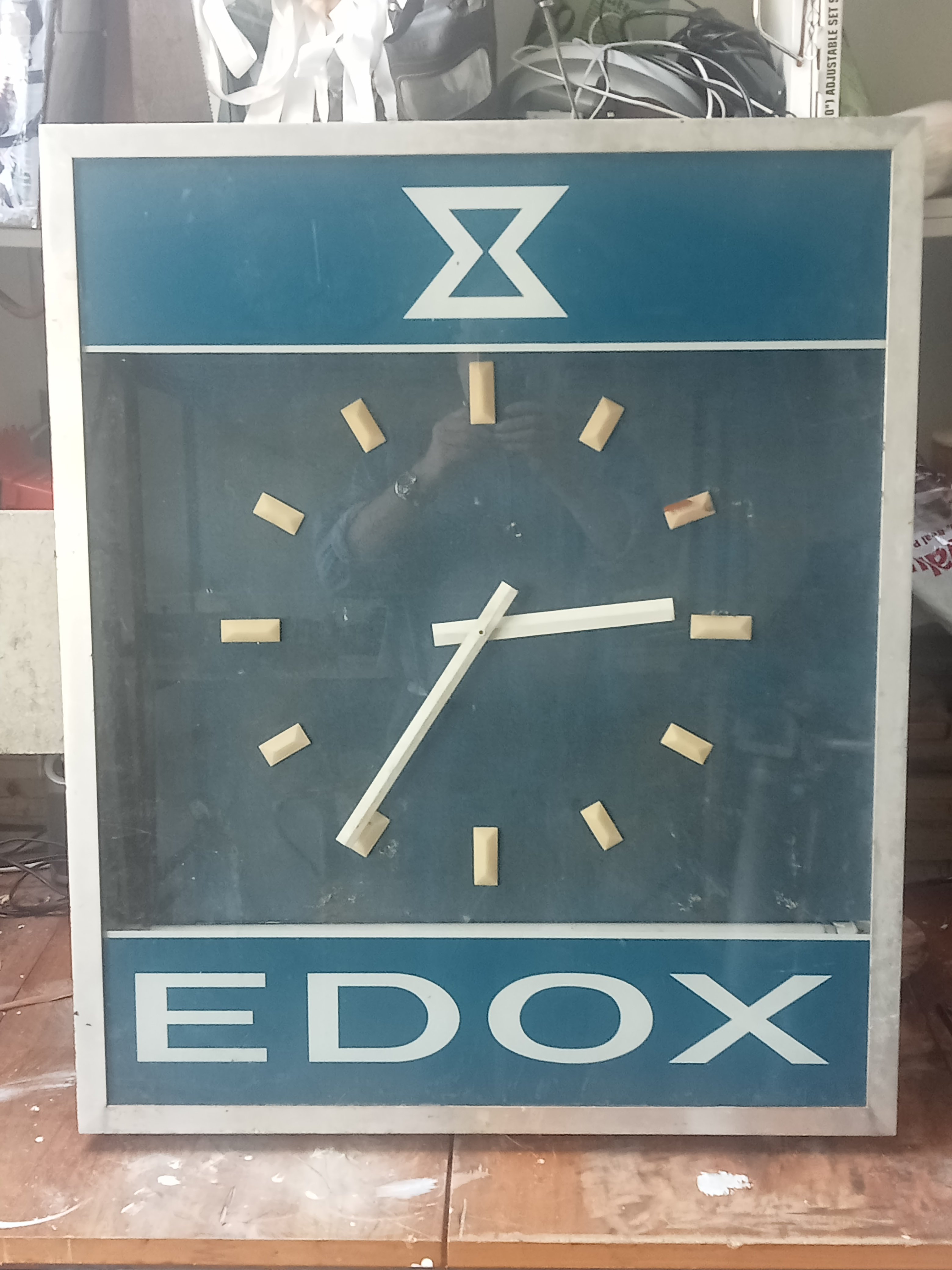

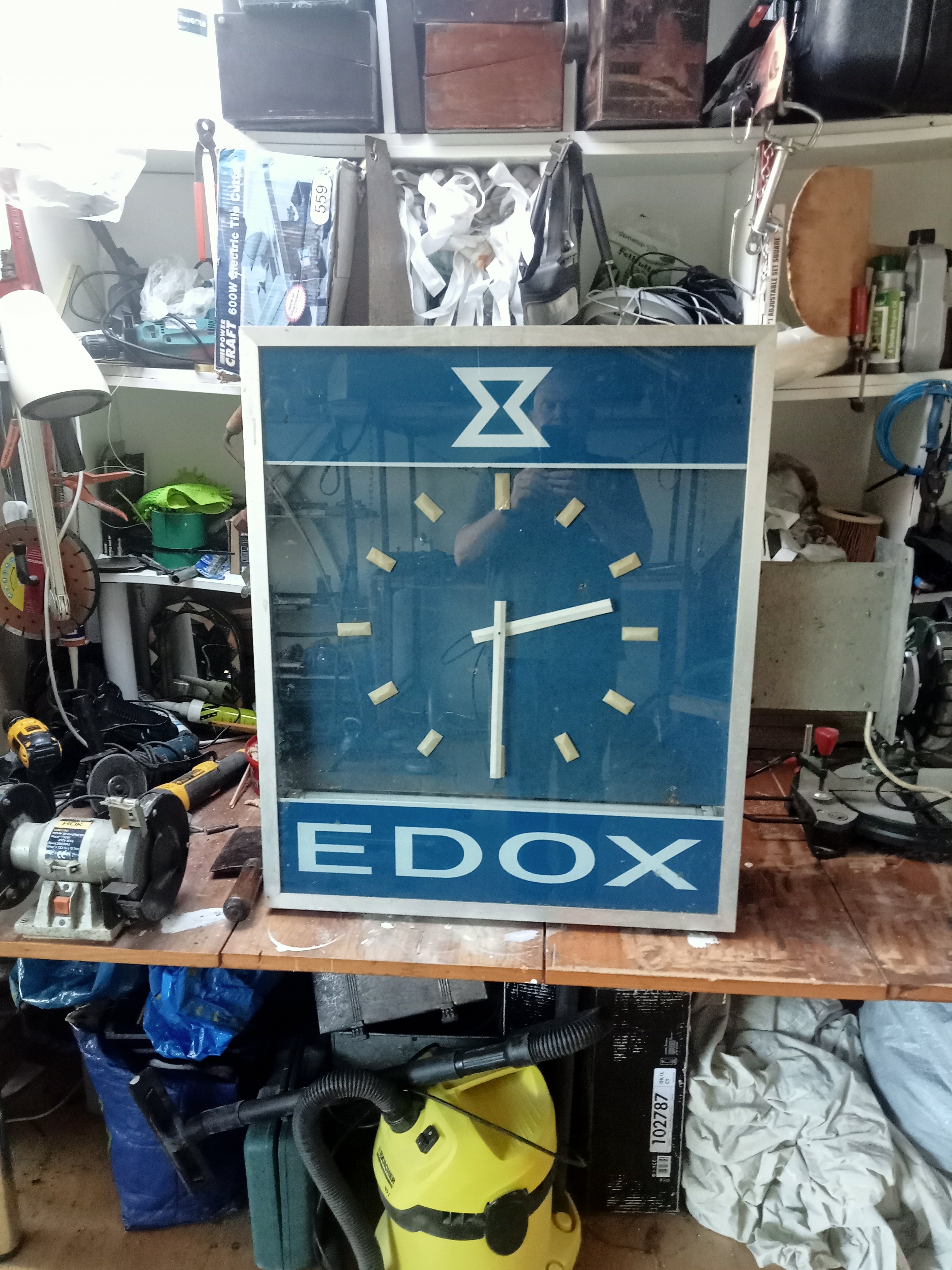

Let us see som pictures of the front😀



Posts

947

Likes

605

peterkirk01

·Jul 3, 2023



Posts

3,237

Likes

6,783

Fallout Boy

·Jul 3, 2023

cool 👍



Posts

947

Likes

605

peterkirk01

·Jul 3, 2023

Thanks. I would love to see it lit up and running.



Posts

1,145

Likes

5,654

Radiumpassion

·Jul 3, 2023

Cool! Thank you for the pictures. I know that some of these had a
master clock witch was located inside the watchmaker shop.

Hopefully you got everything you need to get it running again😀



Posts

947

Likes

605

peterkirk01

·Jul 3, 2023

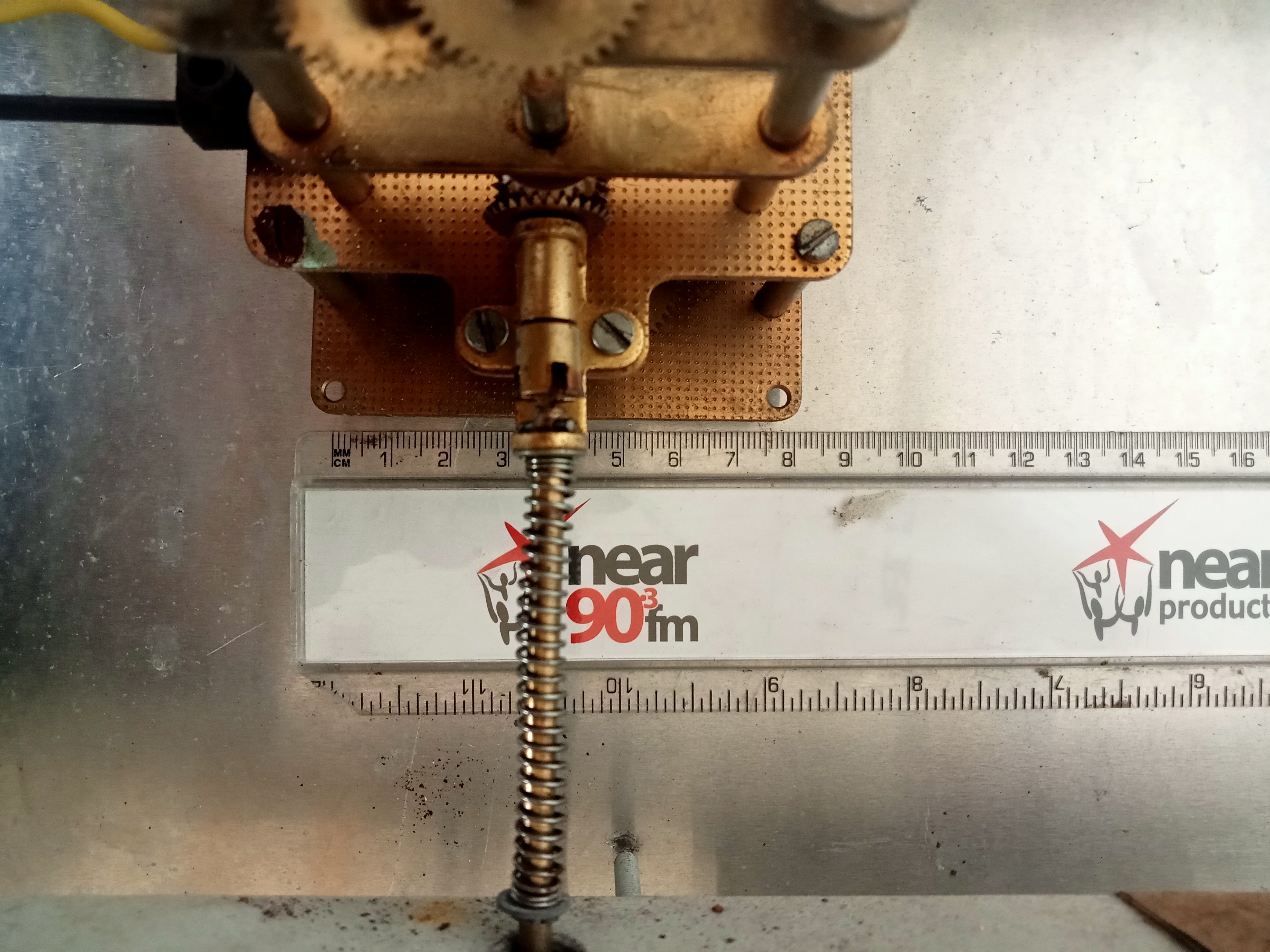

No, this one is just a plug in and go clock. Even the mechanism to change the time is on the base of the clock ( probably with a big ladder )

. Take a look at this photo. You push up a lever and it engages
