UG Gay Freres End Links Guide

Posts
38
Likes
150
Hi Jamey, I'm having the exact same problem with my "UP" end links. I was tempted to shave them but held off.

Posts
158
Likes
453
just an update on this thread. I wasn't absolutely sure about the compatibility of "UP" with Nina and its clear that they will fit with slight modification. I've seen a post on this forum by Paul Gavin with these fitted to his Nina.

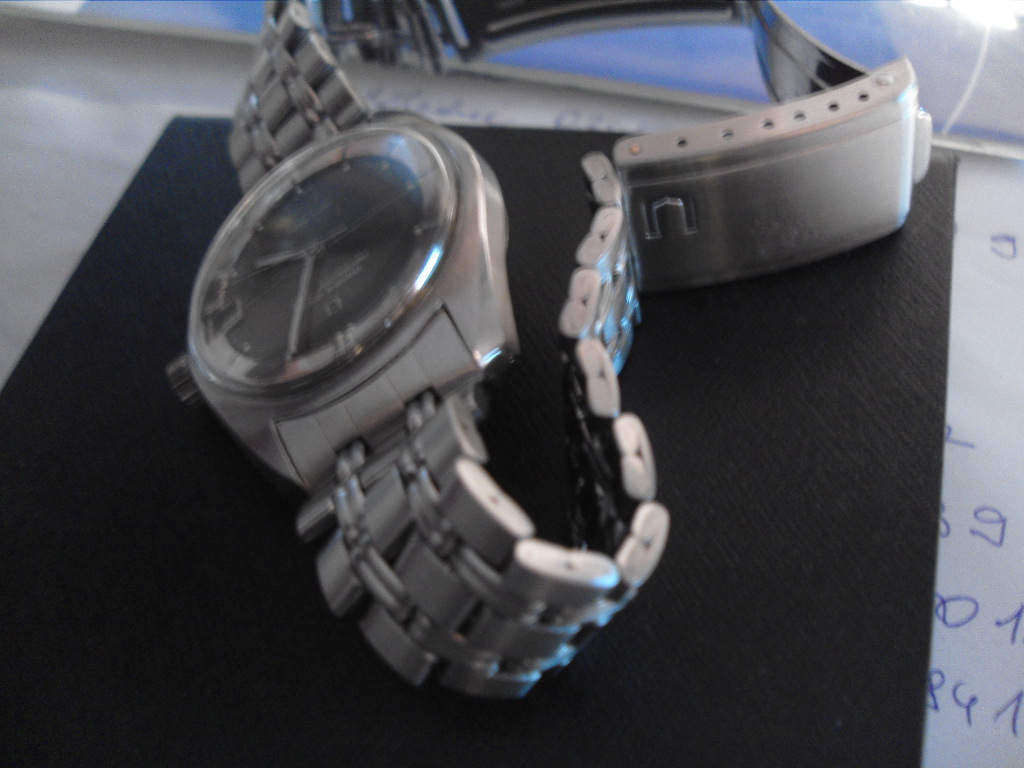

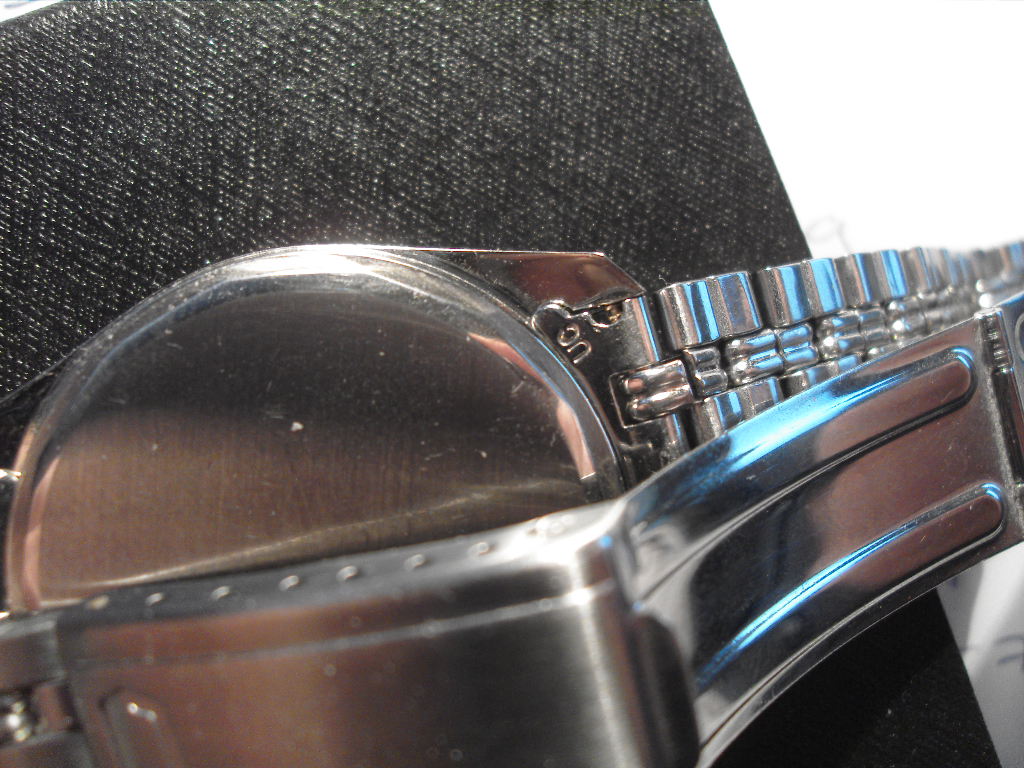

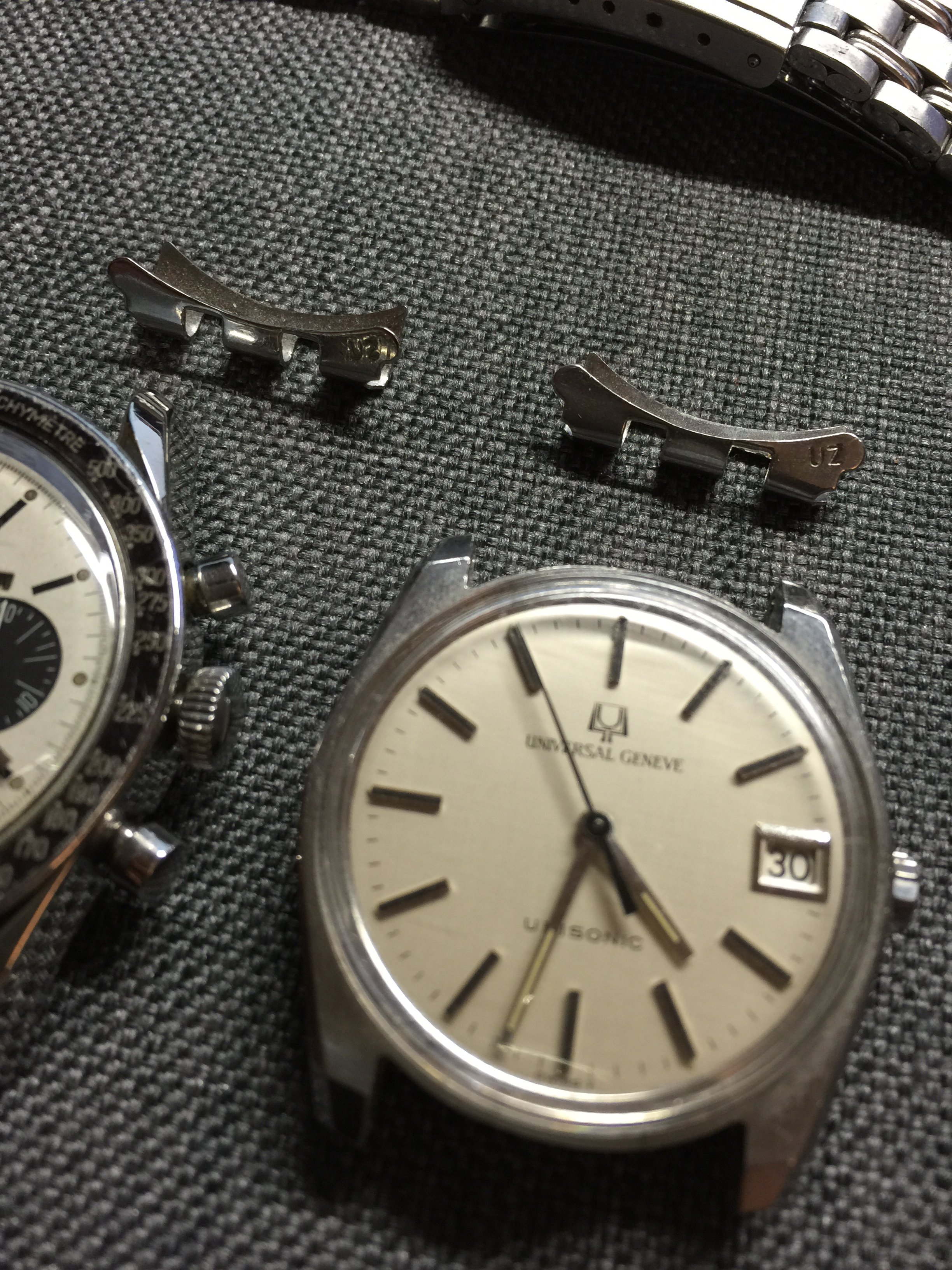

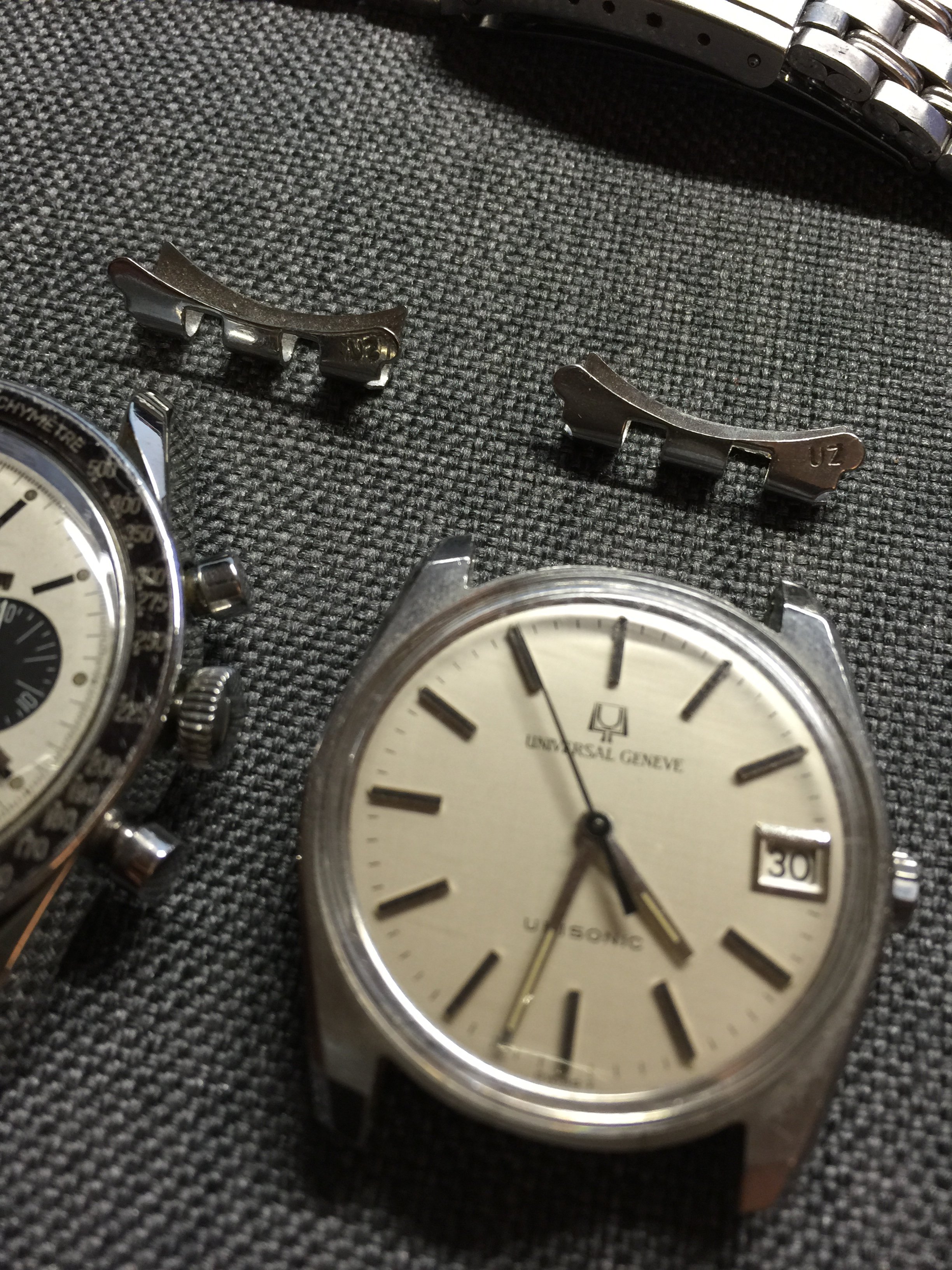

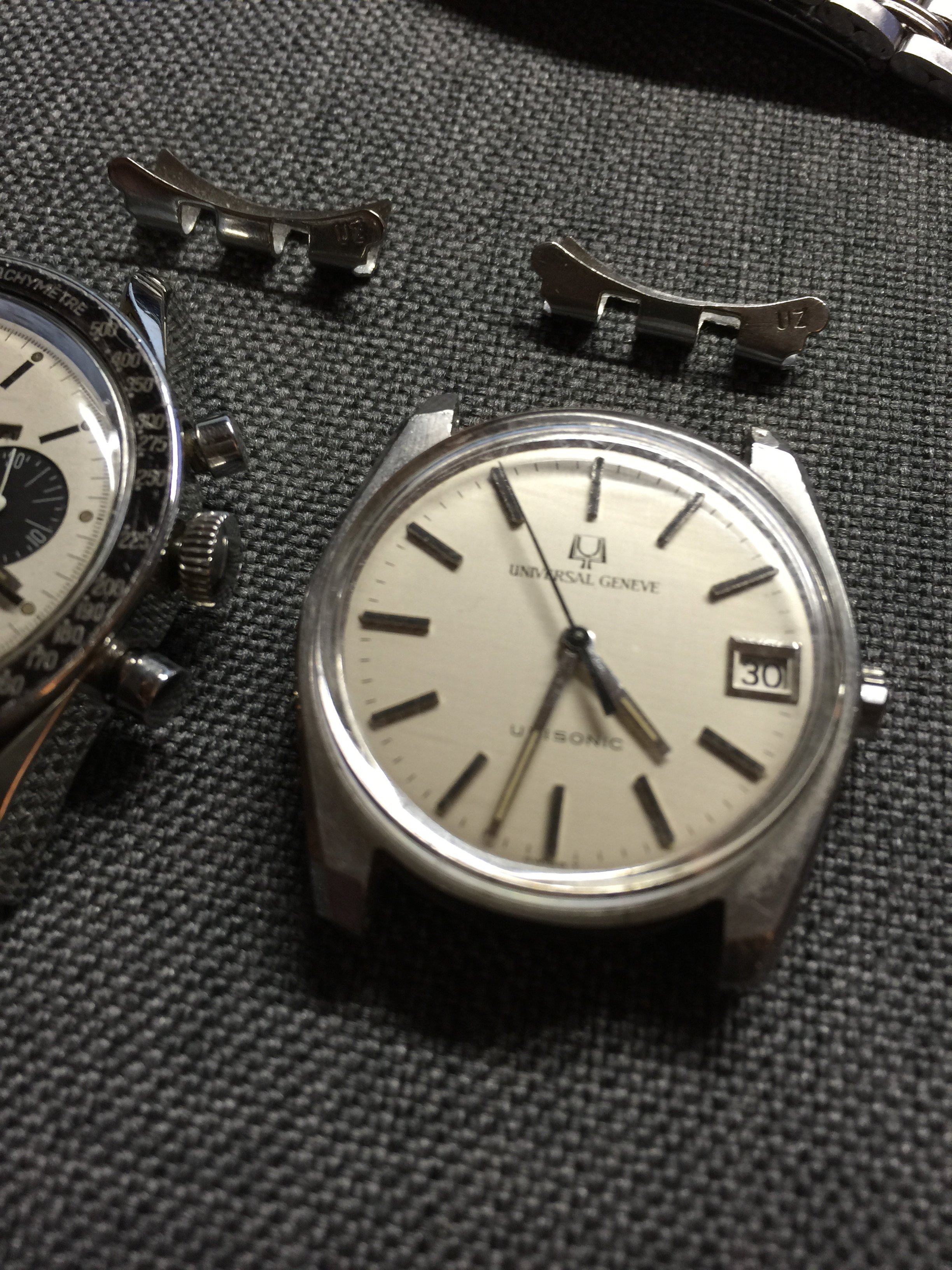

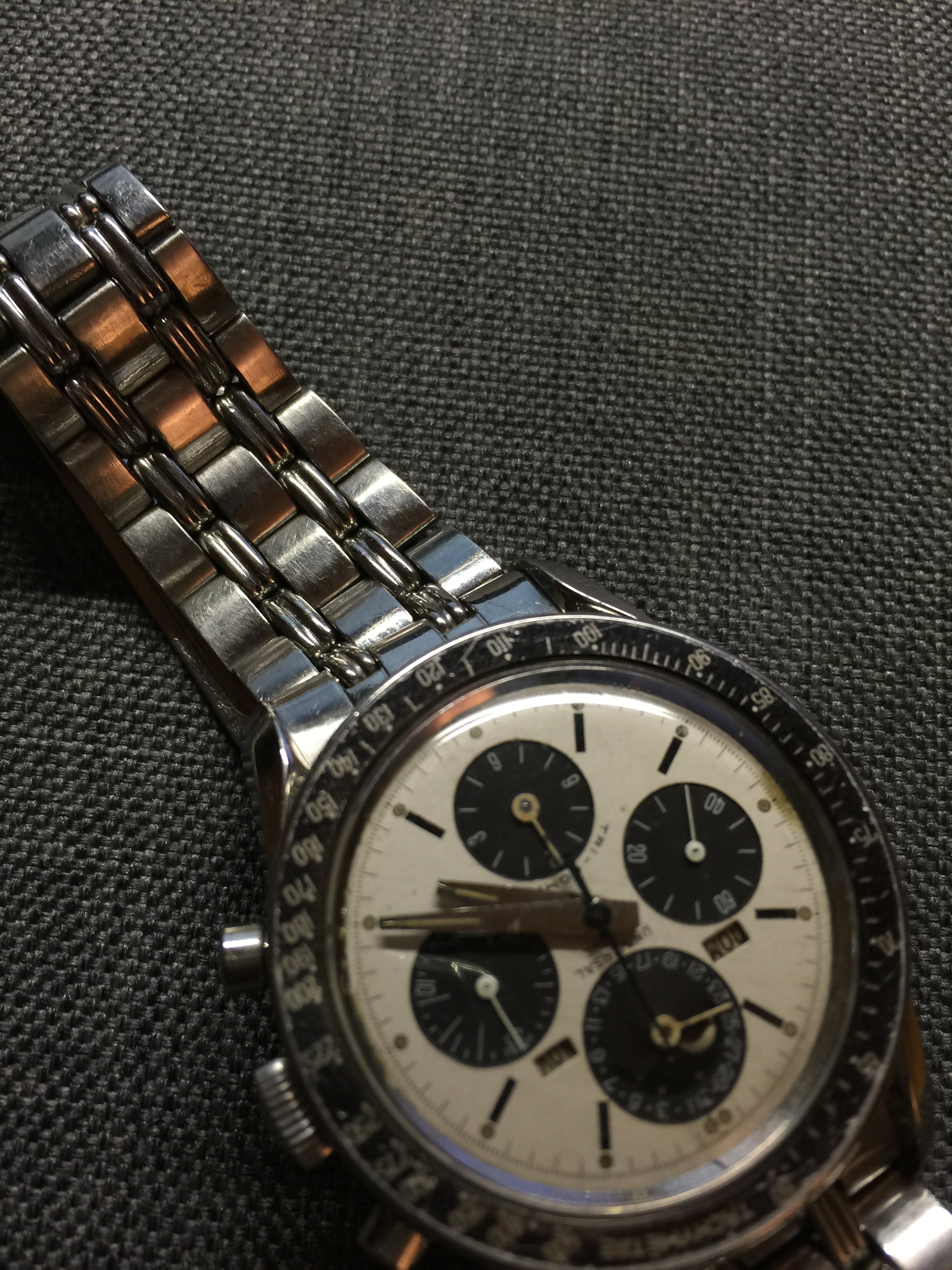

I have just landed a Uni Sonic complete (pictured) with a GF bracelet from the 1st quarter of 1969. It came with "UZ" links which are 18.8mm.

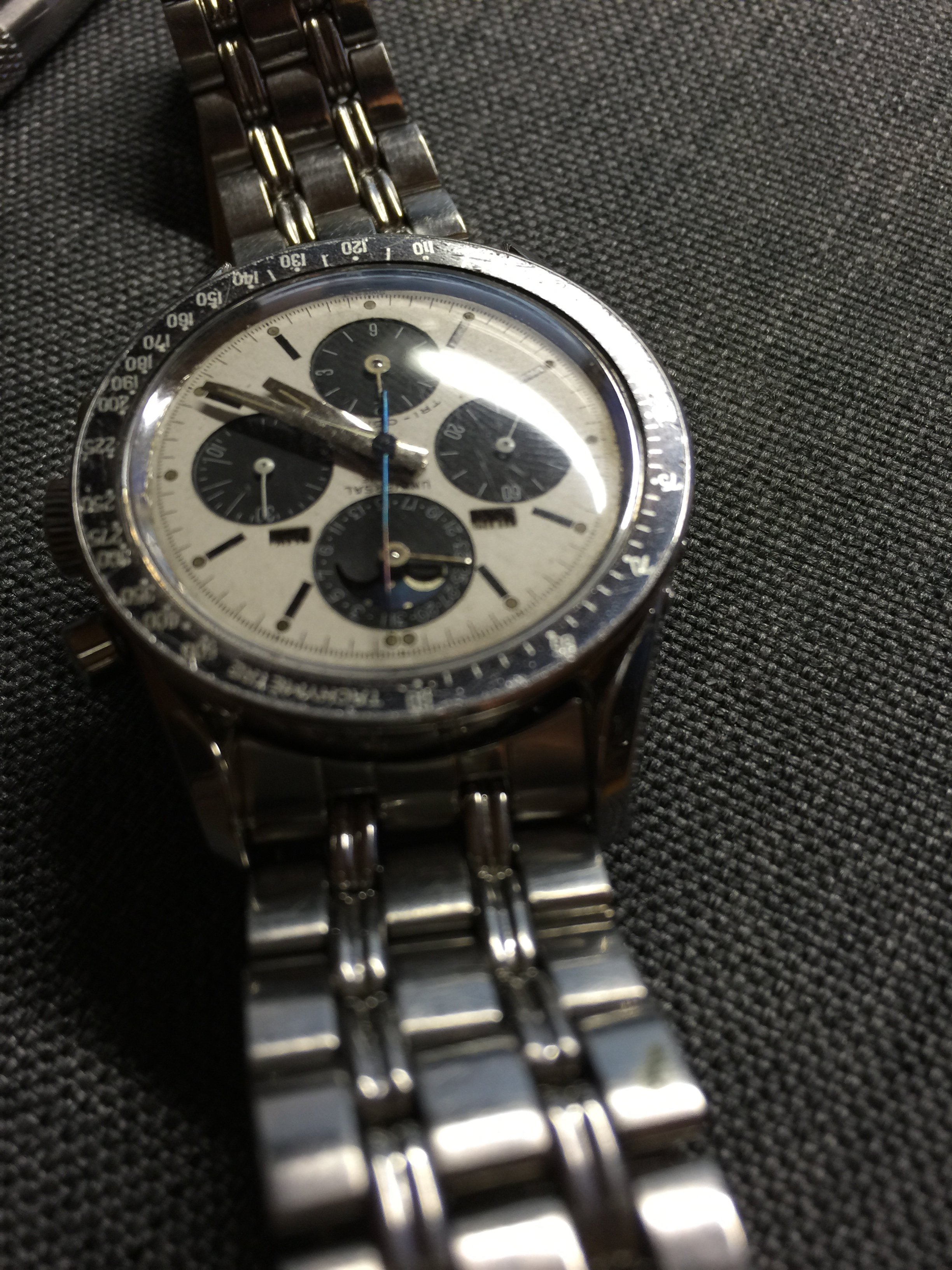

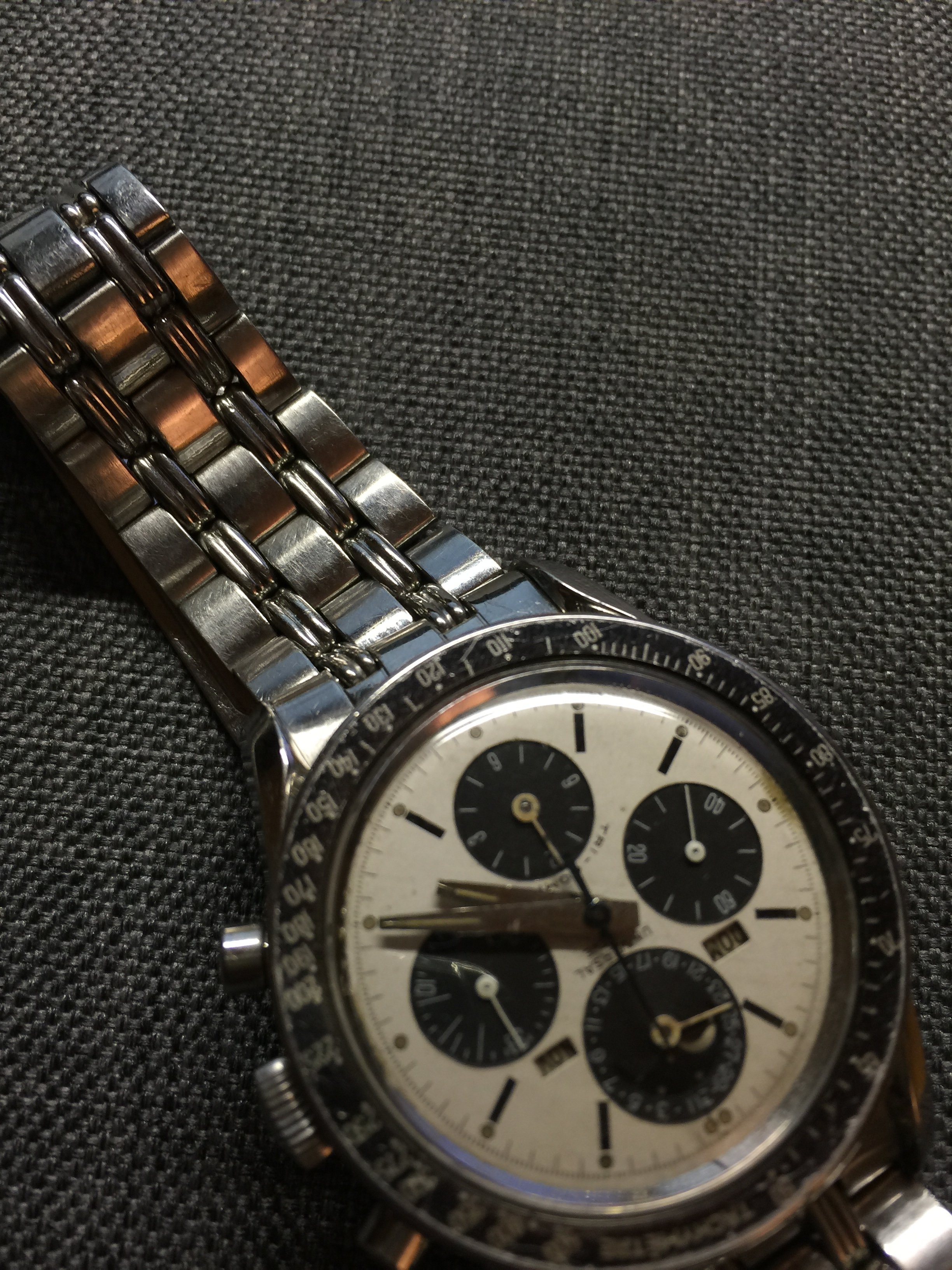

I fitted the bracelet to my Tri Compax and it seems to fit OK with UZs. Its a tad short of the rounded part of the case.

I have updated the first post accordingly.
Edited:

Posts
158
Likes
453
Thanks to all that have contributed to this thread so far. Please keep the information/pictures coming.

Posts
3
Likes
0
Thanks to all that have contributed to this thread so far. Please keep the information/pictures coming.

Hi folks,

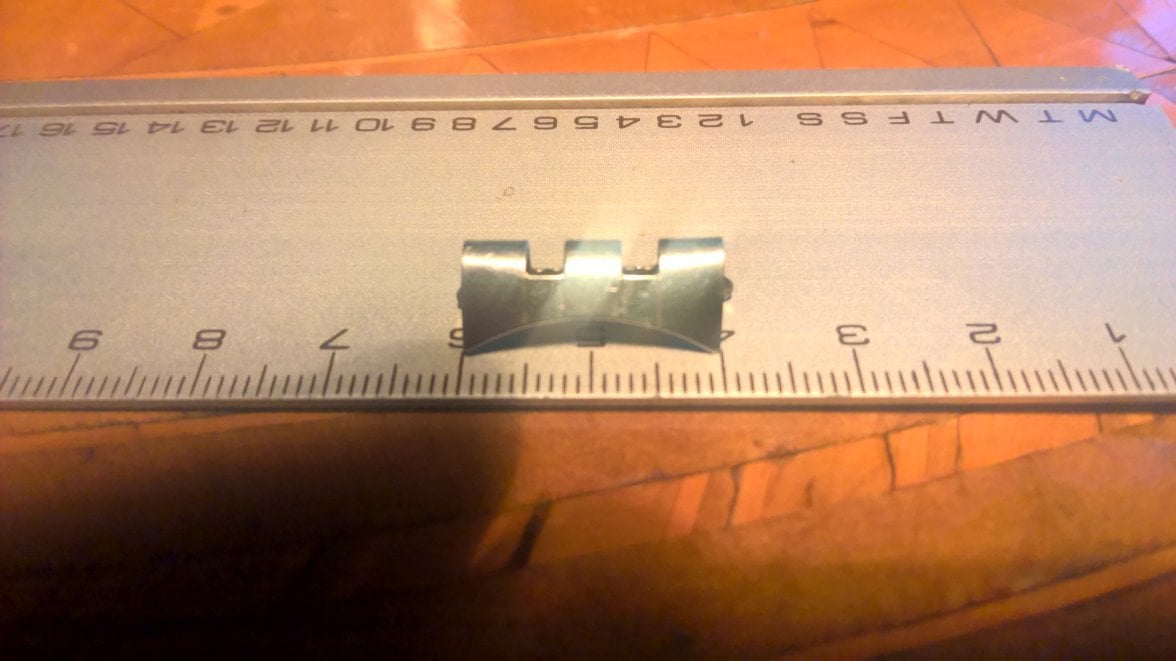

Original "unshaved UP links are definitely 20, not 19mm.

Posts
38
Likes
150
Do we know now what are the correct ends for the Nina and Tricompax. Seems that the "UP" ends will fit with some modification. What did it come with originally?

Posts
158
Likes
453
Do we know now what are the correct ends for the Nina and Tricompax. Seems that the "UP" ends will fit with some modification. What did it come with originally?
I believe its "UW". Please see Lou's post on p1 of this thread.

Posts
48
Likes
192
Great idea, Haroon!

Time to bring light in the jungle 😉

Great club here... cheers, Henrik

Posts
6,713
Likes
18,566
that's a good idea!

Posts
389
Likes
1,049
No way this thread of collective knowledge should be sink to the deepest abyss. This is too useful for every collector that loves UG.

Posts
433
Likes
895

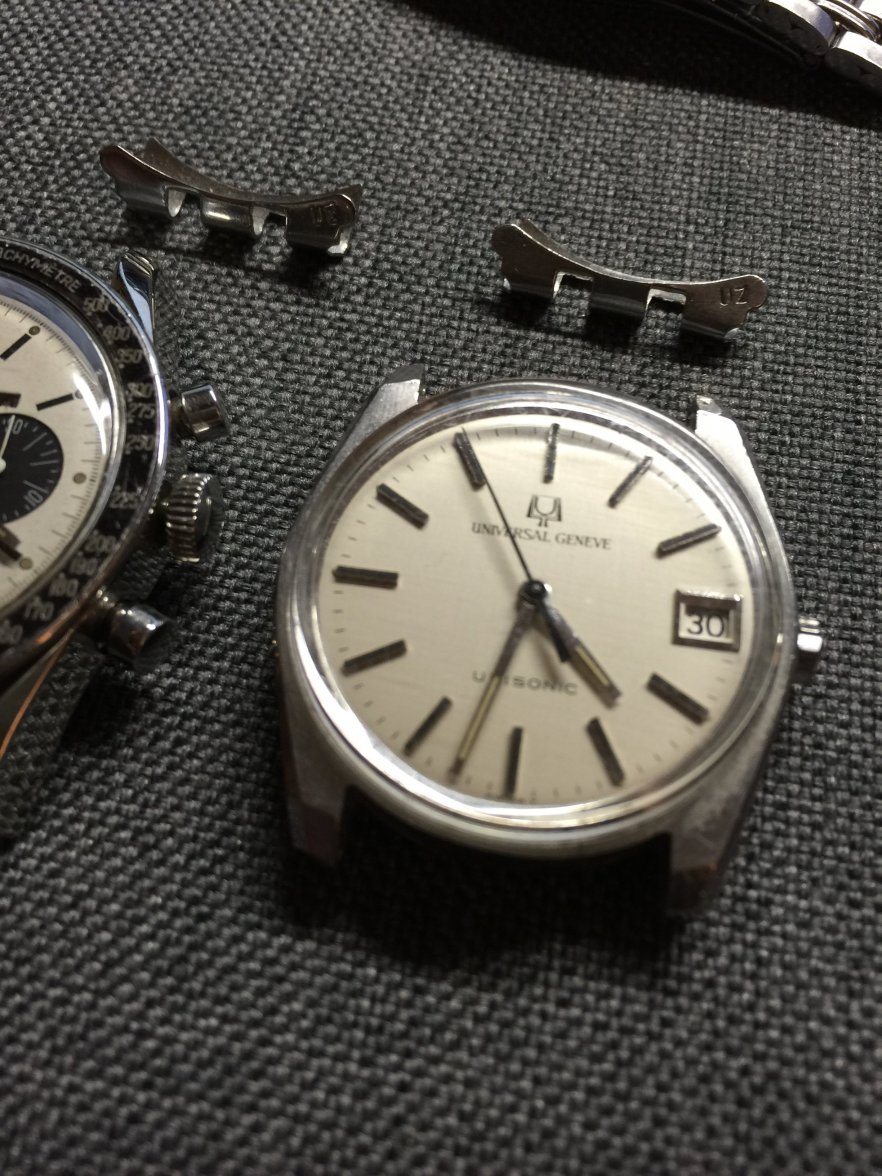

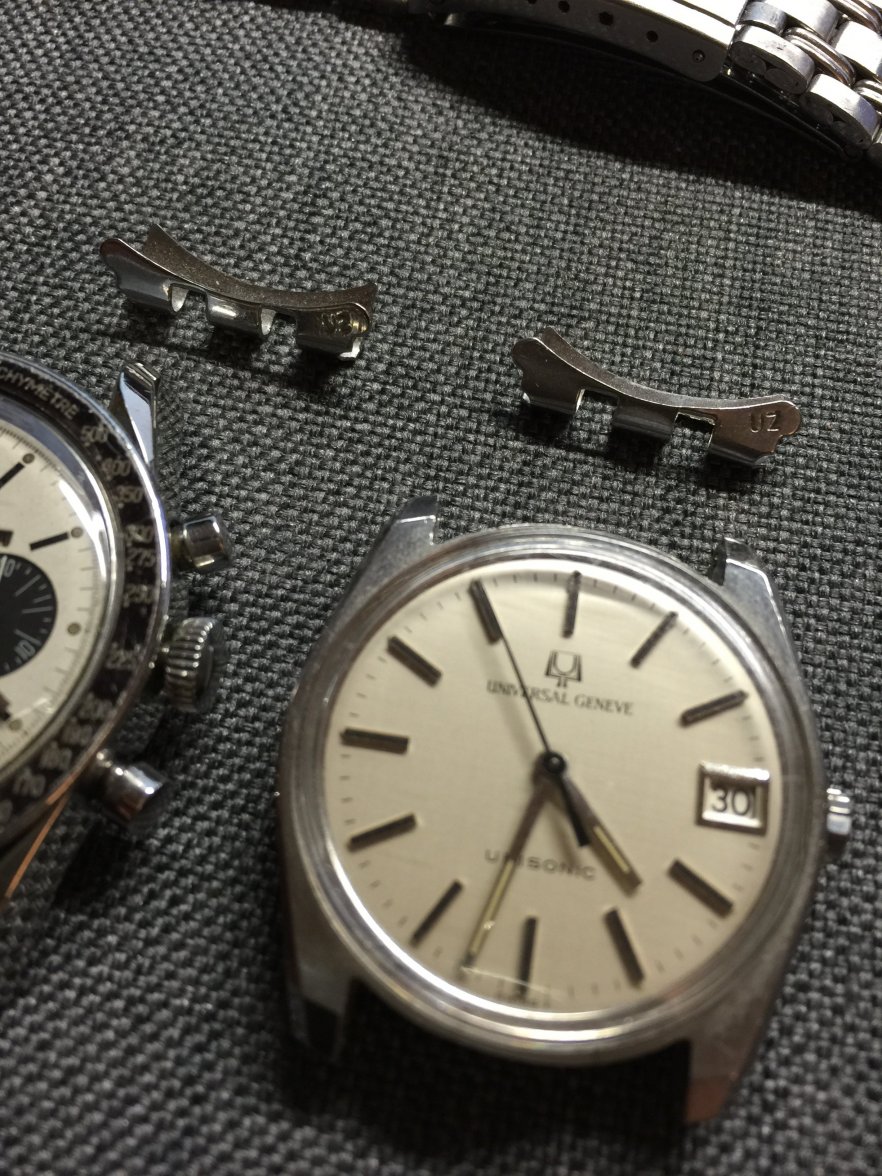

Just to add to this, UC links fit on case number 869119/** (the grey dial) and UW fit on the other case (the black dial, unfortunately only some of the numbers are visible). They are not interchangeable, UW are 18mm and UC is a little smaller, about 17.5mm.

The grey dial is circa 67-68 and the black dial is 1970.

*if anyone has the case number for the one with the black dial please let me know*

Sent from my SM-T350 using Tapatalk

Posts
6,713
Likes
18,566
D defe79
Sorry for my english

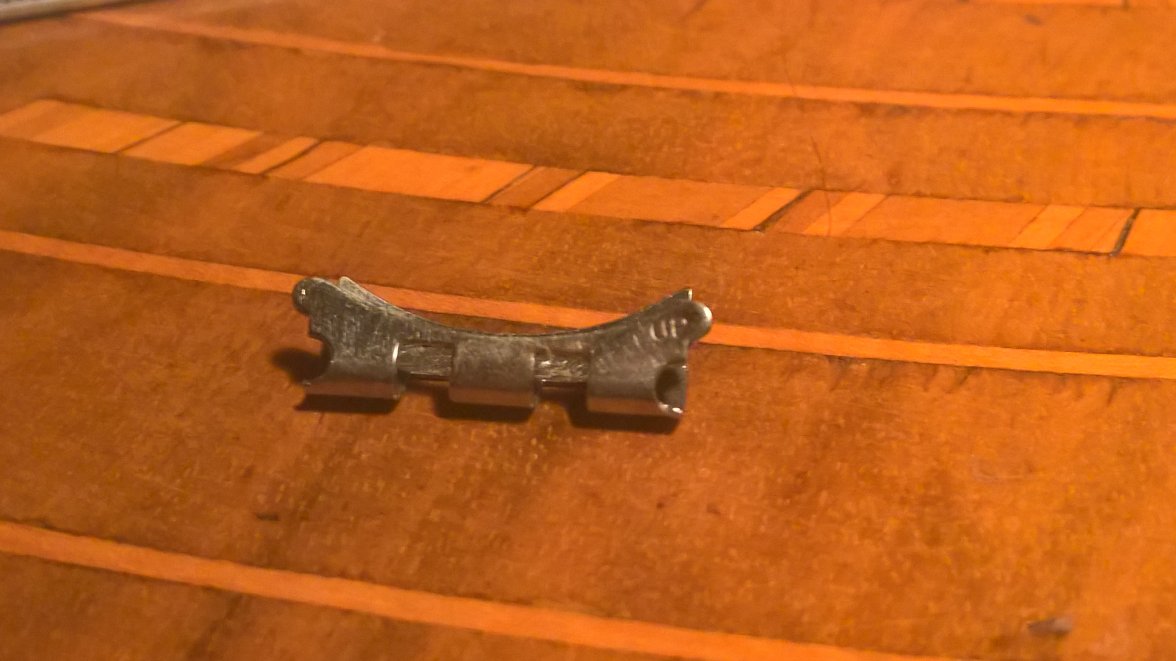

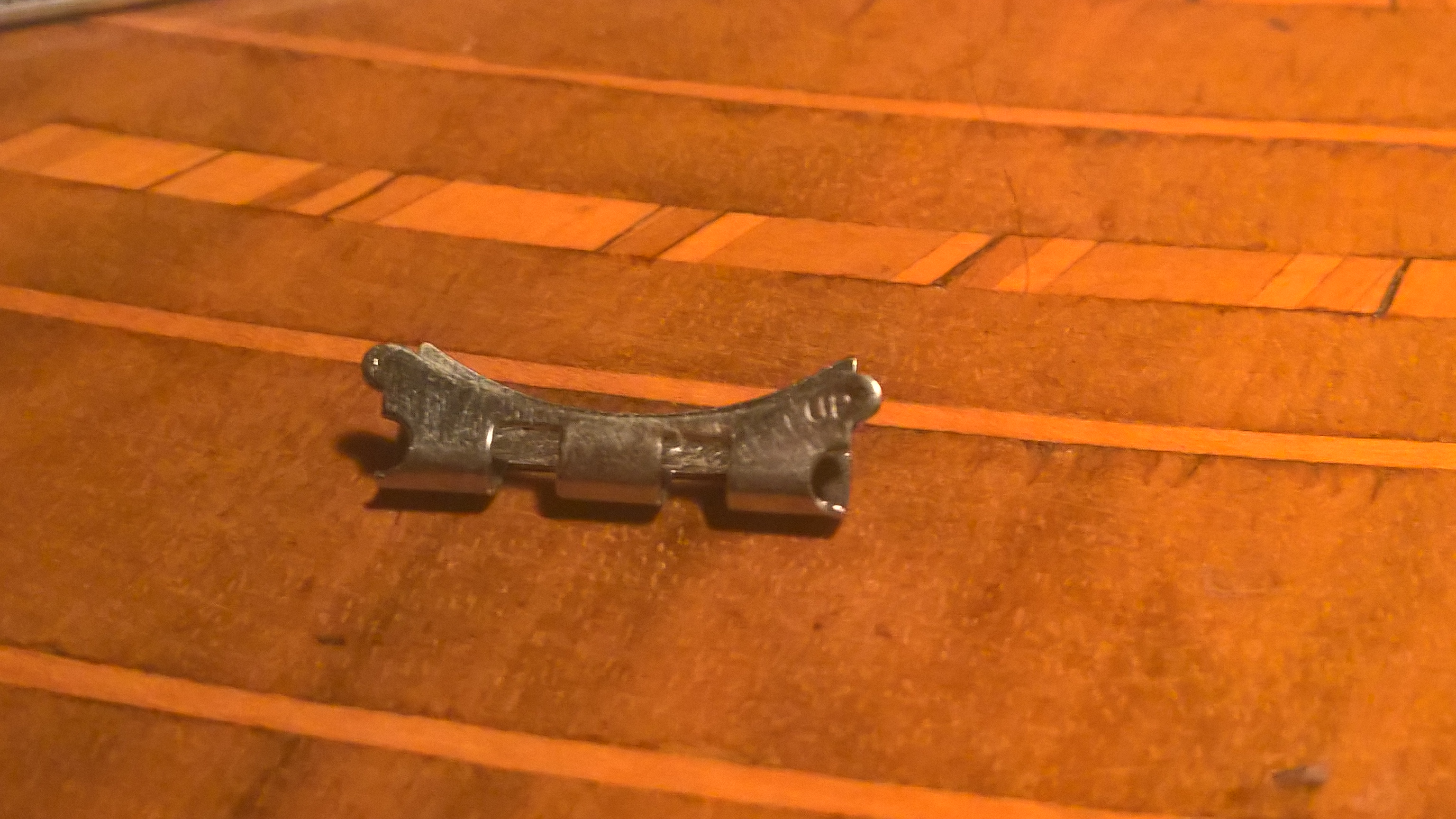

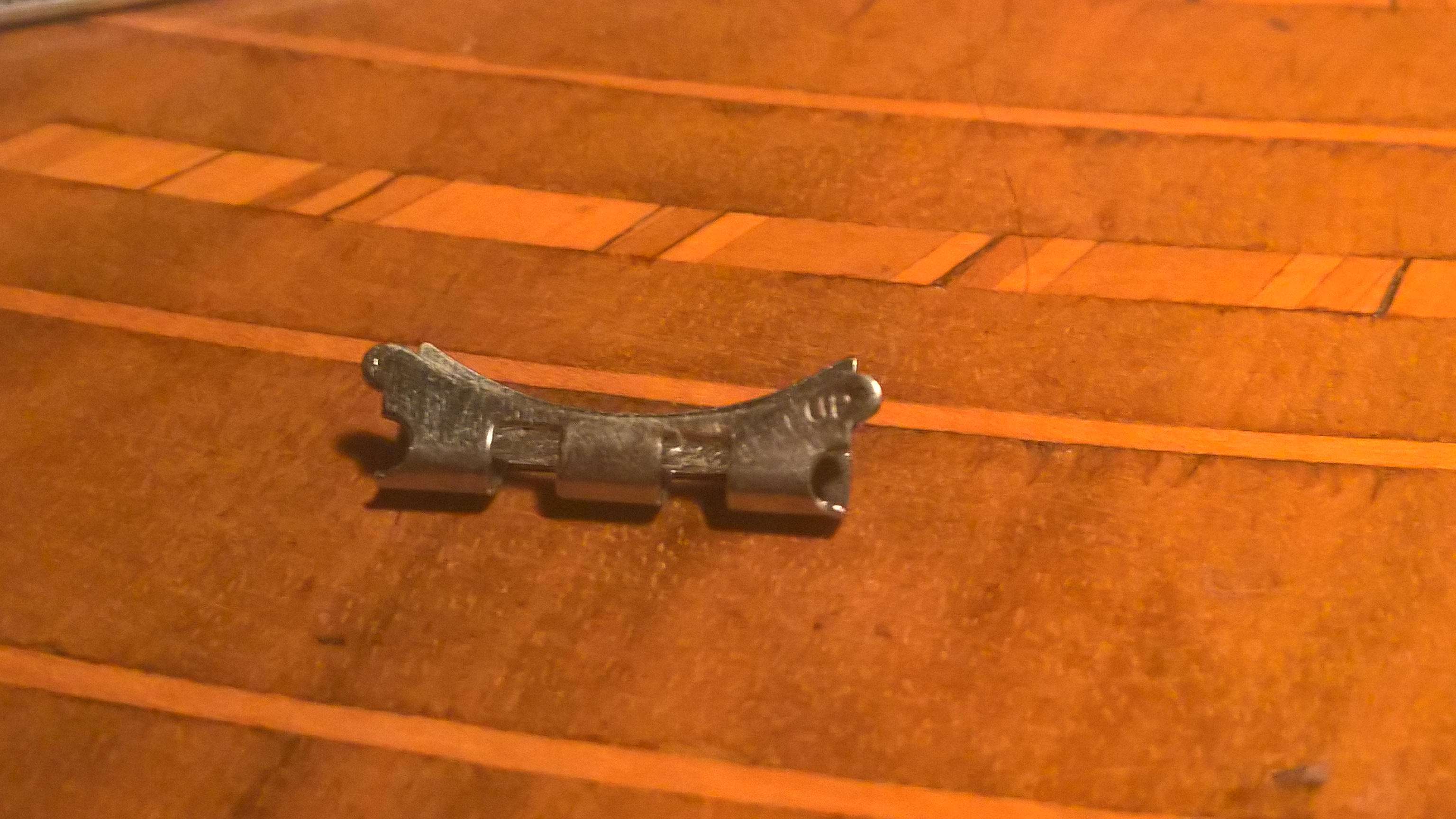

Exist final end without ug, uv etc.?

No, not from the factory. Do you have a picture of the lugs you are asking about?

Posts
2,678
Likes
9,836

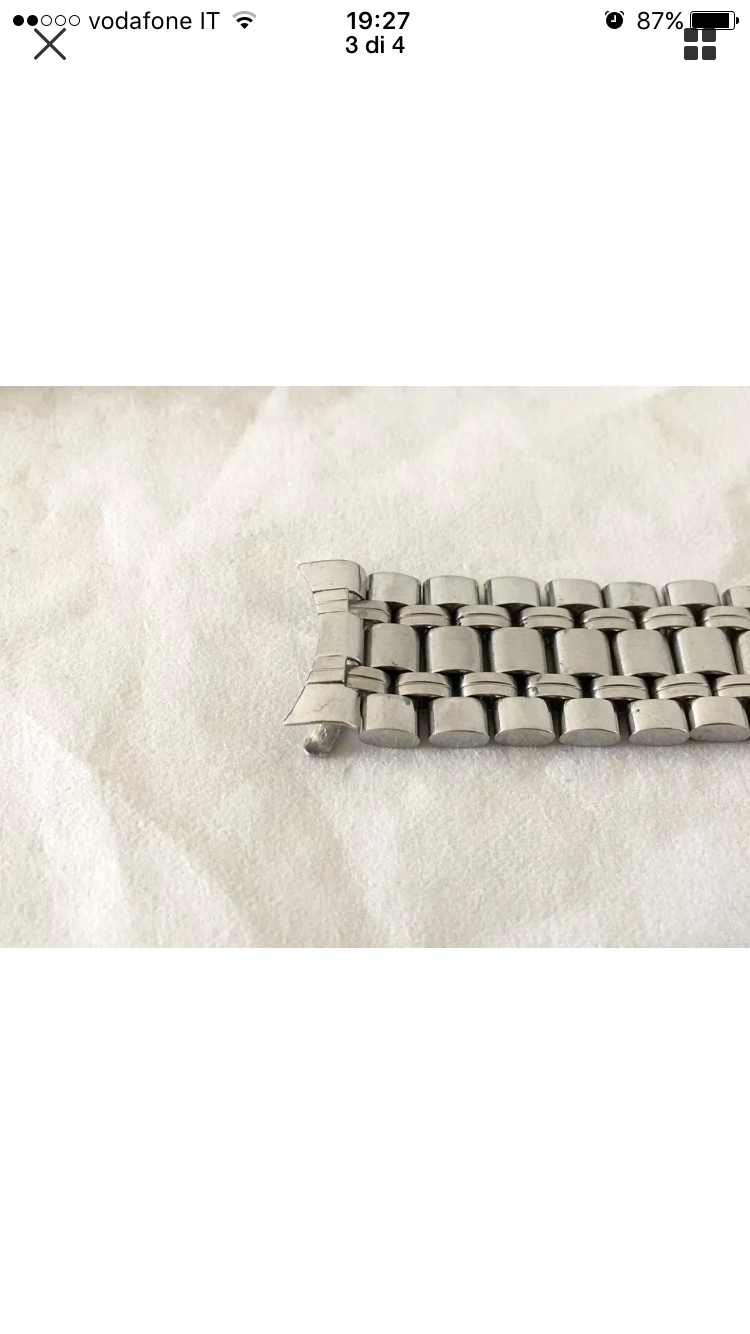

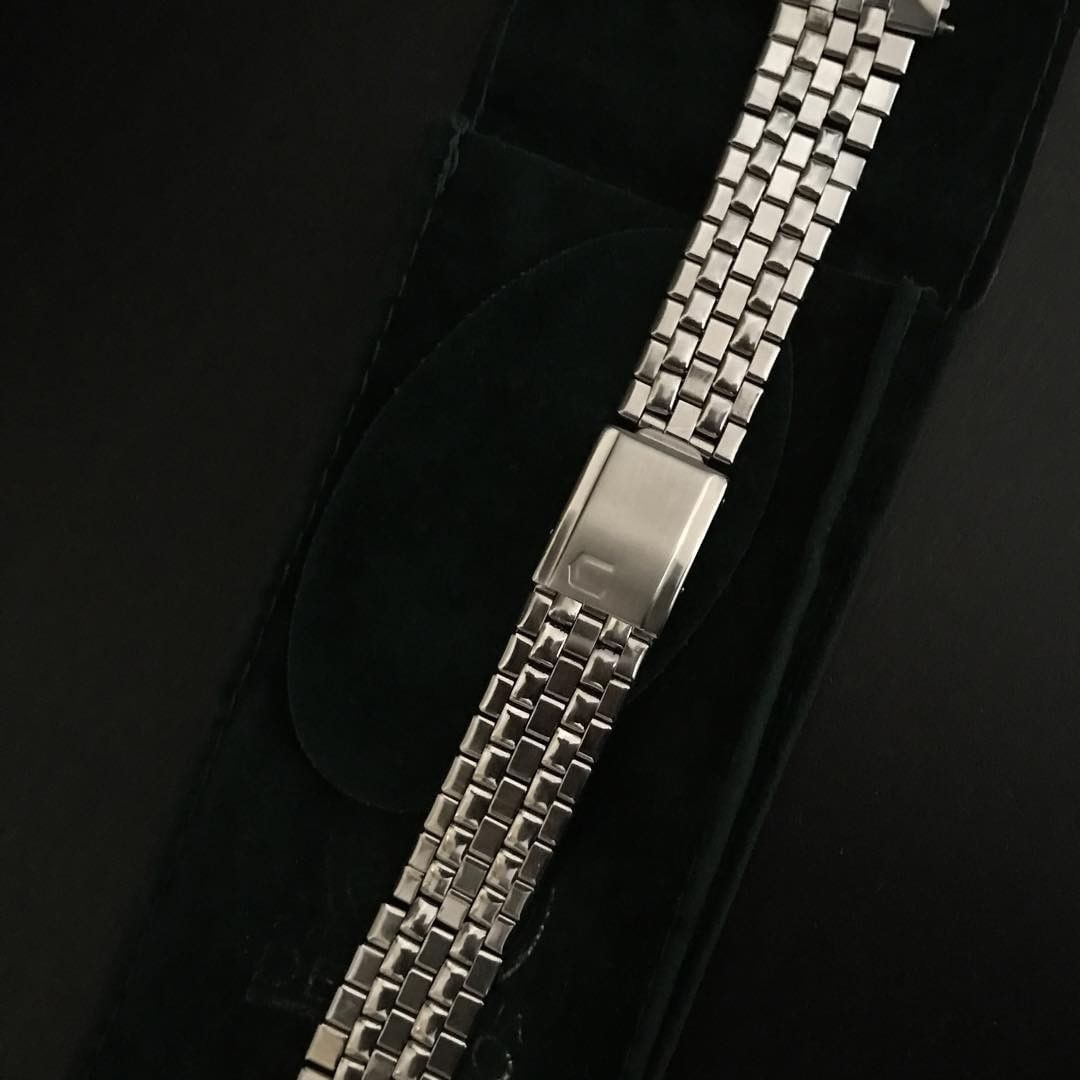

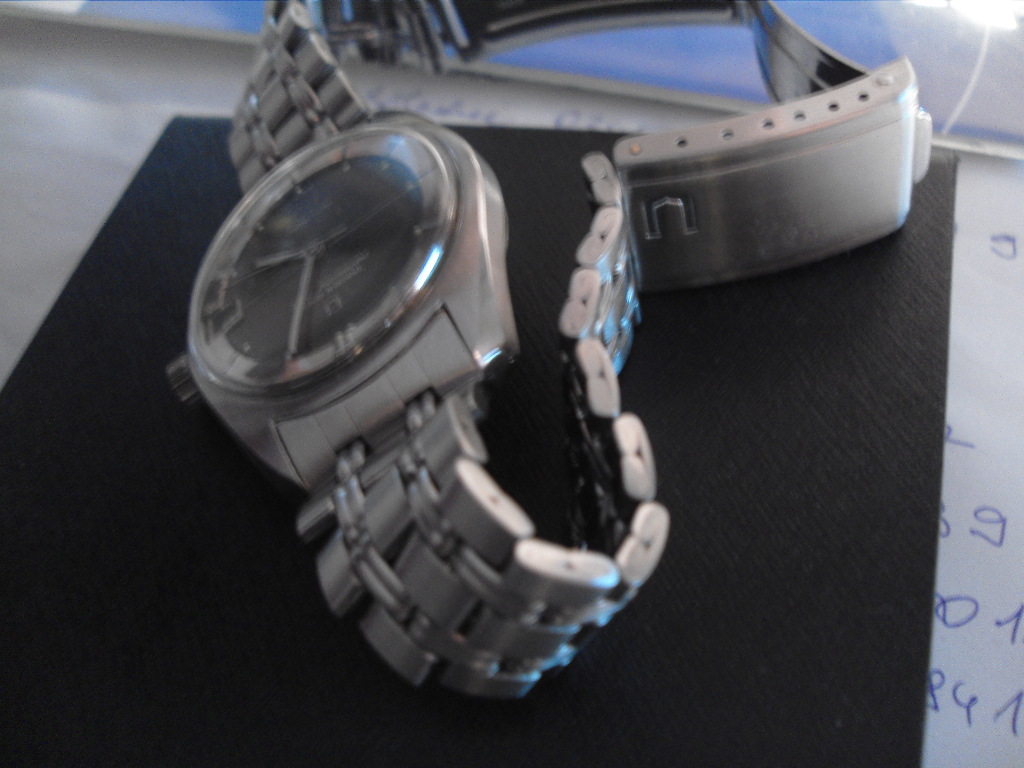

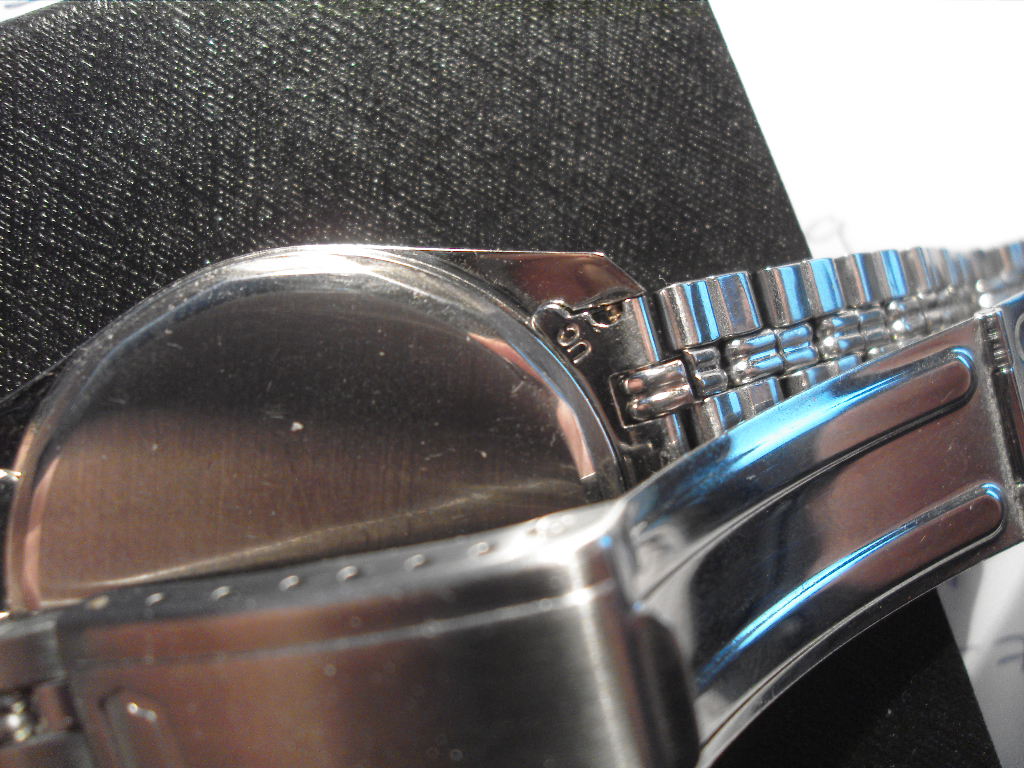

I found a nearly one year old photo of a UG bracelet I once owned. It's only marked "U". I believe it was attached to another non-Genta Polerouter. I don't have the size specs.

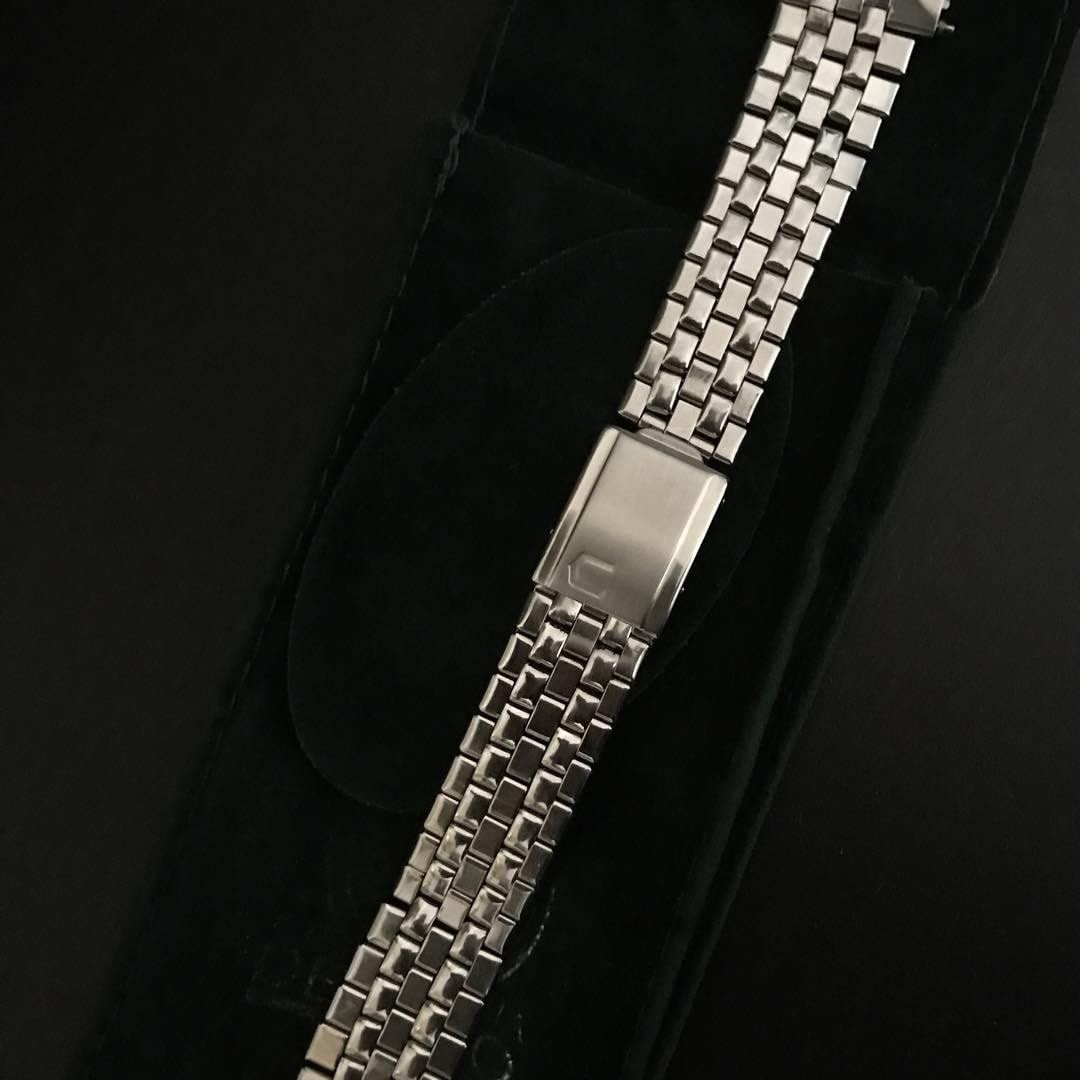

I also have one of these bracelets with "U" endlinks. They are 22mm

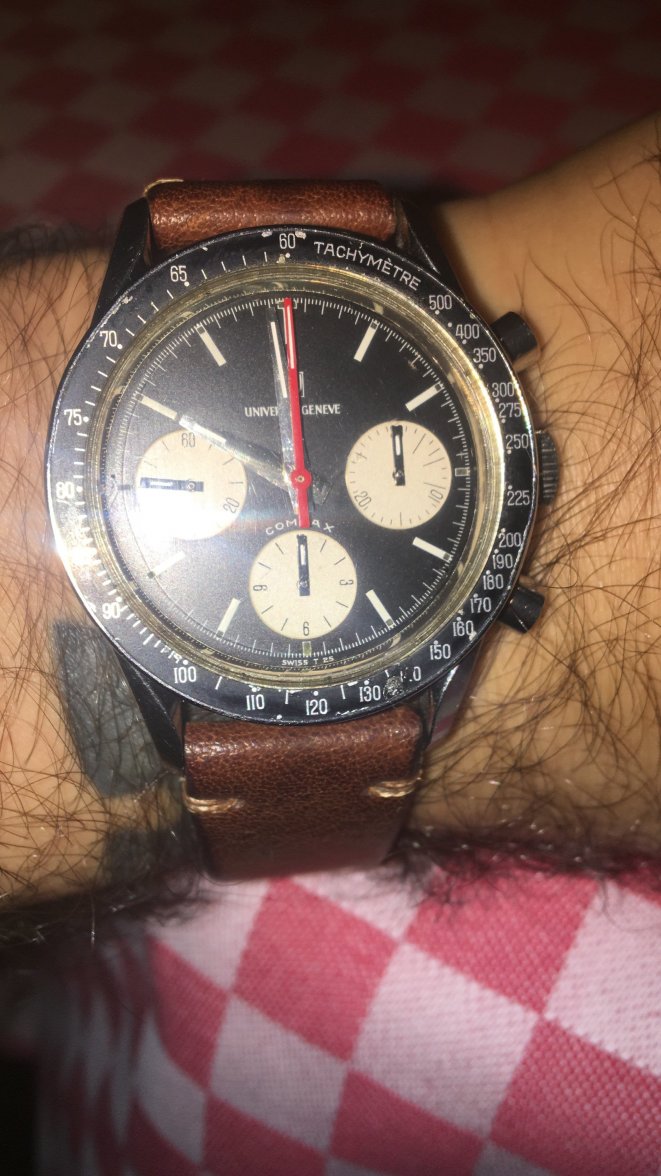

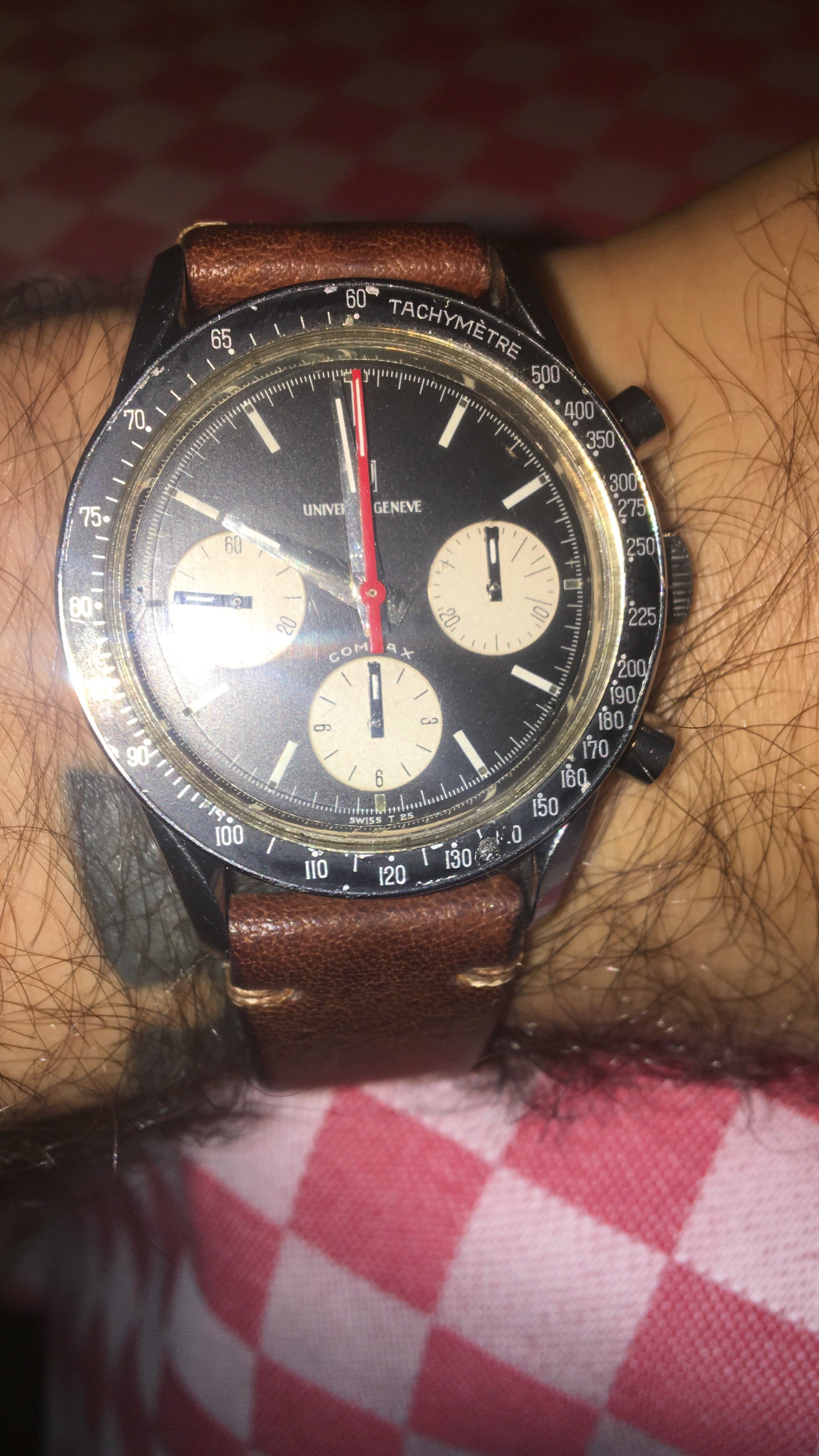

I was told it originally came attached to a similar Compax
