    I thought it would be beneficial to have this information in one thread, so here goes. If there are any errors, admins please feel to edit/amend the first post as it would be useful to have the information in one post as a compact guide in order to avoid trawling through a whole thread. I'm no expert, so please feel free to pitch in.

    In descending order:

    1. "UB" - 22m. Will fit Aero Compax 24 hour dial and oversized Compax

    2. "UM" 20mm. Will fit Pole Router Sub and both executions of Space Compax

    3. "UP" 19mm. Will fit Tri Compax and Nina and Evil Nina (by slightly shortening the width of the end links)

    4. "UW" 19mm. Supplied with Tri Compax and better fit than "UP".

    5. "UZ" 18.8mm found on a Uni Sonic but likely to be on other models too. Will fit Nina and Tri Compax

    6. "UT" 18mm. Seen on Pole Routers

    7. "UC" 18mm. Pole Routers

    Edited Dec 10, 2015
    SpeedTar, opahman, Mapearso and 15 others like this.
  2. Selbo

    Selbo Nov 10, 2015

    Posts
    285
    Likes
    919
    Thanks, HeuerLoon, this is very helpful. Of course finding an original UG bracelet is the first struggle..

    Quick question, my understanding is that the early (bumper) Polerouters are 19mm and the later Microtors are 18mm. Do you know if this is correct? I've never seen this officially spelled out anywhere. Does anyone have a good rule of thumb for looking at a Polerouter case to determine if the lug width is 19mm or 18mm?

  3. HeuerLoon

    HeuerLoon Nov 10, 2015

    Posts
    143
    Likes
    189
    I don't know I'm afraid; I will amend the first post if necessary if someone else can confirm.

  4. Selbo

    Selbo Nov 10, 2015

    Posts
    285
    Likes
    919
    Sorry, I should have started a new thread. The reason I asked is because I have a pair of UP end links I got just for a Microtor but they didn't fit. Thought I'd tried the bumper and they slid right on. Made me wonder how I could tell the Polerouters apart (without measuring, obviously). I previously assumed they were all 19mm.

  5. Modest_Proposal

    Modest_Proposal Trying too hard to be one of the cool kids Nov 10, 2015

    Posts
    1,925
    Likes
    3,210
    You think that is it?

    Explain this!

  6. HeuerLoon

    HeuerLoon Nov 10, 2015

    Posts
    143
    Likes
    189
    Not at all. If you give me the size and what models UZ will fit, I'll update the first post.

  7. Modest_Proposal

    Modest_Proposal Trying too hard to be one of the cool kids Nov 10, 2015

    Posts
    1,925
    Likes
    3,210

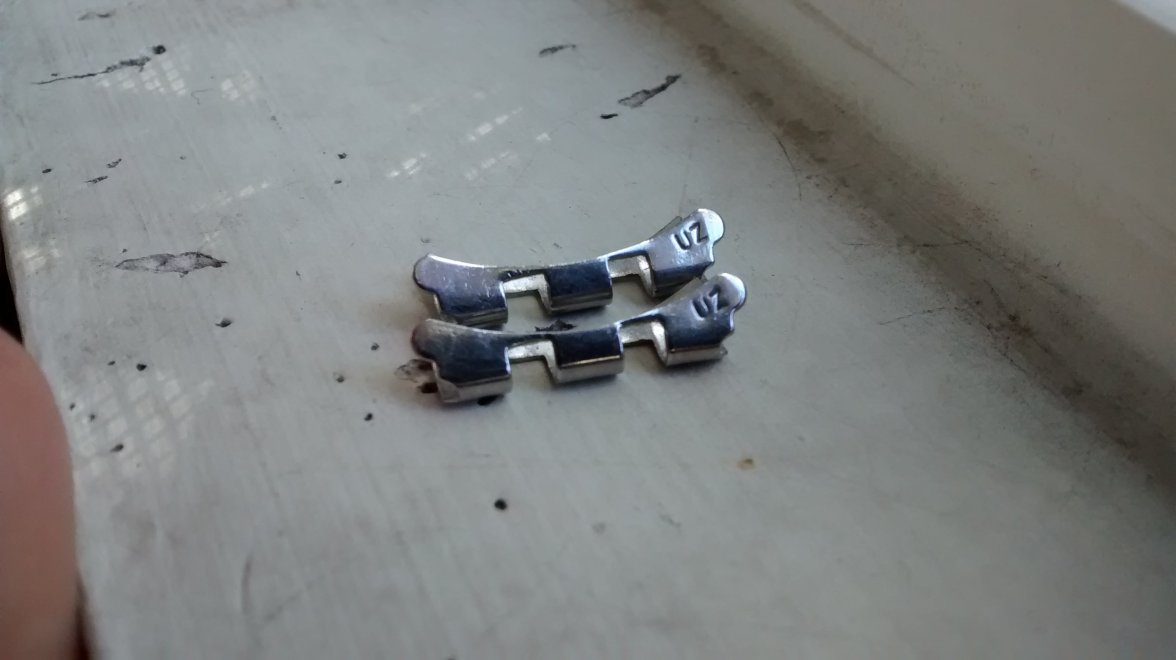

    Hmm,

    Based off of my measurements, they are meant for 18mm lugs. I think I acquired them from a non-Genta Polerouter, but I cannot recall for sure. I'm sorry I couldn't give you a model.

  8. LouS

    LouS Mrs Nataf's Other Son Staff Member Nov 10, 2015

    Posts
    6,311
    Likes
    14,986
    Great thread idea

    I've got
    UM on my 20mm Space Compax
    UW on my late model (19mm) Tri-Compaxes
    picsixteen2765.jpg picthree2765.jpg
    Just an observation that "will fit" and "was made for" are not necessarily synonymous. "UP" will fit Tri-Compaxes, but not as well at "UW"

    littlesheep81 and Baz9614 like this.
  9. LouS

    LouS Mrs Nataf's Other Son Staff Member Nov 10, 2015

    Posts
    6,311
    Likes
    14,986

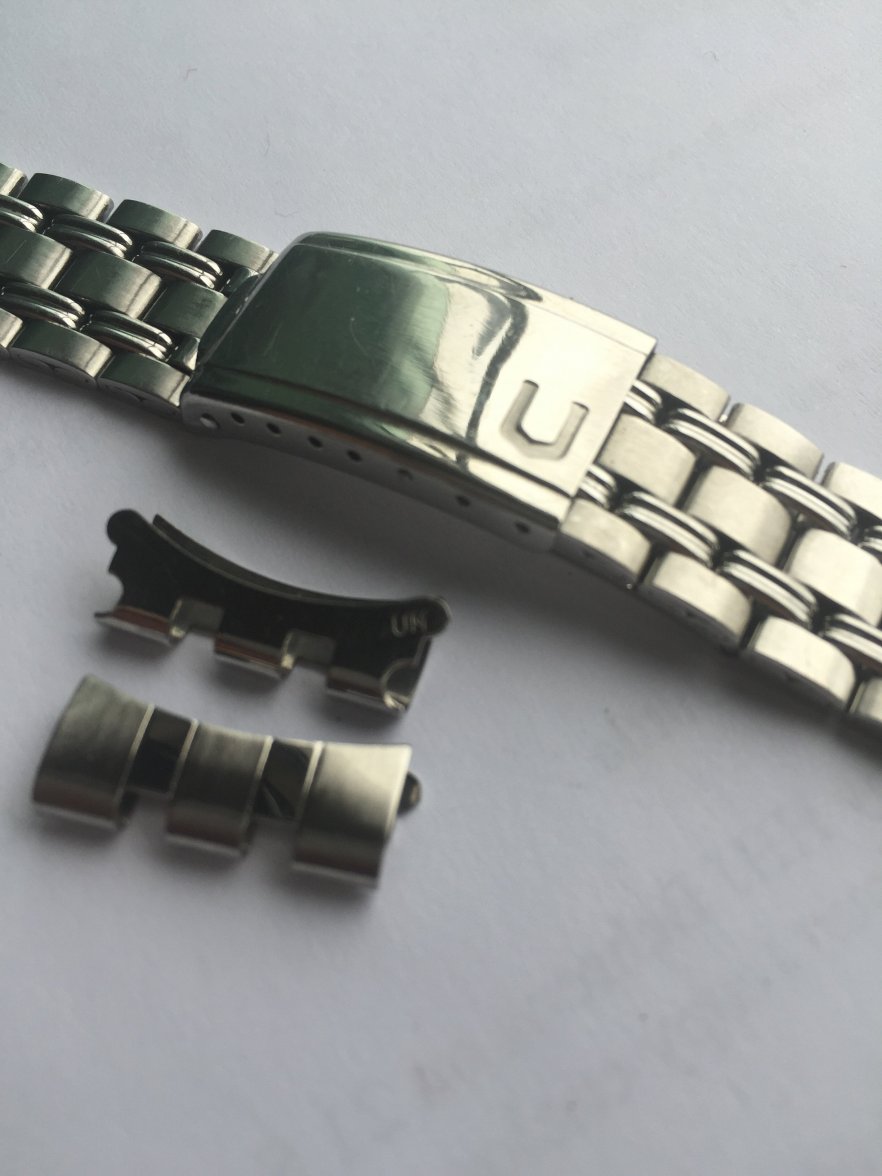

    Add "UX" for Polerouter
    $T2eC16N,!ysE9sy0hYiYBRbDl2SGYg~~60_12.JPG $T2eC16h,!yUE9s6NGYQ(BRbDmmfHig~~60_12.JPG

    Keep 'em coming guys. Pictures are even better. The Zenith version of this thread is a great reference. This one will be too.

    Chrobar, SpeedTar and aap like this.
  10. HeuerLoon

    HeuerLoon Nov 10, 2015

    Posts
    143
    Likes
    189
    Thanks for clarifying that there's a difference between "UP" and "UW" Lou

    What is the width of "UX"?

  11. LouS

    LouS Mrs Nataf's Other Son Staff Member Nov 10, 2015

    Posts
    6,311
    Likes
    14,986
    19mm. Mind you, it's not the standard pattern UG bracelet, but a stretchy version - the connecting links may be different.

  12. HeuerLoon

    HeuerLoon Nov 10, 2015

    Posts
    143
    Likes
    189
    If there are enough different sizes of this particular bracelet, I'll start a separate list for it.

  13. HeuerLoon

    HeuerLoon Nov 11, 2015

    Posts
    143
    Likes
    189

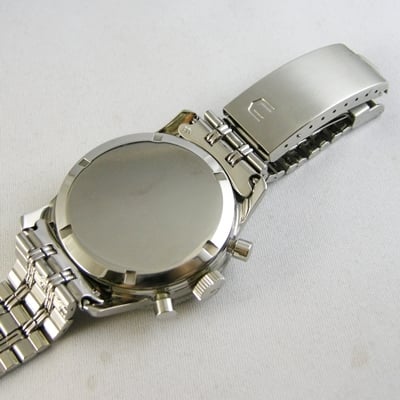

    22mm "UB" on an Aero Compax

    UB End Links 22mm on Aeor Compax.jpg
  14. HeuerLoon

    HeuerLoon Nov 11, 2015

    Posts
    143
    Likes
    189
    20mm "UM"

  15. LouS

    LouS Mrs Nataf's Other Son Staff Member Nov 11, 2015

    Posts
    6,311
    Likes
    14,986
    which AeroCompax is that?

  16. HeuerLoon

    HeuerLoon Nov 11, 2015

    Posts
    143
    Likes
    189
    Type E as per the typology thread.

  17. Modest_Proposal

    Modest_Proposal Trying too hard to be one of the cool kids Nov 11, 2015

    Posts
    1,925
    Likes
    3,210

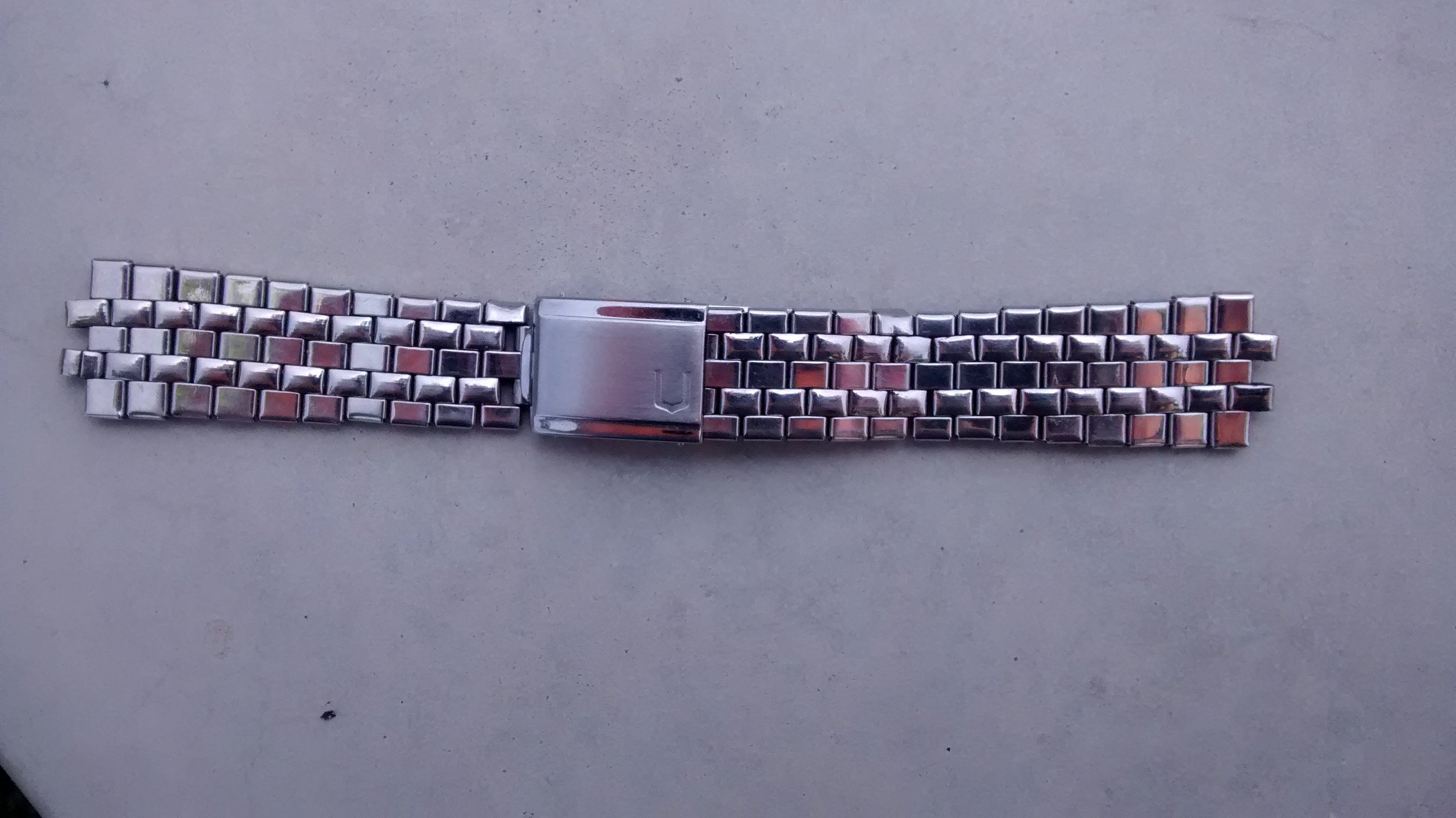

    I found a nearly one year old photo of a UG bracelet I once owned. It's only marked "U". I believe it was attached to another non-Genta Polerouter. I don't have the size specs.

    IMG_20140701_132042667.jpg IMG_20140701_141304992.jpg
    papaebetu and HeuerLoon like this.
  18. papaebetu

    papaebetu Nov 11, 2015

    Posts
    339
    Likes
    445

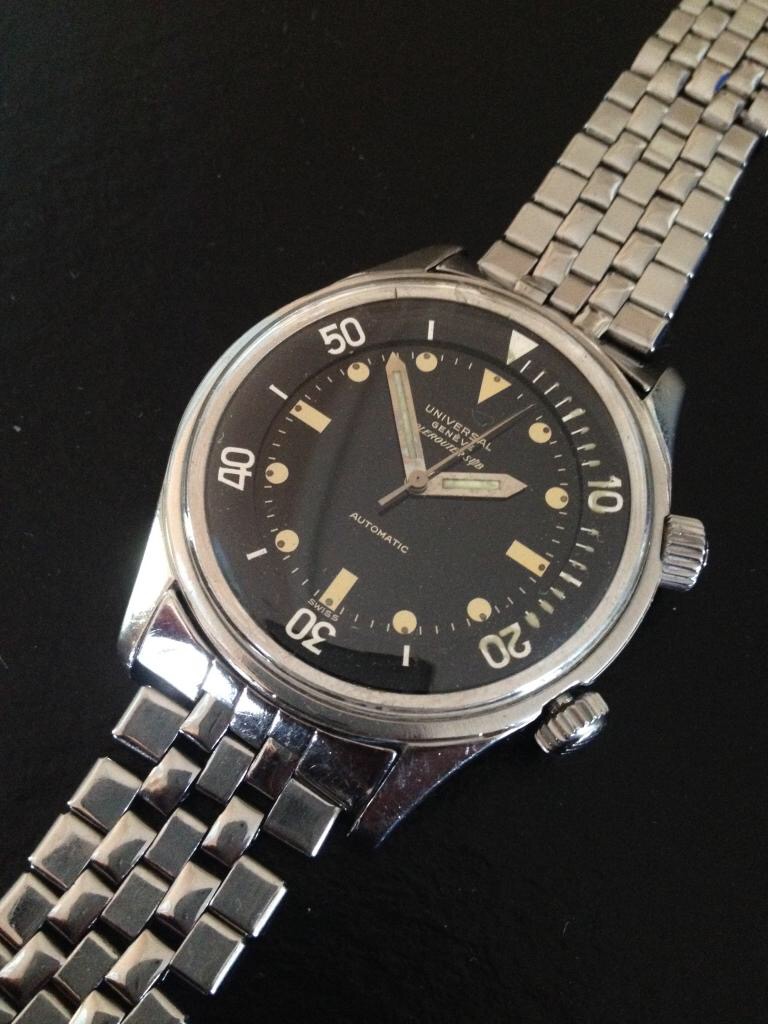

    ...elastic on Super Compressor

    GIGI

  19. HeuerLoon

    HeuerLoon Nov 12, 2015

    Posts
    143
    Likes
    189
    Very nice Gigi. What size are the lugs on the case? Are they end pieces marked ?

  20. Jamey S

    Jamey S Nov 23, 2015

    Posts
    26
    Likes
    86
    Question for the group. Finally found a pair of UP ends in hopes of making them work on my Nina. They measure 19.96mm. Lugs on nina are 19. Checked them against my polerouter Sub UPs that are also almost 20. (should have done this a while back?!) Just wondering how people are making the UPs work as they do not seem to work the same as UWs. know they are a different shape but thought I had hit a home run with this find. Time to break out the file? What am I missing? Help!

    Thanks

    Jamey
