SEIKO 7548-7000 JAPAN J 150M QUARTZ DIVER (PYH018)

  1. hmmmcamu Jun 5, 2021

    Posts
    1,753
    Likes
    9,231

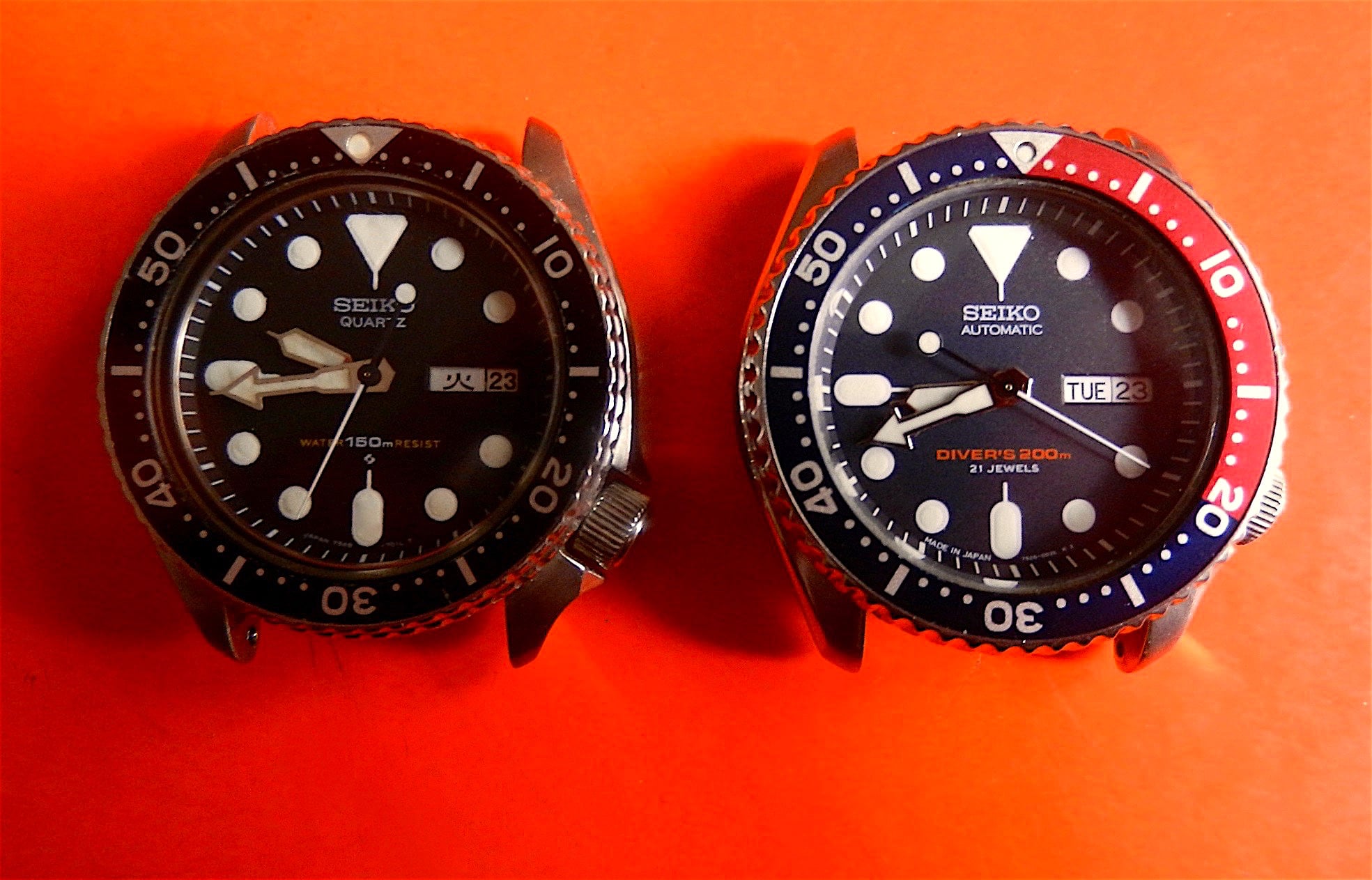

    SEIKO 7549-7000 (PYH018) is a true 150m diver's watch with quartz accuracy and dependability whose styling legacy is carried on by the SEIKO 7S26 200m SXK007/9 SCUBA DIVER's.


    Released in 1978, a time where quartz movements were state-of-the-art, the 7548 shares many parts with the mechanical 6309 movement which were used in the Turtle. You can exchange parts between these movements. In fact, the 7548 is a 6309 with a quartz module. It’s a highly reliable movement, containing almost no plastic parts, 5 jewels and a trimming screw to adjust the speed. A high end movement in it’s time and until today one of the best quartz movements ever.

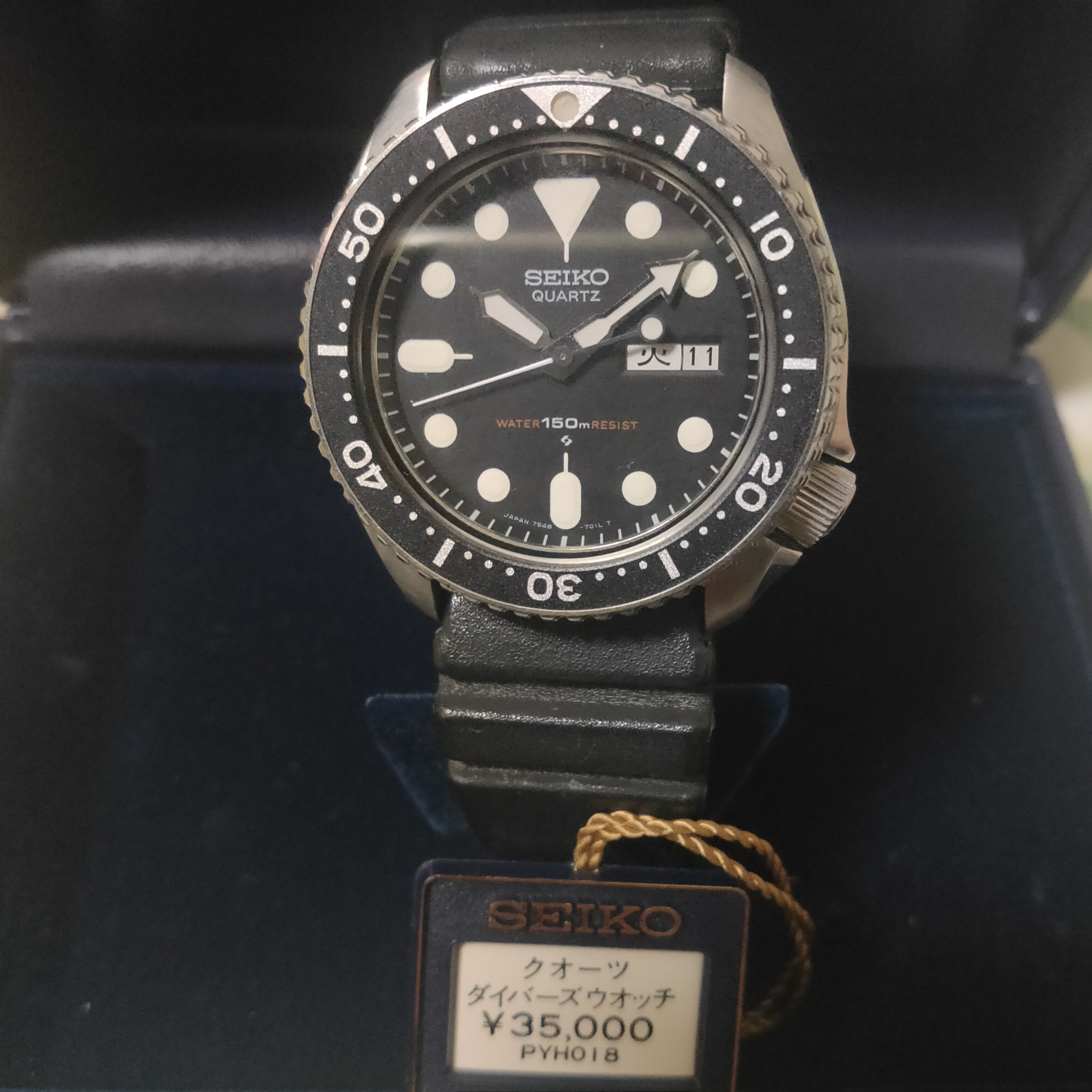

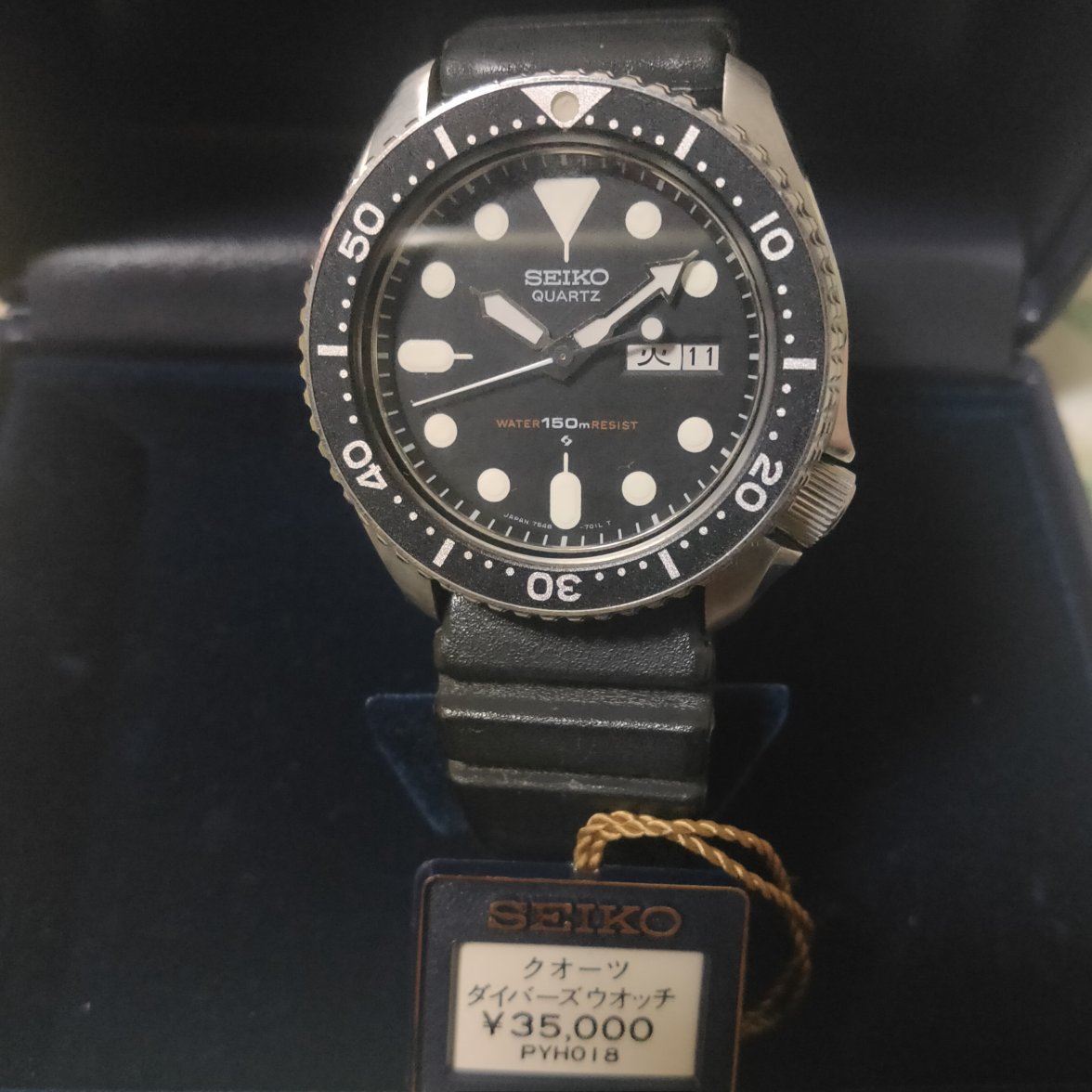

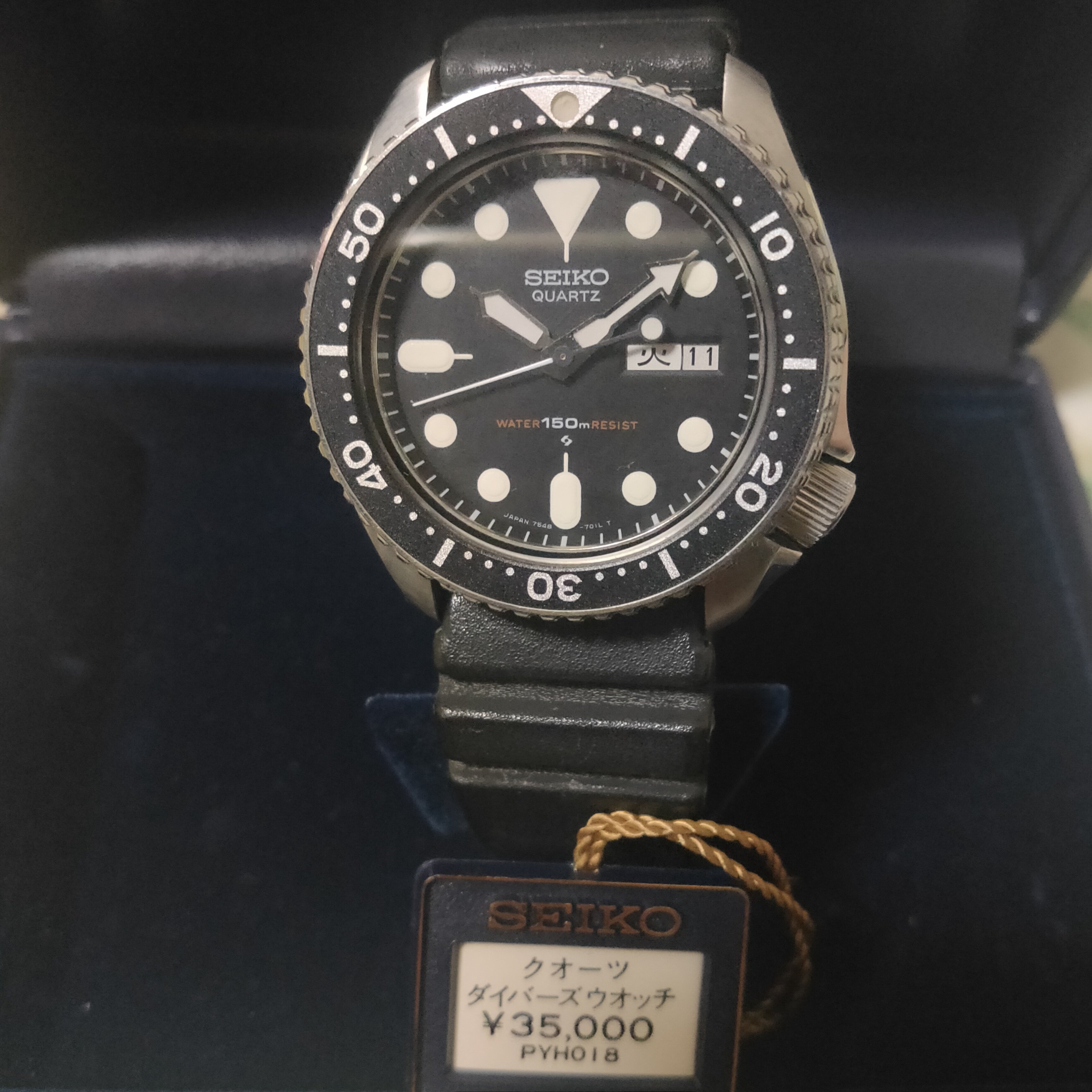

    misc. In 1980 a SEIKO 6306-7000 JDM is priced at 25,000 Yen the SEIKO 7548-7000 was priced @ 35,000 Yen (40% more), in the same time period an OMEGA SEAMASTER AUTOMATIC DIVER ST 366.0858 " BABY PLOPROF " was priced @ 38,500 Yen in Japan.

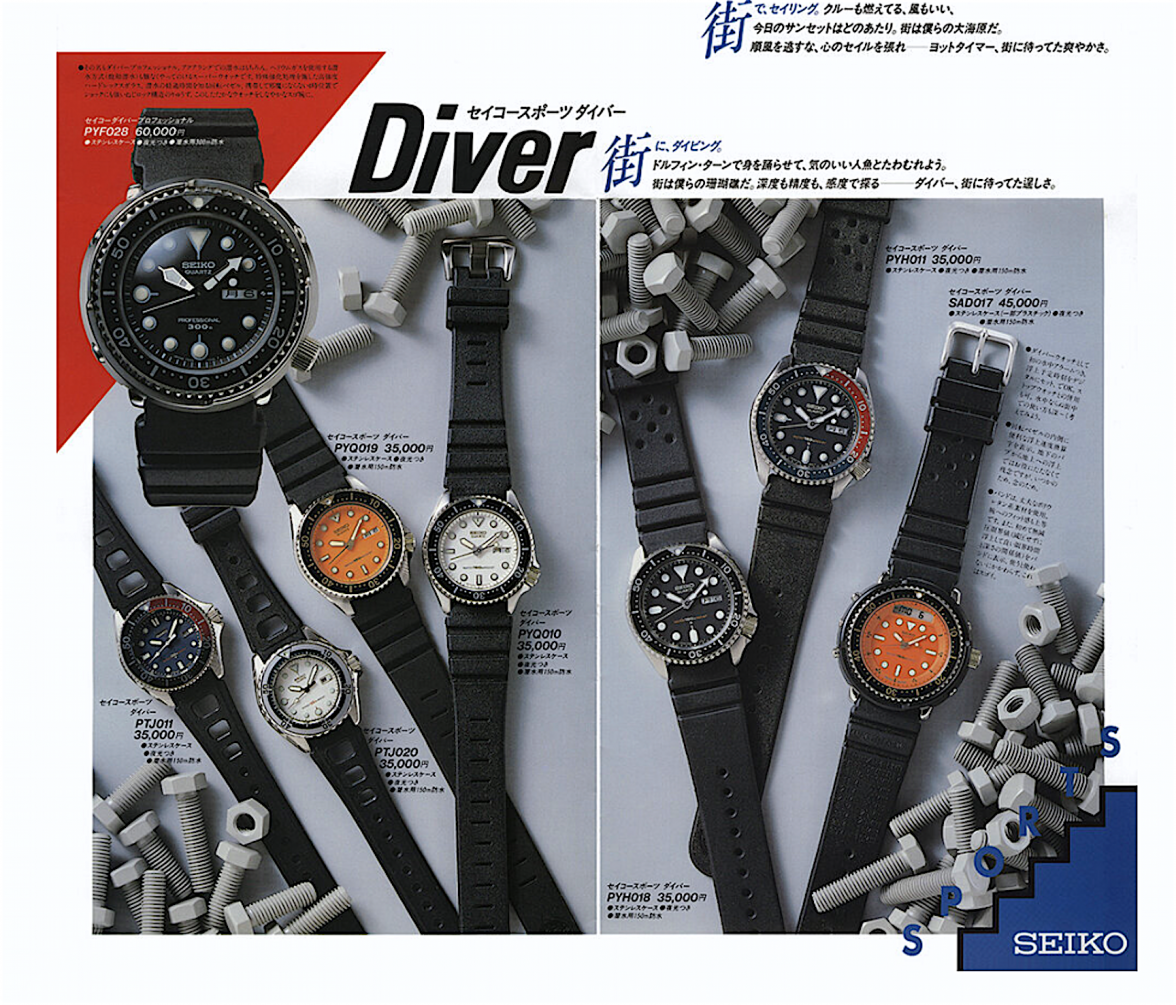

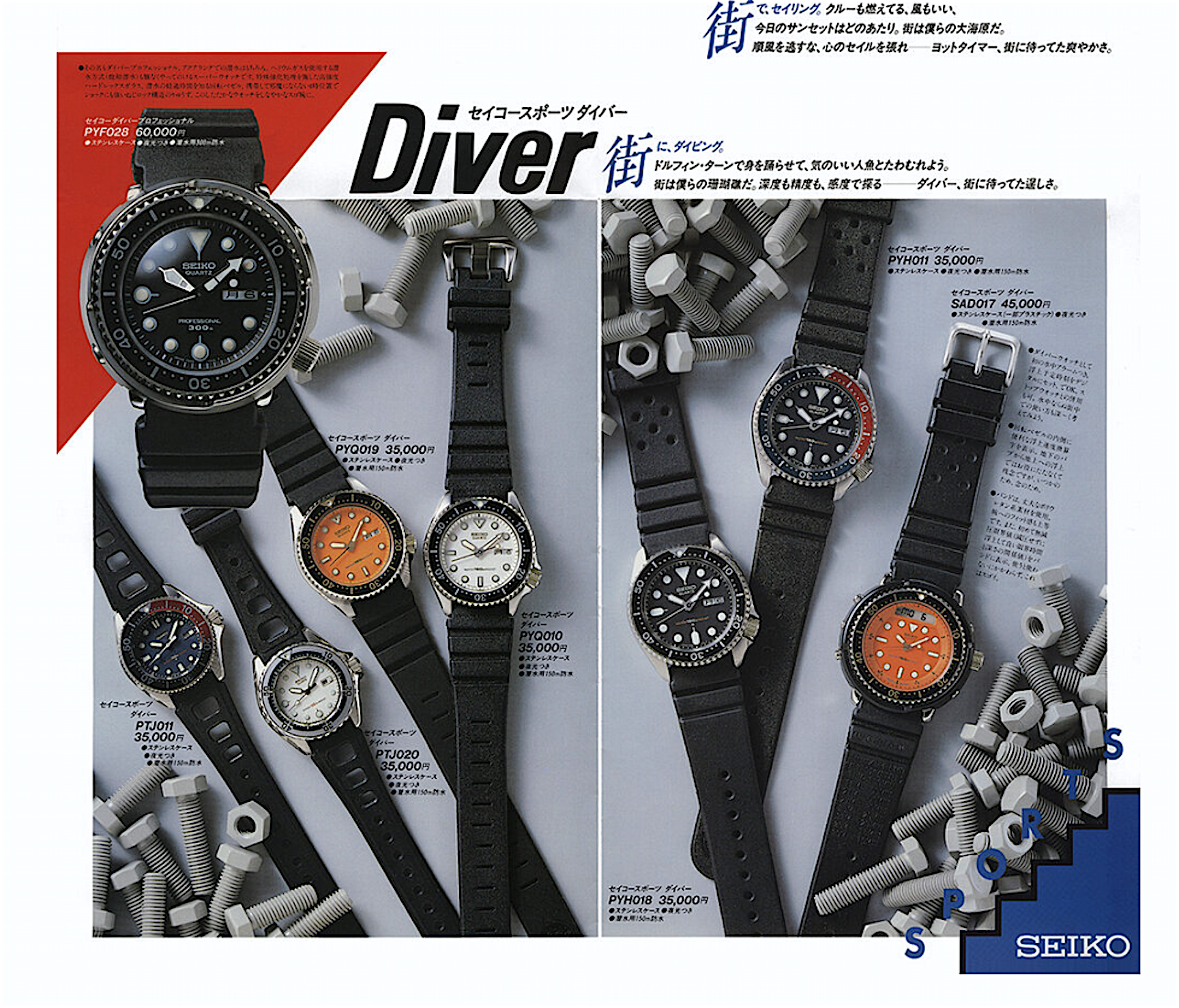

    The PYF028 (7549-7010) 300m quartz tuna, orange dialled PYQ019 (6458-600A) and black dialled PYQ018 (6458-6000) midsize 150m divers, PTJ011 (2625-0010) and PTJ020 (2625-0170)compact 150m divers.

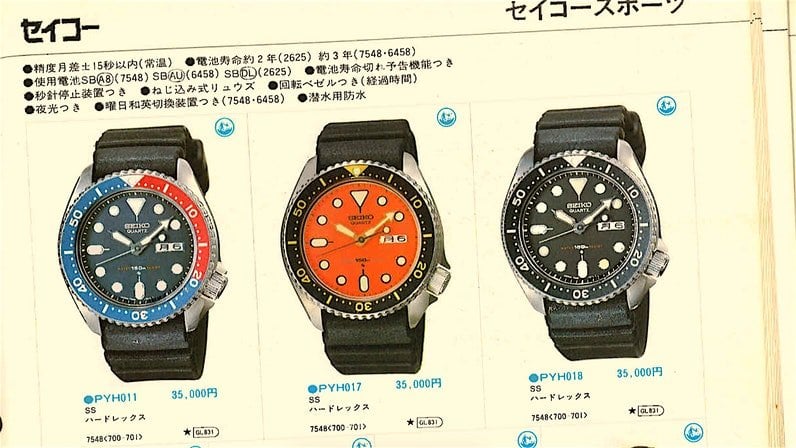

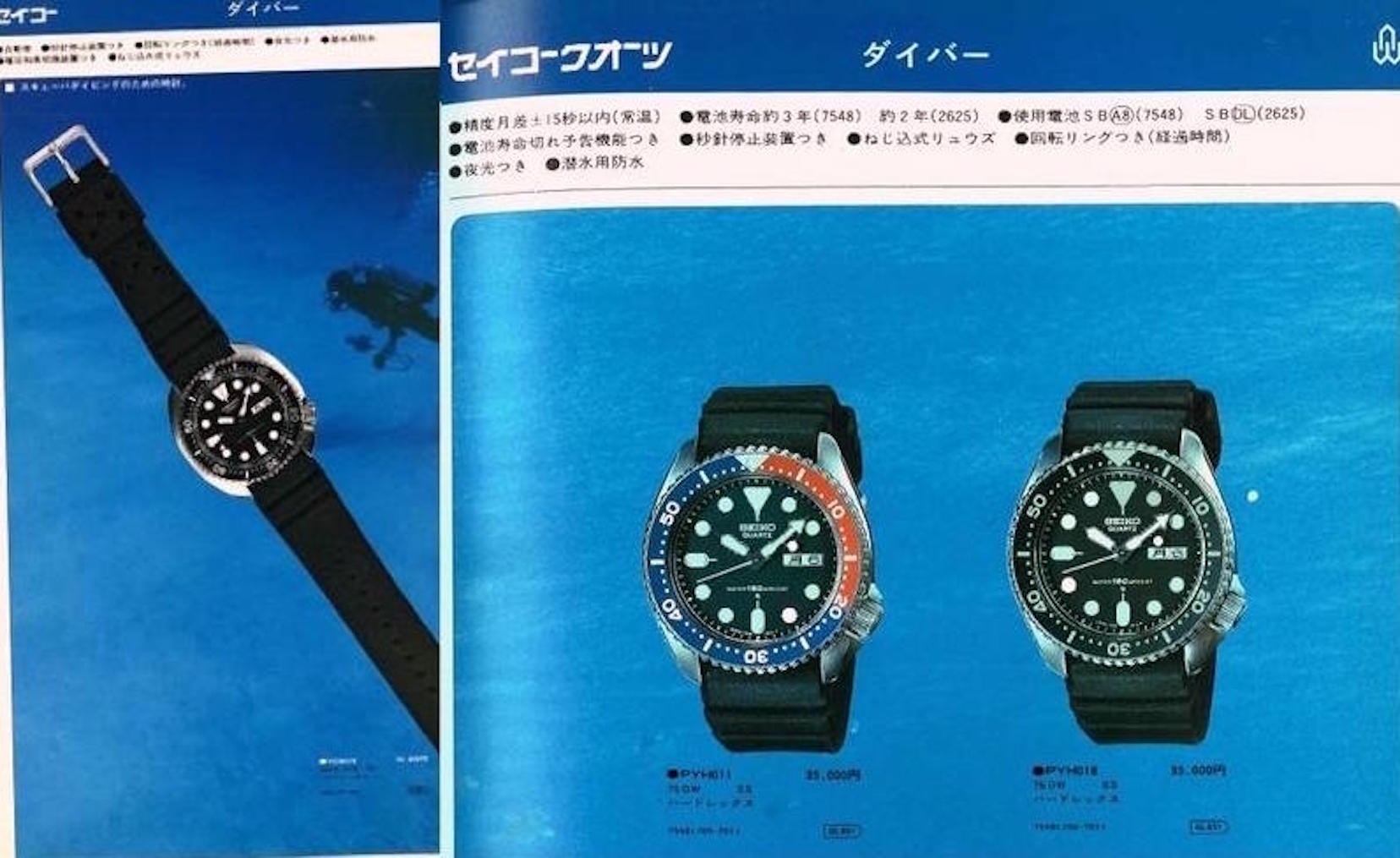

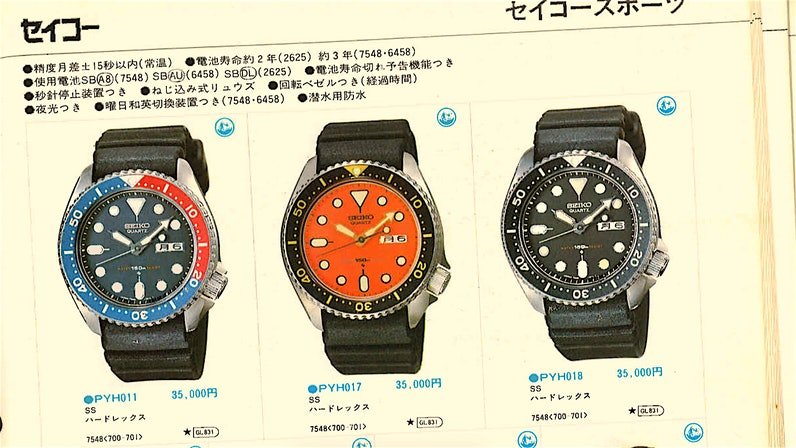

    The right hand side of the photo features the black PYH018 (7548-7000) and pepsi PYH011 (7548-700B) 150m full size quartz divers. There is also the orange SAD017 (H558-500A) arnie model with a clear shot of the original strap design that has the decompression limits table on it.


    20a-1.jpg 1614261542410-968897348928596865941706-screenshot20210225at8-54-53am-png-jpeg.465965.jpeg

    SEIKO 7548 150M QUARTZ DIVERS
    by HYUNYOUB SHIM July 15, 2019

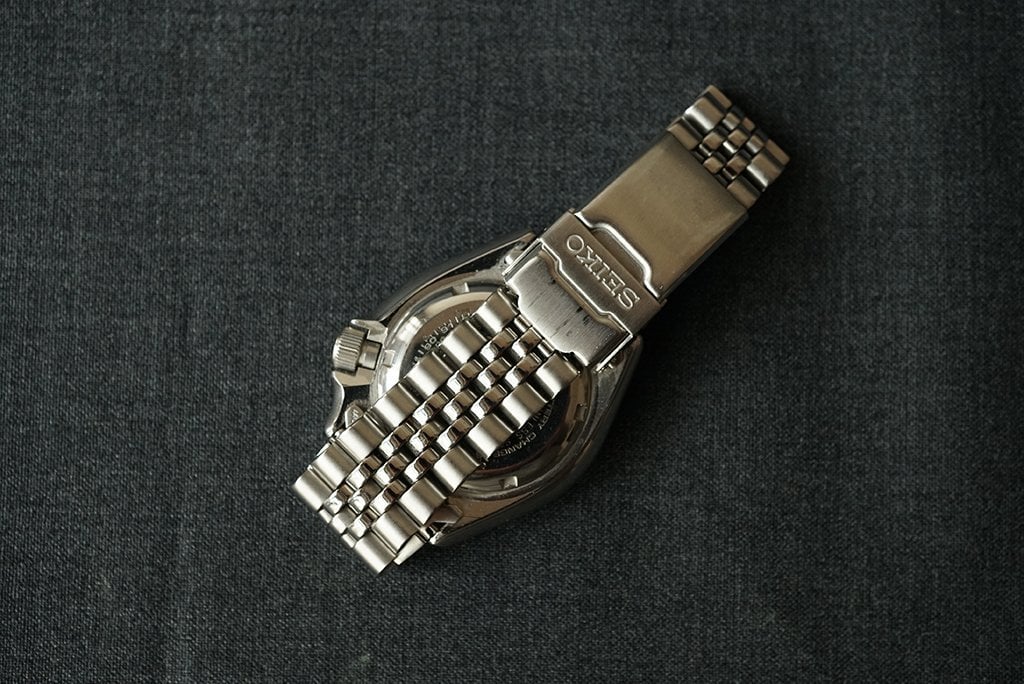

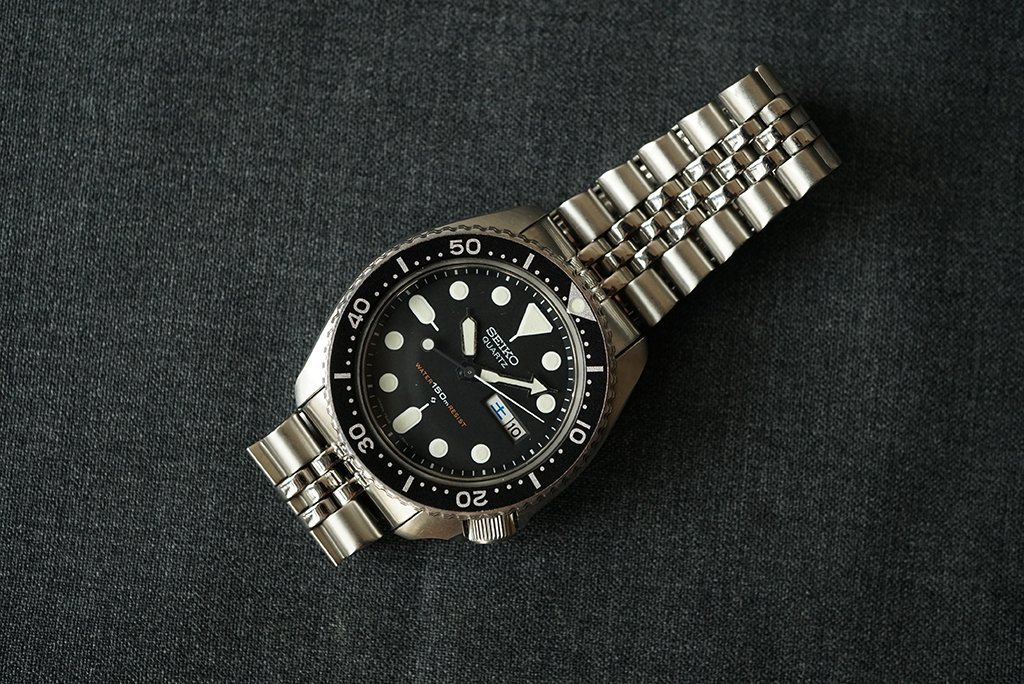

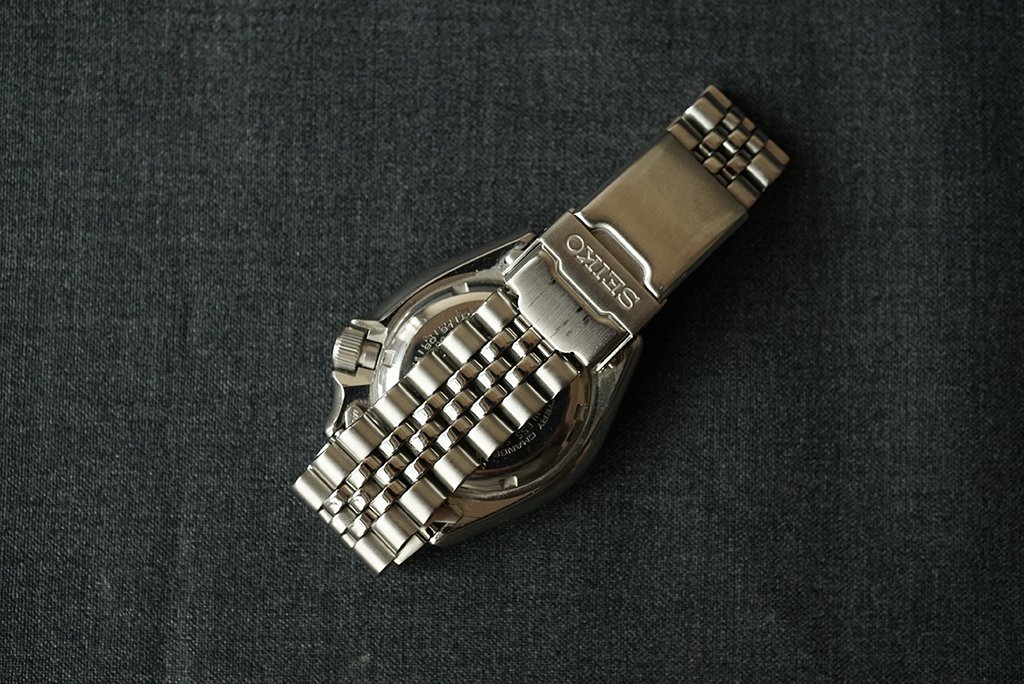

    It is well known among vintage dive watch collectors that real US Navy divers wear Seiko dive watches--not the Rolex Submariner, as most vintage watch dealers want you to believe. US Navy divers perform a variety of underwater tasks on ships and submarines that include hull inspection and cleaning, installation and removal of equipment, and welding repairs to enable damaged vessels to continue steaming and complete their missions. While performing these tasks, they usually wear a Seiko either on the supplied rubber strap or, during off-duty hours, on a metal one such as a jubilee bracelet.


    Why a Seiko over a Rolex, you may ask? First, it gets the job done underwater. Second, it is super accurate, especially when powered by quartz. Finally, you can break or lose it and not feel guilty about it because the entire package costs less than a Rolex bracelet.

    03_449b0321-53ca-4947-a8d8-dcd74367fb32-jpg.465874.jpeg 05_53281705-babe-4a53-a767-426878b6b1db-jpg.465875.jpeg

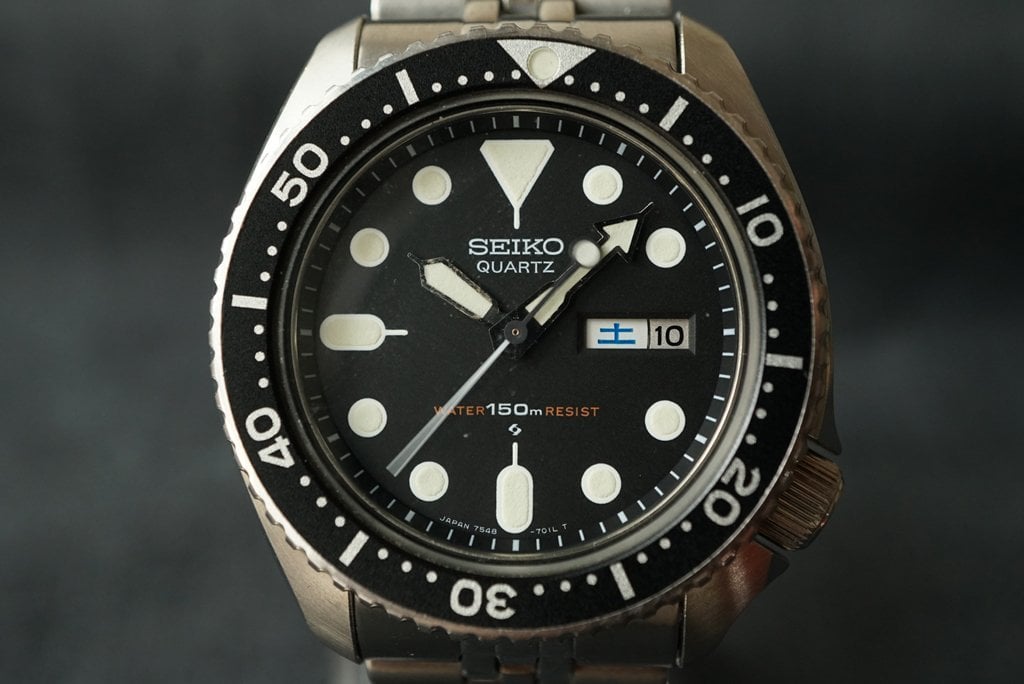

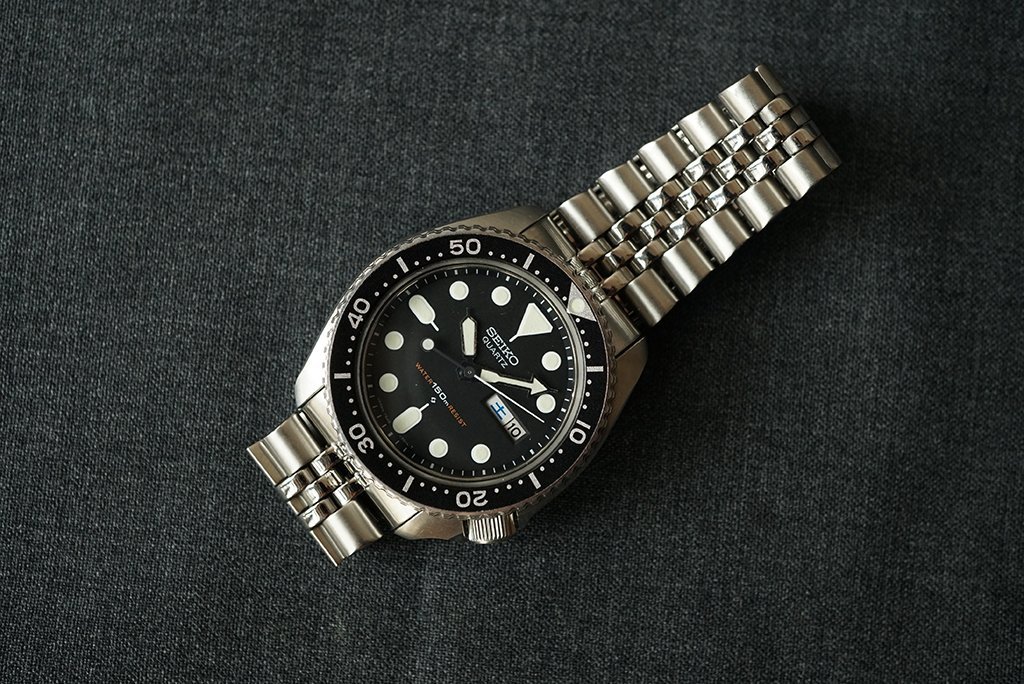

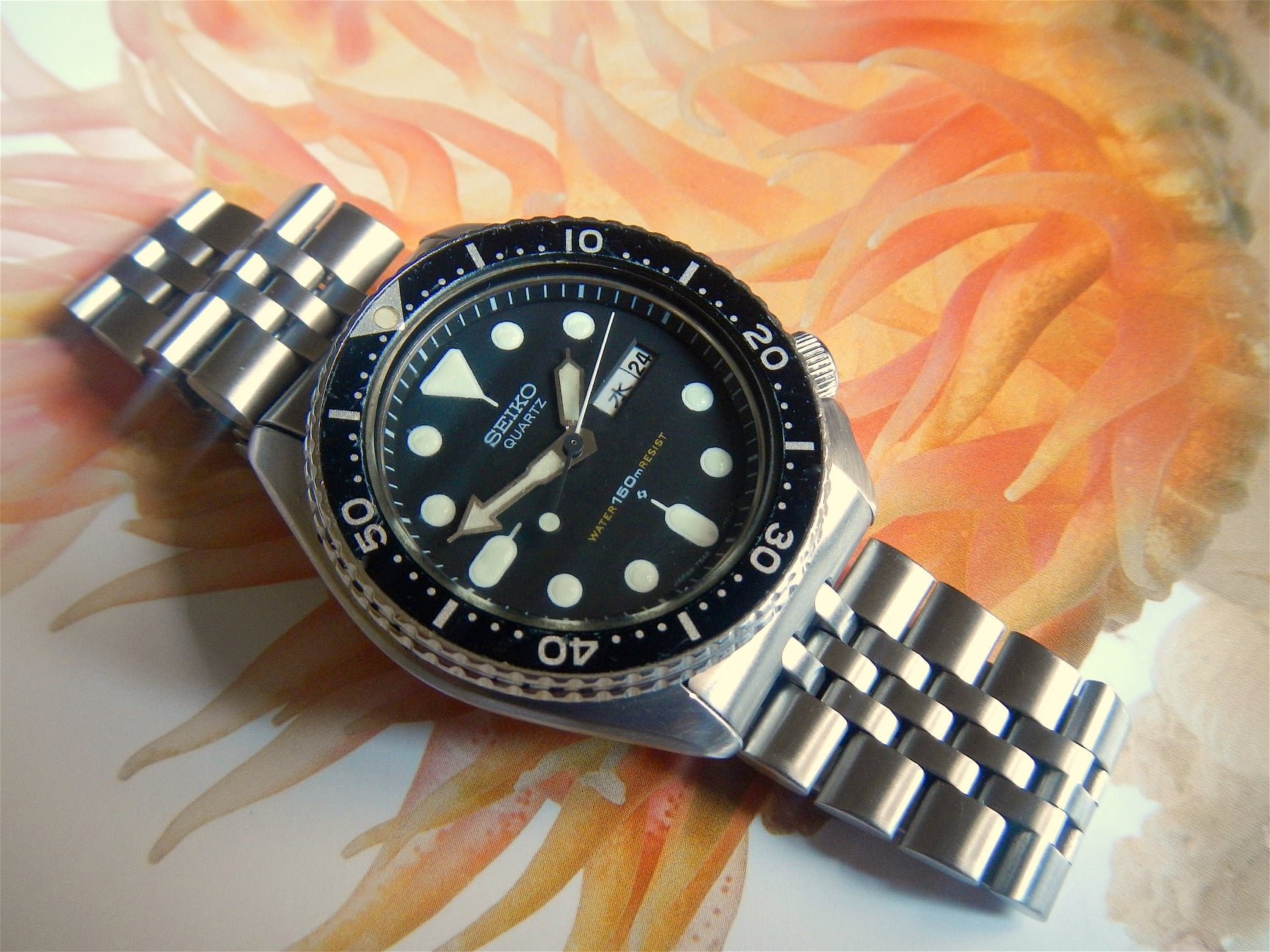

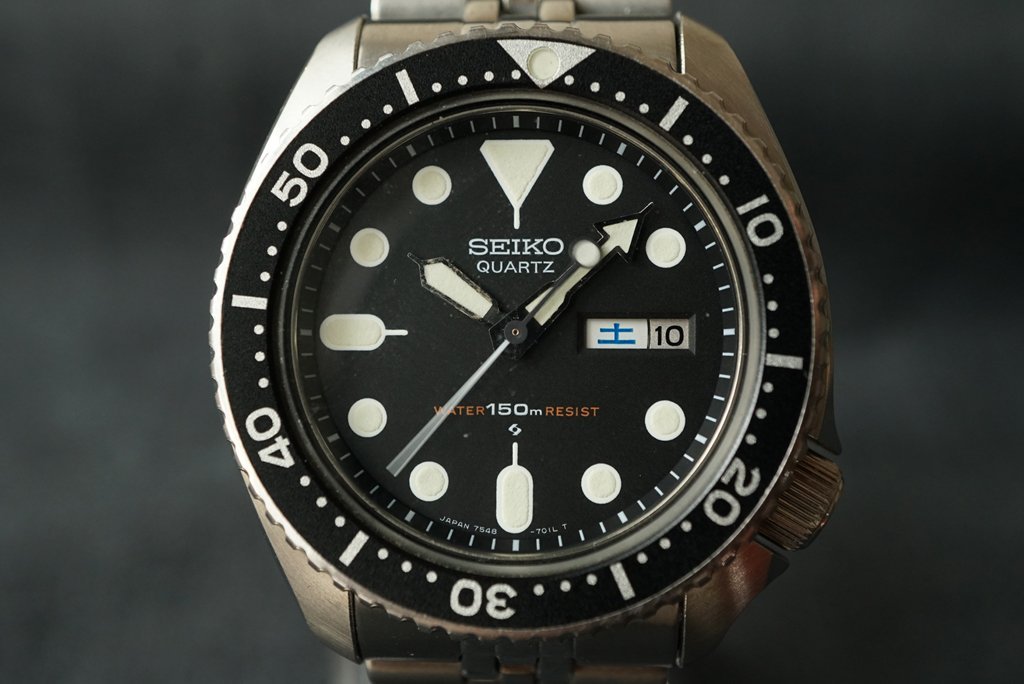

    Since the early 80's, Seiko dive watches, especially the 150m quartz model pictured here, have been popular with US Navy divers. Collectors call them "Seiko 150m quartz diver," but more accurately, it is a "Seiko 7548 diver," because it uses a quartz movement labeled with that number.

    10_8dddb034-f3a2-4b7d-8920-5568518f3b82-jpg.465877.jpeg 379021-r-wdi41-875-jpg.465876.jpeg

    General Norman Schwarzkopf

    SEIKO 7548-700F "SQ"
    dial
    Dark blue dial and pepsi bezel

    One of the most famous use cases of a Seiko 7548 diver by someone in the US military, however, was not a diver but an Army General by the name of Norman Schwarzkopf. He described the use of the watch himself:

    "I always wore two watches during the [Gulf] war. The one on my left arm was set on Saudi Arabian time and the Seiko on my right arm was set on Eastern Standard Time. That way I could quickly glance at my watches and instantly know the time in both Saudi Arabia and Washington, D.C."

    Though some might disagree, his choice for Seiko 7548 diver actually makes it a military field watch.
    from Author: Hyunsuk Seung

    note: "SQ" stands for SEIKO QUARTZ and were printed on the dials of watches meant for overseas sales [non japanese domestic models]

    qhdowmqxjf601-jpg.465880.jpeg unnamed.jpg




    SPECIFICATIONS:

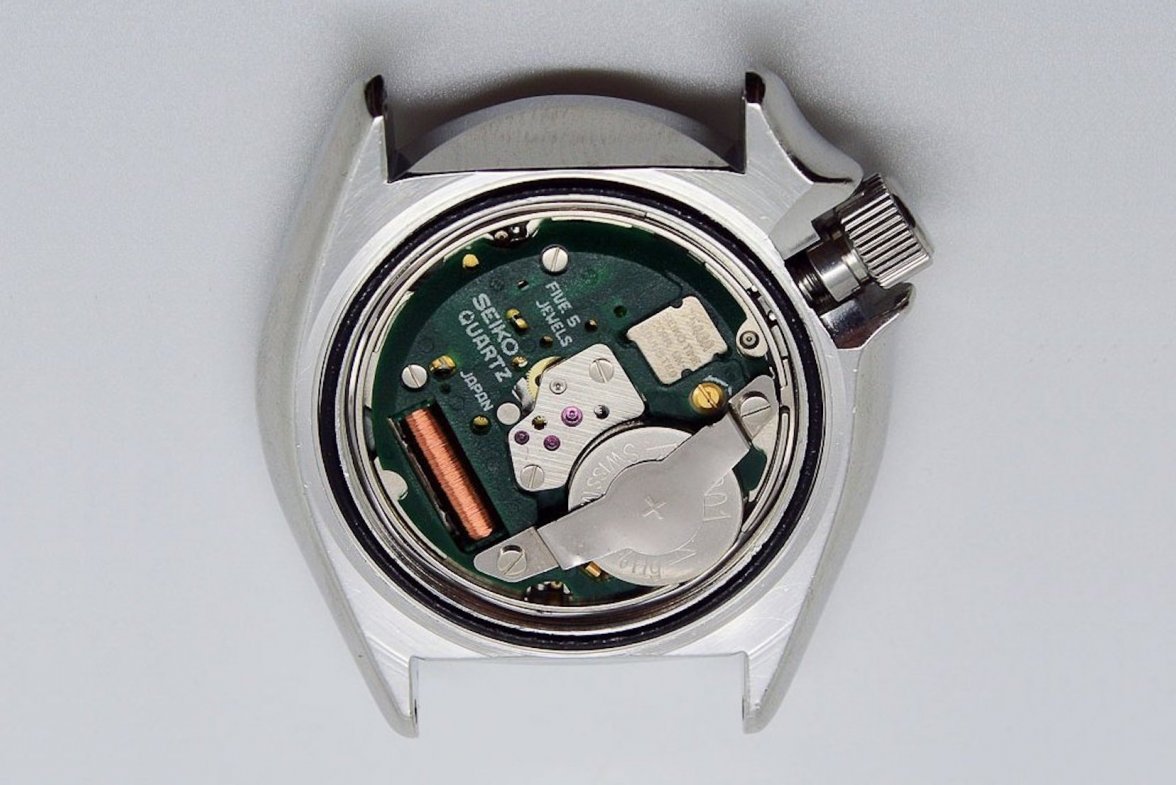

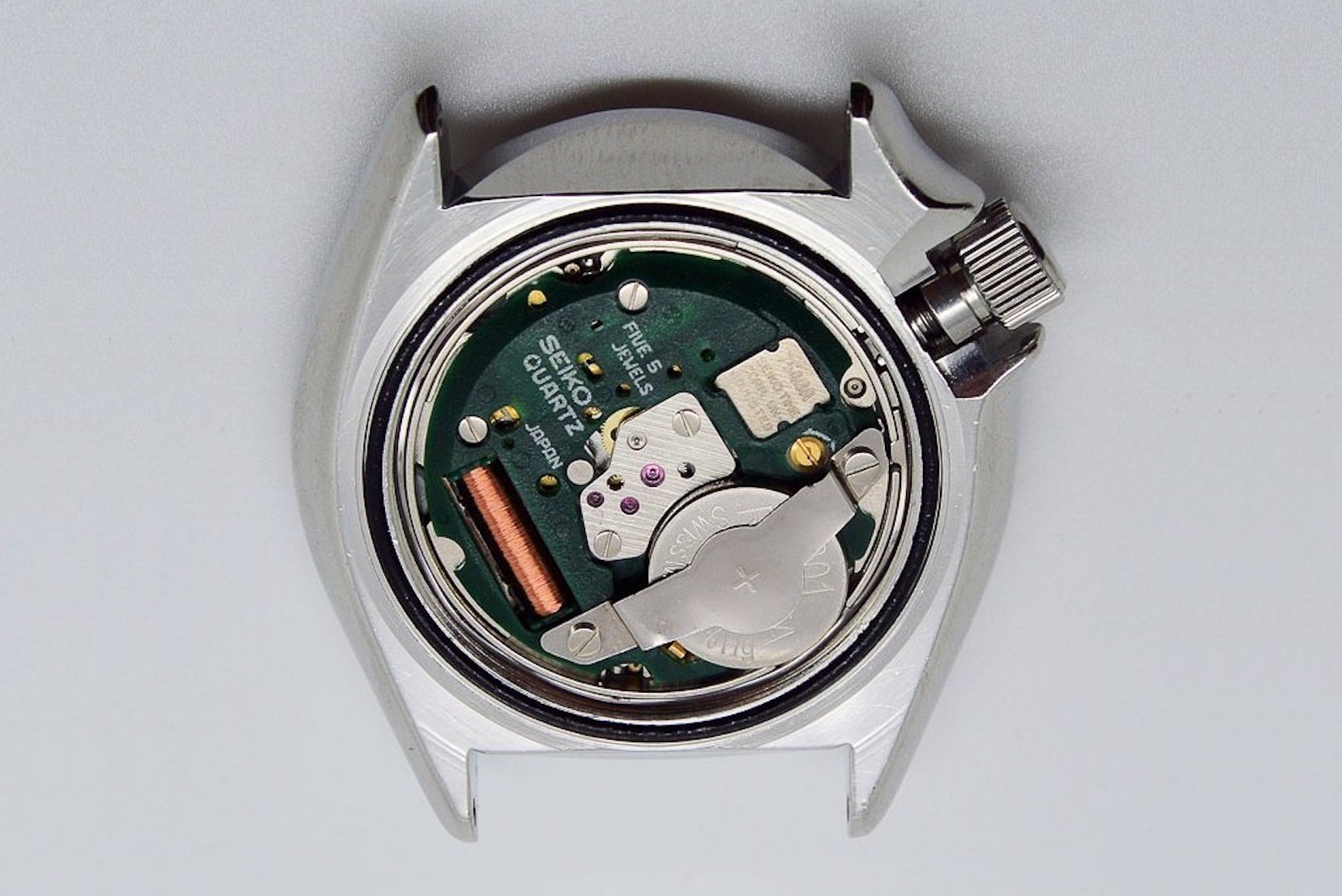

    MOVEMENT: SEIKO Quartz Cal 7548, 5 Jewels, 32’768 Hz

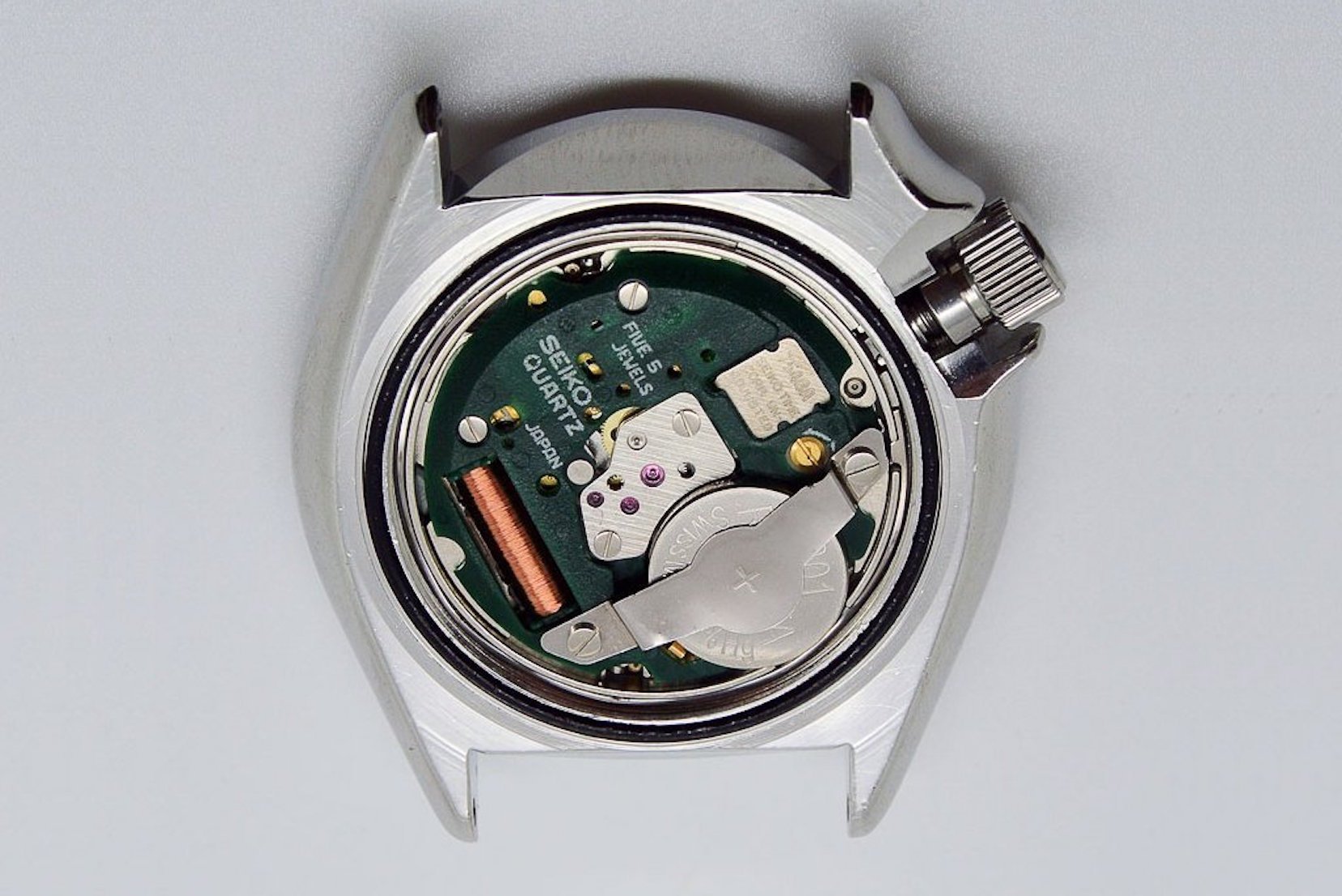

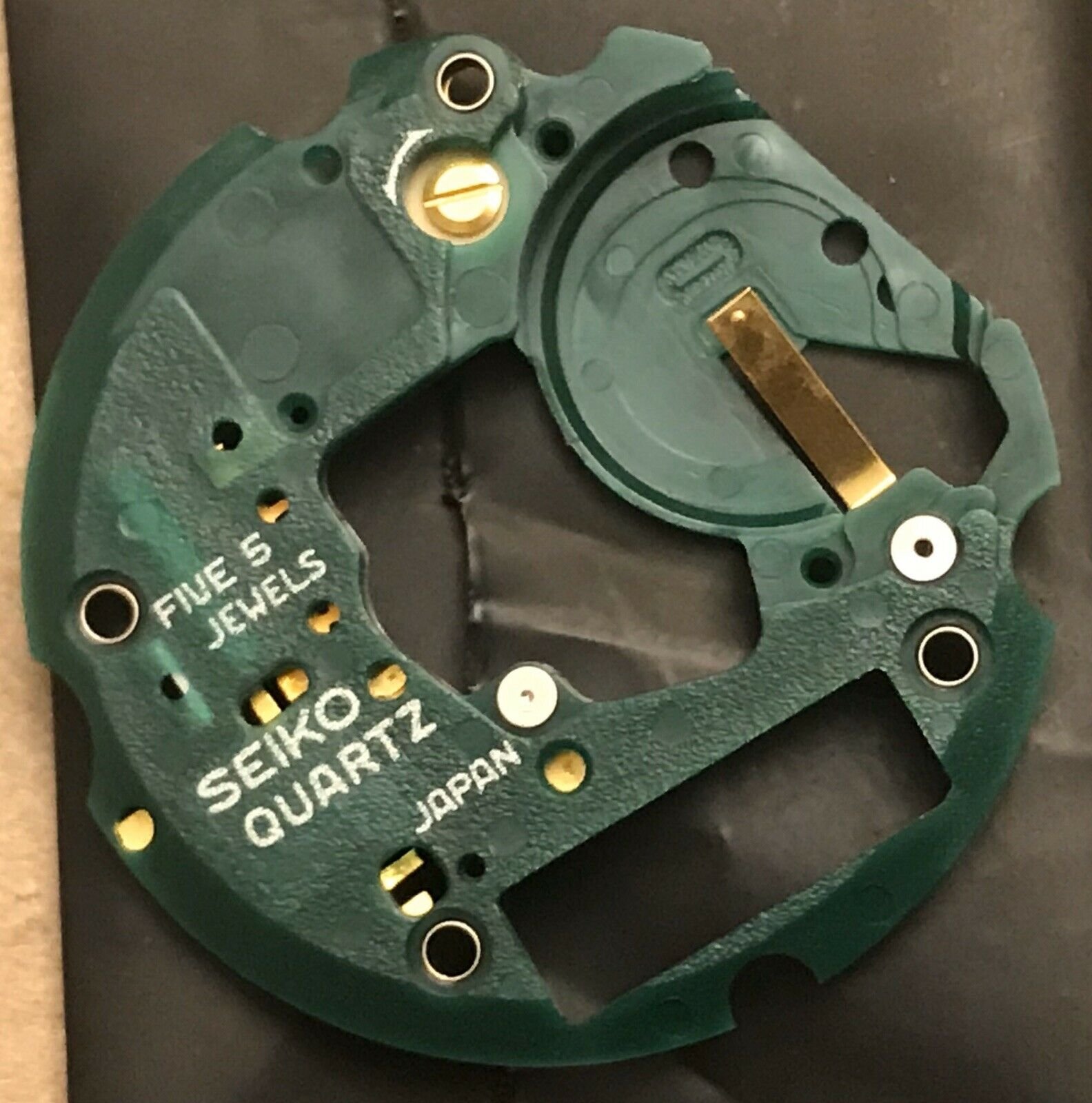

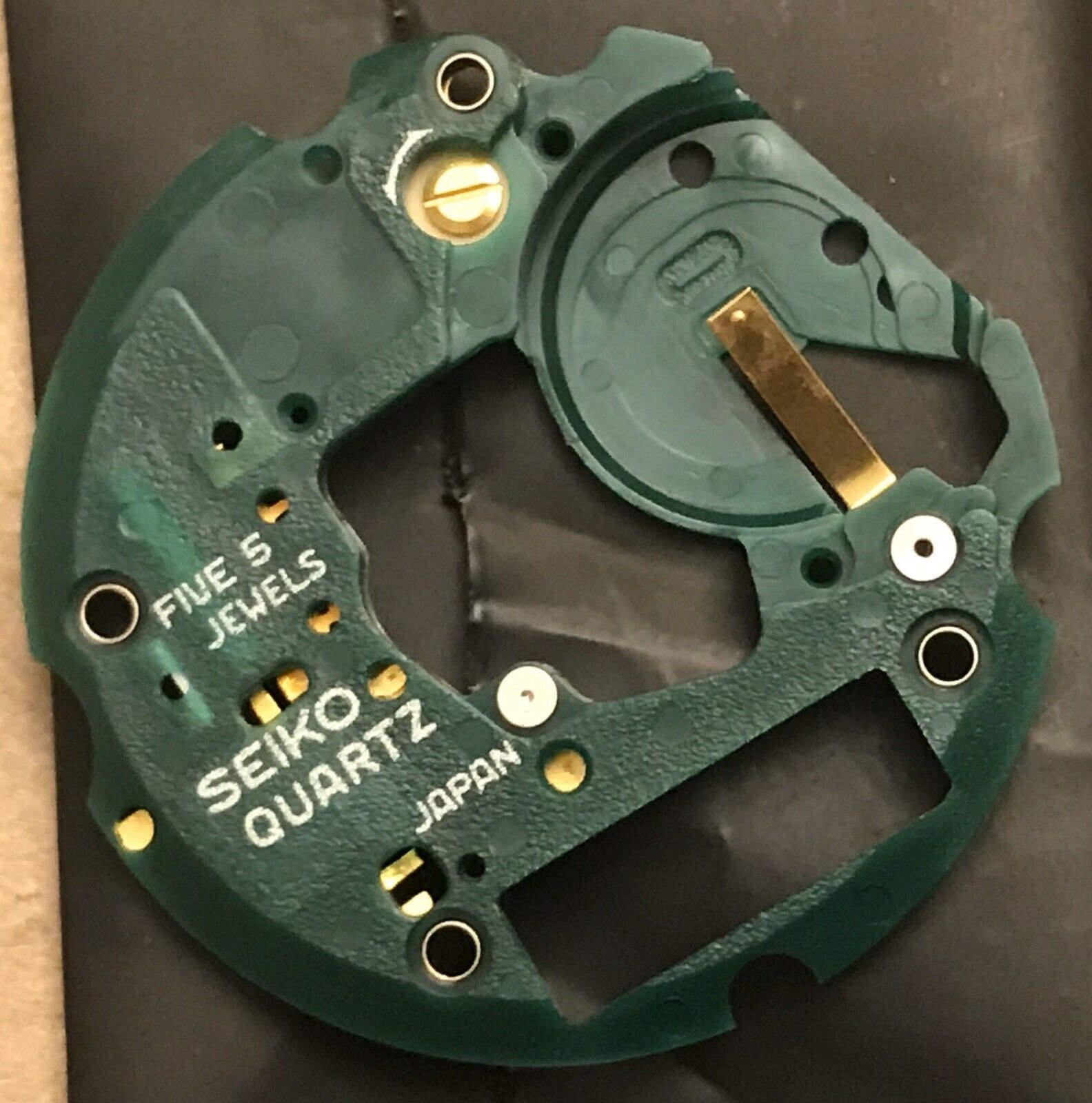

    OEM CIRCUIT BLOCK BOARD SEIKO 7548/7549 MOVEMENT FIVE JEWELS

    08_404bc45a-8374-43ab-a1b0-4eee5103415a-jpg-465879-jpeg.466076.jpeg s-l1600-jpg.466074.jpeg s-l1600-1-jpg.466075.jpeg

    CASE: Stainless steel (diameter: 43 mm excl. crown, lug-width: 22 mm), Screw-in case back, Screw-down crown, Bidirectional rotating elapse-time bezel

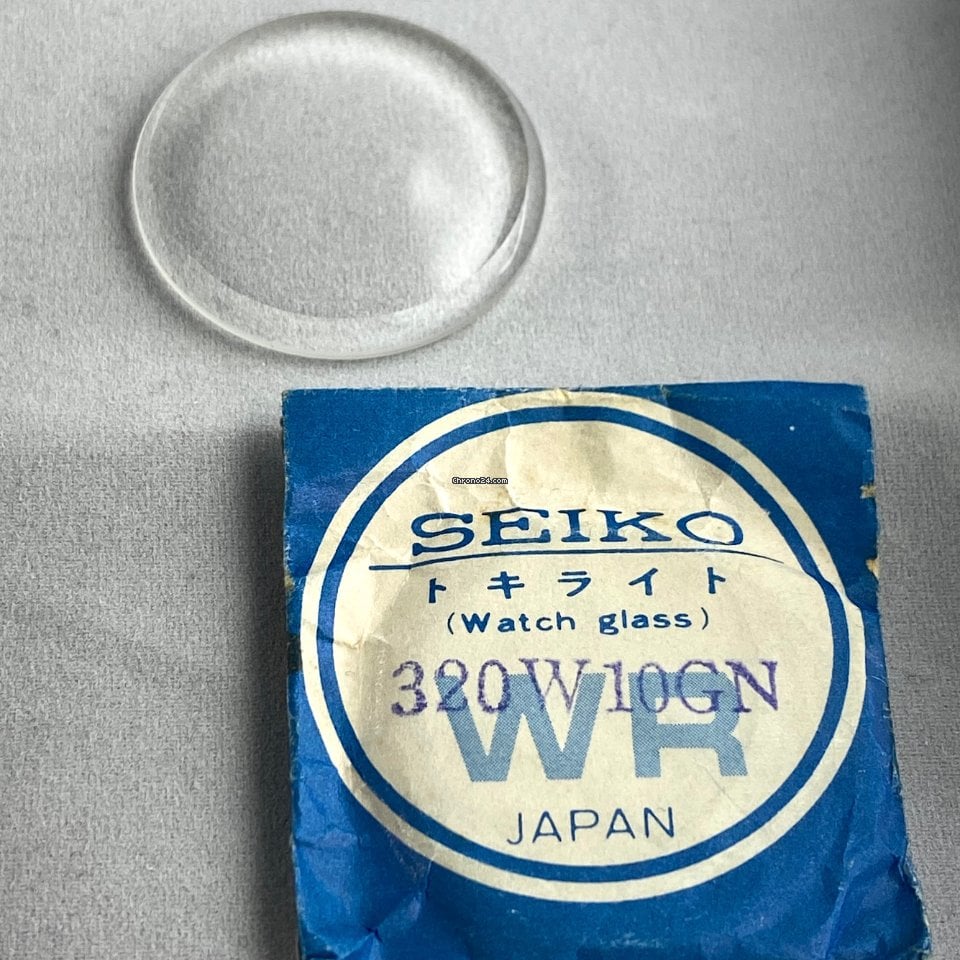

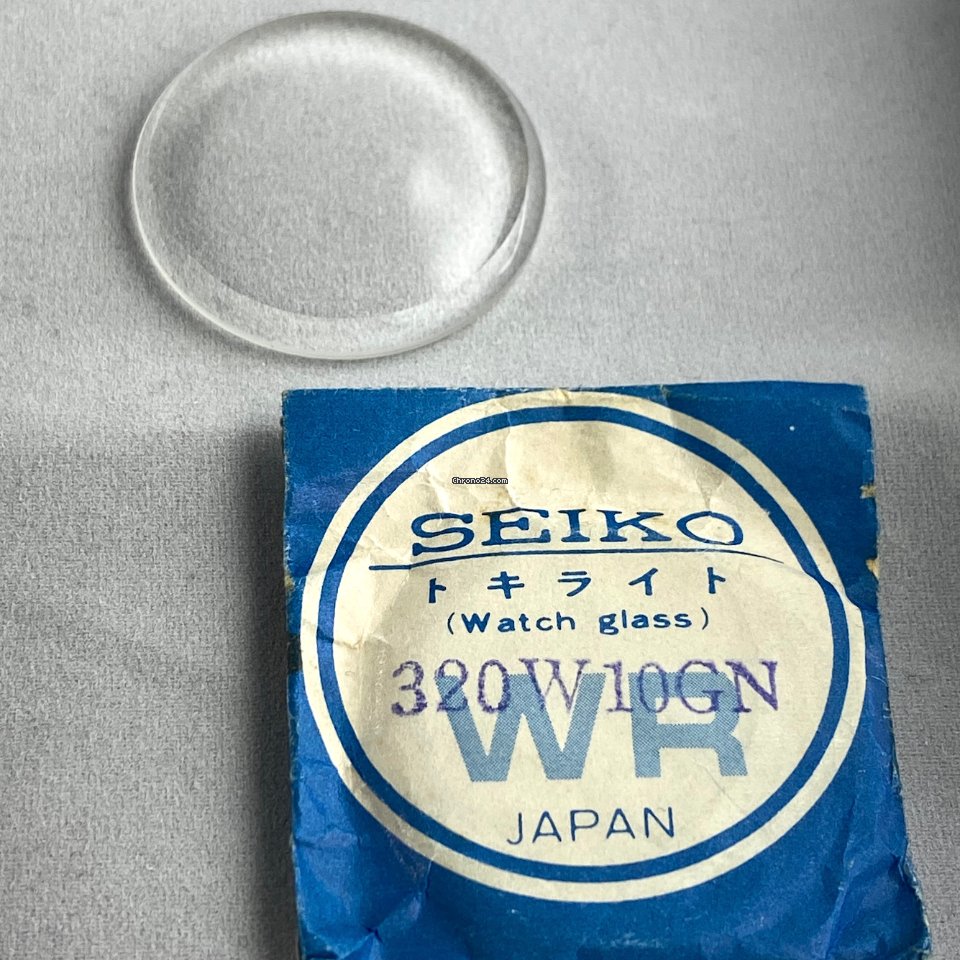

    OEM CRYSTAL: 320W10GN Hardlex

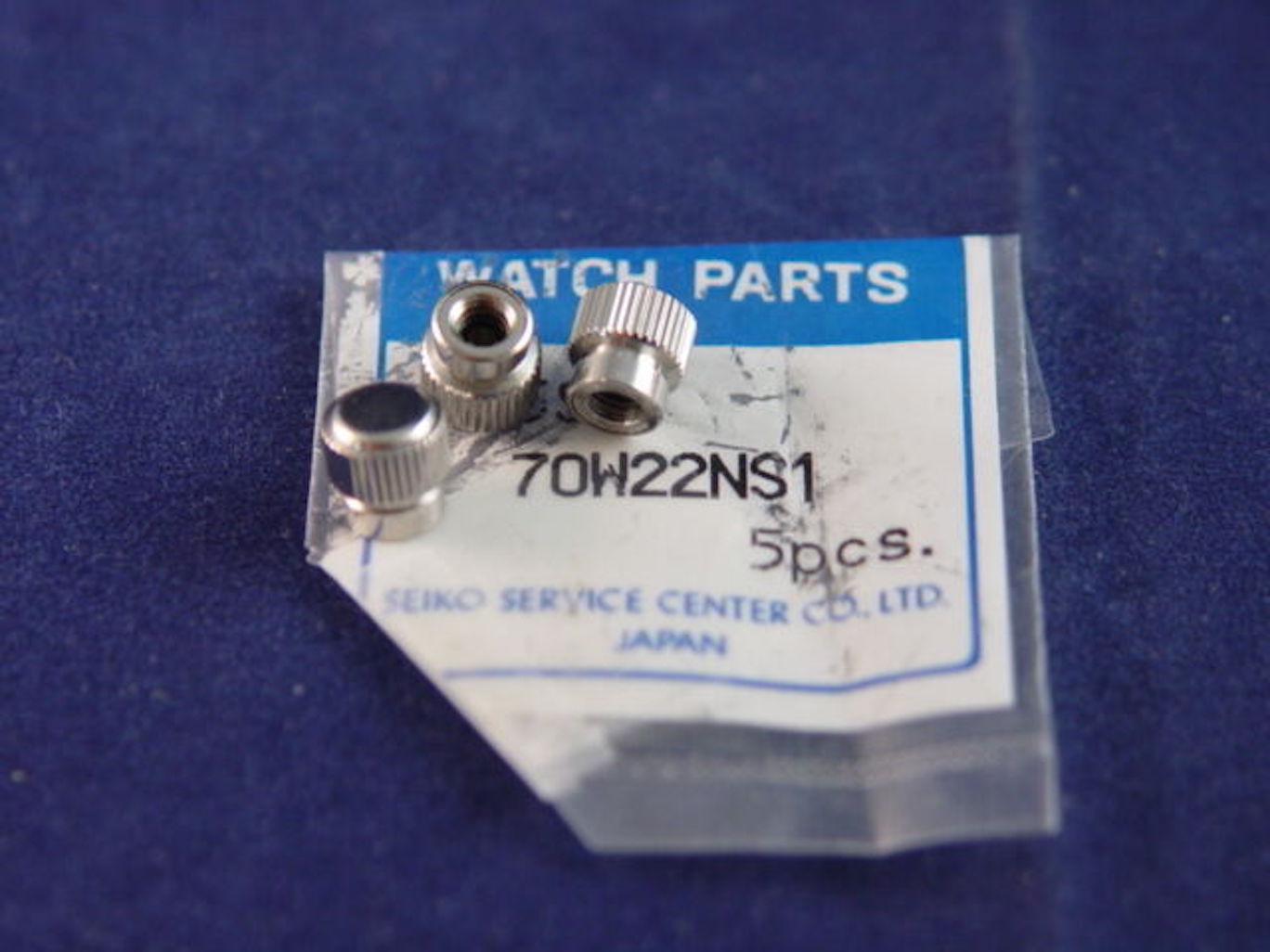

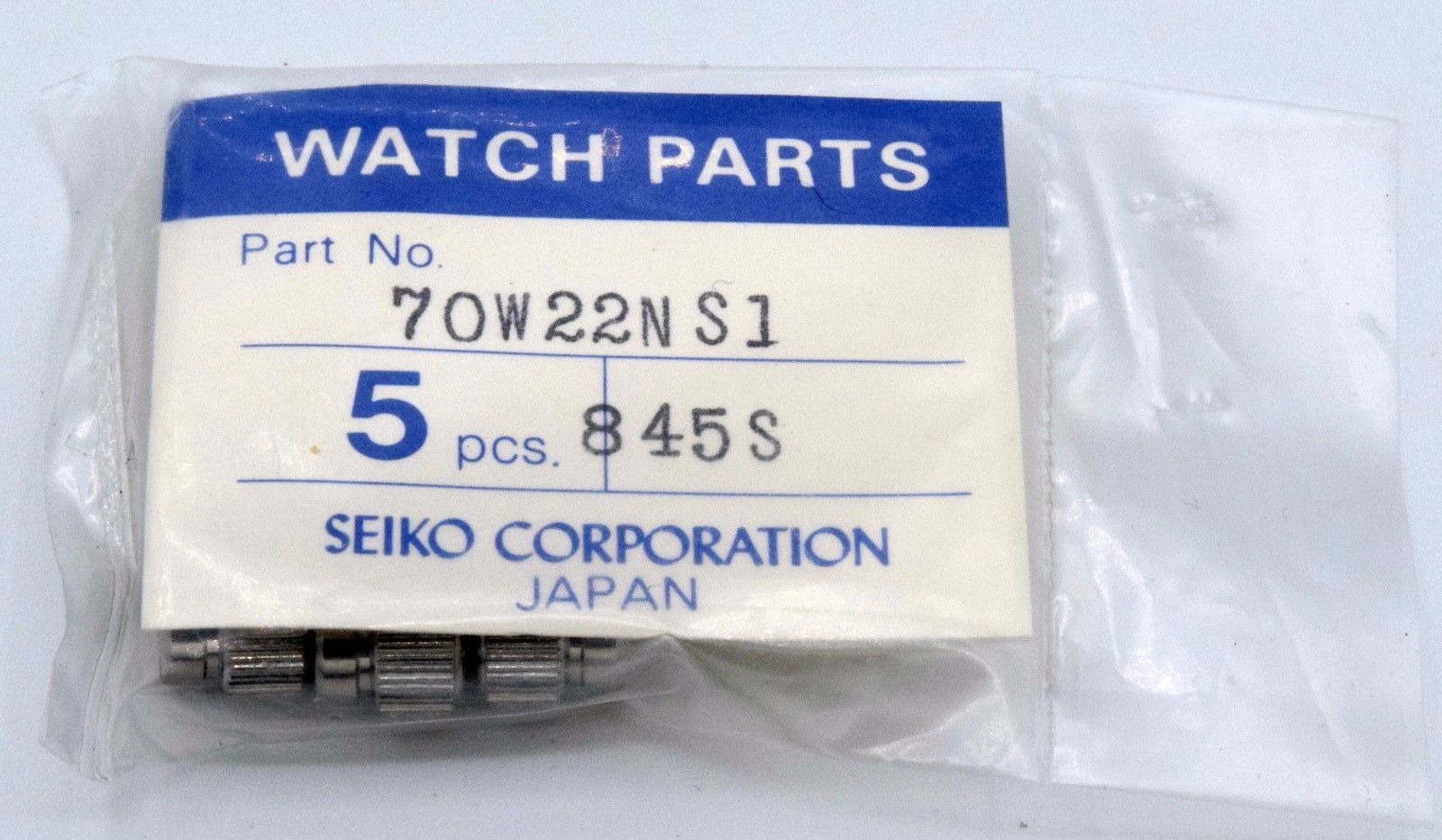

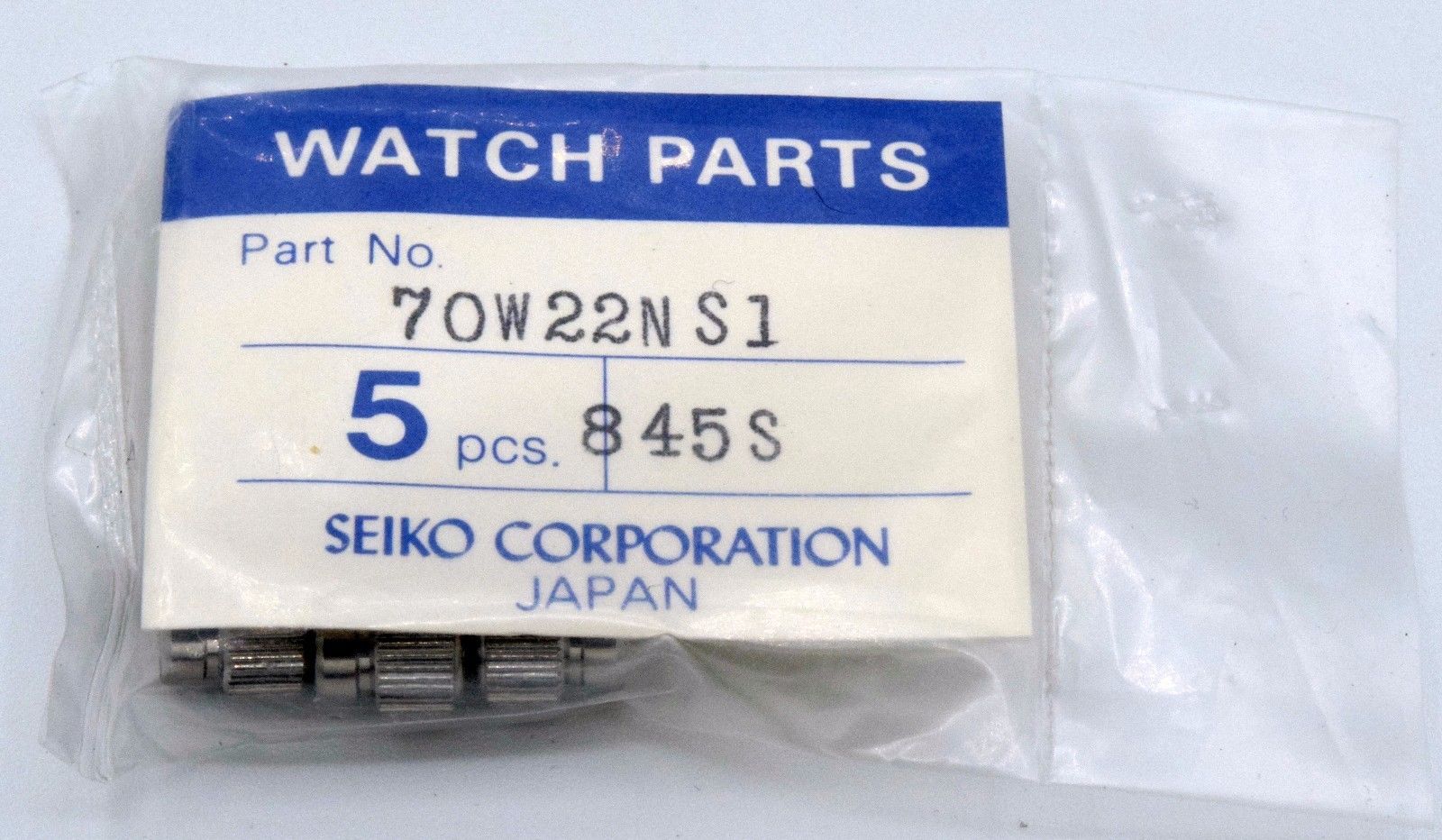

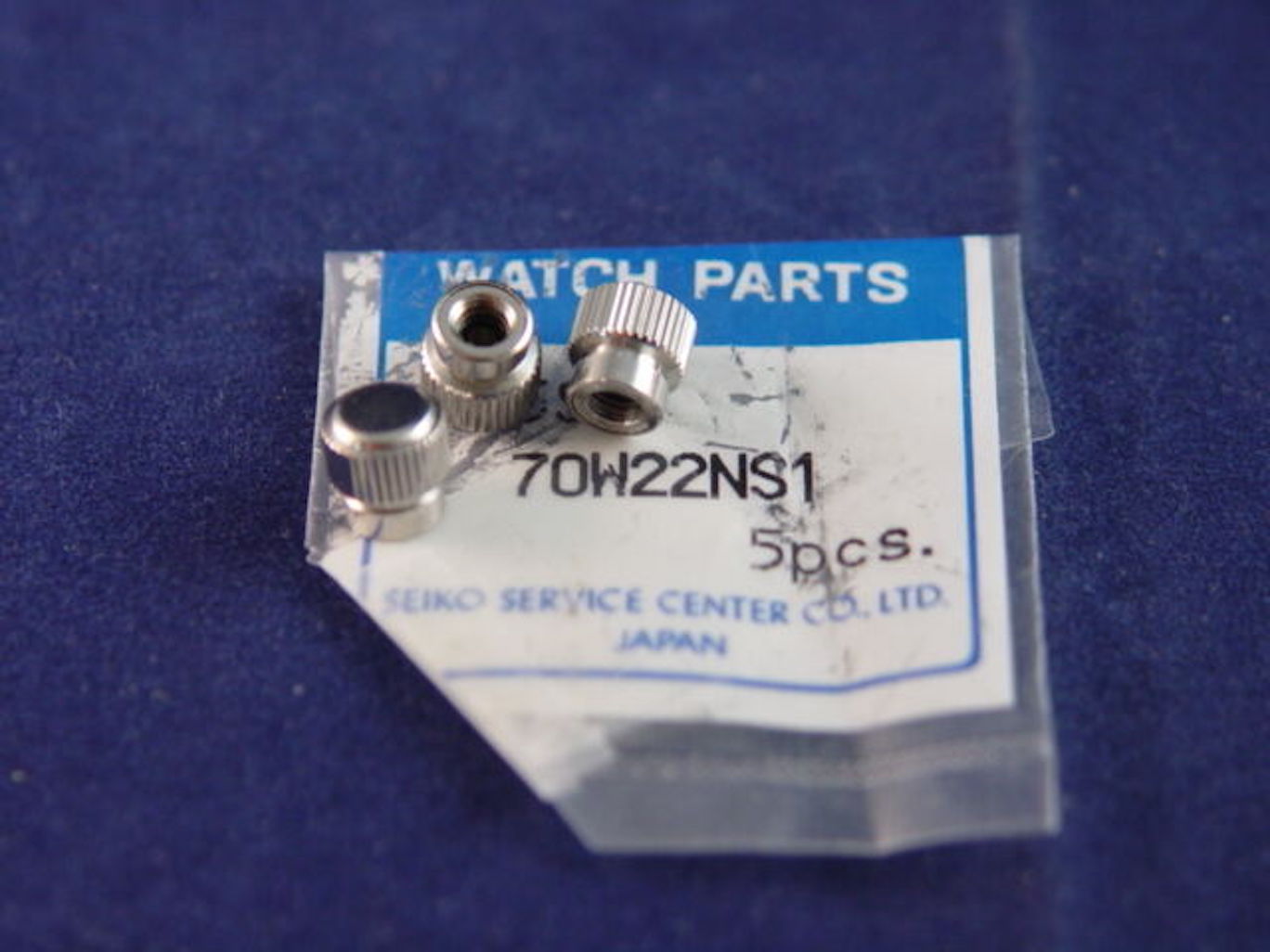

    CROWN Ref.# 70W22NS1

    70w.jpg s-l1600.jpg

    WATER RESISTANCE: 150 m (Pressure-tested)
    PRODUCTION PERIOD: 1978 thru1985

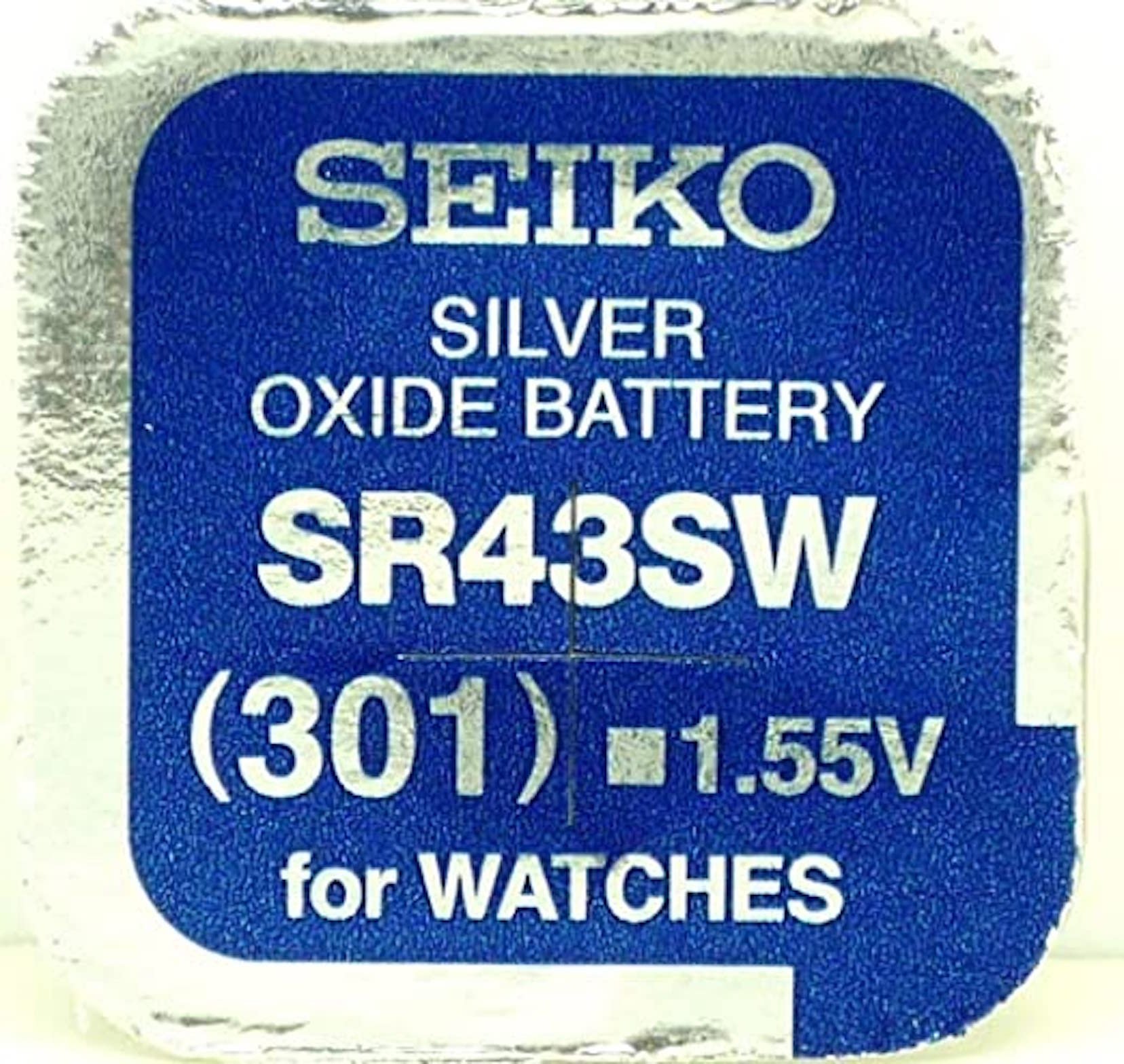

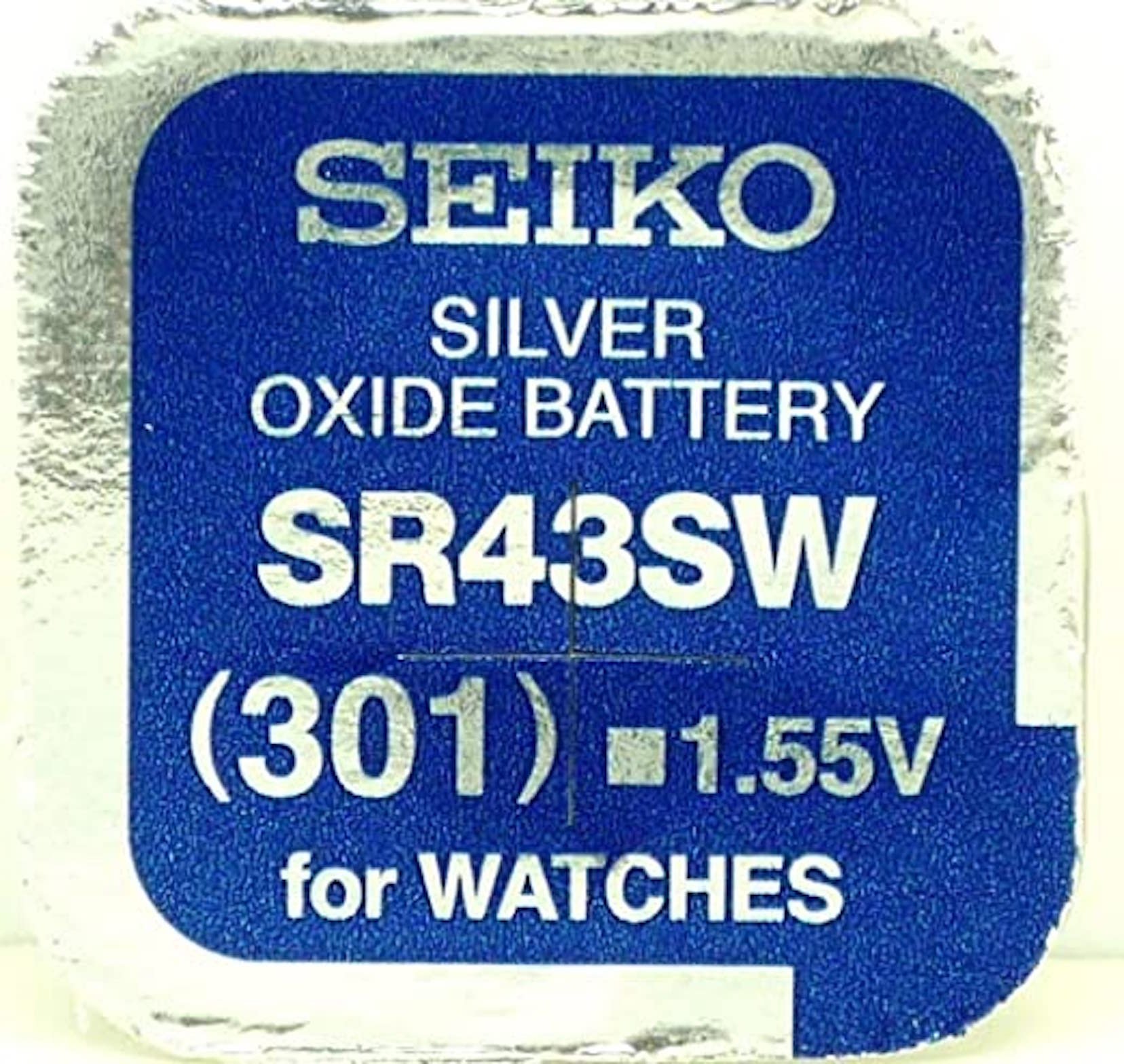

    OEM battery SEIKO SR43SW
    universal replacement part number currently is a #386 battery.

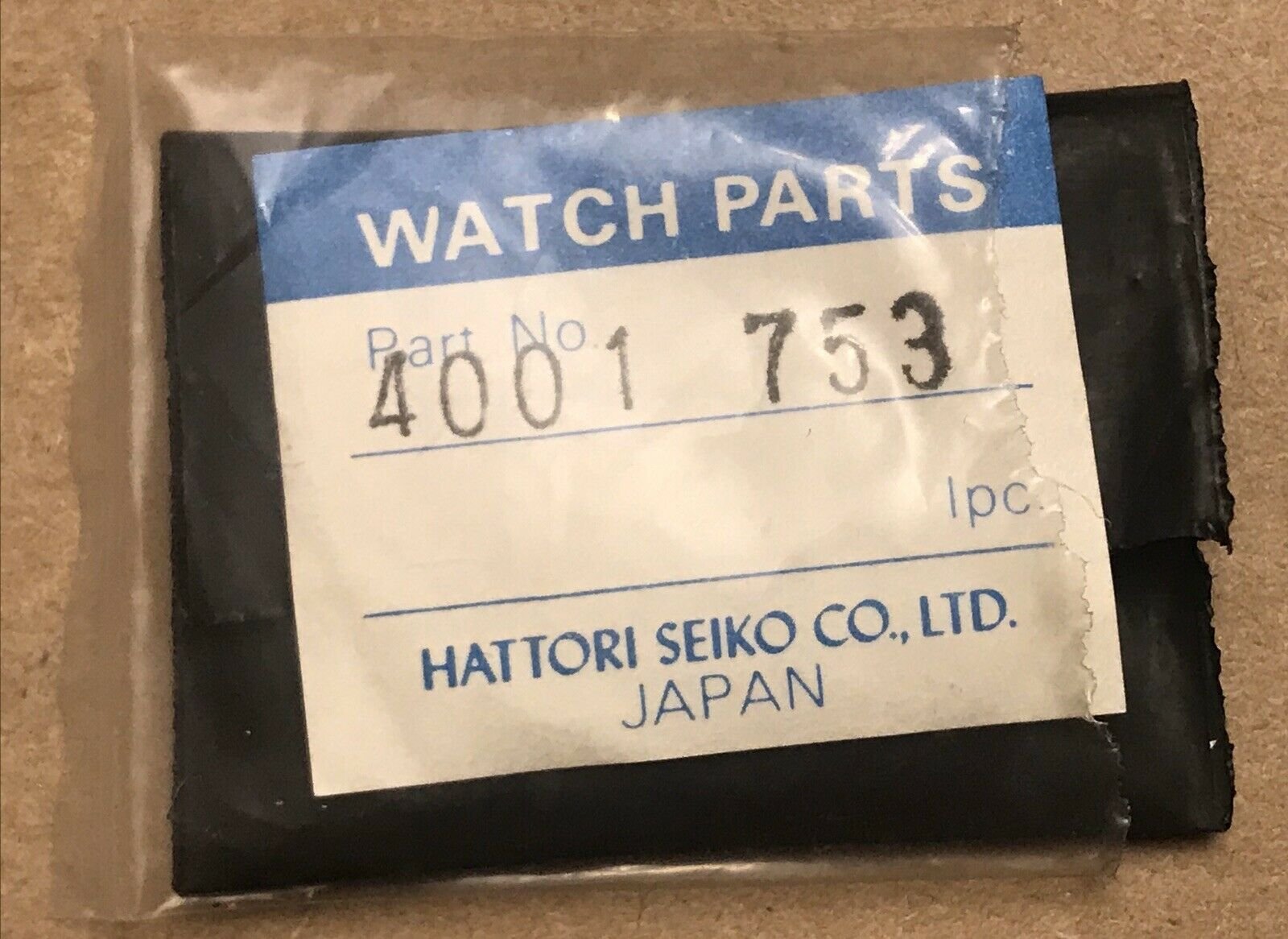

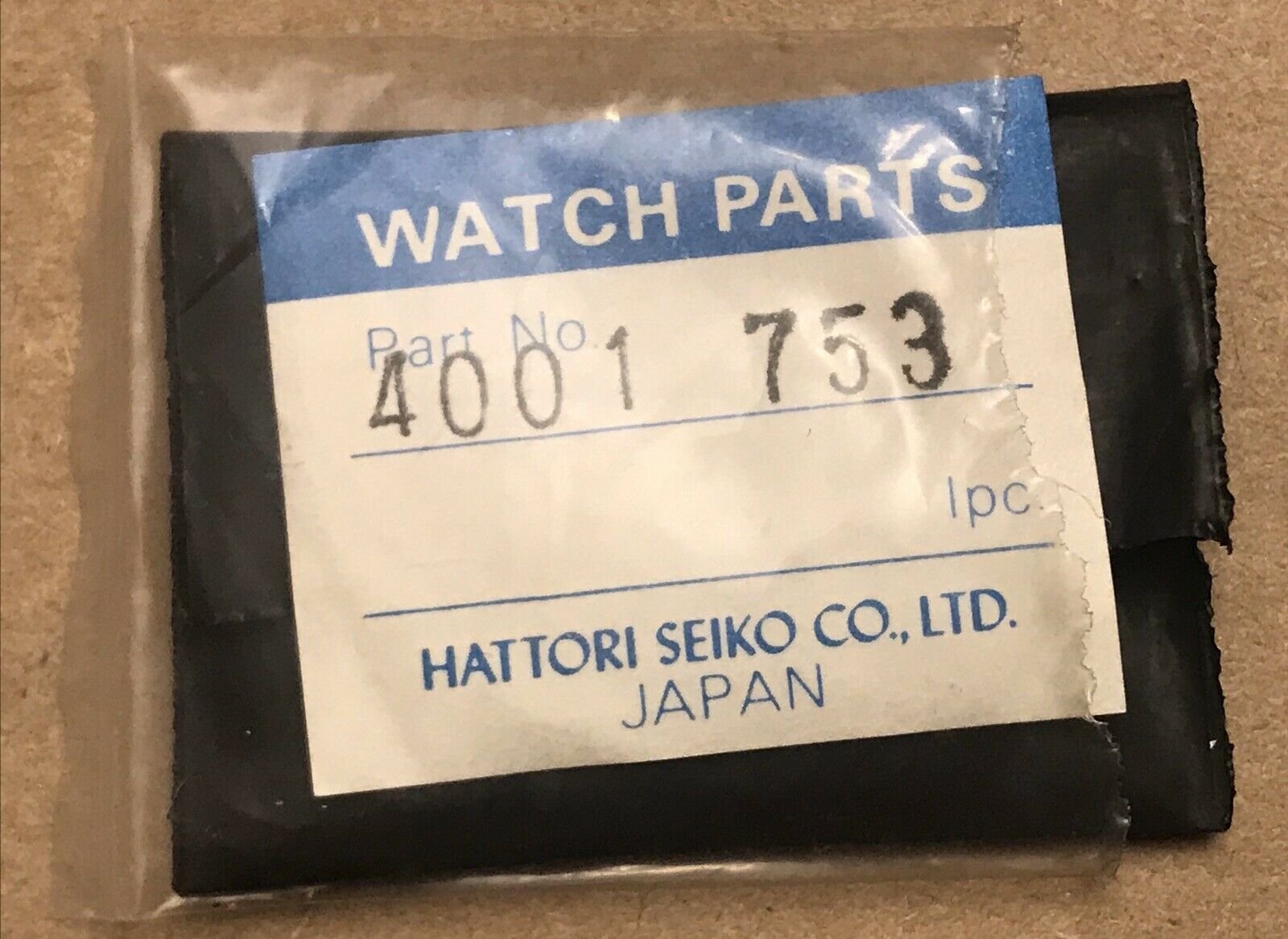

    OEM GASKETS:

    Ref.# OK0240B0A - CROWN Gasket
    Ref.# OC3060B0A - CASE BACK Gasket
    Ref.# 0C3660B02 - BEZEL Gasket
    Ref.# EC3160B04 - CRYSTAL Gasket

    There are the typical black and Pepsi versions, an orange version and even an extremely rare green version.
    image borrowed from cyber space



    SEIKO Quartz DIVER series

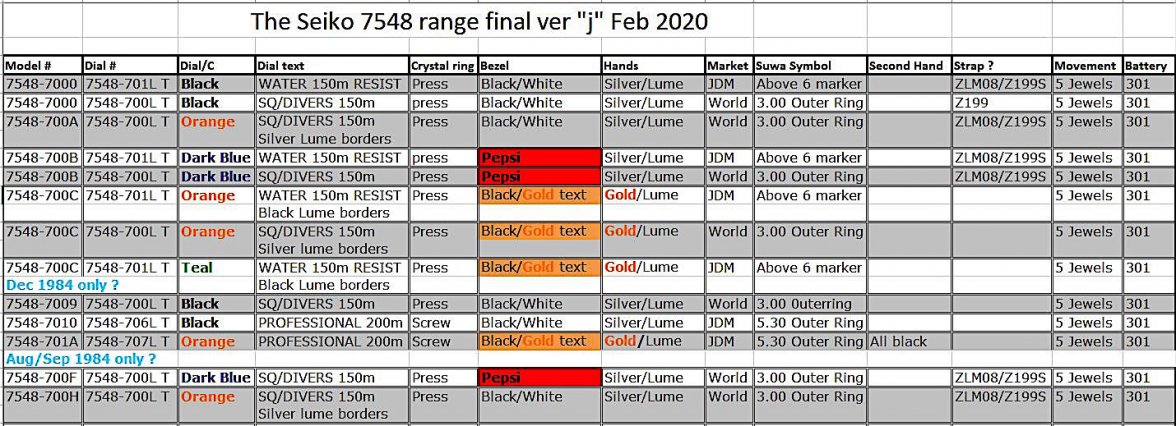

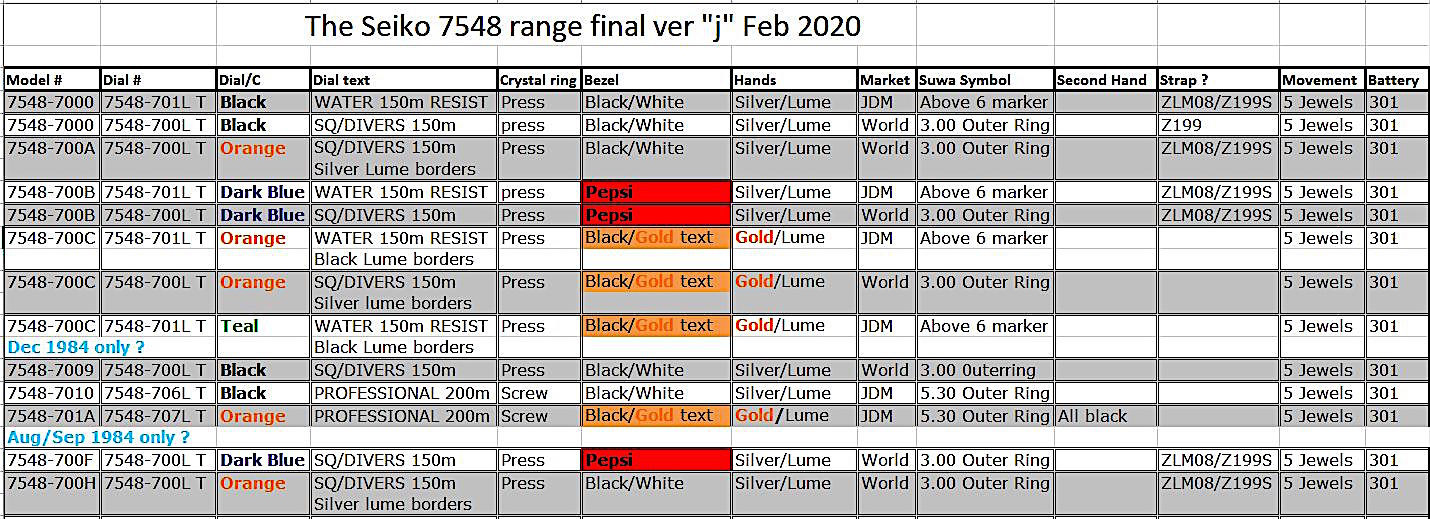

    Variants:

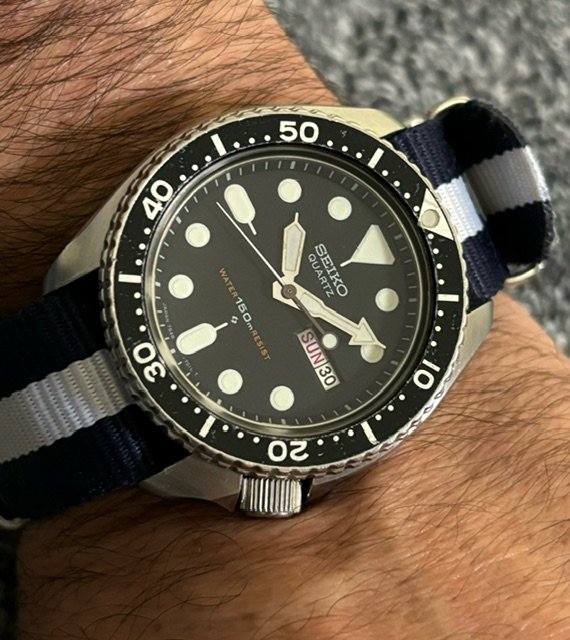

    7548-7000 Black dial and black bezel - SQ and non-SQ versions
    7548-7009 Black dial and black bezel - SQ dial

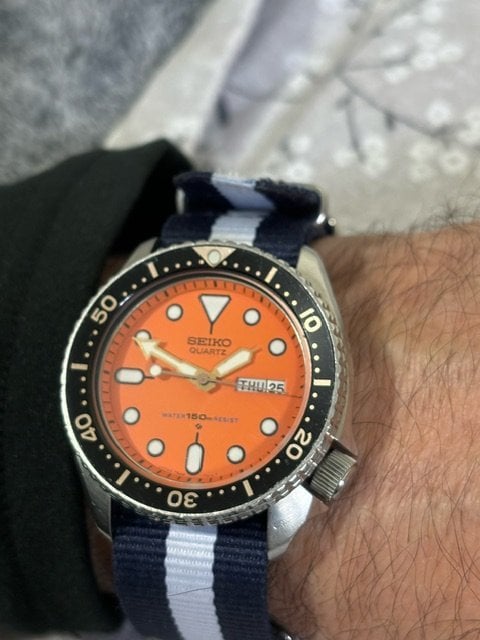

    7548-700A Orange dial and black bezel - SQ dial

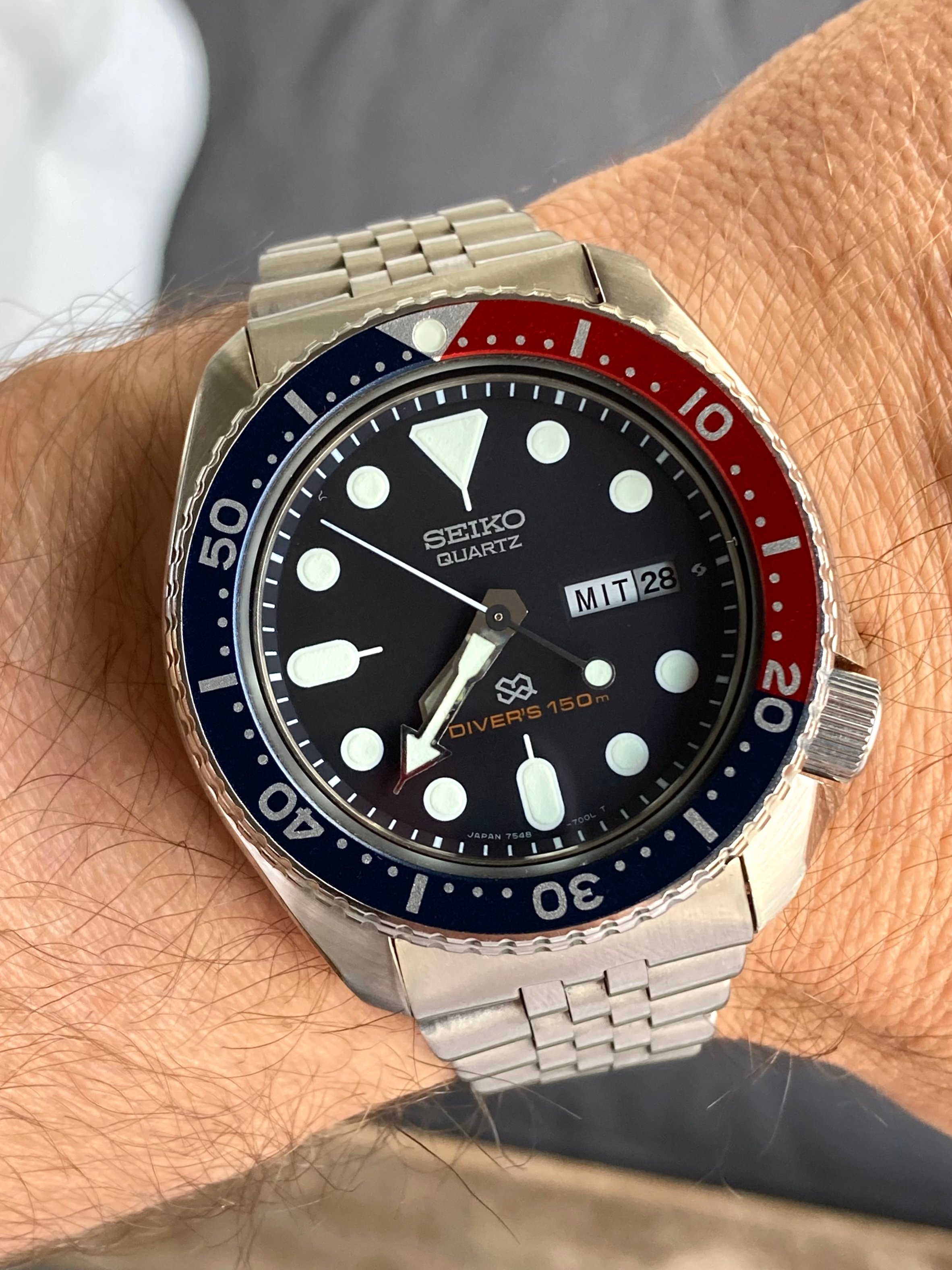

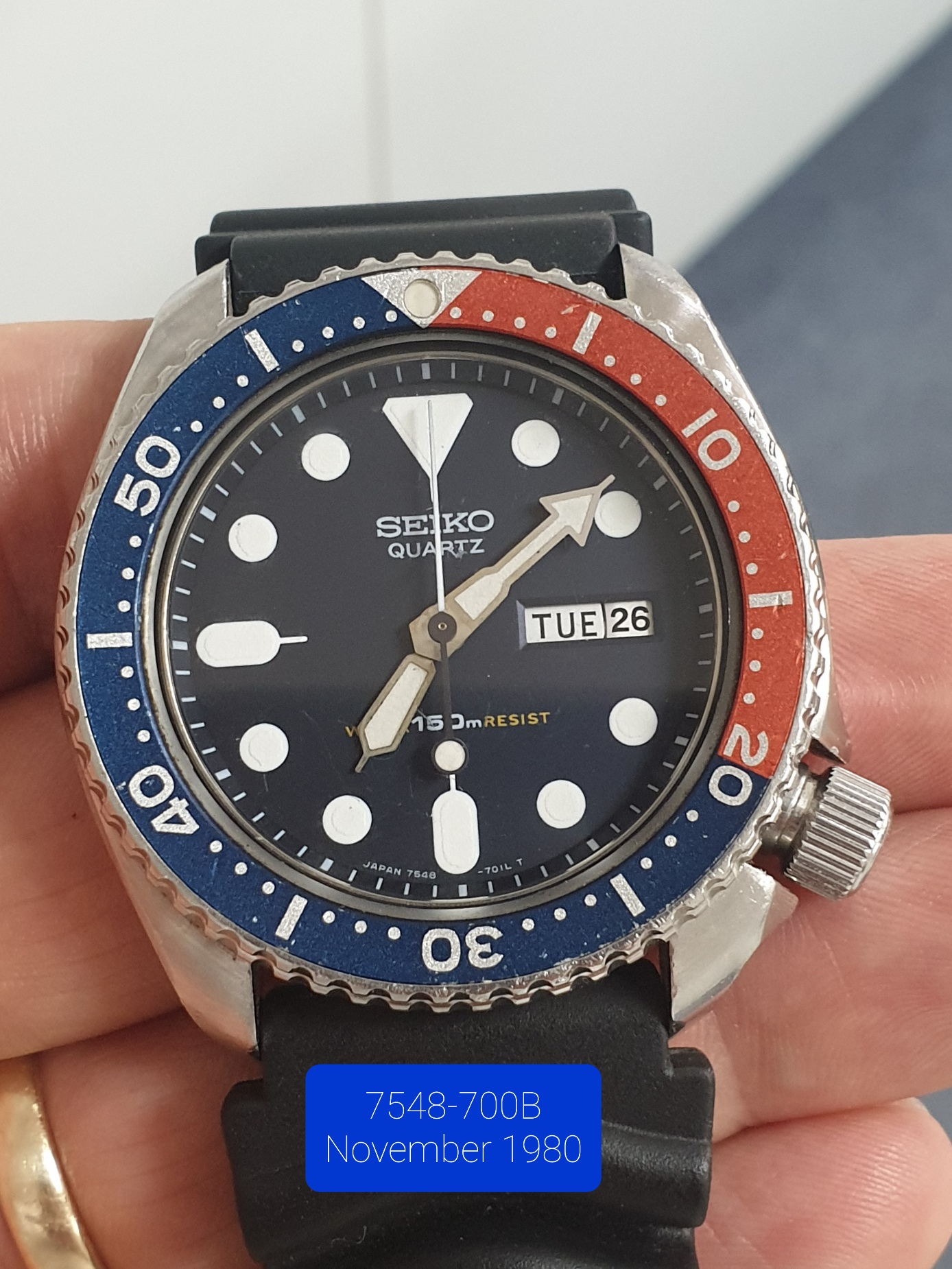

    7548-700B Dark blue dial and pepsi bezel

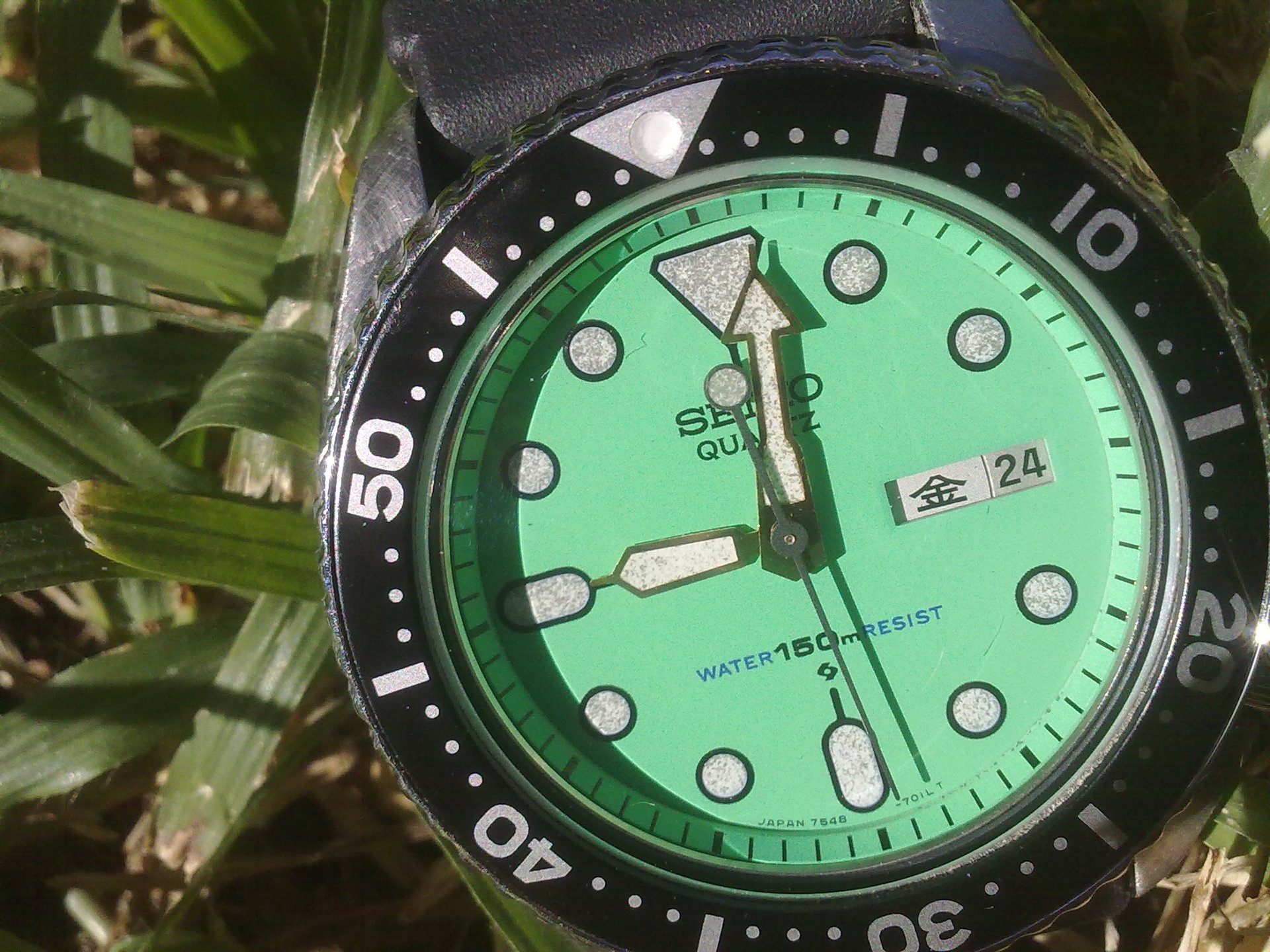

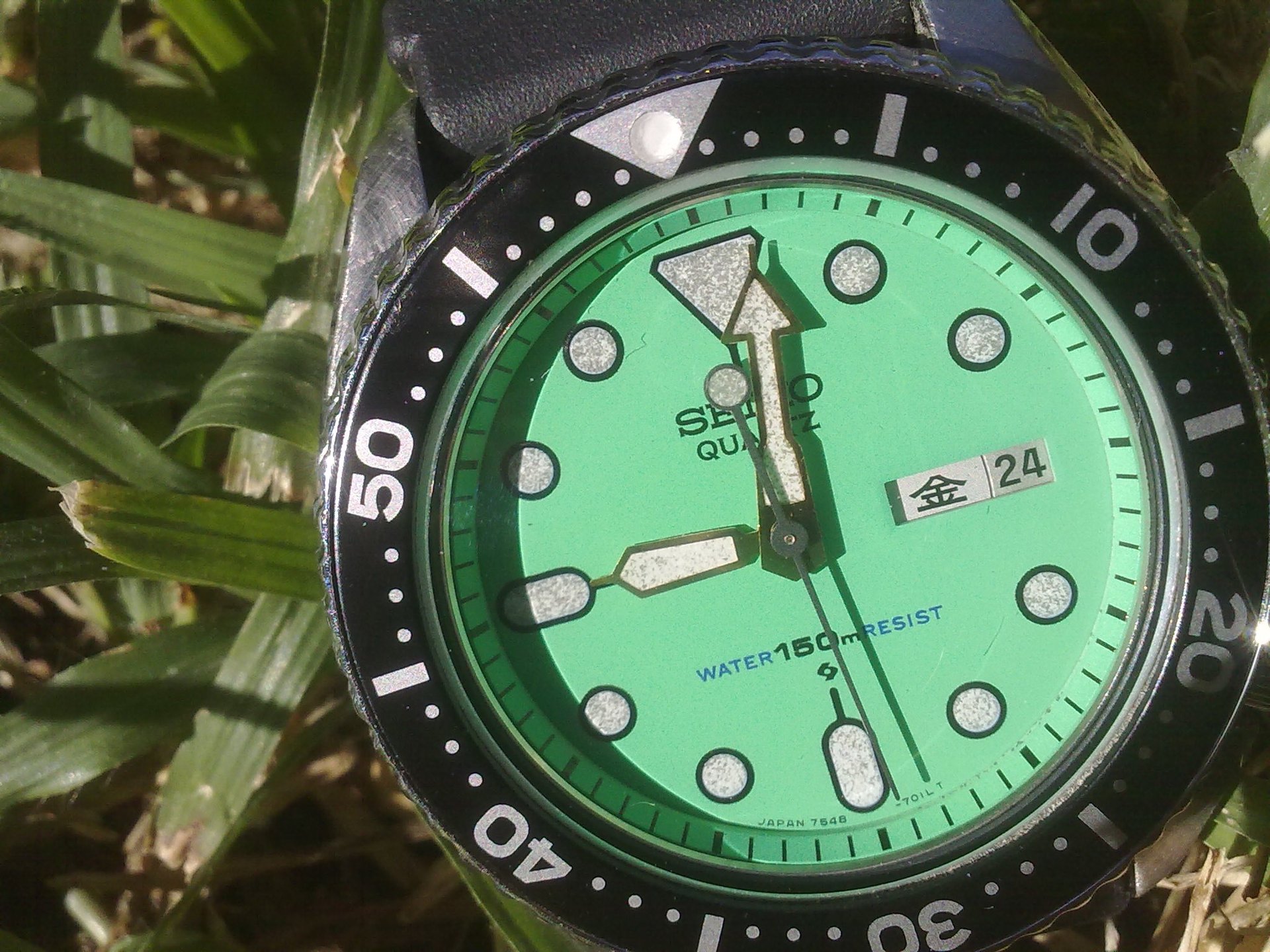

    7548-700C Orange or (very rare!) Green dial with black lume border and black/gold bezel/hands
    7548-700F Dark blue dial and pepsi bezel- SQ dial
    7548-700H Orange SQ dial with silver lume border and black bezel - maybe also non-SQ dial

    27 12 2020.JPG

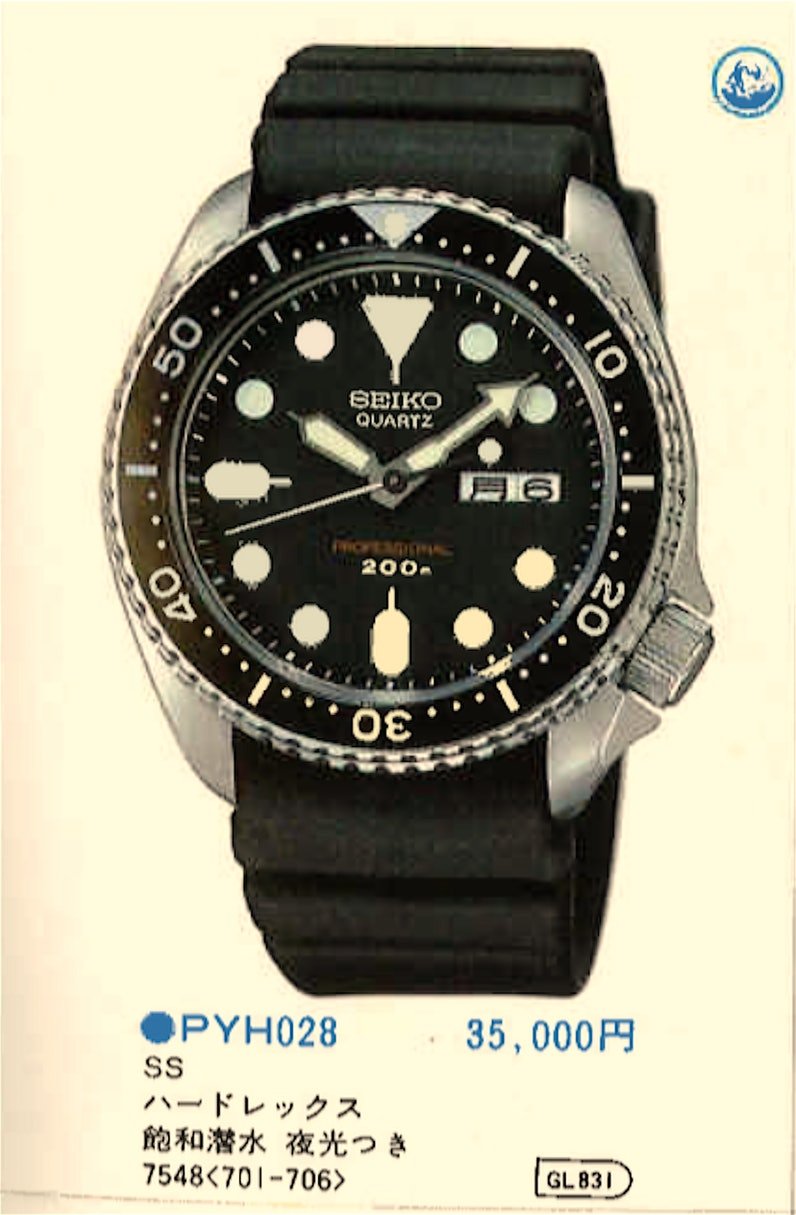

    Near end of the production run:

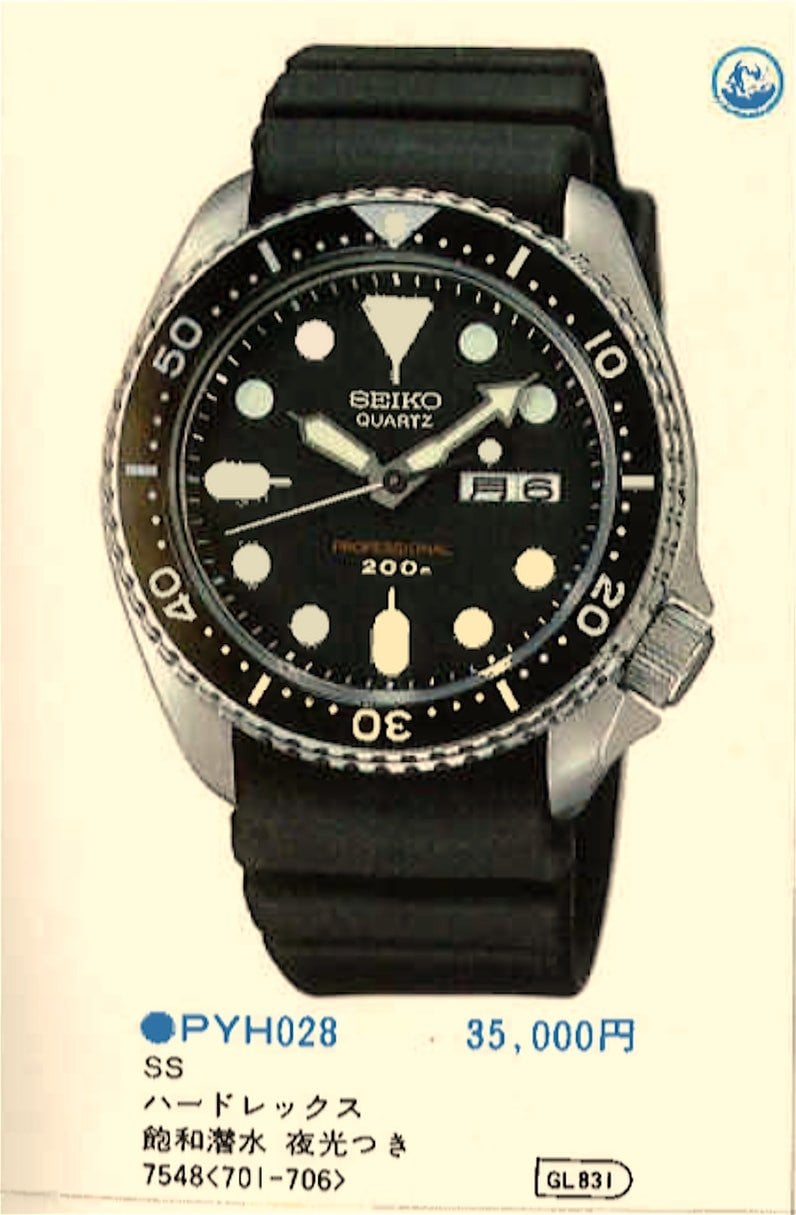

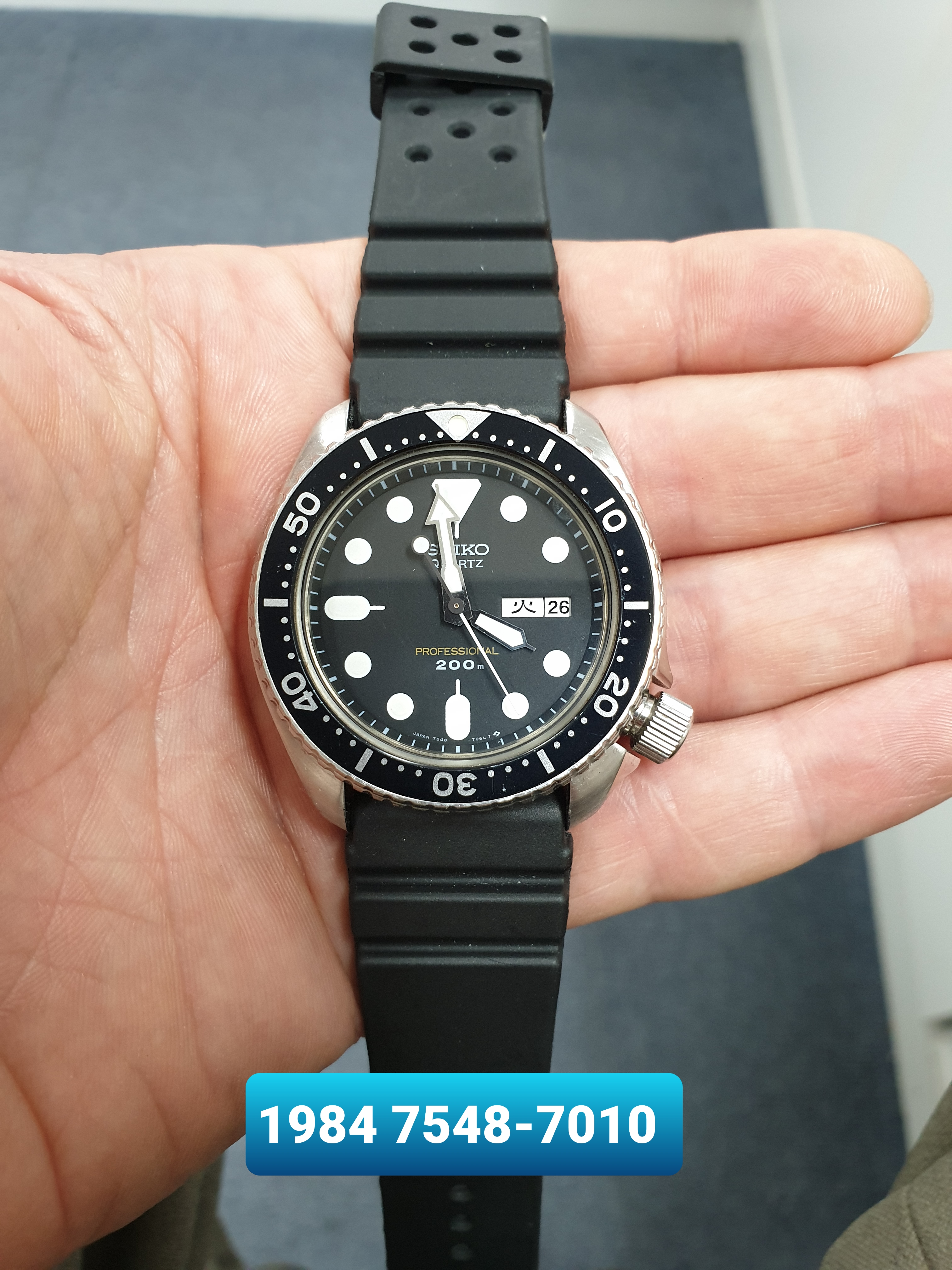

    TWO - 200m versions available with screw down crystal retaining ring just like the 7c43-7xxx 200m quartz divers

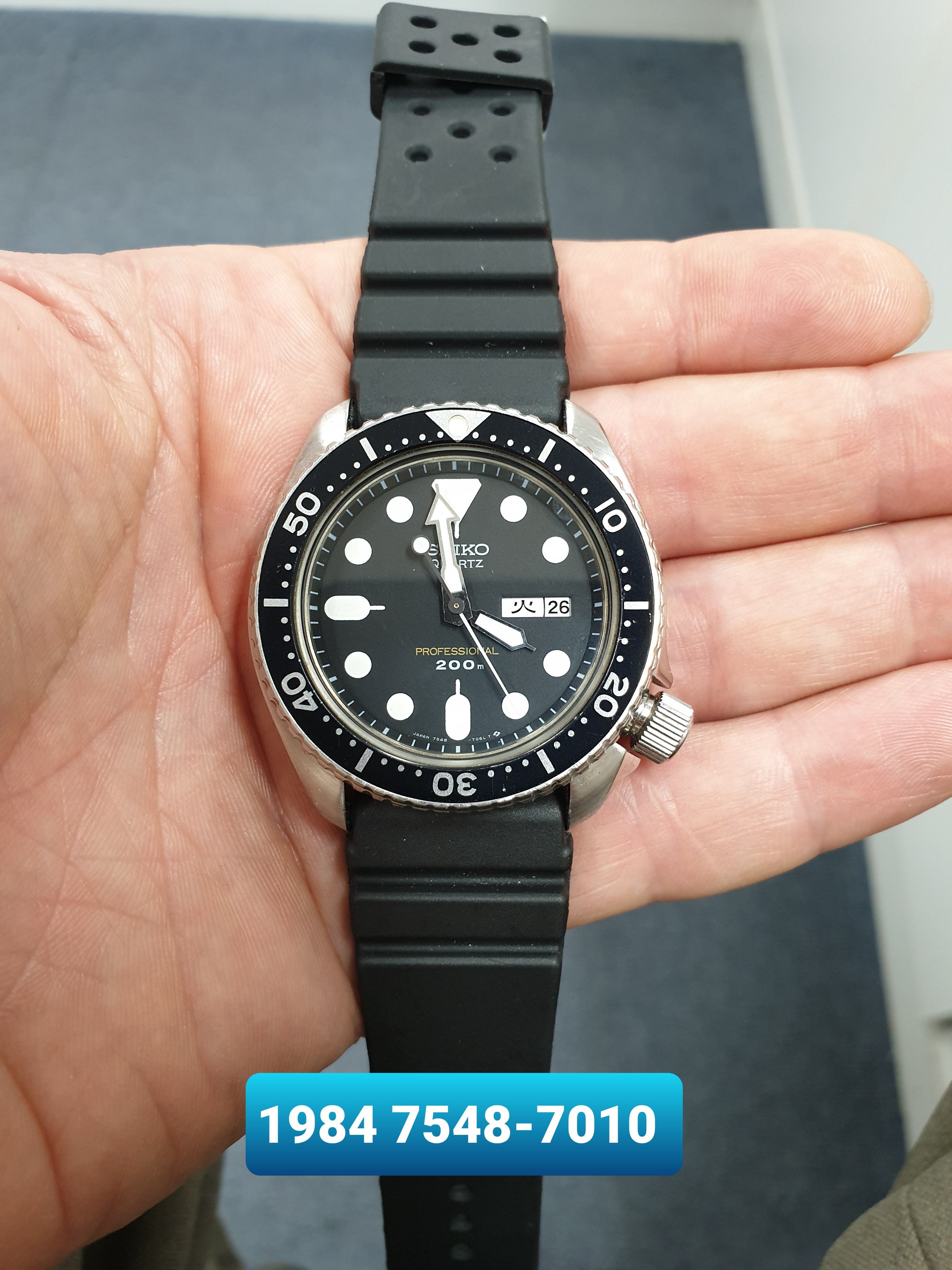

    7548-7010 Black dial and black bezel

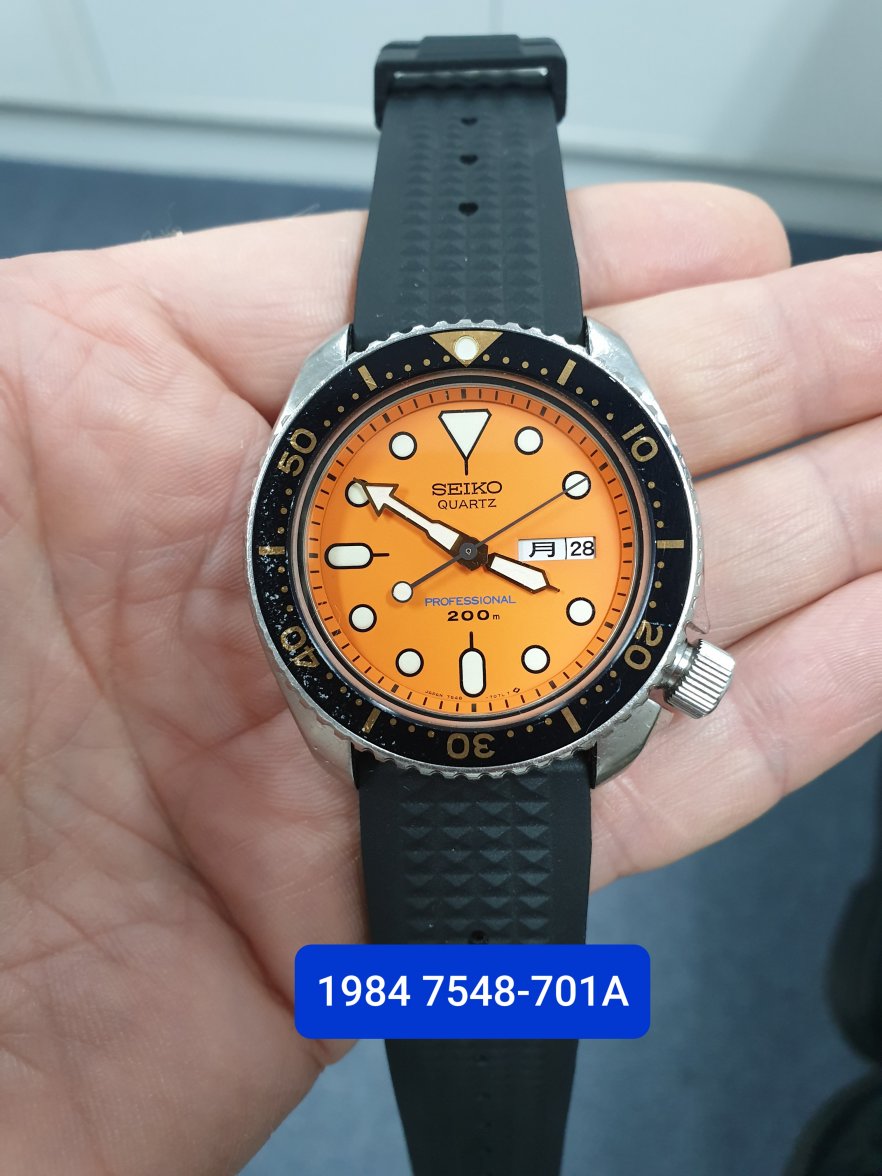

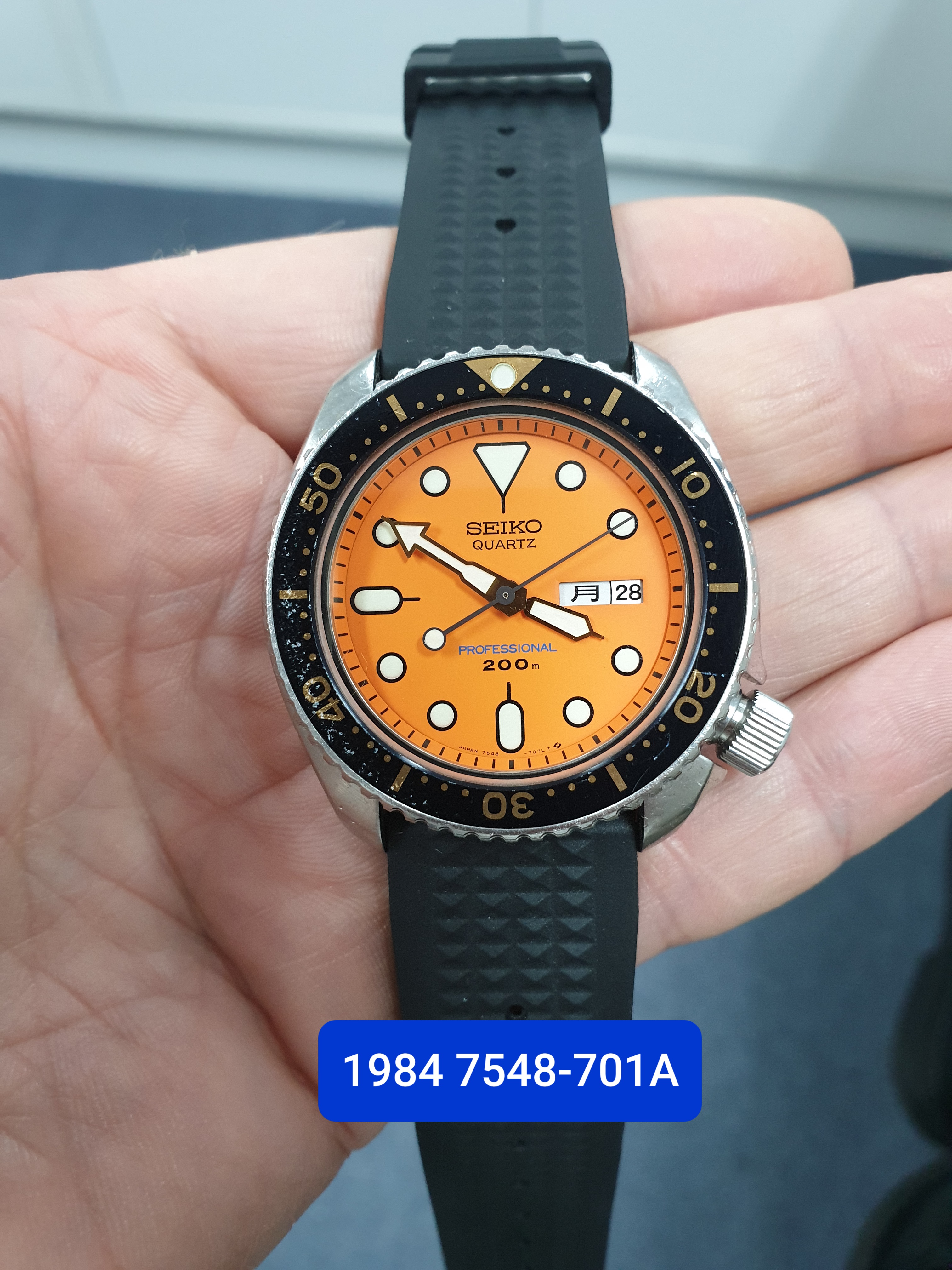

    7548-701A Orange Dial and black/gold bezel

    1614261942093-176802445356992596611897-screenshot20210225at9-03-40am-png-jpeg.465963.jpeg 1614261527916-216286432287695401630277-screenshot20210225at8-56-33am-png-jpeg.465966.jpeg

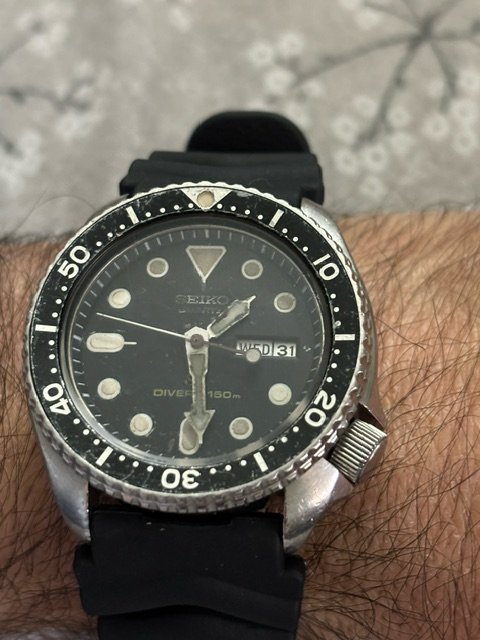

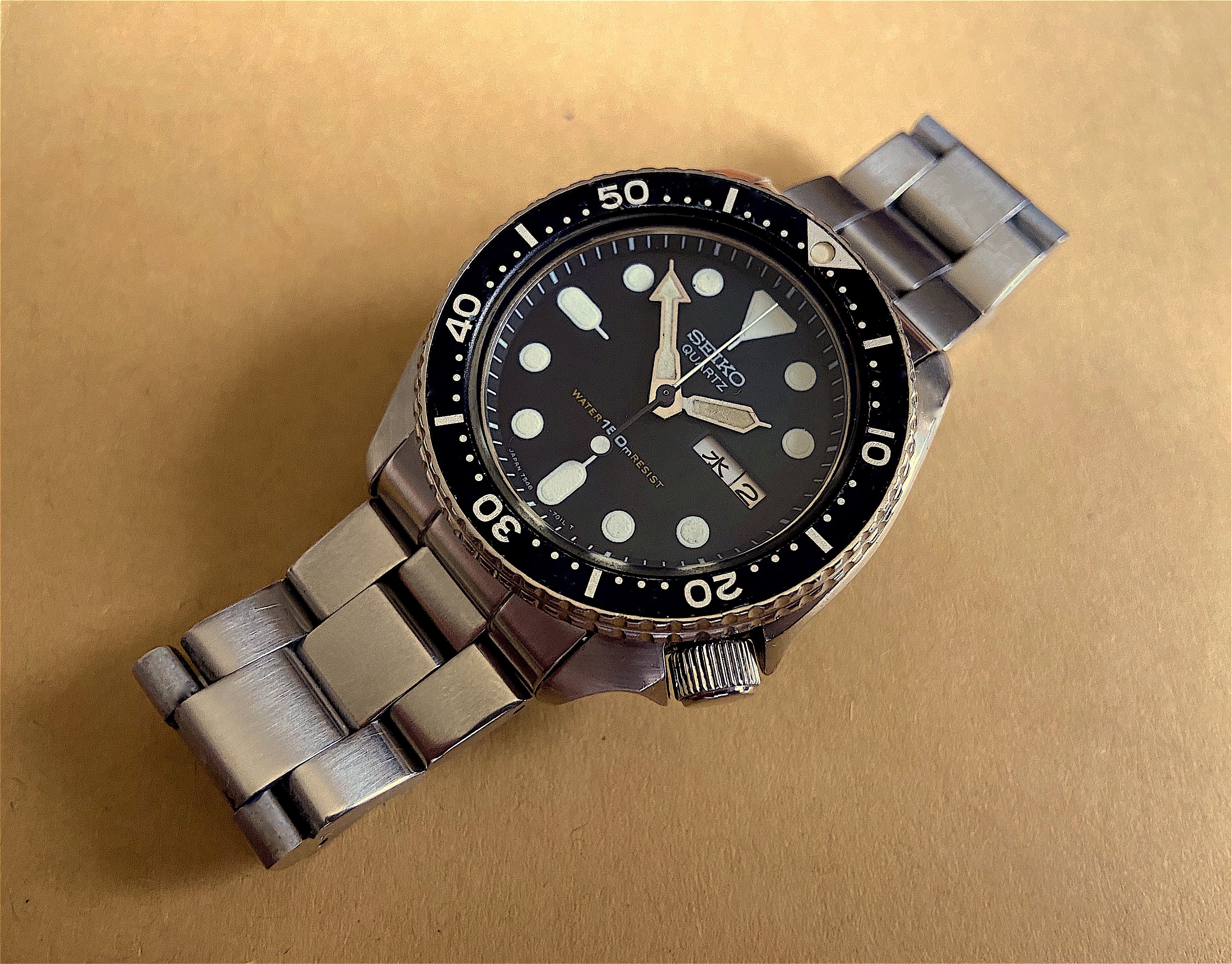

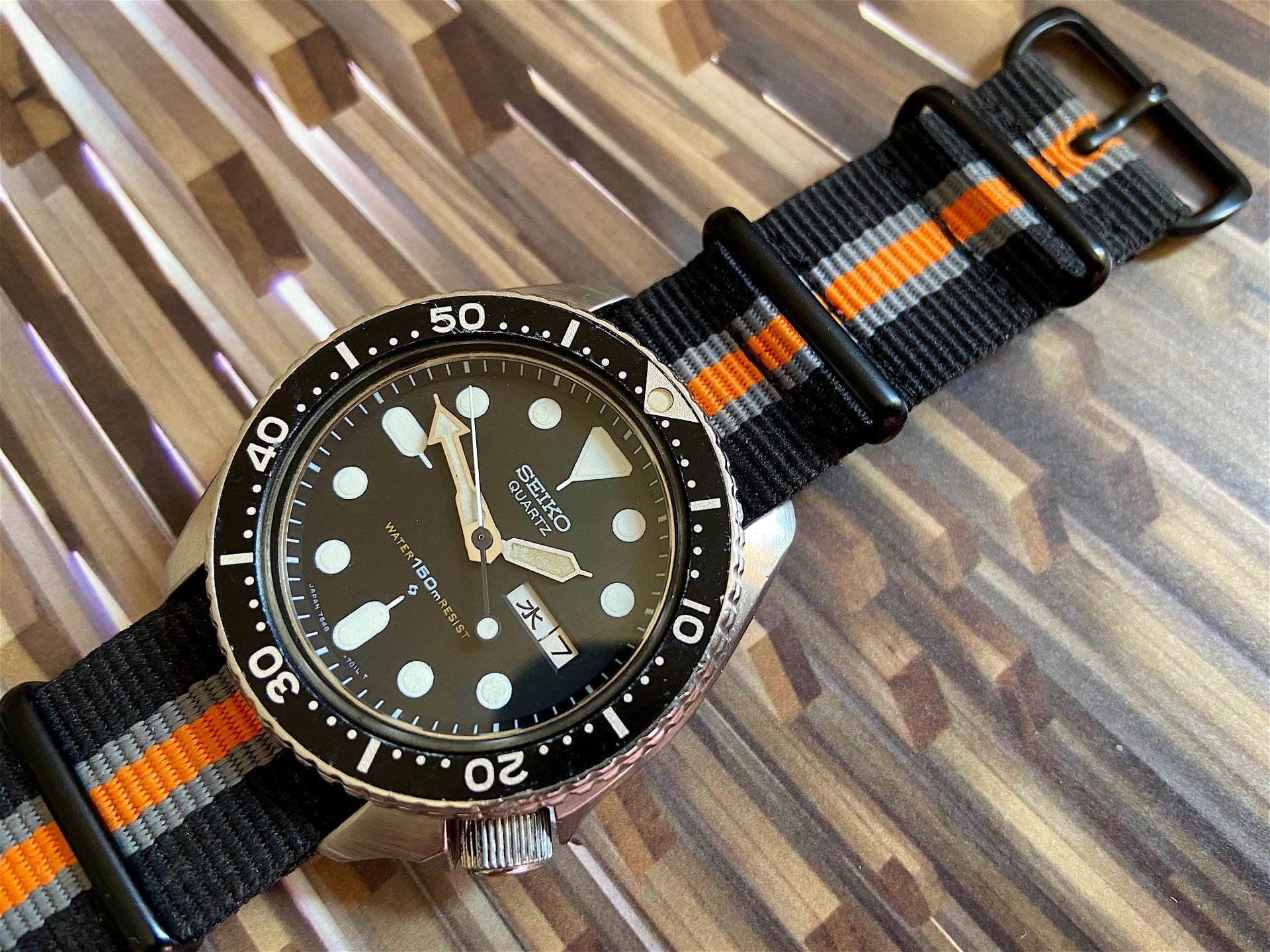

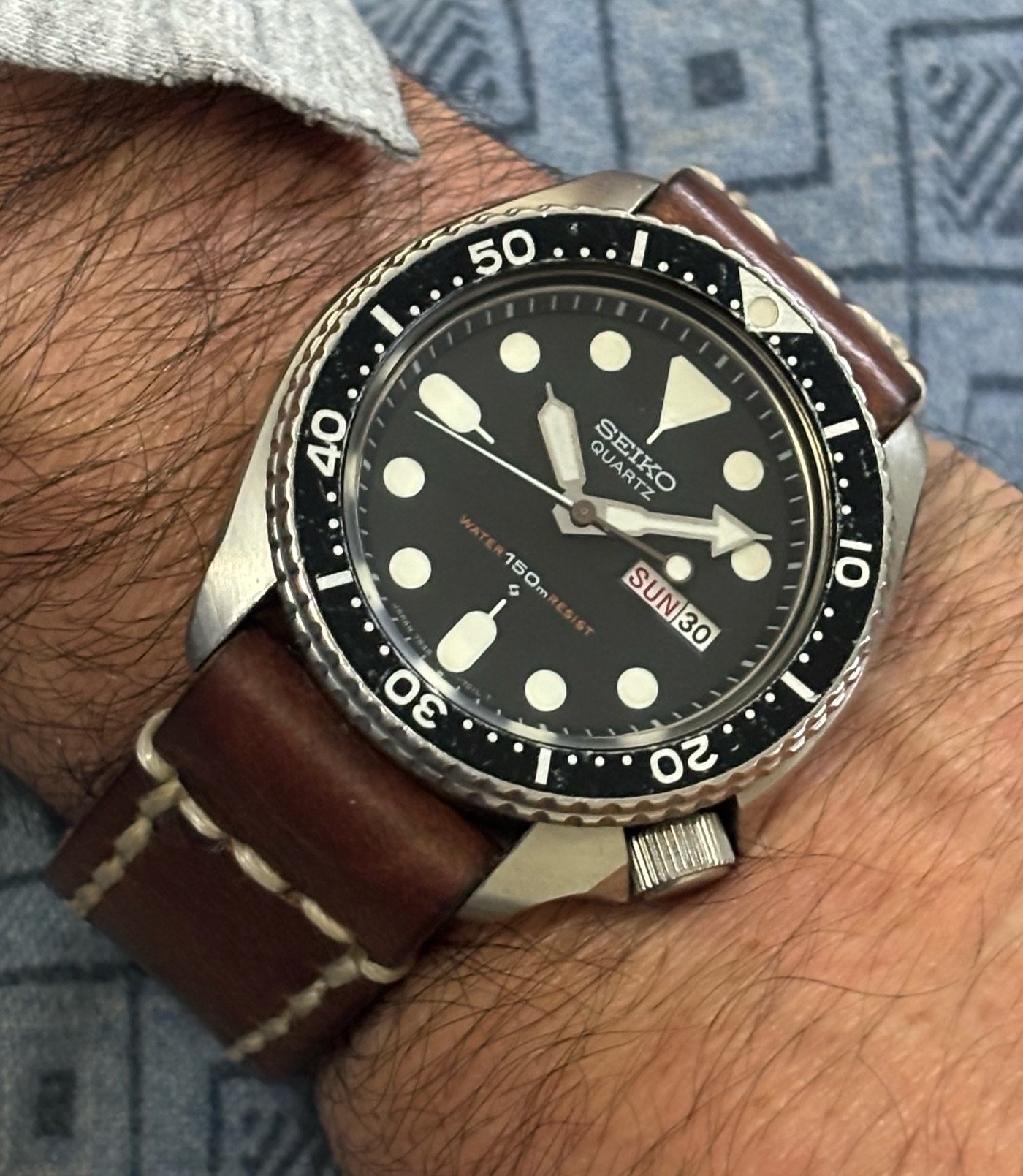

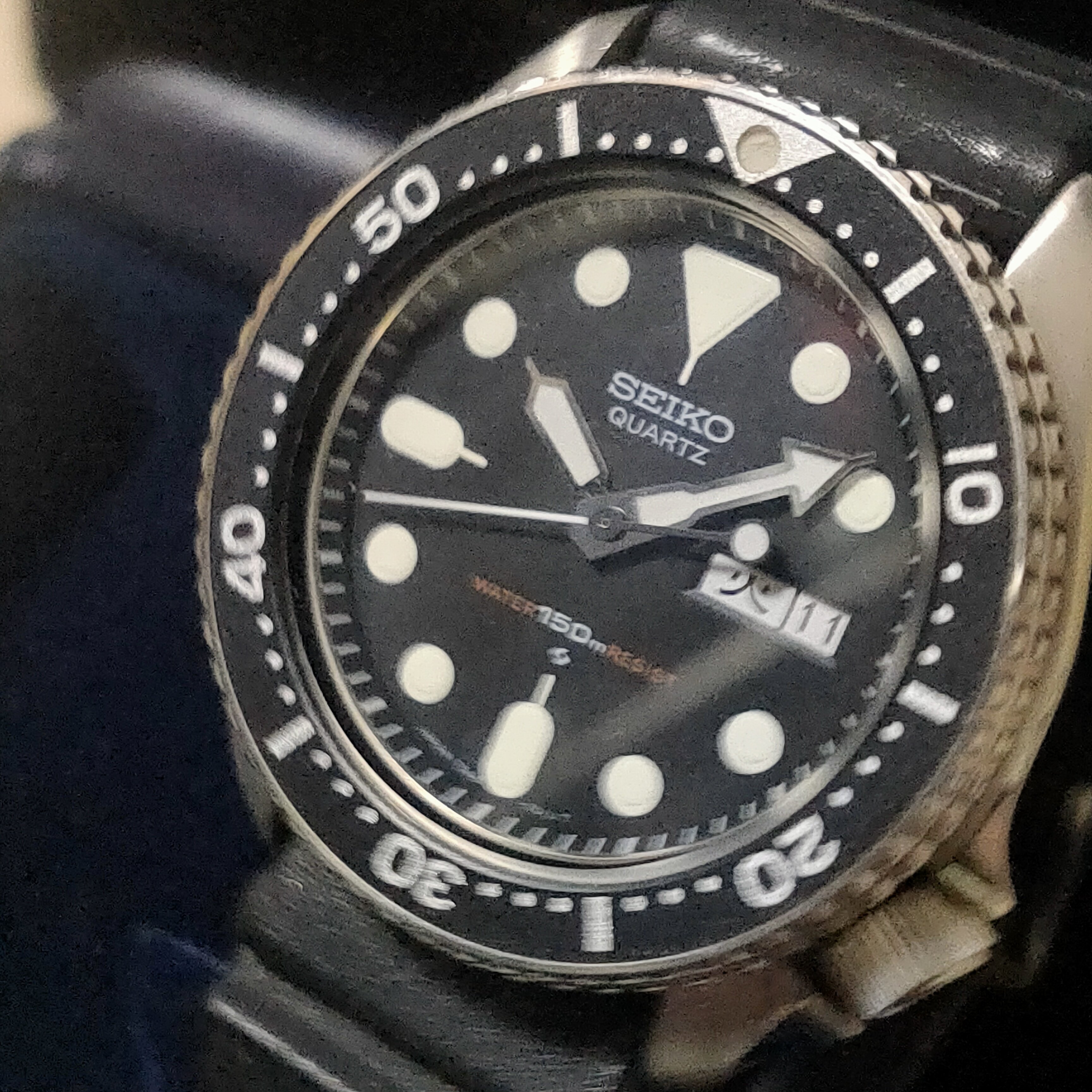

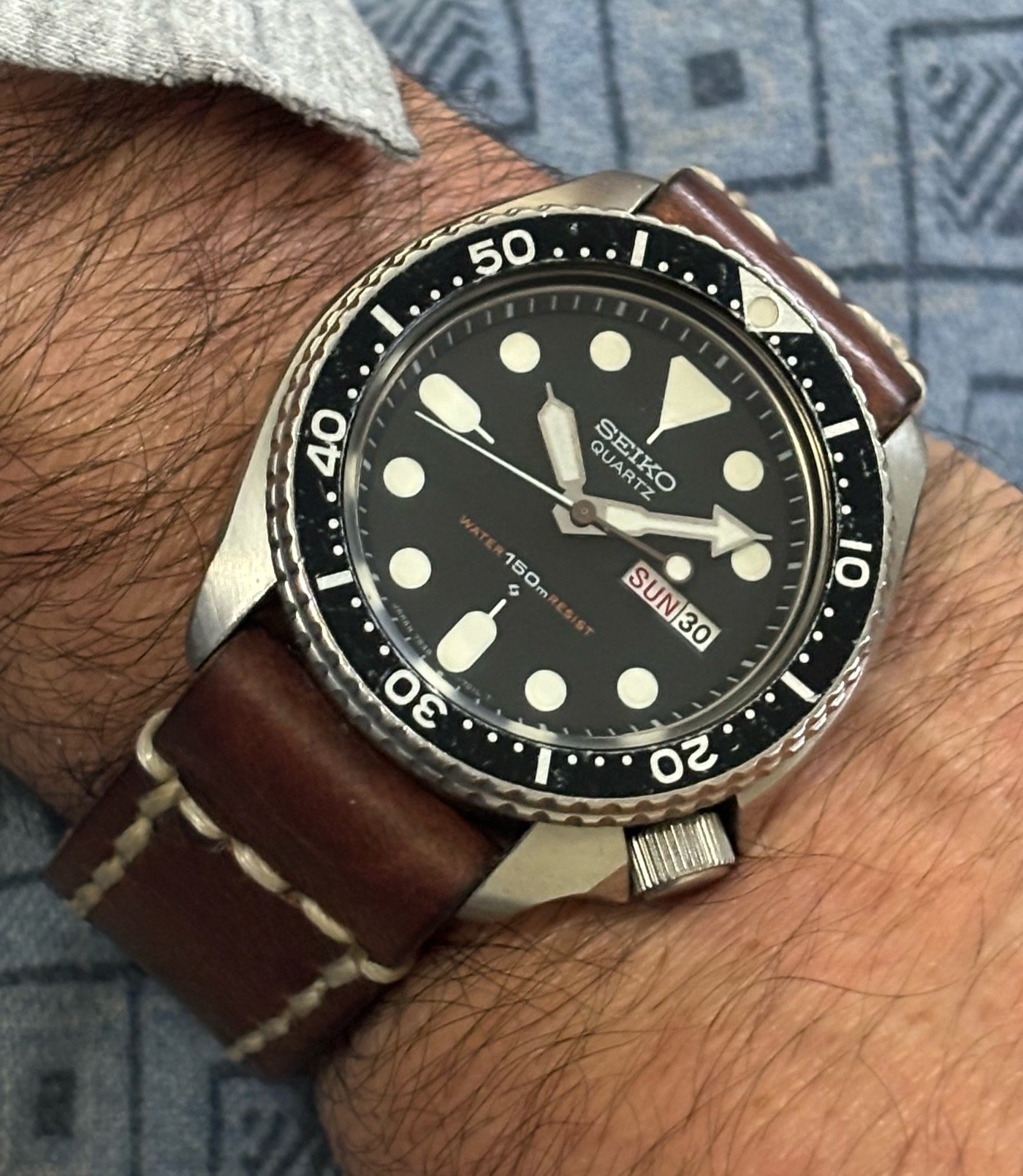

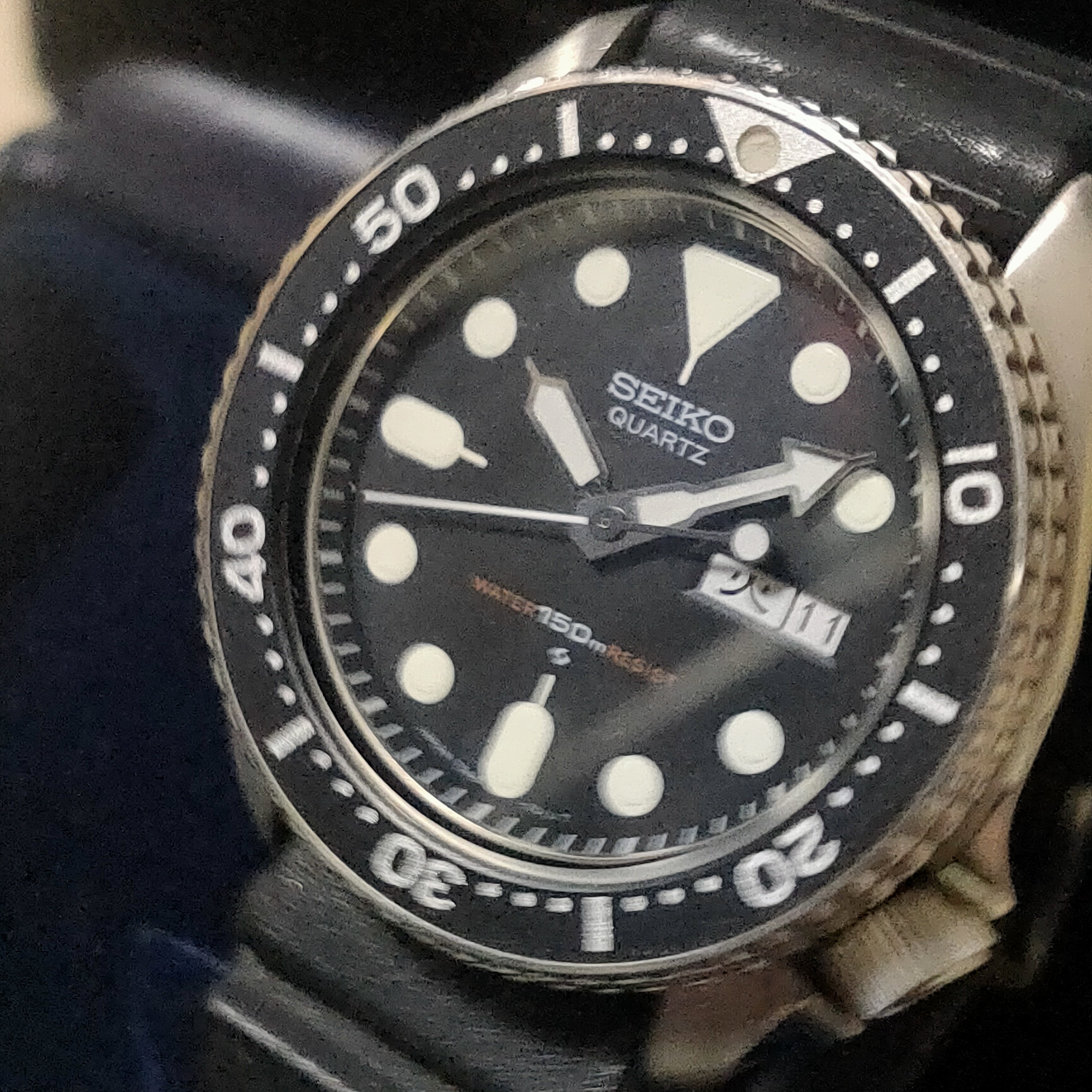

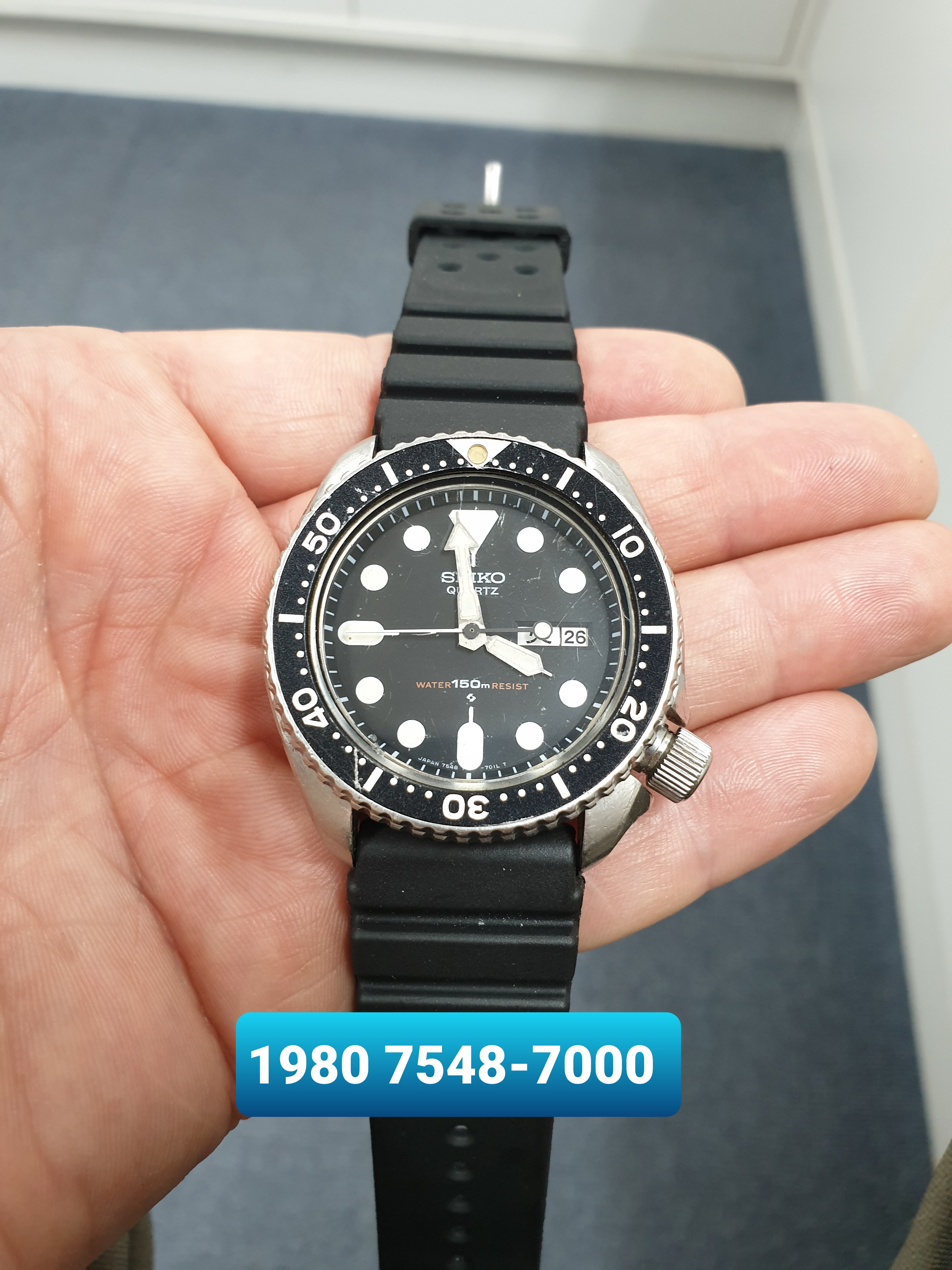

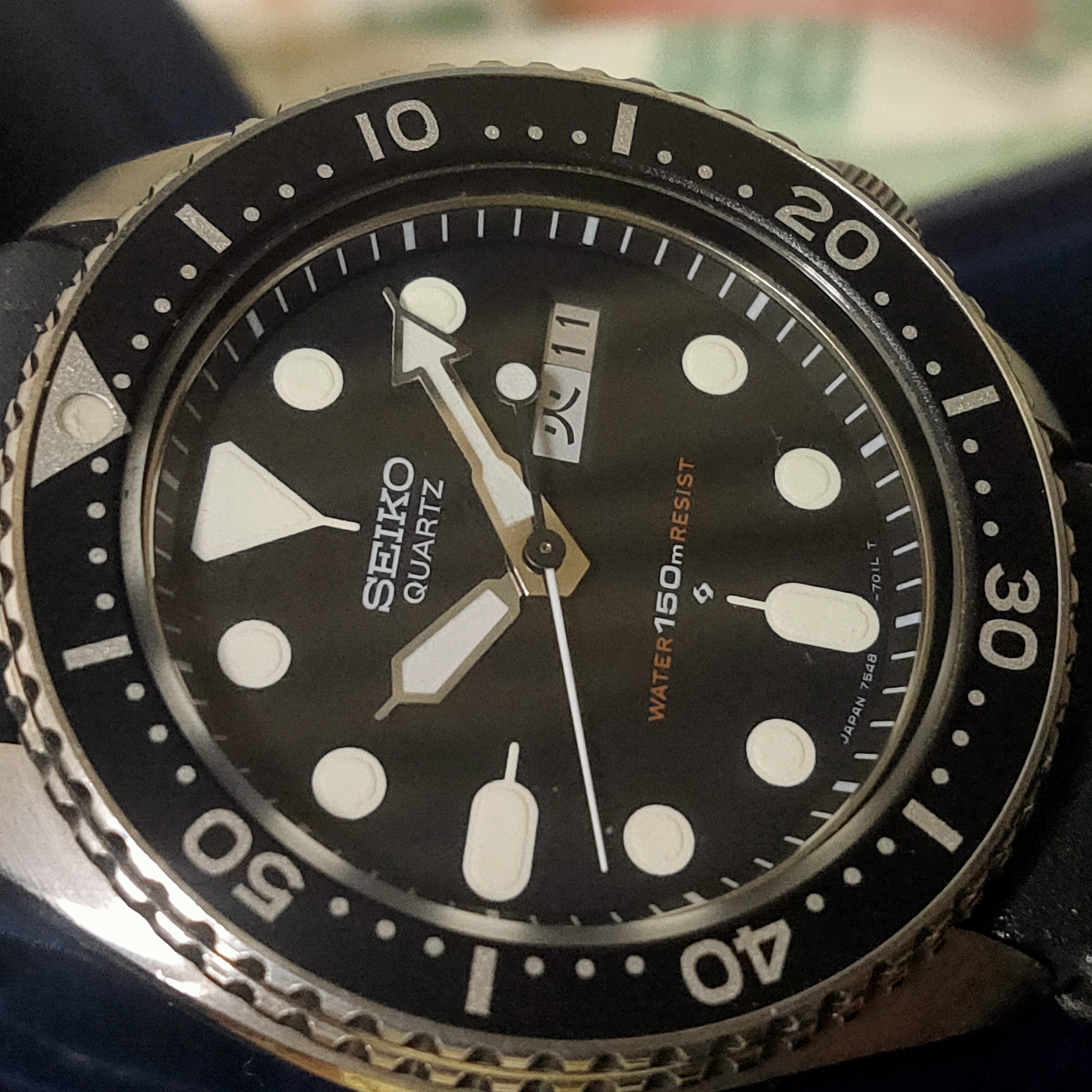

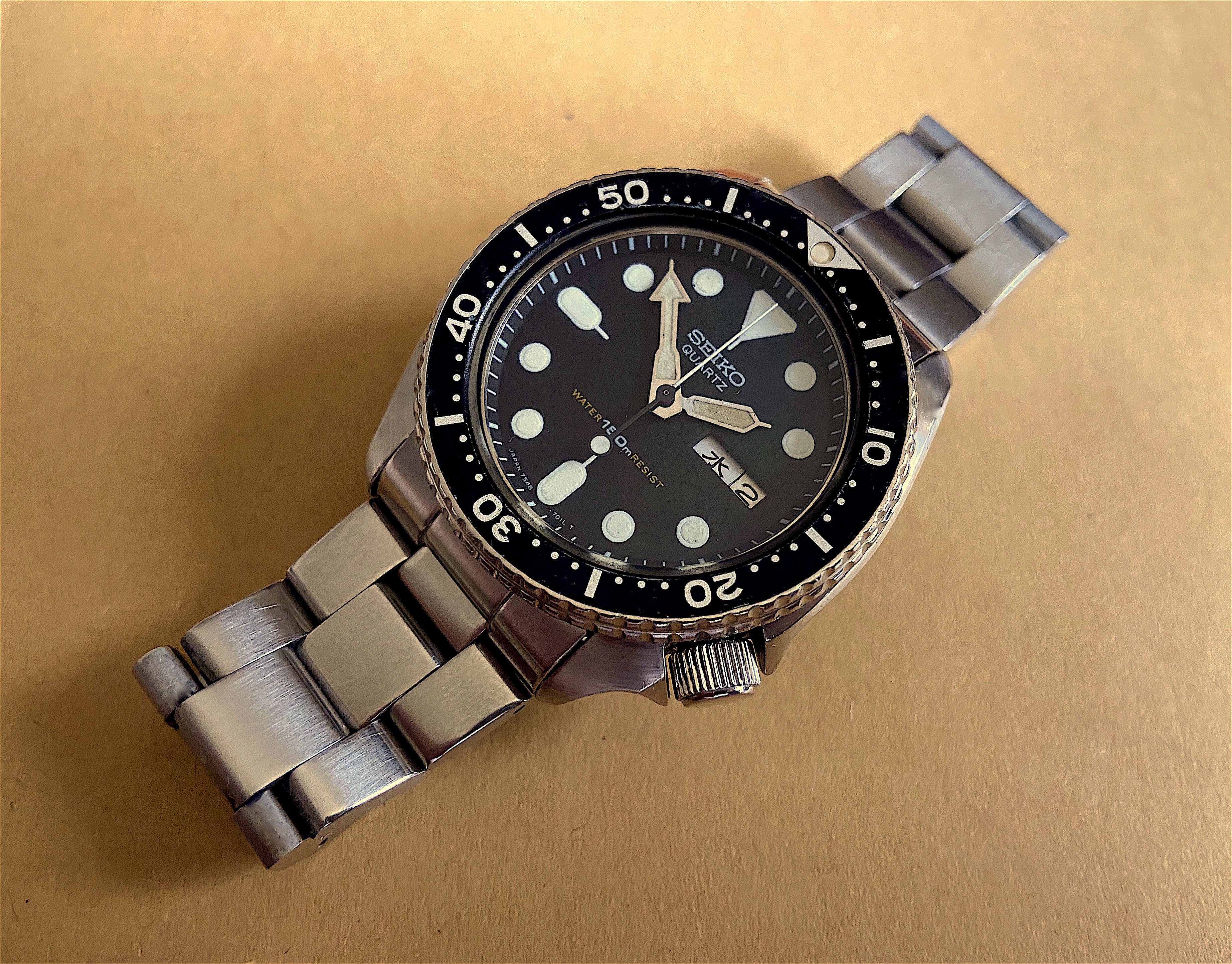

    1983 SEIKO 7548-7000 JAPAN J 150M Quartz Diver

    151876155_10158060449984537_6485504812255105311_n-jpg.225309.jpeg IMG_1034.jpg 168313063_10158159638689537_6201219210623656371_n-jpg.225310.jpeg
    Edited Sep 20, 2021
    CPRwatch, river rat, ACTmike and 8 others like this.
  2. omegaswisst Jun 5, 2021

    Posts
    571
    Likes
    1,348

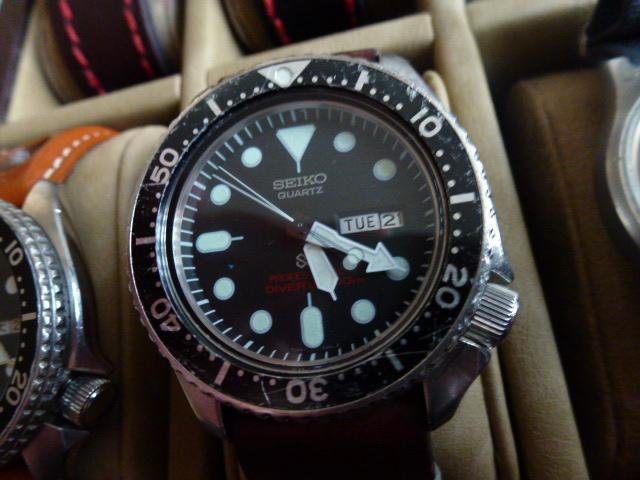

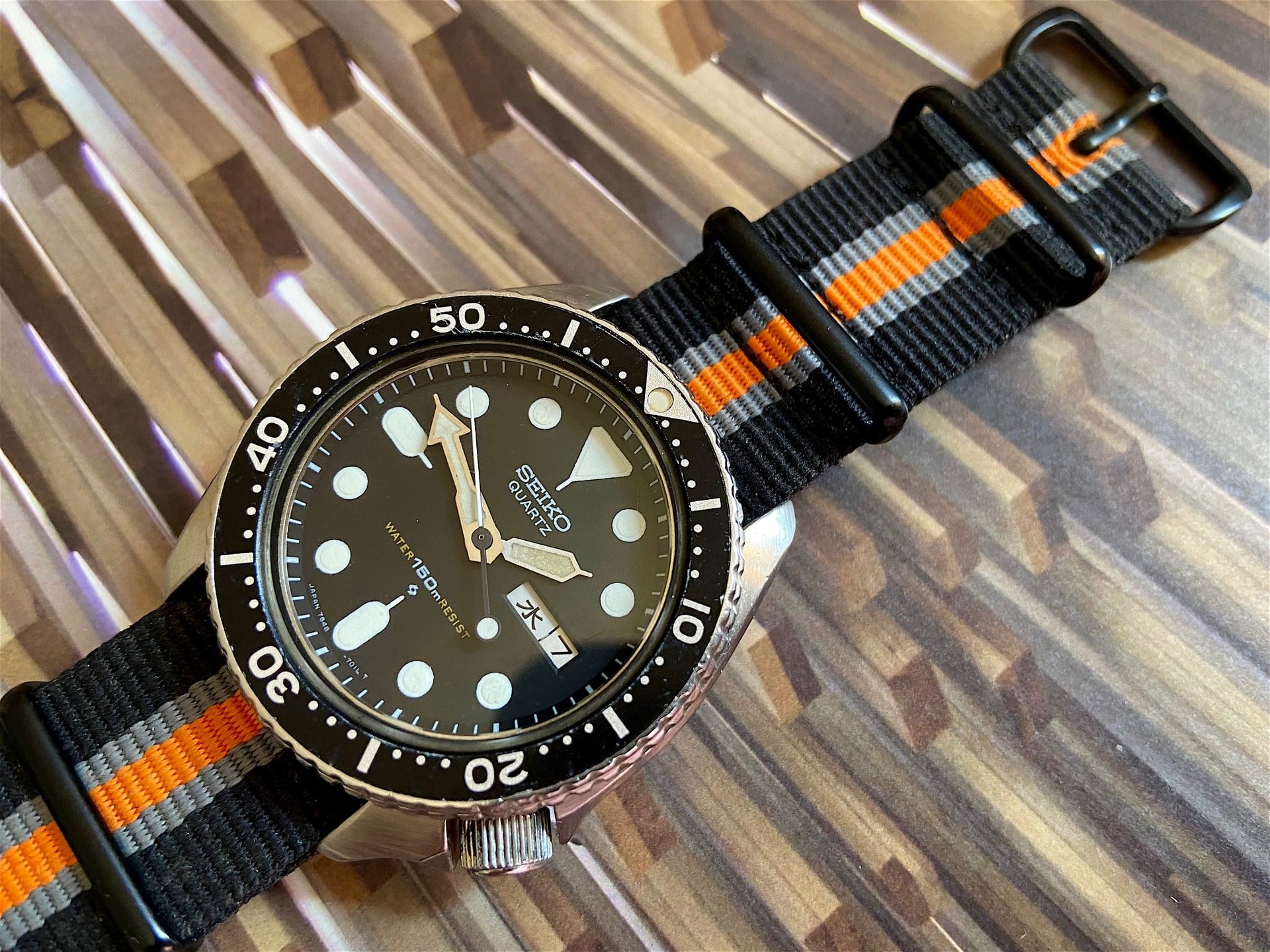

    One of my favourite Seiko references.

    20200708_144441.jpg 20191224_150256.jpg 20191224_150131.jpg 20210605_215539.jpg

    ACTmike, river rat, m84 and 6 others like this.
  3. hmmmcamu Jun 5, 2021

    Posts
    1,753
    Likes
    9,231
    omegaswisst likes this.
  4. Foo2rama Keeps his worms in a ball instead of a can. Jun 5, 2021

    Posts
    15,827
    Likes
    22,775
    Hmm thought the 7548 vs 009 debate was still active for The generals watch. The other a gold DJ is 100% nailed down.

  5. monchichi55 Jul 28, 2021

    Posts
    29
    Likes
    419

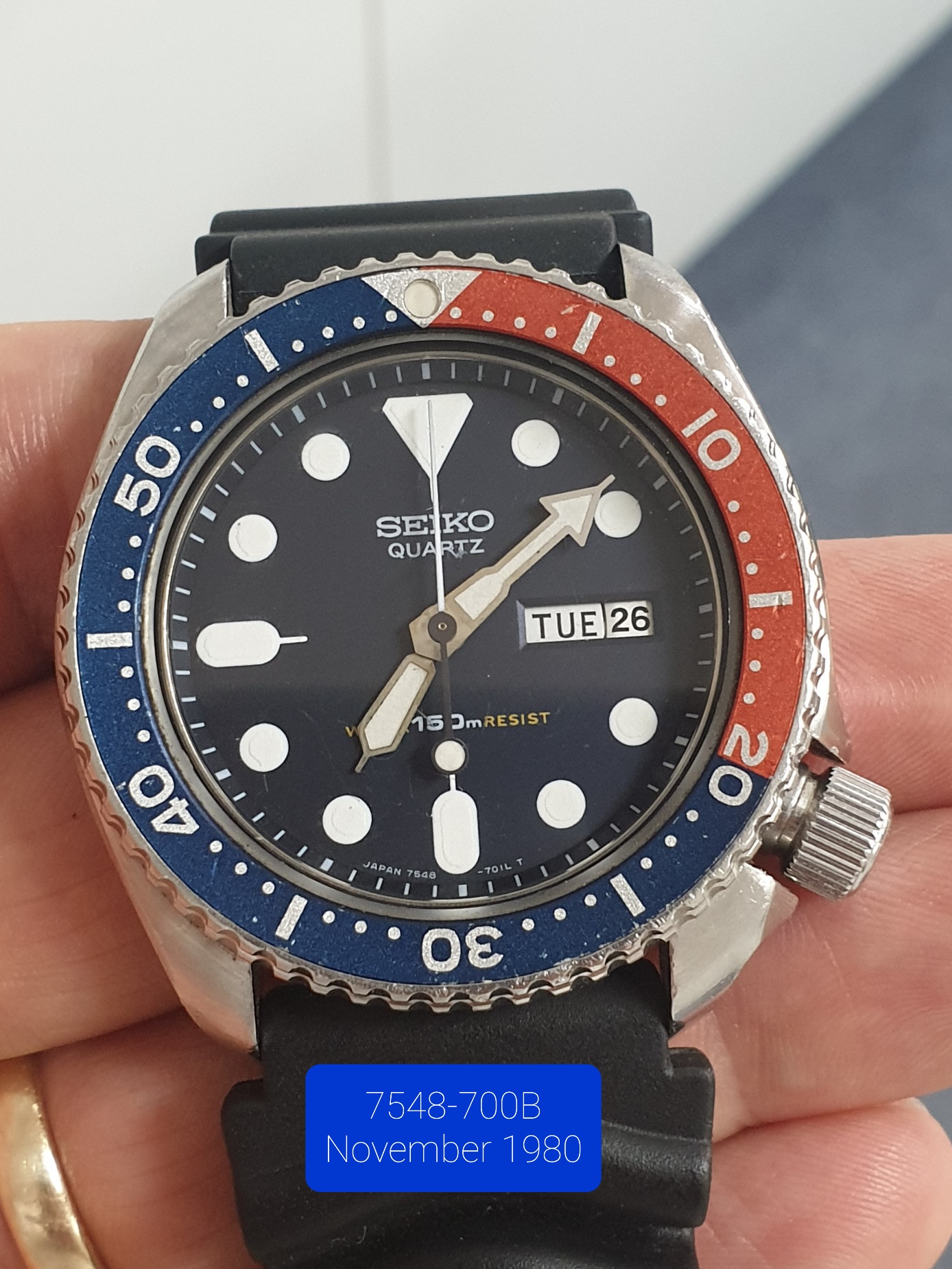

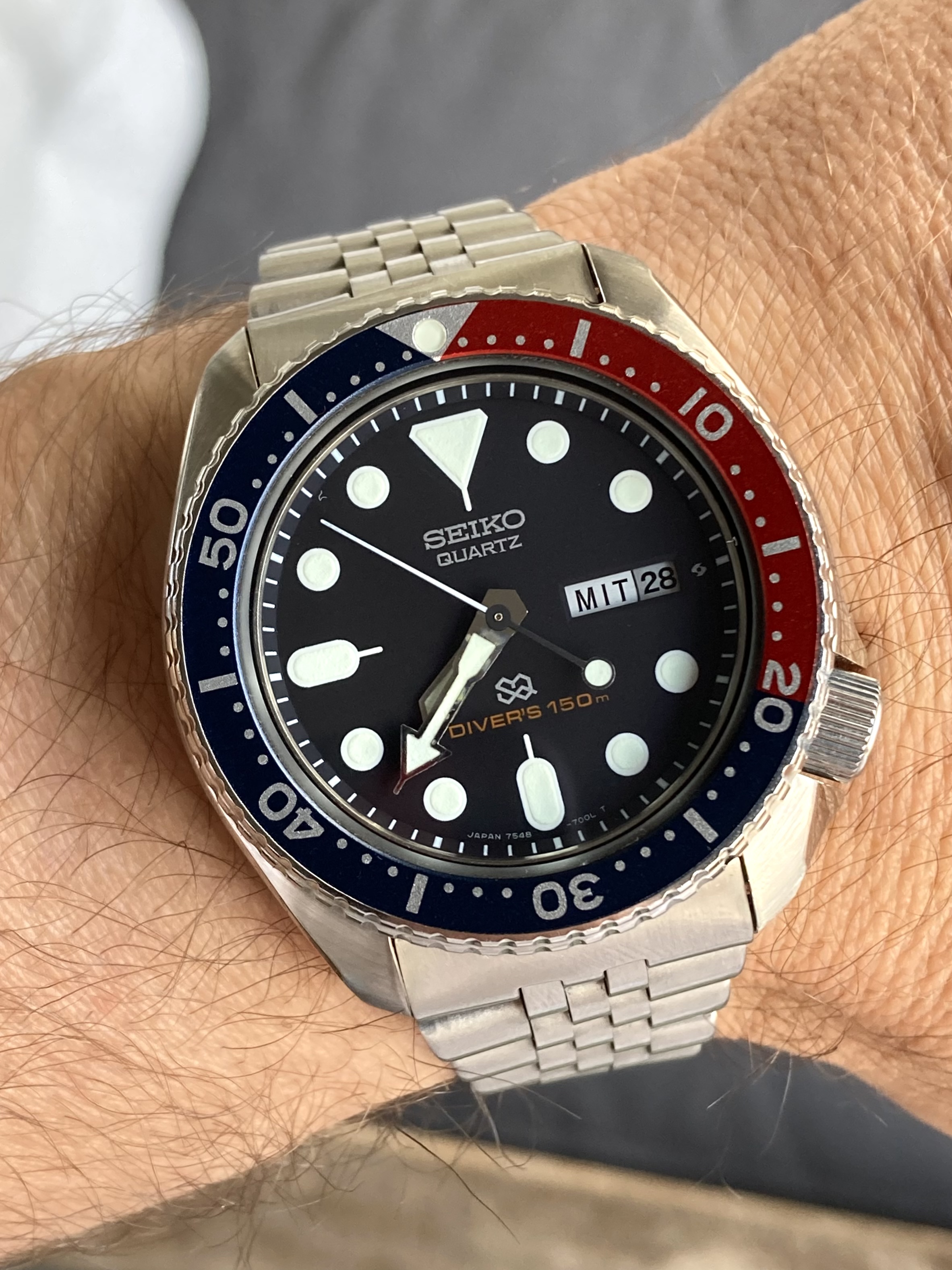

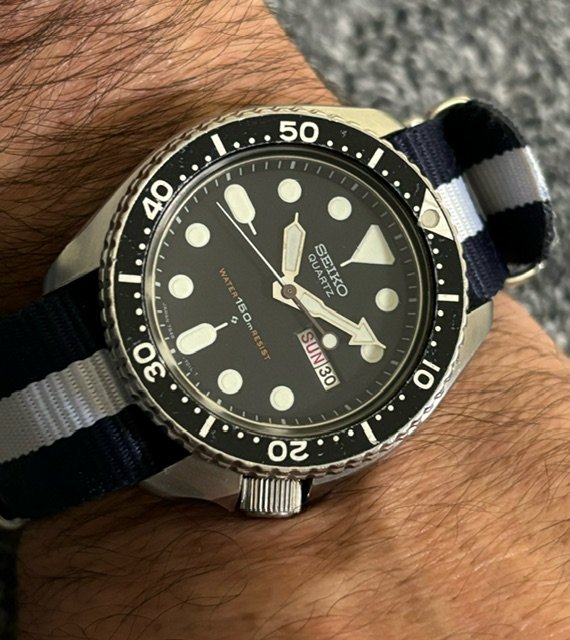

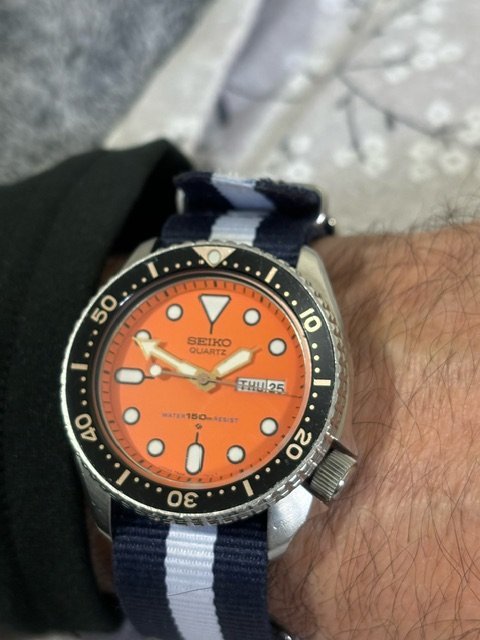

    I absolutely love the 7548s! In my Opinion the best vintage diver for daily wear. I have a few of them and this one is my best example: 7548 700b almost nos


    river rat, ACTmike, Seacow and 2 others like this.
  6. eeki Jul 28, 2021

    Posts
    23
    Likes
    57

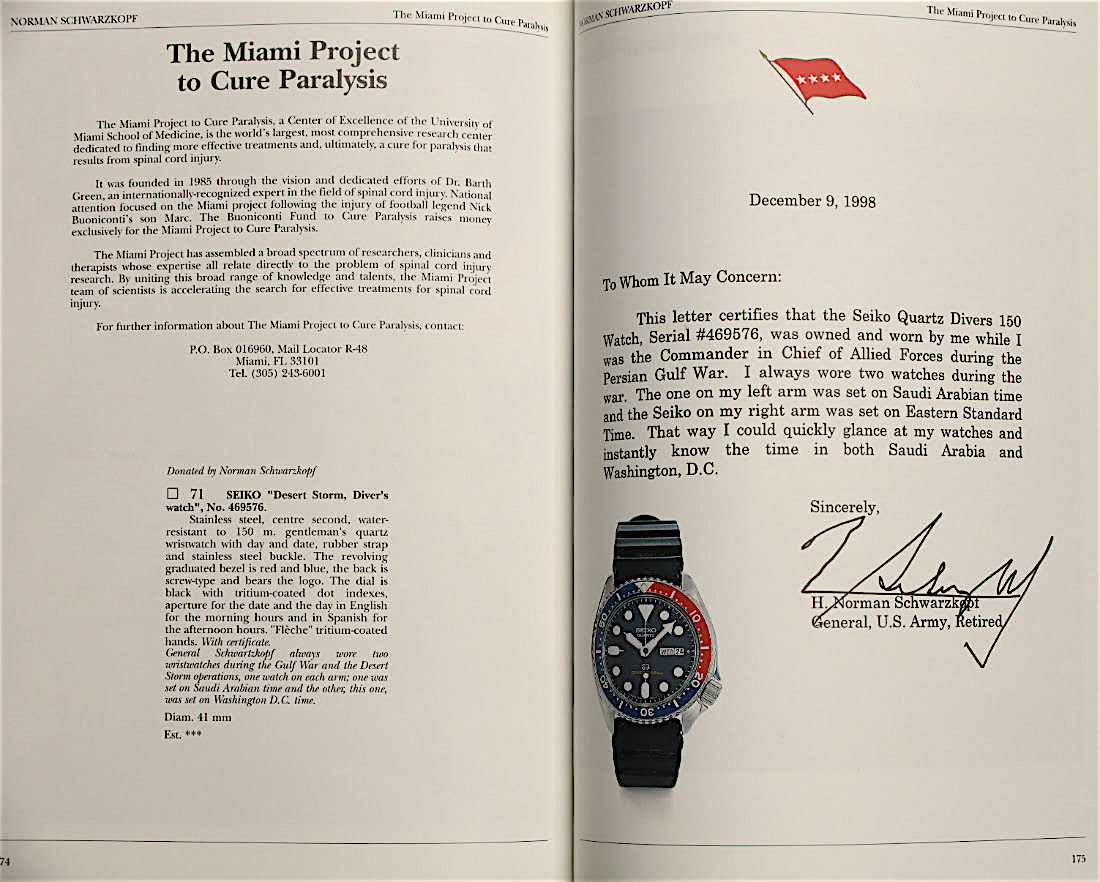

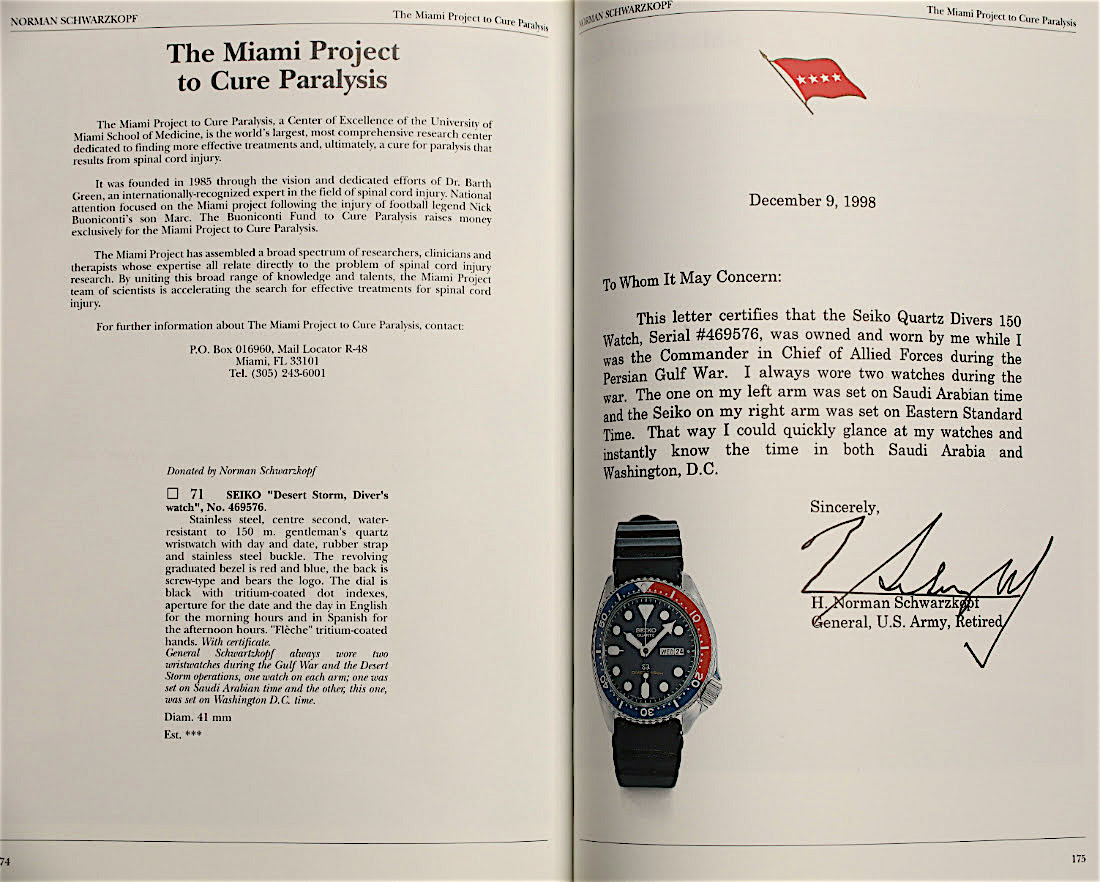

    I think it's fairly well nailed down by now: the actual watch was auctioned by Antiquorum, the letter of provenance by Schwarzkopf himself mentions a "Seiko 150m quartz diver's watch" (which can only be the 7548), and the catalogue photo shows a US-spec 7548:
    [​IMG]

    In any case, it couldn't have been an SKX009, as the SKX only came to market well after he retired (1996 vs 1991 IIRC).

  7. hmmmcamu Jul 28, 2021

    Posts
    1,753
    Likes
    9,231
    thanks for sharing additional info, i will insert the image u shared with the information posted for the 7548

    eeki likes this.
  8. S.H. Jul 29, 2021

    Posts
    1,326
    Likes
    2,961

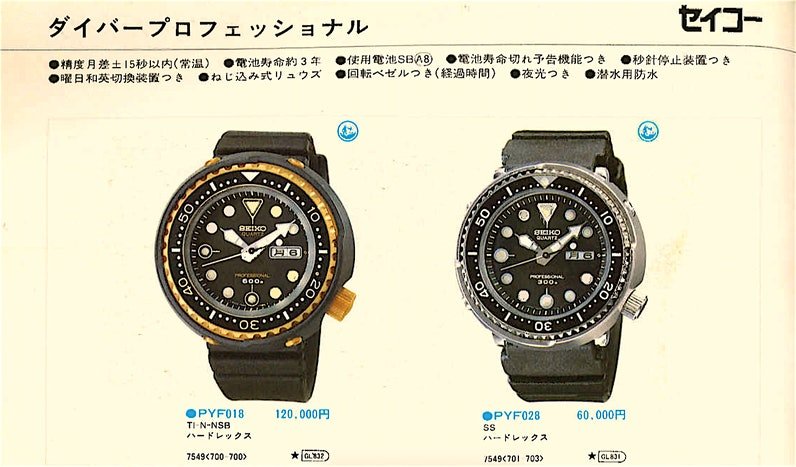

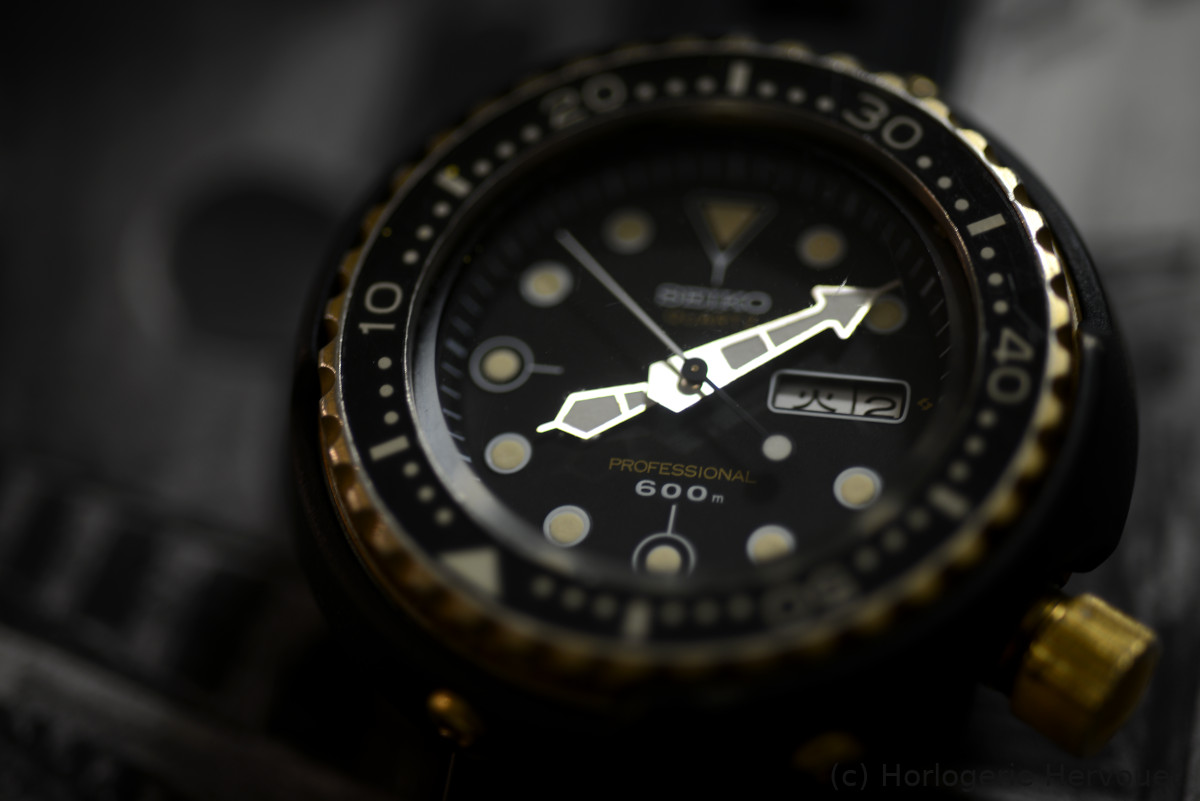

    Funny how nowadays most collectors associate seiko + quartz = cheap. The tunas never were cheap, quite a few quartz from the 70s did cost much more than their auto counterparts and I must look up the catalogs one day to see if there were a costlier watch than the 7549-7000 @120 000jpy in 1978 (4x baby ploprof :eek:). I just love mine...

    The 754x quartz are vere nice movements indeed. The 150m divers are well known, the silverwave are quite nice too.

    [​IMG]

    m84, Seacow, eeki and 2 others like this.
  9. mountainunder Sep 8, 2021

    Posts
    350
    Likes
    580

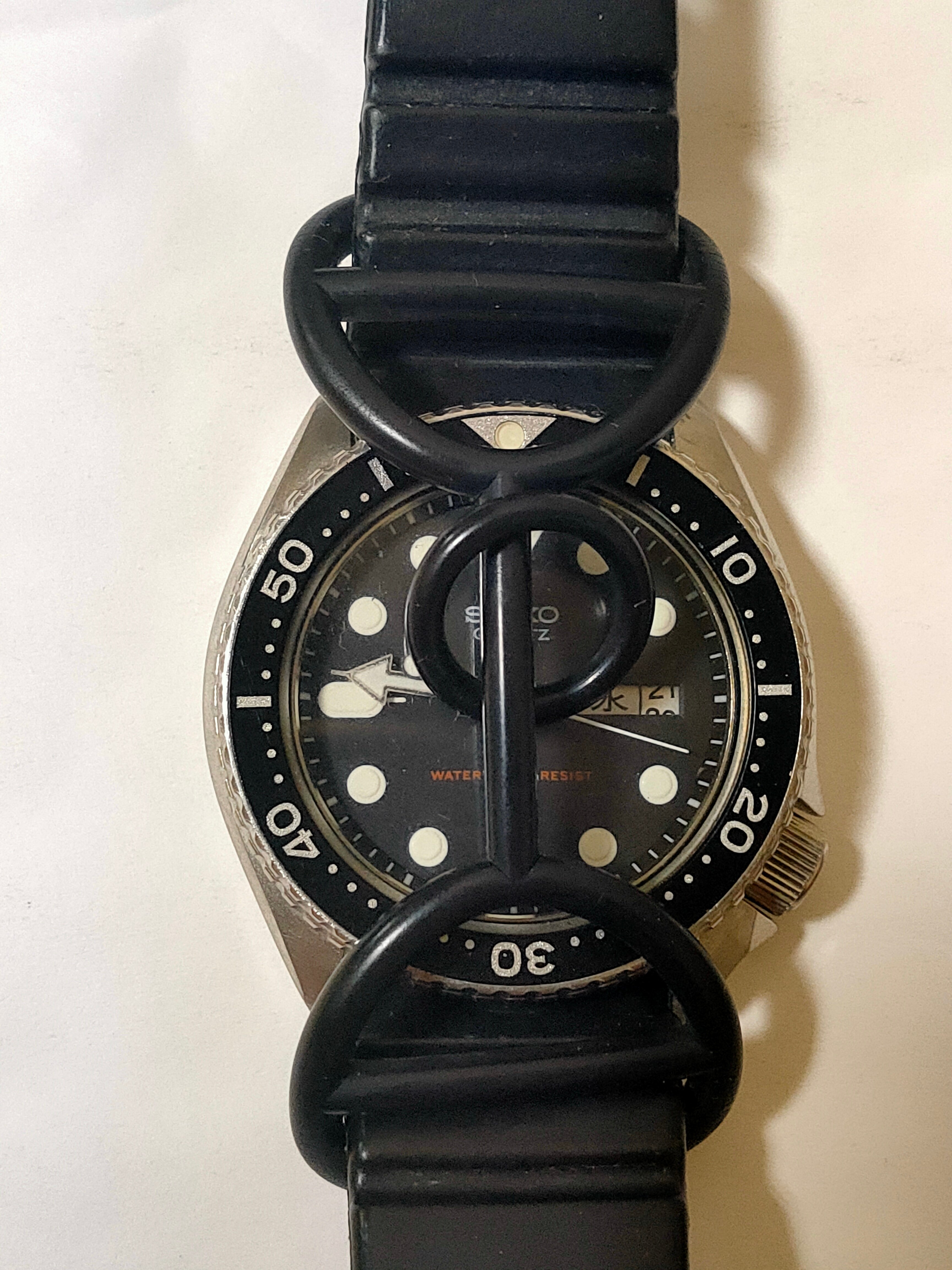

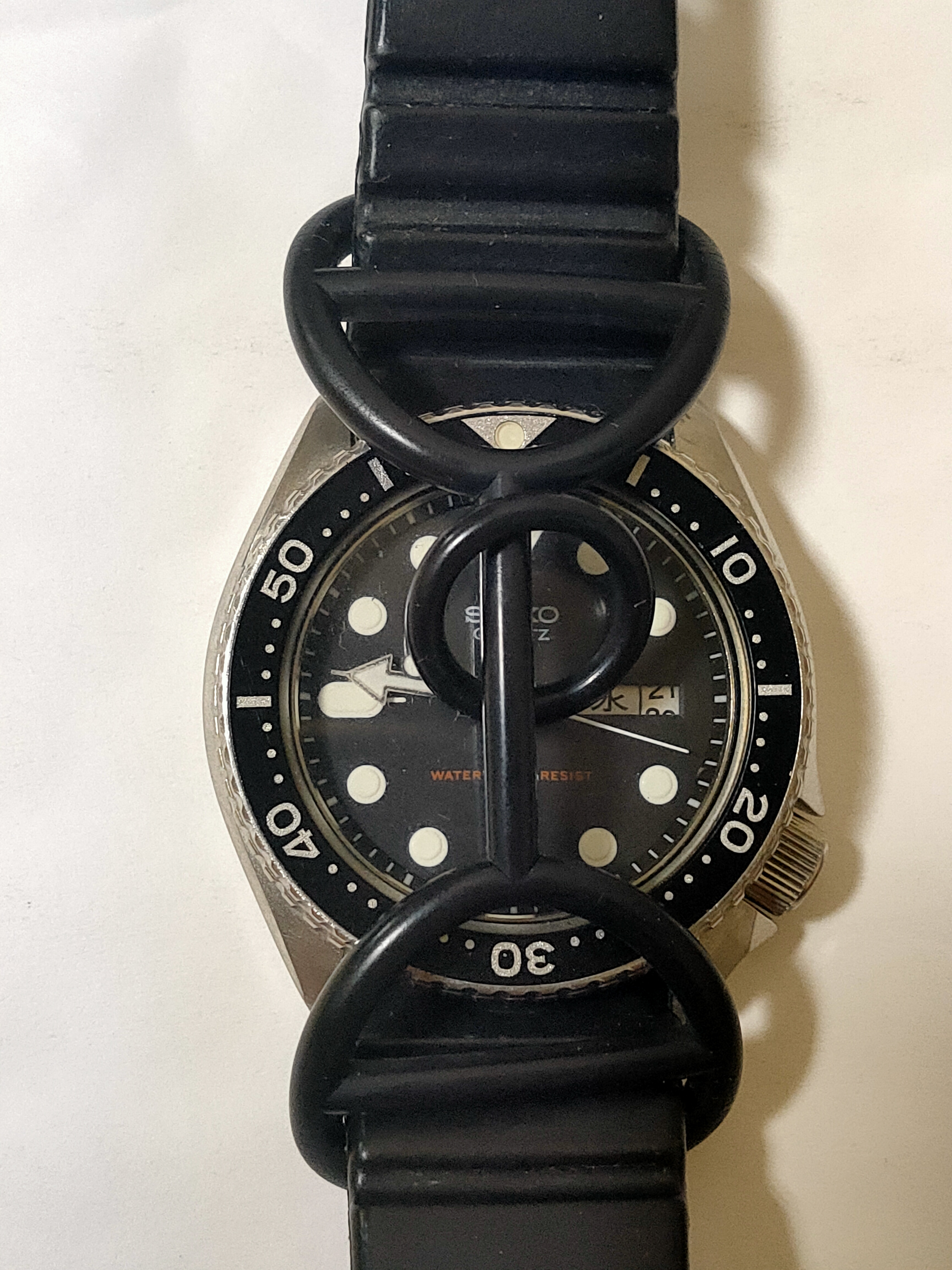

    I put on a watch protector that was popular in Japan a long time ago.
    The purpose of the protector was to protect the bezel and the glass, so the visibility after installation was quite poor.

    I saw a lot of people wearing them on divers' watches. Of course, there were people wearing them on the 7548-7000 as well. Old Japanese style;)

    river rat, S.H., IDXM and 1 other person like this.
  10. S.H. Feb 11, 2022

    Posts
    1,326
    Likes
    2,961
    Never saw this... contraption :eek: . Interesting.

    mountainunder and hmmmcamu like this.
  11. Foo2rama Keeps his worms in a ball instead of a can. Feb 11, 2022

    Posts
    15,827
    Likes
    22,775
    Swatch used to sell these in the late 80’s for thier watches.

    mountainunder and hmmmcamu like this.
  12. river rat Feb 26, 2022

    Posts
    794
    Likes
    3,900

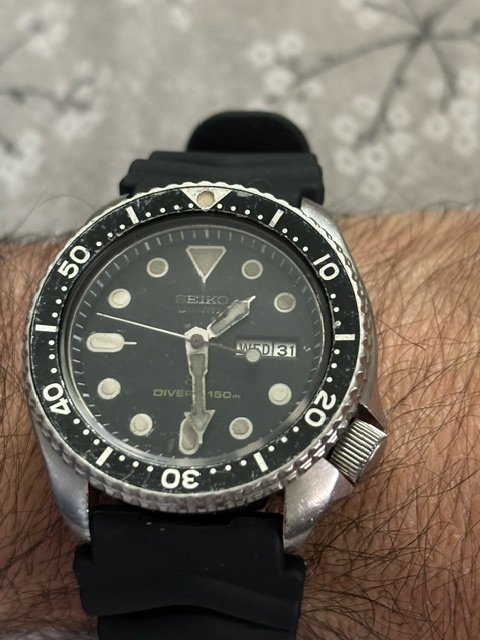

    Here is mine bought it when in the US Navy in 1982. I used it when on active duty and them when I did the reserve so 22 years of Navy service. And used it on my civilian job it took a beating but kept on ticking. The lume turned blackish at one point due to age the crystal was beat up. So had Jack at IWW relume it and replace the crystal.
    [​IMG]
    [​IMG]
    You can see it on the wrist when I was in Special Boat Unit XI. This watch been around the world with me when I was in the service.
