Radium - Geiger Counter Measurements

Posts
22
Likes
8
Can you place it 2cm above a banana so we can see the negative control?
Can you place a lead sheet between the detector and the watch for additional verification?
i can try on banana but i have no lead sheet.

I test it on my 1980s rolex daydate , the reading was very low. i believe it has tritium on it

Posts
419
Likes
1,169

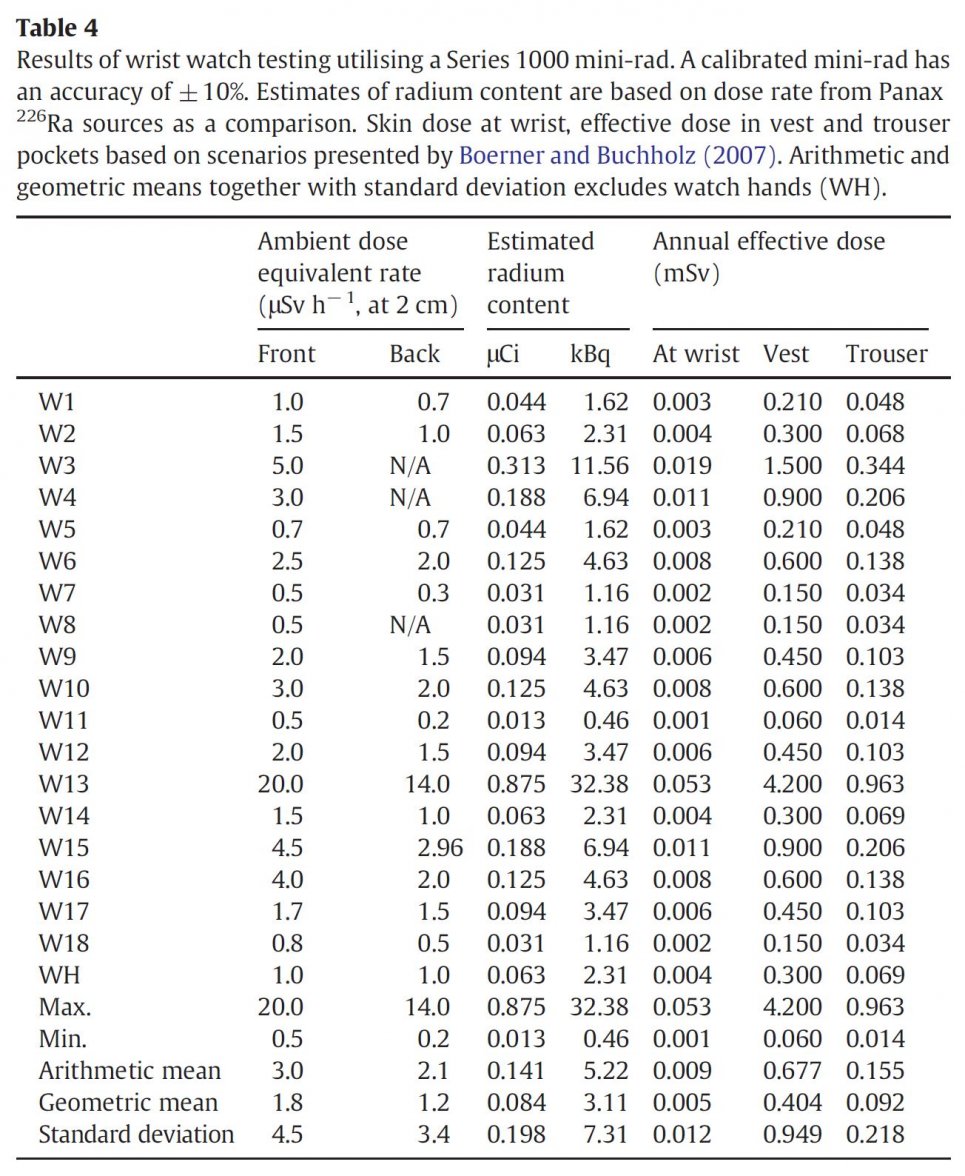

To give you some context, here's Table 4 from GK Gillmore et al. (2012) from Environment International; 45: 91-81. He's the same professor from Kingston University who published the report that caused a resurgence in anxiety around radium watches in 2018 (see links below). As you can see, for wristwatches, measurements 2 cm above crystal usually range 0.5-20 uSv/hour range, with 20 uSv/hour being really atypical and high (it was a military watch from the 1940s).

The articles posted below (Hodinkee, W&W, etc.) I believe are mainly sensationalist. The conclusion from the study is that the radiation levels are acceptable, particularly from later watches post-1950s and non-military watches. Pocket watches are larger and so more radium = higher risk. They concluded the emitted radon levels were the greater concern.

https://www.hodinkee.com/articles/new-report-shows-radium-dials-might-pose-serious-danger
https://www.northampton.ac.uk/news/wwii-military-watches-potentially-pose-serious-cancer-risk/
https://wornandwound.com/new-study-warns-against-radium-dialed-watches/

Edited:

Posts
22
Likes
8
To give you some context, here's Table 4 from GK Gillmore et al. (2012) from Environment International; 45: 91-81. He's the same professor from Kingston University who published the report that caused a resurgence in anxiety around radium watches in 2018 (see links below). As you can see, for wristwatches, measurements 2 cm above crystal usually range 0.5-20 uSv/hour range, with 20 uSv/hour being really atypical and high (it was a military watch from the 1940s).

The articles posted below I believe are mainly sensationalist. The conclusion from the study is that the radiation levels are acceptable, particularly from later watches post-1950s and non-military watches. Pocket watches are larger and so more radium = higher risk. They concluded the emitted radon levels were the greater concern.

https://www.hodinkee.com/articles/new-report-shows-radium-dials-might-pose-serious-danger
https://www.northampton.ac.uk/news/wwii-military-watches-potentially-pose-serious-cancer-risk/
https://wornandwound.com/new-study-warns-against-radium-dialed-watches/



thanks for this data , i will need to test another radium watch to see the difference.

Posts
81
Likes
130
i can try on banana but i have no lead sheet.

I test it on my 1980s rolex daydate , the reading was very low. i believe it has tritium on it
Yes, tritium lume is comparatively harmless 馃榾

It was handy of Blancpain to write the radiation limits on their vintage tritium FF "No Raditions" right on the dial...


Posts
419
Likes
1,169
To be clear though....135 uSv/hour is extremely high. That's > 1000 mSV annual exposure at the wrist. You'd likely get a substantial total body dose from that as well...If that reading is true, I'd suggest getting rid of the watch.

But I doubt that's an accurate reading.

Posts
22
Likes
8
To be clear though....135 uSv/hour is extremely high. That's > 1000 mSV annual exposure at the wrist. You'd likely get a substantial total body dose from that as well...If that reading is true, I'd suggest getting rid of the watch.

But I doubt that's an accurate reading.


i dont know if it鈥檚 psychological but i do headache and arm soreness while wearing it . my friend has a 1960s red sub and i will go over and test it with my counter later.

Posts
419
Likes
1,169
Are you able to confirm your readings with a different brand of radiation detector?

Posts
2,058
Likes
4,638
i dont know if it鈥檚 psychological but i do headache and arm soreness while wearing it . my friend has a 1960s red sub and i will go over and test it with my counter later.

Red 1680 sub will be tritium

Posts
419
Likes
1,169
i dont know if it鈥檚 psychological but i do headache and arm soreness while wearing it . my friend has a 1960s red sub and i will go over and test it with my counter later.

Commercial radiation detectors use a sodium iodide detector that only detects gamma or x-ray particles. It won't detect alpha radiation, and tritium emits 100% alpha emissions. Radium is ~96% alpha with 4% gamma. The gamma is what we worry about and that's what your probably measuring with your detector.

Posts
81
Likes
130
i can try on banana but i have no lead sheet.

I test it on my 1980s rolex daydate , the reading was very low. i believe it has tritium on it
Steel (at a greater thickness than lead) will do the trick too! 馃槈

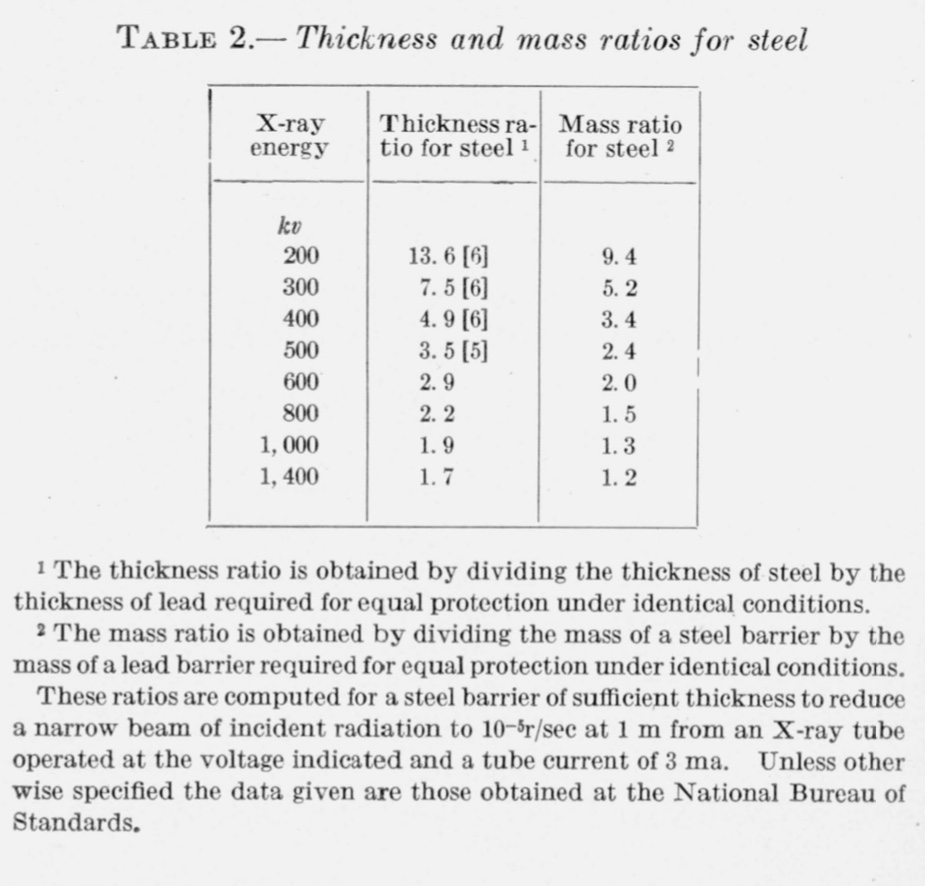

From US Dep't Commerce Nat'l Bureau of Standards

Posts
22
Likes
8
Steel (at a greater thickness than lead) will do the trick too! 馃槈

From US Dep't Commerce Nat'l Bureau of Standards
l
Steel (at a greater thickness than lead) will do the trick too! 馃槈

From US Dep't Commerce Nat'l Bureau of Standards

i put at 4cm stainless steel metal on top of it and it measure 2-2.3uSv/hr in 3mins testing.

I will pay a visit to my watchmaker , he said he has radium watches

Posts
7,176
Likes
23,251
Commercial radiation detectors use a sodium iodide detector that only detects gamma or x-ray particles. It won't detect alpha radiation, and tritium emits 100% alpha emissions. Radium is ~96% alpha with 4% gamma. The gamma is what we worry about and that's what your probably measuring with your detector.

Just to be clear, as far as you know: top- quality Geiger counters measure just gamma...or gamma and alpha? And, if a device only measures gamma, that's not an accuracy liability for measuring radium watches?

Posts
22
Likes
8
Just to be clear, as far as you know: top- quality Geiger counters measure just gamma...or gamma and alpha? And, if a device only measures gamma, that's not an accuracy liability for measuring radium watches?


this is the device i measured with, I contacted(sent them a video) the manufacturer if the reading could be faulty they say it looks correct. Did reset , recalibrate, result was consistent.

https://www.gqelectronicsllc.com/comersus/store/comersus_viewItem.asp?idProduct=5637

Posts
419
Likes
1,169
Just to be clear, as far as you know: top- quality Geiger counters measure just gamma...or gamma and alpha? And, if a device only measures gamma, that's not an accuracy liability for measuring radium watches?

Most commerical detectors (e.g. Radex) only detect gamma. You need specialised devices to measure alpha, and usually the devices that measure alpha only measure alpha, not gamma and alpha. Reason being that we generally "don't care" about alpha radiation, given it only penetrates a few millimetres away from the source. The large alpha particles are block by air, the watch case, and skin. It is believed to largely be biologically harmless (as long as you don't ingest an alpha emitter).

Generally if you have a radium watch, you only care about the gamma emissions. That's why tritium started being used in the 70s. Tritium emits 100% alpha, so it's considered much safer (and its half-life is 12 years, so this also contributes to the "safety").

Posts
7,176
Likes
23,251
Most commerical detectors (e.g. Radex) only detect gamma. You need specialised devices to measure alpha, and usually the devices that measure alpha only measure alpha, not gamma and alpha. Reason being that we generally "don't care" about alpha radiation, given it only penetrates a few millimetres away from the source. The large alpha particles are block by air, the watch case, and skin. It is believed to largely be biologically harmless (as long as you don't ingest an alpha emitter).

Generally if you have a radium watch, you only care about the gamma emissions. That's why tritium started being used in the 70s. Tritium emits 100% alpha, so it's considered much safer (and its half-life is 12 years, so this also contributes to the "safety").

Thanks much for the reply.

Posts
22
Likes
8
Most commerical detectors (e.g. Radex) only detect gamma. You need specialised devices to measure alpha, and usually the devices that measure alpha only measure alpha, not gamma and alpha. Reason being that we generally "don't care" about alpha radiation, given it only penetrates a few millimetres away from the source. The large alpha particles are block by air, the watch case, and skin. It is believed to largely be biologically harmless (as long as you don't ingest an alpha emitter).

Generally if you have a radium watch, you only care about the gamma emissions. That's why tritium started being used in the 70s. Tritium emits 100% alpha, so it's considered much safer (and its half-life is 12 years, so this also contributes to the "safety").


not inhale , ingest or contact with wound

but do they travel like dust?

Posts
7,176
Likes
23,251
but do they travel like dust?

If you open the back of a radium-lumed watch, where there is degradation of that material, there is certainly that possibility.
Edited:

Posts
8,096
Likes
28,523
Yes, 84 microsieverts is exceptionally high. In my experience, the typical "high" registers are in the 20-30 range, and I have tested dozens of radium dial watches.

I suppose that the sheer volume of lume on the Enicar was the main problem.
