  1. mcgyver Nov 3, 2020

    Posts
    59
    Likes
    508
    I'm experimenting making a replacement insert for a friends/friend who has a CK2923 with a bare bezel.
    My problem is - the bezel is so worn down I'm having trouble measuring the correct dimensions.
    From what is left of the "groove" in the bezel I measure Od: 37.5mm and Id: 34.5mm and the "lip/depth" is 0.15mm.
    Can some one verify these numbers if I'm on track or not! :)

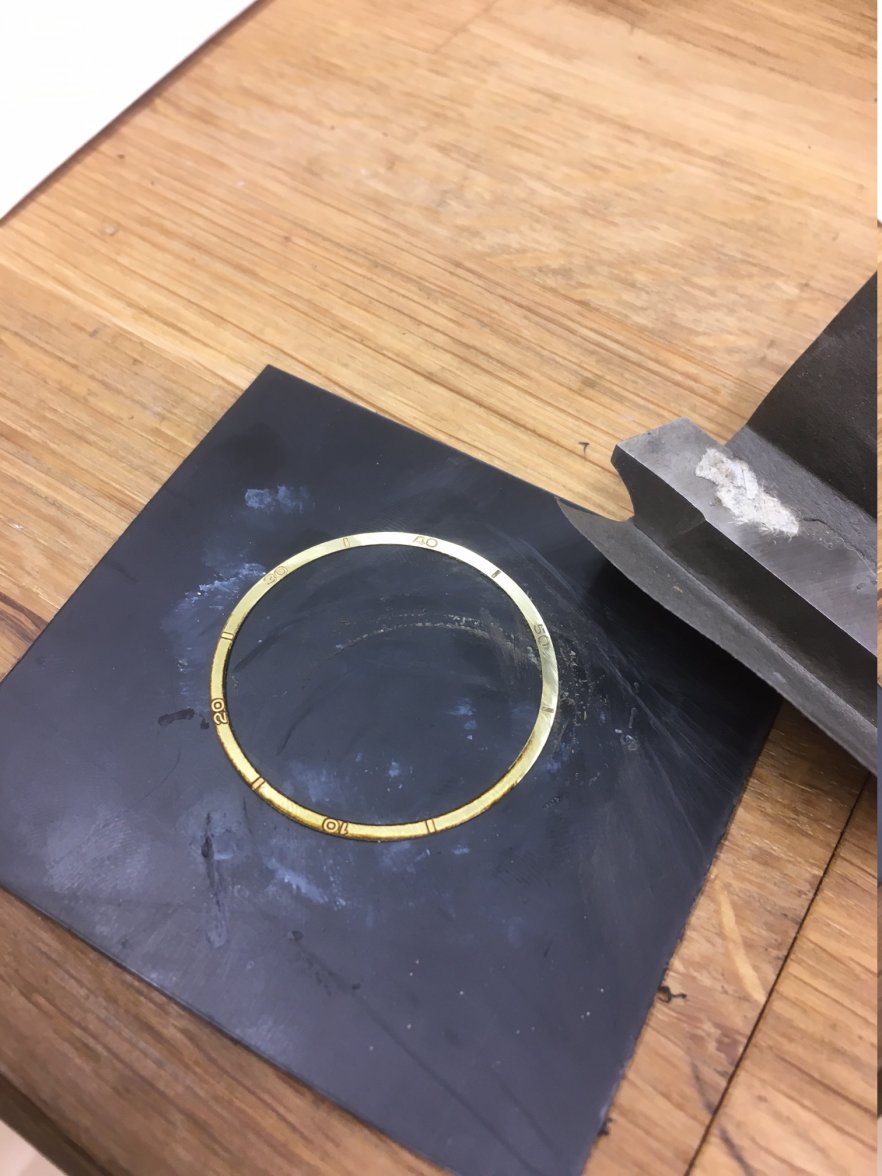

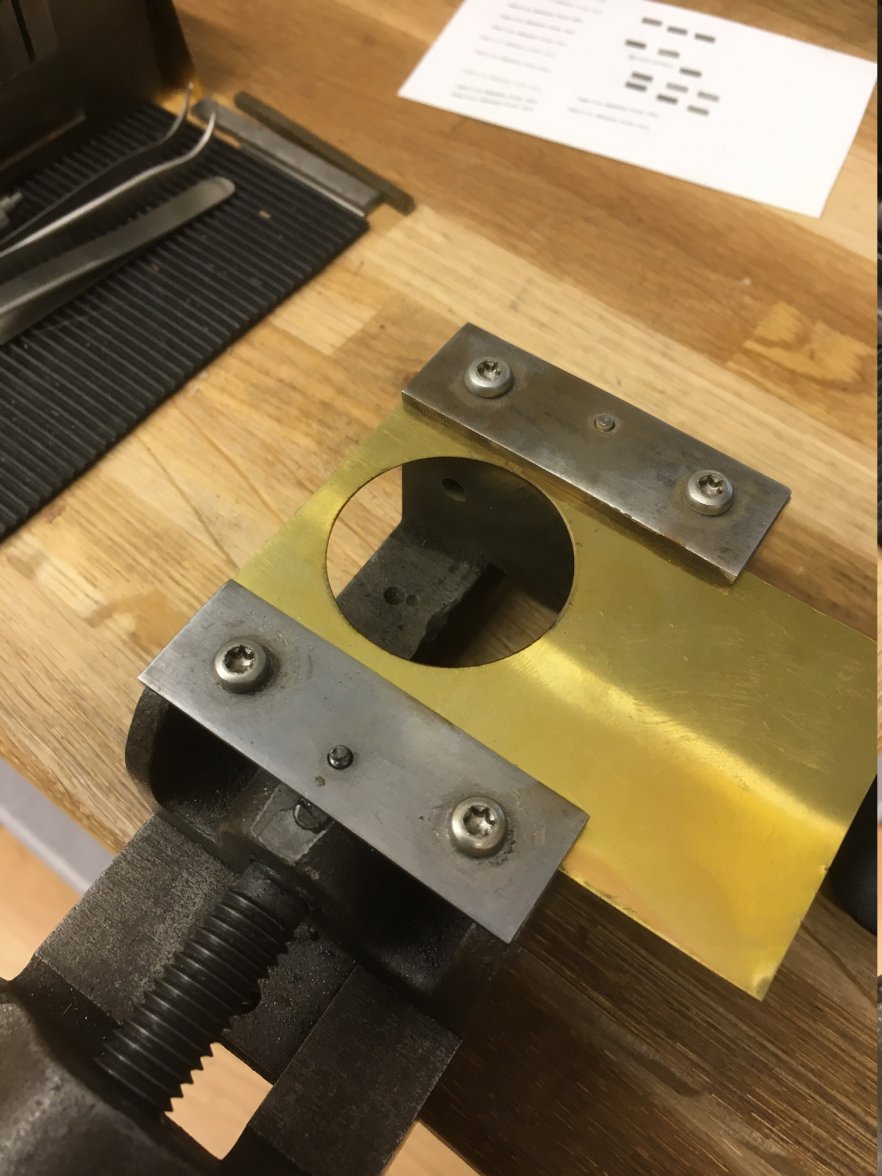

    First test using 0.2mm brass to check fonts and see how deep I have to engrave to get the lume to stick.

    Omega14755_1.jpg Omega14755_2.jpg

    Version two is on the way using black anodized aluminium. Oxidizing the brass black did work - but results not to my liking => trying aluminium instead.

    Mark020, michael e, Shabbaz and 11 others like this.
  2. sohail Nov 9, 2020

    Posts
    445
    Likes
    152
    Hi what’s the update , keep us posted

  3. mcgyver Nov 11, 2020

    Posts
    59
    Likes
    508
    Still trying to find the best method!
    Brass works great engraving and cutting, BUT I'm having some problems getting it etched black - it does not stick as well as I would like.
    Anodized aluminium works good - but hard to find thinner than 0.5mm. Experimenting etching it down in thickness.
    Latest try is making a mold and casting in epoxi resin etc ......
    [​IMG]

    Edited Jan 4, 2021
    michael e, cvalue13, Mods and 7 others like this.
  4. WatchCor Nov 11, 2020

    Posts
    722
    Likes
    1,386
    Nice progress, and if you manage to refine the result, you'll have some customers besides your friends :thumbsup:

    mcgyver likes this.
  5. gemini4 Hoarder Of Speed et alia Nov 11, 2020

    Posts
    5,790
    Likes
    16,270
    FYI, the bezel diameter for the 2913 and 14755 are not identical.

  6. mcgyver Nov 11, 2020

    Posts
    59
    Likes
    508
    Do you know the dimensions? (The one I have is quite beat up)

  7. gemini4 Hoarder Of Speed et alia Nov 11, 2020

    Posts
    5,790
    Likes
    16,270
  8. sohail Nov 11, 2020

    Posts
    445
    Likes
    152
    Did omega used Bakelite in the original bezel?

  9. mcgyver Nov 12, 2020

    Posts
    59
    Likes
    508
  10. Vintagewtchzilla Nov 12, 2020

    Posts
    929
    Likes
    1,957
    neither omega or rolex did .... bakelite is just a urban legend

    ndgal and mcgyver like this.
  11. mcgyver Nov 19, 2020

    Posts
    59
    Likes
    508
    Ongoing experiments.....feels promising...

    [​IMG]

    '[​IMG]

    0.13mm thick aluminium, engraved and filled with paint/lume

    Edited Nov 20, 2020
  12. mcgyver Dec 2, 2020

    Posts
    59
    Likes
    508
    [​IMG]
    Testing pad printing......might be the way to go!

  13. Bayrat Dec 31, 2020

    Posts
    21
    Likes
    32
    Mcgyver, Any updates on the progress? Looks good!!

    mcgyver likes this.
  14. aleksejeremeev Jan 1, 2021

    Posts
    400
    Likes
    192
    Interesting work that will bring you new customers

    mcgyver likes this.
  15. Bayrat Jan 1, 2021

    Posts
    21
    Likes
    32

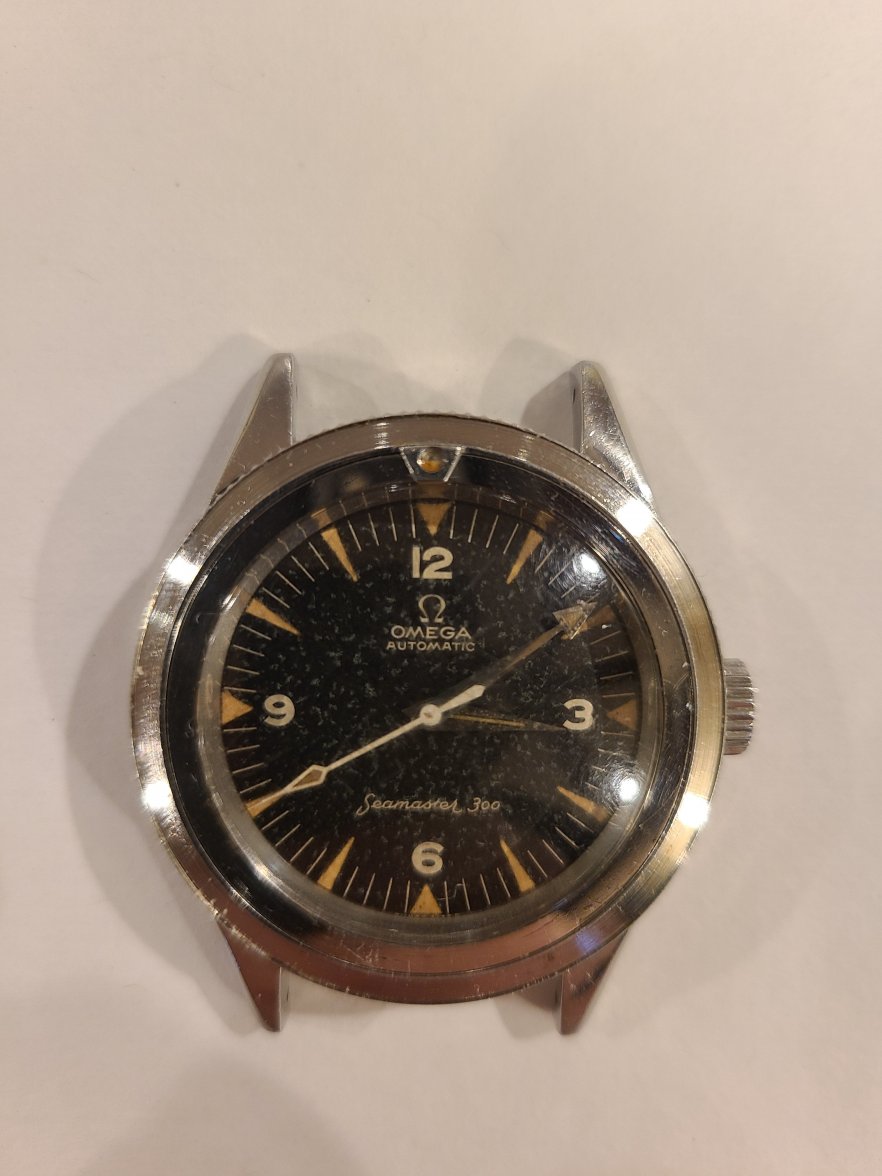

    I agree. I am in the market for a bezel restoration for a 1962 Seamaster 300, Cal 550 165.014-62.
    If the bezel insert can be shipped to you directly, that right there is a bonus! It would also be great if the Bezel insert can be pressed in and can be able to be taken out without damaging the bezel. Which I think could be done?
    So, if the watch was sold (or not) it can go back to the original condition. It can also be left in bezel with a statement Example – “Bezel insert by Mcgyver”. Like they do for artist like Aldo, Lukas and Rene bezel recreation/restoration is stated when these watches are sold or traded.
    Like stated, there are three amazing master craftsmen, that I have heard of here on the OM Forums and others, that do this bezel recreation/restoration. All three need you to send them the watch/bezel. The turnaround time of this service ranges from two weeks to six months.
    This could be a great option that could work for some who own the Seamaster 300 and need Bezel work.
    This opinion is coming from a noobie here, what do I know?

  16. mcgyver Jan 1, 2021

    Posts
    59
    Likes
    508
    Just got a better bezel in the mail from a member! :)
    I adjusted the inner diameter to 34.2mm and it's now a good fit in the new bezel with an intact groove.
    Did some minor adjustments to the fonts - have two 0.14mm aluminum inserts on the bench waiting for the paint/lume to dry.
    The idea with the aluminum version is it can be used glued "as is" - or over fill with epoxy/acrylic to get a "baked" version - by the owner so no need to ship the bezel and risk it getting lost in the mail.
    Will post a picture when the paint has dried so I can do a test fitting!

    Edited Jan 4, 2021
  17. n-theory Jan 1, 2021

    Posts
    247
    Likes
    471
    This future customer can't wait ;)

    Bayrat and mcgyver like this.
  18. mcgyver Jan 2, 2021

    Posts
    59
    Likes
    508

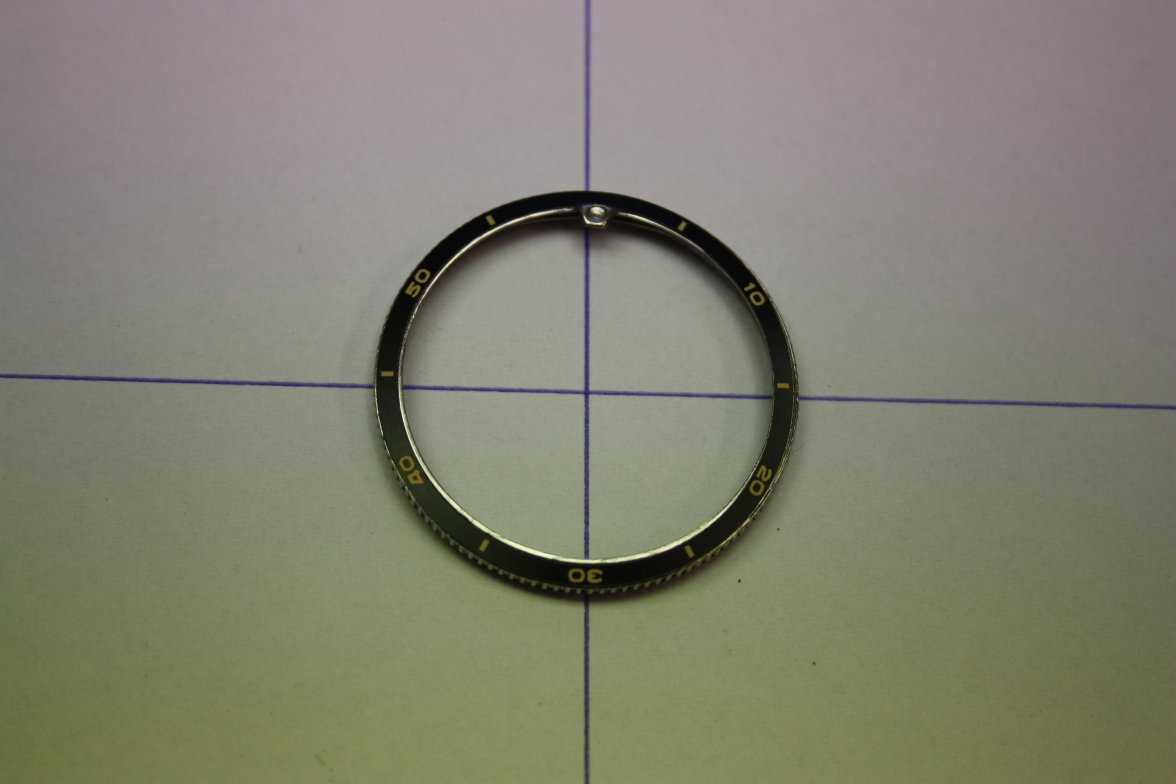

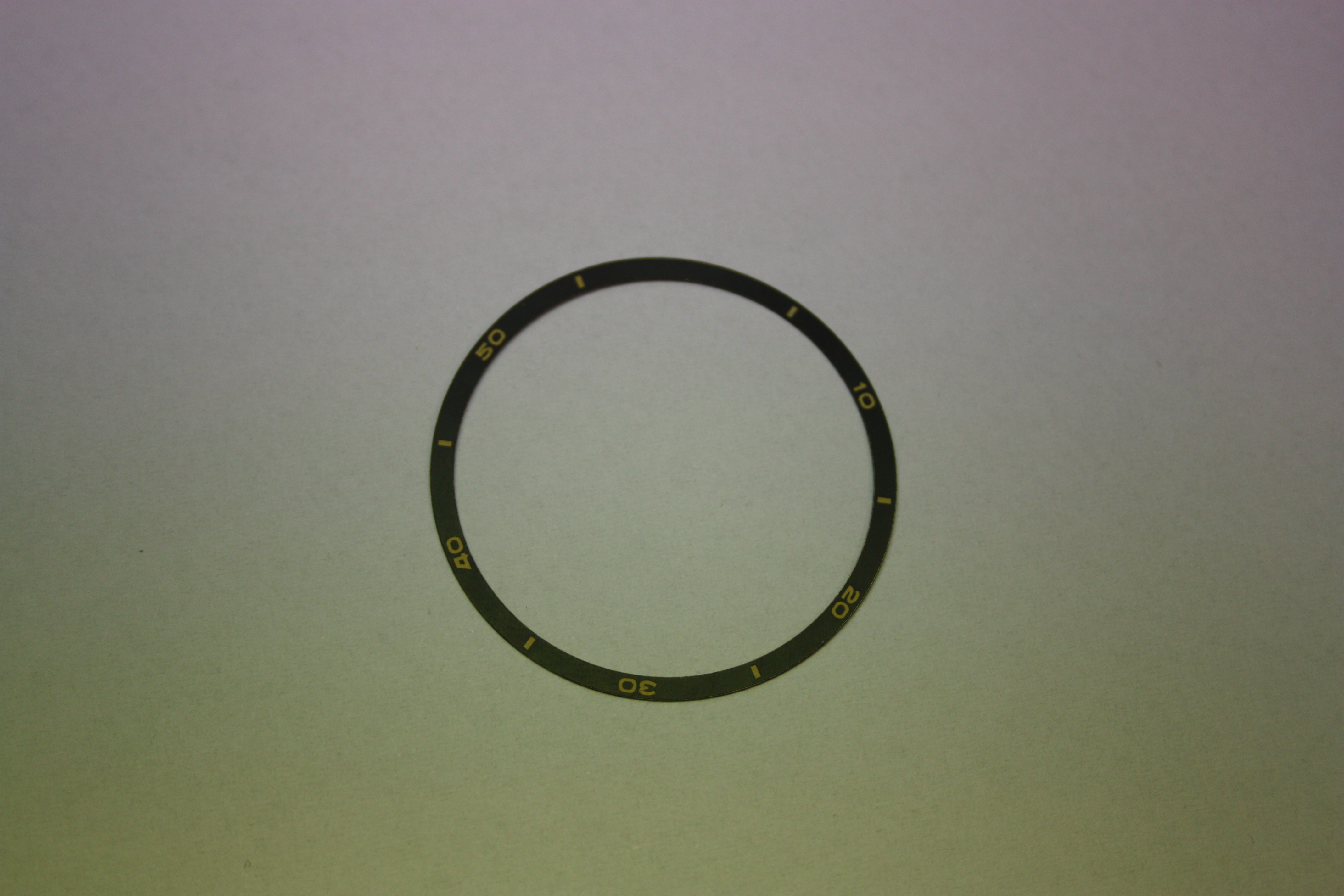

    0.14mm black aluminium, etched numbers/lines, filled with paint and lume, edge black oxidized.....

    Glued in place - next step "baking" in marine grade epoxy. Curing right now so will take a day or two before I can do the final finishing.

    Edit: [Looking at the pictures - the bezel is now taking a bath to remove the epoxy - the numbers need more tweeking!]

    Edited Jan 2, 2021
  19. watchknut New watch + Instagram + wife = dumbass Jan 2, 2021

    Posts
    3,990
    Likes
    13,603
    Holy moly!!!

    I need one of these...insane work.

  20. Davidt Jan 3, 2021

    Posts
    7,176
    Likes
    11,310
    This is a great thread. Loving the documentation of the development process here.

    I don’t even need one of these bezels but following with great interest.
