Omega cal 1325

Posts

31

Likes

27

Mrpicmath36

·Sep 14, 2021

Hello,

I would like to know how i can remove the rod of the Omega 1325 cal.

How can i do this ?

Thanks a lot.



Posts

184

Likes

83

Out of TIME!

·Sep 14, 2021

??? Not sure what you are asking about, Rod?
Stem, this is a quarts movement, I assume.
Mike



Posts

31

Likes

27

Mrpicmath36

·Sep 15, 2021

Out of TIME!

??? Not sure what you are asking about, Rod?
Stem, this is a quarts movement, I assume.
Mike

Yes the stem (sorry english is not my language).



Posts

184

Likes

83

Out of TIME!

·Sep 15, 2021

Mrpicmath36

Yes the stem (sorry english is not my language).

Ok, kind of figured language issue.
I don't realy know, usually a tab or screw on one side or the other.
But, looked at image of the movement did not see any.
Old circut! Try removing the motor and circut board as it maybe under the board.
What is your native language? So I can try better communications.
The early quatz watches are a challange as they were in developing or expirametal stages.
Mike



Posts

31

Likes

27

Mrpicmath36

·Sep 15, 2021

I'm french.
It seems to be difficult ! maybe i should ask to a watchmaker.



Posts

17,945

Likes

37,524

JimInOz

·Sep 15, 2021·Melbourne Australia

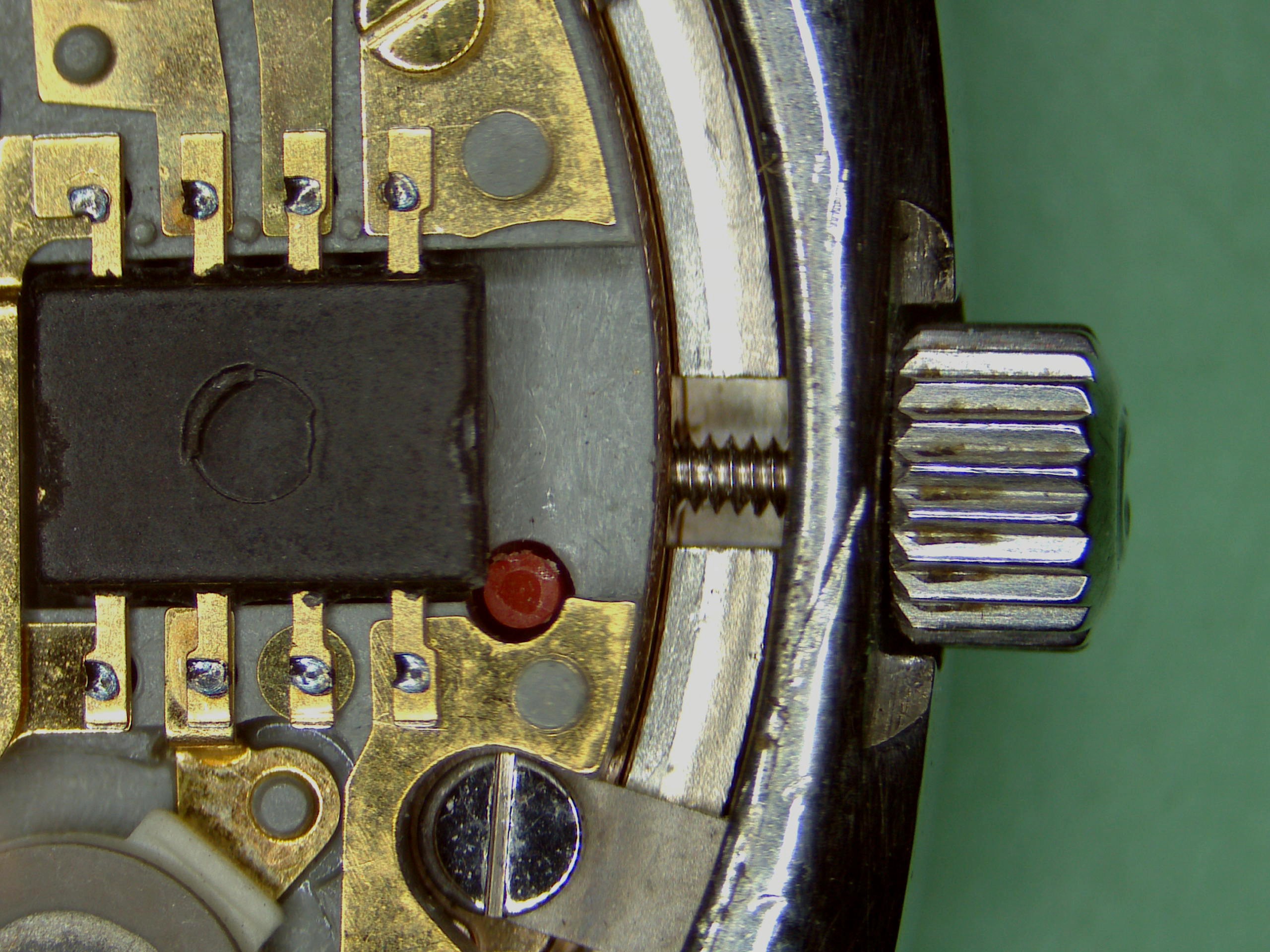

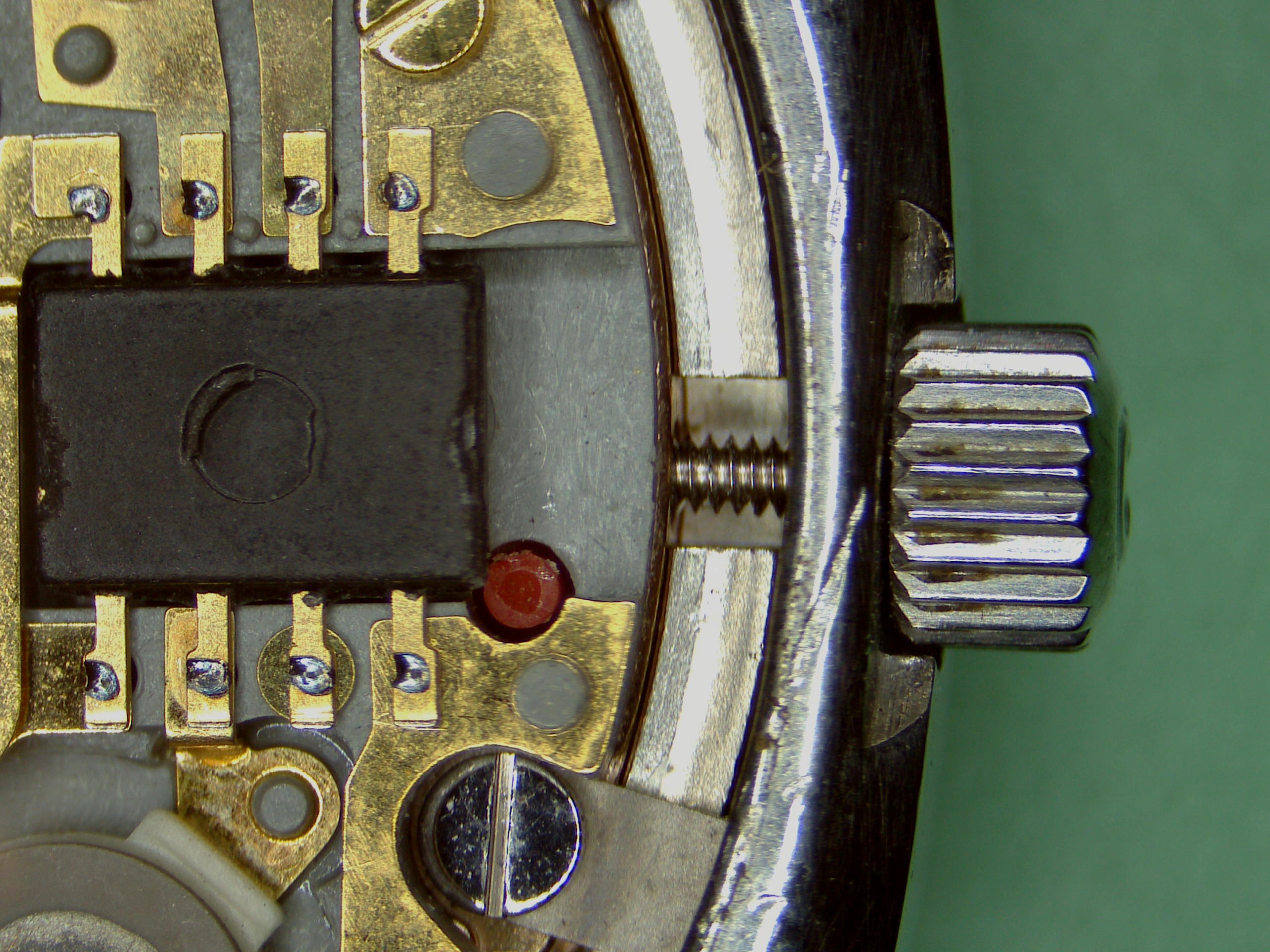

I'm pretty sure you have to remove the motor module and then the circuit block assembly and then there will be a small red plastic button underneath the circuit block. Use a plastic probe to lightly depress the button and withdraw the stem.

Can't remember for sure as the last one I worked on was a few years ago.



Posts

17,945

Likes

37,524

JimInOz

·Sep 15, 2021·Melbourne Australia

On second thoughts, it's not like the one I worked on. I just checked and I was thinking of a caliber 1310.

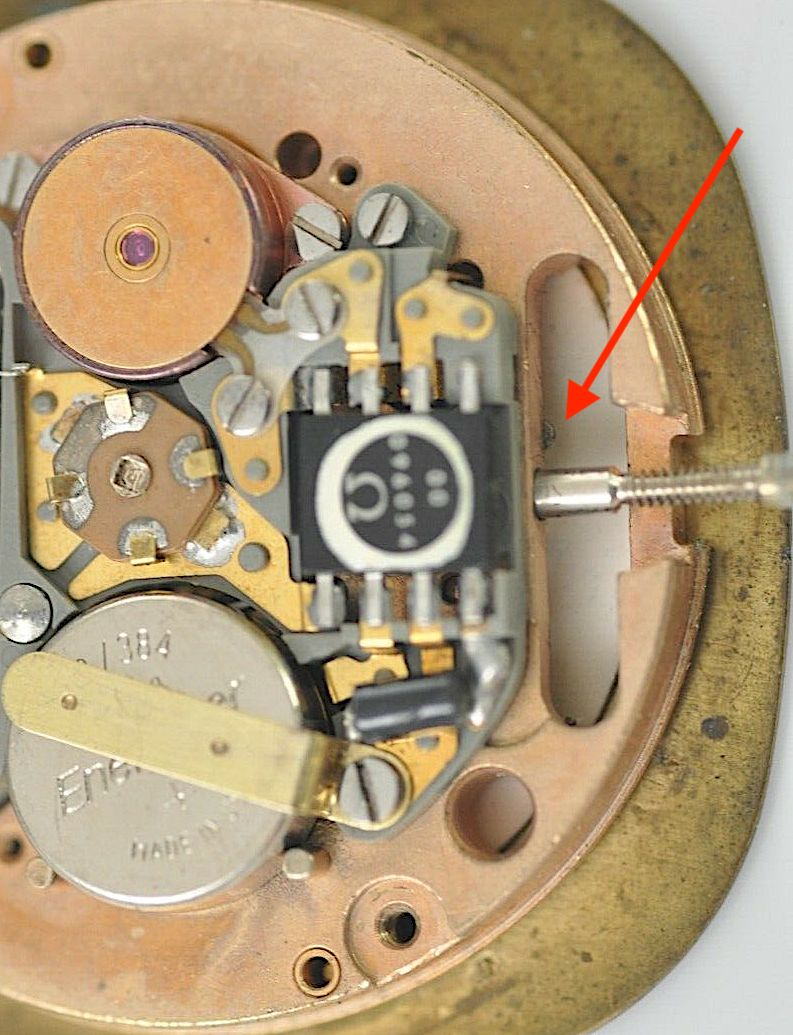

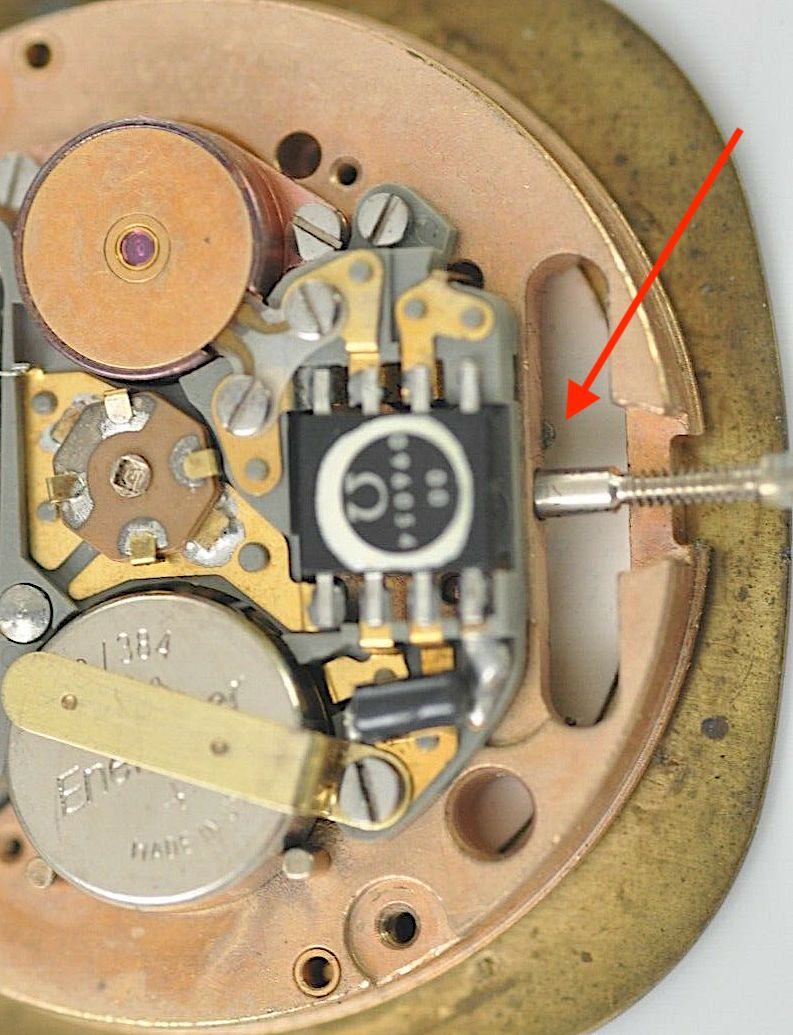

So try this, there should be a small tab to the side of the stem just below the plate. Try that.
