Hello watch repairers,

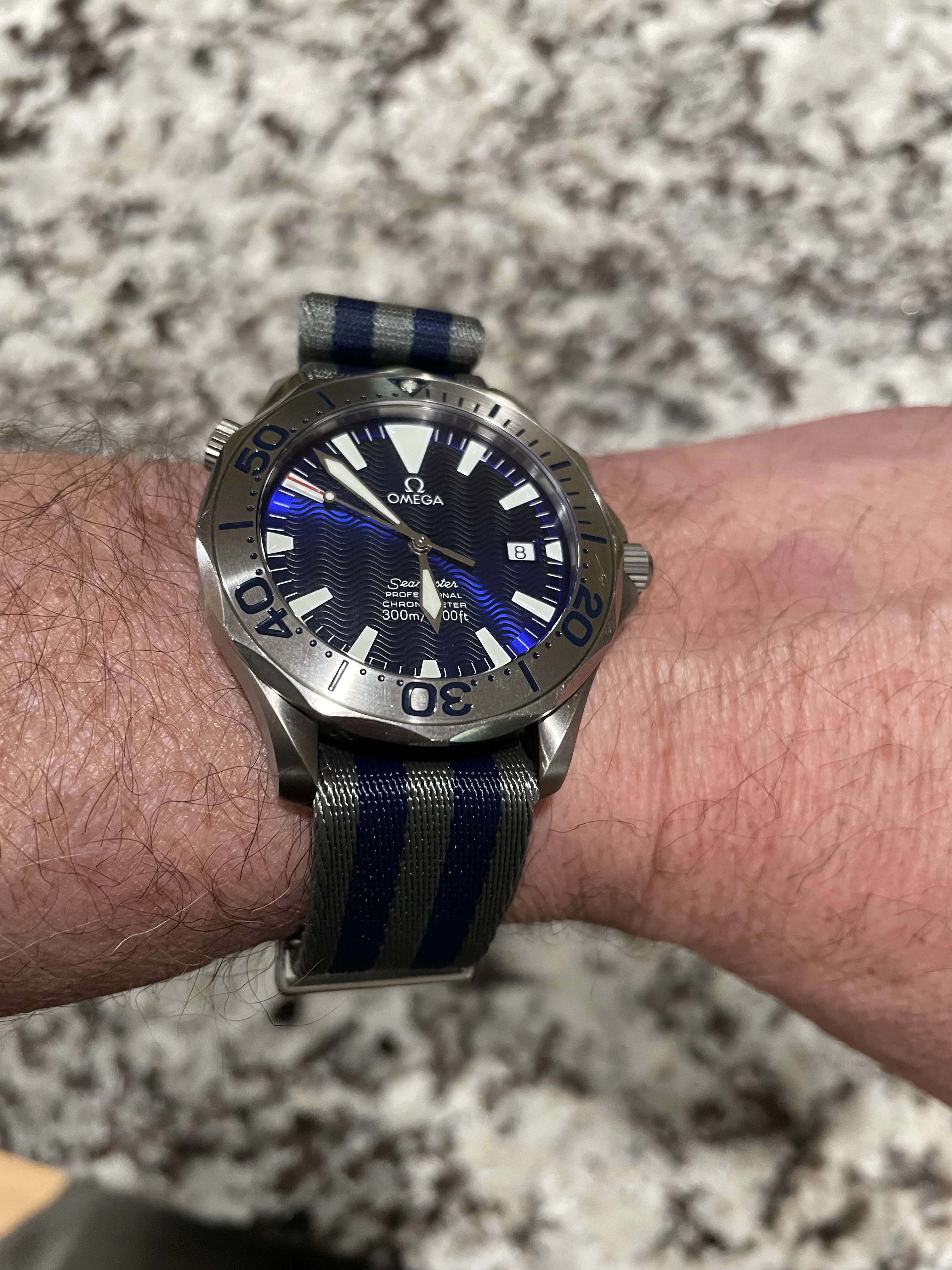

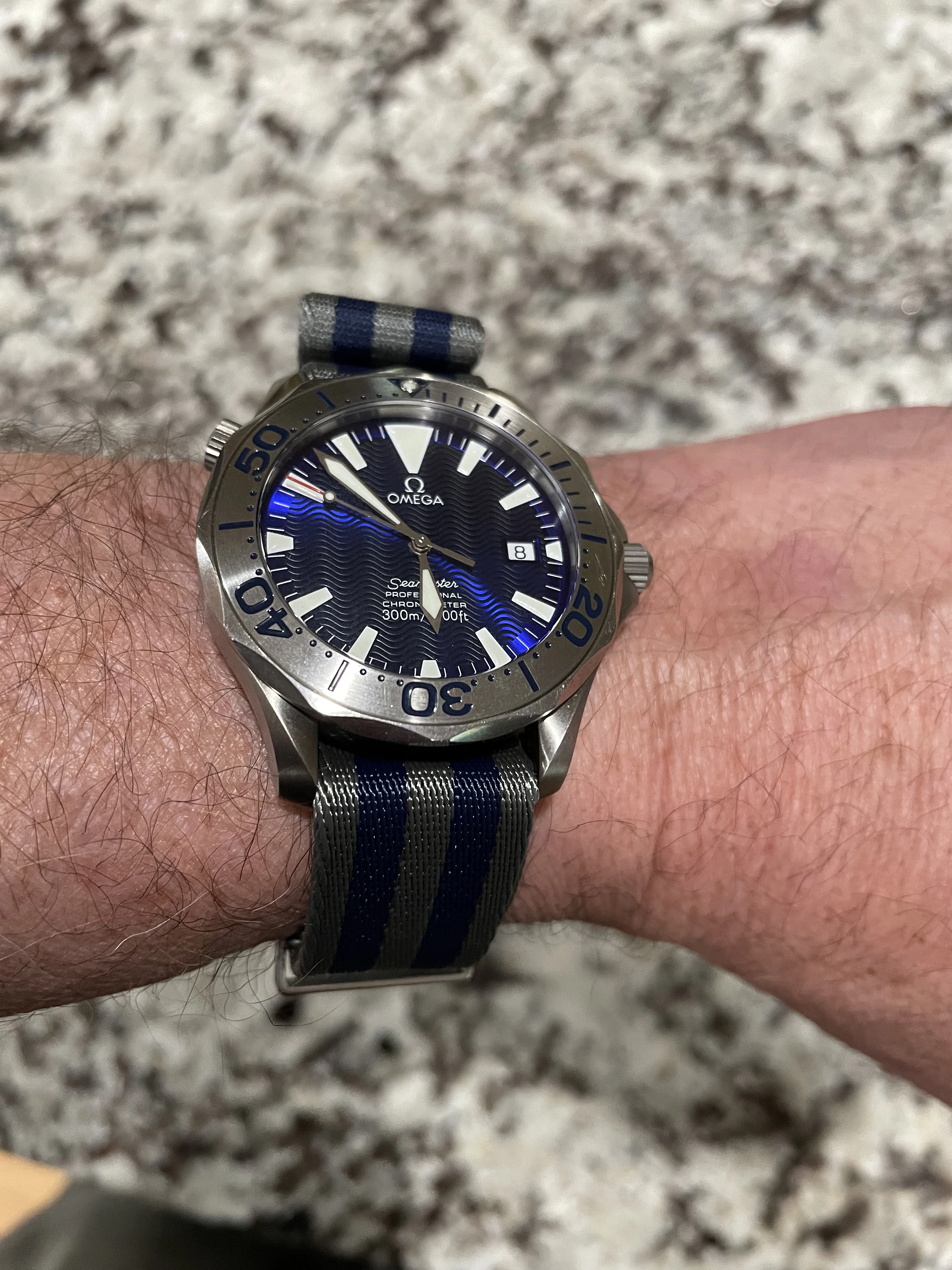

I recently acquired this Omega Seamaster 2252.50 from the mid-2000s. Likely has never been serviced.

I would really love to get it back up to spec for water resistance, and if not diving then at least able to kayak, fly fish, etc.

I called Grand Central Watch who quoted me $55 to dry pressure test it, but was basically saying it’s a waste to do it without overhauling all the gaskets. I didn’t get an estimated price for that, but I assume very expensive since just the pressure testing is absurdly high.

I have a nice basic set of watch tools already, and have taken apart and reassembled a few movements myself. Is it feasible to replace the gaskets myself and then take it to be dry pressure tested (recs for somewhere in NYC)? Would it be hard to source the right parts? Is there something else I would need to do in order to make sure it’s ready for a swim?

Thanks all

K

DaveK
Posts
5,013
Likes
15,343
Most watchmakers, certainly an Omega shop, will pressure test for free if they have the time. Your watch needs a service anyway, so why put off the service?

nanigirl
Posts
9
Likes
0
DaveK DaveK
Most watchmakers, certainly an Omega shop, will pressure test for free if they have the time. Your watch needs a service anyway, so why put off the service?
The cost felt prohibitive, and since it's new to me and running well I was hoping to put it off a bit until I felt sure I'd be keeping it for a long time.

But you make a very good point

padders
Posts
9,982
Likes
15,662
You gotta pay to play. Either pony up and get it serviced or don’t take it near the water. Yes you can change the gaskets yourself but the ones in the crown and He valve will need doing also which aren’t trivial.

nanigirl
Posts
9
Likes
0
padders padders
You gotta pay to play. Either pony up and get it serviced or don’t take it near the water. Yes you can change the gaskets yourself but the ones in the crown and He valve will need doing also which aren’t trivial.
Alright, sage advice

Davidt
Posts
12,169
Likes
21,107
If you need to ask how to do it, you must realise there’s a decent chance that even if you change the seals you may not do a good job, giving a false sense of security.

I agree with others, either keep it away from water or get it properly serviced.if you’re not sure if it’s a keeper, just wear it for a few weeks away from water to see what you think before making a call

nanigirl
Posts
9
Likes
0
Davidt Davidt
If you need to ask how to do it, you must realise there’s a decent chance that even if you change the seals you may not do a good job, giving a false sense of security.

I agree with others, either keep it away from water or get it properly serviced.if you’re not sure if it’s a keeper, just wear it for a few weeks away from water to see what you think before making a call
okay I'm convinced, will take it for an evaluation this week

Archer
Posts
28,234
Likes
72,358
$55 for just a pressure test? Nuts!

Yes, if you have some skill and patience, you can replace the seals. There are 5 seals in total, but you can likely skip the crystal seal - that would be the most difficult as a DIY as you need a very good press.

The crown seal is 088NS0423 - d2.5 D3.7 ø0.6

The case back seal is 088NS5134 - d31.5 D33.5 ø1

There are 2 seals in the HEV...

The cap seal - 088NS0435 - d2 D3.2 ø0.6
The tube seal - 088NS0436 - d1 D2 ø0.5

The case back seal you could likely find, as there are a wide variety of these sizes available out there. The smaller O-rings for the crown and HEV will be tougher as the available sizes to choose from in generic assortments is much more limited.

zkramez
Posts
177
Likes
164
If you are having issues with the case itself, you can call Zimmerman Watch Repair. They can micro weld imperfections. This happened on my Speedmaster. Some gauges made it unable to pass a pressure test. They fixed it no problem. Pretty wild!

pizzahotline
Posts
13
Likes
3
Archer Archer
$55 for just a pressure test? Nuts!

Yes, if you have some skill and patience, you can replace the seals. There are 5 seals in total, but you can likely skip the crystal seal - that would be the most difficult as a DIY as you need a very good press.

The crown seal is 088NS0423 - d2.5 D3.7 ø0.6

The case back seal is 088NS5134 - d31.5 D33.5 ø1

There are 2 seals in the HEV...

The cap seal - 088NS0435 - d2 D3.2 ø0.6
The tube seal - 088NS0436 - d1 D2 ø0.5

The case back seal you could likely find, as there are a wide variety of these sizes available out there. The smaller O-rings for the crown and HEV will be tougher as the available sizes to choose from in generic assortments is much more limited.
This is really useful! As the 2252.50 is a mid size i'm guessing all these part numbers are unique to the mid size seamaster. Is there an easy place to find part numbers? Just so I can find all the part numbers for the seals for my 2531.80 41mm seamaster. Cheers

ExpiredWatchdog
Posts
746
Likes
855
Archer Archer
$55 for just a pressure test? Nuts!

Yes, if you have some skill and patience, you can replace the seals. There are 5 seals in total, but you can likely skip the crystal seal - that would be the most difficult as a DIY as you need a very good press.

The crown seal is 088NS0423 - d2.5 D3.7 ø0.6

The case back seal is 088NS5134 - d31.5 D33.5 ø1

There are 2 seals in the HEV...

The cap seal - 088NS0435 - d2 D3.2 ø0.6
The tube seal - 088NS0436 - d1 D2 ø0.5

The case back seal you could likely find, as there are a wide variety of these sizes available out there. The smaller O-rings for the crown and HEV will be tougher as the available sizes to choose from in generic assortments is much more limited.
If looking by diameter and cross-section, CousinsUK has a nice selection of small o-rings by size. I (think) I was able to scratch an itch regarding a TAG crown gasket that's undersize from EVERY other TAG Aquaracer crown gasket on the planet. Time and a Proofmaster will tell.

pizzahotline
Posts
13
Likes
3
ExpiredWatchdog ExpiredWatchdog
If looking by diameter and cross-section, CousinsUK has a nice selection of small o-rings by size. I (think) I was able to scratch an itch regarding a TAG crown gasket that's undersize from EVERY other TAG Aquaracer crown gasket on the planet. Time and a Proofmaster will tell.
I guess I could pull all the gaskets out of my Seamaster and measure them all and get them from cousins. I was just hoping that info would be online somewhere.

Archer
Posts
28,234
Likes
72,358
pizzahotline pizzahotline
Just so I can find all the part numbers for the seals for my 2531.80 41mm seamaster.
What is the case number?
