Omega 2264.50 strap issue help

G

Posts

6

Likes

0

gonzogerry

·Mon. 7:47am

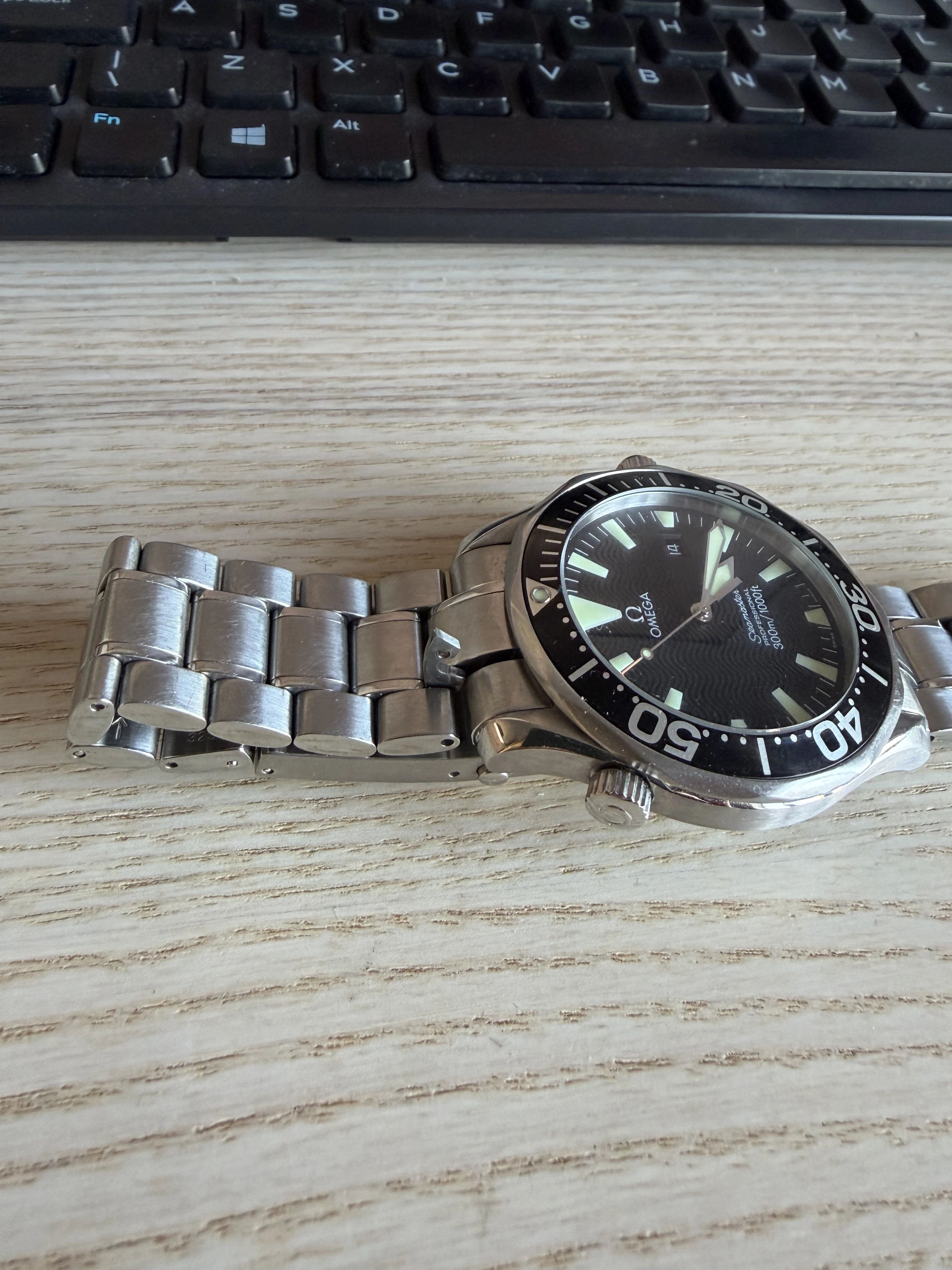

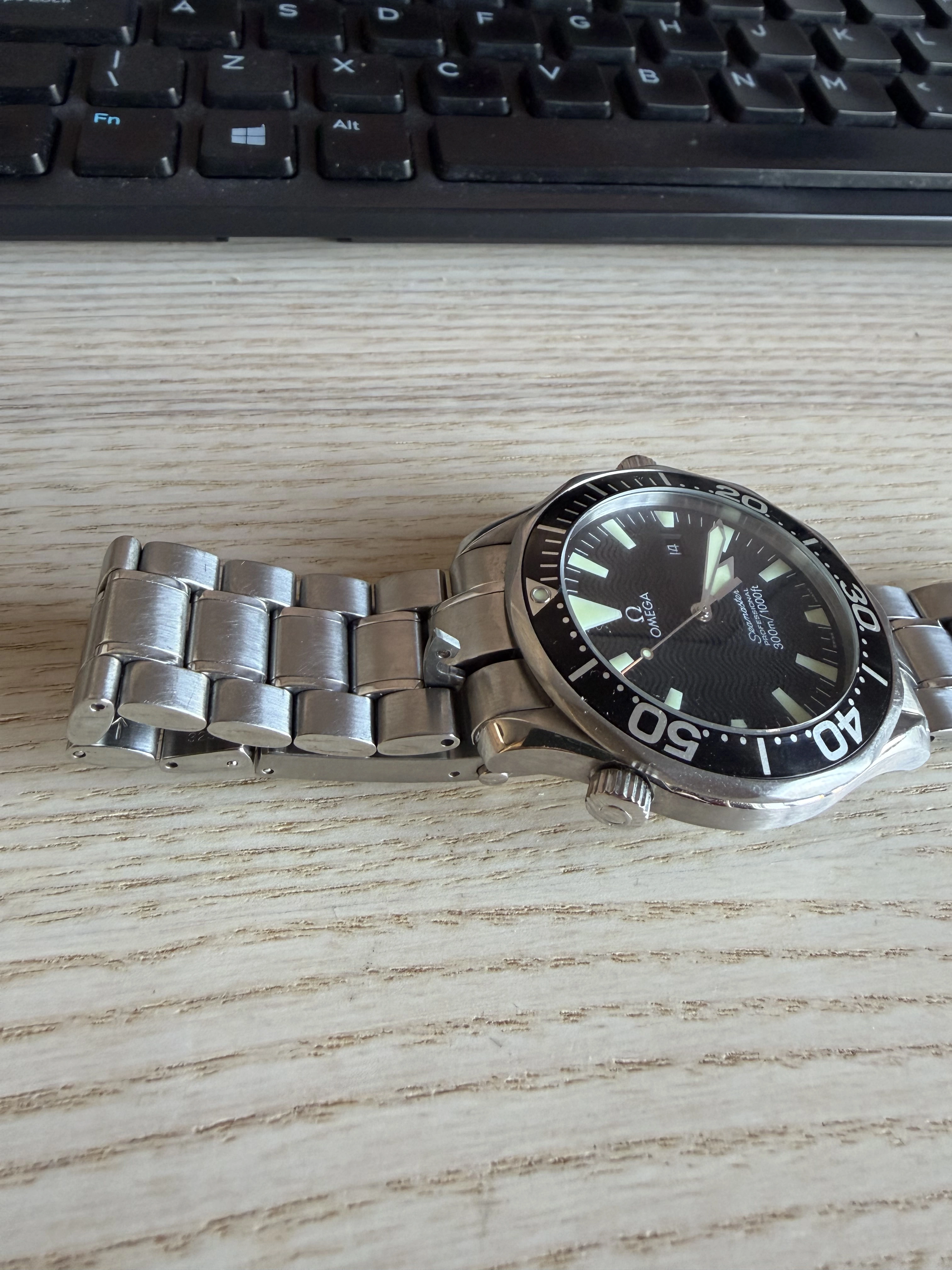

As you can see from the attached pic my Omega 2254.60 watch strap has a bit that sticks out of the end link. A small pin must be missing. This means I am unable to wear as catches on sleeve.
Please can annyone advise on what part I need to fix - is it just a pin or the end link itself?



Posts

57

Likes

24

Joao_BRA

·Mon. 7:52am

I think that is a pin. Maybe @Archer can help you.



Posts

2,965

Likes

8,696

hen

·Mon. 8:12am

https://omegaforums.net/threads/mis...professional-moonwatch-ref-3570-50-00.190441/

Thats twice in a week, whats happening with the "Speedy" bracelet. Maybe you find some help in the link. Good luck.



Posts

115

Likes

696

Donerix

·Mon. 10:40am

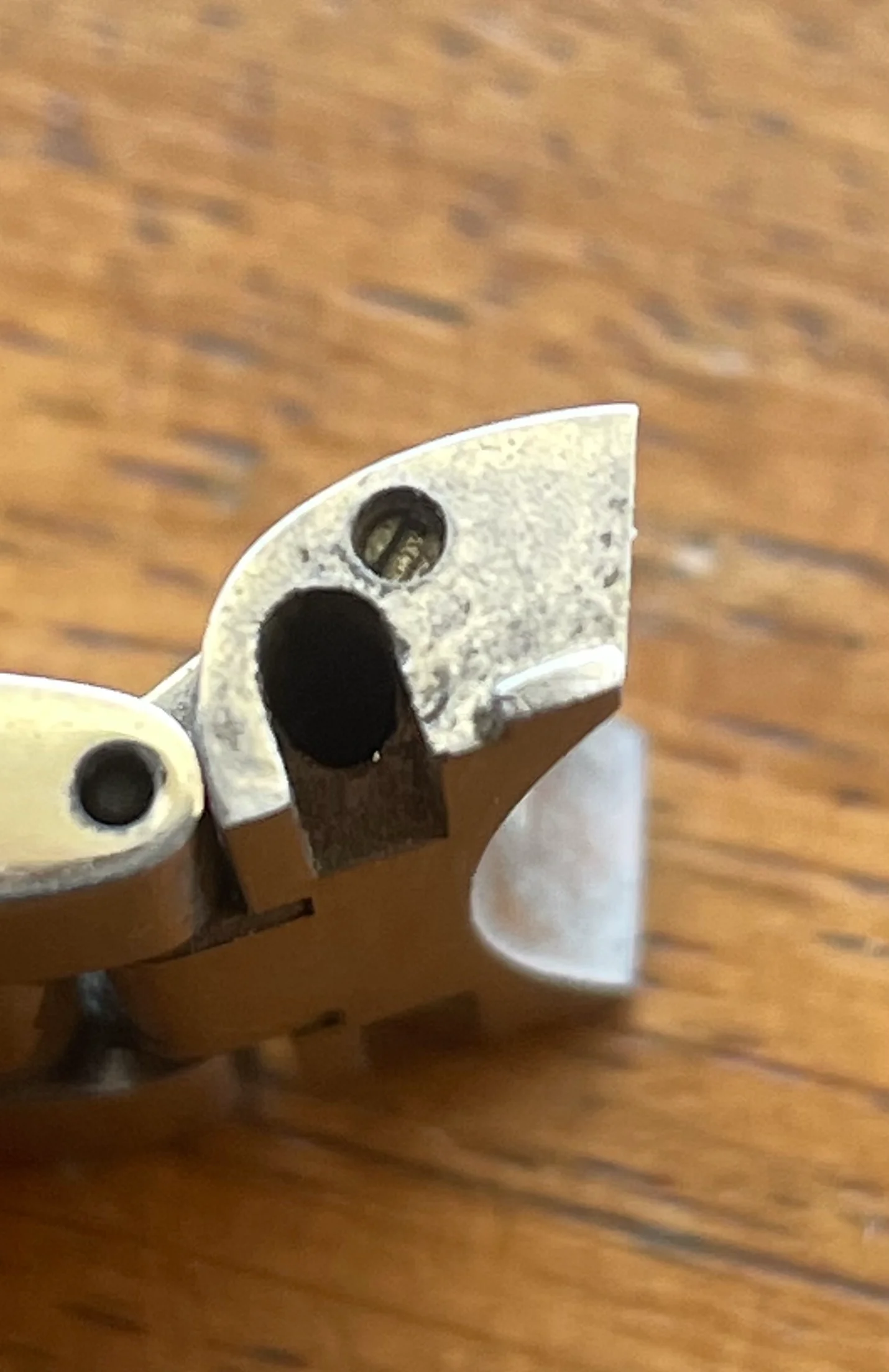

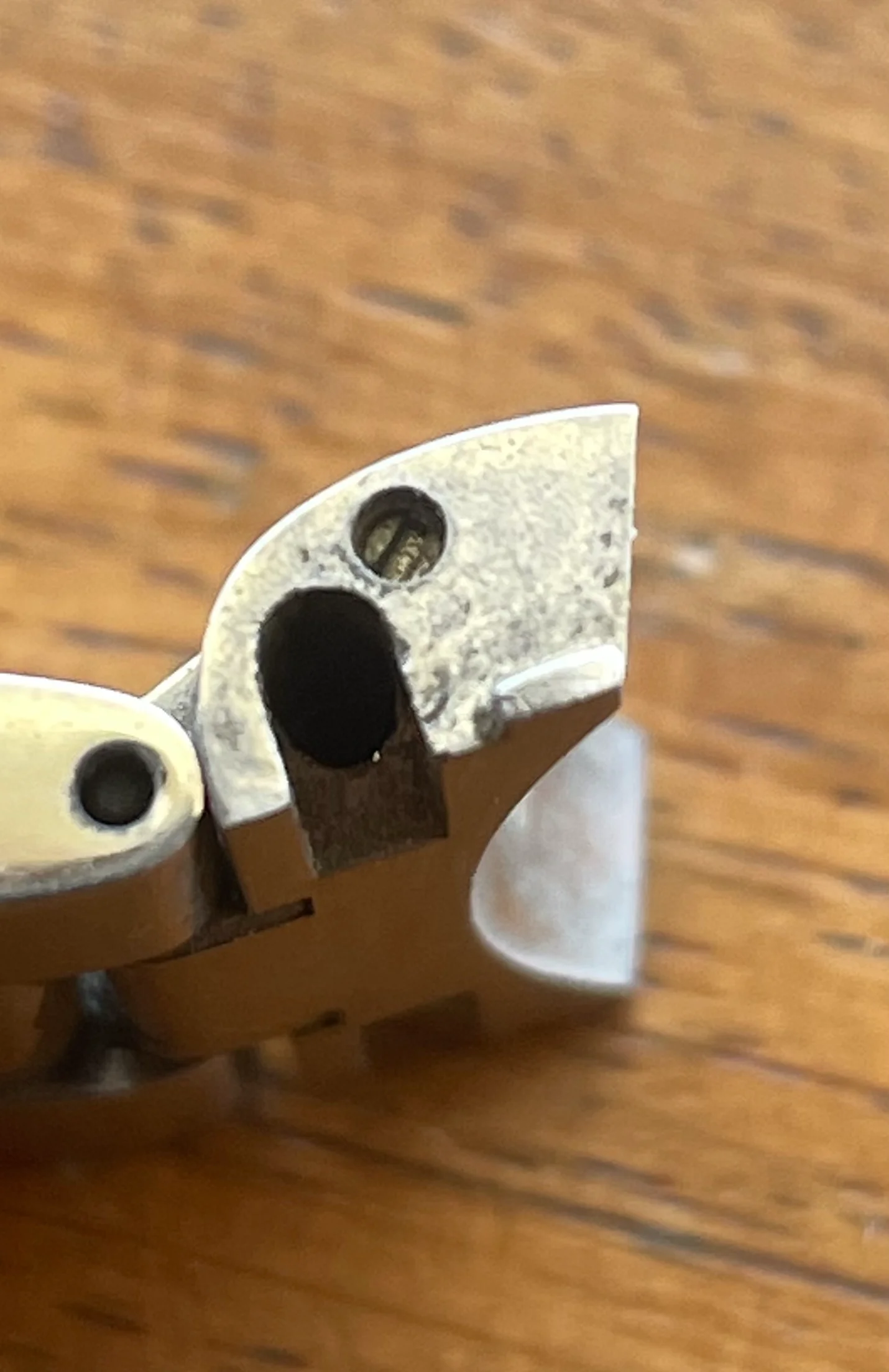

I took a look at my bracelet and it looks like you a re missing this screw:



Posts

1,064

Likes

1,072

502 to right

·Mon. 11:22am

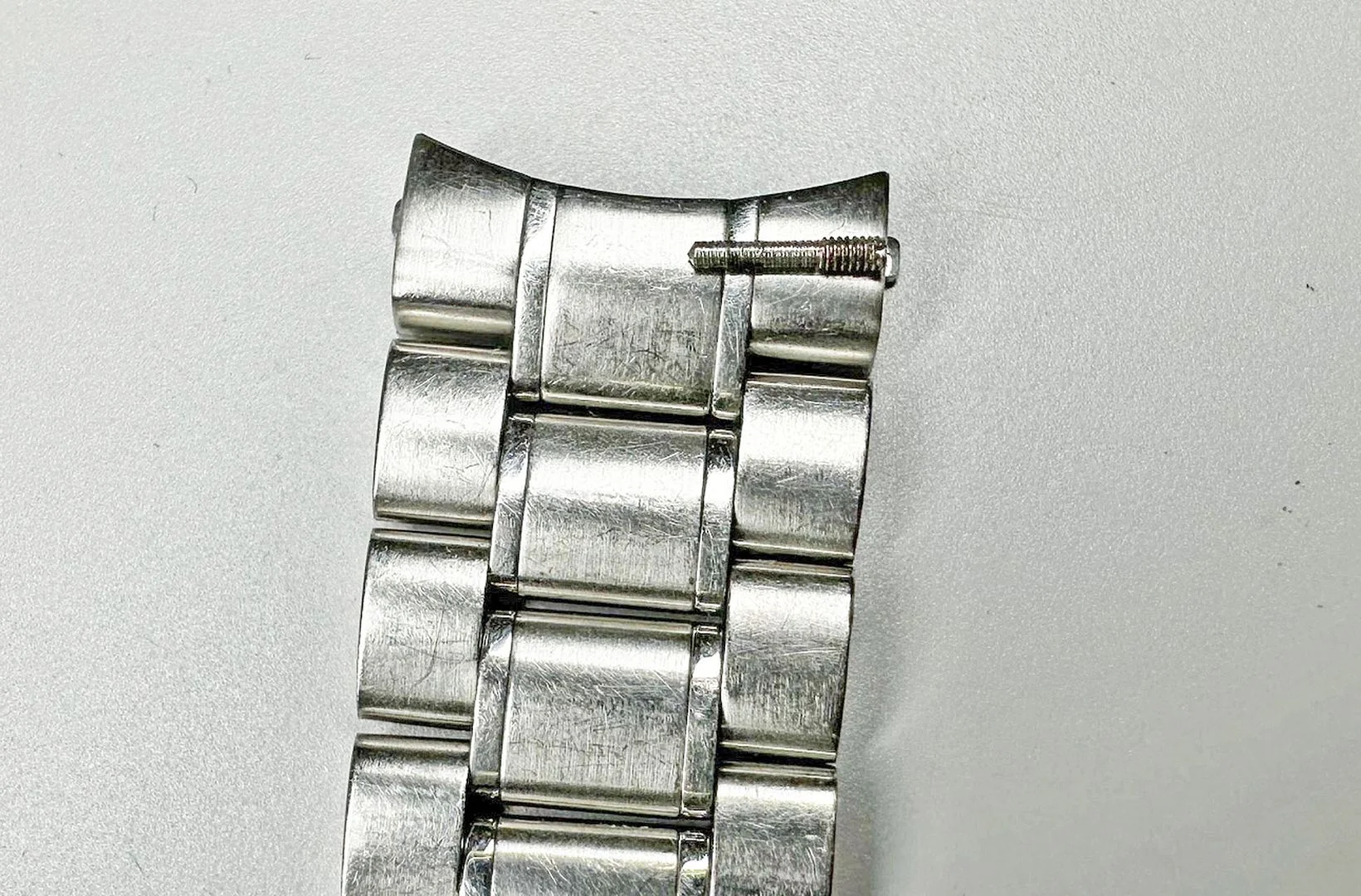

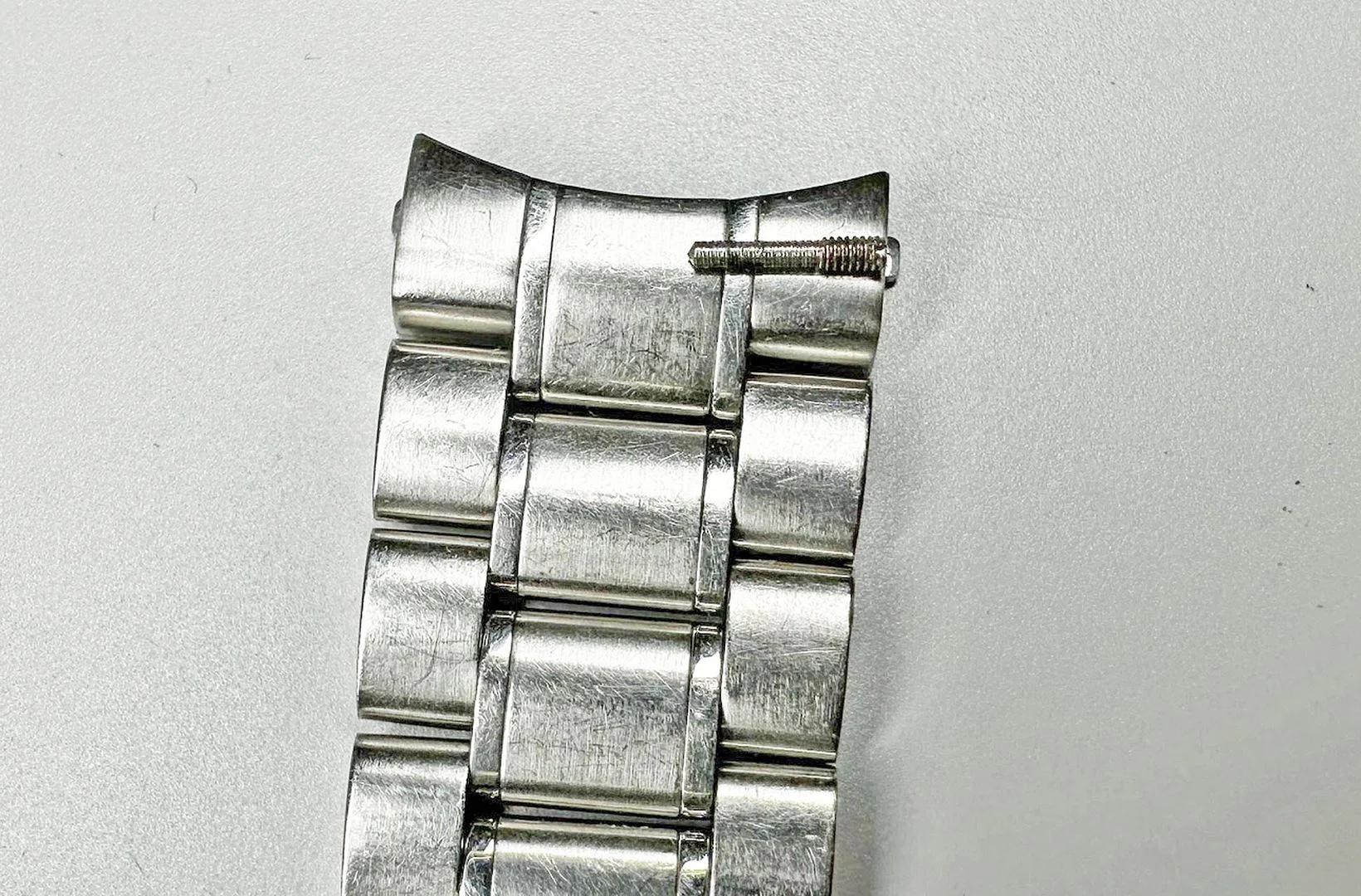

You missing a pin that runs the length of the endlink. And perhaps the screws on each side that would keep it in place when it's not installed.



G

Posts

6

Likes

0

gonzogerry

·Tues. 8:21am

Donerix

I took a look at my bracelet and it looks like you a re missing this screw:

Yes I’m missing the tiny little screw in one side. Any idea where to source a replacement screw?



Posts

29,651

Likes

76,783

Archer

·Tues. 8:24am·Omega Qualified Watchmaker

The only screw listed for the end link is this one...

124ST3101 | SCREW W/H S1.40 L7.7 STEEL​



G

Posts

6

Likes

0

gonzogerry

·Tues. 8:27am

Yes I’m missing the tiny little screw in one side. Any idea where to source a replacement screw?



G

Posts

6

Likes

0

gonzogerry

·Tues. 8:59am

Archer

124ST3101 | SCREW W/H S1.40 L7.7 STEEL

Thanks just need to track one down now!



Posts

1,064

Likes

1,072

502 to right

·Tues. 11:31am

G gonzogerry

Thanks just need to track one down now!

The screws without a pin through the middle aren't going to fix the problem.



G

Posts

6

Likes

0

gonzogerry

·Tues. 12:58pm

502 to right

The screws without a pin through the middle aren't going to fix the problem.



G

Posts

6

Likes

0

gonzogerry

·Tues. 12:59pm

Do you know the ref for the pin? Thanks



Posts

1,064

Likes

1,072

502 to right

·Tues. 1:06pm

G gonzogerry

Do you know the ref for the pin? Thanks

I do not.



Posts

29,651

Likes

76,783

Archer

·Tues. 1:06pm·Omega Qualified Watchmaker

G gonzogerry

Do you know the ref for the pin? Thanks

Just ignore that - there is no pin and all you need is the screw.



Posts

1,064

Likes

1,072

502 to right

·Tues. 2:10pm

Archer

Just ignore that - there is no pin and all you need is the screw.

😄



Posts

29,651

Likes

76,783

Archer

·Tues. 2:20pm·Omega Qualified Watchmaker

Did someone say something? 😉



Posts

115

Likes

696

Donerix

·Tues. 3:11pm

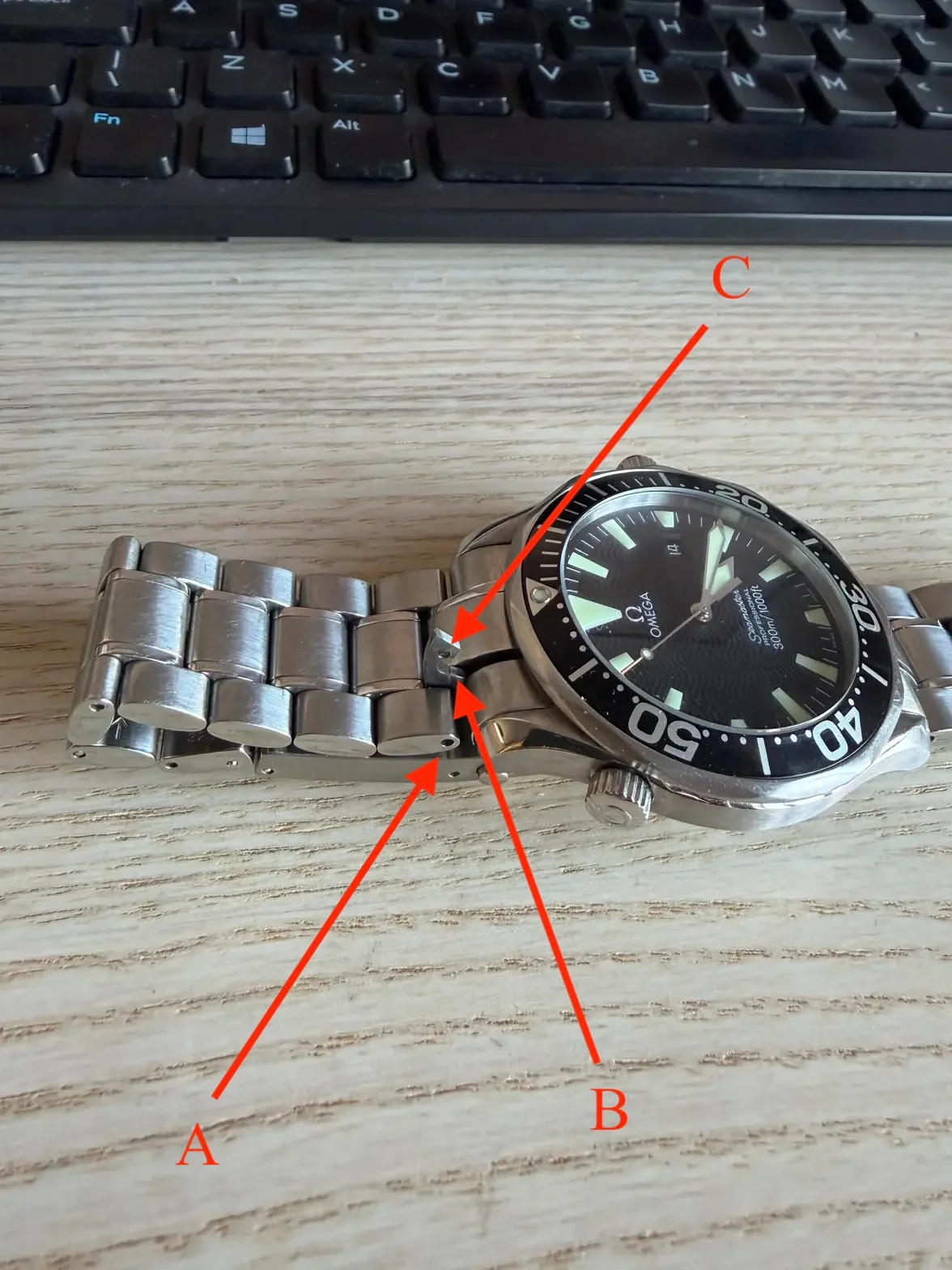

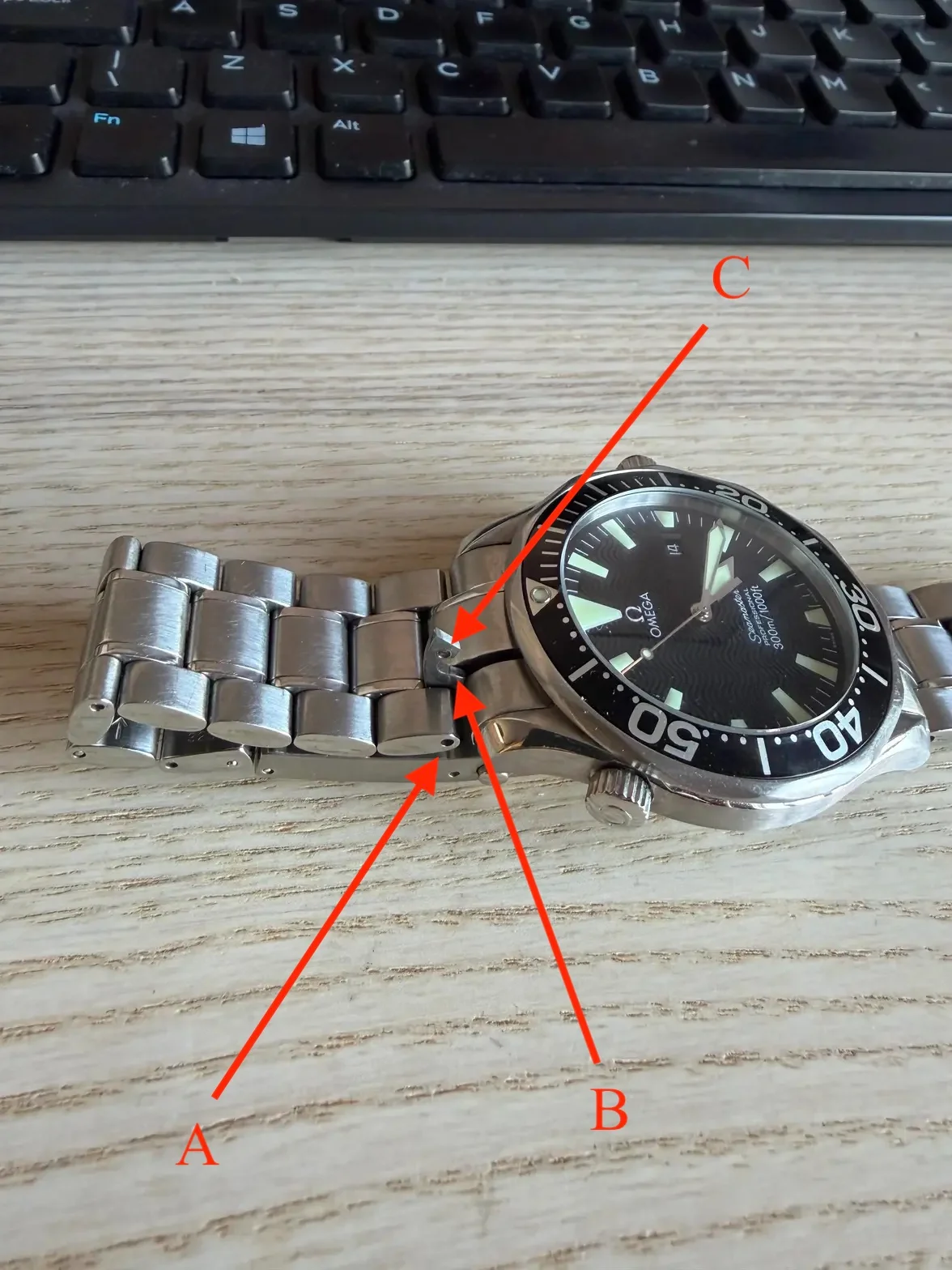

You really only need the little screw Archer gave you the reference for:

A) Full length pin (which you obviously have)
B) The springbar goes through this opening
C) Short screw you need goes through this hole
