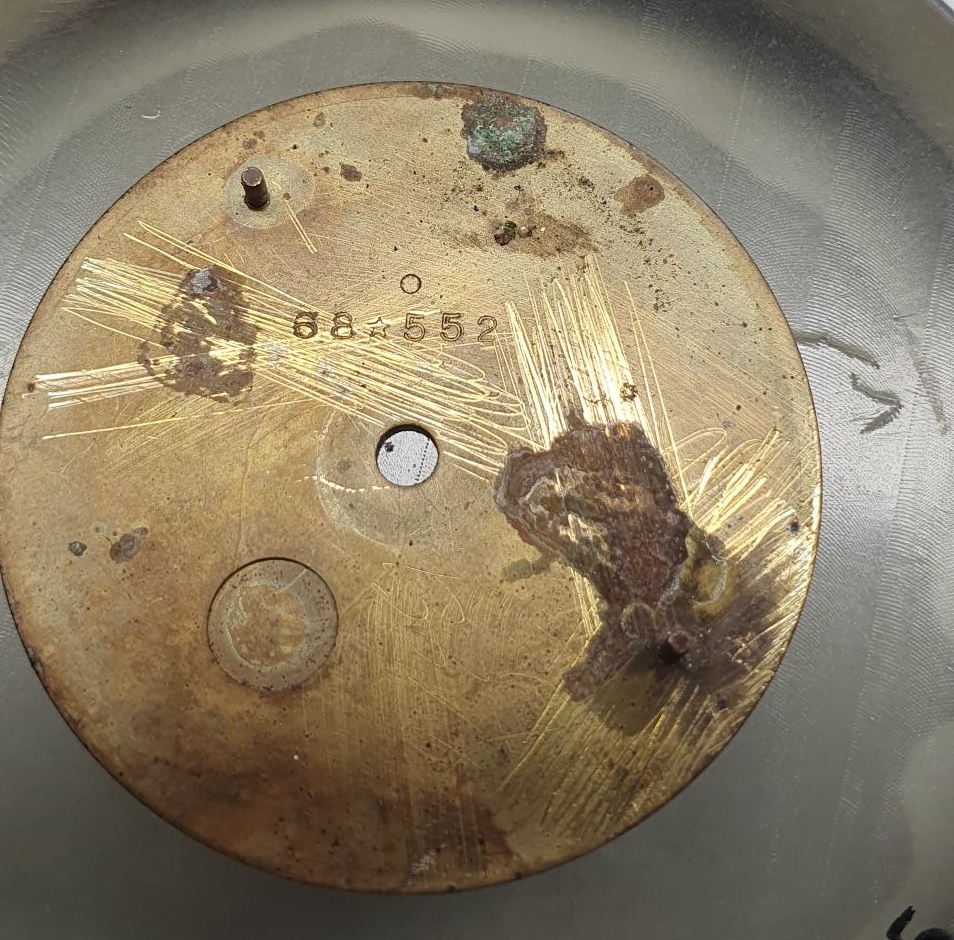

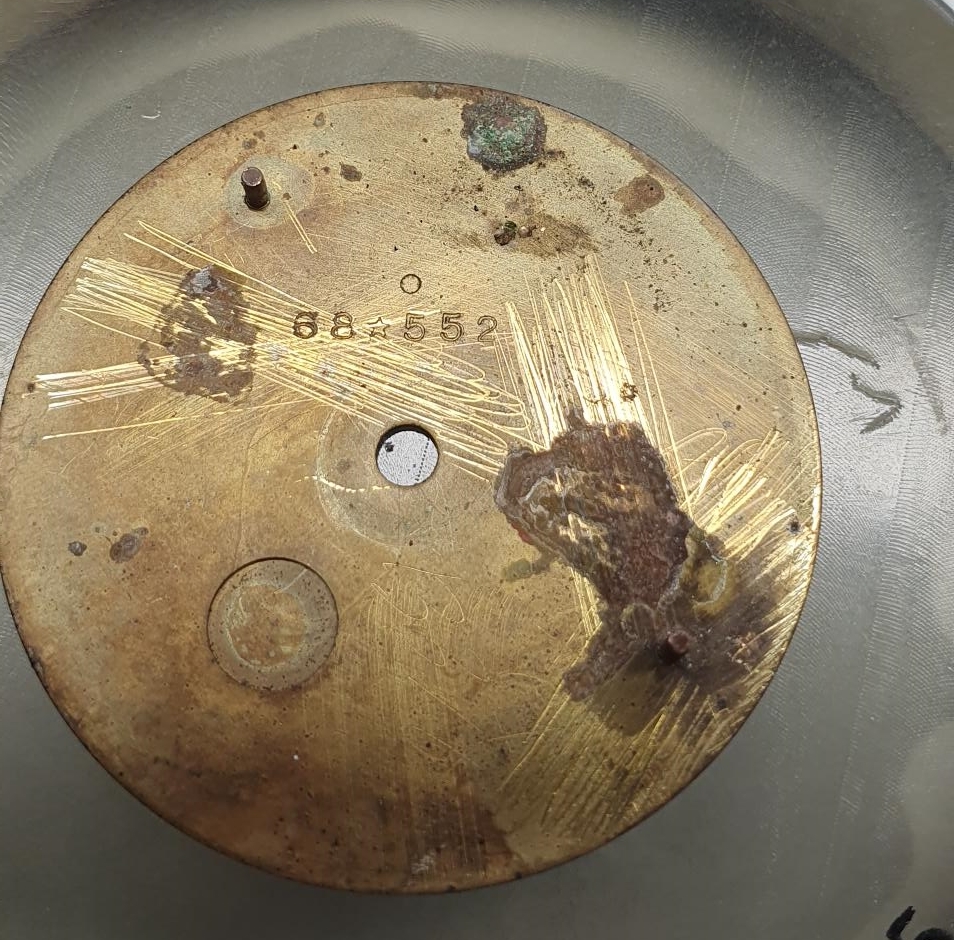

a) What does the 68 * 552 indicate? (68 year of production? - which is confirmed by the excract from the archives. cal. is 550

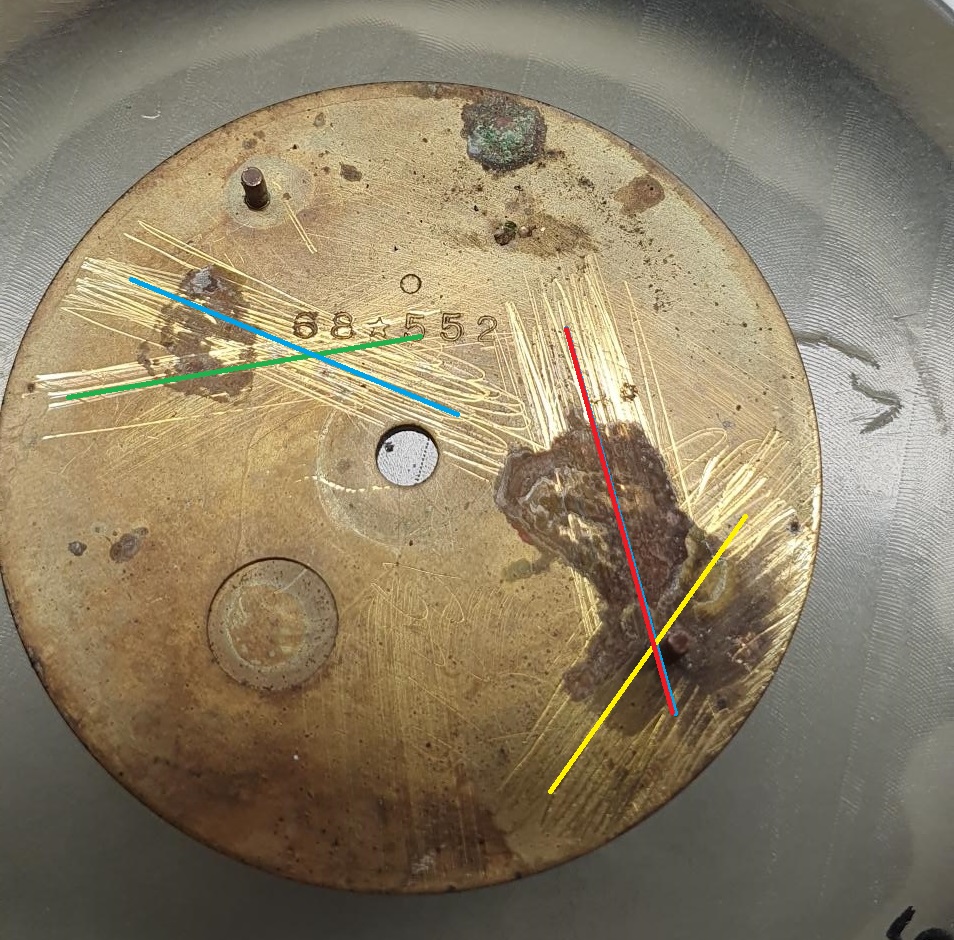

b) Which stories does the lines tell me?

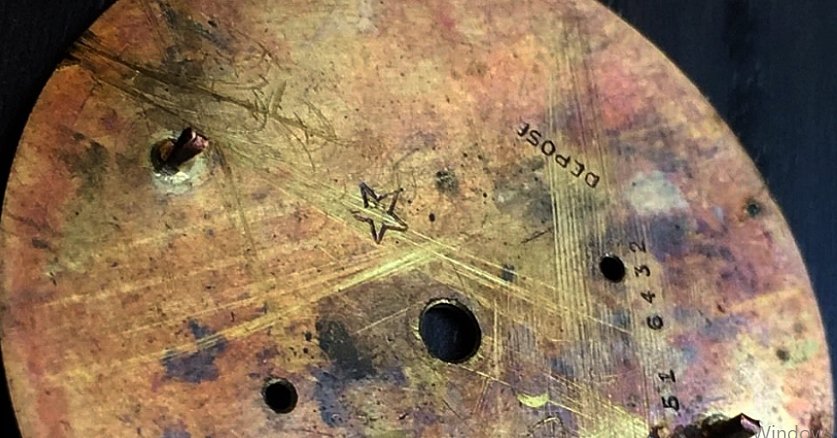

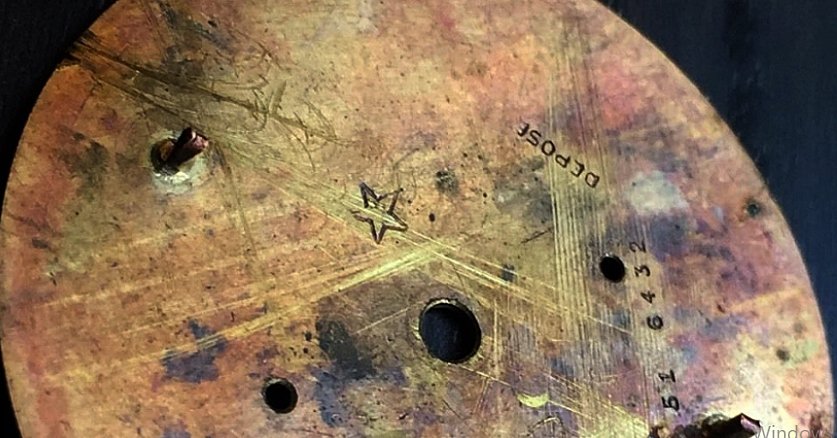

Scratching the dial backside with a ferrous material makes it slightly magnetic, thus enabling a very very fine regulation when the central second goes around and gets slowed down at the magnetized spots.
Scratching the dial backside with a ferrous material makes it slightly magnetic, thus enabling a very very fine regulation when the central second goes around and gets slowed down at the magnetized spots.
Looks like one dial feet was replaced at some point. I guess the scratching was done to increase the surface for the repair and make the dial feet stick

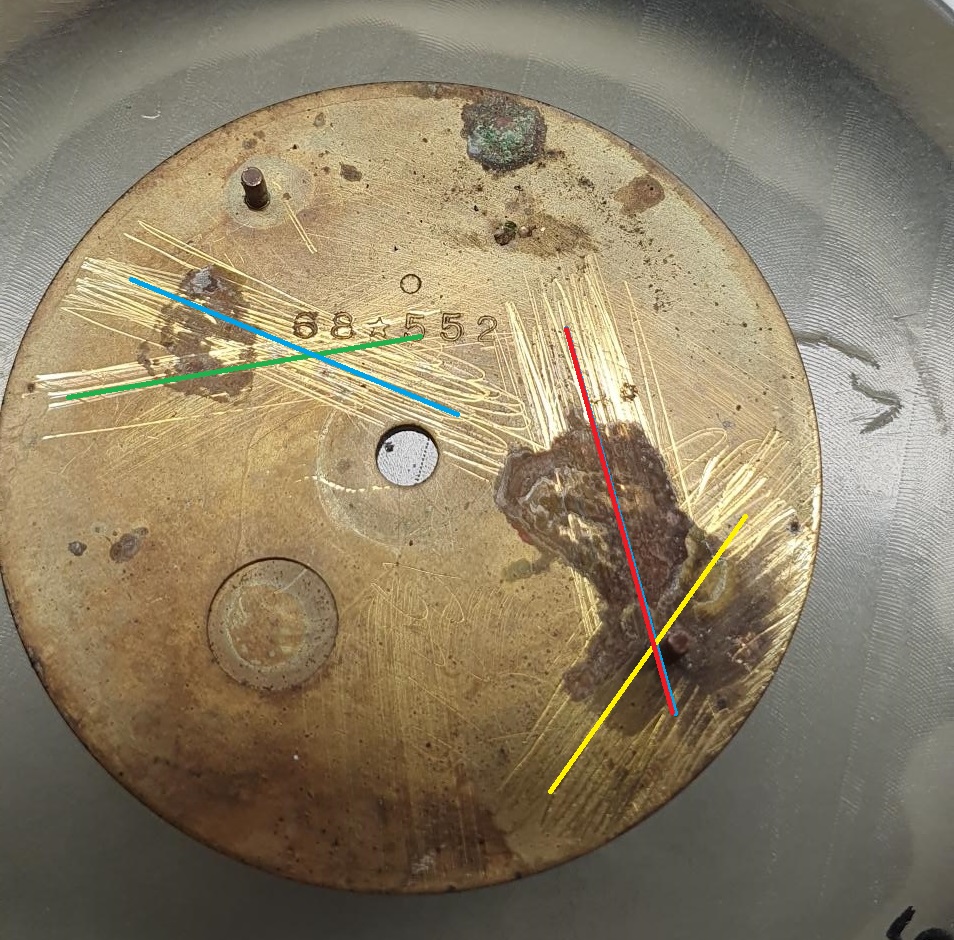

If you need to clean the surface before soldering (??), the red and yellow lines make sense (however they are large!): they meet in a dial feet (?), but the green blue ones 😕
If you need to clean the surface before soldering (??), the red and yellow lines make sense (however they are large!): they meet in a dial feet (?), but the green blue ones 😕
And what does the "552" stand for?
552 is the movement caliber this dial is designed for. Caliber 550 was the USA version of the 552 and proper dials fit both calibers.
