- Posts
- 21
- Likes
- 11
LDM68
·Some fantastic work!
Making replacement bezels/inserts, "bakelite"/acrylic & aluminium- Tissot PR516
- Posts
- 21
- Likes
- 11
LDM68
·Is there no click spring on the PR516 dive watch? Should the bezel spin and if so is it just in one direction?
- Posts
- 88
- Likes
- 742
mcgyver

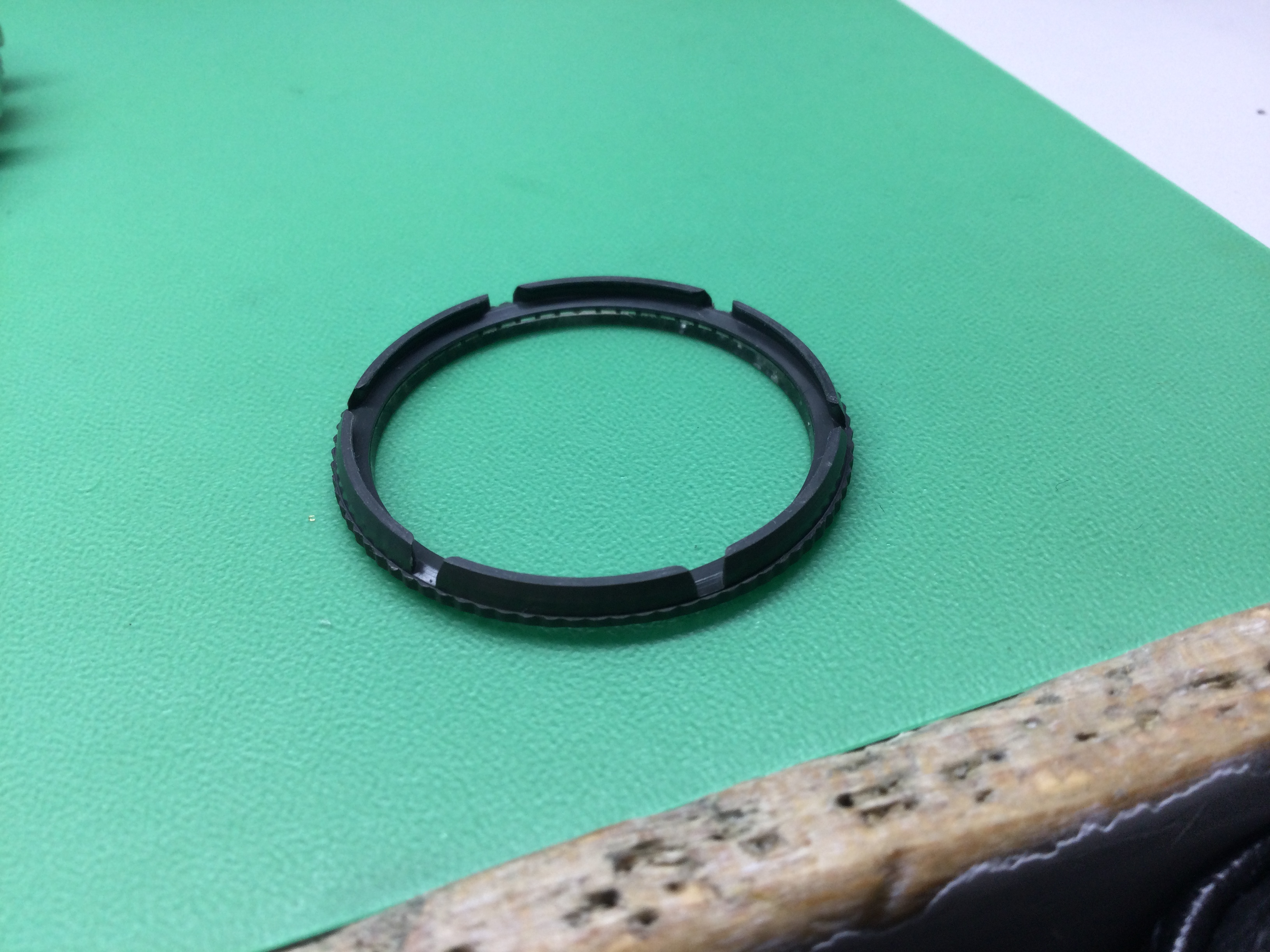

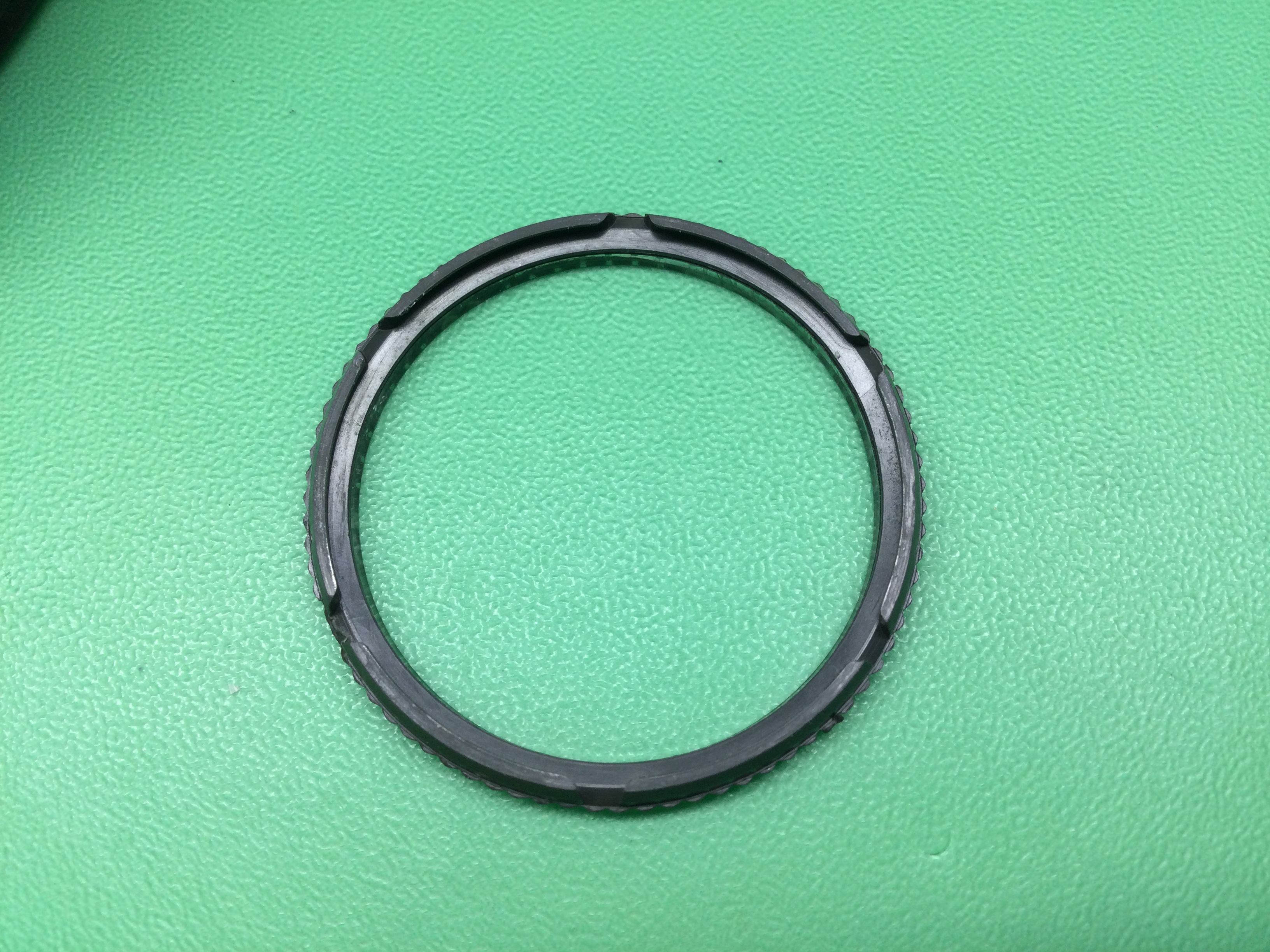

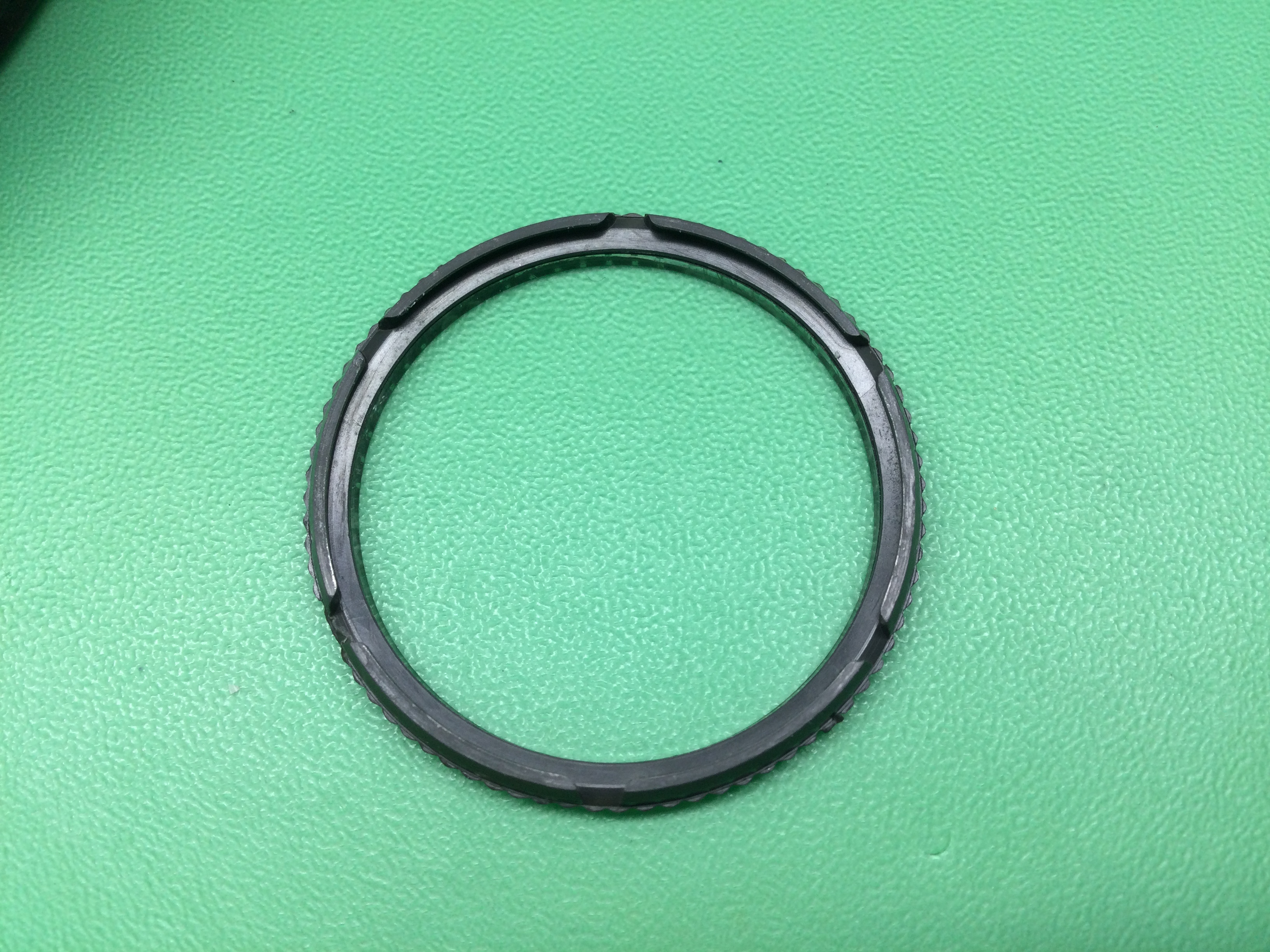

·No spring, the bezel it self flexes around the case!
Turns both directions.
Turns both directions.
Edited:
- Posts
- 1,277
- Likes
- 3,068
marco
·I wish I had a watch that needed one of these. Great craftsmanship, well done Sir.
- Posts
- 21
- Likes
- 11
LDM68
·Hi,
I would like one of these (acrylic / bakerlite replacement) bezels when they are available again - please let me know.
Many thanks
I would like one of these (acrylic / bakerlite replacement) bezels when they are available again - please let me know.
Many thanks
Edited:
- Posts
- 88
- Likes
- 742
mcgyver

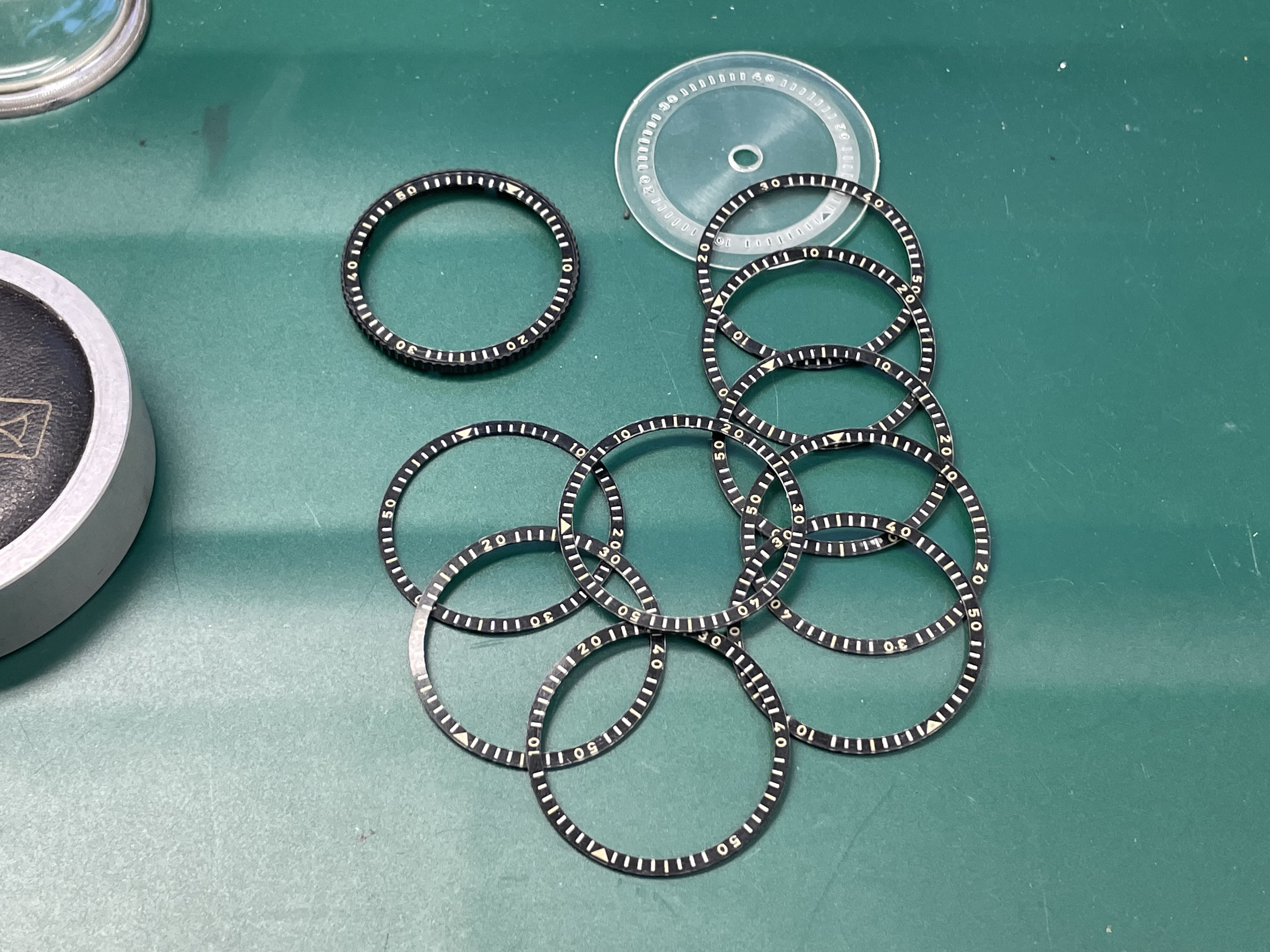

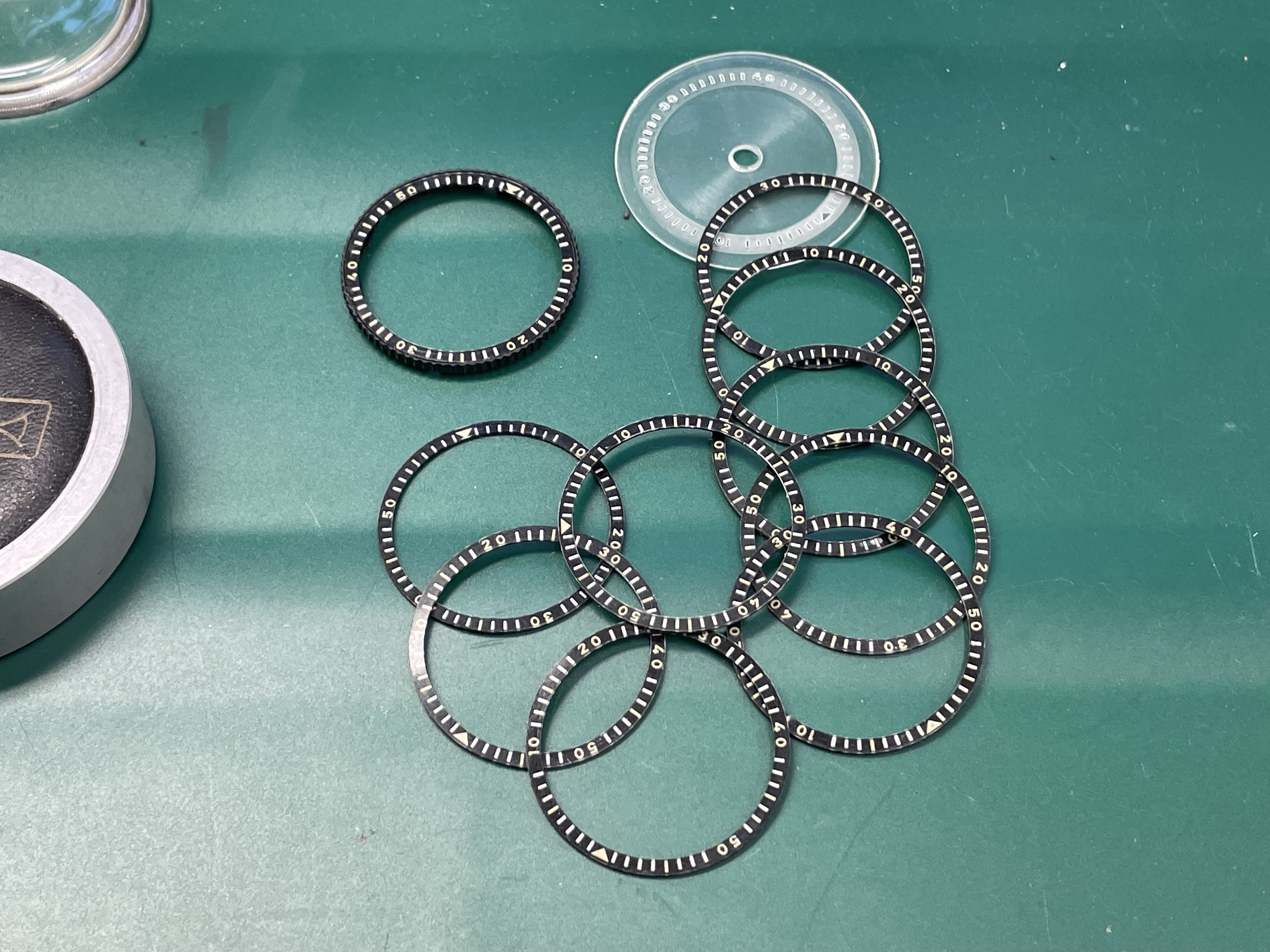

·Made a new batch of inserts!😀
New method of heatpressing => not so much waste but still ~50%
After pressing a "blank" - the dimensions are milled.
Inserts then painted/filled with lume.
New method of heatpressing => not so much waste but still ~50%
After pressing a "blank" - the dimensions are milled.
Inserts then painted/filled with lume.
Edited:
- Posts
- 21
- Likes
- 11
LDM68
·Highly recommended!
- Posts
- 37
- Likes
- 115
Chaneltime

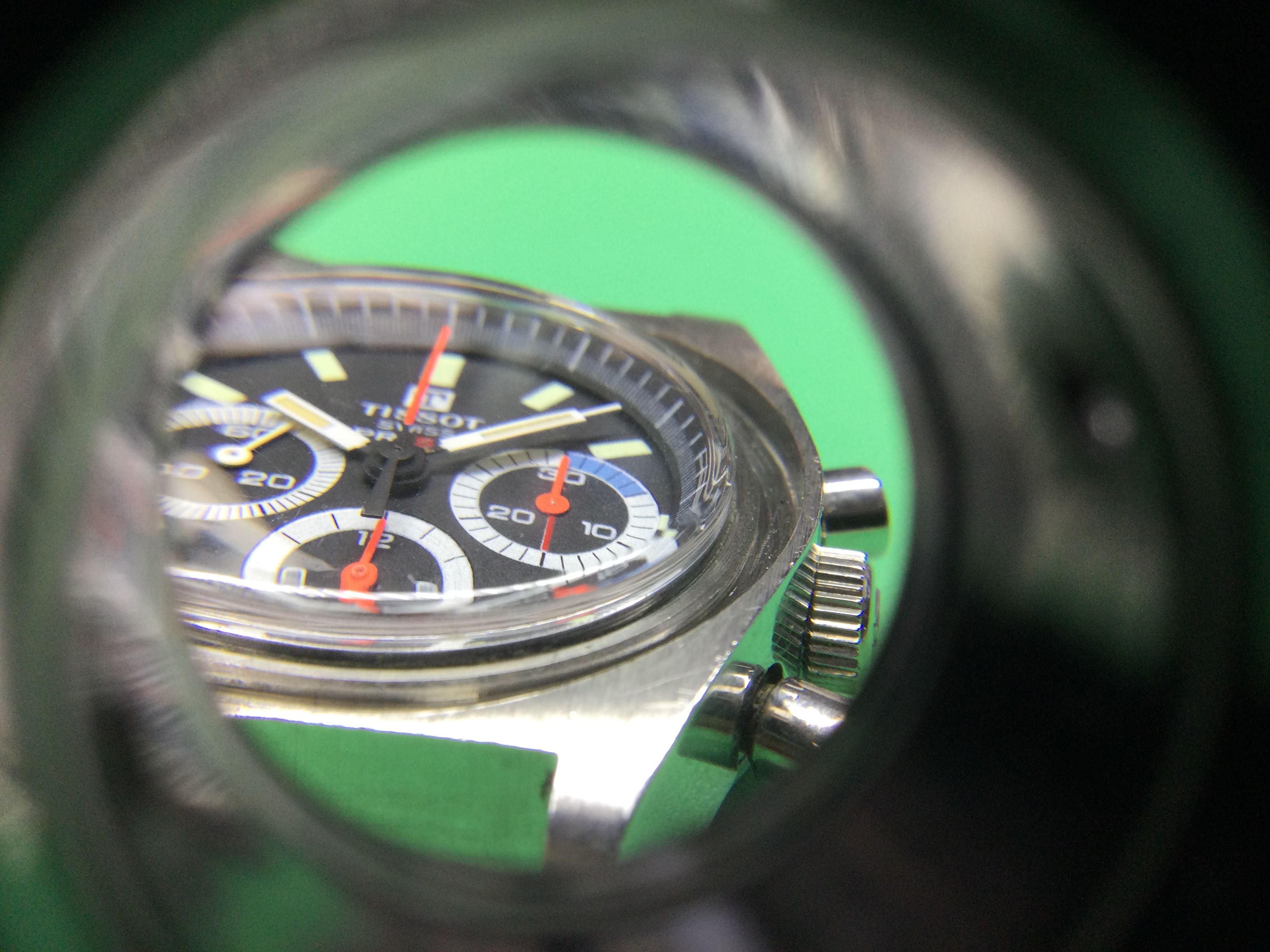

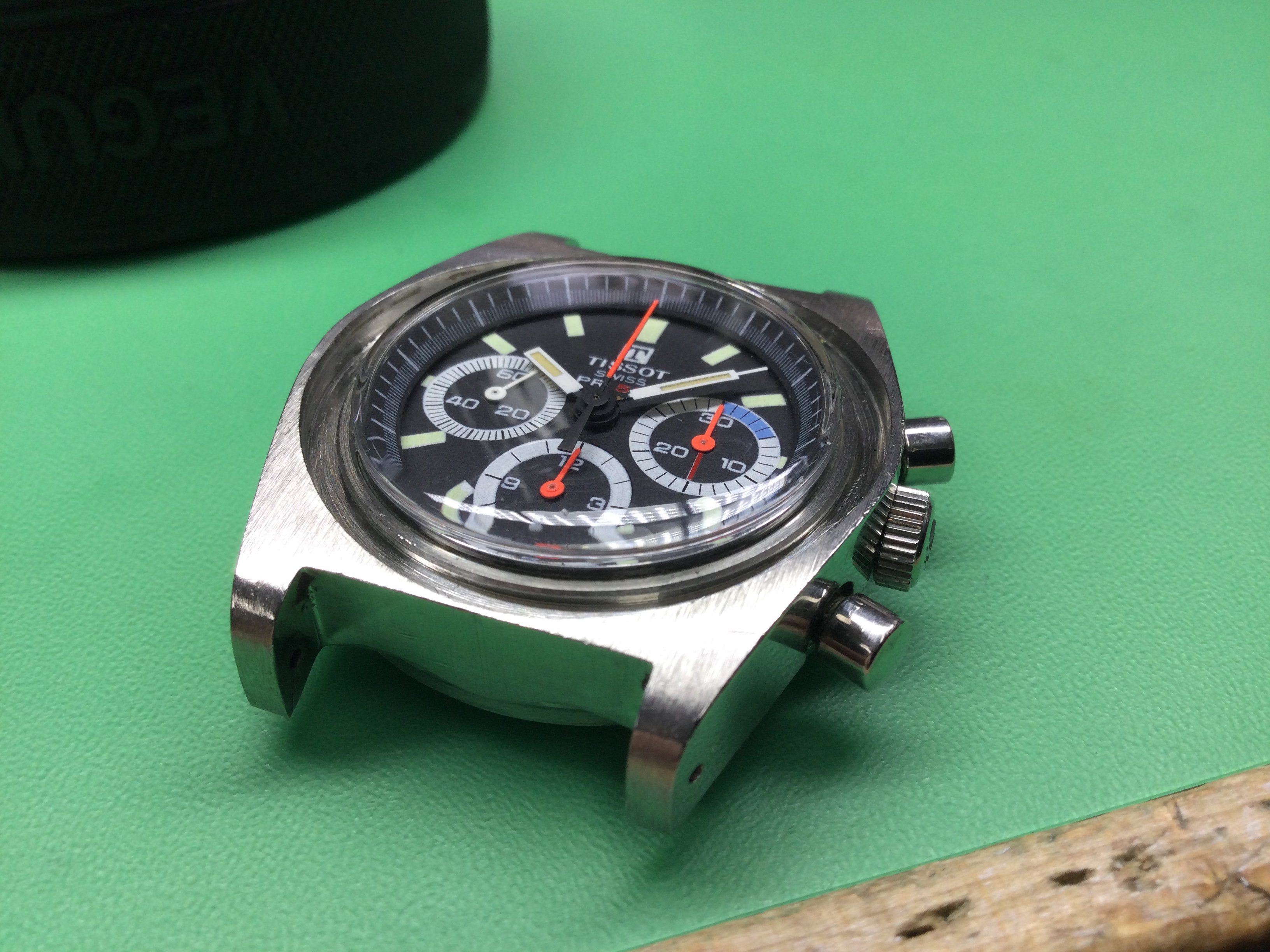

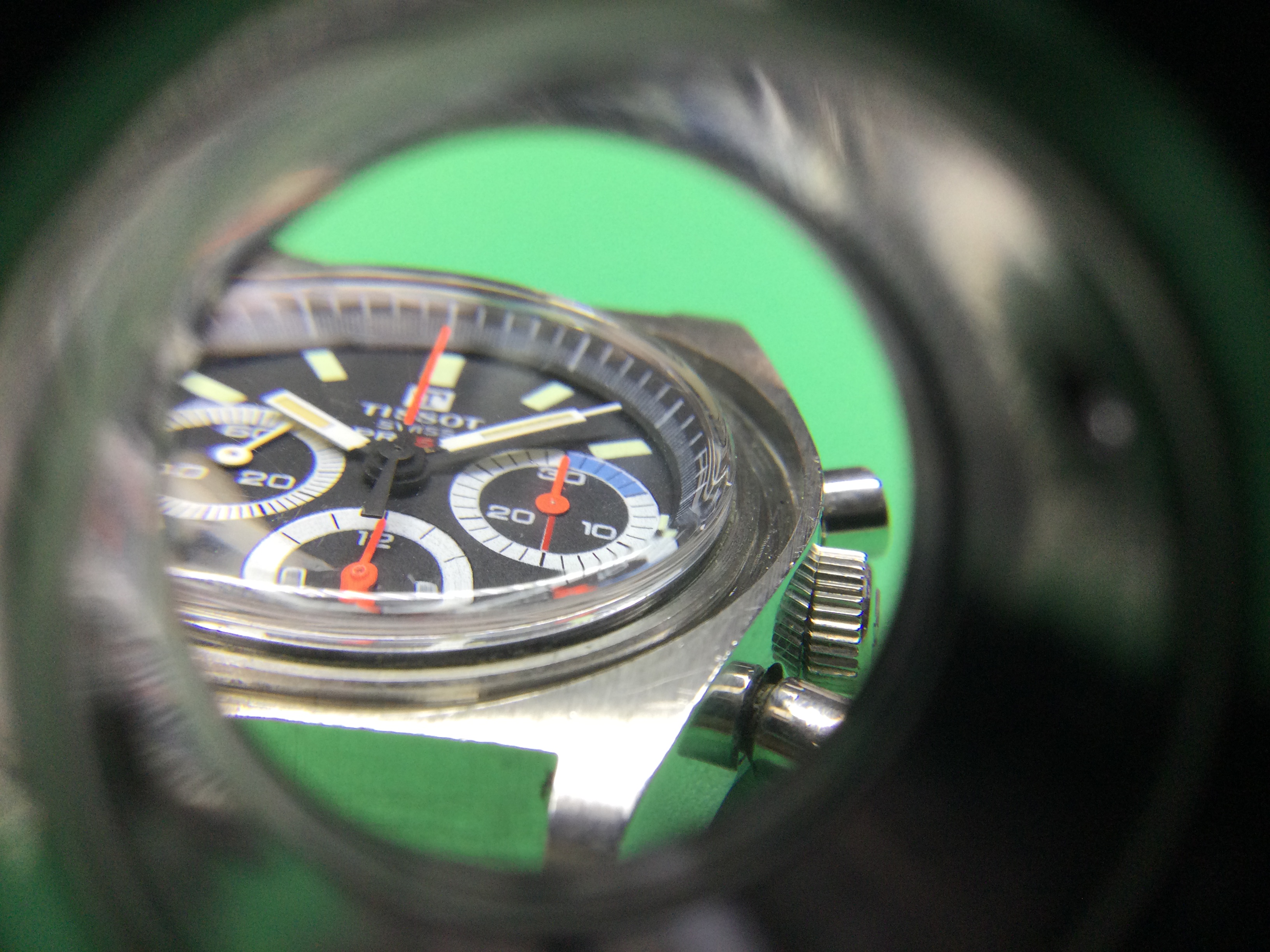

·Hello Dear MCGyver, did you make always those bezels? I have an PR 516 chronograph 40528-2X (with the Lemania 873 inside) with the bezel damaged at 30’. The case is a 36mm, did you know if it’s the same as the 3 hands model?
It’s for make a gift for my wife. Best regards
It’s for make a gift for my wife. Best regards
- Posts
- 88
- Likes
- 742
mcgyver
·Hi,
I'm sorry, but this insert (Tachy-scale) is tricky to make.
It needs to be pad printed on the back in both black and white and right now I do not have the equipment set up to do this.
I might in the future, but have no time span when it could be done (or even if I can do it) - sorry!
For the case, I do not know, but doubt its the same as the 36mm diver. There are two types of divers and the case is not the same even between them! 😀
Best regards
Roger
I'm sorry, but this insert (Tachy-scale) is tricky to make.
It needs to be pad printed on the back in both black and white and right now I do not have the equipment set up to do this.
I might in the future, but have no time span when it could be done (or even if I can do it) - sorry!
For the case, I do not know, but doubt its the same as the 36mm diver. There are two types of divers and the case is not the same even between them! 😀
Best regards
Roger
Edited:
- Posts
- 37
- Likes
- 115
Chaneltime

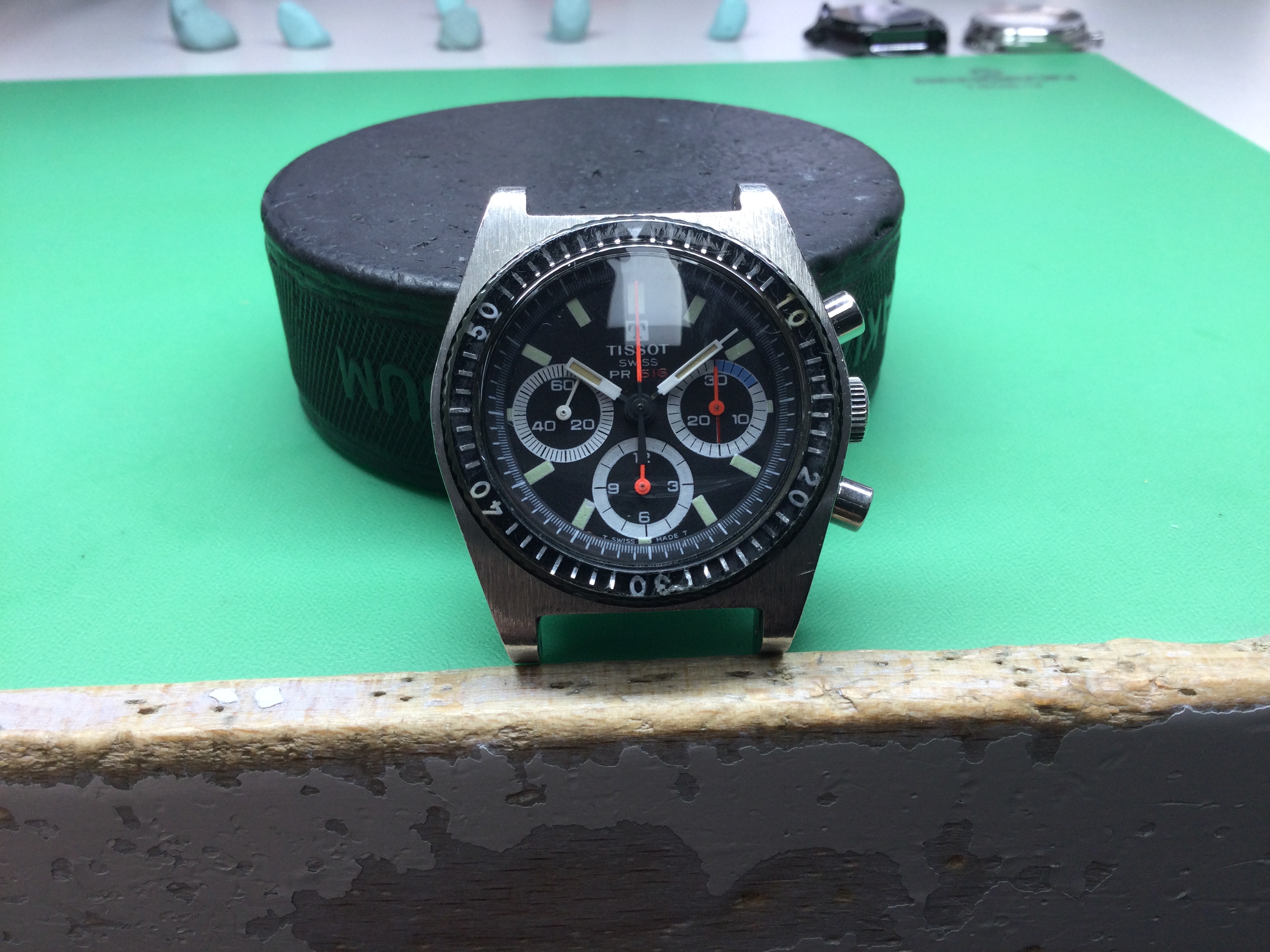

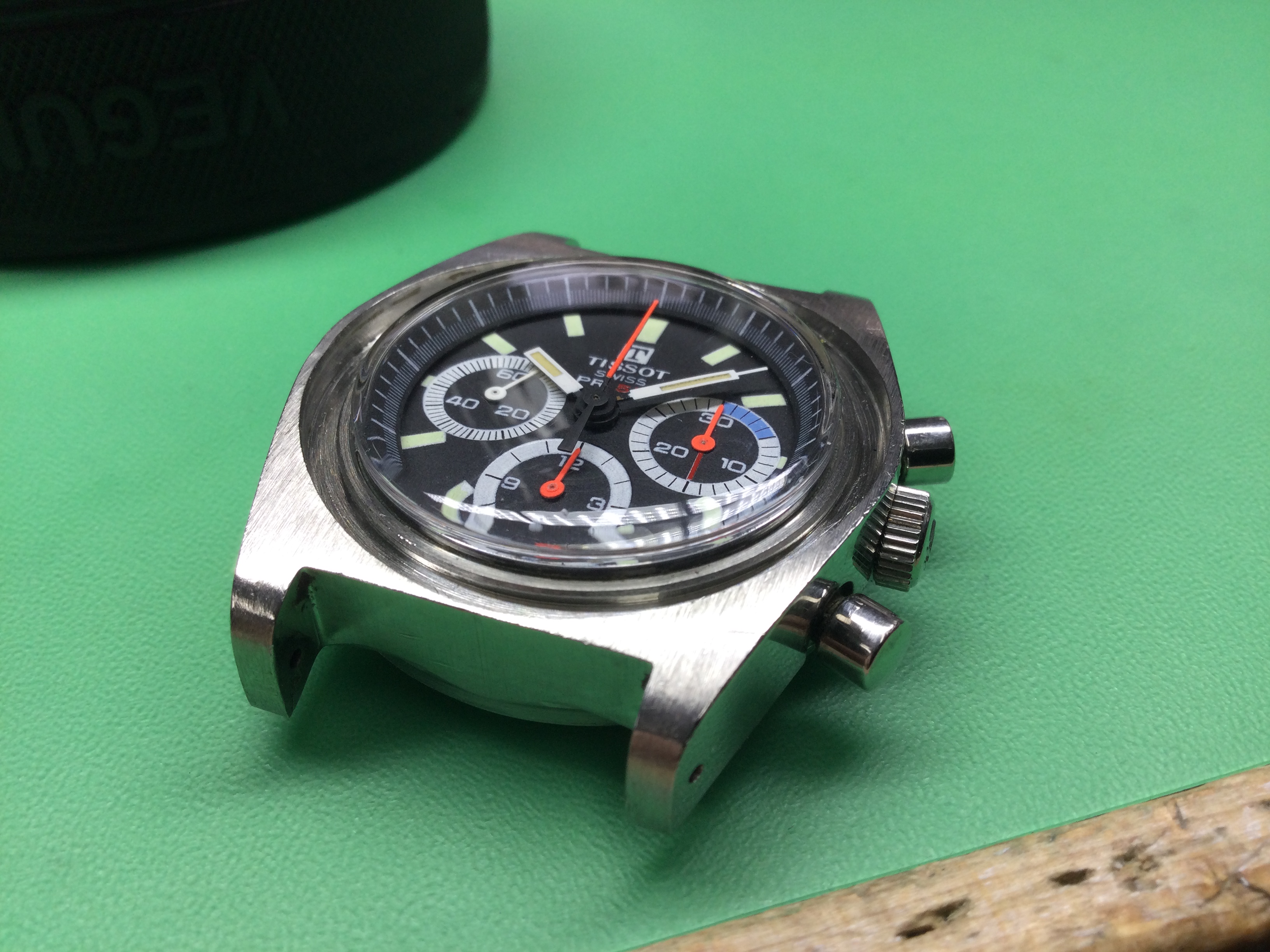

·Hello Roger, it’s the other type bezel (10-20-30-40-50- broad, like yours) I have. I’ don’t know if it’s a original configuration (I’ve seen 2 others watches on the net whose one on EBay), I seem it’s original, my wife preferred this variation. If you would, I will send you the case and bezel for work, it will be more practical. The movement need to be serviced, I am watchmaker so it’s not a problem for me 😉
- Posts
- 37
- Likes
- 115
- Posts
- 88
- Likes
- 742
mcgyver
·@Caneltime, -That's an insert for a diver, you should have one with a black and white tachy/pulsations scale!
Edited:
- Posts
- 88
- Likes
- 742
mcgyver
·Latest bezel build

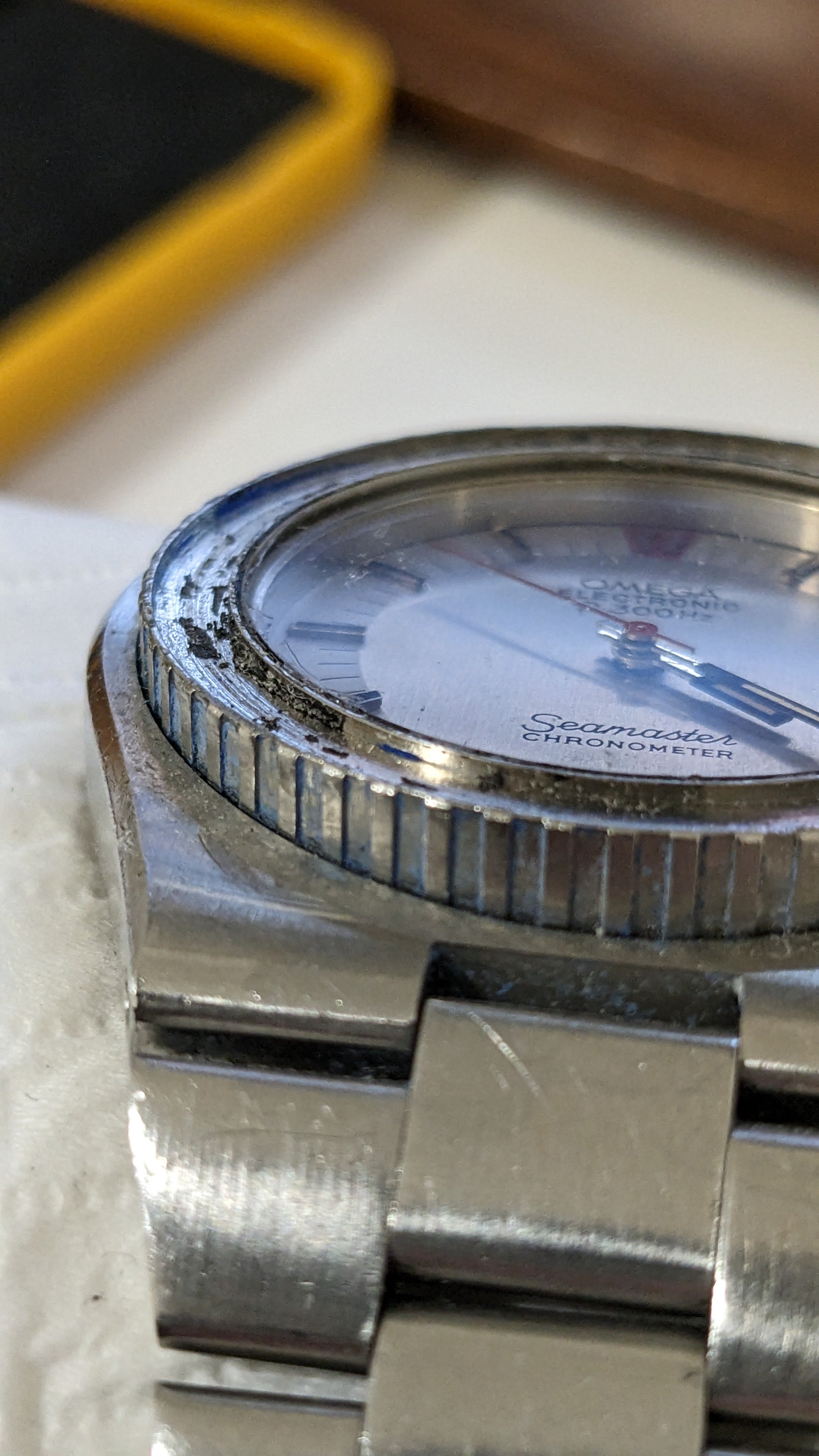

Got this worn Seastar at an auction a while ago.
I was a real mess, with gue and some interesting crown/pusher solutions!
I think I'm going to change the gasket on this one!

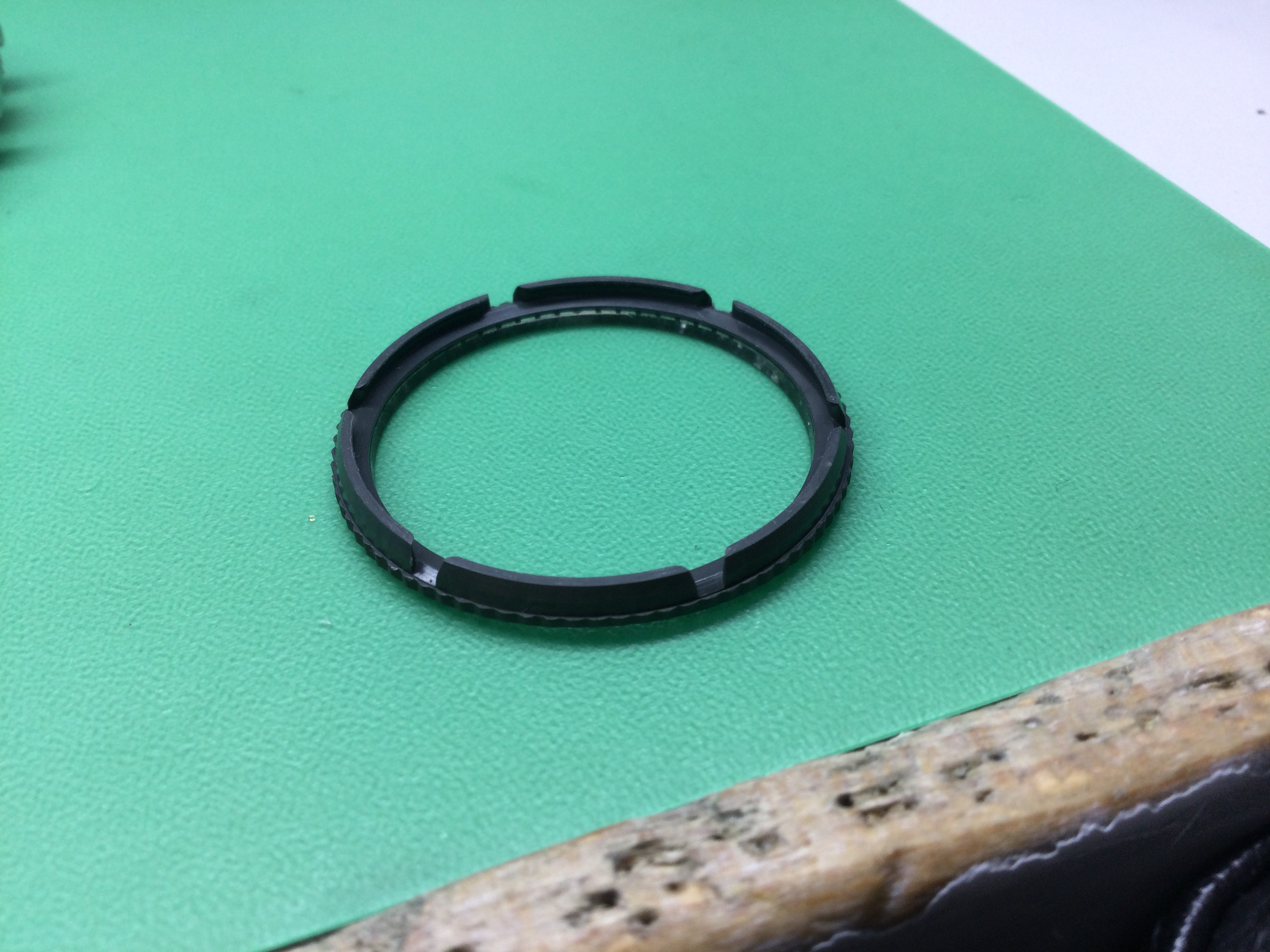

After some mild violence I got the bezel of and started the procedure of making a new one.
Aluminium set up in the lathe and turned to dimensions.
The bezel has a small 60deg groove on the inside to snap to the case and a 0.7mm slot on the outside - I asume as something to grab to make replacement easier!?
Small batch ready for further treatment.
After cleaning, etching they got a dip in my acid bath.
Afther that, time for color dip and then sealing in boiling water.
Here is a bezel dyed and ready to be engraved.
After laser engraving, the result.
Now time to weld and fix the case..............but that will have to be done another day!
Got this worn Seastar at an auction a while ago.
I was a real mess, with gue and some interesting crown/pusher solutions!
I think I'm going to change the gasket on this one!
After some mild violence I got the bezel of and started the procedure of making a new one.
Aluminium set up in the lathe and turned to dimensions.
The bezel has a small 60deg groove on the inside to snap to the case and a 0.7mm slot on the outside - I asume as something to grab to make replacement easier!?
Small batch ready for further treatment.
After cleaning, etching they got a dip in my acid bath.
Afther that, time for color dip and then sealing in boiling water.
Here is a bezel dyed and ready to be engraved.
After laser engraving, the result.
Now time to weld and fix the case..............but that will have to be done another day!
- Posts
- 1
- Likes
- 0
Evoex
·Latest bezel build
Got this worn Seastar at an auction a while ago.
I was a real mess, with gue and some interesting crown/pusher solutions!
I think I'm going to change the gasket on this one!
After some mild violence I got the bezel of and started the procedure of making a new one.
Aluminium set up in the lathe and turned to dimensions.
The bezel has a small 60deg groove on the inside to snap to the case and a 0.7mm slot on the outside - I asume as something to grab to make replacement easier!?
Small batch ready for further treatment.
After cleaning, etching they got a dip in my acid bath.
Afther that, time for color dip and then sealing in boiling water.
Here is a bezel dyed and ready to be engraved.
After laser engraving, the result.
Now time to weld and fix the case..............but that will have to be done another day!
Made a new batch of inserts!😀
New methos of heatpressing => not so much waste but still ~50%
After pressing a "blank" - the dimensions are milled.
Inserts then painted/filled with lume.
- Posts
- 88
- Likes
- 742
mcgyver
·The engraved bezel lacked some contrast in certain angles => stripped them and then reanodized and colored again.
Engraving this time deeper and the fonts a bit thinner - engarving filled with chrome paint for better contrast - I think its much better!
Engraving this time deeper and the fonts a bit thinner - engarving filled with chrome paint for better contrast - I think its much better!
- Posts
- 88
- Likes
- 742
mcgyver
·....and finally, on my wrist! 😀
- Posts
- 1,144
- Likes
- 2,118
josiahg52
·This is really amazing work. Makes me look at older and rougher watches a bit different.
- Posts
- 5
- Likes
- 0
Senkan
·
- Posts
- 88
- Likes
- 742
- Posts
- 2,397
- Likes
- 3,823
sheepdoll
·I love this thread!
