Late Aero-Compax typology

  1. LouS

    LouS Mrs Nataf's Other Son Staff Member Apr 14, 2014

    Posts
    6,977
    Likes
    18,104
    So I thought I'd take a run at sorting out the late Aerocompaxes. This is restricted to those models with non-UG/Martel power and it's all very tentative, so feel free to jump in with catalog info, reference numbers, opinions, comments, additions and refinements.

    The first division I'll make is between 12 hour and 24 hour dials. The 12hr watches seem to be designated UG Cal 130 (which looks like a Valjoux 726) and the 24hr watches UG 90 (Venus 178).

    Let's tackle the 12 hr variants first. Since we don't know the temporal sequence, I'm just going to call them Type A, B, etc.

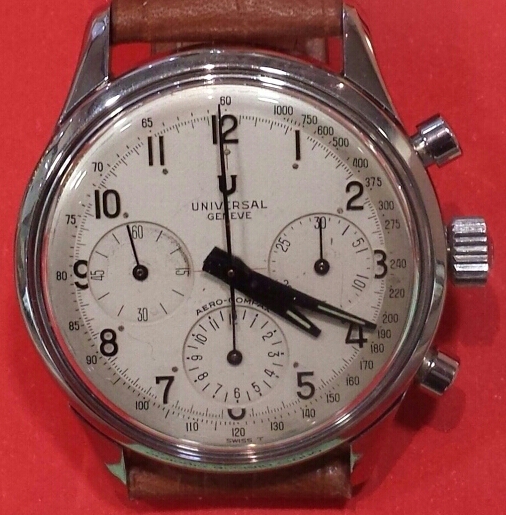

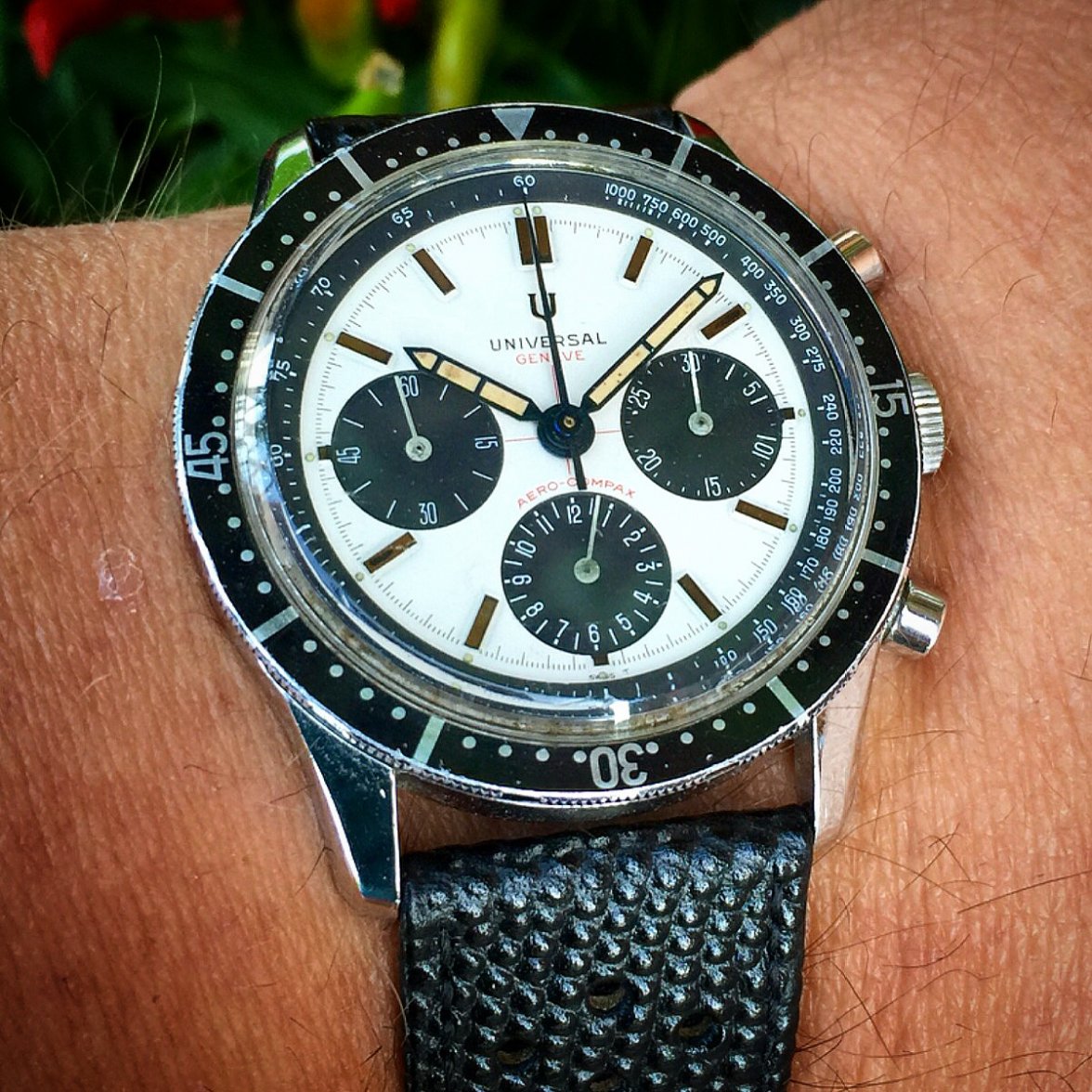

    Type A 12HR (photo credit m neuman I think)
    Type A.jpg




    Type B 12HR (photo credit unknown)
    Type B (12HR).jpg

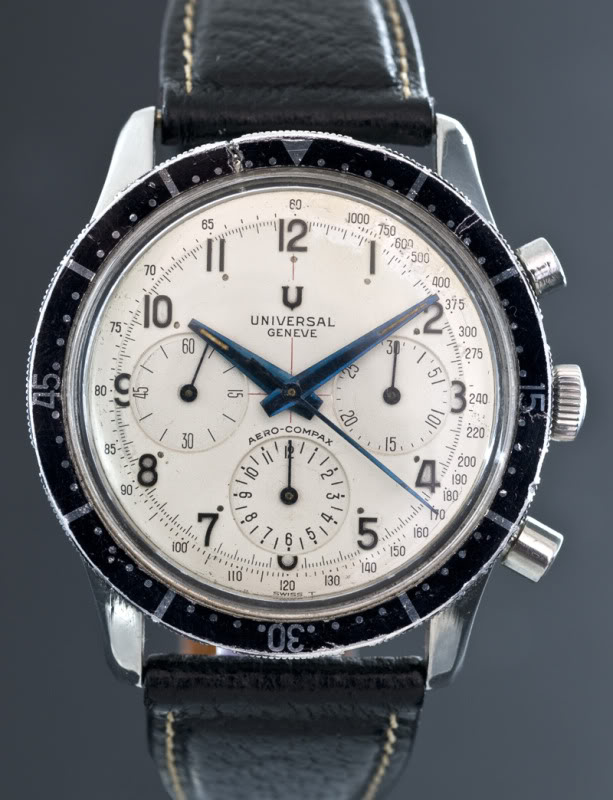

    Type C 12Hr (photo credit Paul Gavin)
    Type C (12HR).jpg

    and the 24 hr versions

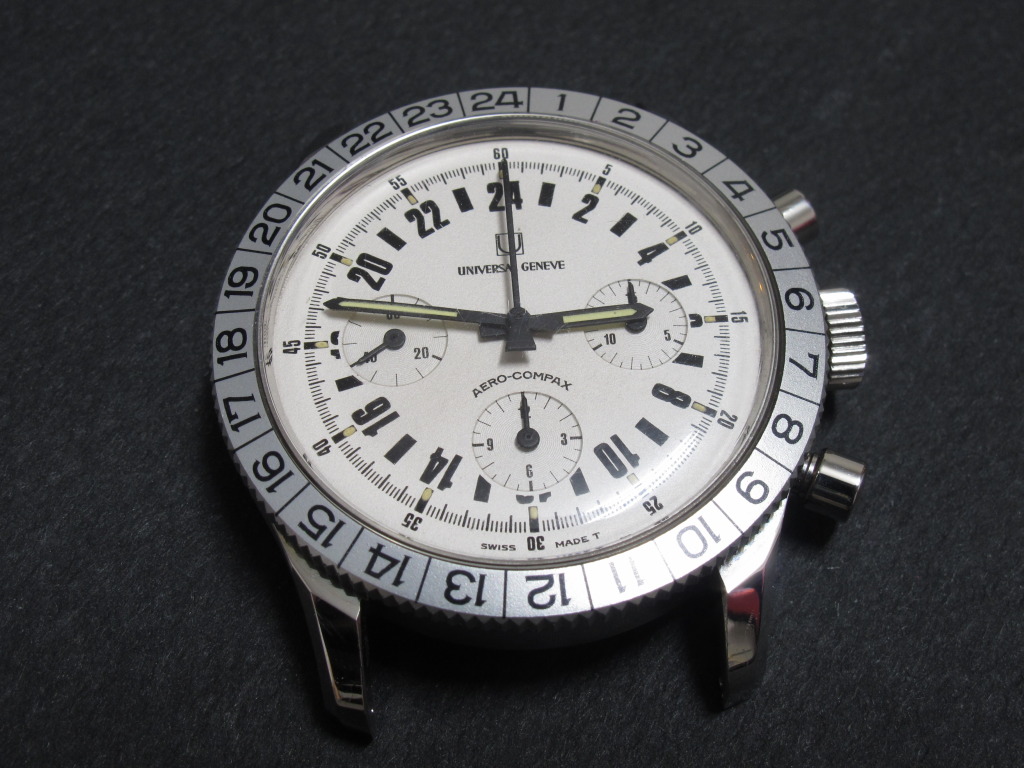

    Type D 24HR (photo credit j-luc)
    Type D (24HR).jpg


    Type E 24Hr (photocredit Gavin)
    thanks to Gavin, we known this is a ref 890101/01 http://omegaforums.net/threads/squirrel-bites-late-aerocompax.7233/
    Type E (24HR).jpg

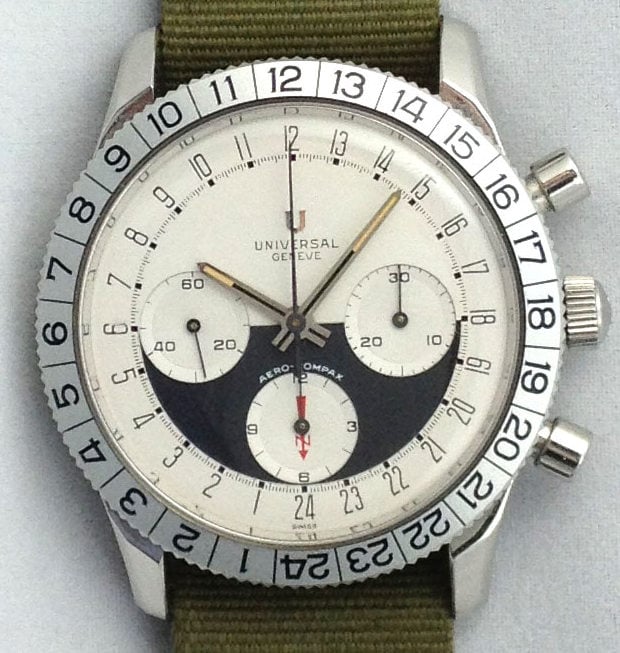

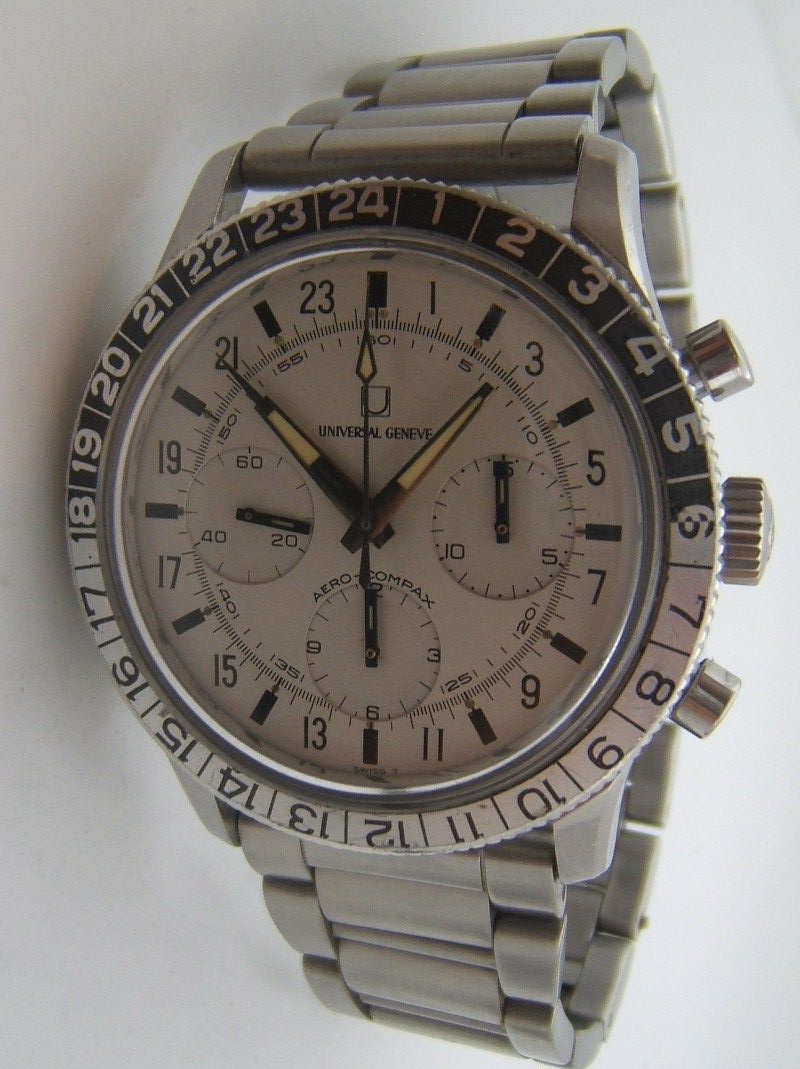

    Type F 24Hr Ref 890100/01 per woodwkr
    Type F (24HR).jpg


    anyone got anything else?

    Woops, aeroengineer, jban and 6 others like this.
  2. woodwkr2

    woodwkr2 Apr 14, 2014

    Posts
    1,463
    Likes
    804
    Type F is ref. 890100/01
    Dimensions: 48 x 41mm w/o crown, 43mm w/crown
    Crown: Shield "U"
    Crystal: ?Unsigned
    Movement: UG 90, a re-badged/co-badged Venus 178
    Serial Dating: 1963-1965 (per 100 ans)

  3. LouS

    LouS Mrs Nataf's Other Son Staff Member Apr 14, 2014

    Posts
    6,977
    Likes
    18,104
    updated. Where's that info from?

  4. woodwkr2

    woodwkr2 Apr 14, 2014

    Posts
    1,463
    Likes
    804
    My own physical exam.

    Pics to come when she's presentable.

  5. Gavin

    Gavin It's the quiet ones you have to 'watch' out for. Apr 14, 2014

    Posts
    2,401
    Likes
    4,438
    Thanks for putting this up. Will be a good reference.:thumbsup:

    helloafrica likes this.
  6. Dedalus

    Dedalus Apr 14, 2014

    Posts
    146
    Likes
    308
    I plan on getting the book by Sala (regardless of whether a UG is my next purchase or not) but I gotta say, the knowledge displayed and shared by some of the venerable members here is mind- bogglingly good. And I love being able to soak it all up as I slowly put my finger on whatever the next purchase will be.

  7. mbirtch

    mbirtch Apr 15, 2014

    Posts
    58
    Likes
    5
    I think F comes before E as F is the first state around 1965 though most pitch at 69 or early 70's...............................mine serial numbered at 1965. think the design did not go down well so changed for even number dial........................bears closer resemblance to D than E.........................

  8. woodwkr2

    woodwkr2 Apr 15, 2014

    Posts
    1,463
    Likes
    804

    How did you peg yours at 1965? I'm not aware of any serial number tables that are that precise.

    I've cross referenced the serial number on mine with the tables appearing in 100 ans, which were later reprinted in Sala, and my serial falls between 1963 and 1965.

    I believe that chronological dating will be difficult to do without a wider sampling of serial numbers for all of the presented examples above. I'd also note that the F's hour, minute, and sweep second hands are a radical departure from the "typical" UG design (as are the hour and minute in type A, for that matter).

  9. mbirtch

    mbirtch Apr 15, 2014

    Posts
    58
    Likes
    5
    serial number on mine(no longer mine) as yours ,indicates '63-65.........................because the hands are so "different" (and hard to read) I believe that the even number dialled Aerocompax replaced after one year.................can't prove it though..............I prefer the odd number dial as I know of no other odd number dial chronograph..................I sold to purchase a Breitling Unitime 1765-another chronograph with venus 178 movement (24hour).

    woodwkr2 likes this.
  10. ELV web

    ELV web Jul 6, 2014

    Posts
    2,581
    Likes
    22,425

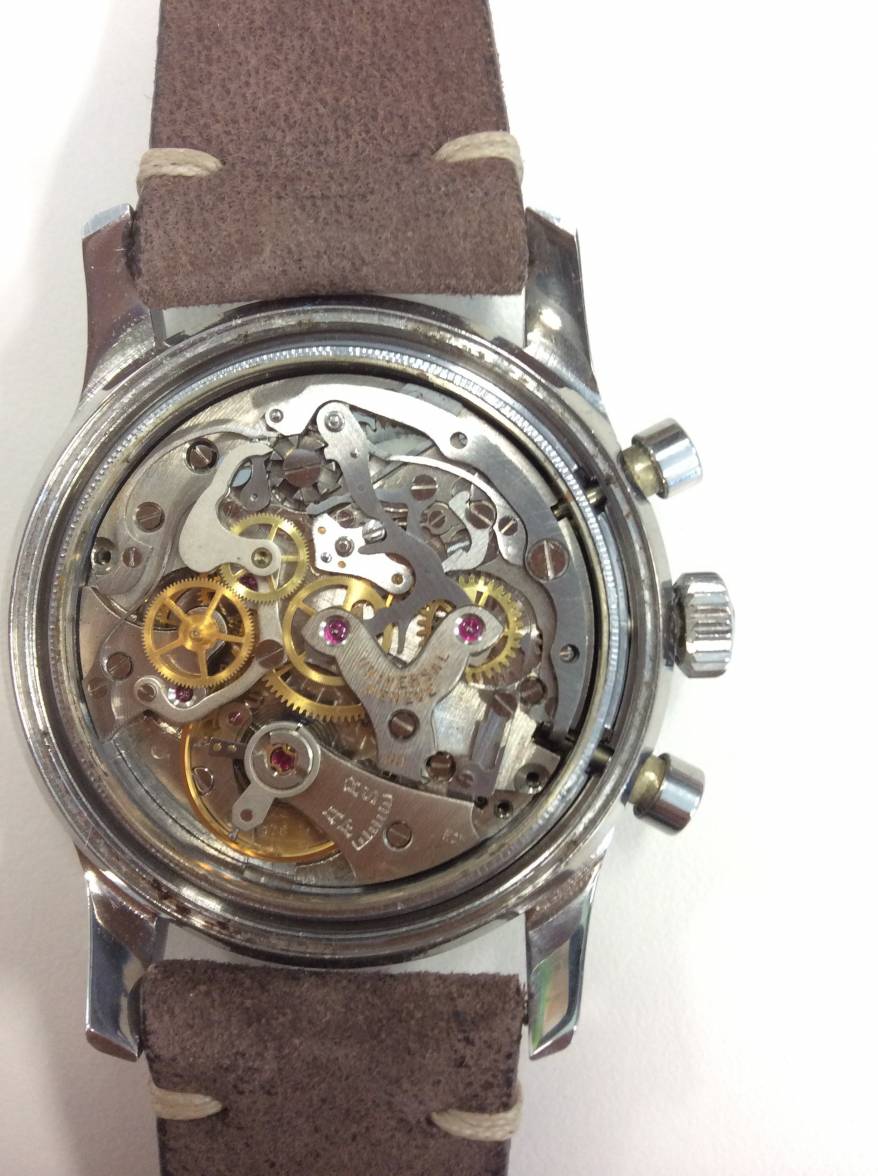

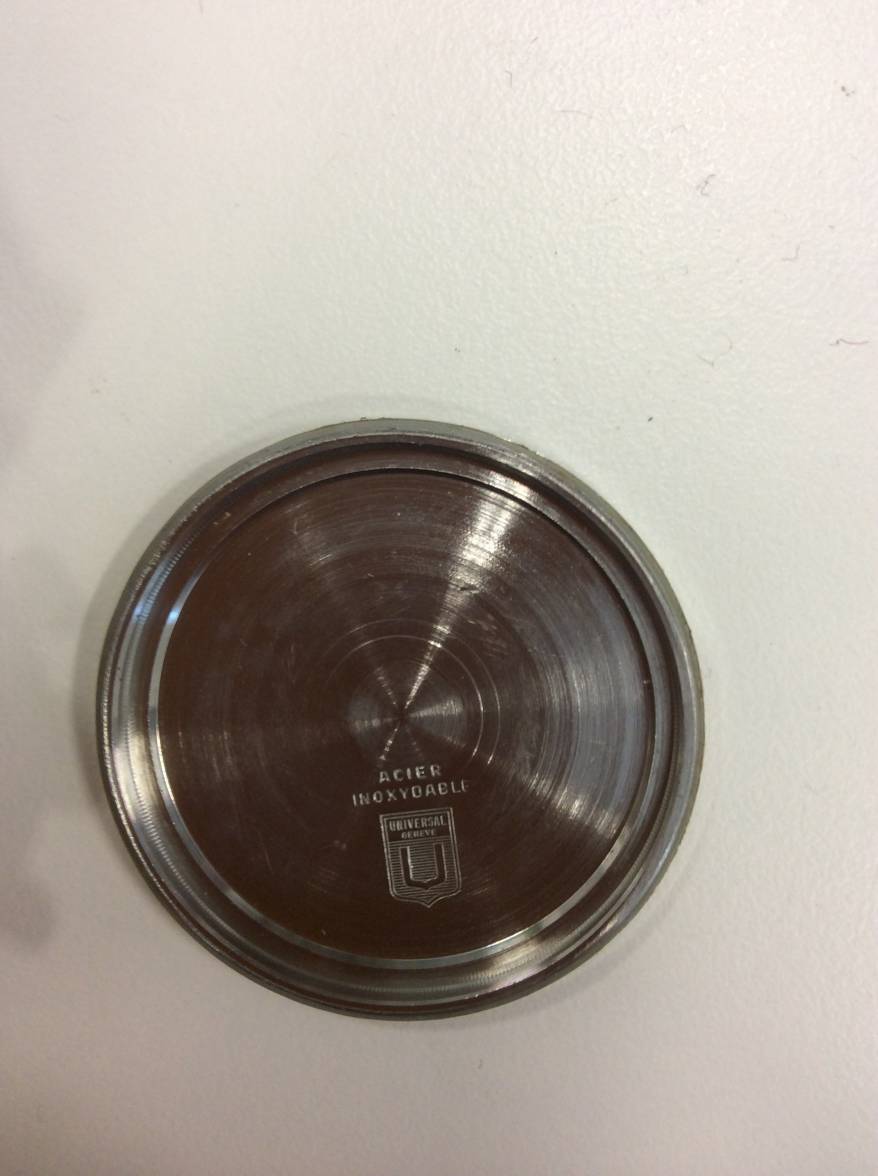

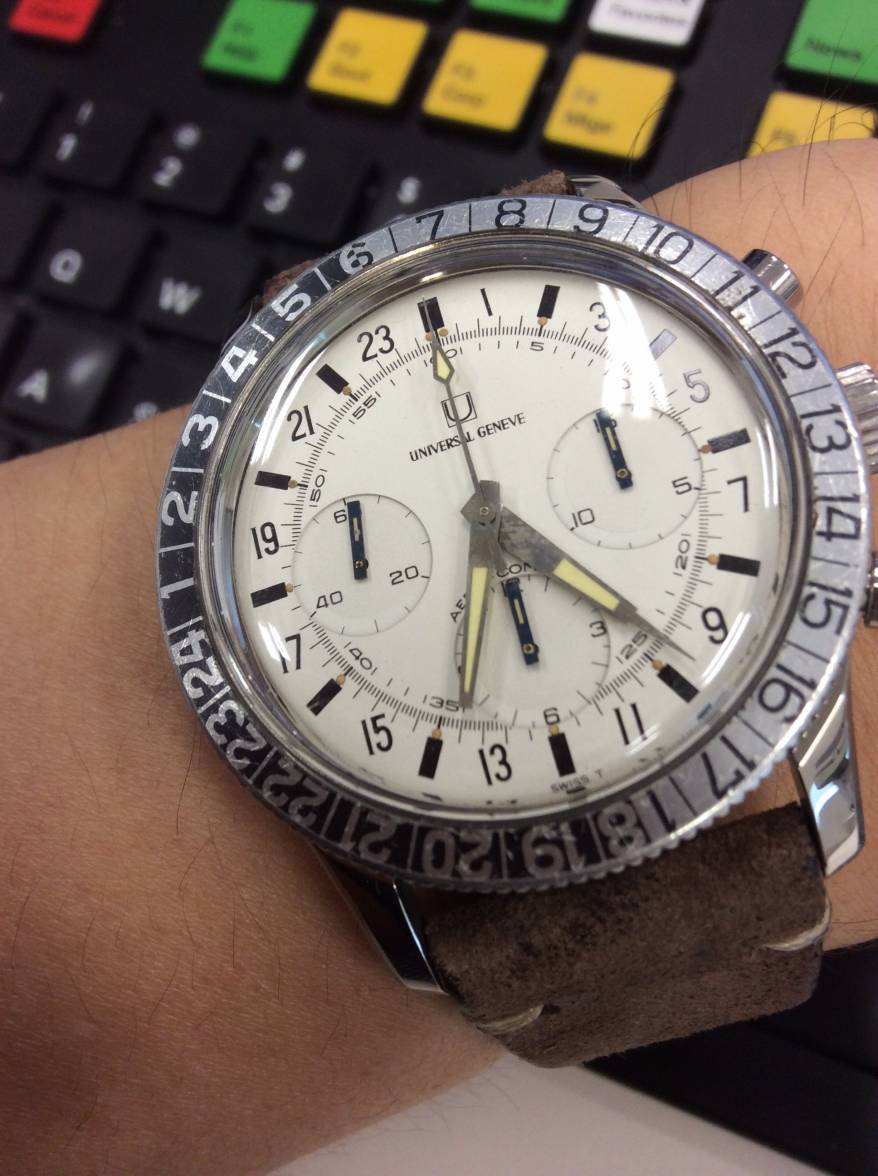

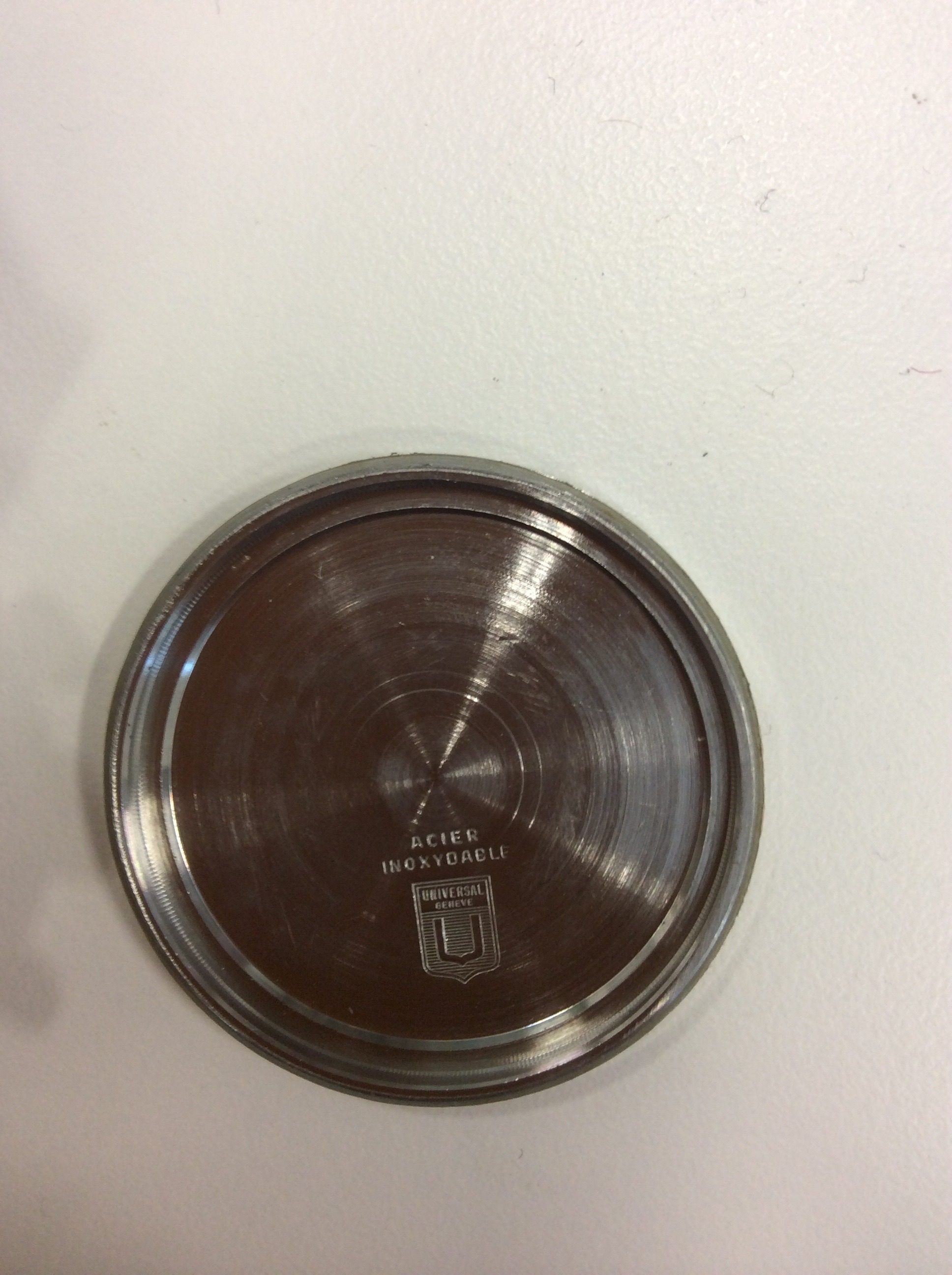

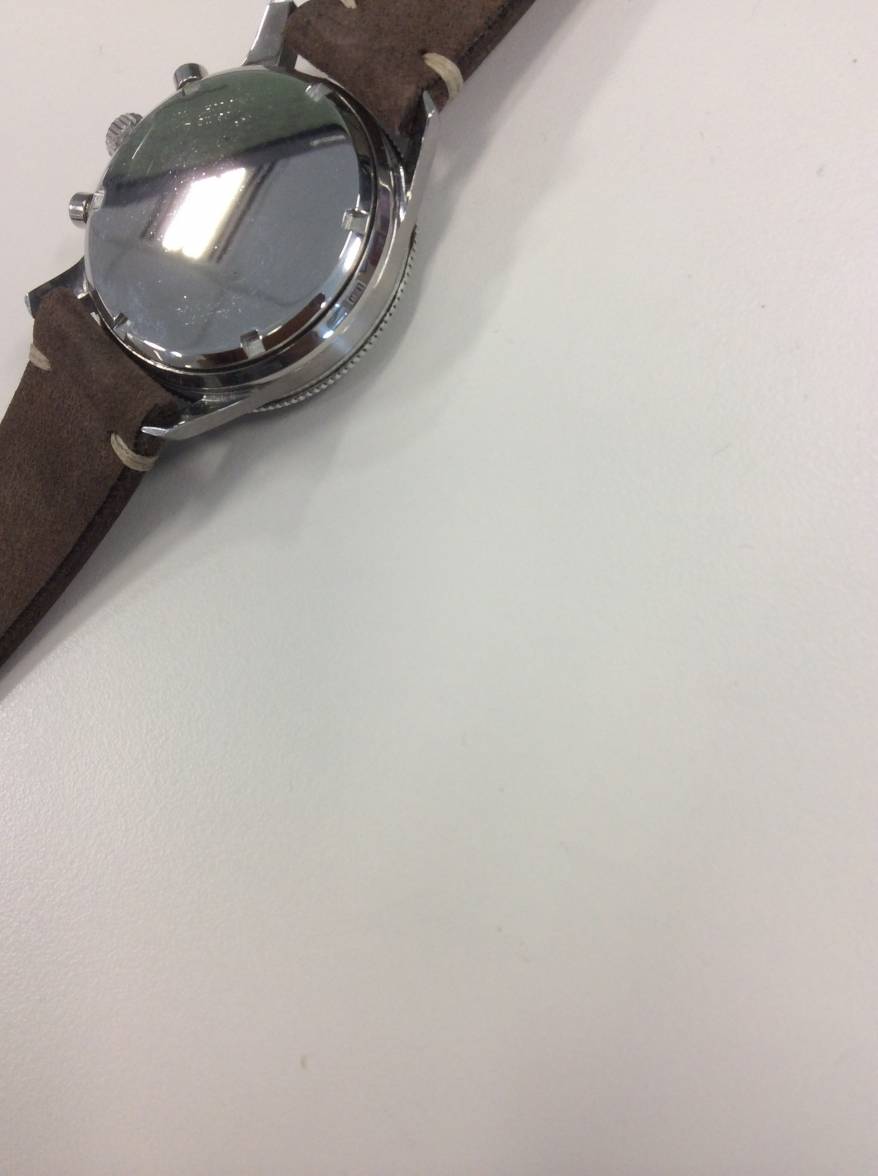

    Just thought about adding some movement pic as received mine today, the engraving in case back has faded but still viewable (sorry for the iPad pic, I am really no good at taking pictures). And I am not lucky enough to have the original crystal :p

    image.jpg image.jpg image.jpg image.jpg
    Diabolik likes this.
  11. The Master of Speed

    The Master of Speed Nov 9, 2015

    Posts
    338
    Likes
    1,606
    this is mine

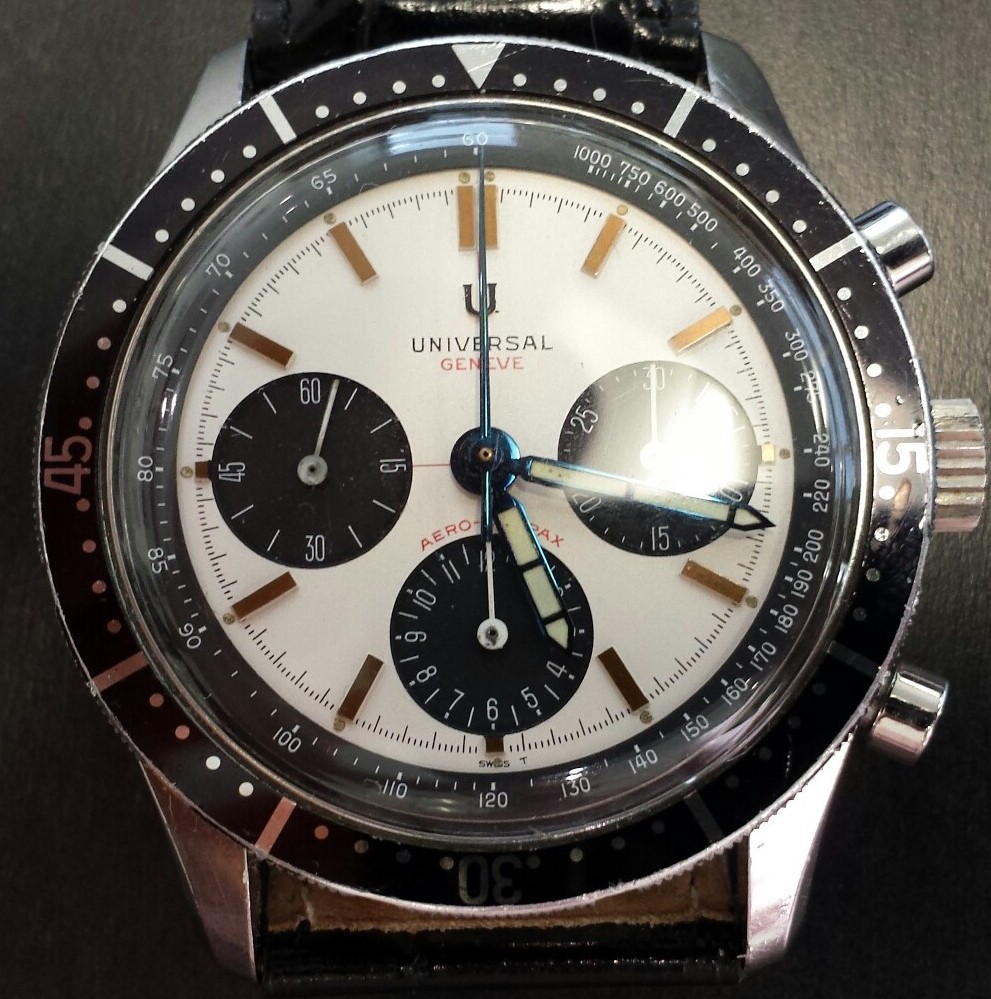

    (Type B) 12-hour two-tone dial - ref. 22704/3 sn 2358253

    [​IMG]


    [​IMG]

    [​IMG]



    [​IMG]

    [​IMG]

    [​IMG]

    ClipperGMT, rolokr, billving and 13 others like this.
  12. PHPHD

    PHPHD Nov 9, 2015

    Posts
    211
    Likes
    328
    Phenomenal! Love those blue, blue hands.

  13. danomar

    danomar Nov 9, 2015

    Posts
    354
    Likes
    1,285
    Ooer! This thread has been a long time coming. Thanks!

  14. PHPHD

    PHPHD Nov 9, 2015

    Posts
    211
    Likes
    328
    I'm sort of curious on what makes these 12-hr variants an 'aero-compax' though. The 24-hr variants I can understand (since you now have the 2 time zones), but what about the 12hr models?

  15. LouS

    LouS Mrs Nataf's Other Son Staff Member Nov 9, 2015

    Posts
    6,977
    Likes
    18,104
    Great! Thanks MoS, now we have reference number and case number for one of the types - that'll help us establish a temporal order. Can anyone else fill in additional information?

  16. LouS

    LouS Mrs Nataf's Other Son Staff Member Nov 9, 2015

    Posts
    6,977
    Likes
    18,104

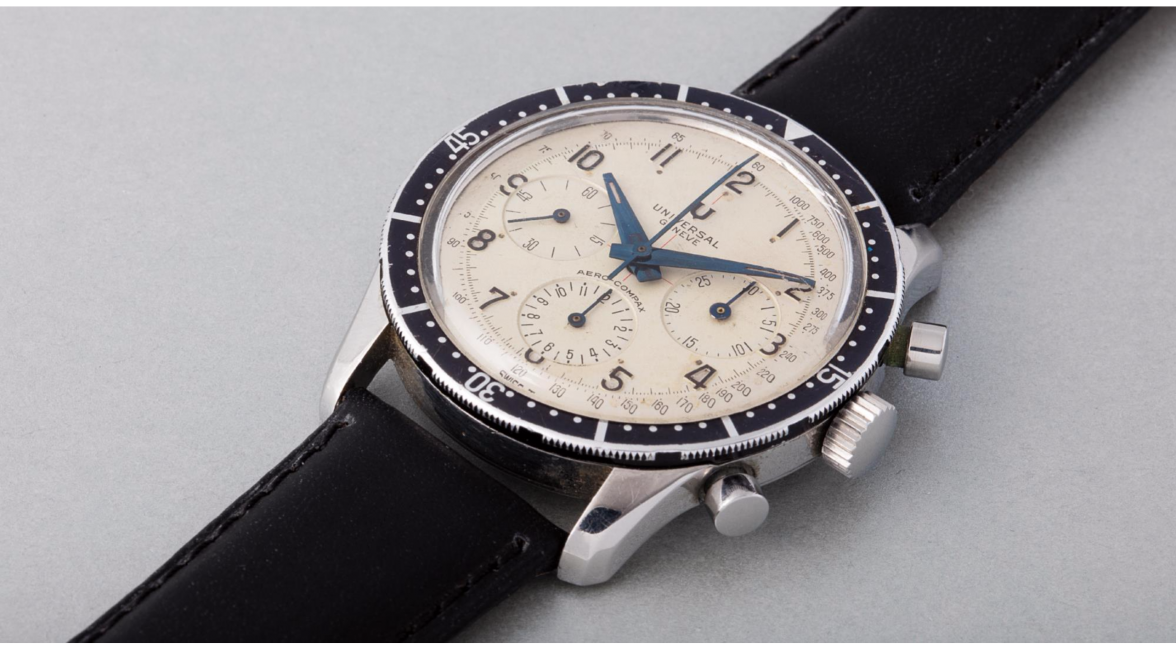

    Let's add in the Type C from the Phillips auction yesterday.That one turns out to be a Ref 22703-3, case number 2357944, so it actually precedes our type B.

    download (3).png

  17. LouS

    LouS Mrs Nataf's Other Son Staff Member Nov 9, 2015

    Posts
    6,977
    Likes
    18,104
    Are they flybacks? Can any of you owners confirm or contradict?

    ELV web likes this.
  18. The Master of Speed

    The Master of Speed Nov 10, 2015

    Posts
    338
    Likes
    1,606
    no Flyback

  19. papaebetu

    papaebetu Nov 11, 2015

    Posts
    409
    Likes
    804

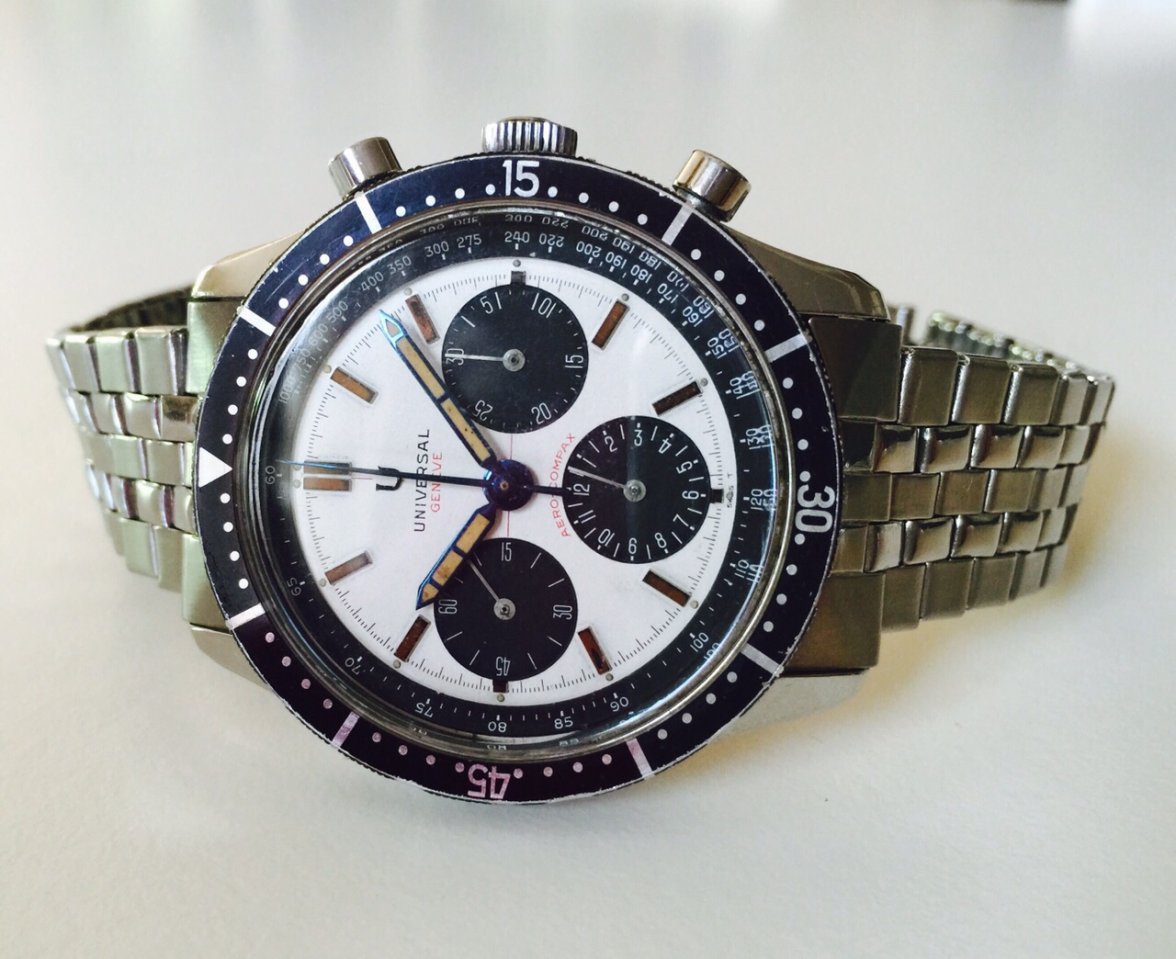

    The first one of the family... with band and correct bracelet
    I mean that's the UG V72 most rare today

    GIGI

    IMG_4128.JPG IMG_2965.jpg IMG_2955.JPG
  20. LouS

    LouS Mrs Nataf's Other Son Staff Member Nov 12, 2015

    Posts
    6,977
    Likes
    18,104
    GIGI,

    what is the reference number for this watch?
