Ladies 511.213 crystal replacement

Posts

22

Likes

10

MrSubmariner

·Mar 29, 2022

Hey all,

Looking for some research assistance here. I recently acquired a ladies watch to give my fiancée as a birthday gift. Ref 511.213 with Cal 620. The crystal is cracked and needs to be replaced. I measured 18mm on the case lip itself as I do not trust measuring the crystal that came out of it (plus it flexes due to crack).

I have searched various sites with no luck.

Any help is greatly appreciated. Omega or Sternkreuz would be preferred but not mandatory.



Posts

5,636

Likes

5,790

SkunkPrince

·Mar 29, 2022

Why are you looking instead of letting your watchmaker do it? He can easily get Sternkreuz, if that's the way you want to go.



Posts

5,636

Likes

5,790

SkunkPrince

·Mar 29, 2022

Or, if you insist... https://watchparts24.com/Genuine-OMEGA-Plastic-Glass-Acrylic-Crystal-063PN1016-for-511297



Posts

22

Likes

10

MrSubmariner

·Mar 29, 2022

SkunkPrince

Or, if you insist... https://watchparts24.com/Genuine-OMEGA-Plastic-Glass-Acrylic-Crystal-063PN1016-for-511297

I am a hobbyist and enjoy working on watches. I also am not looking to spend an arm and a leg to have a watchmaker perform this simple task. The watch is already apart, serviced, and ready to put back together. Just need to find a crystal.

The link you shared is for a different reference and the listing does not provide any specific measurements. Do you know what the measurements are for this 063PN1016?

Thanks



Posts

5,636

Likes

5,790

SkunkPrince

·Mar 29, 2022

Like many, I looked it up on Cousins UK site, and that is what's returned for your watch's case number. Unfortunately, they do not list the dimensions. It might be possible to do more web searching on that part number to see whether specifications are provided elsewhere.



Posts

27,315

Likes

69,672

Archer

·Mar 30, 2022·Omega Qualified Watchmaker

MrSubmariner

Do you know what the measurements are for this 063PN1016?

DIAMETER D1 :18.25 MM
HEIGHT TOTAL H1 : 2.10 MM



Posts

22

Likes

10

MrSubmariner

·Mar 30, 2022

Archer

DIAMETER D1 :18.25 MM
HEIGHT TOTAL H1 : 2.10 MM

Thanks for the info! Would you know if since I measured 18mm on the case lip that 18.25 could be squeezed enough to pop in? And would you know if I require an armored lens? Or is plain acrylic sufficient?



Posts

27,315

Likes

69,672

Archer

·Mar 30, 2022·Omega Qualified Watchmaker

MrSubmariner

Thanks for the info! Would you know if since I measured 18mm on the case lip that 18.25 could be squeezed enough to pop in? And would you know if I require an armored lens? Or is plain acrylic sufficient?

DIAM OF THE GLASS SEATING D2 :18.00 MM

No tension ring...



Posts

7

Likes

1

loock202

·Mar 31, 2022

Hi ARCHER

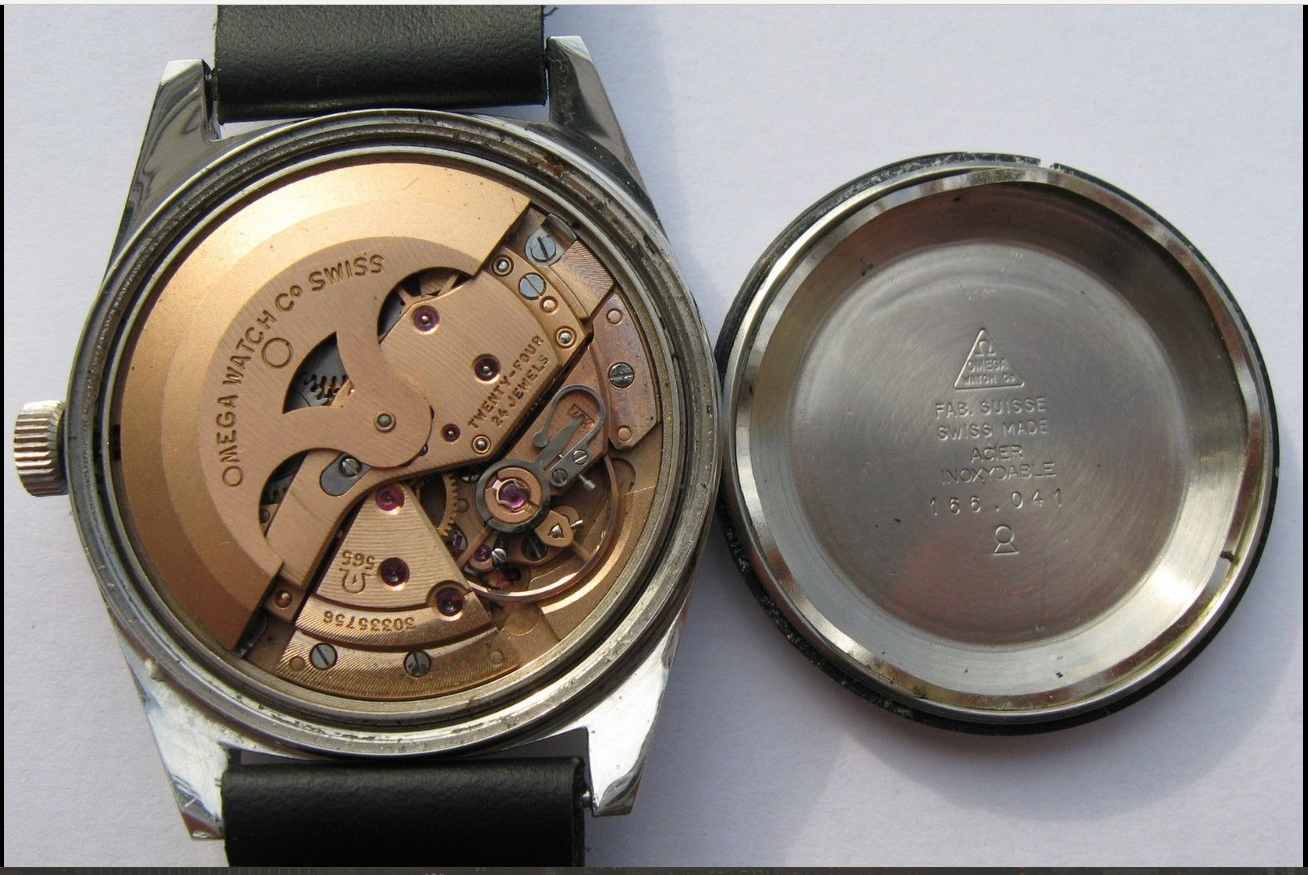

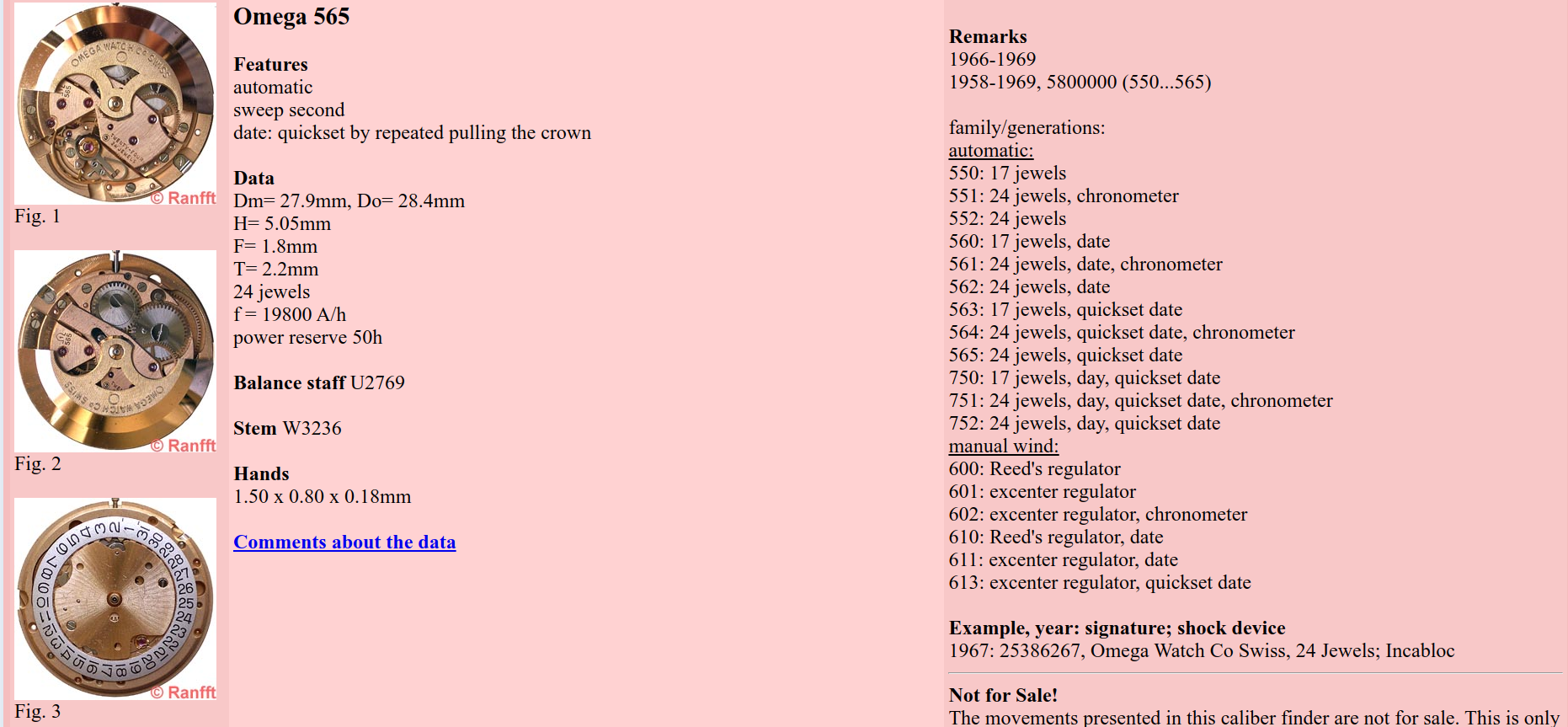

I need a service on my 565 omega if you can help please ??? / can you inter change the parts of the 500 family series ???



Posts

16,138

Likes

34,092

JimInOz

·Mar 31, 2022·Melbourne Australia

loock202

Hi ARCHER
I need a service on my 565 omega if you can help please ??? / can you inter change the parts of the 500 family series ???

Don't you have Google?
