Help With Acrylic Crystal

Posts
290
Likes
594

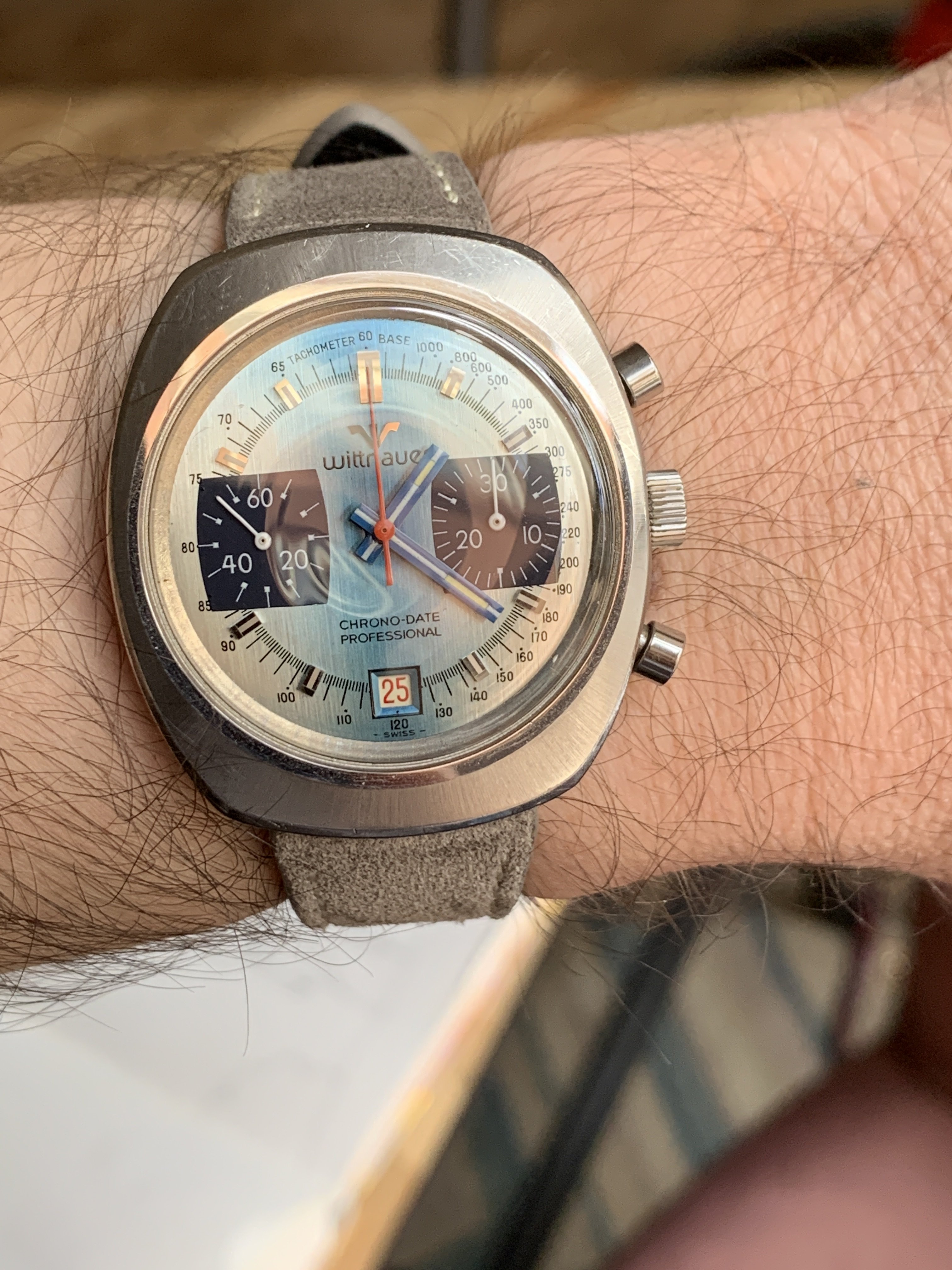

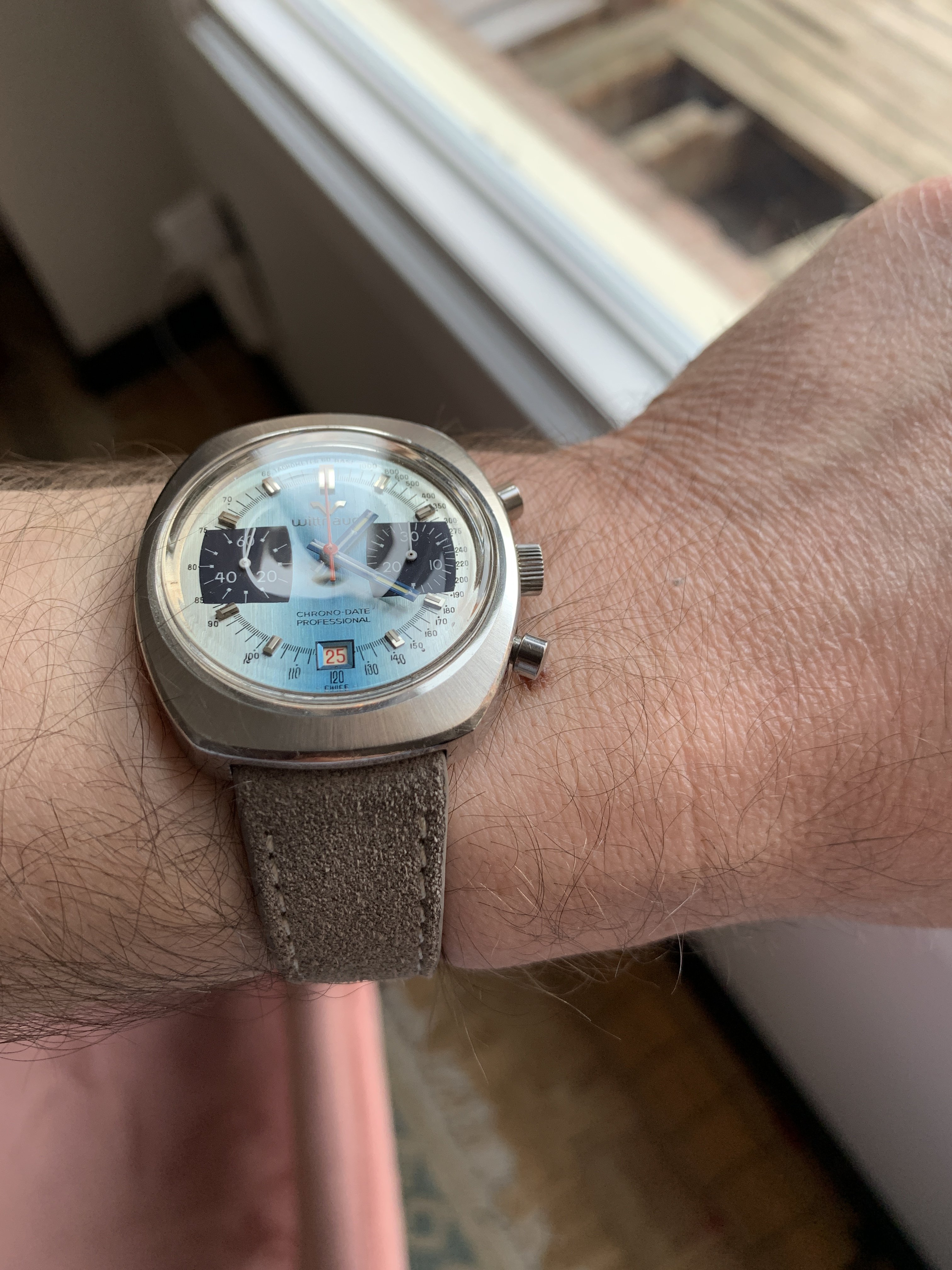

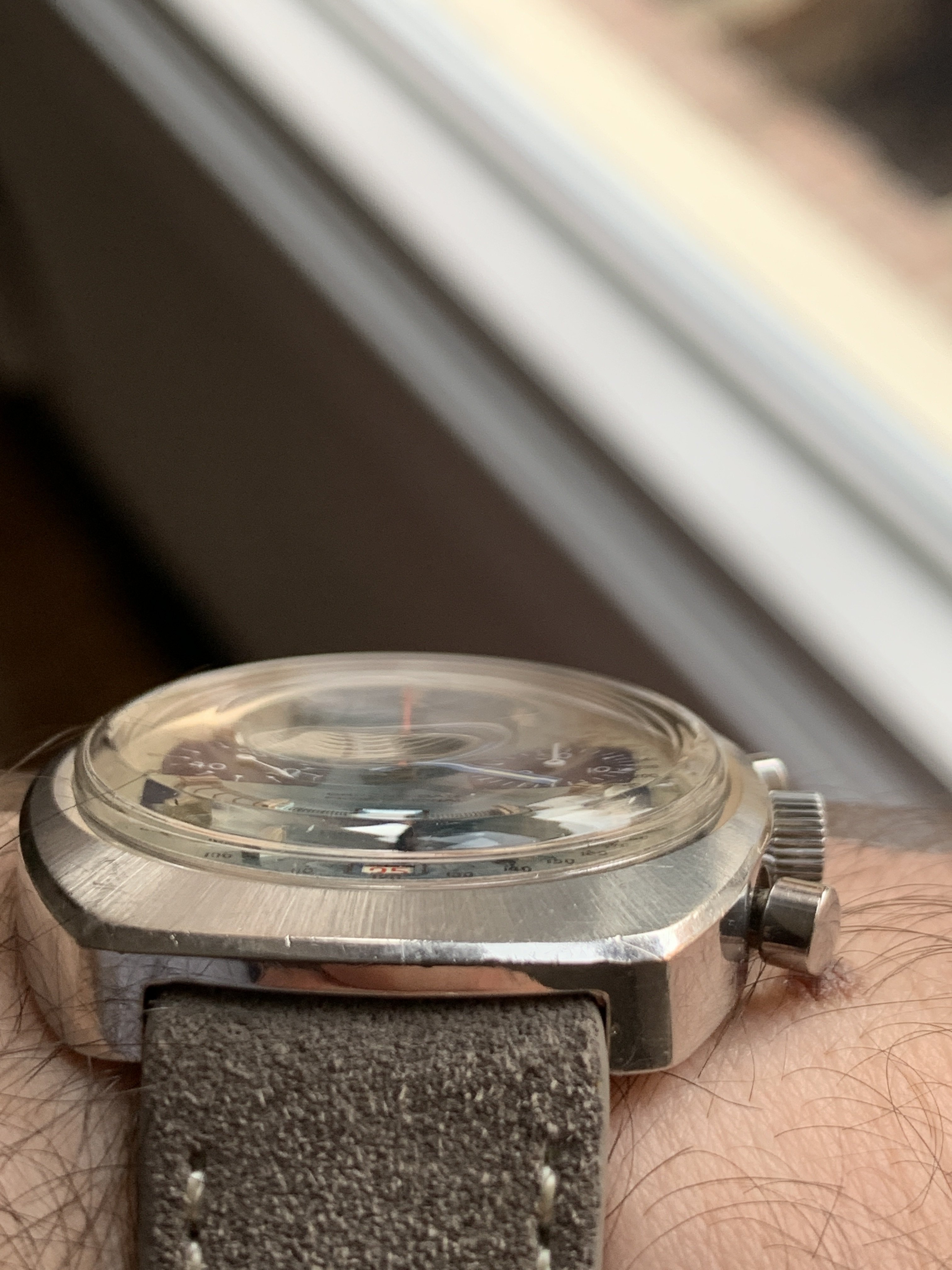

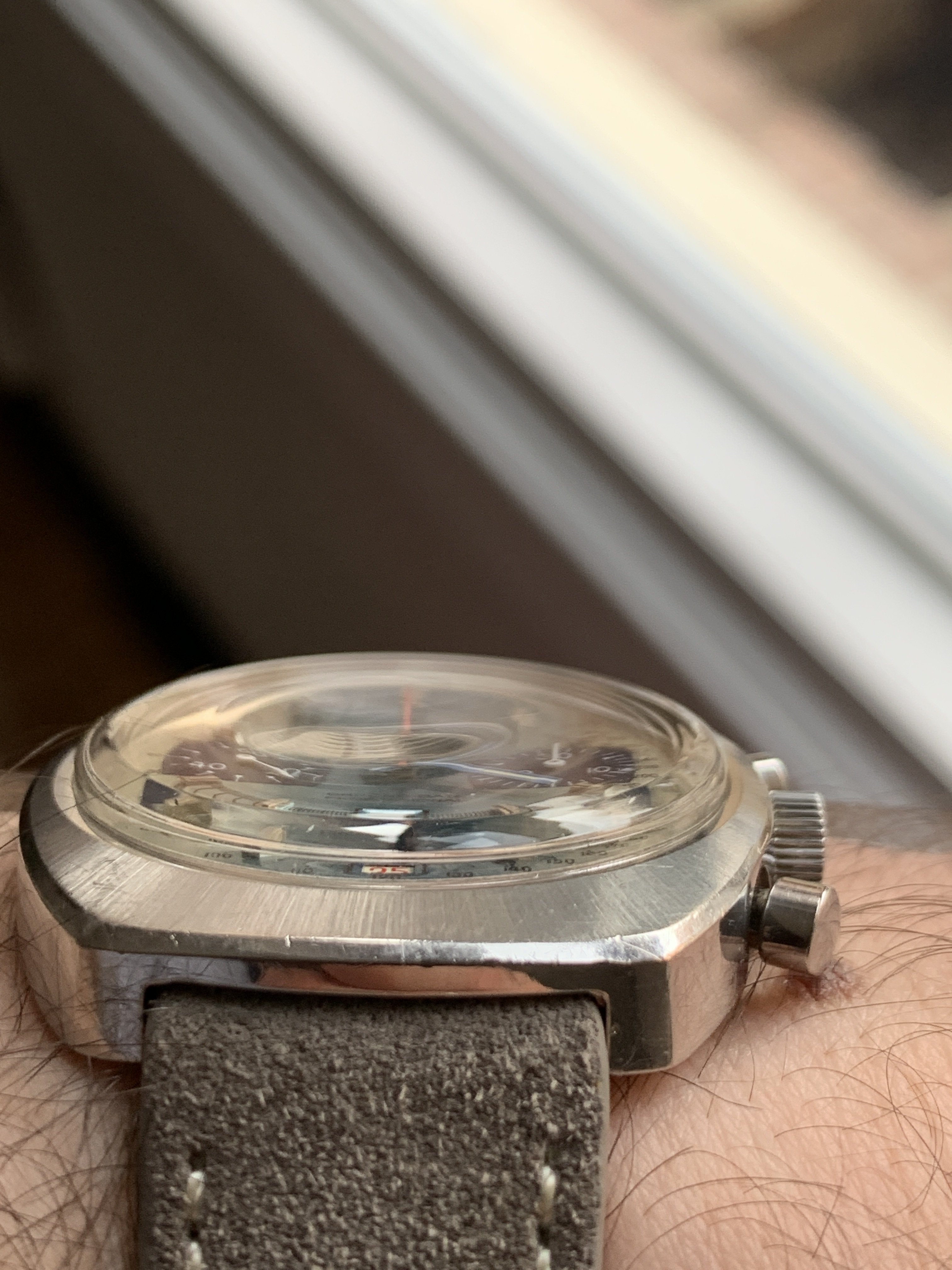

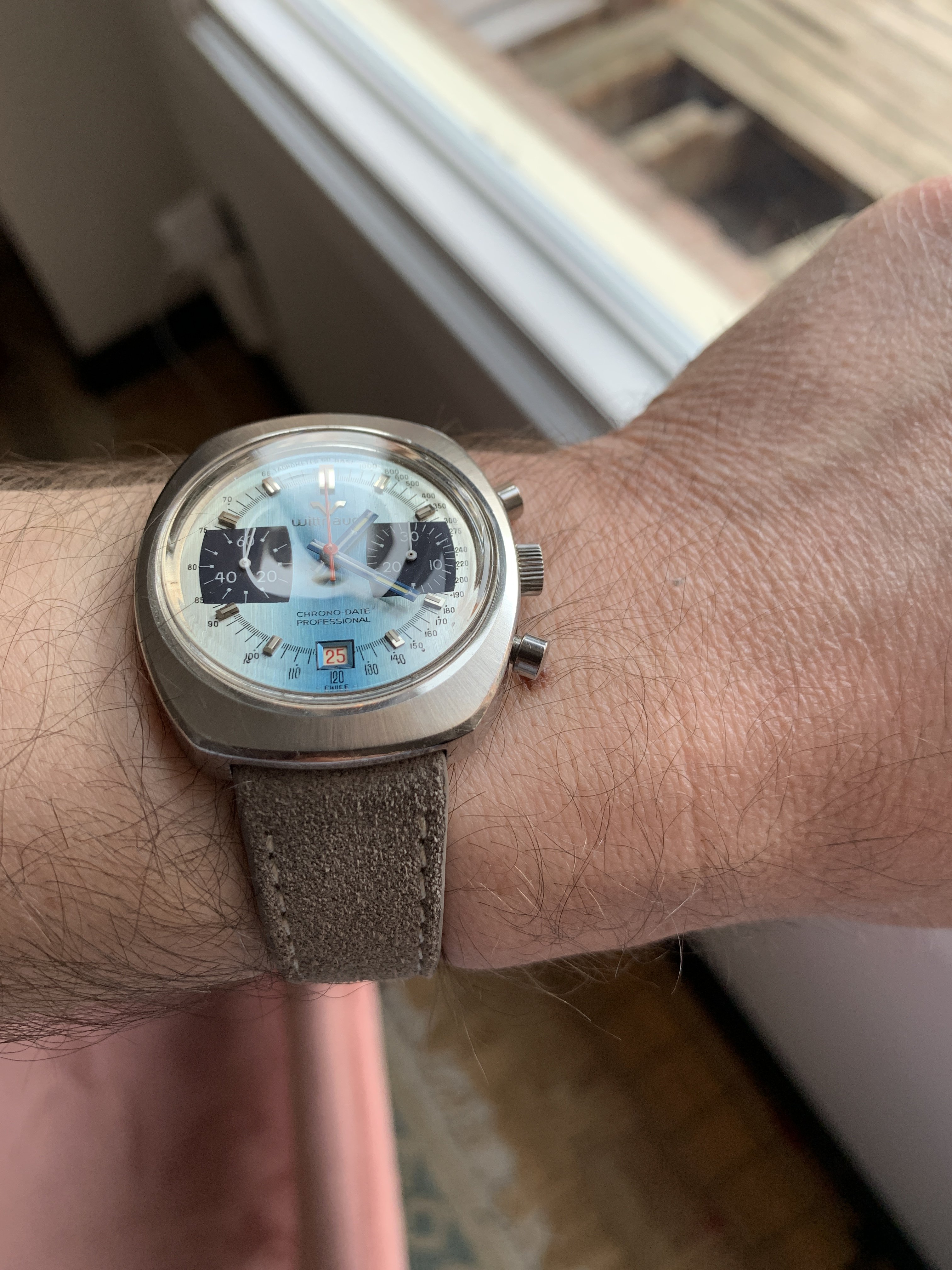

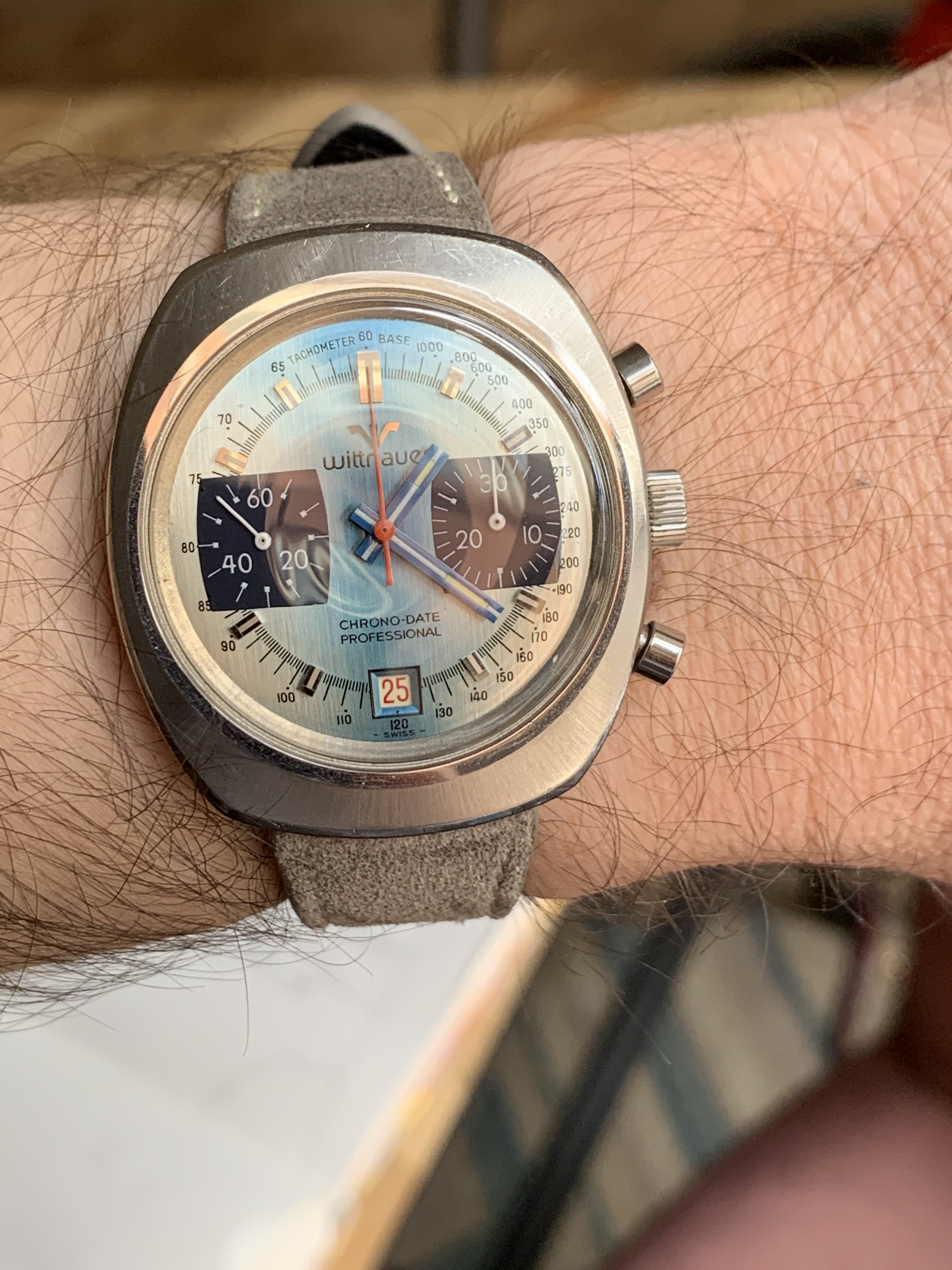

Hi. My Wittnauer’s acrylic crystal has round sort of effect when you turn it towards light. I’ve sanded it down a bit and polished it with Polywatch & Meguire’s #9 but it didn’t do much to remedy the issue. It kind of looks like the crystal is warped from the inside...is it possible? The outside surface is flat from what I can tell

Posts
15,482
Likes
45,856
Possible? You’ve shown that it is. Cause? Heat? Solution? Replace crystal.

Posts
238
Likes
850
Warped or stressed. When acrylic is deformed, even if it returns to shape, it can develop this property. It is called birefringence. This is a link to a Wikipedia page on the topic. https://en.wikipedia.org/wiki/Birefringence

That being said, there is no good way to fix it. You need to replace the crystal.

Posts
290
Likes
594
What’s an approximate price to change the crystal? And can the replacement be as good as the original or will there always be some inferiority? Can the warped crystal be fixed from the inside by wet sanding it down perhaps?

Posts
15,482
Likes
45,856
What’s an approximate price to change the crystal? And can the replacement be as good as the original or will there always be some inferiority? Can the warped crystal be fixed from the inside by wet sanding it down perhaps?

You say you have sanded it already from the front. First, who is going to try to sand it from the inside? Once sanded, how would one go about polishing the concave surface? What are the chances you’d sand right through the crystal? And even if you didn’t sand right through it, how long would it be before there is a gaping hole in the crystal? Would a replacement crystal be as good as the original? With the original in the condition it is in, my answer would be, YES!

Posts
1,487
Likes
2,376
What’s an approximate price to change the crystal? And can the replacement be as good as the original or will there always be some inferiority? Can the warped crystal be fixed from the inside by wet sanding it down perhaps?

Changing a crystal via a watchmaker isn’t very expensive. For the cost of your Maguires, Polywatch, and time, you could have paid to get it swapped.

Finding said crystal will require some research and digging. More than likely you can find one on eBay. I’ve found it’s easier to source it first and then bring it to the watchmaker for a swap. The replacement will look like new and he just as good if not better than the original.

Posts
290
Likes
594
You say you have sanded it already
Changing a crystal via a watchmaker isn’t very expensive. For the cost of your Maguires, Polywatch, and time, you could have paid to get it swapped.

Finding said crystal will require some research and digging. More than likely you can find one on eBay. I’ve found it’s easier to source it first and then bring it to the watchmaker for a swap. The replacement will look like new and he just as good if not better than the original.

from the front. First, who is going to try to sand it from the inside? Once sanded, how would one go about polishing the concave surface? What are the chances you’d sand right through the crystal? And even if you didn’t sand right through it, how long would it be before there is a gaping hole in the crystal? Would a replacement crystal be as good as the original? With the original in the condition it is in, my answer would be, YES!

I went to two watchmakers. One priced it at 120US and the other 75USD

Posts
5,636
Likes
5,810
Either of those numbers are fine. Ask each who makes the crystal they want to install and what is the profile?

Posts
290
Likes
594
Either of those numbers are fine. Ask each who makes the crystal they want to install and what is the profile?
Ok will do. I know the 120 is a Swiss crystal. Is profile the protrusion of the dome ?

Posts
5,636
Likes
5,810
Ok will do. I know the 120 is a Swiss crystal. Is profile the protrusion of the dome ?
Profile is, I suppose, that, or the overall shape. I suspect your current crystal is also a replacement and perhaps not like what came with the watch.
