cvalue13

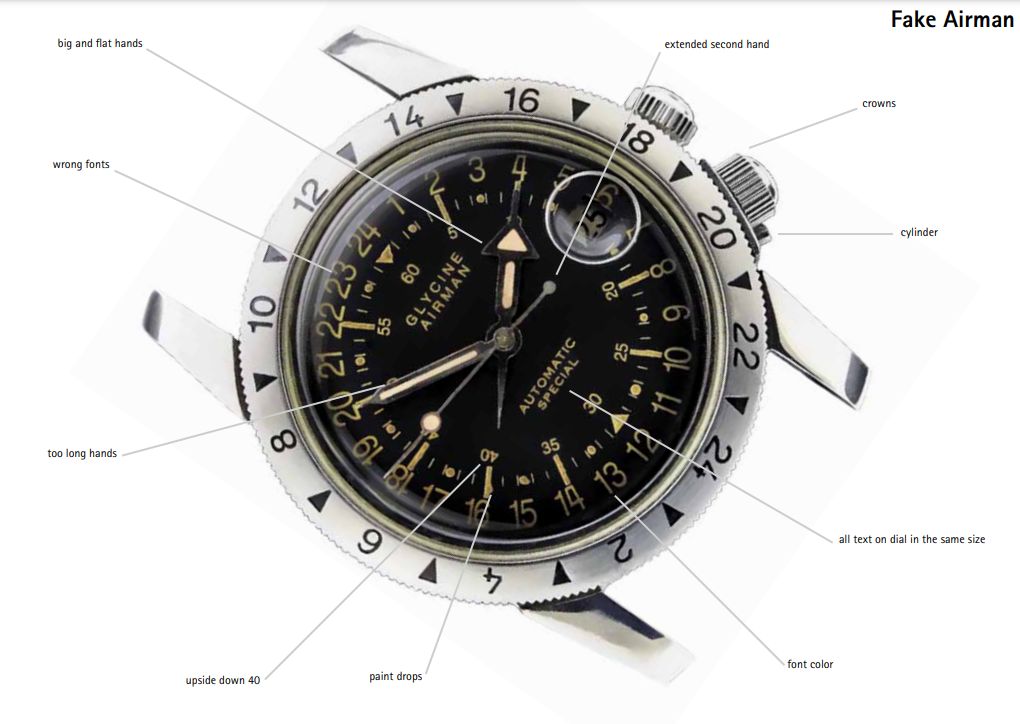

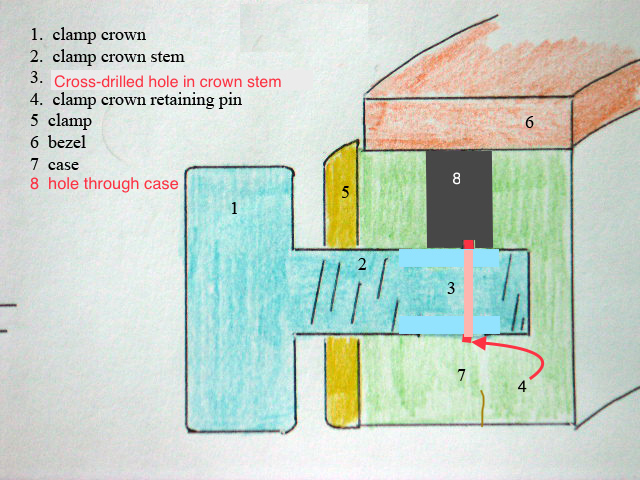

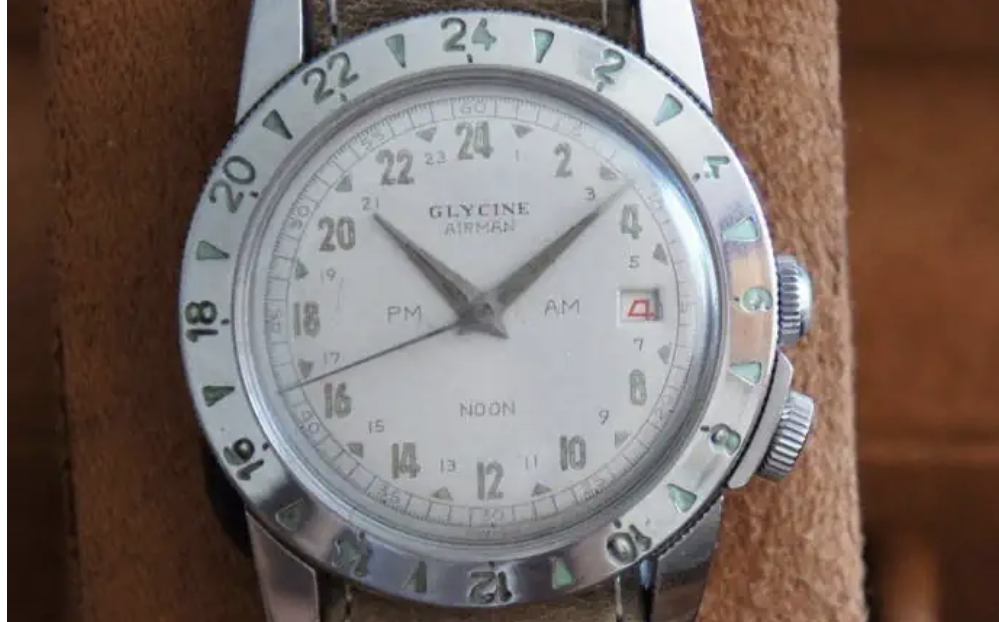

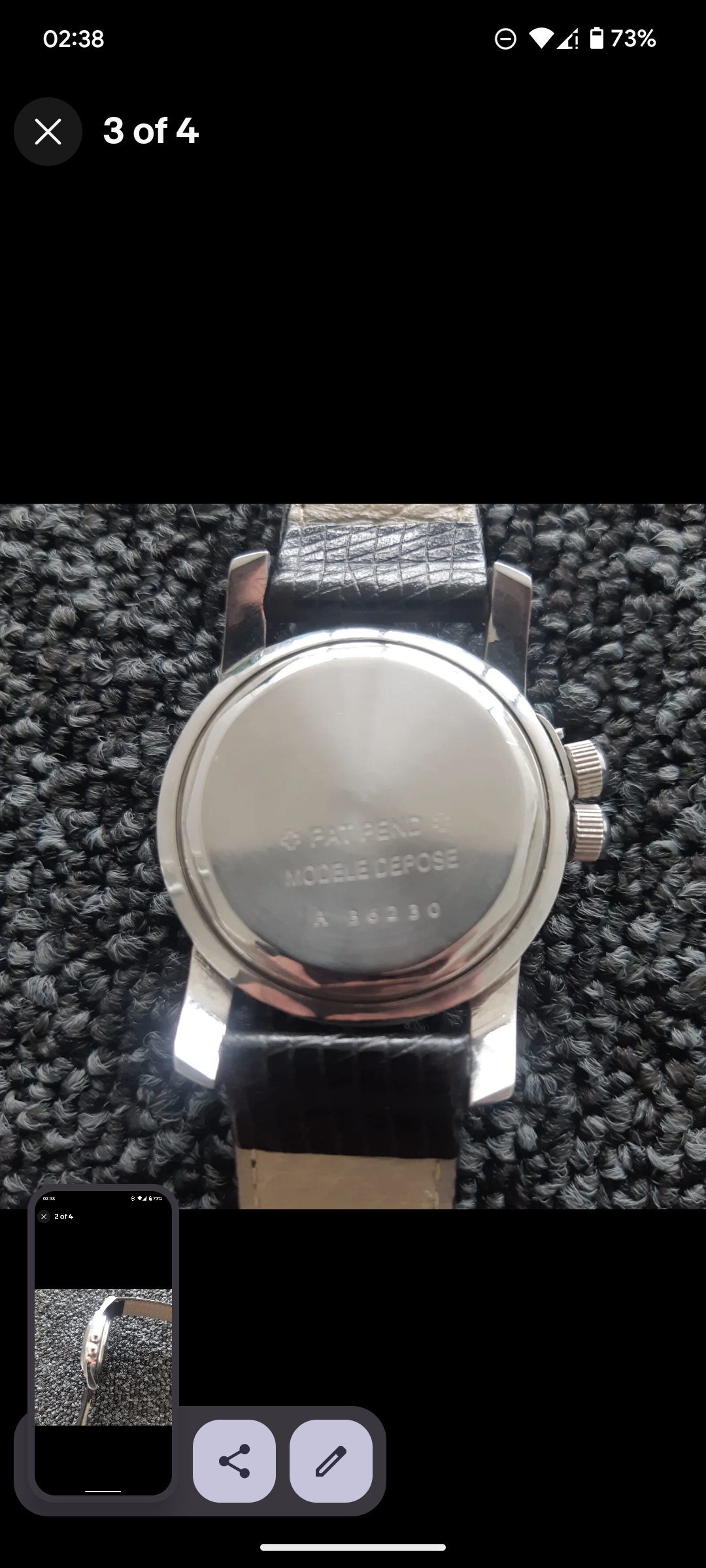

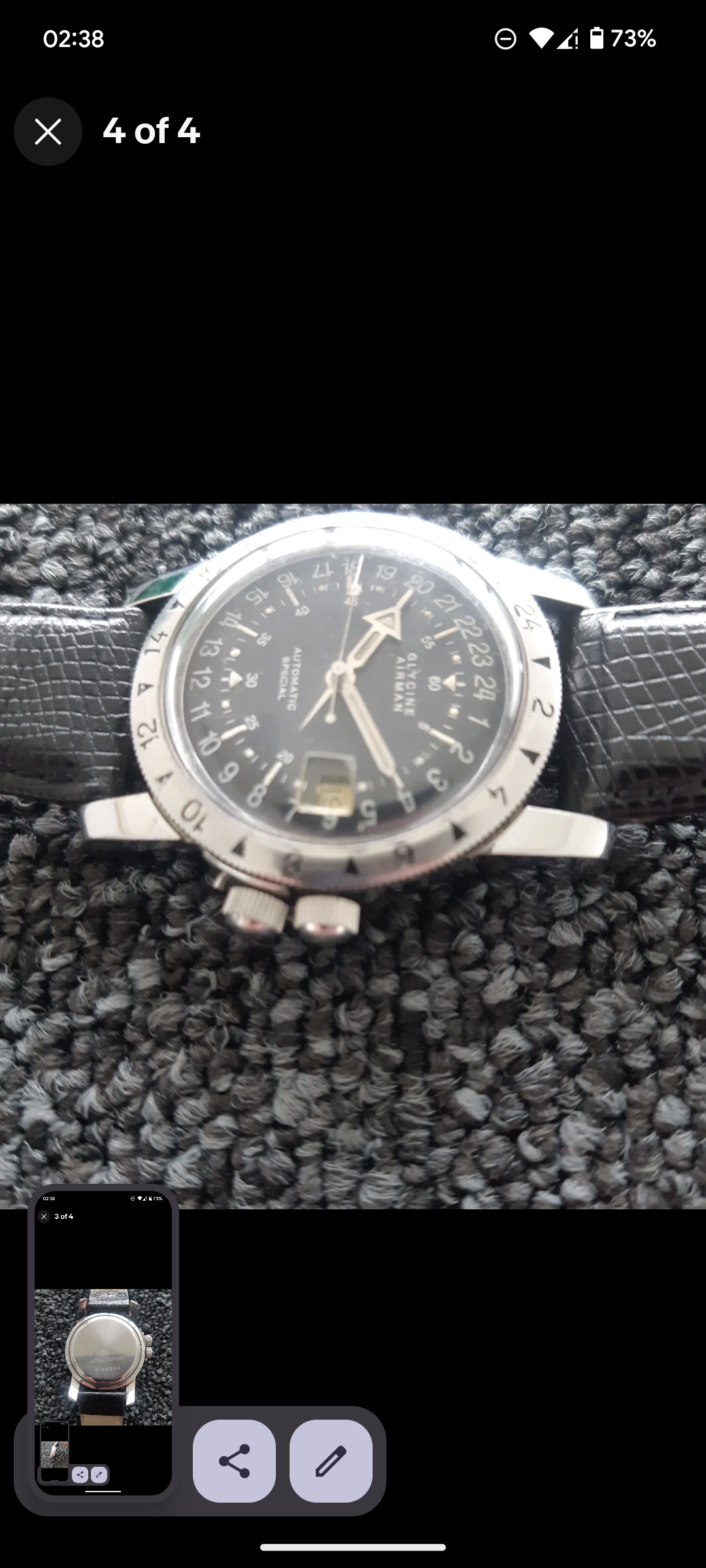

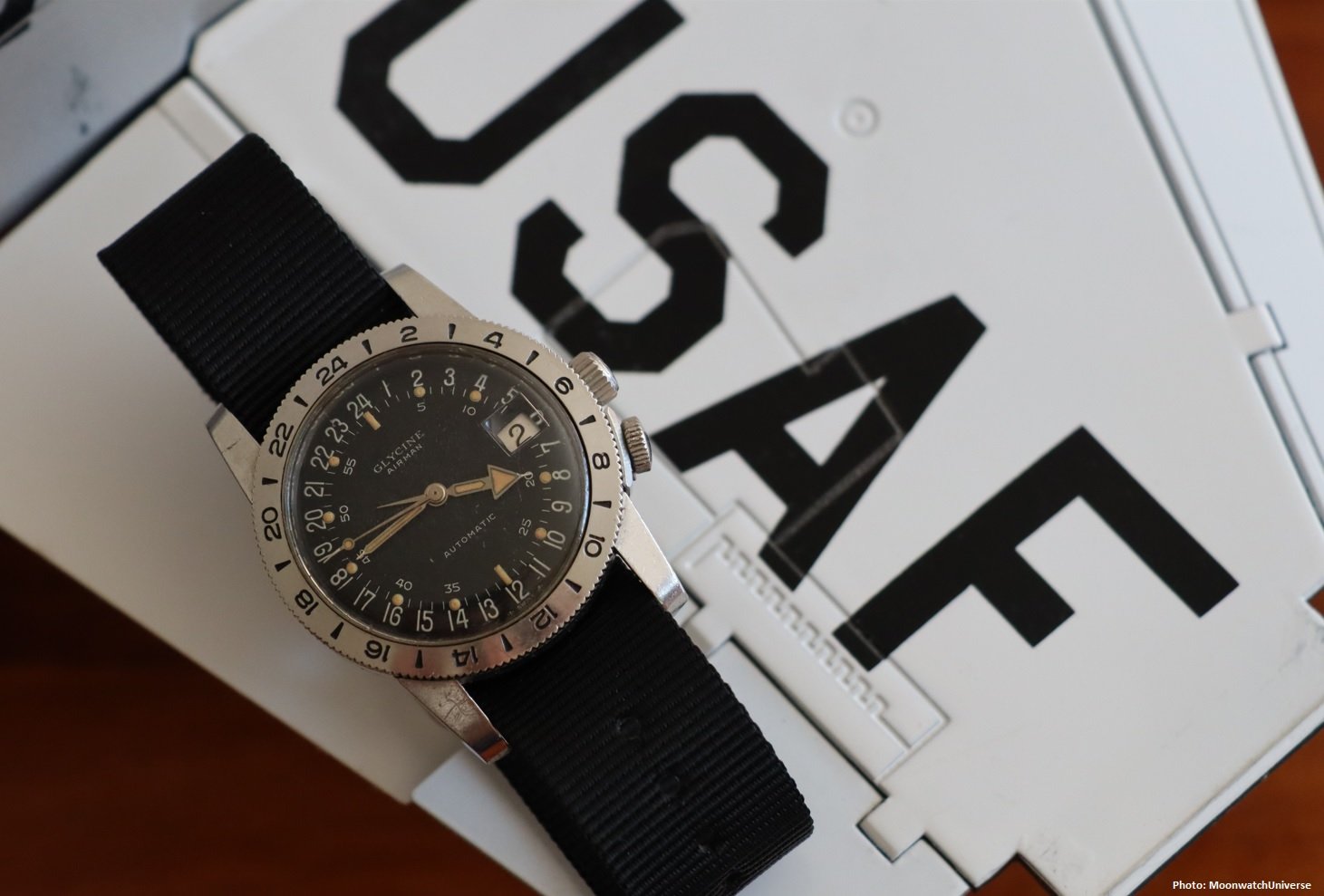

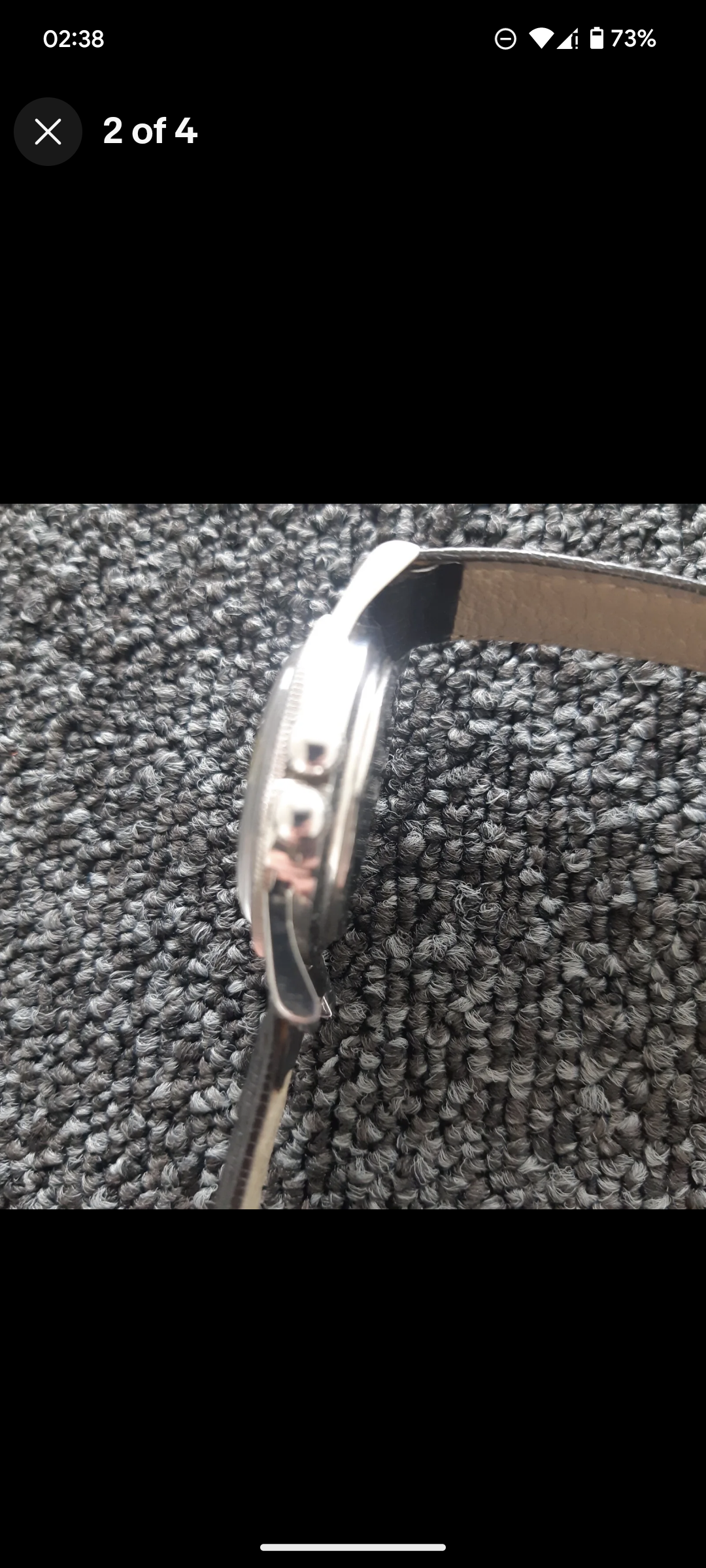

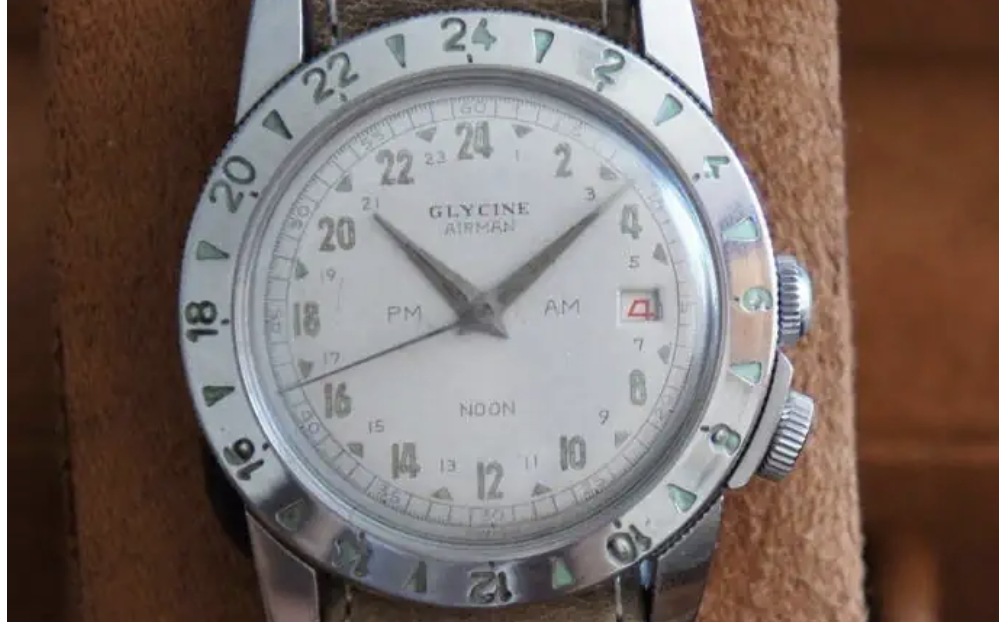

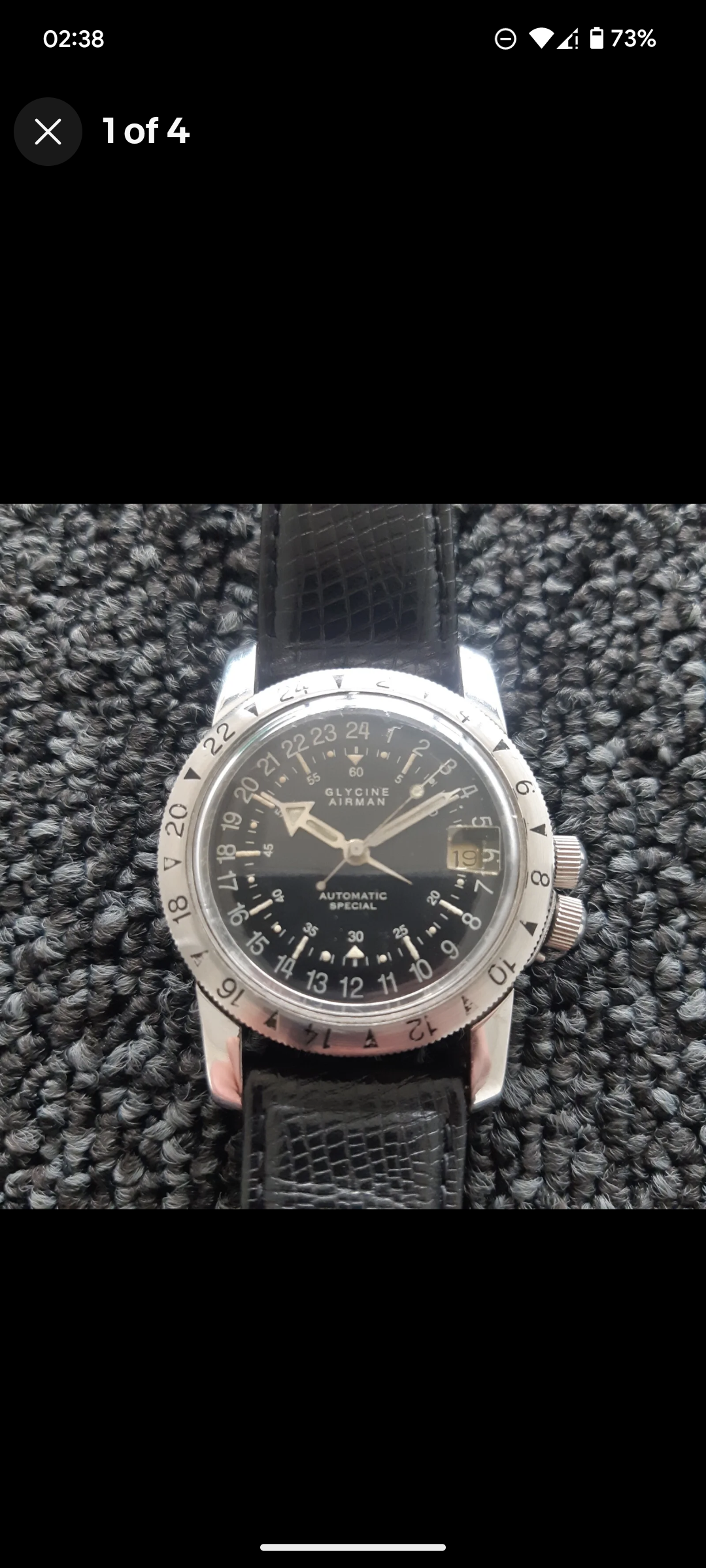

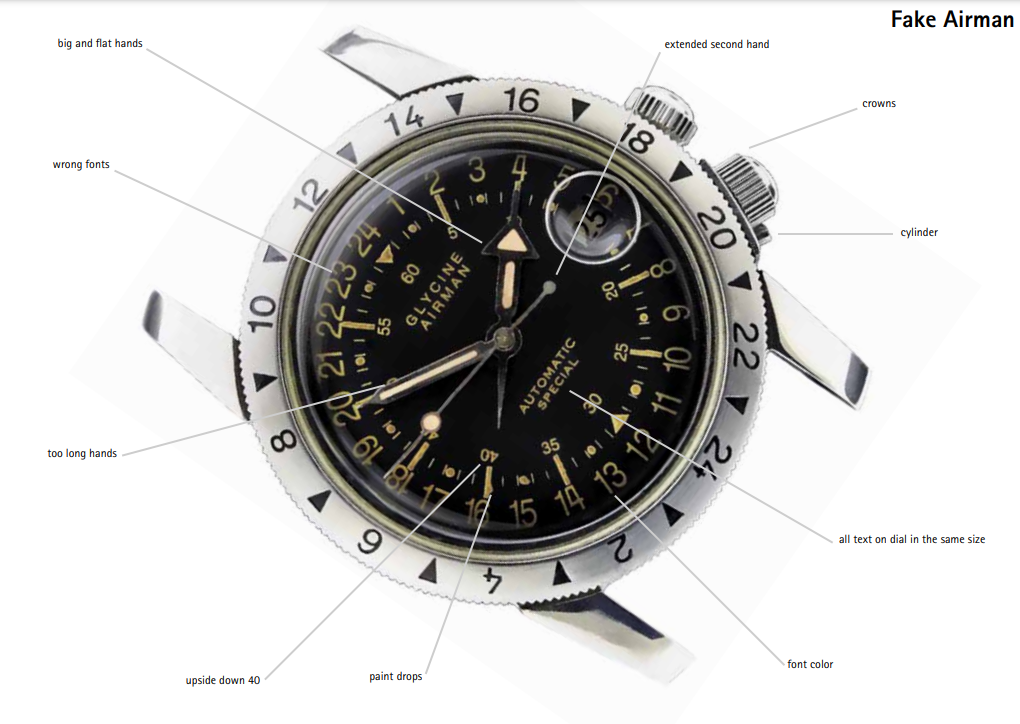

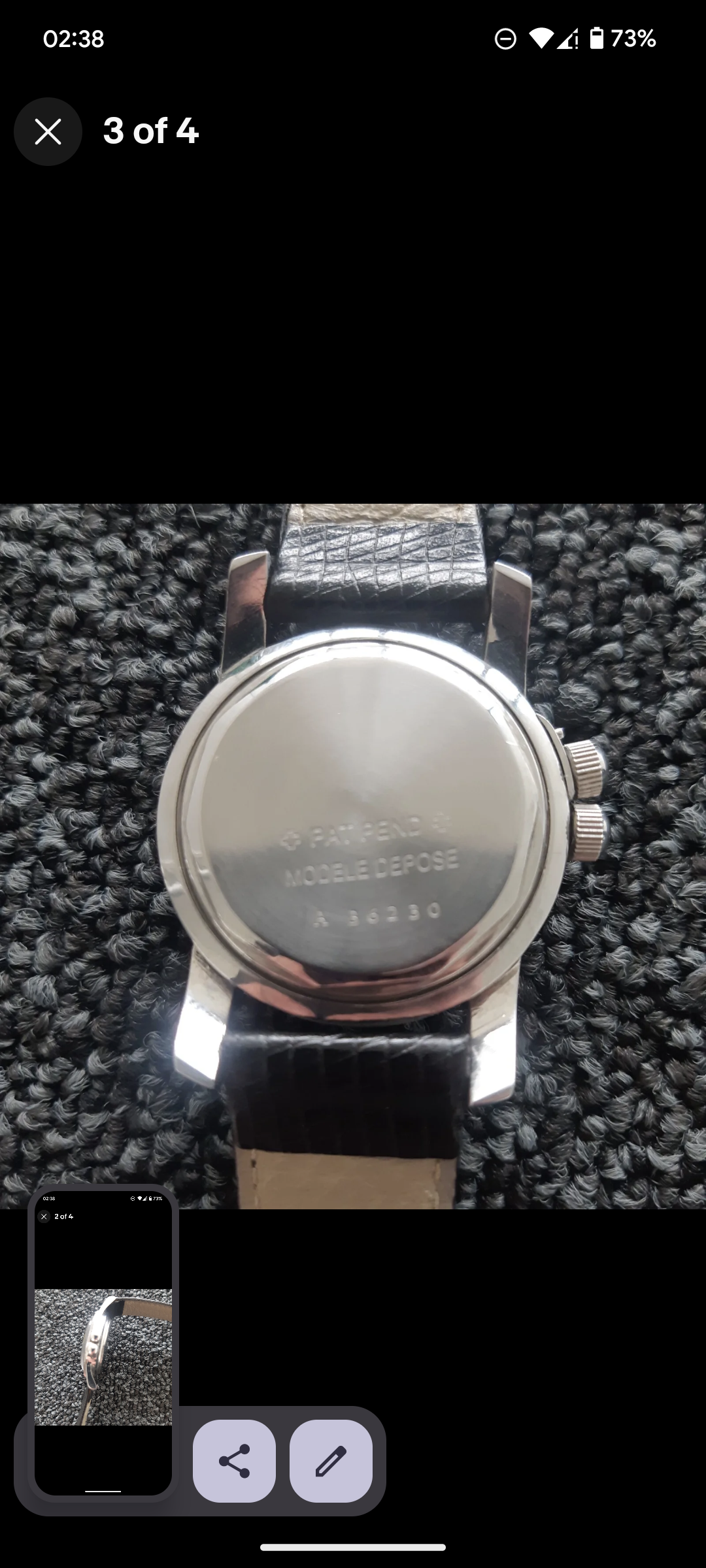

·In all the vintage Airman watches I have seen, there is, under the rotating bezel, quite a large hole drilled into the opening that comes from the side of the case where the thumbscrew that fastens the bezel clamp plate threads into. Rather than a pin (red #4 in the drawing) as in the drawing to prevent the thumbscrew from coming out, the end of the screw is cross-drilled and a pin is driven into the cross-drilled hole. The pin is sufficiently long to protrude from both sides of the screw and prevents the screw from being completely withdrawn from the case. In order to remove the screw completely, one can access the pin through the hole under the bezel and drive out the pin.
Thank you for weighing in.

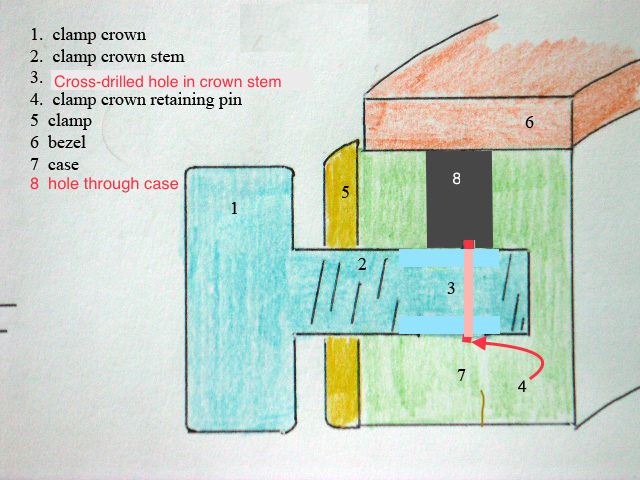

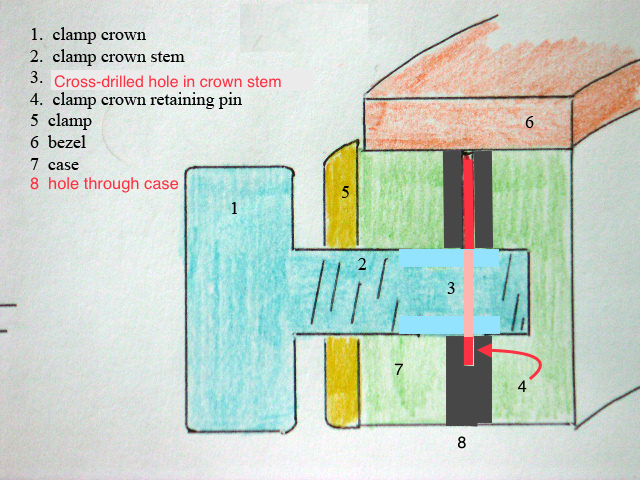

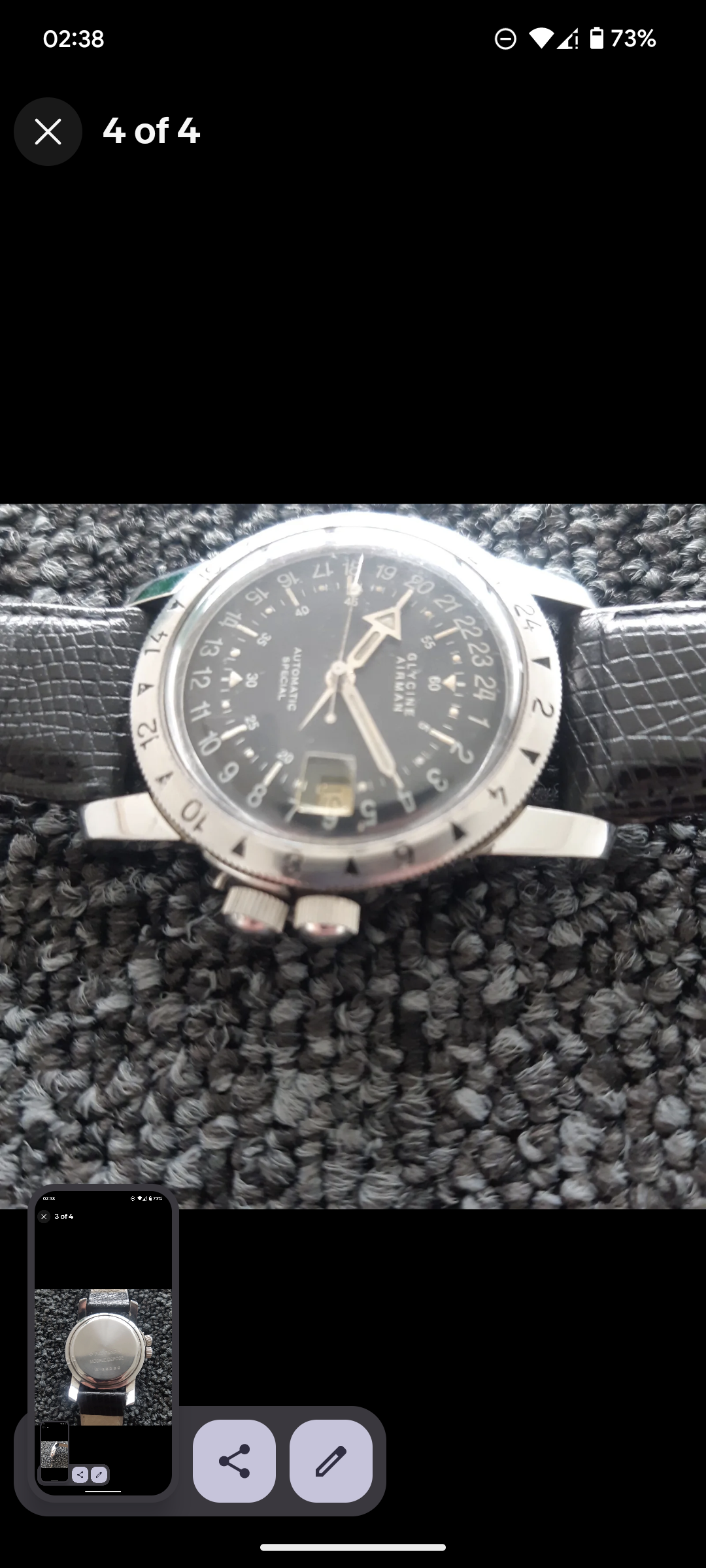

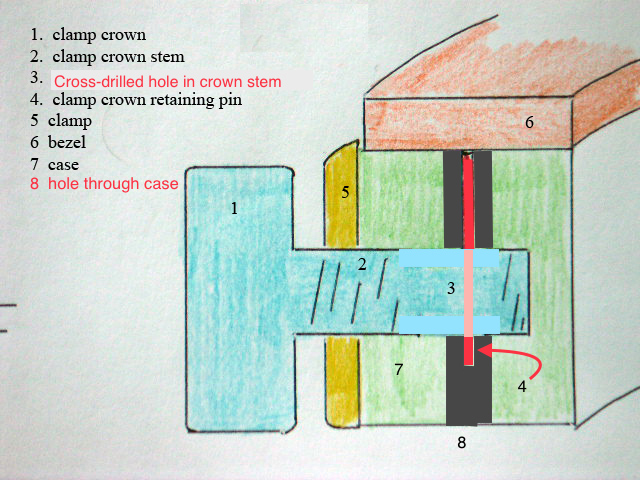

I still have it wrong, but based on your description I tried to modify the simplified drawing more toward what I think I understand you to be describing:
Looking over the author of the original drawing’s website, it would seem possible that he was attempting only to describe a method by which people could fabricate a workable alternative set-up absent parts on hand, rather than attempting describe the original set-up?
Even still, I’m confident my altered drawing isn’t right yet, and for related reasons without confidence that I yet understand exactly how!
