Cal. 321 Part number Inquiry

ZWD · Sep 10, 2025

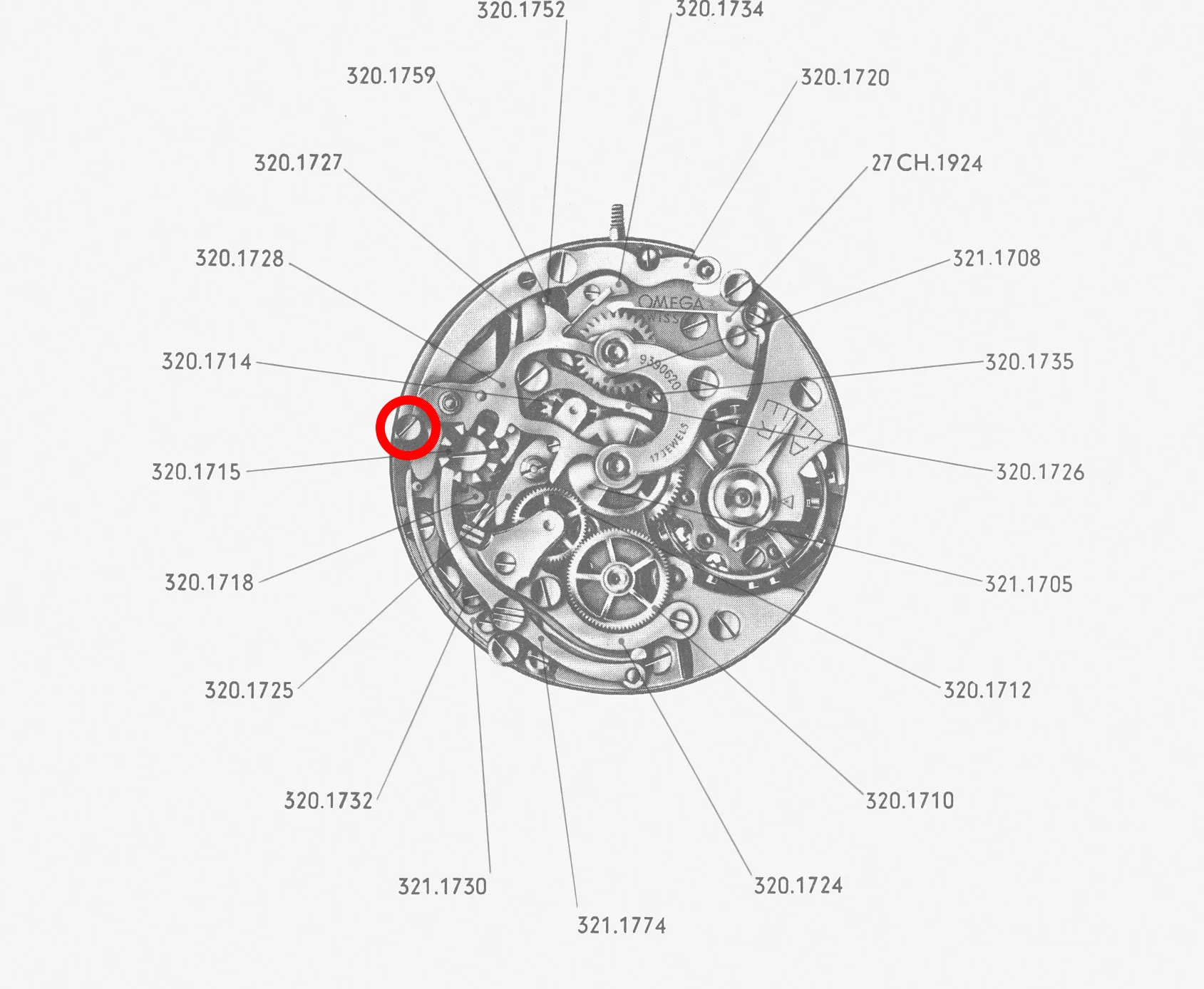

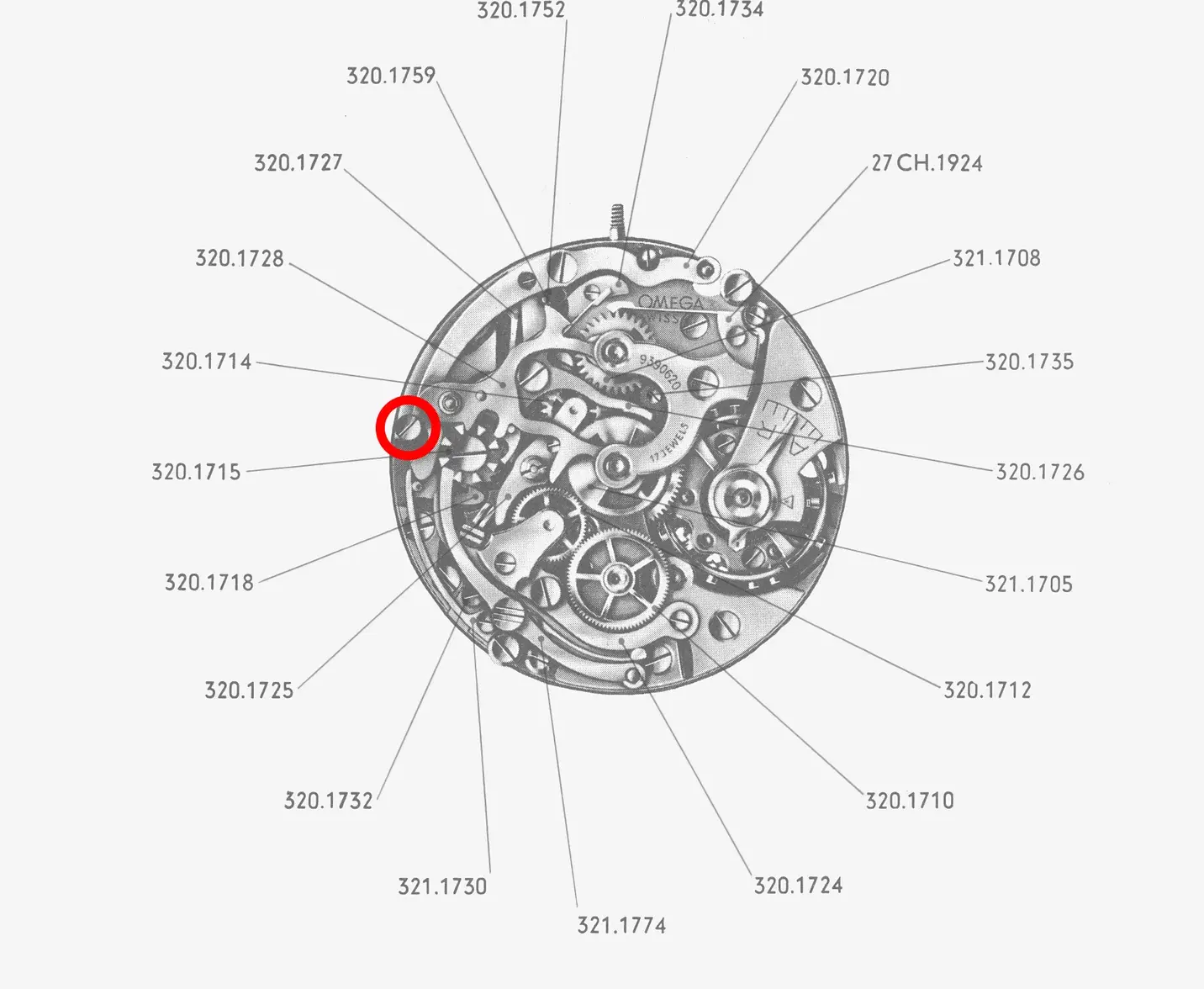

I have looked over the various documentation for the 321 on Cousins and other videos and I am having a hard time finding the name or part number for this screw:
The screw that the operating lever (1720) butts up against.

Thanks for your help!

Archer · Sep 10, 2025

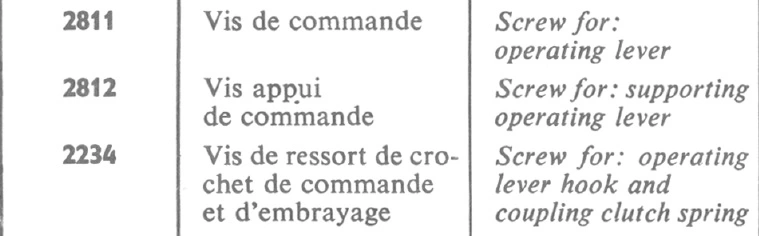

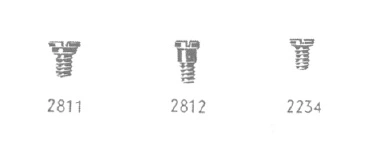

I don't have one in front of me, but I believe it is 2812...

ZWD · Sep 10, 2025

Thank you Archer!

The documentation I have found does not spec those screws. Is the document you are referencing available?

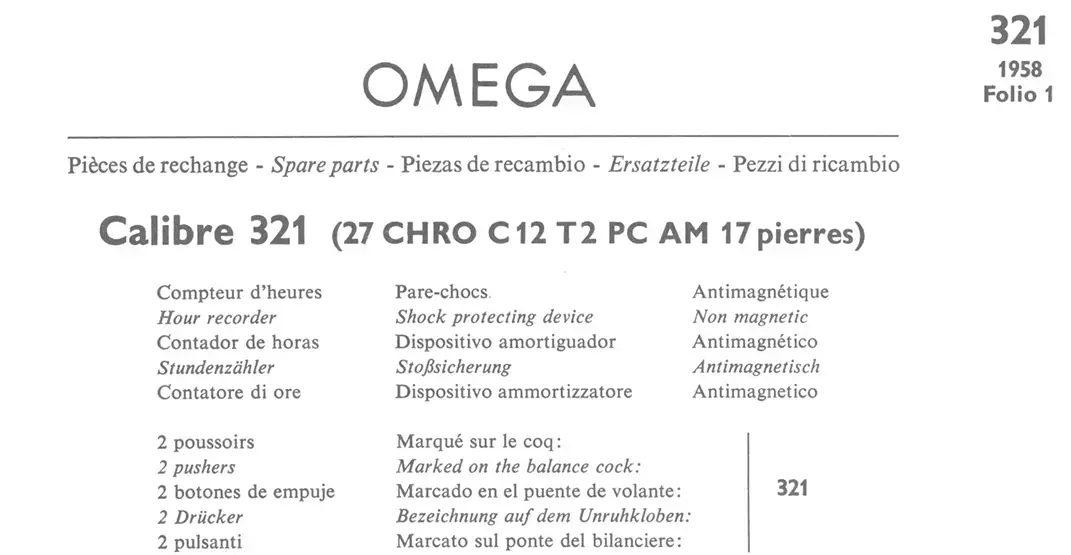

This is the most complete one I can find but there is quite a bit missing.

Thanks again!

ZWD · Sep 10, 2025

Im realizing I need to be looking at the 320 vs the 321 for the bulk of the movement!

Thanks again for you quick and helpful replies on these movements!
