Building a Watchco SM300

Dimitar Adamski

Seller just came back to me - all original he said.
Hmm...

masteroftime

I'm curious...where did you find it and how much are they asking?

masteroftime

Yeah, those recently started popping back up on eBay and were also available on etsy with fake Seamaster 120 case sets. They're fake and overpriced fakes at that.

Dimitar Adamski

Seller just came back to me - all original he said.
Hmm...
Not questioning your knowledge,just finding his answer rather peculiar.
However he sells fake Tudor bracelets,so no brainer then.

zwjk

The easiest tell in my opinion is the ‘A’ in the WATERPROOF on the caseback. It’s suppose to be a flat ‘A’.

Dimitar Adamski

Please,can someone enlighten me which parts are needed to build a Watchco SM300?

Dimitar Adamski

Is it hard to source them? Does your watchmaker have to be an Omega approved to find all of them or they are still easy to source?

vitriol

2-3 years ago, I was just like you, I have had a crush on building the Watchco SM300 😀
Eventually, I gave up this project because I wanted a Big Triangle dial, but those do not exist as service dials. All what you can build is a Watchco with an arabic 12 o'clock index.

If that helps, here is some data which I have gathered that time.

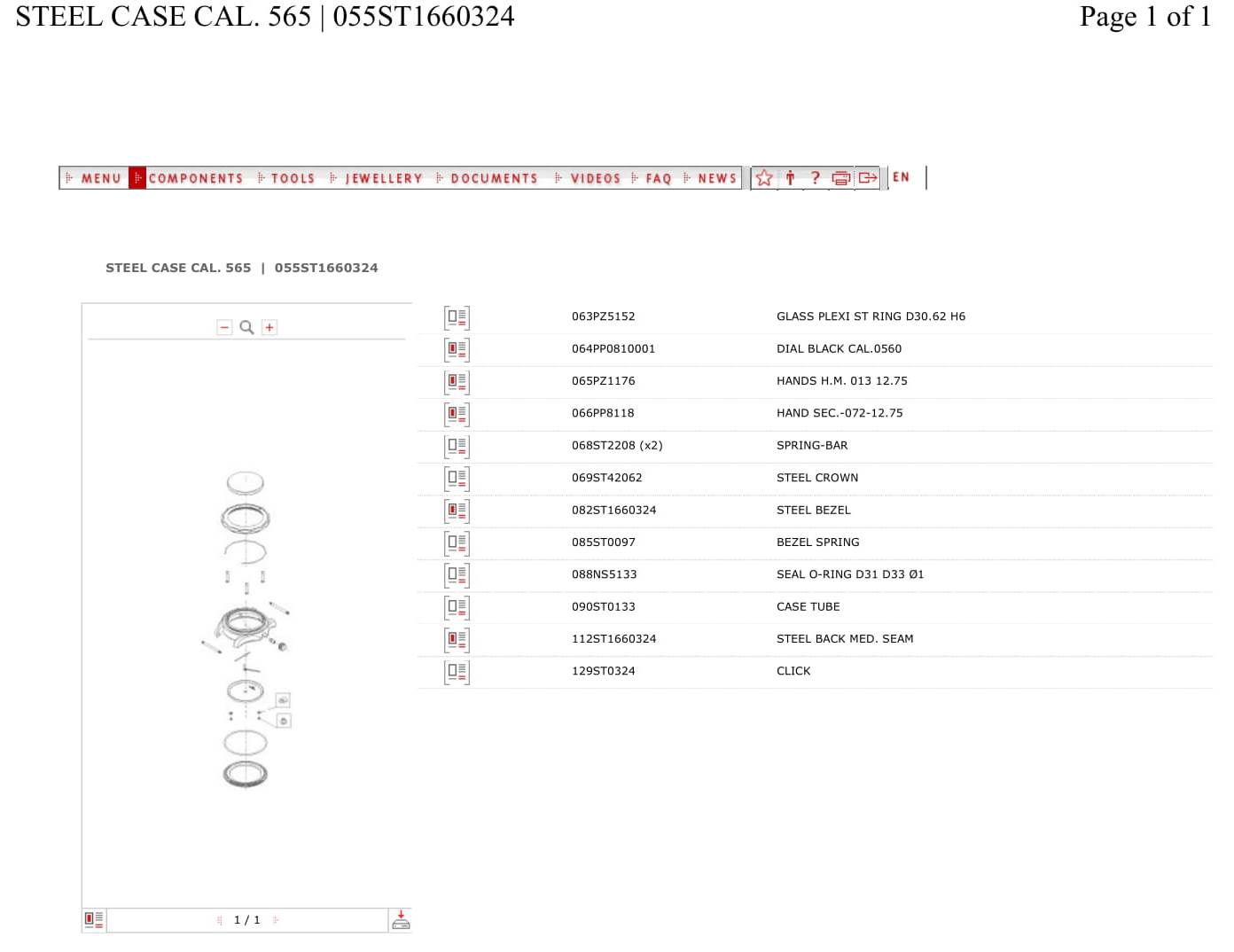

That screen, shows you only one configuration, while most of the parts are common for the other configurations, here is a suplement.

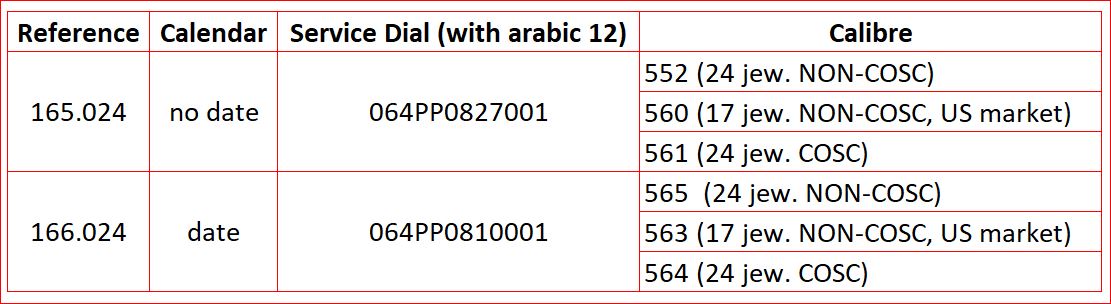

Calibres 552/565(&562)/560/563 have been seen in the real vintage SM300.
561 and 564, as far as I know have not been cased by Omega but those may be a nice upgrade if you care about COSC.

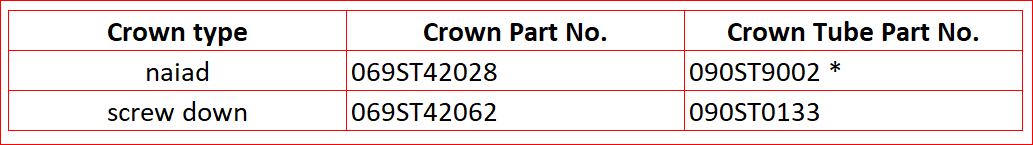

Late(r) production watches had a screw down crown, early production had so called "naiad crown" which was smaller/shorter and imho is a much nicer crown.
That crown tube (090ST9002) for the naiad crown you need to double check - I cancelled this project before had it confirmed for 100%.

Bracelets are here;
https://omegaforums.net/threads/bracelets-for-166-024-166-0324.61033/

Good luck!
