3 Minute Marks on Pilot’s Chronographs: (Partially) Debunking Myths and (Some) Dead Reckoning

Posts
3,979
Likes
8,998
If such markings were useful to pilots, I wonder why they would be omitted? The omission is especially puzzling given how ubiquitous such markings are on chronographs at large.

I'll admit that my ultimate conclusion was that having 3- and 6-minute demarcations was probably useful for a lot of consumers, but including pilots.

I'm personally less troubled by this, for at least three related reasons:

1. all of these and other examples still do permit a pilot (or anyone else) to note 3- and 6-minute increments, even if arguably less clearly than other watch/dial designs; (the strongest formulation of your critique would include pilot's watches that were incapable of demonstrating 3- and 6-minute increments e.g., the totalizer jumped in 5 minute increments, of which I know of none);

2. since we're here just speaking of watch/dial designs that emphasize these 3- and 6-minute marks in pilot watches, in the world of watch manufacturers generally succeeding or merely attempting to meet different customer's needs, they may provide any number of approaches. Take for example Breitling's late 1960's pilot offerings which included all three of:

-> the Navitimer/Cosmonaute with full slide rule functions (and 30 minute totalizers)
-> the Unitime 1765 (a 24hr hr movement with a 30 minute totalizer highlighting unlumed 5 minute increments, unlumed) and
-> the 765 AVI (a 12hr movement with a 15 minute totalizer highlighting only lumed 3 minute increments)

3. I'm not agile enough with the models of watches you provided above, but they appear to me to be earlier than the 1950's and 1960's which is where the bulk of my agility is with these sorts of watches - perhaps design trends and utility shifted over time

Altogether, I guess I don't find it too surprising that different manufacturers, over time, attempted different features to attract different users. And, to use an analogy, if I am attempting to answer "why did tennis shoe manufacturers sometimes utilize velcro closures" I'm not terribly troubled or distracted by noting that sometimes (or even often) they didn't.

Posts
3,720
Likes
22,418
First you mentioned estimating ground speed, but that would obviously be done using the tachymeter
Aren't tachymeters used to measure speed ON the ground? By using a mile or kilometre marker? I believe chronographs equipped with tachymeter bezels were intended for automotive applications?

Posts
3,720
Likes
22,418
Interesting read. Much left up for debate but I absolutely agree that the "telephone" thing is ridiculous. Air forces were concerned about their pilots being able to track their long distance calls? Laughable.

Posts
3,979
Likes
8,998
Faz Faz
Aren't tachymeters used to measure speed ON the ground? By using a mile or kilometre marker? I believe chronographs equipped with tachymeter bezels were intended for automotive applications?

The most common use of a tachymeter is for measuring the approximate speed of a "thing" over a known distance, which could apply to aircraft. Based on how many seconds it takes a "thing" to travel a known distance, the average speed within the distance can be calculated. Using a different methodology, and known speed, distance can also/instead be deduced.

But the available measuring range is limited to up to 60 seconds maximum; and, anything resolving in less than 10 seconds is rather prone to large error rates.

To me, there are many obvious reasons why a wristwatch tachymeter such as this is not ideal (or simple) for measuring things of relevance from either type of cockpit (sea or air) that purports to favor occurrences measured in 3 and 6 minute incriments (or other easy divisions of 60). Moreover, the existence of a tachymeter (no matter its utility) does not preclude the addition of other useful functions to a watch, that may serve (or better serve) other use cases.

Posts
16,787
Likes
35,175
Well how about using the marks for timing sextant shots for averaging to plot a position?

::stirthepot::

Posts
3,979
Likes
8,998
Amazing research! I found this fascinating, and it reminds us that chronographs were also used by foremen and supervisors to time productivity on assembly lines.

Thank you. This was to me, a satisfying realization: that the 3- and 6-minute marks (or other derivations), really are useful for many quick/shorthand calculations having nothing to do with pilot's navigation.

While alluded to in my post above, I think of a rather believable instance involving for example automobile travel before the likes of GPS, etc. Say you're on an evening drive into the country to see a new friend; driving, you're following of course written instructions, that include amongst the directions: "after you turn off HWY 1, our house will be 6 miles down the lane." A person with a broken odometer but wearing a chronograph, after turning off HWY 1, could hit the chrono, quickly take the car to a steady 40mph, and know that in ~9 minutes they should just about be on it.

I can think of less useful purported uses for a chronograph...

Posts
3,979
Likes
8,998
Well how about using the marks for timing sextant shots for averaging to plot a position?

::stirthepot::

Well for that, might you not instead… 😁


Posts
7,107
Likes
13,211
I tip my hat for the OP doing a lot of digging, but I believe the timing of long distance (especially international) telephone calls is the correct reason for the 3, 6 and 9 demarcations on the minute counter dial, the rest is just supposition. I just went through the Il Cronografo Interpretato (The Chronograph Investigated) book published in 1991 in Milan. It has a thorough description of the history of wrist chronographs from around 1900 to the published date. The 3 minute marker started to appear in the 1940's and was gone by about 1970, and they appeared on all kinds of chronos, and not those that pilots would tend to wear more. And in the ones that appeared in the referenced book the markers are noted as 'telephonic divisions'. The Patek Philippe shown in the original post with the ruby markers and the 3 minute marker was auctioned in the last couple of years (don't remember which House) and as I remember the notes the watch belonged to one of the Stern owners and he specifically wanted the 3 minute marker because post WWII overseas calls were extremely expensive and when he called the Stern Agency in NYC he didn't want to go over the 3 minute mark on his call. He was Swiss, he was frugal.

I don't think the markers had anything to do with payphones, it had everything to do with normal long distance calls made from an office, or occasionally, from a home. In about 1964 my brother was in the US Air Force and stationed in the UK, and I remember my folks having to pre-book a time and length of call at Christmastime so they could have a short visit with him and his new wife. Overseas calls were hideously expensive and they were timed in 3 minute intervals, capacity was very limited. You just couldn't pick up your phone and call at any time like you can do today, that's the purpose of the markers, to keep track of how much time you have left in your pre-booked time.

I'm not a pilot but do pilots actually have time to fiddle with a watch making timing calculations? Seems they would have other things to worry about. I doubt many pilots actually used a chronograph in their flying duties, but maybe I'm wrong.

In lieu of any better explanation I'll stick with the markers being there for long distance phone call measurement. For the younger guys who pooh pooh this idea, you don't know how it was 50-60 years ago when it came to telephone calls. Ever heard of a 'party line', it would be laughable today, but common back then.

Posts
298
Likes
906
An absolutely stunning piece of work. I salute you and am in awe of the time you have spent researching, preparing, writing, editing & formatting that encyclopedic entry.

I absolutely love this community.

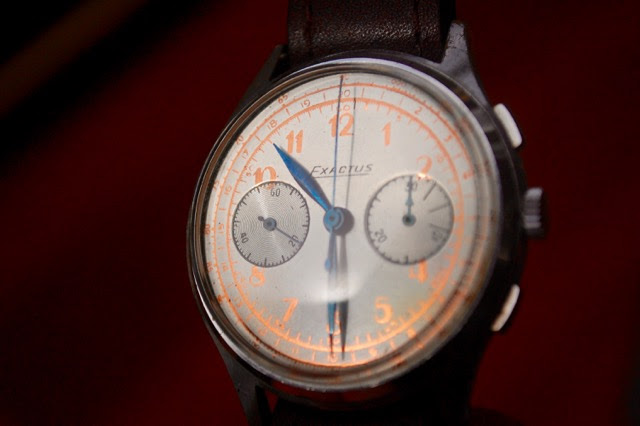

Here is my minuscule contribution to this conversation: A Landeron powered chrono I have in a box at home:


Posts
1,038
Likes
1,913
In about 1964 my brother was in the US Air Force and stationed in the UK, and I remember my folks having to pre-book a time and length of call at Christmastime so they could have a short visit with him and his new wife.
To one of the OP's points, Air Force personnel were not the only ones stationed overseas and subject to the same limitations. Why do we not (with some exceptions, I'm sure) see the same thing in non-aviator wristwatches? Why modify a wristwatch for such a specific purpose and issue it to all forces when you could just put a clock on the wall next to the phone in the barracks? If ground forces were required to keep their calls short, they'd have been issued similar equipment AND it should be possible to find a military regulation specifying how to make a timed telephone call.

I'm not a pilot but do pilots actually have time to fiddle with a watch making timing calculations? Seems they would have other things to worry about. I doubt many pilots actually used a chronograph in their flying duties, but maybe I'm wrong.
Flying a high-performance jet? No, I wouldn't imagine. Flying a lower-performing, propeller-powered plane? Sure. Flying a garden-variety Cessna, Piper Cub, or the like? Absolutely. I made a cross-country flight (not actually ACROSS the country) from Austin to Galveston. I want to say it was a 10 hour round-trip or so, in a Cessna 172. The boredom was extremely taxing, but that's training - using dead reckoning and making calculations on a knee board in between radio beacon fixes.

Posts
5,636
Likes
5,793
I am a professional writer of the "technical communicator" variety. Where my mind went was, "what does the documentation say?"

Then I saw this:

I just went through the Il Cronografo Interpretato (The Chronograph Investigated) book published in 1991 in Milan. It has a thorough description of the history of wrist chronographs from around 1900 to the published date. The 3 minute marker started to appear in the 1940's and was gone by about 1970, and they appeared on all kinds of chronos, and not those that pilots would tend to wear more. And in the ones that appeared in the referenced book the markers are noted as 'telephonic divisions'.

While I have not personally experience AT&T Long Lines and talking with a long-distance operator, any fan of vintage movies and radio shows has experienced depictions.

You might find this instructive:

https://www.realclearmarkets.com/ar...f_long-distance_call_66_years_ago_102981.html

This is a representation on the radio program Dragnet of how a long-distance call was made before automated routing:


Posts
3,979
Likes
8,998
https://www.realclearmarkets.com/ar...f_long-distance_call_66_years_ago_102981.html
I'm not a pilot but do pilots actually have time to fiddle with a watch making timing calculations? Seems they would have other things to worry about. I doubt many pilots actually used a chronograph in their flying duties.

Well, I suppose if we start with the these suppositions it all seems like supposition.

But yes, navigators did utilize chronographs, quite a lot. 😁 Dead reckoning essentially required a chronograph, and was the basis of a lot of navigation (or backstop to primary navigation failure).

but I believe the timing of long distance (especially international) telephone calls is the correct reason for the 3, 6 and 9 demarcations on the minute counter dial, the rest is just supposition.

You seem to presuppose there can be only one reason?
I allowed that there could be multiple reasons, but was in effect focused on for example this:

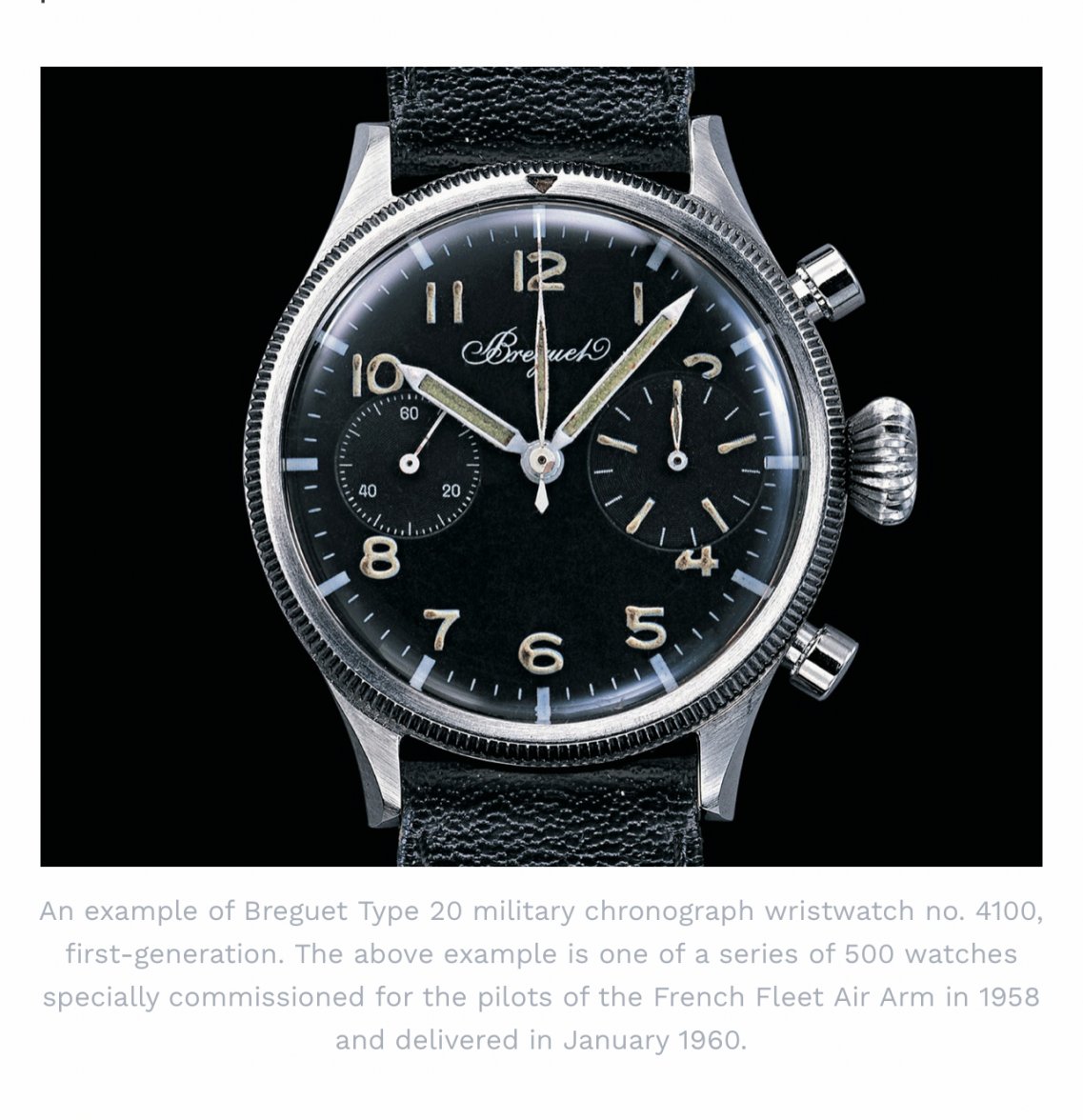

Now, for a watch built by Breguet specifically for application of French pilots, are you suggesting that the only reason Breguet:

(1) modified the movement from being a 30 minute to a 15 minute totalizer; and

(2) chose to highlight and lume only the 3 minute intervals of the totalizer; and

(3) enlarge and “big eye” that totalizer…

… was to allow the French pilots to time their long distance calls?

Also, are you certain you’re familiar with French telephone charge schemes in the 1950’s and 1960’s?

I think we’d be starting most fairly to admit there could be multiple reasons why watches highlighted 3 minute demarcations, and go from there next.

LONG DISTANCE CALLS, REALLY?

I don't think the markers had anything to do with payphones, it had everything to do with normal long distance calls made from an office, or occasionally, from a home. In about 1964 my brother was in the US Air Force and stationed in the UK, and I remember my folks having to pre-book a time and length of call at Christmastime so they could have a short visit with him and his new wife. Overseas calls were hideously expensive and they were timed in 3 minute intervals, capacity was very limited.

This is just the sort of anecdotal story that fuels almost every refutation of non-long distance stories found across the internet.

First, let’s note and get out of the way that in these posting scenarios your family was very likely having to “schedule” a call for reasons having nothing to do with the general charge approach of “Ma Bell.” Instead, stationed for calls at Christmas, my understanding is such “scheduling” has far more pragmatic on-base rationales.

However and otherwise, as mentioned previously, I can find no evidence of two key things:

(1) no evidence that long distance calls were timed in successive 3 minute increments: instead, all evidence I found pointed toward 3 minute initial minimum increment, with 1 minute successive charge increments thereafter - more on that below; or

(2) no evidence that any such long distance call paradigm was shared amongst all providers, in all regions (that is, even if a person found a region and time period with successive 3 minute increments, that this was the pervasive approach);


I’ll be very interested to see evidence that there was widespread utilization of successive 3-minute increments (as opposed to an initial 3-minute increment followed busy successive minute charges).

As for the U.S. (and much of Canada) until the early 1980’s Bell/AT&T had a regulated monopoly on any long distance calls made from within the US (either inter or intra continental). Accordingly, Bell’s rate approach should be largely indicative of all the only long distance rate approach in the U.S. before the early 1980s breakup of “Ma Bell.”

Here’s a Quora post titled “How much did a long distance call cost in the 1950's? Per minute from NYC to LA.” and answered by a guy who purports to be a former traffic analyst for Bell (with about 1.3K Quara answers logged, most seeming to relate to telephone history):

The full daytime rate in 1950 was $3.70 for the first three minutes. The additional time beyond the initial three minutes was charged in one-minute increments. There was no initial one-minute rate until the 1970s.

Remember that evening/Sunday rates would reduce the price further.

The three-tier rate system of day/evening/nights-and-weekends rates had not yet come about in the 1950s.”


Similarly discounting the notion of successive 3 minute charge intervals is the very article posted above by @SkunkPrince, “The Anatomy of Long-Distance Call 66 Years Ago” and echoe’d in the embedded call/video from back then recording such a call: both specify that rates were quoted not in 3 minute successive increments, but instead in an initial 3 minute minimum increment, with subsequent 1 minute increments.

Much confusion may arise from ads at the time stating the 3 minute minimum rate as a proxy for cost, while the calls themselves were otherwise timed to the minute (subject to the 3 minute minimum).

I elsewhere found evidence that in the UK things were similar early on (eg in the early 1950’s there was a 3 min initial/1 minute subsequent), but sooner than in the US (late 50’s) changed to more per-minute rates.

So, unless the base your brother was stationed at in the UK had its own charge regime, I think it most likely that your memory is incorrect that long distance charges were in successive 3 minute increments.

I’ve spent hours searching for any such evidence, and have found none. I’d welcome contrary evidence (that is not merely conflating the often quoted 3 minute minimum charge).

SO, WHY THE 3-, 6-, AND 9-MINUTE MARKS?

If we assume for the moment that long distance charges were structured as a 3 minute minimum followed my per-minute charges thereafter, there is no remaining sense to be made of either:

-> “normal” totalizers that additionally marked each of 3-, 6-, or 9-minute marks (because after the first 3 minutes, the remainder of the call was charged in single minute increments); nor

-> adapted 15 minute totalizers that only show 3 minute increments (for even more of the same reason).

Accordingly, if long distance calls were charged in this manner (and I can find no evidence to the contrary), it bares no real relation to the dial markings.

THE 1991 BOOK

I am a professional writer of the "technical communicator" variety. Where my mind went was, "what does the documentation say?"

Then I saw this:

I have no doubt that a 1991 book from Italy says something along these lines; after all, Reddit, Bob’s Watche’s, Hodinkee, and any number of other “sources” also state this “explanation” without evidence. I assume the 1991 book being refer need also provided no other explanation or definitive evidence of same. Happy if otherwise.

I see no reason to think I should rest my head on that book, or others like, any more than Bob’s Watches’ article on the topic (which sites Reddit, which may site the 1991 book, etc.)

I, too, am keen to find primary source documentation in one direction or the other, but the cited book does not fit that qualification as far as I understand it.

Posts
3,979
Likes
8,998

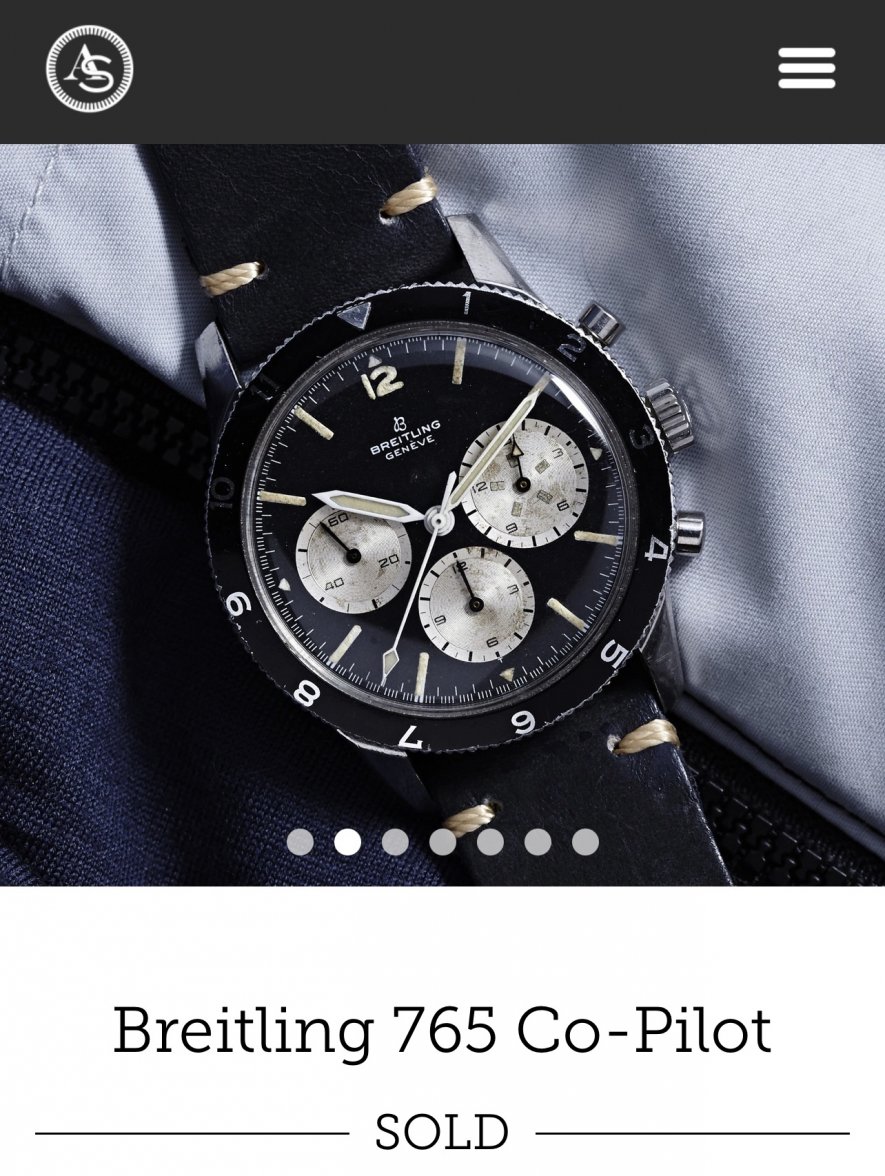

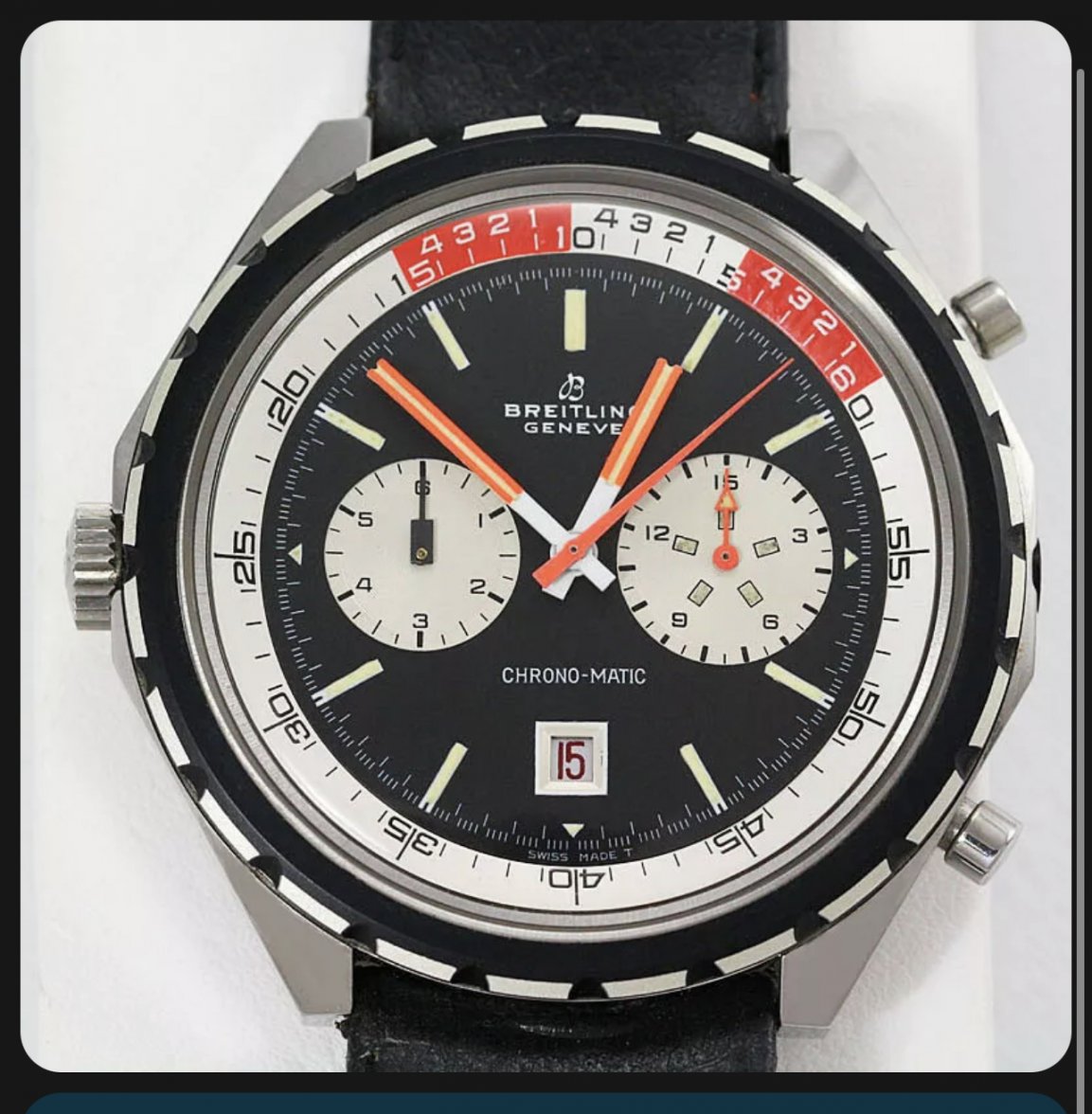

Since we’re down in the weeds, I guess I’ll flesh out a Breitling topic that lends yet another view as to the utility of 15 minute totalizers to pilots: check out this watch, which at the 3 o’clock position has not a date wheel but instead a 15 minute countdown window:

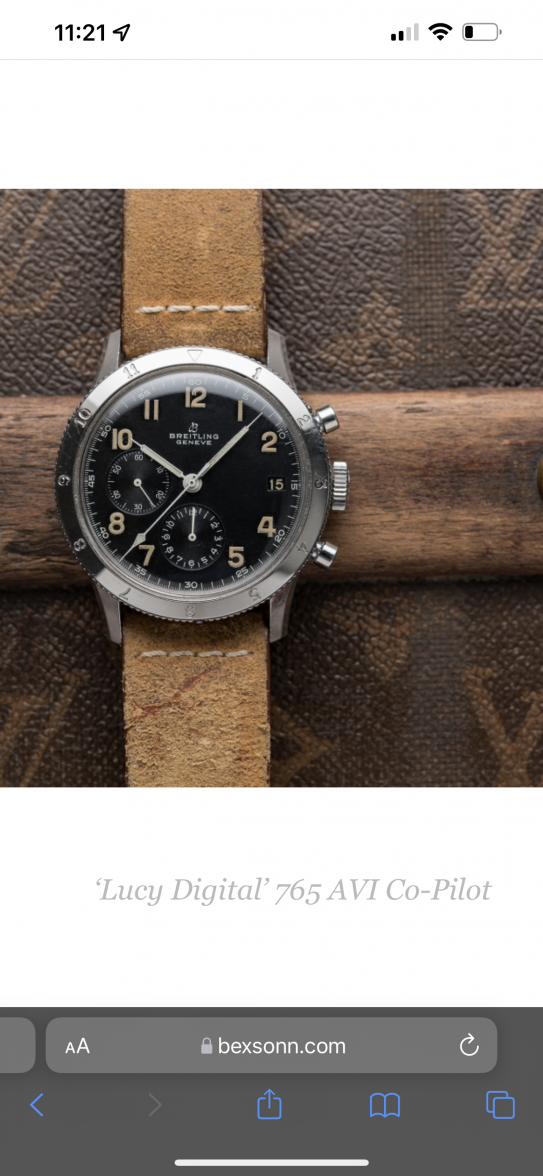

The watch above a predecessor to the AVI 765 photographed in the OP and here again:



According to this discussion, these 15 minute totalizers:

“[are] quite a significant feature, because to achieve this the Venus 178 movement the 765 AVI houses needed to be modified. Exactly why did they go through this hassle? 15 minutes was the exact amount of time required for a plane’s pre-flight check to clear it for take-off. This also clarifies the unusual lume dashes inside the sub-register, which marks every three minutes, making this routine check as easy as possible to time for the pilots.”

Regarding this claim of the utility of the 15 minute totalizer, I’ve asked a handful of pilots and gotten blank stares regarding this suggestion; I’ve also found no other evidence online of this explanation but for references to a Breitling marketing piece with a passing mention.

Nonetheless, the watch first posted about with a 15 minute countdown window certainly points toward a utility of the 15 minute countdown itself, which would seem (contrary to the quote above) a utility separate and apart from the 3 minute increments. After all, the countdown window entirely avoids specifying such increments.

Meanwhile, the 15 minute countdown window/function does not apparently help to explain the 3-, 6-, and 9-minute demarcations on otherwise traditional totalizers dials.

Posts
2,796
Likes
4,857
Altogether, I guess I don't find it too surprising that different manufacturers, over time, attempted different features to attract different users. And, to use an analogy, if I am attempting to answer "why did tennis shoe manufacturers sometimes utilize velcro closures" I'm not terribly troubled or distracted by noting that sometimes (or even often) they didn't.
I agree, varied utilization of the emphasized markings among manufacturers of chronographs for pilots is not very surprising if one assumes that the markings are more useful than necessary. Still, I would expect the relative utilization to be higher among manufacturers of chronographs for pilots than I would among manufacturers of chronographs for non-pilots. That is, unless the markings were also useful for non-pilots, which seems to be the case given that they are so widely utilized. Maybe another distraction, but I am intrigued that such markings were essentially never used by certain manufacturers such as Longines (agile) and Patek Philippe (limited agility). These manufacturers seem to be among the outliers, and I doubt that this is coincidental.

Edit: I meant accidental rather than coincidental.
Edited:

Posts
5,636
Likes
5,793
OK, I'll reveal the big secret of 3, 6, and 9.

Cooking eggs! Soft-, medium-, or hard-boiled eggs.

Posts
3,979
Likes
8,998
That is, unless the markings were also useful for non-pilots, which seems to be the case given that they are so widely utilized.

I certainly think they were also useful for non-pilots, and that this helps explain their presence on any number of non-obvious chronographs; specifically, I suspect they were useful, like a tachometer, for estimates solving for any number of things that might occur (or occur more accurately) outside the 60 second limitation of a tachymeter.


but I am intrigued that such markings were essentially never used by certain manufacturers such as Longines (agile) and Patek Philippe (limited agility). These manufacturers seem to be among the outliers, and I doubt that this is coincidental.

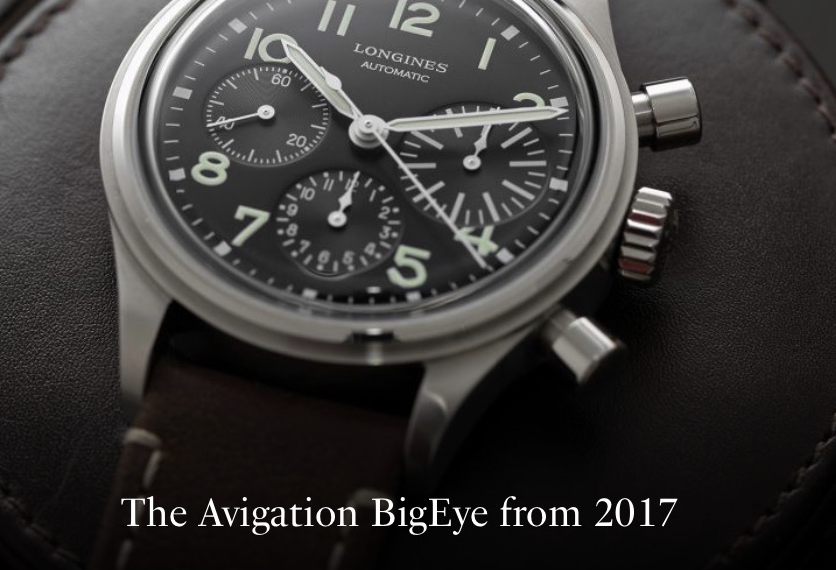

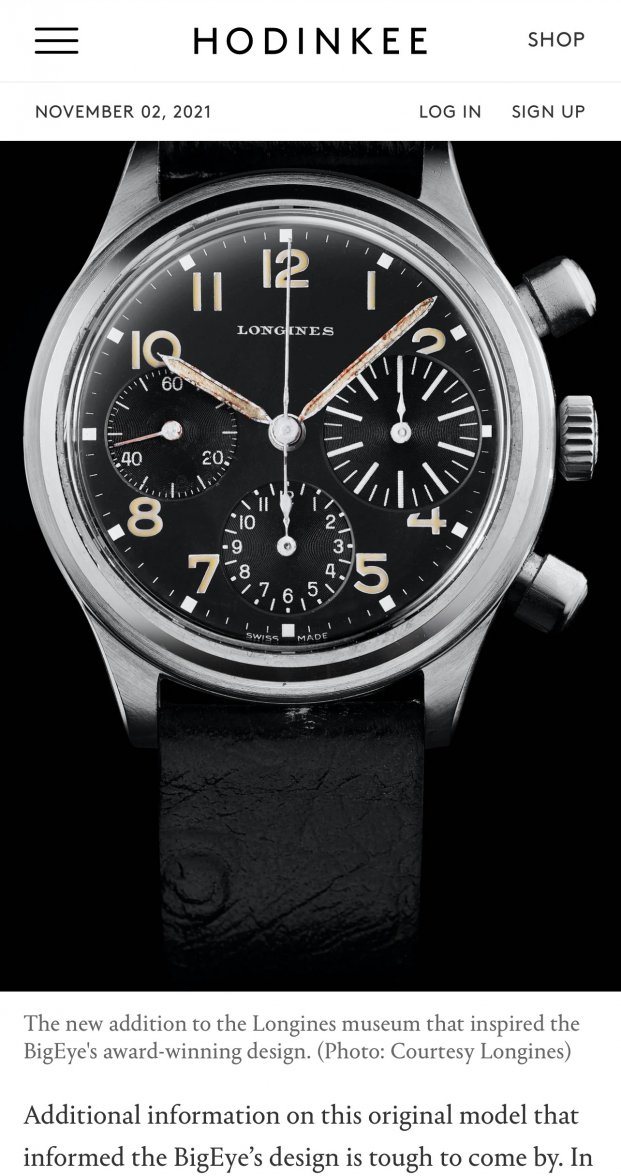

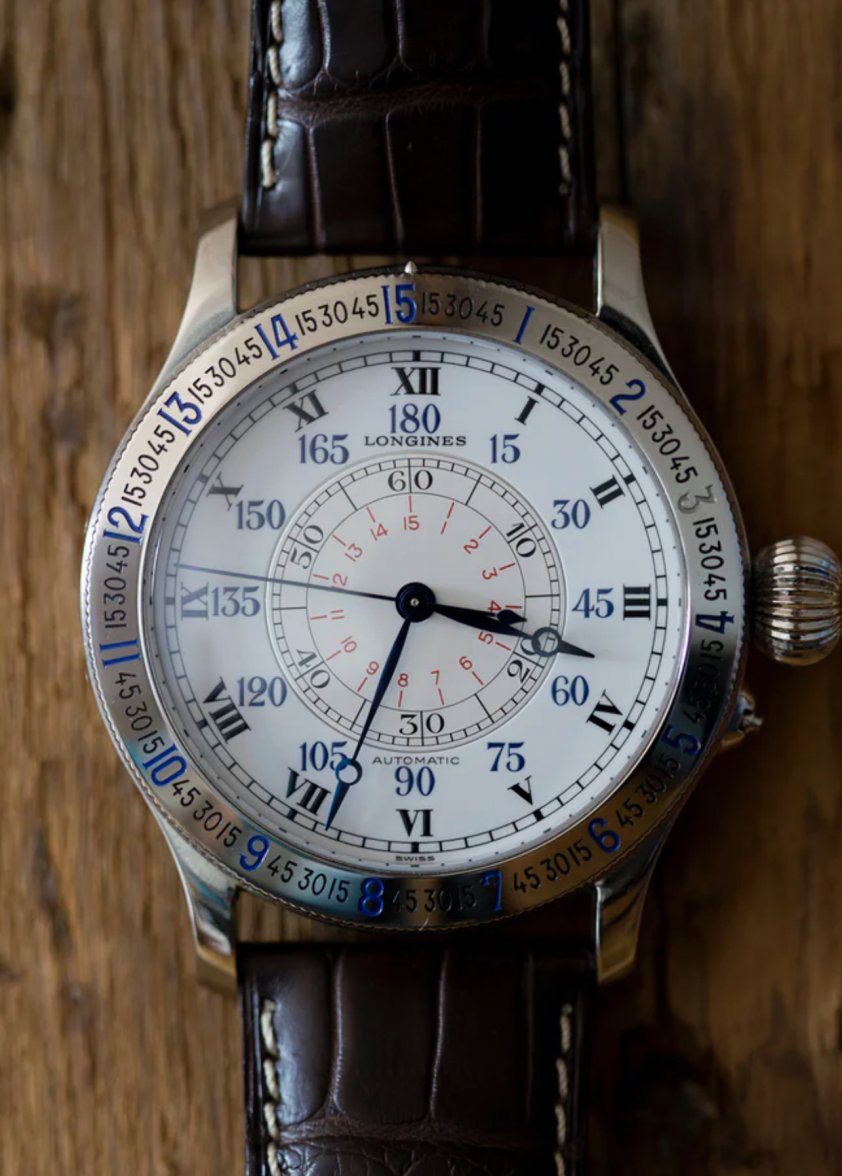

The Longines Avigation Big Eye in my OP has some interesting backstory, to your point. Apparently the vintage piece it was brought to Longines as an unknown to their museum, and prompted the reproduction - retaining the “Big Eye” totalizer with 3 minute demarcations.

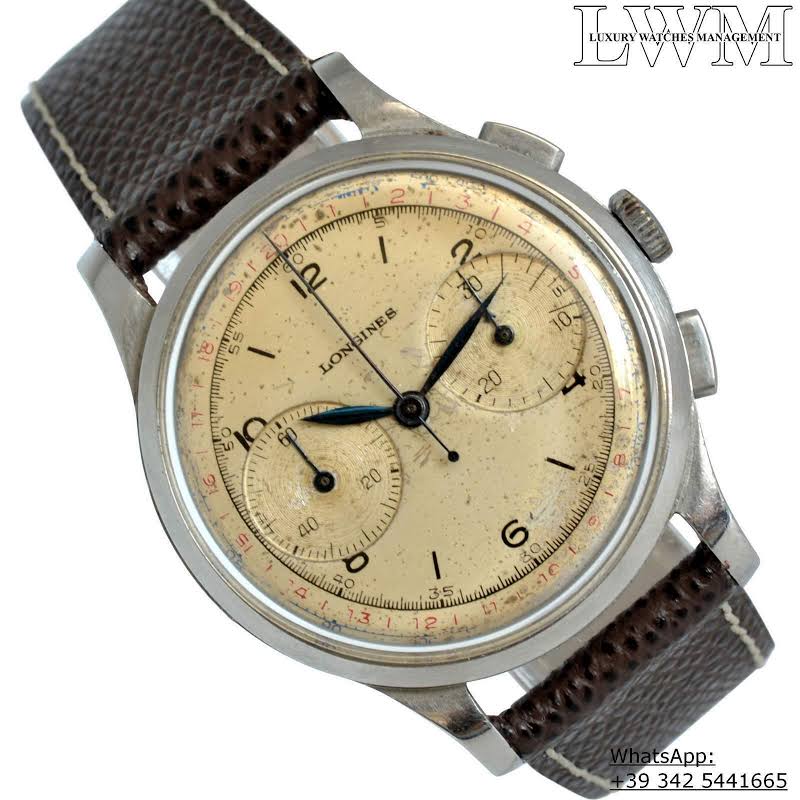

That said, on a quick search I could find other Longines examples with the 3/6/9 dial (avoiding for present purposes any chance of redial discussion):




However, in an interesting twist to your question I also found perhaps a Longines mate to the earlier-posted Patek (both posted below)

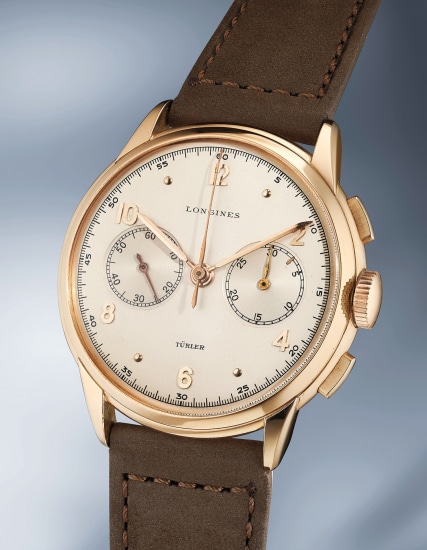

Notice that the Longines watch (whose Phillips auction is discussed here) has an applied indexes at only the 3 minute mark (the auction description does not mention it).

The Patek, too, is unique in remarking only the 3 minute index.

Which brings me back to:

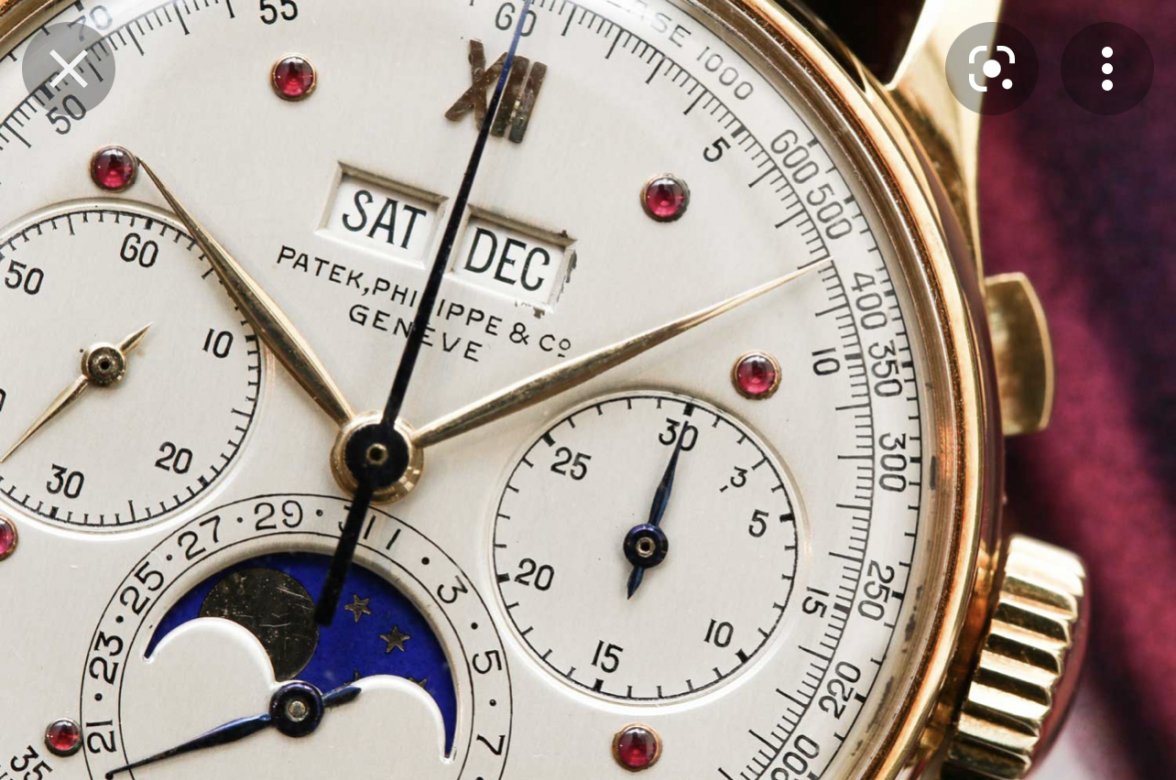

The Patek Philippe shown in the original post with the ruby markers and the 3 minute marker was auctioned in the last couple of years (don't remember which House) and as I remember the notes the watch belonged to one of the Stern owners and he specifically wanted the 3 minute marker because post WWII overseas calls were extremely expensive and when he called the Stern Agency in NYC he didn't want to go over the 3 minute mark on his call. He was Swiss, he was frugal.

Based on everything I’ve learned about long distance charge structures, a watch with only a 3 minute demarcation at 3 minutes would make complete sense: before the 1970s, at least in the US, there was a minimum 3 minute charge (and so a person might attempt to keep the discussion to 3 minutes total).

This seemingly dress Longines, with the applied index at 3 minute, would seem to also fit this paradigm.

If anything, I see this Patek and Longines as further evidence against the notion that long distance rates were related to other chronographs having successive 3/6/9 minute demarcations. For long distance calls, all that was heloful was a three minute demarcation, with subsequent minute indexes thereafter - as shown in the Patek/Longines examples.

👎

Posts
3,979
Likes
8,998
OK, I'll reveal the big secret of 3, 6, and 9.

Cooking eggs! Soft-, medium-, or hard-boiled eggs.

According to the The Association de Sauvegarde de l'Oeuf Mayonnaise (ASOM), the perfect time for boiling an egg is 8 minutes and 40 seconds, not a second more or less - and they have a chronograph for that:



“Positioning the hand directly on the egg located between 8 and 9 minutes on the Egg Master track will count eight minutes and 40 seconds, the perfect cooking time for oeuf mayonnaise. The quartz-powered timer beeps every minute as the finish time approaches, and speeds up in the final moments, ensuring that the cook is well positioned to retrieve their egg from the pot of boiling water. On the dial, you'll find ASOM's crest – a plate of eggs – along with the organization's motto, which translates to "Time flies, eggs are forever."”

Posts
7,107
Likes
13,211
If the marks had nothing to do with phone call timing, and everything to do with a pilot function, why did they disappear after ca 1970? General aviation has increased over the last 50 years yet no one has included the marks on a standard line of chronos that I'm aware of. Why not if they were originally made to aid a pilot?

Why didn't Omega or Rolex have this as a feature, they were major players?

Posts
3,979
Likes
8,998
If the marks had nothing to do with phone call timing,

Can we start with, if they had something to do with phone call timing before the 1970s, why consistently have 3/6/9 demarcations when long distance was charged in a 3 minute minimum followed by single minute increments?


why did they disappear after ca 1970? General aviation has increased over the last 50 years yet no one has included the marks on a standard line of chronos that I'm aware of.

I suspect but can’t say for certain that a number of factors could have played a part.

First, pilot’s chronographs were in fact produced or sold into the early and mid 1970’s, and some did cintinue to reflect these indices:

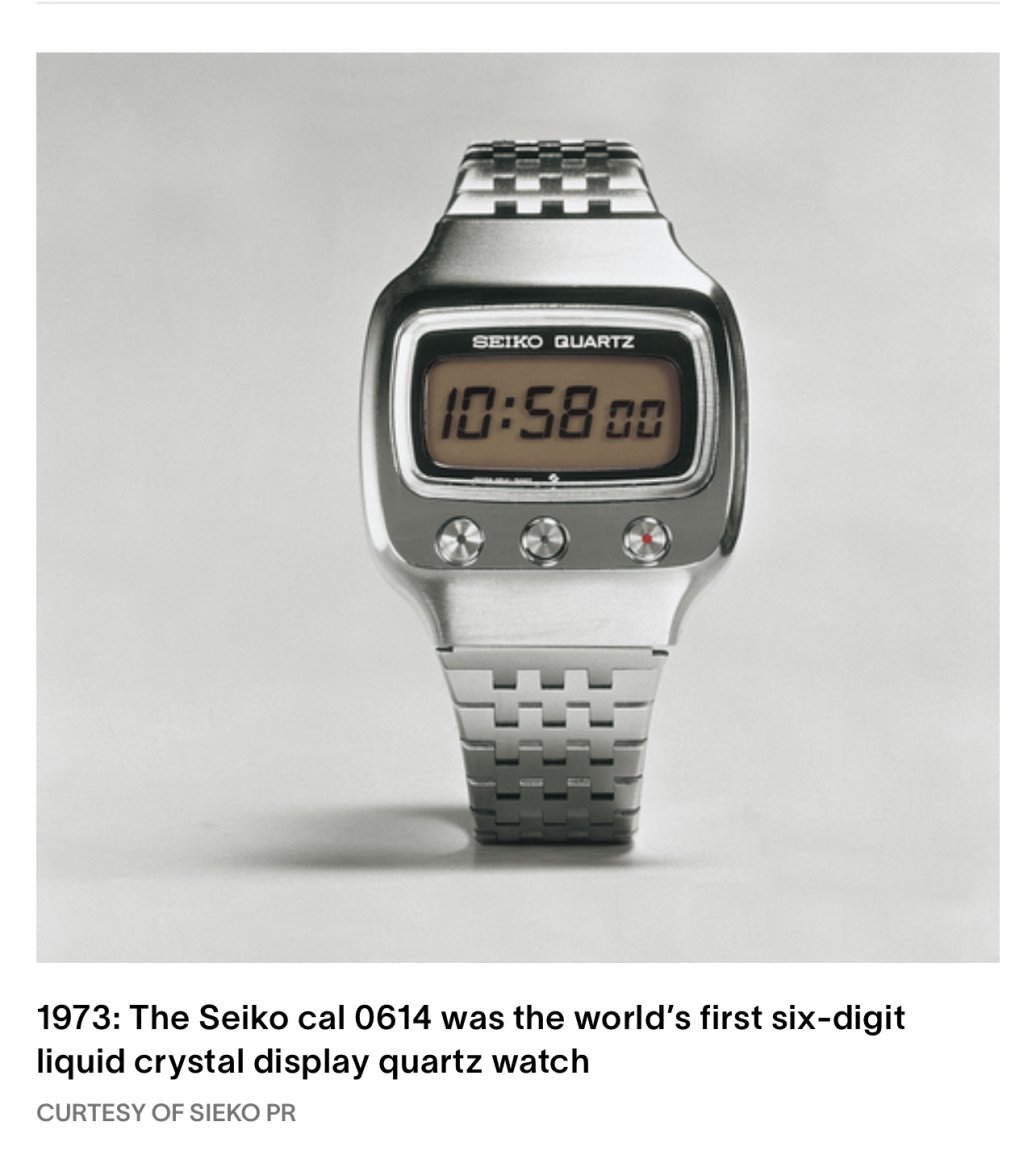

Second, the 1970’s saw an influx of an arguably even better alternative in terms of accuracy, legibility, and chronograph (or stopwatch) functionality:

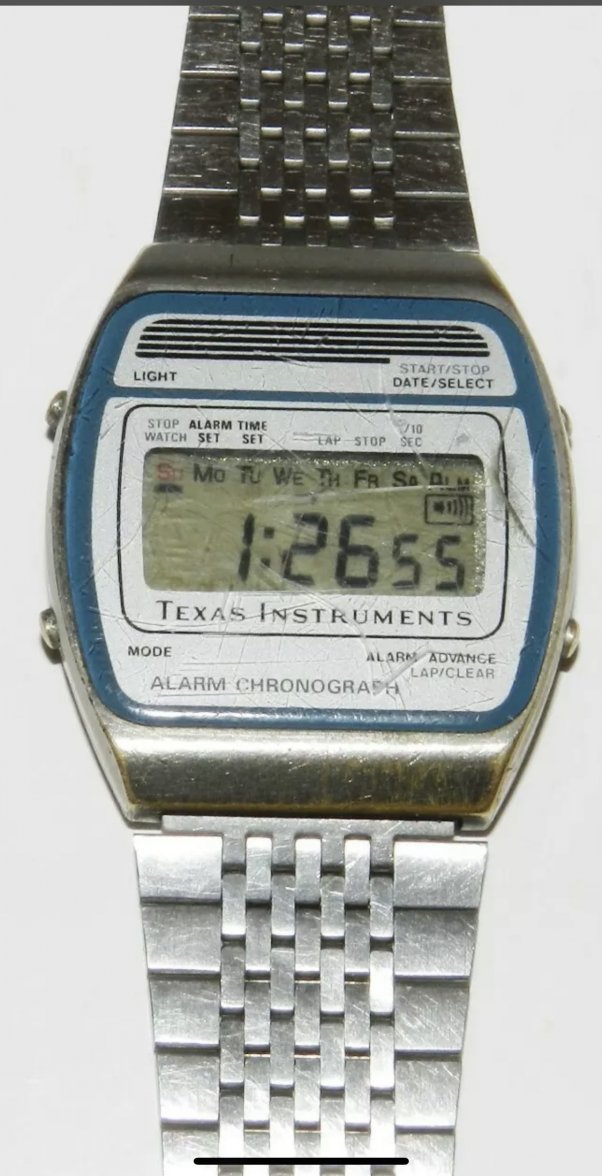

By 1976, this TI chronograph watch was selling for $9.99, and like hotcakes:



But that’s just some views of the watch world.

As for the pilot’s world, I’d need more of them to weigh in on what whanges were occurring in the cockpits between the 1960’s to the 1980’s.

For one, at least in military and commercial settings, so-called “glass cockpits” became prevalent, replacing engineers and eventually navigators (older versions of 747s had special windows for the navigator to use a sextant). Improvements in the cockpits were surely matched by those in on-the-ground (radio, radar, etc.).

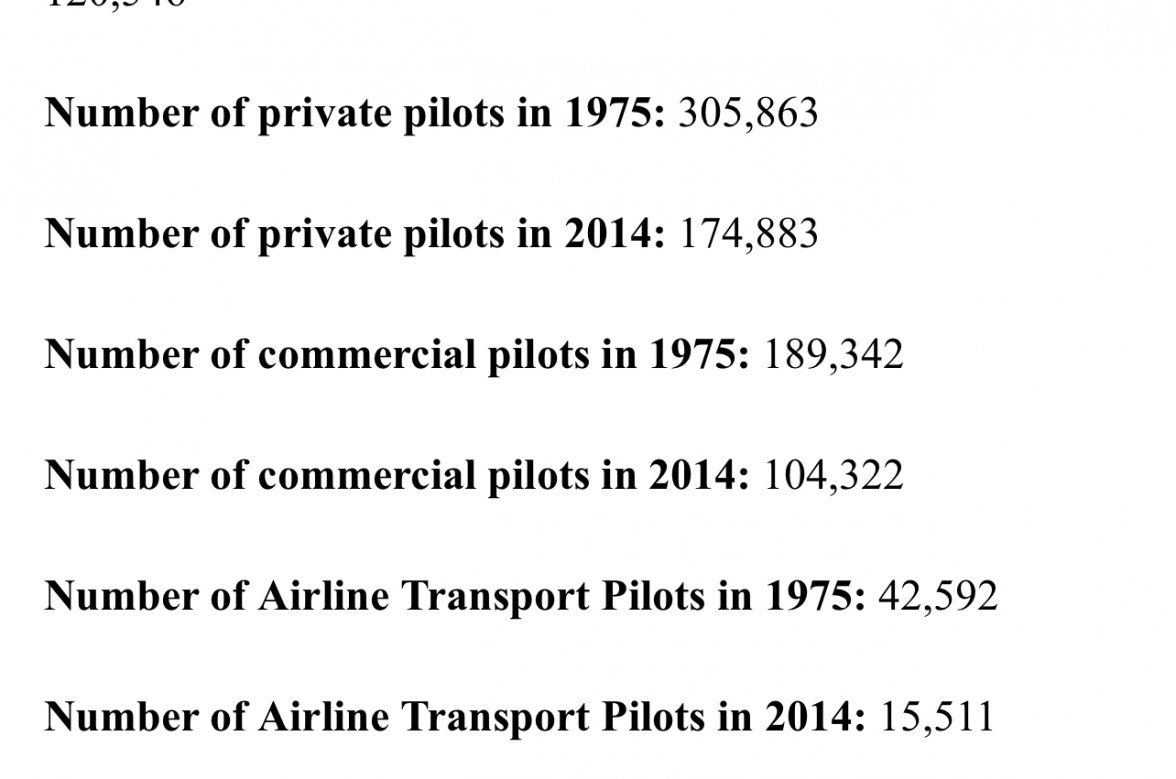

Also, it doesn’t appear that you’re correct that aviation has increased in the past 50 years, as instead the number of private or commercial pilots have declined in absolute numbers (even before adjusting for a general increase in population):



Altogether, I can see at least the possibility that the combination of:

(1) a dying mechanical chronograph industry,
(2) a blooming $9 electronic chronograph industry,
(3) advances in both the cockpit and on the ground, and
(4) waining interest in aviation…

… all occurring through the 1970s may lend some explanation for the questions you posed.

This is of course no less conjecture than any theory purporting instead it has something to do with changes to long distance rate structures - except that the latter theory still lacks any apparent relation to even the pre-1970’s era in the first place, as far as I can tell.

Posts
1,513
Likes
2,590
If the marks had nothing to do with phone call timing, and everything to do with a pilot function, why did they disappear after ca 1970? General aviation has increased over the last 50 years yet no one has included the marks on a standard line of chronos that I'm aware of. Why not if they were originally made to aid a pilot?

Why didn't Omega or Rolex have this as a feature, they were major players?
40s Omega 321s, back when they were called the Cal 27 CHRO, as well as early Oyster Chronographs do exhibit those 3-minute marks. They seem to have all but disappeared by the end of the 50s though.
