13ZN Chronographs Inquiries and Information.

watchyouwant
Posts
5,273
Likes
8,979
ulycorn ulycorn

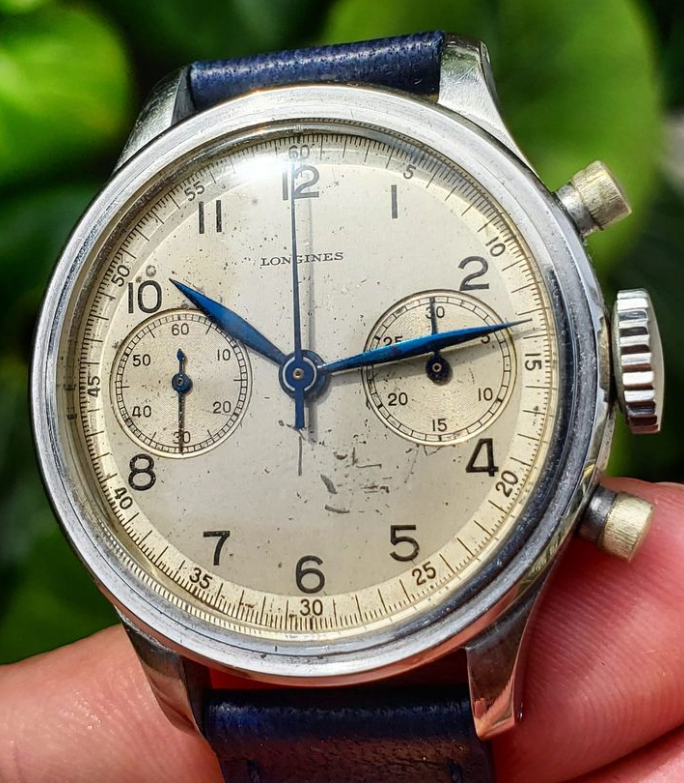

Hola Longines OFers!

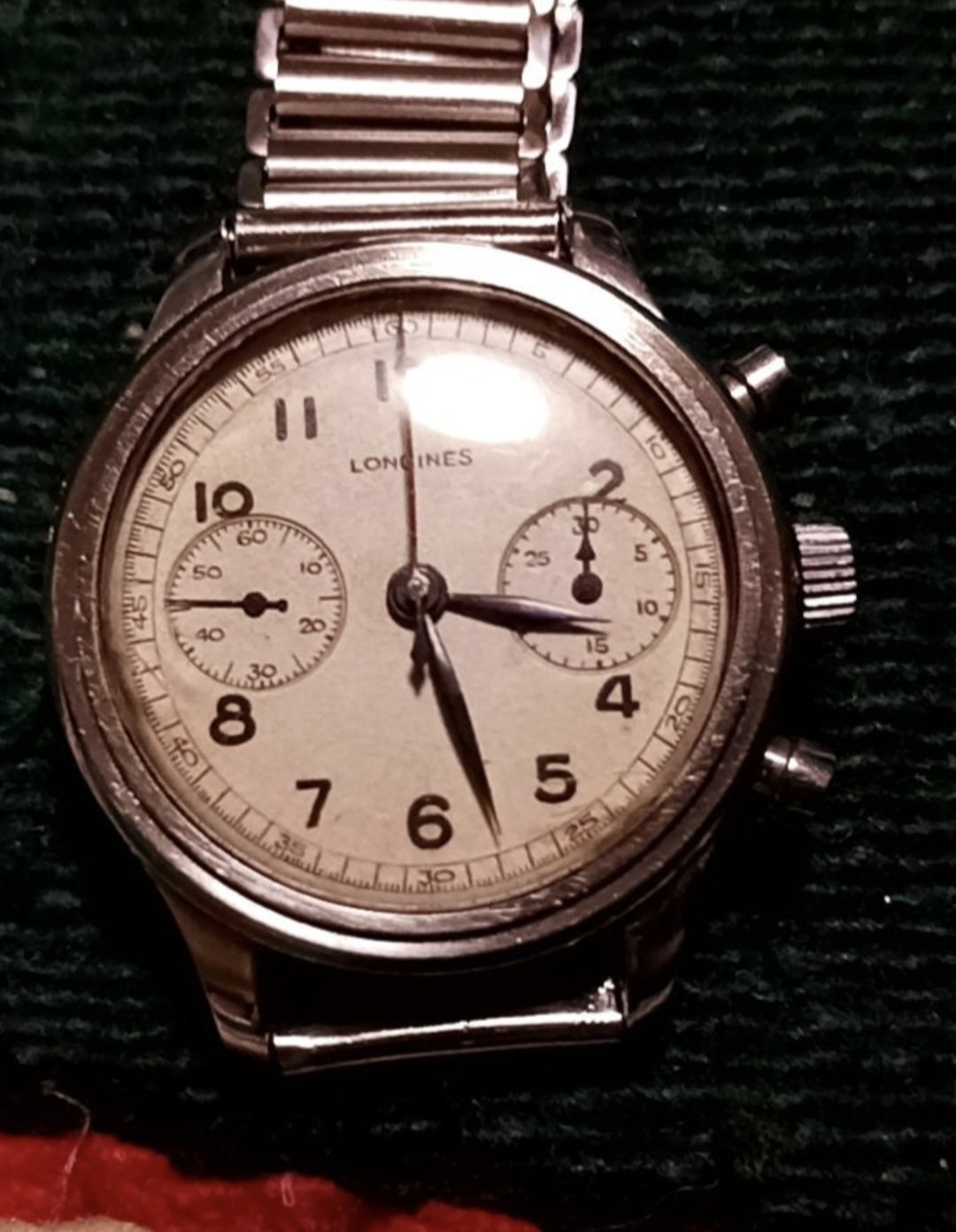

Been awhile and have paused on my collection for quite a while now as it was getting a little out of hand costwise and with rising costs of living, but saw this 13zn at a pretty reasonable price that may make me make an exception.

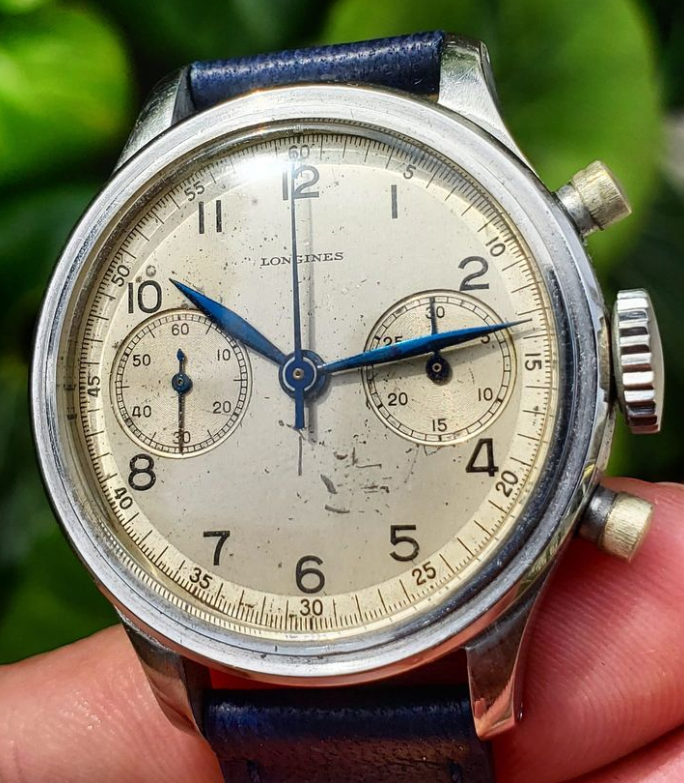

I'm more of a dial guy in terms of eval and going through the first 15 or so pages of this thread did not see any examples with the Longines logo in san-serif as this example has which is bringing me to think redial. But i do know that that logo was sometimes used in the 40s as well so wanted to get some of your thoughts and hopefully blessings before I pull the trigger.

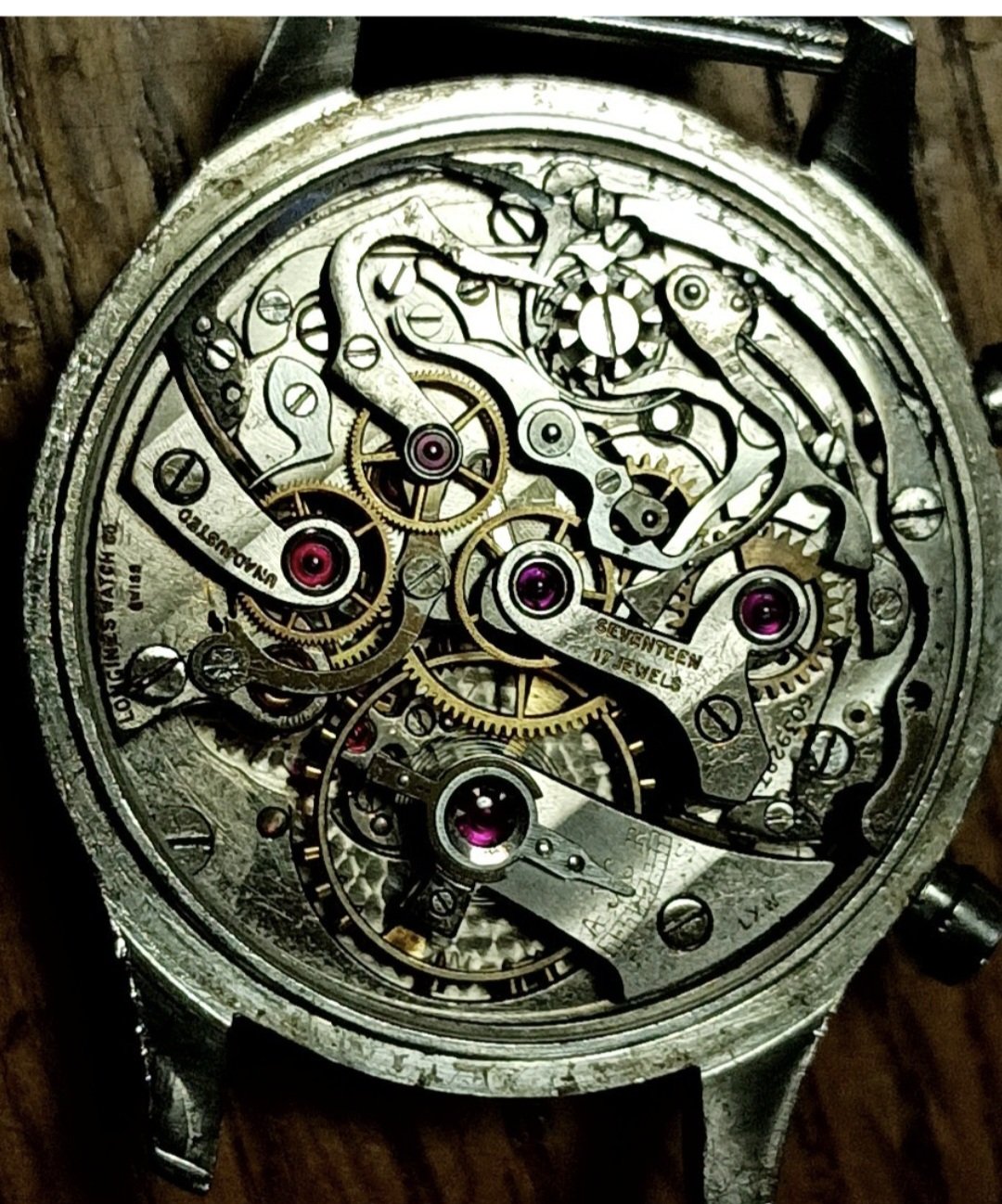

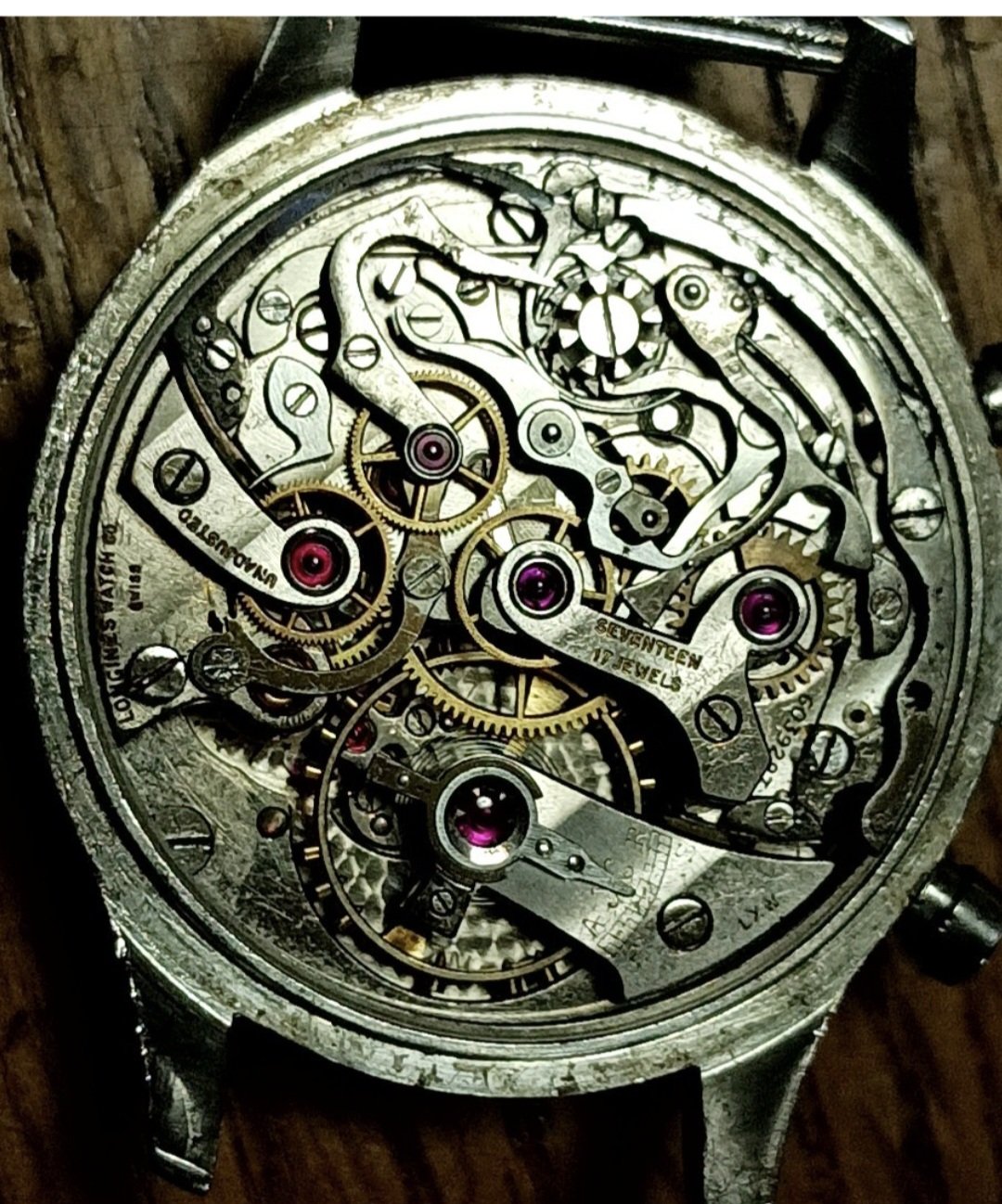

Have no idea how to evaluate watch movements and so far for all my conquests and flagships have been relying on the right movement ref etchings so would appreciate any help!

Screenshot_20230615_080422_Chrome.jpg Screenshot_20230615_080441_Chrome.jpg Screenshot_20230615_080445_Chrome.jpg

I've seen quite a few of these in the late 1990's. Can't remember , who made this batch. Either Bethge in Germany or Soni in the UK. Not well executed.

DirtyDozen12
Posts
2,755
Likes
4,810
watchyouwant watchyouwant
I've seen quite a few of these in the late 1990's. Can't remember , who made this batch. Either Bethge in Germany or Soni in the UK. Not well executed.
Thanks for the information!

Syrte
Posts
7,597
Likes
21,791
watchyouwant watchyouwant
I've seen quite a few of these in the late 1990's. Can't remember , who made this batch. Either Bethge in Germany or Soni in the UK. Not well executed.
You mean batch of dials? Very coarse indeed, in any event.

W
Posts
18
Likes
2
T
S.H. S.H.
Thanks!

It is now mine ::psy::

I will take better pictures and ask Longines about it. I'll report the results. If it was imported naked or recased from steel it may explain the various plating colors?

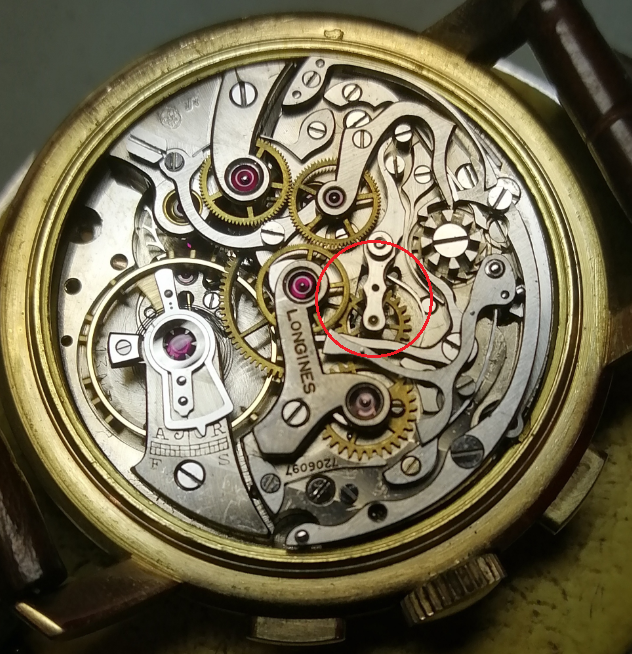

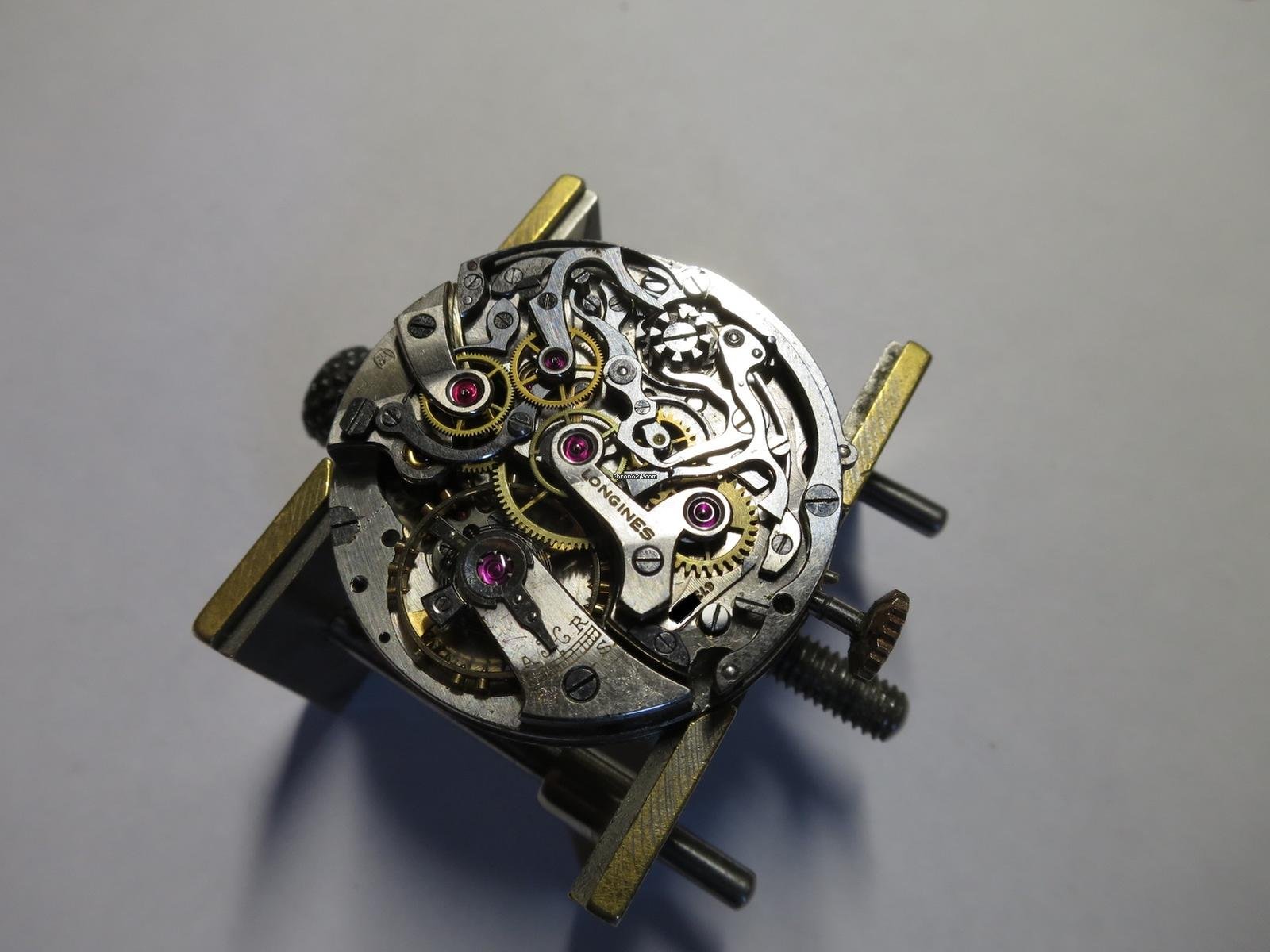

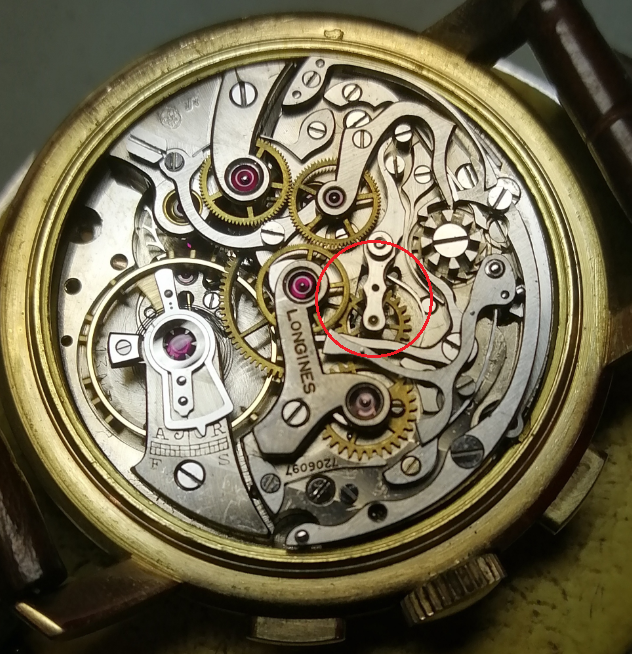

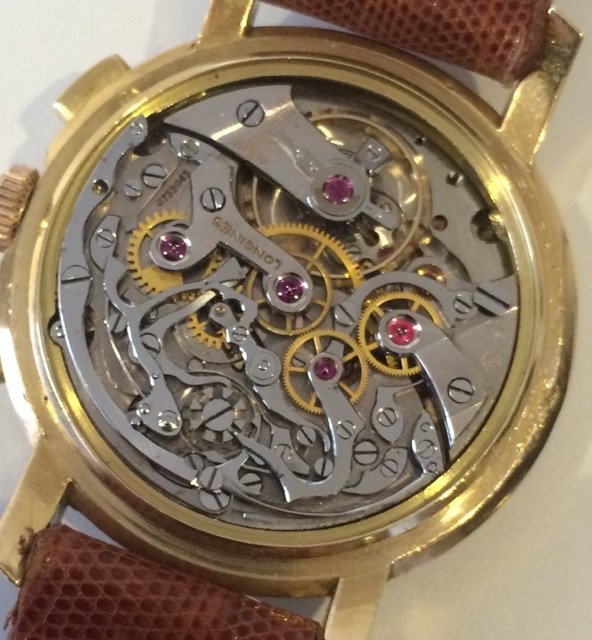

he movement have a missing part…

W
Posts
18
Likes
2
DirtyDozen12 DirtyDozen12
Ah, I think you are correct.
yes, and It is serious problem coz the movement is the heart, all hand made without cnc,,
even to make one now is difficult,.. and we can do it by CNC, ... however , I won't recommend to collect this piece

W
Posts
18
Likes
2
W Wswwatch
yes, and It is serious problem coz the movement is the heart, all hand made without cnc,,
even to make one now is difficult,.. and we can do it by CNC, ... however , I won't recommend to collect this piece
Mr DirtyDozen , Thank you for your sharing of 3870 ref. 13zn ,

however , It is rare model and I can't see any on sales...
would like to collect one , coz the case size , the stepped case, and the pusher , for me is so attractive , simple and smooth ,,,

DirtyDozen12
Posts
2,755
Likes
4,810
W Wswwatch
Mr DirtyDozen , Thank you for your sharing of 3870 ref. 13zn ,

however , It is rare model and I can't see any on sales...
would like to collect one , coz the case size , the stepped case, and the pusher , for me is so attractive , simple and smooth ,,,
There are a couple for sale at the moment, that I know of. I can send a private message to you with more information.

W
Posts
18
Likes
2
BlueHands BlueHands

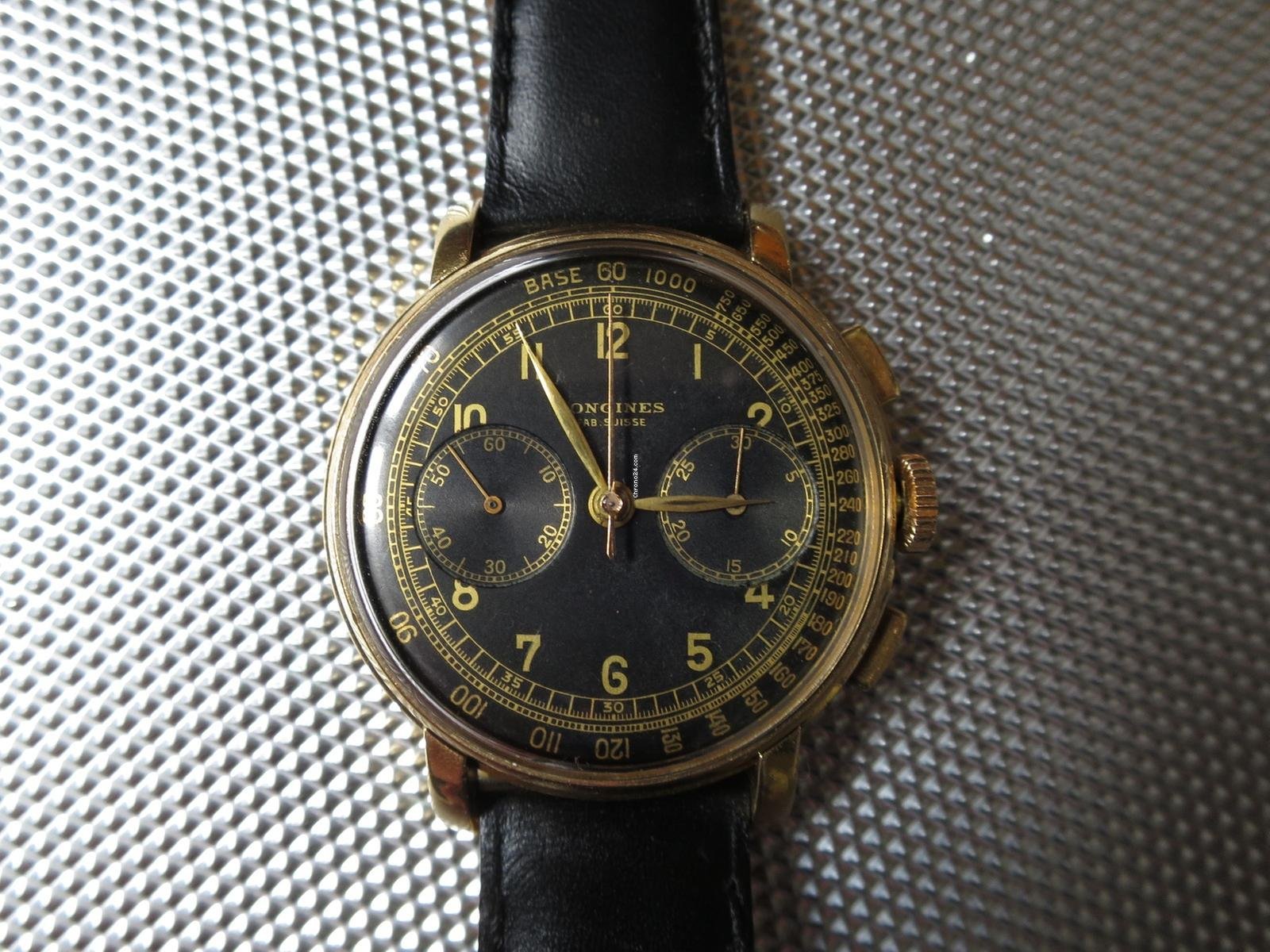

Hi, thanks very much for your input. I have also never seen such a two-tone dial on a 13 ZN so I wonder about the short hands. The dial has copper toned feet. The Longines font is quite large, too large for this 1930s period? And yes, the comparison with your example shows a polished case, I see.
this is not a original dial , before 1940 , the font is taller and smaller , moreover, the subdial 6 , will be close

minutenrohr
Posts
1,958
Likes
24,688

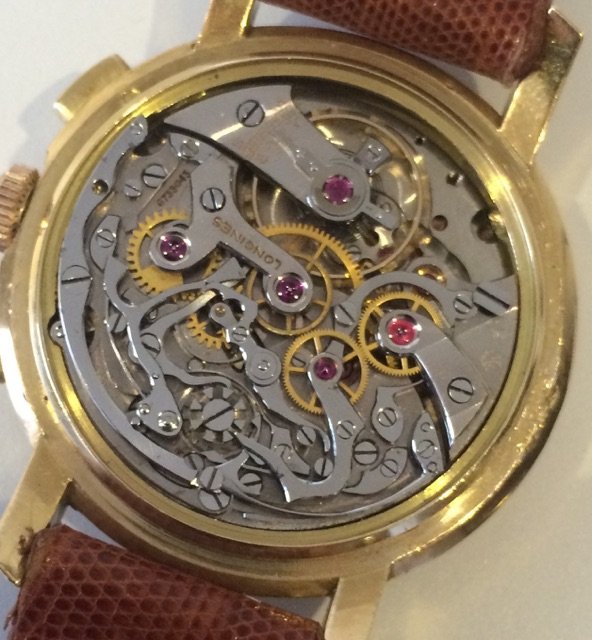

Yes, 6,73xxxx seems to be a correct number for a 13ZN for the French market. The stamped "M" (see picture) also supports this.

Greetings - HU

sign.jpg martin 2016 1 Transition.jpg

S.H.
Posts
1,548
Likes
3,703
SWmania SWmania

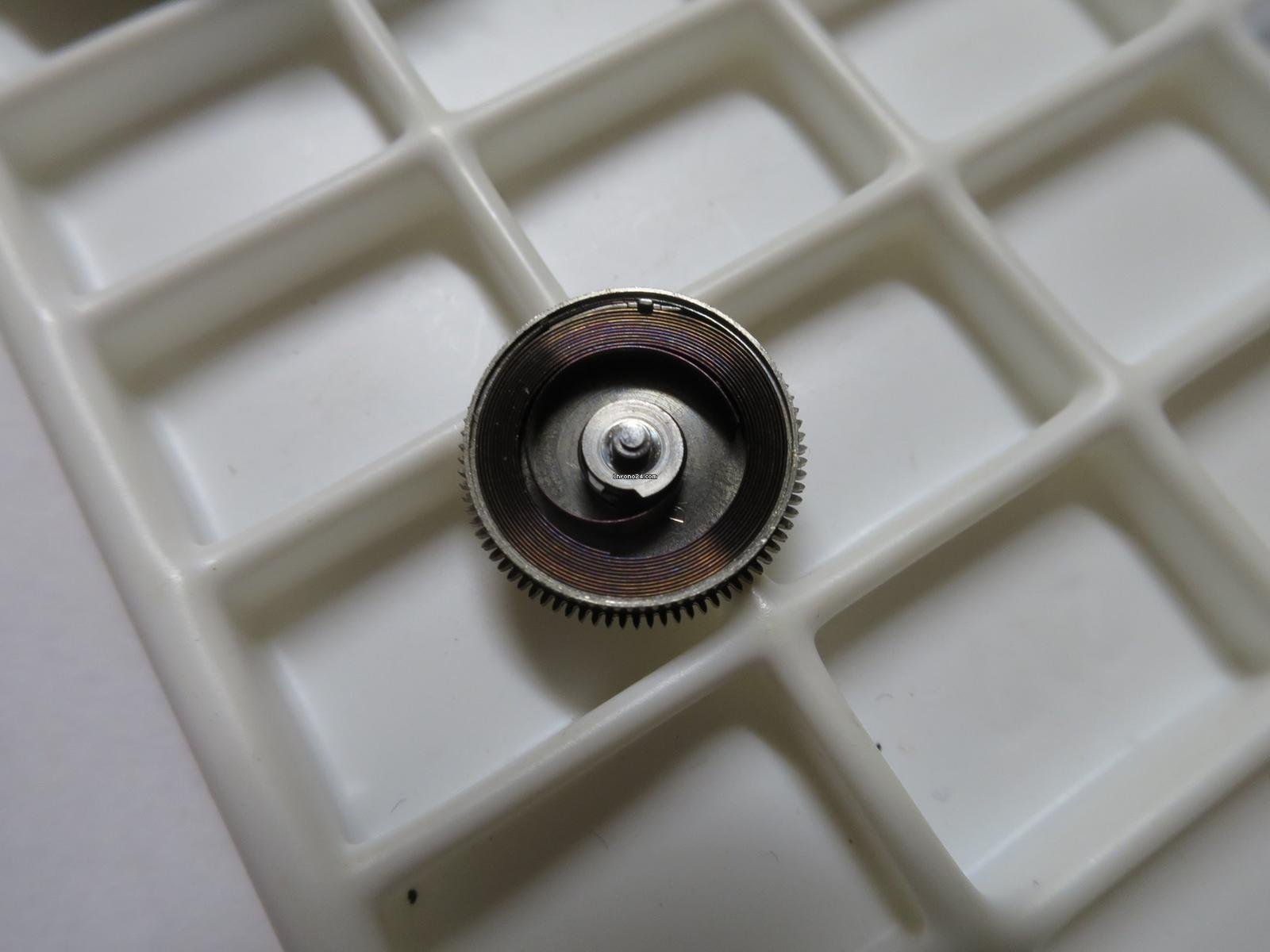

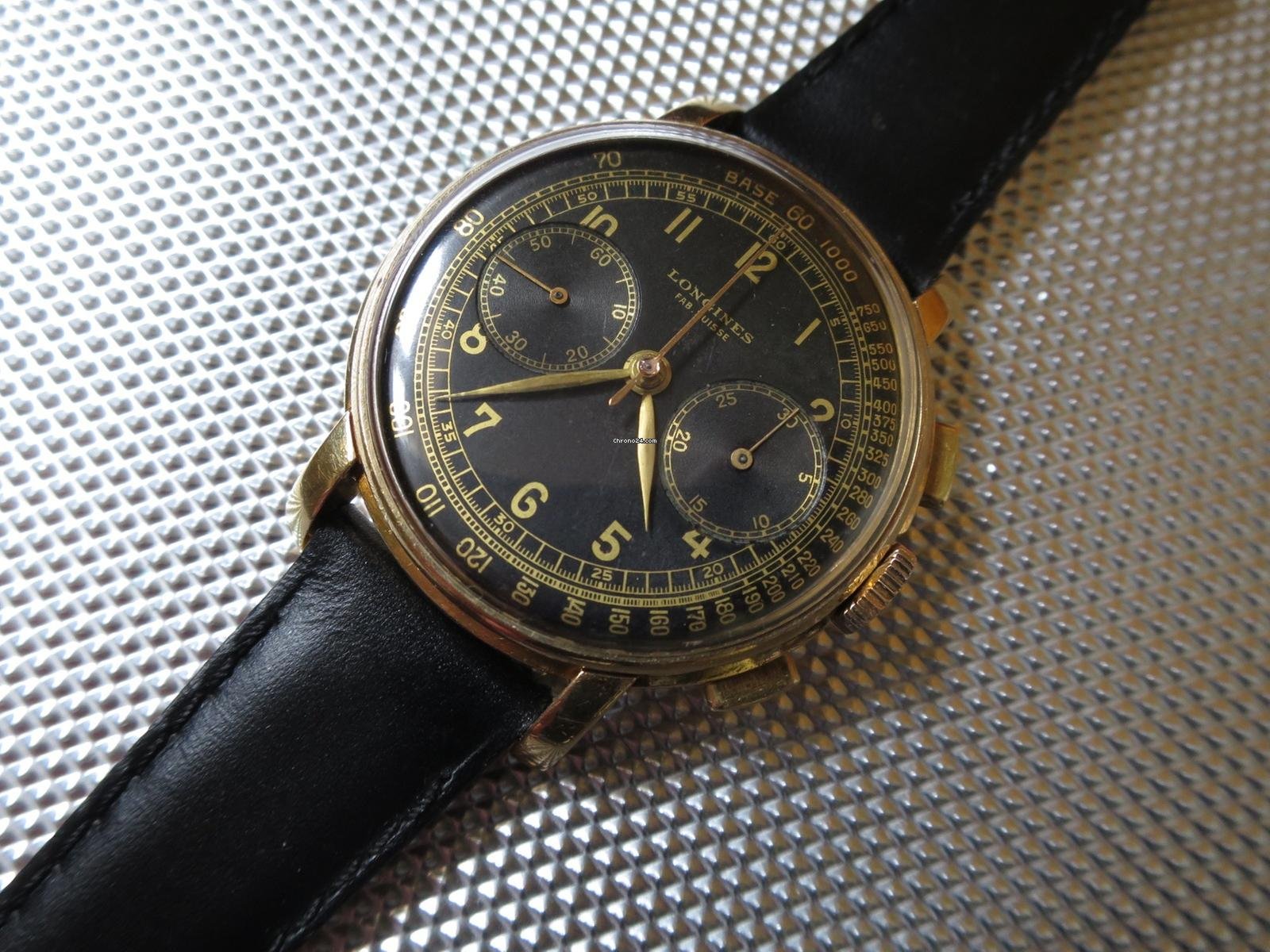

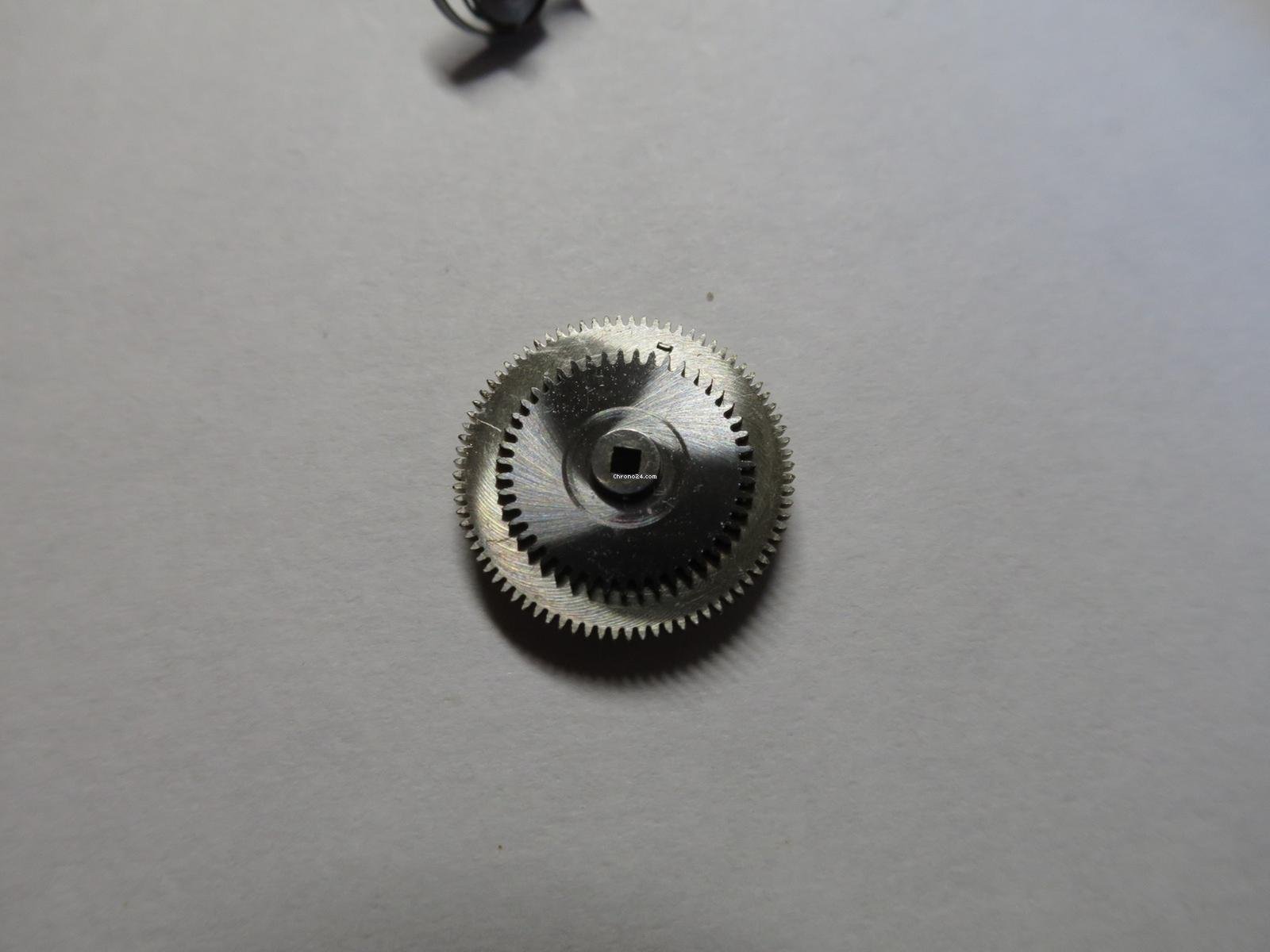

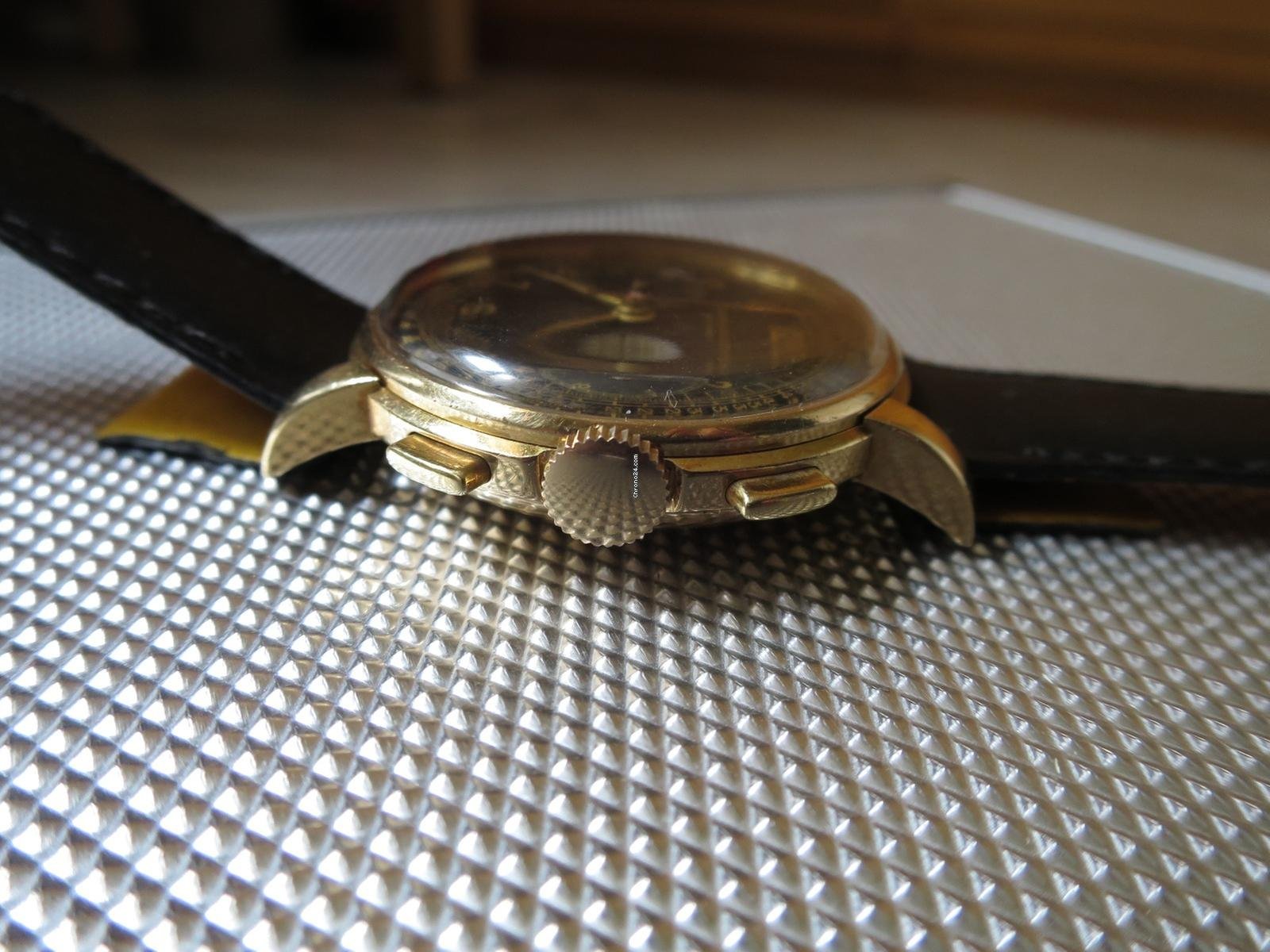

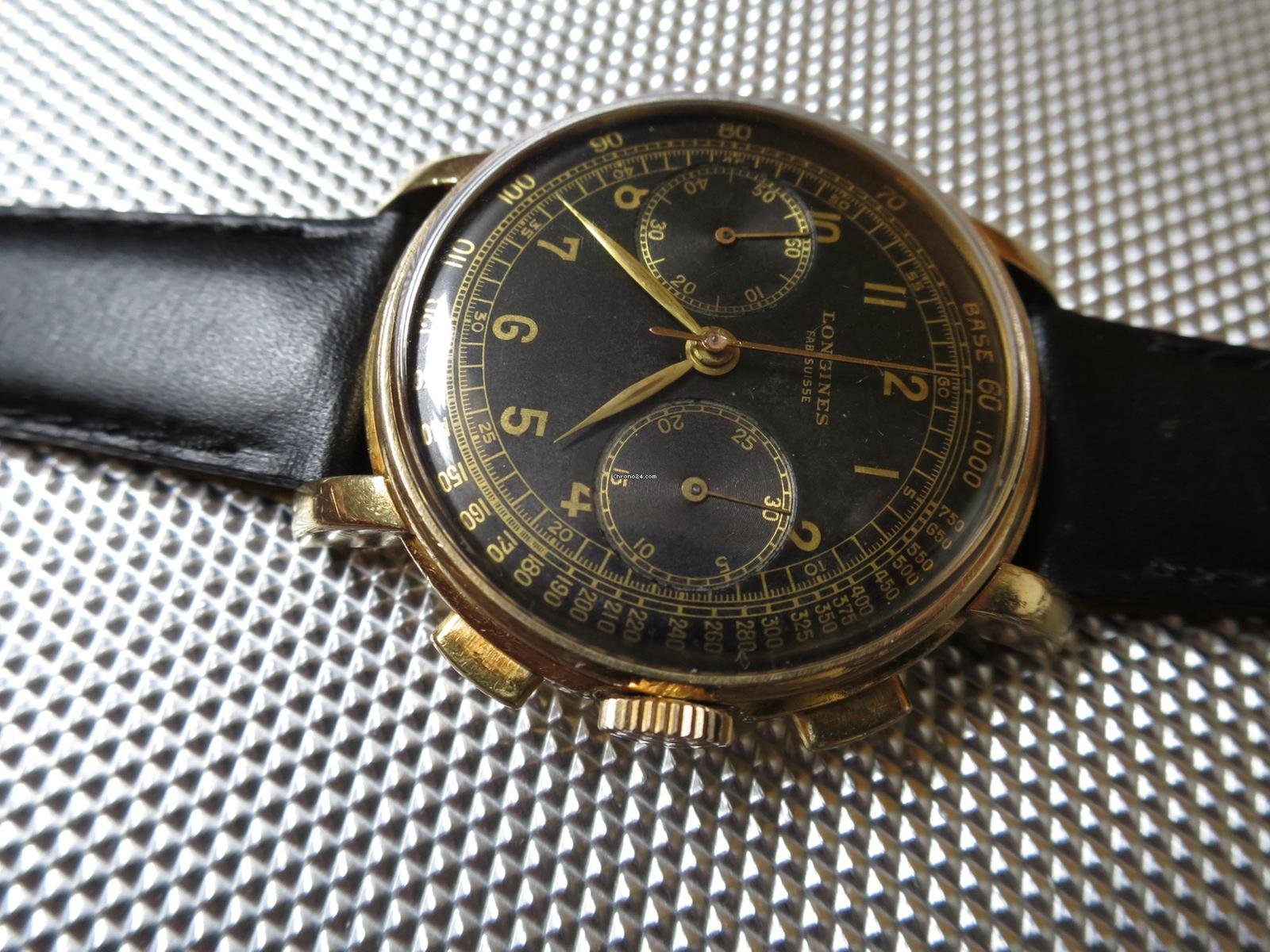

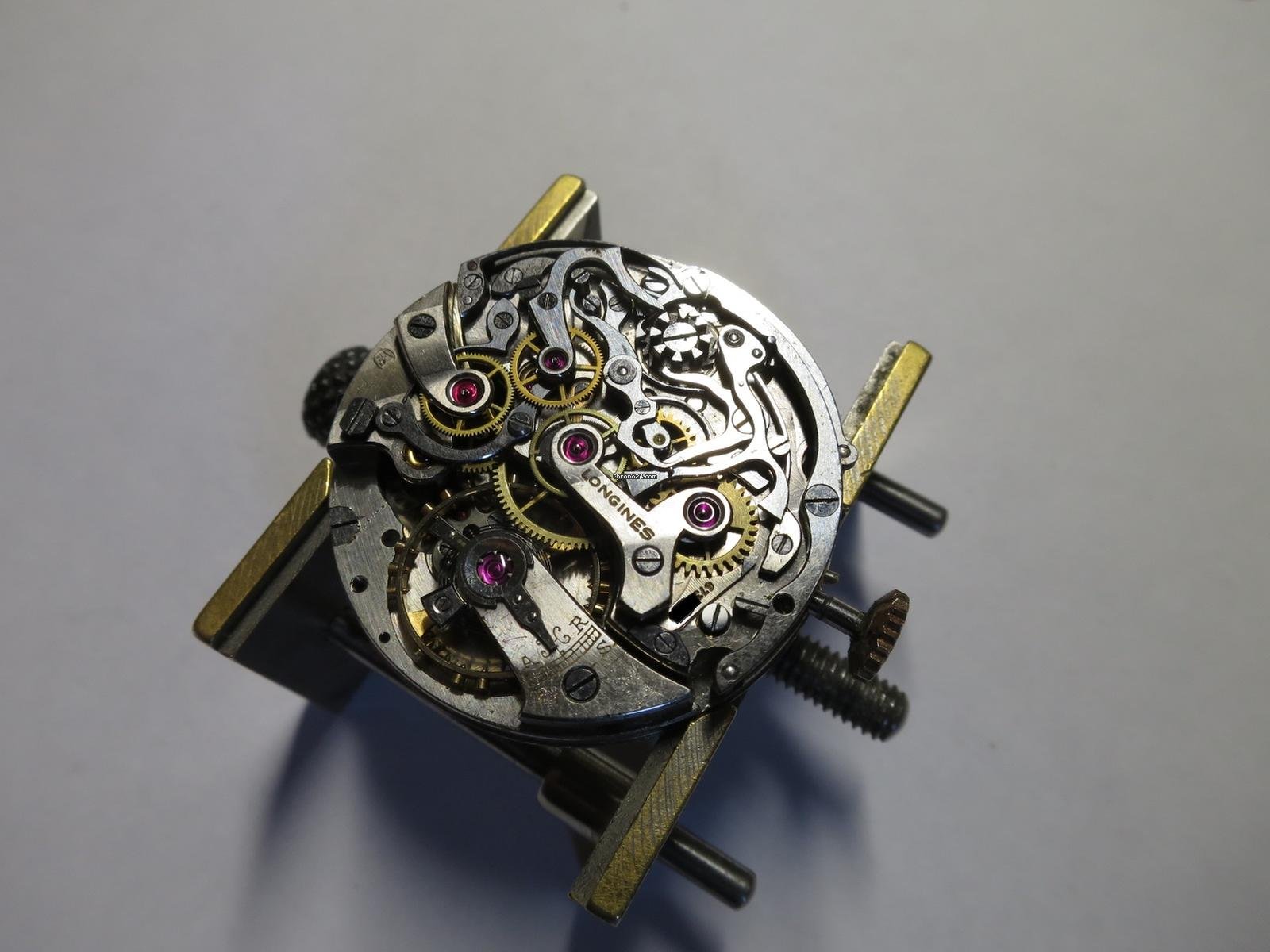

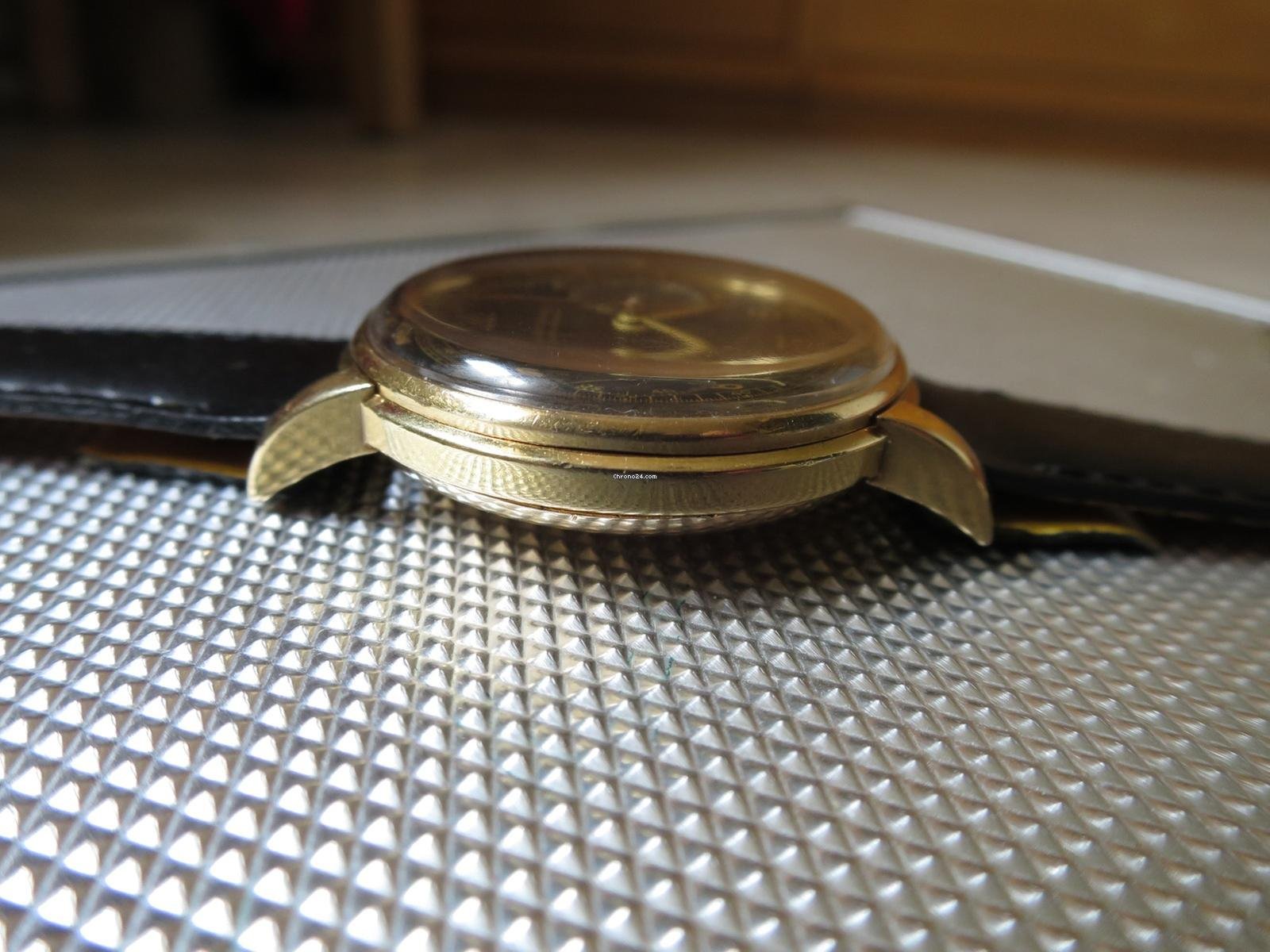

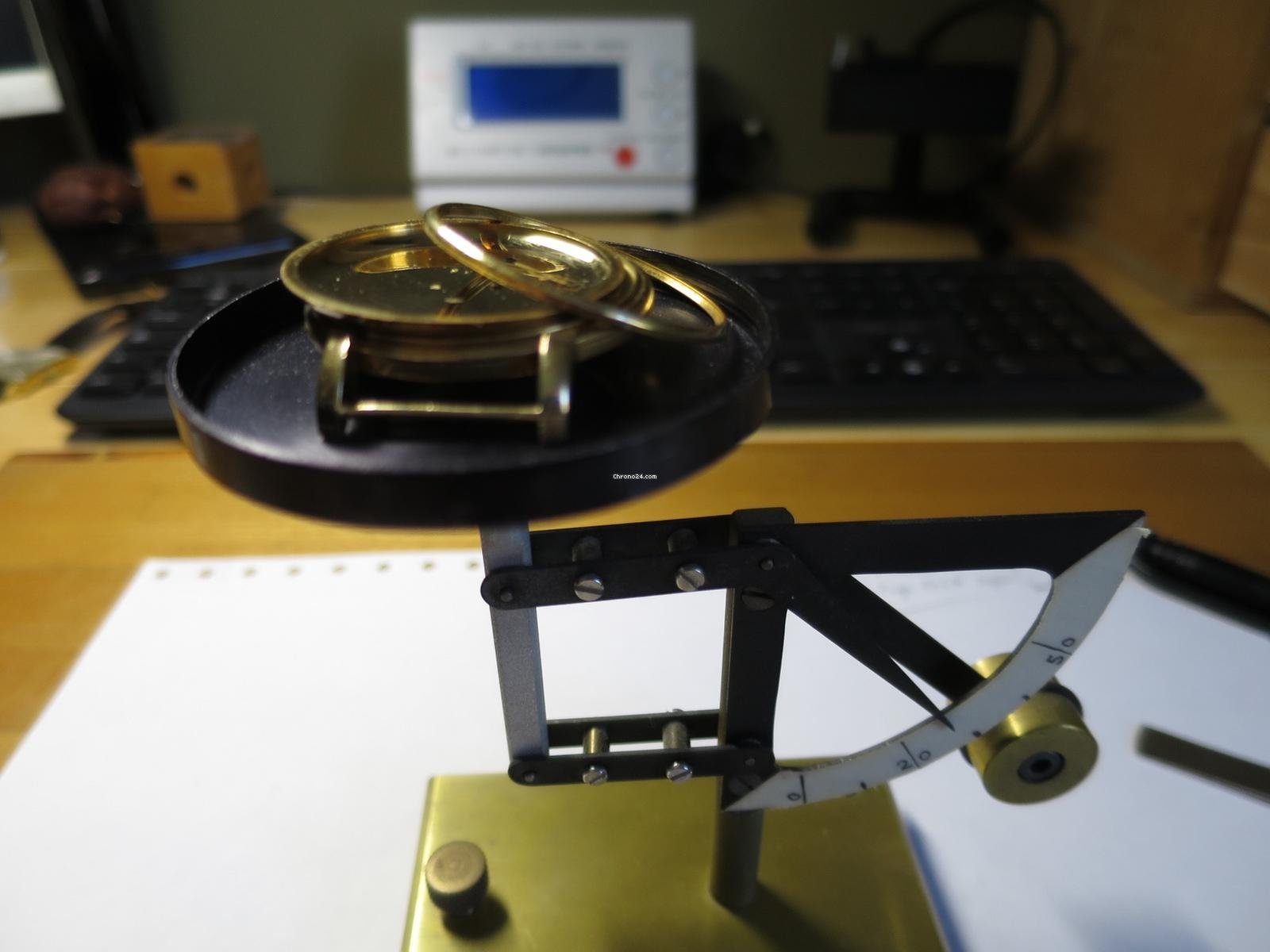

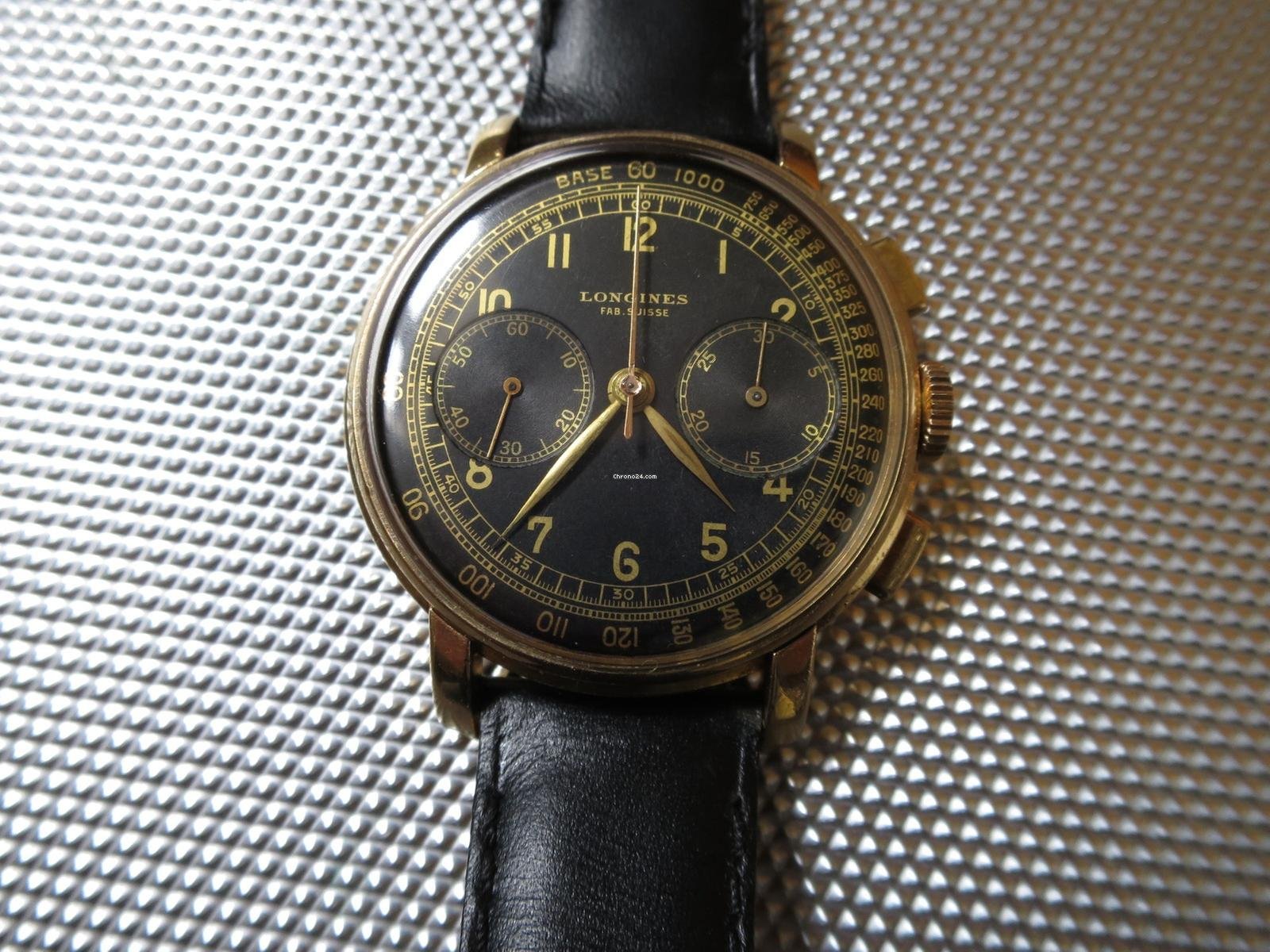

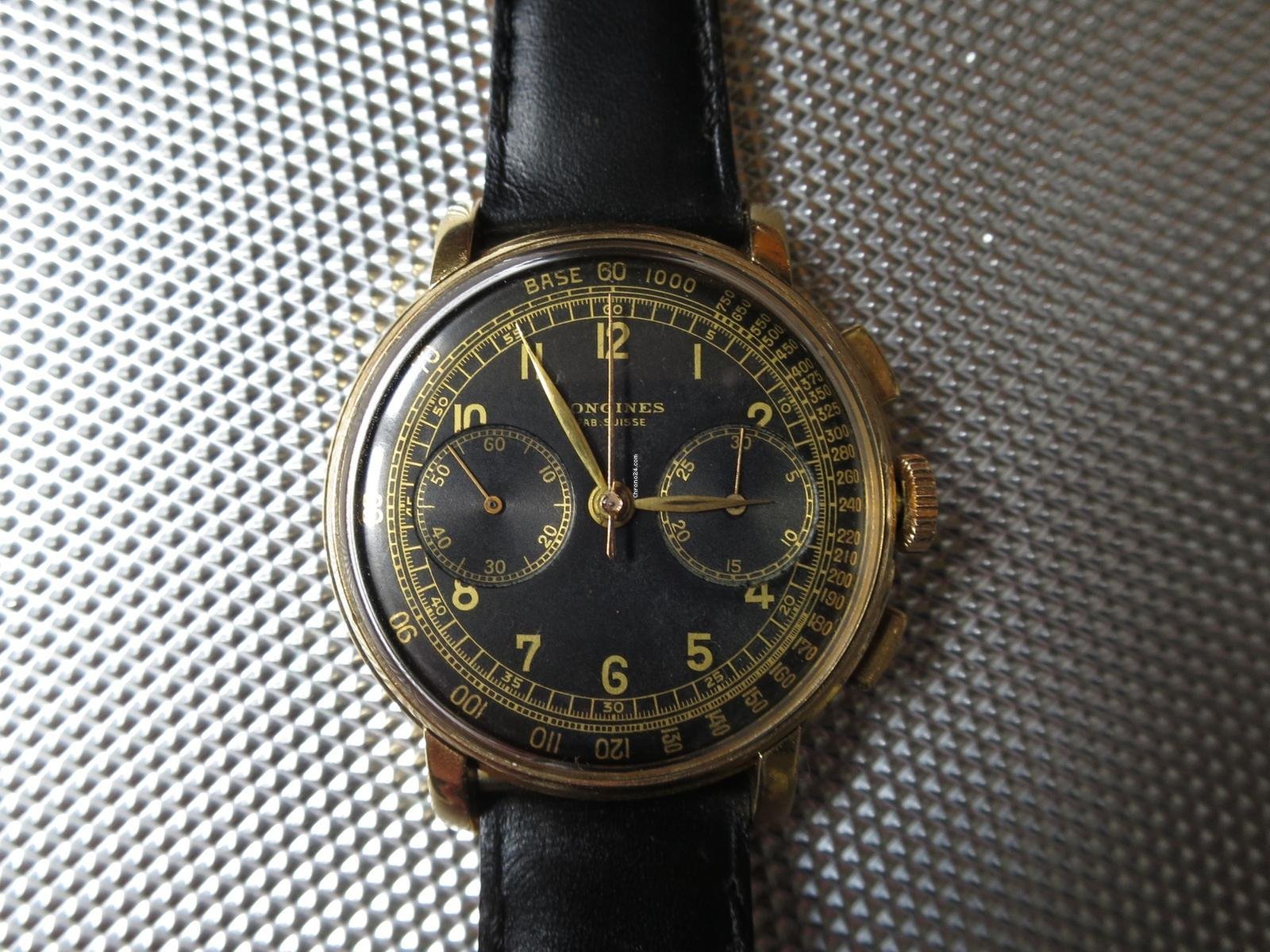

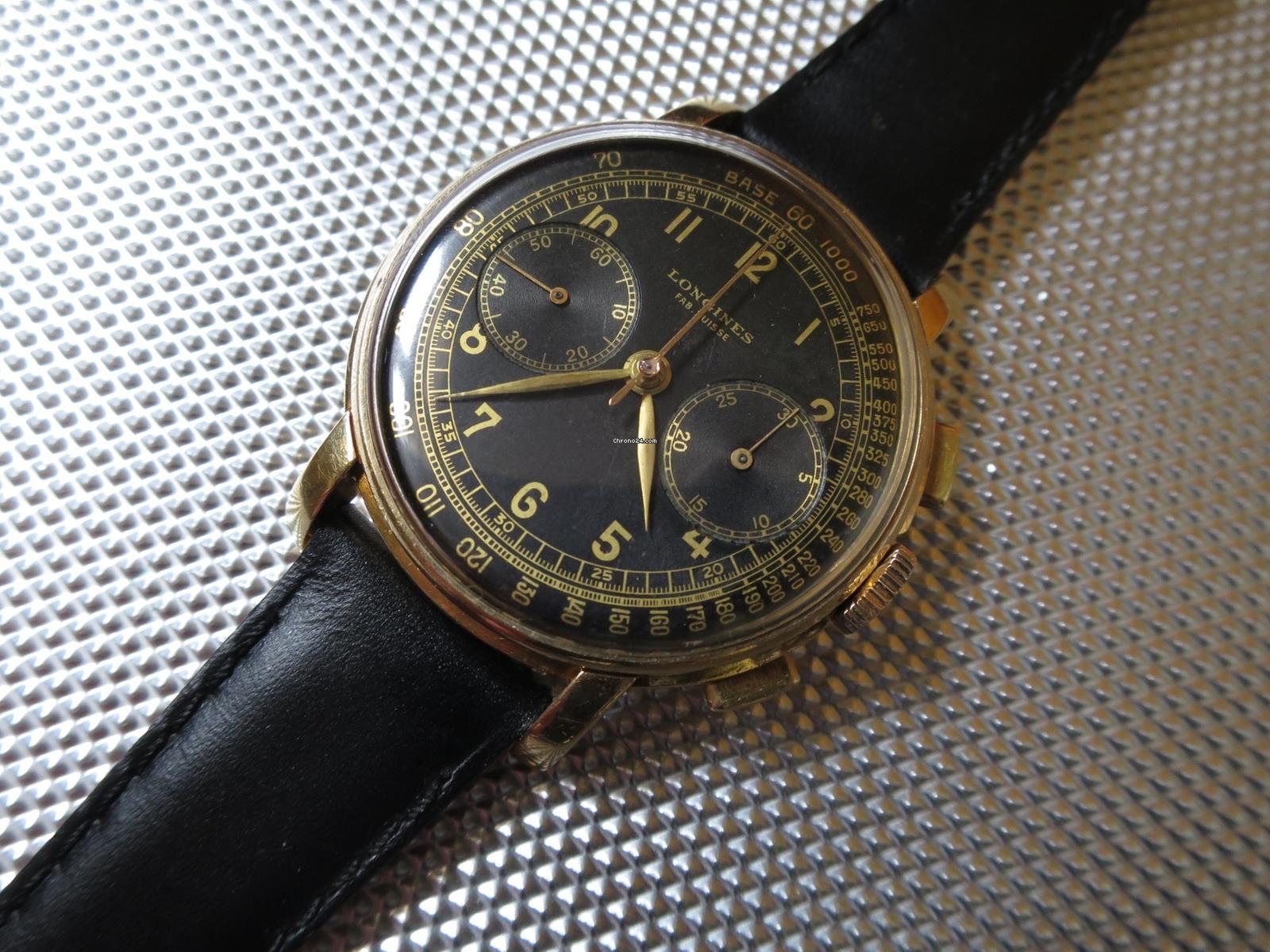

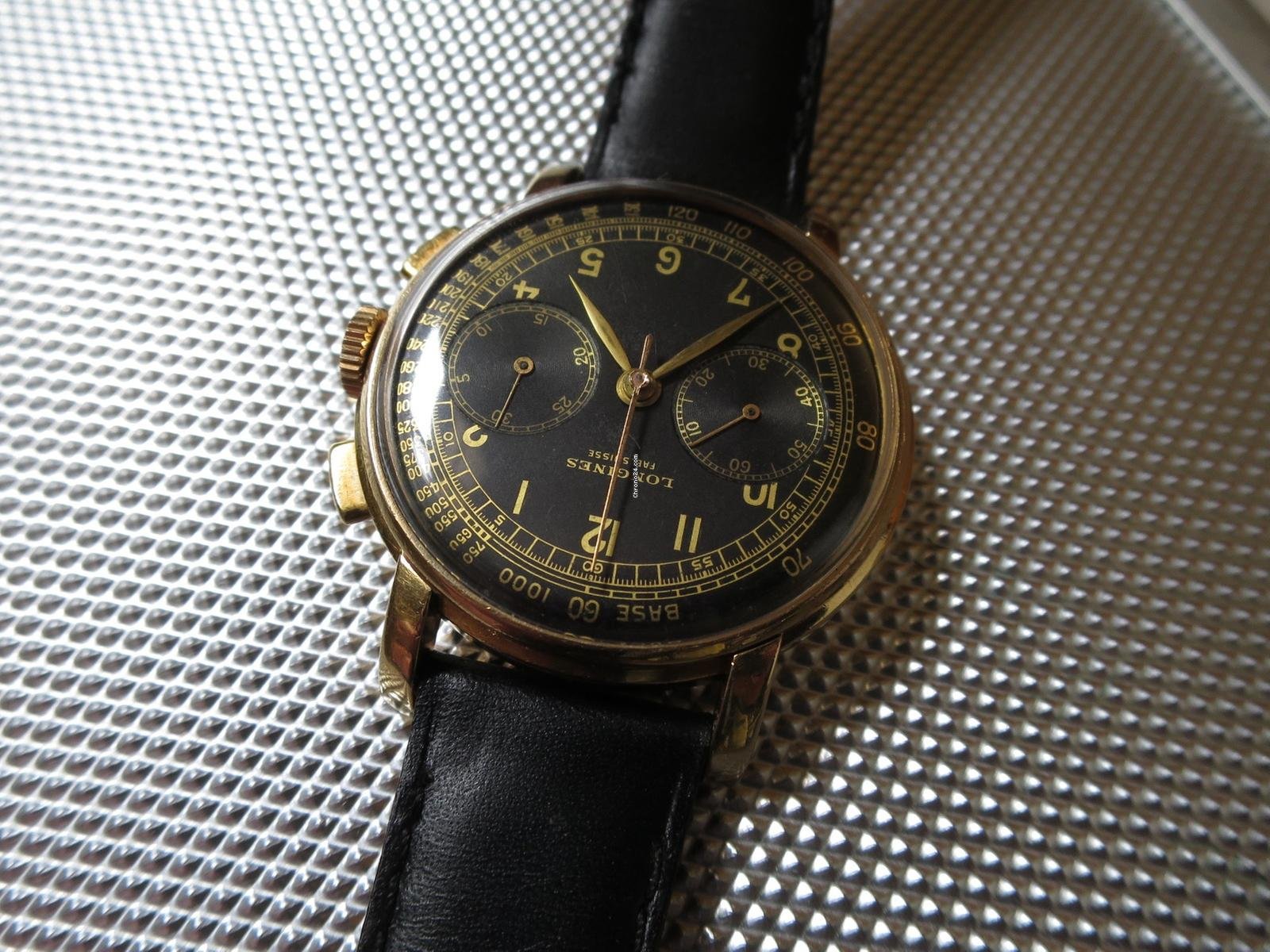

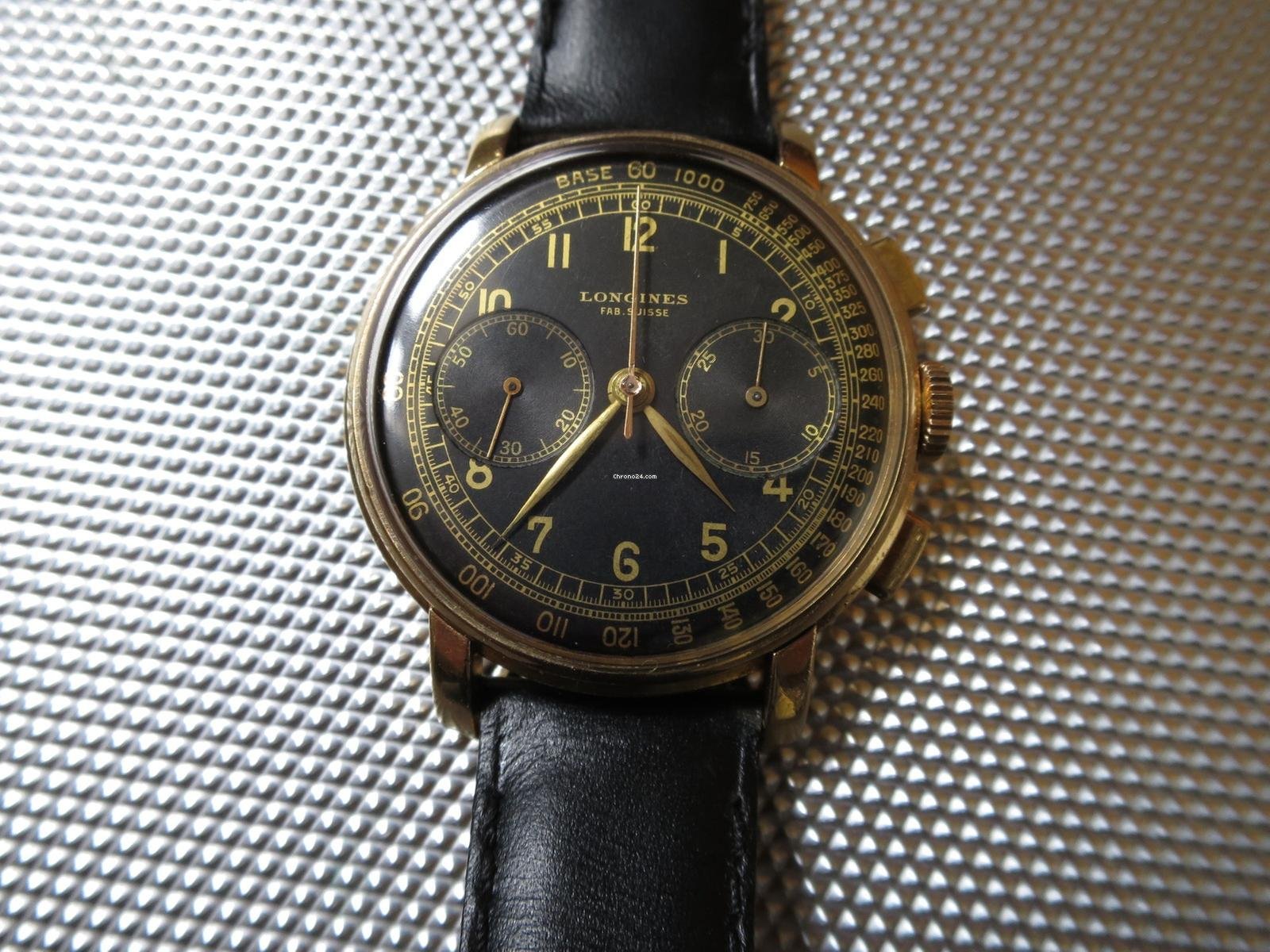

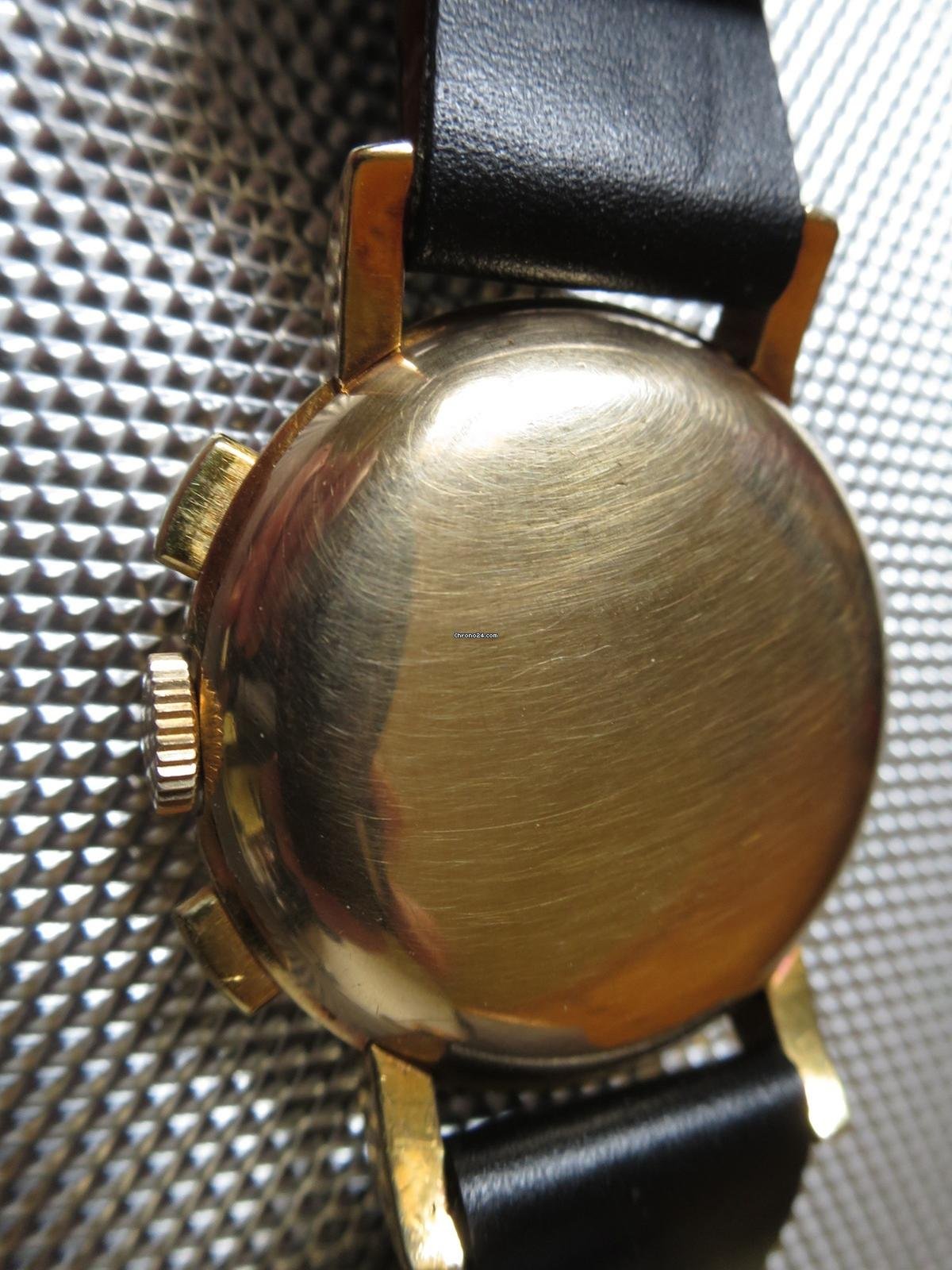

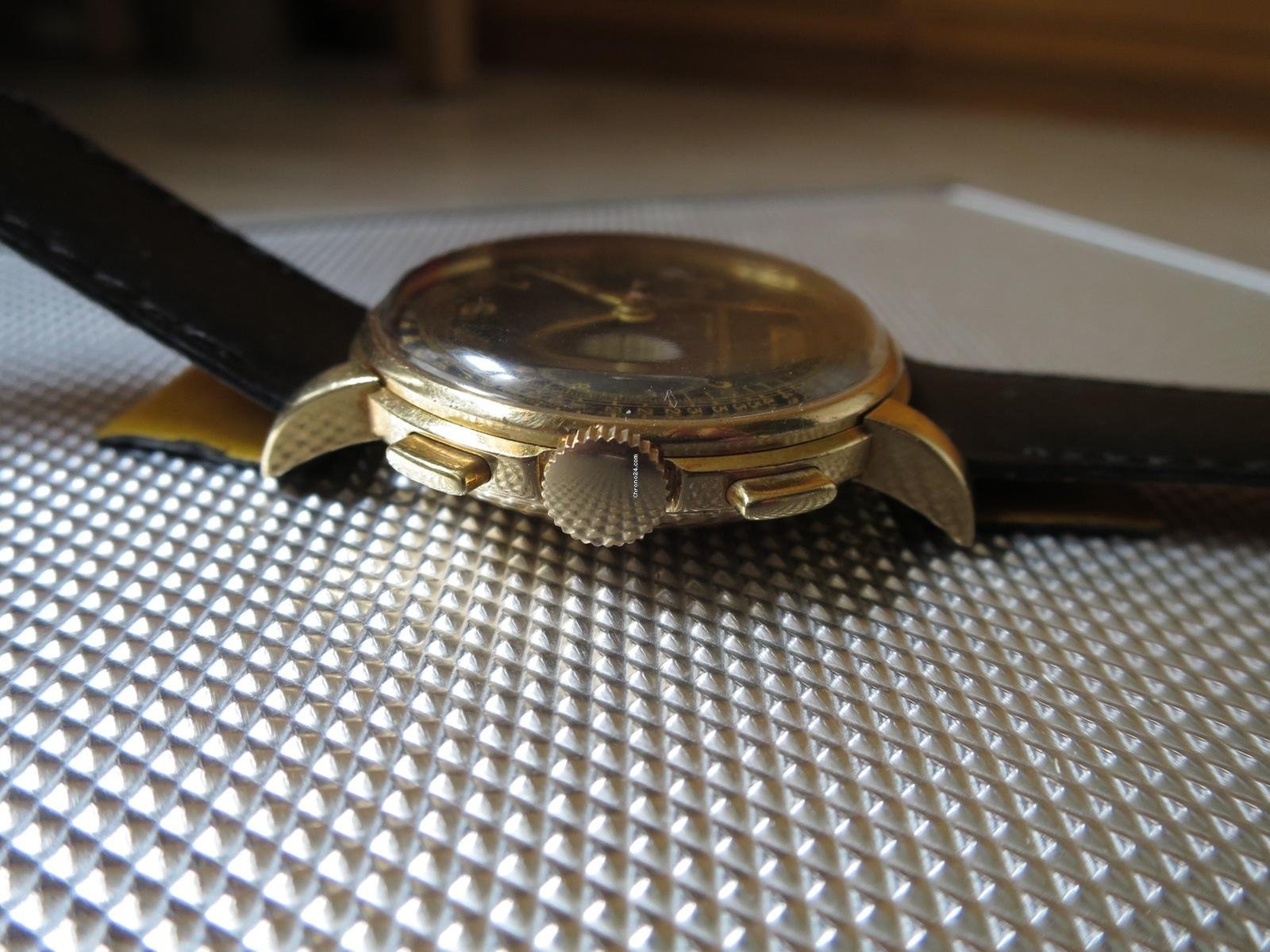

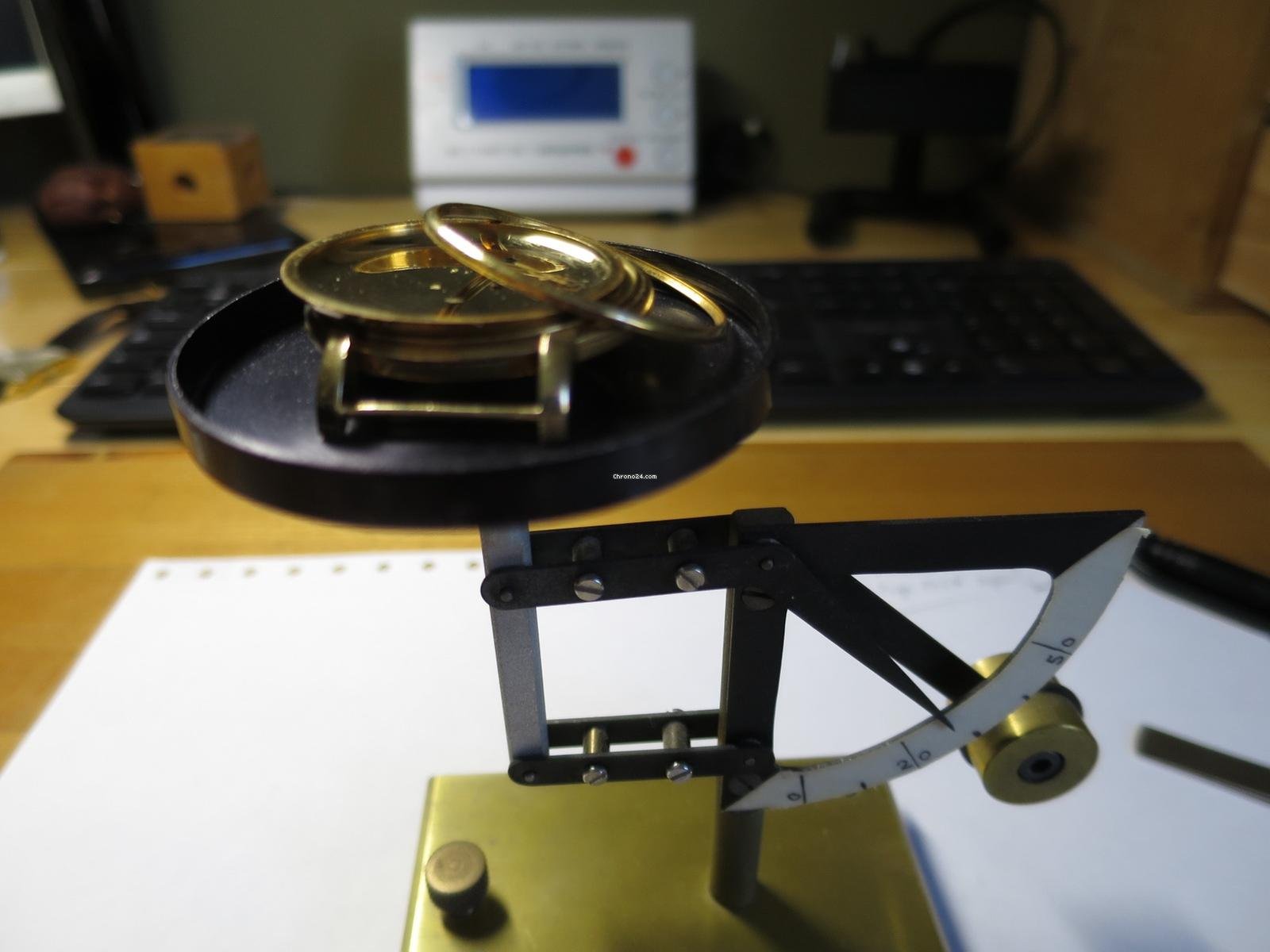

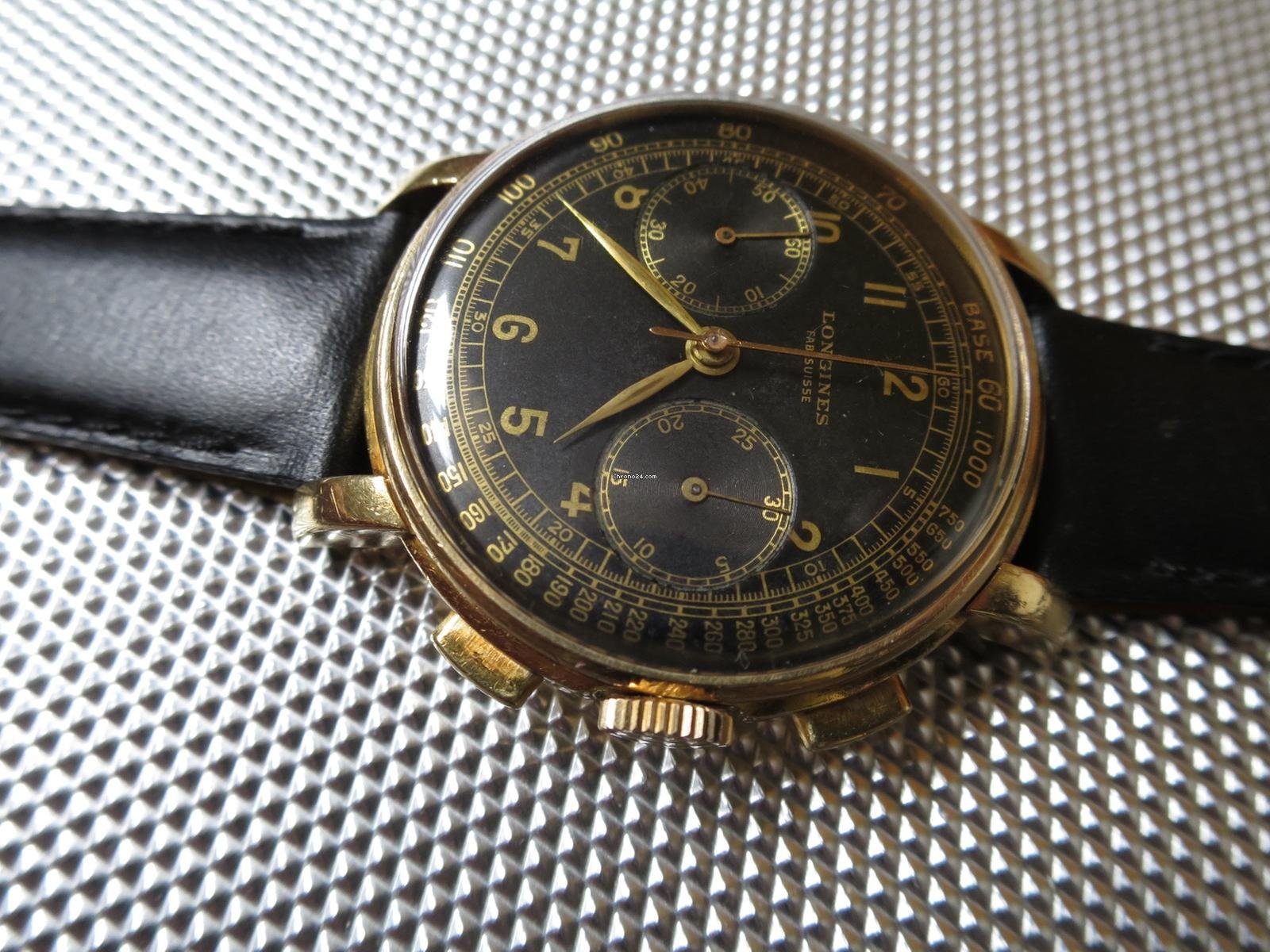

https://www.chrono24.com/longines/chronographe-flyback-13zn-or-18k-1944--id34081695.htm

nice french-cased 13zn, not an expert but looks nice.
several similar references shown here, I would guess that this would not extract as well, as longines would have used another steel case to export to france.

is the movement number within range? 6.73 mil from what I see.

uploading the photos for future reference,
seller wishes to ship within EU.

34081695-q64zco83f6507frtffoqyq2t-Zoom.jpg 34081695-zayueief59vxf5u387ii7mxm-Zoom.jpg 34081695-h03i41l55d98mjukomdv5pcc-Zoom.jpg 34081695-iewf16ndvg7s11s3gfyhgozo-Zoom.jpg 34081695-2v3goxyopefxmpjgms90w5bp-Zoom.jpg 34081695-25xyb06117ro4ywycxrsvds5-Zoom.jpg 34081695-xaqoa5vaenopwtrc96vsg0tp-Zoom.jpg

Pretty!

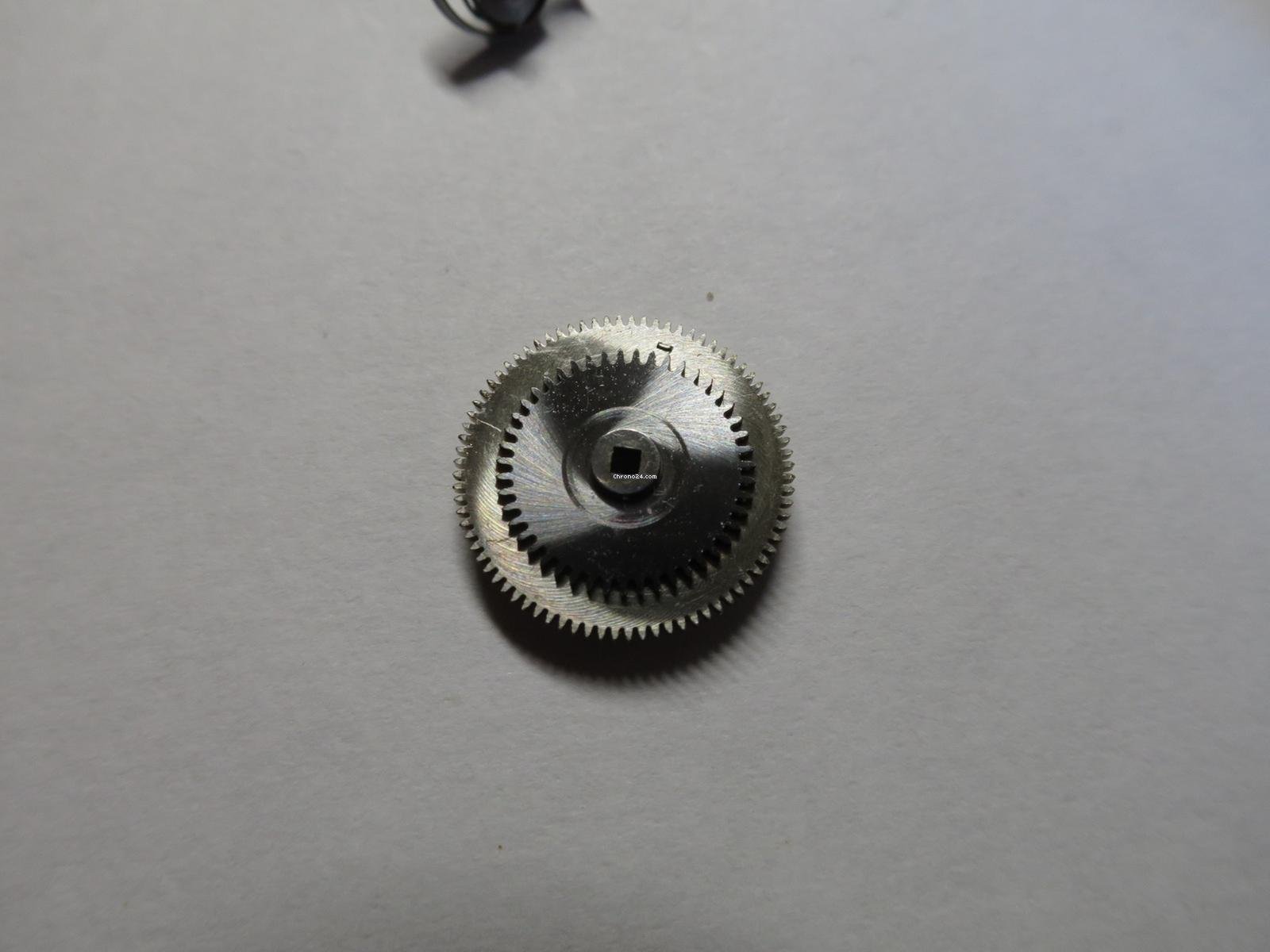

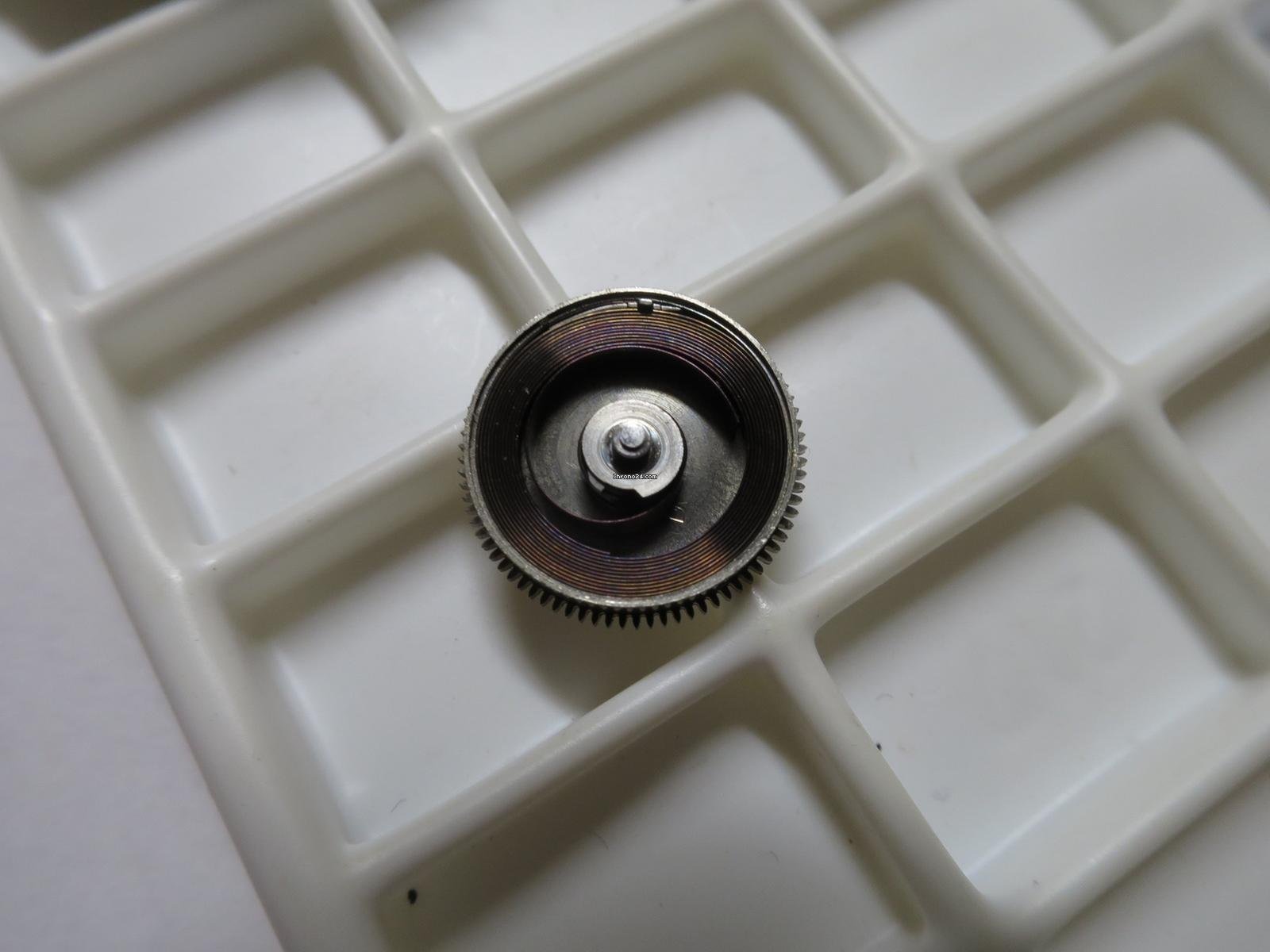

BTW I found the missing part for mine. Of course, it has to me modified to function properly, some tricky work involved...

DirtyDozen12
Posts
2,755
Likes
4,810
S.H. S.H.
BTW I found the missing part for mine. Of course, it has to me modified to function properly, some tricky work involved...
Thanks for the update.

NoTime66
Posts
5
Likes
16

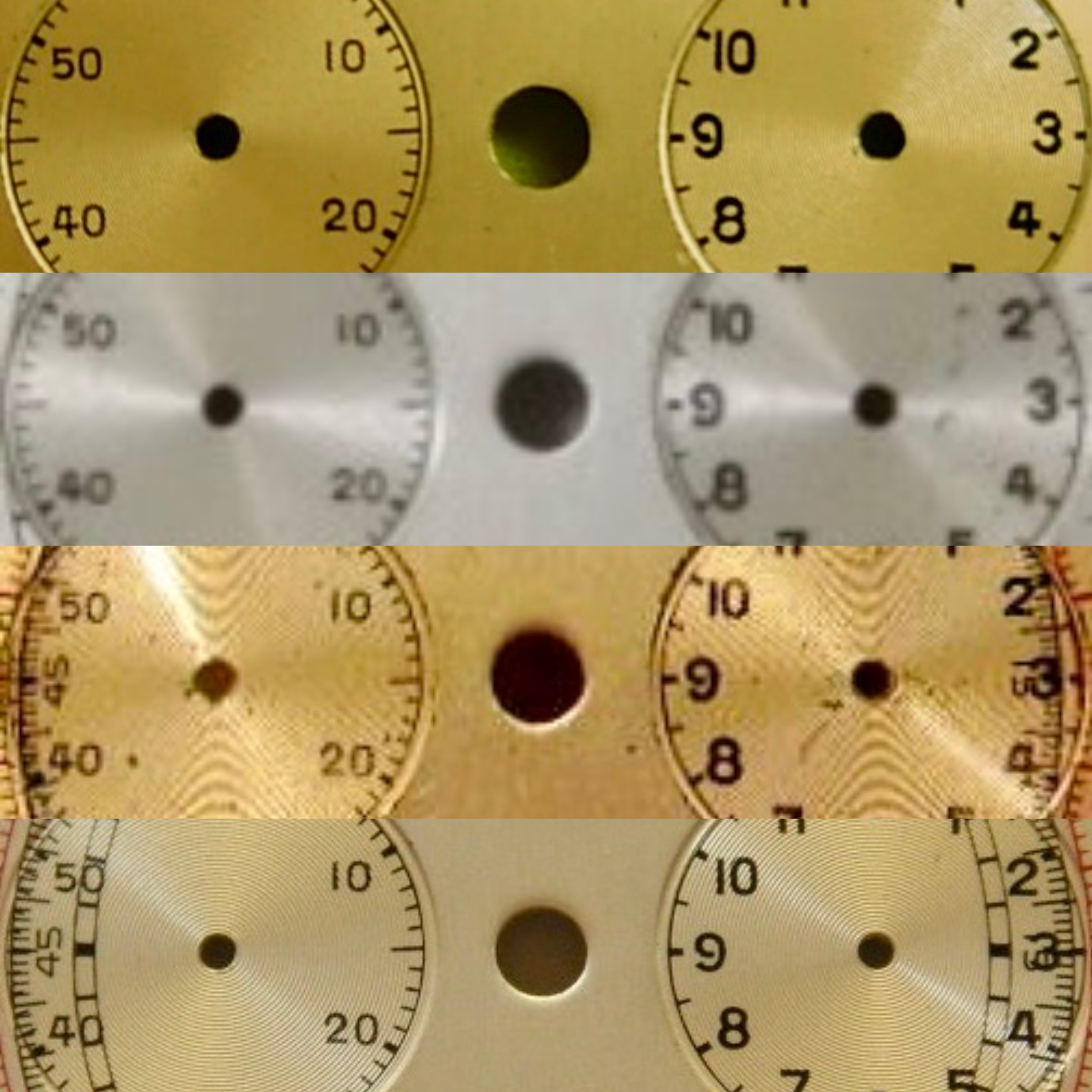

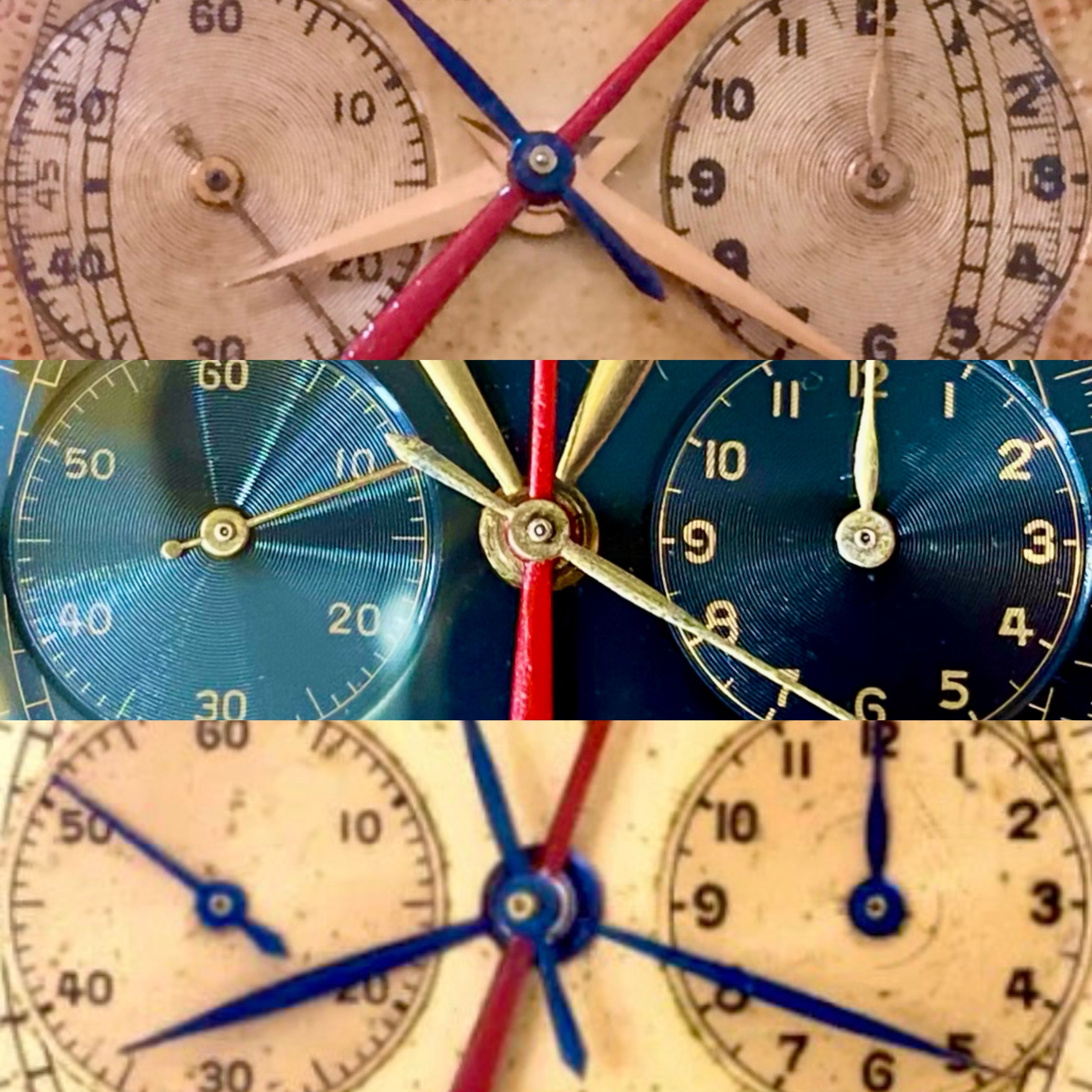

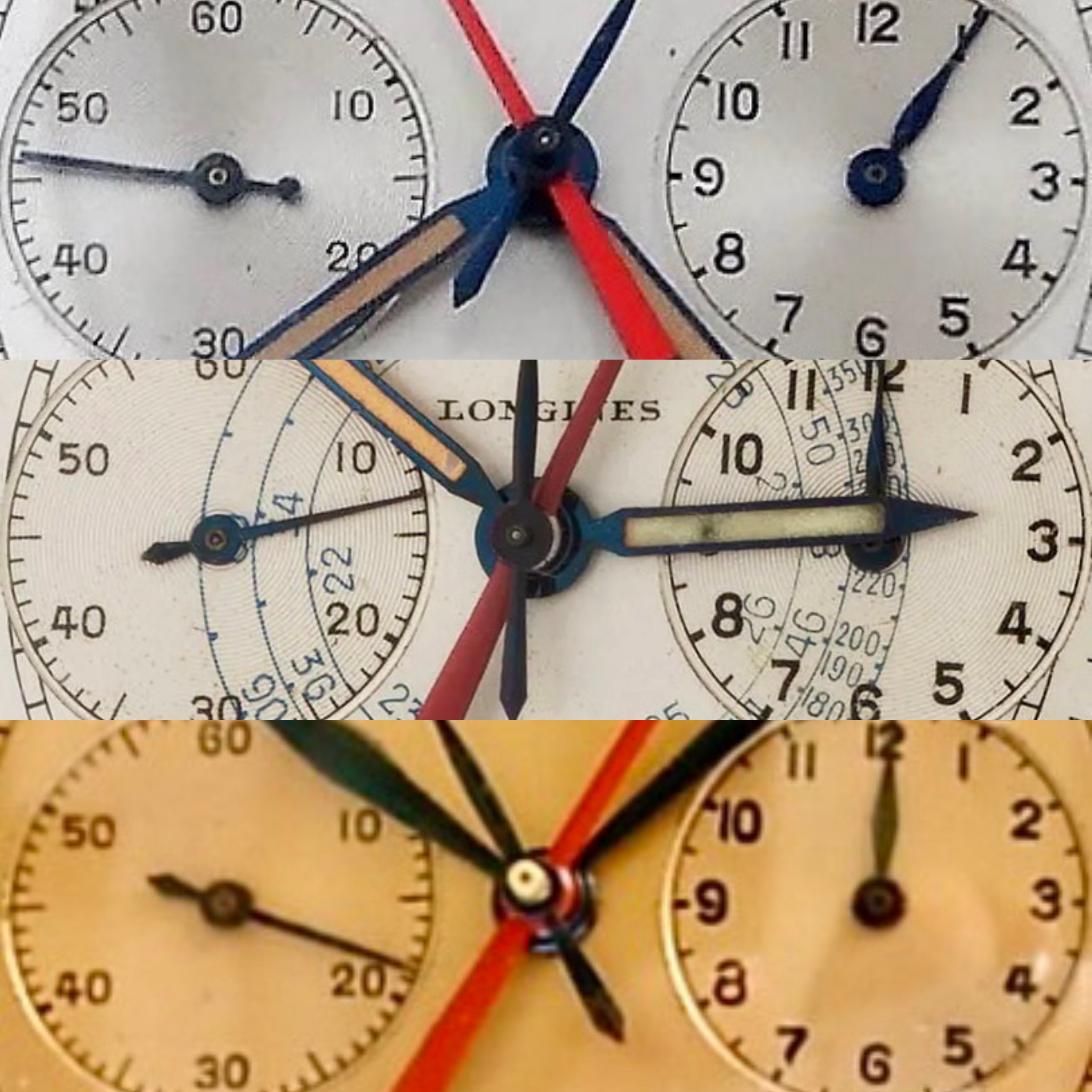

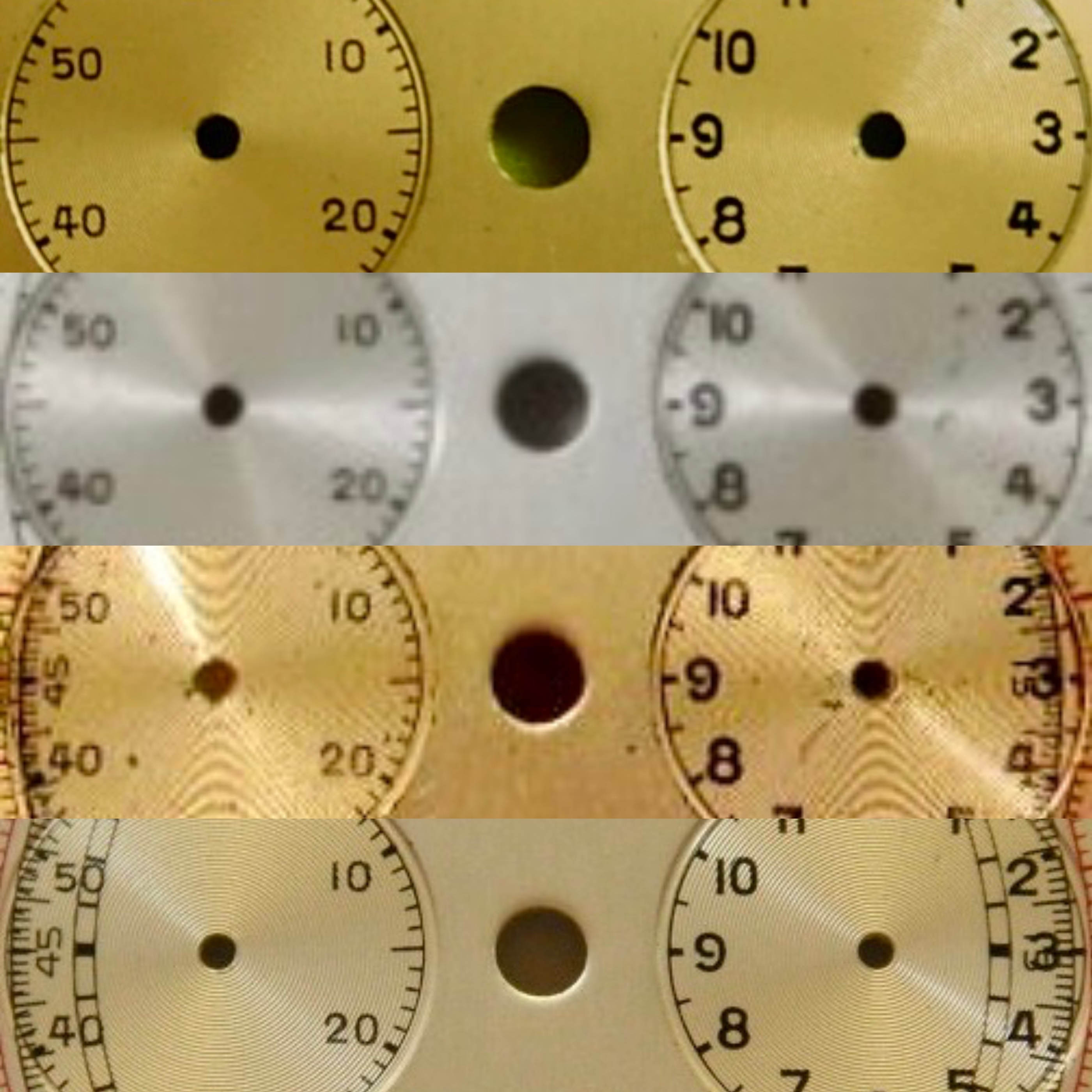

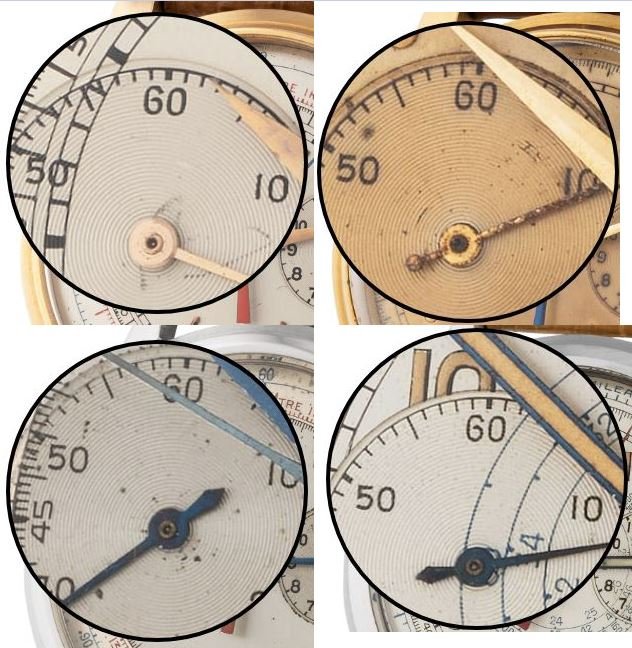

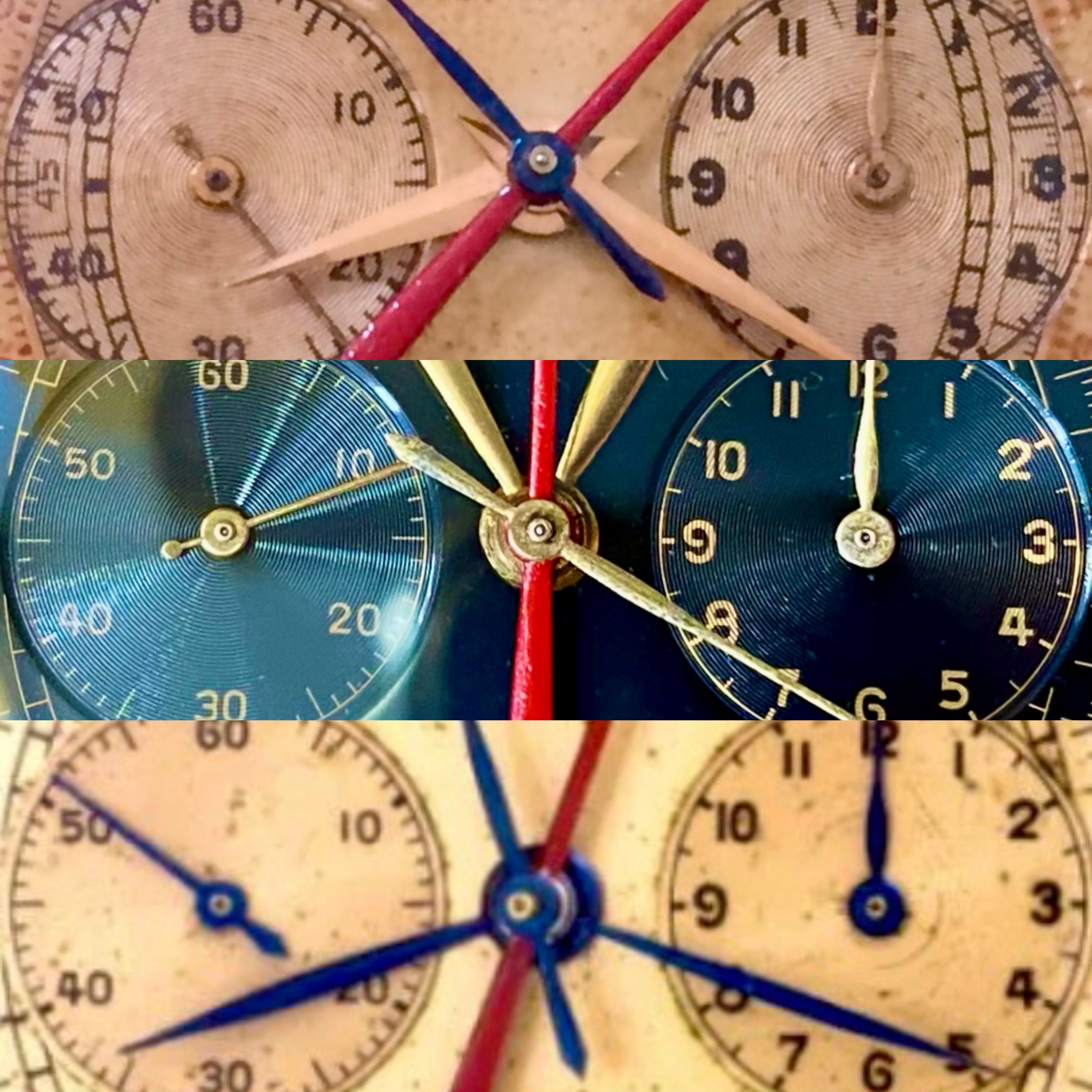

Here are some photo collages, well (or badly😅) focused on sub-dials (all original), which could help to evaluate the originality of a "13ZN-12 sommatore" dial (ref.5161 or 5966).💪🤞

hands4.jpg Immagine 5.jpeg Immagine 6.jpeg

DirtyDozen12
Posts
2,755
Likes
4,810
NoTime66 NoTime66
Here are some photo collages, well (or badly😅) focused on sub-dials (all original), which could help to evaluate the originality of a "13ZN-12 sommatore" dial (ref.5161 or 5966).💪🤞

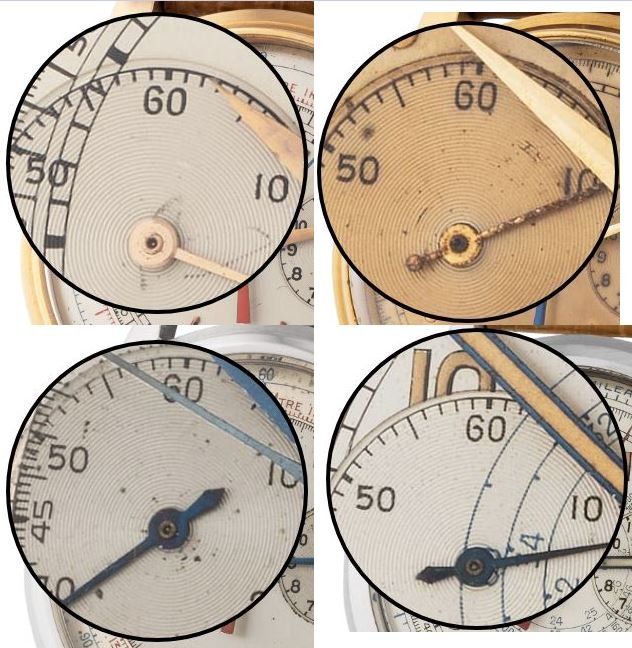

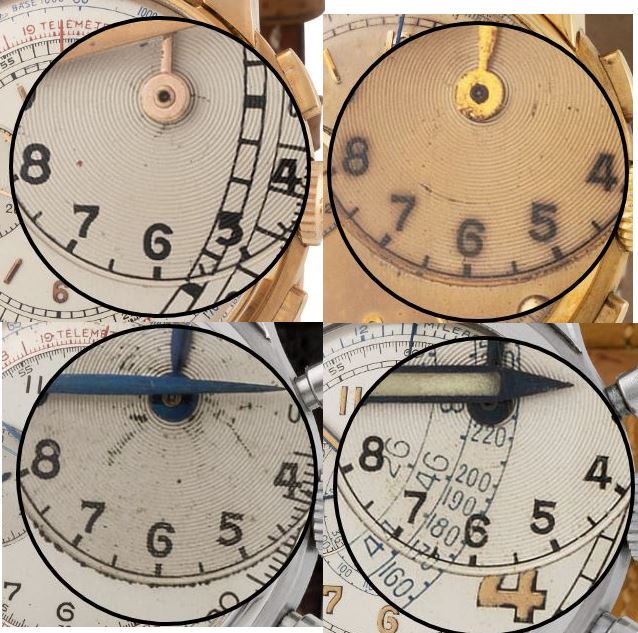

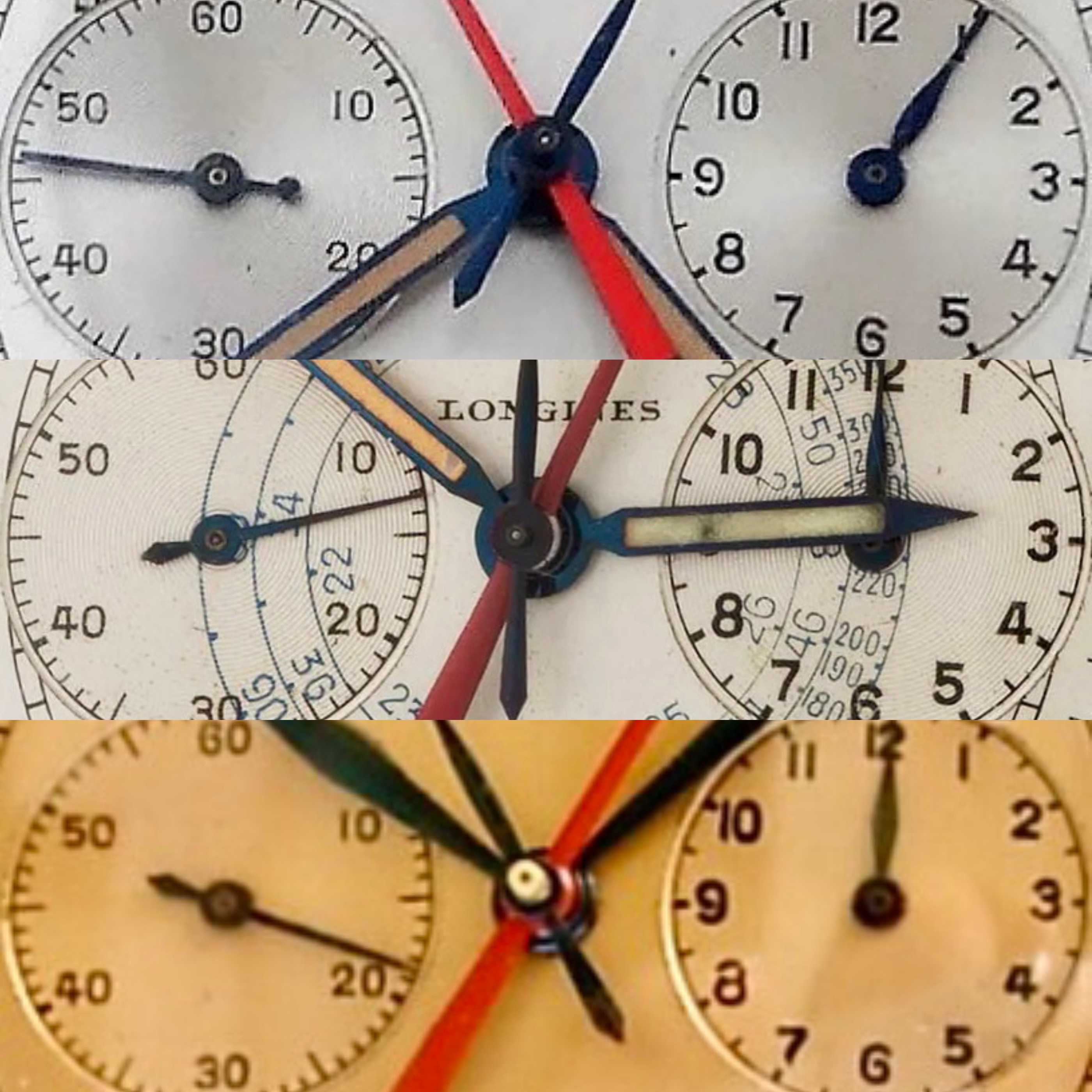

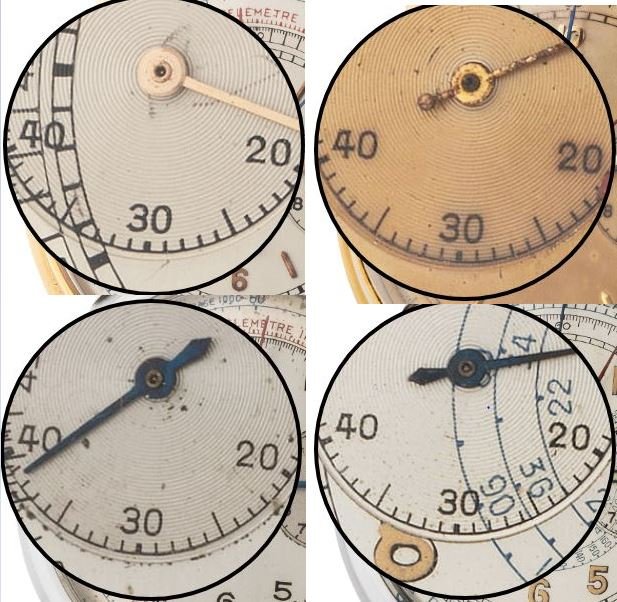

Thank you for sharing these. I do not recall seeing an example with a black dial before. Do you have more information about this example? I made some similar collages a few years ago (all photos from a Monaco Legend Group auction). I have added them below. Hopefully, all original!
seconds counter top.JPG seconds counter bottom.JPG hour counter.JPG

NoTime66
Posts
5
Likes
16
I think very few 5161s were made with a black dial...In my lifetime, I’ ve only seen one (even held in my hand), in Madrid many years ago.
I am asking the owner if I can post a picture, and if he he allows, I will.👍
