Don't have a lot of free wall space did not need another clock. But saw this US Navy Chelsea Zig Zag clock. I don't have one guess now I do. Bought this off eBay today. How they worked.
OPERATION: A cam is mounted on the back of the movement that sends
an electrical signal to the terminals which are wired to a bell or buzzer that is rung at a predetermined interval.
At the sound of the bell, the conning officer commands the helmsman to alter course, and maybe speed. This procedure makes
it difficult for enemy submarines to plot accurate torpedo firing solutions.

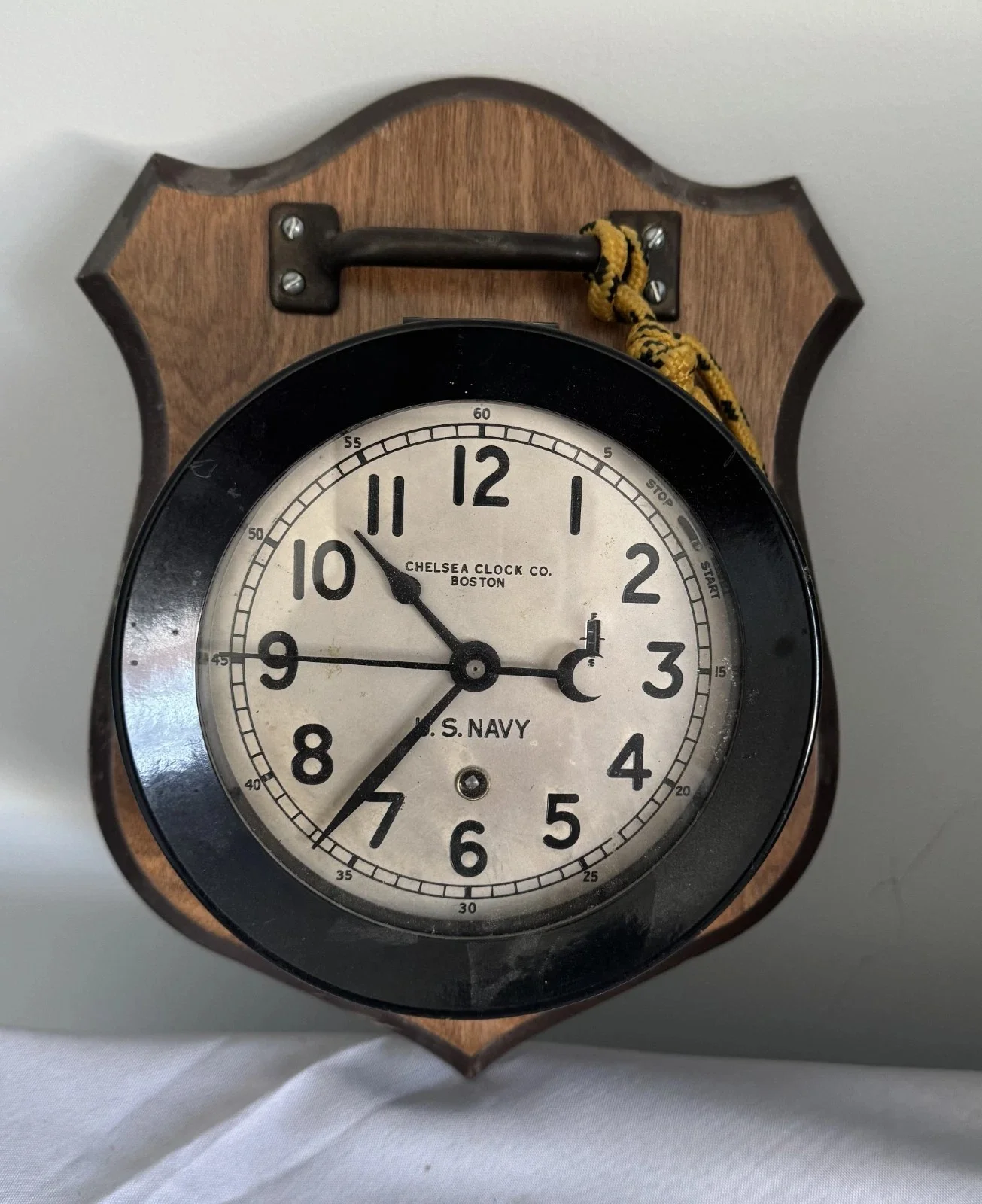

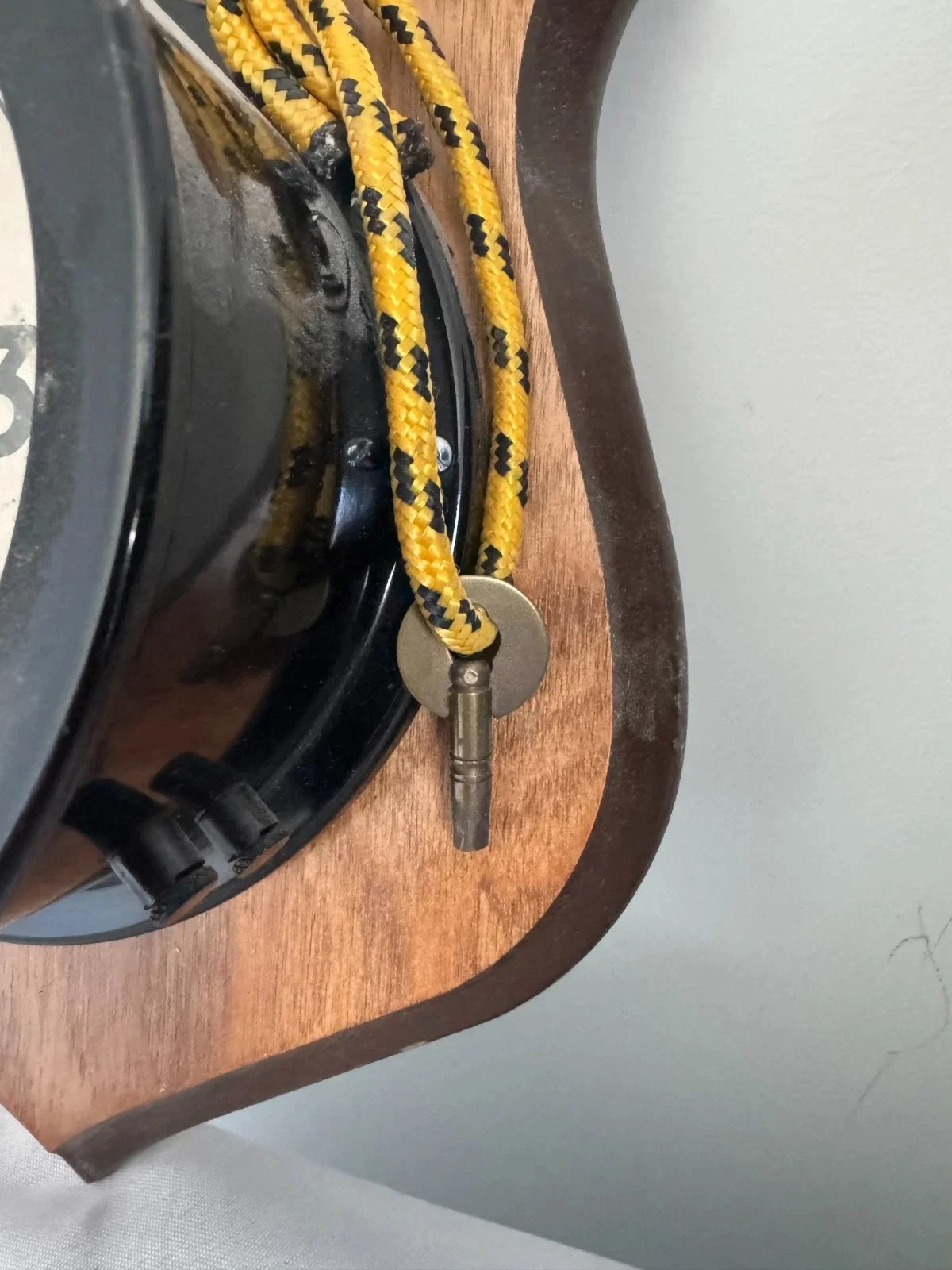

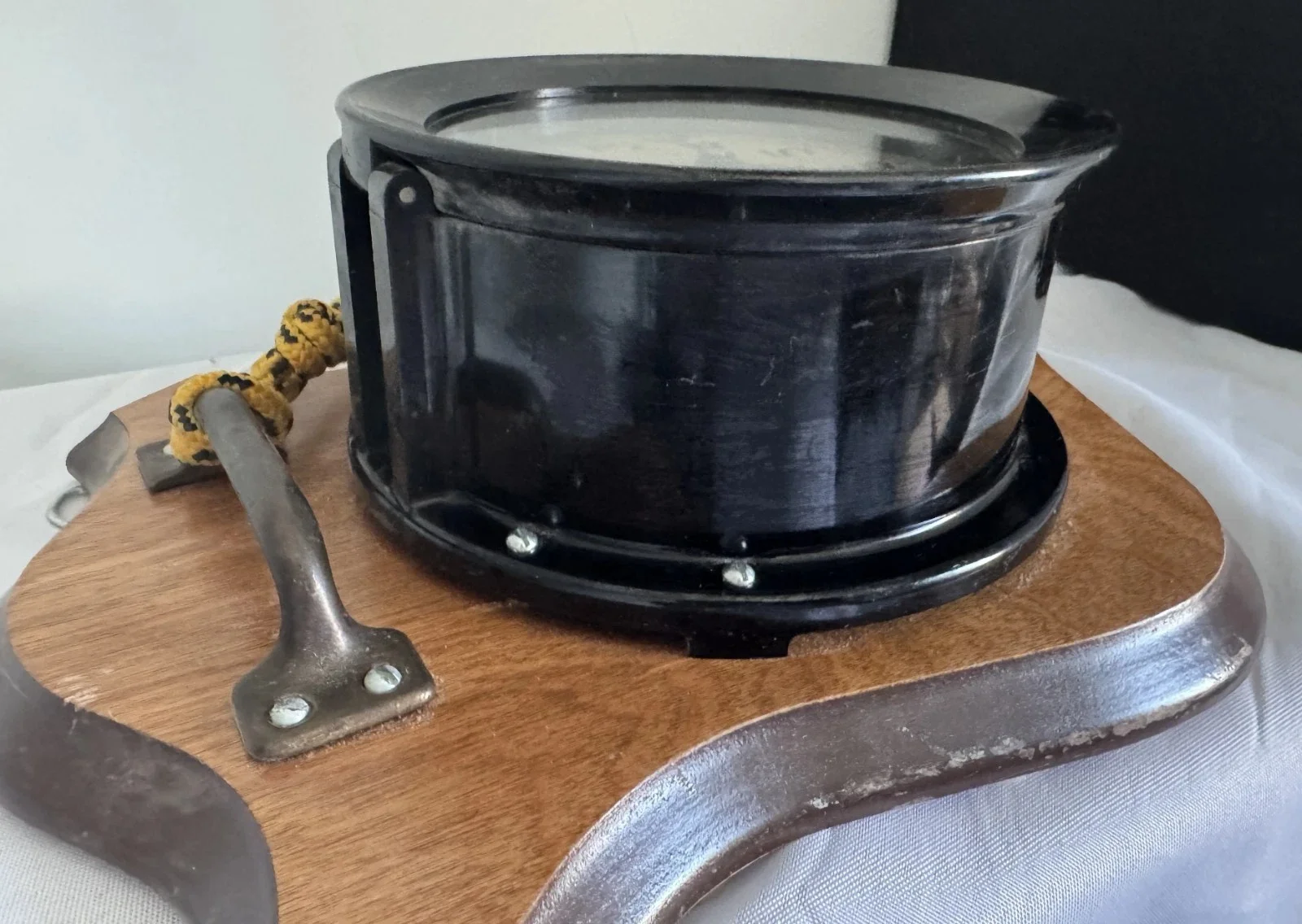

Hope she works took a gamble on it nothing in the add that said it worked. You can see the stop and start switch on dial and the two wire connectors on the side of case. He had no photos of movement it has an odd ball movement different than other Chelsea movements. They also had brass cases but mine Bakelite. Got a great price I think only if it runs. Sene a message to seller he never got back to me yet.


Posts
1,190
Likes
6,073
I found a YouTube video were a guy hooked up a light that would come on when the clock sent to signal to turn. If the switch in the clock still works might set something up. The light would come on for 15 seconds and shut off. Would be a cool way to show how this works.

Posts
1,190
Likes
6,073
received it. A shot of the movement. The hacking works and the switch connected to the movement works used a voltage meter to test it every minute the switch will work for 15 seconds and shut off. The balance staff is broken it only runs flat but will stop when you flip it up to put on the wall. So had to send it to a clockmaker out of state to repair and service that will cost more than the clock itself the only part of our hobby that sucks we sometimes pay more for a service than the timepiece we own.


Posts
18,851
Likes
39,205

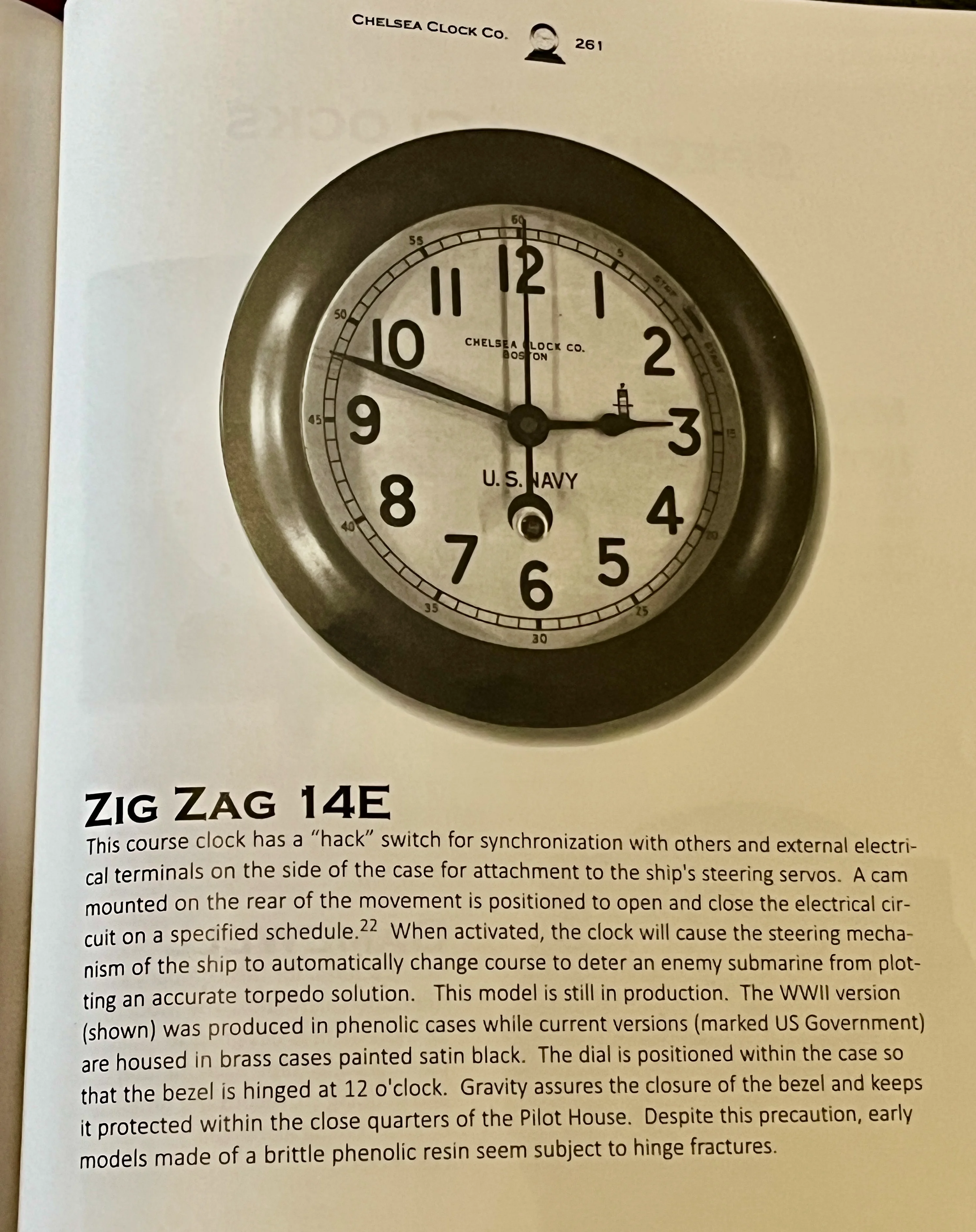

"When activated, the clock will cause the steering mechanism of the ship to automatically change course"

They forgot to add "Operate only when clear of harbour and clear of other vessels"

😉

Posts
6,852
Likes
10,538
They forgot to add "Operate only when clear of harbour and clear of other vessels"

I like the idea of a convoy of merchant ships and their naval escorts all having their zigzag clocks in sync.
They’d be like a very large shoal of fish zigzagging their way across the high seas.
