Vintage Tissot watch guide

hmmmcamu · Sep 5, 2017

I am starting a post where people can hopefully share INFORMATION, REQUEST FOR INFORMATION. and for SOURCING PARTS and or Knowledge for vintage Tissot watches the cousin of Omega ... hopefully people who might need advise, parts etc etc ... can find what they are looking for .... via other people on this page

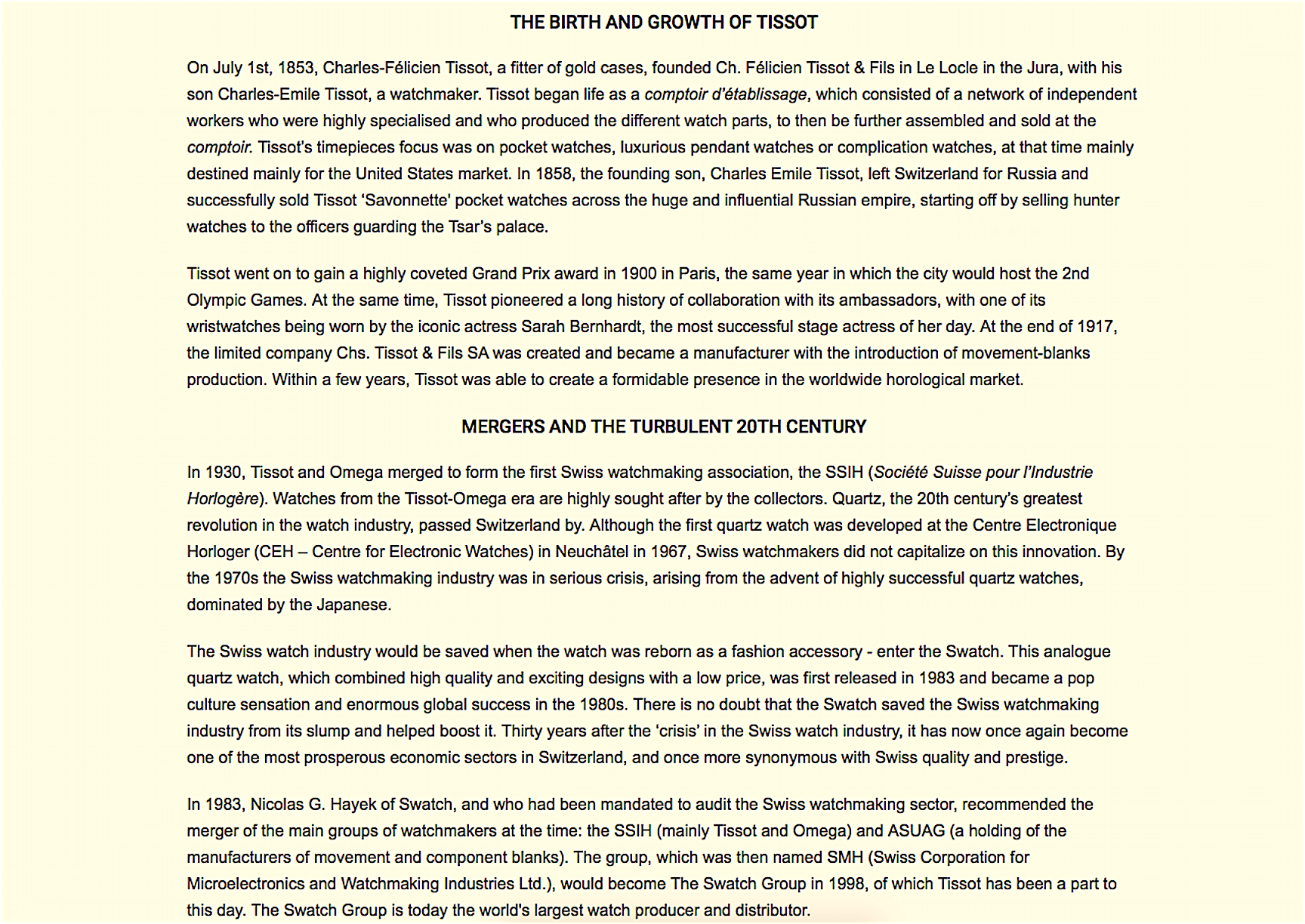

Tissot merged with Omega back in 1930. Lemania, the movement maker joined the group 2 years later and became the chronograph movement maker for the brands. Having a captive chronograph maker enabled both Omega and Tissot to become official timing partners for many events such as the Olympics, Formula 1 and other sporting events. Tissot and Omega used a lot of similar or even same movements over the years.

Vitezi · Sep 5, 2017

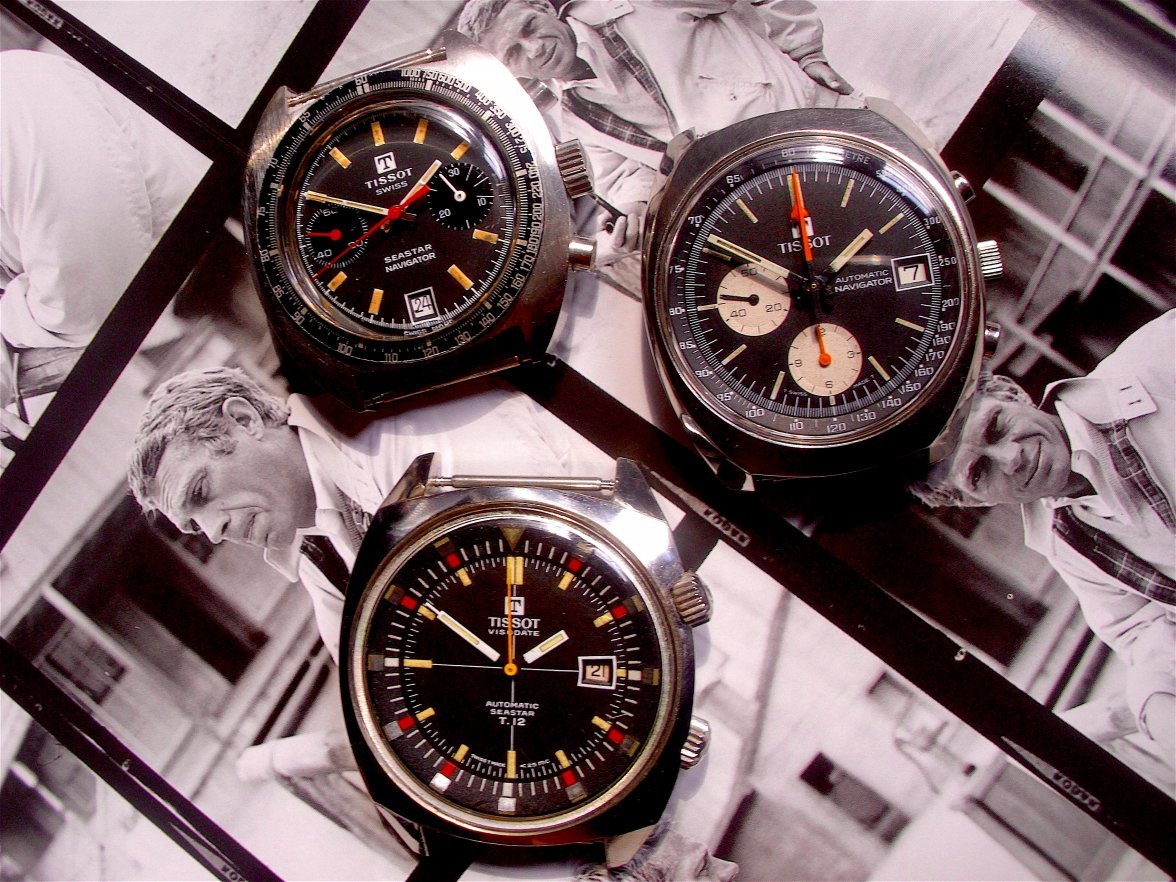

Nice trio! 👍

hmmmcamu · Sep 5, 2017

thanks i would love to do a resto project for the 2 register chronograph lemania 1341 ... a dial and a complete set of hands would be great ... lets see if someone with parts will post here ... and hopefully in the future more people will use this thread for that

Vitezi · Sep 5, 2017

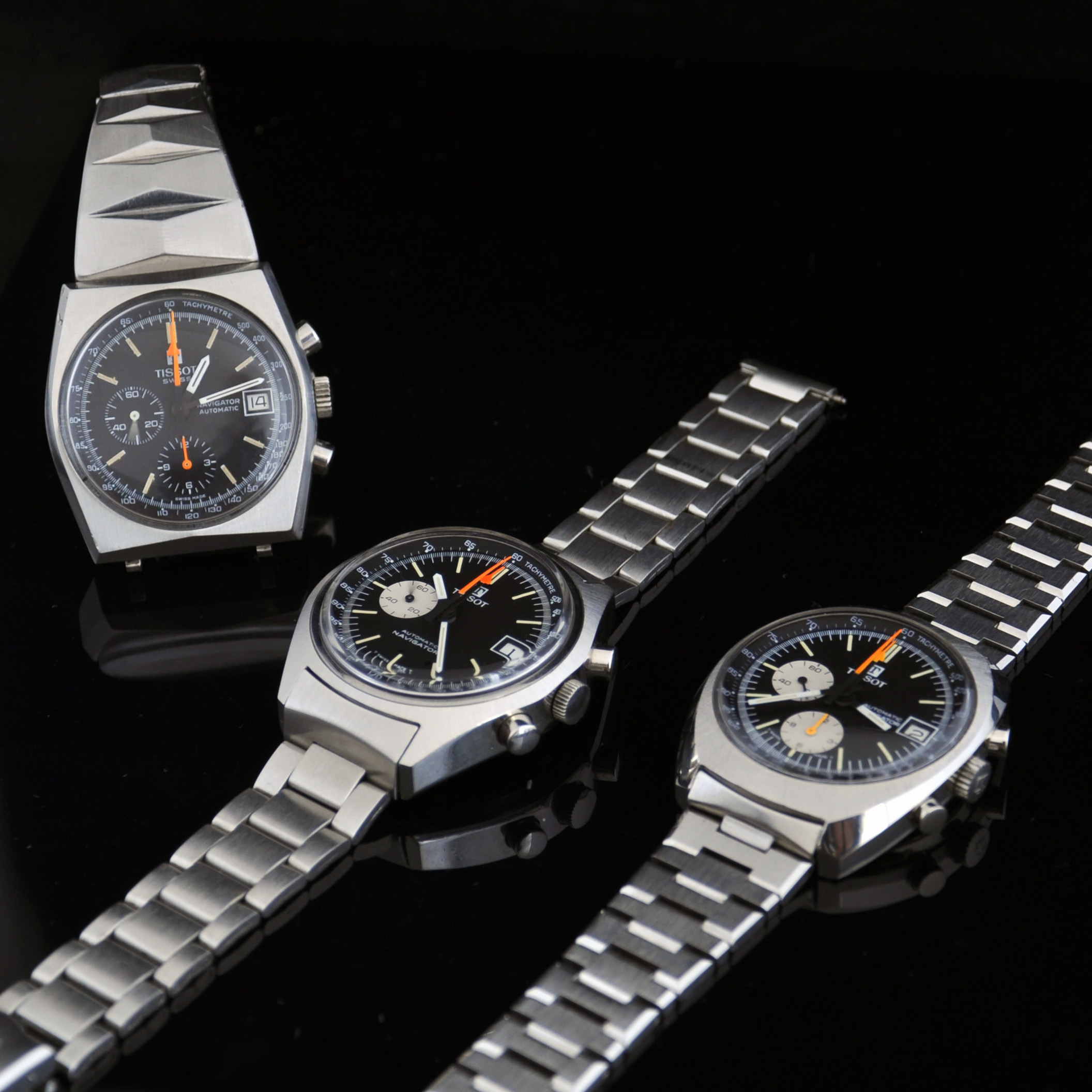

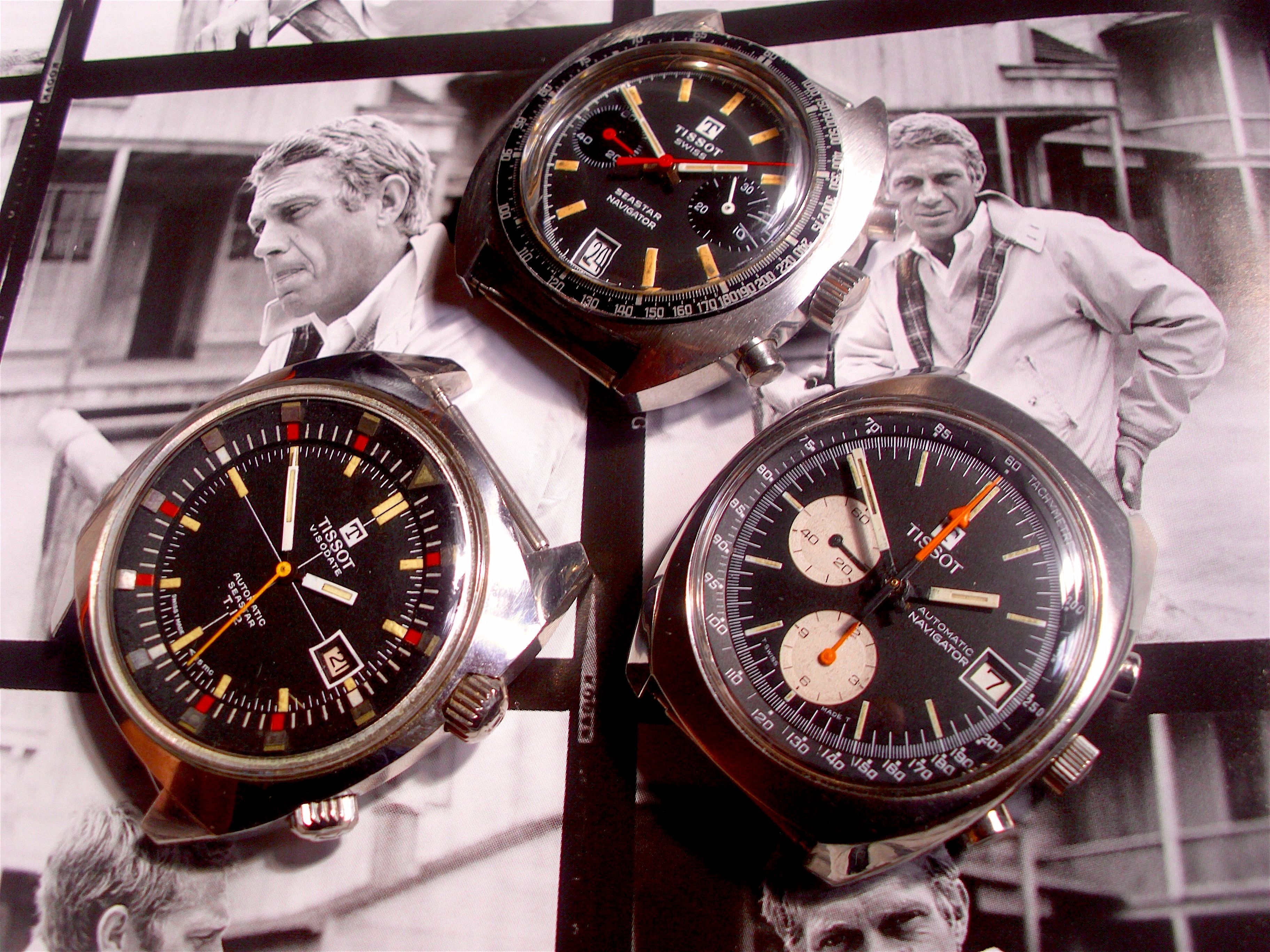

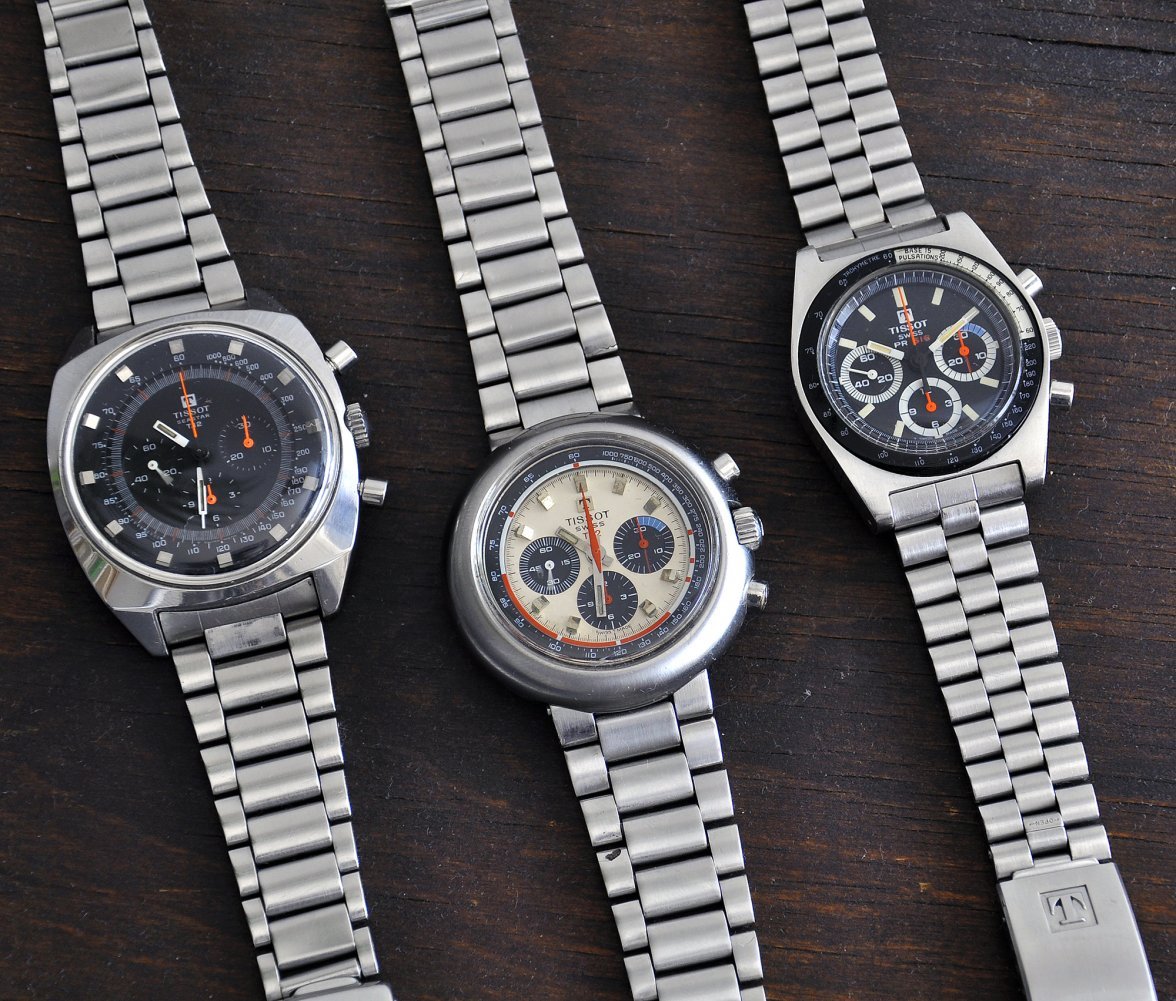

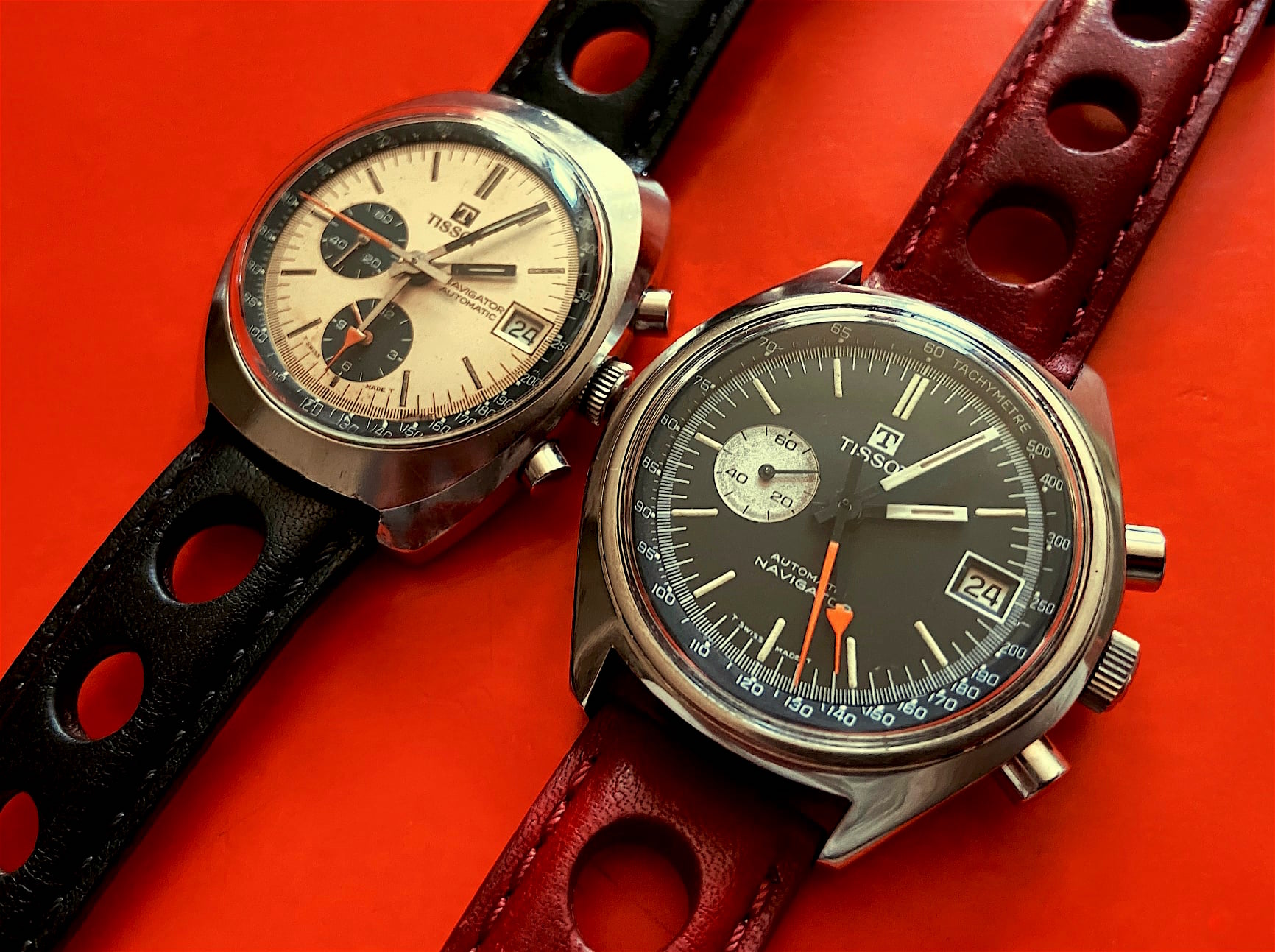

You're on your way to having one of each of these:

A nice family photo and a worthy goal I should think!

Shailor · Sep 6, 2017

In the late 60's, a friend of mine couldn't decide between a Tissot and a Speedmaster. The jeweler let him try the Tissot for the weekend. My friend went with the Speedmaster which he still has. It's mint.

hmmmcamu · Sep 6, 2017

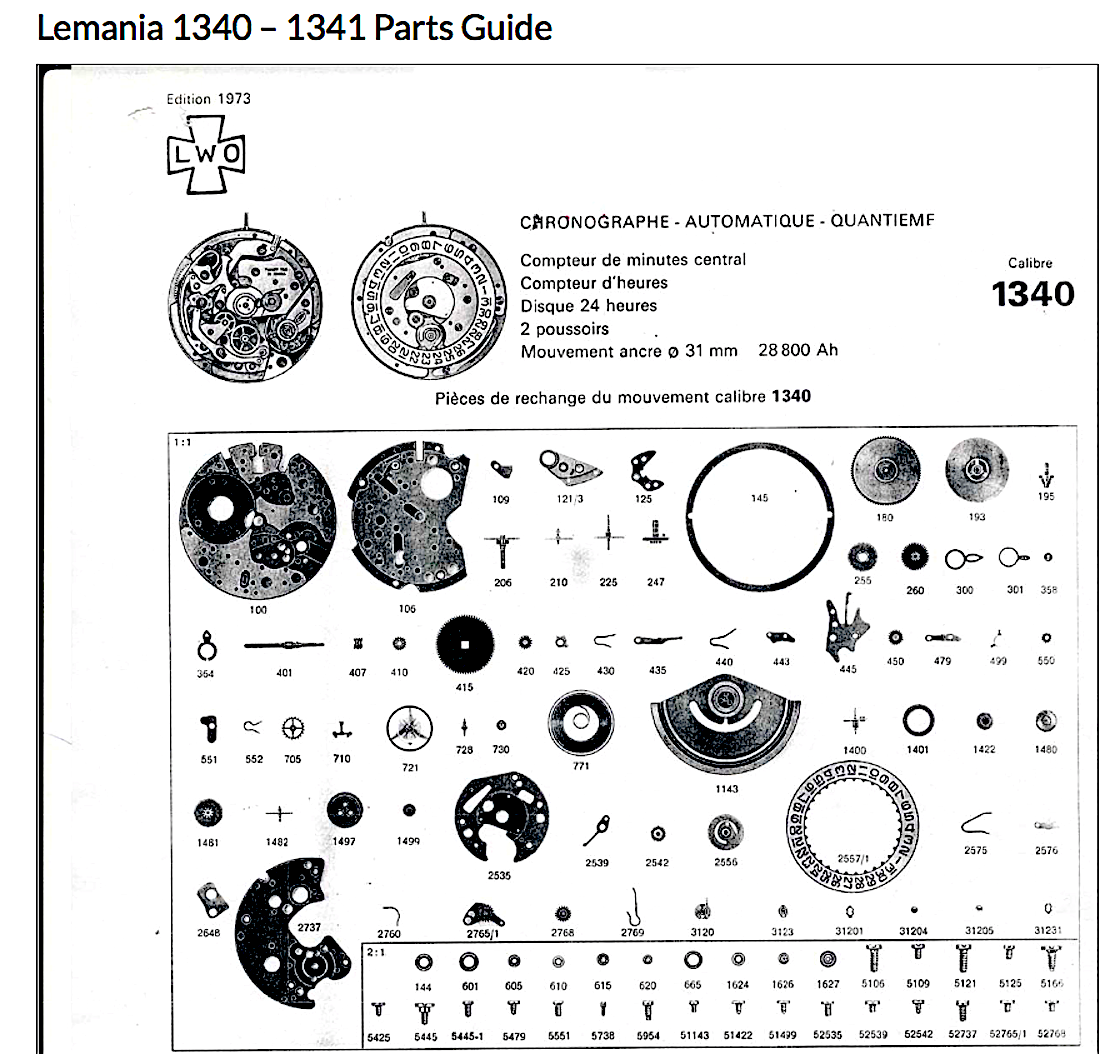

Screen Shot 2017-09-06 at 2.54.28 PM.png

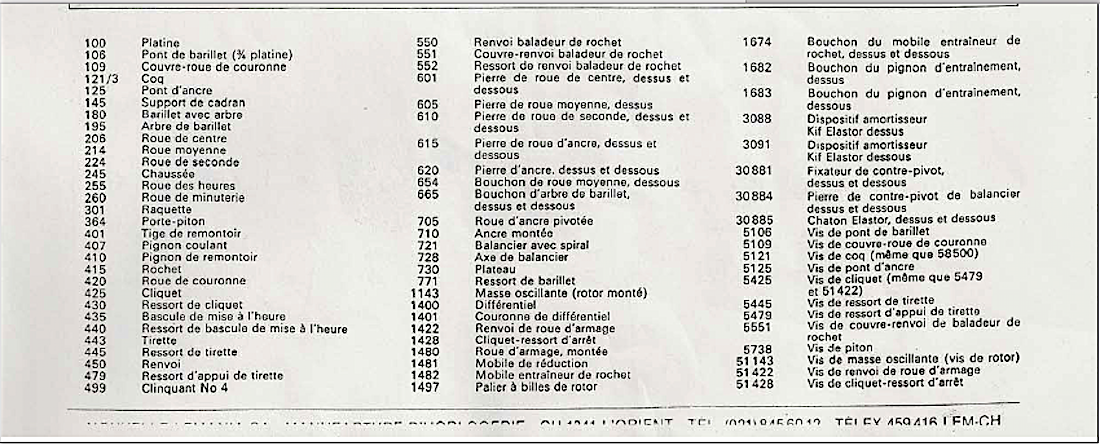

Screen Shot 2017-09-06 at 2.57.57 PM.png

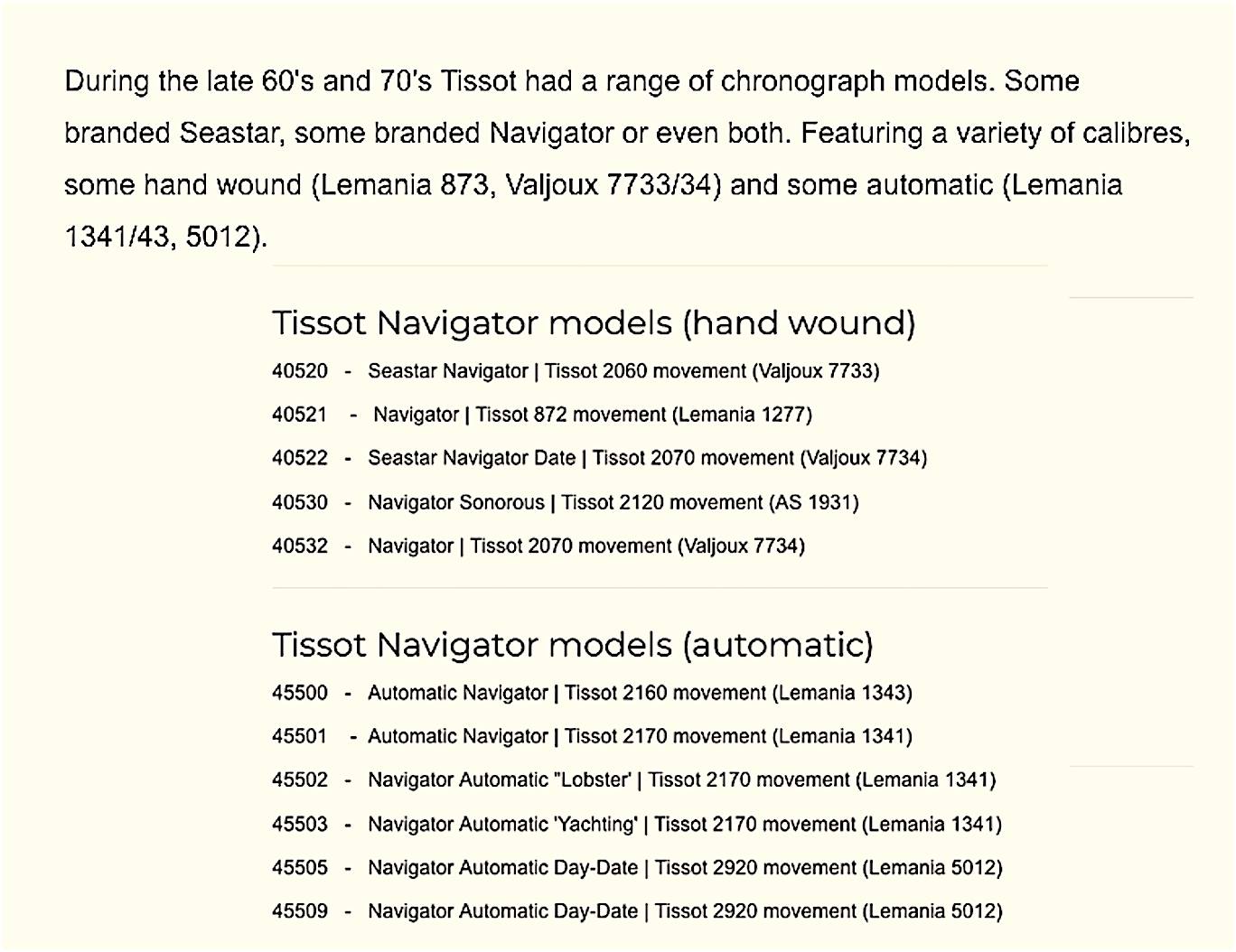

INFORMATION / Reference ...

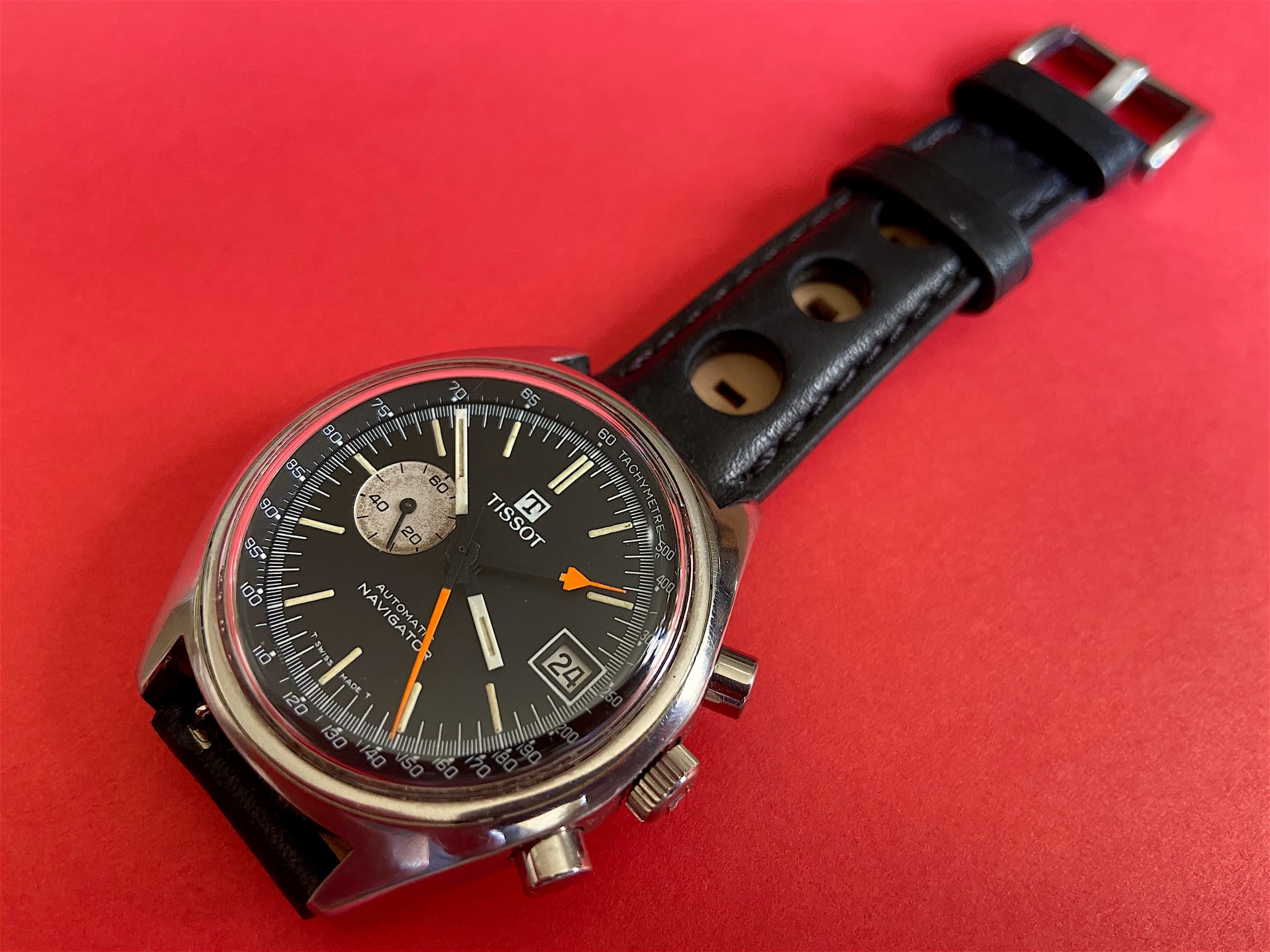

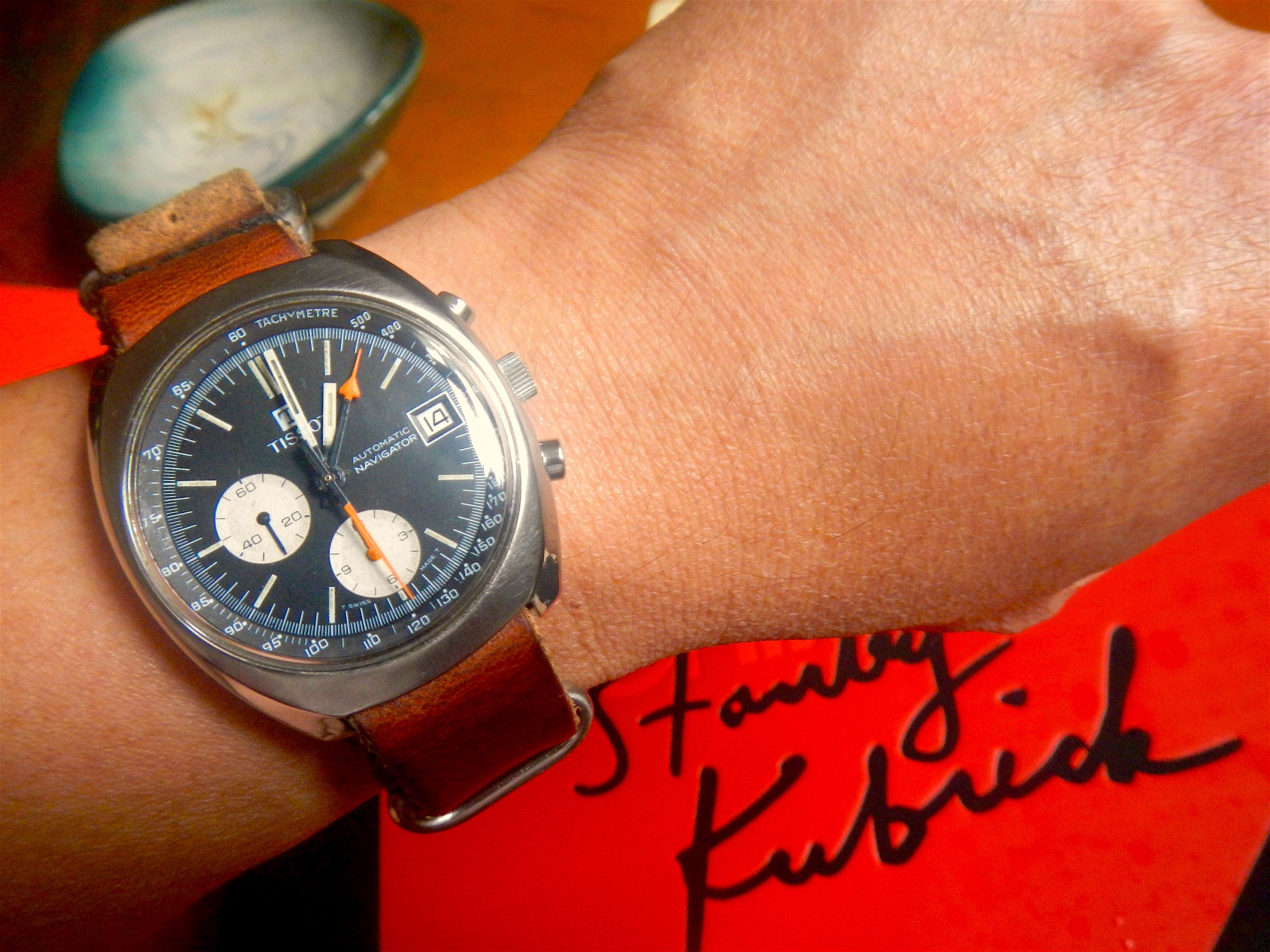

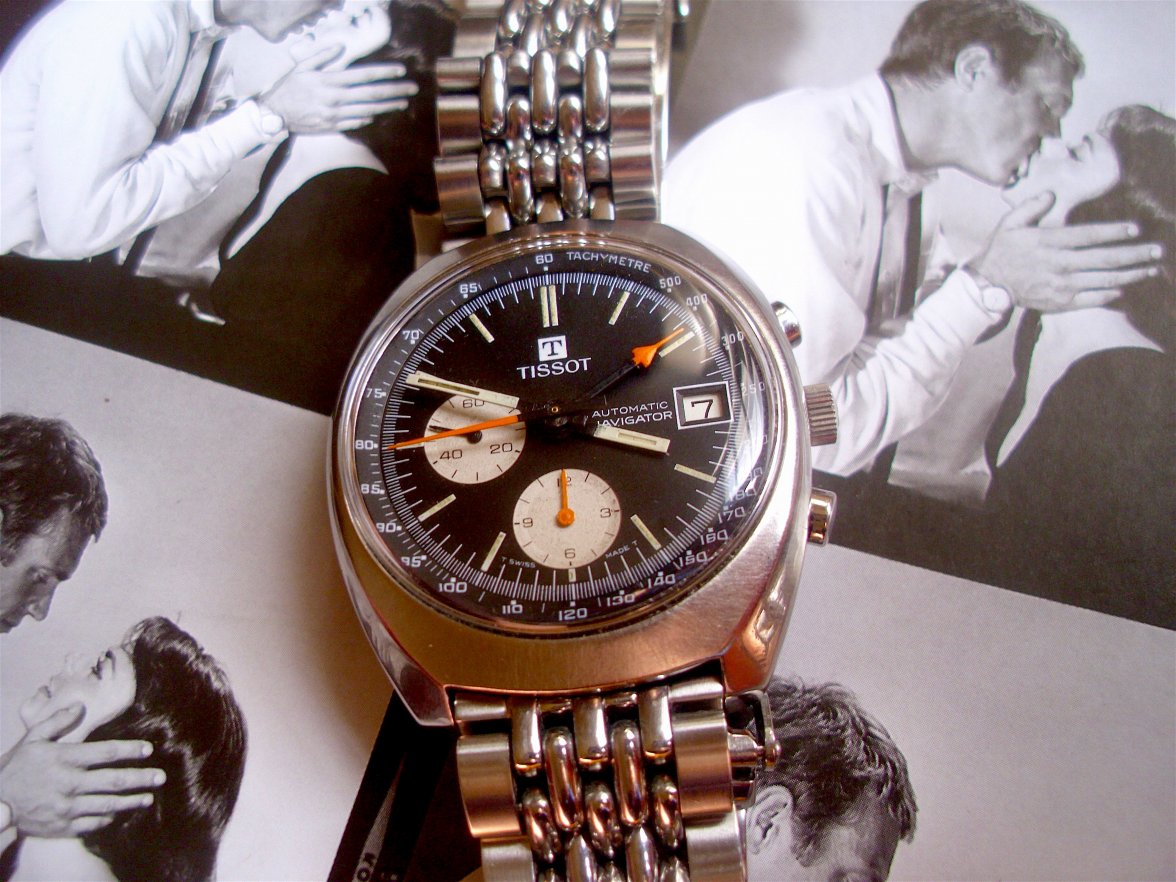

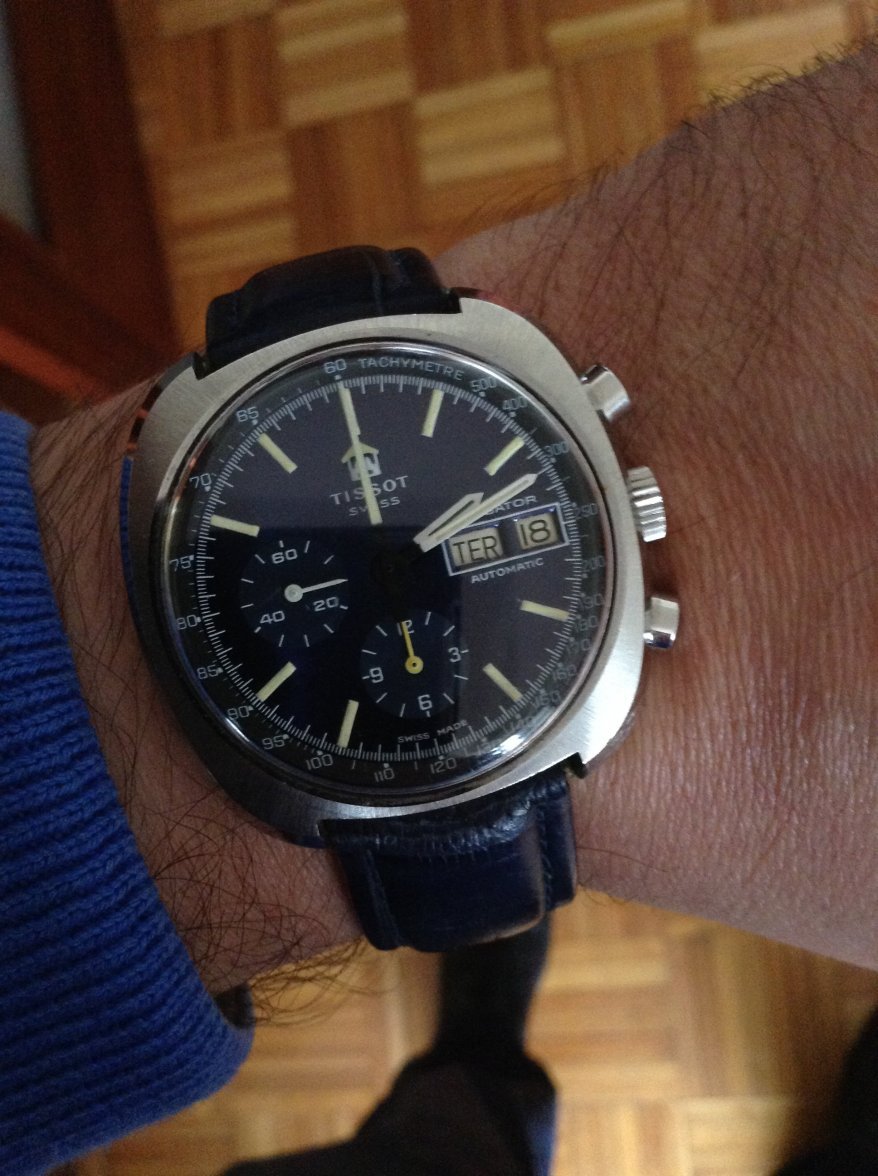

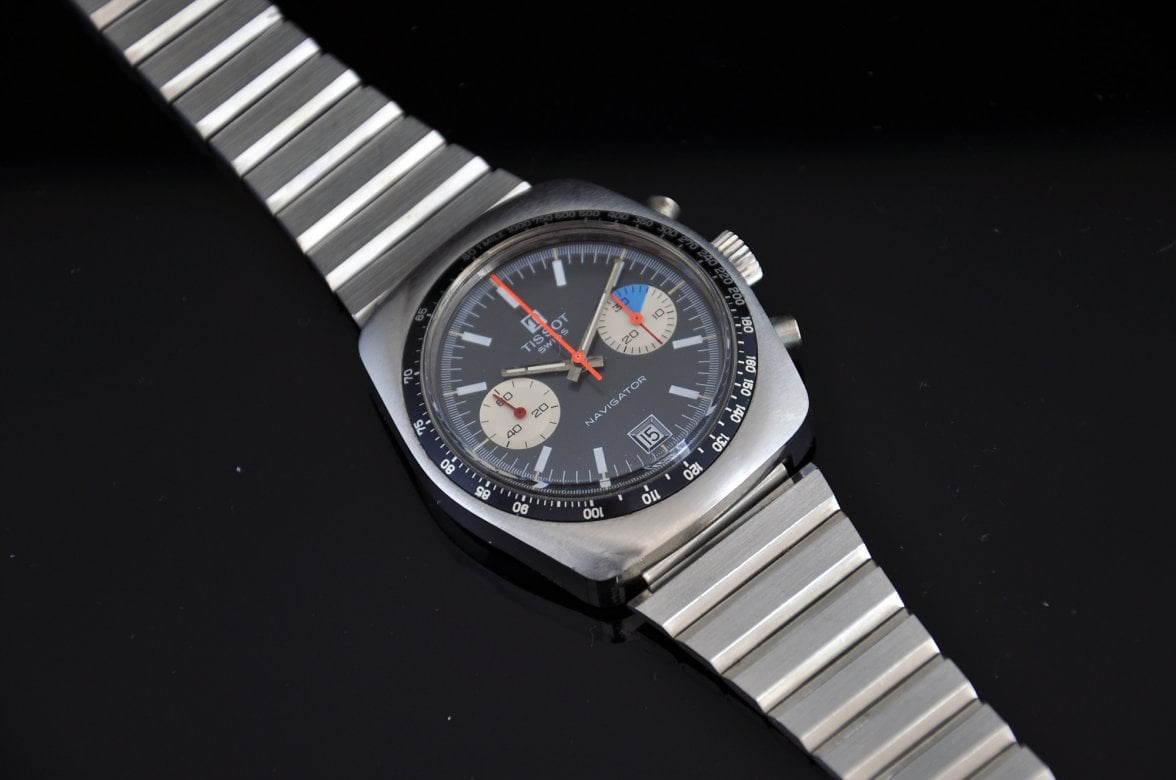

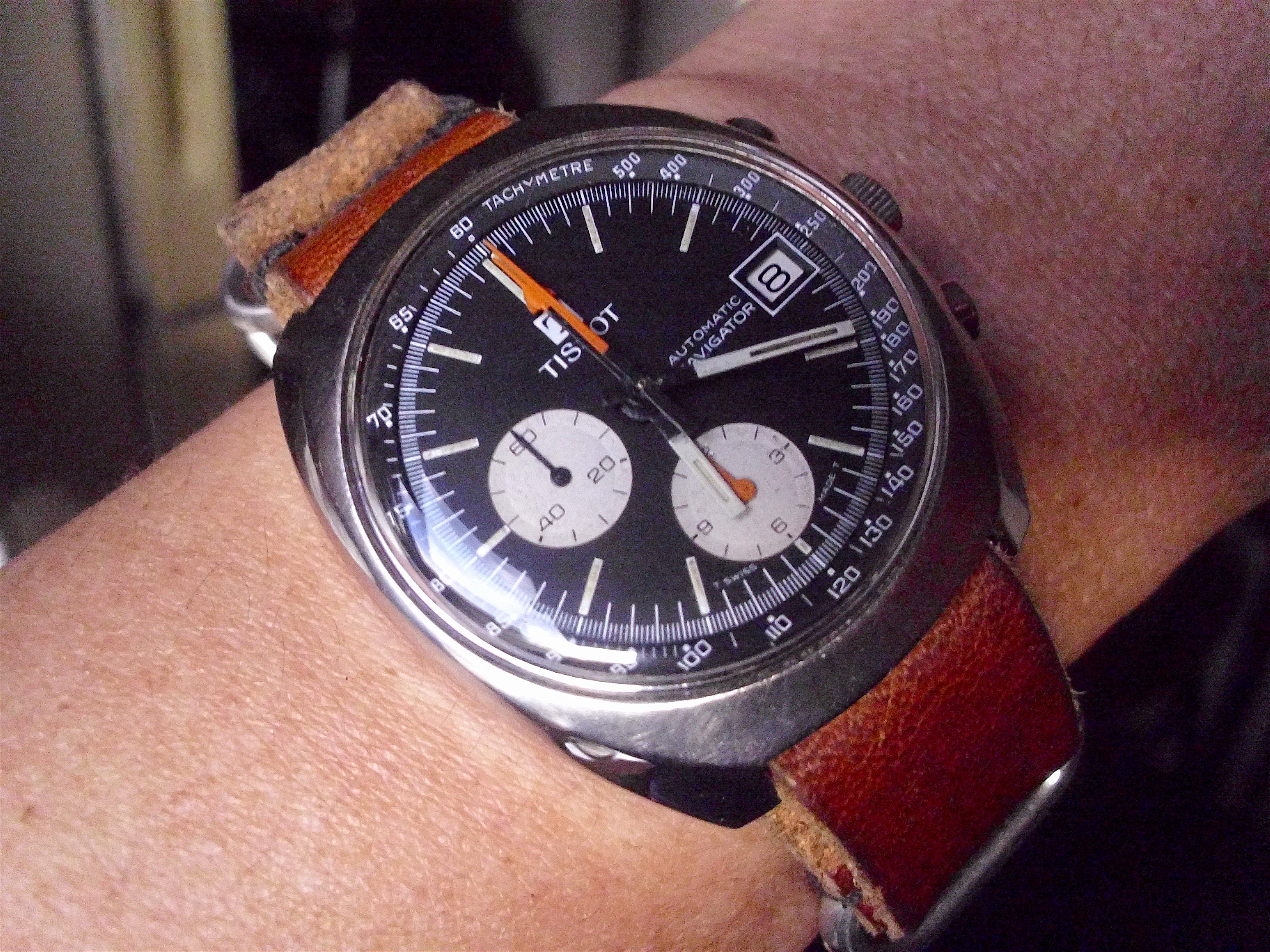

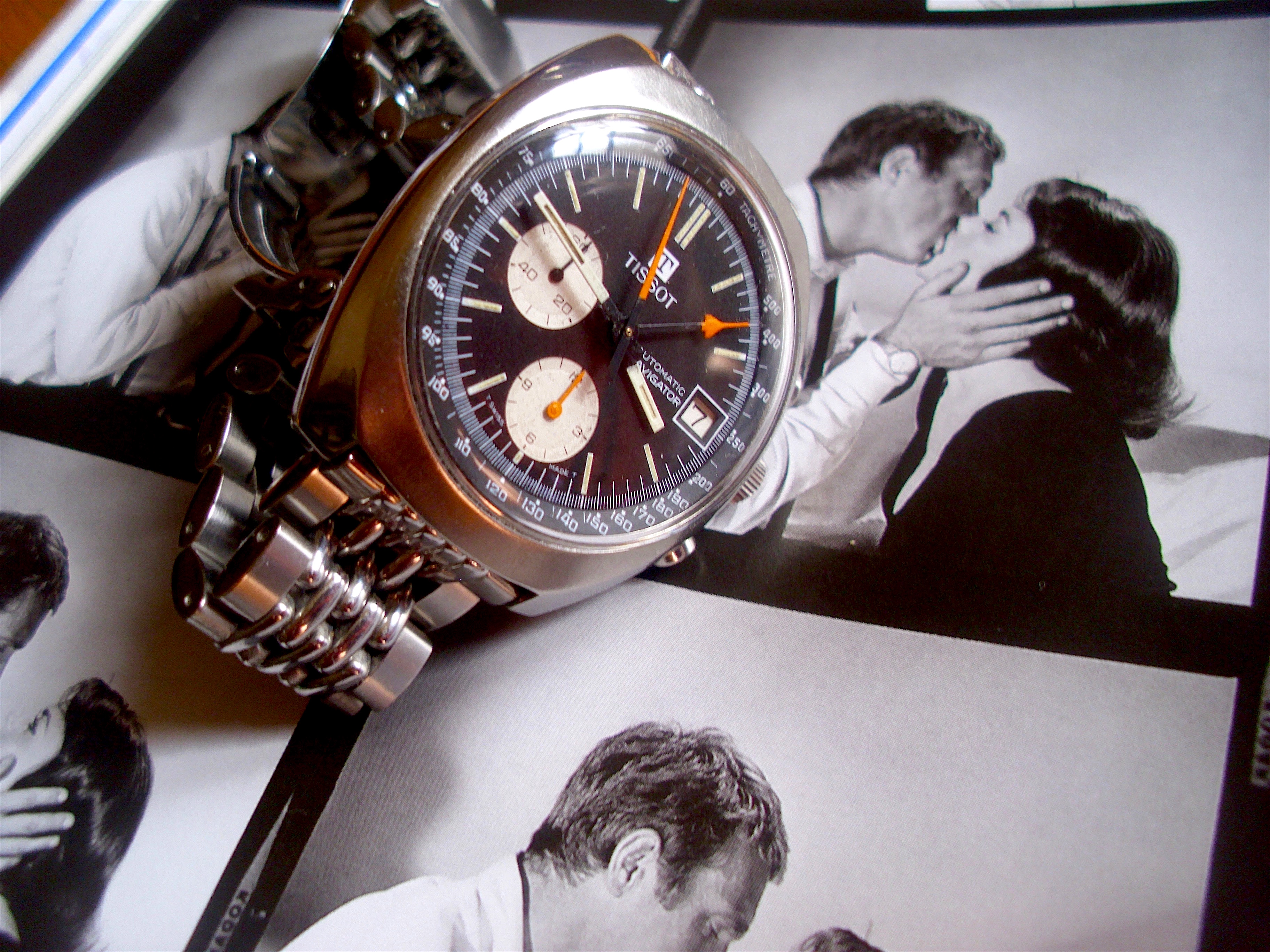

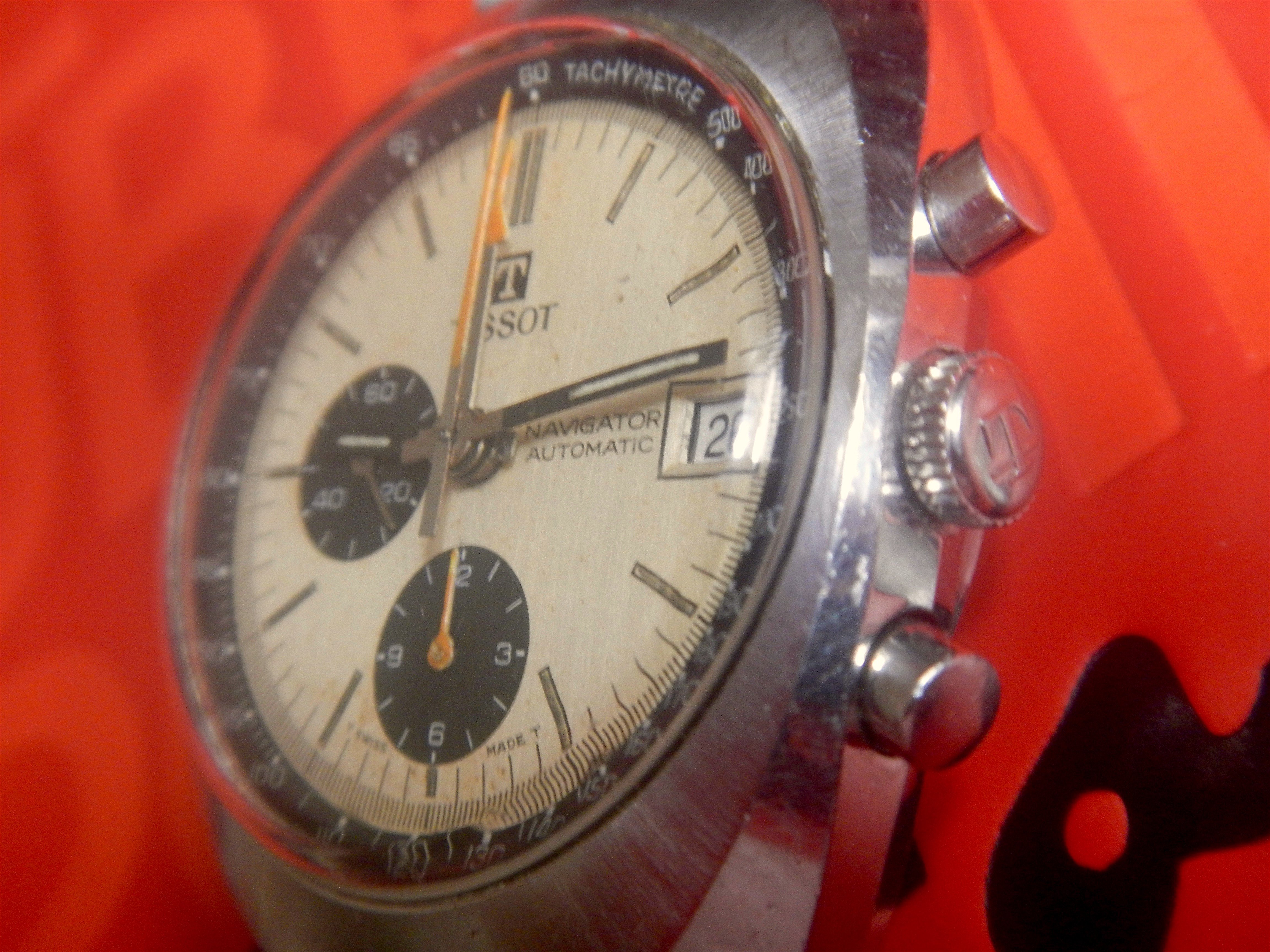

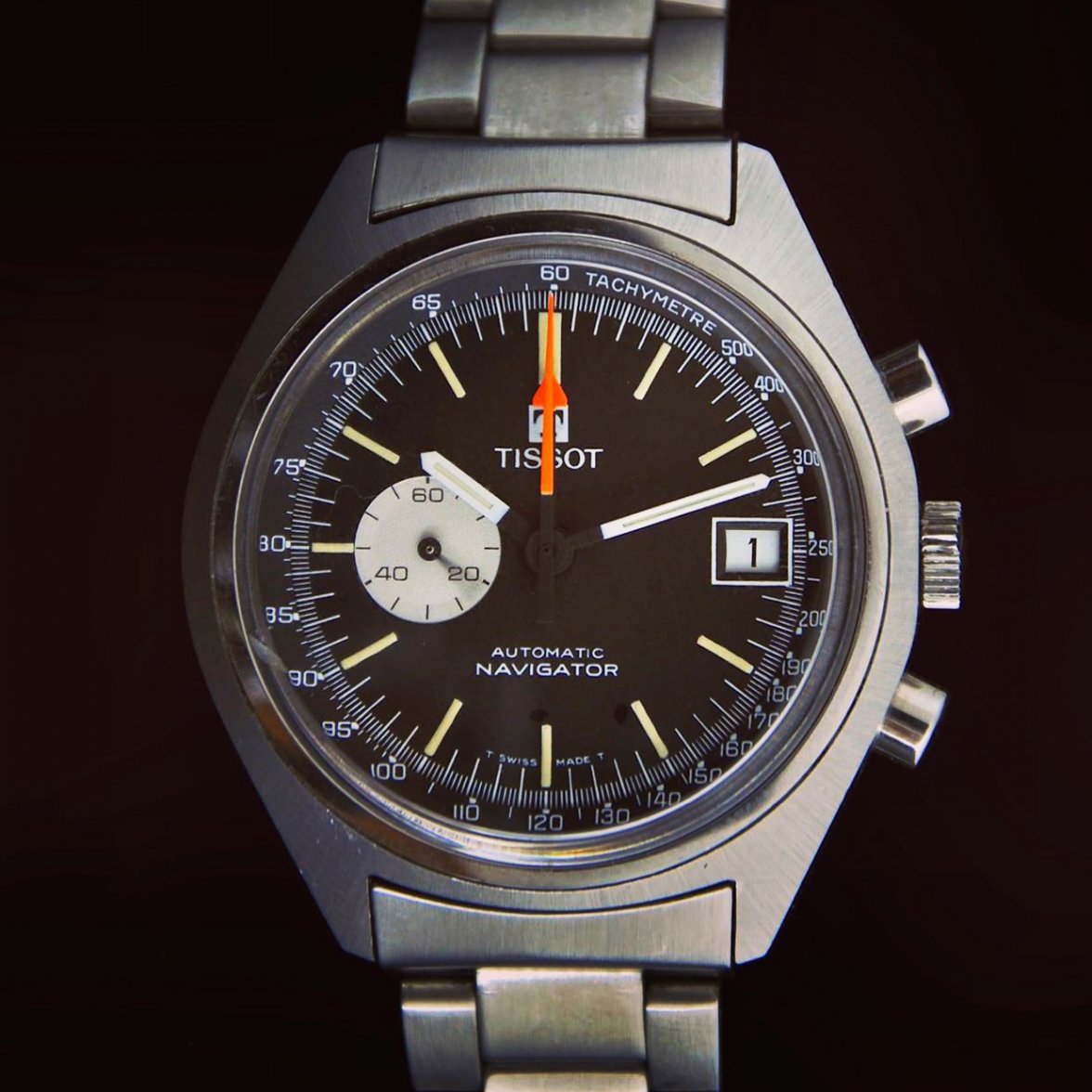

Gents Tissot Automatic Navigator, Chronograph Lemania 1341

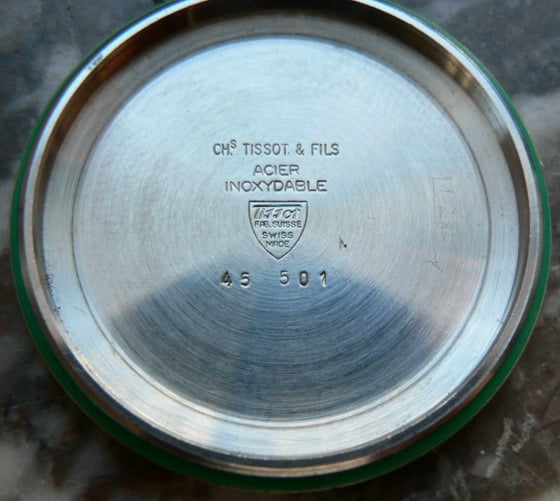

Case: 45.501, Chs. Tissot & Fils, Tissot, Fab. Suisse, Swiss Made, Acier Inoxydable - steel, plastic crystal, screw back, 38.5x44mm
Dial: Tissot Automatic Navigator, T Swiss Made T - mat black, silvered sunk sub dials for continous second and hour counter, luminous markers, ring with tachymeter scale
Movement: 14481370, Tissot, Swiss, 17 Jewels, ball-bearing rotor, Kif shock protection
Chronograph: 60s, 60min, 12h, center minute- and second counter, cam switched
Date: quickset

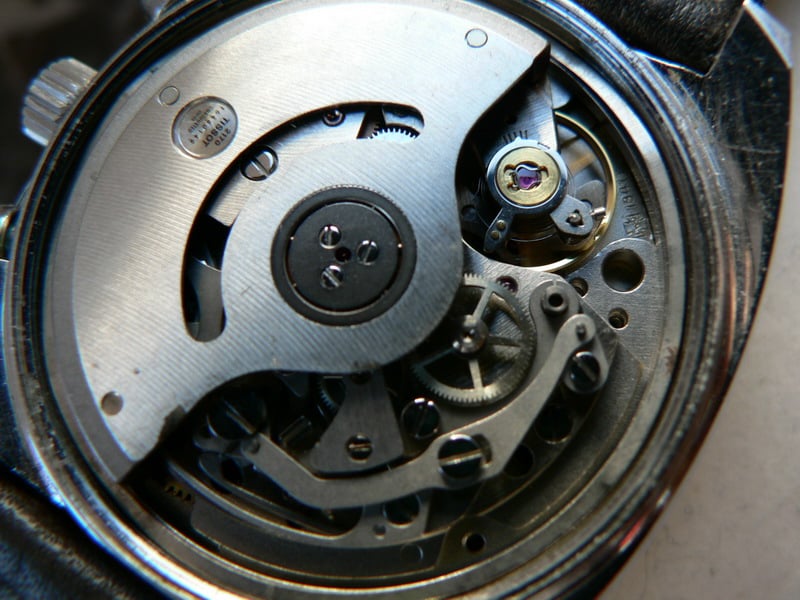

Tissot 2170 (Lemania 1341)

Features
automatic chronograph, 60s, 60min, 12h, cam switched, center-minute and -second
sub second
date: quickset

Data
13.75''', Dm=Do= 31.0mm
H= 8.0mm
17 jewels
f = 28800 A/h
power reserve 44h

Mainspring / battery
1.05 x 12.0 x 0.10mm

Hands
2.30 x 1.60 x 1.05 x 0.25 / 0.35 x 0.20mm

hmmmcamu · Sep 7, 2017

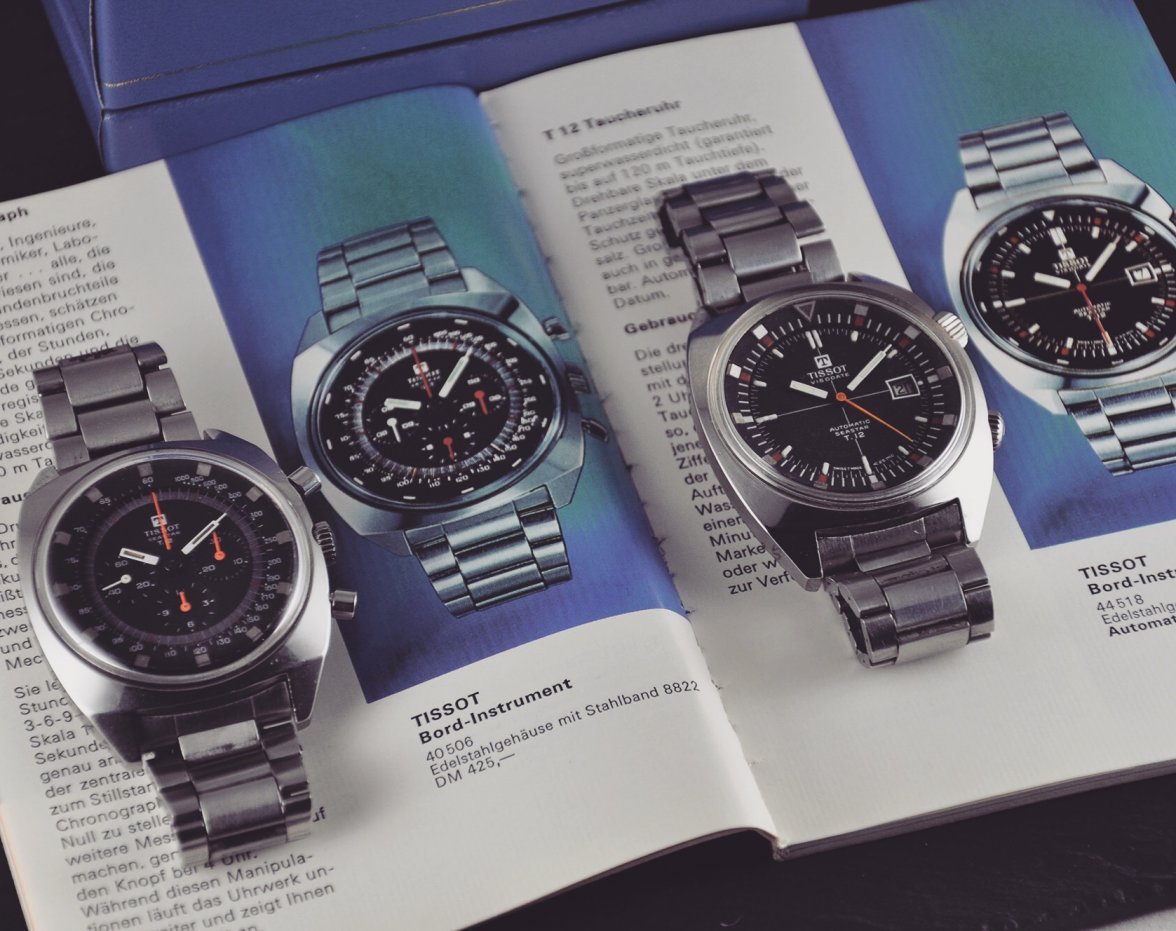

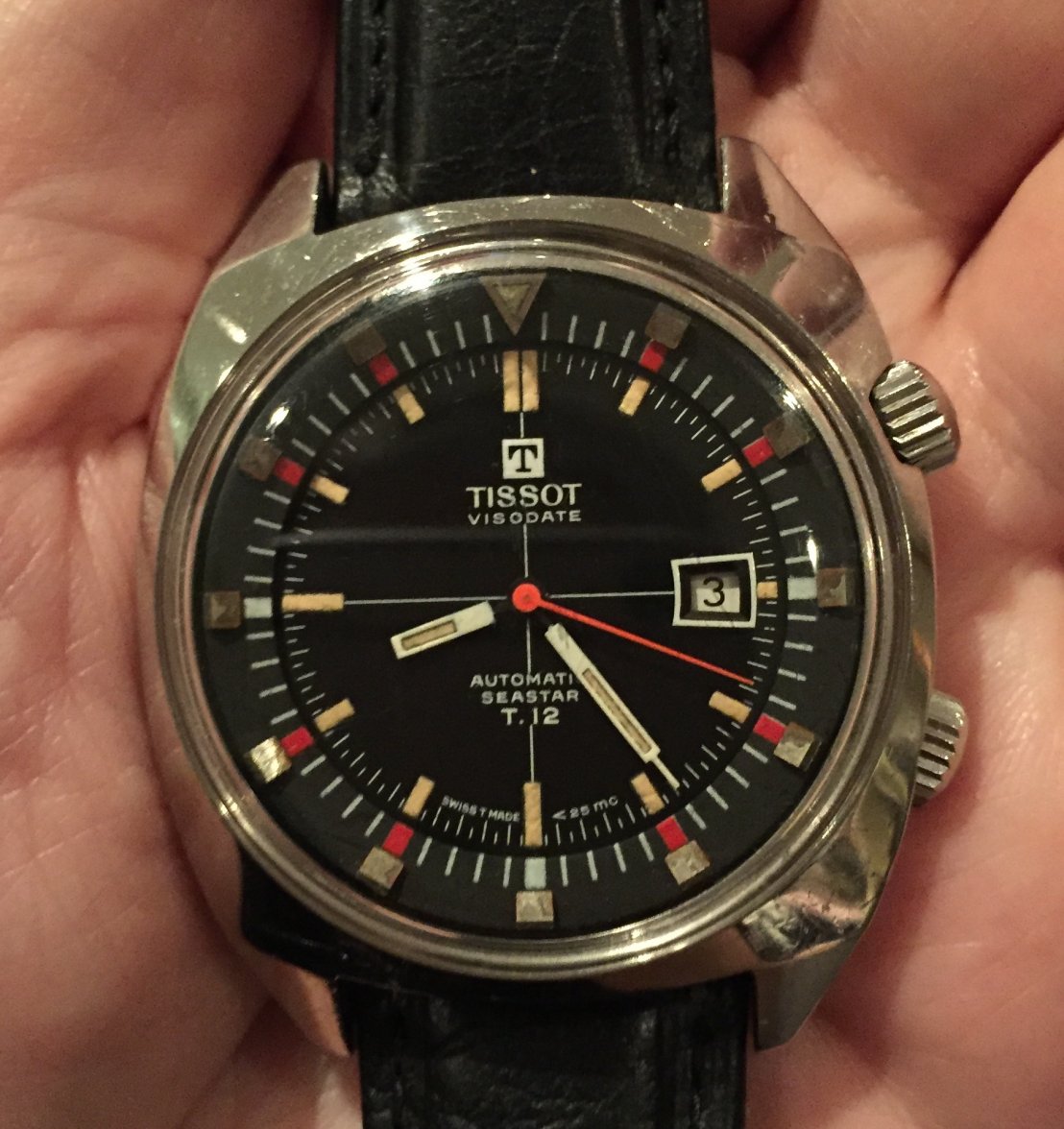

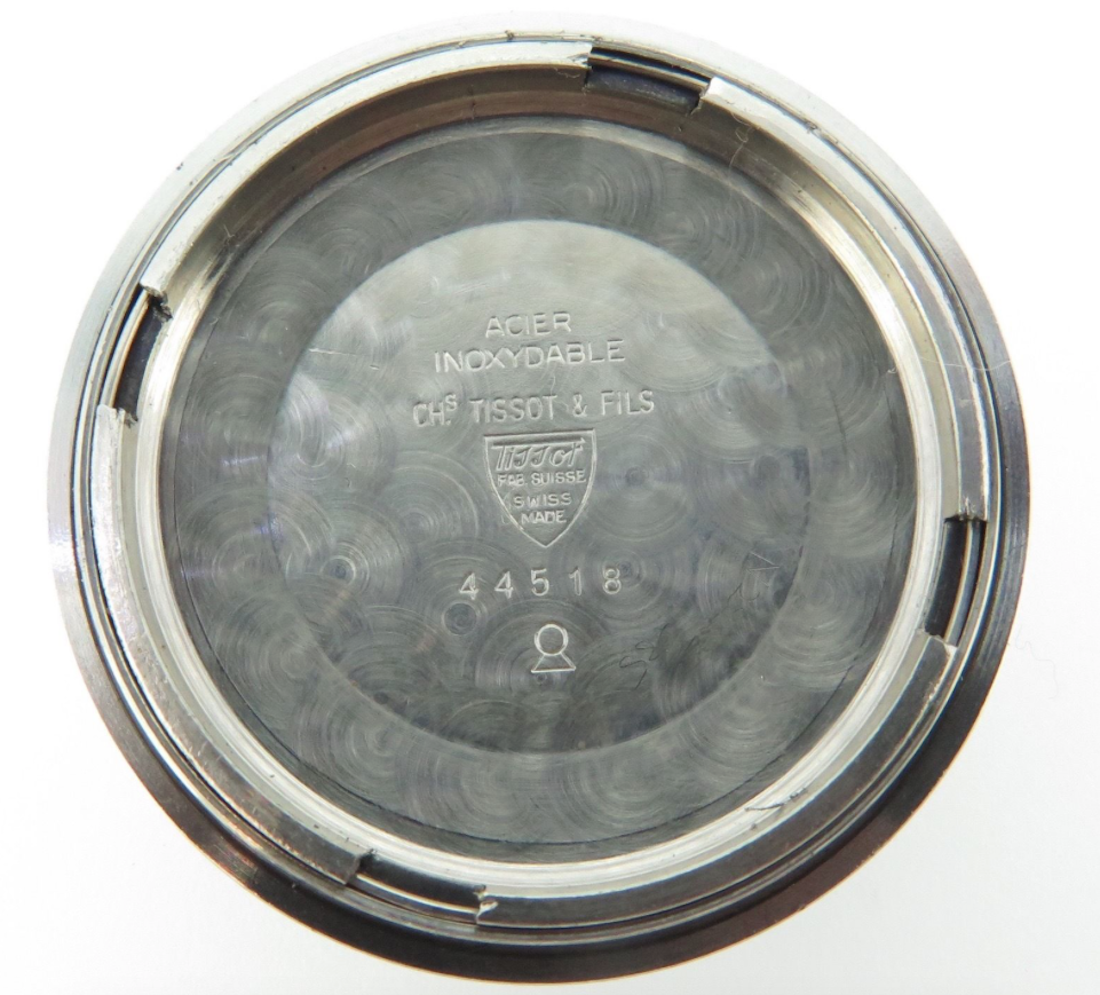

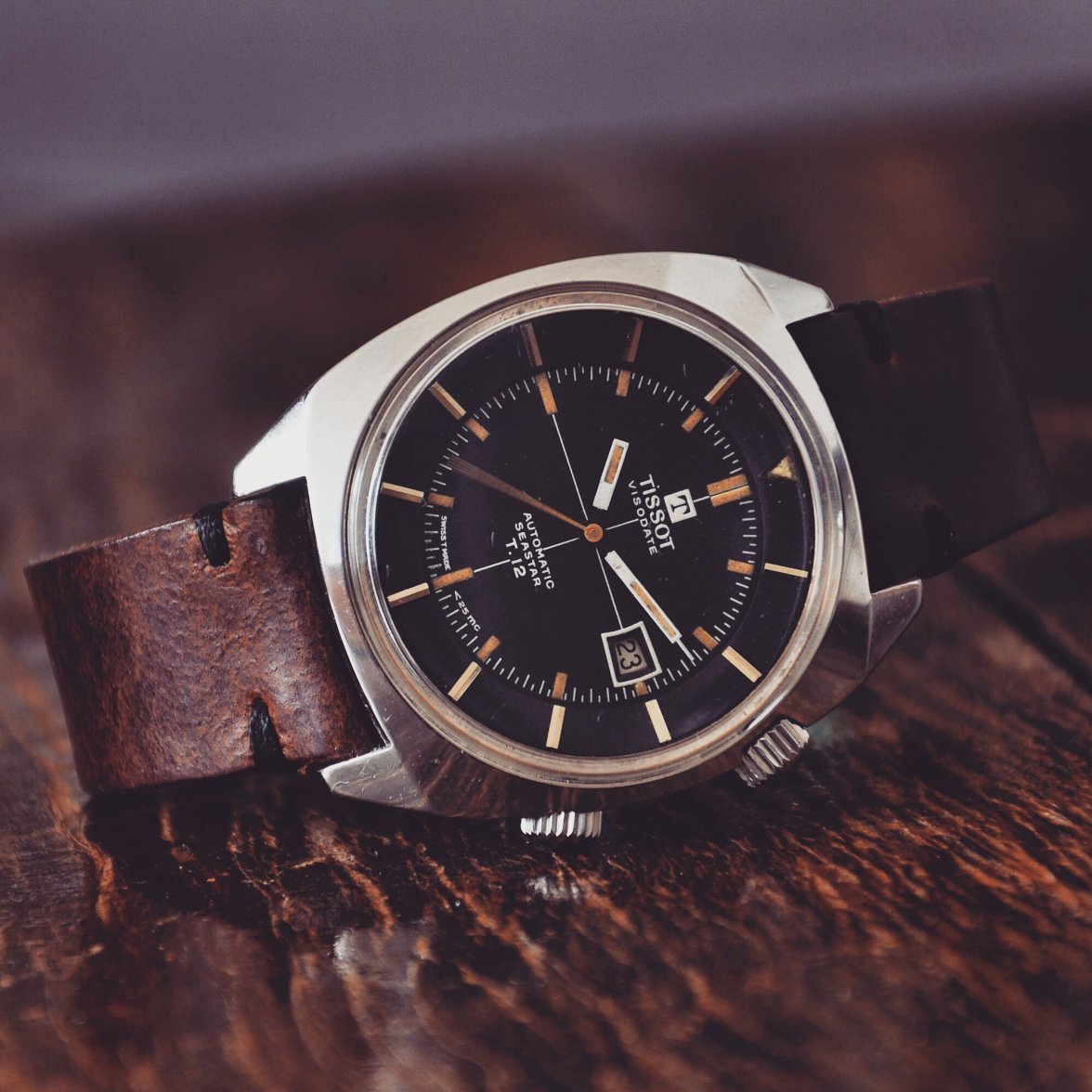

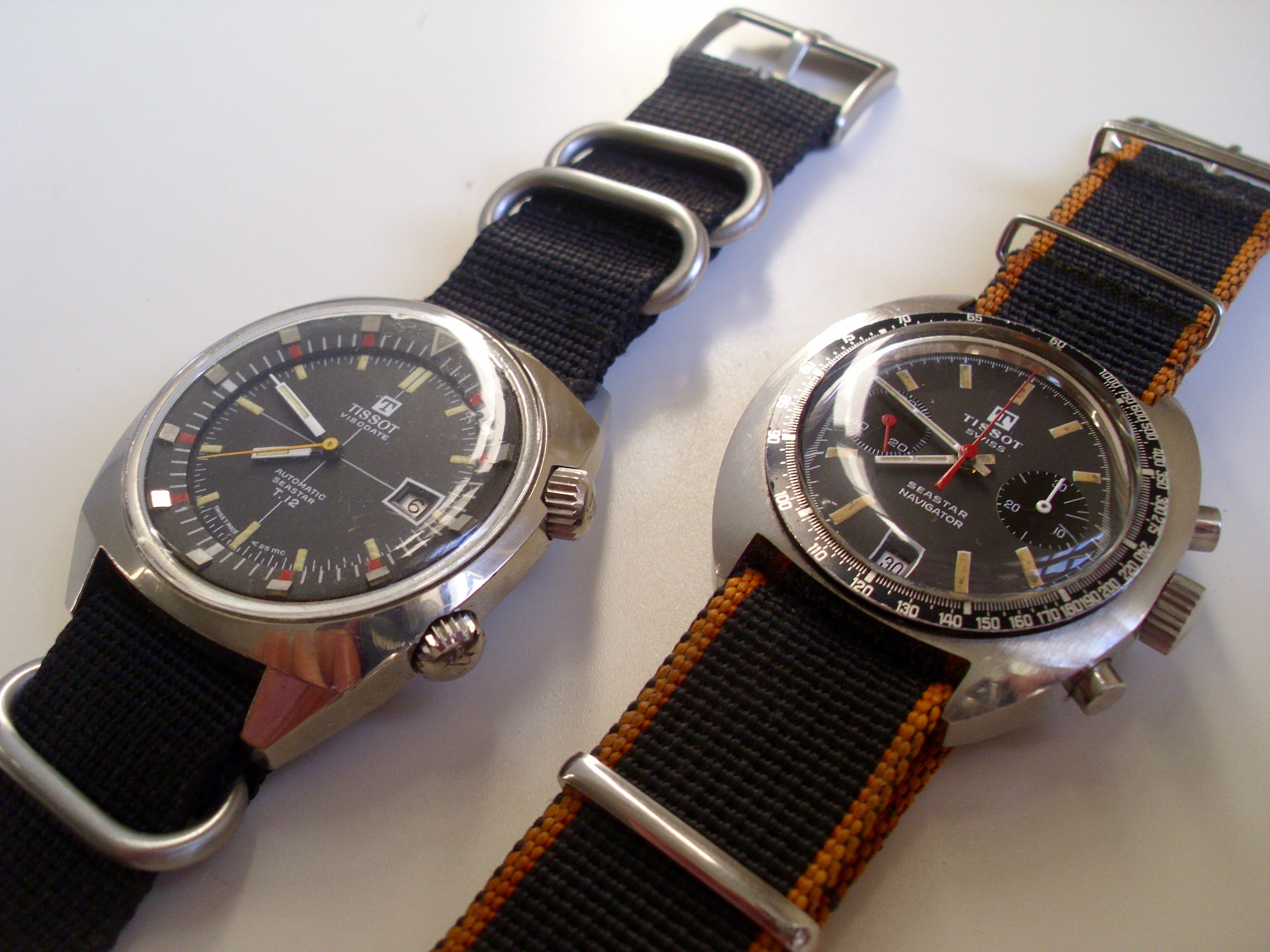

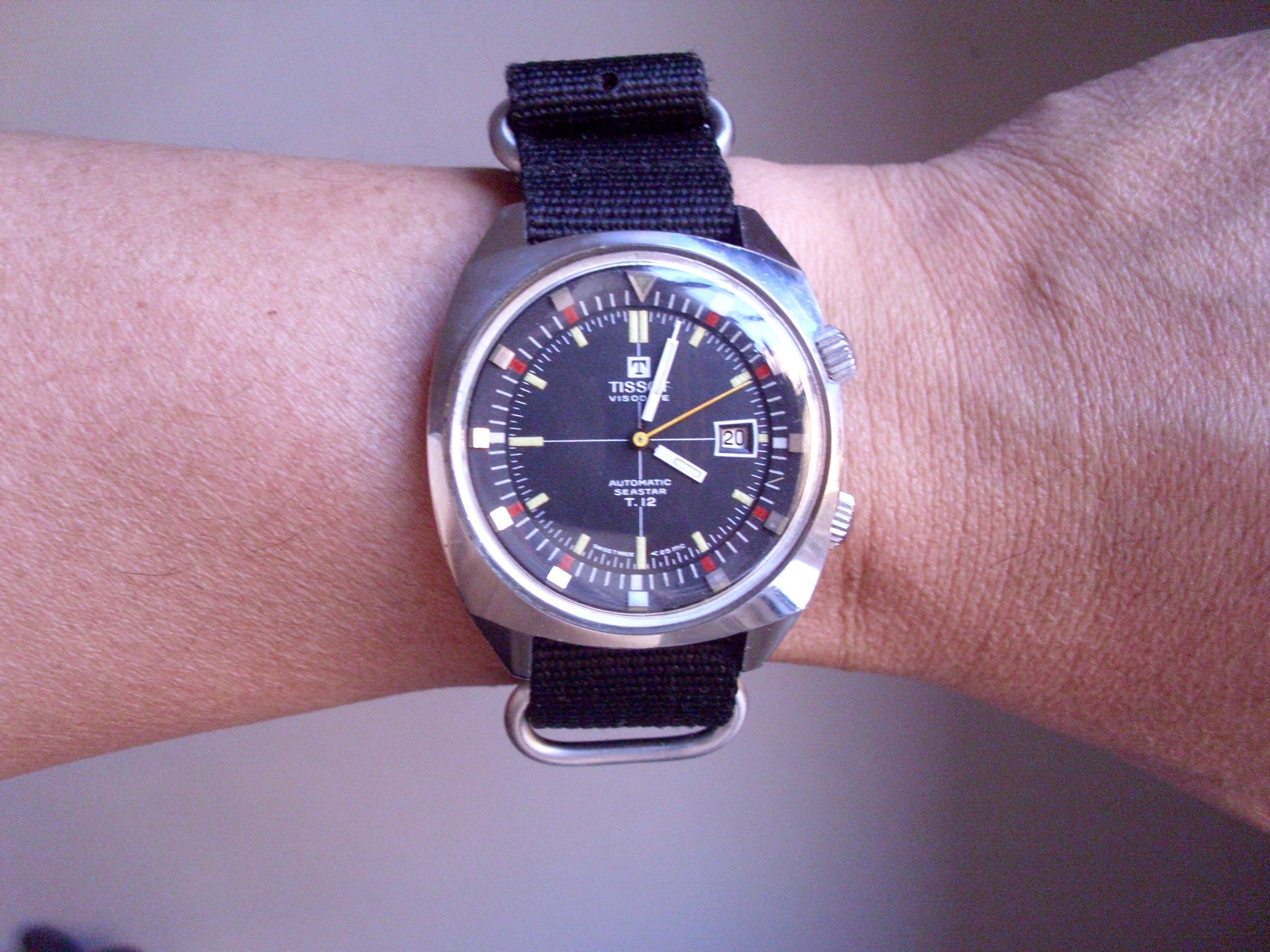

Tissot Visodate Seastar T.12 Dual Crown Compressor Style Divers Watch ref.# T12 44518

42.2 x 50mm. case, bi directional internal bezel, movement cal. 784-2

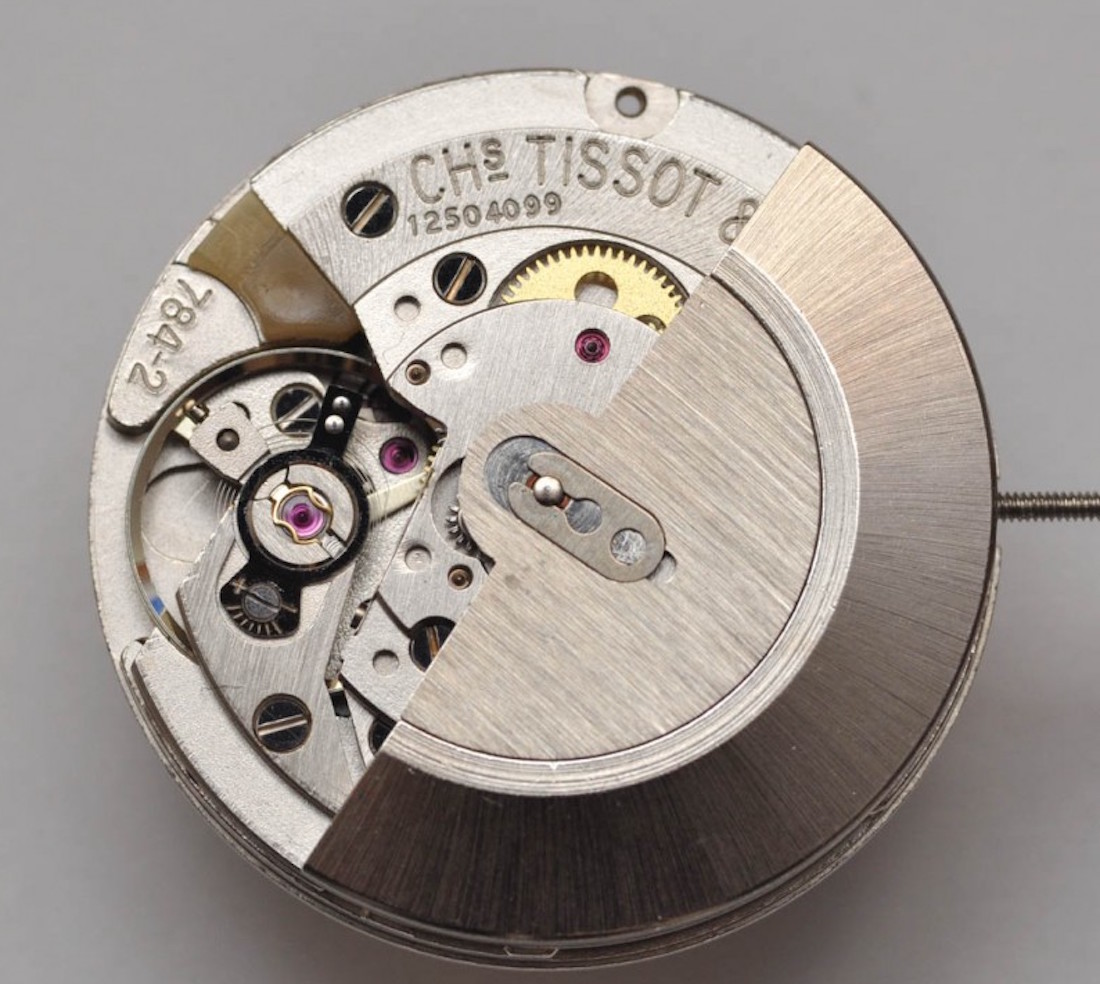

Tissot 784-2

Features
automatic
sweep second
date: set by changing 21:30-24h

Data
11.5''', Dm= 25.6mm, Do= 26.0mm
H= 5.35mm
F= 1.4mm
T= 2.0mm
21 jewels
f = 18000 A/h
power reserve 45h

Balance staff U2480

Stem W2696, W3061 (Seastar Seven)

Mainspring / battery
Zf2960-X, 1.20 x 9.0 x 0.115 x 280mm

Hands
1.50 x 0.90 x 0.21mm

hmmmcamu · Sep 7, 2017

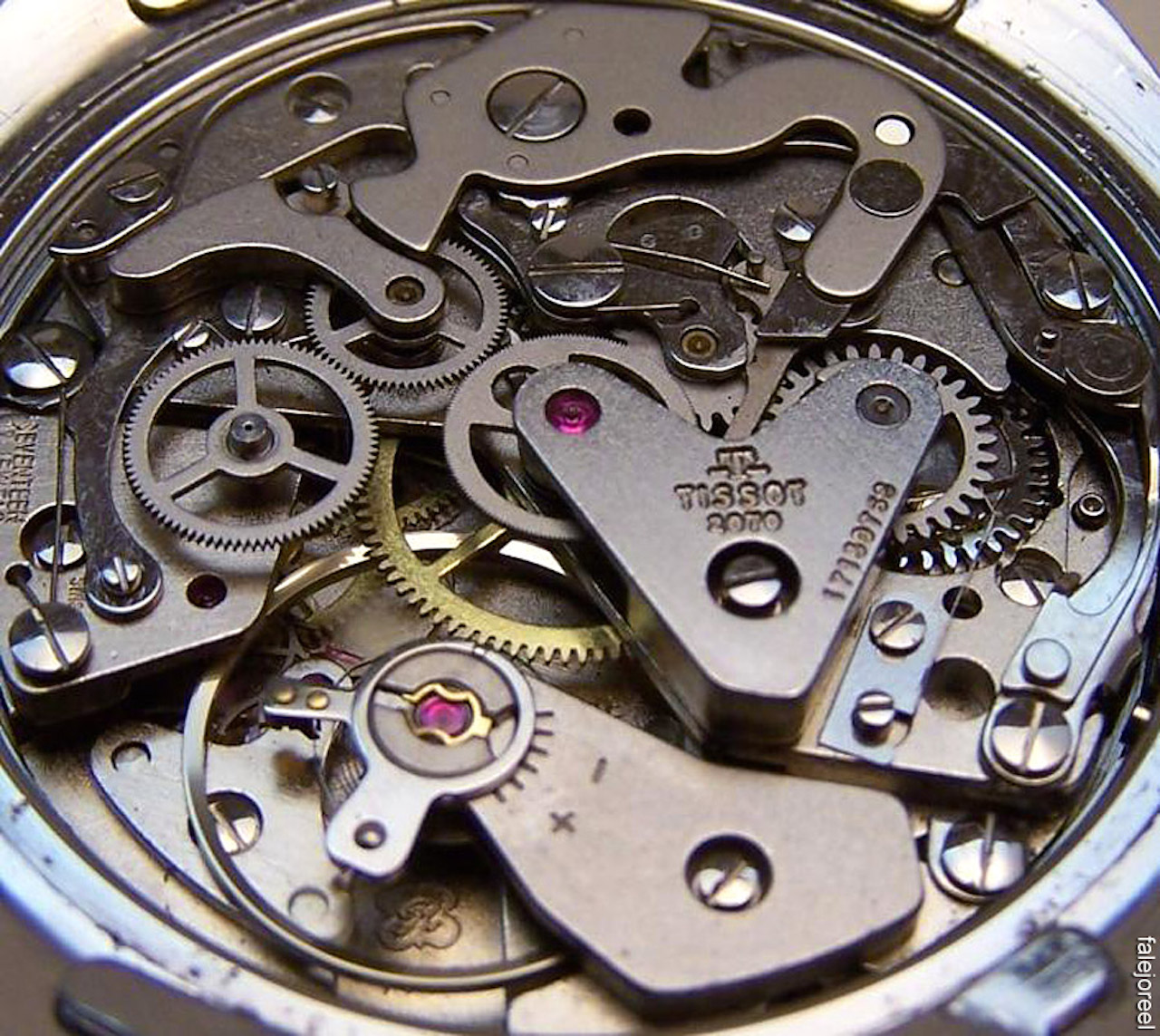

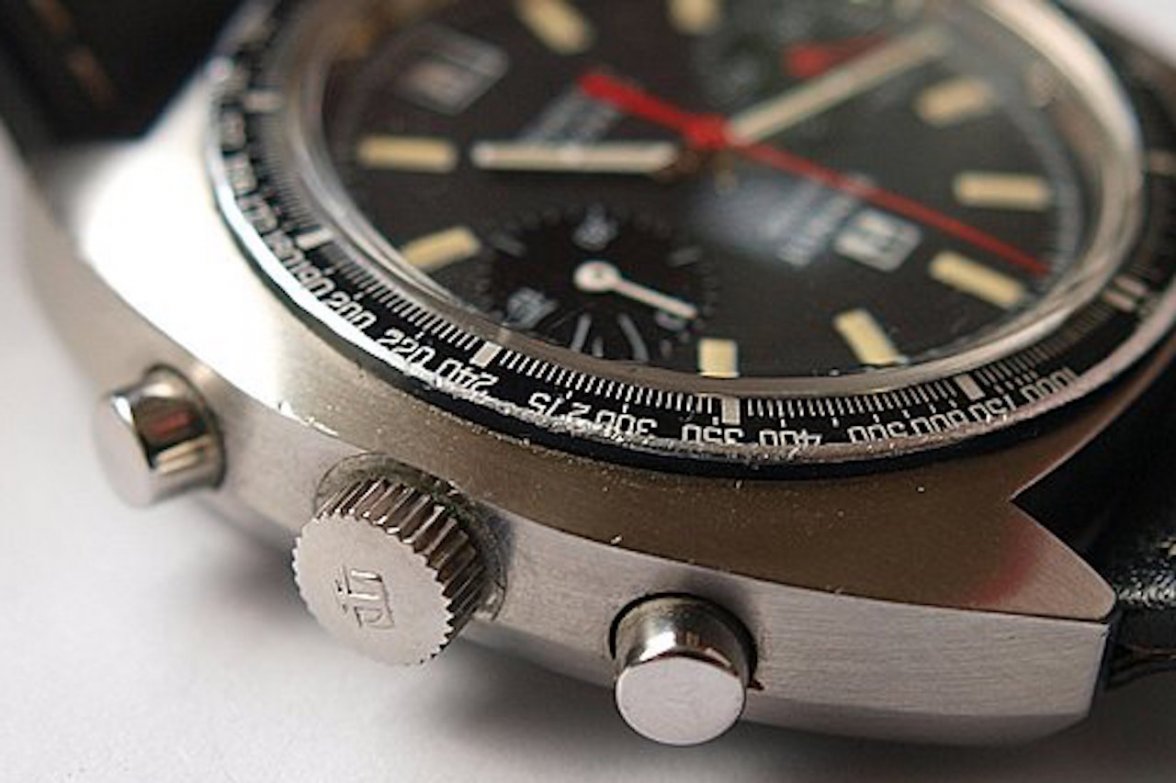

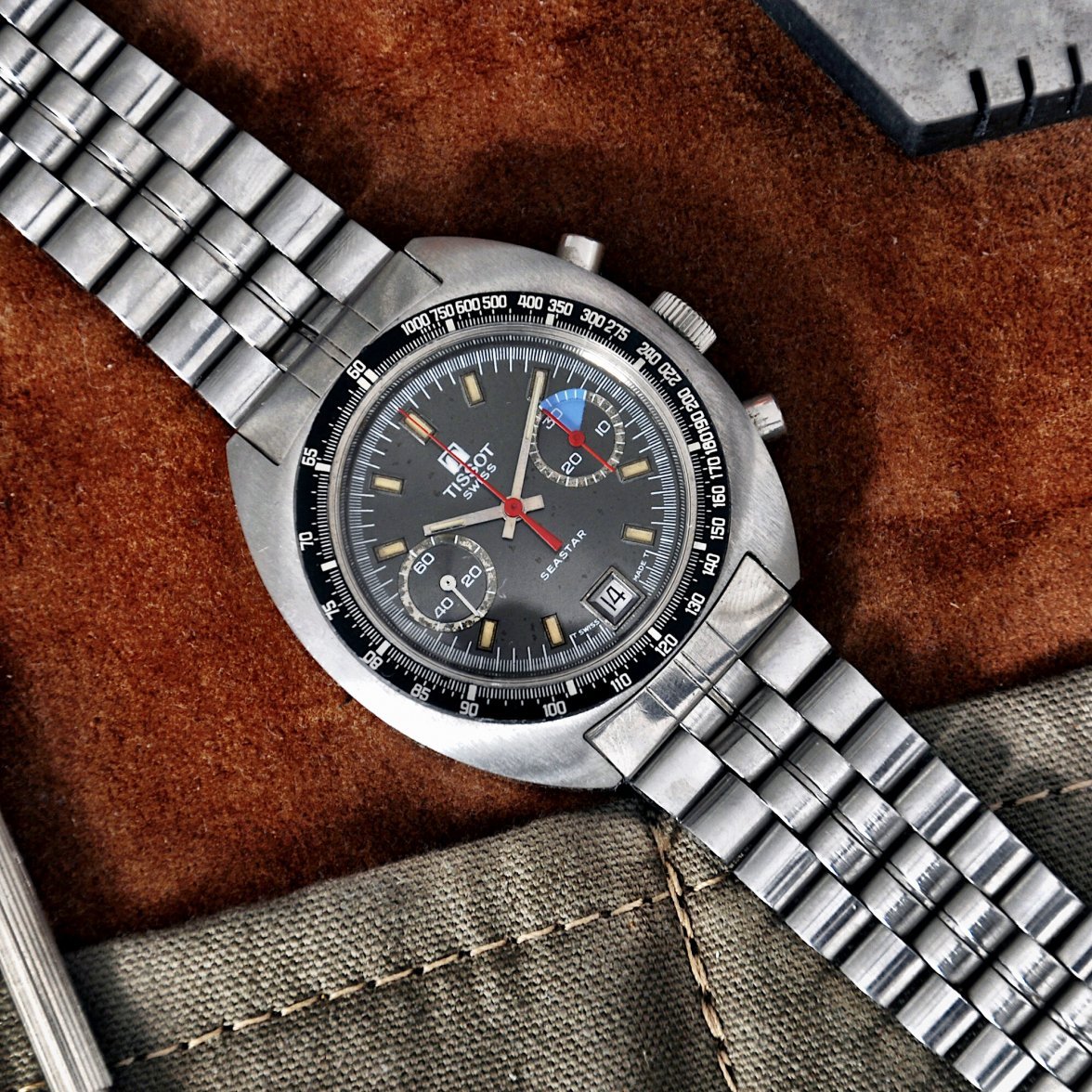

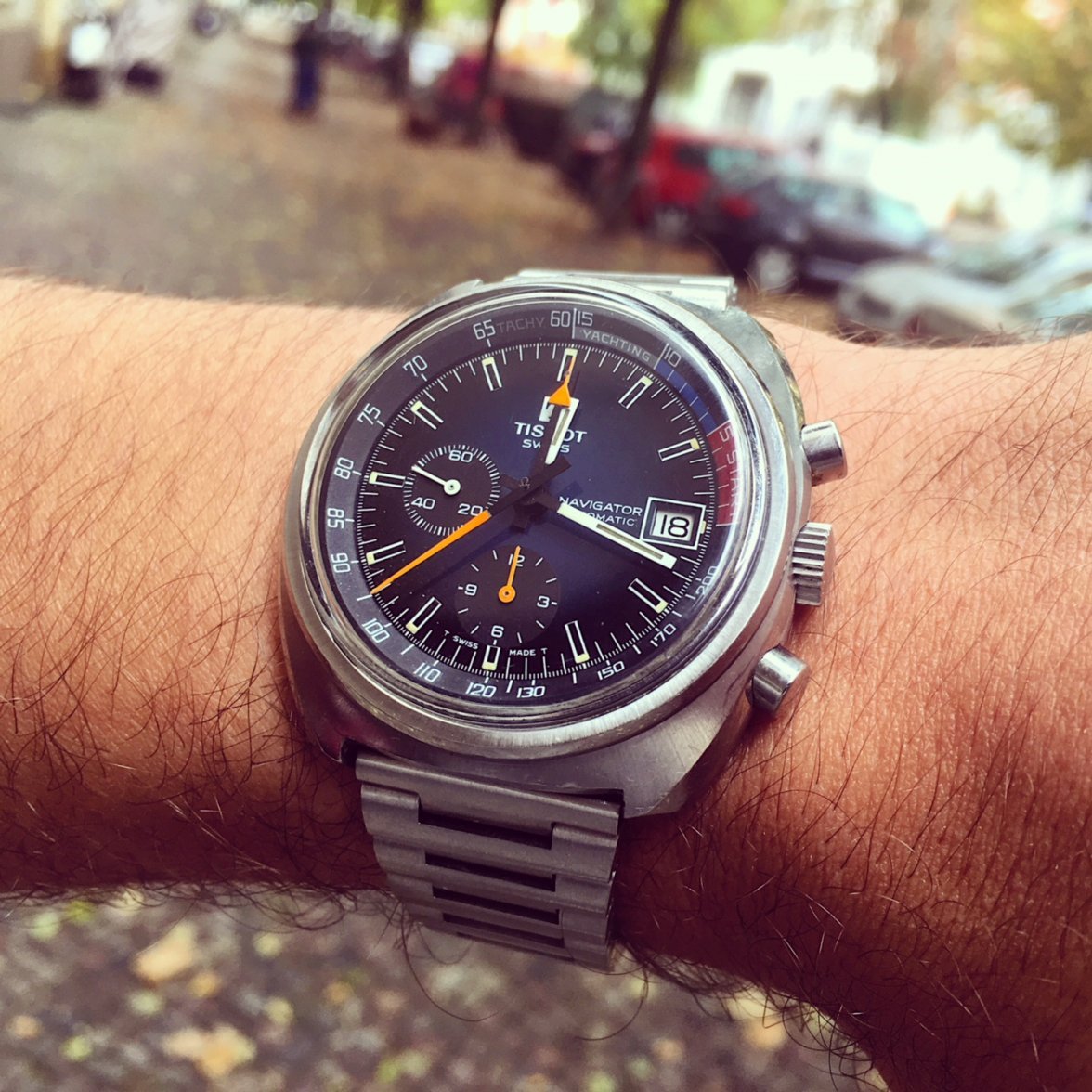

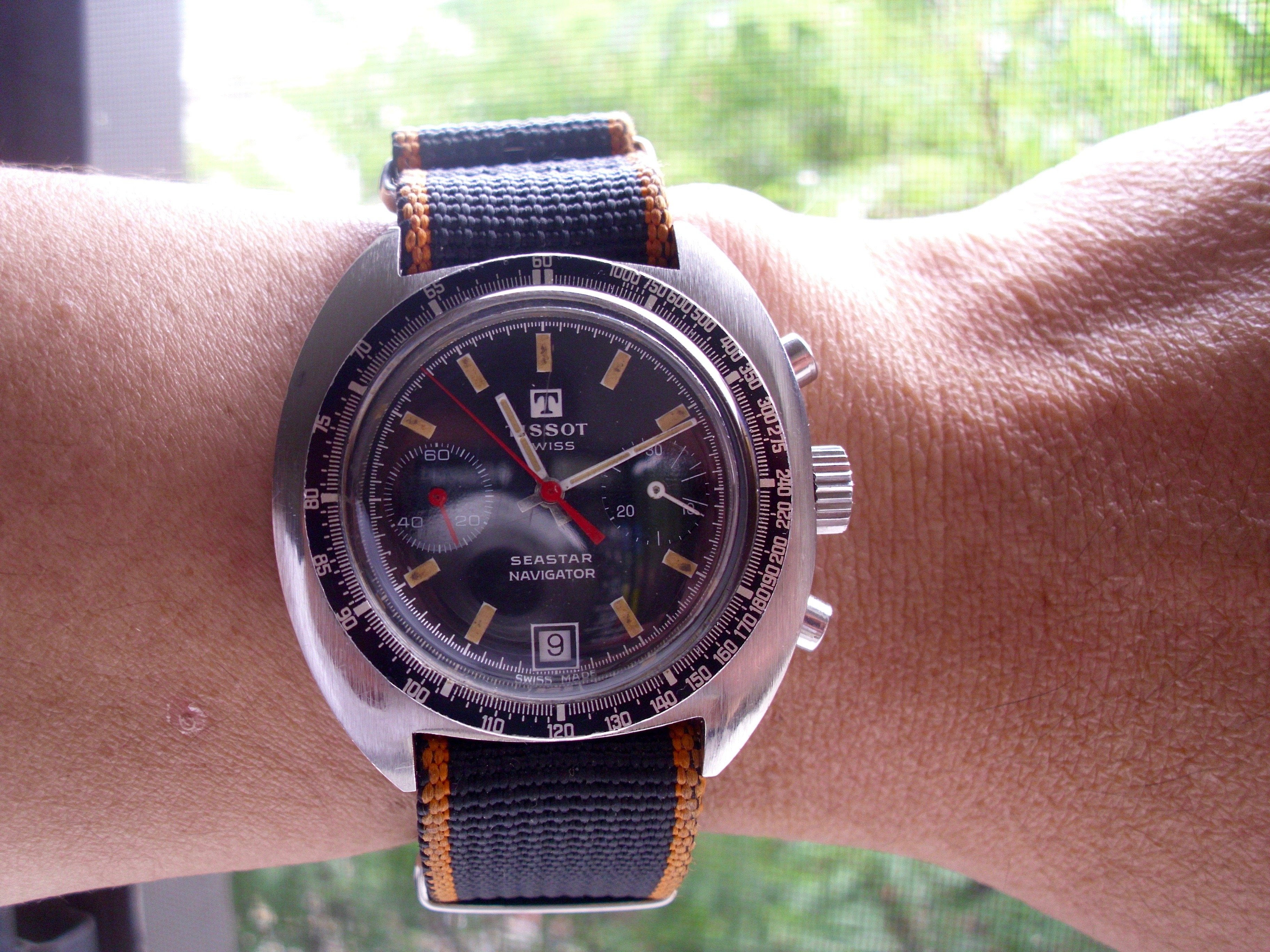

Tissot Seastar Navigator chronograph cal. 2070 [Valjoux 7734] movement

Tissot 2070 (Valjoux 7734)

Features
manual-wind chronograph, 60s, 30min, cam switched
sub second
date: set by changing 22-24h

Data
14''', Dm= 31.0mm, Do= 31.3mm
H= 6.65mm
F= 1.25mm
T= 2.5mm
17 jewels
f = 18000 A/h
power reserve 45h

Balance staff U3106

Stem W1188 / W3371
thread 1.2mm / 0.9mm

Mainspring / battery
Zf1337, 1.60 x 12.5 x 0.13 x 430mm

Hands
1.40 x 0.95 x 0.27 / 0.27 x 0.18mm
