VINTAGE - BULOVA - ACCUTRON - CARAVELLE - BEZEL & HANDSET INFORMATION

hmmmcamu
Posts
2,889
Likes
15,763
VINTAGE
BULOVA - ACCUTRON - CARAVELLE
BEZEL - WATCH CASE - MINUTE - HOUR - SECOND HAND STYLES GUIDE
bezels are not for sale for informational purposes only

note: some images were borrowed and used to help in sharing information from CYBERSPACE

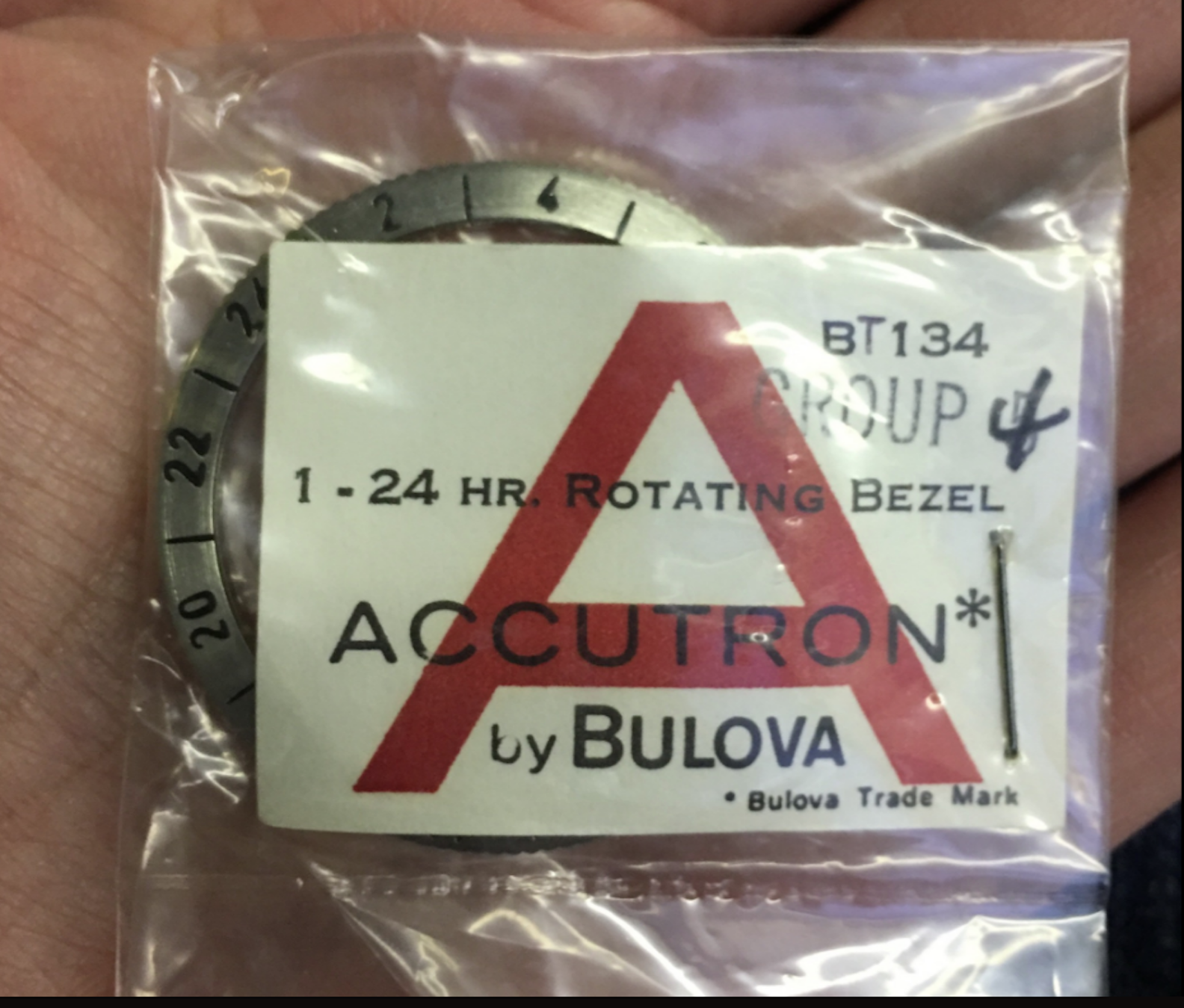

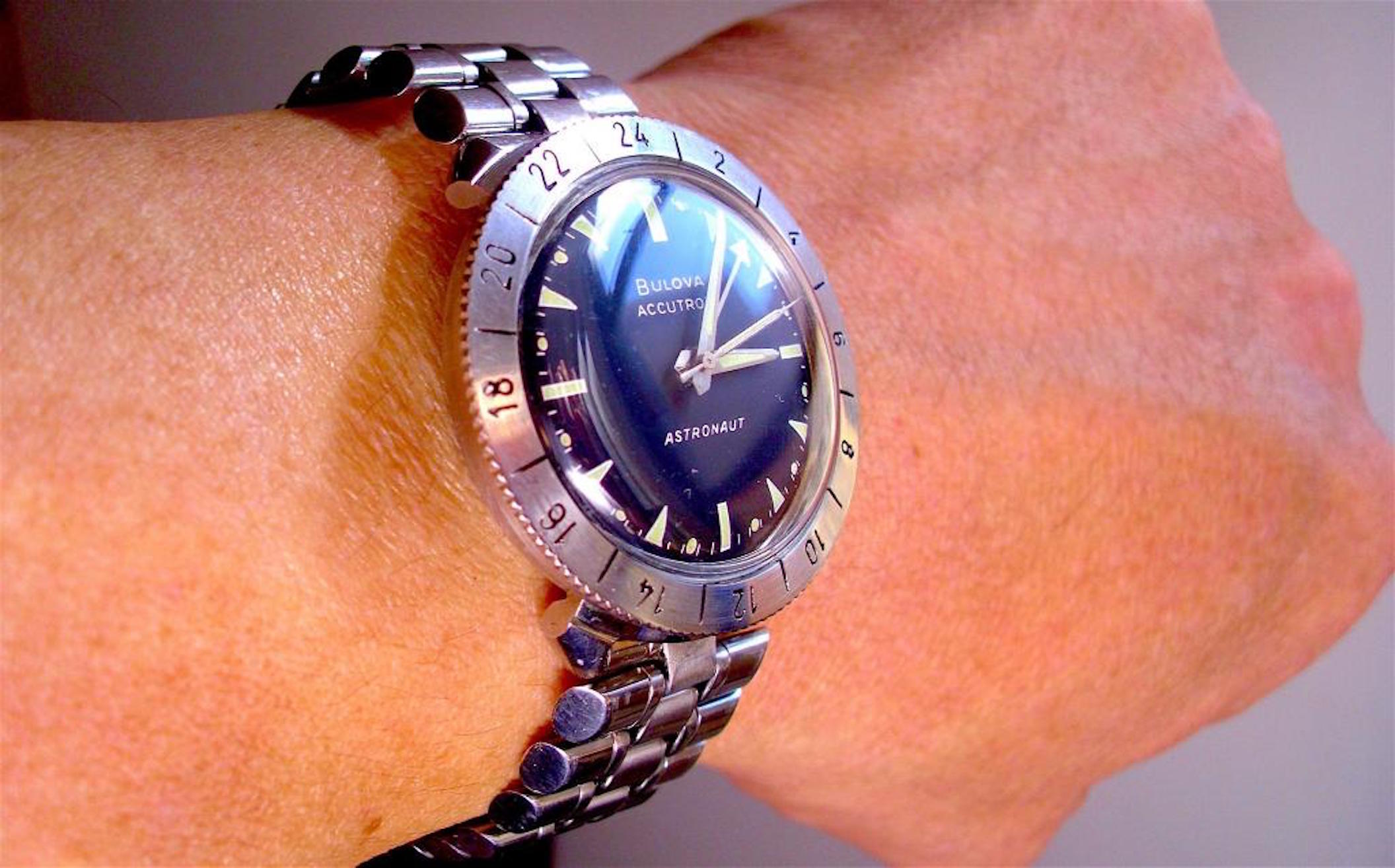

Bulova Accutron Astronaut GMT 214HN
Bezel Ref#: B-134

19780626_10154798767504537_7616008744906258285_o.jpg Screen Shot 2021-09-23 at 4.33.03 AM.png

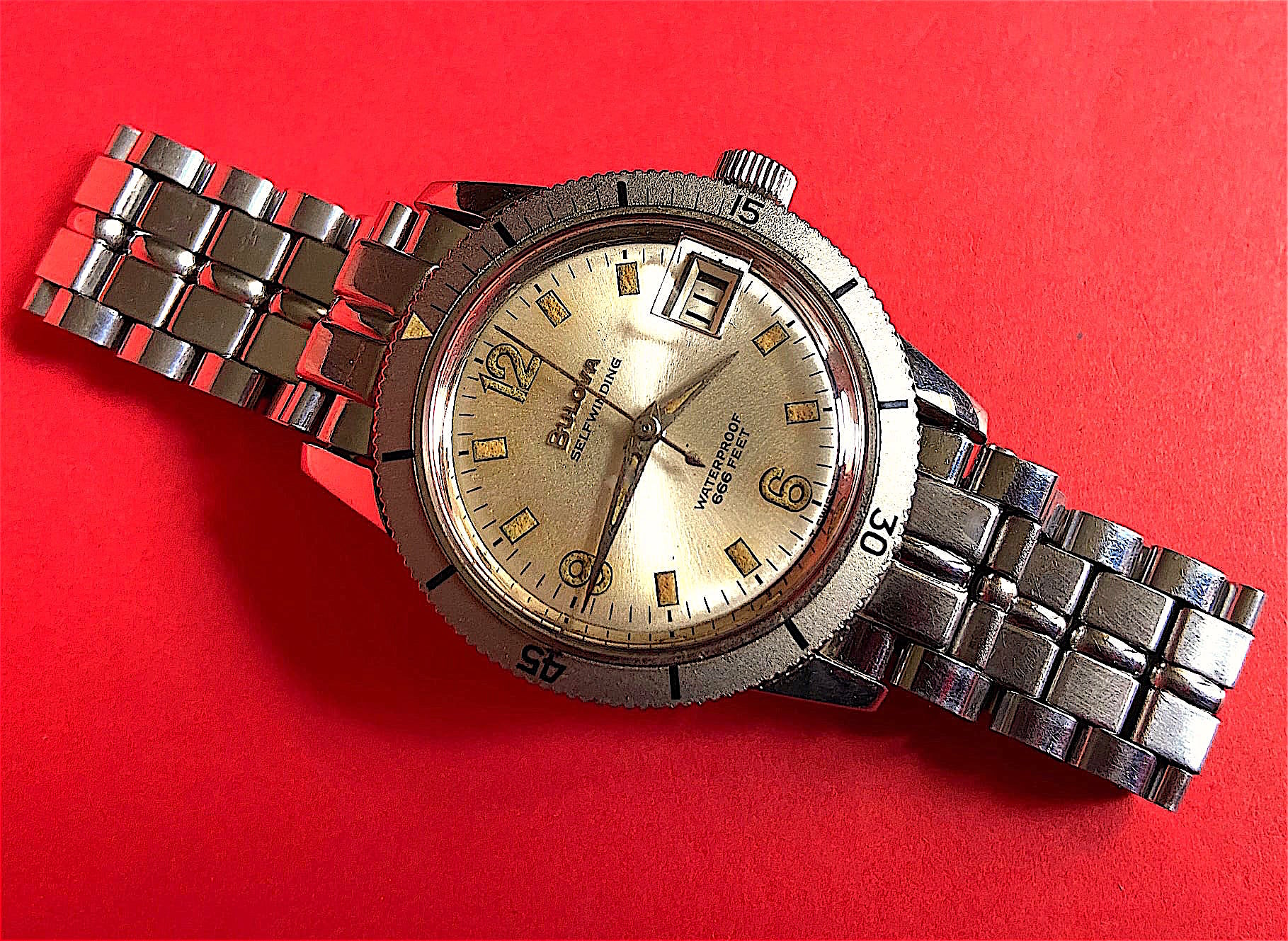

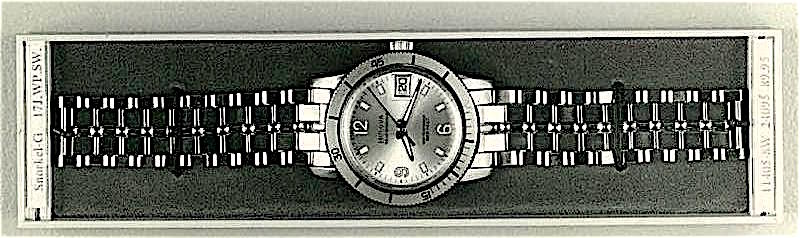

BULOVA Pre SNORKEL Dial

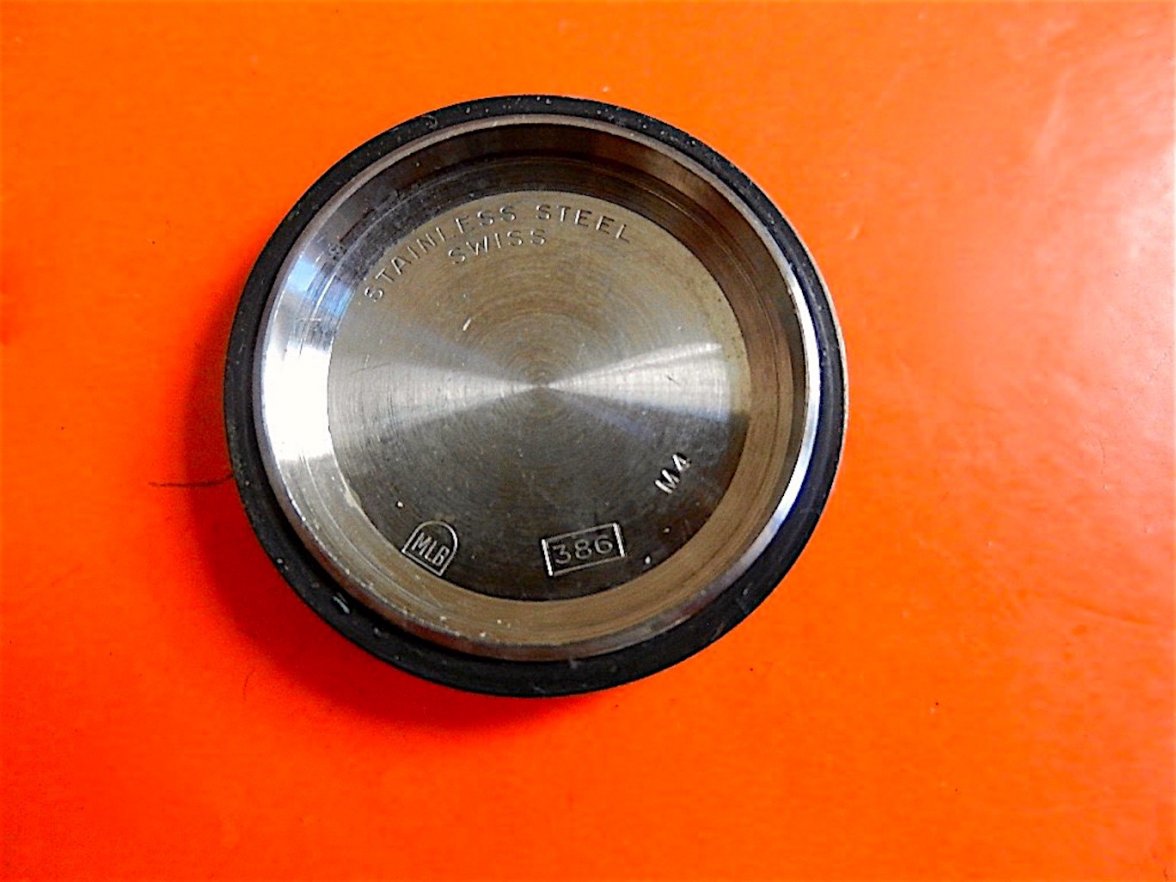

case ref# 386
FIRST INCARNATION

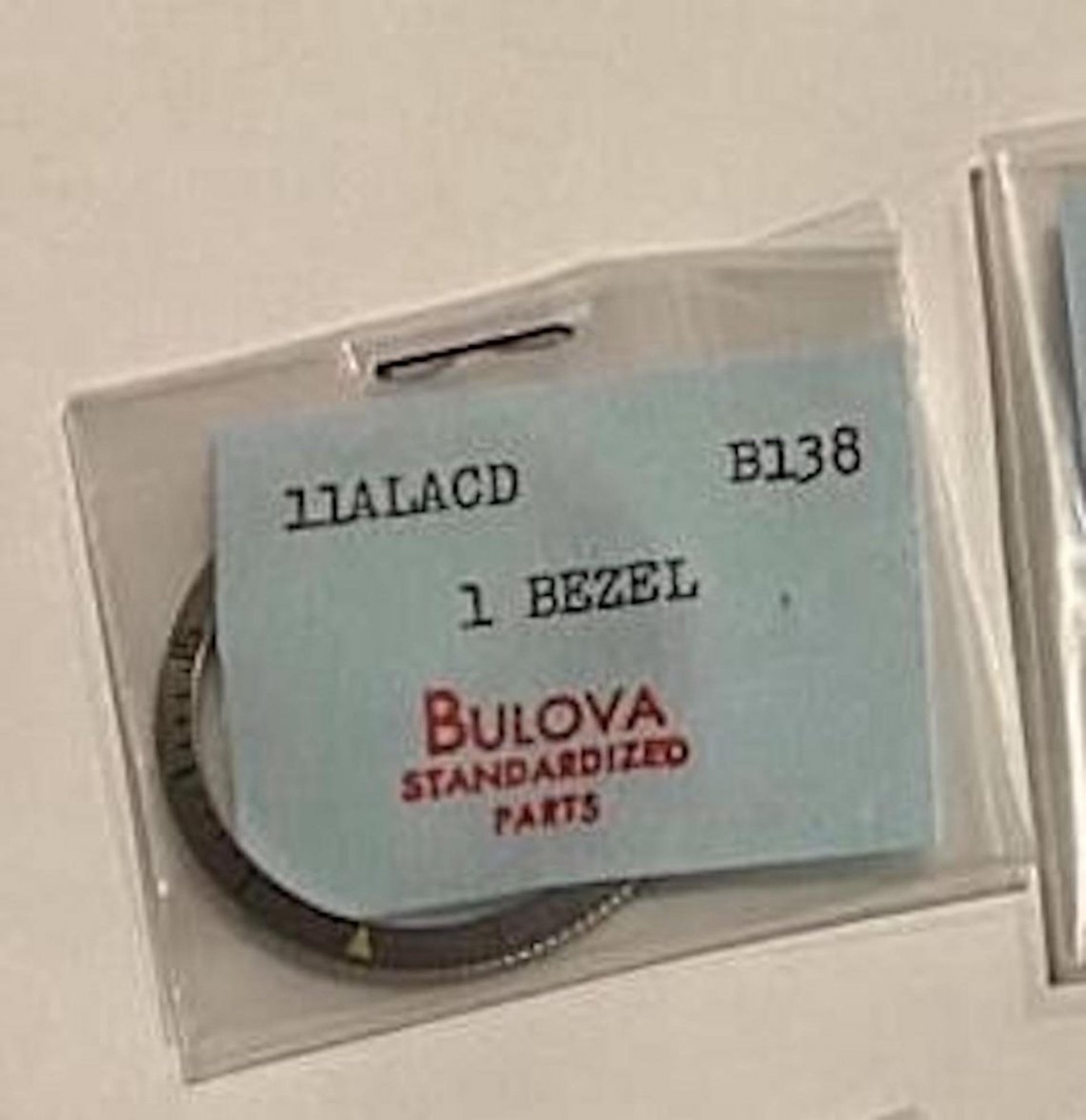

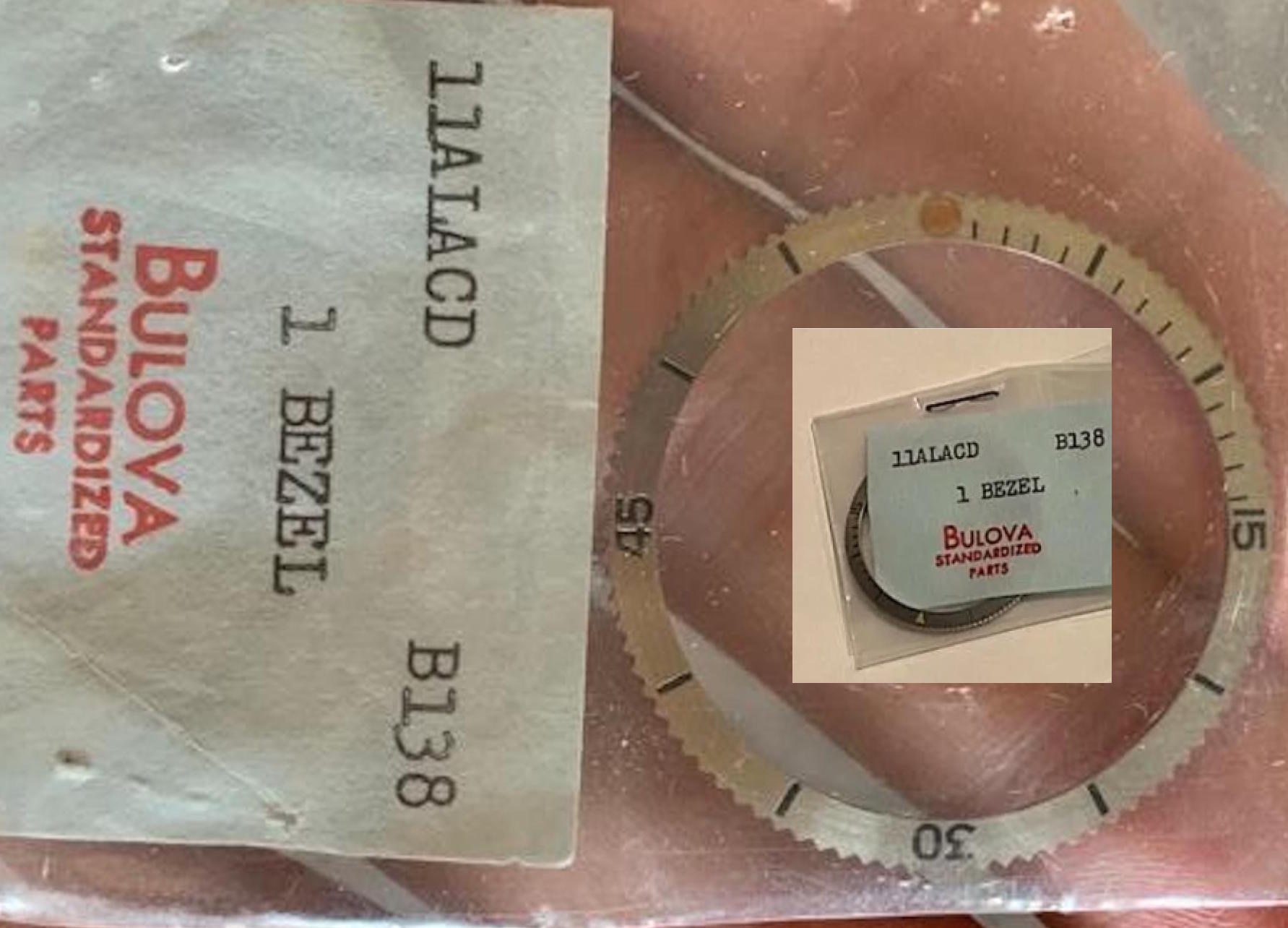

BEZEL ref# 138 with DECAL

1092254-ecb62d7af066187e79a49218af3be54c.jpg 241253896_10158472534144537_1793665497221018392_n.jpg 1291148-b1f32678309b799b72760016a11b6455.jpg 1291147-3fdb76892551f49807af4378351327b6.jpg

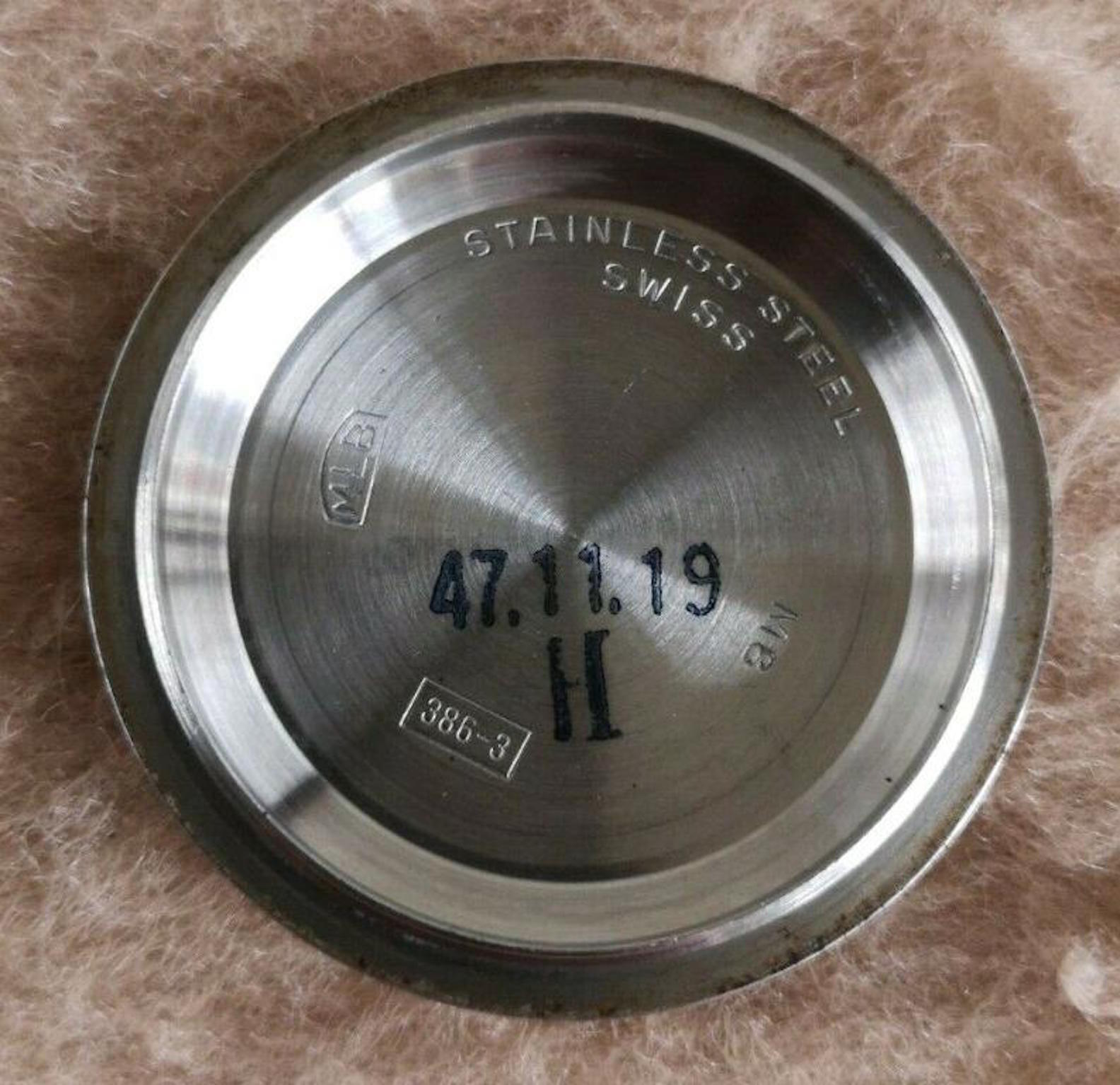

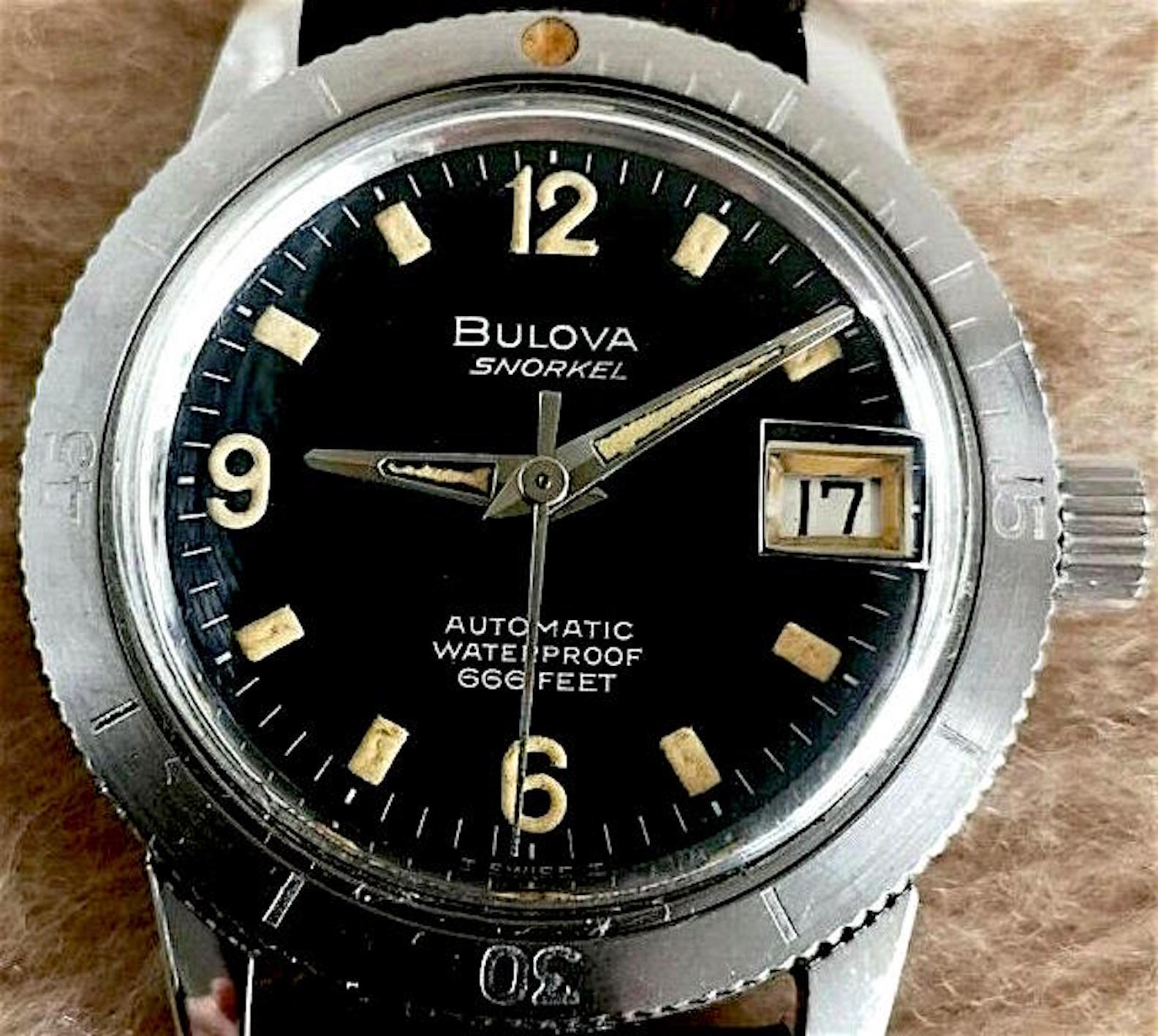

BULOVA Pre SNORKEL and SNORKEL Dial
case ref# 386-3
case ref# 386-4
case ref# 386-5
case ref# 386-6

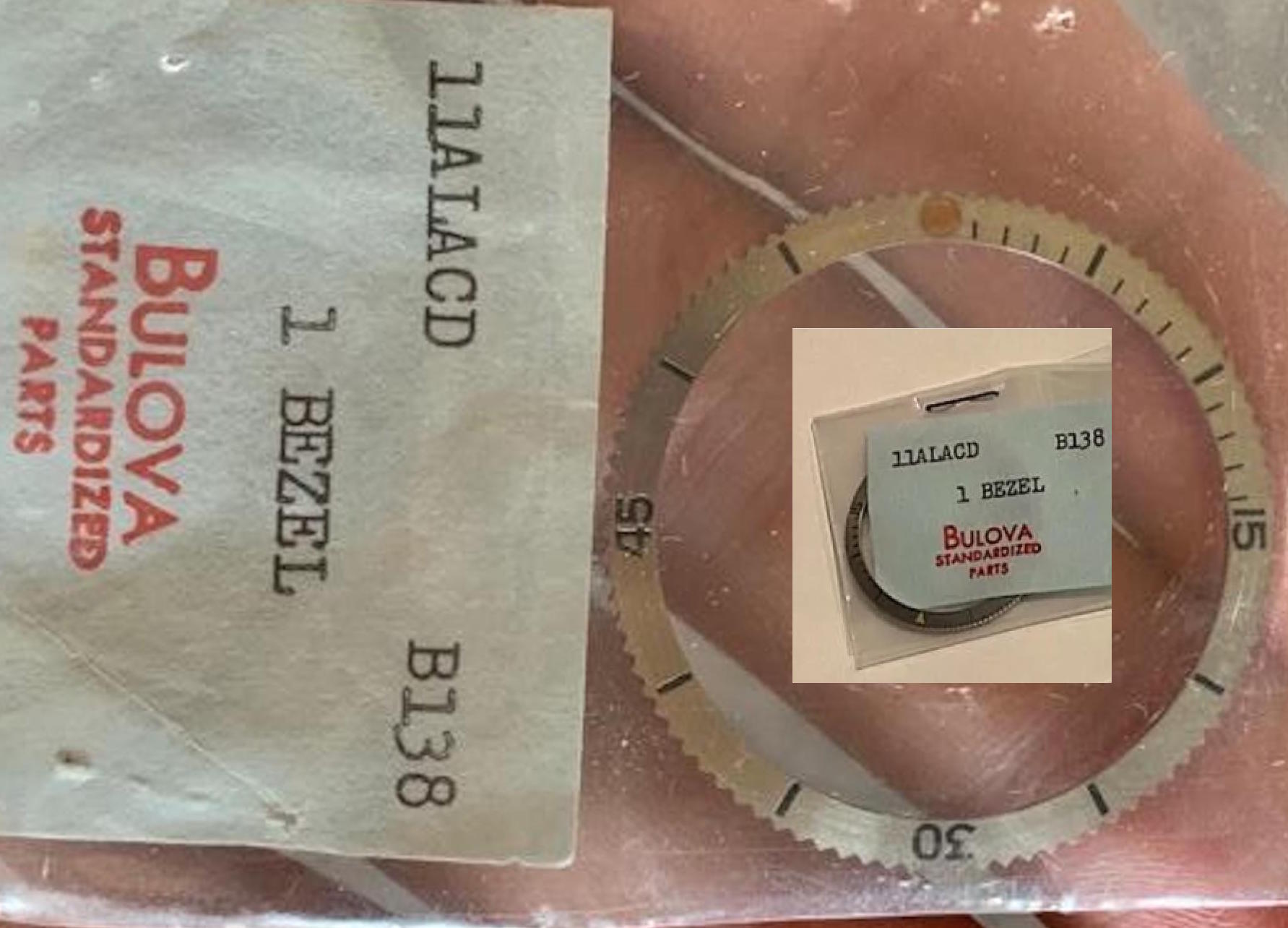

SECOND INCARNATION
BEZEL ref# 138 with ENGRAVED MARKINGS

5de8a1da23644cf3afbd6d68af2101a3.jpg bulova_snorkel_skin_divers_386_1640542013_2cfcac1c_progressive.jpg bulova_snorkel_skin_divers_386_1640542014_a3d872dc_progressive.jpg
View attachment 1417081

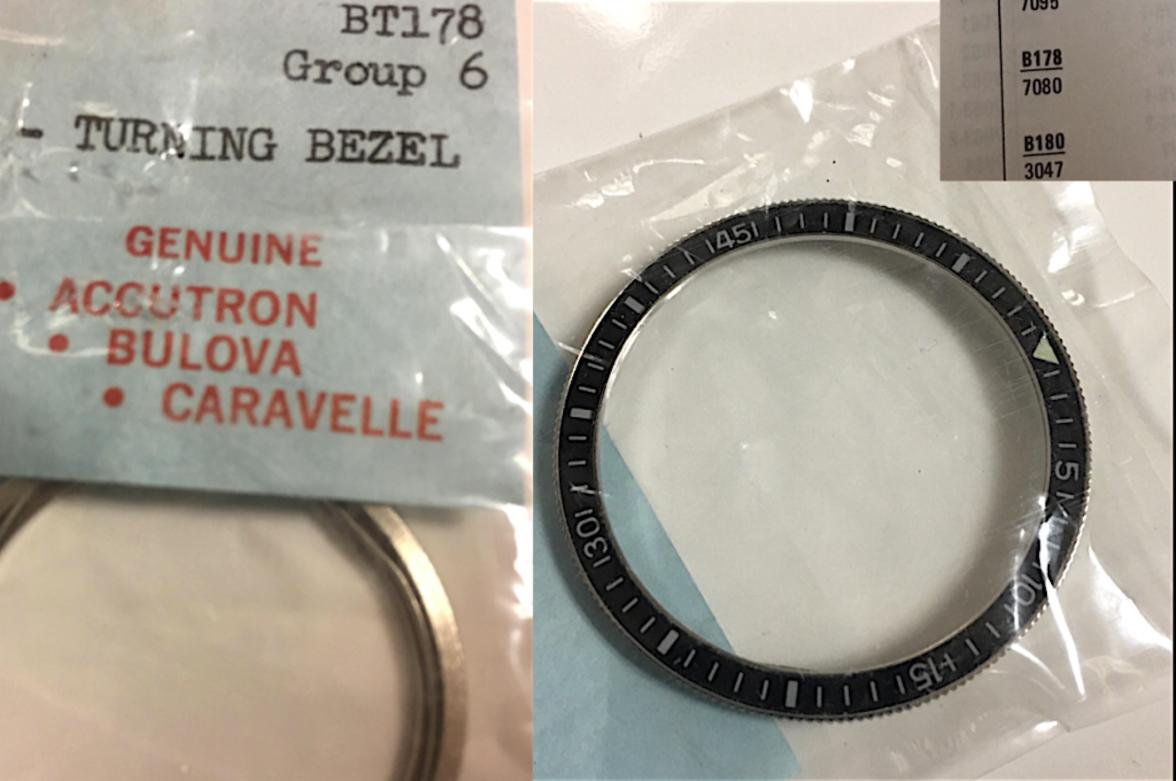

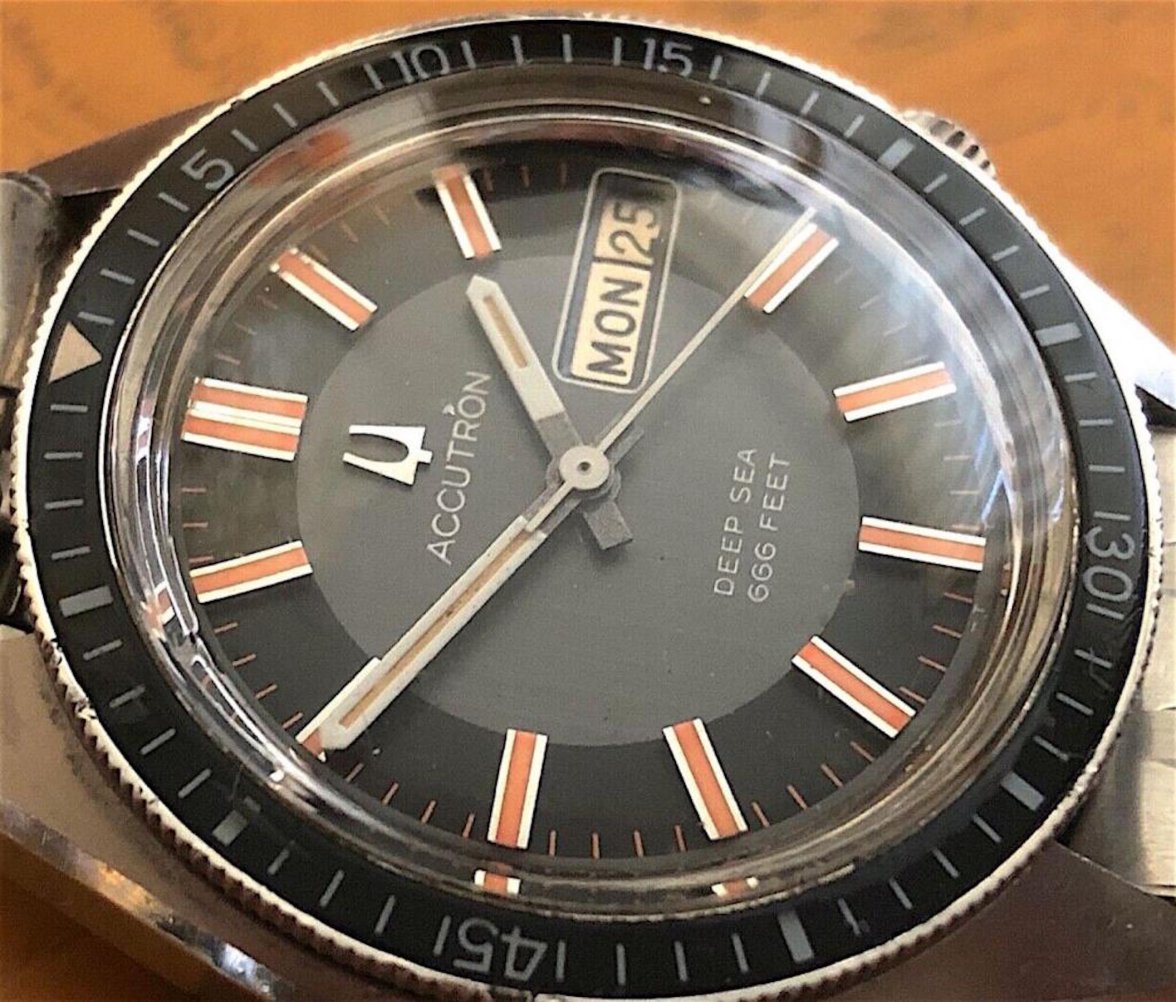

ACCUTRON DEEP SEA 666ft. DIVERS
Case Ref# - 7080
BEZEL Ref#: B -178

82c678f2-9214-4d21-af61-3601396bb99e.jpg Screen Shot 2021-09-23 at 4.17.06 AM.png

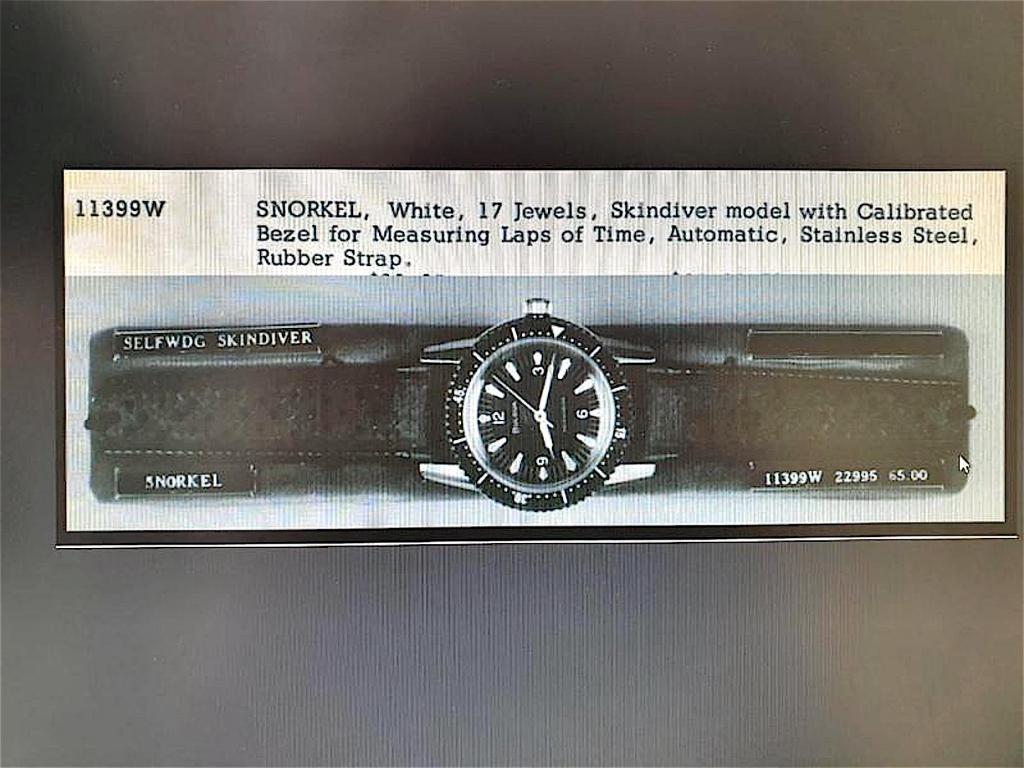

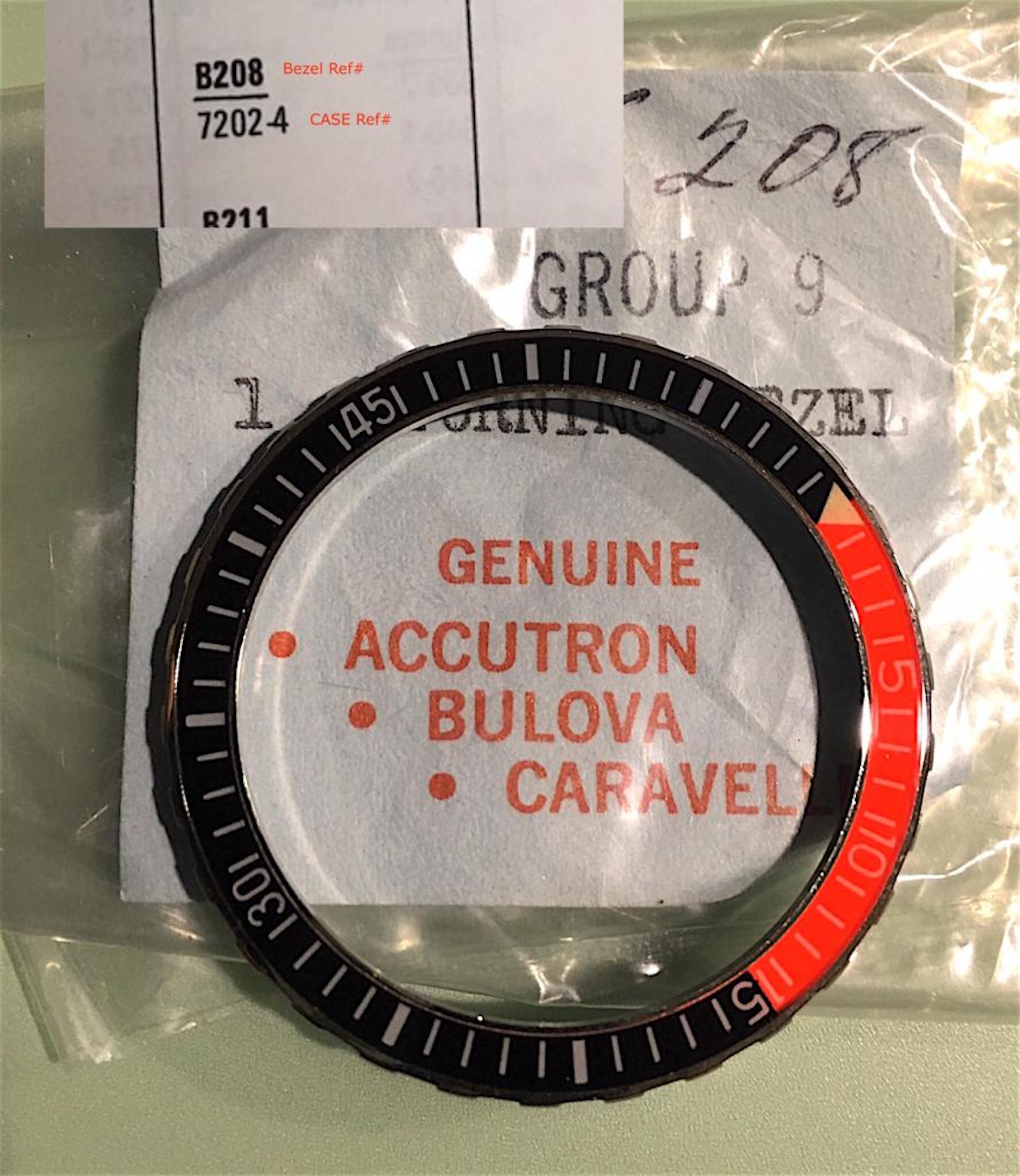

BULOVA SNORKEL
Case Ref# 7202 - 4
Bezel Ref# B-208

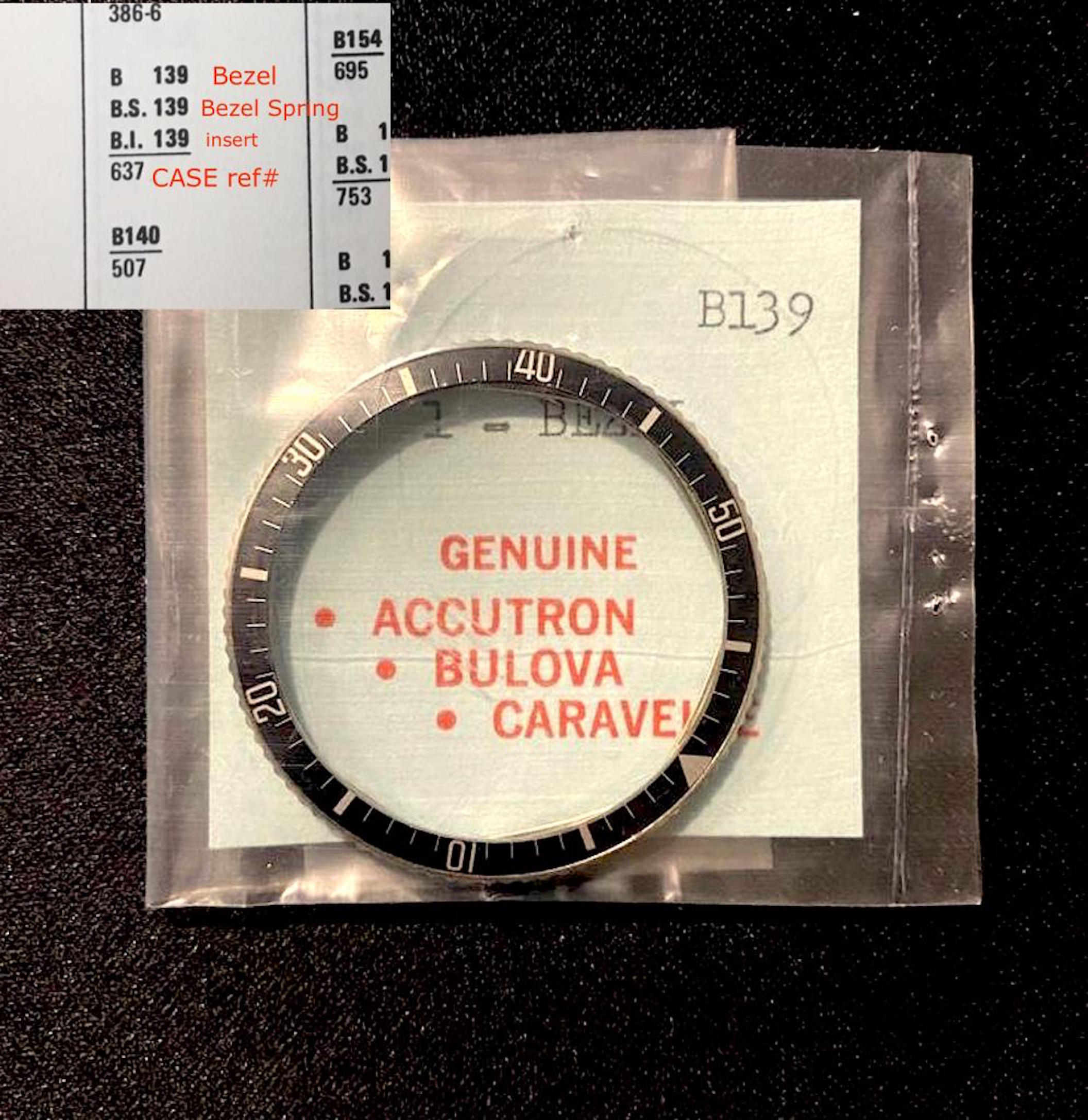

Caravelle SeaHunter
Bezel Ref# - B-139
CASE Ref# - 637

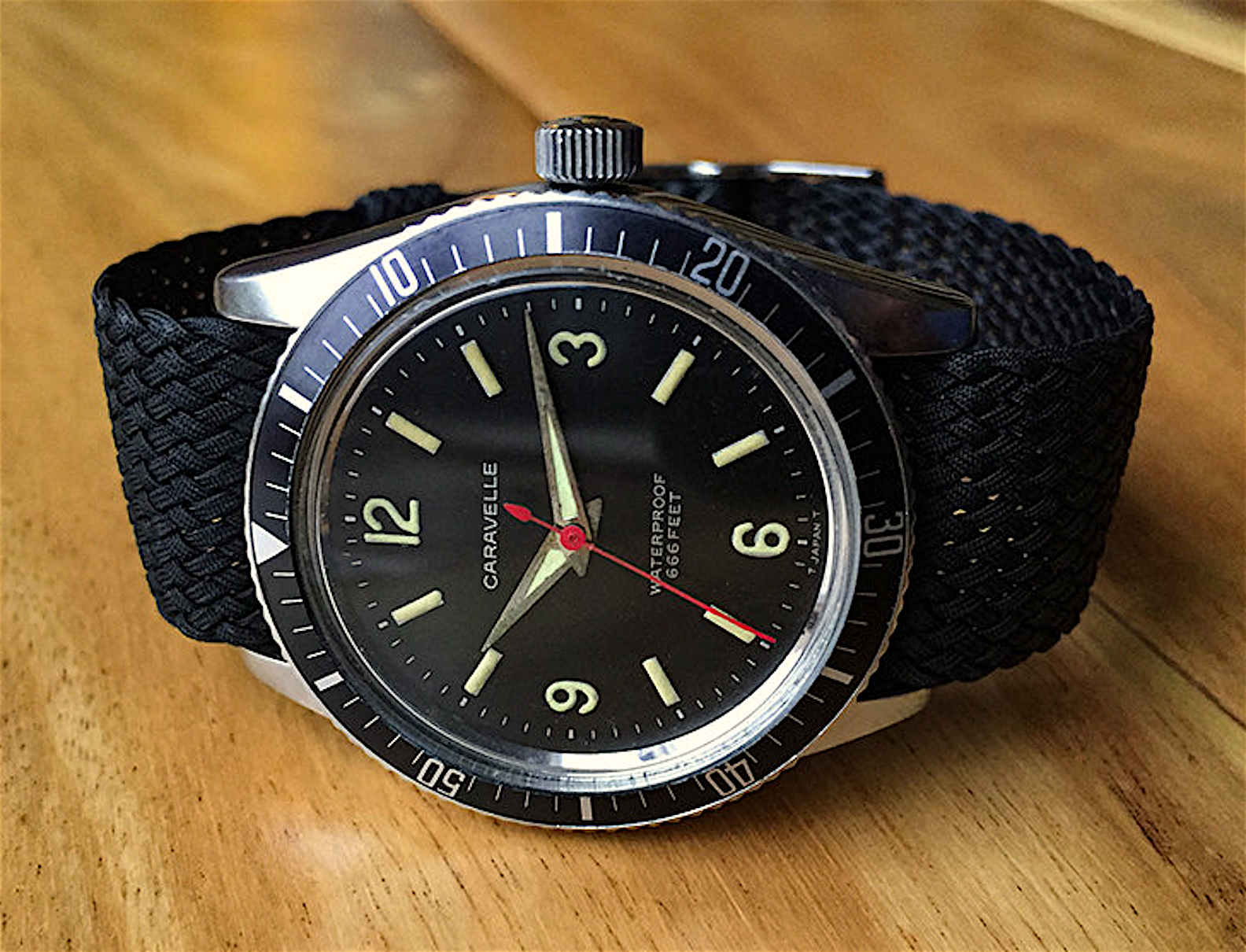

1960's DIAL text and hands set
seconds baton shown in photo Bulova safety red rather than more common silver seconds baton

Screen Shot 2022-05-21 at 10.17.38 AM.png

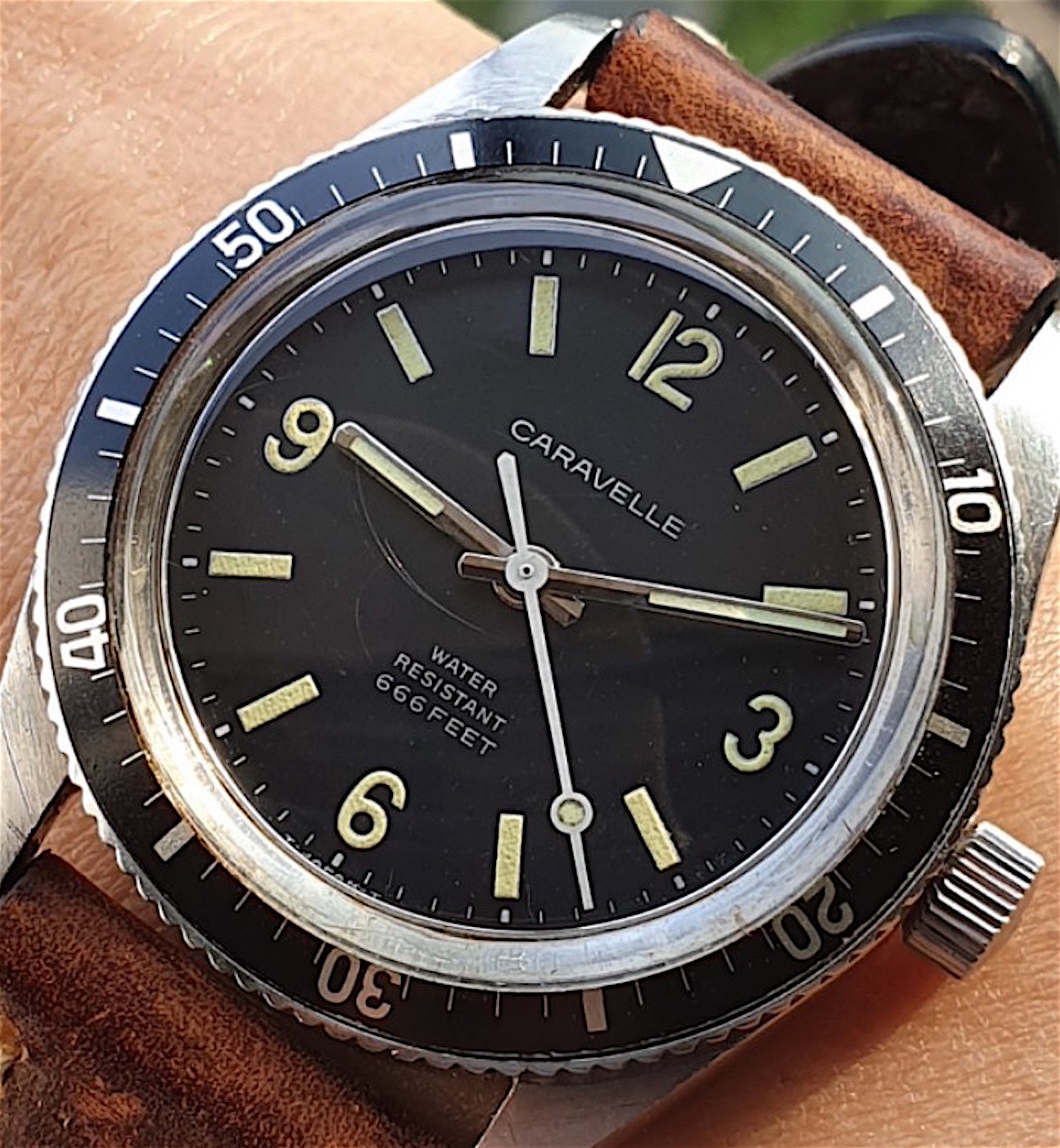

1970's Dial text and handset

caravelle_666_sea_hunter_1622367509_f9d113c8.jpg ba070522dc7135831f3f76a8e29c8588.jpg

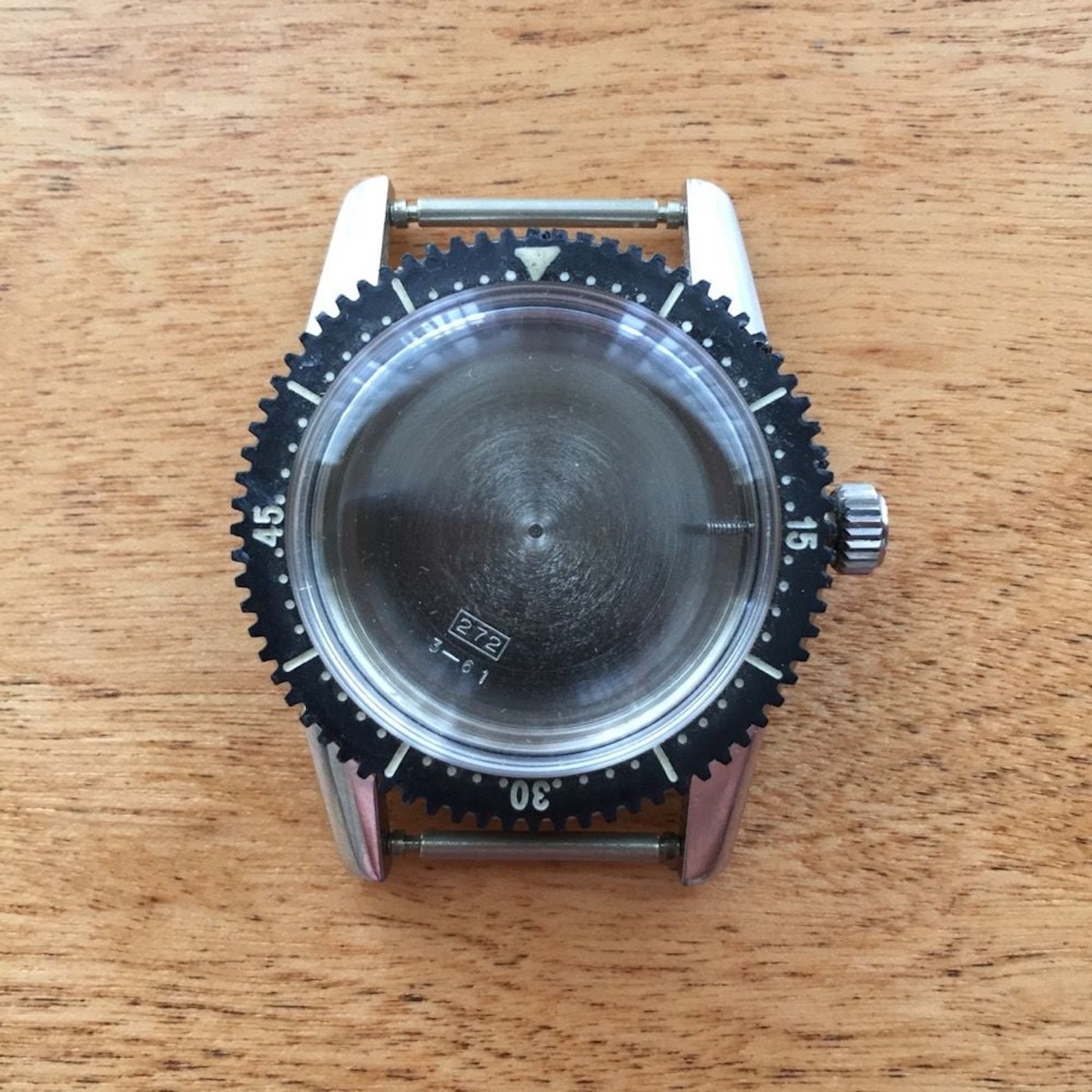

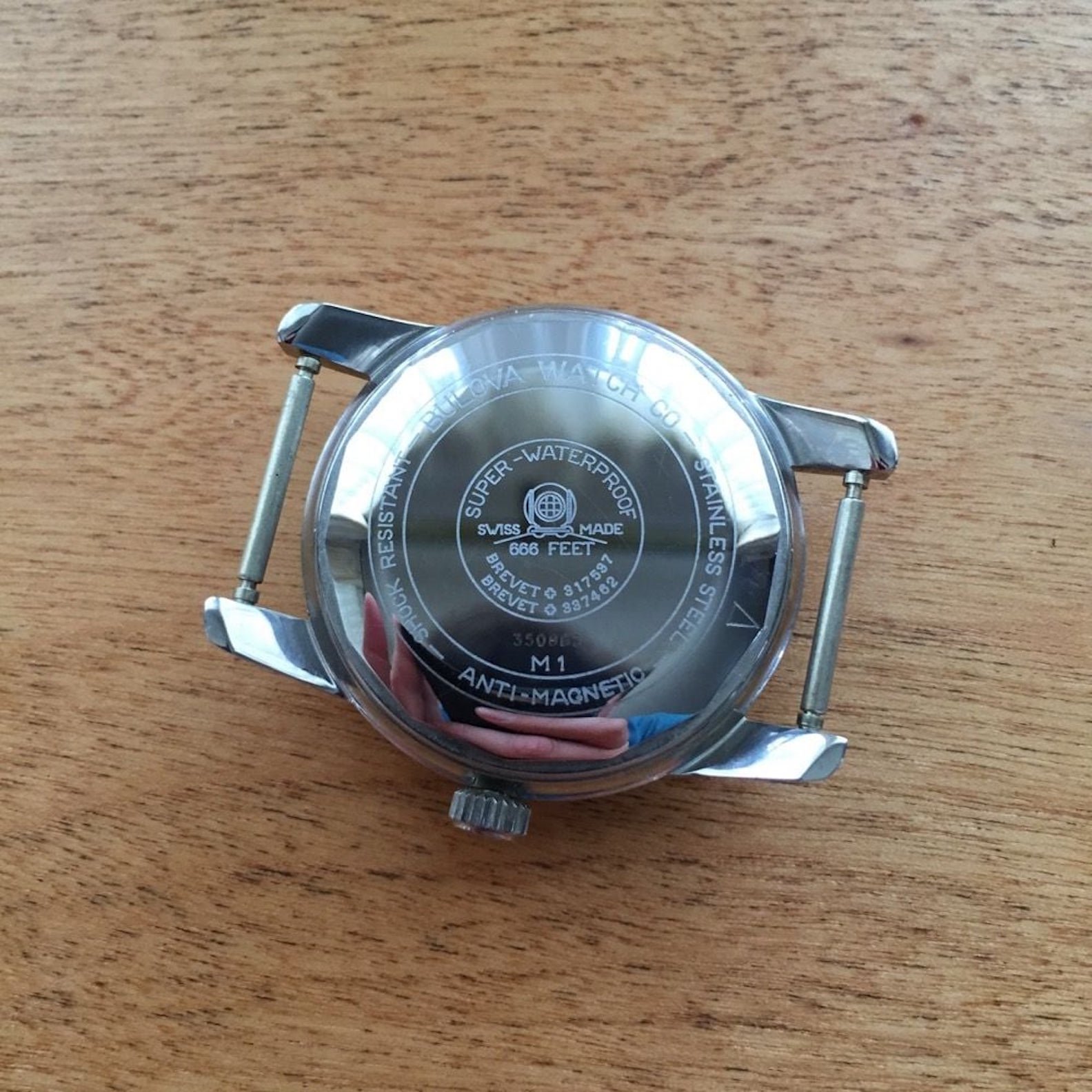

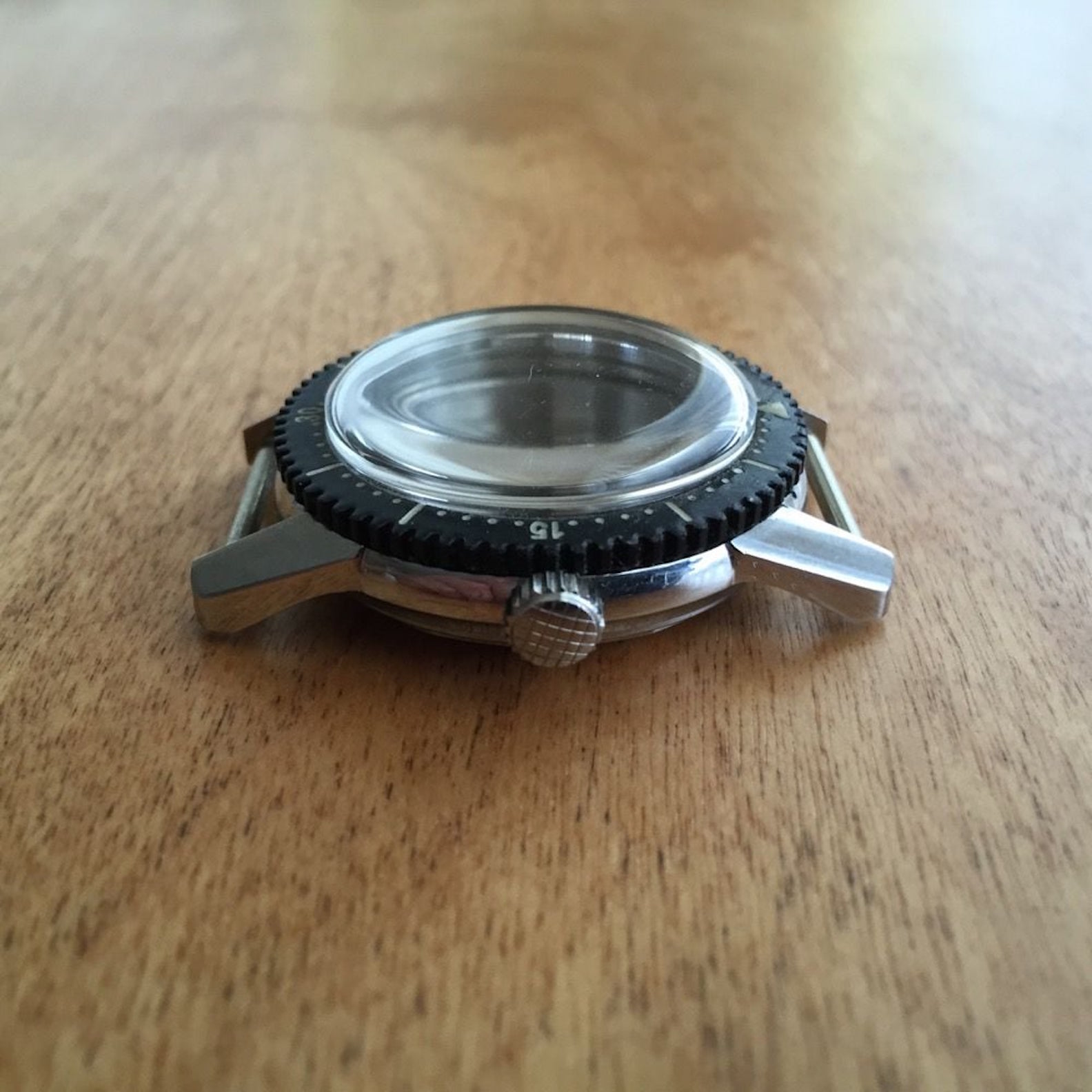

SINGLE CROWN COMPRESSOR
Case ref# 272
Bezel ref# " B125 "

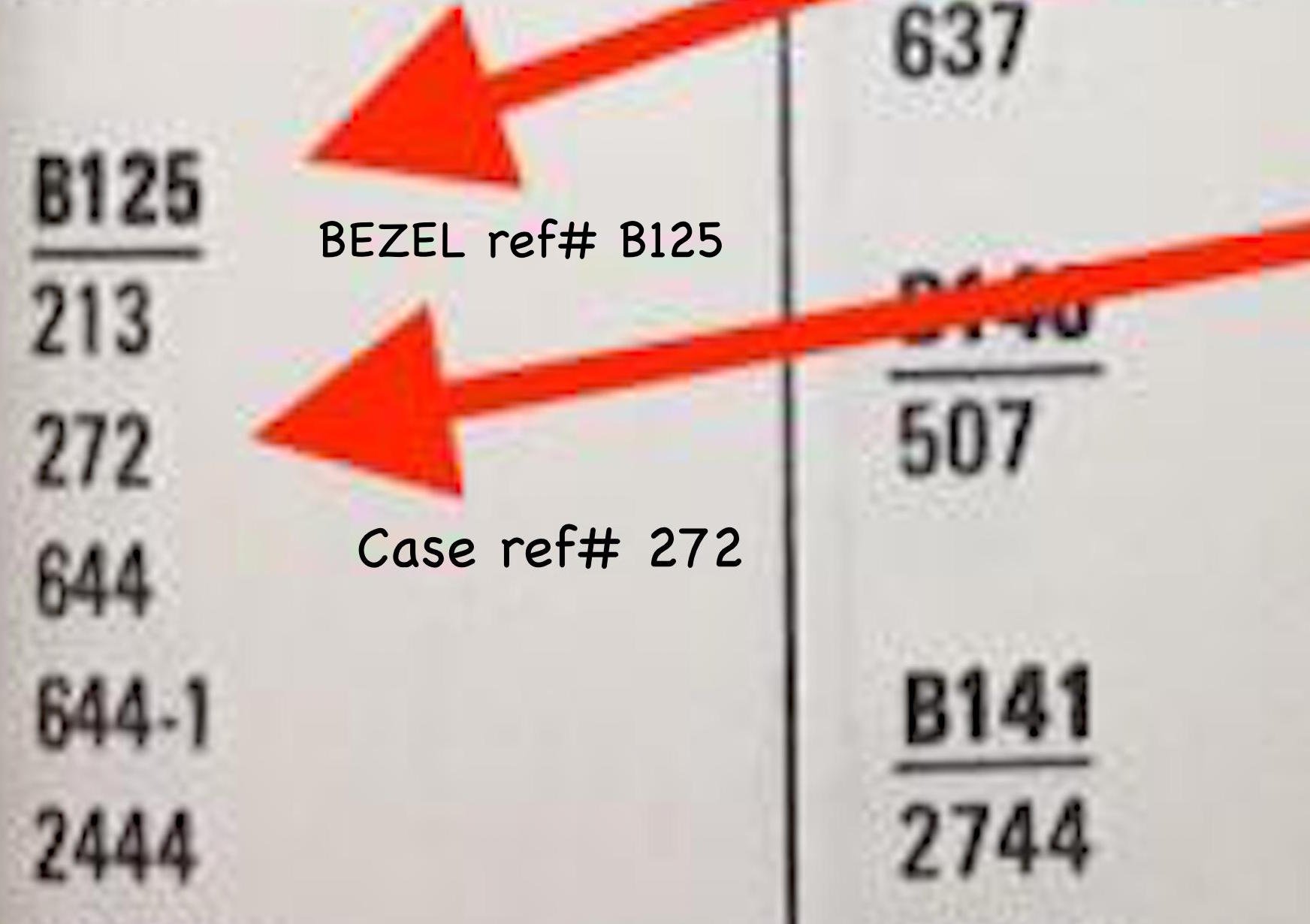

Bezel for this model is made of a solid composite blend [resin plastic] .... see photos below of Bezel and matching Case ref. info chart ...

140212510_10157956712759537_8216531766135429177_n.jpg 140266557_10157956767254537_4923598203164387619_n.jpg 139786468_10157956767224537_3004841551564847833_n.jpg 139599806_10157956767319537_1385869618253434718_n.jpg -.jpg

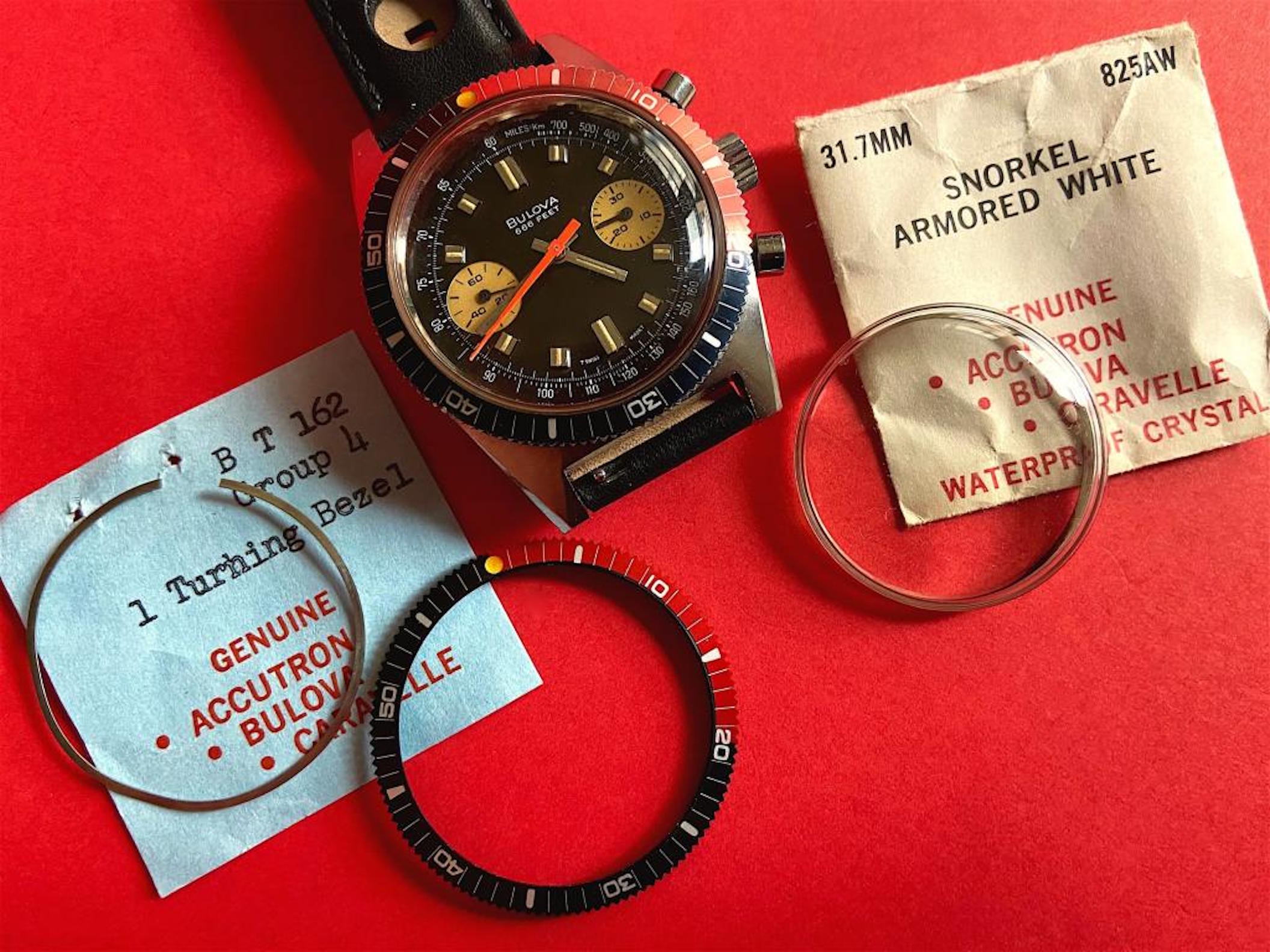

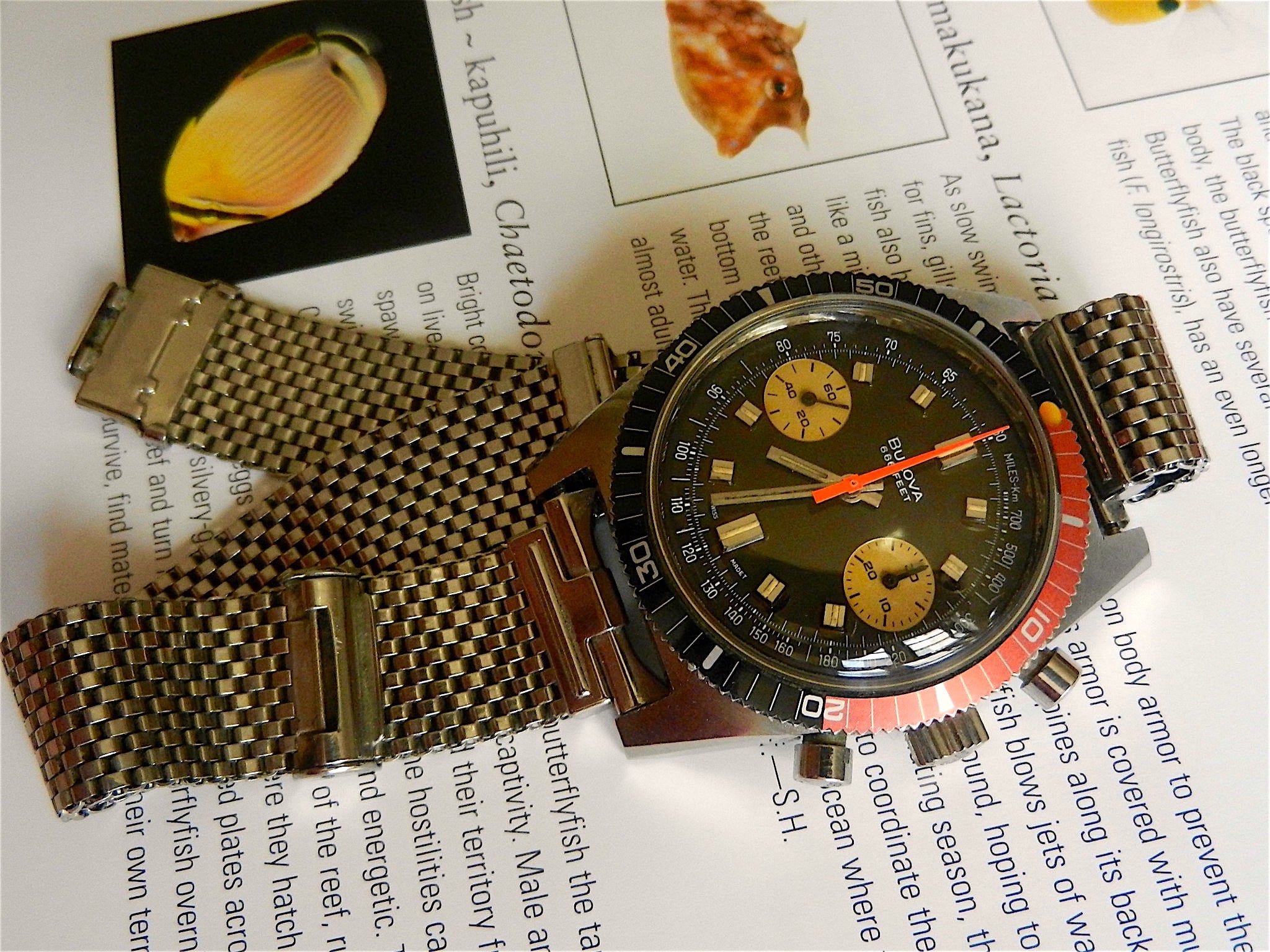

BULOVA DEEP SEA CHRONOGRAPH 666ft. B
case ref# 895
BEZEL ref# 162
BEZEL SPRING ref# B.S. 162 ... [flat wire, see photo]

228899343_10158436333369537_8750886802265451156_n.jpg 262799783_10158629984399537_6648944463522672429_n.jpg

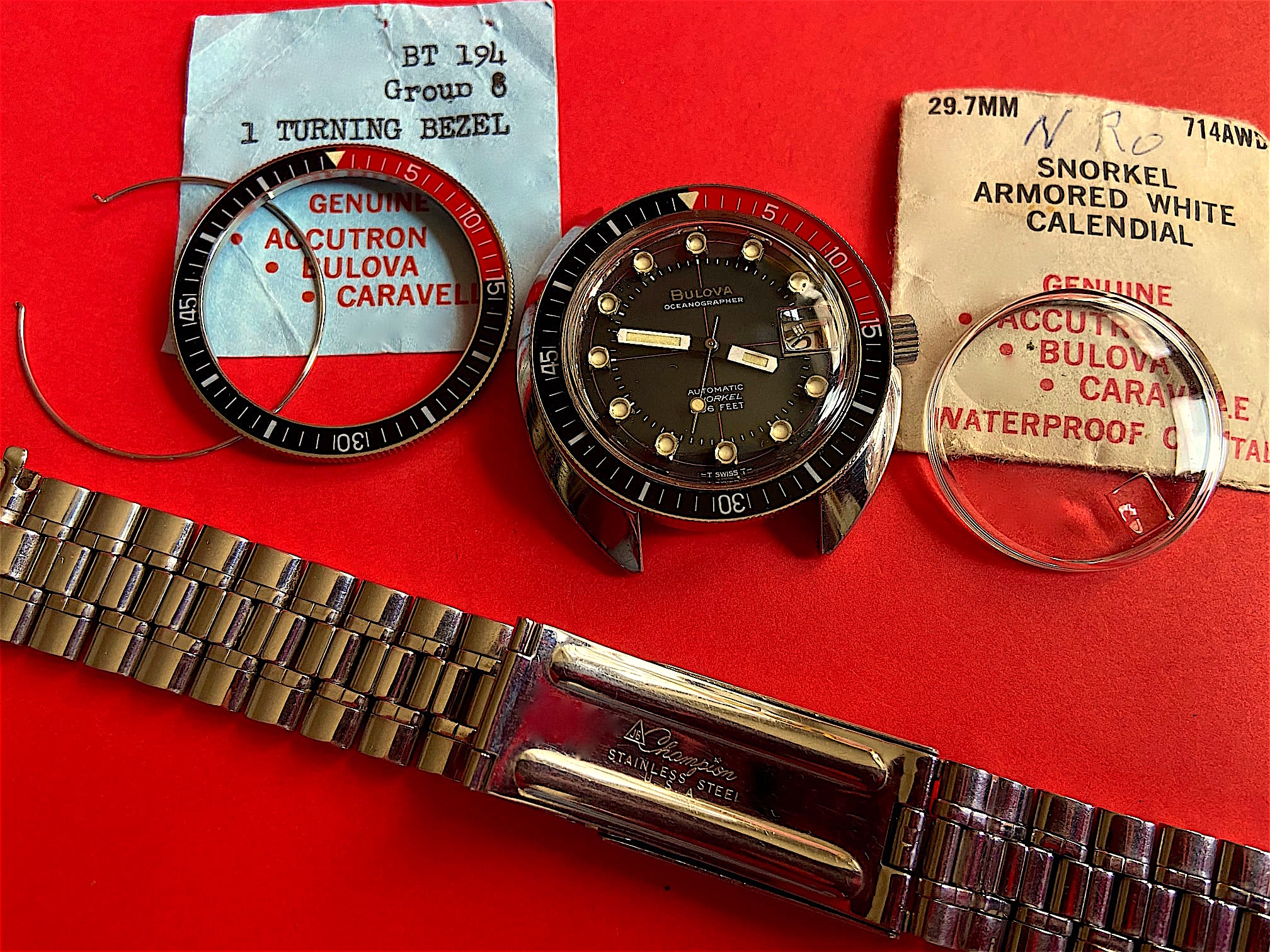

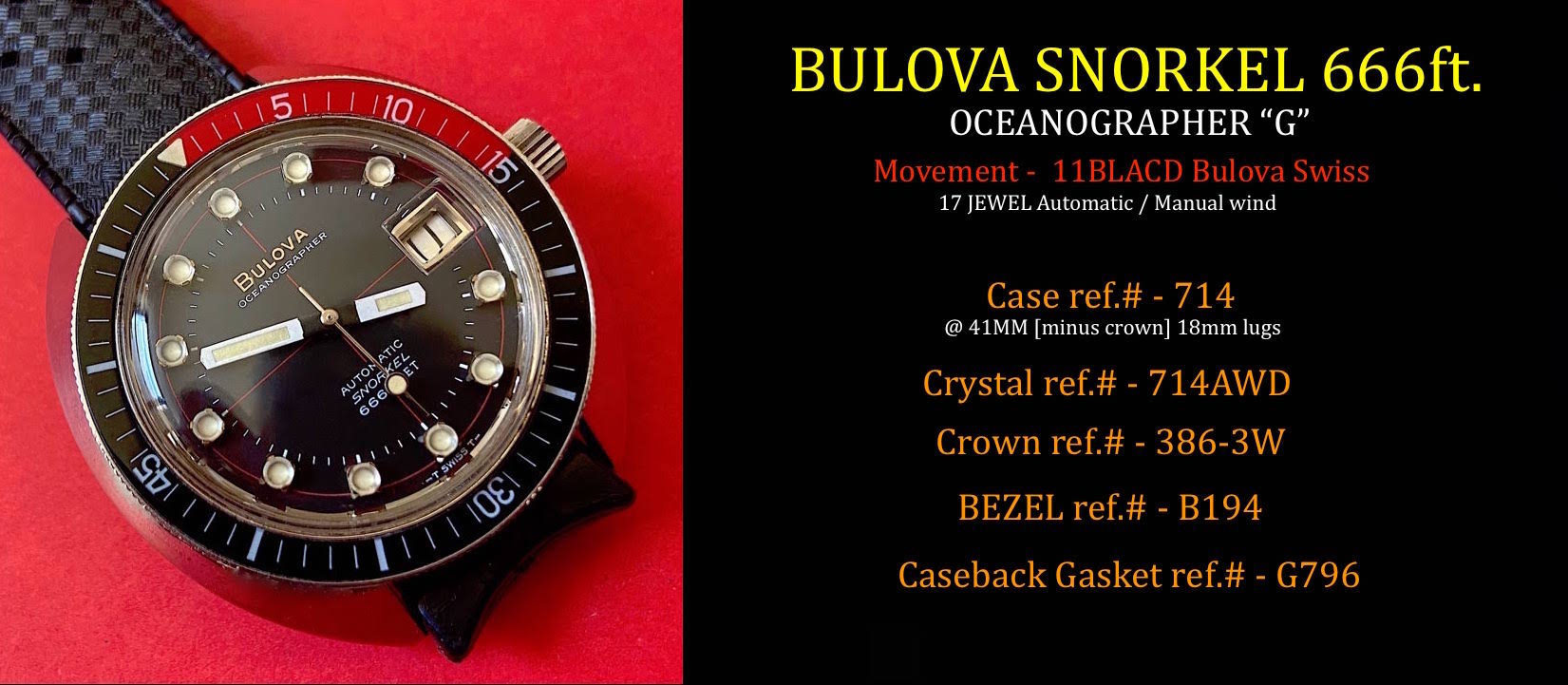

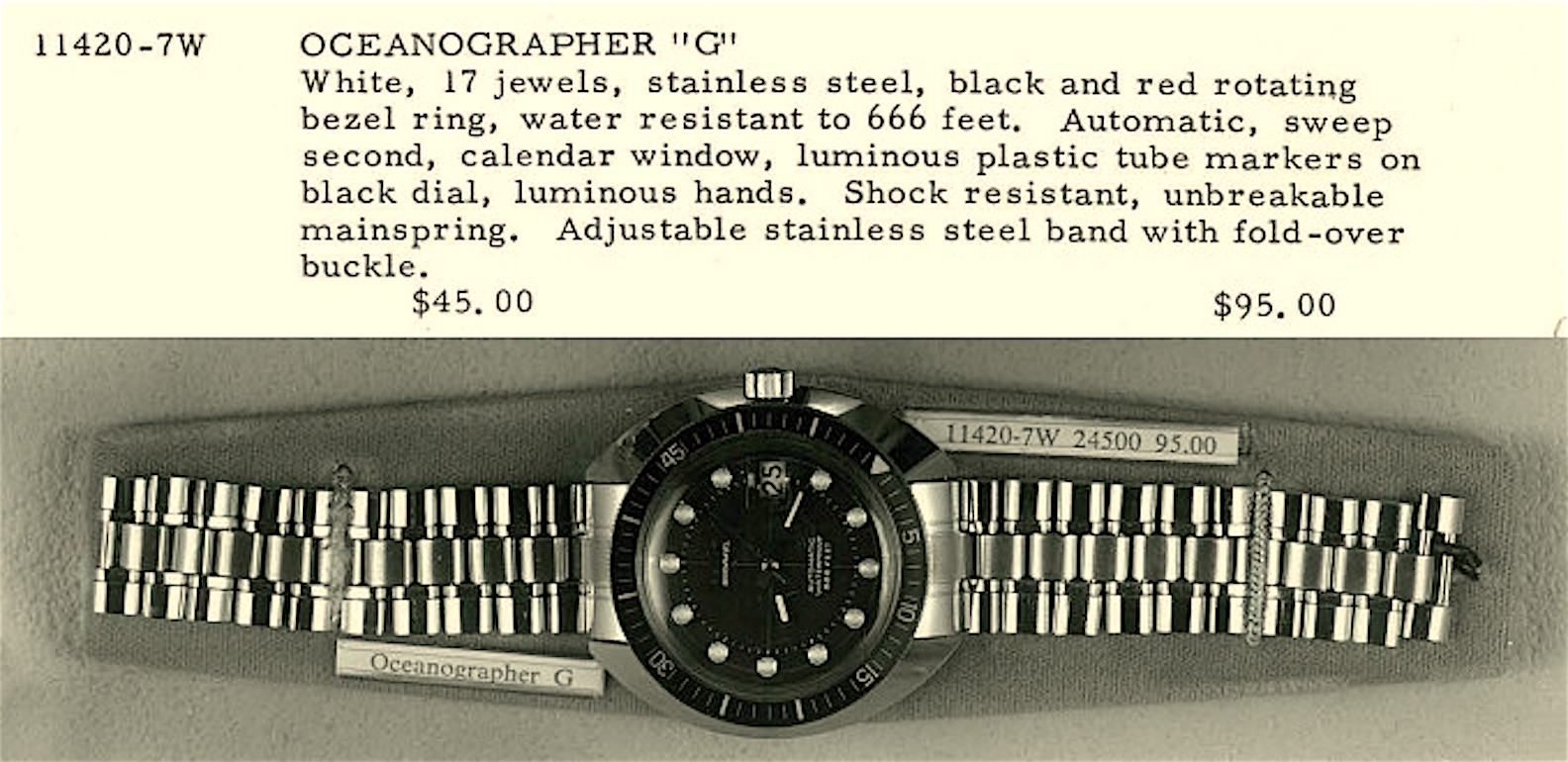

BULOVA OCEANOGRAPHER SNORKEL 666ft. G
case ref# 714 uses a CLICK B194 bezel

1969-Bulova-Oceanographer-G-300322.jpg download.jpg 238039445_10158436985894537_3134132980928382628_n.jpg

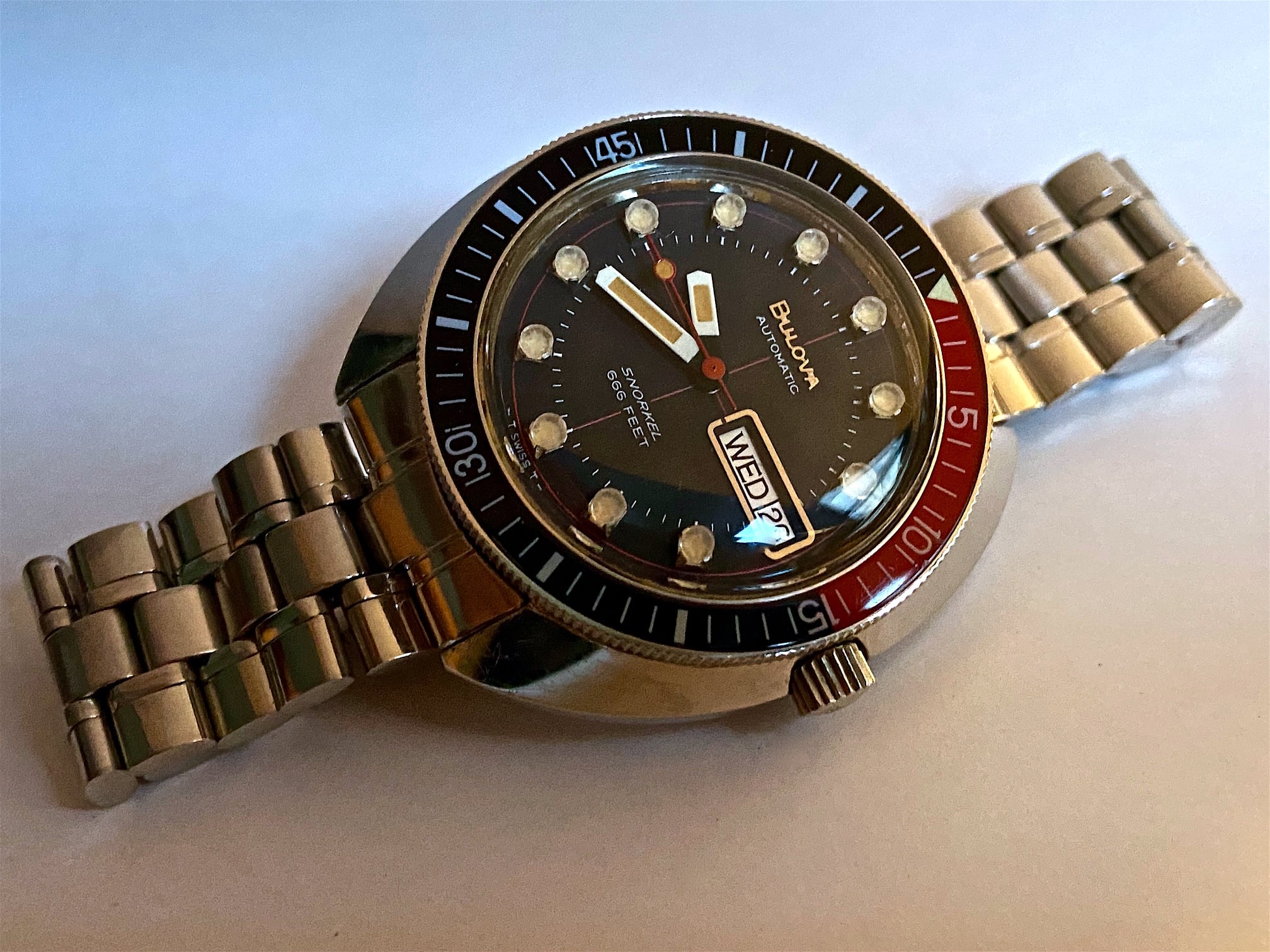

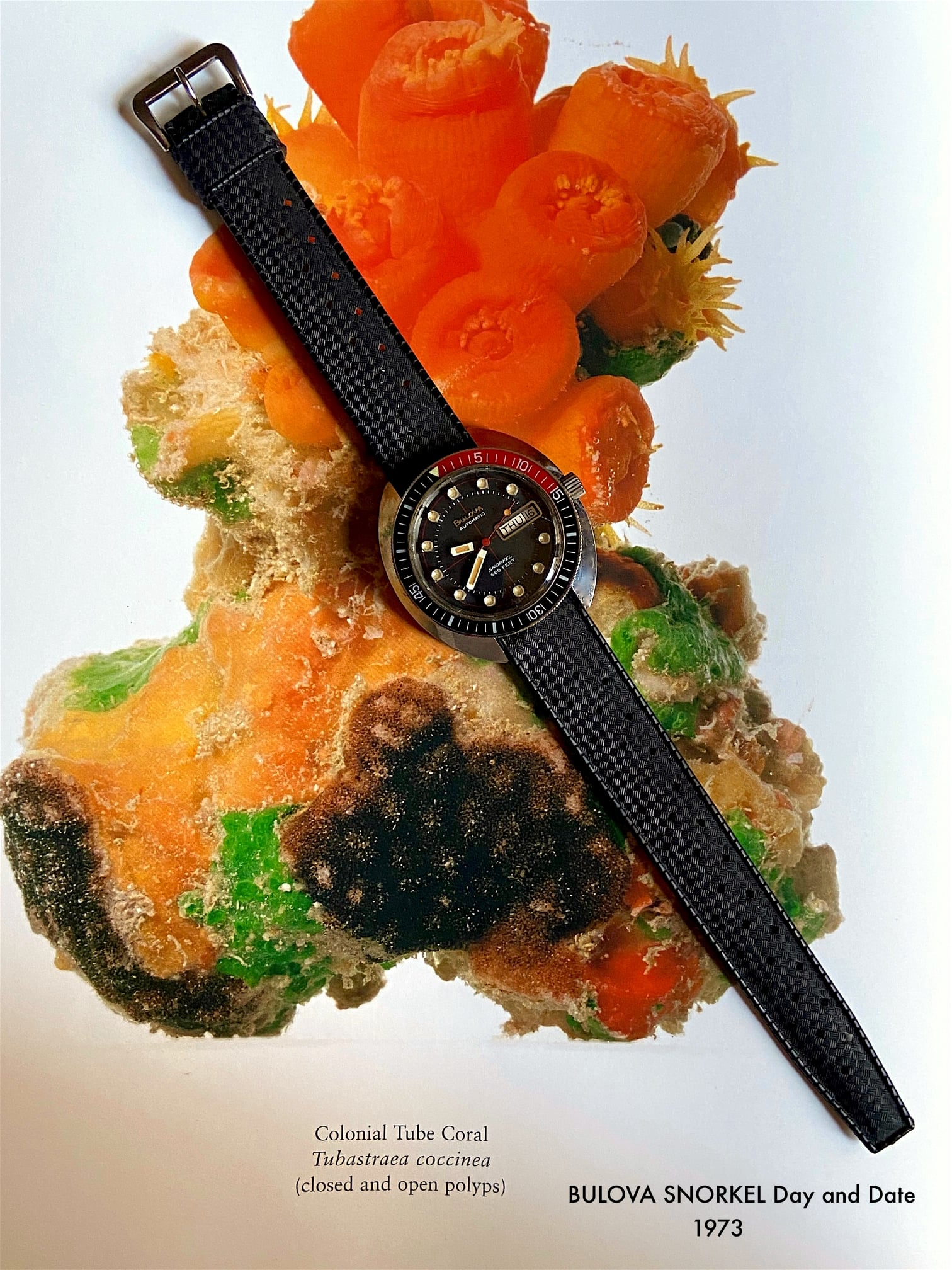

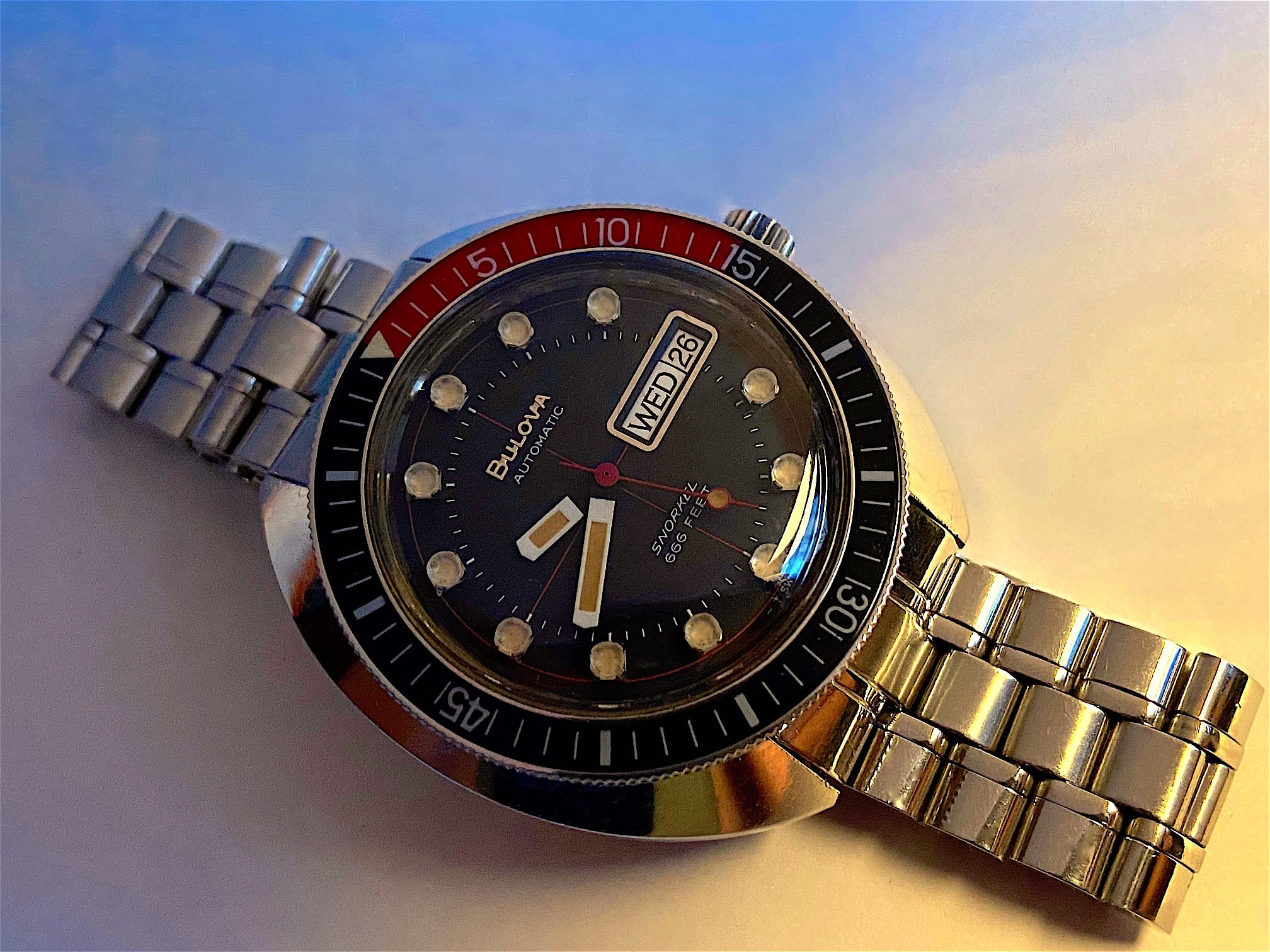

BULOVA SNORKEL DAY and DATE
case ref# 7095-1 uses a NO CLICK / FRICTION MOUNTED B194 bezel


274717255_10158760629594537_5633447675227361902_n.jpg 273167682_10158726697999537_4052676388550816929_n.jpg 273004457_10158726677899537_4203974669117650132_n.jpg

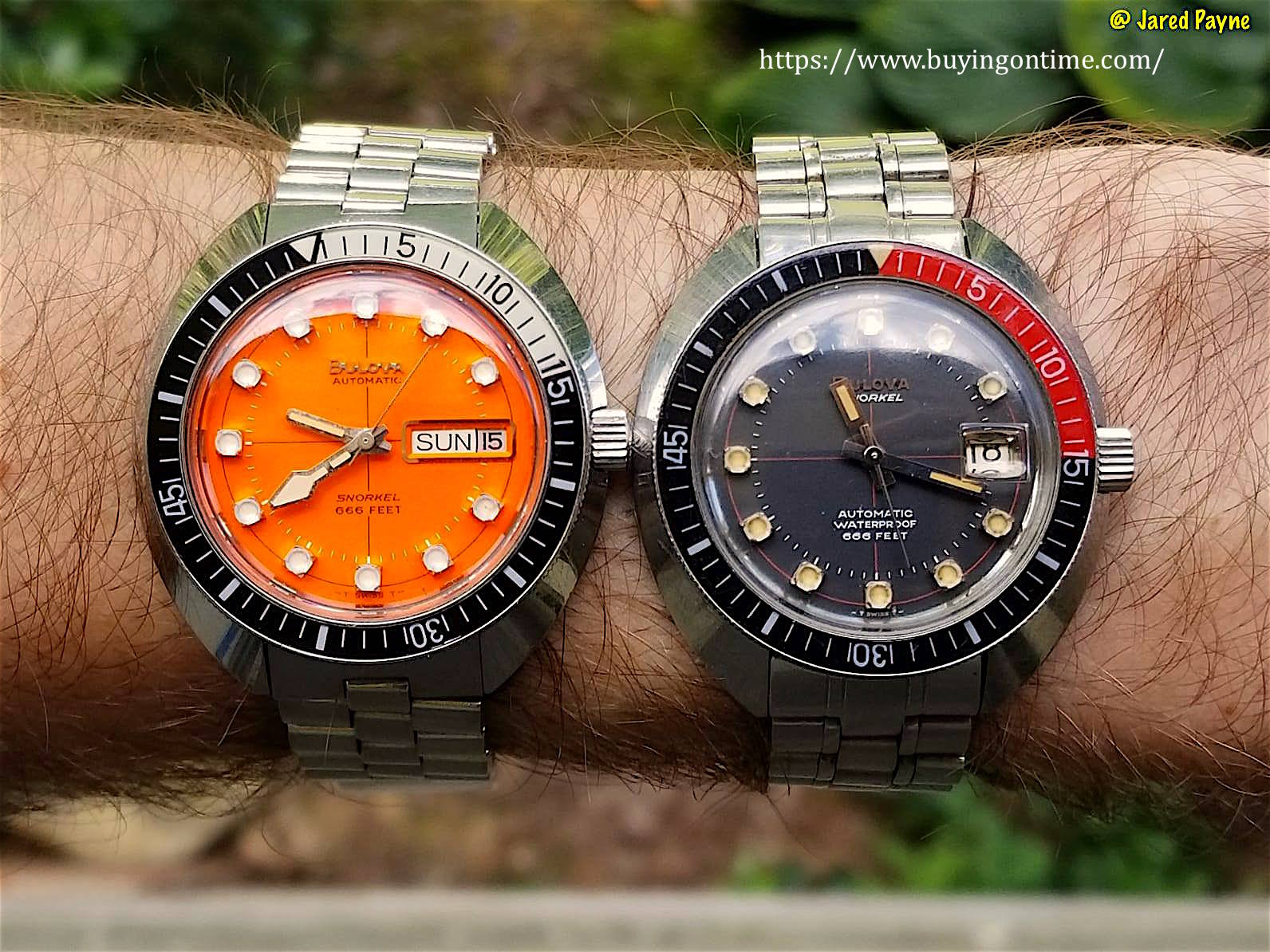

BULOVA SNORKEL V [orange dial]
case ref# 7095

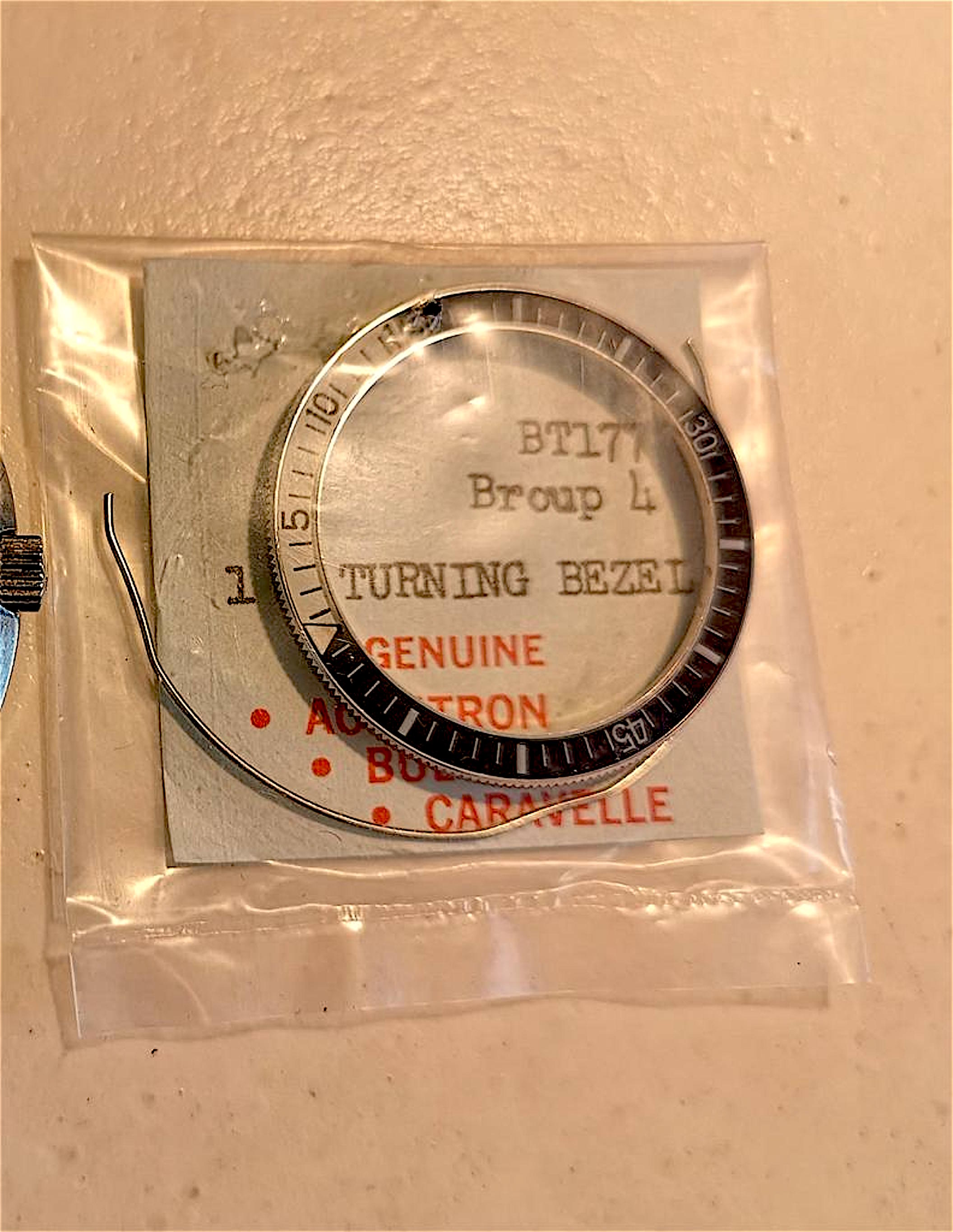

BEZEL ref# BT177
https://www.buyingontime.com/
72301399_10156682822119537_7038660222218403840_n.jpg 60651297_10214502005727462_7155892260800823296_o.jpg

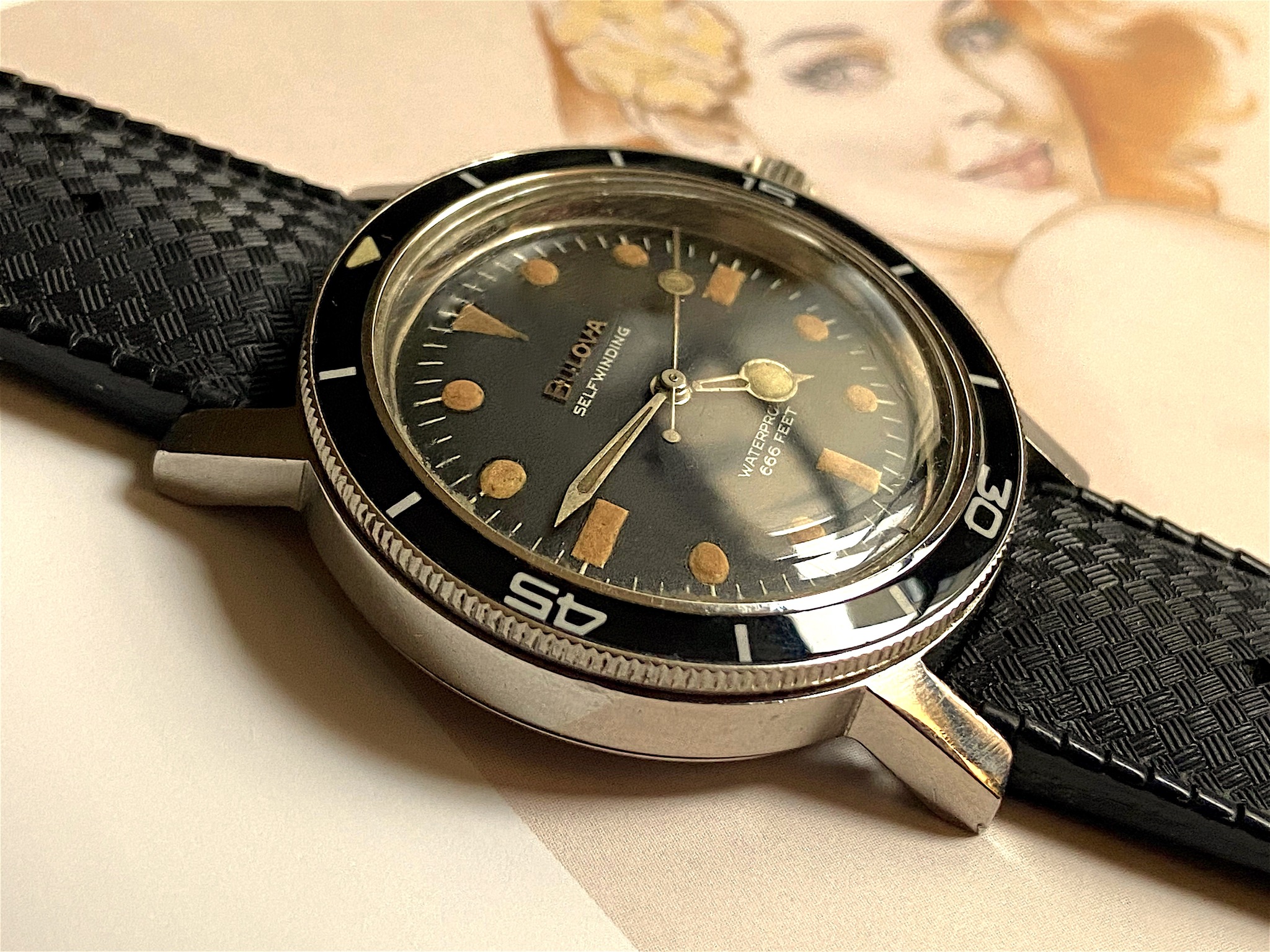

BULOVA SNORKEL J
case ref# 608

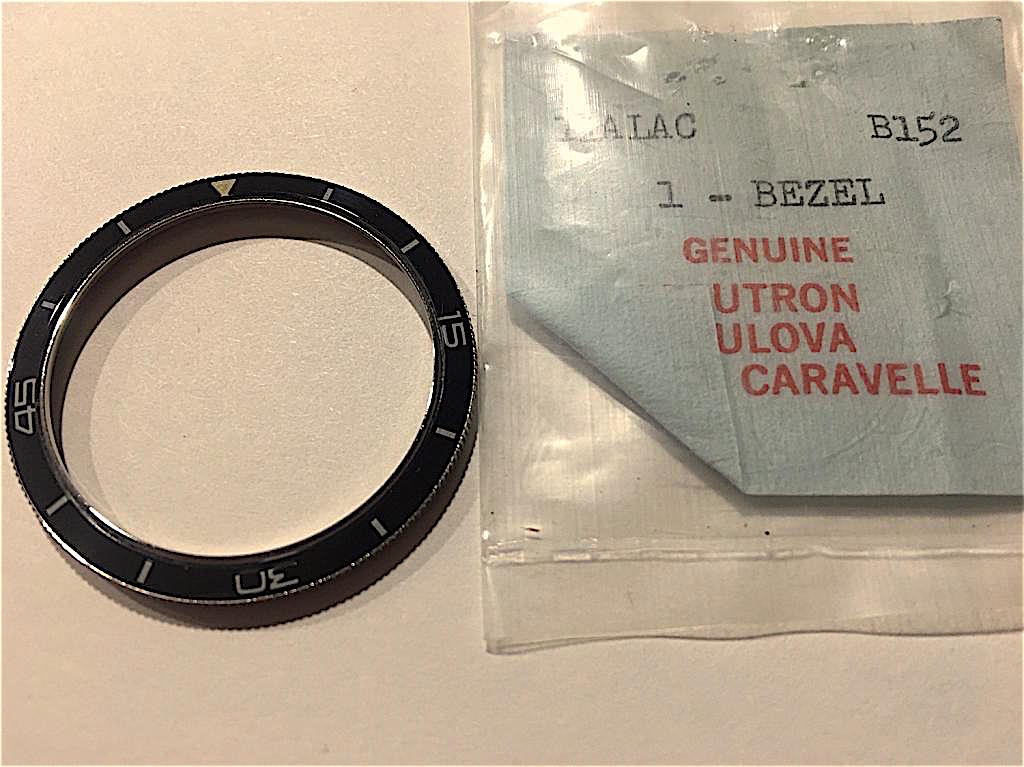

BEZEL ref# B152

273453192_10158737234869537_8015413851920334858_n.jpg cc6fd890d50e791a95db56bb4c34c7cc_0.jpg

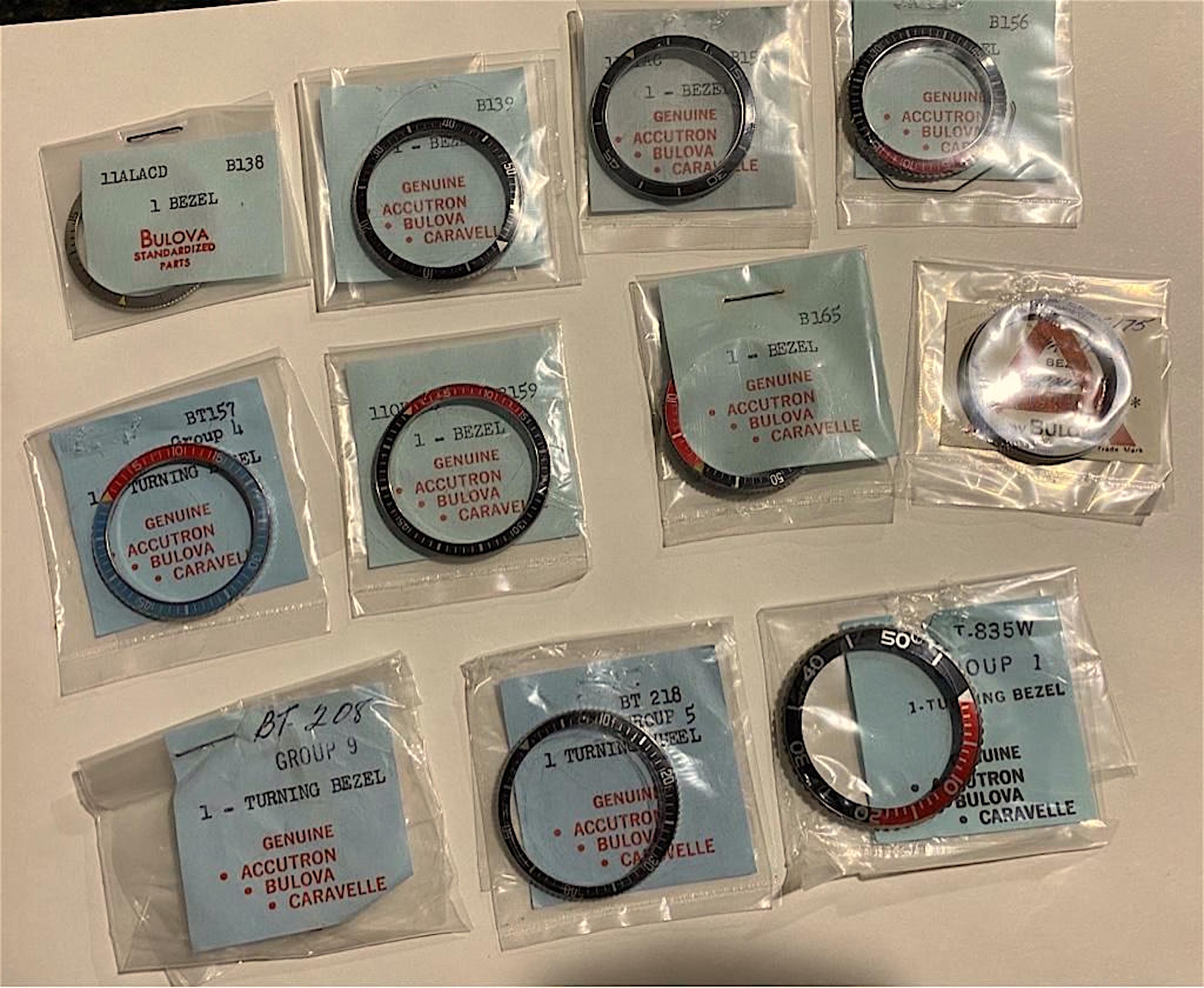

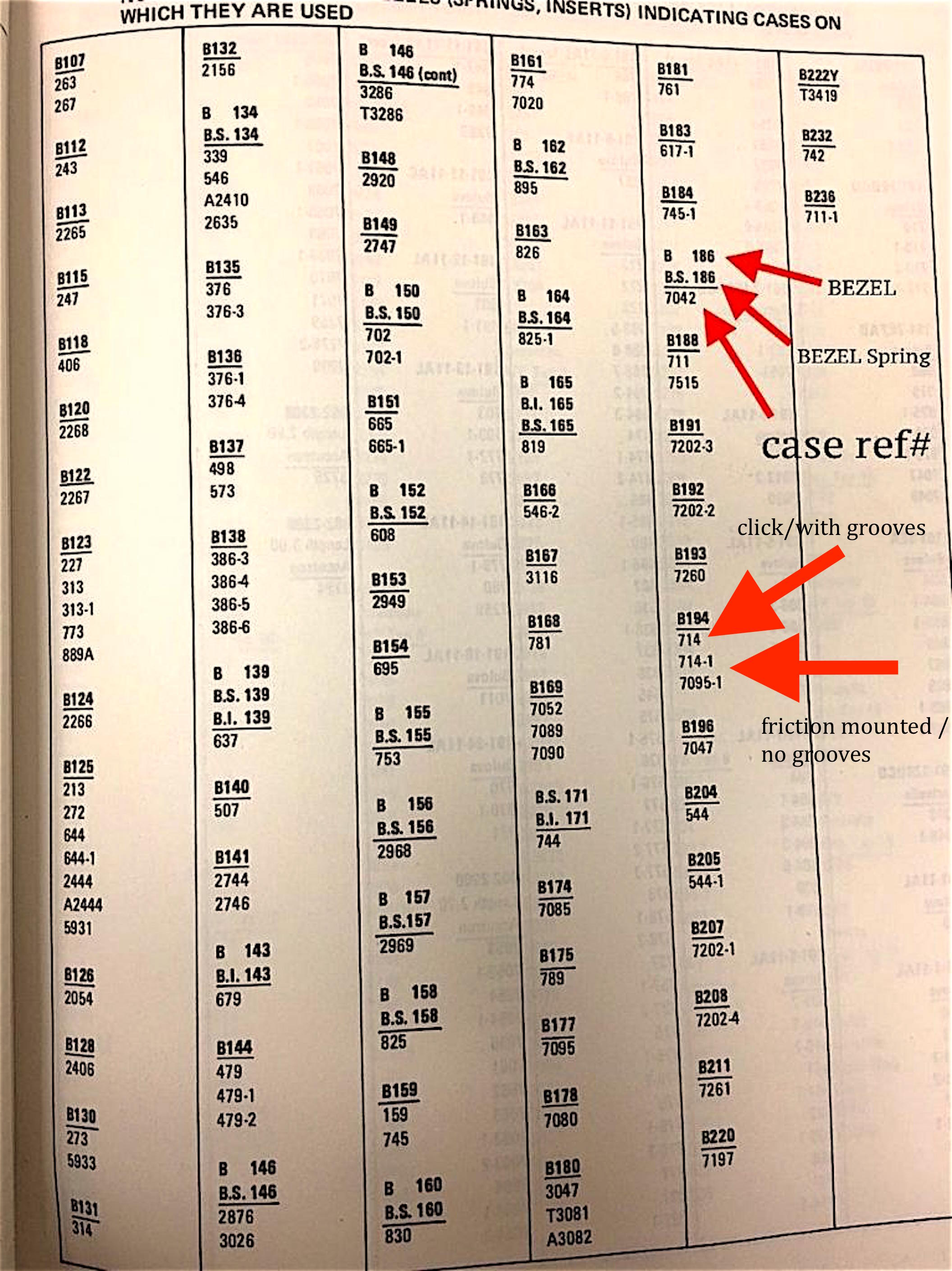

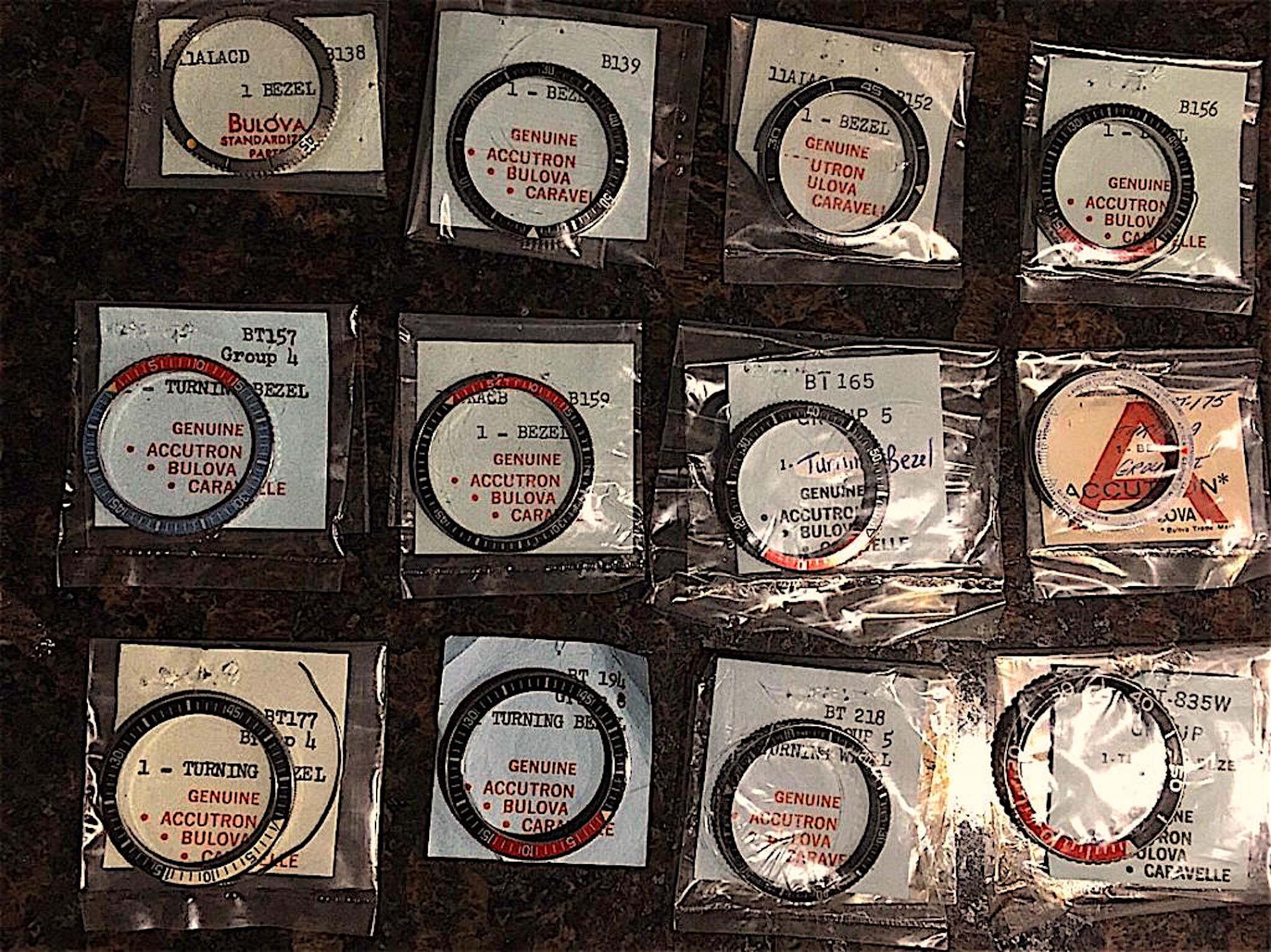

BEZELS and CHART GUIDE
bezels are not for sale informational purposes only

cf0aaeab3a22fd185b567190aa80fbc0.jpg 4be2676778a193bbd040c7805a41af4a.jpg
View attachment 1417016


MISC.: additional information

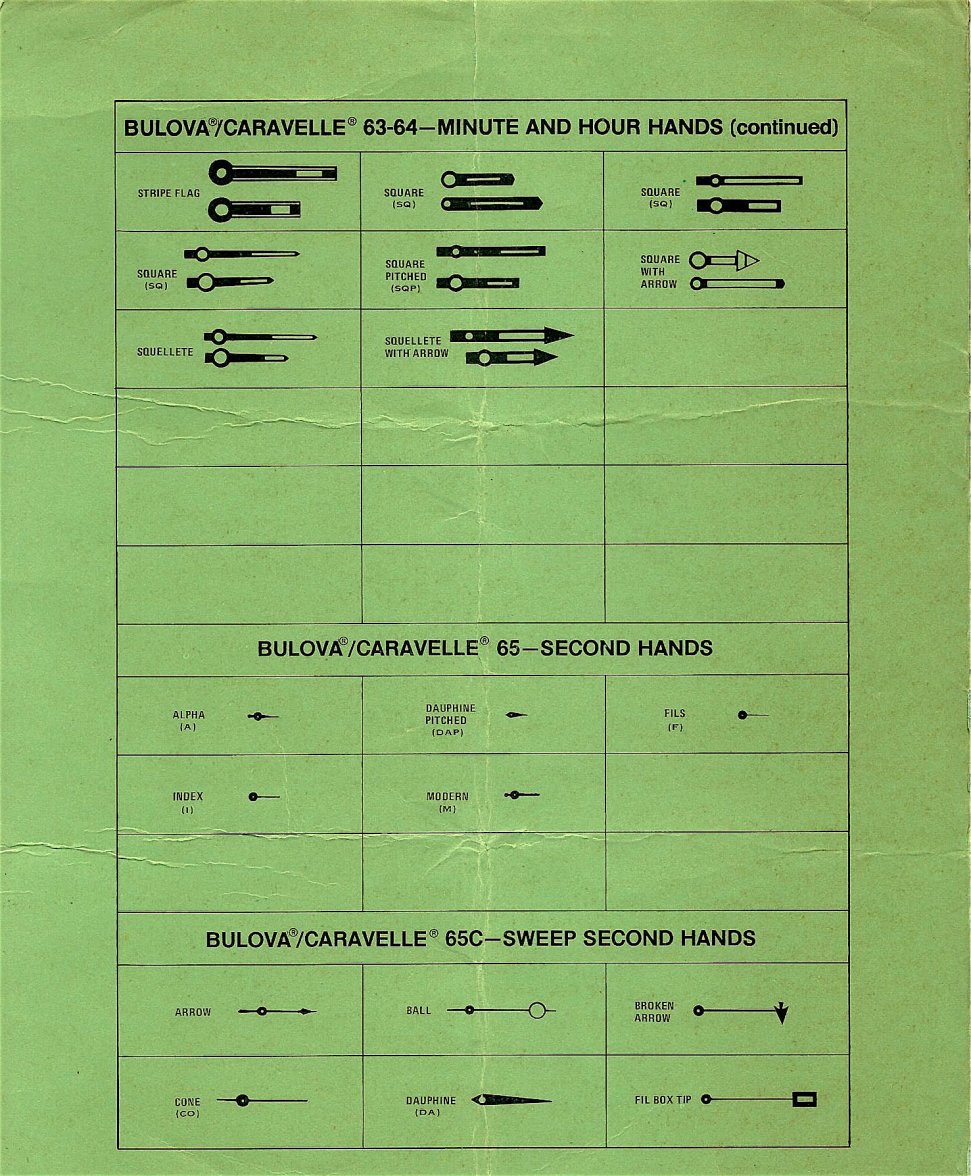

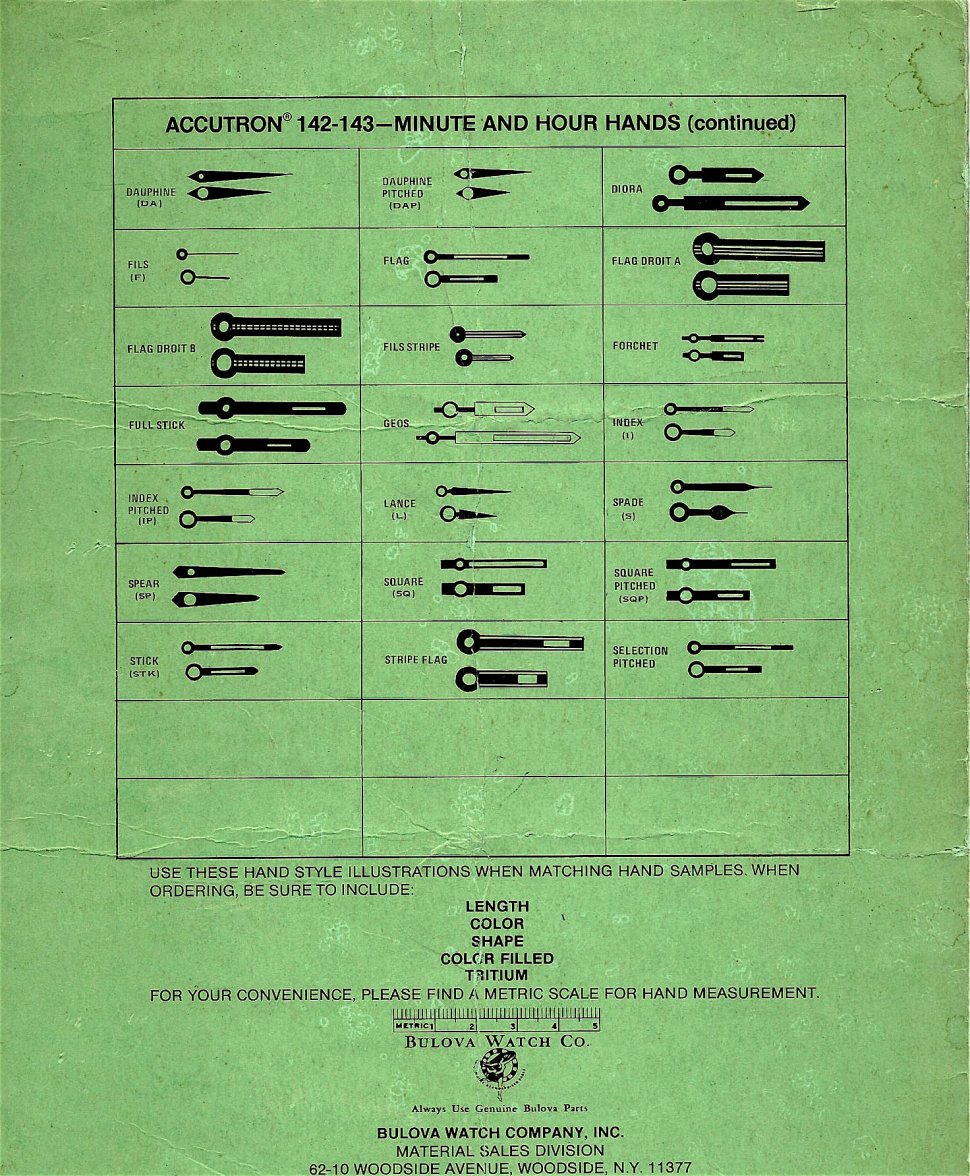

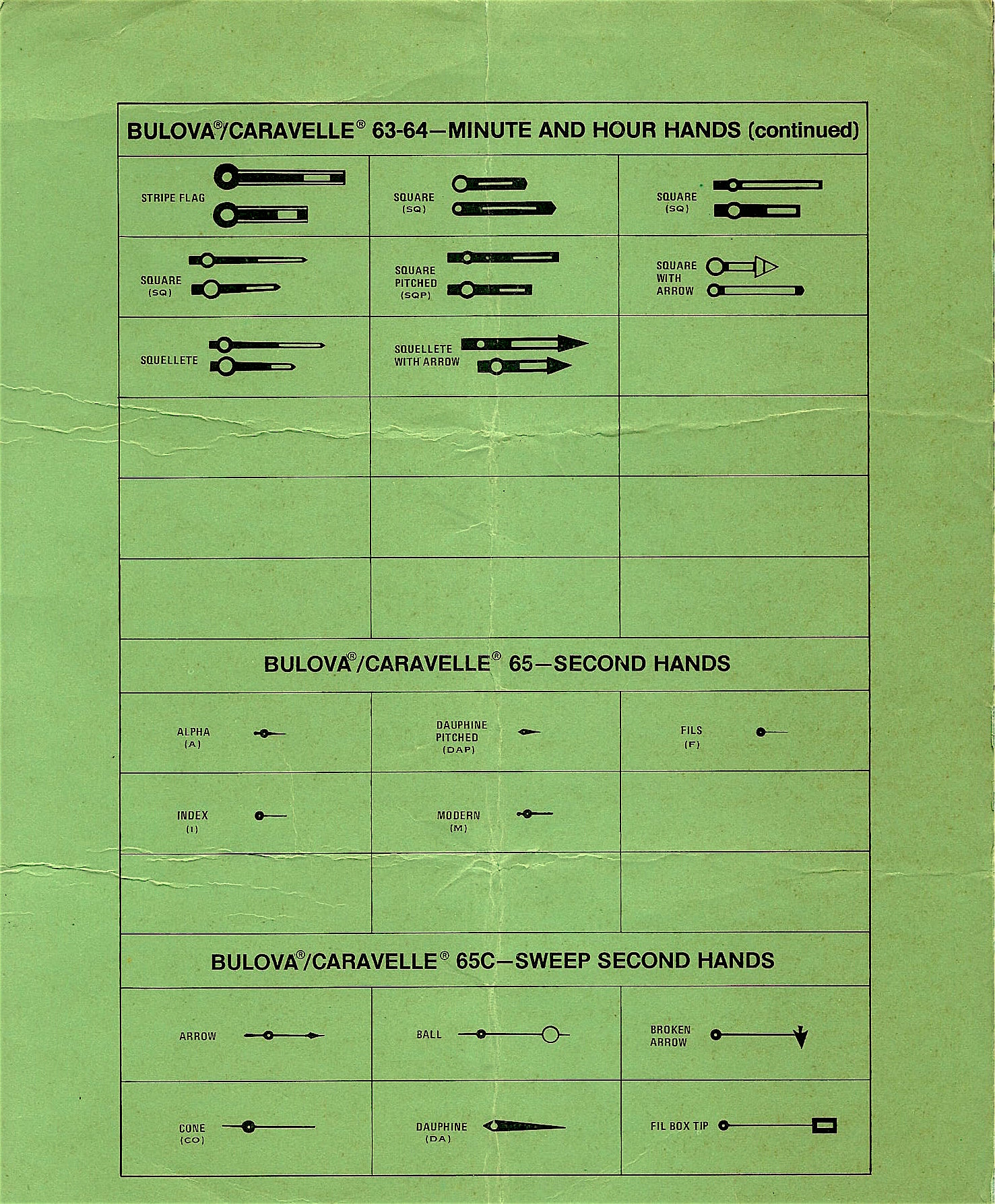

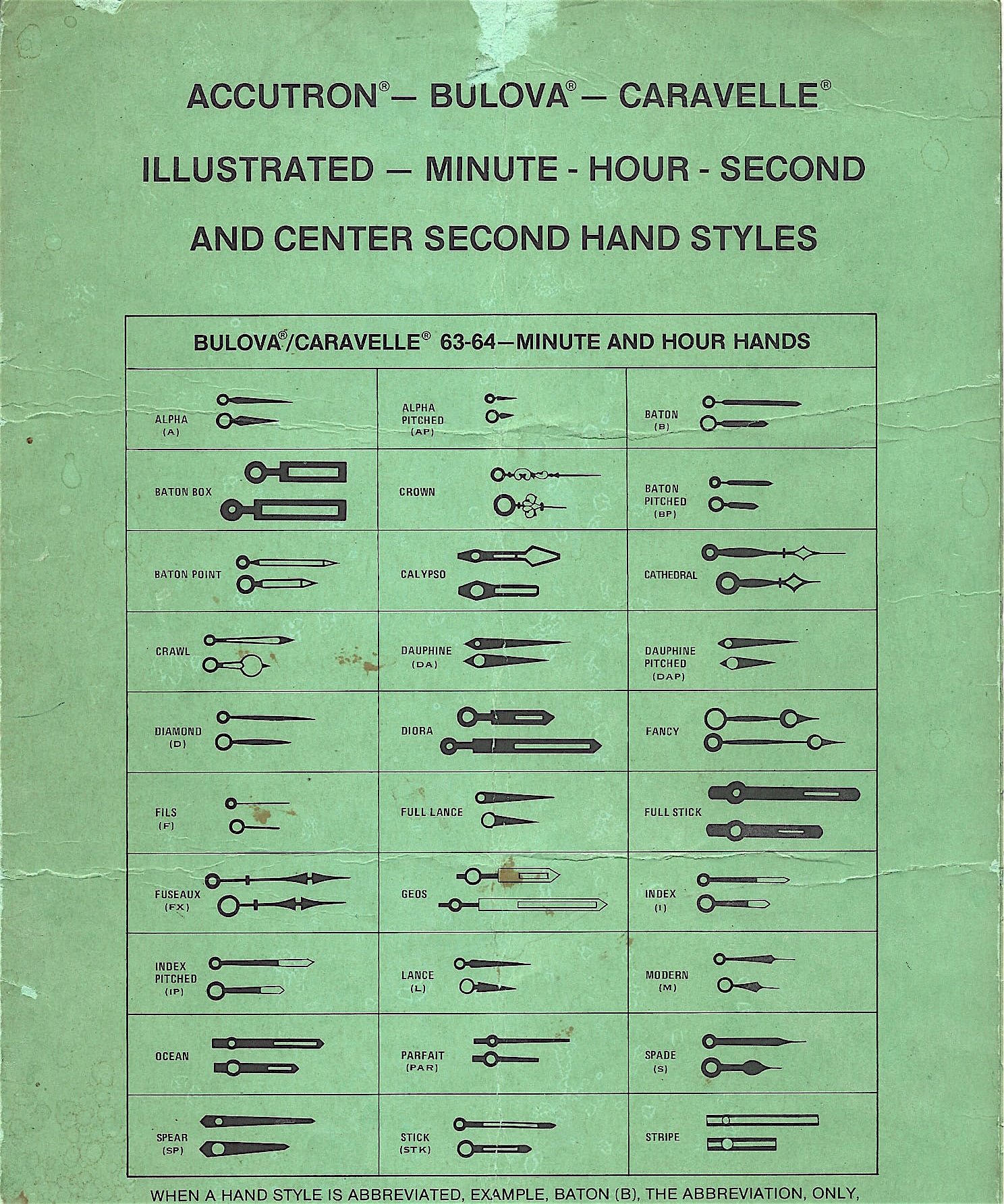

ILLUSTRATED - MINUTE - HOUR - SECOND - STYLES

192774071_10158277605299537_5519758457077742090_n.jpg 192120541_10158277605364537_525683427770259058_n.jpg
View attachment 1418227
Edited:

JwRosenthal
Posts
16,307
Likes
44,932
Yeah鈥ude鈥檚 a parts maniac. I thought my little stash was groovy- I ain鈥檛 got nothing on camu.

I have found crystals and crowns using factory parts numbers, but the bezels are indeed the most illusive.

hmmmcamu
Posts
2,889
Likes
15,763
JwRosenthal JwRosenthal
Yeah鈥ude鈥檚 a parts maniac. I thought my little stash was groovy- I ain鈥檛 got nothing on camu.

I have found crystals and crowns using factory parts numbers, but the bezels are indeed the most illusive.

ahhh my COHORT !!! how r U ??? 馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃槈馃槈馃槈馃槈馃槈馃槈馃槈馃槈馃槈

JwRosenthal
Posts
16,307
Likes
44,932
hmmmcamu hmmmcamu
ahhh my COHORT !!! how r U ??? 馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃槈馃槈馃槈馃槈馃槈馃槈馃槈馃槈馃槈
Was trying to catch up to you but you bought all the snorkels!

MoclovFlop
Posts
476
Likes
1,545

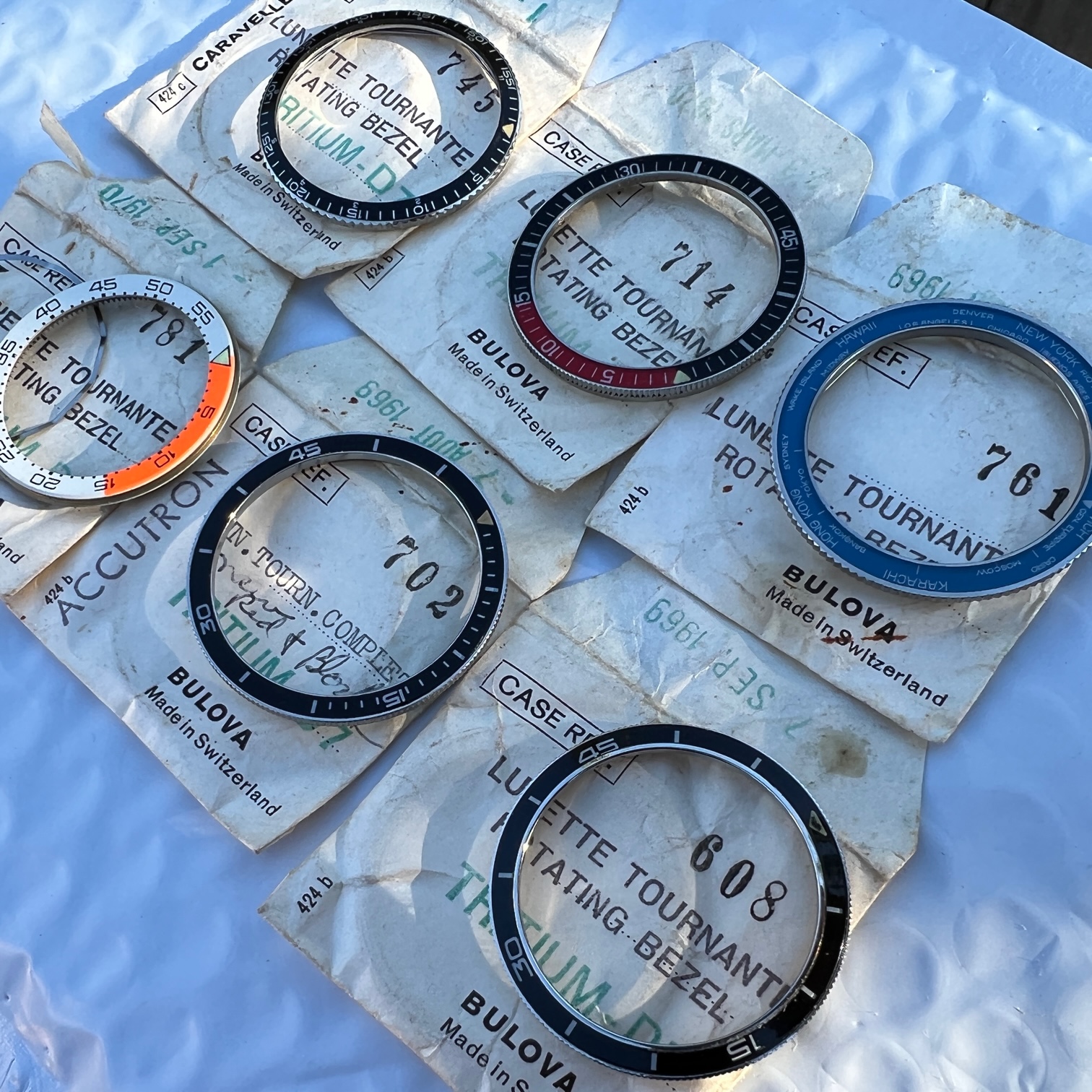

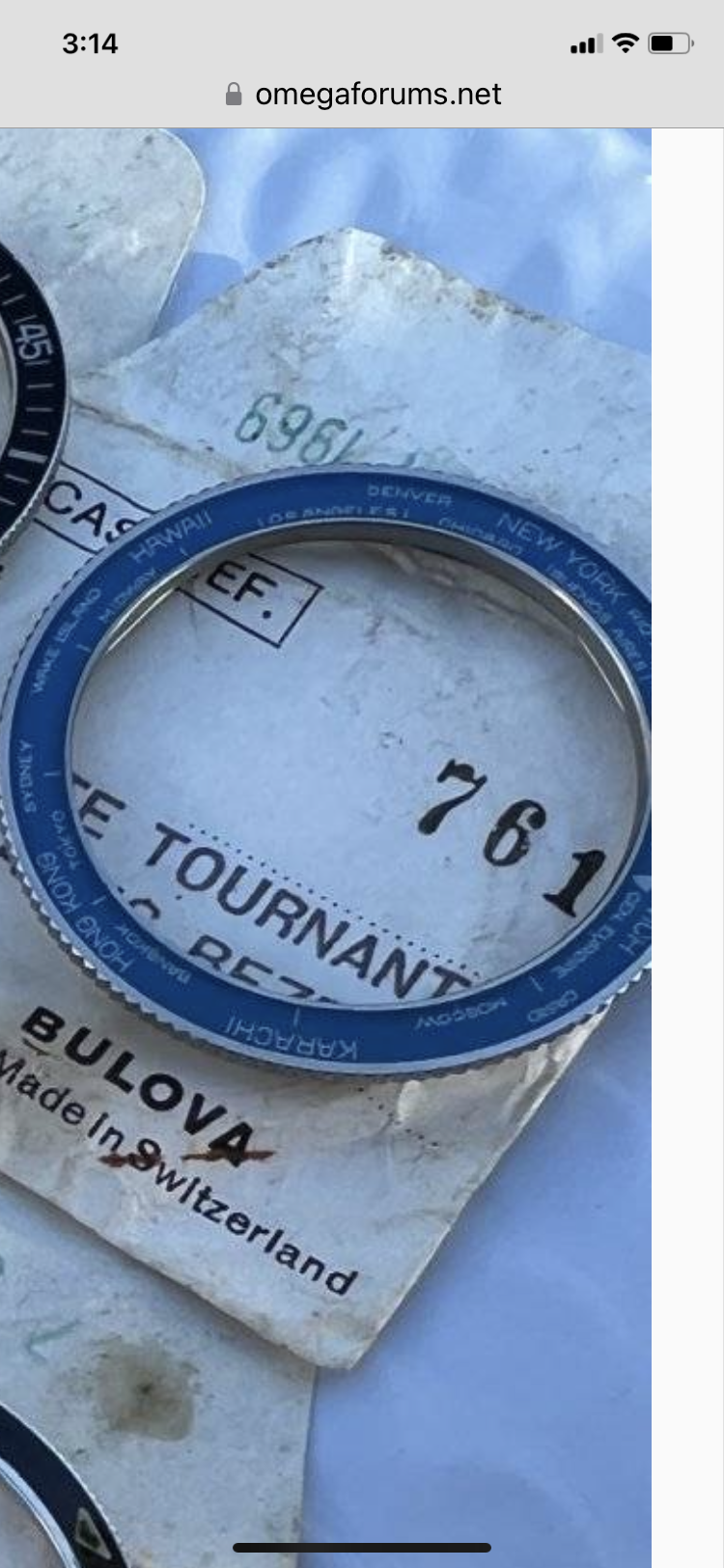

Here's my stash, alternate packaging and part numbers only tie back to case codes:


hmmmcamu
Posts
2,889
Likes
15,763
MoclovFlop MoclovFlop
Here's my stash, alternate packaging and part numbers only tie back to case codes:

馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾

MoclovFlop
Posts
476
Likes
1,545
hmmmcamu hmmmcamu
馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾

Haha, sorry to cause the eye rolling. Just adding to the database!

JwRosenthal
Posts
16,307
Likes
44,932
hmmmcamu hmmmcamu
馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃檮馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾馃榾
Oh, you are one to talk! 馃槈

Ron_W
Posts
1,050
Likes
1,953
Stashes everywhere it seems, must be a kartel 馃槙

JwRosenthal
Posts
16,307
Likes
44,932
Ron_W Ron_W
Stashes everywhere it seems, must be a kartel 馃槙
The vintage Rolex people know nothing about parts scarcity. Try collecting watches from a company that has for all intents and purposes been dead for 40 years.

Ron_W
Posts
1,050
Likes
1,953
Not into rolex so i wouldn`t know, and Bulova looks very much alive to me but if i ever need a deep sea bezel i know where to look for one.

JwRosenthal
Posts
16,307
Likes
44,932
Ron_W Ron_W
Not into rolex so i wouldn`t know, and Bulova looks very much alive to me but if i ever need a deep sea bezel i know where to look for one.
Bulova is currently owned by Citizen and I鈥檓 a big fan of the reissues they are doing. But sadly they have no link to the original Bulova and there hasn鈥檛 been support or parts for vintage Bulova for decades. Thus the hoarding.
