I've serviced this movement a few times and the rotor is a common problem.
The rotor has a brass bushing that sits on a steel axle (on the automatic bridge of the movement). If not serviced for a long time, the brass bushing will wear out, the rotor will start having up/down play and eventually start rubbing on the edges of the movement (or caseback). It's an easy fix to replace the bushing IF you can get one. Omega doesn't sell the anymore. Even accredited Omega watchmakers apparently need to send in the old/worn axle in order to get a refurbished one.

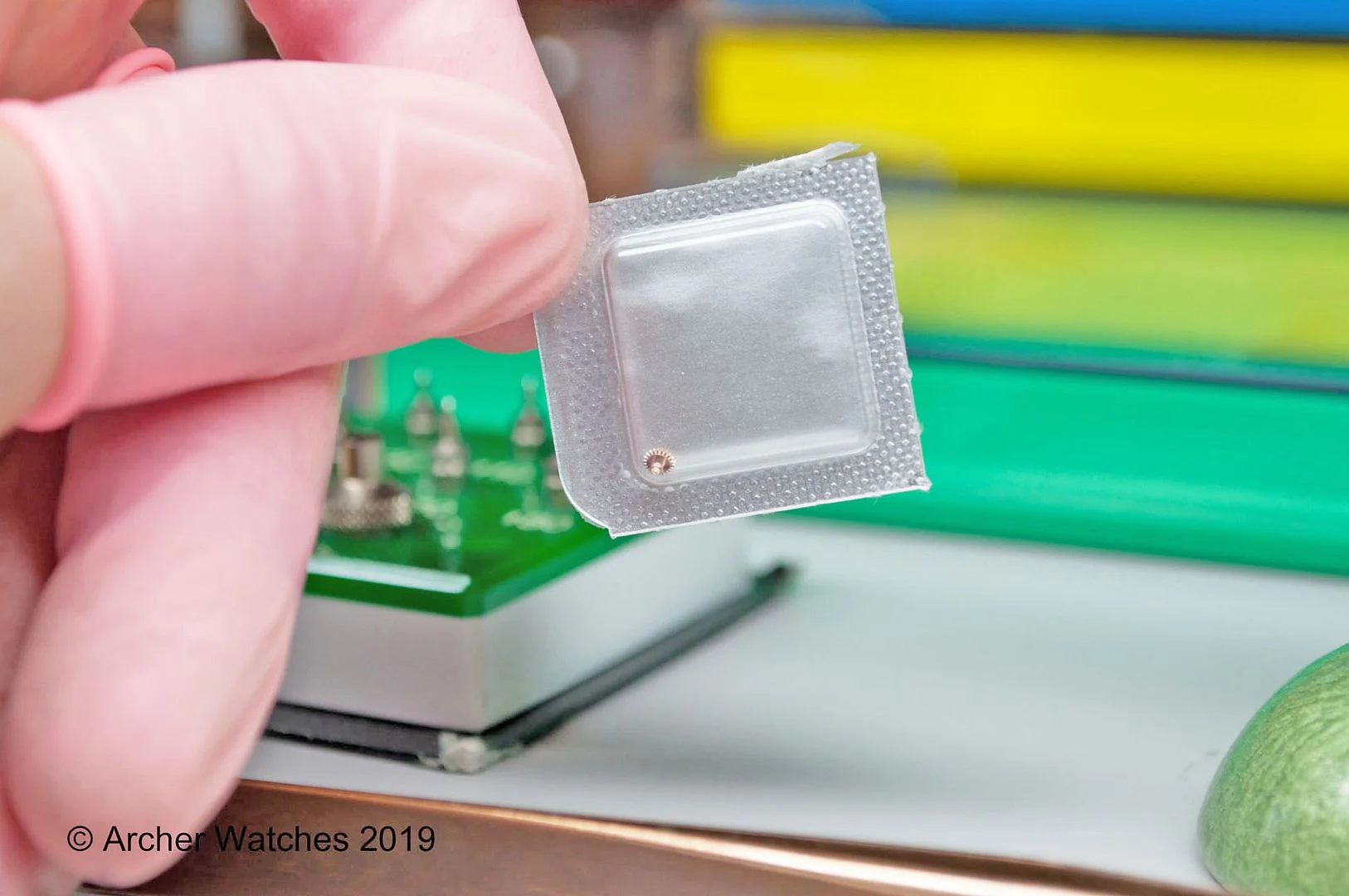

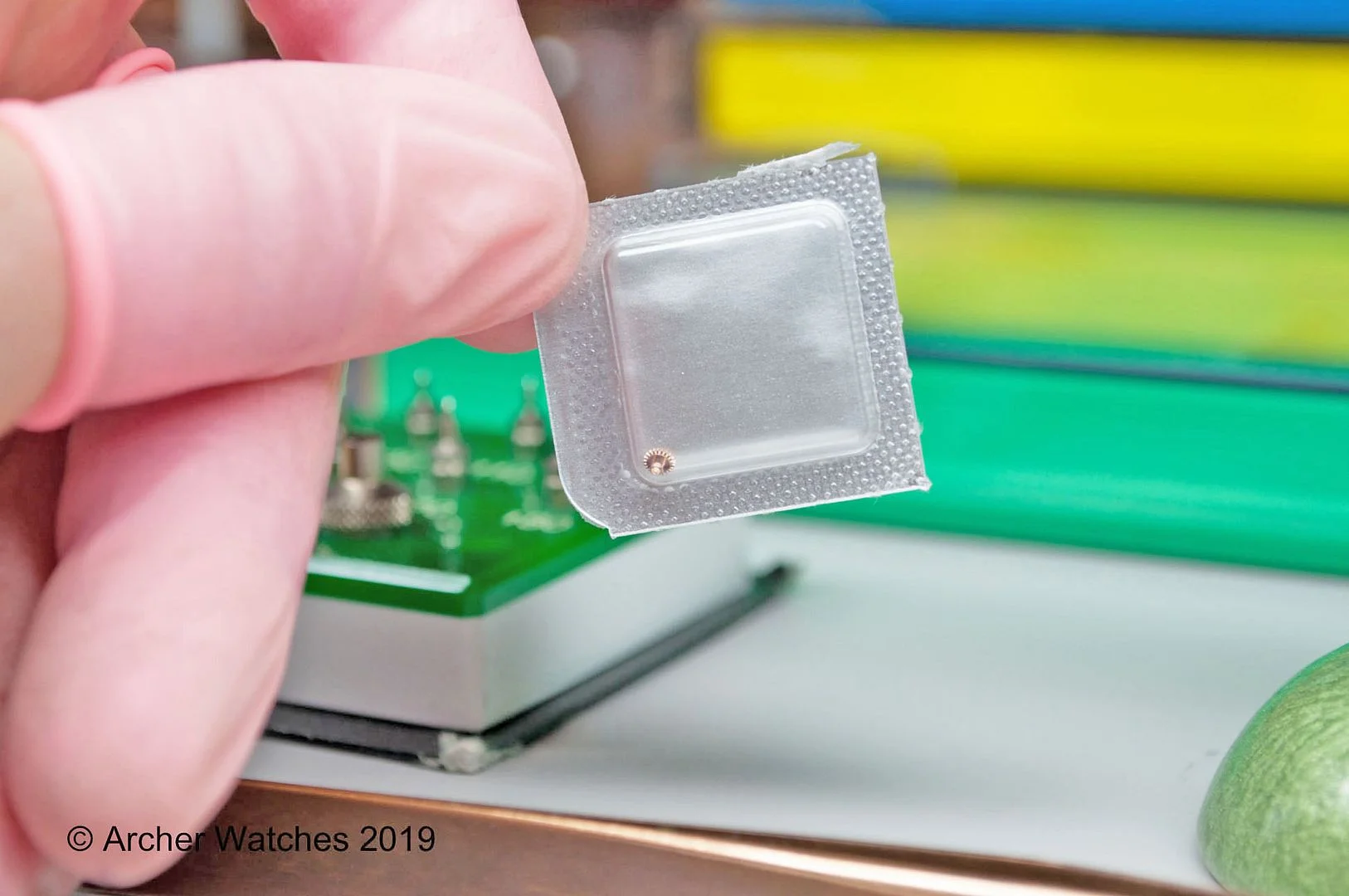

Not the case at all. The rotor pinion can still be purchased from Omega by Omega certified watchmakers. Part number is 72205501429. I buy these and replace them regularly...

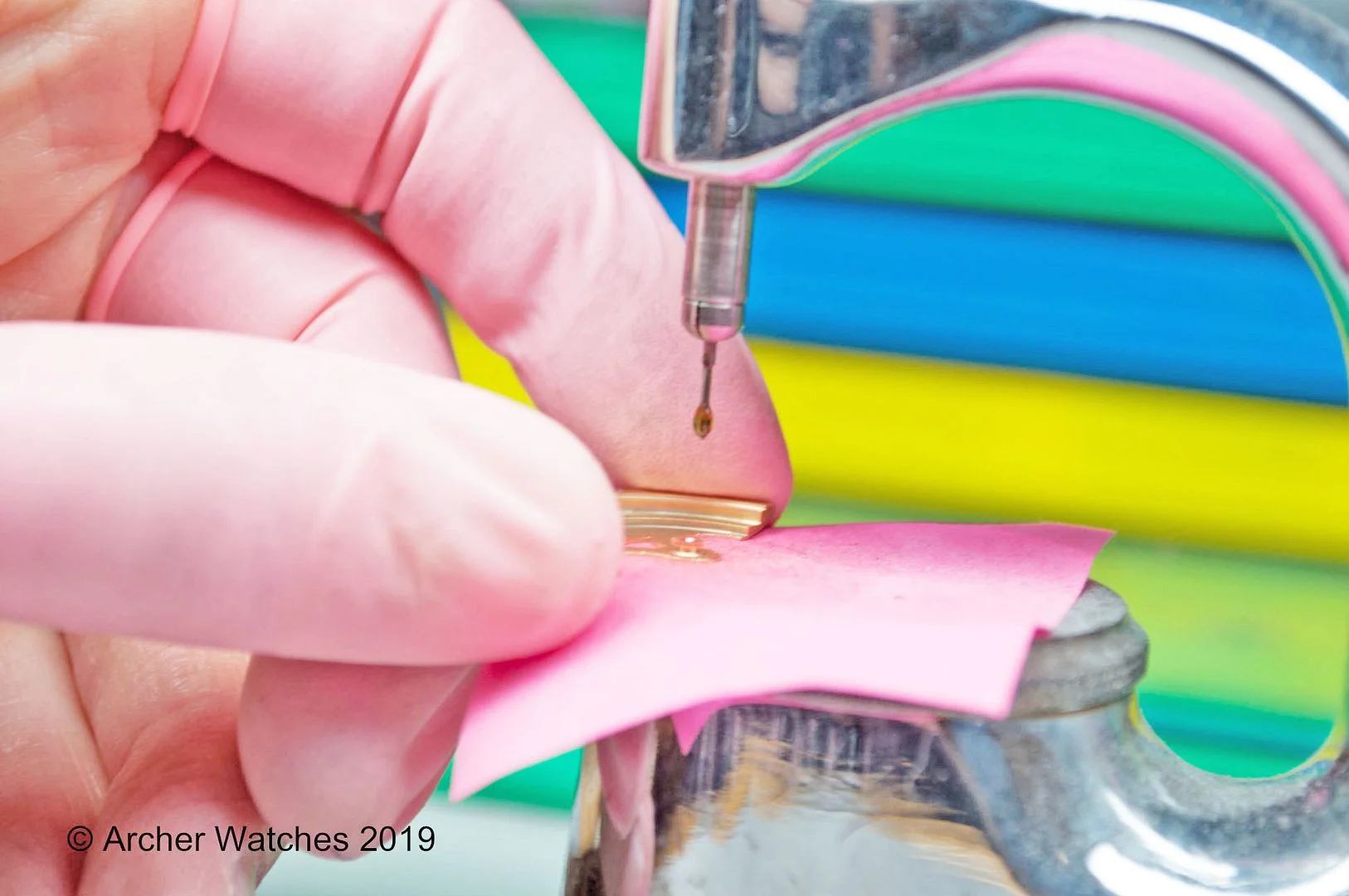

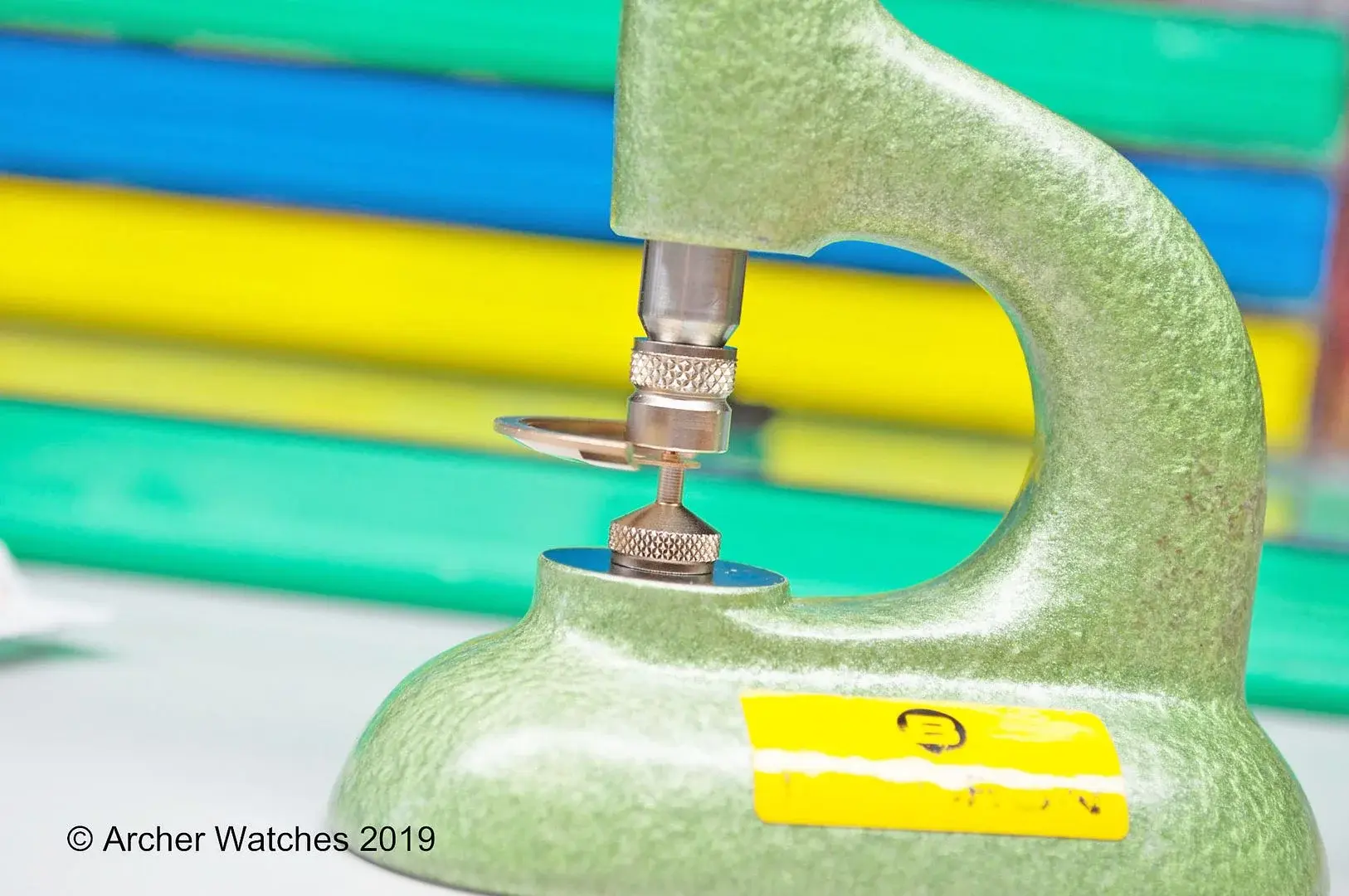

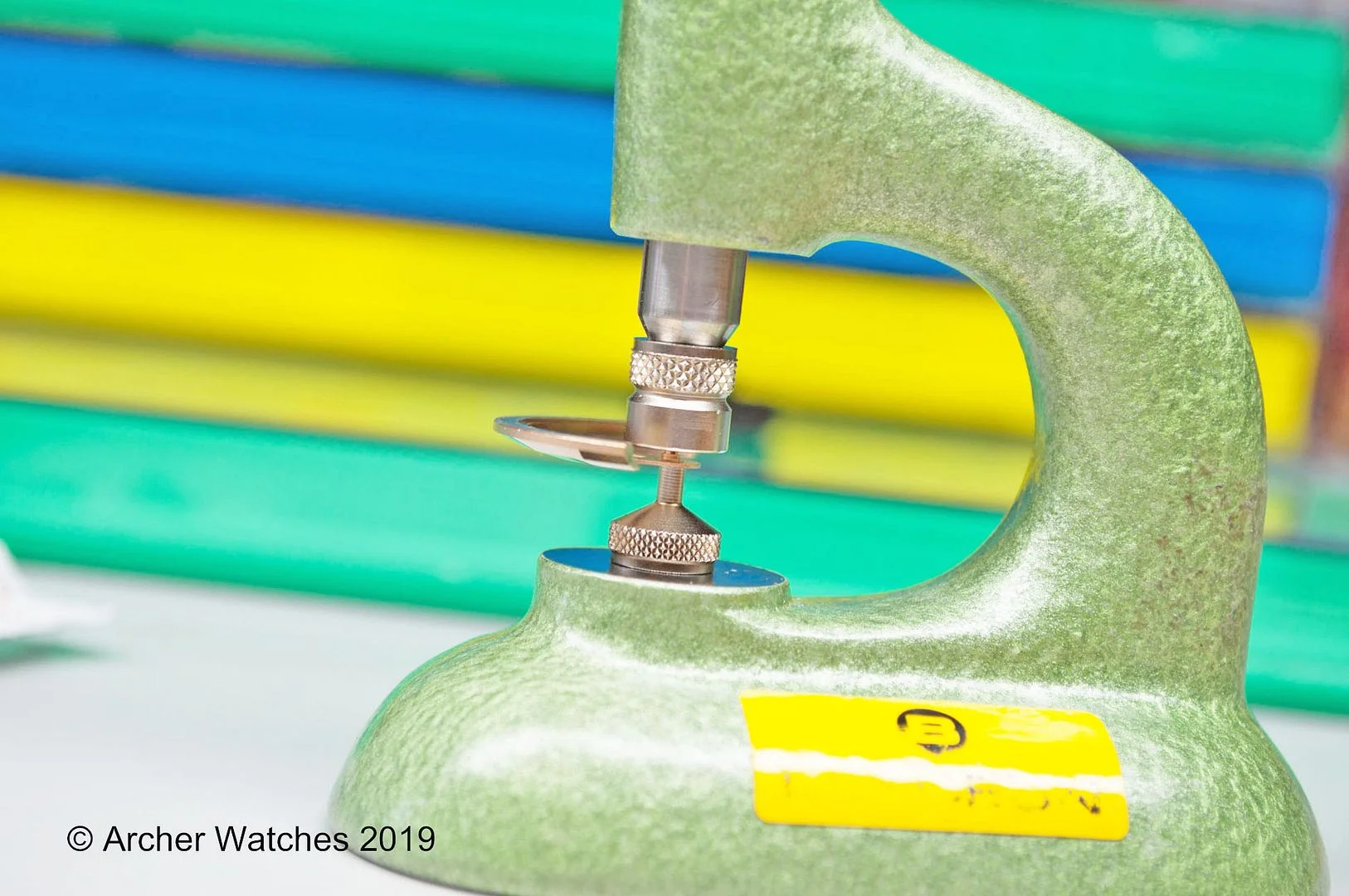

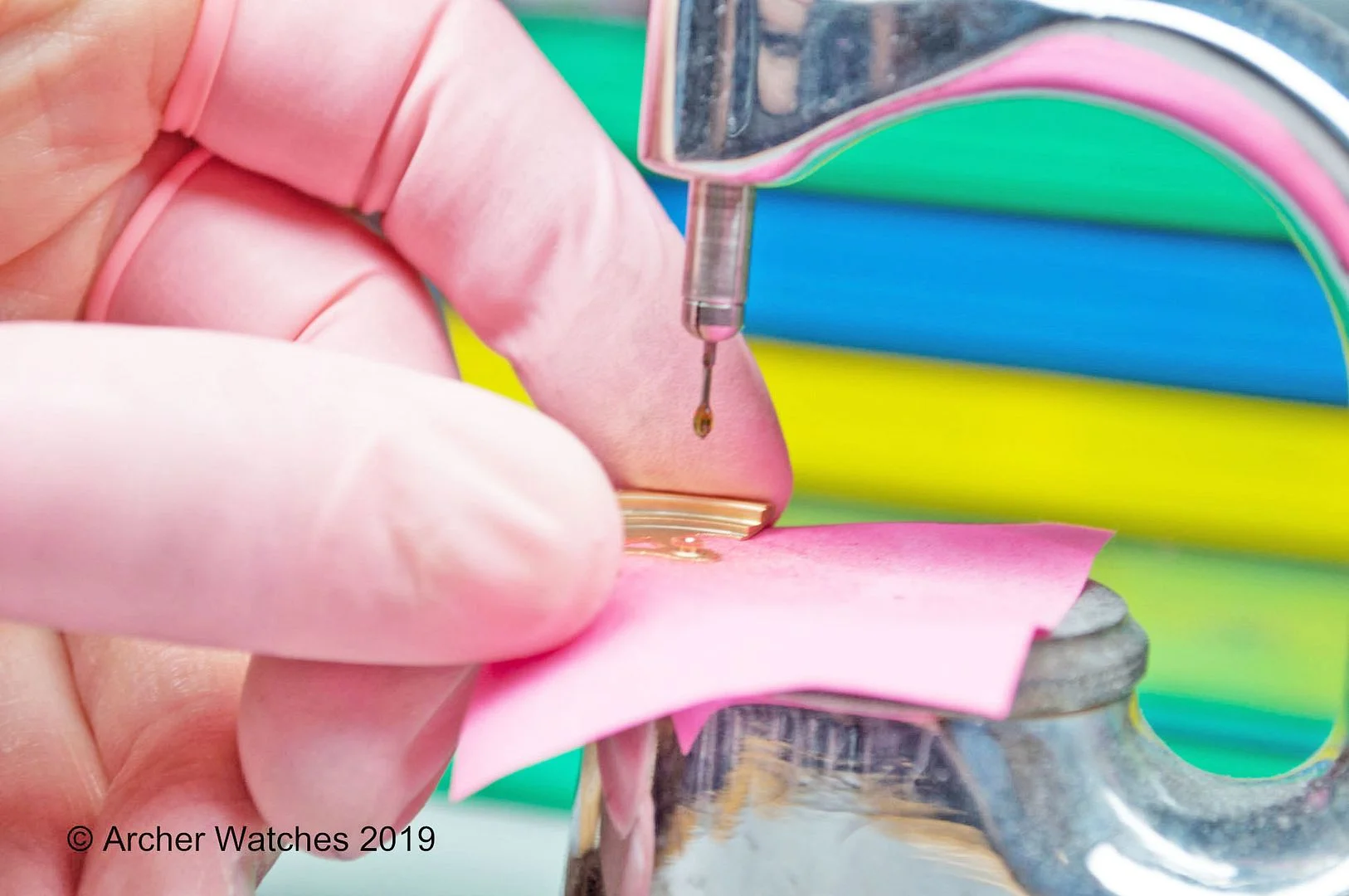

They need to be reamed to final size using a straight reamer (not a cutting broach, which is tapered) - Omega sells the reamer as well:


Posts
43
Likes
78
Not the case at all. The rotor pinion can still be purchased from Omega by Omega certified watchmakers. Part number is 72205501429. I buy these and replace them regularly...



They need to be reamed to final size using a straight reamer (not a cutting broach, which is tapered) - Omega sells the reamer as well:


Ahhh, the legendary @Archer is replying to me 😀 An honor, Sir!
In fact, I've followed your guidance as a forum "lurker" to replace these bushings in the rotor. I'm an "advanced hobbyist", and had to find NOS parts in the open market.
I read from another watchmaker that even the Omega certified watchmakers had to send the old/used part back to Omega before getting a new one. Or is that the case for the reversing wheels (550 -1464) and I got confused? Anyway, I know that you will be right!

Posts
28,037
Likes
71,566
Ahhh, the legendary @Archer is replying to me 😀 An honor, Sir!
In fact, I've followed your guidance as a forum "lurker" to replace these bushings in the rotor. I'm an "advanced hobbyist", and had to find NOS parts in the open market.
I read from another watchmaker that even the Omega certified watchmakers had to send the old/used part back to Omega before getting a new one. Or is that the case for the reversing wheels (550 -1464) and I got confused? Anyway, I know that you will be right!
Yes, it's the reversing wheels ("winding wheel" is the name they use in this movement). The reason for that is that the wheels are rebuilt, so no brand new wheels are available, and the only wheels that you can buy direct from Omega are remanufactured. When they announced this change a number of years ago, I quickly bought a supply of the remaining new wheels they had so I have a buffer. I can save up a bunch of old wheels and then send in a mass exchange, rather than have to send one in every time.

Glad my posts have been helpful, and if you ever have a specific question, let me know.

Posts
43
Likes
78
Yes, it's the reversing wheels ("winding wheel" is the name they use in this movement). The reason for that is that the wheels are rebuilt, so no brand new wheels are available, and the only wheels that you can buy direct from Omega are remanufactured. When they announced this change a number of years ago, I quickly bought a supply of the remaining new wheels they had so I have a buffer. I can save up a bunch of old wheels and then send in a mass exchange, rather than have to send one in every time.

Glad my posts have been helpful, and if you ever have a specific question, let me know.
Ok, then I wasn't going crazy but only a bit mixed-up 😀

Thanks! I will definitely annoy you will questions at some point. So far, Omega's have been good to me in terms of servicing them. They're great quality.
